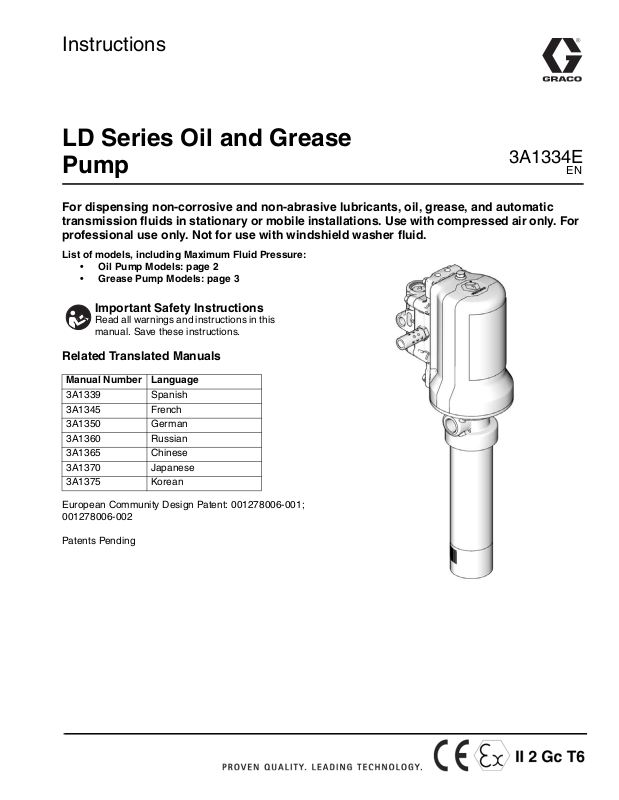

Graco 3A1334E User Manual

Instructions

LD Series Oil and Grease
Pump

For dispensing non-corrosive and non-abrasive lubricants, oil, grease, and automatic
transmission fluids in stationary or mobile installations. Use with compressed air only. For
professional use only. Not for use with windshield washer fluid.

List of models, including Maximum Fluid Pressure:

• Oil Pump Models: page 2

• Grease Pump Models: page 3

Important Safety Instructions

Read all warnings and instructions in this
manual. Save these instructions.

3A1334E

EN

Related Translated Manuals

Manual Number Language

3A1339 Spanish
3A1345 French
3A1350 German
3A1360 Russian
3A1365 Chinese
3A1370 Japanese
3A1375 Korean

European Community Design Patent: 001278006-001;
001278006-002

Patents Pending

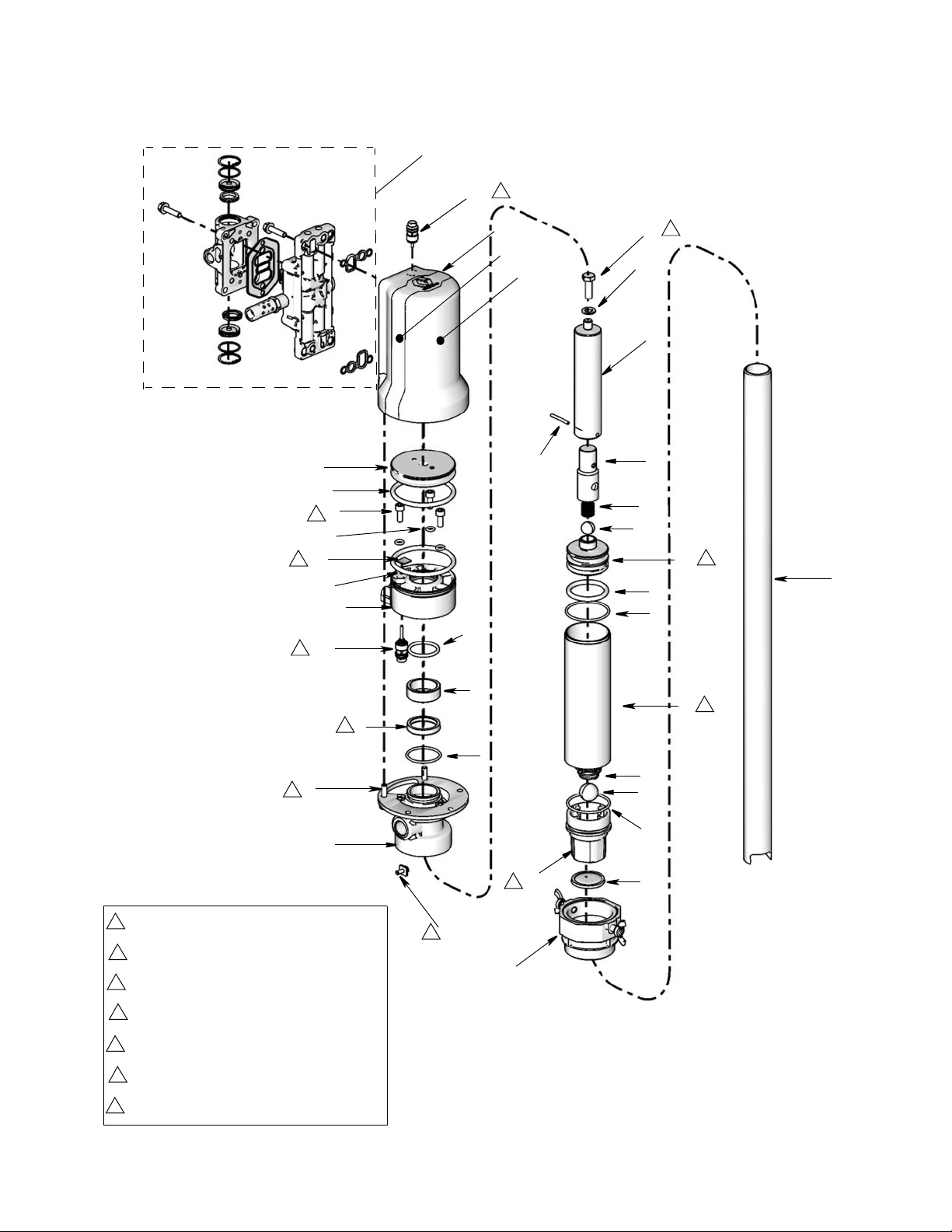

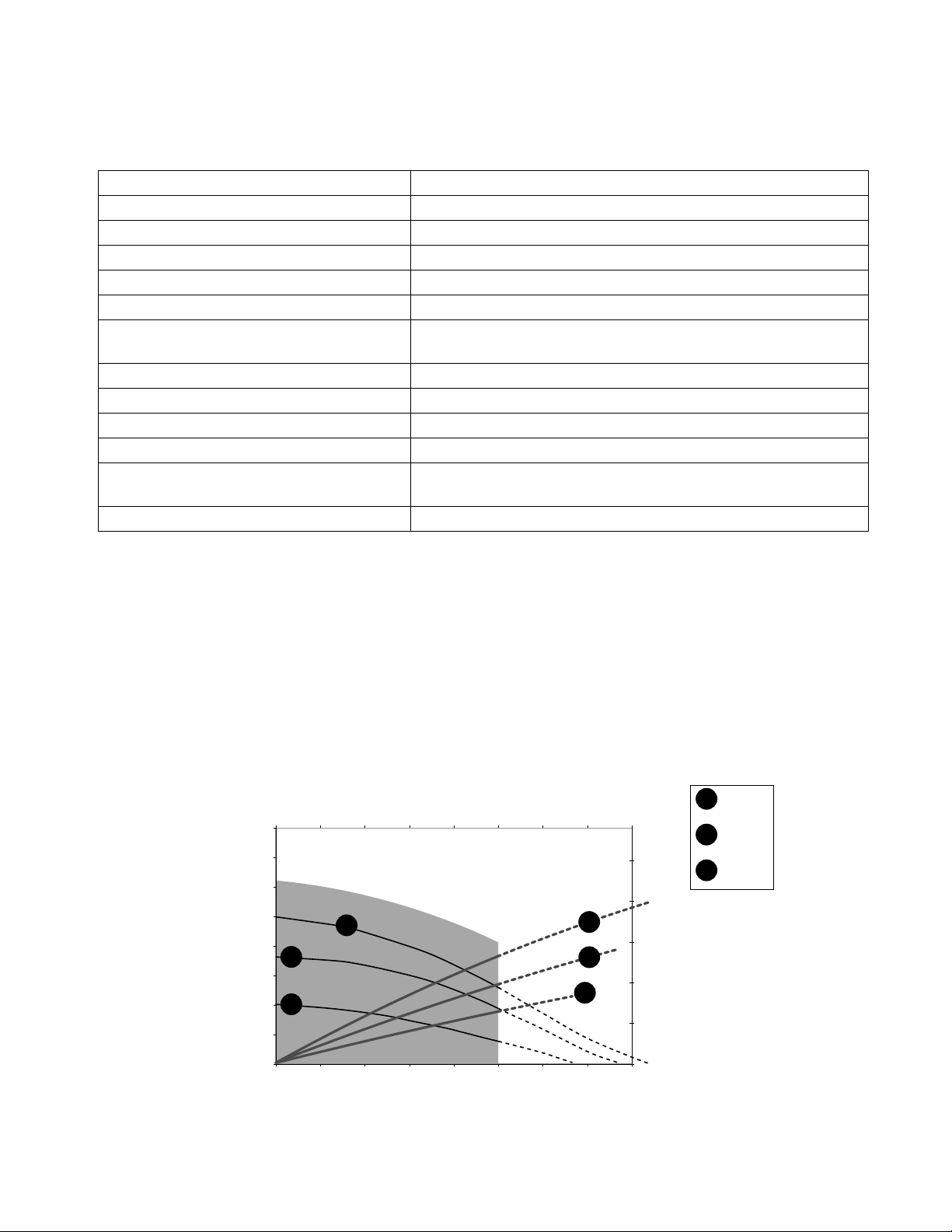

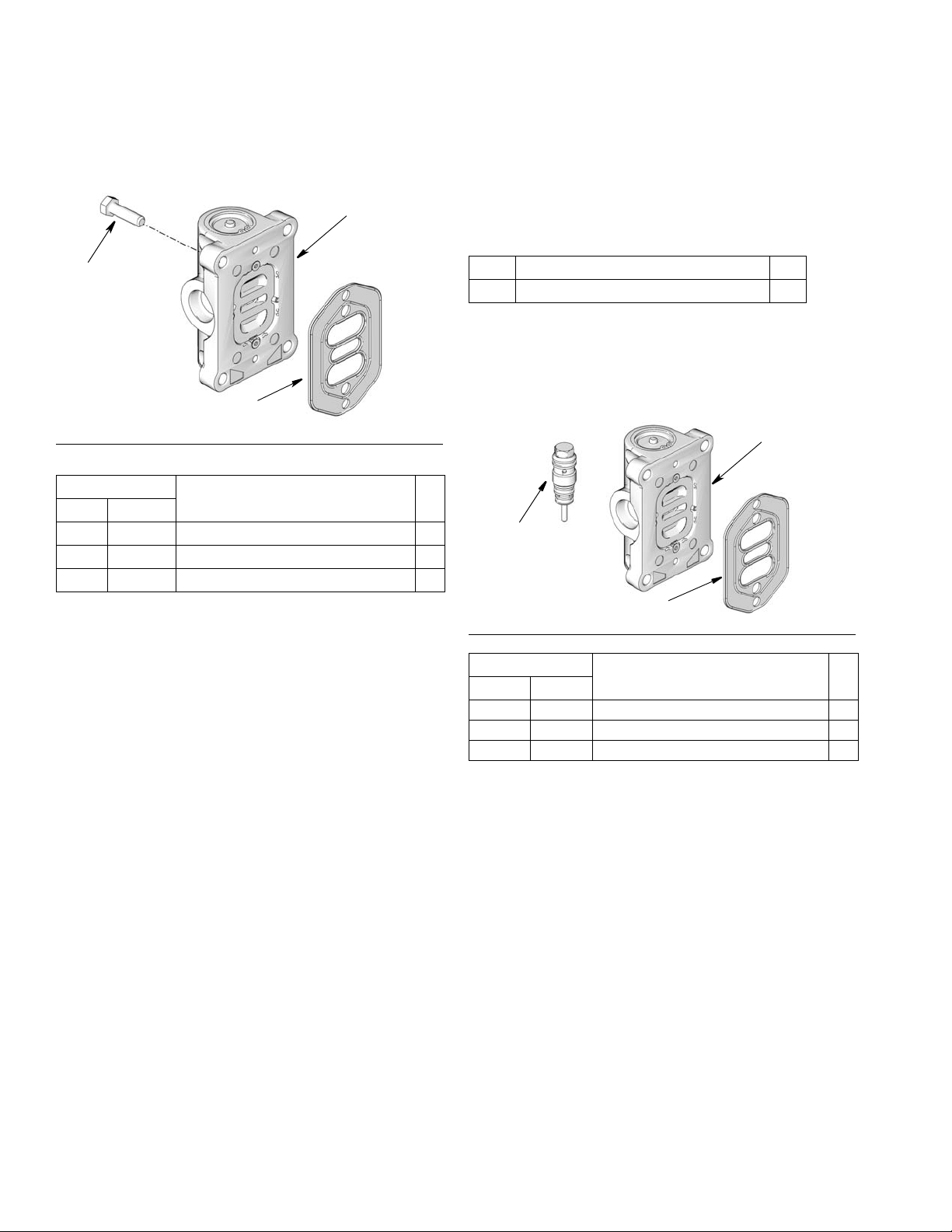

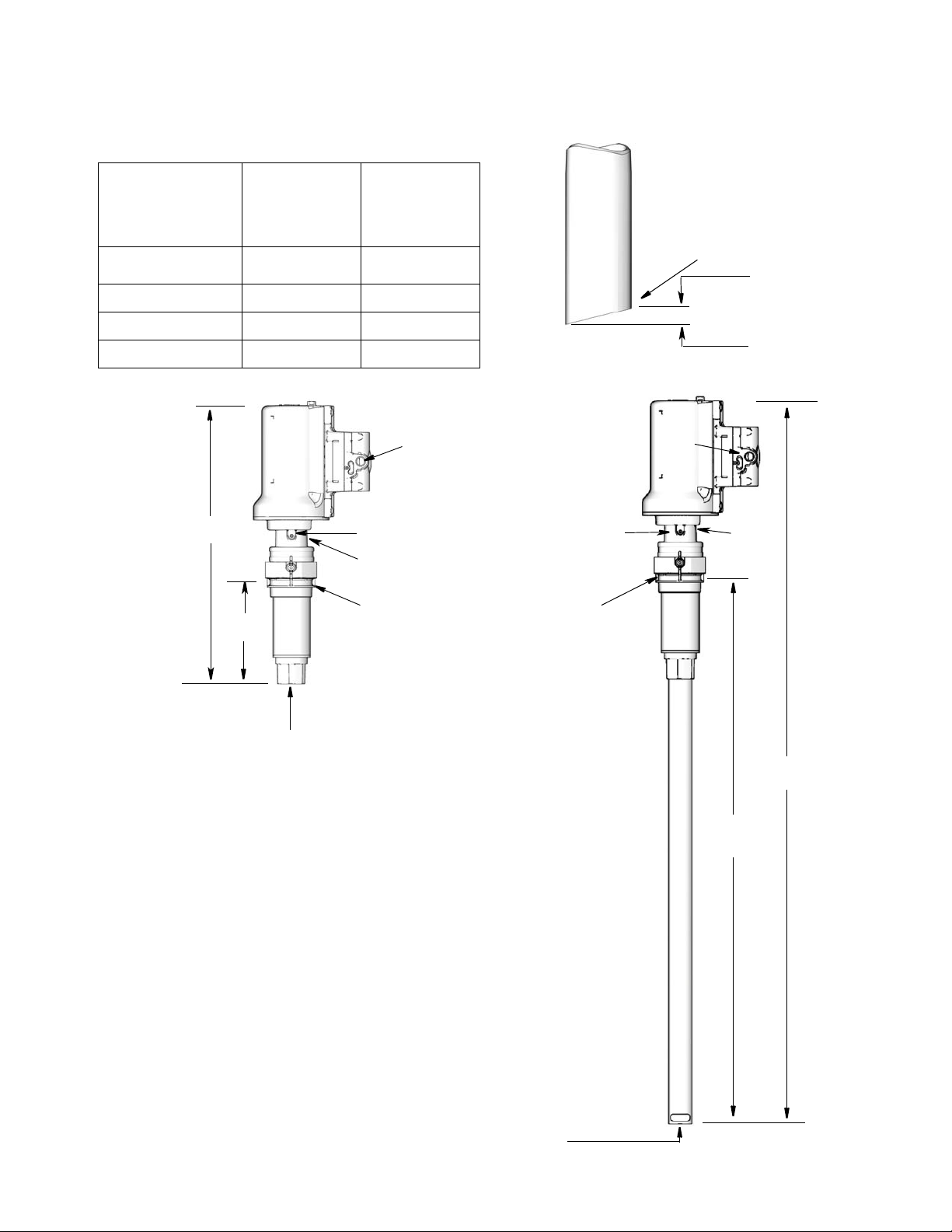

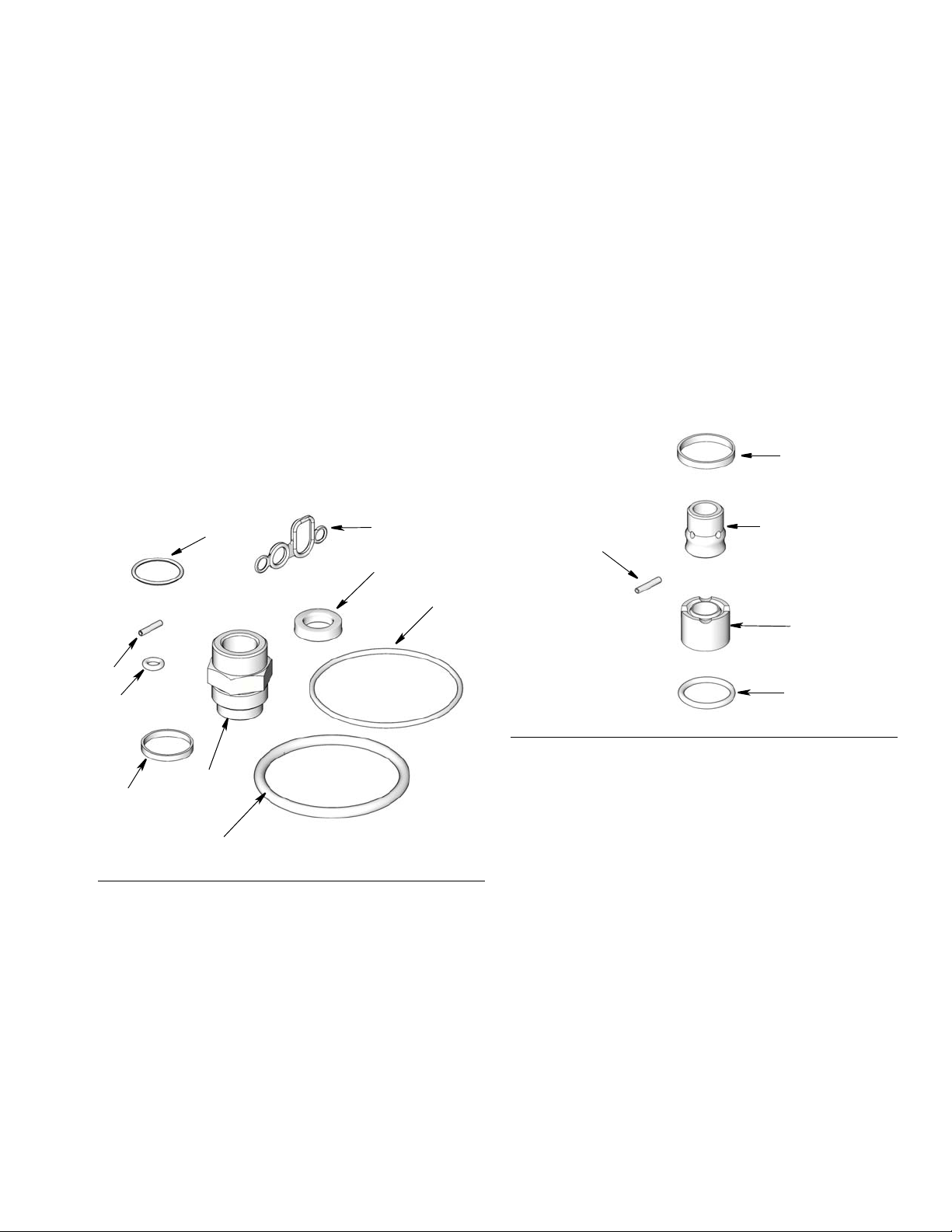

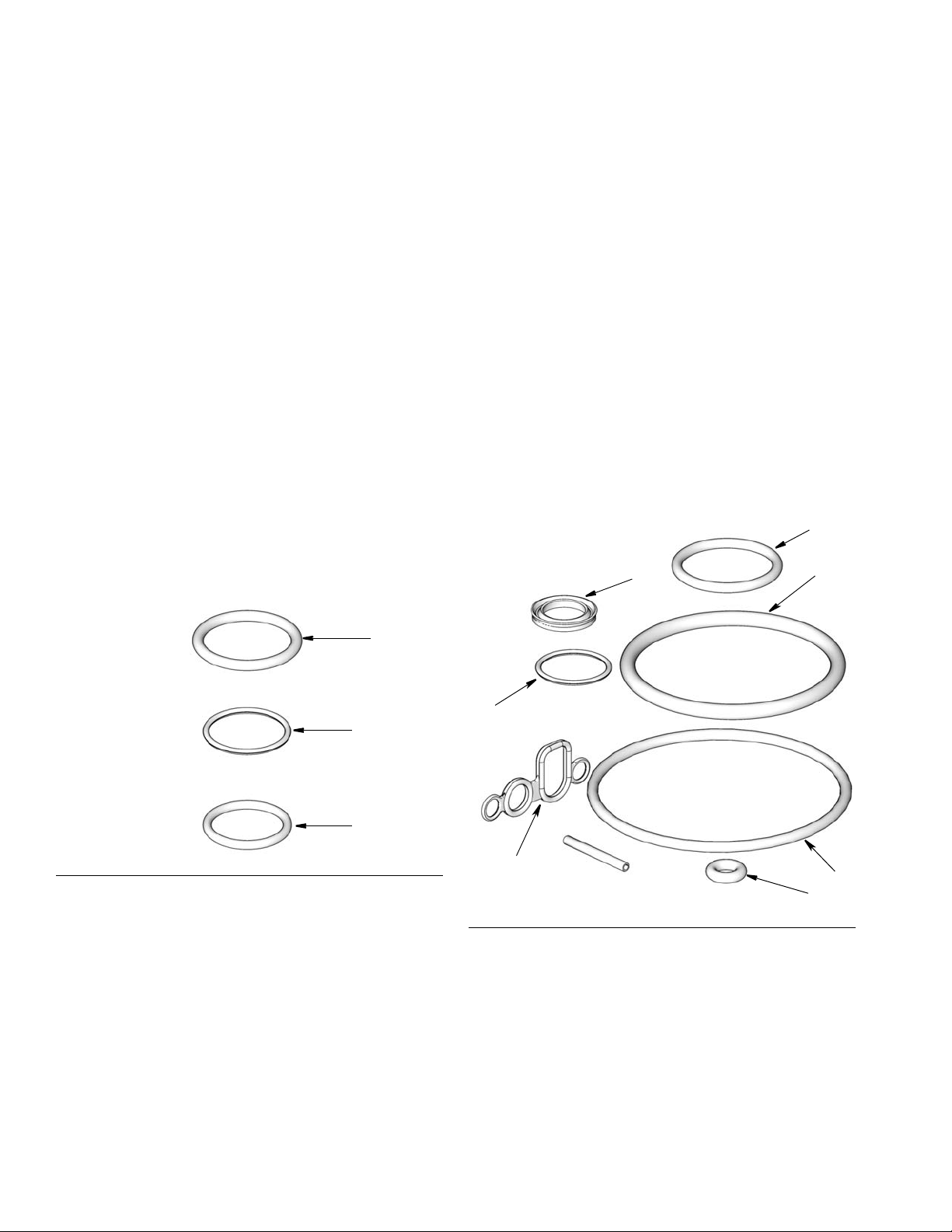

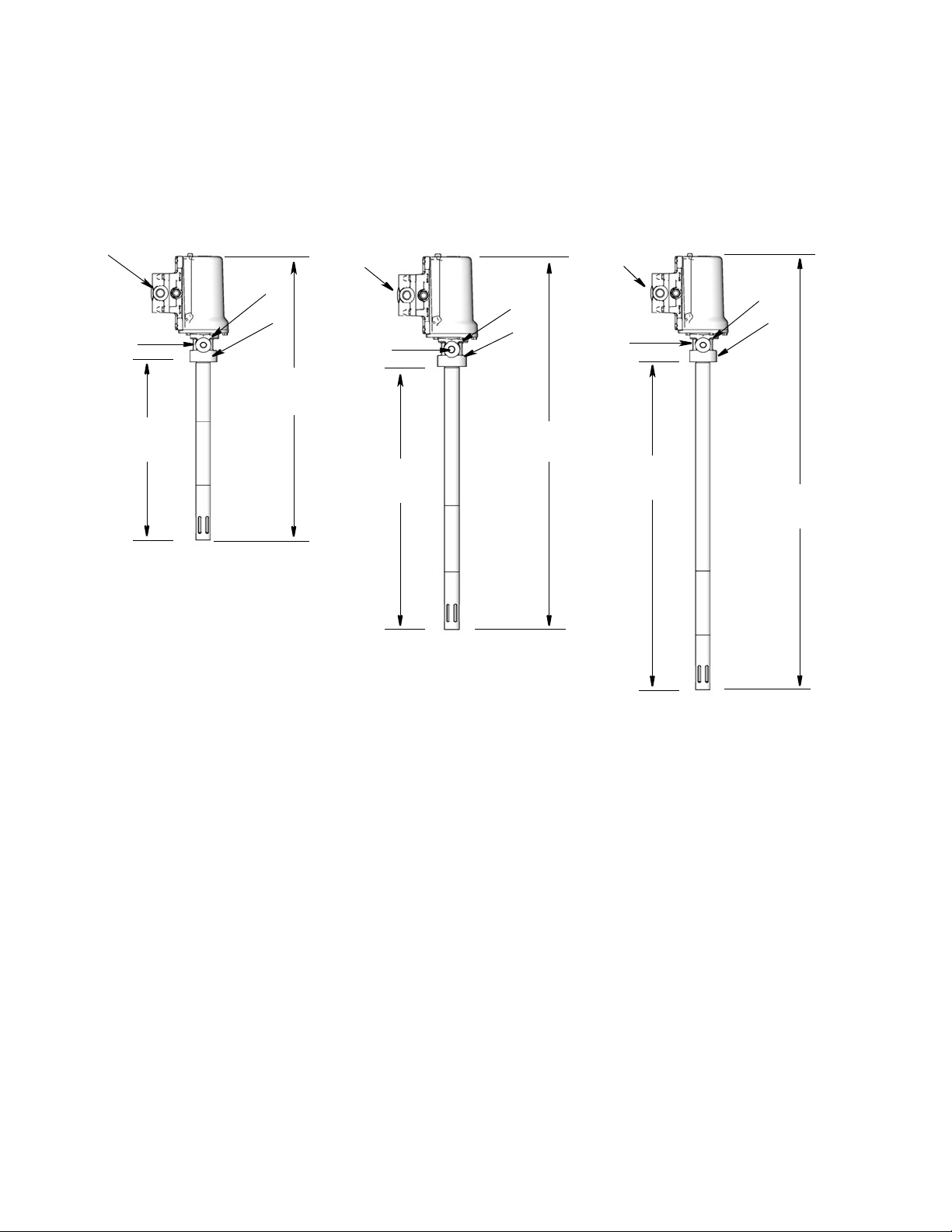

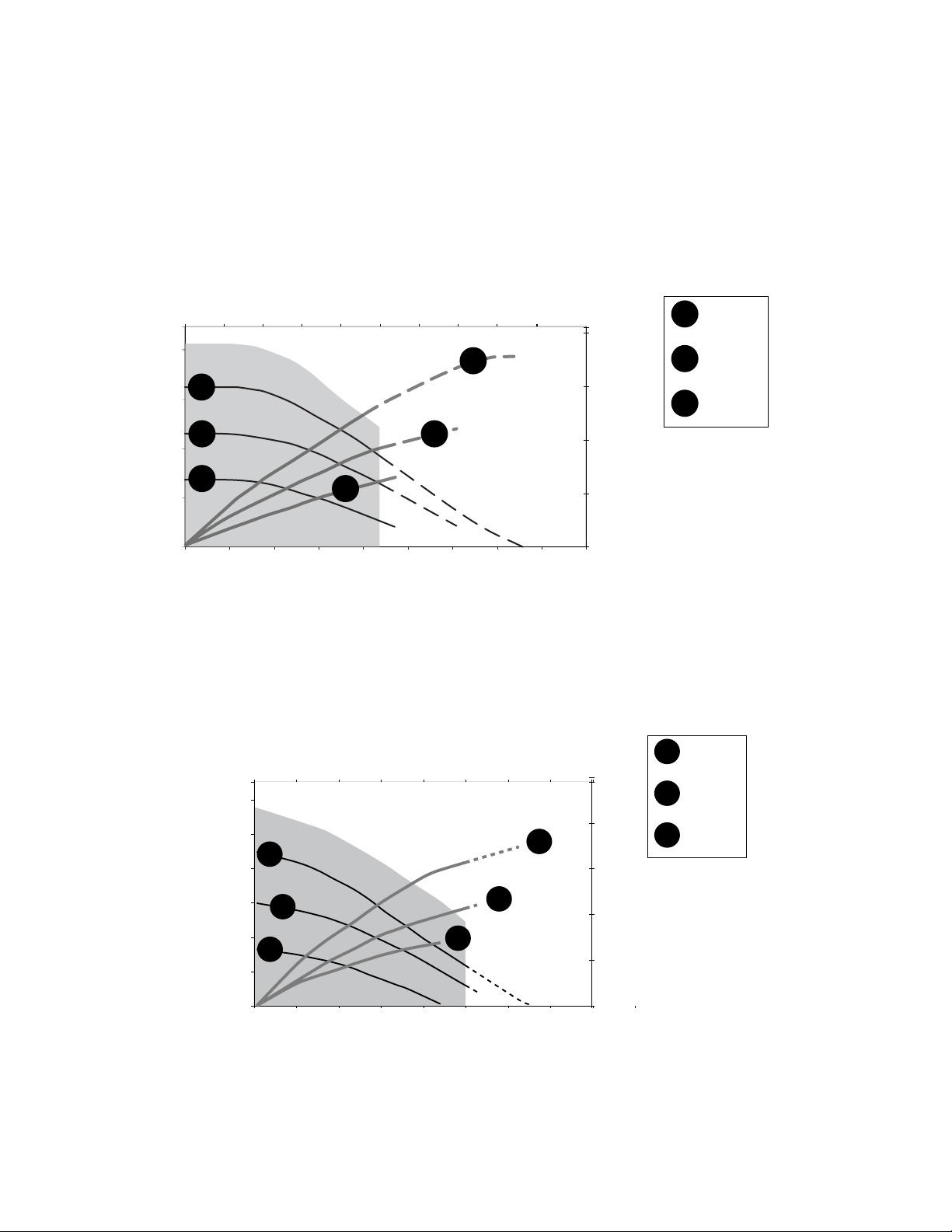

Oil Pump Models

Oil Pump Models

All oil models include a 2” npt(m) bung adapter.

PN Description Max air pressure Max Fluid Pressure

3:1 PUMPS psi Mpa bar psi Mpa bar

24G576 Universal 150 1.03 10.3 750 5.17 51.7

24G577 Universal 150 1.03 10.3 750 5.17 51.7

24G578 Universal 150 1.03 10.3 750 5.17 51.7

24G579* Multilength 150 1.03 10.3 750 5.17 51.7

24G580* Multilength 150 1.03 10.3 750 5.17 51.7

24G581* Multilength 150 1.03 10.3 750 5.17 51.7

24G582* 200L (55gal) drum 150 1.03 10.3 750 5.17 51.7

24G583* 200L (55gal) drum 150 1.03 10.3 750 5.17 51.7

24G584* 200L (55gal) drum 150 1.03 10.3 750 5.17 51.7

24G585* 1040 liter (275gal) tote 150 1.03 10.3 750 5.17 51.7

24G586* 1040 liter (275gal) tote 150 1.03 10.3 750 5.17 51.7

24G587* 1040 liter (275gal) tote 150 1.03 10.3 750 5.17 51.7

5:1 PUMPS psi Mpa bar psi Mpa bar

24G588 Universal 150 1.03 10.3 750 5.17 51.7

24G589 Universal 150 1.03 10.3 750 5.17 51.7

24G590 Universal 150 1.03 10.3 750 5.17 51.7

24G591* 5:1 Multilength 150 1.03 10.3 750 5.17 51.7

24G592* 5:1 Multilength 150 1.03 10.3 750 5.17 51.7

24G593* 5:1 Multilength 150 1.03 10.3 750 5.17 51.7

24G594* 200L (55gal) drum 150 1.03 10.3 750 5.17 51.7

24G595* 200L (55gal) drum 150 1.03 10.3 750 5.17 51.7

24G596* 200L (55gal) drum 150 1.03 10.3 750 5.17 51.7

24G597* 1040 liter (275gal) tote 150 1.03 10.3 750 5.17 51.7

24G598* 1040 liter (275gal) tote 150 1.03 10.3 750 5.17 51.7

24G599* 1040 liter (275gal) tote 150 1.03 10.3 750 5.17 51.7

* Includes universal pump and down tube, packaged separately.

Air inlet

1/4"-18
NPT

1/4"-19
BSPP

1/4"-19
BSPT

1/4"-18
NPT

1/4"-19
BSPP

1/4"-19
BSPT

1/4"-18
NPT

1/4"-19
BSPP

1/4"-19
BSPT

1/4"-18
NPT

1/4"-19
BSPP

1/4"-19
BSPT

Air inlet

1/4"-18
NPT
1/4"-19
BSPP
1/4"-19
BSPT
1/4"-18
NPT
1/4"-19
BSPP
1/4"-19
BSPT
1/4"-18
NPT
1/4"-19
BSPP
1/4"-19
BSPT
1/4"-18
NPT
1/4"-19
BSPP
1/4"-19
BSPT

Fluid

Inlet

1"-11.5
NPT

1-11
BSPP

1-11
BSPT

1"-11.5
NPT

1-11
BSPP

1-11
BSPT

1"-11.5
NPT

1-11
BSPP

1-11
BSPT

1"-11.5
NPT

1-11
BSPP

1-11
BSPT

Fluid

Inlet

1"-11.5
NPT
1-11
BSPP
1-11
BSPT
1"-11.5
NPT
1-11
BSPP
1-11
BSPT
1"-11.5
NPT
1-11
BSPP
1-11
BSPT
1"-11.5
NPT
1-11
BSPP
1-11
BSPT

Fluid

Outlet

1/2"-14
NPT

1/2"-14
BSPP

1/2”-14
BSPT

1/2"-14
NPT

1/2"-14
BSPP

1/2”-14
BSPT

1/2"-14
NPT

1/2"-14
BSPP

1/2”-14
BSPT

1/2"-14
NPT

1/2"-14
BSPP

1/2”-14
BSPT

Fluid

Outlet

1/2"-14
NPT
1/2"-14
BSPP
1/2”-14
BSPT
1/2"-14
NPT
1/2"-14
BSPP
1/2”-14
BSPT
1/2"-14
NPT
1/2"-14
BSPP
1/2”-14
BSPT
1/2"-14
NPT
1/2"-14
BSPP
1/2”-14
BSPT

2 3A1334E

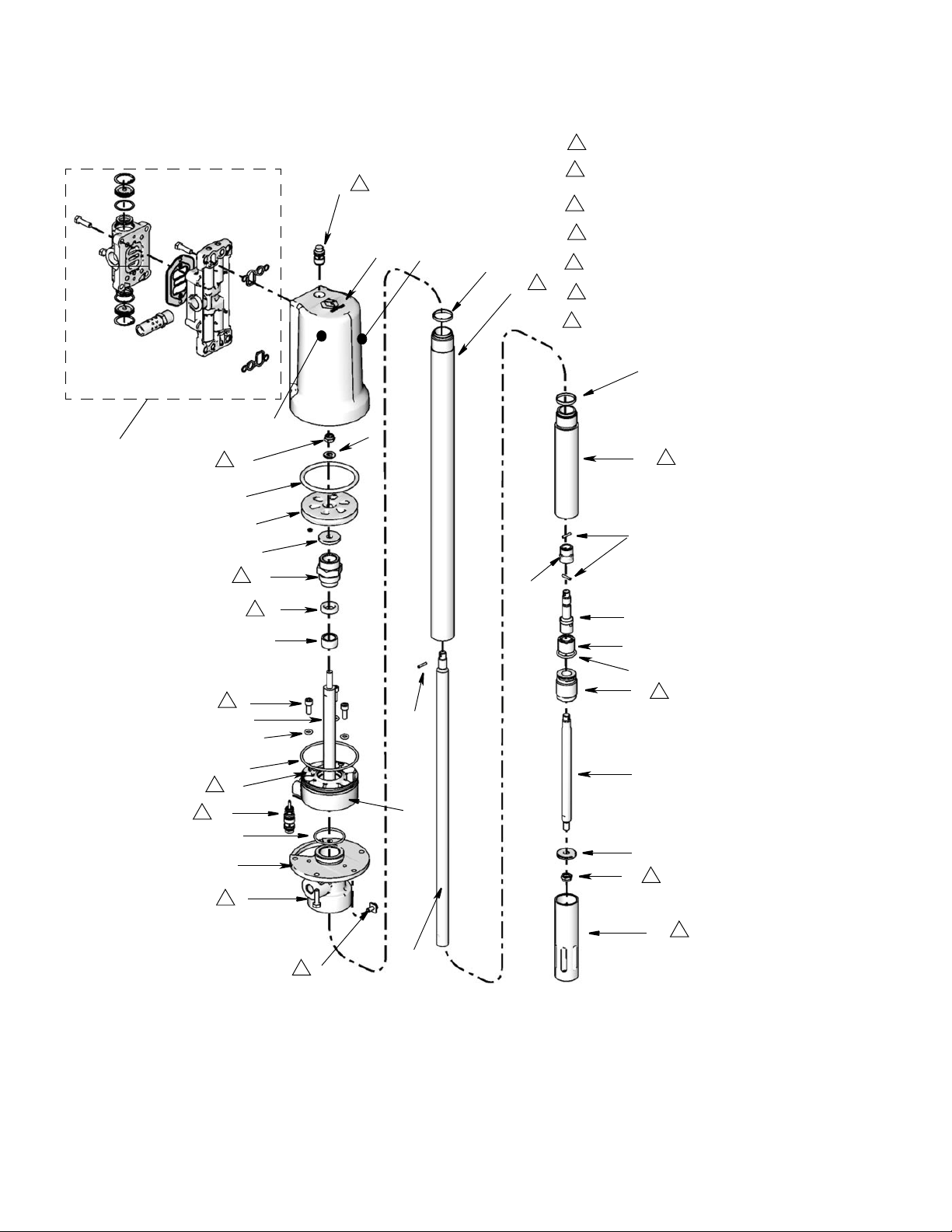

Grease Pump Models

Grease Pump Models

PN Description Max air pressure Max Fluid Pressure

50:1 PUMPS psi Mpa bar psi Mpa bar

24G600 16kg (35lb) 150 1.03 10.3 7500 51.7 517

24G601 16kg (35lb) 150 1.03 10.3 7500 51.7 517

24G602 16kg (35lb) 150 1.03 10.3 7500 51.7 517

24G603 55kg (120lb) 150 1.03 10.3 7500 51.7 517

24G604 55kg (120lb) 150 1.03 10.3 7500 51.7 517

24G605 55kg (120lb) 150 1.03 10.3 7500 51.7 517

24G606 180kg (400lb) 150 1.03 10.3 7500 51.7 517

24G607 180kg (400lb) 150 1.03 10.3 7500 51.7 517

24G608 180kg (400lb) 150 1.03 10.3 7500 51.7 517

Air inlet

1/4"-18
Npt

1/4"-19
BSPP

1/4"-19
BSPT

1/4"-18
Npt

1/4"-19
BSPP

1/4"-19
BSPT

1/4"-18
Npt

1/4"-19
BSPP

1/4"-19
BSPT

Fluid

Inlet

Priming
piston

Priming
piston

Priming
piston

Priming
piston

Priming
piston

Priming
piston

Priming
piston

Priming
piston

Priming
piston

Fluid

Outlet

1/4"-18
Npt

1/4"-19
BSPP

1/4"-19
BSPT

1/4"-18
Npt

1/4"-19
BSPP

1/4"-19
BSPT

1/4"-18
Npt

1/4"-19
BSPP

1/4"-19
BSPT

3A1334E 3

Warnings

Warnings

The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama­tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When
these symbols appear in the body of this manual, refer back to these Warnings. Product-specific hazard symbols and
warnings not covered in this section may appear throughout the body of this manual where applicable.

WARNING

SKIN INJECTION HAZARD

High-pressure fluid from dispense valve, hose leaks, or ruptured components will pierce skin. This may
look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical

treatment.

• Do not point dispense valve at anyone or at any part of the body.

• Do not put your hand over the end of the dispense nozzle.

• Do not stop or deflect leaks with your hand, body, glove, or rag.

• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,

checking, or servicing equipment.

• Tighten all fluid connections before operating the equipment.

• Check hoses and couplings daily. Replace worn or damaged parts immediately.

FIRE AND EXPLOSION HAZARD

When flammable fluids are present in the work area, such as gasoline and windshield wiper fluid, be
aware that flammable fumes can ignite or explode. To help prevent fire and explosion:

• Use equipment only in well ventilated area.

• Eliminate all ignition sources, such as cigarettes and portable electric lamps.

• Keep work area free of debris, including rags and spilled or open containers of solvent and gasoline.

• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.

• Ground all equipment in the work area.

• Use only grounded hoses.

• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment until

you identify and correct the problem.

• Keep a working fire extinguisher in the work area.

4 3A1334E

Warnings

WARNING

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Do not operate the unit when fatigued or under the influence of drugs or alcohol.

• Do not exceed the maximum working pressure or temperature rating of the lowest rated system

component. See Technical Data in all equipment manuals.

• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all

equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information about
your material, request MSDS forms from distributor or retailer.

• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.

• Do not alter or modify equipment.

• Use equipment only for its intended purpose. Call your distributor for information.

• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.

• Do not kink or over bend hoses or use hoses to pull equipment.

• Keep children and animals away from work area.

• Comply with all applicable safety regulations.

PRESSURIZED ALUMINUM PARTS HAZARD

Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical
reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or
property damage.

• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or
fluids containing such solvents.

• Many other fluids may contain chemicals that can react with aluminum. Contact your material supplier
for compatibility.

PERSONAL PROTECTIVE EQUIPMENT

You must wear appropriate protective equipment when operating, servicing, or when in the operating area
of the equipment to help protect you from serious injury, including eye injury, hearing loss, inhalation of
toxic fumes, and burns. This equipment includes but is not limited to:

• Protective eyewear, and hearing protection.

• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.

3A1334E 5

Installation

Installation

NOTE: Reference letters and numbers in parentheses in the text refer to callouts in the figures and drawings.

Grounding

To reduce the risk of static sparking, ground the pump
and all other components used or located in the
dispensing area. Check your local electrical code for
detailed instructions for your area and type of
equipment.

Ground all equipment:

• Pump: Use a ground wire and clamp as shown in
F

IG. 1.

a. Remove the ground screw (Z) and insert

through the eye of the ring terminal at end of
ground wire (Y).

b. Fasten the ground screw back onto the pump

and tighten securely.

• Air and fluid hoses: Use only electrically conductive
hoses.

• Air compressor: Follow manufacturer’s recommen­dations.

• Dispensing valve: Ground through connection to a
properly grounded fluid hose and pump.

• Object being dispensed to: Follow your local code.

• Solvent pails used when flushing: Follow your local
code. Use only metal pails, which are conductive,
placed on a grounded surface. Do not place the pail
on a nonconductive surface, such as paper or card­board, which interrupts the grounding continuity.

• To maintain grounding continuity when flushing or
relieving pressure, hold a metal part of the dispens­ing valve firmly to the side of a grounded metal pail,
then trigger the dispense valve.

NOTE: To order a ground wire and clamp, order Graco
Part No. 222011.

Y

Z

ti16123

FIG. 1

6 3A1334E

Installation

Typical Installation

The typical installation shown in FIG. 2 is only an installation guide. It is not an actual system design. Contact your
Graco Distributor for assistance in designing a system to suit your needs.

Stationary Mountings

FIG. 2

C

air line
configuration

Recommended

B

M

F

E

F

to reduce
moisture in pump

A

J

K

N

G

D

H

L

ti16120

Key (FIG. 2)

A Fluid outlet line (flexible connection required)
BPump
C Ground wire
D Pump runaway valve
E Air lubricator
F Bleed-type master air valve (required)

• NPT - Part No. 110223

• BSP - Part No. 125272

G Air regulator (self-relieving regulator required)

• NPT - Part No. 24H420

• BSP - Part No. 24H419
HAir filter
J Main air line
K Bung adapter - Part No. 24F918
L Fluid inlet line (flexible connection required)
M Air inlet line (flexible connection required)
N Wall mount bracket - Part No. 24F910

3A1334E 7

Installation

Installation Guidelines

Reference letters found in the following instructions,
refer to Typical Installation diagram provided on page 7.

• A ball valve must be installed upstream of the regu­lator (G).

• The fluid outlet line (A), fluid inlet line (L) and air
inlet line (M) must be flexible (such as a hose).

NOTE: To prevent damage to the pump, remove sedi­ment from the bottom of the container before installing a
pump on an existing container.

The maximum working pressure of each pump in
your system may not be the same. To reduce the risk
of over-pressurizing any part of your system, which
may result in component rupture, fire or explosion
and cause serious bodily injury, be sure you know
the maximum working pressure rating of each pump
and its connected components.

• Never exceed the maximum working pressure of

the lowest rated component connected to a partic­ular pump.

• Be sure you know the maximum working pressure
of each component.

Pump Mounting

1. Install bung adapter (K) into bung mount/bracket/or
drum cover.

2. Install pump (B) into bung adapter (K).

B

A

K

aa

FIG. 3

Installing Outlet Hose (F

IG. 3)

1. Connect the swivel adapter (aa) to the pump fluid
outlet. Tighten securely and torque as recom­mended below:

• For NPT models: 1 to 1-1/2 turns past hand

tight.

• For BSPT models: 1-1/2 to 2 turns past hand

tight.

• Do not exceed the maximum pump cycle rate.

2. Connect the fluid hose (A) to the swivel adapter
(aa).

• Regulate air pressure to prevent over pressuriza­tion at fluid section of the pump.

3. Connect a suitable dispensing valve or extra hose to
the 6-ft hose.

• Regulate air pressure to the pump so that no fluid
line component or accessory is over pressurized.

Stationary Mounting Layout

Plan the layout for easy operator access to the pump air
controls, sufficient room to change drums and a secure
platform.

8 3A1334E

Air Line and Accessories

NOTE: Install the air line accessories in the order shown
in the Typical Installation on page 7.

NOTICE

Do not hang the air accessories directly on the air
inlet. Mount them on brackets. Always use a flexible
hose between all connections. The air inlet is not
strong enough to support accessories and may cause
one or more to break.

• Use thread sealant on all male threads except

swivel connections.

• Install a pump runaway valve (D) to shut off the air
to the pump if the pump accelerates beyond the
pre-adjusted setting. A pump that runs too fast can
be seriously damaged.

• Install the air regulator (G) to control pump speed
and pressure.

Installation

For NPT models order Graco Part No. 24H420 or for
BSP models order Graco Part No. 24H419.

• Install a bleed-type master air valve (F) upstream
from the pump air regulator (G) but within easy
reach of the pump.

For NPT models order Graco Part No. 110223 or for
BSP models order Graco Part No. 125272.

• On the main air supply line from the compressor,
install an air line filter (H) to remove harmful dirt and
contaminants from the compressor air supply.

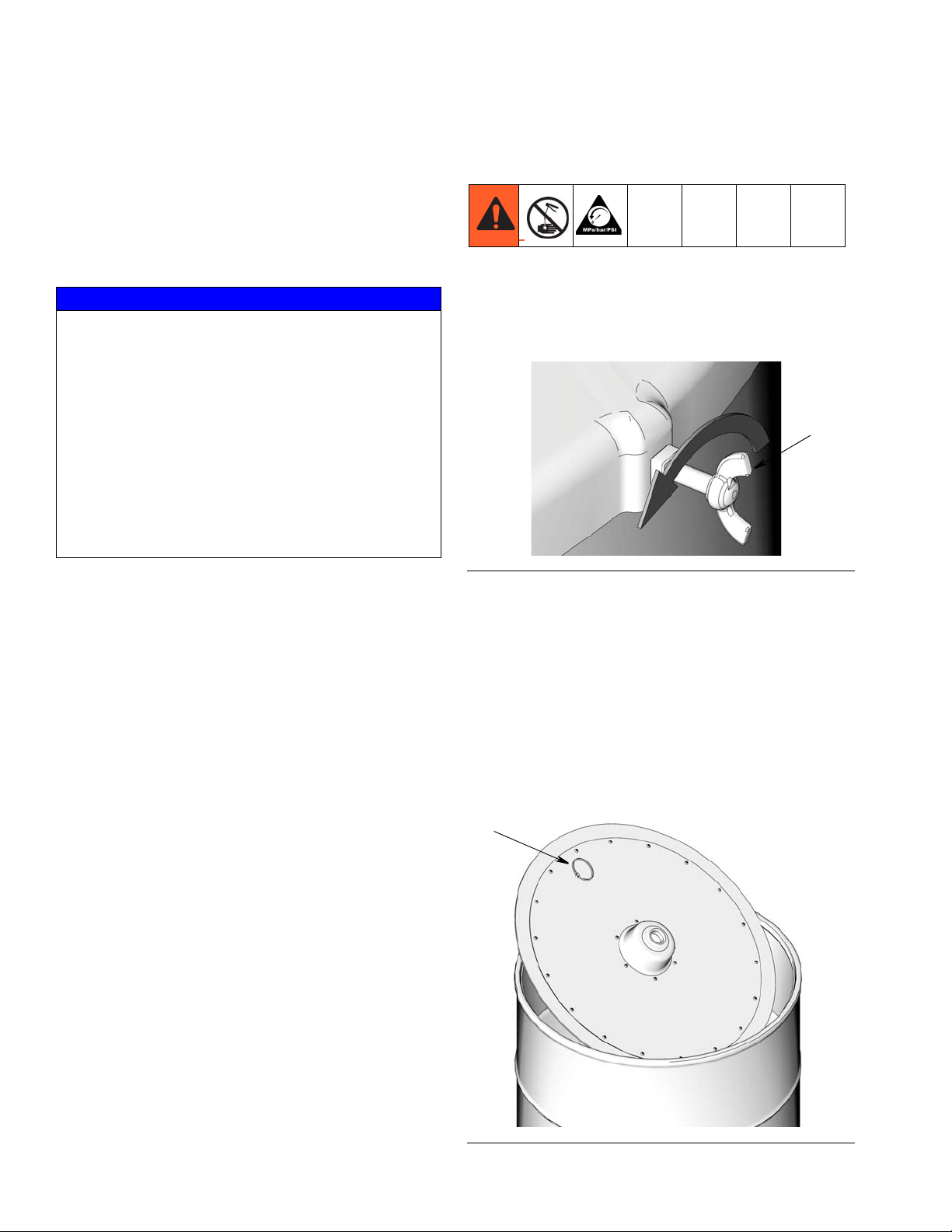

Follow Plate - Grease Models Only

For grease models only a follow plate is required for
pumping fluid from the drum. See page 12 for follow
plate installation instructions.

3A1334E 9

Operation

Operation

Thermal Induced Pressure Relief (Oil pumps only)

THERMAL EXPANSION HAZARD

Fluids subjected to heat in confined spaces, including
hoses, can create a rise in pressure due to the
thermal expansion. Over-pressurization can result in
equipment rupture and serious injury.

Oil pumps have a built-in, thermal induced, pressure
relief as shown in F
will automatically bleed excess thermal induced
system pressure through the pump and back to the
oil reservoir:

• Always use a relieving air pressure regulator to
allow the pump/motor to run backwards. The regu­lator bleeds excess air pressure.

• There should not be any obstructions between air
inlet of pump and regulator.

• There should not be any obstructions between the
downstream plumbing and pump outlet such as
closed ball valves or check valves.

• There should not be any obstructions between the
pump inlet and fluid container such as closed ball
valves or check valves.

• Only use Graco designed suction tubes for in-drum
or in-tank applications.

• Only use Graco designed suction tubes with a
built-in relief device for wall mount applications.

• Always use an inlet screen to prevent debris from
plugging relief passages from entering the pump.

- Do not operate the pump with out an inlet screen.

IG. 4. To ensure system pressure

a

b

FIG. 4 a = Pump cylinder relief passage

b = Inlet check relief passage

Thermal Relief Theory of Operation

The pump operation is similar to most double acting
reciprocating pumps. The pump only comes to a com­plete stop on the up stroke. The pump will stroke
through on the down stroke due to the inlet check relief
passage.

Excess pressure due to downstream thermal expansion
causes the air motor/pump to run backwards (down­ward). Fluid pressure is relieved through the inlet check
relief passage as the pump piston moves downward. Air
pressure is simultaneously relieved through the air inlet
passage. The pump piston moves downward exposing
the pump cylinder relief passage at the bottom of the
stroke. Additional excess pressure is then relieved
through both the inlet check relief passage and the
pump cylinder relief passage.

Pressure is relieved at the pump through the pump inlet
relief passage. The pump will not change over on the
bottom of the stroke as a result of relieving excess pres­sure due to the positioning of the pump cylinder groove
with respect to the air motor pilot valve.

• Periodically inspect the inlet screen for plugging.
Graco recommends inspecting the inlet screen
every time the container is changed out.

10 3A1334E

NOTE:

• The air supply does not have to be turned off to
enable thermal relief activation.

• The Thermal Induced Pressure Relief design fea­ture of the pump will cause the pump to dive on the
downstroke when a dispensing valve is closed.
