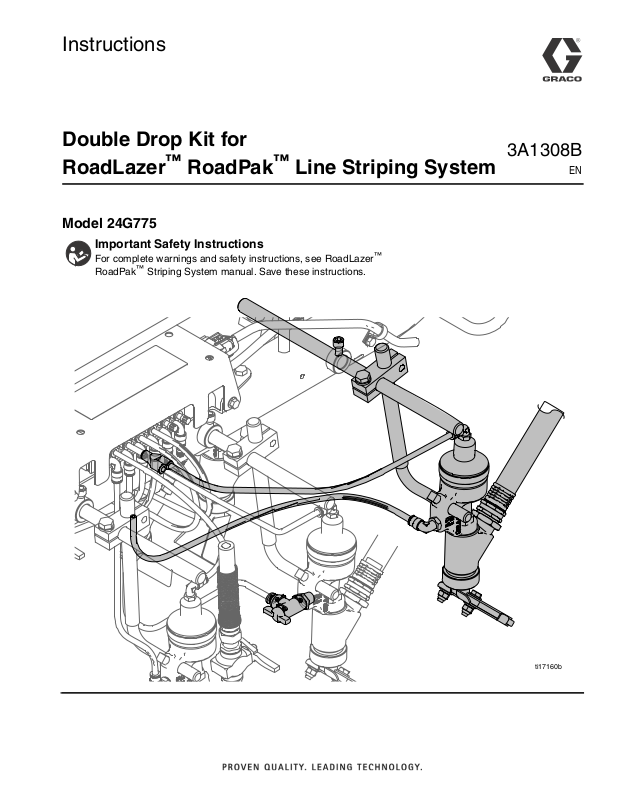

Instructions

Double Drop Kit for

™

RoadLazer

Model 24G775

Important Safety Instructions

For complete warnings and safety instructions, see RoadLazer™
RoadPak

™

Striping System manual. Save these instructions.

RoadPak™ Line Striping System

3A1308B

EN

ti17160b

General Instructions

The following paragraphs provide instructions for install­ing the Double Drop Bead Kit components on the Road­Pak Line Striper. Refer to Parts for part identification
and Schematics for detail orientation and wiring. Index
numbers with an A are kit parts. Other index numbers
are parts for RoadPak.

Third Paint and Third Bead Guns

1. Install hose fitting (12) to bead gun (1).

2. Install new gun pivot arm (15) and secure.

3. Move existing bead gun to position B (as shown
below) on new gun pivot arm.

4. Mount third bead gun (1) and mounting arm (08) on
pivot arm A (shown below). Secure with arm sup­port clamp (9) and attach screws (10) and washers
(11).

5. Splice into existing bead air hose and install airline
tee fitting. Cut 1/4 in. air hose (22) to desired length
and install into fittings on bead gun. For air line con­nection, see illustration below.

Bead and Paint Hose

1. Unstrap and unclamp hose wrap so hose can be
added to the bundle.

2. Route the bead hose through the bundle to the
guns.

3. Connect the bead hose to the desired guns.

4. Strap the hose bundle and stretch hose wrap
around hoses to keep them contained.

5. Clamp the hose bundle tightly on the gun arm to
ensure hose bundle is secure. Maintain enough
slack in the hoses to not strain the guns.

6. Install hose fitting to desired port in bead tank fitting.

Operation

1. Bead guns will actuate together when triggered by
the solenoid.

2. For operation of only bead B, turn off ball valve on
bead gun A.

A

ti17162b

B
