Graco 3A0523C User Manual

Instructions
G3 Output Union Kit
Used to join two or three pump outlets together. For professional use only.
Part No.: 571026 - 3 pump outlets, 571063 - 2 pump outlets.
3A0523C
EN
Important Safety Instructions
Read all warnings and instructions in this manual and the G3 Pump Instruction manual included with your unit. Save these instructions.
1
8
9
7
4
2
5
3
Kit Parts
Ref. Description
1 TUBE, junction, rear 1 1 2 TUBE, junction, front 1 0 3 NUT, tube, 1/4 npt 4 2 4 FERRULE, tube, 1/4 4 2 5 FITTING, tube 4 2 6 BOLT, banjo (not shown) 2 2 7 BOLT, dual banjo bolt 1 0 8 WASHER, seal 7 4 9 FITTING, banjo, x 1/4 npt 4 2 10 PLUG, 1/4 npt w hex hd 4 1
10
571026
Qty
571063
Qty
Instructions
8
Pressure Relief
SKIN INJECTION HAZARD
High-pressure fluid from dispense device, hose leaks, or ruptured components will pierce skin. This may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
Follow Pressure Relief Procedure in this manual, when you stop dispensing and before cleaning, check­ing, or servicing equipment.
Relieve pressure in system by using two wrenches working in opposite directions on pump element and pump element fitting to only loosen fitting.
NOTE: When loosening pump element fitting, do NOT loosen pump element. Loosening pump element will change the output volume.
Instructions

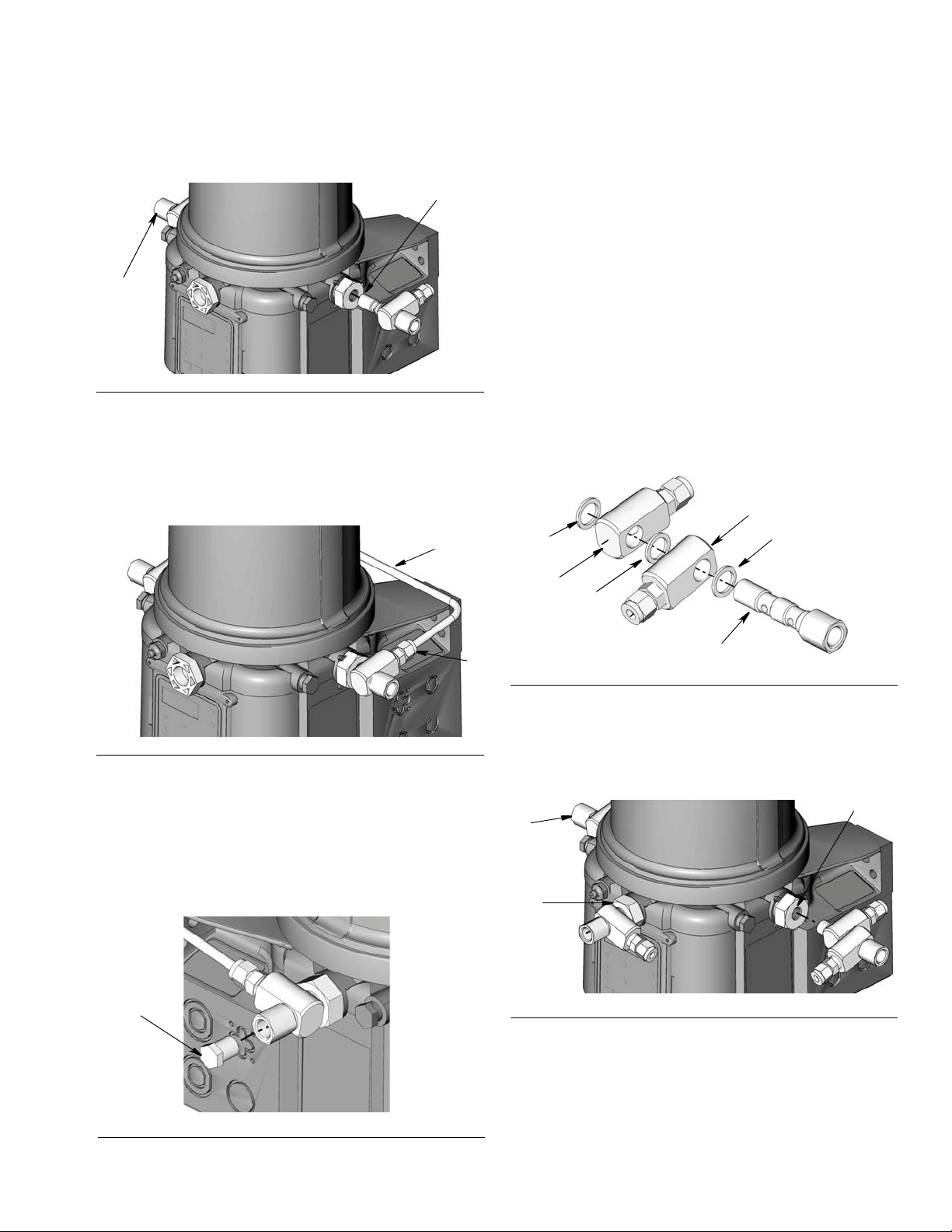

Kits 571063 - 2 pump outlets
Reference numbers used in these instructions corre­spond to parts list provided on page 1.
1. Disconnect power to G3.
2. If unit has been in service, relieve pressure, page 2.
3. Loosely assemble tube nut (3), tube ferrule (4) and tube fitting (5) (F
5
FIG. 2
IG. 2).
3
4
F
IG. 1
4. Apply thread sealant to threads of tube fittings (a).
5. Connect one tube fitting assembly (3/4/5) to each banjo fitting (9). Wrench tighten (F
8
6
9
3 / 4 / 5
IG. 3
F
6. Place one washer (8) over the end of each banjo bolt (6) (F
7. Install banjo bolts (6) into banjo fittings (9). Then install second washer (F
8. Install one banjo bolt assembly into the pump ele­ment located on the right side of the G3 pump (c) and install the other one in the pump element on the
IG. 3).
IG. 3).
IG. 3).
a
2 3A0523C
Instructions
left side of the G3 pump (b) (when viewed from the front) (F
IG. 4).
c
b
FIG. 4
9. Leave banjo bolts loose enough for banjo fitting to swivel.
10. Install tube (1) between the two banjo fittings. It may be necessary to loosen the banjo fitting to install this tube (F
IG. 5).
1
Kit 571026 - 3 Pump Outlets
1. Disconnect power to G3.
2. If unit has been in service, relieve pressure, page 2.
3. Loosely assemble tube nut (3), tube ferrule (4) and tube fitting (5) (F
4. Apply thread sealant to threads of tube fittings (a) (F
IG. 3).
5. Connect one tube fitting assembly (3/4/5) to each banjo fitting (9). Wrench tighten (F
6. Place one washer (8) over the end of the dual banjo bolt (7). Then install banjo fitting (9) on bolt. Install another washer (8) followed by another banjo fitting (9) and then one more washer (8) in the orientation shown in F
8
9
8
IG. 2).
IG. 3).
IG. 7.
9
8
FIG. 5
11. Tighten tube nuts (3), wrench tight only.
12. Tighten banjo bolts (6) to 35 ft. pounds (45.7 N•m) at each location.
13. Apply thread sealant to threads of plug (10). Install plug in unused outlet location (F
IG. 6).
10
3
F
IG. 7
7. Install this assembly into the pump element (c) located on the right side (viewed from the front) on the G3. Leave bolt loose enough for banjo fitting to
7
swivel (F
IG. 8).
b
d
F
IG. 8
8. Place one washer (8) over the end of each banjo bolt (6) (F
IG. 3).
c
IG. 6
F
3A0523C 3
9. Install banjo bolts (6) into banjo fittings (9). Then install second washer (F
IG. 3).
10. Install these two banjo assemblies in remaining open pump elements (b) and (d).

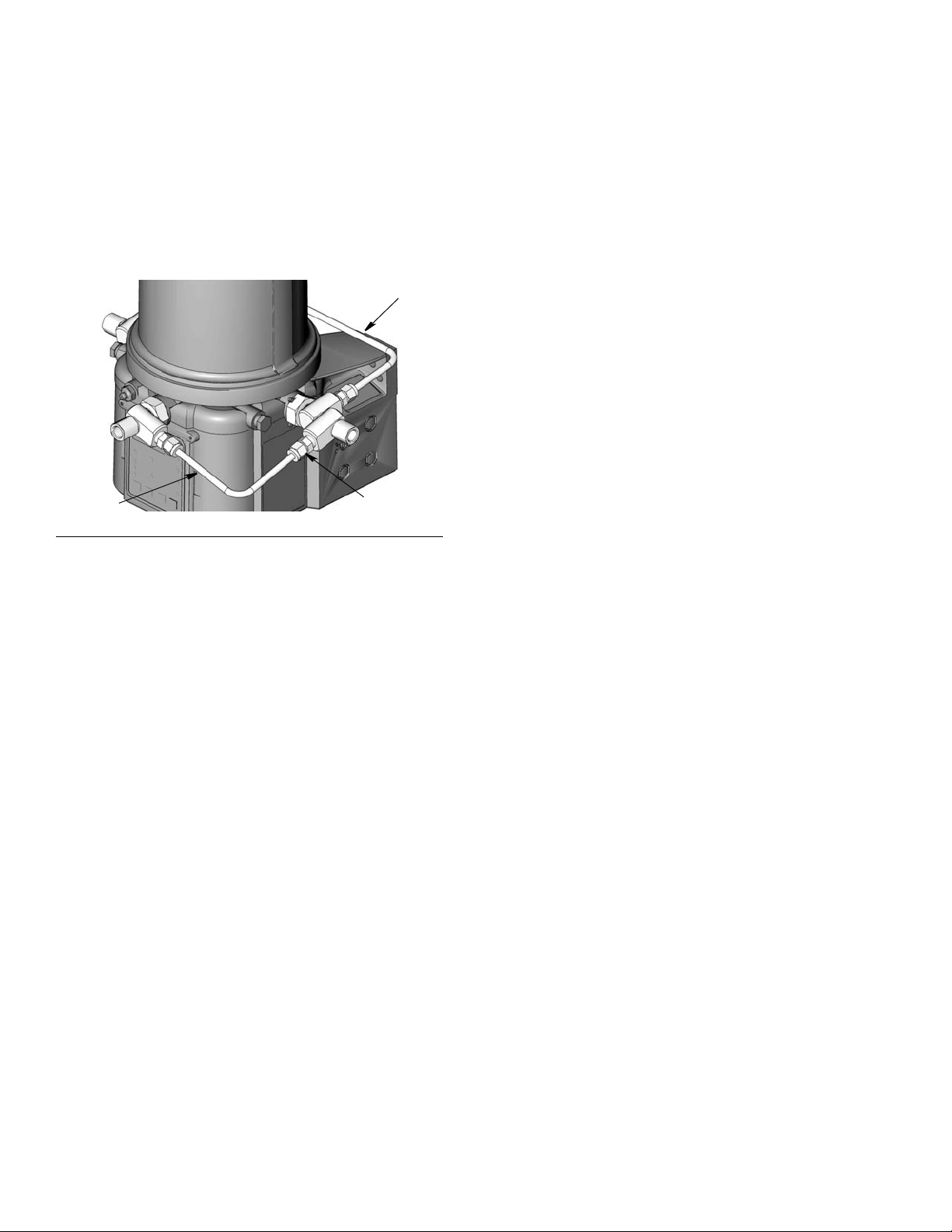

11. Install tube (1) (with 2 bends) around the back side of the G3 pump between the dual banjo fitting installed on the right side of the G3 pump and the banjo fitting installed on the left side of the G3 pump (viewed from the front) as shown in F
IG. 9.
12. Install tube (2) (1 bend) between the dual banjo fit­ting installed on the right side of the G3 pump and the banjo fitting installed on the front of the G3 pump (viewed from the front) as shown in F
IG. 9. It may be
necessary to loosen the banjo fitting to install this tube.
13. Tighten tube nuts (3), wrench tight only.
IG. 9
F
1
N•m) at each location.
15. Apply thread sealant to threads of plug (10). Install
14. Tighten banjo bolts (6 and 7) to 35 ft. pounds (45.7
plugs in unused outlet locations (F
2
3
IG. 6).
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A0523
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 2010, Graco Inc. is registered to ISO 9001
www.graco.com
6/2010, revised 1/2012
