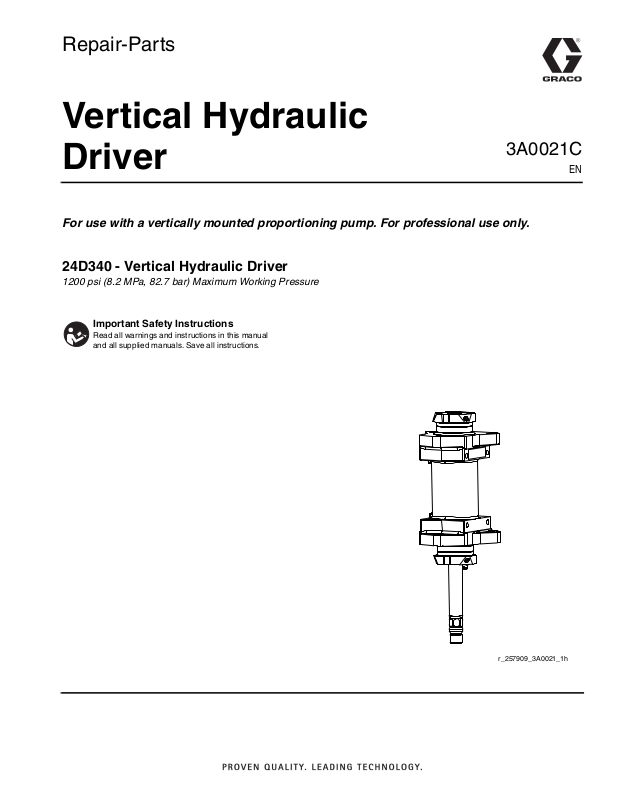

Repair-Parts
Vertical Hydraulic
3A0021C
Driver
For use with a vertically mounted proportioning pump. For professional use only.
24D340 - Vertical Hydraulic Driver
1200 psi (8.2 MPa, 82.7 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this manual
and all supplied manuals. Save all instructions.
EN
r_257909_3A0021_1h
Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 10
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . 10
2 3A0021C
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. When
these symbols appear in the body of this manual, refer back to these Warnings. Additional, product-specific warnings
may be found throughout the body of this manual where applicable.
WARNING
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS from distributor or retailer.
• Do not leave the work area while equipment is energized or under pressure. Turn off all equipment
and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manufacturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe
burns:
• Do not touch hot fluid or equipment.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, hearing loss, inhalation of toxic fumes, and burns. This equipment includes but is not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.
3A0021C 3
Repair
Repair
Disassembly
1. Relieve pressure. See system manual for pressure
relief instructions.
NOTICE
Recommended Hydraulic Oil
Use Graco-approved Hydraulic Oil, Part No. 169236
(5 gal) or 207428 (1 gal)) or a premium, ISO grade
46 petroleum-based hydraulic oil containing rust and
oxidation inhibitors and anti-wear agents.
Before using any other type of oil in this motor, contact your Graco distributor. Unauthorized use of
lesser grade oil or substitutes may void the warranty.
Hydraulic Oil Working Temperature
The maximum hydraulic oil operating temperature is
160 °F (71 °C). The motor seals will wear faster and
leakage may occur if the pump is operated at higher
oil temperatures.
If the hydraulic oil temperature approaches 160 °F
(71 °C), check the hydraulic fluid supply cooling system, filters, etc. and clean or repair as needed.
Keep the hydraulic system clean
To reduce the risk of damaging the hydraulic driver,
verify that the hydraulic power supply fluid lines and
reservoir are clean and free from contaminants.
2. Remove vertical hydraulic driver from system. See
system manual for instructions.
3. Use two people to lift and clamp the cylinder (1) in a
vise.
4. Remove elbow fittings (4) and pipe plugs (5) from
seal housings (2).
NOTICE
To prevent damage to the driver, avoid getting dust
or dirt in the driver during service.
4
2
5
Carefully follow the manufacturer’s recommendations on reservoir and filter cleaning, flushing, and
periodic changes of hydraulic fluid.
Always plug the hydraulic inlets, outlets and lines
when disconnecting them to avoid introducing dirt
and other contaminants into the system.
5. Place a waste container below the seal housing (2)
Required Tools
• Vise with soft jaws
• Set of adjustable wrenches
• O-ring pick
• 1/2 in. hex key
• Rubber mallet
• 18 in. pipe wrench
• Torque wrench
• Anti-seize lubricant
4 3A0021C
to drain any residual hydraulic oil from inside the cylinder (1). Use a 3 1/4 in. wrench to remove both seal
housings (2) from cylinder.
6. Remove o-rings (2a) from each seal housing (2).
2
4
5
r_257909_3A0021_6h
Residual hydraulic oil in the cylinder can spray out of
ports during removal of the piston assembly.
Repair
Assembly
NOTICE
To avoid damaging the piston rod, do not clamp
piston rod surface.
7. Place a cloth over the hydraulic ports (P). Use a rubber mallet to tap piston rod assembly (6) out of cylinder (1).
Do not clamp vise on this surface.
1
6
P
r_257909_3A0021_7h
NOTICE
To avoid damaging the piston rod, do not clamp
piston rod surface.
8. Clamp piston rod flats (6) in a vise to prevent damage to the piston rod.
flats
6
6c
6b
1. Clamp piston rod (6) flats or hex in a vise to prevent
damage to the piston rod.
2. Lubricate piston lead-in (L) of piston with hydraulic
oil to ensure rubber energizing ring of bidirectional
seal (6b) seats properly. Install one edge of rubber
energizing ring in deep piston groove and press the
rest of the rubber energizing ring down while preventing the ring from twisting.
L
r_257909_3A0021_8h
6b
6c
6
3. Install sealing ring of bidirectional seal (6b) over rubber energizing ring and install bearing (6c).
NOTICE
Only expand the sealing ring of bidirectional seal
(6b) and bearing (6c) as much as needed to fit
over the piston. Damage will occur when the sealing ring or bearing are opened wider than necessary.
4. Remove piston assembly (6) from vise and apply
grease to seals.
r_257909_3A0021_8h
5. Apply a light amount of hydraulic oil on the inside of
the cylinder (1) to allow easy installation of the pis-
9. Use o-ring pick to remove sealing ring and rubber
energizing ring of bidirectional seal (6b). Remove
bearing (6c).
10. Thoroughly clean all metal parts in a compatible sol-
ton assembly (6). Continue to next step if the cylinder hasn’t been flushed and there is residual
hydraulic oil.
1
vent and inspect for wear or damage. Replace as
necessary.
apply
hydraulic oil
r_257909_3A0021A_1_10
3A0021C 5
Repair
6. Install o-rings (2a) on seal housings (2). Lubricate
o-rings (2a) and seals inside of each seal housing
with hydraulic oil.
2
2a
r_257909_3A0021A_1_11
7. Install one assembled seal housing (2) on cylinder
(1). Fully tighten with a wrench.
NOTICE
Install seal installation tool (15) on the piston rod
assembly to prevent damage to seal housing
seals.
8. Install the seal installation tool (15) from a repair kit
on the bottom of the piston rod assembly (6). Lubricate the seal installation tool (15) with hydraulic oil.
9. Install the bearing end of the piston rod assembly
(6) through the top of the cylinder (1) so that the
female end of the piston rod exits the top of the cylinder. Use rubber mallet to tap piston rod assembly
until the piston is approximately at the middle of the
cylinder.
11. Install second seal housing (2) on cylinder. Fully
tighten with a wrench. Remove installation tool (15).
6
4
4
2
r_257909_3A0021_14g
2
6
12. Apply pipe sealant on elbow fittings (4) and install in
each seal housing (2).
6
M
6b
6c
15
1
Top
Bottom
r_257909_3A0021_12h
10. Remove rod installation tool (15) after it has exited
the bottom seal housing (2). Install magnet housing
(M; not included).
6 3A0021C
Parts
Parts
15
6b
6c
6a
4
1
1
2
2a
4
2
M
4
6
2a
2
2
4
1
Apply a light coating of lubricant to seals and surfaces.
2
Fully tighten with a wrench.
Ref. Part Description Qty.
1‡ 24D361 CYLINDER, hydraulic, iron 1
2‡ 24D339 HOUSING, rod seals, vertical
driver, assembly
2a 113570 O-RING, fluoroelastomer 1
4 100839 FITTING, elbow, street 2
5 100139 PLUG, pipe 4
6 24D341 ROD, piston, 4-3/4 in., assembly’;
includes 6a-6c
6a ROD, piston, hydraulic 1
6b◆ SEAL, bidirectional; includes seal
ring and rubber energizing ring
6c◆ BEARING, wear, piston 1
15◆ TOOL, seal installation 1
◆ Parts included in Piston Seal Kit 24D360 (purchase
separately).
2
‡ Includes Seal Installation Tool (15).
✖ Magnet housing (M), part no. 24D339 (purchase
separately).
1
1
3A0021C 7
Technical Data
Technical Data
Maximum hydraulic working pressure . . . . . . . . . . . . . . . 1200 psi (8.3 MPa, 83 bar)
Maximum fluid temperature . . . . . . . . . . . . . . . . . . . . . . . 160°F (71°C)
Maximum hydraulic fluid flow . . . . . . . . . . . . . . . . . . . . . . 10.3 gpm (38.9 liter/min)
Maximum cycle rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 cycles per minute
Hydraulic fluid consumption . . . . . . . . . . . . . . . . . . . . . . . 1 gal. (3.8 liters) per 3.9 cycles
Effective piston area. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Piston rod diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.125 in (28.6 mm)
Stroke length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.75 in. (120.65 mm)
Thrust at 1200 psi (8.3 MPa, 83 bar) . . . . . . . . . . . . . . . . 7300 lbf (32,472 N)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . approx. 42 lb. (19.1 kg)
6.1 sq. in. (39.2 cm
2
)
8 3A0021C
Technical Data
3A0021C 9
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will
be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Toll Free: 1-800-746-1334 Fax: 330-966-3006
All written and visual data contained in this document reflects the latest product information available at the time of publication.
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2010, Graco Inc. All Graco manufacturing locations are registered to ISO 9001
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents.
Original instructions. This manual contains English. MM 3A0021
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
www.graco.com
Revised October 2014
Loading...
