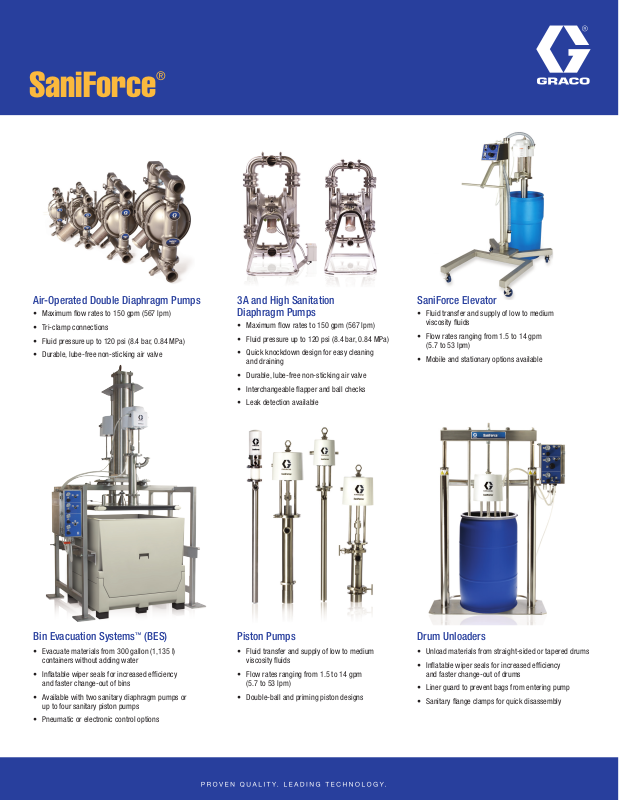

SaniForce

Air-Operated Double Diaphragm Pumps

• Maximum ﬂow rates to 150 gpm (567 lpm)

• Tri-clamp connections

• Fluid pressure up to 120 psi (8.4 bar, 0.84 MPa)

• Durable, lube-free non-sticking air valve

3A and High Sanitation Diaphragm Pumps

• Maximum ﬂow rates to 150 gpm (567 lpm)

• Fluid pressure up to 120 psi (8.4 bar, 0.84 MPa)

• Quick knockdown design for easy cleaning and draining

• Durable, lube-free non-sticking air valve

• Interchangeable ﬂapper and ball checks

• Leak detection available

SaniForce Elevator

• Fluid transfer and supply of low to medium viscosity ﬂuids

• Flow rates ranging from 1.5 to 14 gpm (5.7 to 53 lpm)

• Mobile and stationary options available

Bin Evacuation Systems™ (BES) Drum Unloaders

• Evacuate materials from 300 gallon (1,135 l) containers without adding water

• Inﬂatable wiper seals for increased efﬁciency and faster change-out of bins

• Available with two sanitary diaphragm pumps or up to four sanitary piston pumps

• Pneumatic or electronic control options

Piston Pumps

• Fluid transfer and supply of low to medium viscosity ﬂuids

• Flow rates ranging from 1.5 to 14 gpm (5.7 to 53 lpm)

• Double-ball and priming piston designs

• Unload materials from straight-sided or tapered drums

• Inﬂatable wiper seals for increased efﬁciency and faster change-out of drums

• Liner guard to prevent bags from entering pump

• Sanitary ﬂange clamps for quick disassembly

A Complete Line of Chemical Transfer Pumps

Graco pumps are a dependable, easy-to-service solution for CIP applications.

Husky™ 205

• 1/4 in (6.3 mm) connection

• Max ﬂow: 5 gpm (19 lpm)

• Polypropylene, PVDF

Husky 15120

• 1-1/2 in (38.1 mm) connection

• Max ﬂow: 120 gpm (454 lpm)

• Polypropylene, PVDF

Husky 307

• 3/8 in (9.4 mm) connection

• Max ﬂow: 7 gpm (26 lpm)

• Polypropylene

Husky 2200

• 2 in (50.8 mm) connection

• Max ﬂow: 200 gpm (757 lpm)

• Polypropylene, PVDF

Husky 515

• 1/2 in (12.7 mm) connection

• Max ﬂow: 15 gpm (57 lpm)

• Polypropylene, PVDF

Hydra-Clean

• High pressure cleaning and sanitizing

• Air-operated and hydraulic for hazardous or conﬁned areas

10:1, 12:1, 23:1, 30:1 or 45:1 ratio options

• Available in wall, cart or drum mount packages

Husky 1050

• 1 in (25.4 mm) connection

• Max ﬂow: 50 gpm (189 lpm)

• Polypropylene, PVDF

All written and visual data contained in this document are based on the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice.

Call today for product information or to request a demonstration.

877.84GRACO (1-877-844-7226) or visit us at www.graco.com/sanitary
