Graco 313883A User Manual

Repair-Parts

ProMix

®

3KS

313883A

Plural Component Proportioner

Manual and Automatic systems for proportional mixing of plural component coatings.
For professional use only.

Approved for use in explosive atmospheres (except the EasyKey and 3KS Power Supply
Module).

Important Safety Instructions

Read all warnings and instructions in this
manual. Save these instructions.

See page 4 for model information, including maximum working
pressure. Equipment approval labels are on page 3. Some
components shown are not included with all systems.

ENG

0359

#53

TI14543a

II 2 G

Contents

Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Equipment Approvals . . . . . . . . . . . . . . . . . . . . . . . 3

System Configuration and Part Numbers . . . . . . . 4

Configurator Key . . . . . . . . . . . . . . . . . . . . . . . . . 4

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Check Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . 8

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Alarm Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Solenoid Troubleshooting . . . . . . . . . . . . . . . . . 13

3KS Fluid Station CAN Isolation Board

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . 16

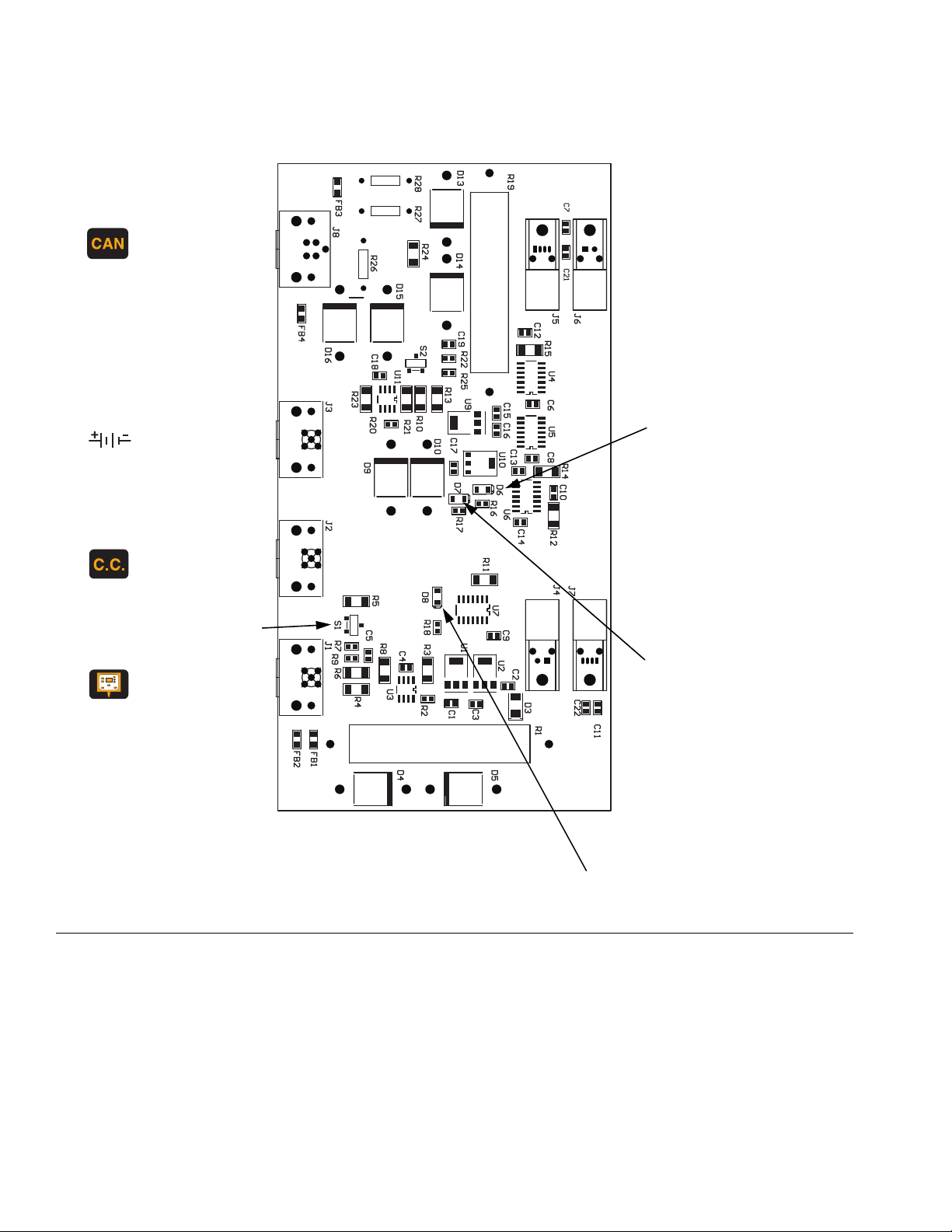

Color Change Board Diagnostics . . . . . . . . . . . 18

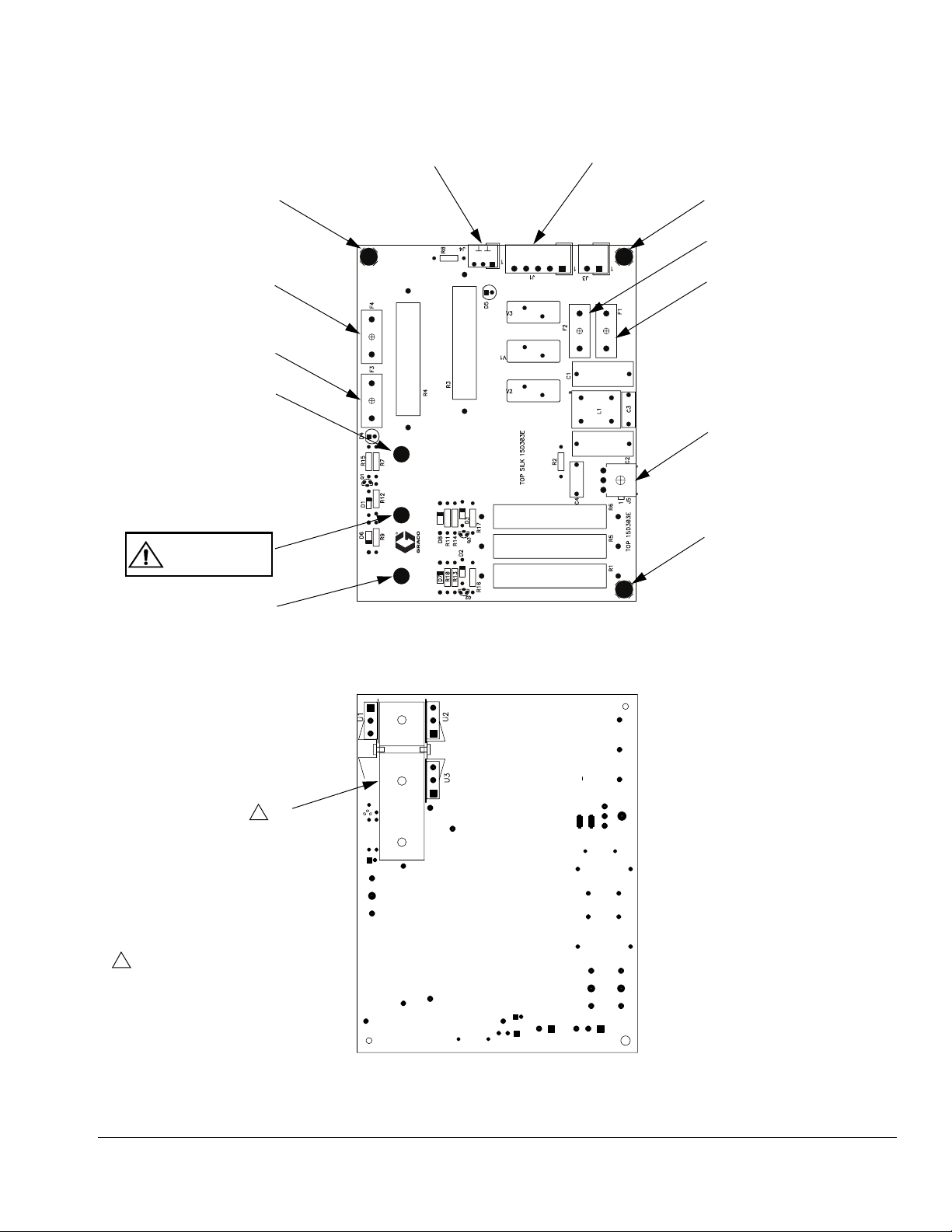

Power Supply Module Barrier Board

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . 20

Fluid Manifold Troubleshooting . . . . . . . . . . . . . 21

Schematic Diagrams . . . . . . . . . . . . . . . . . . . . . . . 22

System Pneumatic Schematic

(2KS Fluid Panel) . . . . . . . . . . . . . . . . . . . . 22

System Electrical Schematic . . . . . . . . . . . . . . . 24

Power Supply Module Electrical Schematic . . . 28

Tubing Schematic . . . . . . . . . . . . . . . . . . . . . . . 29

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Before Servicing . . . . . . . . . . . . . . . . . . . . . . . . 30

After Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Servicing Power Supply Module . . . . . . . . . . . . 31

3KS Wall Mount Fluid Station . . . . . . . . . . . . . . 35

Servicing Flow Meters . . . . . . . . . . . . . . . . . . . . 39

Servicing Fluid Manifold . . . . . . . . . . . . . . . . . . 40

Servicing Color Change Module, Color/Catalyst

Valves, and Dump Valves . . . . . . . . . . . . . . 40

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Configurator Key . . . . . . . . . . . . . . . . . . . . . . . . 41

ProMix 3KS System . . . . . . . . . . . . . . . . . . . . . . 42

Color Change Accessory Kits . . . . . . . . . . . . . . 43

258670 Power Supply Module . . . . . . . . . . . . . . 44

Wall Mount Fluid Station . . . . . . . . . . . . . . . . . . 46

Available Cables . . . . . . . . . . . . . . . . . . . . . . . . 48

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 50

Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 50

2 313883A

Related Manuals

Related Manuals

Component Manuals in English

Manual Description

313881 ProMix 3KS Kit Installation
313882 ProMix 3KS Manual System Operation
313885 ProMix 3KS Automatic System Operation
312775 ProMix 2KS Manual System Installation
312776 ProMix 2KS Manual System Operation
312777 ProMix 2KS Manual System Repair-Parts
312778 ProMix 2KS Automatic System Installation
312779 ProMix 2KS Automatic System Operation
312780 ProMix 2KS Automatic System

Repair-Parts
312781 Fluid Mix Manifold
312782 Dispense Valve
312783 Color Change Valve Stacks
312787 Color Change Module Kit
312784 Gun Flush Box Kits
310745 Gun Air Shutoff Kit
312786 Dump Valve and Third Purge Valve Kits
312785 Network Communication Kits
308778 G3000/G3000HR Flow Meter
313599 Coriolis Flow Meter
313290 Floor Stand Kit
313542 Beacon Kit
313386 Basic Web Interface/Advanced Web

Interface
406799 15V256 Automatic System Upgrade Kit
406800 15V825 Discrete I/O Board Kit

Equipment Approvals

Equipment approvals appear on the following labels
which are attached to the Fluid Station and Power Sup­ply Module. See F

Power Supply Module and Fluid Station Label

ProMix® 3KS

Electronic Proportioner

FM08ATEX0074
II 2 G
Ex ia IIA T3

MAX AIR WPR

.7 7 100

MPa bar PSI

MAX FLUID WPR

MPa bar PSI

MAX TEMP 50°C (122°F)

PART NO. SERIES SERIAL MFG. YR.

Intrinsically safe equipment
for Class I, Div 1, Group D, T3

CUS

Ta = -20°C to 50°C
Install per 289833

IG. 1 on page 4 for label locations.

ATEX Certificate is listed here

Intrinsically Safe (IS) System. Install
per IS Control Drawing No. 258682.
EasyKey Interface IS Associated
Apparatus for use in non hazardous

CUS

Intrinsically safe

equipment for Class I,

Div 1, Group D, T3

Ta = -20°C to 50°C

location, with IS Connection to Smart
Fluid Plate IS
Apparatus for use in:
Class I, Division 1, Group D T3 C
Hazardous Locations

Read Instruction Manual

Warning: Substitution of components
may impair intrinsic safety.

PART NO. SERIES

MFG. YR.

GRACO INC.
P.O. Box 1441
Minneapolis, MN
55440 U.S.A.

Fluid Station Label

®

ProMix 3KS

FM08ATEX0073
II 2 G
Ex ia IIA T3

FLUID PANEL

MAX AIR WPR

.7 7

MPa bar PSI

SERIAL

TI14376a

100

GRACO INC.
P.O. Box 1441
Minneapolis, MN
55440 U.S.A.

TI14374a

ATEX Certificate is listed here

Power Supply Module Label

ProMix 3KS

PART NO.

GRACO INC.
P.O. Box 1441
Minneapolis, MN
55440 U.S.A.

®

SERIES NO. MFG. YR.

Intrinsically safe connections
for Class I, Div 1, Group D

CUS

Ta = -20°C to 50°C
Install per 258682

Um: 250 V

POWER REQUIREMENTS

VOLTS

AMPS

85-250 ~

2 AMPS MAX

50/60 Hz

II (2) G
[Ex ia] IIA
FM08ATEX0072

TI14375a

ATEX Certificate is listed here

313883A 3

System Configuration and Part Numbers

System Configuration and Part Numbers

Configurator Key

The configured part number for your equipment is printed on the equipment identification
labels. See F
each of the following categories, depending on the configuration of your system.

IG. 1 for location of the identification labels. The part number includes digits from

3K
System

Component C
Fluid Meter Component C Change

TK 0 = No Meter

1 = G3000
2 = G3000HR
3 = 1/8 in. Coriolis
4 = Solvent Meter

Label Location
on Fluid Station

Maximum Fluid

Working Pressure

is listed here

0 = No Valves (single component C)
1 = Two Valves (low pressure)
2 = Four Valves (low pressure)
3= Two Valves (high pressure)
4= Four Valves (high pressure)

ProMix® 3KS

Electronic Proportioner

FM08ATEX0074
II 2 G
Ex ia IIA T3

CUS

Intrinsically safe

equipment for Class I,

Div 1, Group D, T3

Ta = -20°C to 50°C

MAX AIR WPR

.7 7 100

MPa bar PSI

MAX FLUID WPR

MPa bar PSI

MAX TEMP 50°C (122°F)

Intrinsically Safe (IS) System. Install
per IS Control Drawing No. 258682.
EasyKey Interface IS Associated
Apparatus for use in non hazardous
location, with IS Connection to Smart
Fluid Plate IS
Apparatus for use in:
Class I, Division 1, Group D T3 C
Hazardous Locations

Read Instruction Manual

Warning: Substitution of components
may impair intrinsic safety.

PART NO. SERIES

MFG. YR.

Not
Designated

00

SERIAL

GRACO INC.
P.O. Box 1441
Minneapolis, MN
55440 U.S.A.

Not
Designated

Label Location on
Power Supply Module

TI14370aTI14361a

Configured Part Number

TI14376a

FIG. 1: Identification Label

4 313883A

System Configuration and Part Numbers

Hazardous Location Approval

Models using a G3000, G3000HR, or intrinsically safe Coriolis meter for A, B, and C meters are approved for
installation in a Hazardous Location - Class I, Div I, Group D, T3 or Zone I Group IIA T3.

Maximum Working Pressure

Maximum working pressure rating is dependent on the fluid component options selected. The pressure rating is
based on the rating of the lowest rated fluid component. Refer to the component pressure ratings below.

Example: A Model with Flow Control has a maximum working pressure of 190 psi (1.31 MPa, 13.1 bar).

Check the identification label on the EasyKey, power supply module, or fluid station for the system maxi­mum working pressure. See F

IG. 1.

ProMix Fluid Manifold Components Maximum Working Pressure

Base System (no meters [option 0], no color/component C change [option 0],

and no flow control [Optional with ProMix 2KS Base Unit]) . . . . . . . . . . . . . . . . . . . .3000 psi (21.0 MPa, 210 bar)

Meter Option 1, 2, and 4 (G3000, G3000HR, or Solvent Meter) . . . . . . . . . . . . . . . .3000 psi (21.0 MPa, 210 bar)

Meter Option 3 (Coriolis Meter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2300 psi (15.86 MPa, 158.6 bar)

Color Change Option 1 and 2 (low pressure valves) . . . . . . . . . . . . . . . . . . . . . . . . . 300 psi (2.07 MPa, 20.6 bar)

Color Change Option 3 and 4 (high pressure valves). . . . . . . . . . . . . . . . . . . . . . . . . . 3000 psi (21 MPa, 210 bar)

Flow Control (Optional with ProMix 2KS Automatic System Base Unit). . . . . . . . . . . 190 psi (1.31 MPa, 13.1 bar)

Flow Meter Fluid Flow Rate Range

G3000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75-3800 cc/min. (0.02-1.0 gal./min.)

G3000HR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38-1900 cc/min. (0.01-0.50 gal./min.)

Coriolis Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-3800 cc/min. (0.005-1.00 gal./min.)

S3000 Solvent Meter (accessory) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38-1900 cc/min. (0.01-0.50 gal./min.)

313883A 5

Warnings

Warnings

The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama­tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back
to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where
applicable.

WARNING

FIRE AND EXPLOSION HAZARD

Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:

• Use equipment only in well ventilated area.

• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).

• Keep work area free of debris, including solvent, rags and gasoline.

• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.

• Ground all equipment in the work area. See Grounding instructions.

• Use only grounded hoses.

• Hold gun firmly to side of grounded pail when triggering into pail.

• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.

• Keep a working fire extinguisher in the work area.

ELECTRIC SHOCK HAZARD

This equipment must be grounded. Improper grounding, setup, or usage of the system can cause
electric shock.

• Turn off and disconnect power at main switch before disconnecting any cables and before servicing
equipment.

• Connect only to grounded power source.

• All electrical wiring must be done by a qualified electrician and comply with all local codes and
regulations.

INTRINSIC SAFETY

Only models with a G3000, G250, G3000HR, G250HR, or intrinsically safe Coriolis meter for A, B, and C
meters are approved for installation in a Hazardous Location - Class I, Div I, Group D, T2 C. To help pre­vent fire and explosion:

• Do not install equipment approved only for a non-hazardous location in a hazardous area. See the
ID label for the intrinsic safety rating of your model.

• Do not substitute system components as this may impair intrinsic safety.

SKIN INJECTION HAZARD

High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just
a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.

• Tighten all fluid connections before operating the equipment.

• Do not point gun at anyone or at any part of the body.

• Do not put your hand over the spray tip.

• Do not stop or deflect leaks with your hand, body, glove, or rag.

• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.

6 313883A

Warnings

WARNING

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Do not operate the unit when fatigued or under the influence of drugs or alcohol.

• Do not exceed the maximum working pressure or temperature rating of the lowest rated system

component. See Technical Data in all equipment manuals.

• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all

equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS forms from distributor or retailer.

• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manu­facturer’s replacement parts only.

• Do not alter or modify equipment.

• Use equipment only for its intended purpose. Call your distributor for information.

• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.

• Do not kink or over bend hoses or use hoses to pull equipment.

• Keep children and animals away from work area.

• Comply with all applicable safety regulations.

MOVING PARTS HAZARD

Moving parts can pinch or amputate fingers and other body parts.

• Keep clear of moving parts.

• Do not operate equipment with protective guards or covers removed.

• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,
follow the Pressure Relief Procedure in this manual. Disconnect power or air supply.

TOXIC FLUID OR FUMES HAZARD

Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.

• Read MSDS’s to know the specific hazards of the fluids you are using.

• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.

• Always wear impervious gloves when spraying or cleaning equipment.

PERSONAL PROTECTIVE EQUIPMENT

You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic
fumes, burns, and hearing loss. This equipment includes but is not limited to:

• Protective eyewear

• Clothing and respirator as recommended by the fluid and solvent manufacturer

•Gloves

• Hearing protection

313883A 7

Grounding

Grounding

Your system must be grounded. See the Grounding
instructions in your ProMix 3KS Installation manual.

Check Resistance

To ensure proper grounding, resistance between Pro­Mix components and true earth ground must be less
than 1 ohm. Read Warnings, page 6.

Have a qualified electrician check resistance between
each ProMix component and true earth ground. If resis­tance is greater than 1 ohm, a different ground site may
be required. Do not operate the system until the problem
is corrected.

Pressure Relief Procedure

NOTE: The following procedures relieve all fluid and air

pressure in the ProMix 3KS system. Use the procedure
appropriate for your system configuration.

Relieve pressure when you stop spraying, before
changing spray tips, and before cleaning, checking, or
servicing equipment.

Single Color Systems

1. While in Mix mode (gun triggered), shut off the A, B,
and C fluid supply pumps/pressure pots. Close all
fluid shutoff valves at the pump outlets.

2. With the gun triggered, push the manual override on
the A, B, and C dose valve solenoids to relieve pres­sure. See F

NOTE: If a Dose Time alarm (E-7, E-8) occurs, clear
the alarm.

IG. 4.

3. Do a complete system purge, following the instruc­tions under Purging Using Recipe 0 in your system
Operation manual.

4. Shut off the fluid supply to the solvent purge valve
(SPV) and the air supply to the air purge valve
(APV), F

5. With the gun triggered, push the manual override on
the A, B, and C purge valve solenoids to relieve air
and solvent pressure. See F
pressure is reduced to 0.

NOTE: If a Purge Volume alarm (E-11) occurs, clear
the alarm.

IG. 3.

IG. 4. Verify that solvent

8 313883A

Pressure Relief Procedure

Systems with Color Change and without
Dump Valves

NOTE: This procedure relieves pressure through the

sampling valve.

1. Complete all steps under Single Color Systems,

page 8.

2. Close the A side shutoff valve (SVA), F
the A side sampling valve (RVA).

3. Direct the A side sampling tube into a waste con­tainer.

4. See F

IG. 2. Open the color change module. Using

the solenoid identification labels as a guide, press
and hold the override button on each color solenoid
until flow from the sampling valve stops.

5. Press and hold the solvent solenoid override until
clean solvent comes from the sampling valve, then
release.

6. Shutoff the solvent supply to the color change stack
solvent valve.

IG. 3. Open

6. See F

IG. 2. Using the solenoid identification labels

as a guide, press and hold the override button on
each catalyst solenoid until flow from dump valve B
stops.

7. Press and hold the dump valve C solenoid override,
F

IG. 5.

8. See F

IG. 2. Open the color change module. Using

the solenoid identification labels as a guide, press
and hold the override button on each color solenoid
until flow from dump valve C stops.

9. Press and hold the dump valve A solenoid override,
F

IG. 4.

10. Press and hold the A side (color) solvent solenoid
override until clean solvent comes from the dump
valve, then release.

11. Press and hold the dump valve B solenoid override,
F

IG. 4.

12. Press and hold the B side (catalyst) solvent solenoid
override until clean solvent comes from the dump
valve, then release.

7. Press and hold the solvent solenoid override until
solvent flow from the sampling valve stops.

8. Open the A side shutoff valve (SVA), F

IG. 3. Close

the A side sampling valve (RVA).

Systems with Color/Catalyst/Component C
Change and Dump Valves

NOTE: This procedure relieves pressure through the

dump valves.

1. Complete all steps under Single Color Systems,
page 8.

2. Shut off all color/catalyst/component C supplies to
the valve stacks.

3. Press and hold the dump valve A solenoid override,
F

IG. 4.

4. See F

IG. 2. Open the color change module. Using

the solenoid identification labels as a guide, press
and hold the override button on each color solenoid
until flow from dump valve A stops.

13. Press and hold the dump valve C solenoid override,
F

IG. 5.

14. Press and hold the C side solvent solenoid override
until clean solvent comes from the dump valve, then
release.

15. Shutoff the solvent supply to the color/catalyst/com­ponent C change stack solvent valves.

16. Press and hold the A, B, and C solvent solenoid
overrides and dump valve overrides until solvent
flow from the dump valves stops.

5. Press and hold the dump valve B solenoid override,
F

IG. 4.

313883A 9

Pressure Relief Procedure

Solenoid

Identification

Label

Module #1

Color Catalyst

Solenoid
Identification
Label

Color

TI12826a

Solenoid

Identification

Label

Solvent Solenoid
Overrides

Module #2

Color Catalyst

Solenoid
Identification
Label

Color

Mount Com­ponent C
Valves Here

Solvent Solenoid
Overrides

TI12826a

FIG. 2: Color Change Solenoids

10 313883A

MA

RVA

DVA

FI

Pressure Relief Procedure

DVB

MB

MS

RVB

APV

FI

AT

DVC

SVA SVB

SM

Key: ProMix 2KS Fluid Station

MA Component A Meter
DVA Component A Dose Valve
RVA Component A Sampling

Val ve

SVA Component A Shutoff

Val ve
MB Component B Meter
DVB Component B Dose Valve
RVB Component B Sampling

Val ve

Key: ProMix 3KS Fluid Station

MC

CPV

MC Component C Meter
DVC Component C Dose Valve
RVC Component C Sampling Valve
SVC Component C Shutoff Valve
CPV Component C Purge Valve
SM Static Mixer
FI Fluid Integrator

TI12556a

SPV

SVB Component B Shutoff

Val ve
MS Solvent Meter
SPV Solvent Purge Valve
APV Air Purge Valve
SM Static Mixer
FI Fluid Integrator
AT Air Purge Valve Air Supply

Tu b e

1

3KS fluid inlet. Connect fluid supply line from
2KS fluid manifold outlet here.

RVC

1

SVC

2

Connect fluid supply line to gun.

SM

2

TI14382a

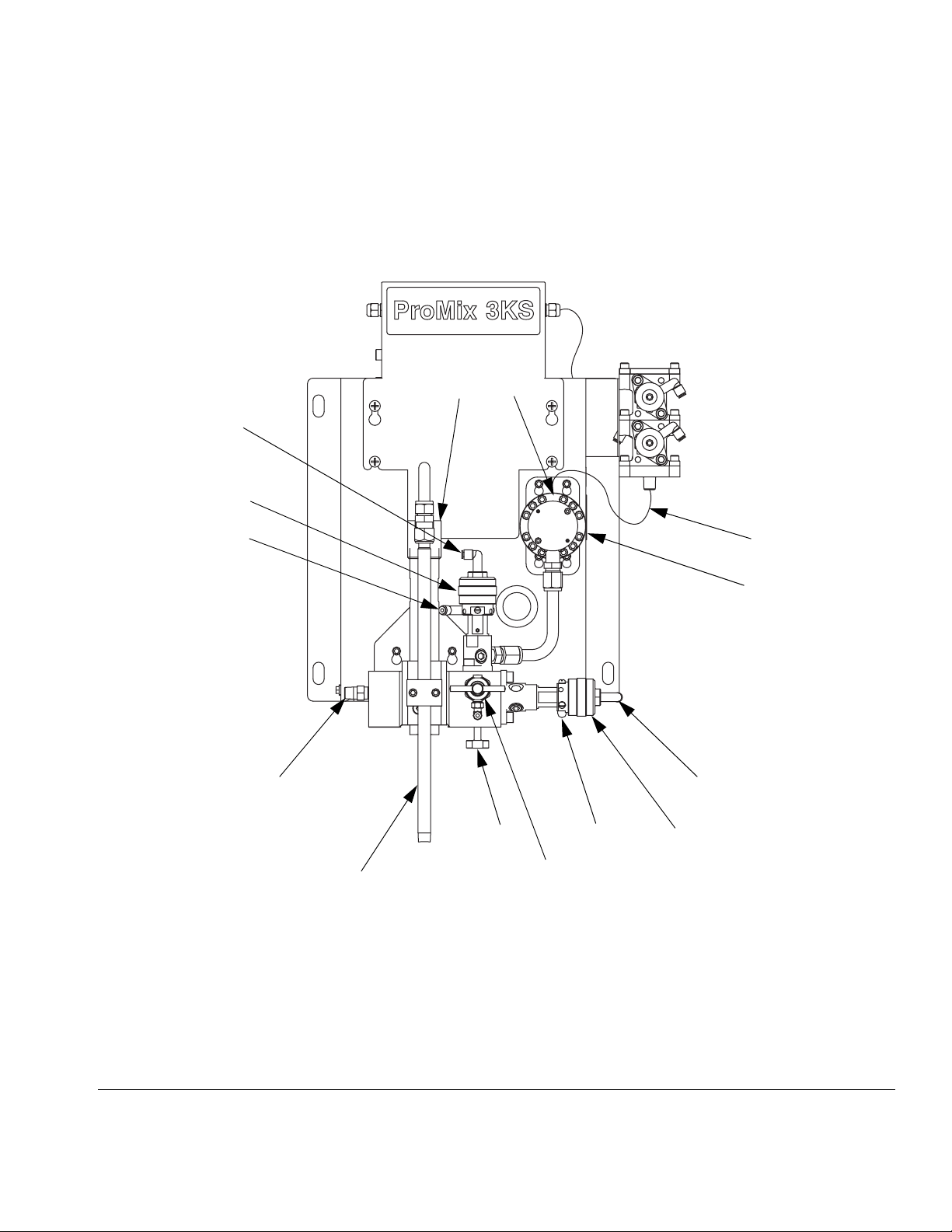

FIG. 3. ProMix 2KS and ProMix 3KS Wall Mount Fluid Stations

313883A 11

Troubleshooting

Troubleshooting

Table 1: System Alarm Codes

Code Description

Follow Pressure Relief Procedure, page 8, before
cleaning, checking, or servicing equipment.

NOTICE

Do not use the fluid in the line that was dispensed off
ratio as it may not cure properly.

NOTE: For complete system troubleshooting, including
the EasyKey, A/B Fluid Station, Booth Control, and
Optional Flow Control, see your ProMix 2KS
Repair-Parts Manual.

Alarm Codes

Table 1 lists the system alarm codes. See the system
operation manual for complete information on alarm
troubleshooting.

E-1 Communication Error Alarm
E-2 Potlife Alarm
E-3 Ratio High Alarm
E-4 Ratio Low Alarm
E-5 Overdose A/B Dose Too Short Alarm
E-6 Overdose B/A Dose Too Short Alarm
E-7 Dose Time A Alarm
E-8 Dose Time B Alarm
E-9 Mix in Setup Alarm
E-10 Remote Stop Alarm
E-11 Purge Volume Alarm
E-12 CAN Network Communication Error Alarm
E-13 High Flow Alarm
E-14 Low Flow Alarm
E-15 System Idle Warning
E-16 Setup Change Warning
E-17 Power On Warning
E-18 Defaults Loaded Warning
E-20 Purge Initiate Alarm
E-21 Material Fill Alarm
E-22 Tank A Low Alarm
E-23 Tank B Low Alarm
E-24 Tank S Low Alarm
E-25 Auto Dump Complete Alarm
E-26 Color/Catalyst Purge Alarm
E-27 Color/Catalyst Fill Alarm
E-29 Tank C Low Alarm
E-30 Overdose C Alarm
E-31 Dose Time C Alarm

12 313883A

Solenoid Troubleshooting

NOTE: Refer to the Schematic Diagrams, page 22.

Troubleshooting

Valve Overrides

AFS #1

AFS #2
SOLV SW
GFB 1 PS

GFB 2 PS

Not Used

Flow Solv

Flow C

Flow A

Flow B

Dose A

Dose B

Dose C

J9

1

J1

J13

1

+
G

s
+

J12

G
s

1

+
G
s

+

J3

G
s

1

+
+
+

Air

Solvent

Dump C

+++

Dump A

3rd Flush

Purge C

++++++

J14 J15 J8

Power

Fiber
Optic

CAN

CAN

Dump B

GFB 2

GFB 1

111

Dump Valve A

Dump Valve B

Optional Solenoid

GFB 1

GFB 2

Dose Valve A

Solenoid

Dose Valve B

Solenoid

F

IG. 4: ProMix 2KS Fluid Station Board and Component A and B Solenoids

Purge Valve A
Solenoid

Purge Valve B
Solenoid

3rd Purge Valve
Solenoid

313883A 13

Locations

TI12652a

Troubleshooting

(Communication)

(Power Input)

(Color Change

J8

J3

VDC

J2

Module)

Valve
Overrides

J1

(Booth Control)

Dump Valve C
location (optional)

FIG. 5. ProMix 3KS Fluid Station CAN Isolation Board and Component C Solenoids

Dose Valve C
Solenoid

Purge Valve C
Solenoid

TI14704a

14 313883A

Troubleshooting

See FIG. 4 and FIG. 5 to troubleshoot the 2KS and 3KS solenoids. Also see the System Electrical Schematic on
pages 24 and 26.

If the dispense or purge valves are not turning on or off correctly, it could be caused by one of the following.

Table 2: Solenoid Troubleshooting

Cause Solution

1. Air regulator pressure set too
high or too low.

2. Air or electrical lines damaged or
connections loose.

Check air pressure. 80-90 psi (550-630 kPa, 5.5-6.3 bar) is commonly used.
Do not go below 75 psi (0.5 MPa, 5.2 bar) or above 120 psi (0.8 MPa, 8 bar),

Visually inspect air and electrical lines for kinks, damage, or loose connec­tions. Service as needed.

3. Solenoid failure. Check the applicable solenoid’s LED (see F

with the following checks. If not lit, go to Cause 4.
Remove the connector for the applicable solenoid and measure voltage

across the pins on the board. If voltage is between 9-15 Vdc, replace the
solenoid.

Manually operate the valves by removing the color change module cover and
pressing and releasing solenoid valve override buttons. F

Valves should snap open and shut quickly. If the valves actuate slowly, it
could be caused by:

• Air pressure to the valve actuators is too low. See Cause 1.

• Solenoid is clogged. Make sure air supply has 10 micron filter installed.

• Something is restricting the solenoid or tubing. Check for air output from
air line for corresponding solenoid when valve is actuated. Clear restric­tion.

• A dose valve is turned in too far. See ProMix 3KS Operation manual for
settings,

• Fluid pressure is high and air pressure is low.

IG. 7 and Table 4). If lit, proceed

IG. 2.

4. Fluid station control board or
cable failure.

If there is no voltage across the pins on the board or it is less than 9 Vdc,
check LEDs D9 and D10 (see F

IG. 7 and Table 4). If both are lit and function-

ing properly, or other solenoids in the module are working properly, replace
the color change board.

If D9 and D10 are not lit:

• Check if the cable is disconnected or damaged.

• Check the fluid station control board (see the ProMix 2KS Repair-Parts
Manual).

313883A 15

Troubleshooting

3KS Fluid Station CAN Isolation Board Diagnostics

See FIG. 6 and Table 3 to troubleshoot the 3KS fluid station CAN isolation board. Also see the System Electrical
Schematic on pages 24 and 26.

J8

(Power Input from

2KS Fluid Station)

J3

VDC

(Power Input

from 3KS Power

Supply Module)

D6

(Color Change

S1

ON

OFF

TI13661a

F

IG. 6: 258673 3KS Fluid Station CAN Isolation Board

ON

OFF

(Booth Control)

Module)

J1

J2

D8

D7

TI14373a

16 313883A

Table 3: 3KS Fluid Station CAN Isolation Board Diagnostics

Component Connector Signal Description Diagnosis

Troubleshooting

D7 (green LED) J8 Input Power from 2KS

Fluid Station

D8 (green LED) J3 Input Power from 3KS

Power Supply Module

On (steady green) when power is supplied to CAN
isolation board.

On (steady green) when power is supplied to CAN
isolation board.

D6 (green LED) n/a Communication (green) Blinks rapidly during normal operation.

On (steady green) or not lit, there is a communication
fault.

S1 J1, J2 n/a If booth control is connected to J1 and color change

module is connected to J2, set switch S1 to OFF.

If booth control is connected to J1 or color change
module is connected to J2, set switch S1 to ON.

If booth control is not connected to J1 and color
change module is not connected to J2, set switch S1
to ON.

313883A 17

Troubleshooting

Color Change Board Diagnostics

See FIG. 7 and Table 4 to troubleshoot the color change board. Also see the System Electrical Schematic on pages
24 and 26.

J8, Pin 1

D33

D31

D29

J15, Pin 1

D41

D35

D27

J14, Pin 1

D30

D28

D36

D34

D43

D44
J9, Pin 1

D39

D32

D38
J16, Pin 1

D37

D45

D46

J10, Pin 1

D9

D10

D8

F1 (Fuse)

J7 J11

IG. 7: 256172 Color Change Board

F

18 313883A

Table 4: Color Change Board Diagnostics

Troubleshooting

LED

Connector
and Pin Nos.

Board 1 Signal
Description

Board 2 Signal
Description Diagnosis

D8 n/a Board OK Board OK Blinks (heartbeat) during normal

operation.

D9 n/a Communication (yellow) Communication (yellow) Turns on when board is commu-

nicating with ProMix 3KS.

D10 J7 Power Power Turns on when power is supplied

to the board.
D27 J15, 5 & 6 Color 3 Color 16
D28 J14, 3 & 4 Color 1 Color 14
D29 J8, 5 & 6 Color 6 Color 19
D30 J14, 1 & 2 Color 2 Color 15
D31 J8, 3 & 4 Color 7 Color 20
D32 J16, 3 & 4 Catalyst 4 Component C 4
D33 J8, 1 & 2 Color 8 Color 21
D34 J9, 5 & 6 Color 9 Color 22
D35 J15, 3 & 4 Color 4 Color 17
D36 J14, 5 & 6 Solvent (Color) Color 13
D37 J10, 5 & 6 Catalyst 2 Component C 2

D27 through D46 turn on when

ProMix 3KS sends a signal to

actuate the related solenoid

valve.

D38 J16, 1 & 2 Catalyst 3 Component C 3
D39 J16, 5 & 6 Color 12 Color 25
D41 J15, 1 & 2 Color 5 Color 18
D43 J9, 3 & 4 Color 10 Color 23
D44 J9, 1 & 2 Color 11 Color 24
D45 J10, 3 & 4 Catalyst 1 Component C 1
D46 J10, 1 & 2 Solvent (Catalyst) Solvent (Component C)
F1 Replaceable

Fuse

n/a n/a Check fuse condition if there is

no power to the board or if com-

munication is interrupted

between the fluid station and the

color change module.

313883A 19

Troubleshooting

Power Supply Module Barrier Board Diagnostics

See FIG. 8 and Table 5 to troubleshoot the Power Supply Module barrier board. Also see the Power Supply Module
Electrical Schematic on page 28 and the System Electrical Schematic on pages 24 and 26.

F4

F3

D4

J4, Pin 1

J1, Pin 1

D5

F1

F2

J5, Pin 1

F

IG. 8: 255786 Power Supply Module Barrier Board

Table 5: Power Supply Module Barrier Board Diagnostics

Connector Description Diagnosis

J1 AC Power Input n/a
J4 24 Vdc Power Input to

EasyKey Display Board

J5 12 Vdc Power Output to

Fluid Station Board

20 313883A

D5 turns on.

D4 turns on if barrier board is functioning. If D4 does not turn on, fuses F3
or F4 (Graco Part No. 15D979) are blown or there is no input power at J4.

If there is no input power (D5 does not light), fuses F1 and F2 (Graco Part
No. 114788) may be blown.

Troubleshooting

Fluid Manifold Troubleshooting

See FIG. 9. To remove the fluid manifold, see page 40. See manual 312581 for complete information on the fluid man­ifold.

DVC OFF

DVC

DVC ON

ABS

FI

CCV

CSL

MC

SPV OFF

RVC

SPV ON

SPV

TI14382a

SVC

SM

Key:

ABS A + B Fluid Inlet (from 2KS Panel)
MC Component C Meter
DVC Component C Dose Valve
RVC Component C Sampling Valve
SVC Component C Shutoff Valve

F

IG. 9. Fluid Manifold

313883A 21

CSL Component C Supply Line
CCV Meter C Check Valve
SPV Solvent Purge Valve
SM 3KS Static Mixer
FI 3KS Fluid Integrator

Schematic Diagrams

Schematic Diagrams

System Pneumatic Schematic (2KS Fluid Panel)

PURGE AIR

AIR INPUT

3/8 AIR FILTER
MANUAL DRAIN
5 MICRON
WALL MOUNT ONLY

AIR INPUT

CONTROL AIR

COLOR
CHANGE
CONTROL

AIR EXHAUST MUFFLER

4-WAY SOLENOID

4-WAY SOLENOID

TO MANIFOLD 1/4 TUBE

05

4-WAY SOLENOID

4-WAY SOLENOID

4-WAY SOLENOID

3-WAY SOLENOID

3-WAY SOLENOID

12 VDC

12 VDC

12 VDC

12 VDC

12 VDC

AIR EXHAUST MUFFLER

12 VDC

12 VDC

DOSE A

5/32 TUBE

OPEN

OPEN

5/32 TUBE

OPEN

OPEN

OPEN

OPEN

OPEN

VALV E

DOSE B
VALV E

PURGE A
VALV E

PURGE B
VALV E

PURGE C
VALV E
(OPTIONAL)

DUMP A
VALV E
(OPTIONAL)

DUMP B
VALV E
(OPTIONAL)

FLUSH AIR TO FLUID INLET 1/4 TUBE

36 SERIES SOLENOID VALVES

MAC

A

B

A

B

A

B

A

B

A

B

A

A

CLOSE

CLOSE

5/32 TUBE

CLOSE

CLOSE

5/32 TUBE

CLOSE

5/32 TUBE

5/32 TUBE

5/32 TUBE

COLOR
VALV E
STACKS

COLOR 1

COLOR 2

COLOR 3

COLOR 4

COLOR 5

COLOR 6

COLOR 7

COLOR 8

COLOR SOLVENT

COLOR 9

COLOR 10

COLOR 11

COLOR 12

CATALYST 1

CATALYST 2

CATALYST 3

CATALYST 4

CATALYST SOLVENT

3-WAY SOLENOID

3-WAY SOLENOID

MANIFOLD

12 VDC

12 VDC

GFB 1
VALV E

A

A

5/32 TUBE

OPEN

5/32 TUBE

OPEN

(OPTIONAL)

GFB 2
VALV E
(OPTIONAL)

22 313883A

System Pneumatic Schematic (3KS Fluid Panel)

Schematic Diagrams

TO MANIFOLD 1/4 TUBE

AIR EXHAUST MUFFLER

4-WAY SOLENOID

4-WAY SOLENOID

3-WAY SOLENOID

12 VDC

12 VDC

12 VDC

COLOR
CHANGE
CONTROL

DOSE C

OPEN

5/32 TUBE

OPEN

OPEN

VALV E

PURGE C
VALV E

DUMP C
VALV E
(OPTIONAL)

MAC

36 SERIES SOLENOID VALVES

A

B

A

B

A

CLOSE

5/32 TUBE

CLOSE

5/32 TUBE

COLOR
VALV E
STACKS

3RD COMP. 1

3RD COMP. 2

3RD COMP. 3

3RD COMP. 4

3RD COMP. SOLVENT

COLOR 13 (OPTIONAL)

COLOR 14 (OPTIONAL)

COLOR 15 (OPTIONAL)

COLOR 16 (OPTIONAL)

COLOR 17 (OPTIONAL)

COLOR 18 (OPTIONAL)

COLOR 19 (OPTIONAL)

COLOR 20 (OPTIONAL)

COLOR 21 (OPTIONAL)

COLOR 22 (OPTIONAL)

COLOR 23 (OPTIONAL)

COLOR 24 (OPTIONAL)

COLOR 25 (OPTIONAL)

MANIFOLD

313883A 23

Schematic Diagrams

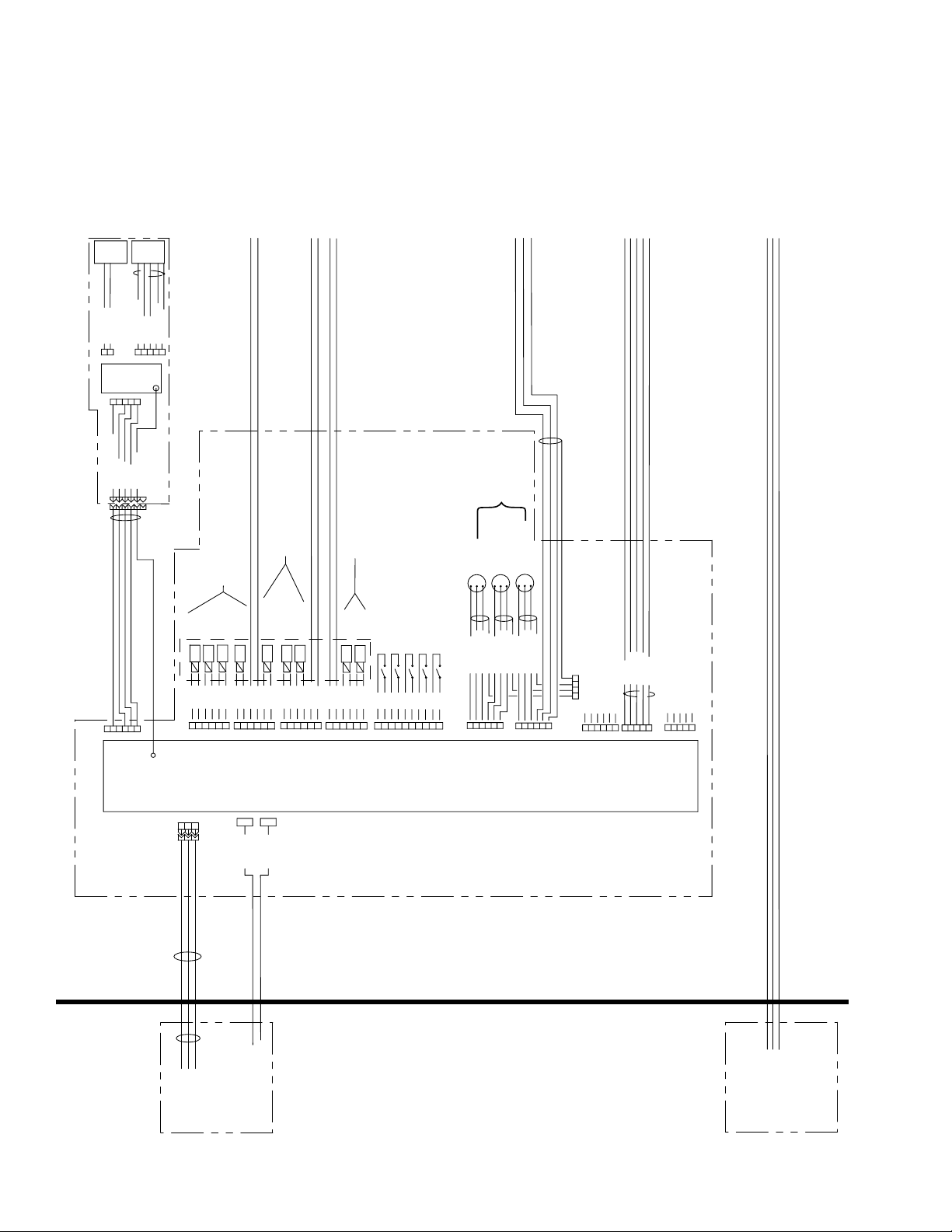

System Electrical Schematic

NOTE: The electrical schematic illustrates all possible wiring expansions in a ProMix 3KS system. Some compo-

nents shown are not included with all systems.

Non-Hazardous Area

85-250

VAC

L1NGND

L1

N

GND

PROMIX 2KS EASYKEY INTERFACE

TERMINAL

BLOCK

L1NGND

L1

N

GND

LINE

FILTER

L1

N

85-250 VAC

L1

1

POWER

+

DC OK

N

2

SUPPLY

-

+

+24 VDC

COMMON

GND LUG

123

-

COMMON

POWER

ROCKER

SWITCH

121A1B2A

OPEN OPEN

UNUSED

UNUSED

UNUSED

UNUSED

12345

J1

2B

HARNESS

+12VDC I/S (RED)

COM (BLACK)

UNUSED

123

J5

BARRIER

BOARD

POWER HARNESS

SHIELD

+24VDC

OPEN

123

J4

MIX INPUT

PURGE INPUT

JOB COMPLETE INPUT

EXTERNAL CLR CHG READY

RESET ALARM INPUT

DIGITAL INPUT COMMON

DIGITAL INPUT COMMON

RECIPE BIT 0 INPUT

12345

6

1234567

J2

RJ45

ALARM

+-

COMMON

+

1234

DISPLAY

BOARD

1234567891011J412345678910111213141516171819

RJ45

3'

POWER DIST.

TERMINAL

BLOCKS

-

RJ45

J9

RJ45

J6

RECIPE BIT 1 INPUT

RECIPE BIT 2 INPUT

RECIPE BIT 3 INPUT

RECIPE BIT 4 INPUT

RECIPE BIT 5 INPUT

RECIPE CHANGE INPUT

8

J3

REMOTE

I/O

INTEGRATION

+

+

+

-

-

-

J2

DIGITAL OUTPUT COMMON/POWER

PURGE/RECIPE CHG ACTIVE OUTPUT

MIX ACTIVE OUTPUT

MIX READY OUTPUT

FILL ACTIVE

FLOW CAL. ACTIVE

1234567

J4

BOARD

SHIELD

+

-

DIGITAL OUTPUT COMMON/POWER

SPECIAL OUTPUT #1

SPECIAL OUTPUT #2

SPECIAL OUTPUT #3

FLOW RATE ALARM OUTPUT

DIGITAL OUTPUT COMMON/POWER

12345

8

J5

123456789

FLOW CONTROL CAL. (BLK)

GUN TRIGGER (WHT )

DIGITAL IN COMMON (RED)

REMOTE STOP (GRN)

ALARM RESET (BRN)

123456789

J5

SPECIAL OUTPUT #4

DIGITAL OUTPUT COMMON/POWER

6

10

ALARM OUTPUT (BLU)

DIGITAL OUTPUT COMMON (ORG)

POT LIFE (YEL)

FLOW RATE ANALOG IN (PUR)

FLOW RATE ANALOG COMMON (GRAY)

10

20

BEACON

RED

BRN

ORG

(+24) YEL

(COM) GRAY

TERMINAL

BLOCKS

12345

I/O HARNESSES

RS485 INTEGRATION A (WHT/BLU)

RS485 INTEGRATION B (BLU/WHT)

RS485 INTEGRATION GROUND (SHIELD)

12345

RS485 NETWORK A (WHT/ORG)

RS485 NETWORK B (ORG/WHT)

J10

CABLE

6

WEB SERVER

RJ45

BULKHEAD

3'

(25'-200' OPTIONS)

RS485 NETWORK GROUND (SHIELD)

6

3'

FO IN (BLK)

FO OUT (BLU)

RJ45

J8

J7

RJ45

P1

RJ45

MODULE

RJ45

MEMBRANE

SWITCH

WITH

RIBBON

CABLE

DISPLAY

24 313883A

Schematic Diagrams

System Electrical Schematic

NOTE: The electrical schematic illustrates all possible wiring expansions in a ProMix 3KS system. Some compo-

nents shown are not included with all systems.

Non-Hazardous Area

TO FO IN - J6

(BLK)

TO FO OUT - J4

(BLU)

TO FO IN - J6

TO FO OUT - J4

(BLU)

(BLK)

TO J3

3RD COMPONENT

FLUID PANEL

3RD COMPONENT

FLUID PANEL

TO J3

HAZARDOUS

AREA

HAZARDOUS

AREA

SMART FLUID PANEL

SMART FLUID PANEL

CONTROL BOX

CONTROL BOX

TO J10

TO J10

NON-HAZARDOUS

AREA

NON-HAZARDOUS

AREA

85-250

VAC

85-250

VAC

L1NGND

L1NGND

50' STD.

(10'-100' OPTIONS)

50' STD.

2B

HARNESS

HARNESS

+12VDC I/S (RED)

COM (BLACK)

SHIELD

123

J5

BARRIER

BOARD

(10'-100' OPTIONS)

+12VDC I/S (RED)

COM (BLACK)

SHIELD

+24VDC

OPEN

COMMON

+24VDC

OPEN

COMMON

123

123

123

J4

J5

J4

123

123

TERMINAL

BLOCK

GND LUG

POWER

ROCKER

TERMINAL

BLOCK

GND LUG

123

123

123

85-250 VAC

85-250 VAC

L1

N

L1

N

1

2

1

2

POWER

SUPPLY

POWER

SUPPLY

-

-

+

+

-

-

+

+

COMMON

COMMON

+24 VDC

DC OK

PROMIX 3KS BARRIER/PS ENCLOSURE

PROMIX 3KS BARRIER/PS ENCLOSURE

+24 VDC

DC OK

COMMON

COMMON

SWITCH

POWER

ROCKER

SWITCH

123

121A1B2A

121A1B2A

OPEN OPEN

OPEN OPEN

NL1L1 NGND

NL1L1 NGND

12345

12345

J1

J1

BARRIER

2B

BOARD

POWER

HARNESS

POWER

HARNESS

313883A 25

Schematic Diagrams

System Electrical Schematic

NOTE: The electrical schematic illustrates all possible wiring expansions in a ProMix 3KS system. Some compo-

nents shown are not included with all systems.

Hazardous Area

TECNO

V/P

FLUID

PRESS.

SENS.

SIG (RED)

COM (BLK)

+ PRESSURE (GRN)

COM (RED)

EX+ (WHT)

- PRESSURE (BLK)

SHIELD (BARE)

J4

J2

12345

1

2

FLOW

CONTROL

BOARD

12345

J1

10' STD.

V/P ANALOG OUT (WHT)

PRESS. (GRN)

+12 V (RED)

GND (BLK)

CHASSIS (BARE)

I.S. METERS

(25'-100' OPTIONS) - GREEN COLOR CODED

(10')/

(40')

12345

J5

SMART FLUID PANEL

CONTROL BOX

BLUE

CABLE

HAZARDOUS

AREA

6

(50' STD.)/

DUMP B

MANIFOLD

BLACK

65432

MH2

J10

+12VDC I/S

COM

SHIELD

123

(100' OPTION)

RED

GFB #1

BLACK

J8

12 VDC

3-WAY SOLENOID

GFB #2

RED

BLACK

RED

1

DUMP A 3RD FLUSH

BLACK

RED

BLUE

BLACK

BLACK

65432

J15

J6

J4

FO IN

FO OUT

(BLU)

CABLE

12 VDC

RED

1

(BLK)

BLACK

65432

4-WAY SOLENOID

PURGE B

PURGE A

RED

BLACK

RED

YELLOW

J14

BLACK

1

12 VDC

DOSE B

GREEN

BLACK

BLACK

65432

J9

4-WAY SOLENOID

DOSE A

SIG

RED

BLACK

RED

1

12345678910

AIR FLOW SWITCH 1

50' STD.

(10'-100' OPTIONS) - RED COLOR CODED

SIG (WHITE)

SHIELD/GRN

PWR (RED)

J3

FLOW METER B

COM (BLACK)

6

SIG (WHITE)

FLOW METER SOLVENT

SHIELD/GRN

PWR (RED)

COM (BLACK)

SIG (WHITE)

12345

J12

SHIELD/GRN

6

GROUND

TERMINAL

UNUSED

UNUSED

UNUSED

12345

J13

UNUSED

UNUSED

GRD (BLK)

UNUSED

32541

6

+12VDC (RED)

SHIELD (BARE)

CAN H (WHT)

CAN L (BLU)

J11

UNUSED

UNUSED

UNUSED

32541

J7

UNUSED

UNUSED

FLOW METER A

3X CABLE

AIR FLOW SWITCH 2

SOLVENT FLOW SWITCH

GFB 2 PRESSURE SWITCH

GFB 1 PRESSURE SWITCH

PWR (RED)

COM (BLACK)

COM

SIG

COM

SIG

COM

SIG

COM

SIG

COM

12345

J1

SMART

FLUID

PANEL

CONTROL

BOARD

NON-HAZARDOUS

AREA

PROMIX 2KS

EASYKEY

INTERFACE

TO FO OUT (BLU) - J8

PROMIX 3KS

PS & BARRIER

INTERFACE

TO FO IN (BLK) - J7

26 313883A

Schematic Diagrams

System Electrical Schematic

NOTE: The electrical schematic illustrates all possible wiring expansions in a ProMix 3KS system. Some compo-

nents shown are not included with all systems.

Hazardous Area

12 VDC

4-WAY SOLENOID

12 VDC

3-WAY SOLENOID

1 4 5 2 3

COLOR

J7/J11

BOARD 1

FLOW METER C

CABLE

PWR (RED)

COM (BLACK)

SIG (WHITE)

SHIELD/GRN

CLR 25

3RD COMP. 4

3RD COMP. 3

3RD COMP. 2

3RD COMP. 1

3RD COMP. SOLVENT

COM

6

COM

+12VDC

1

COM

COM

+12VDC

65432

12345

COM

+12VDC

+12VDC

CLR 15

+12VDC

J10

J14

COM

CLR 14

COM

+12VDC

1

6

COM

+12VDC

CLR 13

1

2

3

4 5 6 7 8

123456789

DIN RAIL MOUNTED

TERMINAL BLOCKS

UNUSED (BLK) -

METER SIG (WHT ) -

METER PWR (RED) -

METER COM (BLK) -

CLR 12

CAT 4

CAT 3

CAT 2

CAT 1

SOL CAT

COM

CLR 3

+12VDC

1

6

COM

COM

65432

12345

+12VDC

COM

+12VDC

CLR 2

COM

+12VDC

+12VDC

J10

J14

COM

CLR 1

COM

+12VDC

1

6

+12VDC

SOL CLR

COM

1 4 5 2 3

J7/J11

6' STD.

(BLUE COLOR CODED)

1 4 5 2 3

J7/J11

CLR 9

CLR 10

CLR 11

MANIFOLD

COM

COM

COM

COM

COM

+12VDC

+12VDC

+12VDC

+12VDC

+12VDC

65432

65432

1

J9

J16

(COLORS

1 THRU 12,

CATALYST

1 THRU 4)

J8

J15

12345

12345

6

COM

COM

COM

COM

COM

+12VDC

+12VDC

+12VDC

CLR 7

+12VDC

CLR 6

CLR 5

+12VDC

CLR 4

+12VDC

MANIFOLD

CLR 8

CLR 22

CLR 23

CLR 24

MANIFOLD

COM

COM

COM

COM

COM

+12VDC

+12VDC

+12VDC

+12VDC

+12VDC

65432

65432

1

J9

J16

COLOR

BOARD 2

(COLORS

13 THRU 30)

J8

J15

12345

12345

6

COM

COM

COM

COM

COM

+12VDC

+12VDC

+12VDC

CLR 20

+12VDC

CLR 19

CLR 18

CLR 17

+12VDC

CLR 16

+12VDC

MANIFOLD

CLR 21

GROUND

TERMINAL

DOSE C "-" (GRN) -

DOSE C "+" (BLK) -

PURGE C "-" (BLU) -

MANIFOLD

9

DUMP C "-" (YEL) -

PURGE C "+" (BLK) -

BLACK

10

10

DUMP C "+" (BLK) -

DOSE C

RED

PURGE C

DUMP C

BLACK

RED

BLACK

RED

3RD COMPONENT

FLUID PANEL

BOOTH

CONTROL

BOARD

32541

GRD (BLK)

+12VDC (RED)

SHIELD (BARE)

CAN H (WHT)

50' STD.

(6'-100' OPTIONS)

YELLOW COLOR CODED

32541

BOARD

J3

235

+12VDC (RED)

COM (BLK)

CAN L (BLU)

J1

SHIELD (BARE)

GRD (BLK)

+12VDC (RED)

SHIELD (BARE)

CAN H (WHT)

CAN L (BLU)

6' STD.

(10'-100' OPTIONS) - YELLOW COLOR CODED

32541

J2

CAN

ISOLATION

J8

32541

313883A 27

Schematic Diagrams

Power Supply Module Electrical Schematic

GND L1 N

RED 16 AWG BROWN 16 AWG

GRN/YEL 16 AWG

RED 16 AWG BROWN 16 AWG

TERMINAL BLOCKS

POWER ROCKER SWITCH

L L N N

HIGH

VOLTAGE

IN

24 VDC+

OUTPUT

COMMON

24 VDC+

- - + DC OK

BLACK 18 AWG RED 18 AWG

J4-3 J4-2 J4-1

J4

24 VDC+

IN

POWER SUPPLY

UNUSED

UNUSED

UNUSED

J1-5 J1-4 J1-3 J1-2 J1-1

J1

UNUSED

UNUSED

COMMON (BLACK)

+12 VDC I/S (WHITE)

J5-3 J5-2 J5-1

SHIELD/GRND

J5

GND LUG

IS POWER

12 VDC

BARRIER BOARD

28 313883A

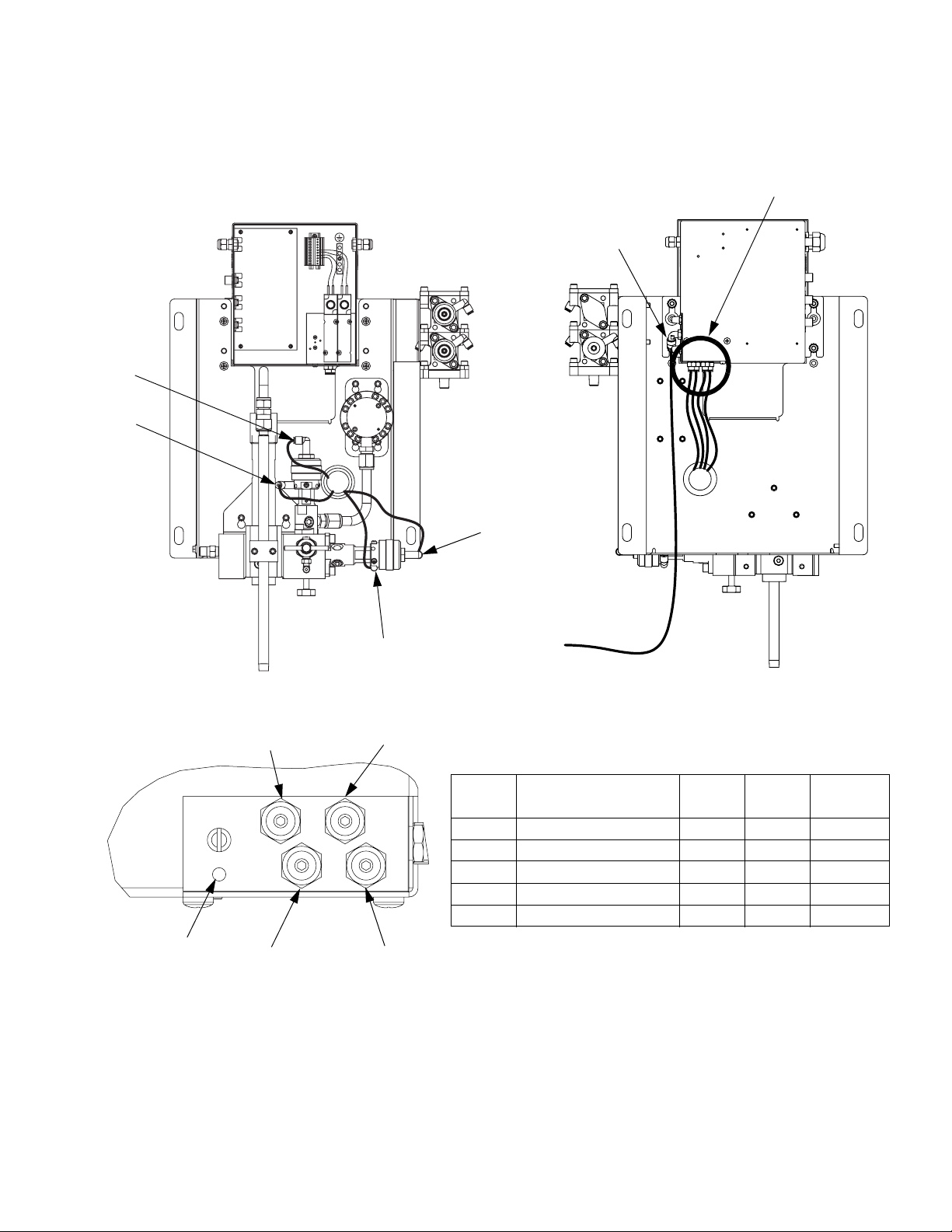

Tubing Schematic

B3

A4

Schematic Diagrams

See Detail below

13

Dump C

(optional)

A2

B1 B3

A2 A4

TI14380a

B1

To ProMix 2KS

Wall Panel

TI14381a

Table 6: Tubing Chart

Starting

Color Description

Green Purge C On A2 A2 5/32 (4)
Green Dose C On A4 A4 5/32 (4)
Red Purge C Off B1 B1 5/32 (4)
Red Dose C Off B3 B3 5/32 (4)
Natural Solenoid Air Supply 13 13 1/4 (6)

Point

Ending
Point

TI14850a

Tube OD
in. (mm)

313883A 29

Service

Service

Before Servicing

• To avoid electric shock, turn off power supply mod­ule power before servicing.

• Servicing power supply module exposes you to
high voltage. Shut off power at main circuit breaker
before opening power supply module.

• All electrical wiring must be done by a qualified
electrician and comply with all local codes and reg­ulations.

• Do not substitute system components as this may
impair intrinsic safety.

• Read Warnings, page 6.

NOTICE

To avoid damaging circuit board when servicing, wear
Part No. 112190 grounding strap on wrist and ground
appropriately.

NOTE: For complete system servicing, including the
EasyKey, A/B Fluid Station, and Optional Flow Control,
see your ProMix 2KS Repair-Parts Manual.

1. Flush system and follow Pressure Relief Proce-
dure, page 8, if service time may exceed pot life
time and before servicing fluid components.

3. Shut OFF the Power Switch on the EasyKey and on
the Power Supply Module (0 position). F

4. If servicing power supply module, also shut off
power at main circuit breaker.

0 = OFF

TI12657a TI14372a

FIG. 10: Power Off

IG. 10.

After Servicing

After servicing the system, be sure to follow the
Start Up checklist and procedure in the ProMix 3KS
Operation manual.

2. Close main air shutoff valve on air supply line and
on ProMix 3KS.

30 313883A

Servicing Power Supply Module

Updating Software

To update software, upload new software from your PC
using the basic web interface. See manual 313386.

NOTE: If using the Graco Gateway in your system, dis­connect its cable from the EasyKey before updating the
ProMix 3KS software.

Replacing Barrier Board

NOTICE

To avoid damaging circuit board when servicing, wear
Part No. 112190 grounding strap on wrist and ground
appropriately.

Service

1. Follow Before Servicing, page 30.

2. Unlock and open the power supply module door
with its key.

3. Disconnect the cables and connectors from J1, J4,
and J5. F

4. Using the security tool provided (Part No. 122239),
remove 2 screws (107) and the cover (103b). See
F

IG. 11.

5. Noting their location, remove 5 screws (104, 105)
from the barrier board (103a). Do not remove the
screw noted in F

6. Apply thermal compound to the heatsink (Z) on the
back of the new barrier board (103a). See F

7. Install the new barrier board with the 5 screws (104,

105).

8. Install the cover (103b) with 2 screws (107), using
the security tool.

9. Connect cables to J1, J4, and J5.

IG. 12.

IG. 12. Remove board.

IG. 12.

10. Close and lock power supply module door with key.

11. Turn on power at main circuit breaker.

12. Turn power supply module power on to test opera­tion.

313883A 31

Service

Replacing Barrier Board Fuses

Fuse Part No. Description

F1, F2 114788 Power In Fuses; 2 amp, time lag
F3, F4 15D979 Power Out Fuses; 0.4 amp, quick

acting

103c

104

103b

1. Follow Replacing Barrier Board, steps 1-4.

2. Remove the fuse (F1, F2, F3, or F4) from its fuse
holder. F

IG. 12.

3. Snap new fuse into holder.

4. Follow Replacing Barrier Board, steps 8-12.

J1J4

FIG. 11: Replacing Barrier Board

105

J5

TI12649a

104 103a107

32 313883A

Service

104

105

Do not remove
this screw

J4 (From Power Supply)

F4

F3

J1 (Power In)

104

F2

F1

J5
(Power to
Fluid Station)

104

1

Apply thermal compound
to surface of heatsink (Z).

105

Front of Barrier Board, showing Fuses and Connectors

Z

1

Back of Barrier Board, showing Heatsink (Z)

FIG. 12: Barrier Board Connectors and Fuses

313883A 33

Service

Replacing Power Supply

1. Follow Before Servicing, page 30.

2. Unlock and open the power supply module door
with its key.

3. Note position of power supply input and output
wires. See Power Supply Module Electrical Sche-
matic, page 28. Disconnect wires from power sup­ply (103f). See F

4. Remove power supply from din rail.

5. Install new power supply (103f). Reconnect input
and output wires in positions noted in step 3.

6. Close and lock power supply module door with key.

7. Turn on power at main circuit breaker.

8. Turn power supply module power on to test opera­tion.

IG. 13.

Replacing Power Switch

1. Follow Before Servicing, page 30.

2. Unlock and open the power supply module door
with its key.

3. Note position of power switch wires. See Power
Supply Module Electrical Schematic, page 28.
Disconnect wires and remove switch (112, F

4. Install new power switch (112). Reconnect wires in
positions noted in step 3.

5. Close and lock power supply module door with key.

6. Turn on power at main circuit breaker.

7. Turn power supply module power on to test opera­tion.

IG. 13).

Power Supply
Outputs (Vdc)

Input Power
Terminal Block

103f

112

Power Supply
Inputs (Vac)

TI14368a

FIG. 13: Power Supply

34 313883A

3KS Wall Mount Fluid Station

Preparation

1. Follow Before Servicing, page 30.

2. Loosen the 4 screws (215), then remove the Wall
Mount Fluid Station cover (203). F

Replacing CAN Isolation Board

NOTICE

To avoid damaging circuit board when servicing, wear
Part No. 112190 grounding strap on wrist and ground
appropriately.

IG. 15.

Service

1. Follow Preparation, page 35.

2. Disconnect all cables (J1, J2, J3, J8) from CAN iso­lation board (214). F

3. Remove 4 screws (220). Remove connector jam
nuts on the outside of the power supply module
(202). Remove board (214). F

4. Install new CAN isolation board (214) with 4 screws
(220).

5. Connect cables to board (214). F

6. Replace the cover (203).

7. Turn power on to test operation.

IG. 14.

IG. 15.

IG. 14.

313883A 35

Service

J8

(Communication)

VDC

J3

(Power Input)

J2

(Color Change

Module)

SW1

J1

(Booth Control)

D6

D7

D8

TI14373a

FIG. 14: 258673 3KS Fluid Station CAN Isolation Board

36 313883A

Service

215

203

201

220

214

227

226

228

237

222

202

213, 241

211

212

204

206

209

207

219

208

210

224

223

FIG. 15: 3KS Wall Mount Fluid Station

216

205

TI14360a

313883A 37

Service

Replacing Solenoids

The Wall Mount Fluid Station has a minimum of 2 sole­noids. If you have options installed, you have additional
(optional) solenoids for each. See Table 7 and Sche-

matic Diagrams, page 22.

To replace a single solenoid:

1. Follow Preparation, page 35, and shut off power at

main circuit breaker.

T

N

2. Disconnect 2 solenoid wires (N) from the terminal
strip (T). F

IG. 16.

3. Unscrew 2 screws (P) and remove solenoid (205).

4. Install new solenoid (205).

5. Connect 2 wires (N) to the terminal strip (T). Sole­noid wires are polarized (red +, black –). Refer to
System Electrical Schematic, page 26.

6. Replace the cover (203).

321

205

FIG. 16: Replacing Solenoids

Table 7: 3KS Wall Panel Solenoids

Solenoid Terminal Strip Pin Actuates

Standard

1
2

Optional

3

5 (black), 6 (red) Dose Valve C
7 (black), 8 (red) Purge Valve C

9 (black), 10 (red) Dump Valve C

P

TI14704a

38 313883A

Service

Servicing Flow Meters

Coriolis Meter

1. Follow Before Servicing, page 30.

2. To remove and service the Coriolis meter, see man­ual 313599.

G3000 or G3000HR Meter

Removal

1. Follow Before Servicing, page 30.

2. Unscrew cable connector from meter sensor (SN).
F

IG. 17.

3. Unscrew four 1/4-20 screws (MS) holding the meter
mounting plate (MP). F

4. Unscrew fluid line (FL) from meter inlet.

IG. 17.

2. Secure meter (M) and plate (MP) to fluid station with
screws (MS).

3. Connect meter cable.

4. Connect fluid line (FL).

5. Calibrate meter as instructed in ProMix Operation

manual.

MS

MP

FL

M
SN

5. Unscrew meter (M) from dose valve connector (H).
F

IG. 17.

6. Service meter as instructed in the meter manual

308778.

Installation

1. Screw meter (M) securely onto the dose valve con­nector (H), using a wrench.

NOTICE

To avoid leakage, secure the meter (M) to the dose
valve connector (H) before connecting it to the fluid
station.

J3

Cable Length

241799 5 ft (1.52 m)
241800 16 in. (406 mm)
241801 13 in. (330 mm)

J12

*Connectors on 2KS Fluid Station Control Board

FIG. 18: Meter Cable Schematic

FIG. 17: G3000/G3000HR Flow Meters

3X CABLE

1
2
3

*

4
5
6

1
2
3

*

4
5
6

PWR (RED)
COM (BLACK)
SIG (WHITE)
SHIELD/GRN
PWR (RED)
COM (BLACK)
SIG (WHITE)
SHIELD/GRN
PWR (RED)
COM (BLACK)
SIG (WHITE)
SHIELD/GRN

GROUND
TERMINAL

H

TI14382a

FLOW METER A

FLOW METER B

FLOW METER SOLVENT

313883A 39

Service

Servicing Fluid Manifold

Removal

1. Follow Servicing Flow Meters, Removal steps 1-5,

page 39.

2. Disconnect air and fluid lines from the manifold (3).

3. Holding onto the fluid manifold (3), loosen the three
screws (224) holding the bracket (223) to the fluid
station. Lift the fluid manifold (3) and pull it away
from the panel. Service as instructed in the Fluid
Mix Manifold manual 312781.

Installation

1. Secure the fluid manifold (3) and mounting plate
(224) with three screws (223).

223
224

2. Install meters. See Installation steps 1-3, page 39.

3. Connect air and fluid lines.

4. Calibrate meters as instructed in ProMix Operation
manual.

3

TI14382a

FIG. 19: Fluid Manifold

Servicing Color Change Module,
Color/Catalyst Valves, and
Dump Valves

1. Follow Before Servicing, page 30.

2. See manual 312787 for the color change module.

3. See manual 312783 for the color/catalyst valve
stacks.

4. See manual 312786 for the dump valve kits.

5. See manual 312782 to service an individual valve.

40 313883A

Parts

Configurator Key

The configured part number for your equipment is printed on the equipment identification labels.
See the illustrations below for location of the identification labels. The part number includes
digits from each of the following categories, depending on the configuration of your system.

The digits in this table do not correspond to ref. nos. in the parts lists or parts drawings.

Parts

3K
System

Third Component
Fluid Meter Third Component Change

TK 0 = No Meter

1 = G3000
2 = G3000HR
3 = 1/8 in. Coriolis
4 = Solvent Meter

Label Location
on Fluid Station

Maximum Fluid

Working Pressure

is listed here

0 = No Valves (single component C)
1 = Two Valves (low pressure)
2 = Four Valves (low pressure)
3= Two Valves (high pressure)
4= Four Valves (high pressure)

ProMix® 3KS

Electronic Proportioner

FM08ATEX0074
II 2 G
Ex ia IIA T3

CUS

Intrinsically safe

equipment for Class I,

Div 1, Group D, T3

Ta = -20°C to 50°C

MAX AIR WPR

.7 7 100

MPa bar PSI

MAX FLUID WPR

MPa bar PSI

MAX TEMP 50°C (122°F)

Intrinsically Safe (IS) System. Install
per IS Control Drawing No. 258682.
EasyKey Interface IS Associated
Apparatus for use in non hazardous
location, with IS Connection to Smart
Fluid Plate IS
Apparatus for use in:
Class I, Division 1, Group D T3 C
Hazardous Locations

Read Instruction Manual

Warning: Substitution of components
may impair intrinsic safety.

PART NO. SERIES

MFG. YR.

Not
Designated

00

SERIAL

GRACO INC.
P.O. Box 1441
Minneapolis, MN
55440 U.S.A.

Not
Designated

Label Location on
Power Supply Module

TI14370aTI14361a

Configured Part Number

TI14376a

313883A 41

Parts

ProMix 3KS System

Detail of Item 25 (on EasyKey Display Board)

25

1

5

TI12496a

Detail of Item 22

(on 2KS Fluid Panel)

22

TI14379a

9

1

Detail of Item 26 (in 2KS Fluid Panel)

26

TI14378a

1

11

8

6

Detail of 3KS Fluid Panel

2

7

TI14543a

10

4

1

These items are supplied with the ProMix 2KS System.

42 313883A

3

TI14382a

Ref.
No.

1
2

Parts

Configured Digit

(see page 41) or

part usage Part No. Description Qty

standard part 258670 POWER SUPPLY MODULE; see page 44 1
standard part see page 46PANEL, fluid 1

3
4

5

6

7

8

9
10
11

22
25
26

standard part 256875 MANIFOLD, mix; see manual 312781 1

KIT, flow meter C
0 none none 0
1 15V804 KIT, G3000 flow meter; see manual 308778 1
2 15V827 KIT, G3000HR flow meter; see manual 308778 1
3 15V806 KIT, Coriolis flow meter; see manual 313599 1
4 280555 KIT, solvent flow meter; see manual 308778 1

standard part 123271 CABLE, CAN, intrinsically safe; connects power supply module

to fluid station; 50 ft (16 m); red

standard part 123273 CABLE, CAN, intrinsically safe; connects ProMix 2KS fluid sta-

tion to ProMix 3KS fluid station; 10 ft (3 m); green

standard part 123280 CABLE, CAN, intrinsically safe; connects booth control to Pro-

Mix 3KS fluid station; 50 ft (16 m); yellow

standard part 205058 HOSE, fluid; 1/4 npsm(fbe); 6 ft (2 m); ptfe; connects ProMix

2KS static mixer to ProMix 3KS mix manifold inlet

0 - 4 see below MODULE, control, color change; see page 43 see below
0 - 4 see below VALVE STACK, color change; see page 43 see below
0 - 4 123277 CABLE, CAN, intrinsically safe; connects color change control

module to fluid station; 6 ft (2 m); yellow

standard part 114421 CONNECTOR, cord, strain relief 1
standard part 16A457 BOARD, circuit, 3KS upgrade, ProMix 3KS 1
standard part 15W513 LABEL, solenoid connection guide 1

1

1

1

1

1

Color Change Accessory Kits

Low Pressure Color Change Kits

Color Change

Kit Part

No. Kit Description

256581 2 color 278275 15V812
256582 4 color 278276 15V813

High Pressure Color Change Kits

Kit Part

No. Description

256596 2 color 278275 15V816
256597 4 color 278276 15V817

313883A 43

Control Module

(9; see 312787)

Control Module

(9; see 312787)

Valve Stack

(10; see 312783)

Color Change

Valve Stack

(10; see 312783)

Parts

258670 Power Supply Module

117

TI14366a

TI14370a

107

101 (Ref)

103b

105

101

103a

104

114

125, 122

103e110

115

127

101

112

123

120103f

TI14365a

103d

103f

113

TI14369a

126

44 313883A

124

121

127

258670 Power Supply Module

Parts

Ref.
No. Part No. Description Qty

101 n/a POWER SUPPLY MODULE 1
103 n/a PLATE, application; includes

items 103a-103f

103a 255786 • BOARD, barrier, IS; (includes

fuses 15D979 and 114788,
see page 33 for fuse loca-

tion)
103b n/a • COVER 1
103c 117526 • SPACER 3
103d 119257 • BAR, ground 1
103e 114095 • BLOCK, terminal 1
103f 121314 • POWER SUPPLY; 24 Vdc;

2A
104 n/a SCREW, machine, pan-hd;

6-32 x 3/8 in. (10 mm)

105 n/a SCREW, machine, pan-hd;

6-32 x 1-1/2 in. (38 mm)

107 n/a SCREW, machine, pan-hd;

10-24 x 3/8 in. (10 mm)

110 n/a SCREW, machine, pan-hd;

8-32 x 3/4 in. (19 mm)

Ref.
No. Part No. Description Qty

112 116320 SWITCH, power 1
113 15V280 HARNESS, connection 1

1

114 n/a RAIL 1
115 n/a SCREW, machine, rd-hd; #10 x

1

3/8 in. (10 mm)
117▲ 15G569 LABEL, EasyKey inputs 1
120 120838 BLOCK, clamp end 2
121 n/a HOLDER, tie 1
122 223547 GROUND WIRE; 25 ft (7.6 m) 1
123▲ 15W776 LABEL, warning 1
124 194337 WIRE, grounding, door 1

1

125 116343 SCREW, ground; M5 x 0.8 1
126▲ 186620 LABEL, ground 1

3

127 16A335 HARNESS, wire 1

2

▲ Replacement Danger and Warning labels, tags, and

cards are available at no cost.

2

Parts labeled n/a are not available separately.

2

6

313883A 45

Parts

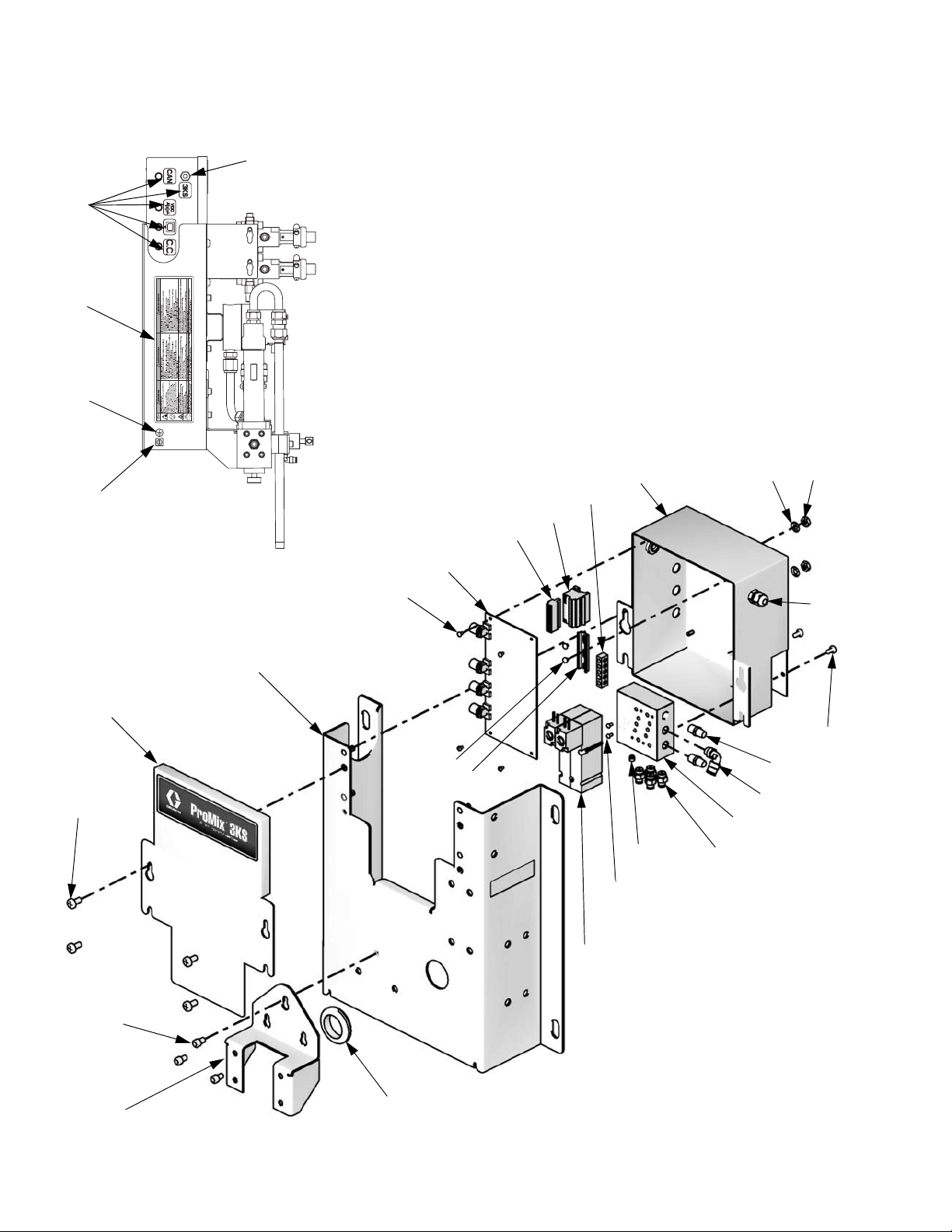

Wall Mount Fluid Station

243

236

221

218

217, 240

203

215

201

TI14383a

220

214

227

226

228

237

222

202

213, 241

211

212

204

206

209

207

219

208

210

205

224

223

46 313883A

216

TI14360a

Wall Mount Fluid Station

NOTE: Parts are shown on page 46, unless noted.

Ref.
No. Part No. Description Qty

201 n/a PLATE, mounting 1
202 256841 ENCLOSURE 1
203 15V790 COVER 1
204 15V879 MANIFOLD, solenoid, 3 station 1
205 121374 VALVE, solenoid, intrinsically

safe; 12 Vdc

206 100985 WASHER, lock, external tooth;

1/4
207 101345 NUT, hex, jam; 1/4-20 4
208 n/a SCREW, machine, pan-hd; #10

x 3/8 in. (10 mm)
209 112698 ELBOW, swivel, 90°; 1/8 npt(m)

x 1/4 in. (6 mm) OD tube
210 C06061 MUFFLER 2
211 121628 SCREW, machine, self-seal-

ing; 4-40 x 1/4 in. (6 mm)
212 114263 FITTING, tube; 1/8 npt(m) x

5/32 in. (4 mm) OD tube
213 104644 PLUG, screw; 10-32 x 5/32 in.

(4 mm)
214 258673 BOARD, circuit, CAN isolation 1
215 113783 SCREW, machine, pan hd;

1/4-20 x 1/2 in. (13 mm)
216 120685 GROMMET 1
217 116343 SCREW, ground 1
218▲ 186620 LABEL, symbol, ground 2
219 111987 CONNECTOR, cord strain relief 2

Ref.
No. Part No. Description Qty

220 n/a SCREW, machine, pan hd;

4-40 x 3/16 in. (5 mm)
221▲ 15W775 LABEL, warning 1
222 119257 CONNECTOR, bar, ground 1
223 15U510 BRACKET, valve mount 1
224 C19798 SCREW, cap, socket-hd; 1/4-20

2

x 3/8 in. (10 mm)
226 n/a RAIL 1

4

227 104714 SCREW, machine, pan hd; #6 x

3/16 in. (5 mm)
228 116773 CONNECTOR, plug,10-position 1

2

229 n/a TUBE, nylon, red; 5/32 in.

1

230 n/a TUBE, nylon, green; 5/32 in.

2

234 n/a TUBE, nylon; 1/4 in. (6 mm)

4

236 n/a LABEL, installation 1

2

237 123329 CONNECTOR, 10-pin 1
238 16A357 WIRE HARNESS 1
240 16A475 WIRE, ground; 25 ft (7.6 m) 1

4

241 104640 GASKET 2
243 104421 STRAIN RELIEF 1

▲ Replacement Danger and Warning labels, tags, and

cards are available at no cost.

Parts labeled n/a are not available separately.

(4 mm) OD; two 2 ft (0.6 m)

lengths

(4 mm) OD; two 2 ft (0.6 m)

lengths

OD; 10 ft (3.05 m) supplied

Parts

4

3

2

A/R

A/R

A/R

313883A 47

Parts

Available Cables

Color

Part No.

Cables to connect the EasyKey to the ProMix 2KS Fluid Station

15U533 Blue 50 (15.25) Standard IS Power Cable to connect EasyKey with 2KS Fluid Station
15U531 Blue 2 (0.61) Optional IS Power Cable
15U532 Blue 3 (0.92) Optional IS Power Cable
15V205 Blue 6 (1.83) Optional IS Power Cable
15V206 Blue 10 (3.05) Optional IS Power Cable
15V207 Blue 15 (4.57) Optional IS Power Cable
15V208 Blue 25 (7.62) Optional IS Power Cable
15V213 Blue 100 (30.50) Optional IS Power Cable
15D320 n/a 50 (15.25) Standard Fiber Optic Communication Cable to connect EasyKey with

15G710 n/a 100 (30.50) Optional Fiber Optic Cable

Cables to connect the 3KS Power Supply Module to the ProMix 3KS Fluid Station

Code Length, ft (m) Usage

2KS Fluid Station

123271 Red 50 (15.25) Standard IS Power Cable to connect 3KS Power Supply Module with

3KS Fluid Station

123272 Red 100 (30.50) Optional IS Power Cable

Cables to make connections within the Hazardous Area

15U532 Blue 3 (0.92) Standard CAN Cable to connect Color Change Module 1 with Color

Change Module 2
123273 Green 10 (3.05) Standard CAN Cable to connect 2KS Fluid Station with 3KS Fluid Station
123274 Green 25 (7.62) Optional CAN Cable to connect 2KS Fluid Station with 3KS Fluid Station
123277 Yellow 6 (1.83) Standard CAN Cable to connect Color Change Module 1 with 3KS Fluid

Station

Optional CAN Cable to connect Booth Control with 3KS Fluid Station
123280 Yellow 50 (15.25) Standard CAN Cable to connect Booth Control with 3KS Fluid Station

Optional CAN Cable to connect Color Change Module 1 with 3KS Fluid

Station
15G611 n/a 10 (3.05) Standard IS Power and Communication Cable to connect Flow Control

Module to 2KS Fluid Station
15G614 n/a 40 (12.2) Optional IS Power and Communication Extension Cable to increase

cable length from Flow Control Module to 2KS Fluid Station

48 313883A

Technical Data

Technical Data

Maximum fluid working pressure . . . . . . . . . . . . . . . . . . . Base system: 3000 psi (21 MPa, 210 bar)

Low pressure color change: 300 psi (2.1 MPa, 21 bar)
High pressure color change: 3000 psi (21 MPa, 210 bar)
Coriolis meter: 2300 psi (16.1 MPa, 161 bar)

Maximum working air pressure. . . . . . . . . . . . . . . . . . . . . 100 psi (0.7 MPa, 7 bar)

Air supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 - 100 psi (0.5 - 0.7 MPa, 5.2 - 7 bar)

Air filter inlet size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8 npt(f)

Air filtration for air logic and purge air (Graco-supplied). . 5 micron (minimum) filtration required; clean and dry air

Air filtration for atomizing air (user-supplied) . . . . . . . . . . 30 micron (minimum) filtration required; clean and dry air

Mixing ratio range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stage 1 (A:B): 0.1:1- 50:1*

Stage 2 (A+B:C): 0.1:1- 50:1*

On-ratio accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . up to +

Fluids handled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . one or two component:

• solvent and waterborne paints

• polyurethanes

•epoxies

• acid catalyzed varnishes

• moisture sensitive isocyanates

Viscosity range of fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 20- 5000 cps*

Fluid filtration (user-supplied) . . . . . . . . . . . . . . . . . . . . . . 100 mesh minimum

Fluid flow rate range*

G3000, G250 Meter . . . . . . . . . . . . . . . . . . . . . . . . . .

G3000HR, G250HR Meter. . . . . . . . . . . . . . . . . . . . .

Solvent Meter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Coriolis Meter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fluid inlet sizes

Flow Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dose Valve/Color Valve Adapters . . . . . . . . . . . . . . .

3KS Fluid Station . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fluid outlet size (static mixer) . . . . . . . . . . . . . . . . . . . . . . 1/4 npt(f)

External Power Supply Requirements . . . . . . . . . . . . . . . 85 - 250 Vac, 50/60 Hz, 2 amps maximum draw

Operating temperature range . . . . . . . . . . . . . . . . . . . . . . 41- 122° F (5-50° C)

Environmental Conditions Rating . . . . . . . . . . . . . . . . . . . indoor use, pollution degree (2), installation category II

Noise Level

Sound pressure level . . . . . . . . . . . . . . . . . . . . . . . . .

Sound power level . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wetted parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303, 304 SST, Tungsten carbide (with nickel binder),

75 - 3800 cc/min. (0.02-1.00 gal./min.)
38 - 1900 cc/min. (0.01-0.50 gal./min.)
20 - 3800 cc/min. (0.005-1.00 gal./min.)
38 - 1900 cc/min. (0.01-0.50 gal./min.)

1/4 npt(f)
1/4 npt(f)
1/4 npt(m)

15 amp maximum circuit breaker required
8 to 14 AWG power supply wire gauge

below 70 dBA
below 85 dBA

perfluoroelastomer; PTFE

1%, user selectable

* Dependent on flow rate, dose size, and meter resolution.

See individual component manuals for additional technical data.

313883A 49

Graco Standard Warranty

Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.

This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will
be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.

THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.

GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to

the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.

FOR GRACO CANADA CUSTOMERS

The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.

Graco Information

For the latest information about Graco products, visit www.graco.com.

TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: [phone] or Toll Free: 1-800-328-0211 Fax: [phone]

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

Original instructions. This manual contains English. MM 313883

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441

Copyright 2010, Graco Inc. is registered to ISO 9001

www.graco.com
