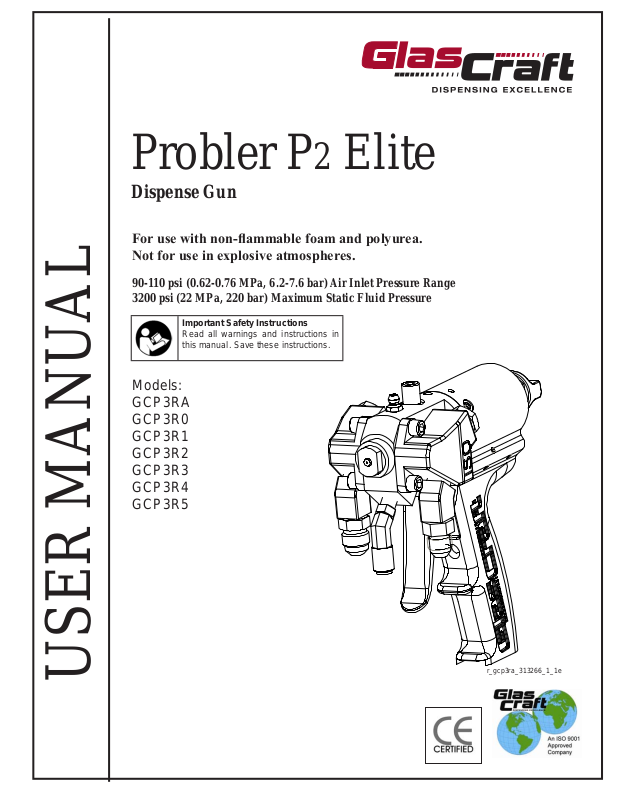

Graco 313266V User Manual
Probler P2 Elite
Dispense Gun
For use with non-ammable foam and polyurea.
Not for use in explosive atmospheres.
90-110 psi (0.62-0.76 MPa, 6.2-7.6 bar) Air Inlet Pressure Range
3200 psi (22 MPa, 220 bar) Maximum Static Fluid Pressure
Important Safety Instructions
Read all warnings and instructions in
this manual. Save these instructions.
Models:
GCP3RA
GCP3R0
GCP3R1
GCP3R2
GCP3R3
GCP3R4
GCP3R5
USER MANUAL
r_gcp3ra_313266_1_1e
Table Of Contents
Section 1 Installation
Warnings ............................................................................................................................................................ 3
Introduction ........................................................................................................................................................ 7
Standard Equipment .......................................................................................................................................... 8
Translations ....................................................................................................................................................... 8
Equipment Assembly ......................................................................................................................................... 9
Section 2 Operation
Start-up Instructions ........................................................................................................................................... 11
Section 3 General Information

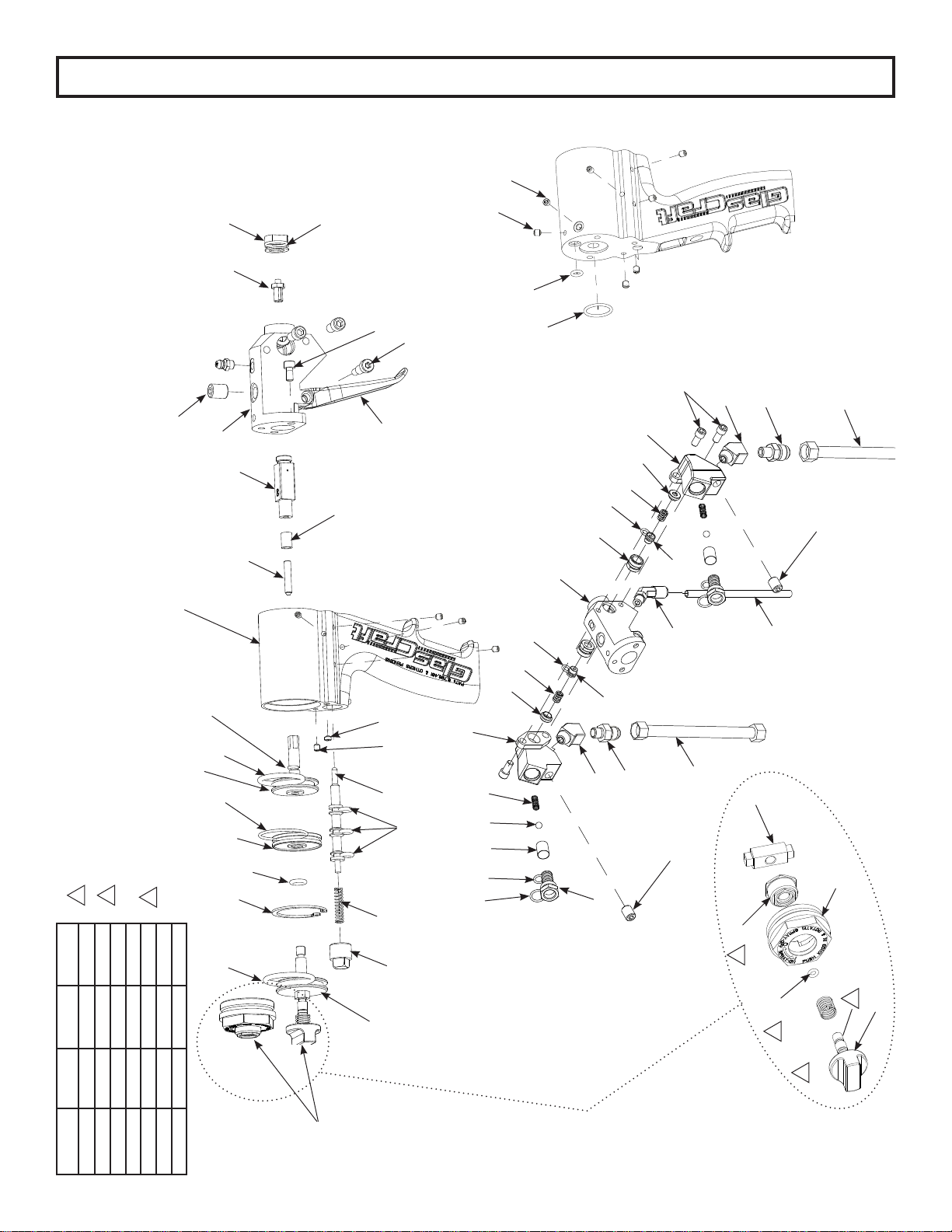

Assembly Drawings ............................................................................................................................................. 13
Maintenance ........................................................................................................................................................ 16
Options ................................................................................................................................................................ 21
Section 4 Warranty and Reference Information
Limited Time Warranty ........................................................................................................................................ 25
Technical Assistance ........................................................................................................................................... 26
For Your Reference ............................................................................................................................................. 27
2
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation
point symbol alerts you to a general warning and the hazard symbol refers to procedure-specic risk. Refer back to these
warnings. Additional, product-specic warnings may be found throughout the body of this manual where applicable.
WARNING
TOXIC FLUID OR FUMES HAZARD
Toxic uids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swal-
lowed.
Read MSDS’s to know the specic hazards of the uids you are using.•
Store hazardous uid in approved containers, and dispose of it according to applicable guidelines.•
Always wear impervious gloves when spraying or cleaning equipment.•
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating area of
the equipment to help protect you from serious injury, including eye injury, inhalation of toxic fumes, burns,
and hearing loss. This equipment includes but is not limited to:
Protective eyewear•
Clothing and respirator as recommended by the uid and solvent manufacturer•
Gloves•
Hearing protection•
SKIN INJECTION HAZARD
High-pressure uid from gun, hose leaks, or ruptured components will pierce skin. This may look like just a
cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
Do not point gun at anyone or at any part of the body.•
Do not put your hand over the spray tip.•
Do not stop or deect leaks with your hand, body, glove, or rag.•
Close material shutoff valves and then shut off or disconnect air supply when not spraying.•
Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning, checking, •
or servicing equipment.
BURN HAZARD
Equipment surfaces and uid that’s heated can become very hot during operation. To avoid severe burns, do
not touch hot uid or equipment. Wait until equipment/uid has cooled completely.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent re
and explosion:
Use equipment only in well ventilated area.•
Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop •
cloths (potential static arc).
Keep work area free of debris, including solvent, rags and gasoline.•
Do not plug or unplug power cords, or turn power or light switches on or off when ammable fumes are •
present.
Ground all equipment in the work area.•
Use only grounded hoses.•
Hold gun rmly to side of grounded pail when triggering into pail.•
If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment until •
you identify and correct the problem.
Keep a working re extinguisher in the work area.•
3
Warnings
WARNING
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
Do not operate the unit when fatigued or under the inuence of drugs or alcohol.•
Do not exceed the maximum working pressure or temperature rating of the lowest rated system compo-•
nent. See Technical Data in all equipment manuals.
Use uids and solvents that are compatible with equipment wetted parts. See Technical Data in all •
equipment manuals. Read uid and solvent manufacturer’s warnings. For complete information about
your material, request MSDS forms from distributor or retailer.
Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manufactur-•
er’s replacement parts only.
Do not alter or modify equipment.•
Use equipment only for its intended purpose. Call your distributor for information.•
Route hoses and cables away from trafc areas, sharp edges, moving parts, and hot surfaces.•
Do not kink or over bend hoses or use hoses to pull equipment.•
Keep children and animals away from work area.•
Comply with all applicable safety regulations.•
PRESSURIZED ALUMINUM PARTS HAZARD
Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon
solvents or uids containing such solvents in pressurized aluminum equipment. Such
use can cause serious chemical reaction and equipment rupture, and result in death,
serious injury, and property damage.
4
Warnings
Isocyanate Hazard
Spraying materials containing isocyanates creates
potentially harmful mists, vapors, and atomized
particulates.
Read material manufacturer’s warnings and
material MSDS to know specic hazards and
precautions related to isocyanates.
Prevent inhalation of isocyanate mists, vapors, and
atomized particulates by providing sufcient ventila-
tion in the work area. If sufcient ventilation is not
available, a supplied-air respirator is required for
everyone in the work area.
To prevent contact with isocyanates, appropriate
personal protective equipment, including chemically
impermeable gloves, boots, aprons, and goggles, is
also required for everyone in the work area.
To prevent exposing ISO to moisture:
Always use a sealed container with a desiccant dryer •
in the vent, or a nitrogen atmosphere. Never store ISO
in an open container.
Keep the ISO lube pump reservoir lled with Graco •
Throat Seal Liquid (TSL), Part 206995. The lubricant
creates a barrier between the ISO and the atmosphere.
Use moisture-proof hoses specically designed for •
ISO, such as those supplied with your system.
Never use reclaimed solvents, which may contain •
moisture. Always keep solvent containers closed when
not in use.
Never use solvent on one side if it has been contami-•
nated from the other side.
Always park pumps when you shutdown.•
Always lubricate threaded parts with Part 217374 ISO •
pump oil or grease when reassembling.
Moisture Sensitivity of
Isocyanates
Isocyanates (ISO) are catalysts used in two component
foam and polyurea coatings. ISO will react with moisture
(such as humidity) to form small, hard, abrasive crystals,
which become suspended in the uid. Eventually a lm will
form on the surface and the ISO will begin to gel, increasing in viscosity. If used, this partially cured ISO will reduce
performance and the life of all wetted parts.
The amount of lm formation and rate of crystal-
lization varies depending on the blend of ISO,
the humidity, and the temperature.
5
Warnings
Material Self-ignition
Some materials may become self-igniting if applied to
thickly. Read material manufacturer’s warnings and
material MSDS.
Keep Components A and B
Separate
CAUTION
To prevent cross-contamination of the equipment’s wet-
ted parts, never interchange component A (isocyanate)
and component B (resin) parts. The gun is shipped with
the A side on the left. The uid manifold, uid hous-
ing, side seal assembly, check valve cartridge, and mix
chamber are marked on the A side.
Changing Materials
When changing materials, ush the equipment mul-•
tiple times to ensure it is thoroughly clean.
Always clean the uid inlet strainers after ushing.•
Check with your material manufacturer for chemical •
compatibility.
Most materials use ISO on the A side, but some use •
ISO on the B side.
Epoxies often have amines on the B (hardener) side. •
Polyureas often have amines on the B (resin) side.
Foam Resins with 245 fa
Blowing Agents
New foam blowing agents will froth at temperatures above
90°F (33 °C) when not under pressure, especially if agitated. To reduce frothing, minimize preheating in a circulation
system.
6
Introduction
Section 1 - Installation: Introduction
Before operating, maintaining or servicing any GlasCraft system, read and understand all of the technical
and safety literature provided with GlasCraft products.
If you do not have the proper or related manuals and
safety literature for your GlasCraft system, contact your
GlasCraft distributor.
In this GlasCraft technical and safety publication, the
following advisories will be provided where appropriate:
Information about the procedure in progress.
WARNING
Indicates a hazardous situation that can result in death
or serious injury.
The information in this document is intended only to indi-
cate the components and their normal working relationship
typical use. Each assembly should be directed by a GlasCraft distributor or made from the GlasCraft Assembly
instructions provided.
This manual provides information for the assembly, opera-
tion, maintenance and service of this GlasCraft product as
used in a typical conguration. While it lists standard speci-
cations and procedures, some deviations may be found.
In order to provide our users with the most up-to-date
technology possible, we are constantly seeking to improve
products. If a technological change occurs after a prod-
uct is on the market, we will implement that technology in
future production and, if practical, make it available to cur-
rent users as a retrot, update or supplement. If you nd
a discrepancy between your unit and the available documentation, contact your GlasCraft distributor to resolve the
difference.
Careful study and continued use of this manual will provide a better understanding of the equipment and process,
resulting in more efcient operation, longer trouble-free
service and faster, easier troubleshooting.
7
Section 1 - Installation: Standard Equipment
Standard Equipment
Part
Number
GCP3RX Probler P2 Dispense Gun
313266 User Manual
Description
Translations
Manual No. Langauge
3A0474 Spanish
3A0475 French
8
Section 1 - Installation: Equipment Assembly
How The Gun Works
The trigger actuates a small valve in the gun handle
that controls the ow of air into the piston assembly.
When the trigger is pulled, air ows through the valve to
the front of the piston. Air pressure forces the piston
towards the rear of the gun, simultaneously closing off the
purge air and moving the mixing chamber to a position
where the mixing chamber orices are aligned with the
orices in both, the side block seal and check valve assem-
blies.
The proper alignment of the orices is determined by
the setting of the adjustment nut, located on the pis-
ton lock assembly.. This adjustment nut determines
the length of travel of the air piston and has been
preset at the factory and should not require adjustment. (SEE MAINTENANCE SECTION)
The two uids (isocyanate and polyol) then ow through
the material shut-off valves, seal, and check valve assem-
blies and into the mixing chamber. The two uids impinge
against one another and exit the mixing chamber in a swirling, conical spray pattern.
Piston Lock
Engage piston lock whenever you stop spraying, to avoid
accidental triggering.

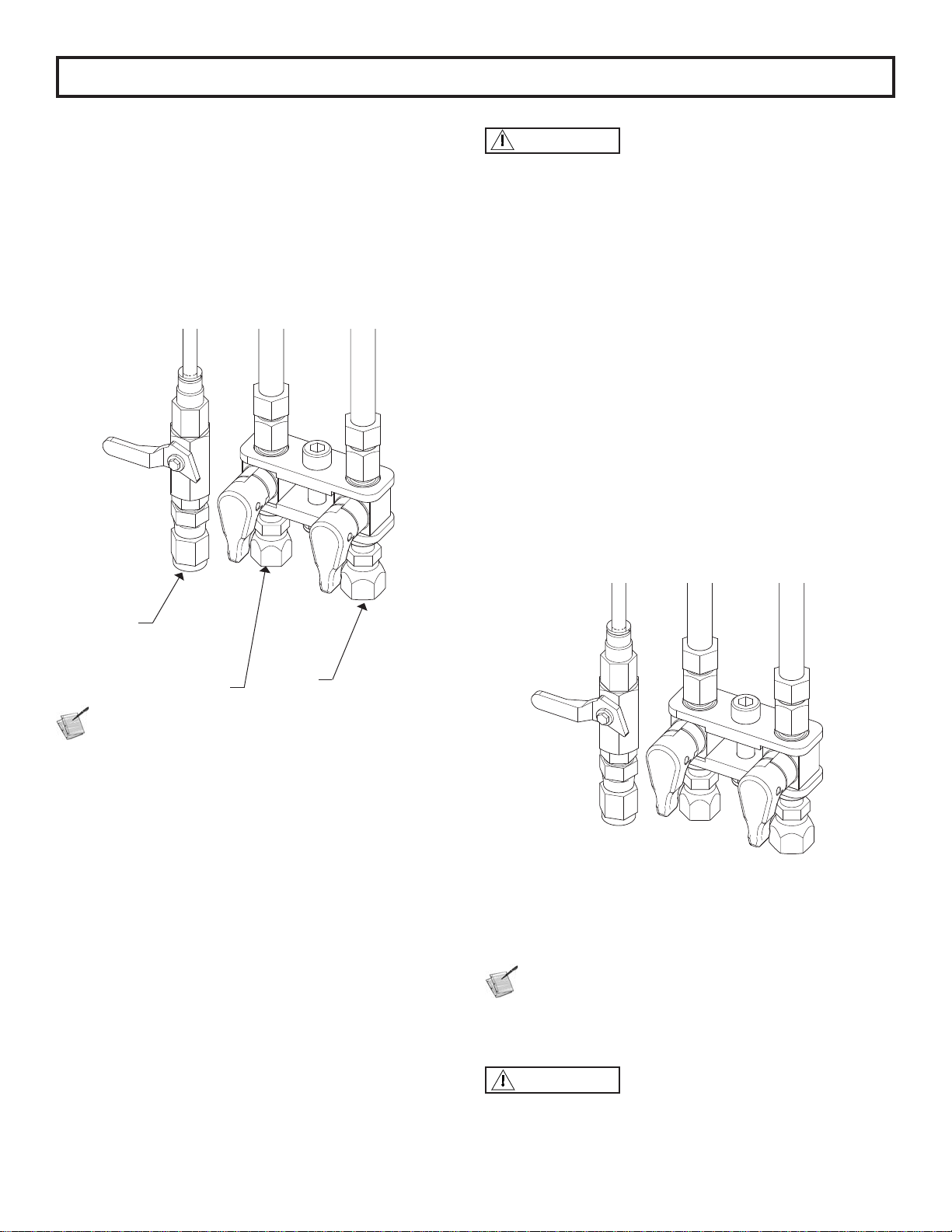

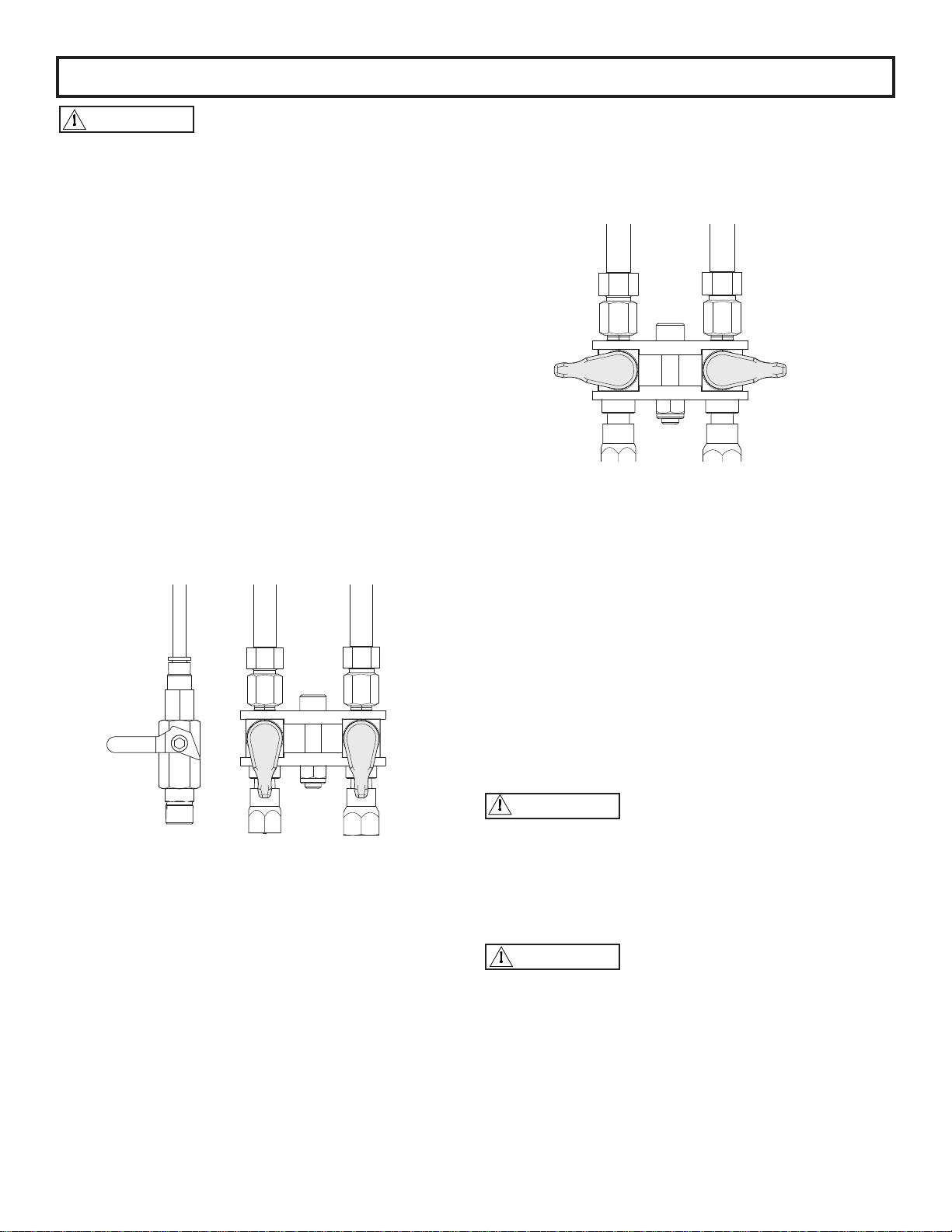

Always use piston lock in conjunction with uid ball valves
to avoid accidental triggering.
WARNING
Read warnings, page 3.
To engage Piston lock: push knob in and turn clockwise.
If engaged, gun will not actuate.
r_257826_313266_1_2b
To disengage piston lock: push knob in and turn coun-
terclockwise until it pops out. There will be a gap between
knob and gun body.
When the trigger is released, the mixing chamber returns
to its original position and purge air ows into the mixing
chamber housing. The front tip o-ring keeps air purge
inside the gun head, which forces all of the air through the
orices in the mixing chamber creating a complete, total
and constant purge.
This purge air continues to ow through the mixing cham-
ber until the air valve has shut-off all air to the gun; or until
the trigger is pulled again.
r_257826_313266_1_1b
See page 19 for piston lock adjustment or installation.
Loss of Air Pressure
In event of loss of air pressure, gun will continue to spray.
To shut off gun, do one of the following:
Push in piston lock, see • Engage piston lock.

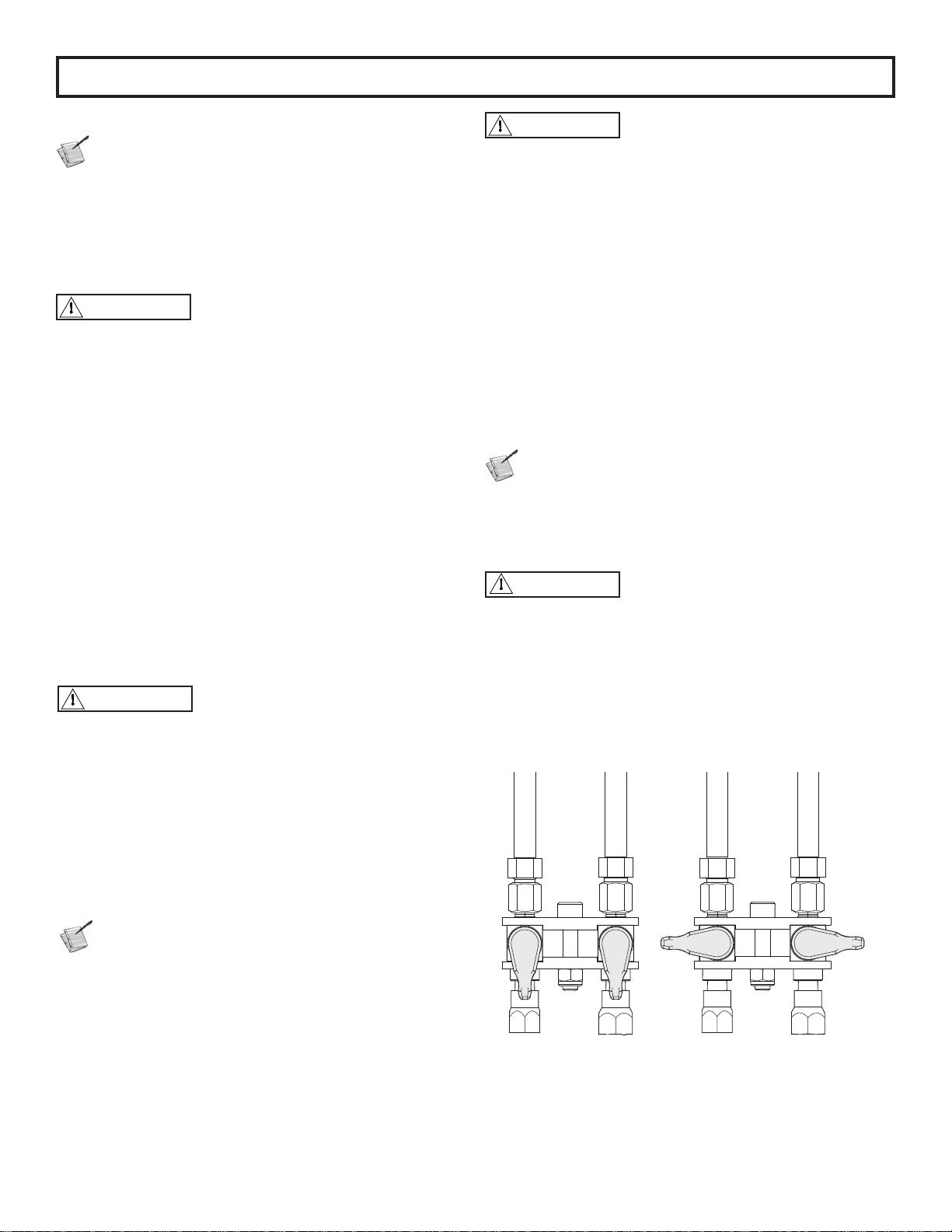

Close ball valves A and B.•
9
Loading...
