Instructions - Parts List
Grease Pump
System
Important Safety Instructions
Read all warnings and instructions in this manual. Save these instructions.
See supplied pump and motor manuals for important Safety and Warnings information and installation,
operation and service instructions for those components.
See page 2 for model information, including maximum working pressure.
.
312863C
EN
ti12196a
Models 247973 and 247976 Shown
Models
Models
NOTICE
To prevent damage to Data Trak soft key buttons, do
not press the buttons with sharp objects such as pens,
plastic cards, or fingernails.
Models with Data Trak
Maximum Working Pressure
Air Fluid
NXT
Part
No.
247973 14:1 Check-Mate 3400 500 Floor Stand 100 0.7 7.0 1400 9.6 96.5
247974 29:1 Check-Mate 3400 250 Floor Stand 100 0.7 7.0 2900 20 200
247975 63:1 Check-Mate 3400 100 Floor Stand 72 0.5 4.9 4500 31 310
247976 26:1 Check-Mate 6500 500 Floor Stand 100 0.7 7.0 2600 18 179.2
247977 55:1 Check-Mate 6500 250 Floor Stand 100 0.7 7.0 5500 38 380
247978 68:1 Check-Mate 6500 200 Floor Stand 78 0.54 5.38 5300 36.5 365.4
247979 14:1 Check-Mate 3400 500 RAM 100 0.7 7.0 1400 9.6 96.5
247980 63:1 Check-Mate 3400 100 RAM 72 0.5 4.9 4500 31 310
247981 68:1 Check-Mate 6500 200 RAM 78 0.54 5.38 5300 36.5 365.4
Part
No.
24E006 14:1 Check-Mate 3400 500 Floor Stand 100 0.7 7.0 1400 9.6 96.5
24E008 29:1 Check-Mate 3400 250 Floor Stand 100 0.7 7.0 2900 20 200
24E010 63:1 Check-Mate 3400 100 Floor Stand 72 0.5 4.9 4500 31 310
24E007 26:1 Check-Mate 6500 500 Floor Stand 100 0.7 7.0 2600 18 179.2
24E009 55:1 Check-Mate 6500 250 Floor Stand 100 0.7 7.0 5500 38 380
24E011 68:1 Check-Mate 6500 200 Floor Stand 78 0.54 5.38 5300 36.5 365.4
Description
Models without Data Trak, with De-Icing
Description
Air
Motor
Size
NXT
Air
Motor
Size
Lower
Size
(cc)
Lower
Size
(cc)
Floor
Stand or
RAM
Floor
Stand or
RAM
psi MPa bar psi MPa bar
Maximum Working Pressure
Air Fluid
psi MPa bar psi MPa bar
2 312863C
Setup and Parts

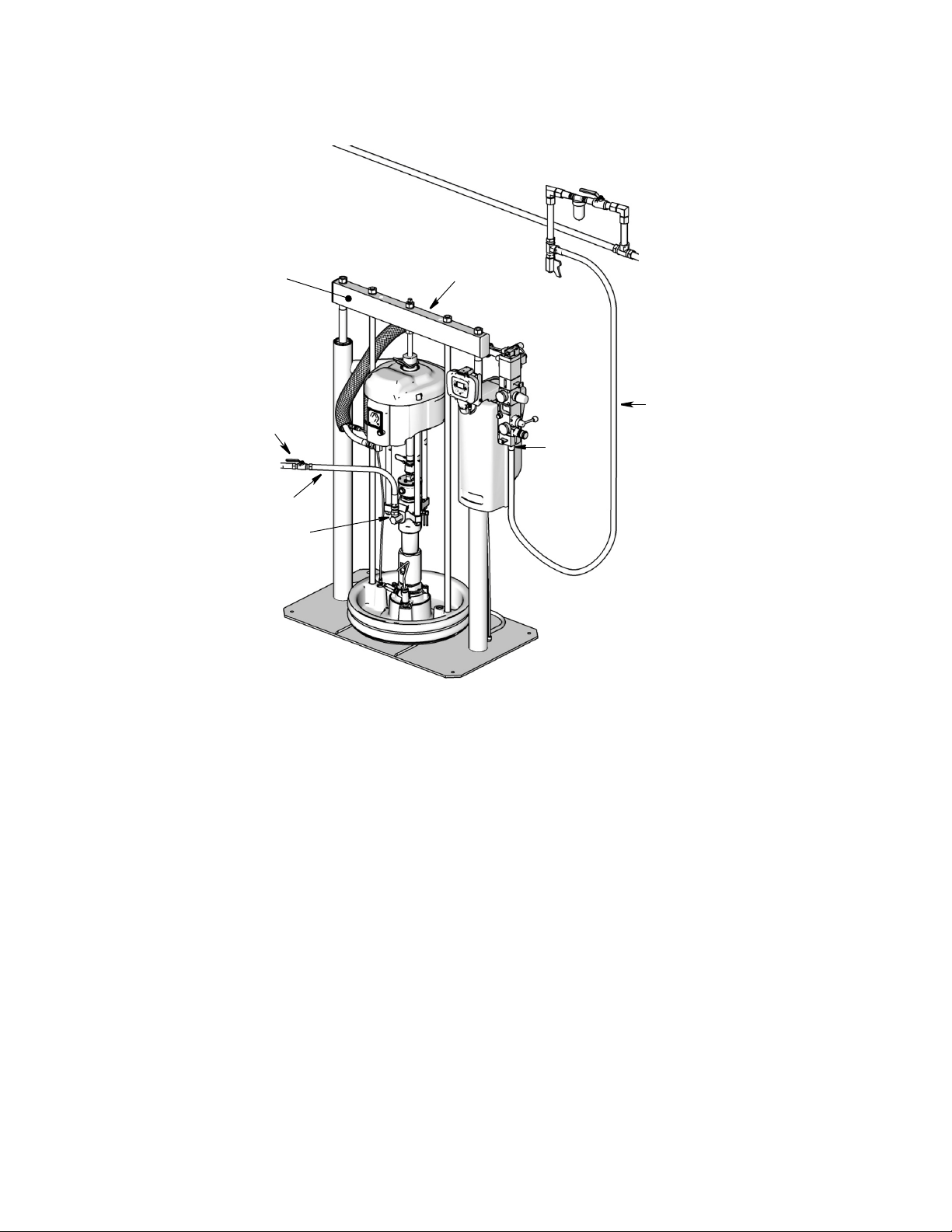

Models: 247973 and 24E006 14:1, 247976 and 24E007 26:1- Floor Stand
8
2
5
9
4
1, 11
Setup and Parts
7
13
Ref.
No. Part No. Description Qty.
1 160022 FITTING, union, adapter 90°,
model 247973
116648 FITTING, swivel, 1” MXF, model
247976
2 208610 HOSE, air, coupled, 6-foot 1
3 115042 HOSE, fluid, coupled, 6 foot, model
247973
244657 HOSE, fluid, coupled, 6 foot, model
247976
4 157785 FITTING, air, swivel 1
5 244524 WIRE, ground, assembly, with
clamp
6 223952 ADAPTER, pump 1
7 512152 VALVE, ball, 1” NPT(F), model
247973
116471 VALVE, ball, 1” FBE, model 247976 1
12
6
16†
Ref.
No. Part No. Description Qty.
8 P14MCS PUMP, 14:1, 3400/500 CS SD,
1
P26MCS PUMP, 26:1, 6500/500 CS SD,
1
P14DCS PUMP, 14:1, 3400/500 CS SD,
1
1
9 NXT011 CONTROL, air integrated, locking 1
11 116650 COUPLING, 1” x 1-1/2”
12 208390 VALVE, ball 1
13 222776 KIT, repair, mounting (4.5 cm) 1
1
16† CE Identification label 1
1
P26DCS PUMP, 26:1, 6500/500 CS SD,
† Attention: To comply with CE directives, the CE
identification label must be affixed to the floor
stand as shown. Permanently mark the date of
assembly on the label.
ti12196a
model 247973
model 247976
model 24E006
model 24E007
3
1
1
1
1
312863C 3
