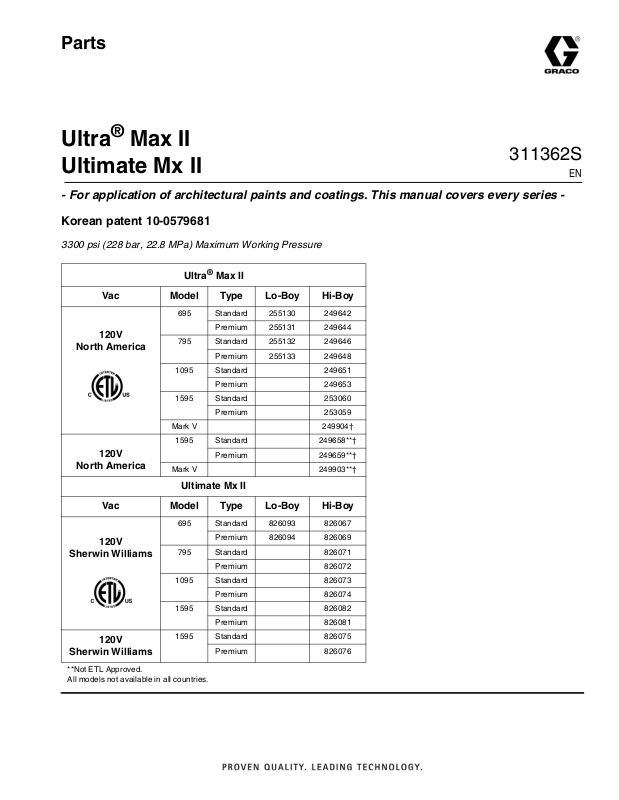

Page 1
Parts
Ultra® Max II
Ultimate Mx II
311362S
EN
- For application of architectural paints and coatings. This manual covers every series -
Korean patent 10-0579681
3300 psi (228 bar, 22.8 MPa) Maximum Working Pressure
Ultra® Max II
Vac Model Type Lo-Boy Hi-Boy
695 Standard 255130 249642
120V
North America
120V
North America
795 Standard 255132 249646
1095 Standard 249651
1595 Standard 253060
Mark V 249904†
1595 Standard 249658**†
Mark V 249903**†
Ultimate Mx II
Premium 255131 249644
Premium 255133 249648
Premium 249653
Premium 253059
Premium 249659**†
Vac Model Type Lo-Boy Hi-Boy
695 Standard 826093 826067
120V
Sherwin Williams
120V
795 Standard 826071
1095 Standard 826073
1595 Standard 826082
1595 Standard 826075
Sherwin Williams
**Not ETL Approved.
All models not available in all countries.
Premium 826094 826069
Premium 826072
Premium 826074
Premium 826081
Premium 826076
Page 2
Parts Drawing - Lo-Boy Sprayer
UltraMax II 695 & 795: 255130, 255131, 255132, 255133
Ultimate Mx II 695: 826093, 826094
58
160
110
126
124
123
164
84
Parts Drawing - Lo-Boy Sprayer
72
110
36
127
37
28
89
30
18
103
163
107
105
11
22
106
10
19
62
8
104
90a
99
43
162
94
41
28
85
83
90
56
6
44
91
12
14
6
108
95
51
71
31
161
55
695 Series B
795 Series B
See page 12
695 Series A
795 Series A
See Page 10
129
17
109
138
139
141
140
130
76
ti12976b
93
87
77
48
2 311362S
Page 3
Parts List - Lo-Boy Sprayer
Parts List - Lo-Boy Sprayer
UltraMax II 695 & 795: 255130, 255131, 255132, 255133
Ultimate Mx II 695: 826093, 826094
1
Ref Part Description Qty
6 15C753 SCREW, mach, torx, hex 5
8 15E891 CLIP, retaining 2
10 156306 WASHER, flat 2
11* 119420 WHEEL, pneumatic 2
12 106115 WASH, lock, spring 4
14 107210 SCREW, cap, socket hd 4
17 15C871 CAP, leg 2
18 109032 SCREW, mach, pnh 4
19 112746 NUT, hex, flanged 8
22 116038 WASHER, wave spring 2
28 114672 WASHER, thrust 2
30 114699 WASHER, thrust 1
31 118444 SCREW, machine, hex washer hd 4
36 116191 WASHER, thrust 1
37 100057 SCREW, cap, hex hd 4
41 162453 FITTING, (1/4 NPSM x 1/4 NPT) 1
43 176817 SPRING, retaining 1
44 176818 PIN, str, hdls 1
48 189920 STRAINER, (1-11 1/2 NPSM) 1
51 287291 COVER, drive, plastic, painted;
includes 31, 95
55 16C457 HANGER, pail 1
56 192723 NUT, retaining 1
58 287281 695 SHIELD, motor, painted;
includes 31
287282 795 SHIELD, motor, painted;
includes 31
62 288898 FRAME, cart 1
71 LABEL 1
15K374 Ultra 695
15D068 Ultra 795
824995 Ultimate 695
72 LABEL 1
15K381 Ultra 695
15D069 Ultra 795
824996 Ultimate 695
76 248216 HOSE, suction;
includes 109, 138, 134, 140, 141
77 15D000 CLIP, drain line 1
83 240523
84
287197 695 Series A
257185 695 Series B
287198 795 Series A
257186 795 Series B
85 241008 ROD, connecting;
HOUSING, bearing;
includes
MOTOR, electric; includes
162, 55
includes 43
126, 127
Ref Part Description Qty
87 241920 DEFLECTOR, threaded 1
89 287289 GEAR, combination;
90 HOUSING, drive, M1;
287283 695
287284 795
90a 107089 WASHER, race, thrust 1
91 248204 PUMP, displacement 695/795;
93 248217 HOSE, drain;
94 15D049 HOSE, coupled, 1/4 x 15.75 1
95 114000 SCREW, control housing 1
99 288448 HANDLE, cart 1
103 287253 TOOL BOX;
104 118852 SCREW, machine, hex washer 3
105 276975 CUP, drain 1
106 15F952 BRACKET, drain cup 1
107 114423 SCREW, mach, hex hd 2
1
108 15C859 SHIELD, pump rod 1
109 115099 WASHER, garden hose 1
110 16D585 LABEL, Ultra Premium, sides 2
117 187436 LABEL, torque 1
123 276980 GROMMET, cover 2
1
124 119250 SCREW, shoulder, hex washer 2
126 15D088 FAN, motor 1
1
127 115477 SCREW, mach, torx, pan hd 1
128▲ 222385 TAG, WARNING (not shown) 1
129 HOSE, cpld, 1/4 in. x 50 ft 1
240794 Ultra
826079 Ultimate
130 288422 GUN, contractor 1
138 117559 O-RING 2
139 118505 RING, retaining, external 1
140 15C980 NUT, jam 1
141 15C981 WASHER, suction swivel 1
1
160 15Y118 LABEL, Made in USA 1
161 124172 WASHER, retaining, nylon, 10-32 1
162 112746 NUT, hex 2
1
163 288899 SHELF, PEM assembly 1
164 278075 BAFFLE 1
1
*
253132 KIT, repair, tube, 11 in.
▲
Extra Danger & Warning tags & labels available free.
1
includes 28, 30
includes 6, 36, 90a
includes 109
includes 87
includes 104
Manual 311861
1
1
1
1
1
311362S 3
Page 4

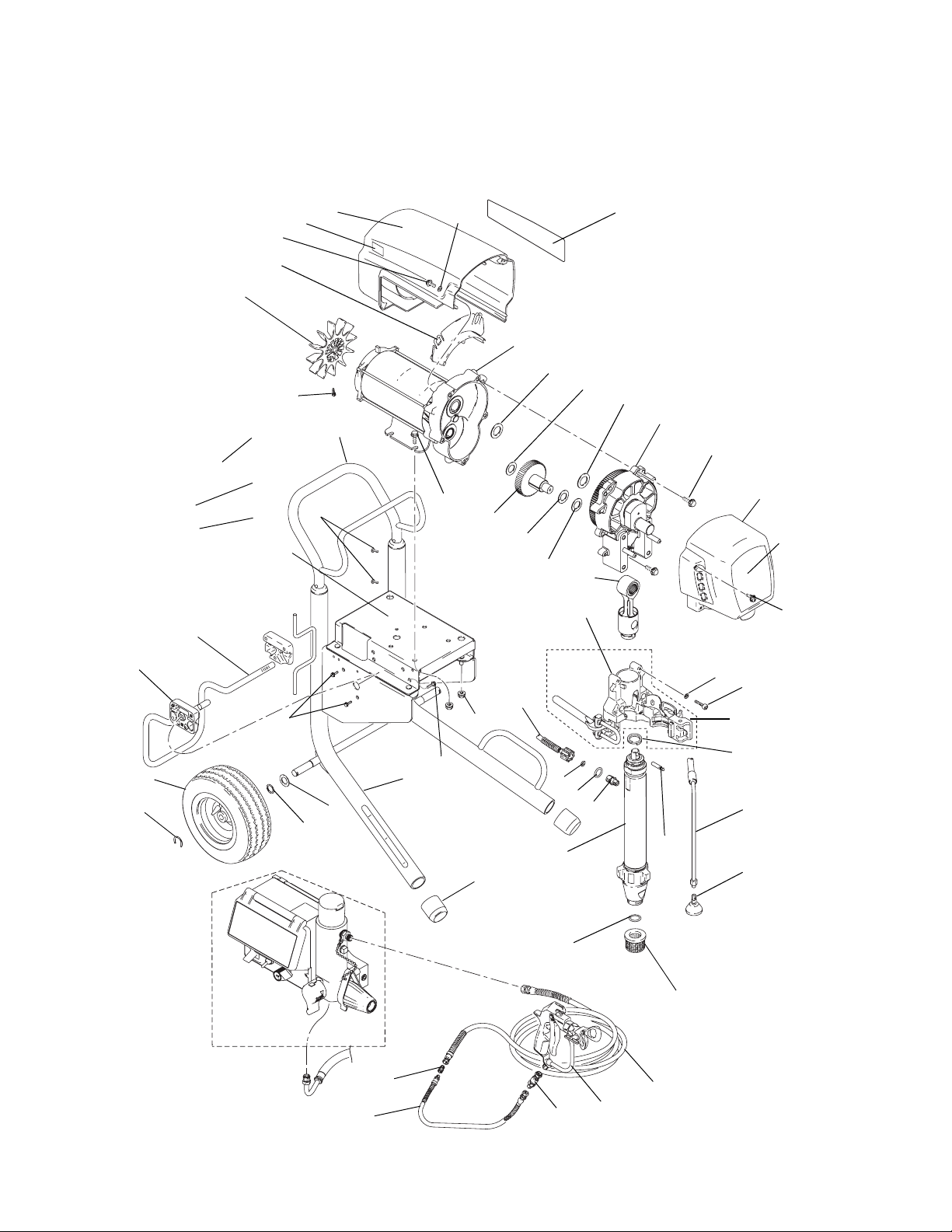

Parts Drawing - Hi-Boy Sprayer
UltraMax II 695 & 795: 249642, 249644, 249646, 249648
Ultimate Mx II 695 & 795: 826067, 826069, 826071, 826072
124
58
160
110
126
127
99
18
163
106
105
11
107
8
10
22
123
.
.
.
110
164
84
36
28
37
89
103
23
19
62
17
30
104
94
28
162
109
43
83
117
56
41
72
90a
Parts Drawing - Hi-Boy Sprayer
90
6
51
6
71
.
85
44
12
14
91
77
161
108
93
See page 12
95
55
31
695 Series D
795 Series C
See page 12
695 Series A - C
795 Series A, B
See page 12
76
130
48
129
ti12977b
87
4 311362S
Page 5
Parts List - Hi-Boy Sprayer
Parts List - Hi-Boy Sprayer
UltraMax II 695 & 795: 249642, 249644, 249646, 249648
Ultimate Mx II 695 & 795: 826067, 826069, 826071, 826072
Ref
No. Part No. Description Qty
6 15C753 SCREW, mach, torx, hex 5
8 15E891 CLIP, retaining 2
10 156306 WASHER, flat 2
11* 119420 WHEEL, pneumatic 2
12 106115 WASH, lock, spring 4
14 107210 SCREW, cap, socket hd 4
17 15C871 CAP, leg 2
18 109032 SCREW, mach, pnh 4
19 112746 NUT, hex, flanged 8
22 116038 WASHER, wave spring 2
23 110963 SCREW, cap, flng hd 2
28 114672 WASHER, thrust 2
30 114699 WASHER, thrust 1
31 118444 SCREW, machine, hex washer hd 4
36 116191 WASHER, thrust 1
37 100057 SCREW, cap, hex hd 4
41 162453 FITTING, (1/4 NPSM x 1/4 NPT) 1
43 176817 SPRING, retaining 1
44 176818 PIN, str, hdls 1
48 189920 STRAINER, (1-11 1/2 NPSM) 1
51 287291 COVER, drive, plastic, painted;
includes 31, 95
55 16C457 HANGER, pail 1
56 192723 NUT, retaining 1
58
287281 695
287282 795
62 288605 FRAME, cart 1
71 LABEL 1
15K374 Ultra 695
15D068 Ultra 795
824995 Ultimate 695
824998 Ultimate 795
72 LABEL 1
15K381 Ultra 695
15D069 Ultra 795
824996 Ultimate 695
824999 Ultimate 795
76 248214 TUBE, intake;
77 278204 CLIP, spring 1
83 240523
84 MOTOR, electric 1
287197 695 Series A - C
257185 695 Series D
SHIELD, motor, painted;
includes 109
HOUSING, bearing; includes 55, 162
includes 31
Ref
No. Part No. Description Qty
287198 795 Series A, B
257186 795 Series C
85 241008 ROD, connecting;
87 241920 DEFLECTOR, threaded 1
89 287289 GEAR, combination;
includes 28, 30
90 HOUSING, drive, M1;
includes 6, 36, 90a
287283 695
287284 795
90a 107089 WASHER, race, thrust 1
91 248204 PUMP, displacement;
93 244240 HOSE, coupled;
94 15D049 HOSE, coupled, 1/4 x 15.75 1
95 114000 SCREW, control housing 1
99 245245 HANDLE, cart 1
103 287253 TOOLBOX,
104 118852 SCREW, hex washer hd 3
105 15D281 HANGER, stand, cart 1
106 15C982 CAM, cart 2
107 114531 SCREW, mach, hex washer 4
1
108 15C859 SHIELD, pump rod 1
109 118494 PACKING, o-ring 1
110 16D585 LABEL, Ultra Premium, sides 2
117 187436 LABEL, torque 1
1
123 276980 GROMMET, cover 2
124 119250 SCREW, shoulder, hex, washer 2
126 15D088 FAN, motor 1
127 115477 SCREW, mach, torx, pan, hd 1
128▲ 222385 TAG, WARNING (not shown) 1
129 HOSE, cpld, 1/4 in. x 50 ft 1
240794 Ultra
826079 Ultimate
130 288420 GUN, contractor 1
Manual 311861
160 15Y118 LABEL, Made in USA 1
161 124172 WASHER, retaining, nylon, 10-32 1
162 112746 NUT, hex 2
163 288899 SHELF, PEM assembly 1
1
164 278075 BAFFLE 1
1
▲
Extra Danger and Warning tags and labels available free.
*
253132 KIT, repair, tube
includes 43
includes 109
includes 87
includes 104
1
1
1
1
1
1
311362S 5
Page 6
Parts Drawing - Hi-Boy Sprayer
Parts Drawing - Hi-Boy Sprayer
UltraMax II 1095 & 1595: 249651, 249653, 253060, 253059, 249658, 249659
Ultimate Mx II 1095 & 1595: 826073, 826074, 826082, 826081, 826075, 826076
105
126
163
160
127
110
58
124
164
18
99
123
.
.
72
.
110
84
36
90a
90
6
103
37
28
89
30
104
28
85
83
12
51
71
.
31
14
106
11
8
Series A
See page 10
107
Series B
See page 12
22
10
62
23
19
17
130
94
20
55
109
129
76
91
41
44
See page 12
43
93
87
ti12978b
48
6 311362S
Page 7
Parts List - Hi-Boy Sprayer
Parts List - Hi-Boy Sprayer
UltraMax II 1095 & 1595: 249651, 249653, 253060, 253059, 249658, 249659
Ultimate Mx II 1095 & 1595: 826073, 826074, 826082, 826081, 826075, 826076
Ref
No. Part No. Description Qty
6 15C753 SCREW, mach, torx, hex 5
8 15E891 CLIP, retaining 2
10 156306 WASHER, flat 2
11* 119509 WHEEL, pneumatic 2
12 106115 WASH, lock, spring 4
14 114666 SCREW, cap, socket hd 4
17 276974 CAP, leg 2
18 108795 SCREW, mach, pnh 4
19 110838 NUT, hex, flanged 8
20 111457 O-RING 1
22 116038 WASHER, wave spring 2
23 110963 SCREW, cap, flng hd 2
28 114672 WASHER, thrust 2
30 114699 WASHER, thrust 1
31 118444 SCREW, machine, hex washer hd 4
36 116192 WASHER, thrust 1
37 100057 SCREW, cap, hex hd 4
41 15E802 FITTING, pump, quick disc 1
43 119778 SPRING, retaining 1
44 15F110 PIN, pump 1
48 189920 STRAINER, (1-11 1/2 NPSM) 1
51 287292 COVER, drive, plastic, painted;
includes 31
55 119790 PACKING, o-ring 1
58 287282 SHIELD, motor, painted;
includes 31
62 288663 FRAME, cart 1095/1595 1
71 LABEL, UltraMax 1
15D071 Ultra 1095
15D074 Ultra 1595
825011 Ultimate 1095
825014 Ultimate 1595
72 LABEL, UltraMax II 1095/1595 1
15D072 Ultra 1095
15D075 Ultra 1595
825012 Ultimate 1095
825015 Ultimate 1595
76 248215 TUBE, intake;
83 287523 HOUSING, bearing 1
84 MOTOR, electric;
includes 109
includes 126, 127
287199 1095 Series A
257187 1095 Series B
287200 1595 Series A
257188 1595 Series B
Ref
No. Part No. Description Qty
85 287472 ROD, connecting;
87 241920 DEFLECTOR, threaded 1
89 287290 GEAR, combination;
includes 43, 44
includes 28, 30
90 HOUSING, drive, M1;
includes 6, 36, 90a
287294 1095
287295 1595
90a 107089 WASHER, race, thrust 1
91 287513 PUMP, displacement;
includes 41, 76, 109
93 287952 HOSE, drain;
94 288658 HOSE, coupled 1
99 245245 HANDLE, cart 1
103† 287253 TOOLBOX;
104† 118852 SCREW, hex washer hd 3
105 15C858 HANGER, stand, cart 1
106 15C982 CAM, cart 2
107 114531 SCREW, mach, hex washer 4
109 118494 PACKING, o-ring 1
110 16D585 LABEL, Ultra Premium, sides 2
1
123 276980 GROMMET, cover 2
124 119250 SCREW, shoulder, hex, washer 3
126 15D088 FAN, motor 1
127 115477 SCREW, mach, torx, pan, hd 1
1
128▲ 222385 TAG, WARNING (not shown) 1
129 HOSE, cpld, 1/4 in. x 50 ft 1
240794 Ultra
826079 Ultimate
130 288420 GUN, contractor 1
Manual 311861
160 15Y118 LABEL, Made in USA 1
163 288899 SHELF, PEM assembly 1
164 278075 BAFFLE 1
▲
Extra Danger and Warning tags and labels available free.
*
253131 KIT, repair, tube
1
†
1
Premium Sprayers
includes 87
includes 104
1
1
1
1
1
1
311362S 7
Page 8
Parts Drawing - Hi-Boy Sprayer
UltraMax II Mark V: 249903, 249904
Parts Drawing - Hi-Boy Sprayer
105
126
16
25
46
124
164
163
127
160
18
58
99
37
123
89
30
84
28
36
72
.
28
90a
90
6
51
71
85
83
.
31
106
11
8
Series A
See page 10
107
Series B
See page 12
22
10
172
173
62
23
19
17
94
21
91
109
174
55
41
130
44
129
ti12982b
48
12
14
See page 14
43
93
87
8 311362S
Page 9
Parts List - Hi-Boy Sprayer
Parts List - Hi-Boy Sprayer
UltraMax II Mark V: 249903, 249904
Ref
No. Part No. Description Qty.
6 15C753 SCREW, mach, torx, hex 5
8 15E891 CLIP, retaining 2
10 156306 WASHER, flat 2
11* 119509 WHEEL, pneumatic 2
12 106115 WASH, lock, spring 4
14 114666 SCREW, cap, socket hd 4
17 276974 CAP, leg 2
18 108795 SCREW, mach, pnh 4
19 110838 NUT, hex, flanged 8
21 109450 O-RING 1
22 116038 WASHER, wave spring 2
23 110963 SCREW, cap, flng hd 2
28 114672 WASHER, thrust 2
30 114699 WASHER, thrust 1
31 118444 SCREW, machine, hex washer hd 4
36 116192 WASHER, thrust 1
37 100057 SCREW, cap, hex hd 4
41 15G880 FITTING, pump, quick disc 1
43 119778 SPRING, retaining 1
44 15F110 PIN, pump 1
48 189920 STRAINER, (1-11 1/2 NPSM) 1
51 287292 COVER, drive, plastic, painted 1
55 C20195 PACKING, o-ring 1
58 287282 SHIELD, motor, painted 1
62 288663 FRAME, cart 1
71 15G804 LABEL, Mark V 1
72 15G805 LABEL, Mark V 1
83 287523 HOUSING, bearing 1
84 MOTOR, electric;
includes 126, 127
287200 Series A
257188 Series B
85 287472 ROD, connecting;
87 241920 DEFLECTOR, threaded 1
includes 43, 44
Ref
No. Part No. Description Qty.
89 287290 GEAR, combination;
includes 28, 30
90 287295 HOUSING, drive;
includes 6, 36, 90a
90a 107089 WASHER, race, thrust 1
91 287929 PUMP, displacement;
includes 41, 109
93 287952 HOSE, drain;
94 287792 HOSE, coupled 1
99 245245 HANDLE, cart 1
105 15C858 HANGER, stand, cart 1
106 15C982 CAM, cart 2
107 114531 SCREW, mach, hex washer 4
123 276980 GROMMET, cover 2
124 119250 SCREW, shoulder, hex, washer 3
126 15D088 FAN, motor 1
127 115477 SCREW, mach, torx, pan, hd 1
128▲ 222385 TAG, WARNING (not shown) 1
129 240797 HOSE, cpld, 3/8 in. x 50 ft 1
130 241705 GUN, spray, texture 1
160 15Y118 LABEL, Made in USA 1
163 288899 SHELF, PEM assembly 1
164 278075 BAFFLE 1
172 241735 HOSE, cpld, 1/4 in. x 3 ft 1
173 159841 ADAPTER, 1/4 npt (f) x 3/8 npt (m) 1
174 189018 SWIVEL, 1/4 npsm (f) x 1/4
npsm (m)
1
▲
Extra Danger and Warning tags and labels available free.
*
253131 KIT, repair, tube
1
includes 87
1
1
1
1
1
311362S 9
Page 10

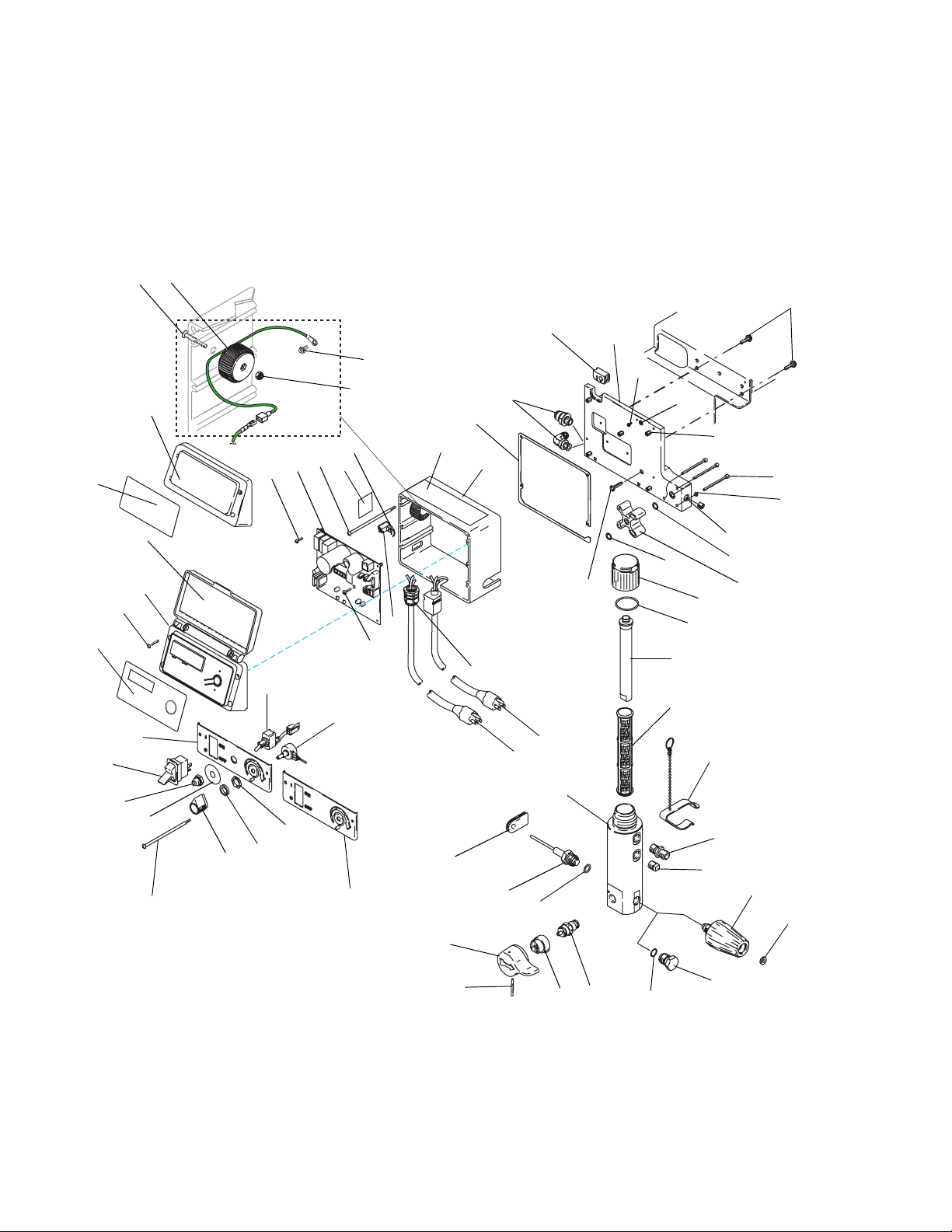

Parts Drawing
695/795 Lo-Boy Series A; 695 Hi-Boy Series A - C;
795 Hi-Boy Series A, B; 1095/1595/Mark V Series A
(Models with only TWO large capacitors on control board)
Parts Drawing
65
63
Screw
33
38
68
148
23
29
26
96
27
52
39
60
143
Nut
59
118
70
61
.
.
64
96
.
.
45
.
142
102
144
82
75
75
122
69
26
15
47
101
13
35
7
15
113
66
9
74
92
98
20
67
81
80
42
114
97
97A
73
125
49
147
34
ti7354a
39
10 311362S
115
82
68
40
86
50
21
Page 11
Parts List
Parts List
695/795 Lo-Boy Series A; 695 Hi-Boy Series A - C;
795 Hi-Boy Seris A, B; 1095/1595/Mark V Series A
Ref. Part Description Qty.
7 100721 PLUG, pipe 1
9 117285 PACKING, o-ring 1
13 C19817 SCREW, cap, socket 3
15 107505 PACKING, o-ring 2
20 111457 PACKING, o-ring 2
21 15C972 PIN, grooved 1
23 110963 SCREW, cap, flng 2
26 114391 SCREW, grounding 1
27 113045 SCREW, sems, mach, phillips 5
29 15D087 GROMMET 1
33 15C979 SWITCH, rocker 1
34 116167 KNOB, potentiometer 1
35 105510 WASHER, lock, spring 3
38 116252 SCREW, #10 taptite phillips 4
39 112381 SCREW, mach, pan hd 4
40 15D033 GROMMET, transducer 1
42 NIPPLE, adapter 1
164672 695, 795, 1095, 1595
162485 Mark V
45 119541 SWITCH, toggle 1
47 186620 LABEL, symbol, ground 1
49 195428 BOOT, toggle 1
50 15C780 HANDLE 1
52 287941 CONTROL, board; (2 capacitor)
includes 27, 102
59▲ 15D523 LABEL, warning 1
60▲ 195833 LABEL, warning 1
61 BOX, control 1
15G953 695, 795, 1095
15G700 1595, Mark V
63 198648 LABEL, LCD 1
64 15D063 LABEL, instruction 1
65 LABEL, ctrl, box cover 1
15K394 Ultra Premium Digital Display
15D609 Ultra Standard
196843 Ultimate Premium Digital Display
15B705 Ultimate Standard
66 287285 CAP, filter;
67 15C838 BASE, filter 1
68 PANEL, control 1
15C947 Mark V
15G627 695, 795, 1095, 1595
69 15C840 PLATE, power bar 1
70 15D036 GASKET, control box 1
73 248314 PLUG, Autoclean;
74 15C766 TUBE, diffusion 1
75 CORD, power 1
15H064 695, 795, 1095
15H066 1595, Mark V ETLC
15H065 1595, Mark V
includes 9, 74
includes 125
Ref. Part Description Qty.
80 257352 VALVE, prime 1
81 224807 BASE, valve 1
82 256219 POTENTIOMETER, assembly 1
86 243222 TRANSDUCER, pressure control;
includes 20
92 FILTER, fluid 1
244071 30 mesh 1
244067 60 mesh, original equipment 1
244068 100 mesh 1
244069 200 mesh
96 COVER, control
15D456 Ultra Standard 1
287286 Ultra Premium;
includes 38, 63,
64, & 65
825026 Ultimate Premium;
includes 38, 63
64, & 65
97 287293 VALVE, Autoclean 1
Premium Models;
97a 15F950 GASKET 1
98 KIT, repair, clamp, trigger 1
244346 Premium Models
101 15D160 STUD, board 5
102 114420 SCREW, mach, pmh, sems 1
1
113 15F844 SPACER, manifold 1
114 104813 PLUG, pipe 1
115 15C973 GASKET 1
118 FITTING, hydraulic 1
120185 FITTING, hydraulic Mark V
116793 FITTING, elbow, hydraulic
695, 795,
118896 FITTING, elbow, hydraulic 1095,
1595
122 115478 SCREW, mach torx/slt 1
125 15D541 SEAL, washer 1
142 120059 SWITCH, rocker 1595, Mark V 1
143 15G935 CONNECTOR, electrical 1595,
1
144 116171 BUSHING, strain relief 1595,
147 15G769 LABEL 1
148 287943 KIT, repair, coil;
Mark V
Mark V
includes 97a
includes Nut &
Screw
172 241735 HOSE, cpld, 1/4 in. x 3 ft 1
173 159841 ADAPTER, 1/4 npt(f) x 3/8 npt(m) 1
1
174 189018
▲
Extra Danger and Warning tags and labels available free.
SWIVEL, 1/4 npsm(f) x 1/4 npsm(m)
1
1
1
1
1
1
311362S 11
Page 12

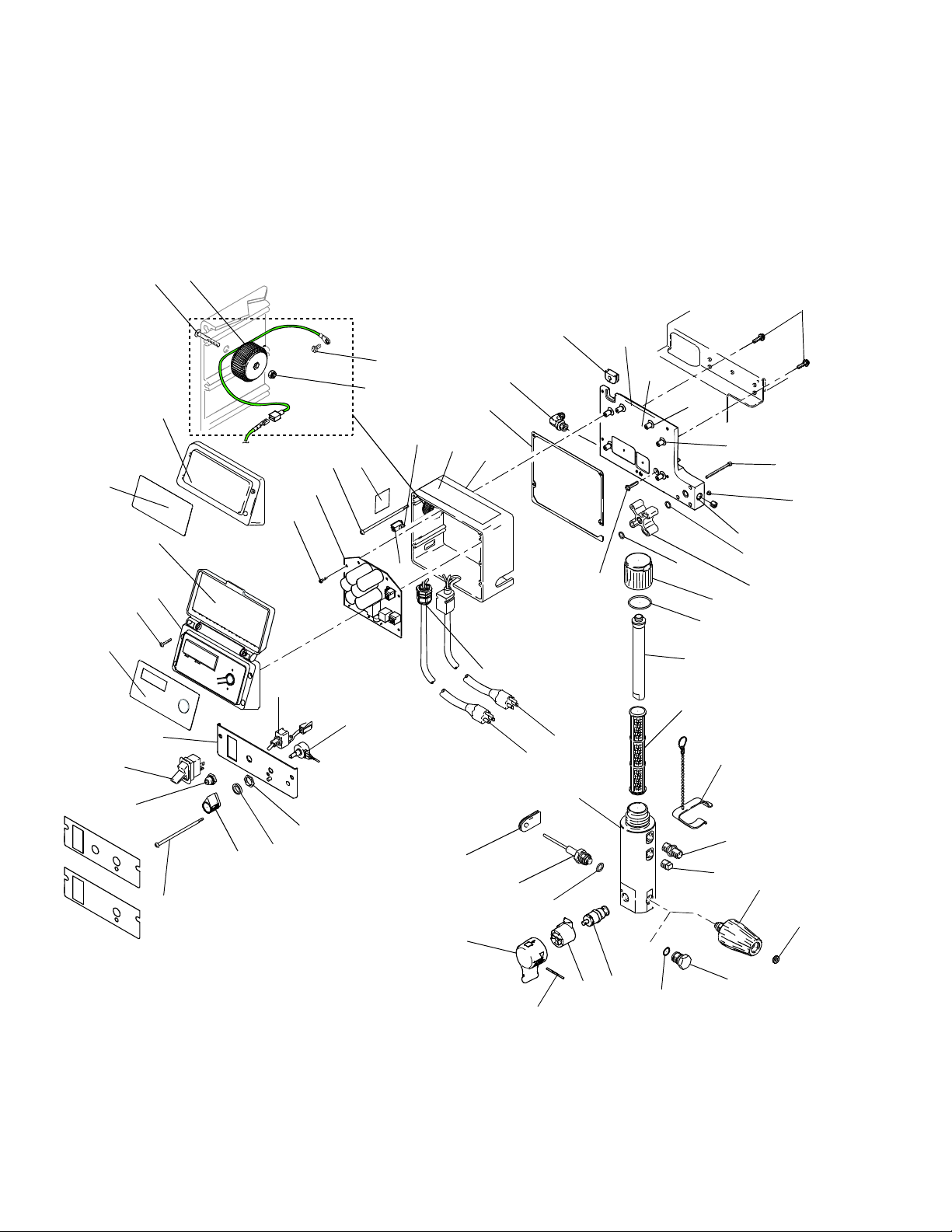

Parts Drawing
695/795 Lo-Boy Series B; 695 Hi-Boy Series D;
795 Hi-Boy Series C; 1095/1595/Mark V Series B
(Models with SIX large capacitors on control board)
Parts Drawing
65
63
33
Screw
38
.
64
68
96
96
.
148
23
29
26
59
118
70
61
52
39
Nut
143
60
.
.
27
142
.
144
45
82
75
75
122
69
26
15
47
101
13
35
7
15
113
66
9
74
92
98
21
20
67
81
80
125
114
42
97
97a
73
49
82
115
34
39
ti12979a
12 311362S
40
86
50
Page 13
Parts List
Parts List
695/795 Lo-Boy Series B; 695 Hi-Boy Series D;
795 Hi-Boy Series C; 1095/1595/Mark V Series B
Ref. Part Description Qty.
7 100721 PLUG, pipe 1
9 117285 PACKING, o-ring 1
13 C19817 SCREW, cap, socket 3
15 107505 PACKING, o-ring 2
20 111457 PACKING, o-ring 2
21 15C972 PIN, grooved 1
23 110963 SCREW, cap, flng 2
26 114391 SCREW, grounding 1
27 113045 SCREW, sems, mach, phillips 6
29 15V996 GROMMET 1
33 15C979 SWITCH, rocker 1
34 116167 KNOB, potentiometer 1
35 105510 WASHER, lock, spring 3
38 116252 SCREW, #10 taptite phillips 4
39 112381 SCREW, mach, pan hd 4
40 15D033 GROMMET, transducer 1
42 NIPPLE, adapter 1
164672 695, 795, 1095, 1595
162485 Mark V
45 119541 SWITCH, toggle 1
47 186620 LABEL, symbol, ground 1
49 195428 BOOT, toggle 1
50 15C780 HANDLE 1
52 257448 CONTROL, board;
59▲ 15D523 LABEL, warning 1
60▲ 195833 LABEL, warning 1
61 BOX, control 1
15G953 695, 795, 1095
15G700 1595, Mark V
63 198648 LABEL, LCD 1
64 15D063 LABEL, instruction 1
65 LABEL, ctrl, box cover 1
15K394 Ultra Premium Digital Display
15K384 Ultra Standard
196843 Ultimate Premium Digital Display
15B705 Ultimate Standard
66 287285 CAP, filter;
67 15C838 BASE, filter 1
68 PANEL, control 1
15C947 Mark V Panel Control 1
15G627 695, 795, 1095, 1595 Panel Control 1
69 15V937 PLATE, power bar 1
70 15D036 GASKET, control box 1
73 248314 PLUG, Autoclean;
74 15C766 TUBE, diffusion 1
75 CORD, power 1
15H064 695, 795, 1095
15H066 1595, Mark V ETLC
15H065 1595, Mark V
80 24A381 VALVE, prime 1
includes 9, 74
includes 27, 102
includes 125
Ref. Part Description Qty.
80a 277364 GASKET, seat, valve
80b 15E022 SEAT, valve
81 224807 BASE, valve 1
82 256219 POTENTIOMETER, assembly 1
86 243222 TRANSDUCER, pressure control;
includes 20
92 FILTER, fluid 1
244071 30 mesh 1
244067 60 mesh, original equipment 1
244068 100 mesh 1
244069 200 mesh
96 COVER, control
15D456 Ultra Standard 1
287286 Ultra Premium;
includes 38, 63,
64, & 65
825026 Ultimate Premium;
includes 38, 63
64, & 65
97 287293 VALVE, Autoclean 1
Premium Models;
97a 15F950 GASKET 1
98 KIT, repair, clamp, trigger 1
244346 Premium Models
101 15V938 STUD, board 6
1
102 114420 SCREW, mach, pmh, sems 2
113 15F844 SPACER, manifold 1
114 104813 PLUG, pipe 1
115 15C973 GASKET 1
118 FITTING, hydraulic 1
120185 FITTING, hydraulic Mark V
116793 FITTING, elbow, hydraulic
695, 795,
118896 FITTING, elbow, hydraulic 1095,
1595
122 115478 SCREW, mach torx/slt 1
125 15D541 SEAL, washer 1
142 120059 SWITCH, rocker 1595, Mark V 1
1
143 15G935 CONNECTOR, electrical 1595,
Mark V
144 116171 BUSHING, strain relief 1595,
Mark V
148 287943 KIT, repair, coil;
includes 97a
includes Nut &
Screw
172 241735 HOSE, cpld, 1/4 in. x 3 ft 1
1
173 159841 ADAPTER, 1/4 npt(f) x 3/8 npt(m) 1
174 189018
Extra Danger and Warning tags and labels available free.
▲
SWIVEL, 1/4 npsm(f) x 1/4 npsm(m)
1
1
1
1
1
1
311362S 13
Page 14

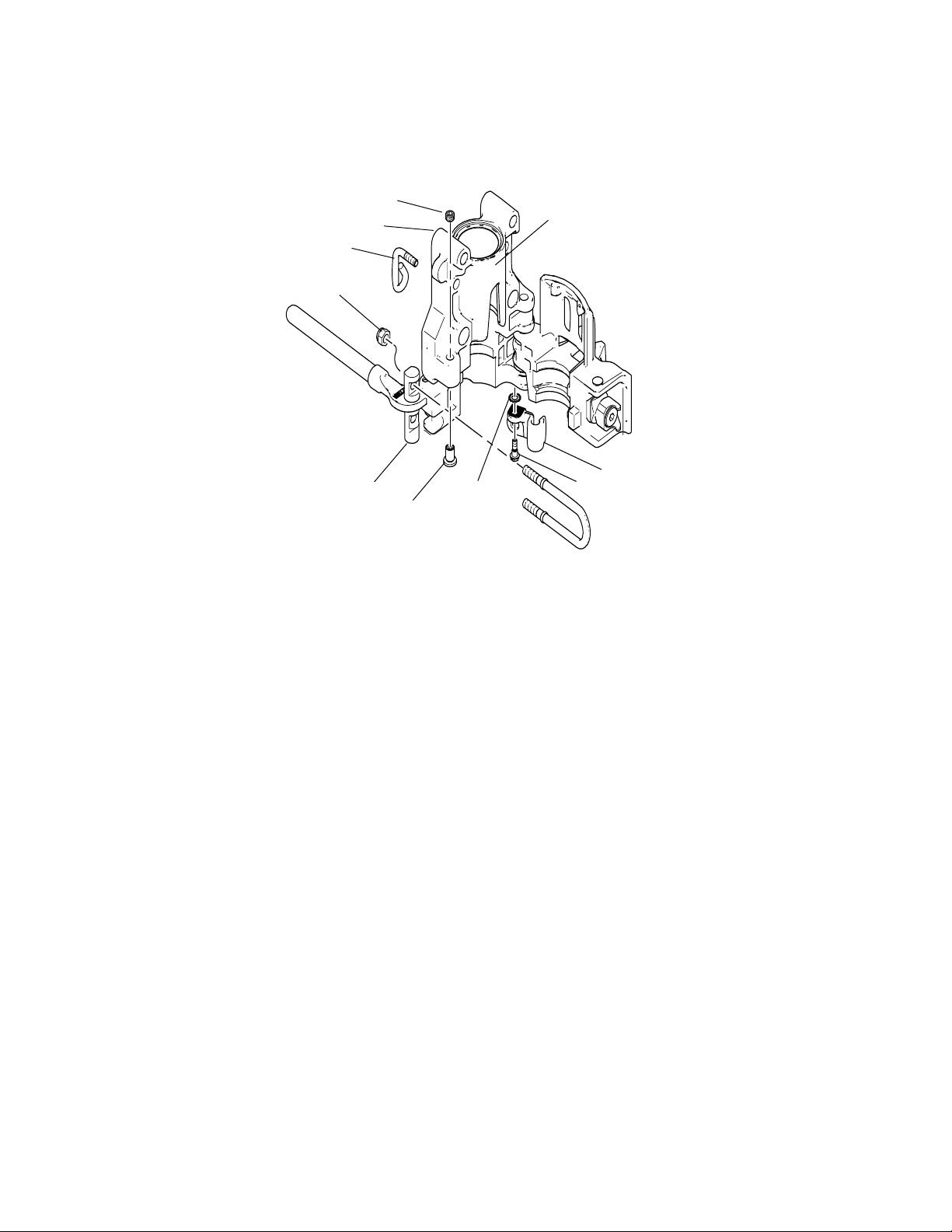

Parts Drawing - Bearing Housing 287523
Parts Drawing - Bearing Housing 287523
141
24
139
161
83
162
56
117
Parts List - Bearing Housing 287523
31
77
ti6338e
Ref
No. Part No. Description Qty
24 15F116 LATCH, handle 1
31 119250 SCREW, machine, hex washer 5
56 15F498 SCREW, adjustment 1
77 278204 CLIP, spring 1
83 HOUSING, bearing 1
117 187437 LABEL, torque 1
139 15E625 PIN, housing, bearing 1
141 111040 NUT, lock, insert, nylock 2
161 15F503 SCREW, set, socket head 1
162 100985 WASHER, lock ext 1
14 311362S
Page 15

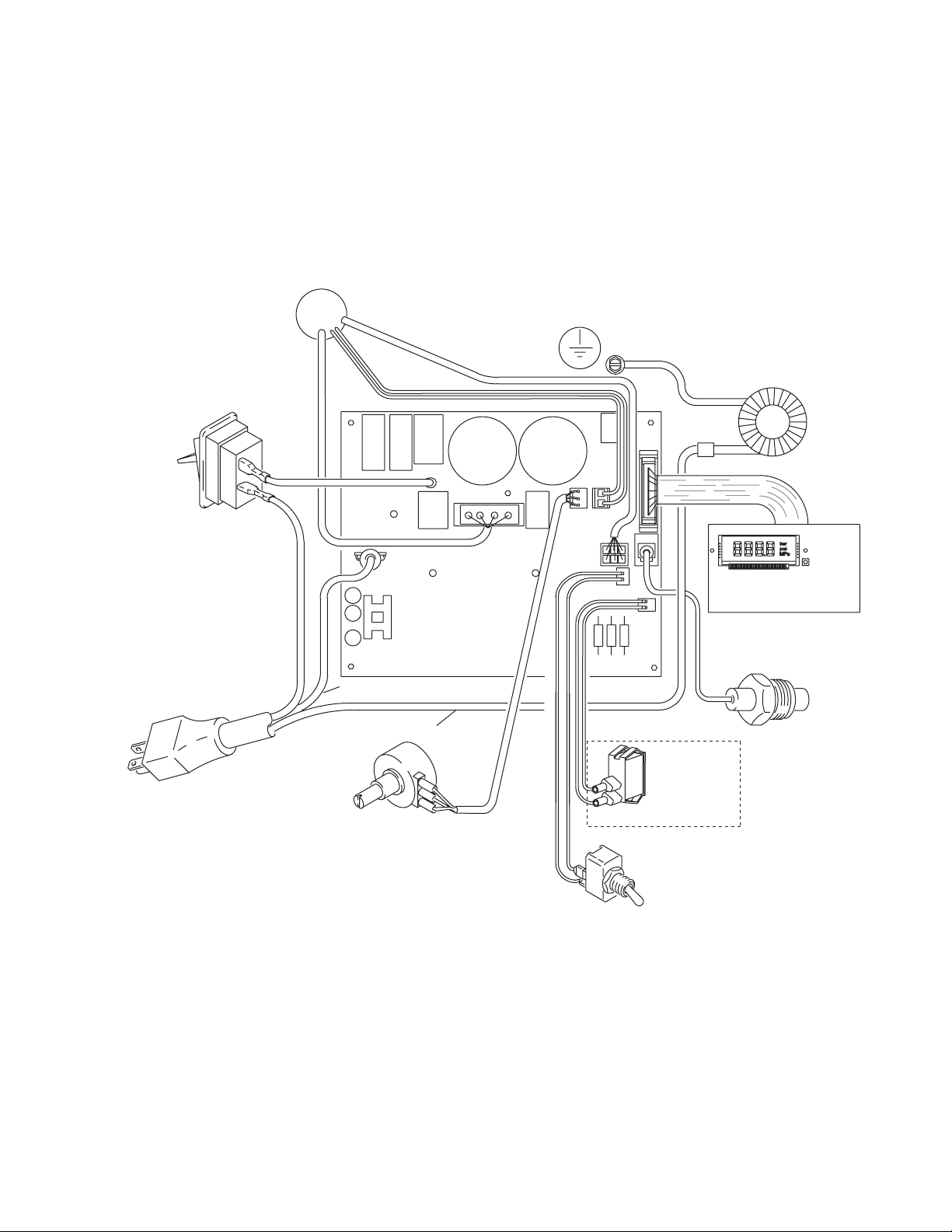

Wiring Diagram
Wiring Diagram
695/795 Lo-Boy Series A; 695 Hi-Boy Series A - C;
795 Hi-Boy Series A, B; 1095/1595/Mark V Series A
(Models with only TWO large capacitors on control board)
Power Plug
ON/OFF
Switch
Black +
Motor
green/ground
ti7346a
green/ground
Digital Display
white
Black
Pressure
Transducer
20A 15A
Switch
1595/MARK V
Potentiometer
Watchdog
311362S 15
Page 16

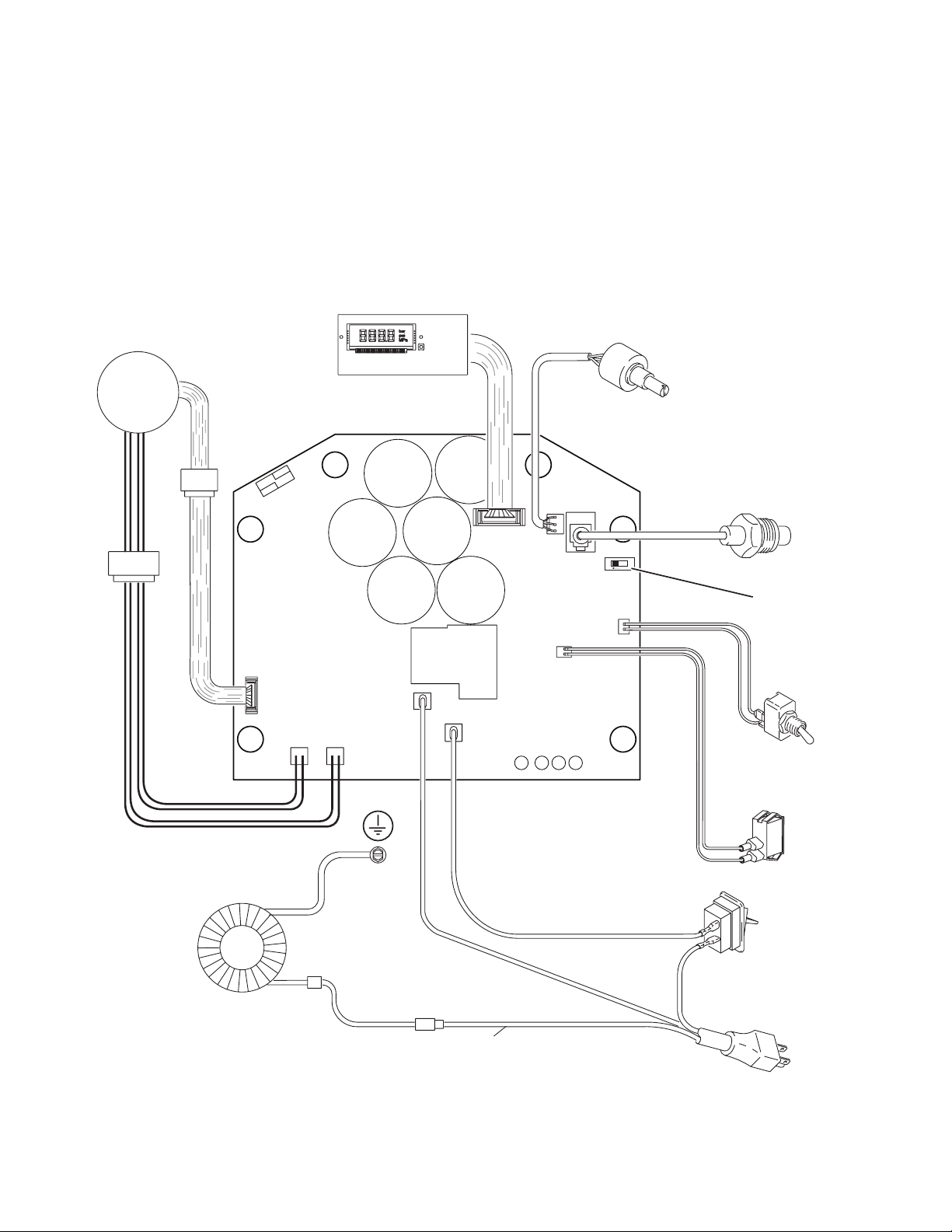

Wiring Diagram
695/795 Lo-Boy Series B; 695 Hi-Boy Series D;
795 Hi-Boy Series C; 1095/1595/Mark V Series B
(Control board is not rectangular and has SIX large capacitors)
Digital Display
Wiring Diagram
Motor
Potentiometer
Pressure
Transducer
Black
ON
Dip Switch
Watchdog
20A 15A
1595 Switch
ti12980b
green/ground
ON/OFF
Black
white
Black +
Switch
Power Plug
green/ground
16 311362S
Page 17
Notes
Notes
311362S 17
Page 18
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs
will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedi
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
ngs entered into,
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the nearest distributor.
All written and visual data contained in this document reflects the latest product information available at the time of publication.
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2011, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents.
Original instructions.
This manual contains English. MM 311362
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
www.graco.com
Revised May 2013
Loading...
