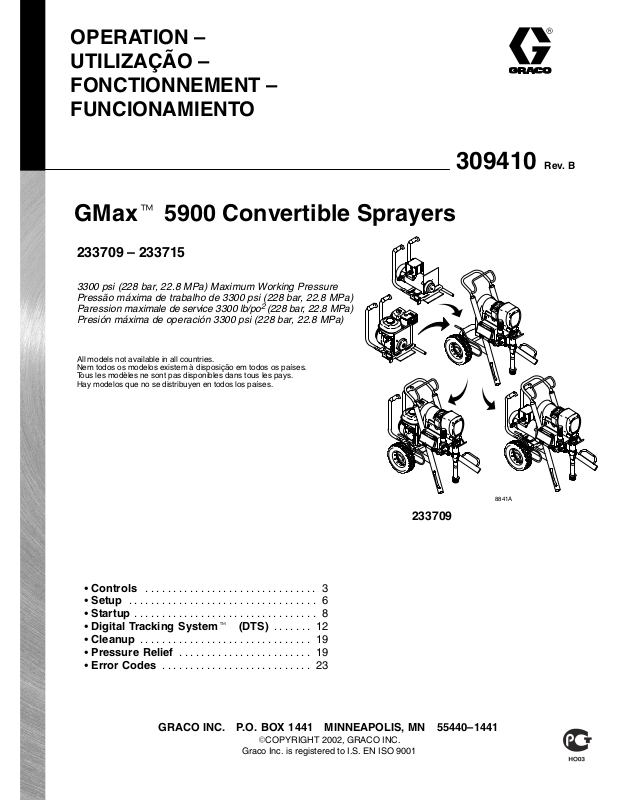

OPERATION –
UTILIZAÇÃO –
FONCTIONNEMENT –
FUNCIONAMIENTO
GMax 5900 Convertible Sprayers
233709 – 233715
3300 psi (228 bar, 22.8 MPa) Maximum Working Pressure
Pressão máxima de trabalho de 3300 psi (228 bar, 22.8 MPa)
Paression maximale de service 3300 lb/po
Presión máxima de operación 3300 psi (228 bar, 22.8 MPa)
2
(228 bar, 22.8 MPa)
309410 Rev. B
All models not available in all countries.
Nem todos os modelos existem à disposição em todos os países.
Tous les modèles ne sont pas disponibles dans tous les pays.
Hay modelos que no se distribuyen en todos los países.
S Controls 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
S Setup 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
S Startup 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
S Digital Tracking System (DTS) 12. . . . . . .
S Cleanup 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
S Pressure Relief 19. . . . . . . . . . . . . . . . . . . . . . . .
S Error Codes 23. . . . . . . . . . . . . . . . . . . . . . . . . . .
8841A
233709
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
COPYRIGHT 2002, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
WARNING
ADVERTÊNCIA
Fire and explosion hazard: Solvent and paint fumes can ignite or
explode.
To help prevent a fire and explosion:
Use only in an extremely well ventilated area.
Eliminate all ignition sources; such as pilot lights, cigarettes and
plastic drop cloths (static arc hazard). Do not plug or unplug power
cords or turn lights on or off in spray area.
Ground Sprayer, object being sprayed, paint and solvent pails.
Hold gun firmly to side of grounded pail when triggering into pail.
Use only conductive airless paint hose.
Do not use 1,1,1-trichloroethane, methylene chloride, other
halogenated hydrocarbon solvents or fluids containing such
solvents in pressurized aluminum equipment. Such use could
result in a chemical reaction, with the possibility of explosion.
Do not fill fuel tank while engine is running or hot.
Do not flush with gasoline.
Fluid injection and high pressure hazard: High pressure spray or
leaks can inject fluid into the body.
To help prevent injection, always:
Engage trigger safety latch when not spraying.
Keep clear of nozzle and leaks.
Never spray without a tip guard.
Do PRESSURE RELIEF if you stop spraying or begin servicing
sprayer.
Do not use components rated less than sprayer Maximum
Working Pressure.
Never allow children to use this unit.
If high pressure fluid pierces your skin, the injury might look like
“just a cut”. But it is a serious wound! Get immediate medical attention.
Perigo de incêndio e explosão: os solventes e os vapores da pintura
poderão explodir ou incendiar.
Para ajudar a evitar incêndio e explosão:
Utilize unicamente em áreas extremamente bem ventiladas.
Elimine todas as fontes de ignição, tais como luzes piloto, cigarros e
arcos de estática resultantes dos plásticos de proteção. Não ligue nem
desligue os cabos de alimentação ou as luzes numa área de
pulverização.
Ponha em contato com a terra o pulverizador, o objeto a ser pulverizado,
e os baldes de tinta e de solventes.
Segure a pistola firmemente de encontro ao lado do balde em contato com
a terra, quando estiver descarregando para dentro do mesmo.
Utilize somente tubos flexíveis condutores para pintura a alta pressão.
Não utilize 1,1,1-tricloroetano, cloreto de metileno, outros solventes de
hidrocarbonetos halogenados ou líquidos contendo tais solventes em
equipamento de alumínio pressurizado. Tal utilização poderá
resultar numa reação química, com possibilidade de explosão.
Nunca abasteça o depósito de combustível com o motor em funciona-
mento ou quente.
Não faça a descarga com gasolina.
Perigo de injeção de líquidos à alta pressão: a pulverização ou
vazamentos à alta pressão podem injetar líquido no corpo.
Para ajudar a evitar injeção de líquido, faça sempre o seguinte:
Engate o trinco de segurança do gatilho quando não estiver pulveri-
zando.
Mantenha-se afastado dos bocais e locais onde há vazamentos.
Nunca pulverize sem que haja uma proteção na extremidade.
ALIVIE A PRESSÃO quando parar de pulverizar e antes de iniciar a
manutenção do pulverizador.
Não utilize componentes com uma classificação inferior à do
pulverizador Pressão Máxima de Trabalho.
Nunca permita que crianças utilizem esta unidade.
Se o líquido a alta pressão penetrar na sua pele, o ferimento poderá
parecer “simplesmente um corte”. Mas é um ferimento grave! Procure o
médico imediatamente.
MISE EN GARDE
Danger d’incendie et d’explosion : les gaz de solvant et de peinture
peuvent s’enflammer ou exploser.
Pour éviter les risques d’incendie et d’explosion :
N’utiliser l’appareil que dans une zone extrêmement bien aérée.
Éliminer toute source d’inflammation ; telle que veilleuses, cigarettes et
arcs d’électricité statique créés par les toiles de peintre en plastique.
Ne pas brancher et débrancher de cordons électriques, ou allumer et
éteindre des lumières dans la zone de pulvérisation.
Mettre à la terre le pulvérisateur, l’objet à pulvériser ainsi que les seaux
de peinture et de solvants.
Tenir le pistolet fermement contre la paroi d’un seau mis à la terre
lorsqu’on pulvérise dans le seau.
N’utiliser qu’un flexible pour peinture pulvérisée sans air.
Ne jamais utiliser de trichloroéthane 1,1,1, de chlorure de méthylène,
d’autres solvants à base d’hydrocarbures halogénés, ni de produits
contenant de tels solvants dans un équipement sous pression en
aluminium. Cela pourrait provoquer une réaction chimique avec risque
d’explosion.
Ne jamais remplir le réservoir d’essence lorsque le moteur est chaud
ou en marche.
Ne pas rincer avec de l’essence.
Danger d’injection de fluide et haute pression : la pulvérisation sous
haute pression ou les fuites peuvent injecter des fluides dans le corps.
Pour éviter les risques d’injection, toujours :
Bloquer le loquet de sécurité de la gâchette à la fin de la pulvérisation.
Se tenir loin de la buse et des fuites.
Ne jamais pulvériser sans anti-gouttes.
DÉCHARGER LA PRESSION à la fin de la pulvérisation ou avant de
réparer le pulvérisateur.
Ne pas utiliser de composants dont la pression nominale est inférieure
à la pression maximale de service du système.
Ne jamais permettre aux enfants d’utiliser cet appareil.
Si un fluide haute pression perce la peau, la blessure peut paraître
une “simple coupure” Mais il s’agit bien d’une lésion grave! Consulter
immédiatement un médecin.
ADVERTENCIA
Peligro de incendio o explosión: Los gases de los disolventes y de la
pintura pueden inflamarse o provocar una explosión.
Para prevenir incendios y explosiones:
Use únicamente en un área muy bien ventilada.
Suprima todas las fuentes de ignición; como luces piloto, cigarrillos y
arcos estáticos de carpetas plásticas para protección contra pintura. No
enchufe ni desenchufe cables de alimentación ni apague ni encienda las
luces en un área de pulverización.
Ponga a tierra el pulverizador, el objeto que recibe el chorro pulverizado,
las cubetas de pintura y disolvente.
Sostenga firmemente la pistola a un lado de la cubeta puesta a tierra cuando
dispare dentro de ella.
Use solamente mangueras para pintura conductora sin aire.
No utilice nunca tricloretano-1,1,1, cloruro de metileno ni otros
disolventes a base de hidrocarburos halógenos o fluidos que contengan
dichos disolventes en un equipo a presión de aluminio. El uso de estas
sustancias puede provocar una intensa reacción química, con riesgos
de explosión.
Nunca llene el estanque de combustible mientras el motor esté en mar-
cha o caliente.
No lave con gasolina.
Peligro de inyección de fluido y alta presión: por la pulverización o
las filtraciones a alta presión se pueden inyectar fluidos en el organismo.
Para prevenir la inyección en la piel, siempre:
Enganche el seguro del gatillo cuando no use el pulverizador.
No se acerque a la boquilla ni a las filtraciones.
Nunca aplique fluido pulverizado sin un guardaboquilla.
Realice el ALIVIO DE PRESIÓN si deja de pulverizar fluido o repara el
pulverizador.
No use componentes de capacidad nominal inferior a la presión
máxima de operación del pulverizador.
No permita que niños usen esta unidad.
Si fluido de alta presión le penetra la piel, la lesión podría parecer
“sólo un corte”. ¡Es una lesión seria! Consulte de inmediato al médico.
3094102
CONTROLS / CONTROLES / COMMANDES / CONTROLES
On/Off Switch
Interruptor de ligar e desligar
Interrupteur marche/arrêt
Interruptor de encendido/apagado
Engine Controls
Controles do motor
Commandes de moteur
Controles del motor
On/Off Switch Aan/Uit Schakelaar
Interrupteur Marche/Arrêt
Ein-Aus-Schalter
Pressure Control
Controle da pressão
Système de contrôle de la pression
Dispositivo de control de la presión
Drain Valve
Válvula de drenagem
Vidange
Válvula de vaciado
Trigger Lock
Fecho do gatilho
Loquet de sécurité
Seguro del gatillo
ti1852a
On/Off Switch
Interruptor de ligar e desligar
Interrupteur marche/arrêt
Interruptor de encendido/apagado
Contractor Contractor II
ti2871a
ti1854a
ti2870a
3309410
Change Engine to Motor
Release
Setup
1. Disconnect engine power cord.
2. Release tension bar.
3. Remove engine; tilt and slide back.
4. Install motor; drop in and push forward.
3094104
5. Look through side vent holes and
ensure drive belt is in motor pulley.
Setup
Change Engine to Motor
6. Secure motor with tension bar.
7. Plug in pressure control power cord.
Engage
5309410
Setup
1. Connect appropriate Graco
high-pressure hose to sprayer.
Tighten securely.
Note: Remove second gun port cap
for multiple guns and repeat steps
1 – 4, 7, 8, 10
2. Connect other end of hose to gun.
3. Tighten securely.
4. Remove tip guard.
3094106
Setup
5. Install clean inlet strainer.
6. Fill throat packing nut with TSL to prevent
premature packing wear.
Do this each time you spray and store.
7. Check engine oil level. Add SAE 10W–30
(summer) or 5W–20 (winter), if necessary.
Approximate
Fill Level
8. Fill fuel tank.
9. Ground sprayer with grounding clamp.
(cold)
7309410
PAINT
Startup
1. Place suction tube and drain tube in
grounded metal pail partially filled with
flushing fluid. Attach ground wire to pail
and to true earth ground.
FLUSH
2. Turn prime valve down.
Turn pressure control to lowest pressure.
3. Set pump switch OFF.
3094108
4. Start engine
Startup
a. Move fuel valve to open
b. Move choke to closed
c. Set throttle to fast
d. Set engine switch ON
a.
b.
c.
d.
e. Pull starter cord
f. After engine starts, move choke to open
g. Set throttle to desired setting
– Digital display is functional after engine starts –
Start motor
e.
f.
g.
9309410
15 SEC

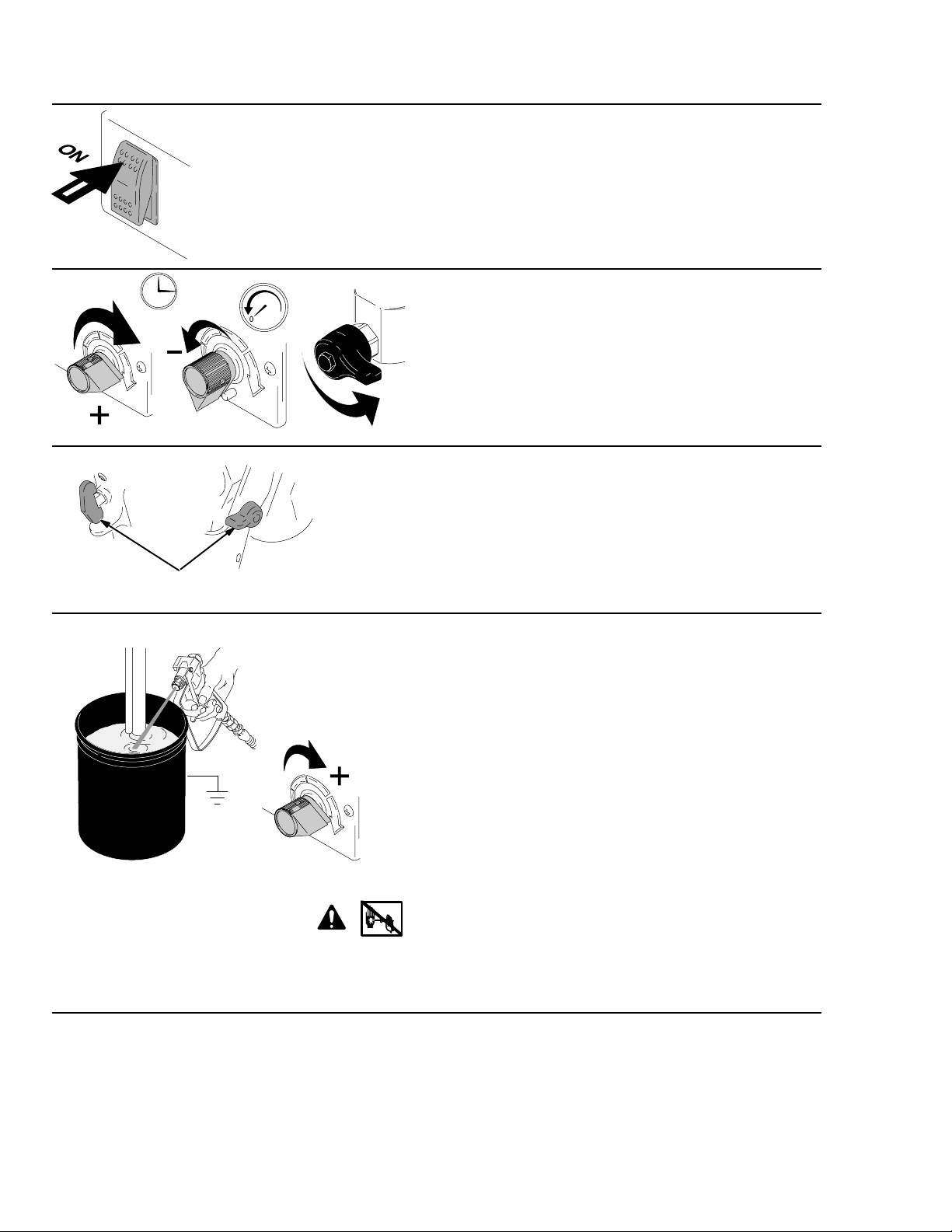

Startup
5. Set pump switch ON.
– Pump/clutch is now active –
6. Increase pressure enough to start pump
stroking and allow fluid to circulate for 15
seconds; turn pressure down, turn prime
valve horizontal.
7. Take spray gun trigger safety OFF.
safety OFF
ti2870a
8. Hold gun against grounded metal flushing pail.
Trigger gun and increase fluid pressure slowly
until pump runs smoothly.
FLUSH
Note: Inspect fittings for leaks. Do not stop leaks with your hand or a rag! If
leaks occur, turn sprayer OFF immediately. Do Pressure Relief in Cleanup, 1. – 3.
on page 19. Tighten leaky fittings. Repeat Startup, 1. – 5. If no leaks, continue to
trigger gun until system is thoroughly flushed. Proceed to 6.
30941010
Startup
9. Place siphon tube in paint pail.
10.Trigger gun again into flushing fluid pail until
paint appears. Assemble tip and guard, page 11.
SwitchTip and Guard Assembly
PAINT
FLUSH
1. Engage trigger safety.
2. Insert SwitchTip.
Insert seat and OneSeal.
3. Screw assembly onto gun. Hand tighten.
SwitchTip
safety ON
seat
ti2871a
OneSeal
11309410
Operation
Main Menu
PAINT
Digital Tracking System (DTS)
Close cover when spraying
to protect from overspray
1. Do Startup steps 1. – 3.
FLUSH
2. Start engine or motor, page 9.
Sprayer Model momentarily displays, e. g., C5900 = GMax
5900 Convertible
Pressure display appears. Dashes appear when pressure is
less than 200 psi (14 bar, 1.4 MPa).
Note: Information other than pressure can not be accessed
if system pressure is greater than 200 psi (14 bar, 1.4 MPa).
or if the pump switch is ON.
30941012
Digital Tracking System (DTS)
3. Short press DTS button to move to Job
Gallons (or Liters x 10).
Note: JOB displays briefly, then the
number of gallons sprayed above
1000 psi (70 bar, 7 MPa).
4. Press and hold to reset to zero, or
short press DTS button to move to
Lifetime Gallons (or Liters x 10).
Note: LIFE displays briefly, then the
number of gallons sprayed above
1000 psi (70 bar, 7 MPa).
5. Short press DTS button to move to AutoClean Timer operation (Manual 309278).
Note: If the pump is started in the
timer mode, the timer counts down to
zero and shuts the pump OFF. Use
for flushing only.
6. Short press DTS button to return to Pressure.
13309410
WatchDog Pump Protection System
Pump stops automatically when material pail is empty.
To Activate:
1. Do Startup.
Increase pressure to more than
2000 psi (140 bar, 14 MPa).
Note: Instructions to automatically activate the
WatchDog pump protection system every time
you spray are on page 16.
2. Press and hold DTS button, release
when ON is displayed.
Note: GAL (or LITER) flashes while pump
protection system is active.
EMPTY displays and the pump stops when pump
protection system detects an empty material pail.
3. Turn pump switch OFF to resume normal operation.
Change Display Units:
Pressure:
1. Decrease pressure to less than 200 psi (14 bar,
1.4 MPa)
2. Press and hold (5 seconds) DTS button to change
pressure units (psi, bar, MPa), to desired units.
Volume:
1. Enter Life Material Counter mode.
2. Press and hold (5 seconds) DTS button to
change volume units (GAL, LITERX10).
30941014
Secondary Menu – Stored Data and WatchDog Pump Protection Modes
1. Do Startup steps 1. – 3.
Pressure must be at zero.
PAINT
2. Start engine or motor, page 9.
Pressure display appears.
3. Simultaneously press DTS button and set
pump on/off switch on.
Sprayer model momentarily displays,
e.g., C5900 = GMAX 5900 Convertible.
FLUSH
Resettable Hour Meter appears.
15309410
Secondary Menu – Stored Data and WatchDog Pump Protection Modes
4. Press and hold to reset to zero, or
5. Short press DTS button to move to Lifetime
Hour Meter.
6. Short press DTS button to move to
TOTAL Gallons (all pressures).
7. Press DTS button to move to stored error
code. Press and hold DTS button to clear
error code to E=00. See Manual 309409.
8. Short press DTS button to move
to WatchDog pump protection
options menu.
30941016
Secondary Menu – Stored Data and WatchDog Pump Protection Modes
9. Short press DTS button again to move to
WatchDog MAN (manual) mode.
10.Press and hold to switch between MAN (standard) and AUTO mode. In AUTO mode,
WatchDog pump protection is active once
pressure is over 1500 psi (103 Bar, 10.3 MPa)
11. Short press to return to step 3.
12.Turn pump switch OFF at any time
to exit stored data mode.
17309410
heavy
edges
Spray Test Pattern
1. Trigger gun and spray test pattern.
Slowly adjust pressure to eliminate
heavy edges. Use smaller tip size if
pressure adjustment can not eliminate
heavy edges.
2. Hold gun perpendicular, 10–12 in.
(25–30 cm) from surface. Spray back
and forth. Use strokes overlapped by
50%. Start gun movement before triggering gun and release trigger before
stopping gun movement.
Clearing Tip Clogs
1. Release trigger, put trigger safety ON.
Rotate SwitchTip. Take trigger safety
OFF and trigger gun to clear the clog.
Never point gun towards your hand
or into a rag!
2. Put trigger safety ON, return SwitchTip
to original position, take trigger safety
OFF and continue spraying.
30941018
Cleanup
Perform AutoClean procedure (Manual 309278) or follow conventional
flushing procedure that follows:
Pressure Relief
1. Set pump switch OFF.
Turn engine or motor OFF.
Pressure Relief
2. Turn pressure to lowest setting.
Trigger gun to relieve pressure.
or
PAINT
Pressure Relief
3. Turn prime valve down.
4. Remove guard and SwitchTip.
19309410
5. Unscrew bowl, remove filter. Assemble without filter. Clean filter.
6. Clean filter, guard and SwitchTip in flushing
fluid.
PAINT
30941020
FLUSH
7. Remove siphon tube set from paint and
place in flushing fluid. Use water for water
base paint and mineral spirits for oil base
paint.
FLUSH
8. Turn engine ON and start engine or motor.
Set pump switch ON.
9. Turn prime valve horizontal.
10.Turn pressure control up until motor begins
to drive pump. Hold gun against paint pail.
Take trigger safety OFF. Trigger gun until
flushing fluid appears.
or
11. Move gun to flushing pail, hold gun against
pail, trigger gun to thoroughly flush system.
Release trigger and put trigger safety ON.
12.Turn prime valve down and allow
flushing fluid to circulate for approximately 20 seconds to clean drain tube.
PAINT
FLUSH
20 SEC
21309410
13.Raise siphon tube above flushing fluid
and run sprayer for 15 to 30 seconds to
drain fluid. Turn pump switch OFF. Turn
engine or motor OFF.
PAINT
FLUSH
Caution: If flushing with water, do not leave water in sprayer. Flush again with mineral
spirits, oil or Pump Armor and leave this protective coating in the sprayer to help
prevent freezing or corrosion and increase sprayer life.
14.Make sure plastic center tube is tightened
securely. Install filter bowl and filter. Hand
tighten filter bowl. Hand tighten gun handle.
15.Wipe sprayer, hose and gun with a rag
soaked in water or mineral spirits.
16.Clean tip, guard and gasket with a soft
bristle brush to prevent part failure due
to dried materials. Assemble parts and
attach loosely onto gun.
FLUSH
30941022
309409
Service
DTS Error Codes
Reference Repair Manual 309409 or 309411 or call your distributor for service
23309410
Graco Warranty
Graco warrants all equipment listed in this manual which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. With the exception of
any special extended or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or
replace any part of the equipment determined by Graco to be defective. This warranty applies only when the equipment is installed,
operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or
substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of
Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance or structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT
NOT MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, gas engines,
switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance
in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties
reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures
judiciaires exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procédures concernées.
ADDITIONAL WARRANTY COVERAGE
Graco does provide extended warranty and wear warranty for products described in the “Graco Contractor Equipment Warranty
Program”.
Graco Phone Number
TO PLACE AN ORDER, contact your Graco distributor, or call this number to identify the distributor closest to you:
1–800–690–2894 Toll Free.
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
International Offices: Belgium, Korea, Hong Kong, Japan
Sales Offices: Minneapolis, Detroit
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
http://www.graco.com
PRINTED IN U.S.A. 309410 1/2002, Revised 3/2003
30941024
Loading...
