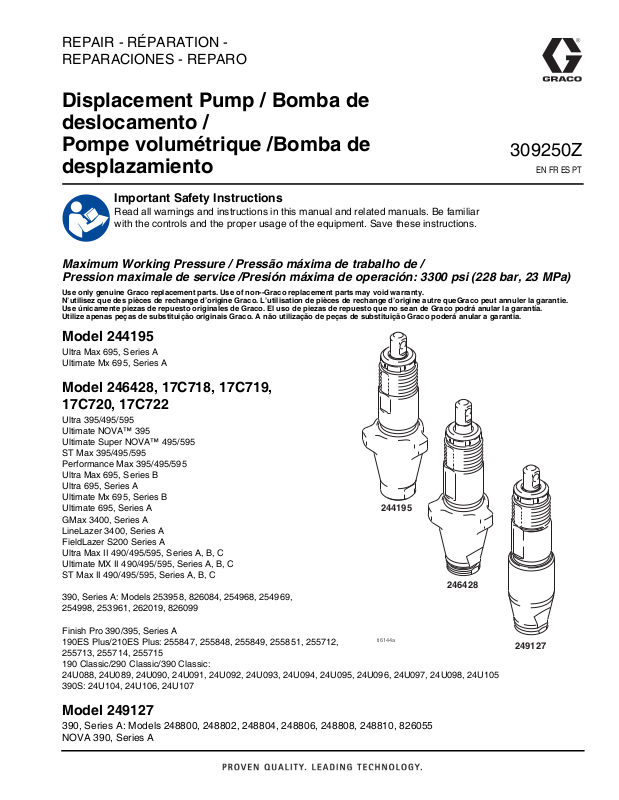

Graco 309250Z, 244195 User Manual

REPAIR - RÉPARATION -

244195

246428

ti6144a

REPARACIONES - REPARO

Displacement Pump / Bomba de
deslocamento /
Pompe volumétrique /Bomba de
desplazamiento

309250Z

EN FR ES PT

Important Safety Instructions

Read all warnings and instructions in this manual and related manuals. Be familiar
with the controls and the proper usage of the equipment. Save these instructions.

Maximum Working Pressure / Pressão máxima de trabalho de /
Pression maximale de service /Presión máxima de operación: 3300 psi (228 bar, 23 MPa)

Use only genuine Graco replacement parts. Use of non--Graco replacement parts may void warranty.
N’utilisez que des pièces de rechange d’origine Graco. L’utilisation de pièces de rechange d’origine autre queGraco peut annuler la garantie.
Use únicamente piezas de repuesto originales de Graco. El uso de piezas de repuesto que no sean de Graco podrá anular la garantía.
Utilize apenas peças de substituição originais Graco. A não utilização de peças de substituição Graco poderá anular a garantia.

Model 244195

Ultra Max 695, Series A
Ultimate Mx 695, Series A

Model 246428, 17C718, 17C719,
17C720, 17C722

Ultra 395/495/595
Ultimate NOVA™ 395
Ultimate Super NOVA™ 495/595
ST Max 395/495/595
Performance Max 395/495/595
Ultra Max 695, Series B
Ultra 695, Series A
Ultimate Mx 695, Series B
Ultimate 695, Series A
GMax 3400, Series A
LineLazer 3400, Series A
FieldLazer S200 Series A
Ultra Max II 490/495/595, Series A, B, C
Ultimate MX II 490/495/595, Series A, B, C
ST Max II 490/495/595, Series A, B, C

390, Series A: Models 253958, 826084, 254968, 254969,
254998, 253961, 262019, 826099

Finish Pro 390/395, Series A
190ES Plus/210ES Plus: 255847, 255848, 255849, 255851, 255712,
255713, 255714, 255715
190 Classic/290 Classic/390 Classic:
24U088, 24U089, 24U090, 24U091, 24U092, 24U093, 24U094, 24U095, 24U096, 24U097, 24U098, 24U105
390S: 24U104, 24U106, 24U107

Model 249127

390, Series A: Models 248800, 248802, 248804, 248806, 248808, 248810, 826055
NOVA 390, Series A

249127

WARNING

FIRE AND EXPLOSION
HAZARD

Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire and
explosion:

• Use equipment only in well ventilated area.

• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic

• drop clothes (potential static arc).

• Keep work area free of debris, including solvent, rags and gasoline.

• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.

• Ground equipment and conductive objects in work area. Read Grounding instructions.

• If there is static sparking or you feel a shock, stop operating immediately. Do not use equipment until you iden­tify and correct the problem.

SKIN INJECTION HAZARD

High pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just a cut, but
it is a serious injury that can result in amputation. Get immediate surgical treatment.

• Do not point gun at anyone or any part of the body.

• Do not put your hand over the spray tip.

• Do not stop or deflect leaks with your hand, body, glove, or rag.

• Do not spray without tip guard and trigger guard installed.

• Engage trigger lock when not spraying.

• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning, checking or
servicing equipment.

AVERTISSEMENT

DANGER D’INCENDIE ET
D’EXPLOSION

Les vapeurs inflammables, vapeurs de solvant et de peinture par exemple, sur le lieu de travail peuvent
s’enflammer ou exploser. Pour prévenir un incendie ou une explosion:

• N’utiliser l équipement que dans des locaux bien ventilés.

• Supprimer toutes les source de feu, telles que les veilleuses, cigarettes, lampes électriques portatives

• et bâches plastique (risque de décharge d électricité statique).

• Veiller à débarrasser la zone de travail de tout résidu, comme les solvants, les chiffons et l’essence.

• Ne pas brancher ni débrancher de cordons d’alimentation électrique ni allumer ou éteindre la lumière en
présence de vapeurs inflammables.

• Raccorder le matériel et les objets conducteurs se trouvant dans la zone de travail à la terre.

• Si l’on remarque la moindre étincelle d’électricité statique ou si l’on ressent une décharge électrique, arrêter le
travail immédia.

2 309250Z

AVERTISSEMENT

DANGERS D’INJECTION
CUTANÉE

Le produit s’échappant à haute pression du pistolet, d’une fuite sur le flexible ou d’un composant défectueux risque
de transpercer la peau. La blessure peut avoir l’aspect d’une simple coupure, mais il s’agit en fait d’une blessure
sérieuse pouvant entraîner une amputation. Consulter immédiatement un médecin en vue d?une intervention
chirurgicale.

• Ne pas diriger le pistolet sur quelqu’un ou une partie quelconque du corps.

• Ne pas mettre la main devant la buse de projection.

• Ne jamais colmater ou dévier les fuites avec la main, le corps, un gant ou un chiffon.

• Ne pas pulvériser sans garde--buse ni sous--garde.

• Verrouiller la gâchette à chaque arrêt de la pulvérisation.

• Observer la Procédure de décompression de ce manuel à chaque arrêt de la pulvérisation et avant tout nettoy­age, contrôle ou entretien du matériel.

ADVERTENCIA

PELIGRO DE INCENDIOS Y
EXPLOSIONES

Vapores inflamables, como los vapores de disolvente o de pintura en la zona de trabajo pueden incendiarse o
explotar. Para evitar un incendio o explosión:

• Utilice el equipo únicamente en áreas bien ventiladas.

• Elimine toda fuente de ignición, tales como las luces piloto, los cigarrillos, las linternas eléctricas y las cubiertas
de plástico (arcos estáticos potenciales).

• Mantenga limpia la zona de trabajo, sin disolventes, trapos o gasolina.

• No enchufe ni desenchufe cables de alimentación ni apague ni encienda las luces en el área de pulverización.

• Conecte a tierra el equipo y los objetos conductores eléctricamente de la zona de trabajo.

• Si se aprecia la formación de electricidad estática durante el uso de este equipo, deje de trabajar inmediata­mente. No utilice el sistema hasta haber identificado y corregido el problema.

PELIGRO DE INYECCIÓN A
TRAVÉS DE LA PIEL

El fluido a alta presión procedente de la pistola, fugas de la manguera o componentes rotos penetrarán en la piel.
La inyección del líquido puede tener la apariencia de un simple corte, pero se trata de una herida grave que puede
conducir a la amputación. Consiga inmediatamente tratamiento quirúrgico.

• No coloque la mano o los dedos sobre la boquilla de pulverización, ni apunte la pistola hacia nadie ni ninguna
parte del cuerpo.

• No coloque la mano sobre la boquilla de pulverización.

• No intente bloquear ni desviar posibles fugas con la mano, el cuerpo, los guantes o con un trapo.

• Nunca pulverice sin la protección de la boquilla y el seguro del gatillo.

• Enganche el seguro del gatillo cuando no esté pulverizando.

• Siga el Procedimiento de descompresión de este manual, cuando deje de pulverizar y antes de limpiar, revisar
o reparar el equipo.

309250Z 3

ADVERTÊNCIA

PERIGO DE INCÊNDIO E
EXPLOSÃO

Os vapores inflamáveis na área de trabalho, tais como os provenientes de solventes e tintas, podem inflamar-se
ou explodir. Para ajudar a evitar incêndios e explosões:

• Utilize o equipamento apenas em áreas bem ventiladas.

• Elimine todas as fontes de ignição, como, por exemplo, luzes piloto, cigarros, luzes eléctricas portáteis e plásti­cos de protecção (potencial arco estático).

• Mantenha a área de trabalho sem detritos, incluindo solvente, panos e gasolina.

• Não ligue nem desligue cabos de alimentação ou luzes na presença de vapores inflamáveis.

• Ligue o equipamento e os objectos condutores presentes na área de trabalho à terra.

• Se ocorrerem faíscas de estática ou se sentir um choque eléctrico, interrompa a utilização imediatamente. Não
utilize o equipamento até identificar e eliminar o problema.

PERIGO DE INJECÇÃO
ATRAVÉS DA PELE

O produto a alta pressão proveniente da pistola, fugas nos tubos flexíveis ou componentes danificados poderá
provocar lesões na pele. As lesões podem ter o aspecto de um simples corte, porém, constituem ferimentos
graves capazes de conduzir à amputação. Obtenha tratamento médico imediato.

• Não aponte a pistola a ninguém nem a nenhuma parte do corpo.

• Não coloque as mãos sobre o bico.

• Não tente interromper ou desviar fugas com a mão, o corpo, uma luva ou um pano.

• Não comece a pintar sem que o protector do bico e o dispositivo de segurança do gatilho estejam instalados.

• Engate o dispositivo de segurança do gatilho quando não estiver a pintar.

• Siga o Procedimento de Descompressão neste manual, quando parar de pintar e antes de dar início aos pro­cedimentos de limpeza, verificação ou manutenção. INJECTION HAZARD

4 309250Z

Repair

123

45

ti31548a

ti2776a

TI779A

Pressure Relief Procedure / ALÍVIO DE PRESSÃO
DÉCHARGE DE PRESSION / ALIVIO DE LA PRESIÓN

Follow the Pressure Relief Procedure steps 1-5 whenever you see this symbol.
Siga os passos de 1-5 quando parar de pulverizar.
Suivre les étapes 1 à 5 lorsqu’on arrête de pulvériser.
Siga los pasos 1-5 cuando deje de usar el pulverizador.

Repair

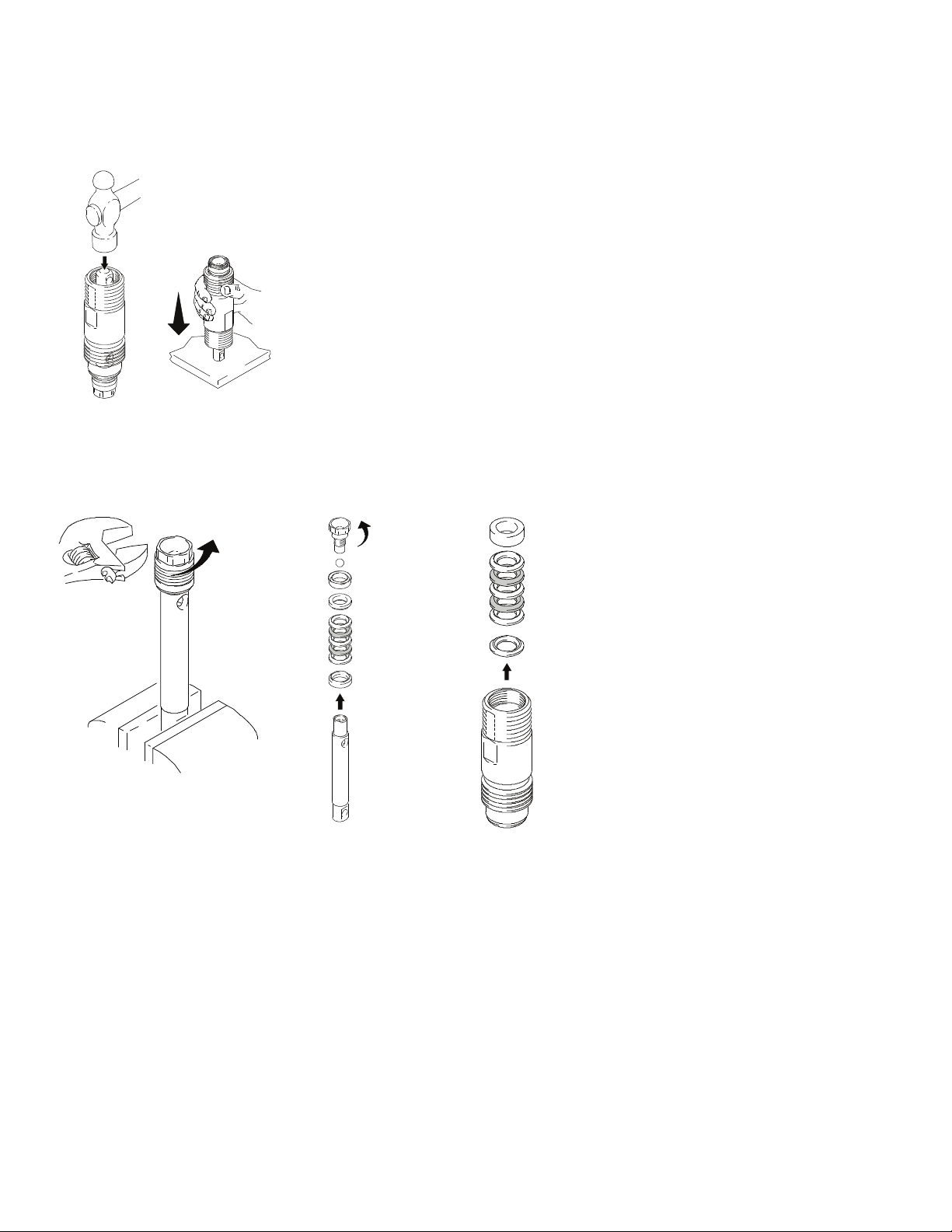

DISASSEMBLE / DESMONTAGEM DÉMONTAGE / DESARMAR

123

244195

246428

249127

ti6145a

309250Z 5

Repair

ou
o

or

ti7571a

ti0782a

TI0783A

ti0780

a

4

5

COMPONENT DAMAGE HAZARD

PERIGO DE DANOS NOS COMPONENTES RISQUE D’ENDOMMAGEMENT
DE COMPOSANTS PELIGRO DE DAÑO A COMPONENTES

Do not clean piston valve threads. Cleaning piston valve threads could destroy
thread locking patch and cause piston valve to come loose during operation,
causing pump damage and possible serious injury.

No limpie los hilos de la válvula de pistones. Al limpiar los hilos de la válvula de
pistones podría destruir la placa de trabadura de hilos y causar que la válvula de
pistones se suelte durante el funcionamiento y se produzcan daños en la bomba
y posibles lesiones serias.

Ne pas nettoyer les filets du clapet piston. Un tel nettoyage pourrait détruire
l’enduit frein des filets et causer la dislocation du clapet piston en fonctionne­ment, entraînant ainsi l’endommagement de la pompe et des blessures graves.

No limpie los hilos de la válvula de pistones. Al limpiar los hilos de la válvula de
pistones podría destruir la placa de trabadura de hilos y causar que la válvula de
pistones se suelte durante el funcionamiento y se produzcan daños en
la bomba y posibles lesiones serias.

67

Remove and discard throat pack­ings and glands from cylinder.

Retire e jogue fora as gaxetas da
garganta e as buchas do cilindro.

Enlever du cylindre les garnitures
de collet et les presse-garnitures
et les jeter.

Retire y elimine las empaquetadu­ras y casquillos del cilindro.

Do not remove thread locking
patch. On fifth assembly apply
Loctite™ to threads.

Não retire o embutimento de travar
roscas. Na quinta unidade, aplique
Loctite™ nas roscas.

Ne pas enlever l’enduit frein des
filets. Au cinquième assemblage,
appliquer du Loctite™ sur les filets.

No quite la placa de trabadura de
hilos. Aplique Loctite™ a los hilos
en el quinto conjunto.

6 309250Z

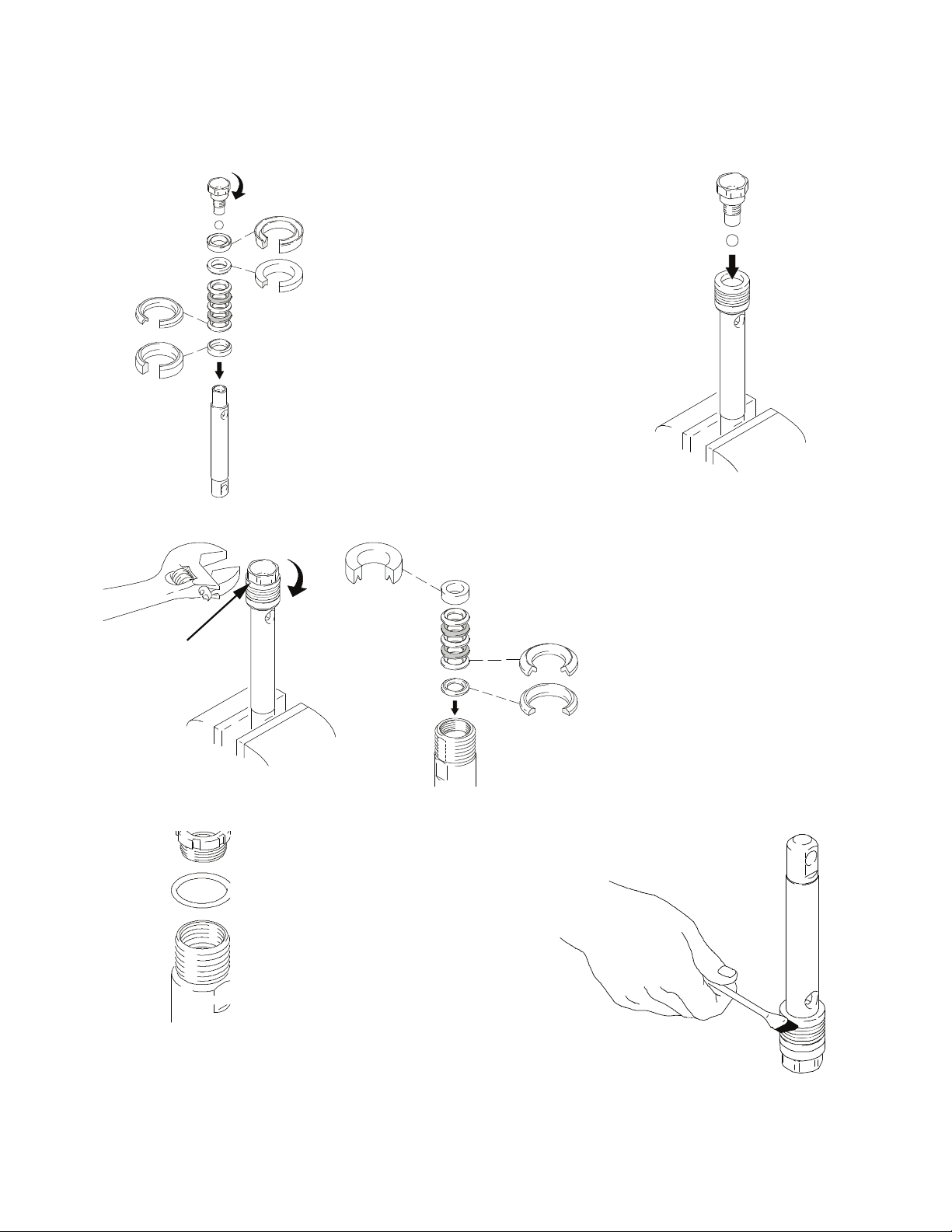

ASSEMBLE / MONTAGEM ASSEMBLAGE / ARMAR

TI0785A

27 ± 3 ft-lb

(37 ± 4N•m)

TI0787A

TI0784A

• Or additional 1/2 turn

•

O vuelta adicional de

firmemente

•

Ou tour additionnel d

fortement

•

Ou volta adicional de

firmemente

ti0788a

Repair

1

Soak leather packings in SAE 30W
oil for 1 hour before assembly.

Mergulhe as gaxetas de couro em
óleo SAE 30W por 1 hora antes da
montagem.

Avant d’effectuer l’assemblage,
tremper les garnitures en cuir dans
de l’huile SAE 30W pendant une
heure.

Remoje las empaquetaduras de
cuero en aceite SAE 30W durante
1 hora antes de armar.

34

2

TI0786A

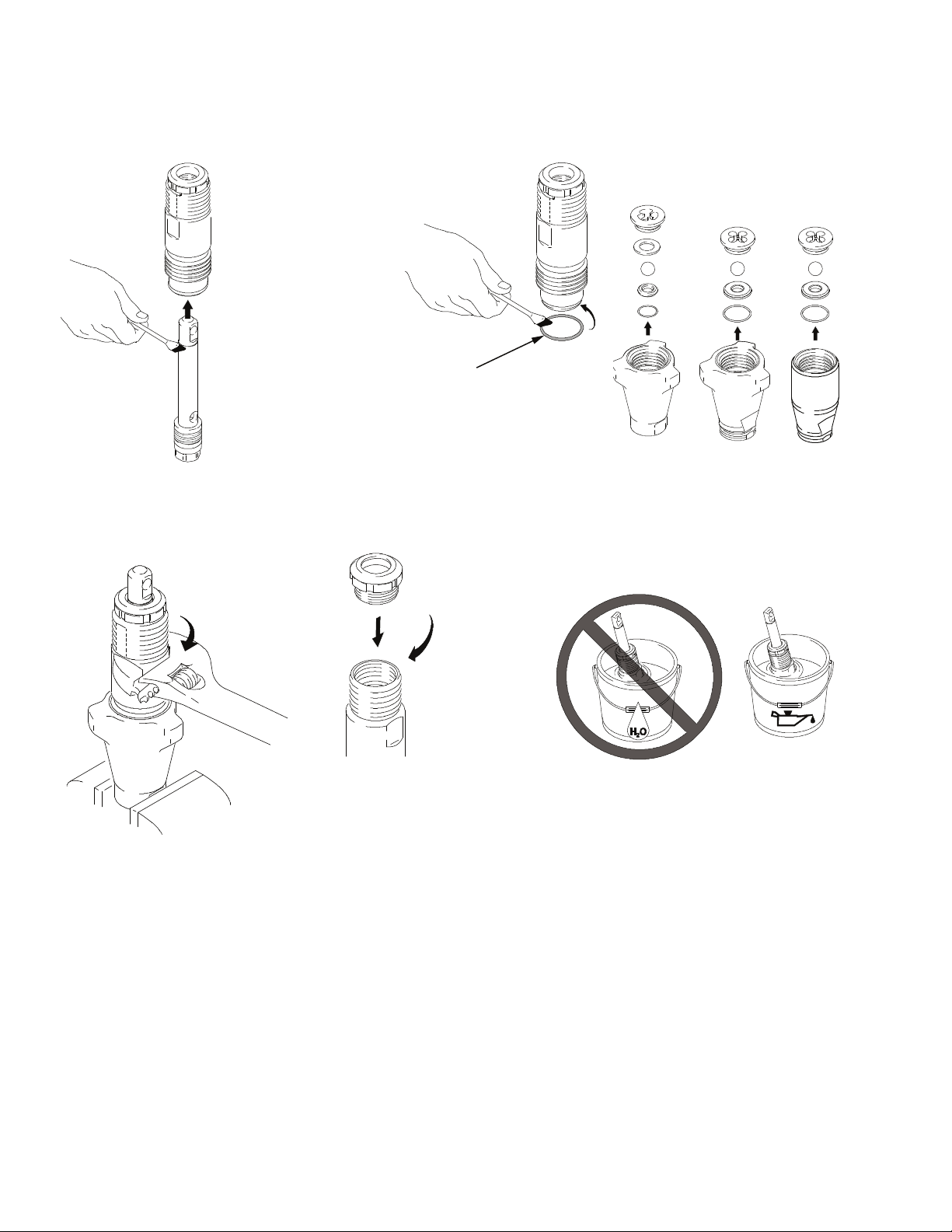

Soak leather packings in SAE 30W oil for 1
hour before assembly.

Mergulhe as gaxetas de couro em óleo SAE
30W por 1 hora antes da montagem.

Avant d’effectuer l’assemblage, tremper les
garnitures en cuir dans de l’huile SAE 30W
pendant une heure.

Enjuague las empaquetaduras de cuero en
aceite SAE 30W durante 1 hora antes
de armar.

5

309250Z 7

Loosely install packing nut onto
cylinder.

Instale folgadamente a porca de
empanque no cilindro.

Visser l’écrou de presse-garniture
sur le cylindre sans le serrer.

Instale, sin apretar, la tuerca
prensaestopas en el cilindro.

O-ring replaces clip ring on older
models.

El anillo-O substituye el anillo del
clip en más viejos modelos.

La bague remplace le bague de
clip sur des modèles plus anciens.

O anel-O substitui o anel do
grampo em uns modelos mais
velhos.

6

Apply liberal amounts of grease or oil.
Aplique bastante graxa lubrificante ou óleo.
Appliquer généreusement de la graisse ou de l’huile.
Aplique grasa o aceite a discreción.

Repair

ti0790a

244195 246428 249127

ti7570

a

60 5 ft--lb
(81 ±±7N

•m)

ti0792a

75 ± 5in--lb
(8.5 ± .5 N •m

• Or additional 1/2 turn from hand tight

• O vuelta adicional del 1/2 de lamano
firmemente

• Ou tour additionnel de 1/2 de main
fortement

• Ou volta adicional de 1/2 da mão
firmemente

ti31540a

7

89

Grease top two inches
of piston rod.

Aplique graxa lubrifi­cante em cerca de 5
cm da parte superior
da haste do êmbolo.

Lubrifier sur deux
pouces de hauteur la
partie supérieure de la
tige du piston.

Engrase dos pulgadas
de la parte superior del
pistón.

Grease and place on O.D. ring groove.
Lubrifique e coloque na ranhura

do anel de vedação.
Lubrifier et placer sur la rainure

annulaire extérieure.
Engrase y coloque en la ranura

para aro del D.E.

10 11 12

ti0789a

Storage / Armazenamento

Stockage / Almacenamiento

)

ti2778b

8 309250Z

THROAT PACKING ADJUSTMENT/AJUSTE DAS GAXETAS DA

220

203

ti2779a

GARGANTA/AJUSTEMENT DE LA GARNITURE DE
COLLET/AJUSTE DE LA EMPAQUETADURA DE LA GARGANTA

Repair

Remove throat nut
spacer (220) when
pump packings begin to
leak after much use.
Then tighten packing
nut down until leakage
stops or lessens. This
allows approximately
100 gallons of addi­tional operation before
a repacking is required.

O-ring (220) replaces
clip ring on older mod­els. Packing nut can be
tightened without o-ring
removal.

Retire o espaçador da
porca da garganta (220)
assim que as gaxetas
da bomba começarem
a vazar após uma uti­lização intensiva.
Depois, aperte a porca
de vedação até que o
vazamento pare ou
diminua. Isto permitirá
uma utilização adicional
de cerca de 378 litros
antes que seja
necessária uma substi­tuição.

El anillo-O (220) substi­tuye el anillo del clip en
más viejos modelos. La
tuerca del embalaje se
puede apretar sin retiro
del anillo-O.

Enlever la cale (220)
d’écrou de collet lor­squ’on décèle une fuite
par la garniture de la
pompe après usage
intense. Serrer ensuite
le presse-garniture
jusqu’à l’arrêt ou la dim­inution de la fuite. Ceci
permettra la pulvérisa­tion sur 378 litres addi­tionnelles avant de
devoir remplacer la gar­niture.

La bague (220) rem­place la bague de clip
sur des modèles plus
anciens. L’écrou
d’emballage peut être
serré sans déplacement
de bague.

Retire el espaciador
de la tuerca de la
garganta (220)
cuando haya filtra­ciones por las
empaquetaduras
después del uso
excesivo. Luego
apriete la tuerca de
la empaquetadura
hasta que la fil­tración se detenga
o se reduzca. Ello
permite aproxima­damente 378 litros
adicionales de fun­cionamiento antes
de que sea necesa­rio cambiar las
empaquetaduras.

O anel-O (220) sub­stitui o anel do
grampo em uns
modelos mais vel­hos. Aporca da
embalagem pode
ser apertada sem
remoção do anel-O.

309250Z 9

Parts/ Peças / Pièces / Piezas - 244195

ti7567c

202

203

208*

209*

211*
207*

224*223*

212

213

214†

218*

†

215†

217*

†

216

220*

or

ou

o

204*

222*

221*

205*

201

206

219*

Parts/ Peças / Pièces / Piezas - 244195

Ref. Part Description Qty.

201 249125 ROD, displacement, includes 212 1
202 180656 BUTTON, plug 1
203 193047 NUT, packing 1
204* 176757 GLAND, female, throat 1
205* 176754 GLAND, male, throat 1
206 243176 CYLINDER, pump 1
207 105444* BALL, sst, 0.3125 in. 1

17P091 BALL, Ceramic, 0.3125 in. 1
208* 195129 GLAND, male, piston 1
209* 180073 GLAND, female, piston 1
211* 15G234 GUIDE, piston 1
212 239937 VALVE, piston (included with 201) 1
213 196896 GUIDE, ball 1
214† 195134 SPACER, ball guide 1
215† 243190 KIT, seat, carbide includes 214, 217 and

216 196755 VALVE, intake housing 1
217*† 195136 PACKING, o-ring (0.725 in. OD) 1
218 105445*†BALL, sst, 0.5000 in. 1

119260 BALL, Ceramic, 0.5000 in. 1
219* 108526 O-RING, FX90 1
220* 117459 O-RING (replaces clip ring on older mod-

221* 176755 V-PACKING, leather, throat 2
222* 192710 V-PACKING, throat, V-Max™ UHMWPE,

223* 176749 V-PACKING, leather, piston 2
224* 192712 V-PACKING, piston V-Max™ UHMWPE,

* Included in Kit 244194 (kit includes (2) 103413 intake tube

o-rings)
† Included in Kit 243190
* Incluído no Kit 244194 (incluide (2) 103413 intake tube

o-rings)
† Incluído no Kit 243190
* Inclus dans la trousse 244194 (inclus (2) 103413 intake

tube o-rings)
† Inclus dans la trousse 243190
* Incluida en Kit 244194 (incluida (2) 103413 intake tube

o-rings)
† Incluida en Kit 243190

Technical Data
/Dados Técnicos/Fiche
technique/Datos técnicos

Maximum working pressure / Pressão máxima de trabalho de
Pression maximale de service / Presión máxima de operación

Fluid inlet size / Dimensões da entrada de líquido
Dia. de l’orifice d’entrée / Tamaño de la entrada de fluido

Fluid outlet size / Dimensões da saída de líquido
Dia. de l’orifice de sortie / Tamaño de la salida de fluido

Wetted parts . . . . . . . . . . .... . . . . . stainless steel, PTFE, leather,

218

els), green dot

blue

blue

3300 psi (228 bar, 23 MPa)

2

3 300 lb/po

nylon, zinc-plated carbon steel, tungsten carbide,

chrome plating, UHMWPE, Acetal, polyethylene, nylon

(228 bar, 23 MPa)

1-1/4-12 unf(m

1/4 npt(f)

Ref. Part Description Qty.

Peças lubrificadas . . . . . . . . ..... . . . aço inoxidável, PTFE, couro,

nylon, aço carbono zincado, carboneto de

tungstênio, cromagem, UHMWPE, Acetal, polietileno

Pièces en contact avec du liquide . . . .. . . . . acier inoxydable et en

PTFE, cuir, nylon, acier carbone zingué,

carbure de tungstène, plaquage au chrome,

UHMWPE, Acetal, polyéthylène

Piezas húmedas . . . . . . . . . . . . . . . . . . . . acero inoxidable, PTFE,

cuero, nilón, acero al carbono enchapado en cinc,

carburo de tungsteno, enchape en cromo,

UHMWPE, Aceta, polietileno

1

1

3

3

10 309250Z

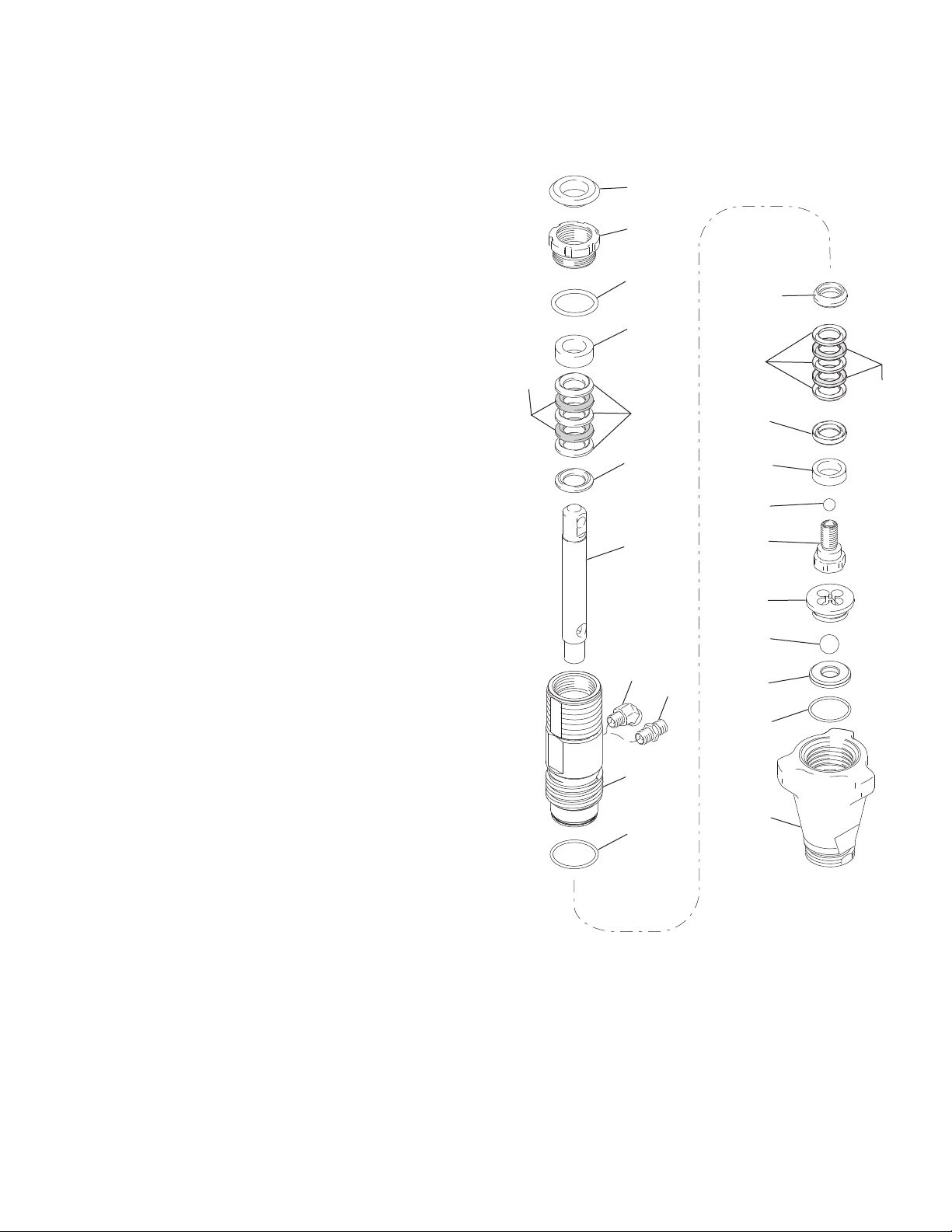

Parts/ Peças / Pièces / Piezas - 246428, 17C718, 17C719, 17C720, 17C722

†

213

211*

202

203

204*

222*

205*

206

201

208*

209*

212

*215

†

*217

216

†

*218

*224

207*

219*

220*

225

ti25096a

226

Parts/ Peças / Pièces / Piezas - 246428, 17C718,
17C719, 17C720, 17C722

Ref. Part Description Qty.

201 249125 ROD, displacement, includes 212 1
202 180656 BUTTON, plug 1
203 193047 NUT, packing 1
204* 176757 GLAND, female, throat 1
205* 176754 GLAND, male, throat 1
206 17D481 CYLINDER, pump (includes 219) 1
207 105444* BALL, sst, 0.3125 in. 1

208* 195129 GLAND, male, piston 1
209* 180073 GLAND, female, piston 1
211* 15G234 GUIDE, piston 1
212 239937 VALVE, piston (included with 201) 1
213 15C011 GUIDE, ball 1
215† 246429 KIT, seat, carbide includes 213, 217 and

216 15B611 VALVE, intake housing 1
217*† 15B112 PACKING, o-ring (0.941 in. OD) 1
218 105445*†BALL, sst, 0.5000 in. 1

219* 17V093 PACKING, o-ring, pink dot 1
220* 117459 O-RING, green dot 1
221* 176755 V-PACKING, leather, throat 2
222* 192710 V-PACKING, throat, V-Max™ UHMWPE,

223* 176749 V-PACKING, leather, piston 2
224* 192712 V-PACKING, piston V-Max™ UHMWPE,

225 162453 NIPPLE, 1/4 npsm x 1/4 npt 1
226 119789 FITTING, elbow, street, 45?, 1/4 npt 1
* included in Kit 244194
† Included in Kit 246429
* Incluído no Kit 244194
† Incluído no Kit 246429
* Inclus dans la trousse 244194
† Inclus dans la trousse 246429
* Incluida en Kit 244194
† Incluida en Kit 246429

17P091 BALL, Ceramic, 0.3125 in. 1

218

119260 BALL, Ceramic, 0.5000 in. 1

blue

blue

*221

1

3

3

*223

Technical Data
/Dados Técnicos/Fiche
technique/Datos técnicos

Maximum working pressure / Pressão máxima de trabalho de
Pression maximale de service / Presión máxima de operación

Fluid inlet size / Dimensões da entrada de líquido
Dia. de l’orifice d’entrée / Tamaño de la entrada de fluido

Fluid outlet size / Dimensões da saída de líquido
Dia. de l’orifice de sortie / Tamaño de la salida de fluido

Wetted parts . . . . . . . . . . .... . . . . . stainless steel, PTFE, leather,

Peças lubrificadas . . . . . . . . ..... . . . aço inoxidável, PTFE, couro,

Pièces en contact avec du liquide . . . .. . . . . acier inoxydable et en

chrome plating, UHMWPE, Acetal, polyethylene, nylon

tungstênio, cromagem, UHMWPE, Acetal, polietileno

Piezas húmedas . . . . . . . . . . . . . . . . . . . . acero inoxidable, PTFE,

309250Z 11

nylon, zinc-plated carbon steel, tungsten carbide,

3300 psi (228 bar, 23 MPa)

2

3 300 lb/po

(228 bar, 23 MPa)

1-1/4-12 unf(m

1/4 npt(f)

nylon, aço carbono zincado, carboneto de

PTFE, cuir, nylon, acier carbone zingué,

carbure de tungstène, plaquage au chrome,

cuero, nilón, acero al carbono enchapado en cinc,

carburo de tungsteno, enchape en cromo,

UHMWPE, Acetal, polyéthylène

UHMWPE, Aceta, polietileno

*221

*213

211*

202

203

204*

222*

205*

206

201

208*

209*

212

†215

†*217

216

†*218

*224

207*

219*

220*

*223

225

ti6146b

Parts/ Peças / Pièces / Piezas - 249127

Parts/ Peças / Pièces / Piezas - 249127

Ref. Part Description Qty.

201 249125 ROD, displacement, includes 212 1
202 180656 BUTTON, plug 1
203 193047 NUT, packing 1
204* 176757 GLAND, female, throat 1
205* 176754 GLAND, male, throat 1
206 243176 CYLINDER, pump 1
207 105444* BALL, sst, 0.3125 in. 1

17P091 BALL, Ceramic, 0.3125 in. 1
208* 195129 GLAND, male, piston 1
209* 180073 GLAND, female, piston 1
211* 15G234 GUIDE, piston 1
212 239937 VALVE, piston (included with 201) 1
213 15C011 GUIDE, ball 1
215† 246429 KIT, seat, carbide includes 214, 217 and

216 15E567 VALVE, intake housing 1
217*† 15B112 PACKING, o-ring (0.725 in. OD) 1
218 105445*†BALL, sst, 0.5000 in. 1

119260 BALL, Ceramic, 0.5000 in. 1
219* 108526 O-RING, FX90 1
220* 117459 O-RING (replaces clip ring on older mod-

221* 176755 V-PACKING, leather, throat 2
222* 192710 V-PACKING, throat, V-Max™ UHMWPE,

223* 176749 V-PACKING, leather, piston 2
224* 192712 V-PACKING, piston V-Max™ UHMWPE,

225 162453 NIPPLE, 1/4 npsm x 1/4 npt 1

* Included in Kit 244194
† Included in Kit 246429
* Incluído no Kit 244194
† Incluído no Kit 246429
* Inclus dans la trousse 244194
† Inclus dans la trousse 246429
* Incluida en Kit 244194
† Incluida en Kit 246429

Technical Data

218

els), green dot

blue

blue

/Dados Técnicos/Fiche
technique/Datos técnicos

Maximum working pressure / Pressão máxima de trabalho de
Pression maximale de service / Presión máxima de operación

Fluid inlet size / Dimensões da entrada de líquido
Dia. de l’orifice d’entrée / Tamaño de la entrada de fluido

Fluid outlet size / Dimensões da saída de líquido
Dia. de l’orifice de sortie / Tamaño de la salida de fluido

Wetted parts . . . . . . . . . . .... . . . . . stainless steel, PTFE, leather,

Peças lubrificadas . . . . . . . . ..... . . . aço inoxidável, PTFE, couro,

Pièces en contact avec du liquide . . . .. . . . . acier inoxydable et en

Piezas húmedas . . . . . . . . . . . . . . . . . . . . acero inoxidable, PTFE,

3300 psi (228 bar, 23 MPa)

2

3 300 lb/po

(228 bar, 23 MPa)

1-1/4-12 unf(m

nylon, zinc-plated carbon steel, tungsten carbide,

chrome plating, UHMWPE, Acetal, polyethylene, nylon

tungstênio, cromagem, UHMWPE, Acetal, polietileno

cuero, nilón, acero al carbono enchapado en cinc,

nylon, aço carbono zincado, carboneto de

PTFE, cuir, nylon, acier carbone zingué,

carbure de tungstène, plaquage au chrome,

carburo de tungsteno, enchape en cromo,

UHMWPE, Acetal, polyéthylène

UHMWPE, Aceta, polietileno

1

1

3

3

1/4 npt(f)

12 309250Z

Graco Standard Warranty

Graco Standard Warranty

Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.

This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs
will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.

THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.

GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to

the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.

FOR GRACO CANADA CUSTOMERS

The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.

309250Z 13

Graco Information

For the latest information about Graco products, visit www.graco.com.

For patent information, see www.graco.com/patents.
Pour avoir plus d’informations concernant les brevets, consultez la page www.graco.com/patents.
Para información sobre patentes, vea www.graco.com/patents.
Para obter informações sobre patentes, consulte www.graco.com/patents.

TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the nearest distributor.
PARA EFETUAR ENCOMENDAS OU PARA ASSISTÊNCIA TÉCNICA, contate o seu distribuidor da Graco.
POUR PLACER UNE COMMANDE OU DEMANDER DU SERVICE, contactez votre distributeur Graco.
PARA REMITIR UN PEDIDO O SOLICITAR SERVICIO, póngase en contacto con el distribuidor de Graco.

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Traducción de las instrucciones originales. This manual contains Spanish. MM 302950

GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2000, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.

Graco reserves the right to make changes at any time without notice.

Original instructions. This manual contains English. MM 309250

Traduction des instructions originales.This manual contains French. MM 302950

Tradução das instruções originais. This manual contains Portuguese. MM 302950

International Offices: Belgium, China, Japan, Korea

Graco Headquarters: Minneapolis

www.graco.com

Revision

Z, April 2020
