Instructions - Parts List
217074
106148
106149
106150 (shown)
112859
110146
214847
214848
214849
237212
110148
Air Filters
Air Lubricators
110149
110150 (shown)
217072
217073
Air Filter-Regulators-Lubricators
246946
Integral Filters-Regulators
15C955
246947
246948
Air Filters, Lubricators, and
Kits
Maximum Temperature Range: 40-150°F (4-65°C)
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
308169P
EN
List of Models
List of Models
Air Filters
Model
No.
110146 22 (0.62) Husky 715, Prince, Fast-Flo, Fast-Ball 1/4 npt 300 (21) 1 (30) 20
106148 80 (2.3) President, Fire-Ball, Monark 3/8 npt 250 (17.5) 4.4 (132) 40
106149 130 (3.7) Bulldog, Senator, Glutton 1/2 npt 250 (17.5) 7.2 (216) 40
217074 106 (3.0) Bulldog, Senator, Glutton 1/2 npt 250 (17.5) 8 (240) 40
106150 250 (7.0) King 3/4 npt 250 (17.5) 16 (480) 40
112859 350 (10.0) Premier 1 npt 250 (17.5) 16 (480) 40
Max.
SCFM
Pump/System
Application
Inlet/
Outlet
Maximum WPR*
psi (bar)
Bowl Capacity
oz (ml)
Filter
Micron
Air Lubricators
Model
No.
110148 12 (0.34) Husky, Prince, Fast-Flo, Fast-Ball 1/4 npt 300 (21) 1 (30) A
214847 60 (1.7) President, Fire-Ball, Monark 3/8 npt 250 (17.5) 4.9 (147) B
214848 184 (5.2) Bulldog, Senator, Glutton 1/2 npt 250 (17.5) 6.1 (183) B
214849 290 (8.1) King 3/4 npt 250 (17.5) 16 (480) A
237212 320 (9.2) Premier 1 npt 250 (17.5) 16 (480) A
Max.
SCFM
Pump/System
Application
Inlet/
Outlet
Maximum WPR*
psi (bar)
Bowl Capacity
oz (ml) Series
Air Filter- Regulator- Lubricator Kit
(F-R-L)
Includes
Model
No.
110149 110146 110318 110148 110319 Husky 715, Prince, Fast-Flo, Fast-Ball 1/4 npt 300 (21)
110150 106148 110234 214847 101689 President, Fire-Ball, Monark, Standard 3/8 npt 250 (17.5)
217072 106149 104266 214848 101689 Bulldog, Senator, Glutton, Husky 1030 1/2 npt 250 (17.5)
217073 106150 207755 214849 101689 King 3/4 npt 250 (17.5)
FILTER REGULATOR LUBRICATOR
GAUGE Pump/System Application
Inlet/
Outlet
Maximum
WPR*
psi (bar)
Series
A
B
A
A
Integral Filter- Regulators
Maximum
Inlet/
Model No. FILTER GAUGE Pump/System Application
246946 15C956 C36260 Husky 205, 307, 515/716 1/4 npt 250 (17.5)
246947 15C955 C36260 Husky 1040, 1590, and 2150 1/2 npt 250 (17.5)
246948 15C955 C36260 Husky 3275 3/4 npt 250 (17.5)
15C955 n/a n/a n/a 1/2 npt 250 (17.5)
2 308169P
Outlet
WPR* psi
(bar)
Installation
Model 110149
Model 110150
217072
217073 (shown)
LUBRICATOR
ADJUSTMENT
KNOB
AIR REGULATOR
AIR FILTER DRAIN
LUBRICATOR
ADJUSTMENT
KNOB
LUBRICATOR
SIGHT GLASS
(NOT VISIBLE FROM
THIS VIEW)
AIR REGULATOR
AIR FILTER DRAIN
Installation
Before installing any air line components, blow out the
pipe line to remove scale and other debris. Use pipe
compound or tape sparingly and only on male threads.
Install the components in the pipe line so the flow is in
the direction of the arrow stamped on the body.
Locate the air line component(s) as close as possible to
the equipment it serves.
Install the air filter upstream from the regulator and/or
lubricator.
To provide the user with a variety of assembly options, a
bleed- type master air valve is not included with FRL’s.
See Accessories on page 13 to order this valve.
Another bleed- type master air valve can be installed
upstream from the FRL to isolate it for servicing.
To reduce the risk of serious bodily injury, including skin
injection, splashing fluid in the eyes or on the skin, or
injury from the pump starting unexpectedly, be sure
your system includes a bleed- type master air valve.
Install the air valve between the FRL outlet and the
device the FRL is serving. When relieving system air
pressure, close the bleed- type master air valve to fully
relieve air pressure.
Mounting Air Accessories
Use a bracket to mount the air accessories to a wall or
cart. Do not hang the accessories directly off the air
motor inlet, which could be damaged from the weight
and operating stress.
308169P 3
Air Filter
Clean air filter regularly to maximize filtering efficiency
and to avoid excessive pressure drop. Drain contaminants from the bowl before it reaches the baffle level.
Open the drain to drain the bowl or fully relieve pressure
and remove the bowl. Use household soap and water or
denatured alcohol for cleaning. Use compressed air to
blow out the filter body. Wash the filter element and
blow it out from the inside. Clean the sight glass thoroughly. Do not leave solvent residue in the sight glass,
which may attack or weaken it. If the sight glass appears
damaged by the solvent, replace it immediately.
An automatic drain accessory, Part No. 106151, is available for most filters, except Model 110146, 106148 and
106149. Part No. 127711 is available for Models 106148
and 106049. To install the drain, fully relieve system
pressure, remove the o- ring and bowl. Remove the
drain from the bowl and insert the automatic drain in its
place. Reassemble.
Regulator
The regulator reduces the air supply pressure to a
specified, constant downstream pressure to maximize
equipment performance. Preset pressures can be
locked in. See manual 308167 or 308168 (supplied with
the FRL’s) for complete air regulator information.
Lubricator
The lubricator meters oil into the moving air stream to
lubricate air operated motors. A manual adjustment in
the housing sets the oil drip rate into the air stream,
which can be monitored through a sight glass on most
lubricators. One to two drops of oil a minute is a common adjustment. Use Graco motor oil, part no. 202659.
All lubricators, except Model 110148, can be refilled with
the system pressurized. However, ALWAYS relieve the
system pressure before removing bowl for any reason.
Service
Lubricator 214849, 237212
ADJUSTABLE CAP
VALVE NEEDLE ASSY.
VALVE SEAT
FILLER PLUG
KIT 102774
BOWL
(see chart)
Lubricator 214847, 214848 Series B
Service
Relieve air and fluid pressure before servicing the regulator, filter, or lubricator.
To reduce the risk of serious bodily injury, fluid injection, splashing in the eyes or skin, injury from moving
parts, ALWAYS open the bleed-type master air pressure and trigger the gun or dispense valve and open
any fluid drain valves to relieve fluid pressure.
Repair Kits
Lubricator Repair Kits
1. Disassemble the component. Refer to the illustrations on pages 4 and 5.
2. Use household soap and water or denatured alcohol for cleaning. Wipe the parts clean with a clean,
soft, dry rag. Use compressed air to blow dirt and
contaminants out of the lubricator or filter body.
3. Inspect all parts for wear or damage. Replace damaged parts. Use all parts supplied with the kit.
NOTE: The chart identifies the available repair kits for
the air filters and lubricators covered in this manual. The
cutaway drawings shown on pages 5 and 6 show the
contents of the kits.
For Lubricator Kit No. Description
214848 (Series A) 102774 Repair Kit
214849 102774 Repair Kit
4 308169P
For Lubricator Kit No. Description
214847 24U962 Fill Cap Kit
24U963 Lubricator Service Kit
21848, Series B 17B710 Lubricator Service Kit
17B709 Lubricator Knob Kit
Filter Elements & Bowl Seals
For Filter Kit No. Description
Bowl Seal
Part No.
106149,
Series A
108035 1/2 in., 20 micron filter element 162440
106149,
Series B
17B708 1/2 in., 40 micron filter element 107306
106150 106204 3/4 in., 40 micron filter element 104023
112859 ---------- 1 in., 40 micron filter element ----------
110146 111690 1/4 in., 20 micron filter element N/A
BOWL
DRAIN
GASKET
BOWL
KIT
Air Filter 110146
FILTER
ELEMENT
Air Filter 106148, 106149, 106150, 112859, 217074
BOWL
FILTER
ELEMENT
INDICATOR
FLOAT
SEAL
BOWL SEAL KIT
160204, 108035
O-RING
SIGHT
GLASS
O-RING
PLUG
SIGHT GLASS KIT
104991, 104992,
104993, 106197
AUTO DRAIN
106151 and 127711
(see page 13)
Sight Glass Kits
Repair Kits
For Filter Kit No. Description
106148 104991 3/8 in. sight glass
106149,
104992 1/2 in. sight glass
Series A
106149,
10B706 1/2 in. sight glass
Series B
106150 104993 3/4 in. sight glass
112859 104993 1/2 in. sight glass
217074 106197 1/2 in. sight glass
308169P 5
Repair Kits
Filter Bowl Replacement Kits with Seal
For Filter Kit No. Description
116521 116672 3/4 in. port, bowl w/sight glass
15C955 116672 1/2 in. port, bowl w/sight glass
15C956 248085 1/4 in. port, bowl w/sight glass
Filter Element Kit with Gasket
For Filter Kit No. Description
116521 116635 3/4 in. 40 micron filter element
15C955 116635 1/2 in. 40 micron filter element
15C956 248087 1/4 in. 40 micron filter element
Regulator Repair Kit
For Filter Kit No. Description
116521 116634 3/4 in. valve and diaphragm
15C955 116634 1/2 in. valve and diaphragm
15C956 248086 1/4 in. valve and diaphragm
6 308169P
Parts
Ref
No. Part No. Description Qty
1 110146 FILTER
1
2 110318 REGULATOR (see 308167)
1
3 110148 LUBRICATOR
1
4 110321 MOUNTING BRACKET
1
5 126032 GAUGE, pressure, 1/8 NPT
1
Ref
No. Part No. Description Qty
1 106148 FILTER
1
2 110234 REGULATOR (see 308167)
1
3 214847 LUBRICATOR
1
4 101689 1/4 IN. GAUGE
1
Model 110149, Series A
Includes items 1-5
Model 110150, Series B
Includes items 1-5
4
1
5
3
2
1/4 npt(f)
INLET
1/4 npt(f)
OUTLET
1
2
4
3
3/8 npt(f)
INLET
3/8 npt(f)
OUTLET
Parts
308169P 7
Parts
4
Ref
No. Part No. Description Qty
1 106149 FILTER
1
2 104266 REGULATOR (see 308167)
1
3 214848 LUBRICATOR
1
4 106145 MOUNTING BRACKET
2
5 101689 GAUGE
1
Model 217072, Series A
Includes items 1-5
3
3/4 npt(f)
INLET
3/4 npt(f)
OUTLET
1
2 5
4
Ref
No. Part No. Description Qty
1 106150 FILTER
1
2 207755 REGULATOR (see 308167)
1
3 214849 LUBRICATOR
1
4 106145 MOUNTING BRACKET
2
5 101689 GAUGE
1
Model 217073, Series A
Includes items 1-5
3
5
2
1
1/2 npt(f)
OUTLET
1/2 npt(f)
INLET
Ref
No. Part No. Description Qty
1 15C956 REGULATOR, filter, air 1/4 npt
1
2 C36260 GAUGE, pressure, air
1
Model 246946
Ref
No. Part No. Description Qty
1 15C955 REGULATOR, filter, air 1/2 npt
Model 246947
1
116521 REGULATOR, filter, air 3/4 npt
Model 246948
1
2 C36260 GAUGE, pressure, air
Models 246947 and 246948 only
1
Model 15C955, 246947, and 246948
1
2
1
2
8 308169P
Dimensions
Model 217074
Model 106148
106149
106150 (shown)
112859
Model 110146
A
A
B
C
A
B
C
B
C
Model 214849
237212
Model 110148
A
A
B
C
B
C
Model 214847
A
B
C
Model 214848
Air Filter
Dimensions
Model No. Inlet/Outlet Width (A) in. (mm) Height (B) in. (mm) Height (C) in. (mm)
110146 1/4 npt 1.6 (40) 4.0 (102) 3.6 (91)
106148 3/8 npt 2.5 (64) 6.0 (143) 3.1 (79)
106149 1/2 npt 3.3 (83) 7.7 (196) 7.0 (178)
217074 1/2 npt 3.0 (76) 7.5 (191) 6.6 (168)
106150 3/4 npt 4.0 (102) 8.8 (222) 7.8 (198)
112859 1 npt 4.5 (114) 8.8 (222) 7.9 (201)
Lubricators
Model No. Inlet/Outlet Width (A) in. (mm) Height (B) in. (mm) Height (C) in. (mm)
110148 1/4 npt 1.5 (39) 5.0 (126) 3.0 (76)
214847 3/8 npt 3.24 (82) 7.93 (201) 6.95 (177)
214848, Series B 1/2 npt 2.9 (74) 9.9 (251) 7.3 (184)
214849 3/4 npt 4.0 (103) 9.9 (251) 7.3 (184)
237212 1 npt 4.0 (103) 9.9 (251) 7.3 (184)
308169P 9

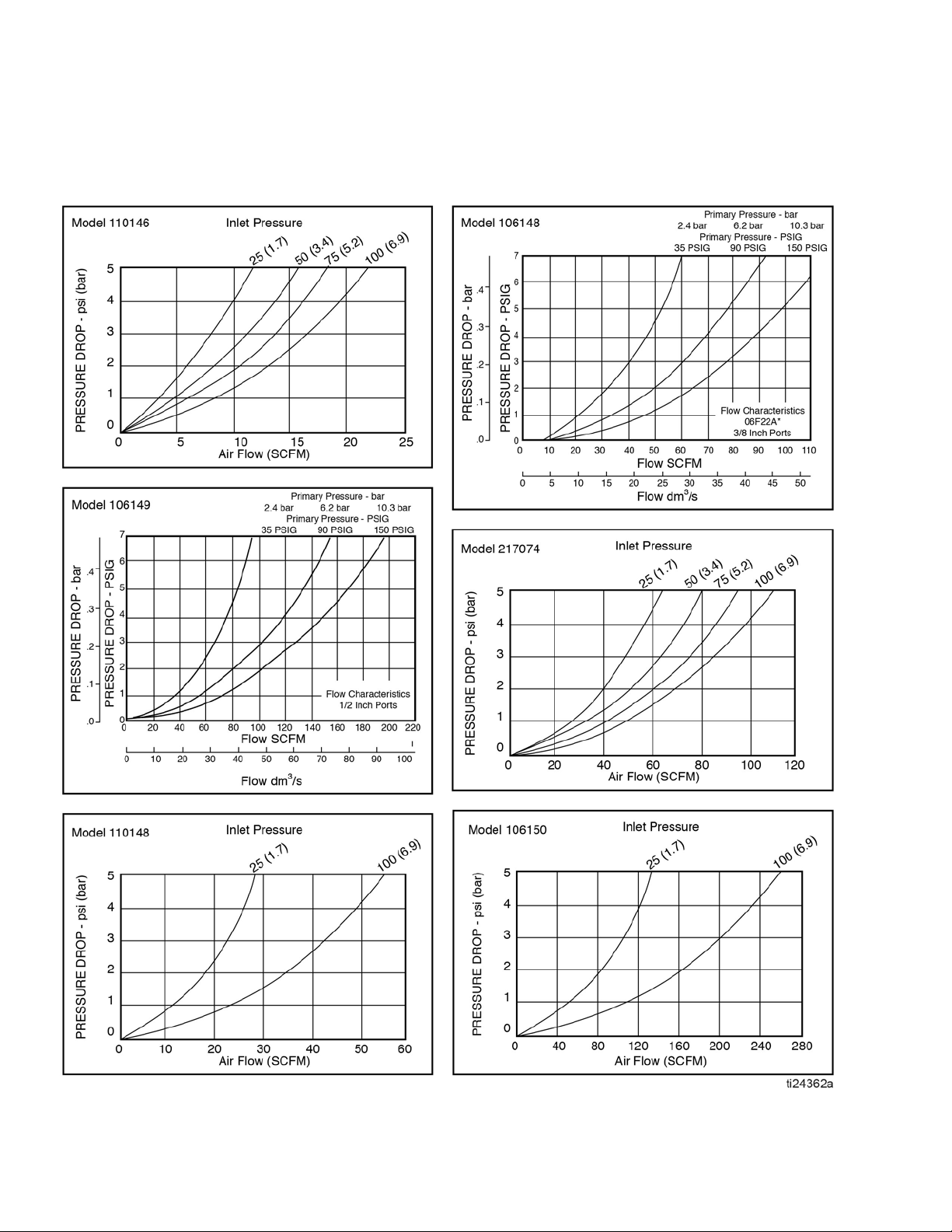

Air Filter Flow Curves
Air Filter Flow Curves
10 308169P
Integral Filter-Regulators
Models 15C955,
A
B
C
246947, 246948
Model 246946
A
B
C
Model No. Inlet/Outlet Width (A) in. (mm) Height (B) in. (mm) Height (C) in. (mm)
Air Filter Flow Curves
246946 1/4 npt 2-3/8 (60.32) 9.563 (242.87) 4.938 (125.41)
246947 1/2 npt 3.375 (85.73) 11.375 (288.93) 6.5 (165)
246948 3/4 npt 3.375 (85.73) 11.375 (288.93) 6.5 (165)
Filter-Regulator- Lubricators
Model
No.
110149 1/4 npt 5.1 (130) 5.1 (130) 3.5 (89) 1.6 (40) 3.5 (89)
110150 3/8 npt 8.8 (222) 9.6 (244) 5.4 (137) 4.1 (105) 6.9 (177)
217072 1/2 npt 8.1 (206) 11.9 (302) 7.7 (196) 3.3 (83) 7.3 (185)
217073 3/4 npt 15.8 (400) 13 (330) 7.8 (197) 5.0 (127) 7.8 (197)
Inlet/
Outlet
Width (A)
in. (mm)
Height (B)
in. (mm)
Height (C)
in. (mm)
Depth (D)
in. (mm)
Height (E)
in. (mm)
308169P 11
Air Filter Flow Curves
Model 110149
B
A
C
A
C
B
E
D
Model 110150, 217072, 217073 (shown)
D
12 308169P
Accessories
Style 1 (Bottom Inlet)
Style 2 (Back Inlet)
106151 and 127711 AUTOMATIC
DRAINS
Installs in place of standard drain for
automatic drain. 106151 is used with
106150, 112859 and 217074. 127711 is
used with 106148 or 106149, Series B.
NOTE: There is not an auto drain for
Model 110146 or 106149, Series A.
202659 AIR MOTOR OIL
For use in lubricators.
114598 MOUNTING BRACKET
Includes two brackets and is used
for 1 in. pipe.
Gauges
Accessories
Air Pressure
Model
160430 0-100 psi (7 bar) 1/4 npt Black 2 in. (51 mm) 1 102019
101689 0-200 psi (14 bar) 1/4 npt Black 2 in. (51 mm) 1 102019
101180 0-200 psi (14 bar) 1/4 npt Chrome 2 in. (51 mm) 1 102019
101689 0-200 psi (14 bar) 1/4 npt Chrome 2 in. (51 mm) 2 102019
Range Inlet
Type of
Case
Dial
Diameter Style
Glass
P/N
Bleed Type Master Air Valve
Part No. Description
107141 3/4 npt (m x f)
107142 1/2 in. npt (m x f)
110223 1/4-18 npt (fbe)
110224 3/8-18 npt (fbe)
110225 1/2-14 npt (fbe)
110226 3/4-14 npt (fbe)
308169P 13
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs
will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6921 or Toll Free: 1-800-328-0211 Fax: 612-378-3505
All written and visual data contained in this document reflects the latest product information available at the time of publication.
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 1991, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 308169
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
www.graco.com
November 2014
Loading...
