Instructions--Parts List
SEVERE-DUTY, UHMWPE/PTFE OR PTFE PACKED
Stainless Steel Pumps
Used to transfer or dispense low viscosity sealants and adhesives.
For professional use only.
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
UHMWPE/PTFE PACKED PUMPS
Model No. 224342, Series A
10:1 Ratio Presidentr Pump
1800 psi (13 MPa, 125 bar) Maximum Fluid Working Pressure
180 psi (1.3 MPa, 12.5 bar) Maximum Air Input Pressure
308116T
EN
Model No. 224343, Series A
5:1 Ratio Mo n arkr Pump
600 psi (4.2 MPa, 42 bar) Maximum Fluid Working Pressure
120 psi (0.8 MPa, 8.4 bar) Maximum Air Input Pressure
UHMWPE/PTFE PACKED PUMPS
Model No. 261630, Series A
PTFE PACKED PUMPS
Model No. 247147, Series A
Model No. 902147, Series A
5:1 Ratio Mo n arkr Pump
600 psi (4.2 MPa, 42 bar) Maximum Fluid Working Pressure
120 psi (0.8 MPa, 8.4 bar) Maximum Air Input Pressure
Severe-Duty Displacement Pumps have an abrasion-resistant
displacement rod and cylinder. Refer to Technical Data on pages
22--23 for Wetted Parts information.
Model 224342 Shown
0195
Table of Contents
Warnings 2......................................
Typical Installation 5..............................
Installation 6.....................................
Operation/Maintenance 8.........................
Service 11......................................
Troubleshooting Chart 1 1.......................
Disconnecting the Displacement Pump 12.........
Reconnecting the Displacement Pump 12.........
Displacement Pump Service 13..................
Symbols
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
Parts Drawings and Lists 15.......................
Model 224342 President Pump 15................
Model 224343 and 261630 Monark Pumps 16.....
Model 902147 and 247147 Monark Pumps 17.....
Model 224341 and 254999
Displacement Pumps 18........................
Model 15G976 Displacement Pump 20............

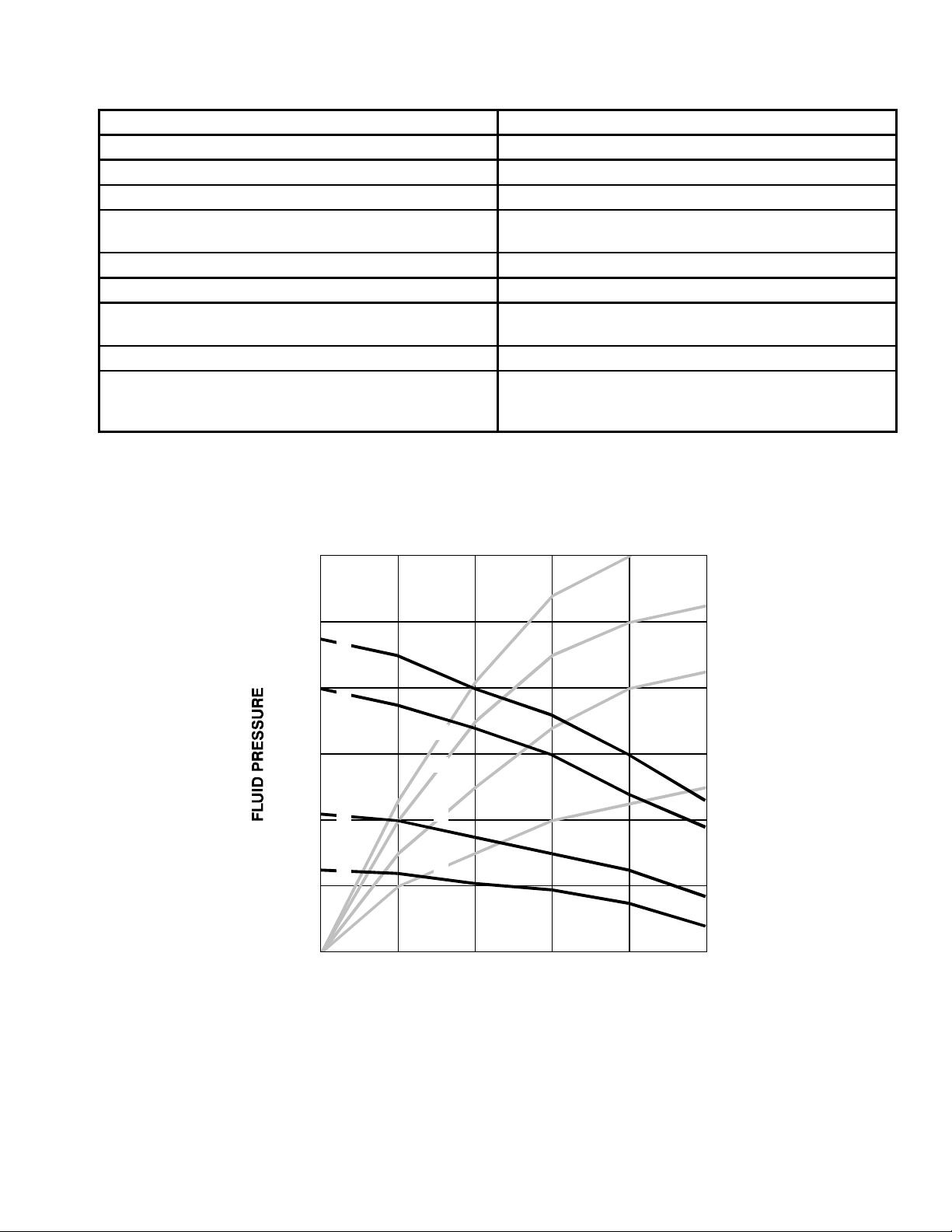

Technical Data and Performance Charts 22..........

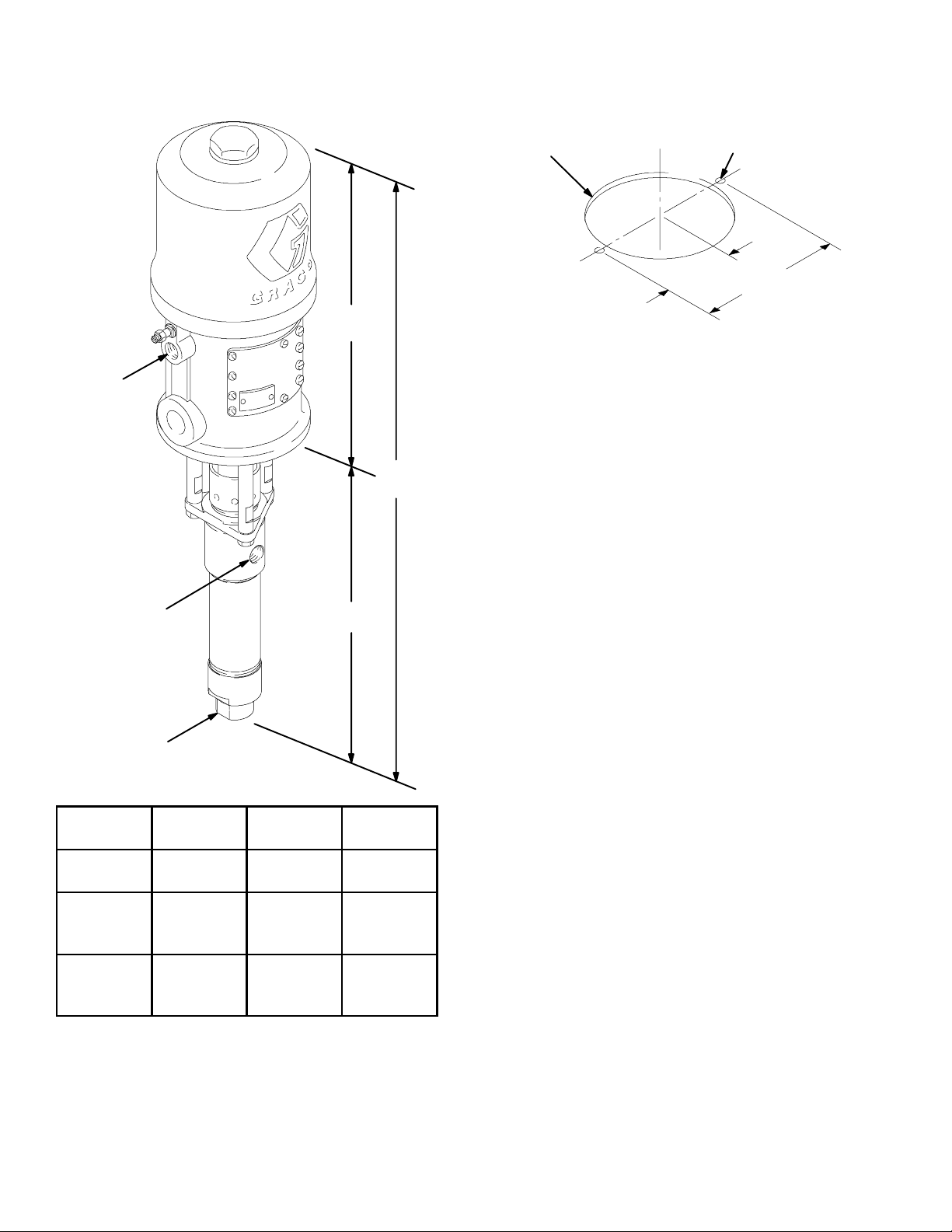

Dimensions 24...................................
Mounting Hole Layout 24..........................
Graco Standard Warranty 26......................
Graco Information 26.............................
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
INSTRUCTIONS
WARNING
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
D This equipment is for professional use only.
D Read all instruction manuals, tags, and labels before operating the equipment.
D Use the equipment only for its intended purpose. If you are not sure, contact your Graco distributor .
D Do not alter or modify this equipment.
D Check equipment daily. Repair or replace worn or damaged parts immediately.
D Do not exceed the maximum working pressure of the lowest rated system component. Refer to the
Technical Data on pages 22--23 for the maximum working pressure of this equipment.
D Use fluids and solvents which are compatible with the equipment wetted parts. Refer to the Tech-
nical Data section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.
D Do not use hoses to pull equipment.
D Route hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose
Graco hoses to temperatures above 82_C (180_F) or below --40_C(--40_F).
D Wear hearing protection when operating this equipment.
D Do not lift pressurized equipment.
D Comply with all applicable local, state, and national fire, electrical, and safety regulations.
2 308116
WARNING
SKIN INJECTION HAZARD
Spray from the gun, leaks or ruptured components can inject fluid into your body and cause extremely
serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also
cause serious injury.
D Fluid injected into the skin might look like just a cut, but it is a serious injury. Get immediate
surgical treatment.
D Do not point the gun at anyone or at any part of the body.
D Do not put your hand or fingers over the spray tip.
D Do not stop or deflect leaks with your hand, body, glove or rag.
D Do not “blow back” fluid; this is not an air spray system.
D Always have the tip guard and the trigger guard on the gun when spraying.
D Check the gun diffuser operation weekly. Refer to the gun manual.
D Be sure the gun trigger safety operates before spraying.
D Lock the gun trigger safety when you stop spraying.
D Follow the Pressure Relief Procedure on page 8 if the spray tip clogs and before cleaning,
checking or servicing the equipment.
D Tighten all fluid connections before operating the equipment.
D Check the hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
Do not repair high pressure couplings; you must replace the entire hose.
D Fluid hoses must have spring guards on both ends, to help protect them from rupture caused by
kinks or bends near the couplings.
MOVING PARTS HAZARD
Moving parts, such as the air motor piston, can pinch or amputate your fingers.
D Keep clear of all moving parts when starting or operating the pump.
D Before servicing the equipment, follow the Pressure Relief Procedure on page 8 to prevent the
equipment from starting unexpectedly.
308116 3
WARNING
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and result in a fire or explosion and serious injury.
D Ground the equipment and the object being sprayed. Refer to Grounding on page 6.
D If there is any static sparking or you feel an electric shock while using this equipment, stop spray-
ing immediately . Do not use the equipment until you identify and correct the problem.
D Provide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid be-
ing sprayed.
D Keep the spray area free of debris, including solvent, rags, and gasoline.
D Electrically disconnect all equipment in the spray area.
D Extinguish all open flames or pilot lights in the spray area.
D Do not smoke in the spray area.
D Do not turn on or off any light switch in the spray area while operating or if fumes are present.
D Do not operate a gasoline engine in the spray area.
TOXIC FLUID HAZARD
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin,
inhaled, or swallowed.
D Know the specific hazards of the fluid you are using.
D Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state and national guidelines.
D Always wear protective eyewear, gloves, clothing and respirator as recommended by the fluid and
solvent manufacturer.
4 308116
Typical Installation
Y
A
N
P
C
K
J
B
D
H
M
EF G
L
Fig. 1
KEY
A Pump
B Pump Runaway V alve
C Air Line Lubricator
D Bleed--Type Master Air Valve (required, for pump)
E Pump Air Regulator
F Air Line Filter
G Bleed--Type Master Air Valve (for accessories)
H Air Supply Hose
J Fluid Drain Valve (required)
K Fluid Filter
L Fluid Supply Hose
M Spray Gun
N Fluid Suction Hose
P Wall Bracket
Y Ground Wire (required; see page 6 for installation instructions)
0774A
308116 5
Installation
General Information
NOTE: Reference numbers and letters in parentheses
in the text refer to the callouts in the figures and the
parts drawing.
NOTE: Always use Genuine Graco Parts and Accessories, available from your Graco distributor. If you
supply your own accessories, be sure they are adequately sized and pressure rated for your system.
Fig. 1 is only a guide for selecting and installing system components and accessories. Contact your Graco
distributor for assistance in designing a system to suit
your particular needs.
Prepare the Operator
All persons who operate the equipment must be
trained in the safe, efficient operation of all system
components as well as the proper handling of all fluids.
All operators must thoroughly read all instruction
manuals, tags, and labels before operating the equipment.
Grounding
Z
Y
X
Fig. 2
2. Air and fluid hoses: use only electrically conductive
hoses.
3. Air compressor: follow manufacturer’s recommen-
dations.
4. Spray gun: ground through connection to a proper-
ly grounded fluid hose and pump.
5. Fluid supply container: follow your local code.
6. Object being sprayed: follow your local code.
7. Solvent pails used when flushing: follow your local
code. Use only metal pails, which are conductive,
placed on a grounded surface. Do not place the
pail on a nonconductive surface, such as paper or
cardboard, which interrupts the grounding continuity.
W
0720
WARNING
FIRE AND EXPLOSION HAZARD
Before operating the pump, ground the
system as explained below. Also read
the section FIRE AND EXPLOSION
HAZARD on page 4.
1. Pump: loosen the grounding lug locknut (W) and
washer (X). Insert one end of a 12 ga (1.5 mm
minimum ground wire (Y) into the slot in lug (Z)
and tighten the locknut securely. See Fig 2. Connect the other end of the wire to a true earth
ground. To order a ground wire and clamp, order
Part No. 222011.
2
8. To maintain grounding continuity when flushing or
relieving pressure, hold a metal part of the spray
gun firmly to the side of a grounded metal pail,
then trigger the gun.
Mounting the Pump
Mount the pump to suit the type of installation planned.
The pump dimensions and mounting hole layout are
shown on page 24.
If the pump is immersed, be sure the pump intake is
)
1/2 in. (13 mm) off the bottom of the fluid container.
If the pump is mounted on the wall or on a stand,
connect a suction line to the pump’s 3/4 in. npt(f) fluid
inlet and place the other end of the line in the fluid
container.
6 308116
Installation
NOTE: Reference numbers and letters in parentheses
in the text refer to the callouts in the figures and the
parts drawing.
If you supply your own accessories, be sure they are
adequately sized and pressure--rated to meet the
system’s requirements.
The Typical Installation shown on page 5 is only a
guide for selecting and installing system components
and accessories. Contact your Graco distributor for
assistance in designing a system to suit your particular
needs.
System Accessories
Refer to the Typical Installation on page 5.
WARNING
A bleed--type master air valve (D) and a fluid drain
valve (J) are required in your system. These accessories help reduce the risk of serious bodily injury
including fluid injection, splashing in the eyes or on
the skin, and injury from moving parts if you are
adjusting or repairing the pump.
The bleed--type master air valve relieves air
trapped between this valve and the pump after the
air is shut off. Trapped air can cause the pump to
cycle unexpectedly. Locate the valve close to the
pump.
Connect a fluid suction hose (N) to the pump’s 3/4
npt(f) fluid intake.
Use a grounded 1/2 in. I.D. (minimum) air hose (H) to
supply air to the pump.
Air Line Accessories
Install the following accessories in the order shown in
the Typical Installation, using adapters as necessary:
An air line lubricator (C) provides automatic air
motor lubrication.
A bleed--type master air valve (D) is required in your
system to relieve air trapped between it and the air
motor when the valve is closed (see the Warning at
left). Be sure the bleed valve is easily accessible from
the pump, and is located downstream from the air
regulator.
A pump runaway valve (B) senses when the pump is
running too fast and automatically shuts off the air to
the motor. A pump which runs too fast can be seriously
damaged.
An air regulator (E) controls pump speed and outlet
pressure by adjusting the air pressure to the pump.
Locate the regulator close to the pump, but upstream
from the bleed--type master air valve.
An air line filter (F) removes harmful dirt and moisture from the compressed air supply.
The fluid drain valve assists in relieving fluid pressure in the displacement pump, hose, and gun.
Triggering the gun to relieve pressure may not be
sufficient.
Mounting Accessories
Mount the pump (A) to suit the type of installation
planned. Refer to the Dimensions and Mounting
Hole Layout page 24.
Air and Fluid Hoses
Be sure all air and fluid hoses are properly sized and
pressure--rated for your system. Use only grounded air
and fluid hoses. Fluid hoses must have spring guards
on both ends.
Connect a grounded fluid hose (L) to the pump’s fluid
outlet.
A second bleed--type air valve (G) isolates the air
line accessories for servicing. Locate upstream from all
other air line accessories.
Fluid Line Accessories
Install the following accessories in the positions shown
in the Typical Installation, using adapters as necessary:
A fluid drain valve (J) is required in your system to
relieve fluid pressure in the hose and gun (see the
Warning at left). Install the drain valve pointing down,
but so the handle points up when opened.
A fluid filter (K) filters harmful particles from the fluid.
A spray gun (M) dispenses the fluid. The gun shown
in the Typical Installation is an airless spray gun.
308116 7
Operation/Maintenance
Pressure Relief Procedure
WARNING
PRESSURIZED EQUIPMENT HAZARD
The system pressure must be manually relieved to
prevent the system from starting or spraying accidentally. T o reduce the risk of an injury from accidental spray from the gun, splashing fluid, or
moving parts, follow the Pressure Relief Proce-
dure whenever you:
D are instructed to relieve the pressure,
D stop spraying,
D check or service any of the system equipment,
D or install or clean the spray tip.
1. Lock the spray gun safety latch.
2. Shut off the air supply to the pump.
3. Close the bleed-type master air valve (required in
your system).
4. Unlock the gun safety latch.
5. Hold a metal part of the gun firmly to the side of a
grounded metal pail, and trigger the gun to relieve
pressure.
6. Lock the gun safety latch.
7. Open the drain valve (required in your system),
having a container ready to catch the drainage.
8. Leave the drain valve open until you are ready to
spray again.
If you suspect that the spray tip or hose is completely
clogged, or that pressure has not been fully relieved
after following the steps above, very slowly loosen the
tip guard retaining ring or hose end coupling and
relieve pressure gradually, then loosen completely.
Now clear the tip or hose.
WARNING
Moving parts can pinch or amputate your fingers or
other body parts. When air is supplied to the motor,
the air motor piston (located behind the air motor
plates) moves. See Fig. 3. Therefore, never operate the pump with the air motor plates removed.
Flush the Pump Before First Use
The pump is tested with lightweight motor oil, which is
left in to protect the pump parts. If the fluid you are
using may be contaminated by the oil, flush it out with
a compatible solvent before using the pump. If the
pump is being used to supply a circulating system,
allow the solvent to circulate until the pump is thoroughly flushed.
WARNING
For your safety, read the warning section, Fire or
Explosion Hazard, on page 4 before flushing,
and follow all the recommendations given there.
8 308116
Operation/Maintenance
Starting and Adjusting the Pump
See the Typical Installation on page 5. Be sure the
air regulator (E) and bleed--type master air valve (D)
are closed. DO NOT INSTALL THE SPRAY TIP YET!
Connect a suction hose (N) to the pump’s fluid inlet.
Hold a metal part of the spray gun (M) firmly to the
side of a grounded metal pail and hold the trigger
open. Then open the pump’s bleed--type master air
valve (D). Now slowly open the air regulator until the
pump starts, about 40 psi (0.9 MPa, 2.8 bar).
Cycle the pump slowly until all the air is pushed out
and the pump and hoses are fully primed. Release the
spray gun trigger and lock the safety latch. The pump
should stall against pressure when the trigger is released.
Follow the Pressure Relief Procedure on page 8,
then install the spray tip in the gun.
With the pump and lines primed, and with adequate air
pressure and volume supplied, the pump will start and
stop as the spray gun is opened and closed. In a
circulating system, the pump will run continuously and
will speed up or slow down as supply demands until
the air supply is shut off.
Use an adequately sized air regulator (E) to control the
pump speed and the fluid pressure. Always use the
lowest air pressure necessary to get the desired
results. Higher pressures waste fluid and cause premature wear of the pump packings and spray tip.
WARNING
To reduce the risk of overpressurizing your system,
which could result in component rupture and cause
serious bodily injury, NEVER exceed the maximum
incoming air pressure given on your pump or in the
Technical Data on pages 22--23.
Keep the packing nut/wet-cup (2) filled with Graco
Throat Seal Liquid (TSL) or compatible solvent, to help
prolong the packing life. Adjust the packing nut weekly
so it is just tight enough to prevent leakage; do not
overtighten. See Fig. 3. Always follow the Pressure
Relief Procedure on page 8 before adjusting the
packing nut.
Never allow the pump to run dry of the fluid being
pumped. A dry pump will quickly accelerate to a high
speed, possibly damaging itself. A pump runaway
valve (B), which shuts off the air supply to the pump if
the pump accelerates beyond the pre--set speed, is
available. See the Typical Installation on page 5. If
your pump accelerates quickly, or is running too fast,
stop it immediately and check the fluid supply. If the
supply container is empty and air has been pumped
into the lines, refill the container and prime the pump
and the lines with fluid, or flush and leave it filled with a
compatible solvent. Be sure to eliminate all air from the
fluid system.
Shutdown and Care of the Pump
For overnight shutdown, follow the Pressure Relief
Procedure on page 8. Always stop the pump at the
bottom of the stroke to prevent the fluid from drying on
the exposed displacement rod and damaging the
throat packings.
308116 9
Operation/Maintenance
Air Motor Plate
Fig. 3
2
0195
10 308116
Troubleshooting
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 8.
1. Relieve the pressure.
2. Check all possible problems and solutions before
disassembling pump.
Problem
Pump fails to operate.
Pump operates but output is low on
both strokes.
Cause Solution
Restricted line or inadequate air
supply.
Insufficient air pressure; closed or
clogged air valves, etc.
Exhausted fluid supply. Refill; purge all air from pump and
Damaged air valving mechanism;
stalling.
Dried fluid seizure of displacement
rod (13).
Restricted line or inadequate air
supply.
Insufficient air pressure; closed or
clogged air valves, etc.
Exhausted fluid supply. Refill; purge all air from pump and
Clogged fluid line, valves, etc. Clear.*
Packing nut (2) too tight. Loosen (see page 9).
Clear; increase air supply.
Open; clean.
fluid lines.
Service air motor (see 306982 or
307043).
Clean, check, or replace throat
packings (5, 24); always stop pump
at bottom of stroke and keep wetcup filled with compatible solvent.
Clear; increase air supply.
Open; clean.
fluid lines.
Loose packing nut (2) or worn throat
packings (5, 24).
Pump operates but output is low on
downstroke.
Pump operates but output is low on
upstroke.
Erratic or accelerated operation. Exhausted fluid supply. Refill; purge all air from pump and
* To determine if the fluid hose or gun is obstructed, follow the Pressure Relief Procedure on page 8. Discon-
nect the fluid hose and place a container at the pump fluid outlet to catch any fluid. Turn on the air just enough to
start the pump (about 20--40 psi [0.1--0.3 MPa, 1.4--2.8 bar]). If the pump starts when the air is turned on, the
obstruction is in the fluid hose or gun.
Held open or worn intake valve. Clear; service.
Held open or worn fluid piston valve
or packings (20, 23).
Held open or worn intake valve. Clear; service.
Held open or worn fluid piston valve
or packings (20, 23).
Tighten packing nut (see page 9);
replace throat packings.
Clear; service.
fluid lines.
Clear; service.
308116 11
Service
Disconnecting th e Displacement Pump
1. Flush the pump if possible. Stop the pump at the
bottom of its stroke. Follow the Pressure Relief
Procedure on page 8.
2. Disconnect the air and fluid hoses. Remove the
pump from its mounting. Note the relative position
of the pump’s fluid outlet (R) to the air motor’s air
inlet (S).
3. Unscrew the tie rod locknuts (102) from the tie
rods (103). Remove the cotter pin (111). Unscrew
the displacement rod (13) from the air motor (108).
Carefully pull the displacement pump (101) off the
air motor (108). Inspect the o-ring (110). See Fig 4.
4. Refer to page 13 for displacement pump service.
To service the air motor , refer to the separate air
motor manual (306982 or 307043), supplied.
Reconnecting th e Displacement Pump
1. Lubricate the o-ring (110) and check that it is in
place on the displacement rod (13). Orient the
pump’s fluid outlet (R) to the air motor’s air inlet
(S) as was noted in step 2 under Disconnecting
the Displacement Pump. Position the displacement pump (101) on the tie rods (103). See Fig 4.
Model 224342 Shown
108
S
1
110
103
2
13
111
2
2. Screw the locknuts (102) onto the tie rods (103)
loosely. Screw the displacement rod (13) into the
shaft of the air motor (108) until the pin holes in
the rod and shaft align. Install the cotter pin (111).
3. Apply thread sealant to the pump fluid outlet (R)
and the threads of the fluid hose. Mount the pump
and reconnect all hoses. Reconnect the ground
wire if it was disconnected during repair. Tighten
the packing nut/wet-cup (2) so it is just snug -- no
tighter. Fill the wet-cup with Graco Throat Seal
Liquid or compatible solvent.
4. T ighten the tie rod locknuts (102) evenly, and
torque as shown in Fig 4.
5. Start the pump and run it at about 40 psi (0.3 MPa,
2.8 bar) air pressure, to check that it is operating
properly.
6. Check for fluid leakage at the packing nut/wet-cup
(2). Follow the Pressure Relief Procedure on
page 8 before tightening the packing nut/wet-cup.
12 308116
1
2
3
Fig. 4
R
3
102
2
101
Lubricate.
Model 224342: Torque to 20-- 30 ft-lb (27-- 41 NSm).
Models 224343, 902147, 247147: Torque to 10-- 15 ft-lb
(14--20 NSm).
Apply sealant, as required.
0194
Service
Displacement Pump Service
Disassembly
When disassembling the pump, lay out all removed
parts in sequence, to ease reassembly. Refer to Fig 5.
NOTE: Standard Repair Kit 224401 (UHMWPE/PTFE
packings) is available. For the best results, use all the
new parts in the kit. Parts included in the kit are denoted with one asterisk, for example (3*).
Conversion Kit 224889 is available to convert the
pump to all PTFE packings. See page 19 for details.
Clean all the parts thoroughly when disassembling.
Check them carefully for damage or wear, replacing
parts as needed.
1. Remove the displacement pump from the air motor
as explained on page 12.
2. Unscrew the locking ring (7) from the cylinder (8).
See Fig 5. Remove the intake valve housing (15).
3. Remove the o-ring (12), ball stop pin (6), ball guide
(9) and ball (4) from the intake valve housing (15).
4. Loosen the packing nut (2). Push the displacement
rod (13) down as far as possible, then pull it out
the bottom of the cylinder (8).
5. Secure the flats of the displacement rod (13) in a
vise. Using a wrench on the flats of the piston
mounting stud (28), screw the piston off the rod.
Remove one cotter pin (3) and the ball stop pin
(21), taking note which set of holes it is in. Then
remove the ball (4).
Reassembly
NOTE: On UHMWPE/PTFE packed pumps, the
packing order is one UHMWPE packing, two PTFE
packings, and one UHMWPE packing. On PTFE
packed pumps, all four packings are PTFE.
1. See Fig 5 and the NOTE above. Lubricate the
throat packings and install them in the outlet
housing (1) one at a time as follows, with the lips
of the v-packings facing down: the male gland
(11*), the v-packings (24* or 5*), and the female
gland (14*). Apply thread lubricant and install the
packing nut (2) loosely.
2. If you removed the cylinder (8), apply thread
lubricant and reinstall it in the outlet housing (1),
making sure to replace the o-ring (10).
3. See Fig 5 and the NOTE above. Install shims (31*)
onto the piston stud (26) as required to eliminate
end play. Lubricate the piston packings and install
them one at a time in the following order, with the
lips of the v-packings facing up: the female gland
(25*), the v-packings (23* or 20*), the male gland
(27*), and the washer (19*).
4. Apply thread sealant and screw the piston stud
(26) onto the piston mounting stud (28). Torque to
50--70 ft-lb (68--95 NSm). Install the piston ball (4*)
on the piston seat. Slide the ball stop pin (21*) into
the desired set of holes, and secure with the cotter
pin (3*).
6. Place the flats of the piston mounting stud (28) in a
vise, and unscrew the piston stud (26). Remove
the piston packings (20, 23), glands (25, 27),
washer (19), and shims (31).
7. Remove the packing nut (2), throat packings (5,
24), and glands (11, 14) from the outlet housing
(1).
8. Inspect all parts for damage. Clean all parts and
threads with a compatible solvent before reassembling. Inspect the polished surfaces of the displacement rod (13) and cylinder (8) for scratches,
scoring or other damage, which can cause premature packing wear and leaking. To check, run a
finger over the surface or hold the part up to the
light at an angle. Be sure the ball seats of the
piston (26) and intake valve housing (15) are not
chipped or nicked. Replace any worn or damaged
parts.
5. Place the flats of the displacement rod (13) in a
vise. Apply sealant and screw the piston assembly
onto the displacement rod. Torque to 50--70 ft-lb
(68--95 NSm).
6. Insert the displacement rod (13) into the bottom of
the cylinder (8), being careful not to scratch the
cylinder. Push the rod straight up until it protrudes
from the packing nut (2).
7. Install the ball (4*), guide (9), o-ring (12), and ball
stop pin (6*) in the intake valve housing (15). Place
the intake valve assembly in the locking ring (7).
Apply thread sealant to the locking ring and cylinder (8), and screw the ring onto the cylinder.
8. Reconnect the displacement pump to the air motor
as explained on page 12.
308116 13
Detail A: Throat Packings
Service
1
2
14*
NOTE: Lips of
v-packings must
face down.
13
24* or 5*
1
2
5*
24* or 5*
11*
See Detail A
1
10
8
2
Detail B: Piston Packings
28
3
3*
4
21*
28
*19
See Detail B
26
3
*23 or *20
*27
*20
Fig. 5
14 308116
*23 or *20
9
6*
*25
26
7
4
*31
NOTE: Lips of
v-packings must
face up.
15
4*12
0191C
Model 224342, Series A
10:1 Ratio President Pump
Includes items 101--1 11
108
Parts
Ref Part
No. No. Description Qty
101 224341 DISPLACEMENT PUMP ASSY.
See pages 18--19 for parts 1
102 102021 NUT , lock; 3/8--16; stainless steel 3
103 166237 ROD, tie; stainless steel; 3.5 in.
(89 mm) shoulder to shoulder 3
108 207352 AIR MOTOR
See 306982 for parts 1
1 10 156082n SEAL, o-ring; nitrile rubber 1
1 11 101946n PIN, cotter; stainless steel; 0.12 in.
(3.2 mm) x 1.5 in. (3.8 mm) 1
n Keep these spare parts on hand to reduce down
time.
103
102
110n
111n
101
0194
308116 15
Model 224343, Series A (shown)
5:1 Ratio Monark Pump
Includes items 101--1 11
Model 261630, Series A
5:1 Ratio Monark Pump
Includes items 101--1 11
108
Parts
Ref Part
No. No. Description Qty
101 224341 DISPLACEMENT PUMP ASSY.
for Model 224343 only;
See pages 18--19 for parts 1
254999 DISPLACEMENT PUMP ASSY.
for Model 261630 only;
See pages 18--19 for parts 1
102 102021 NUT , lock; 3/8--16; stainless steel 3
103 24B189 KIT, tie rod 3
108 205997 AIR MOTOR
See 307043 for parts 1
1 10 156082n SEAL, o-ring; nitrile rubber 1
1 11 101946n PIN, cotter; stainless steel; 0.12 in.
(3.2 mm) x 1.5 in. (3.8 mm) 1
n110
n Keep these spare parts on hand to reduce down
time.
103
111n
102
101
0196B
16 308116
Model 902147, Series A (shown)
5:1 Ratio Monark Pump
Includes items 101--1 16
Model 247147, Series A
5:1 Ratio Monark Pump
Includes items 101--1 11
Parts
1 Items 112-- 116 used on Model 902147 only.
108
116
1
115
1
114
1
Ref Part
No. No. Description Qty
101 15G976 DISPLACEMENT PUMP ASSY.
See pages 20--21 for parts 1
102 102021 NUT, lock; 3/8--16; sst 3
103 24B189 KIT, tie rod 3
108 205997 AIR MOTOR
See 307043 for parts 1
1 10 156082n SEAL, o-ring; nitrile rubber 1
1 11 101946n PIN, cotter; stainless steel; 0.12 in.
(3.2 mm) x 1.5 in. (3.8 mm) 1
1 12 166027 ELBOW, street; 90_; sst 1
1 13 166719 TUBE, rise; sst 1
1 14 166029 NUT, flareless tube; sst 1
1 15 102186 FERRULE, for 3/4 in. OD tube; sst 1
1 16 166030 ADAPTER, tube 1
n Keep these spare parts on hand to reduce down
time.
110n
103
111n
113
112
1
102
101
1
308116 17
Parts
Model 224341, Series A (shown)
Severe-Duty, UHMWPE/PTFE Packed Stainless Steel Displacement Pump
Includes items 1--31
Model 254999, Series A
Severe-Duty, UHMWPE/PTFE Packed Stainless Steel Displacement Pump
Includes items 1--33
1 Items 6 and 7 used on Model 224341 only.
2
*14
*24
*5
*24
*1 1
1
n10
19*
27*
23*
20*
23*
25*
31*
4*
26
8
18 308116
*3
13
*21
28
9
4* (224341 only)
33 (254999 only)
12n
15
6*
1
7
1
0190C
Parts
Model 224341, Series A
Severe-Duty, UHMWPE/PTFE Packed Stainless Steel Displacement Pump
Includes items 1--31
Model 254999, Series A
Severe-Duty, UHMWPE/PTFE Packed Stainless Steel Displacement Pump
Includes items 1--33
Ref.
No. Part No. Description Qty.
1 205999 HOUSING, outlet; stainless steel 1
2 186995 PACKING NUT/WET-CUP;
stainless steel 1
3* 100063 PIN, cotter; 1/16 in. x 1/2 in.;
stainless steel 2
4* 101917 BALL; stainless steel; 0.875 in.
(22 mm) dia. (224341 only) 2
101917 BALL; stainless steel; 0.875 in.
(22 mm) dia. (254999 only) 1
5* 162866 V -PACKING, throat; PTFE 2
6* 162947 PIN, ball stop, intake;
stainless steel (224341 only) 1
7 164630 RING, locking; stainless steel
(224341 only) 1
8 24C505 CYLINDER; stainless steel 1
9 164679 GUIDE, ball, intake;
stainless steel (224341 only) 1
15J577 RETAINER, ball, intake
(254999 only) 1
10n 164782 O-RING; PTFE 1
1 1* 186987 GLAND, throat, male;
stainless steel 1
12n 164846 O-RING; PTFE 1
C38225 O--RING; fluoroelastomer
(254999 only) 1
13 24C506 ROD, displacement; stainless steel1
14* 186988 GLAND, throat, female;
stainless steel 1
15 186992 HOUSING, valve, intake;
stainless steel (224341 only) 1
15J574 HOUSING, valve, intake
(254999 only) 1
19* 176634 W ASHER, piston; stainless steel 1
20* 176635 V-PACKING, piston; PTFE 2
21* 176637 PIN, ball stop, piston;
stainless steel 1
23* 176638 V-PACKING, piston; UHMWPE 2
24* 176639 V-PACKING, throat; UHMWPE 2
Ref.
No. Part No. Description Qty.
25* 186989 GLAND, piston, female;
stainless steel 1
26 186993 STUD, piston; stainless steel 1
27* 186990 GLAND, piston, male;
stainless steel 1
28 176644 STUD, mounting, piston;
stainless steel 1
31* 190484 SHIM (use as required) 3
33 101 178 BALL, intake (254999 only) 1
* These parts are included in Repair Kit 224401,
which may be purchased separately.
n Keep these spare parts on hand to reduce down
time.
Optional PTFE Packing Conversion
Kit 224889
Use to convert the pump to all PTFE packings. Kit
must be purchased separately. Includes the following
items:
Part No. Description Qty.
100063 PIN, cotter; 1/16 in. x 1/2 in.;
stainless steel 2
162866 V-PACKING; PTFE 4
162947 PIN, ball stop, intake;
stainless steel 1
186987 GLAND, throat, male; stainless steel 1
186988 GLAND, throat, female; stainless steel 1
176634 WASHER, piston; stainless steel 1
176635 V-PACKING, piston; PTFE 4
176637 PIN, ball stop, piston; stainless steel 1
186989 GLAND, piston, female; stainless steel 1
186990 GLAND, piston, male; stainless steel 1
190484 SHIM (use as required) 3
308116 19
Parts
Model 15G976, Series A
Severe-Duty, PTFE Packed Stainless Steel Displacement Pump
Includes items 1--31
19*
*14
*5
*1 1
n10
2
1
27*
20*
25*
31*
4*
26
8
20 308116
*3
9
13
4*
12n
*21
15
6*
28
7
0190C
Parts
Model 15G976, Series A
Severe-Duty, PTFE Packed Stainless Steel Displacement Pump
Includes items 1--31
Ref.
No. Part No. Description Qty.
1 205999 HOUSING, outlet; stainless steel 1
2 186995 PACKING NUT/WET-CUP;
stainless steel 1
3* 100063 PIN, cotter; 1/16 in. x 1/2 in.;
stainless steel 2
4 101917 BALL; stainless steel; 0.875 in.
(22 mm) dia. 2
5* 162866 V -PACKING, throat; PTFE 4
6* 162947 PIN, ball stop, intake;
stainless steel 1
7 164630 RING, locking; stainless steel 1
8 24C505 CYLINDER; stainless steel 1
9 164679 GUIDE, ball, intake; stainless steel 1
10n 164782 O-RING; PTFE 1
1 1* 186987 GLAND, throat, male;
stainless steel 1
12n 164846 O-RING; PTFE 1
Ref.
No. Part No. Description Qty.
13 24C506 ROD, displacement; stainless steel1
14* 186988 GLAND, throat, female;
stainless steel 1
15 186992 HOUSING, valve, intake;
stainless steel 1
19* 176634 W ASHER, piston; stainless steel 1
20* 176635 V-PACKING, piston; PTFE 4
21* 176637 PIN, ball stop, piston;
stainless steel 1
25* 186989 GLAND, piston, female;
stainless steel 1
26 186993 STUD, piston; stainless steel 1
27* 186990 GLAND, piston, male;
stainless steel 1
28 176644 STUD, mounting, piston;
stainless steel 1
31* 190484 SHIM (use as required) 3
* These parts are included in Repair Kit 224889,
which may be purchased separately.
n Keep these spare parts on hand to reduce down
time.
308116 21
Technical Data
10:1 President
Category Data
Maximum fluid working pressure 1800 psi (12.5 MPa, 125 bar)
Maximum air input pressure 180 psi (1.3 MPa, 12.5 bar)
Pump cycles per 1 gallon (3.8 liters) 20
Maximum recommended pump speed for continuous
operation
Maximum flow at continuous duty 3 gallon (11.4 liters) at 60 cycles/min
Recommended speed for optimum pump life 15--25 cycles/min; 0.75--1.25 gpm (2.84--4.73 liters/min)
Air consumption approx. 15 scfm (0.42 m3/min) at 1 gpm (3.8 liters/min)
Weight approx. 31 lb (14 kg)
Wetted parts AISI 302, 303, 304, 316, and 17--4 PH grades of
60 cycles/min
at 100 psi (0.7 MPa, 7 bar) air pressure
Stainless Steel; Chrome Plating; PTFE; Ultra--High
Molecular Weight Polyethylene
KEY: Fluid Outlet Pressure -- Black Curves
Air Consumption -- Gray Curves
cycles per min 20 40 60 80
1800
psi
125
bar
1600
110
1400
96
1200
84
1000
70
800
56
600
42
400
28
200
14
A 180 psi (1.3 MPa, 12.5 bar) air pressure
B 100 psi (0.7 MPa, 7 bar) air pressure
C 70 psi (0.5 MPa, 4.9 bar) air pressure
D 40 psi (0.3 MPa, 2.8 bar) air pressure
100
scfm
m#/min
A
B
A
C
B
D
C
D
80.0
2.240
70
1.960
60
1.680
50
1.400
40
1.120
30
0.840
20
0.560
10
0.280
0
012345
gpm
3.8 7.6 11.4 15.2liters/min
FLUID FLOW (TEST FLUID: NO 10 MOTOR OIL)
To find Fluid Outlet Pressure (bar/psi) at a specific fluid flow (lpm/
gpm) and operating air pressure (bar/psi):
1. Locate desired flow along bottom of chart.
2. Follow vertical line up to intersection with selected fluid outlet
pressure curve (black). Follow left to scale and read fluid outlet
pressure.
22 308116
19.0
To find Pump Air Consumption (m#/min or scfm) at a specific fluid
flow (lpm/gpm) and operating air pressure (bar/psi):
1. Locate desired flow along bottom of chart.
2. Follow vertical line up to intersection with selected air consumption curve (gray). Follow right to scale and read air consumption.
Technical Data
5:1 Monark
Category Data
Maximum fluid working pressure 600 psi (4.2 MPa, 42 bar)
Maximum air input pressure 120 psi (0.8 MPa, 8.4 bar)
Pump cycles per 1 gallon (3.8 liters) 24
Maximum recommended pump speed for continuous
operation
Maximum flow at continuous duty 2.5 gallon (9.46 liters) at 60 cycles/min
Recommended speed for optimum pump life 15--25 cycles/min; 0.63--1.04 gpm (2.38--3.94 liters/min)
Air consumption approx. 8.2 scfm (0.23 m3/min) at 1 gpm (3.8 liters/min)
Weight approx. 20 lb (9 kg)
Wetted parts AISI 302, 303, 304, 316, and 17--4 PH grades of
60 cycles/min
at 100 psi (0.7 MPa, 7 bar) air pressure
Stainless Steel; Chrome Plating; PTFE; Ultra--High
Molecular Weight Polyethylene
KEY: Fluid Outlet Pressure -- Black Curves
Air Consumption -- Gray Curves
cycles per min 24 48 72 96
600
psi
42
bar
500
35
400
28
300
21
200
14
100
7
A 120 psi (0.8 MPa, 8.4 bar) air pressure
B 100 psi (0.7 MPa, 7 bar) air pressure
C 70 psi (0.5 MPa, 4.9 bar) air pressure
D 40 psi (0.3 MPa, 2.8 bar) air pressure
120
scfm
m#/min
20
0.560
A
16
B
0.448
A
12
B
C
D
C
D
0.336
8
0.224
4
0.112
0
012345
gpm
3.8 7.6 11.4 15.2liters/min
FLUID FLOW (TEST FLUID: NO 10 MOTOR OIL)
To find Fluid Outlet Pressure (bar/psi) at a specific fluid flow (lpm/
gpm) and operating air pressure (bar/psi):
1. Locate desired flow along bottom of chart.
2. Follow vertical line up to intersection with selected fluid outlet
pressure curve (black). Follow left to scale and read fluid outlet
pressure.
19.0
To find Pump Air Consumption (m#/min or scfm) at a specific fluid
flow (lpm/gpm) and operating air pressure (bar/psi):
1. Locate desired flow along bottom of chart.
2. Follow vertical line up to intersection with selected air consumption curve (gray). Follow right to scale and read air consumption.
308116 23
Dimensions
Mounting Hole
Model 224342 Shown
1/2 npt(f)
AIR INLET
Layout
4.38 in.
(111 .3 mm )
DIA.
B
A
0.28 in.(7.1 mm)DIA.
2.5 in.
(64 mm)
5.0 in.
(127 mm)
0775
1/2 npt(f)
FLUID OUTLET
3/4 npt(f)
FLUID INTAKE
Pump
Model
224342 28.38 in.
224343
902147
247147
261630 26.25
A B C
(721 mm)
25.25 in.
(641 mm)
(667 mm)
14.63 in.
(372 mm)
1 1.5 in.
(292 mm)
14.63
(372 mm)
C
0195
13.75 in.
(349 mm)
13.75 in.
(349 mm)
13.75 in.
(349 mm)
24 308116
Notes
308116 25
Graco Standard Warranty
Graco warrantsall equipment manufacturedby Graco andbearingits name to be free from defects in materialand workmanship on the
date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco,
Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be
defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for generalwear and tear, or any malfunction,damage or wear caused by
faultyinstallation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-- Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of
Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipmentwillbe returned to the original purchaser transportation prepaid. Ifinspectionof the equipment does notdiscloseany defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’ssole obligationand buyer’s sole remedy for any breach of warranty shall be as setforth above. The buyer agrees that noother
remedy (including, but notlimitedto, incidental or consequential damages forlost profits,lost sales, injury to personor property, or any
other incidental or consequential loss) shallbe available. Any action for breach ofwarrantymust be brought within two (2) years of the
date of sale.
Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection
with accessories, equipment, materials or components sold butnot manufactured by Graco. These items sold, but not manufactured
by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide
purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUST
The parties acknowledge that they have required that the present document, as well as alldocuments, notices and legal proceedings
entered into, given or instituted pursuant hereto orrelating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires
exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procedures concernées.
OMERS
Graco Information
For the latest information about Graco products, visit www.graco.com. For patent information, see www.graco.com/
patents.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the distributor closest to you:
Phone: 612--623--6921 or Toll Free: 1--800--328--0211 Fax: 612--378--3505
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 308116
GRACO INC. AND SUBSIDIARIES
Copyright 1991, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
26 308116
International Offices: Belgium, China, Japan, Korea
Graco Headquarters: Minneapolis
S
P.O. BOX 1441
S
MINNEAPOLIS, MN 55440-- 1441SUSA
www.graco.com
Revised August 2014
Loading...
