Failure to follow these warnings and the assembly
instructions could result in serious injury or death.
Avoid serious injury from falling or
sliding out. Always use seat belt.
STRANGULATION HAZARD:
DO NOT place swing in any
location where there are cords,
such as window blind cords,
drapes, phone cords, etc.
FROM TIME TO TIME CHECK YOUR SWING for loose
screws, worn parts, torn material or stitching. Replace or
repair the parts as needed. Use only Graco
parts.
REMOVABLE CLOTH SEAT COVER (on certain models)
may be machine washed in lukewarm water on delicate
cycle and drip-dried. NO BLEACH.
TO CLEAN SWING FRAME, use only household soap or
detergent and warm water. NO BLEACH.
EXCESSIVE EXPOSURE TO SUN OR HEAT could cause
fading or warping of parts.
THIS PRODUCT REQUIRES ADULT ASSEMBLY.
FOLLOW ASSEMBLY INSTRUCTIONS CAREFULLY.
If you experience any difficulties, please contact the
Customer Service Department.
DO NOT USE SWING without the seat cover.
DISCONTINUE USING YOUR SWING should it become
damaged or broken.
Strings can cause strangulation.
DO NOT place items with a string
around your childs neck, such
as hood strings or pacifier cords.
DO NOT suspend strings over the
swing or attach strings to toys.
Never leave child unattended.
Always keep your child in view.
Congratulations on your purchase of a
Graco
®
swing!
Graco is the recognized leader in the
design and manufacture of quality baby
swings. We believe your new Graco
®
swing is a wise choice, promising many
hours of enjoyment for your baby.
Before using your swing, please take a
few minutes to read this Owners Manual.
The short time you spend reading these
instructions will help you use your swing
properly.
Please save your Owners Manual
for future use.
Customer Satisfaction
Our goal is to make every product the best it
can be! We are also committed to supporting our
products after purchase. If you would like to speak
to Graco about your product, please contact our
Customer Service Department at 1-800-345-4109.
Our knowledgeable staff will be ready to answer
any questions you may have concerning parts, use,
or maintenance. When you call, please have the
model and serial numbers ready so your call may
be processed quickly and efficiently.
OWNERS
MANUAL
Model No. 1434, 1444 or 1452
Model No.
Serial No.
Dear Customer,
Please fill in the model
and serial numbers
above from the label
inside the battery
compartment of
your new swing.
Open Top Swing
Avoid serious injury from falling or
sliding out. Always use seat belt.
CARE AND MAINTENANCE
FROM TIME TO TIME CHECK YOUR SWING for loose
screws, worn parts, torn material or stitching. Replace or
repair the parts as needed. Use only Graco®replacement
parts.
REMOVABLE CLOTH SEAT COVER (on certain models)
may be machine washed in lukewarm water on delicate
cycle and drip-dried. NO BLEACH.
TO CLEAN SWING FRAME, use only household soap or
detergent and warm water. NO BLEACH.
EXCESSIVE EXPOSURE TO SUN OR HEAT could cause
fading or warping of parts.
DO NOT use if child weighs over
25 pounds (11.3 kg) or becomes
too active to safely use the swing.
PARTS LIST
CHECK that you have all the parts listed
below BEFORE assembling your swing.
If any parts are missing, call
Customer Service at 1-800-345-4109.
Tools required: Screwdriver
Seat cover Plastic seat with
crotch strap
Hanger
tube (2)
Tray
Adjustment
wire
Back brace
Screw (4)
Pin screw (2)
Pivot housing
Leg (4)
Motor housing
Front base tube
Plastic leg tip (4)
Large front
foot (2)
Small rear
foot (2)
Rear base tube
Seat belt
5
131-6-98 IS2417
6 87

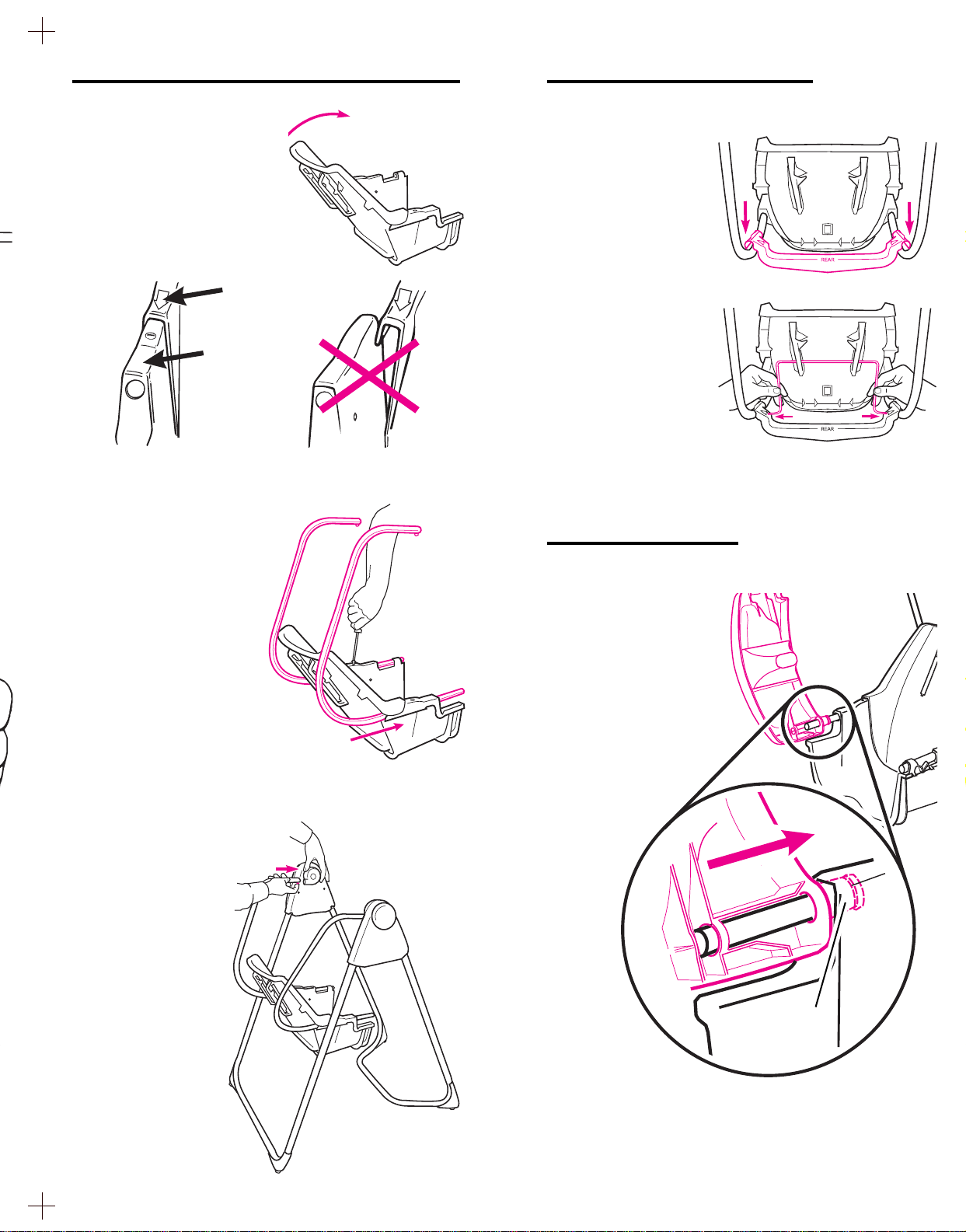

Attaching the Legs
Step 1.
The four legs have a double
button at one end and a single
button beneath it.
With the hub sides facing up,
place the motor housing and
pivot housing on the floor.
Position legs so their single
buttons also face up.
Insert legs into the motor
housing and pivot housing as
shown. The double buttons
must fit into the channels
inside the housings.
Step 2.
Push each leg in until the
double button snaps into
the hole at the end of the
channel. Then swing the
legs outward until the single
button snaps into its notch,
as shown.
Button
in hole
Notch
Attaching the Feet
Step 1.
Identify the front and rear base
tubes from pictures at right.
The feet to use with each tube
can be identified by the text
FRONT BOTTOM or REAR
BOTTOM printed on them.
CHECK that the legs are properly attached by
twisting them in the housings. They should resist
twisting. If a leg twists and buttons come out of
their holes, insert leg into the housing again. Be
sure to align BOTH double buttons with BOTH sets
of channels inside the housings.
Front base
tube
Front
foot
Rear
foot
Rear base
tube
Step 2.
Begin by inserting a screw all
the way into the small hole on
one foot. Position the foot as
shown at right, so the text and
viewing hole are not on the
short side of tube near the
wire end. Then use viewing
hole to line up the end of the
screw with the hole in the tube.
Tighten the screw securely.
Repeat above steps for the
other feet.
CHECK that feet are secure
by wiggling the feet.
Step 3.
Push a plastic tip onto all four
of the feet. Tap leg tips on
the floor to be sure they are
completely on.
NOTE: The hole in the plastic
tip permits future tightening of
the screw if needed.
Text and
viewing hole
Wire
end
Short side
of tube
Attaching the Base Tubes
Step 1.
Push the legs firmly onto
the rear base tube
exactly as shown.
Step 2.
Push the other two legs onto
the front base tube.
CHECK that all tubes are
securely attached.
CHECK that the parts of the
frame are assembled in the
positions shown.
Motor
housing
(switch
side)
PUSH
Straight rear
base tube
Bent front base tube
PUSH
Switch
side of
motor
housing
Bracket hole
points toward
rear of swing
OVER
A
A
Step 2.
Slide hanger tubes into
armrests of seat as shown.
Then insert two pin screws
through seat armrests
into the holes in the
hanger tubes and
tighten securely.
Attaching the Hanger Tubes and Seat
Step 1.
Move seat back fully forward
onto seat armrests.
NOTE: The seat back must
overlap the armrests.
OVER
A
A
Step 3.
Insert the hanger
tubes into the hubs as
shown. Metal buttons
should pop out and
lock upon full
insertion.
CHECK that the
hanger tubes are
secure in hubs by
pulling firmly on
them.
Double
button
Single
button
PUSH
Channels
Hub
OVER
A
A
Step 2.
Slide hanger tubes into
armrests of seat as shown.
Then insert two pin screws
through seat armrests
into the holes in the
hanger tubes and
tighten securely.
Attaching the Hanger Tubes and Seat
Step 1.
Move seat back fully forward
onto seat armrests.
NOTE: The seat back must
overlap the armrests.
OVER
A
A
Seat back
Armrest
Working behind the
seat, snap the four
pins in the ends of the
plastic back brace into
the holes in the hanger
tubes. The word
REAR should be
facing you.
Slide adjustment wire
through openings in
seat back, then insert
ends into back brace
holes as shown.
Be sure the back
brace is securely
attached by pulling
on it.
Step 3.
Insert the hanger
tubes into the hubs as
shown. Metal buttons
should pop out and
lock upon full
insertion.
CHECK that the
hanger tubes are
secure in hubs by
pulling firmly on
them.
Attaching the Back Brace
Slide the tray onto the
hanger tube, then push
sleeve of tray all the way
into the armrest of the
seat.
Sleeve on tray must
snap completely into
the armrest.
Pull on tray to be sure
it is securely attached.
Attaching the Tray
Push sleeve
all the way
into armrest
9
131-6-98 IS2418
10 11 12
Using the Tray
Step 1.
Unlatch the tray by squeezing
the two latches under the tray
at the same time, and lift up.
Be careful not to let the tray
hit your baby when lifting or
closing the tray.
Step 2.
To latch tray, push it down
firmly.
NOTE: If tray does not latch, check back brace to be sure
the word REAR is away from the seat.
Step 3.
Push the elastic loop through
the hole on one side of seat.
Step 4.
Fold cover around bottom of
seat. Then fasten the hook into
the elastic loop on one side as
shown. Repeat on other side.
CAUTION: Be sure the seat
cover at armrest does not
interfere with tray latching.
Attaching the Seat Belt
Reclining Back
Four Positions
Pull adjustment wire upward
and pull seat backward to
recline seat. Extra pressure is
required to go from the third
position to full recline.
For upright position, simply lift
back of seat forward.
Tray must be latched at all times when
baby is in swing. Pull up on tray to be sure it is latched.
Attaching the Seat Cover
Step 1.
With baby out of swing, open
the battery compartment lid by
inserting a coin (penny, nickel
or dime) into the coin slot. After
the lid pops open, swing it
down and remove it.
Step 2.
Insert four D cells. CHECK
that the batteries are put in
correctly. Your swing will not
run if the batteries are put in
backwards.
Step 3.
To replace lid, put the two
tabs of the lid into the two
slots in the bottom of the motor
housing. Swing lid up, and
press it into place until you
hear the latch click.

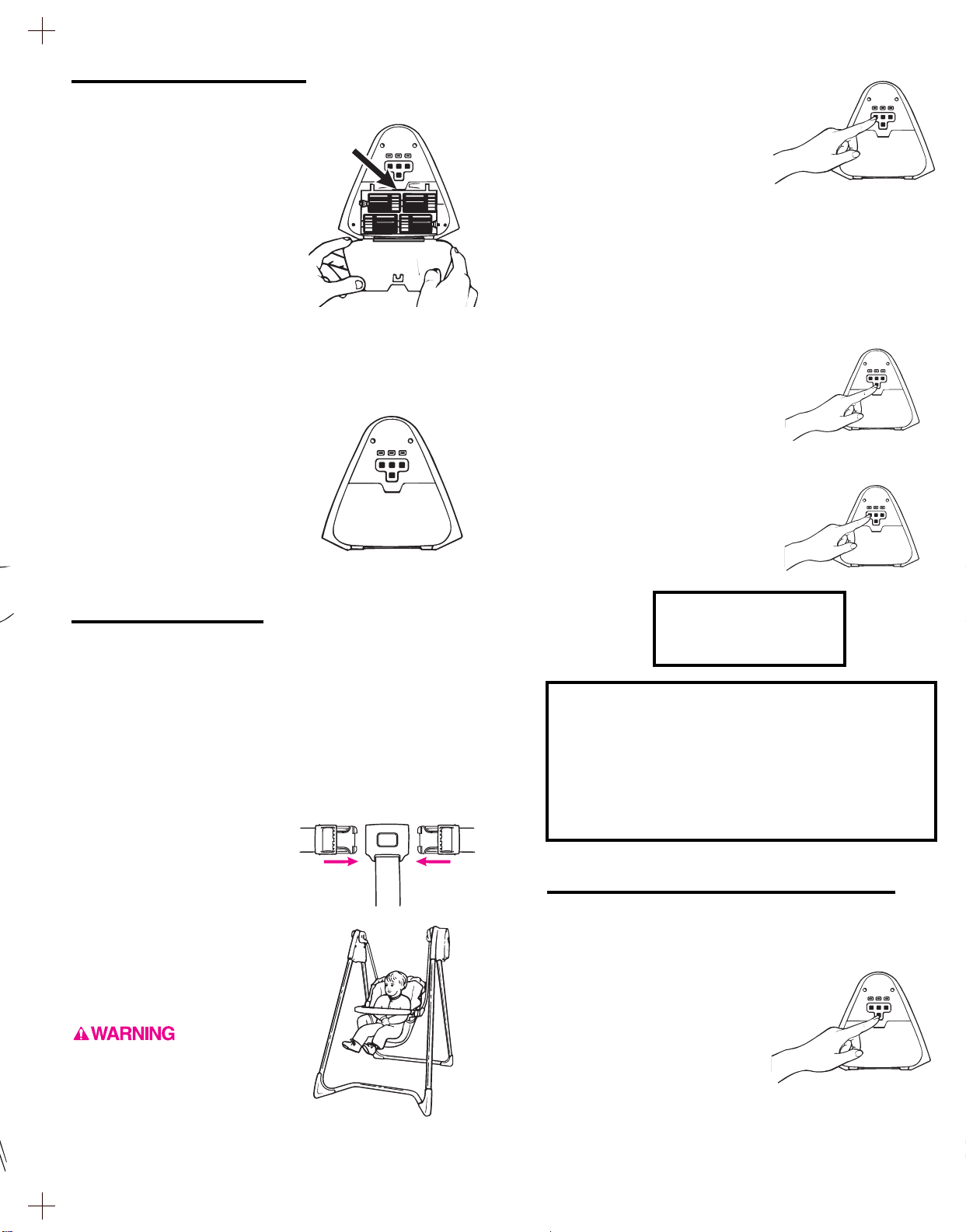

Installing the Batteries
To Use Head Supports
(on certain models)
Back of cloth seat pad
To provide head support for a
smaller child, insert the two
head support pads into the
pockets located in the back
of the cloth seat pad.
Step 1.
Thread one end of the seat
belt through the belt retainer
as shown.
Step 2.
Thread both ends of seat belt
through the buckles as shown.
CHECK that the belt is threaded
correctly by pulling on the seat
belt. The belt should not slip
through the buckle.
To release, push in on front of
buckle.
Step 1.
Slide the pocket of the seat
cover over the top of the seat
as shown.
Step 2.
Pull the crotch strap and both
ends of the seat belt through
the slots in the seat cover.
Starting the Swing
Step 2.
Fasten the seat belt. Adjust
belt as needed to get a snug
fit around your child.
Step 3.
Close the tray. CHECK that
the tray is latched by pulling
up on the tray.
depend on the tray or seat
belt alone to hold your baby.
Always secure your baby
with both the seat belt and
tray when your child is in
the swing.
CHECK that all parts are securely fastened together
before using the swing.
Step 1.
Open tray and seat belt. Place baby in the seat. (If your
child is very small, you may want to use rolled-up blankets
as a prop.)
Step 4.
To start swing, push the
desired speed button and give
the swing a gentle push.
Push 1 for the lowest ride.
Push 2 for medium ride.
Push 3 for the highest ride.
Step 5.
To turn swing off:
On models without music, push
the OFF button.
OR
On models with music, push
the active speed button.
Indicator light will go off and
swing will stop.
Indicator LightRed light comes on
when swing is turned on.
Step 1.
With baby out of swing, open
the battery compartment lid by
inserting a coin (penny, nickel
or dime) into the coin slot. After
the lid pops open, swing it
down and remove it.
Step 2.
Insert four D cells. CHECK
that the batteries are put in
correctly. Your swing will not
run if the batteries are put in
backwards.
Step 3.
To replace lid, put the two
tabs of the lid into the two
slots in the bottom of the motor
housing. Swing lid up, and
press it into place until you
hear the latch click.
Coin
slot
Installing the Batteries
Starting the Swing
Step 2.
Fasten the seat belt. Adjust
belt as needed to get a snug
fit around your child.
Step 3.
Close the tray. CHECK that
the tray is latched by pulling
up on the tray.
Do not
depend on the tray or seat
belt alone to hold your baby.
Always secure your baby
with both the seat belt and
tray when your child is in
the swing.
CHECK that all parts are securely fastened together
before using the swing.
Step 1.
Open tray and seat belt. Place baby in the seat. (If your
child is very small, you may want to use rolled-up blankets
as a prop.)
NOTE: SEAT MAY BE STOPPED ANY TIME MOTOR
IS RUNNING WITHOUT DAMAGING MOTOR.
PUSH SWING TO RESTART.
IF YOUR SWING MOTOR STOPS OPERATING
BY ITSELF, PROTECTIVE DEVICE MAY HAVE BEEN
ACTIVATED. TURN OFF MOTOR, WAIT 3 MINUTES,
THEN RESTART SWING.
To Use Music (on certain models)
If you want music for your baby, push the music button
until desired volume is reached:
Push once for high volume.
Push a second time for
medium volume.
Push a third time for low
volume.
Push a fourth time to turn
music off.
NOTE: The music control is independent of the speed
setting. You can have any combination of speed and
music settings.
Observe the swinging motion for a minute. It takes time
for the swing to adjust to a setting. Change setting as
needed.
NOTE: A small, quiet baby will swing higher on each
setting than a larger, more active baby.
13
131-6-98 IS2418
14
Replacement Parts
Instructions for ordering swing parts:
Complete form below. Your swing model number MUST
be included on the form to ensure proper replacement
parts. Your model number can be found on a sticker
beneath the swing motor. Payment must accompany
your order.
Return the form below with payment to:
GRACO CHILDRENS PRODUCTS INC.
CUSTOMER SERVICE DEPARTMENT
P.O. BOX 100, MAIN STREET
ELVERSON, PA 19520
IF YOU NEED HELP
If you have any questions, please call toll-free:
1-800-345-4109
Model Number
(Must be filled in)
SHIP TO:
Name
Address
City, State, Zip
( )
Telephone
Total:
6% sales tax
(PA only):
Total amount
due:
Check enclosed
(payable to Graco Childrens
Products Inc.)
Charge to credit card:
Visa
MasterCard
Discover
Account #:
Expiration date:
Signature:
Plastic seat
with strap & buckle
Cloth seat cover
Hanger tube
Seat belt
Tray
Adjustment wire
Back brace
Hardware
Motor housing
Pivot housing
Large front foot (2)
Small rear foot (2)
Front base tube
Rear base tube
Leg
Caring for Your Battery Powered Swing
Possible Reasons for Problem:
1. No batteries in swing.
2. Batteries dead.
3. Speed setting too low.
4. Batteries in backwardscheck + and -.
5. Corrosion on battery terminals. Rotate batteries
in place against terminals, or clean with sandpaper
or steel wool if corrosion is severe.
6. Baby leaning too far forward.
7. Baby grabbing swing legs. (Discontinue use.)
8. Seat not pushed high enough for a good start.
9. Protective device activated. (Turn off motor, wait
3 minutes, then restart swing.)
1. Control setting too low.
2. Blanket hanging down, causing increased wind
resistance.
3. Batteries too weak.
4. Baby leaning too far forward.
5. Baby too heavy or too active. (Discontinue use.)
6. Soft carpet (swings higher on hard floors).
If you still have problems, call our toll-free number,
1-800-345-4109.
Problem:
Swing
won't
operate
Seat
doesn't
swing
very
high
Keep the batteries out of childrens reach.
Any battery may leak electrolyte if mixed with
a different battery type, if inserted incorrectly
(put in backwards) or if all batteries are not
replaced or recharged at the same time.
Any battery may leak electrolyte or explode if
disposed of in fire or an attempt is made to
charge a battery not intended to be recharged.
Never recharge a cell of one type in a
recharger made for a cell of another type.
Discard leaky batteries immediately. Leaky
batteries can cause skin burns or other personal injury. When discarding batteries, be
sure to dispose of them in the proper manner,
according to your state and local regulations.
Always remove batteries if the swing is not going to be used
for a month or more. Batteries left in the unit may leak and
cause damage.
FOR SAFE BATTERY USE:
Parts List:
Plastic seat ....................
with strap & buckle
Cloth seat cover ............
Hanger tube (each) .......
Seat belt ........................
Tray ...............................
Adjustment wire .............
Back brace ....................
Hardware ......................
Motor housing ...............
Pivot housing .................
Large front foot (2) ........
Small rear foot (2) .........
Front base tube .............
Rear base tube ..............
Leg (each) .....................
Price:*
$20.00
$17.00
$17.00
$15.00
$12.00
$17.00
$15.00
$15.00
$22.00
$18.00
$15.00
$15.00
$17.00
$17.00
$17.00
* Prices subject to change without notice.
Recommended Type BatteriesSize D
!
RechargeablesUse and recharge according to
!
manufacturers instructions.
!
DisposablesAlkaline.
!
NEVER mix battery types.
Operation: 3 speed settings:
Low Medium High
1 2 3
Indicator lights blink on and off when batteries are becoming weak.
Change batteries when swing ceases to operate satisfactorily.
Loading...
