Repair
Ultimater Mx II 695/795/1095/1595t
Airless Sprayers
3300 psi (227 bar, 22.7 MPa) Maximum Working Pressure
Standard/
Vac Model
695 Standard 826048 826047
120 795 Standard 826049
North America Premium 826042
1095 Standard 826050
R
1595 Standard 826054
* Not ETL Approved
Premium
Premium 826041 826040
Premium 826044
826051*
Premium 826053
826045*
309942 Rev. F
ti4281a
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
ECOPYRIGHT 2004, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
826042
Table of Contents
Component Function and Identification 4. . . . .
General Repair Information 5. . . . . . . . . . . . . . .
Grounding 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 6. . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical/Fluid Flow 6. . . . . . . . . . . . . . . .
Electrical 7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pressure Control Repair 10. . . . . . . . . . . . . . . .
Drive and Bearing Housing Replacement 12. .
Motor Replacement 14. . . . . . . . . . . . . . . . . . . . .
Displacement Pump Replacement 16. . . . . . . .
3-D Wiring Diagram 17. . . . . . . . . . . . . . . . . . . .
Technical Data 18. . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions 18. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Phone Number 18. . . . . . . . . . . . . . . . . . .
2 309942
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire and explosion:
D Use equipment only in well ventilated area.
D Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic
drop cloths (potential static arc).
D Keep work area free of debris, including solvent, rags and gasoline.
D Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.
D Ground equipment and conductive objects in work area. See Grounding instructions.
D Use only conductive hoses.
D Hold gun firmly to side of grounded pail when triggering into pail.
D If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.
SKIN INJECTION HAZARD
High–pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like
just a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
D Do not point the gun at anyone or at any part of the body.
D Do not put your hand over the spray tip.
D Do not stop or deflect leaks with your hand, body, glove or rag.
D Do not spray without tip guard and trigger guard installed.
D Engage trigger lock when not spraying.
D Follow the Pressure Relief Procedure on page 5 if the spray tip clogs and before cleaning,
checking or servicing the equipment.
ELECTRIC SHOCK HARZARD
Improper grounding, setup or usage of the system can cause electric shock.
D Turn off and disconnect power cord before servicing equipment.
D Use only grounded electrical outlets.
D Use only 3-wire extension cords.
D Ensure ground prongs are intact on sprayer and extension cords.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic
fumes, burns, and hearing loss. This equipment includes but is not limited to:
D Protective eyewear
D Clothing and respirator as recommended by the fluid and solvent manufacturer
D Gloves
D Hearing protection
PRESSURIZED ALUMINUM PARTS HAZARD
Do not use 1,1,1–trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or
fluids containing such solvents in pressurized aluminum equipment. Such use can cause serious
chemical reaction and equipment rupture, and result in death, serious injury, and property damage.
3309942

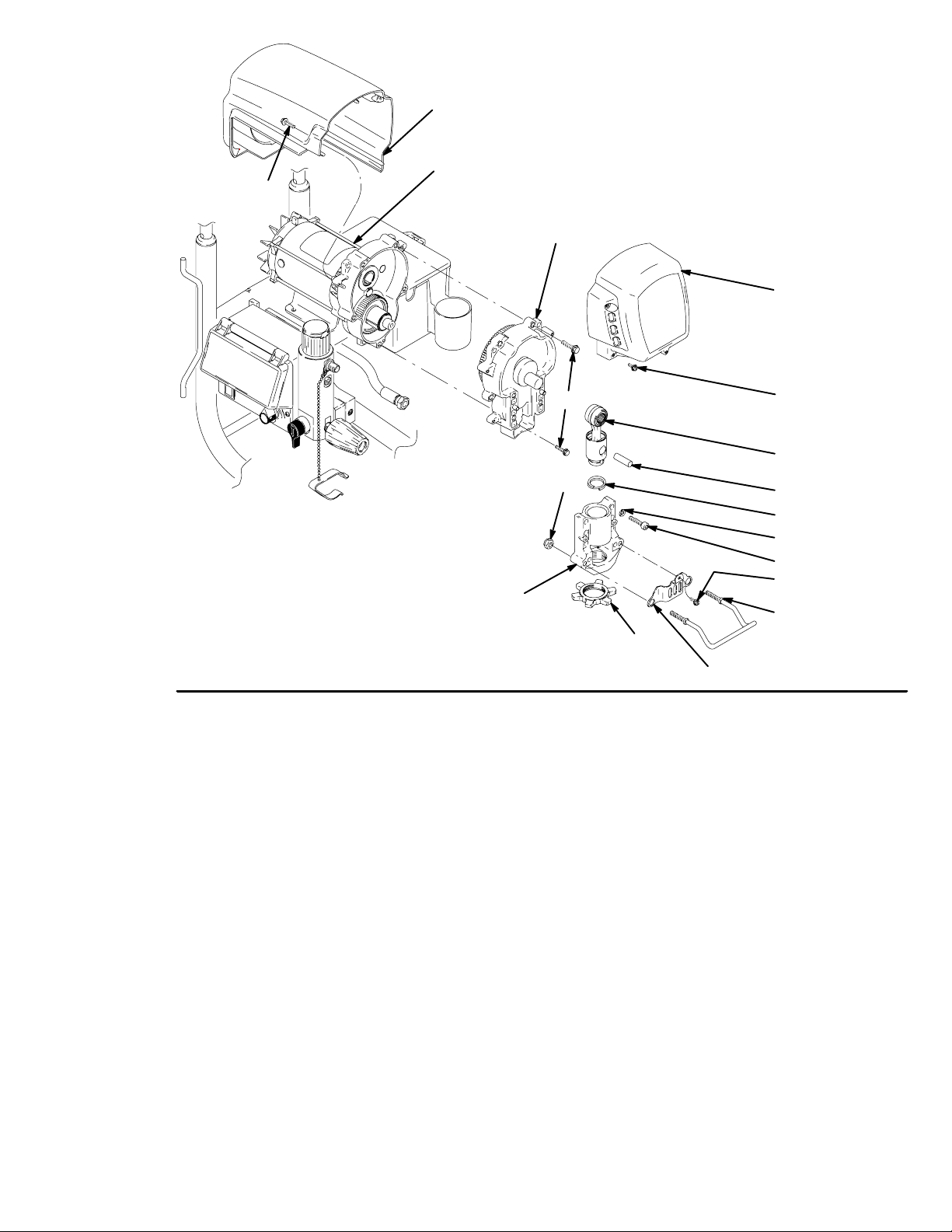

Component Identification and Function
N
Fig. 1
W
G
B
V
D
U
A
PR
S
M
ti2377a
J
K
H
T
F
E
ti4281a
A Motor DC motor, permanent magnet, totally enclosed, fan cooled
B Drive Assembly Transfers power from DC motor to displacement pump
D Displacement Pump Transfers fluid to be sprayed from source through spray gun
E Fluid Outlet Spray gun is connected here
F Prime Valve Used to prime and drain sprayer (also relieves fluid outlet pressure) when open
G Fluid Filter Final filter of fluid to spray gun
H Pressure Adjusting Knob Controls fluid outlet pressure
J Pressure Control Controls motor speed to maintain fluid outlet pressure at displacement pump
outlet. Works with pressure adjusting knob.
K ON/OFF Switch Power switch that controls main power to sprayer
M 50 ft (15 m) Main Hose 1/4 in. ID, grounded, nylon hose with spring guards on both ends
N Spray Gun High pressure spray gun with gun safety latch
P Spray Tip Uses high pressure fluid to clear tip clogs without removing tip from spray gun
R HandTitet Tip Guard Tip guard reduces risk of injection injury
S Gun Safety Latch Gun safety latch inhibits accidental triggering of spray gun. Contractor II gun
shown. Refer to your gun manual to properly set your gun safety latch.
T Hose Rack Holds wrapped hose for storage
U Suction Tube Transfers fluid to be sprayed from source to pump
V Drain Tube Fluid outlet used to drain and prime the sprayer
W AutoClean Reverse flush system
4 309942
General Repair Information
Pressure Relief Procedure
WARNING
INJECTION HAZARD
System pressure must be manually
relieved to prevent system from starting
or spraying accidentally. Fluid under high
pressure can be injected through skin and cause
serious injury. To reduce risk of injury from injection, splashing fluid, or moving parts, follow Pres-
sure Relief Procedure whenever you:
D are instructed to relieve pressure,
D stop spraying,
D check or service any system equipment,
D or install or clean spray tip.
CAUTION
To reduce risk of pressure control malfunction:
D Use needle nose pliers to disconnect wire. Never
pull on wire, pull on connector.
D Mate wire connectors properly. Center flat blade of
insulated male connector in female connector.
D Route wires carefully to avoid interference with
other connections of pressure control. Do not pinch
wires between cover and control box.
1. Keep all screws, nuts, washers, gaskets, and
electrical fittings removed during repair procedures. These parts are not normally provided with
replacement assemblies.
WARNING
1. Turn pressure to zero.
2. Turn ON/OFF switch to OFF.
3. Unplug power supply cord.
4. Hold metal part of gun firmly to grounded metal
pail. Trigger gun to relieve pressure.
5. Lock gun safety latch.
6. Open prime valve. Leave prime valve open until
ready to spray again.
If suspected that spray tip or hose is completely
clogged, or that pressure has not been fully relieved
after following steps above, VERY SLOWLY loosen tip
guard retaining nut or hose end coupling to relieve
pressure gradually, then loosen completely. Now clear
tip or hose obstruction.
Grounding
WARNING
ELECTRIC SHOCK HAZARD
MOVING PARTS HAZARD
HOT SURFACE HAZARD
To reduce risk of serious injury, including
electric shock, do not touch moving or
electrical parts with fingers or tools while
testing repair. Shut off and unplug sprayer when inspection is complete. Install all
covers, guards, gaskets, screws, washers and shroud before operating
sprayer.
2. Test repair after problem is corrected.
3. If sprayer does not operate properly, review
repair procedure to verify procedure was done
correctly. If necessary, see Troubleshooting, pages
6 – 9, for other possible solutions.
Improper installation or alteration of grounding plug
results in risk of electric shock, fire or explosion
that could cause serious injury or death.
1. Ultimate Mx II 695, 795 and 1095 100–120 Vac
models require a 50/60 Hz, 15A circuit with a
grounding receptacle. Ultimate Mx II 1595 120 Vac
models require a 50/60 Hz 20A circuit with a
grounding receptacle; 220–240 Vac models require
a 50/60 Hz, 10A circuit with a grounding receptacle. See Fig. 2.
2. Do not alter ground prong or use adapter.
Grounding Plug
Fig. 2
3. 120 Vac: A 12 AWG, 3 wires with grounding prong,
300 ft (90 m) extension cord may be used.
220–240 Vac: You may use a 3-wire, 1.0 mm (12
AWG) (minimum) extension cord up to 90 m long.
Long lengths reduce sprayer performance.
Grounded
Outlets
5309942
Relieve pressure; page 5.
Mechanical/Fluid Flow
Troubleshooting
TYPE OF PROBLEM
Low Output or Pressure 1. For worn spray tip. 1. Follow Pressure Relief Procedure Warn-
WHAT TO CHECK
If check is OK, go to next check
2. Spray tip clogged. 2. Relieve pressure. Check and clean spray
3. Paint supply. 3. Refill and reprime pump.
4. Intake strainer clogged. 4. Remove and clean, then reinstall.
5. To see if intake valve ball and piston ball are seating properly.
6. Suction hose connections. 6. Tighten any loose connections. Check for
7. Filter clogged. 7. Relieve pressure. Check and clean filter.
8. Prime valve leaking. 8. Relieve pressure. Repair prime valve.
9. Verify pump does not continue to stroke when
gun trigger is released. (Prime valve not leaking.)
10. Leaking around throat packing nut which may
indicate worn or damaged packings. See page
16.
WHAT TO DO
When check is not OK refer to this column
ing, then replace tip. See your separate
gun or tip manual.
tip.
5. Remove intake valve and clean. Check
balls and seats for nicks; replace if necessary, page 16. Strain paint before using to
remove particles that could clog pump.
missing or damaged seals.
9. Service pump. See page 16.
10.Replace packings, page 16. Also check
piston valve seat for hardened paint or
nicks and replace if necessary. Tighten
packing nut/wet-cup.
Motor runs but pump does not
stroke
11. Pump rod damage. 11. Repair pump, page 16.
12.Low stall pressure. 12. Do either or both:
a. Turn pressure control knob fully
clockwise. Make sure pressure
control knob is properly installed to
allow full clockwise position.
b. Try a new pressure transducer.
1. Displacement pump pin (32) (damaged or miss-
ing), page 16.
2. Connecting rod assembly (43) for damage,
page 12.
3. Gears or drive housing, page 12. 3. Inspect drive housing assembly and gears
1. Replace pump pin if missing. Be sure retainer spring (31) is fully in groove all
around connecting rod, page 16.
2. Replace connecting rod assembly,
page 12.
for damage and replace if necessary,
page 12.
6 309942
Troubleshooting
Electrical
Symptom: Sprayer does not run or stops running
D
D Plug sprayer into correct voltage, grounded outlet
D Set power switch OFF for 30 seconds and then ON
again. This ensures sprayer is in normal run mode.
D Turn pressure control knob up 1/2
D View digital display
Relieve pressure; page 5.
WARNING
To avoid electrical shock or moving parts hazards
when covers are removed for troubleshooting, wait
30 seconds after unplugging power cord for stored
electricity to dissipate. Keep clear of electrical and
moving parts during troubleshooting procedures.
D If no digital display is available, use control board
status light to troubleshoot problems: Turn ON/OFF
switch OFF, remove control cover and then turn
power back ON. Observe status light.
DIGITAL
DISPLAY
Blank Never lights
–––– psi Blinks once and
CONTROL BOARD
STATUS LIGHT
LED 100
stops
INDICATION
No power to control
board
No RUN command
to control board.
Potentiometer or
transducer problem
WHAT TO DO
1. Verify required voltage is present
2. Check wiring connections to control board
3. Perform continuity check on power cord and switch.
Replace power cord or switch as needed.
4. If steps 1 – 3 are ok, replace control board
1. Make sure prime valve is open and there is no pressure in the system
2. Turn pressure control knob clockwise
3. Check potentiometer connection to control board
4. Check pressure control knob alignment to potentiometer shaft. Turn shaft fully clockwise and attach knob
in full ON position.
5. Unplug potentiometer. Short out center pin of control
board potentiometer connector to each outer pin (one
at a time). If sprayer runs, replace potentiometer.
6. Check transducer connection
7. Disconnect and reconnect transducer plug to ensure
good connection with control board socket. Check
that transducer contacts are clean.
8. Open prime valve. Connect a known good transducer
in place of the sprayer transducer. Set sprayer ON.
Replace transducer If sprayer runs. Replace control
board If sprayer does not run.
7309942
Electrical
Troubleshooting
DIGITAL
DISPLAY
Displays high
pressure
when prime
valve is open
and there is
no pressure in
sprayer.
E=02
E=03
CONTROL BOARDSTATUS LIGHT
–
Blinks 2 x repeatedly
Blinks 3 x repeatedly
INDICATION
Improper pressure
signal to control
Control board is receiving excessive
pressure signal
from transducer.
Transducer may be
damaged or fluid
flow path may be
clogged.
Transducer or
transducer connection error
WHAT TO DO
Open prime valve. Connect a known good transducer in place of the sprayer transducer. Set
sprayer ON. Replace transducer If sprayer runs.
Replace control board If sprayer does not run.
1. Check fluid path for clogs, such as a clogged
filter.
2. Open prime valve and gun if running AutoClean.
3. Use airless paint spray hose with no metal
braid, 1/4 in. x 50 ft minimum. Smaller hose or
metal braid hose may result in high–pressure
spikes.
4. Replace transducer if fluid path is not clogged
and proper hose is used.
1. Check transducer connection
2. Disconnect and reconnect transducer plug to
ensure good connection with control board
socket. Check that transducer contacts are ok.
3. Open prime valve. Connect a known good
transducer in place of the sprayer transducer.
Set sprayer ON. Replace transducer If sprayer
runs. Replace control board If sprayer does not
run.
8 309942
Electrical
Troubleshooting
DIGITAL
DISPLAY
E=05 Blinks 5 x repeat-
E=06 Blinks 6 x repeat-
E=07 Blinks 7 x repeat-
E=09 Blinks 9 x repeat-
CONTROL BOARDSTATUS LIGHT
edly
edly
edly
edly
INDICATION
Possible locked
pump or drive. May
be motor connection
or wiring error.
Motor is too hot or
motor/thermal device connection may
be bad.
Exceeded 2000 psi
during timed flush
cycle
Motor sensor failure Make sure motor sensor (resolver) is connected to
WHAT TO DO
1. Check motor wiring connections
2. Check for locked or frozen pump or drive train
3. If all motor wiring connections are OK and pump/
drive train are not locked up, replace motor
1. Check all wire connections from motor to control
board
2. If connections are all ok, allow sprayer to cool. If
sprayer runs when cool, correct cause of overheating. Keep sprayer in cooler location with good
ventilation. Make sure motor air intake is not
blocked.
This error only occurs in flush timer mode
1. Make sure prime valve and gun are open
2. Make sure no flow obstructions or clogged filter
the control board and check wiring for damage
E=10 Blinks 10 x repeat-
edly
E=11 Blinks 11 x repeat-
edly
E=12 Blinks 12 x repeat-
edly
E=13 Blinks 13 x repeat-
edly
EMPTY
–
High control board
temperature
Excessive motor
speed
High Current 1. Check for locked or frozen pump or drive train
Model not selected Control board identity resistors must be properly
EMPTY on digital
display indicates a
loss of paint to the
pump or a severe
loss in pressure
1. Make sure the motor air intake is not blocked
2. Make sure control board is properly connected to
the back plate and that conductive thermal paste
is used on the power components, Fig. 3
Check for damaged gears or disconnected pump
2. Check for possible short circuits in wiring
3. Check pressure output and replace transducer if
pressure is excessive
clipped to identify model type, manual 310657
1. Check for empty paint condition, clogged inlet
strainer, failed pump or severe leak. Turn pressure
control knob to zero to restart sprayer.
2. WatchDog feature can be deactivated. See Operation Manual.
9309942
Removal
1.
Pressure Control Repair
Motor Control Board
Installation
1. Fig. 3. Apply small amount of thermal compound
Relieve pressure; page 5.
110009 (5) to shaded component areas on rear of
motor control board (95).
2. Fig. 3. Remove four screws (38) and cover (96).
3. Disconnect display connector (A) from motor
control board (95).
4. Remove bottom two screws (39) and allow control
panel (68) to hang down freely.
5. Disconnect control board power lead(s) (D) from
ON/OFF switch (33) and motor control board (95).
6. Disconnect potentiometer connector (C) from
motor control board.
7. Disconnect 15/20A switch (178) (1595).
8. Disconnect transducer connector (E) from motor
control board.
9. Disconnect motor connectors (F, G and H) from
motor control board.
10. Remove top two screws (39) and control box (61).
11. Remove five screws (27), three screws (102) and
motor control board.
CAUTION
To reduce risk of motor control board failure, do not
overtighten screws (102) which can damage the
electric components.
2. Install motor control board (95) with five screws
(27). Torque to 10–12 in-lb (1.13 – 1.35 N·m).
Install and torque three screws (102) to values
shown in Fig 3.
3. Connect motor connectors (F, G and H) to motor
control board.
4. Install control box (61) with top two screws (39).
5. Connect transducer connector (E) to motor control
board.
6. Connect 15/20A switch (178) (1595).
7. Connect motor control board power lead(s) (D) to
ON/OFF switch (33).
8. Connect potentiometer connector (C) to motor
control board.
9. Install control panel (68) with two screws (39) .
10. Connect display connector (A) to motor control
board (95).
11. Install cover (96) with four screws (38).
Pressure Adjust Potentiometer
Removal
1.
2. Fig. 3. Remove four screws (38) and cover (96).
3. Disconnect potentiometer connector (C) from
motor control board (95).
4. Remove knob (34) with a hex wrench.
5. Remove gasket (115), nut and potentiometer (82)
from control panel (68).
10 309942
Relieve pressure; page 5.
Installation
1. Install gasket (115), nut and potentiometer (82) on
control panel (68). Torque nut to 30–35 in-lb
(3.38–3.95 N·m).
2. Install knob (34) with a hex wrench.
3. Connect potentiometer connector (C) to motor
control board.
4. Install cover (96) with four screws (38).
Pressure Control Transducer
Removal
1.
2. Fig. 3. Remove four screws (38) and cover (96).
Relieve pressure; page 5.
7. Remove grommet (40) from transducer and save
for reuse.
Installation
1. Install o-ring (20) and transducer (86) in filter base
(67). Torque to 35–45 ft-lb (47–61 N·m).
3. Disconnect transducer connector (E) from motor
control board (95).
4. Disconnect potentiometer connector (C) from
motor control board.
5. Remove four screws (39) and control box (61).
Allow control panel to hang down freely.
6. Remove transducer (86) and o-ring (20) from filter
base (67).
120 Vac
95
2. Install grommet (40) onto transducer (86).
3. Connect transducer connector (E) to motor control
board.
4. Install control box (61) and control panel (68) with
four screws (39).
5. Connect potentiometer connector (C) to motor
control board.
6. Install cover (96) with four screws (38).
5
Tighten 1 screw
to 14–17 in–lb
26
96
38
39
1
Fig. 3
178
33
61
A
F
C
G
A
H
102
E
B
95
40
D
E
C
80
20
68
27
Tighten 2 screws
to 7–10 in–lb
ti4289b
67
82
39
34
115
1
1595
11309942
Drive and Bearing Housing Replacement
7. Remove five screws (6) and pull drive housing (90)
CAUTION
off motor (84).
Do not drop gear cluster (89) when removing drive
housing (90). Gear cluster may stay engaged in
motor front end bell or drive housing.
Disassembly
1.
2. Remove screw (31), two nuts (24), pail hanger (55)
and pump rod cover (108).
3. Remove pump (91); Displacement Pump Re-
placement, page 16.
4. Fig. 4. Remove two screws (31) and shroud (72).
5. Remove four screws (31) and front cover (51).
6. Remove four screws (14) and washers (12) to
remove bearing housing (83) and connecting
rod (85).
Relieve pressure; page 5.
Assembly
Fig. 5. Make sure gear (89) and thrust washers (28,
30, 90a, 36) are in place. Brush grease onto gear
teeth.
1. Fig. 4. Push drive housing (90) onto motor (84)
and install with five screws (6). Torque to 190–210
in-lb (21–23 N·m).
2. Install bearing housing (83) with four screws (14)
and washers (12). Torque to 25–30 ft-lb (34–40
N·m).
3. Install front cover (51) with four screws (31).
4. Install shroud (72) with two screws (31).
5. Install pump (41); Displacement Pump Replace-
ment, page 16.
6. Install pump rod cover (108) and pail hanger (55)
with screw (31) and two nuts (24).
12 309942
31
72
84
90
51
Fig. 4
ti4253a
83
24
6
31
85
44
43
12
14
31
55
56
108
13309942
Motor Replacement
Removal
1.
2. Remove pump (91); Displacement Pump Re-
placement, page 16.
Relieve pressure; page 5.
CAUTION
Do not drop gear cluster (89) when removing drive
housing (90). Gear cluster may stay engaged in
motor front end bell or drive housing.
3. Remove drive housing (89); Drive Housing Re-
placement, page 12.
4. Fig. 5. Remove four screws (38) and control cover
(96).
5. Remove bottom two screws (39) and and allow
control panel (68) to hang down freely.
Installation
1. Slide new motor (84) under two screws (23) in cart
frame (62) near control.
2. Install two screws (23) and nuts (19) on motor side
opposite control.
3. Tighten all four screws (23) and nuts (19). Torque
nuts to 115–135 in-lb (13–15 N·m).
4. Install strain relief (29) onto motor wires and into
power bar plate (69)
5. Install control housing (61) with top two
screws (39).
6. Connect all three motor leads to motor control
board (95).
6. Disconnect all three motor leads from motor control board (95).
7. Remove top two screws (39) and control
housing (61).
8. Remove strain relief (29) from motor wires and
power bar plate (69).
9. Remove two screws (23) and nuts (19) on side
opposite control.
10. Loosen two nuts (19) on side near control and
remove motor (84) from cart frame (62).
7. Install control panel (68) with two screws (39).
8. Install control cover (96) with four screws (38).
9. Install drive housing (42); Drive Housing Re-
placement, page 12.
10. Install pump (13); Displacement Pump Replace-
ment, page 16.
14 309942
96
38
61
23
31
84
58
19
36
90A
28
90
51
31
39
29
27
Fig. 5
68
95
69
LED Status Light
19
89
ti4254a
30
23
6
12
14
31
15309942
Displacement Pump Replacement
See manual 310643 for pump repair instructions.
See manual 309943, 309944 or 309951 – 309954 for
applicable sprayer part number references.
Removal
1. Flush pump (13).
2.
3. Fig. 6. Remove screw (31) and slide pump rod
shield (108) forward.
ti4258a
Fig. 6
Relieve pressure; page 5.
108
31
WARNING
If pump pin works loose, parts could break off due
to force of pumping action. Parts could project
through the air and result in serious injury or property damage.
CAUTION
4. Fig. 8. Cycle pump in JOG mode until pump pin
5. Fig. 7. Remove suction tube (76), hose (94) and
6. Loosen pump jam nut (56). Unscrew pump.
Fig. 7
Installation
4. Screw in pump until threads are flush with drive
5. Fig. 7. Install washers, o-rings and suction tube
6. Fig. 9. Screw jam nut (56) up onto pump until nut
(44) is in position to be removed. Turn power
switch OFF and unplug power cord. Push up
retaining ring (43) and push pump pin out.
any washers and o-rings.
94
76
housing opening. Align pump outlet to back.
(76) and hose (94).
stops. Tighten jam nut by hand, then tap 1/8 to 1/4
turn with a 20 oz (maximum) hammer to approximately 75" 5 ft–lb (102 Nm).
56
ti4258a
If the pump jam nut loosens during operation, the
threads of the drive housing will be damaged.
1. Fig. 8. Extend pump piston rod 1.5 in. Apply
grease to top of pump rod at (A) or inside connecting rod.
44
1.5 in.
A
43
Fig. 8
2. Install pump pin (44). Verify retaining spring (43) is
in groove of connecting rod (85).
3. Push pump up until pump threads engage.
ti4258a
16 309942
Fig. 9
7. Fig. 6. Install pump rod shield (108) with screw
(31).
8. Fig. 10. Fill packing nut with Graco TSL until fluid
flows onto top of seal.
ti4258a
Fig. 10
96
3-D Wiring Diagram
29
61
38
39
68
ti4251a
See Parts manual for wiring schematic
Fig. 11
17309942
Technical Data
Model 100–120V,
A, Hz
695 14, 50/60 9, 50/60 5000 1.75 (1300) 243 (64) 0.75 (2.8) 0.027 N/A 1/4 in.
795 15, 50/60 10, 50/60 5000 2.00 (1490) 195 (52) 0.95 (3.6) 0.031 0.021 1/4 in
1095 15, 50/60 10, 50/60 5000 2.20 (1640) 123 (33) 1.1 (4.1) 0.033 0.023 1/4 in
1595 20/15,
50/60
Basic Sprayer Wetted Parts: . . . . . . . . . . . . . . . . . . . . . . . . . . . .
zinc- and nickel-plated carbon steel, nylon, stainless
steel, PTFE, Acetel, leather, UHMWPE, aluminum,
tungsten carbide, PEEK, brass
220–240V,
∅, A, Hz
N/A 5000 2.5 (1860) 110 (29) 1.25 (4.7) 0.037 0.025 1/4 in
Generator
Minimum
W
Motor HP (W) Cycles per
gallon (liter)
Maximum
Delivery gpm
(lpm)
Maximum
Tip size
1 Gun 2 Guns
Fluid Outlet
npsm
Noise Level
Sound power 91 dBa*. . . . . . . . . . . . . . . . . . . . . . . . .
Sound pressure 82 dBa*. . . . . . . . . . . . . . . . . . . . . . .
* per ISO 3744; measured at 3.1 feet (1 m)
Dimensions
Model Weight lb (kg) Height in. (cm) Length
Lo-Boy Hi-boy Lo-Boy Hi-Boy
695 94 (43) 94 (43) 26.5 (67.3) Handle down,
38.8 (98.6) Handle up
795 98 (45) 98 (45) 26.5 (67.3) Handle down,
38.8 (98.6) Handle up
1095 N/A 120 (55) N/A 29.5 (74.9) Handle down,
1595 N/A 125 (57) N/A 29.5 (74.9) Handle down,
28.5 (72.4) Handle down,
38.75 (98.4) Handle up
28.5 (72.4) Handle down,
38.75 (98.4) Handle up
38.5 (97.8) Handle up
38.5 (97.8) Handle up
in. (cm) in. (cm)
25.75
(65.4)
25
(63.5)
26 (66) 22.5
26 (66) 22.5
Width
20.5
(52.1)
20.5
(52.1)
(57.2)
(57.2)
Graco Phone Number
TO PLACE AN ORDER OR FOR SERVICE, contact your Graco distributor, or call 1–800–690–2894 to identify the
nearest distributor.
All written and visual data contained in this document reflect the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
This manual contains English
Graco Headquarters: Minneapolis
International Offices: Belgium, Korea, China, Japan
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
PRINTED IN U.S.A. 1/2004, Rev 11/2005
18 309942
mm 309942
www.graco.com
Loading...
