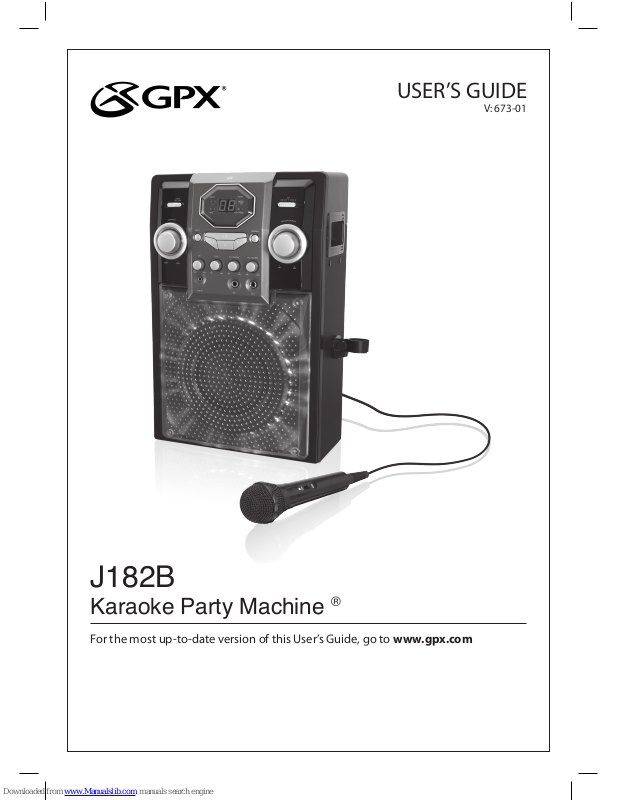

Page 1
USER’S GUIDE
V: 673-01
For the most up-to-date version of this User’s Guide, go to www.gpx.com
J182B
Karaoke Party Machine
®
Page 2
2
• WARNING: Shock hazard - Do Not Open.
• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS
OUVRIR
Mains Plug or Direct plug-in adapter is used as disconnect
device and it should remain readily operable during intended
use. In order to disconnect the apparatus from the mains
completely, the Mains Plug or Direct plug-in adapter should
be disconnected from the mains socket outlet completely.
La che d’alimentation ou adaptateur de courant est utilisé
comme dispositif de déconnexion et doit rester accessible
pendant l’utilisation. Pour mettre l’appareil hors tension, la
che ou adaptateur de courant doit être débranché de la prise
de courant.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable
(ni-cad, ni-mh, etc) batteries.
No mezcle baterías viejas y nuevas.
No mezcle baterías alcalinas, estándar (carbono-zinc) o
recargables (ni-cad, ni-mh, etc.).
• CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
• WARNING:To reduce the risk of re or electric shock,
do not expose this apparatus to rain or moisture.
• AVERTISSEMENT: Pour réduire le risque d’incendie
ou de choc électrique, ne pas exposer cet appareil sous la
pluie et l’humidité.
• CAUTION: Use of any controls or adjustments or
performance of procedures other than those herein
specied may result in hazardous radiation exposure.
• WARNING: Changes or modications to this unit
not expressly approved by the party responsible for
compliance could void the user’s authority to operate the
equipment.
• WARNING: Do not place the unit on top of any soft,
porous, or sensitive surfaces to avoid damaging the
surface. Use a protective barrier between the unit and
surface to protect the surface.
• WARNING: Use of this unit near uorescent lighting
may cause interference regarding use of the remote. If
the unit is displaying erratic behavior move away from
any uorescent lighting, as it may be the cause.
• CAUTION:Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
• PRÉCAUTION: Danger d’explosion si les piles sont
remplacées de façon incorrect. Remplacer les piles
seulement par le même type de pile ou l’équivalent.
• WARNING:The battery, batteries, and battery pack
shall not be exposed to excessive heat such as sunshine,
re, or the like.
• WARNING:Lithium batteries, like all rechargeable
batteries are recyclable and should be recycled or
disposed of in normal household waste. Contact your
local government for disposal or recycling practices in
your area. They should never be incinerated since they
might explode.
Warnings and Precautions
The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufcient magnitude to
constitute a risk of electric shock to persons.
WARNING: TO REDUCE THE RISK
OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
This product utilizes a Class 1 laser to read
Compact Discs. This laser Compact Disc Player is
equipped with safety switches to avoid exposure
when the CD door is open and the safety interlocks
are defeated. Invisible laser radiation is present
when the CD Player’s lid is open and the system’s
interlock has failed or been defeated. It is very
important that you avoid direct exposure to the
laser beam at all times. Please do not attempt
to defeat or bypass the safety switches.
Page 3
Customer Support: 1-888-999-4215
3
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• The apparatus shall not be exposed to dripping or
splashing and that no objects lled with liquids,
such as vases, shall be placed on apparatus.
L’appareil ne doit pas être exposé aux écoulements
ou aux éclaboussures et aucun objet ne contenant de
liquide, tel qu’un vase, ne doit être placé sur l’objet.
• Battery shall not be exposed to excessive heat
such as sunshine, re or the like.
Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à
la lumière du soleil, au feu ou autres choses de semblable.
• Caution marking is located at the rear or bottom of the apparatus.
Attention marquage est situé sur le paneau
arrière ou inférieur de l’unité.
• The marking information is located at the
rear or bottom of apparatus.
Le marquage est situé sur le paneau arrière ou inférieur de l’unité.
FCC Warnings
Additional Warnings
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding - type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. When the provided plug
does not t into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories
specied by the manufacturer.
12.
Important Safety Instructions
This symbol indicates that this
product incorporates double insulation
between hazardous mains voltage
and user accessible parts.
Use only with a cart, stand, tripod,
bracket, or table specied by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
Special note: When placing your unit on a
lacquered or natural nish, protect your furniture
with a cloth or other protective material.
Page 4
4
• CD player: CD, CD-R/RW
• Karaoke: CD+G
• 2 digit red LED display
• Automatic voice control
• Echo control
• Balance control
• Microphone volume control
• Top-load disc player
• Repeat 1 or ALL play
• LED light eects
• Composite video output
• 2 microphone inputs
• RCA stereo audio outputs
• 3.5mm audio input
• Analog volume control
• ON/OFF switch
• Built-in speaker
• DC power input: requires an AC/
DC power adapter (included)
• Microphone
• A/V Cable, RCA type
• AC/DC power adapter
Karaoke Party Machine ®
Features
Included
Page 5
Customer Support: 1-888-999-4215
5
Table of Contents
Karaoke Party Machine ® ........................................................... 4
Features
Included
Table of Contents .................................................................. 5
Introduction ...................................................................... 6
Setup ............................................................................. 8
Power
DVD, CD and CD+G ................................................................ 9
Playing a Loaded Disc
Programming a Loaded Disc
Automatic Voice Control
Video Output & Audio Output .....................................................10
Composite Video Output
RCA Audio Output
Line Input ........................................................................ 11
Using the Line Input
Company Information ............................................................12
International Support
Contact Information
Warranty
Green Initiative
Page 6
6
Introduction
Line In/O/CD+G
Adjust to switch
between Line In, O,
and CD+G mode.
Program
Press to program
a loaded disc to
play tracks in a
specied order.
Master Volume
Turn to adjust the
master volume.
Play/Pause
Press to play or pause
a loaded disc.
Mic 2 Volume
Turn to adjust the
volume from Mic 2.
Mic Inputs
Mic 1 Volume
Turn to adjust the
volume from Mic 1.
Stop
Press to stop a disc
during play.
Lights On/O
Adjust to turn the
lights on or o.
Repeat
Press repeatedly to set
the current track or
entire album to repeat.
Balance
Turn to adjust
the balance.
Skip/Search
Press to skip between
tracks on a loaded
disc. Press and hold
to fast-forward or
fast-rewind the current
track on a loaded CD.
Note: Fast forward and rewind
will not work with CD+G.
AVC
Turn to adjust the
automatic voice control.
Line Input
Echo
Turn to adjust the echo.
CD Player
Page 7
Customer Support: 1-888-999-4215
7
RCA Audio Output
Composite
Video Output
DC Power Input
Page 8
8
Plug the included AC/DC power adapter
into the DC Power Input and an AC power
outlet to power the karaoke machine.
Power
Setup
Page 9
Customer Support: 1-888-999-4215
9
Automatic Voice ControlLoading a Disc
DVD, CD and CD+G
1. Press the CD door to open it.
2. Load a CD, CD-R/RW, DVD or
CD+G disc into the karaoke
machine, label side facing up.
3. Close the CD door.
The Auto Vocal (Automatic Voice
Control) dial adjusts the volume of
the unit to compensate for varying
levels of volume from the microphone.
Turn the dial to adjust the degree to
which the Automatic Voice Control
compensates for variations in volume.
To manually adjust voice control
use the Echo and Balance knobs
on the front of the unit.
Playing a Loaded Disc
Programming a Loaded Disc
1. Follow the instructions
for Loading a Disc.
2. Adjust the Line In/O/CD+G
button to switch to CD+G mode.
3. Plug the included microphone
into the Mic 1 or Mic 2 inputs.
4. Press the Play/Pause button to
begin playing the loaded disc.
1. Follow the instructions for Loading
a Disc and Playing a Loaded Disc.
2. Press the Stop button to
stop the loaded disc.
3. Press the Program button.
4. Press the Skip/Search buttons to
select a track from the loaded disc.
5. Press the Program button to add
the selected track to the program.
6. Repeat steps 4 and 5 to program up to
20 tracks to play in a specied order.
7. Press the Stop button to
cancel a program.
Page 10
10
Video Output & Audio Output
RCA Audio Output
Composite Video Output
Requires an RCA audio cable (included)
1. Connect an RCA audio cable to
the RCA Audio Output on the
karaoke machine and an audio input
on an external stereo system.
2. Adjust the external stereo systems
source to the input used in step one.
3. Audio played through the karaoke
machine will now be heard through
the connected stereo system.
Requires an RCA video cable (included)
1. Connect an RCA video cable
to the RCA Video Output on
the karaoke machine and a
video input on a television.
2. Adjust the television source to
the input used in step one.
3. Content played through the
karaoke machine will now be seen
on the connected television.
Page 11
Customer Support: 1-888-999-4215
11
Line Input
Requires a 3.5mm audio
cable (not included)
1. Connect a 3.5mm audio cable
to the 3.5MM Line Input and
the audio output on an MP3
player or other audio device.
2. Adjust the Line In/O/CD+G
button to switch to Line In mode.
3. Use the native controls on the
connected player or other audio source
to play your audio through the unit.
Using the Line Input
Page 12
Copyright © 2012 Digital Products International (DPI, Inc.) | All other trademarks appearing herein are
the property of their respective owners. Specications are subject to change without notice
To download this User’s Guide in English,
Spanish, or French, or to get answers
to frequently asked questions, visit the
support section at www.gpx.com.
Para descargar este Manual del Usuario en
inglés, español y francés, o para obtener
respuestas a preguntas frecuentes, visite
la sección de apoyo en www.gpx.com.
Pour télécharger ce guide de l’utilisateur
en anglais, espagnol ou français, ou pour
obtenir des réponses à des questions
fréquemment posées, consultez la
rubrique d’assistance sur www.gpx.com.
Email Support: prodinfo@dpiinc.com
Email Parts: partsinfo@dpiinc.com
Phone Support: 1-888-999-4215
Website: www.gpx.com
Green Initiative
International Support
Contact Information
Company Information
Environmental Commitment to ‘Protect
for Today and Sustain for Tomorrow’
On a continual basis DPI, Inc. is making
eorts to sustain the environment
and improve the recyclability of
its products and packaging.
Focusing on “protecting for today and
sustaining for tomorrow” DPI, Inc. has
committed to reducing packaging size,
increasing the usage of recyclable plastics,
and ensuring that packaging and manuals
are made with up to 85% recycled material.
In addition to material consideration, DPI,
Inc. has also focused on the ner details that
positively impact the environment such as
employing the usage of soy-based inks.
DPI, Inc. also ensures that the factories
that produce the company’s wide
variety of consumer electronics adhere
to environmentally friendly air and
water restrictions. This is yet another
example that every step of the way
DPI, Inc. is making eorts to lessen
any impact on the environment.
In 2011 DPI, Inc. also began conversations
with Energy Star in order to ensure
that the consumer electronics being
produced meet high standards of energy
eciency. The ultimate goal is keeping
energy costs for consumers low while
providing quality, feature-rich products.
Warranty
For Warranty Information and the
most up-to-date version of this User’s
Guide, go to: www.gpx.com
Loading...
