GPX HB36B User Manual
SPEAKER OUTPUT
120V~60Hz
POWER
ON
OFF
VOLUME
BASS
AUX IN
R
L
PAIR

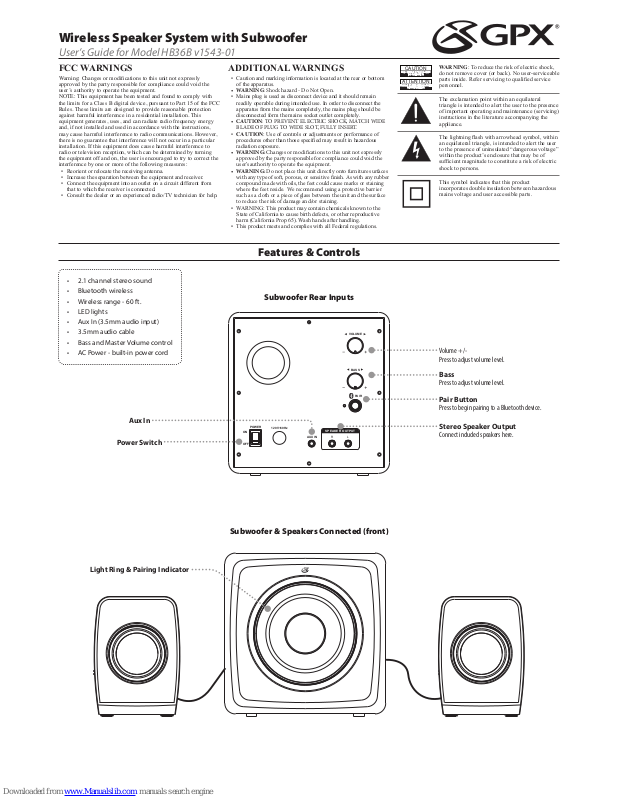

Features & Controls
Wireless Speaker System with Subwoofer
User’s Guide for Model HB36B v1543-01
FCC WARNINGS
Warning: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
ADDITIONAL WARNINGS
• Caution and marking information is located at the rear or bottom
of the apparatus.
• WARNING: Shock hazard - Do Not Open.
• Mains plug is used as disconnect device and it should remain
readily operable during intended use. In order to disconnect the
apparatus from the mains completely, the mains plug should be
disconnected form the mains socket outlet completely.
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• CAUTION: Use of controls or adjustments or performance of
procedures other than those specied may result in hazardous
radiation exposure.
• WARNING: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
• WARNING: Do not place this unit directly onto furniture surfaces
with any type of so, porous, or sensitive nish. As with any rubber
compound made with oils, the feet could cause marks or staining
where the feet reside. We recommend using a protective barrier
such as a cloth or a piece of glass between the unit and the surface
to reduce the risk of damage and/or staining.
• WARNING: This product may contain chemicals known to the
State of California to cause birth defects, or other reproductive
harm (California Prop 65). Wash hands after handling.
• This product meets and complies with all Federal regulations.
WARNING: To reduce the risk of electric shock,
do not remove cover (or back). No user-serviceable
parts inside. Refer servicing to qualied service
personnel.
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral
triangle is intended to alert the user to the presence
of important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
This symbol indicates that this product
incorporates double insulation between hazardous
mains voltage and user accessible parts.
The lightning ash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufcient magnitude to constitute a risk of electric
shock to persons.
• 2.1 channel stereo sound
• Bluetooth wireless
• Wireless range - 60 ft.
• LED lights
• Aux In (3.5mm audio input)
• 3.5mm audio cable
• Bass and Master Volume control
• AC Power - built-in power cord
Pair Button
Press to begin pairing to a Bluetooth device.
Light Ring & Pairing Indicator
Volume +/Press to adjust volume level.
Bass
Press to adjust volume level.
Stereo Speaker Output
Connect included speakers here.
Power Switch
Aux In
Subwoofer Rear Inputs
Subwoofer & Speakers Connected (front)
To download this User’s Guide in English, Spanish, or French, or to get answers to frequently asked questions, visit the
support section at: www.gpx.com
Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes,
visite la sección de apoyo en: www.gpx.com
Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions
fréquemment posées, consultez la rubrique d’assistance sur: www.gpx.com
For Warranty Information and the most up-to-date version of this User’s Guide, go to www.gpx.com
Customer Service: 1-888-999-4215 | Email Support: prodinfo@dpiinc.com | Email Parts: partsinfo@dpiinc.com
Copyright © 2016 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their
respective owners. Specications are subject to change without notice.
International Support
Protect for Today
Sustain for Tomorrow
Made
Green
Bluetooth Wireless Audio
After initial pairing, the unit will stay paired unless unpaired manually by
the user or erased due to a reset of the device. If your device should become
unpaired or you nd it is unable to connect, repeat the steps listed here.
1. Power on the unit by adjusting the POWER Switch to the ON position
and press the Pair button to begin pairing. The front light ring (pairing
indicator) will quickly ash blue as it searches for nearby devices. When
pairing, remain within 3 feet of the unit.
2. Using the controls on your Bluetooth device, scan for and select HB36 in
your Bluetooth settings to pair. If your device requests a password, enter the
default password 0 0 0 0 . Refer to the user’s manual for your specic device
for instructions on pairing and connecting Bluetooth devices.
3. When successfully paired, the front light ring (pairing indicator) will turn
solid and an audible chime will sound from the speaker.
4. Use the controls on the connected device to select and play audio.
Audio played through the connected Bluetooth device should now be
heard through the speaker.
Power
Connect the power cord to a standard wall outlet.
Aux In
Requires a 3.5mm audio cable (included).
1. Connect a 3.5mm audio cable to the Aux In on the rear of unit and the
audio output/headphone jack on a media player or smartphone.
2. Power on the unit by adjusting the POWER Switch to the ON position.
3. Use the controls on the connected device to select and play audio.
SPEAKER OUTPUT
120V~60Hz
POWER
ON
OFF
VOLUME
BASS
AUX IN
R
L
PAIR
SPEAKER OUTPUT
120V~60Hz
POWER
ON
OFF
VOLUME
BASS
AUX INRL
PAIR
3.5mm Audio Cable
