IMPORTANT NOTES
PORTABLE CD/MP3/WMA DISC PLAYER
WITH 40(CD)/100(MP3)/200(WMA) SECONDS
ANTI-SHOCK SYSTEM
AND PLL FM STEREO RADIO
DM0596-5(40)MP32
Instruction Manual
1. This product contain a CD-RADIO switch.Before operate the CD or RADIO function,
please set this switch to corresponding position.
2. In order to maximize battery life and provide optimum playing time this product
incorporates an Auto Power Off function.
The power to the player will automatically switch off approximately 30 seconds after
a disc has finished playing.
3. The ASP function is automatically engaged during CD playback.For more information, see section 15 of these instructions.
4. To turn the player off ensure that the CD-RADIO switch is in the CD position and any
inserted CD is not playing.
Helpline No: 0870 873 0080
4. If the unit is not to be used for a long
WARNING
1. To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
2. To avoid electrical shock, do not open
the cabinet. Refer servicing to qualified
personnel only.
period of time, make sure that all power
sources are disconnected from the unit.
Remove all batteries from the battery
compartment, and unplug the AC
adaptor from the wall outlet. Make it a
practice to remove the AC adaptor by
grasping the main body and not by
pulling the cord.
SPECIFICATIONS
Earphones output……................................... 20mW
Power requirement….................................... DC 4.5V external and battery 3V
(“AA” Batteries x 2)
(LR6 or Ni-MH rechargeable battery)
Dimension….................................................. Approx. 142 (W) x 32 (H) x 142 (D)mm
Weight…........................................................ 260g not including battery (Main Unit)
For improvement purposes, specification and design are subject to change without
notice.
Goodmans Product Information Helpline 0870 873 0080
3. Do not put anything in the safety slot. If
you do, the laser diode will be ON when
the lid is still open.
5. The unit employs a laser. The use of
controls or adjustment or performance
of procedures other than those
specified herein may result in exposure
to hazardous radiation.
LOW BATTERY ALERT
When the “ ” indicator is shown in t he LCD display,the batteries are weak. In this
ca se th e CD pl a ye r may not function properly and the batteries must be replaced.
TABLE OF CONTENTS
SAFETY PRECAUTIONS
1. POWER SOURCES NORMAL BA TTERIES/AC ADAPT OR
Power Sources Normal Batteries /AC adaptor..1
Use of Rechargeable Batteries…..............…...
Earphones Connection….......................……...3
Player Maintenance....................................…..4
Disc Cleaning and Troubleshooting Guide…....5
Product Specifications….........................……..6
Play Operation(see reverse of this sheet)
Basic Disc Play……......................................…7
Location of Controls….................................….8
CD Playback ...................................................9
MP3-CDs playback .................................…...10
Various Playing Modes ..................................11
Repeat and Intro Scan Play Modes…........….12
Random Play……......................................….13
Programmed Track Play……..........................14
Digital Anti Shock Operation………..........…..
Listening to the Radio ...................................
BOX CONTENTS
1x CDMP3720PLL
1x Set of Earphones
1x AC adaptor
.15
.16
1. As the laser beam used in this compact
.2
disc player is harmful to the eyes, do
not attempt to disassemble the casing.
2. Stop operation immediately if any liquid
or solid object should fall into the
cabinet. Unplug the unit and have it
checked by qualified personnel.
3. Do not touch the lens or poke at it. If
you do, you may damage the lens and
the player may not operate properly.
4. Do not put anything in the safety slot .
If you do, the laser diode will be ON
when the lid is still open.
5. If the unit is not to be used for a long
period of time, make sure that all power
sources are disconnected from the unit.
Remove all batteries from the battery
compartment, and unplug the AC
adaptor from the wall outlet. Make it a
practice to remove the AC adaptor by
grasping the main body and not by
pulling the cord.
6. The unit employs a laser. The use of
controls or adjustments or performance
of procedures other than those
specified herein may result in exposure
to hazardous radiation.
Battery Power Operation
1. Open the battery compartment cover
and insert two “AA” alkaline batteries
(not supplied) inside the battery compartment. Follow the polarity as indicated on the bottom of the cabinet.
2. Close the battery compartment cover.
Battery Type Average Playing
Time (Continuous Play)
Alkaline MN
1500 LR 6 or 10 Hours(MP3 CD playback)
Equivalent. 6.5 Hours(Audio CD playback)
Ni-MH About 8 Hours
rechargeable
(min.
specification
recommended
1.2V - 1800mA)
Note: Zinc./Carbon, or Zinc/Chloride type
batteries are not recommended for this unit
as their use will result in extremely short
playing times. Wherever possible and for
economy it is recommended that the mains
adaptor supplied with this unit is used.
AC Operation
1. Insert the DC plug at the end of the AC
adaptor cord into the DC input socket
in unit.
2. If non rechargeable batteries are
inserted,ensure that the recharge
switch is in the off position when connecting the AC adaptor. Failure to do
this may cause the non-rechargeable
batteries to explode.
3. Plug the AC adaptor into a 230V AC
power outlet socket.
2. USE OF RECHARGEABLE BATTERIES
3. EARPHONES CONNECTION
Using Rechargeable batteries
This unit fully recharge the specified rechargeable battery, in approximatly 15 hours. The
rechargeable batteries (NOT supplied) should be recharged before they are used for the first
time or if they have not been used for a long period (over 60 days).
1. Open the battery compartment cover and insert two of the recommended rechargeable
batteries, ensuring polarity markings are observed. (1.2V 1200mAH).
ALL BATTERIES MUST BE OF
RECHARGEABLE NI-MH TYPE, OTHERWISE
THE BATTERIES MAY EXPLODE SUITABLE OR
LEAK.
2. Plug in the AC adaptor and set the Recharge switch to ON position to start charging.The
recharge indicator LED will turn on.
(Use only the AC adaptor supplied with the set for charging.)
• Listening with the earphones
Connect the plug of the stereo earphones (included) or headphones (not included) into
the PHONES socket.
Caution: Avoid excessive volume levels and listening to the unit for a long period of time
when using headphone.
TO PHONES
• Adjust Volume to the desired level.
3. After 15 hours. Please unplug the AC adaptor and switch the Recharge switch to the OFF position.
(Do not charge continuously for 24 hours or more. Doing so can cause the performance of
the rechargeable battery to deteriorate.)
Note : • You may play DISCS while charging the batteries.
4. If the operating time decreases drastically even when the rechargeable NI-MH batteries
are properly recharged, purchase a new set of rechargeable NI-MH batteries.
5. When charging for the first time or after a long time, playing time may be reduced. In this
case, charge and discharge the batteries several times.
Charging Rechargeable batteries
The charging current for this player is 120mA and has been optimised for over night charging
of Ni-MH batteries.
4. PLAYER MAINTENANCE
5.DISC CLEANING AND TROUBLESHOOTING GUIDE
Cleaning the Cabinet
Wipe with a soft cloth. If the cabinet is very dirty, dampen the cloth with a weak solution of
neutral detergent and water, and then wipe clean.Disconnect AC adaptors before cleaning.
Cleaning the Lens
A dirty lens will cause sound skipping and, if the lens is very dirty, the CD may not work.
Open the disc cover and clean the lens as follows:
Dust or Dry Particles
Using a camera lens brush/blower, blow on the lens couple times, then wipe it lightly with
the brush to remove dust. Then ,blow on the lens once more.
Finger Prints
If the lens cannot be cleaned by using a brush/blower, use a dry cotton swab starting in the
middle and working to the outside edge.
Cleaning the Disc
When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the centre out.
Note:
Do not use solvents such as benzine petrol, thinner, commercially available cleaners or
anti-static spray intended for analogue discs.
Should you experience difficulties in the use of this player please refer to the following
chart before contacting your dealer or the place of purchase.
Troubleshooting Guide
Problem Points to Check
Player fails to function Disc may be inserted upside down
Disc not mounted correctly on chuck
Dirty or defective disc
Dirty pick up lens
Player lid not closed
Moisture/condensation allow player to warm up to room
temperature for 60 minutes.
AC Power to adaptor switched off
Weak batteries
Auto power off has occurred
No sound from earphones Earphone plug is not firmly inserted into the PHONES socket
No sound when played Connection is incorrect
through an external amplifier Power to external amplifier not switched on
Intermittent sound Dirty or defective disc
Volume control is set to zero
Dirty pick up lens
Player is subject to excessive vibration
Low battery power
Poor earphone connection

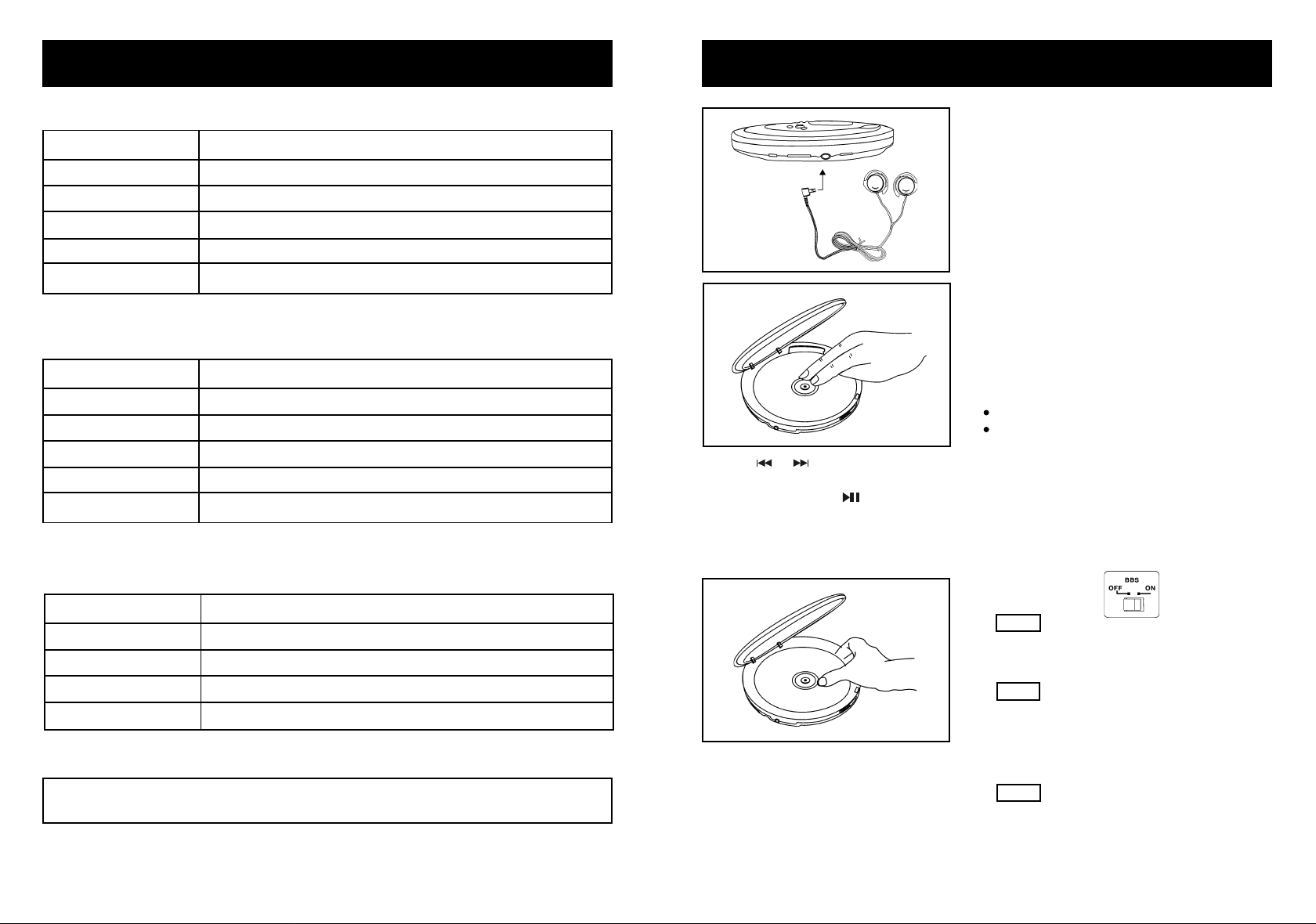

6. PRODUCT SPECIFICATIONS
7. BASIC DISC PLAYBACK
PICK UP
System Compact disc digital audio system
Laser diode Material: GaAIAs
Properties Wavelength: =780mm
Emission Duration: continuous
Laser output: <44.6µW
Error correction Cross-interleave Reed-solomon code
AUDIO
D/A conversion 1-bit DAC 4 times oversampling
Frequency response 20-20,000Hz (+1/-4 dB)
Anti-shock 40 seconds (CD)/100 seconds (MP3) buffer
No. of channels 2 channels (stereo)
Output level Earphone: 20mW (32 Ohms)
Wow and flutter Below measurable limits
GENERAL
1. Slide the OPEN knob to open the CD door.
2. Adjust the VOLUME to minimum.
3. Insert the disc with the label side facing up.
4. Push down in the centre until disc is
locked in place.
5. Close the lid gently until a click is heard.
6. Slide the CD/RADIO switch to CD position.
7.Press the PLAY/PAUSE button to start
playback.
8.To pause playback of the CD, press
thePLAY/PAUSE button.The audio
output is muted. To resume playback
press PLAY/PAUSE button again. To
stop playback, press STOP button once.
9. To turn powe off,press the STOP button
again.
Skipping a file(track)
You can skip a file(track)in playback mode.
In stop mode,the total number of files
(tracks) and albums appear in the display.
1. press
press on the skip backward button goes to the beginning of the current file (track).
2. In stop mode,press button to start playback.During playback,the selected track will
be heard automatically.
Remove the disc
Hold the edge and gently press the centre
pivot as illustrated. Then pick up the disc.
or to skip a file (track),each press skips one track. During playback,the first
To emphasize the bass sound
Set BASS BOOST switch to ON position.
Power requirements -2x “ AA” alkaline battery
-DC in socket accepts AC power adaptor.
Power consumption 1.2W( DC 4.5V) UNDER NORMAL CONDITION
Dimension Approx. 142(W) X 32 (H) x 142 (D) mm
Weight Approx. 260g not including battery (Main Unit)
Due to continual improvements of our products,specifications and design are subject to
change without notice
CAUTION:
Wait for the disc to stop rotating before
sliding the OPEN knob.
NOTE:
This unit can play 3” (8cm) single CD’s
without an adaptor. Do not use a CD single
adaptor for these discs.
Note
The bass boost performance will be
dependant on the VOLUME control setting.
Note
To pause playback of the CD, press the
PLAY/PAUSE button, The elapsed playing
time flashes in the display. To resume
playback, press PLAY/PAUSE again.
Note
Only compact discs marked with the disc
logo are guaranteed to work on this player.
Home recorded discs (CDR)recorded on
home PC’s may not play or operate
correctly.
8. LOCATION OF CONTROLS
1. MODE / PROG. / MEM. BUTTON
2. DIR. UP / PRESET UP BUTTON
3. DIR.DN / PRESET DN. BUTTON
4. RECHARGE INDICATO R
5. LCD DISPLAY
6. SKIP / SEARCH DN./ TUNING
DN BUTTON
7. SKIP / SEARCH UP / TUNING
UP BUTTON
8. PLAY / PAUSE / FM MO / ST BUTTON
(CD POWER ON)
9. STOP BUTTON (CD POWER OFF)
10.OPEN KNOB
11.CD / RADIO SWITCH
12.HEADPHONE SOCKET
13.VOLUME
14.B.B.S. SWITCH (BASS BOOST
SYSTEM)
15.RECHARGE SWITCH
16.DC SOCKET
17.HOLD SWITCH
18.BA TTERY COMP ARTMENT
9. CD PLAYBACK
1. Slide OPEN knob to open the CD door.
2. Insert the CD with the printed side facing upwards and push the disc gently until locks
into place.
3. Press the CD door to close.
4. Slide the CD/RADIO switch to CD position.
5. Press button to play.
When button is pressed at initial start up, the disc will begin to spin and after several
seconds,then it will proceed to start playback automatically from track 1.
To review the total number of tracks on the disc, press
During PLAY mode
The track number of the current selection is displayed.
the No. of track being played
During PAUSE mode
The elapsed time of the current track will flash.
The elapsed time of the current track will fash.
If no disc is inserted into the player and the button is pressed, the display will show “ NO DISC ”.
button once.
10. MP3/WMA-CDS PLAYBACK
11. PLAYBACK MODES
This unit can read audio CDs and MP3 CDs.
1. Place an MP3/WMA disc with the printed side facing upwards, and push the CD centre
lightlyto lock it in position.
2. Press
• When playback starts, the “MP3 ” or “WMA” icon, current directory number and file
number and its elapsed playing time is shown in the display.
• To skip through the directories (albums) on the disc press the DIR.UP/PRESET UP or
DIR.DOWN/PRESET DOWN
to start playback.
button repeatedly.
During playback, each time the MODE/PROG./MEM button is pressed, the playback mode
will be changed as follows:
In CD mode: In MP3 mode:
NORMAL play -> NORMAL play ->
(
1 ) Repeat One -> ( 1 ) Repeat One ->
ALL) Repeat All -> ( ) Repeat DIR ->
(
(Int) Intro Scan -> (
(Rnd) RANDOM -> (Int) Intro Scan ->
NORMAL Play (Rnd) RANDOM ->
ALL) Repeat ALL->
NORMAL Play
12. REPEAT AND INTRO SCAN PLAY
Repeat Play (Repeat One/Repeat All/Repeat Dir)
1 To repeat the same track
Press MODE/PROG./MEM button repeatedly during playback
until “ 1 Repeat One” is shown in the display. Select the
desired track
to be repeated by pressing or button.
2 To repeat the whole disc
Press MODE/PROG./MEM button repeatedly during playback until
“
ALL Repeat All ” is shown in the display.
3. To repeat directory (for MP3 mode only)
Press MODE/PROG./MEM button repeatedly during playback
until “ Repeat Dir ” is shown in the display.
• The current directory being listened to will be played
repeatedly.
INTRO Play - Listen to First Ten seconds of each track
1. Press MODE/PROG./MEM button repeatedly during playback
until Int is shown in the display, then press
INTRO play.
2. Each track is played for 10 seconds.
• INTRO play will start from the track that immediately follows
the current track.
To return to normal playback, repeatedly press the MODE /
PROG. / MEM button repeatedly until no lcon is shown in the
display.
button to starting
13. RANDOM PLAYBACK
14. PROGRAMMED TRACK PLAYBACK
Enables all the tracks on a disc to be played in a Random sequence.
1. Random (for CD)
Press MODE/PROG./MEM button repeatedly during playback
until “Rnd” is shown in the display.
After all tracks are played, the player will stop automatically.
2. Random (for MP3 only)
Press MODE/PROG./MEM button repeatedly during playback
until “Rnd” is shown in the display. All tracks of the disc will
be played in a random order repeatedly.
After all files are played, the player will stop automatically.
NOTES:
• To skip to the next track: press
button. However, you can not skip to a previous track.
This allows selected tracks on the disc to be played in a specified
order.
During CD playback
1. For audio CDs in stop mode, press MODE/PROG./MEM button
and the “ PGM ” icon appears in the display.
2. Press
press MODE/PROG./MEM button to store the selected track in
memory and the “ P-02 ” icon will appear to the right of the
selected track.
3. Repeat step 2 to store other tracks.
4. Press
“ PGM ” icon appears in the display.
5. To stop program playback, press
During MP3/WMA playback
1. For audio MP3 in stop mode, press MODE/PROG./MEM button
twice and the “ PGM ” icon appears in the display.
2. Press DIR.UP / PRESET UP or DIR.DN / PRESET DN button to
select the desired directory.
3. Press
MODE/PROG./MEM button to store the selected file in memory
and the “00 000 P-02 ” icon will appear to the right of the
selected file.
or button to select the desired track, then
button to start playback and the
button.
or button to select the desired file, then press
4. Repeat steps 2 to 3 to store other files.
5. Press button to start play and the “ PGM ”
icon appears in the display.
6. To stop program play, press button.
Notes:
• The program is also erased when the disc compartment is opened or the auto power off
function turns the power off.
• To cancel program operation, press button once whilst in stop mode.
15. DIGITAL ANTI SHOCK OPERATION
16. LISTENING TO THE RADIO
The DIGITAL ANTI SKIP PROTECTION system incorporates a special electronic
circuit that prevents sound from skipping when the unit is subject to shocks and vibration
during playback.
When the unit receives a physical shock which prevents the laser pick-up from “READING”
the CD, this system immediately starts playing the sound stored in its memory and continues
until the laser pick-up recovers.
If the unit is subject to continuous shocks and all the data stored in memory is used up the
sound will start to skip.
When playback is started, the SKIP PROTECTION system turns on automatically and the
protection function is activated.
• During CD disc playback, “ESP” is shown in the display.
1. Insert the headphone / earphone plug to PHONE SOCKET.
2. Set the CD/RADIO switch to “RADIO“ position , the frequency
reading will be displayed.
3. Press the TUN DN button or TUN UP button briefly to tune in
the desired radio station manually.
4. Keep the TUN DN button or TUN UP button depressed for more than 1 second and then
release to activate the auto-tuning mode.
When a radio station of sufficient strength is found, auto-tuning will stop automatically and
the radio station will be tuned in. The Frequency Reading of the radio station will be displayed
on the LCD Panel . When a FM stereo program is being received, the “ST” INDICA TOR will
appear.
* If the station signal is weak and there is a large amount of noise(hiss), press the PLA Y/FM
MO/ST button once to select FM MONO mode, the “ST” indicator will disappear, press
again for return stereo mode.
5. Adjust the VOLUME CONTROL to obtain the desired sound level.
6. Slide the BASS BOOST SWITCH to 'ON' for enhanced bass effect of the radio program.
7. When you wish to turn the Digital Tuner 'OFF', set the CD/RADIO switch to “CD” position.
Storing and Recalling Radio Stations in Preset Memory
The tuner has a capacity of 10 preset stations for FM band which allow you to store and
recall your favourite FM radio stations at the touch of a button.
A. To Store a Station
1. Tune in the station to store in preset memory by manual or
auto tuning.
2. Press the MODE / PROG / MEM button and the “MEM”
INDICA TOR will flash in the LCD panel for 5 seconds.(Press
again to cancel)
3. Before the flashing stops, press PRESET UP or PRESET
DN button to select preset no. #1 to # 10, press the MODE /
PROG / MEM button again to store the current radio station
into the selected preset memory.
4. Repeat steps 1 to 3 to store a radio station into the rest of the
Preset Memories.
B. To Recall a Station
1. Press PRESET UP or PRESET DN button to recall # 1 to #
10 preset stations.
NOTES -The headphone cord works as a FM aerial. T o insure maximum FM tuner sensitivity ,
always keep the headphone cord fully extended. Do not wind or fold the headphone
cord while listening to the radio.
IMPORTANT NOTES
Your hearing is very important to you and to us, so please take care when operating this
equipment. It is strongly recommended that you follow the listed guidelines in order to
prevent possible damage or loss of hearing.
ESTABLISH A SAFE SOUND LEVEL
• Over time your hearing will adapt to continuous loud sounds and will give the impression
that the volume has in fact been reduced. What seems normal to you may in fact be
harmful.
To guard against this BEFORE YOUR HEARING ADAPTS set the volume at a low level.
• Slowly increase the level until you can hear comfortably and clearly and without distortion.
• Damage to your hearing is accumulative and is irreversible.
• Any ringing or discomfort in the ears indicates the volume is too loud.
Once you have established a comfortable listening level, DO NOT INCREASE THE SOUND
LEVEL FURTHER.
The following list of typical sound levels may assist you in recognizing just how loud you
have set the volume level.
DECIBEL
Level dB Example
30dB Quiet library, soft whisper
40 Living room, fridge freezer bedroom away from traffic
50 Normal conversation, quiet office, light traffic
60 Electric sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant.
THE FOLLOWING NOISE CAN BE HARMFUL UNDER CONSTANT EXPOSURE
80dB Average city traffic, alarm clock buzzer at 2 feet, food mixer.
90dB Motorcycle, heavy goods vehicle, petrol lawn mower.
100 Pneumatic drill, chain saw, garbage truck, disco / night-club.
120 Rock band concert, thunderclap.
PERMANENT LOSS OF HEARING
140 THRESHOLD OF PAIN Gunshot 2 feet away.
180 Rocket Launching pad.
Loading...
