Goodman WME1000D Parts List
Replacement Parts List No. 0700051600
New 09/2015
Daikin
MagnitudeTM
Magnetic Bearing
Centrifugal Chiller
WME
1000
Vintage B
To nd your Daikin Applied parts distributor, call 1-800-377-2787 or visit www.DaikinApplied.com
Contents
Parts List Revision History.................................................................................................................................. 3
Nomenclature
Model and Serial Number Nomenclature ..................................................................................................... 4
Model Number- Complete ....................................................................................................................... 5 - 9
Electrical Legend .............................................................................................................................................. 10
Controls
Main Control Box ........................................................................................................................................11
VFD Enclosure ........................................................................................................................................... 12
VFD Chassis ....................................................................................................................................... 13 - 14
VFD Power Supply Plate .................................................................................................................... 15 - 16
OITS- Operator Interface Touch Screen .................................................................................................... 17
Control Sensors .................................................................................................................................. 18 - 19
Compressor
Motor/Bearing Assemblies .................................................................................................................. 20 - 21

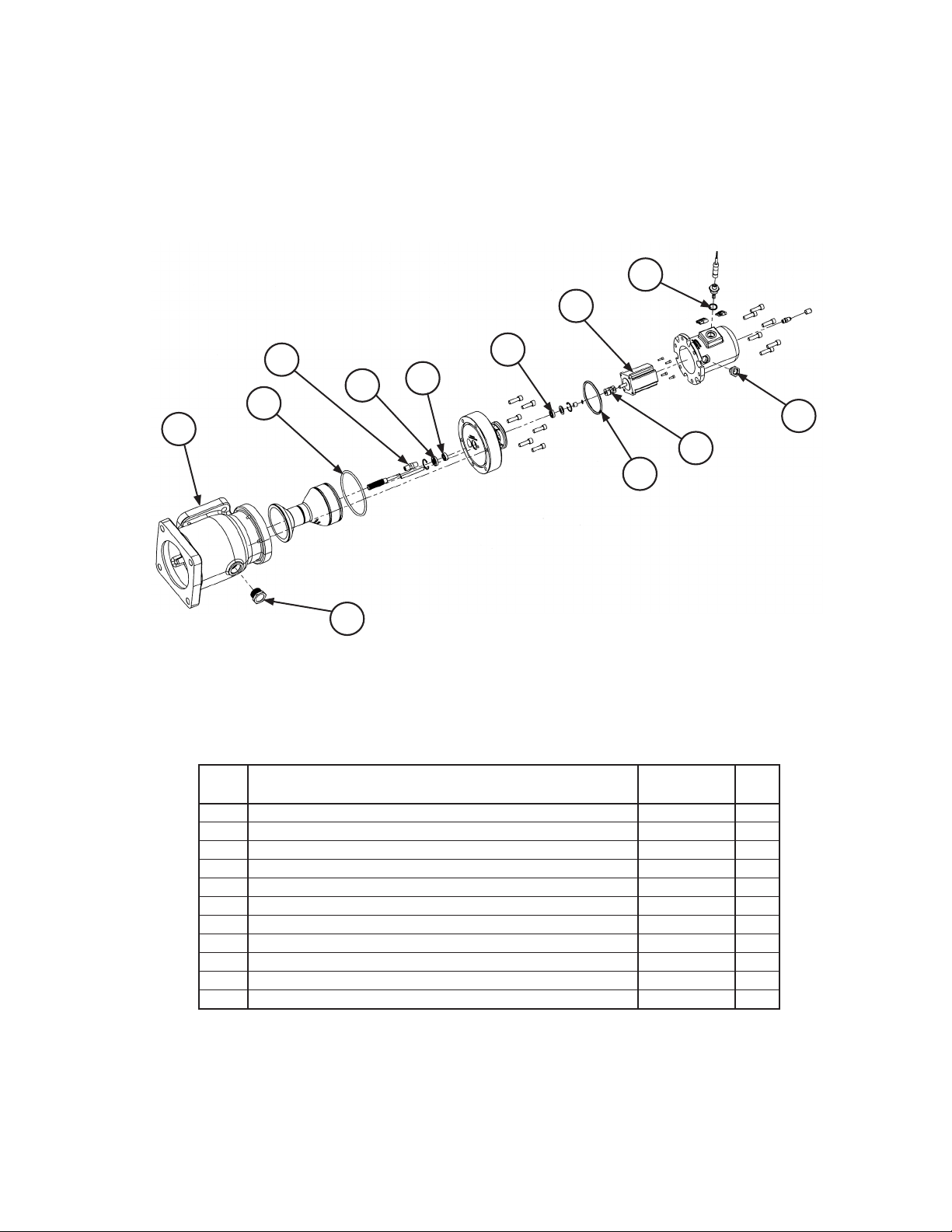

Impeller Assembly ..................................................................................................................................... 22
Impeller Seal & Compressor Fittings .................................................................................................. 23 - 24
Discharge Housing & High Speed Shaft Seal ........................................................................................... 25
Inlet Assembly ..................................................................................................................................... 26 - 27
Unit Assembly
Relief & Shutoff Valves ........................................................................................................................ 28 - 29
Discharge Piping Stack .............................................................................................................................. 30
Range Extension ................................................................................................................................. 31 - 32
Suction and Discharge Piping .................................................................................................................... 33
Liquid Injection ........................................................................................................................................... 34
Rotor Cooling ...................................................................................................................................... 35 - 36
Stator Cooling ..................................................................................................................................... 37 - 38
VFD Cooling ........................................................................................................................................ 39 - 40
Liquid Line ........................................................................................................................................... 41 - 42
Expansion Valve......................................................................................................................................... 43
Condenser
Condenser Diagrams ................................................................................................................................. 44
36 Inch - Dish Head Gaskets & Hardware ................................................................................................. 45
36 Inch - Water Box Head Gaskets & Hardware ........................................................................................ 46
Sight Glass, Shut Off Valve & Gasket, Charge Valve ................................................................................ 47
Evaporator
Evaporator Diagrams ................................................................................................................................. 48
42 Inch - Dish Head Gaskets & Hardware ................................................................................................. 49
42 Inch - Water Box Head Gaskets & Hardware ........................................................................................ 50
Sight Glass, Charge Valve ......................................................................................................................... 51
Critical Parts List............................................................................................................................................... 52
WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 2
Parts List Revision History
Revision Date Description
New 09/2015 New
Daikin Applied, 13600 Industrial Park Blvd., P.O. Box 1551, Minneapolis, MN 55440 (763) 553-5330
WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 3
Model and Serial Number Nomenclature
Model Number Nomenclature
Unit Type:
WME = Magnetic Bearing Centrifugal Chiller,
Water Cooled
Unit Size:
1000 Nominal Tons
Nomenclature
WME 1000 D B
Vintage
Number of Compressors
D = Dual Compressor
Plant Identication
STN = Staunton, VA
U = Unit
Serial Number Nomenclature
STN U 15 05 04810
Year of Manufacture
14 = 2014
15 = 2015
16 = 2016
17 = 2017
etc.
Serial Number
(Build Sequence)
Month of Manufacture
01 = January
02 = February
03 = March
04 = April
05 = May
06 = June
07 = July
08 = August
09 = September
10 = October
11 = November
12 = December
WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 4
Nomenclature
Model Number- Complete
Code: WME 1000D B SN M3 00460 H6 D C E4216 GB 2 C DK L 2 V C N C
Code No.: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
4 440F 00580 C C N A C3616 GB 2 C DR N N N NN L 2 V
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39
C N D 4 1050F 00725 C C N N NN A A 0150 A 0700 E7 EA E N
40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59
N A 01020 M D N N S N N R S H N B 1 5 A N N N
60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80
F N N E A A N J 000 U Y N 0 A N S S U A 12345
81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100
NNNNNNNNNNN NN NNNNN VFDM400 D NNNN N C3 04V
101 102 103 104 105 106 107 108 109
1. Model Type
WME= Magnetic Bearing Centrifugal Chiller, Water Cooled
2. Unit Size / Number of Compressors
1000D= 1000 Tons, Dual Compressor
3. Vintage
B= Vintage B
4. Chiller Conguration
SN= Single Refrigerant Circuit w/o Economizer
5. Motor Code
M2= 3 Winding, 3PH, 380- 575V; M3= 1 Winding, 6PH, 380- 480V
6. Power Supply Voltage
00380= 380V; 00400= 400V; 00415= 415V; 00440= 440V; 00460= 460V; 00480= 480V; 00575= 575V
7. Power Supply Hertz
H5= 50 Hertz; H6= 60 Hertz
8. Always D
9. Compressor Model Revision
C= Revision C
10. Evaporator Shell Size
E4216= Evaporator, 42" Diameter/16' Long
11. Evaporator Tube Count and Conguration
GB= Design B, 3/4" Diameter Tube, Qty=753
HB= Design B, 3/4" Diameter Tube, Qty=661
JB= Design B, 3/4” Diameter Tube , Qty=597
SD= Design D, Mixed Tubes, Qty= 386 of 3/4" + 194 of 1"
TD= Design D, Mixed Tubes, Qty= 342 of 3/4" + 175 of 1"
VE= Design E, 1” Diameter Tube, Qty=385
WE= Design E, 1” Diameter Tube, Qty=345
YE= Design E, 1” Diameter Tube, Qty=299
WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 5
Nomenclature
Model Number- Complete, Continued
12. Evaporator Tube Wall Thickness
2= 0.025"
3= 0.028"
5= 0.035"
13. Evaporator Tube Type
C= CU
N= CN90/10
14. Evaporator Tube Model
15. Evaporator Inlet Nozzle Location
L= Left
R= Right
16. Evaporator Water Passes
1= 1 Pass
2= 2 Pass
3= 3 Pass
17. Evaporator Inlet Nozzle Connection Type
V= Groove
F= Flanged
18. Evaporator Inlet Nozzle Conguration
A= Dish, End; 1-Pass
B= Dish, End; 2 or 3 Pass
D= Water Box, Top; 1-Pass
E= Water Box, Rear; 1-Pass
H= Water Box, Rear; 2 or 3 Pass
19. Evaporator Hinged Type
N= None
H= Standard Hinges on Both Ends
20. Evaporator Refrigerant Design Pressure
C= 200 PSIG
27. Evaporator Model Revision
A= Revision Level A
28. Condenser Shell Size
C3616= Evaporator, 36” Diameter/16’ Long
29. Condenser Tube Count and Conguration
GB= Design B, 3/4” Diameter Tube, Qty=931
HB= Design B, 3/4” Diameter Tube, Qty=825
JB= Design B, 3/4” Diameter Tube , Qty=714
VE= Design E, 1” Diameter Tube, Qty=559
WE= Design E, 1” Diameter Tube, Qty=505
YE= Design E, 1” Diameter Tube, Qty=445
30. Condenser Tube Wall Thickness
2= 0.025”
3= 0.028”
5= 0.035”
31. Condenser Tube Type
C= CU
N= CN90/10
S= Stainless Steel
T= Titanium
32. Condenser Tube Model
33-36. Future Use
37. Condenser Inlet Nozzle Location
L= Left
R= Right
38. Condenser Water Passes
1= 1 Pass
2= 2 Pass
3= 3 Pass
21. Evaporator Water Side Design Pressure
4= 150 PSIG, Non-ASME Code
39. Condenser Inlet Nozzle Connection Type
V= Groove
F= Flanged
22. Evaporator Leaving Water Temperature
Example: 440= 44.0 °F
23. Evaporator GPM
Example: 00580= 580 GPM
24. Evaporator Tube Sheet Coating/ Material
C= Carbon Steel
E= Enecon Coating; Outside of Tube Sheet
25. Evaporator Head/ Water Box Coating/ Material
C= Carbon Steel
E= Enecon Coating; Inside of Head
D= Devcon Coating; Inside of Head
26. Evaporator Head Tube Cleaning System
N= None
40. Evaporator Inlet Nozzle Conguration
A= Dish, End; 1-Pass
B= Dish, End; 2 or 3 Pass
D= Water Box, Top; 1-Pass
E= Water Box, Front; 1-Pass
H= Water Box, Front; 2 or 3 Pass
41. Condenser Hinged Type
N= None
H= Standard Hinges on Both Ends
42. Condenser Refrigerant Design Pressure
D= 225 PSIG
43. Evaporator Water Side Design Pressure
4= 150 PSIG, Non-ASME Code
WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 6
Nomenclature
Model Number- Complete, Continued
44. Condenser Leaving Water Temperature
Example: 1050= 105.0 °F
45. Condenser GPM
Example: 00725= 725 GPM
46. Condenser Tube Sheet Coating/ Material
C= Carbon Steel
E= Enecon Coating; Outside of Tube Sheet
M= Monel Clad
S= Stainless Steel Clad
T= Titanium Steel Clad
47. Condenser Head/ Water Box Coating/ Material
C= Carbon Steel
E= Enecon Coating; Inside of Head
D= Devcon Coating; Inside of Head
48-49. Future Use
50. Condenser Tube Cleaning System
NN= None
51. Condenser Model Revision
A= Revision level A
52. Pressure Vessel Code
A= ASME
53. Unit Tons
Example: 0150= 150 Tons
62. Input Rated Load Amps (RLA) - Compressor #1
Example: 01020= 102.0 Amps
63. Starter Box #
M= Multiple Point - Dual Starter Boxes
64. Power Connection Type
D= Disconnect Switch
65. EMI Filter
N= None
4= 400A Input Current EMI Filter
66. Surge Protection
N= None
67. Short Circuit Current Ratings
S= SCCR 35KA
H= SCCR 65KA
V= SCCR 100KA
L= SCCR 25KA (For 575V only)
M= SCCR 50KA
68. Ground Fault Protection
N= None
F= With Ground Fault Protection Relay
69. Harmonic Filter
N= None
1= 300 HP
2= 350 HP
3= 400 HP
54. Refrigerant Type
A= Refrigerant 134A
55. Refrigerant Weight
Example: 0700= 700 Pounds
56. Electronic Expansion Valve Circuit #1
E7= Electronic Valve Size 7
57. Controller Type
EA= MicroTech-E (Rev. A)
58. Controller Language
E= English - English Units
59. Controller Rapid Restore
N= None
60. Controller Communications
N= None
B= BACnet (MS/TP, IP/Ethernet)
L= Lonmark
M= Modbus
61. Starter Box & Unit Controller Box Type
A= NEMA 1
70. Range Extension
R= Range Extension System
71. Compressor Sound Reduction
Sound Reduction Pkg - Sound Insulation on Dchrg Line
72. Evaporator Insulation
N= None
H= 3/4" Insulation on Evap. Shell, Suction Piping,
and Compressor Inlet
3= 1-1/2" Insulation on Evap. Shell, Suction Piping,
and Compressor Inlet
73. Head Insulation
N= None
2= Evap. Return and Connection Heads Insulated
74. Factory Water Flow Indicatior
B= Both Evaporator and Condenser Flow Control
75. Unit Paint
1= Standard Painting
76. Shipping/ Packaging
WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 7
Nomenclature
Model Number- Complete, Continued
77. Refrigerant Charge
A= Full Factory Refrigerant Charge
C= Holding Charge - Nitrogen
78. Special
V= None
X= Special
79. Low Lift Conditions
N= None
80. Knockdown
N= None
A= Type A; Bolted Construction, Shipped Together
B= Type B; Bolted Construction, Shipped as Parts
81-83. Testing
GF= Ground Fault Detection Relay; YY= None
84. Agency Listing
E= ETL/cETL
N= None
85. AHRI Listing
A= AHRI
N= None
86. ASHRAE Listing
A= ASHRAE
N= None
87. OSP-IBC Listing
S= OSP-IBC
N= None
88. Unit Label
J= Daikin
89. Coolant Rating
000= Water on both Evaporator and Condenser
E00= Ex: E10= 10% Ethylene on Evaporator or Condenser or Both
P00= Ex: P10= 10% Propylene on Evaporator or Condenser or Both
90. Startup
91. First Year Warranty
Y= Entire Unit Parts and Labor
P= Entire Unit Parts Only
92. Extended Chiller Warranty
A= 1 year of Extended Warranty on parts only
B= 1 year of Extended Warranty on parts and labor
C= 2 year of Extended Warranty on parts only
D= 2 year of Extended Warranty on parts and labor
E= 3 year of Extended Warranty on parts only
F= 3 year of Extended Warranty on parts and labor
G= 4 year of Extended Warranty on parts only
H= 4 year of Extended Warranty on parts and labor
N= None
93. Refrigerant Warranty
0= None
B= 1 Year
D= 2 Year
F= 3 Year
H= 4 Year
K= 5 Year
94. Delayed Warranty Start
A= 12-18; Additional Months = none
B= 12-20; Additional Months = 2
C= 12-22; Additional Months = 4
D= 12-24; Additional Months = 6
E= 12-26; Additional Months = 8
F= 12-28; Additional Months = 10
G= 12-30; Additional Months = 12
95. Extended Chiller Warranty
A= 1 year of Ext Warranty on compressor parts only
B= 1 year of Ext Warranty on compressor parts & labor
C= 2 year of Ext Warranty on compressor parts only
D= 2 year of Ext Warranty on compressor parts & labor
E= 3 year of Ext Warranty on compressor parts only
F= 3 year of Ext Warranty on compressor parts & labor
G= 4 year of Ext Warranty on compressor parts only
H= 4 year of Ext Warranty on compressor parts & labor
N= None
96. Ship
S= Standard Ship
96-97. Bill of Materials
99. Unit Model Revision
A= Revision Level A
100. Unit kW
101. Stock Unit Modications
NNNNNNNNNNN= None
* * * * * * * * * * *= WME Stock Unit Part Number
102. Expansion Valve #2
NN= None
103. Input Rated Load Amps (RLA) - Compr #2 Only
NNNNN= None
* * * * *= Example: 01020= 102.0 Amps
104. VFD Type and Size
VFDM400= 400A - VFD Max Output Amps - 6 Phase
VFDM450= 450A - VFD Max Output Amps - 6 Phase
VFDM500= 500A - VFD Max Output Amps - 3 Phase
105. Power Assembly
S= Single Power Assembly- 3 Phase
D= Dual Power Assembly - 6 Phase
WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 8
Nomenclature
Model Number- Complete, Continued
106. Transformer Type
NNNN= None
40SD= 400A AutoTransformer - 3 Phase (SD400-6)
60SU= 600A AutoTransformer - 3 Phase (SU600-6)
50SD= 500A Stepdown AutoTransformer - 6 Phase (SD500-12)
73ST= 730A AutoTransformer - 6 Phase (ST730-12)
73Su= 730A Stepup AutoTransformer - 6 Phase (SU730-12)
107. Power Meter
N= None
M= 7350 Power Meter
108. Cabinet Size
C1= Large Cabinet w/Transformer
C2= Small Cabinet w/o Transformer
C3= Large Cabinet w/o Transformer
109. Circuit Breaker Rating
04V= 380-480V / 400A, 100KA Breaker
05S= 380-480V / 500A, 35KA Breaker
05H= 380-480V / 500A, 65KA Breaker
06S= 380-480V / 600A, 35KA Breaker
06H= 380-480V / 600A, 65KA Breaker
06V= 380-480V / 600A, 100KA Breaker
08S= 380-480V / 800A, 35KA Breaker
08H= 380-480V / 800A, 65KA Breaker
08V= 380-480V / 800A, 100KA Breaker
04L= 575V / 400A, 25KA Breaker
04M= 575V / 400A, 50KA Breaker
06L= 575V / 600A, 25KA Breaker
06M= 575V / 600A, 50KA Breaker
WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 9
Electrical Legend
Sch. Sym. Description Location
BAS Communication Card Main Control Box
CB1 Circuit Breaker- TX2 Primary VFD Power Supply Plate
CB2- 4 Circuit Breaker- Fans VFD Power Supply Plate
CB4 Circuit Breaker- MCB Trip, Power Meter, ELR, Solenoid VFD Power Supply Plate
CFT1- CFT2 Cooling Fan Control VFD Power Supply Plate
CT1- 6 Current Transducers VFD Chassis
CPU Main Control Board Main Control Box
D1 Diode VFD Chassis
ES Switch- Ethernet Main Control Box
ELR Relay- Earth Leakage VFD Power Supply Plate
EMC EMC Filter VFD Enclosure
EXV1 Electronic Expansion Valve Liquid Line
F1- F2 Fuse- Controls Transformer, 2A 600VAC VFD Power Supply Plate
F3- F5 Fuse- IPS, 6A 600VAC VFD Power Supply Plate
F6- F7 Fuse- 150VDC to DC Power Supply, 10A 600VAC VFD Power Supply Plate
F8- F10 Fuse- Power Meter, 10A 600VAC VFD Power Supply Plate
INPUT I/O Board Main Control Box
IPS Intermediate Power Supply VFD Enclosure
L1- 3 Chopper Chokes/Inductors VFD Chassis
LCD LCD Touch Screen Monitor (OITS) Evaporator
LR Line Reactor VFD Enclosure
MCB Main Circuit Breaker VFD Enclosure
P1- P14 DC Power Distribution Terminals VFD Power Supply Plate
PM Power and Current Meter VFD Power Supply Plate
PS2- PS4 Power Supply- VFD VFD Power Supply Plate
PS5 Power Supply- Chiller I/O VFD Power Supply Plate
PS6 Power Supply- Compressor I/O VFD Power Supply Plate
PS7- PS8 Power Supply- Magnetic Bearings VFD Power Supply Plate
Q1- 3 Chopper/IGBT Driver VFD Chassis
Q4- 6 Steering Bridge IGBT VFD Chassis
R1- 4 Resistors VFD Chassis
S01 Sensor- Evaporator Entering Water Temperature Evaporator Inlet
S02 Sensor- Evaporator Leaving Water Temperature Evaporator Outlet
S04 Switch- Evaporator Entering Flow Evaporator Inlet
S05 Sensor- Condenser Entering Water Temperature Condenser Inlet
S06 Sensor- Condenser Leaving Water Temperature Condenser Outlet
S07 Sensor- Condenser Refrigerant Pressure Condenser
S08 Switch- Condenser Entering Flow Condenser Inlet
S09 Sensor- Liquid Line Temperature Liquid Line
S10 Sensor- Compressor Suction Temperature Compressor
S11 Sensor- Compressor Suction Pressure Compressor
S12 Sensor- Compressor Discharge Temperature Compressor Discharge Housing
S13 Sensor- Compressor Discharge Pressure Compressor Discharge Housing
S14 Sensor- Motor Gap Temperature Compressor
S15 Switch- High Pressure Discharge Piping
SW1 Switch- Compressor #1 Main Control Box
SW3 Switch- Remote Start/Stop Remote Mounting
SW4 Switch- Mode Remote Mounting
SW5 Switch- Unit Enable Main Control Box
TDM1- 3 Diode/Thyristor Module VFD Chassis
TS1 Thermal Switch VFD Chassis
TH1, 2 Thermistors VFD Chassis
TX2 Transformer- 480/240/120 VAC, 500A VFD Power Supply Plate
VFD1 VFD Chassis Assembly VFD Enclosure
WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 10
24
Controls
Main Control Box
Communication Card
Location
4
9
8
7
18
13
Ref. Schem.
No. Sym. Description Part No. Qty.
4 Board- Chiller I/O Backplane 300047099 1
7 CPU Board- Chiller Controller 300047102 1
N/S Connector, Chiller Controller, Beige 300048948 21
N/S Connector, Chiller Controller, Orange 300048949 4
8 Board- Digital I/O 333568101 1
9 Board- Analog Output 333568201 1
11 Board- IGV Stepper Motor 333568302 1
13 Board- Analog Input 333568401 2
18 SW5 Switch- Unit Enable 300047109 1
24 SW1 Switch- Unit and Compressor #1 300047110 2
N/S BAS BACnet MS/TP/E Installation Kit 2 332356961 1
N/S BAS Lonmark Installation Kit 2 332356952 1
N/S BAS Modbus Installation Kit 2 332356953 1
N/S= Not Shown on Diagram.
2
Includes the Communication Card and Installation Manual.
11
WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 11
Controls
VFD Enclosure
5C
5B
4
5A
1
13
8
7
10
11
6
Ref. Schem.
No. Sym. Description Part No. Qty.
3
1 Fan 120 VAC 600 CFM 300047091 2
3 VFD1 VFD Chassis Assembly- Phases 1- 3 1 300047093 1
4 Fuse 20A/1000VAC 300047094 2
5A Valve- Solenoid 331796001 2
5B Valve- Coil 120/60, 10 watt 331796051 2
5C Repair Kit- Solenoid Valve 300052079 2
6 LR Line Reactor 3PH 300047096 2
7 IPS Intermediate Power Supply 300047097 1
8 MCB CBKR Molded Case 25KAIC 600V 400A 300048927 1
CBKR Molded Case 25KAIC 600V 600A 300048929 1
CBKR Molded Case 35KAIC 480V 500A 300047098 1
CBKR Molded Case 35KAIC 600V 500A 300047071 1
CBKR Molded Case 35KAIC 600V 600A 300047100 1
CBKR Molded Case 35KAIC 600V 800A 300048924 1
CBKR Molded Case 50KAIC 600V 400A 300048928 1
CBKR Molded Case 50KAIC 600V 600A 300048930 1
CBKR Molded Case 65KAIC 600V 500A 300047088 1
CBKR Molded Case 65KAIC 600V 600A 300047108 1
CBKR Molded Case 65KAIC 600V 800A 300048925 1
CBKR Molded Case 100KAIC 480V 400A 300047069 1
CBKR Molded Case 100KAIC 480V 600A 300048923 1
CBKR Molded Case 100KAIC 480V 800A 300048926 1
10 Surge Suppressor 480V 300047076 1
11 VFD1 VFD Chassis Assembly- Phases 4- 6
1
Refer to VFD Chassis Assembly detail on the following pages.
2
This chassis is present ONLY when Code 05= M3.
3
Quantity per VFD Enclosure.
WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 12
1, 2
300048873 1
Controls
VFD Chassis- Diagrams
16
1
4
3
2
15
5
12
6
13
14
7
13
8
11
WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 13
10
15
9
Controls
VFD Chassis- Components & Compressor Wiring Harness
VFD Chassis- Components
Ref. Schem.
No. Sym. Description Part No. Qty.
1 Fuse 600A, 700V 300047092 3
2 VFD Controller Assembly 300048932 1
Backup Battery for VFD Controller 334295801 1
3 Voltage Transducer Interface Board 300048950 1
4 Link Capacitor 1200uF, 700V 300048939 3
5 Connector Interface 300048934 1
6 Q4- 6 Steering Bridge IGBT Assy. 300048937 3
7 Q1- 3 Chopper IGBT Assy. 300048936 3
8 TDM1- 3 Diode Thyristor Module 300049088 3
9 Fuse 20A, 800V 300048941 2
10 CT1- 3 Current Transducer 300048942 3
11 CT4- 6 Current Transducer 300048943 3
12 TS1 Thermal Switch 300048945 1
13 TH1, 2 Thermistor 300048944 2
14 R3, 4 Resistor 2K2, 75W 300049089 2
15 R1, 2 Resistor 150R, 250W 300048938 2
16 Wire Harness/Cable Kit 2 300055446 1
N/S L1- 3 Chopper Chokes/Inductors 300048952 3
N/S Thyristor Driver Board 300048933 1
N/S Snubber Board 300048935 1
N/S Snubber Capacitors 1uF, 1200V 300048940 6
N/S D1 Diode 300048951 1
N/S= Not Shown on Diagram.
1
Quantity PER Chassis Assembly, with the exception of chassis 300048873, which does not include Controller (Ref. #2).
2
Kit contains ribbon cables and harnesses. Connections include: Q1-J10; Q2-J11; Q3-J12; Q4-J7; Q5-J8; Q6-J9; J1-J6;
and J1-J14.
1
Compressor Wiring Harness
Part Number 331795503
Available as a complete assembly only. One per compressor.
WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 14
Controls
VFD Power Supply Plate- Diagram
21
20
19
11
22
12
7
4
8
6
9
5
13
13
14
2
3
18
17
15
14
16
WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 15
Controls
VFD Power Supply Plate- Components
Ref. Schem.
No. Sym. Description Part No. Qty. 1
2 Plate- Partition Gray 300047073 17
3 Terminal Block Gray 300047074 36
4 Terminal Block- Ground Green-Yellow 300047075 9
5 Bracket- End, Snap on 300047190 7
6 ELR Relay- Earth Leakage 300047078 1
7 CB1 Circuit Breaker- Primary 8A 300047079 1
8 CB2- 4 Circuit Breaker- 2 Fans & MCB trip 2A 300047080 3
9 Switch- Fan Failure 331578601 2
11 DC power supply +15 VDC 100 watts 300047081 1
12 DC power supply 15 VDC 25 watts 300047082 1
13 DC power supply +24 VDC 77 watts 300047083 2
14 DC power supply +24 VDC 100 watts 300047084 2
15 DC power supply +12 VDC 72 watts 300047085 1
16 DC Distribution Board 300047086 1
17 PM Monitor- Voltage, Power and Current 300047087 1
18 TX2 Transformer 480/240/120V 500VA 349939804 1
19 F1- 10 Fuse holder 300047088 7
20 F1-2, F8-10 Fuse 300047089 2
21 F3- 5 Fuse 300047090 3
22 F6-7 Fuse 300046902 2
1
Quantity per VFD Power Supply Plate.
WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 16
Loading...
