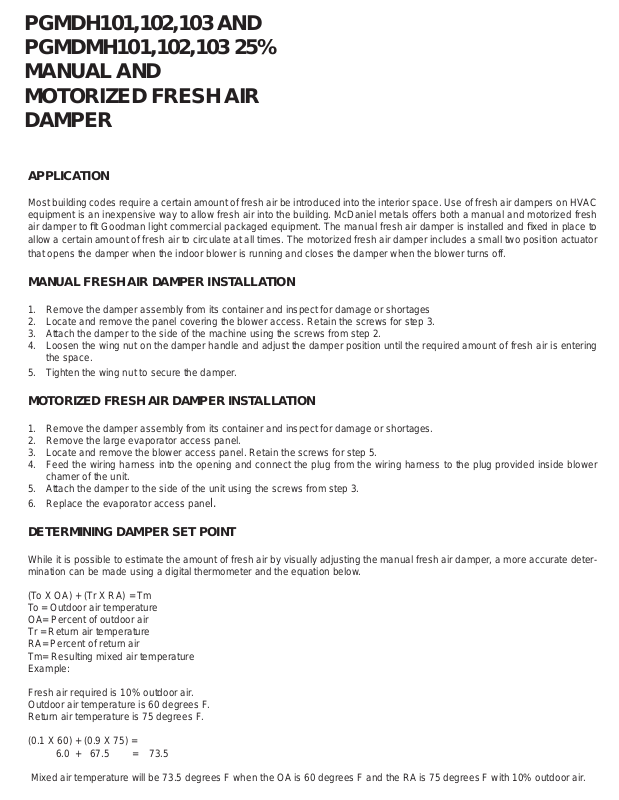

PGMDH101,102,103 AND
PGMDMH101,102,103 25%
MANUAL AND
MOTORIZED FRESH AIR
DAMPER
APPLICATION
Most building codes require a certain amount of fresh air be introduced into the interior space. Use of fresh air dampers on HV AC
equipment is an inexpensive way to allow fresh air into the building. McDaniel metals offers both a manual and motorized fresh
air damper to fi t Goodman light commercial packaged equipment. The manual fresh air damper is installed and fi xed in place to
allow a certain amount of fresh air to circulate at all times. The motorized fresh air damper includes a small two position actuator
that opens the damper when the indoor blower is running and closes the damper when the blower turns off.
MANUAL FRESH AIR DAMPER INSTALLATION
Remove the damper assembly from its container and inspect for damage or shortages1.
Locate and remove the panel covering the blower access. Retain the screws for step 3.2.
Attach the damper to the side of the machine using the screws from step 2. 3.
Loosen the wing nut on the damper handle and adjust the damper position until the required amount of fresh air is entering 4.
the space.
Tighten the wing nut to secure the damper.5.
MOTORIZED FRESH AIR DAMPER INSTALLATION
Remove the damper assembly from its container and inspect for damage or shortages.1.
Remove the large evaporator access panel.2.
Locate and remove the blower access panel. Retain the screws for step 5. 3.
Feed the wiring harness into the opening and connect the plug from the wiring harness to the plug provided inside blower 4.
chamer of the unit.
Attach the damper to the side of the unit using the screws from step 3. 5.
Replace the evaporator access pane6. l.
DETERMINING DAMPER SET POINT
While it is possible to estimate the amount of fresh air by visually adjusting the manual fresh air damper, a more accurate determination can be made using a digital thermometer and the equation below.
(To X OA) + (Tr X RA) = Tm
To = Outdoor air temperature
OA= Percent of outdoor air
Tr = Return air temperature
RA= Percent of return air
Tm= Resulting mixed air temperature
Example:
Fresh air required is 10% outdoor air.
Outdoor air temperature is 60 degrees F.
Return air temperature is 75 degrees F.
(0.1 X 60) + (0.9 X 75) =
6.0 + 67.5 = 73.5
Mixed air temperature will be 73.5 degrees F when the OA is 60 degrees F and the RA is 75 degrees F with 10% outdoor air.
