MBVC Blowers

• Refer to Service Manual RS6200007 for installation, operation, and troubleshooting information.

• All safety information must be followed as provided in the Service Manual.

• Refer to the appropriate Parts Catalog for part number information.

• Models listed on page 2.

This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman
does not assume any responsibility for property damage or personal injury due to improper
service procedures or services performed by an unqualified person.

RT6223003

September 2009

Copyright © 2009 Goodman Manufacturing Company, L.P.

PRODUCT IDENTIFICATION

The model number is used for positive identification of component parts used in manufacturing. Please use this number
when requesting service or parts information.

MBVC1200AA-1AA
MBVC1600AA-1AA
MBVC2000AA-1AA

MB V C 12 00 A A 1

DE SIGN SERIES:

MB: Modular Blower

COMMUNICATION
FEATURE:

C: 4-wire
Commun ic at ion
Ready

AIRL OW DELIVERED:

MOTOR TYPE:

V: Variable Speed

12: 1200 CFM
16: 1600 CFM
20: 2000 CFM

HIGH VOLTAGE!

WARNING

WARNING

WARNING

WARNING

arising from improper service or service procedures. If
you install or perform service on this unit, you assume
responsibility for any personal injury or property damage
which may result. Many jurisdictions require a license to
install or service heating and air conditioning equipment.

Disconnect ALL power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal
injury or death.

Goodman will not be responsible
for any injury or property damage

FACTOR Y HEAT:

00: No Heat

C IR CUI T BR E AKER:

A: No Cir c uit Brea ker

B: Circuit Breaker

WARNING

WARNING

individuals meeting the requirements of an "entry level
technician" as specified by the Air-Conditioning, Heating,
and Refrigeration Institute (AHRI). Attempting to install
or repair this unit without such background may result
in product damage, personal injury or death.

DESIGN S E R IES:

A : First Series

ELECTRICAL SUPPLY:

1: 208-230V/60HZ/1 phase

Installation and repair of this unit
should be performed

ONLY by

WARNING

WARNING

WARNING

WARNING

Serious property damage, personal injury, reduced unit
performance and/or hazardous conditions may result
from the use of such non-approved devices.

The United States Environmental Protection Agency (“EPA”) has issued various regulations re­garding the introduction and disposal of refrigerants introduced into this unit. Failure to follow
these regulations may harm the environment and can lead to the imposition of substantial fines.
These regulations may vary by jurisdiction. Should questions arise, contact your local EPA office.

Do not connect or use any device
that is not design certified by
Goodman for use with this unit.

2

WARNING

WARNING

do not store combustible materials or use gasoline or
other flammable liquids or vapors in the vicinity of this
appliance.

To prevent the risk of property
damage, personal injury, or death,

PRODUCT DESIGN

G

ENERAL INFORMATION

C

OMFORTNET

™ S

YSTEM

The MBVC Blower Cabinets are used in combination with a
cased evaporator coil for a two-piece blower and coil combi­nation. This combination of blower and coil functions as the
indoor part of a split air-conditioning system, and may be
matched with a remote condensing or heat pump unit and
allows for a variety of mix-matching possibilities.

The blower cabinet can also function as an electric furnace
when used with an electric heater.

NOTE: The electric heating elements for electric furnace
installation are not shipped with the cabinet and are field­installed. Electric heater kits (HKR) are available as sales
accessories for supplemental electric heat.

Systems should be properly sized by heat gain and loss
calculations made according to methods of the Air Condi­tioning Contractors Association (ACCA) or equivalent. It is
the contractor’s responsibility to ensure the system has ad­equate capacity to heat or cool the conditioned space.

The MBVC blower cabinet uses a variable speed motor that
maintains a constant airflow with a higher duct static. It is
approved for applications with cooling coils of up to 0.8 inches
W.C. external static pressure and includes a feature that
allows airflow to be changed to + 10%.

The MBVC blower cabinets, with proper coil matches, can
be positioned for upflow, counterflow, horizontal right or hori­zontal left operation. All units are constructed with R-4.2
insulation. In areas of extreme humidity (greater than 80%
consistently), insulate the exterior of the blower with insula­tion having a vapor barrier equivalent to ductwork insulation,
providing local codes permit.

The CAPX/CHPX coils are equipped with a thermostatic ex­pansion valve that has a built-in internal check valve for refrig­erant metering. The CACF/CAPF/CHPF coils are equipped
with a fixed restrictor orifice.

The coils are designed for upflow, counterflow, or horizontal
application, using ECM motors on the MBVC models.

FEATURES

This modular blower is a part of the ComfortNet™ family of
products. It may be installed as part of a “legacy” system
using a standard 24 VAC thermostat. However, with the
CTK01AA ComfortNet™ thermostat kit, this modular blower
may be installed as part of a digitally communicating sys­tem. The ComfortNet™ system provides automatic airflow
configuration, enhanced setup features, and enhanced diag­nostics. It also reduces the number of thermostat wires to a
maximum of four.

OVERVIEW

The ComfortNet™ system (or CT™ system) is a system that
includes a ComfortNet™ compatible modular blower and air
conditioner or heat pump with a CTK01AA thermostat. Any
other system configurations are considered invalid
ComfortNet™ systems and must be connected as a tradi­tional (or legacy) system. The table below compares the
valid CT™ systems.

CT™ compatible

Modular Blower

CT™ compatible

Modular Blower

A ComfortNet™ heating/air conditioning system differs from
a legacy/traditional system in the manner in which the indoor
unit, outdoor unit and thermostat interact with one another.
In a traditional system, the thermostat sends commands to
the indoor and outdoor units via analog 24 VAC signals. It is
a one-way communication path in that the indoor and out­door units typically do not return information to the thermo­stat.

On the other hand, the indoor unit, outdoor unit, and thermo­stat comprising a ComfortNet™ system “communicate” digi­tally with one another. It is now a two-way communications
path. The thermostat still sends commands to the indoor
and outdoor units. However, the thermostat may also re­quest and receive information from both the indoor and out­door units. This information may be displayed on the CT™
thermostat. The indoor and outdoor units also interact with
one another. The outdoor unit may send commands to or
request information from the indoor unit. This two-way digital
communications between the thermostat and subsystems
(indoor/outdoor unit) and between subsystems is the key to
unlocking the benefits and features of the ComfortNet™ sys­tem.

Two-way digital communications is accomplished using only
two wires. The thermostat and subsystem controls are pow­ered with 24 VAC Thus, a maximum of 4 wires between the
equipment and thermostat is all that is required to operate
the system.

CT™ compatible

Air Conditioner

CT™ compatible

Heat P u mp

Ful l CT™ sy stem

ben efits & features

Ful l CT™ sy stem

ben efits & features

3

MBVC BLOWER SPECIFICATIONS

C

5 1/8

3 1/4

D

(3) KNOCKOUTS

1.125

1.375

1.750

.875 KNOCKOUT

(2 PLACES)

H

W

MBVC1200/1600/2000

Physical Informa tio n

MODEL

MBVC1200 10X8 1/2 4.3 15

MBVC1600 10X8 3/4 6.3 15

MBVC2000 11X10 3/4 5.8 15

Blower W heel

(D x W)

Blow er M oto r

(HP)

MCA

1

MOP

5

6 1/2

Dimensions, inches (mm)

1

WHD

17½

(445)

21

(533)

24½

(622)

26

(660)

30

(762)

30

(762)

21

(533)

21

(533)

21

(533)

Shipping

Weight

lbs.(kg)

72

(32.6)

82

(37.2)

94

(42.6)

1

Minimum Circuit Ampacity (MCA) and Maximum Overcurrent Protection (MOP) for blower without supplemental heat
installed. Refer to unit nameplate for MCA and MOP with approved accessory heaters installed.

4

MBVC BLOWER SPECIFICATIONS

g

S

M

A

L

L

M

E

D

I

U

M

L

A

R

G

E

13-1/4”

23-1/2”

11-5/16”

11”

20-1/16”

11-5/16”

10-7/8”

16-1/2”

10-1/4”

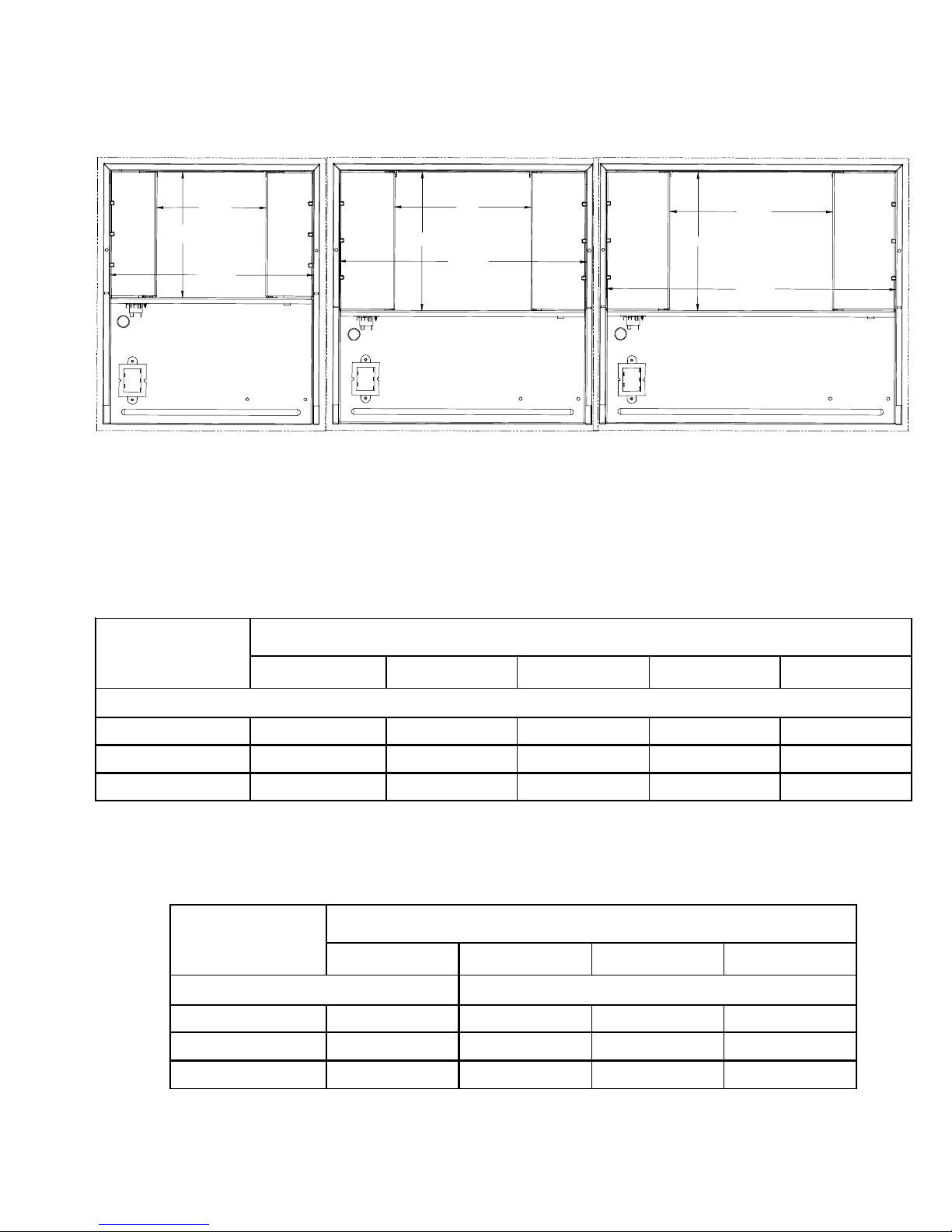

BLOWER OPENING DIMENSIONS

(TOP VIEW)

MBVC1200/1600/2000

HKR HEA TER DA T A

BLOWER

NO HEAT KIT HKR-03* HKR05-(C)* HKR-06* HKR-08(C)*

MBVC

1200AA-1AA X X X X X
1600AA-1AA X X X X X
2000AA-1AA X X X X X

^ = Circuit 1: Single Phase for Air Handler Motor * = Revision level that my or may not be designated
Circuit 2: 3-Phase for HKR3 Heater Kits C = Circuit Breaker option

X = Allowable combinations
~ = Restricted combinations

BLOWER

HKR-10(C)* HKR-15C* HKR-20C* HKR-21C*

MBVC

1200AA-1AA X X ~ ~
1600AA-1AA X X ~ ~
2000AA-1AA X X X ~

HEATER KIT

H EAT ER KIT

^ = Circuit 1: Single Phase for Air Handler Motor * = Revision level that my or may not be desi
Circuit 2: 3-Phase for HKR3 Heater Kits C = Circuit Breaker option

X = Allowable combinations
~ = Restricted combinations

5

BLOWER PERFORMANCE DATA

MBVC1200

MBVC1600

MBVC2000

HTR kW MB VC1200* MBV C1600* MBVC200 0*

SWITCH9SWITCH10SWITCH

3600800800ONONON
5600800800
6635800800

8 740 1000 1000
10 1000 1000 1200
15 1400 1500 1500

ON ON OFF
ON OFF ON

ON OFF OFF
OFF ON ON
OFF ON OFF

20 NR NR 2000 OFF OFF ON
21 NR NR NR ON^ ON^ ON^

^ Factory setting

LOW STAGE

COOL

HIGH STAGE

COOL

COOL SELECTION

SWITCHESMODEL

ADJU ST SELECT ION

SWITCHES

1234 5 6

40 0 600 OFF OFF OFF OFF OFF OFF
540 800 ON
670 1000 O FF

800 1200 ON
670 1000 O FF

OFF

ON
ON

OFF

ON

OFF

ON

OFF

OFF

ON
ON

OFF
800 1200 ON OFF ON OFF ON OFF
940 1400 OFF ON OFF ON OFF ON

1070 1600 ON ON ON ON ON ON

800 1200 O FF

1070 1600 ON
1200 1800 OFF

OFF
OFF

ON

OFF

ON

OFF

OFF

OFF

ON

1340 2000 ON ON ON ON ON ON

11

PR OF IL E SELECT ION

SWITCHES

ON

OFF

ON

OFF

OFF

ON

OFF

OFF

ON
ON

OFF

OFF
OFF

ON

Locate the blower speed selection DIP switches on the integrated control module. Select the desired
“cooling” speed tap by positioning switches 1 and 2 appropriately. Select the desired “adjust” tap by
positioning switches 3 and 4 appropriately. Refer to the following figure for switch positions and their
corresponding taps. Verify CFM by counting the number of times the green CFM LED blinks.

Normal* +10%

OFF OFF OFF OFFON ON ON ON

3
4

Air flow Adjust Taps (*indicates factory setting)

3
4

-10% Normal

3
4

3
4

Thermostat "Fan Only" Mode

During "Fan Only" operations, the CFM output is 30% of the maximum CFM capability.

CFM Trim Adjust

Minor adjustments can be made through the dipswitch combination of 3-4.

6

WIRING DIAGRAMS

THERMOSTATS

HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

Typical Two-Stage Cool, Two-Stage Heat

Y2

Y1

O

12RC

R

C

G

W1 W2

W1 W2 Y1 Y2

G

*

C

R

Remote Co nd en sing Unit

(T wo- St age A C)

Typical Two-Stage Cooling with Two-Stage Heating

Y1 Y2

Thermostat

DEHUM

Modular Blower

Integrated C ontrol Mo dule

NEU

HOT

Dehumidistat

[Optional]

EMR

W2

O

Y2

Y1

Typical Two-Stage Cool,

Two-Stage Heat

Heat Pump Thermostat

R

C

G

Modular Blower

12RC

W1 W2 Y1 Y2

G

O

DEHUM

Integrated Co ntrol Module

*

C

R

W1

Y1 Y2

O

Remote Condensing Unit

(Two-Stage HP)

Typical Two Stage Heat Pump heating and Auxiliary/Emergency Heating

NEU

HOT

Dehumidistat

[Optional]

Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.

7

WIRING DIAGRAMS

HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

FL

TL

HTR1

FL

TL

HTR2

FL

TL

HTR3

FL

TL

HTR4

PU

BL

RD

BK

M3

M1

YL

M2

RD

M4

R1

BK

BK

RD

YL

BL

BK

RD

FOUR (4) ELEMENT ROWS

L2

L1

L2

L1

GND

INDOOR

AIR

CIRCULATOR

BLWR

208/230 VAC

40 VA
TRANSFORMER

24 VAC

HEAT SEQUENCER R1

HEAT SEQUENCER R2

BK

RD

YL

BL

BK

BL

RD

M7

M5

BL

M6

M8

R2

BR

WH

L2

GND

INDOOR

AIR

CIRCULATOR

BLWR

PLM

1

2

3

4

5

6

7

8

9

COM

2

CFM LED

SEE NOTE 6

RD

BK

RD

L1

1

COOL

STATUS

LED

1

FL

TL

HTR2

FL

TL

HTR1

BK

M1

M3

R

M4

M2

RD

BK

BK

RD

L2

TWO (2) ELEMENT ROWS

RD

24 VAC

BL

SEE
NOTE 5

ADJUST

DELAY

UNUSED

DEHUM

DIP SWITCHES

TERM

BIAS

BIAS

CIRCULATOR BLOWER

3

24

1
2

3
4
5

RD

PU

BL

WH

ELEC

RX LED

FL

HTR1

TL

FL

PLM

BK

1

2

RD

3

4

5

6

7

8

9

FL

YL

RD

BK

L1

L2

L1

BK

TL

RD

HTR2

TL

HTR3

YL

RD

PU

BK

BL

M3

M1

M1

M2

M4

M2

R1

R2

BK

RD

YL

BK

RD

L2

THREE (3) ELEMENT ROWS

PLM

BK

1

2

3

RD

BL

4

BR

5

WH

6

7

8

9

L1

GND

GN

BL

RD

TR

TH

DISCONNECT

COM

FUSE

24 V
3 A

DEHUM

24 V THERMOSTAT CONNECTIONS

O

HEAT

AF

Y2
Y1

W2

W1

G

C
R
2
1

GND

GN

RD

BK

24V THERMOSTAT CONNECTIONS

R

W1

W2

Y1

Y2

G

O

DEHUM

C

L1

FUSE 3 A

TO

MICRO

TH

W1 (1)

W2 (2)

+VDC (1)

RX (2)

TX (3)

GND (4)

TR

COM

INTEGRATED CONTROL MODULE

FL

TL

HTR1

BK

BK

RD

BK

M1

R

M2

BK

BK

L2

L1

NOTE: WHEN INSTALLING HEATER KIT, ENSURE SPEED TAP DOES NOT EXCEED MINIMUM BLOWER SPEE D (MBS) SPECIFIED FOR THE AIRHANDLER/HEATER

KIT COMBINATION ON THIS UNIT'S S&R PLATE. AFTER INSTALLING OPTIONAL HEAT KIT, MARK AN "X" IN THE PROVIDED ABOVE.
MARK ACCORDING TO NUMBER OF HEATER ELEMENT ROWS INSTALLED. NO MARK INDICATES NO HEAT KIT INSTALLED.

PL2

PL1

2

2

3

3

1

1

6

6
5

5

4

4
7

7

8

8

9

9

SEE

NOTE

-

B

7

K

R
D

PU

BL

WH

RD

ONE (1 ) E L E M E NT RO WS

40 VA TRANSFORMER, SEE NOTE 1

RD

RD

BK

BK

WH

BR

BL

4

4 CIRCUIT HEATER

CONNECTOR

DIAGNOSTIC

LED

1

2

3

4

230 VAC

208 VAC

3

LEARN

TWO-STAGE INTEGRATED CONTROL MODULE

BL

GY

BK

ECM MOTOR

HARNESS

PLM

L2

GND

1

2

3

4
5

6

7

8

9

NOTES:

1. PLACE RED WIRE ON TRANSFORMER TERMINAL 2 FOR 208 VAC
OPERATION.

2. MANUFACTURER'S SPECIFIED REPLACEMENT PARTS MUST BE USED
WHEN SERVICING.

3. IF ANY OF THE ORIGINAL WIRE AS SUPPLIED WITH THE BLOWER MUST
BE REPLACED, IT MUST BE REPLACED WITH WIRING MATERIAL HAVING A
TEMPERATURE RATING OF AT LEAST 105°C. USE COPPER CONDUCTORS
ONLY.

4. UNIT MUST BE PE RMANENTLY GROUN DE D AND CONFORM TO N.E.C. AND
LOCAL CODES.

5. TO RECALL THE LAST 6 FAULTS, MOST RECENT TO LEAST RECENT,
DEPRESS SWITCH FOR MORE THAN 2 SECONDS WHILE IN STANDBY (N
THERMOSTAT INPUTS).

6. BIAS AN D TERM DIPSWIT C H ES MUST BE IN "ON" POSITION. RED
STATUS LED PROVIDES NETWORK STATUS. GREEN R X LED INDICATES
NETWORK TRAFFIC. USE LEARN BUTTON TO RESET NETWORK.

7. DISCARD CONN ECT O R P L 1 WHEN INS TALLING OPTIONAL HE AT KIT.

0140A00039 REV. A

Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.

8

COLOR CODES:

PK PINK

BR BROWN
WH WHITE

BL BLUE

GY GRAY

RD RED

YL YELLOW

OR ORANGE

VT VIOLET

GN GREEN

BK BLACK

LOW VOLTAGE (24V)

LOW VOLTA GE FIEL D

HI VOLTAGE (230V)

HI VOLTAGE FIELD

JUNCTION
TERMINAL

INTERNAL TO

INTEGRATED CONTRO L

EQUIPMENT GND

FIELD GND

FIELD SPLICE

RESISTER

OVERCURRENT

PROT. DEVICE

PLUG CONNECTION
