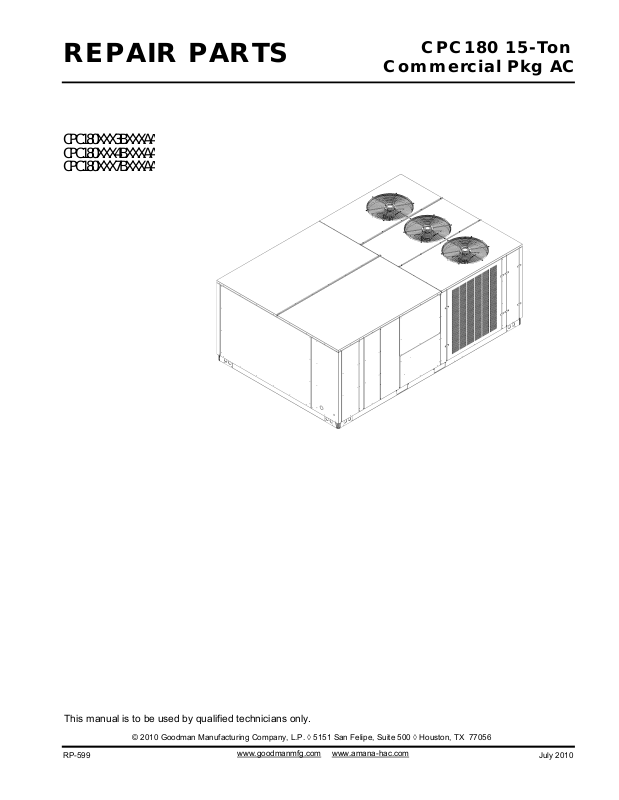

REPAIR PARTS
A
A
A
CPC180 15-Ton
Commercial Pkg AC
This manual is to be used by qualified technicians only.
© 2010 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056
RP-599
www.goodmanmfg.com www.amana-hac.com
July 2010
Important Information Index
Functional Parts List
Illustration and Parts
Views shown are for parts illustrations only, not servicing procedures.
Text Codes:
AR - As Required NA - Not Available NS - Not Shown 00000000 - See Note QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1) M - Model Example (M1) (If M Code not shown, then part is used on all Models)
Expanded Model Nomenclature:
Example M1 - Model#1 M2 - Model#2 M3 - Model#3
...................................................................................................
...................................................................................................
3
4 - 19
Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from improper service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is required after the warranty expires, Goodman Manufacturing Company, L.P. also recommends contacting an authorized technician and using authorized factory parts.
Goodman Manufacturing Company, L.P. reserves the right to discontinue, or change at any time, specifications or designs without notice or without incurring obligations.
For assistance within the U.S.A. contact: Consumer Affairs Department
Goodman Manufacturing Company, L.P. 7401 Security Way Houston, Texas 77040 877-254-4729-Telephone 713-863-2382-Facsimile
2
www.goodmanmfg.com www.amana-hac.com
For assistance outside the U.S.A. contact:
International Division
International Division Goodman Manufacturing Company, L.P.
Goodman Company, L.P. 7401 Security Way
7401 Security Way Houston, Texas 77040
Houston, Texas 77040 713-861-2500-Telephone
713-861-2500-Telephone 713-863-2382-Facsimile
713-863-2382-Facsimile
RP-599

Functional Parts

Part No:
0130M00025S 24V RELAY (QTY 2) B3240004 BELT DRIVE MOTOR 2 HP (M1, M2) 0131L00006 BELT DRIVE MOTOR 3 HP 575 V (M3) PCBFM131 BOARD, ELECTRONIC BLOWER TIME DELAY
CAP050000370VAS CAPACITOR 5/370V (QTY 3) ZP83KCETF5250 COMP, 83000, 200/230/60/3 (M1) ZP83KCETFD130 COMP, 83000, 460/60/3 (M2) ZP83KCETFE130 COMP, 83000, 575/60/3 (M3) ZP90KCETF5155 COMP, 90,500, 200/230/60/3 (M1) ZP90KCETFD155 COMP, 90,500, 460/60/3 (M2) ZP90KCETFE155 COMP, 90,500, 575/60/3 (M3) 0231L00018 CONDENSER MOTOR, 1/3 HP, 460V (M2) 0231L00019 CONDENSER MOTOR, 1/3 HP, 575V (M3) 0231L00017 CONDENSER MOTOR, 1/3HP,1SP, 6PL (M1) CONT3P030024VS CONTACTOR 30 AMP, 3P, 24V (M2, M3) CONT3P040024VS CONTACTOR 40 AMP, 3P, 24V (M1) 0130L00017 CRANK CASE HEATER, 70W, 240V (M1) 0130L00018 CRANK CASE HEATER, 70W, 480V (M2) 0130L00019 CRANK CASE HEATER, 70W, 575V (M3) 0130L00020 CRANK CASE HEATER, 90W, 240V (M1) 0130L00021 CRANK CASE HEATER, 90W, 480V (M2) 0130L00022 CRANK CASE HEATER, 90W, 575V (M3) 0164L00006 FAN BELT, NOTCHED 10625733S FAN BLADE 22" ALUM CCW (QTY 3) 0130M00074 HIGH PRESSURE SWITCH C1 0130M00074 HIGH PRESSURE SWITCH C2 0130M00087 LOW PRESSURE SWITCH C1 0130M00087 LOW PRESSURE SWITCH C2 16330-3S POWER BLOC K 0163L00055 SHEAVE-FIXED B1368250 TERMINAL BLOCK (HIGH VOLTAGE) 0130M00038S TERMINAL BOARD B1141672 TRANSFORMER 480V, 75VA, RESETTABLE
0130M00045S TRANSFORMER 575/24V (M3) 0151L00004S VALVE, TXV R-410A (QTY 2) B2120013 VARIABLE PITCH SHEAVE 1VP50 03-77419 WHEEL (QTY 2)
Description:
RELAY
(M1, M2 )
Expanded Model Nomenclature
M1 - CPC180XXX3B XXXAA M2 - CPC180XXX4B XXXAA M3 - CPC180XXX7B XXXAA
SPECIAL PARTS
IO-367B INSTALLATION INSTRUCTIONS
RP-599
www.goodmanmfg.com
www.amana-hac.com
3
Cabinet Assembly
4
www.goodmanmfg.com
www.amana-hac.com
RP-599
Cabinet Assembly
Ref.
Part
No:
No:
Image 1:
Expanded Model Nomenclature
M1 - CPC180XXX3BXXXAA M2 - CPC180XXX4BXXXAA M3 - CPC180XXX7BXXXAA
Description:
CORNER POST (QTY 2)0121L00440DG11 INSULATED RETURN CORNER PANEL 0270L0019621 INSULATION ACCESSORY POST ASSY 0270L00219S51 INSULATED FILTER POS T ASS Y 0270L0020561 INSULATED BLOWER POST ASSY 0270L0025871 PARTITON POST, EVAP SIDE 0121L00678DG81 PARTITION POST 0121L00709DG91 INSULATED BLOWER DOOR ASSY 0270L00194121 INSULATED ACCESSORY PA NEL ASSY 0270L00250131 CONTROL DOOR 0121L00687DG141 INSULATED FILTER DOOR ASSY 0270L00198151 CONDENSER CORNER PANEL (QTY 2)0121L00599DG161 FILTER DOOR POST (QTY 3)0121L00445DG171 LOUVER PANEL (QTY 4)0121L00537DG181 INSULATED BLOWER DOOR ASSY, HT SIDE 0270L00259191 INSULATION ELEC HT DOOR ASSY 0270L00257201 DOOR TURNBUCKLE (QTY 24)0121L00476DG221 CONDENSER POST BRACKET, CENTER 0121L00580231 SCREW-MACH (QTY 24)M0204317NS
Ref. No:
Part No:
Description:
RP-599
www.goodmanmfg.com
www.amana-hac.com
5
Top Panel Assembly
6
www.goodmanmfg.com
www.amana-hac.com
RP-599
Top Panel Assembly
Ref.
Part
No:
No:
Image 1:
Expanded Model Nomenclature
M1 - CPC180XXX3BXXXAA M2 - CPC180XXX4BXXXAA M3 - CPC180XXX7BXXXAA
Description:
CONDENSER TOP, CONTROL SIDE 0121L00636DG11 CONDENSER TOP, CENTER 0121L00638DG21 CONDENSER TOP, EVAP SIDE 0121L00637DG31 FAN GRILLE (QTY 3)0152G00002S41 PVC CONDUIT 8.25" (QTY 3)17788000083F51 VENTURI RING 22" (QTY 3)0161L0000061 FAN BLADE 22" ALUM CCW (QTY 3)10625733S71 ACORN NUT 5/16 HEX BLACK (QTY 12)0163M00006P81 SCREW #10X3/4", BLACK (QTY 24)0163M00004101 CONDENSER MOTOR, 1/3 HP, 460V (M2)0231L00018131 CONDENSER MOTOR, 1/3 HP, 575V (M3)0231L00019131 CONDENSER MOTOR, 1/3HP,1SP, 6PL (M1)0231L00017131 INSULATED TOP ASSY, CONTROL SIDE 0270L00193211 INSULATED TOP ASSY, EVAP SIDE 0270L00210221
Ref. No:
Part No:
Description:
RP-599
www.goodmanmfg.com
www.amana-hac.com
7
Partition Assembly
8
www.goodmanmfg.com
www.amana-hac.com
RP-599
Partition Assembly
Ref.
Part
No:
No:
Image 1:
Expanded Model Nomenclature
M1 - CPC180XXX3BXXXAA M2 - CPC180XXX4BXXXAA M3 - CPC180XXX7BXXXAA
Description:
BLOWER DECK SIDE, DUCT END 0121L0060331 BLOWER DECK SIDE, HT END 0121L0068441 BLOWER DECK, EVAP SIDE 0121L0065251 BLOWER DECK, MOTOR SIDE 0121L0065361 MOTOR MOUNT ANGLE (QTY 3)0121L0071471 BLOWER DECK RAIL (QTY 2)0121L0047891 DRAIN PAN 0270L00226DG101 BRACKET-COND/BASEPAN (QTY 2)0121L00581121 ELECTRIC HEAT MOUNTING PLATE 0121L00591131 ELECTRIC HEAT SUPPORT 0121L00592141 FLUE HOLE COVER 0121L00593151 BLOWER RAIL (QTY 2)0121L00481161 BLOWOFF SHIELD 0121L00618311 CONDENSER BRACE, C1 0121L00623331 PARTITION PANEL 0121L00427371 CONDENSER BRACE, C2 0121L00624NS
Ref. No:
Part No:
Description:
RP-599
www.goodmanmfg.com
www.amana-hac.com
9
Basepan / Compressor / Tubing Assembly
10
www.goodmanmfg.com
www.amana-hac.com
RP-599
Basepan / Compressor / Tubing Assembly
Ref.
Part
No:
No:
Image 1:
NS
Image 2:
Image 3:
Description:
BASEPAN WELDMENT, RETURN SIDE 0270L0018921 HIGH PRESSURE SWITCH C1 0130M0007441 HIGH PRESSURE SWITCH C2 0130M0007441 LOW PRESSURE SWITCH C1 0130M0008751 LOW PRESSURE SWITCH C2 0130M0008751 BI-FLOW FILTER DRIER (QTY 2)0151M0001261 VALVE, TXV R-410A (QTY 2)0151L00004S71 COMP, 83000, 200/230/60/3 (M1)ZP83KCETF525081 COMP, 83000, 460/60/3 (M2)ZP83KCETFD13081 COMP, 83000, 575/60/3 (M3)ZP83KCETFE13081 COMP, 90,500, 200/230/60/3 (M1)ZP90KCETF515591 COMP, 90,500, 460/60/3 (M2)ZP90KCETFD15591 COMP, 90,500, 575/60/3 (M3)ZP90KCETFE15591 BASEBAN WELDMENT, OUTDOOR SIDE 0270L00208111 FORK BOARD PLATE 0121L00605121 SIDE RAIL 0121L00720131 BASE RAIL, CONDENSER END (QTY 2)0121L00721141 SUPPLY SIDE BASE PAN 0121L00676151 BASE RAIL, ACCESSORY END 0121L00722171 COMPRESSOR RAIL BRACKET (QTY 4)0121L00625181 CONTROL SIDE BASE RAIL 0121L00719191 FORK BOARD (QTY 2)0141L00029211 FORK BOARD BRACKET (QTY 4)0121L00724231 CAP W/O-RING (QTY 4)B9102097NS COMPRESSOR SCROLL HARNESS (M1)0159L00020NS COMPRESSOR SCROLL HARNESS (M2, M3)0159L00035NS COMPRESSOR SCROLL HARNESS (M1)0159L00039NS COMPRESSOR SCROLL HARNESS (M2, M3)0159L00045NS CRANK CASE HEATER, 70W, 240V (M1)0130L00017NS CRANK CASE HEATER, 70W, 480V (M2)0130L00018NS CRANK CASE HEATER, 70W, 575V (M3)0130L00019NS CRANK CASE HEATER, 90W, 240V (M1)0130L00020NS CRANK CASE HEATER, 90W, 480V (M2)0130L00021NS CRANK CASE HEATER, 90W, 575V (M3)0130L00022
COMPRESSOR GROMMET (QTY 8)0164M0001822 COMPRESSOR BOLT & SLEE VE (QTY 8)B139374032
RAIL BRACE ANGLE, RIGHT (QTY 4)0121L00616353 RAIL BRACE ANGLE, LEFT (QTY 4)0121L00617363 BASE RAIL CORNER BRACE (QTY 4)0121L00723373
Ref. No:
Expanded Model Nomencla t u r e
M1 - CPC180XXX3BXXXAA M2 - CPC180XXX4BXXXAA M3 - CPC180XXX7BXXXAA
Part No:
Description:
RP-599
www.goodmanmfg.com
www.amana-hac.com
11
Condenser Assembly
12
www.goodmanmfg.com
www.amana-hac.com
RP-599
Condenser Assembly
Ref.
Part
No:
No:
Image 1:
Expanded Model Nomenclature
M1 - CPC180XXX3BXXXAA M2 - CPC180XXX4BXXXAA M3 - CPC180XXX7BXXXAA
Description:
CONDENSER END COVER (QTY 2)0121L0061911 CONDENSER COIL ASSY C1 0201L0009121 CONDENSER COIL ASSY C2 0201L0009431 CONDENSER END BRACKET 0121L0057341 CONDENSER END BRACKET 0121L0057451 CONDENSER BLOCKOFF, INSIDE TOP 0121L0057261 CONDENSER POST BRACKET 0121L0057971 CONDENSER POST BRACKET 0121L0057581 CONDENSER TOP BRACE (QTY 2)0121L00620101
Ref. No:
Part No:
Description:
RP-599
www.goodmanmfg.com
www.amana-hac.com
13
Evaporator Assembly
14
www.goodmanmfg.com
www.amana-hac.com
RP-599
Evaporator Assembly
Ref.
Part
No:
No:
Image 1:
Expanded Model Nomenclature
M1 - CPC180XXX3BXXXAA M2 - CPC180XXX4BXXXAA M3 - CPC180XXX7BXXXAA
Description:
EVAPORATOR COIL ASSY (QTY 2)0202L0004711 EVAPORATOR BLOCKOFF PANEL 0121L0069821 EVAPORATOR PANEL 0121L0069931 VERTICAL FILTER ANGLE, LEFT 0121L0070051 TOP FILTER RACK 0121L0062961 BOTTOM FILTER RACK 0121L0070171 CENTER FILTER RACK 0270L00230101 FILTER SUPPORT ANGLE 0121L00632111 TOP ANGLE BRACKET 0121L00634121 TOP SLIDER 0270L00231131 CENTER SLIDER 0270L00232141 BOTTOM SLIDER 0270L00233151 FILTER PULL (QTY 2)0121L00640171 RIGHT SIDE BLOCKOFF, FILTER RACK 0121L00702191 BOTTOM BLOCKOFF, FILTER RACK 0121L00703NS FILTER 20 X 25 X 2 (QTY 6)B1369611NS
Ref. No:
Part No:
Description:
RP-599
www.goodmanmfg.com
www.amana-hac.com
15
Blower Assembly
16
www.goodmanmfg.com
www.amana-hac.com
RP-599
Blower Assembly
Ref.
Part
No:
No:
Image 1:
Image 2:
Expanded Model Nomenclature
M1 - CPC180XXX3BXXXAA M2 - CPC180XXX4BXXXAA M3 - CPC180XXX7BXXXAA
Description:
BELT DRIVE MOTOR 2 HP (M1, M2)B324000411 BELT DRIVE MOTOR 3 HP 575 V (M3)0131L0000611 VARIABLE PITCH SHEAVE 1VP50 B212001331 SHEAVE-FIXED 0163L0005541 FAN BELT, NOTCHED 0164L0000651 MOTOR BASE PLATE 0121L0067261 BLOWER SIDE ANGLE (QTY 4)0121L0048271 BLOWER RAIL (QTY 2)0121L0065481 HOUSING ASSY (QTY 2)04-01543241 SHAFT 04-11555251 BEARING & FRAME ASSY (QTY 2)04-02198261 WHEEL (QTY 2)03-77419271
MOTOR ADJUST BRACKET 0121L0055792 HOOKED BOLT 0163L00034102
Ref. No:
Part No:
Description:
RP-599
www.goodmanmfg.com
www.amana-hac.com
17
Control Assembly
18
www.goodmanmfg.com
www.amana-hac.com
RP-599
Control Assembly
Ref.
Part
No:
No:
Image 1:
B114167241
PCBFM13151
Image 2:
Expanded Model Nomenclature
M1 - CPC180XXX3BXXXAA M2 - CPC180XXX4BXXXAA M3 - CPC180XXX7BXXXAA
Description:
CONTACTOR 30 AMP, 3P, 24V (M2, M3)CONT3P030024VS21 CONTACTOR 40 AMP, 3P, 24V (M1)CONT3P040024VS21 TRANSFORMER 480V, 75VA, RESETTABLE (M1,
M2) TRANSFORMER 575/24V (M3)0130M00045S41 BOARD, ELECTRONIC BLOWER TIME DELAY
RELAY TERMINAL BOARD 0130M00038S61 POWER BLOCK 16330-3S81 24V RELAY (QTY 2)0130M00025S381 HARNESS JUMPER LONG 0159L00052NS HARNESS, CONTROL AC 0259L00106NS HARNESS, ECONOMIZER AC 0259L00105NS HARNESS, E-HEAT 0259L00107NS HARNESS, JUMPER SHORT 0159L00051NS MOTOR HARNESS-BELT DRIVE 0259L00101NS
CAPACITOR MOUNTING PLATE 0121L00585112 CAPACITOR 5/370V (QTY 3)CAP050000370VAS132 TERMINAL BLOCK (HIGH VOLTAGE) B1368250142 CAPACITOR COVER 0121L00586NS CAPACITOR STRAP (QTY 3)20520901NS CONDENSER FAN HARNESS, LONG 0259L00118NS CONDENSER FAN HARNESS, MEDIUM 0259L00117NS CONDENSER FAN HARNESS, SHORT 0259L00116NS
Ref. No:
Part No:
Description:
RP-599
www.goodmanmfg.com
www.amana-hac.com
19
THIS PAGE INTENTIONALLY LEFT BLANK
20 RP-599
REPAIR PARTS
A
A
A
CPC240 20-Ton
Commerical Pkg AC
This manual is to be used by qualified technicians only.
© 2010 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056
RP-618
www.goodmanmfg.com www.amana-hac.com
May 2010
Important Information Index
Functional Parts List
Illustration and Parts
Views shown are for parts illustrations only, not servicing procedures.
Text Codes:
AR - As Required NA - Not Available NS - Not Shown 00000000 - See Note QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1) M - Model Example (M1) (If M Code not shown, then part is used on all Models)
Expanded Model Nomenclature:
Example M1 - Model#1 M2 - Model#2 M3 - Model#3
...................................................................................................
...................................................................................................
3
4 - 19
Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from improper service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is required after the warranty expires, Goodman Manufacturing Company, L.P. also recommends contacting an authorized technician and using authorized factory parts.
Goodman Manufacturing Company, L.P. reserves the right to discontinue, or change at any time, specifications or designs without notice or without incurring obligations.
For assistance within the U.S.A. contact: Consumer Affairs Department
Goodman Manufacturing Company, L.P. 7401 Security Way Houston, Texas 77040 877-254-4729-Telephone 713-863-2382-Facsimile
2
www.goodmanmfg.com www.amana-hac.com
For assistance outside the U.S.A. contact:
International Division
International Division Goodman Manufacturing Company, L.P.
Goodman Company, L.P. 7401 Security Way
7401 Security Way Houston, Texas 77040
Houston, Texas 77040 713-861-2500-Telephone
713-861-2500-Telephone 713-863-2382-Facsimile
713-863-2382-Facsimile
RP-618

Functional Parts

Part No:
0130M00025S 24V RELAY (QTY 2) PCBFM131 BOARD, ELECTRONIC BLOWER TIME DELAY
CAP050000370VAS CAPACITOR 5/370V (QTY 3) ZP120KCETFE155 COMPRESSOR 121,000, 575/60/3 (M3) ZP120KCETF5250 COMPRESSOR 123,000, 200/230/60/3 (M1) ZP120KCETFD155 COMPRESSOR 123,000, 460/60/3 (M2) 0231L00018 CONDENSER MOTOR, 1/3 HP, 460V (M2) 0231L00019 CONDENSER MOTOR, 1/3 HP, 575V (M3) 0231L00017 CONDENSER MOTOR, 1/3HP,1SP, 6PL (M1) CONT3P050024V CONT, 3 POLE, 50 AMP, 24 VAC (M1) CONT3P030024VS CONTACTOR 30 AMP, 3P, 24V 0130L00020 CRANK CASE HEATER, 90W, 240V (M1) 0130L00021 CRANK CASE HEATER, 90W, 480V (M2) 0130L00022 CRANK CASE HEATER, 90W, 575V (M3) 10625733S FAN BLADE 22" ALUM CCW (QTY 3) 0163L00036 FIXED SHEAVE 0130M00074 HIGH PRESSURE SWITCH C1 0130M00074 HIGH PRESSURE SWITCH C2 0130M00087 LOW PRESSURE SWITCH C1 0130M00087 LOW PRESSURE SWITCH C2 B3240005 MOTOR, 5 HP, 230 & 460V, 3P (M1, M2) 0131L00007 MOTOR-5 HP BELT DRIVE 575V 3P (M3) 16330-3S POWER BLOC K B1368250 TERMINAL BLOCK (HIGH VOLTAGE) 0130M00038S TERMINAL BOARD B1141672 TRANSFORMER 480V, 75VA, RESETTABLE
0130M00045S TRANSFORMER 575/24V (M3) 0151L00004S VALVE, TXV R-410A (QTY 4) 0163L00037 VARIABLE PITCH SHEAVE 01-78499 WHEEL (QTY 2)
Description:
RELAY
(M1, M2 )
SPECIAL PARTS
IO-367 INSTALLATION INSTRUCTIONS
Expanded Model Nomenclature
M1 - CPC240XXX3BXXX AA M2 - CPC240XXX4BXXX AA M3 - CPC240XXX7BXXX AA
RP-618
www.goodmanmfg.com
www.amana-hac.com
3
Cabinet Assembly
4
www.goodmanmfg.com
www.amana-hac.com
RP-618
Cabinet Assembly
Ref.
Part
No:
No:
Image 1:
Expanded Model Nomenclature
M1 - CPC240XXX3BXXXAA M2 - CPC240XXX4BXXXAA M3 - CPC240XXX7BXXXAA
Description:
CORNER POST (QTY 2)0121L00440DG11 INSULATED RETURN CORNER PANEL 0270L0019621 INSULATED ACCESSORY PO ST ASSY 0270L0021951 INSULATED FILTER POS T ASS Y 0270L0020561 INSULATED BLOWER POST ASSY 0270L0025871 PARTITON POST, EVAP SIDE 0121L00678DG81 PARTITION POST 0121L00709DG91 INSULATED BLOWER DOOR ASSY 0270L00194121 INSULATED ACCESSORY PA NEL ASSY 0270L00250131 CONTROL DOOR 0121L00687DG141 INSULATED FILTER DOOR ASSY 0270L00198151 CONDENSER CORNER PANEL (QTY 2)0121L00599DG161 FILTER DOOR POST (QTY 3)0121L00445DG171 LOUVER PANEL (QTY 4)0121L00537DG181 INSULATED BLOWER DOOR ASSY, HT SIDE 0270L00259191 INSULATION ELEC HT DOOR ASSY 0270L00257201 DOOR TURNBUCKLE (QTY 24)0121L00476DG221 CONDENSER POST BRACKET, CENTER 0121L00580231 SCREW-MACH (QTY 24)M0204317NS
Ref. No:
Part No:
Description:
RP-618
www.goodmanmfg.com
www.amana-hac.com
5
Top Panel Assembly
6
www.goodmanmfg.com
www.amana-hac.com
RP-618
Top Panel Assembly
Ref.
Part
No:
No:
Image 1:
Expanded Model Nomenclature
M1 - CPC240XXX3BXXXAA M2 - CPC240XXX4BXXXAA M3 - CPC240XXX7BXXXAA
Description:
CONDENSER TOP, CONTROL SIDE 0121L00636DG11 CONDENSER TOP, CENTER 0121L00638DG21 CONDENSER TOP, EVAP SIDE 0121L00637DG31 FAN GRILLE (QTY 3)0152G00002S41 PVC CONDUIT 8.25" (QTY 3)17788000083F51 VENTURI RING 22" (QTY 3)0161L0000061 FAN BLADE 22" ALUM CCW (QTY 3)10625733S71 ACORN NUT 5/16 HEX BLACK (QTY 12)0163M00006P81 SCREW #10X3/4", BLACK (QTY 24)0163M00004101 CONDENSER MOTOR, 1/3 HP, 460V (M2)0231L00018131 CONDENSER MOTOR, 1/3 HP, 575V (M3)0231L00019131 CONDENSER MOTOR, 1/3HP,1SP, 6PL (M1)0231L00017131 INSULATED TOP ASSY, CONTROL SIDE 0270L00193211 INSULATED TOP ASSY, EVAP SIDE 0270L00210221
Ref. No:
Part No:
Description:
RP-618
www.goodmanmfg.com
www.amana-hac.com
7
Partition Assembly
8
www.goodmanmfg.com
www.amana-hac.com
RP-618
Partition Assembly
Ref.
Part
No:
No:
Image 1:
Expanded Model Nomenclature
M1 - CPC240XXX3BXXXAA M2 - CPC240XXX4BXXXAA M3 - CPC240XXX7BXXXAA
Description:
BLOWER DECK SIDE, DUCT END 0121L0060331 BLOWER DECK SIDE, HT END 0121L0068441 BLOWER DECK, EVAP SIDE 0121L0068251 BLOWER DECK, MOTOR SIDE 0121L0068361 MOTOR MOUNT ANGLE (QTY 3)0121L0071471 BLOWER DECK RAIL (QTY 2)0121L0047891 DRAIN PAN 0270L00226DG101 BRACKET-COND/BASEPAN (QTY 2)0121L00581121 ELECTRIC HEAT MOUNTING PLATE 0121L00591131 ELECTRIC HEAT SUPPORT 0121L00592141 FLUE HOLE COVER 0121L00593151 BLOWER RAIL (QTY 2)0121L00481161 BLOWOFF SHIELD 0121L00618311 CONDENSER BRACE, C1 0121L00623331 PARTITION PANEL 0121L00427371 CONDENSER BRACE, C2 0121L00624NS
Ref. No:
Part No:
Description:
RP-618
www.goodmanmfg.com
www.amana-hac.com
9
Basepan / Compressor / Tubing Assembly
10
www.goodmanmfg.com
www.amana-hac.com
RP-618
Basepan / Compressor / Tubing Assembly
Ref.
Part
No:
No:
Image 1:
Image 2:
Image 3:
Expanded Model Nomenclature
M1 - CPC240XXX3BXXXAA M2 - CPC240XXX4BXXXAA M3 - CPC240XXX7BXXXAA
Description:
COMPRESSOR 121,000, 575/60/3 (M3)ZP120KCETFE15511 COMPRESSOR 123,000, 200/230/60/3 (M1)ZP120KCETF525011 COMPRESSOR 123,000, 460/60/3 (M2)ZP120KCETFD15511 BASEPAN WELDMENT, RETURN SIDE 0270L0018921 HIGH PRESSURE SWITCH C1 0130M0007441 HIGH PRESSURE SWITCH C2 0130M0007441 LOW PRESSURE SWITCH C1 0130M0008751 LOW PRESSURE SWITCH C2 0130M0008751 BI-FLOW FILTER DRIER (QTY 2)0151M0001261 VALVE, TXV R-410A (QTY 4)0151L00004S71 BASEBAN WELDMENT, OUTDOOR SIDE 0270L00208111 FORK BOARD PLATE 0121L00605121 SIDE RAIL 0121L00720131 BASE RAIL, CONDENSER END (QTY 2)0121L00721141 SUPPLY SIDE BASE PAN 0121L00676151 BASE RAIL, ACCESSORY END 0121L00722171 COMPRESSOR RAIL BRACKET (QTY 4)0121L00625181 CONTROL SIDE BASE RAIL 0121L00719191 FORK BOARD (QTY 2)0141L00029211 FORK BOARD BRACKET (QTY 4)0121L00724231 CAP W/O-RING (QTY 4)B9102097NS COMPRESSOR SCROLL HARNESS (M2, M3)0159L00044NS COMPRESSOR SCROLL HARNESS (M2, M3)0159L00045NS COMPRESSOR SCROLL HARNESS (M1)0159L00048NS COMPRESSOR SCROLL HARNESS (M1)0159L00049NS CRANK CASE HEATER, 90W, 240V (M1)0130L00020NS CRANK CASE HEATER, 90W, 480V (M2)0130L00021NS CRANK CASE HEATER, 90W, 575V (M3)0130L00022NS
COMPRESSOR GROMMET (QTY 8)0164M0001822 COMPRESSOR BOLT & SLEE VE (QTY 8)B139374032
RAIL BRACE ANGLE, RIGHT (QTY 4)0121L00616353 RAIL BRACE ANGLE, LEFT (QTY 4)0121L00617363 BASE RAIL CORNER BRACE (QTY 4)0121L00723373
Ref. No:
Part No:
Description:
RP-618
www.goodmanmfg.com
www.amana-hac.com
11
Condenser Assembly
12
www.goodmanmfg.com
www.amana-hac.com
RP-618
Condenser Assembly
Ref.
Part
No:
No:
Image 1:
Expanded Model Nomenclature
M1 - CPC240XXX3BXXXAA M2 - CPC240XXX4BXXXAA M3 - CPC240XXX7BXXXAA
Description:
CONDENSER END COVER (QTY 2)0121L0061911 CONDENSER COIL ASSY C1 0201L0009121 CONDENSER COIL ASSY C2 0201L0009431 CONDENSER END BRACKET 0121L0057341 CONDENSER END BRACKET 0121L0057451 CONDENSER BLOCKOFF, INSIDE TOP 0121L0057261 CONDENSER POST BRACKET 0121L0057971 CONDENSER POST BRACKET 0121L0057581 CONDENSER TOP BRACE (QTY 2)0121L00620101
Ref. No:
Part No:
Description:
RP-618
www.goodmanmfg.com
www.amana-hac.com
13
Evaporator Assembly
14
www.goodmanmfg.com
www.amana-hac.com
RP-618
Evaporator Assembly
Ref.
Part
No:
No:
Image 1:
Expanded Model Nomenclature
M1 - CPC240XXX3BXXXAA M2 - CPC240XXX4BXXXAA M3 - CPC240XXX7BXXXAA
Description:
EVAPORATOR COIL ASSY (QTY 2)0202L0004711 EVAPORATOR BLOCKOFF PANEL 0121L0069821 EVAPORATOR PANEL 0121L0069931 VERTICAL FILTER ANGLE, LEFT 0121L0070051 TOP FILTER RACK 0121L0062961 BOTTOM FILTER RACK 0121L0070171 CENTER FILTER RACK 0270L00230101 FILTER SUPPORT ANGLE 0121L00632111 TOP ANGLE BRACKET 0121L00634121 TOP SLIDER 0270L00231131 CENTER SLIDER 0270L00232141 BOTTOM SLIDER 0270L00233151 FILTER PULL (QTY 2)0121L00640171 RIGHT SIDE BLOCKOFF, FILTER RACK 0121L00702191 BOTTOM BLOCKOFF, FILTER RACK 0121L00703NS
Ref. No:
Part No:
Description:
RP-618
www.goodmanmfg.com
www.amana-hac.com
15
Blower Assembly
16
www.goodmanmfg.com
www.amana-hac.com
RP-618
Blower Assembly
Ref.
Part
No:
No:
Image 1:
Image 2:
Expanded Model Nomenclature
M1 - CPC240XXX3BXXXAA M2 - CPC240XXX4BXXXAA M3 - CPC240XXX7BXXXAA
Description:
MOTOR, 5 HP, 230 & 460V, 3P (M1, M2)B324000511 MOTOR-5 HP BELT DRIVE 575V 3P (M3)0131L0000711 VARIABLE PITCH SHEAVE 0163L0003731 FIXED SHEAVE 0163L0003641 NOTCHED FAN BELT BX46 0164L0000551 MOTOR BASE PLATE 0121L0055561 BLOWER SIDE ANGLE (QTY 4)0121L0048271 BLOWER RAIL (QTY 2)0121L0047981 HOUSING ASSY (QTY 2)04-01542241 SHAFT 04-11552251 BEARING & FRAME ASSY (QTY 2)04-02197261 WHEEL (QTY 2)01-78499271
MOTOR ADJUST BRACKET 0121L0055792 HOOKED BOLT 0163L00034102
Ref. No:
Part No:
Description:
RP-618
www.goodmanmfg.com
www.amana-hac.com
17
Control Box / Capacitor Assembly
18
www.goodmanmfg.com
www.amana-hac.com
RP-618
Control Box / Capacitor Assembly
Ref.
Part
No:
No:
Image 1:
B114167241
PCBFM13151
Image 2:
Expanded Model Nomenclature
M1 - CPC240XXX3BXXXAA M2 - CPC240XXX4BXXXAA M3 - CPC240XXX7BXXXAA
Description:
CONTACTOR 30 AMP, 3P, 24V CONT3P030024VS21 CONT, 3 POLE, 50 AMP, 24 VAC (M1)CONT3P050024V31 CONTACTOR 30 AMP, 3P, 24V (M2, M3)CONT3P030024VS31 TRANSFORMER 480V, 75VA, RESETTABLE (M1,
M2) TRANSFORMER 575/24V (M3)0130M00045S41 BOARD, ELECTRONIC BLOWER TIME DELAY
RELAY TERMINAL BOARD 0130M00038S61 POWER BLOCK 16330-3S81 24V RELAY (QTY 2)0130M00025S381 HARNESS JUMPER LONG 0159L00052NS HARNESS, CONTROL AC 0259L00106NS HARNESS, ECONOMIZER AC 0259L00105NS HARNESS, E-HEAT 0259L00107NS HARNESS, JUMPER SHORT 0159L00051NS MOTOR HARNESS-BELT DRIVE 0259L00101NS
CAPACITOR MOUNTING PLATE 0121L00585112 CAPACITOR 5/370V (QTY 3)CAP050000370VAS132 TERMINAL BLOCK (HIGH VOLTAGE) B1368250142 CAPACITOR COVER 0121L00586NS CAPACITOR STRAP (QTY 3)20520901NS CONDENSER FAN HARNESS, LONG 0259L00118NS CONDENSER FAN HARNESS, MEDIUM 0259L00117NS CONDENSER FAN HARNESS, SHORT 0259L00116NS
Ref. No:
Part No:
Description:
RP-618
www.goodmanmfg.com
www.amana-hac.com
19
THIS PAGE INTENTIONALLY LEFT BLANK
20 RP-618
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
