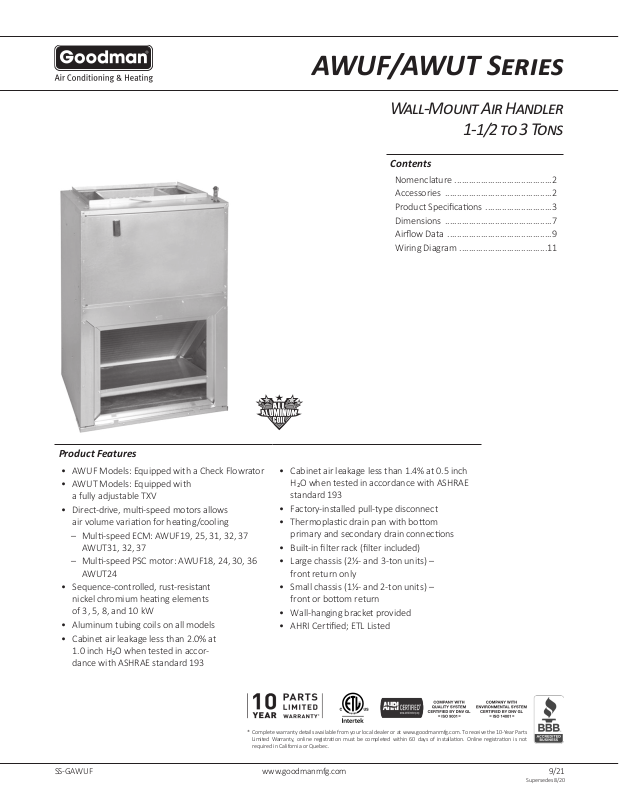

Goodman AWUF301016 User Guide

Download

Page 1

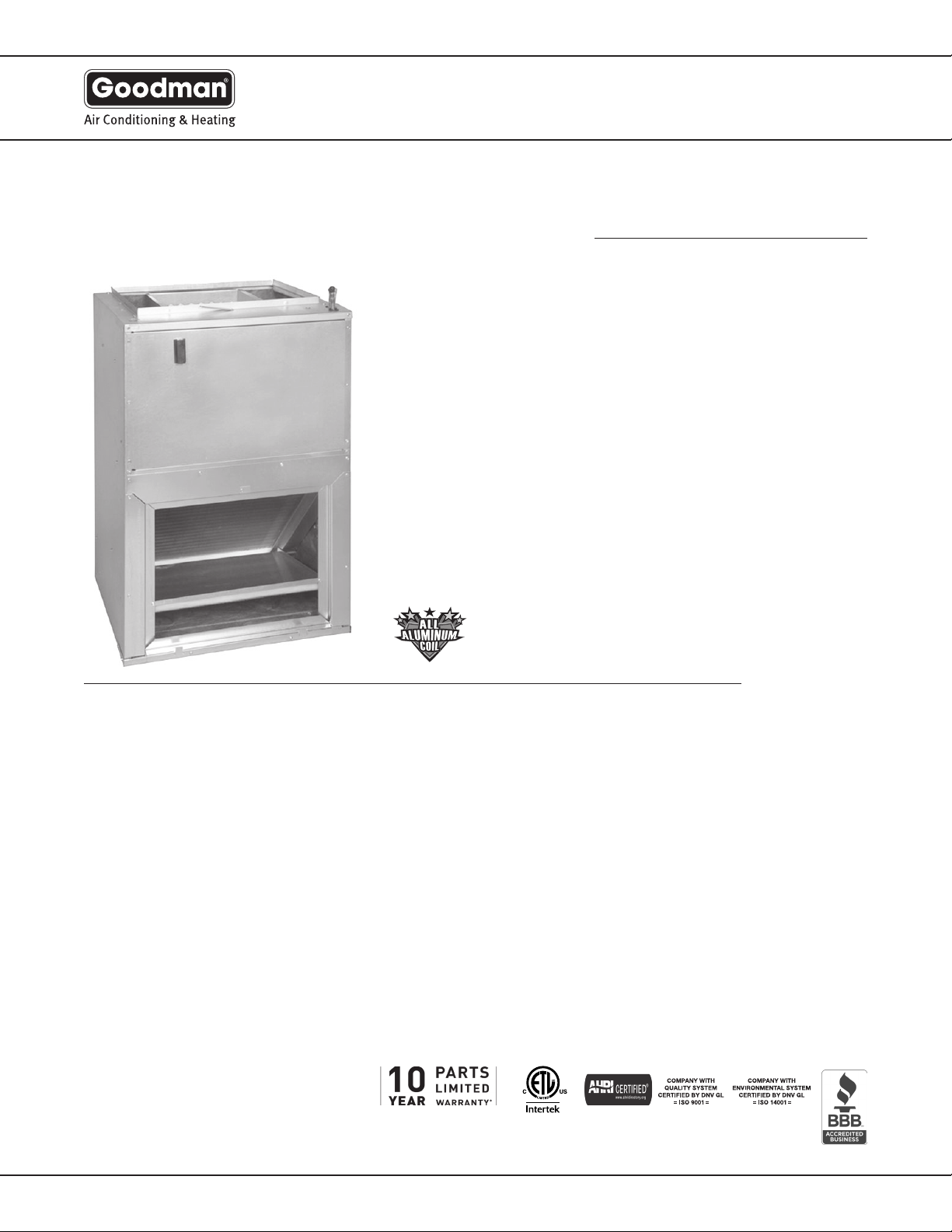

AWUF/AWUT Series

Wall-Mount Air Handler

1-1/2 to 3 Tons

Contents

Nomenclature .........................................2

Accessories .............................................2

Product Specicaons ............................3

Dimensions .............................................7

Airow Data ............................................9

Wiring Diagram .....................................11

Product Features

• AWUF Models: Equipped with a Check Flowrator

• AWUT Models: Equipped with a fully adjustable TXV

• Direct-drive, mul-speed motors allows

air volume variaon for heang/cooling

– Mul-speed ECM: AWUF19, 25, 31, 32, 37

AWUT31, 32, 37

– Mul-speed PSC motor: AWUF18, 24, 30, 36

AWUT24

• Sequence-controlled, rust-resistant

nickel chromium heang elements of 3, 5, 8, and 10 kW

• Aluminum tubing coils on all models

• Cabinet air leakage less than 2.0% at

1.0 inch H₂O when tested in accordance with ASHRAE standard 193

* Complete warranty details available from your local dealer or at www.goodmanmfg.com. To receive the 10-Year Parts

• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE

standard 193

• Factory-installed pull-type disconnect

• Thermoplasc drain pan with boom

primary and secondary drain connecons

• Built-in lter rack (lter included)

• Large chassis (2½- and 3-ton units) – front return only

• Small chassis (1½- and 2-ton units) –

front or boom return

• Wall-hanging bracket provided

• AHRI Cered; ETL Listed

Limited Warranty, online registraon must be completed within 60 days of installaon. Online registraon is not required in California or Quebec.

SS-GAWUF www.goodmanmfg.com 9/21

Supersedes 8/20

Page 2

Nomenclature

Brand Engineering *

A Single-piece Major/ Minor Revisions

Air Handler

 Refrigerant Charge

C Ceiling Mount PSC Motor 4 = R-410A

W Wall Mount PSC Motor 6 = R-410A or R-22*

Cabinet Finish Electrical

U Unpainted N Uncased 1 208/240 V, 1 Phase, 60 Hz

 Heater Kits

F Flowrater 03 = 3 kW 08 = 8 kW

T Expansion Valve 05 = 5 kW 10 = 10 kW

A W U F 18 05 1 6 **

1 2 3 4 5,6 7,8 8 10 11,12

* Not used for inventory management

*Factory installed TXV models (AWUT) are only

compable with Refrigerant Charge R410-A

Accessories

  

AWUF18 - AWUF19 Wad-1 Wall access door

AWUF24 - AWUF25, AWUT24 Wad-1 Wall access door

AWUF30 - AWUF37 Wad-2 Wall access door

AWUT31, AWUT32, AWUT37 Wad-2 Wall access door



AWUF, AWUT with PSC Motors : AWUF, AWUT with ECM Motors :

18 = 1½ Tons 30 = 2½ Tons 19 = 1½ Tons 31, 32 = 2½ Tons

24 = 2 Tons 36 = 3 Tons 25 = 2 Tons 37 = 3 Tons

2 www.goodmanmfg.com SS-GAWUF

Page 3

Product Specifications

AWUF

180316B



Cooling (BTU/h) 18,000 18,000 18,000 18,000 18,000 18,000 24,000 24,000 24,000 24,000

Electric Heat (kW) 3 5 8 3 5 8 3 5 8 10



Diameter 9 9 9 10 10 10 10 10 10 10

Width 6 6 6 6 6 6 6 6 6 6



Liquid ⅜" ⅜" ⅜" ⅜" ⅜" ⅜" ⅜" ⅜" ⅜" ⅜"

Sucon ⅝" ⅝" ⅝" ⅝" ⅝" ⅝" ⅝" ⅝" ⅝" ⅝"

Coil Drain Connecon (FPT) ¾" ¾" ¾" ¾" ¾" ¾" ¾" ¾" ¾" ¾"



Voltage 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230

Minimum Circuit Ampacity (230V) 17 26.6 39.6 18.9 28 41.3 17 26.6 39.6 52.7

Minimum Circuit Ampacity (208V) 15.2 23 35 17 24.9 36 15.2 23 35 46

Max. Overcurrent Device (240V) 20 30 40 20 30 45 20 30 40 60

AWUF

180516B

AWUF

180816B

AWUF

190316B

AWUF

190516B

AWUF

190816B

AWUF

240316B

AWUF

240516B

AWUF

240816B

AWUF

241016B

Max. Overcurrent Device (208V) 20 25 35 20 25 40 20 25 35 50

Minimum VAC 197 197 197 197 197 197 197 197 197 197

Maximum VAC 253 253 253 253 253 253 253 253 253 253



Full Load Amps (FLA) 1.3 1.3 1.3 2.6 2.6 2.6 1.3 1.3 1.3 1.3

Horsepower (HP) 1/5 1/5 1/5 1/3 1/3 1/3 1/5 1/5 1/5 1/5

 84 84 84 84 84 84 84 84 84 84

SS-GAWUF www.goodmanmfg.com 3

Page 4

Product Specifications (Contd.)

AWUF

250316A



Cooling (BTU/h) 24,000 24,000 24,000 24,000 30,000 30,000 30,000 30,000 30,000

Electric Heat (kW) 3 5 8 10 5 8 10 5 8



Diameter 10 10 10 10 9 9 9 10 10

Width 6 6 6 6 8 8 8 8 8



Liquid ⅜" ⅜" ⅜" ⅜" ⅜" ⅜" ⅜" ⅜" ⅜"

Sucon ⅝" ⅝" ⅝" ⅝" ¾" ¾" ¾" ¾" ¾"

Coil Drain Connecon (FPT) ¾" ¾" ¾" ¾" ¾" ¾" ¾" ¾" ¾"



Voltage 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230

Minimum Circuit Ampacity (230V) 18.9 28 41.3 54 27 40 53 29.9 43

Minimum Circuit Ampacity (208V) 17 24.9 36 47.5 23.6 34.9 46.2 27 37.8

Max. Overcurrent Device (240V) 20 30 45 60 30 40 60 30 45

AWUF

250516A

AWUF

250816A

AWUF

251016A

AWUF

300516B

AWUF

300816B

AWUF

301016B

AWUF

310516A*

AWUF

310816A*

Max. Overcurrent Device (208V) 20 25 40 50 25 35 50 30 40

Minimum VAC 197 197 197 197 197 197 197 197 197

Maximum VAC 253 253 253 253 253 253 253 253 253



Full Load Amps (FLA) 2.6 2.6 2.6 2.6 1.58 1.58 1.58 3.9 3.9

Horsepower (HP) 1/3 1/3 1/3 1/3 1/3 1/3 1/3 1/2 1/2

 84 84 84 84 109 109 109 109 109

4 www.goodmanmfg.com SS-GAWUF

Page 5

Product Specifications (Contd.)

AWUF

321016A*



Cooling (BTU/h) 30,000 36,000 36,000 36,000 36,000 36,000 36,000

Electric Heat (kW) 10 5 8 10 5 8 10



Diameter 10 9 9 9 10 10 10

Width 8 8 8 8 8 8 8



Liquid ⅜" ⅜" ⅜" ⅜" ⅜" ⅜" ⅜"

Sucon ¾" ¾" ¾" ¾" ¾" ¾" ¾"

Coil Drain Connecon (FPT) ¾" ¾" ¾" ¾" ¾" ¾" ¾"



Voltage 208/230 208/230 208/230 208/230 208/230 208/230 208/230

Minimum Circuit Ampacity (230V) 56 27 40 53 29.9 43 56

Minimum Circuit Ampacity (208V) 49.1 23.6 34.9 46.2 27 37.8 49.1

Max. Overcurrent Device (240V) 60 30 40 60 30 45 60

AWUF

360516B

AWUF

360816B

AWUF

361016B

AWUF

370516B

AWUF

370816B

AWUF

371016B

Max. Overcurrent Device (208V) 50 25 35 50 30 40 50

Minimum VAC 197 197 197 197 197 197 197

Maximum VAC 253 253 253 253 253 253 253



Full Load Amps (FLA) 3.9 1.58 1.58 1.58 3.9 3.9 3.9

Horsepower (HP) 1/2 1/3 1/3 1/3 1/2 1/2 1/2

 109 96 96 96 96 96 96

SS-GAWUF www.goodmanmfg.com 5

Page 6

Product Specifications (Contd.)

AWUT

240514A*



Cooling (BTU/h) 24,000 24,000 24,000 30,000 30,000 30,000 36,000 36,000 36,000

Electric Heat (kW) 5 8 10 5 8 10 5 8 10



Diameter 10 10 10 10 10 10 10 10 10

Width 6 6 6 8 8 8 8 8 8



Liquid ⅜" ⅜" ⅜" ⅜" ⅜" ⅜" ⅜" ⅜" ⅜"

Sucon ⅝" ⅝" ⅝" ¾" ¾" ¾" ¾" ¾" ¾"

Coil Drain Connecon (FPT) ¾" ¾" ¾" ¾" ¾" ¾" ¾" ¾" ¾"



Voltage 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230

Minimum Circuit Ampacity (230V) 26.6 39.6 52.7 29.9 43 56 29.9 43 56

Minimum Circuit Ampacity (208V) 23 35 46 27 37.8 49.1 27 37.9 49.1

Max. Overcurrent Device (240V) 30 40 60 30 45 60 30 45 60

AWUT

240814A*

AWUT

241014A*

AWUT

310516A*

AWUT

310816A*

AWUT

321016A*

AWUT

370516A*

AWUT

370816A*

AWUT

371016A*

Max. Overcurrent Device (208V) 25 35 50 30 40 50 30 40 50

Minimum VAC 197 197 197 197 197 197 197 197 197

Maximum VAC 253 253 253 253 253 253 253 253 253



Full Load Amps (FLA) 1.3 1.3 1.3 4.1 4.1 4.1 3.9 3.9 3.9

Horsepower (HP) 1/5 1/5 1/5 1/2 1/2 1/2 1/2 1/2 1/2

 84 84 84 109 109 109 96 96 96

6 www.goodmanmfg.com SS-GAWUF

Page 7

B OT TO M PR I M A R Y AN D S EC O N DAR Y DR A IN S C AN B E AC C E S S E D T H R OU GH T HE B OT TO M OF T HE U NI T. ( 3 /4 " N PT F EM AL E C ON NE C T IO N ) N O T E: H AN D T I G H TE N ON LY

L OW V OL T

P OW ER S U PP L Y

E LE C TR IC AL

P OW ER S U PP L Y

OF FS E T HA NG IN G

B R AC K E T

F R ON T RE T UR N

F I L TE R

L AR GE C H A S S I S

F R ON T AC CE S S P AN EL S MA LL C HA S S IS

S TU D AT TA CH ME NT

H O L ES

L OW V OL T P O WE R S UP P L Y (L AR G E CH AS S IS O NL Y )

P UL L OU T DI S C ON N E CT

S UC T I O N L I N E

R EM OV AB L E S ER V IC E DO OR

L IQ U ID LI NE

 - Once installed, top of unit must be level or slightly lted back to ensure proper condensate drainage.

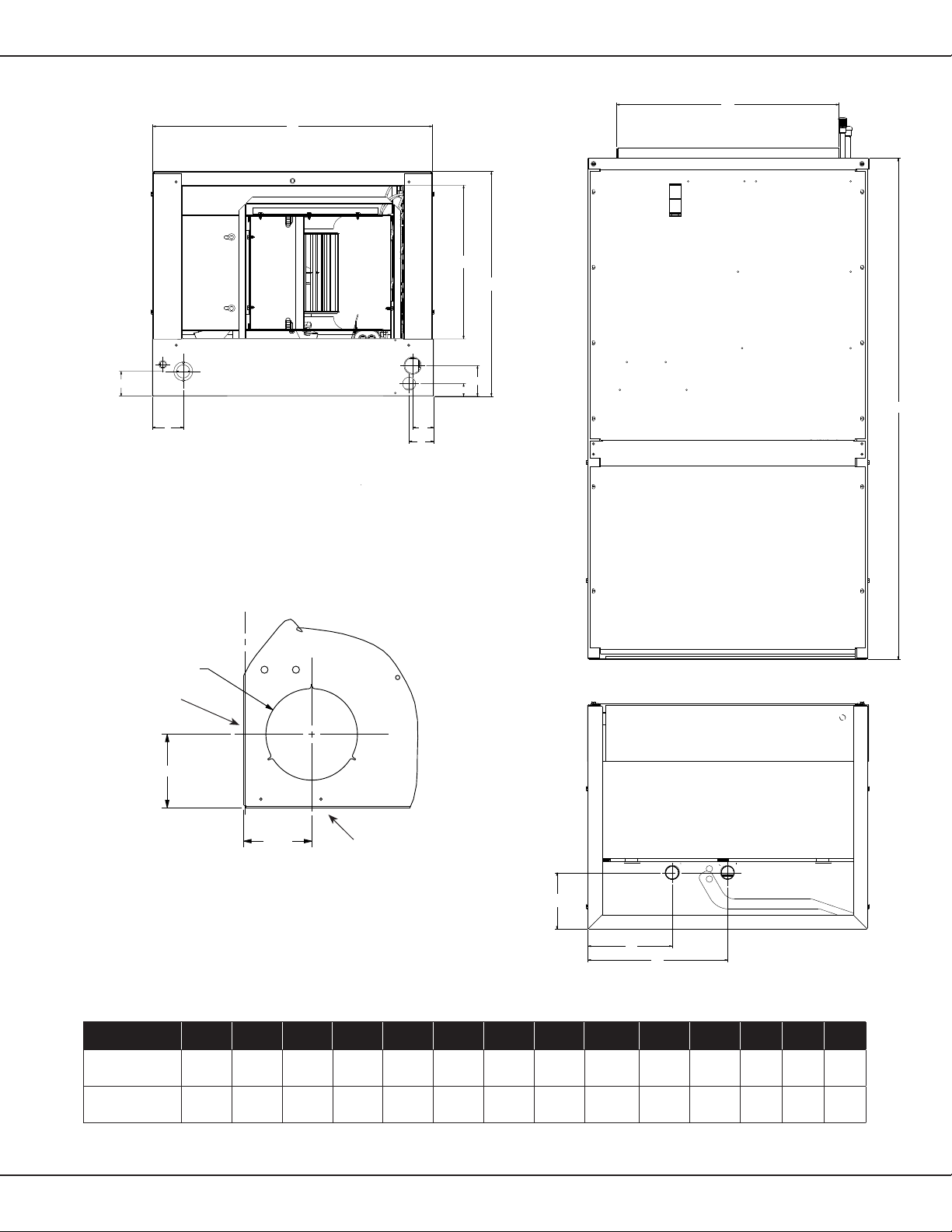

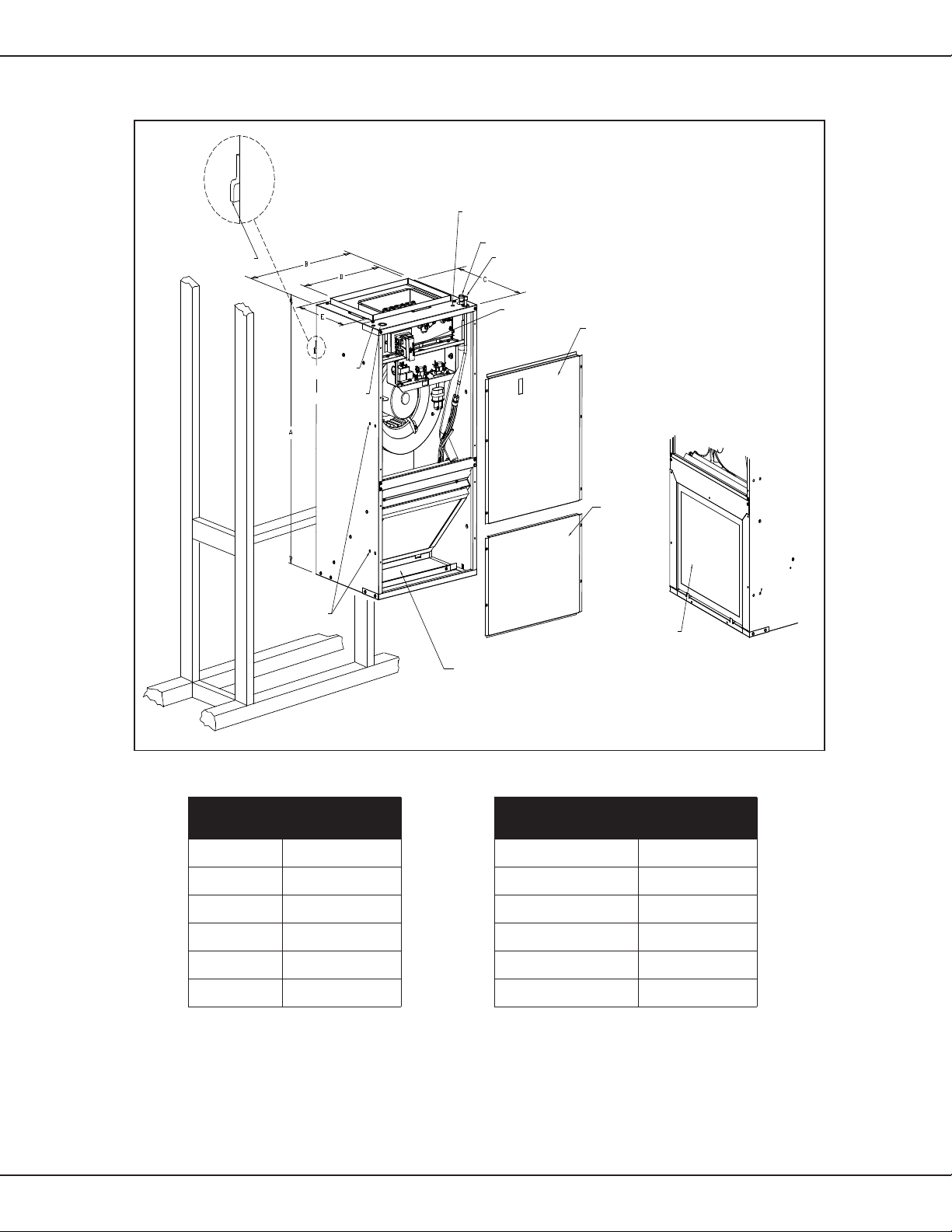

Dimensions





Filter

14" x 18" x 1"

36"

203/16"

16⅛"

16"

11"



Filter (30, 36, 31, 32, 37)



36"

24"

21"

19⅞"

15⅞"

18" x 20" x 1"

SS-GAWUF www.goodmanmfg.com 7

Page 8

9 8 7 6 5 4 3 2 1

.750

36.000

6.000

1.057

4.127

10.057

.109

5.180

1.026

45 TYP.

20.115

.750

2.031

SECTION B-B

2X 88 BEND

Dimensions (Contd.)

TOP VIEW



4.0"



3.0"

AWUF 18-25

3.0"

A B C  E F G H I J K L M N

36" 20¼" 16⅛" 16" 11" 1¾" 1½" 2¼" ⅞" 1⅛" 1¾" 4" 6" 10"



BOTTOM VIEW

AWUT24

AWUF 30-37

AWUT 31, 32, 37

36" 24" 21" 19⅞" 16" 4⅛" 1½" 1¾" 2" 1¼" 2⅜" 4" 8" 12"

8 www.goodmanmfg.com SS-GAWUF

Page 9

Airlfow Data



AWUF18XX16B*

AWUF19XX16B*

AWUF24XX16B*

AWUF25XX16A*

AWUF30XX16B*

AWUF310516XX

AWUF310816XX AWUF321016XX

AWUF36XX16B*

AWUF37XX16B*

AWUT24XX14XX

AWUT310516AX





High 755 715 670 615 545

Low 740 700 655 595 535

T5 899 870 853 824 800

T4 635 604 580 546 520

T3 502 490 467 430 399

T2 635 604 580 546 520

T1 635 604 580 546 520

High 900 870 835 795 760

Low 865 835 800 765 725

T5 899 870 853 824 800

T4 635 604 580 546 520

T3 799 775 747 727 702

T2 635 604 580 546 520

T1 635 604 580 546 520

High 1255 1120 1100 1020 950

Low 1115 1010 990 900 820

T5 875 865 830 805 765

T4 1005 975 945 920 890

T3 840 795 785 745 700

T2 645 615 550 500 445

T1 645 615 550 500 445

T5 1090 1065 1040 1015 985

T4 1005 975 945 920 890

T3 840 795 785 745 700

T2 645 615 550 500 445

T1 645 615 550 500 445

High 1215 1145 1070 985 890

Low 1120 1065 1000 915 820

T5 1315 1290 1260 1230 1200

T4 1240 1205 1175 1145 1115

T3 1175 1140 1105 1075 1045

T2 1060 1020 990 955 925

T1 1060 1025 995 960 925

High 709 701 705 658 603

Low 687 688 683 636 576

T5 875 865 830 805 765

T4 1005 975 945 920 890

T3 840 795 785 745 700

T2 645 615 550 500 445

T1 645 615 550 500 445

0.1" 0.2" 0.3" 0.4" 0.5"



SS-GAWUF www.goodmanmfg.com 9

Page 10

Airflow Data (Contd.)



AWUT310816AX AWUT321016AX

AWUT37XX16A*





T5 1090 1065 1040 1015 985

T4 1005 975 945 920 890

T3 840 795 785 745 700

T2 645 615 550 500 445

T1 645 615 550 500 445

T5 1315 1290 1260 1230 1200

T4 1240 1205 1175 1145 1115

T3 1175 1140 1105 1075 1045

T2 1060 1020 990 955 925

T1 1060 1025 995 960 925

0.1" 0.2" 0.3" 0.4" 0.5"



10 www.goodmanmfg.com SS-GAWUF

Page 11

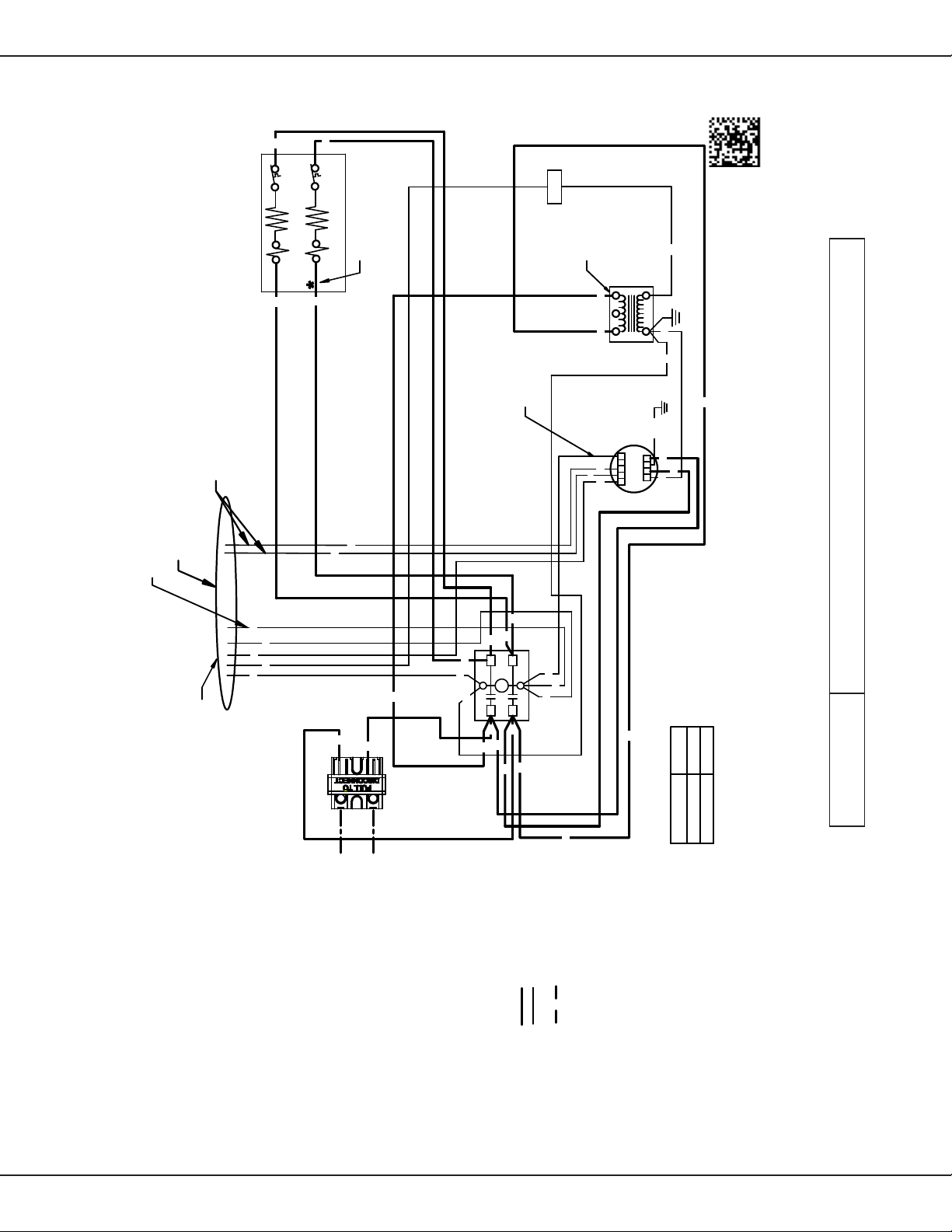

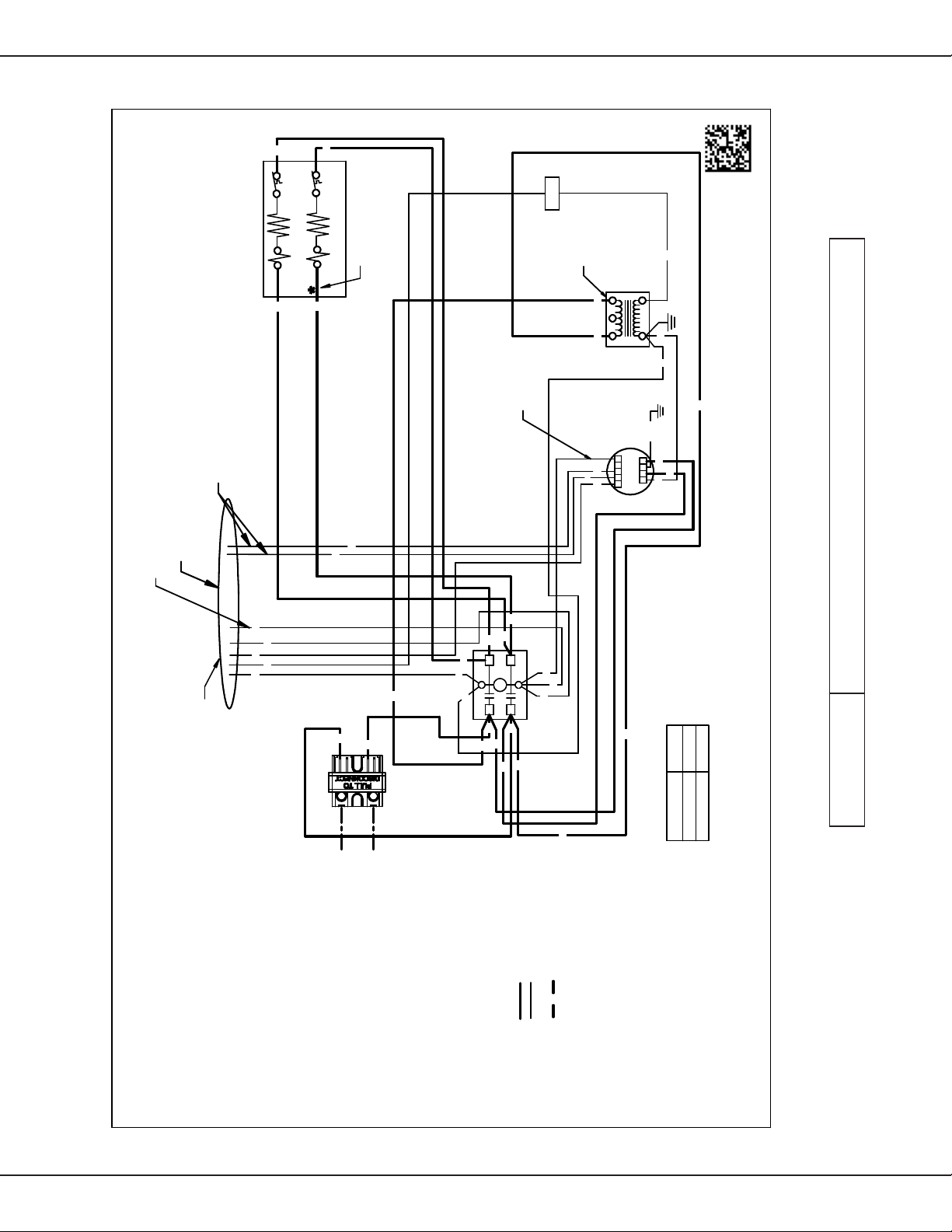

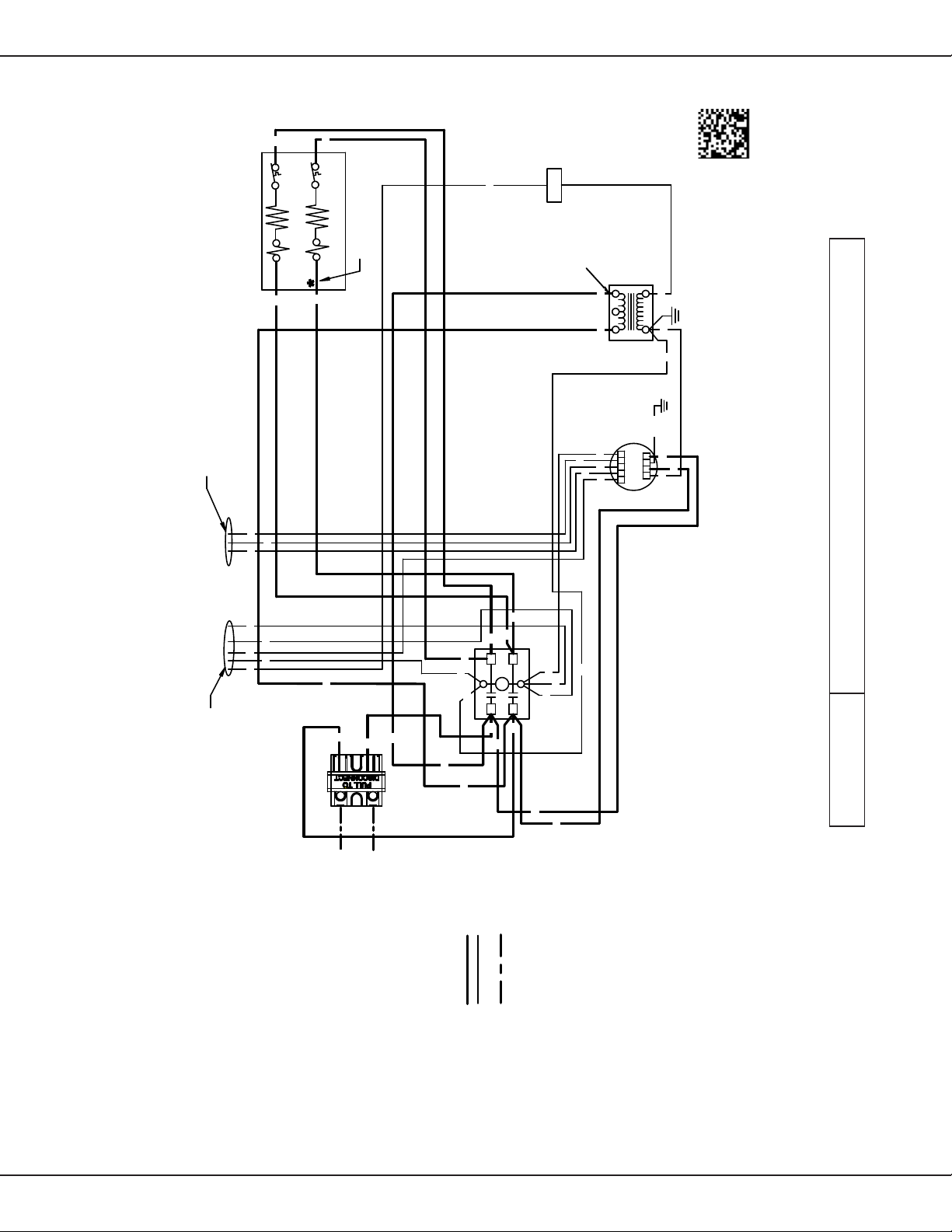

AWUF18/24/30/36, AWUT24 Wiring Diagram

⚡

High Voltage: Disconnect all power before servicing or installing this unit. Mulple power

sources may be present. Failure to do so may cause property damage, personal injury, or death.

⚠ Warning

Wiring is subject to change. Always

refer to the wiring diagram on the

unit for the most up-to-date wiring.

SS-GAWUF www.goodmanmfg.com 11

Page 12

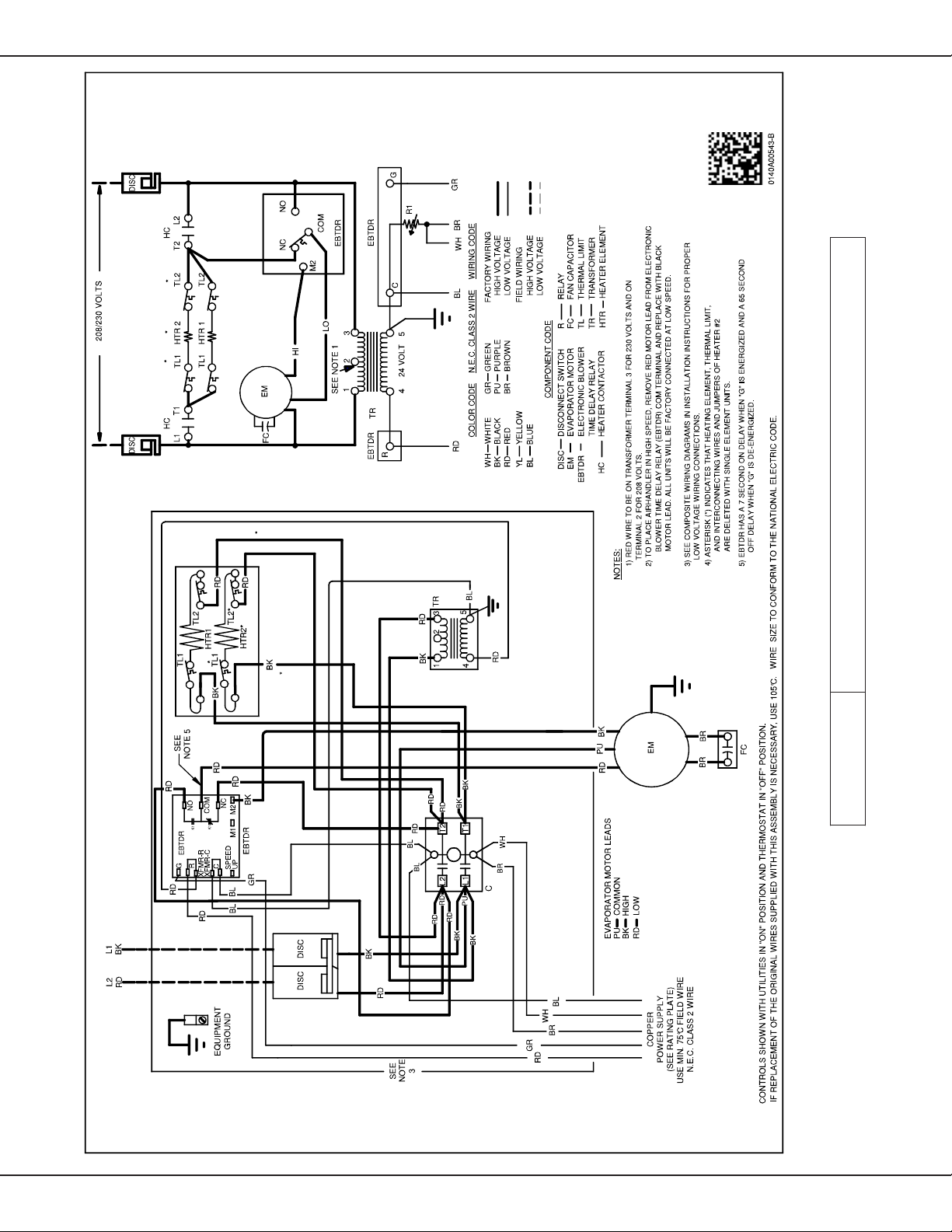

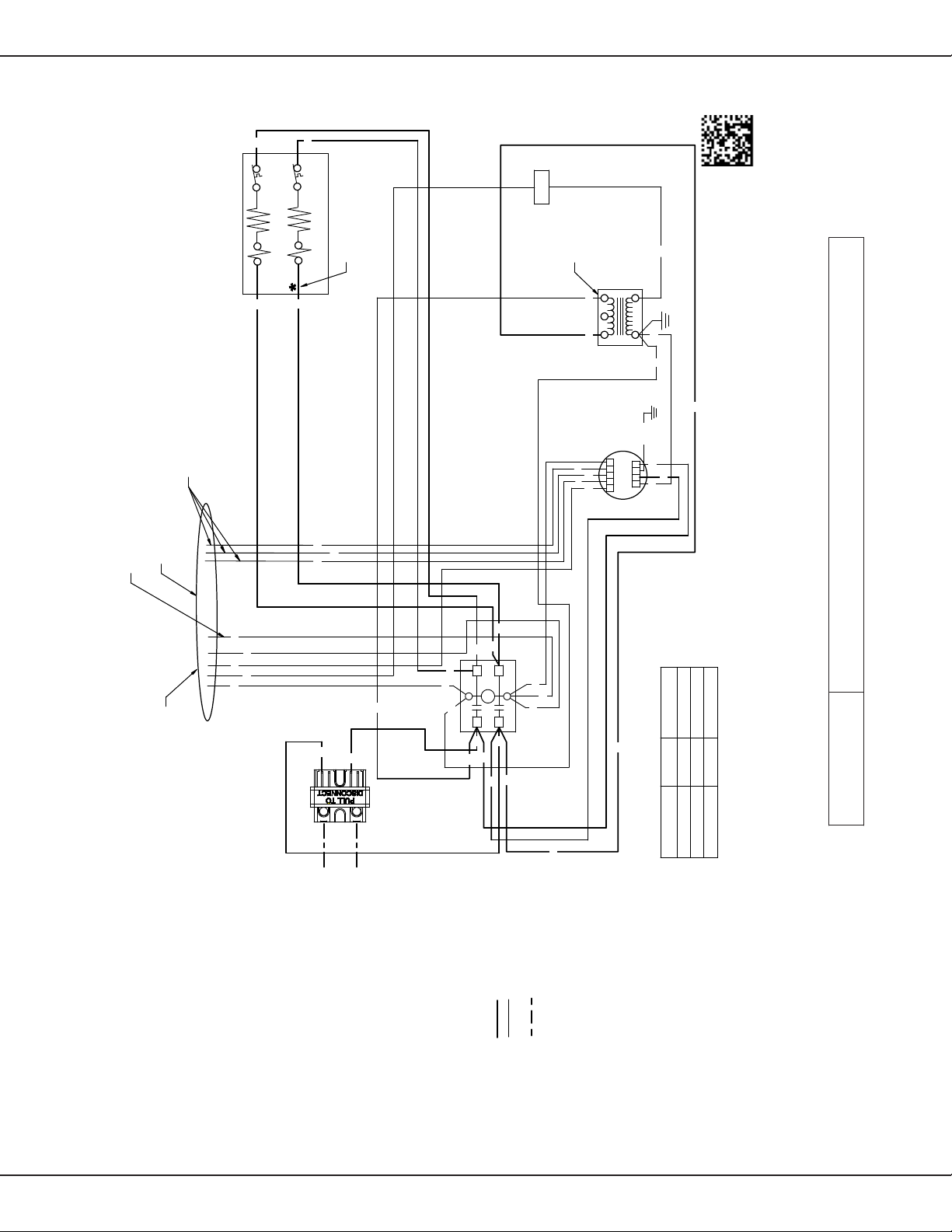

AWUF19 Wiring Diagram

0140A00698-A

TL1

TL2*

HTR 1

HTR

240V

24V

GR/YL

CL GN

SEE NOTE # 3

SEE NOTE 1

123

SEE NOTE 7

MOTOR CONNECTIONS

ONLY ONE WILL BE CONNECTED

(SEE NOTE 2)

UNUSED WIRES MUST HAVE THEIR ENDS TAPED OR

CAPPED

OPTIONAL

CONNECTION

12345

⚡

SEE NOTE 2

FIELD CONNECTIONS

USE N.E.C CLAS S 2 WIRE

DISC

TONNAGE

High Voltage: Disconnect all power before servicing or installing this unit. Mulple power

sources may be present. Failure to do so may cause property damage, personal injury, or death.

TABLE-1

⚠ Warning

WIRE COL OR

PURPLE 1.5T

PINK 1.0T

Wiring is subject to change. Always

refer to the wiring diagram on the

unit for the most up-to-date wiring.

NOTES:

1. RED WIRE TO BE ON TRANSFORMER

TERMINAL "3" FOR 230 VOLT S AND ON

TERMINAL "2" FOR 208 VOLT S.

2. CONFIRM SPEED TAP SELECTED IS

APPROPRIATE FOR APPLICATION. IF SPEED

TAPS NEEDS TO BE CHANGED, CONNECT

APPROPRIATE WIRE FROM MOTOR TO

"Y" FROM THERMOSTAT/CONDENSER (SEE TABLE-1).

3. ASTERISK (*) INDICATES THAT HEATING

ELEMENT, THERMAL LIMIT, RELAY AND

INTERCONNECTING WI RES AND JUMPERS

OF HEATER #2 ARE DELETED WITH SINGLE

ELEMENT UNITS.

4. COLOR CODES:

BK - BLACK

BL - BLUE

BR - BROWN

GR - GREEN

PU - PURPLE

RD - RED

WH - WHITE

YL - YELLOW

PK - PINK

5. WIRING CODE:

FACTORY WIRING:

HIGH VOLTAGE

LOW VOLTAGE

FIELD WIRING:

HIGH VOLTAGE

6. COMPONENT COD E:

C - CONTACTOR

DISC - DISCONNECT SWITCH

EM - EVAPORATER MOTOR

F - FUSE

HTR - HEATER ELEMENT

R - RELAY

SEQ - SEQUENCER

TL - THERMAL LIMIT

TR - TRANSFORMER

7. FOR UNITS USING 3KW AND 5KW HEATERS,

WHITE WIRE W ILL BE CONNECTED TO

TERMINAL 4.

12 www.goodmanmfg.com SS-GAWUF

Page 13

AWUF25 Wiring Diagram

0140A00544-A

OPTIONAL

CONNECTION

TL1

TL2*

HTR 1

HTR

240V

24V

GR/YL

CL GN

⚡

SEE NOTE # 3

SEE NOTE 1

123

SEE NOTE 7

MOTOR CONNECTIONS

ONLY ONE WILL BE CONNECTED

(SEE NOTE 2)

UNUSED WIRES MUST HAVE THEIR ENDS TAPED OR

CAPPED

12345

SEE NOTE 2

FIELD CONNECTIONS

USE N.E.C CLASS 2 WIRE

DISC

BTUh

High Voltage: Disconnect all power before servicing or installing this unit. Mulple power

sources may be present. Failure to do so may cause property damage, personal injury, or death.

TABLE-1

⚠ Warning

WIRE COLOR

PURPLE 18000

PINK 24000

Wiring is subject to change. Always

refer to the wiring diagram on the

unit for the most up-to-date wiring.

NOTES:

TERMINAL "3" FOR 230 VOLTS AND ON

1. RED WIRE TO BE ON TRANSFORMER

TERMINAL "2" FOR 208 VOLTS.

APPROPRIATE FOR APPLICATION. IF SPEED

TAPS NEEDS TO BE CHANGED, CONNECT

APPROPRIATE WIRE FROM MOTOR TO

"Y" FROM THERMOSTAT/CONDENSER (SEE TABLE-1).

2. CONFIRM SPEED TAP SELECTED IS

ELEMENT, THERMAL LIMIT, RELAY AND

INTERCONNECTING WIRES AND JUMPERS

3. ASTERISK (*) INDICATES THAT HEATING

BK - BLACK

ELEMENT UNITS.

OF HEATER #2 ARE DELETED WITH SINGLE

4. COLOR CODES:

BR - BROWN

BL - BLUE

PU - PURPLE

GR - GREEN

YL - YELLOW

WH - WHITE

RD - RED

PK - PINK

HIGH VOLTAGE

FACTORY WIRING:

5. WIRING CODE:

LOW VOLTAGE

HIGH VOLTAGE

FIELD WIRING:

EM - EVAPORATER MOTOR

F - FUSE

C - CONTACTOR

DISC - DISCONNECT SWITCH

6. COMPONENT CODE:

HTR - HEATER ELEMENT

SEQ - SEQUENCER

R - RELAY

TL - THERMAL LIMIT

TR - TRANSFORMER

7. FOR UNITS USING 3KW AND 5KW HEATERS,

TERMINAL 4.

WHITE WIRE W ILL BE CONNECTED TO

SS-GAWUF www.goodmanmfg.com 13

Page 14

AWUF31/32, AWUT31,37 Wiring Diagram

0140A00542-A

OPTIONAL

CONNECTION

UNUSED WIRES MUST HAVE THEIR ENDS TAPED OR

CAPPED

MOTOR CONNECTION

ONLY ONE WILL BE CONNECTED

(SEE NOTE 2)

TL1

TL2*

HTR 1

HTR

240V

CL GN

24V

GR/YL

⚡

SEE NOTE # 3

SEE NOTE 1

123

12345

SEE NOTE 2

FIELD CONNECTIONS

USE N.E.C CLASS 2 WIRE

DISC

BTUh NOMINAL CFM

TABLE-1

High Voltage: Disconnect all power before servicing or installing this unit. Mulple power

sources may be present. Failure to do so may cause property damage, personal injury, or death.

⚠ Warning

WIRE COLOR

PURPLE 18000 600

PINK 24000 800

YELLOW 30000 950

Wiring is subject to change. Always

refer to the wiring diagram on the

unit for the most up-to-date wiring.

NOTES:

TERMINAL "3" FOR 230 VOLTS AND ON

1. RED WIRE TO BE ON TRANSFORMER

TAPS NEEDS TO BE CHANGED, CONNECT

TERMINAL "2" FOR 208 VOLTS.

2. CONFIRM SPEED TAP SELECTED IS

"Y" FROM THERMOSTAT/CONDENSER (SEE TABLE-1).

APPROPRIATE FOR APPLICATION. IF SPEED

APPROPRIATE WIRE FROM MOTOR TO

ELEMENT, THERMAL LIMIT, RELAY AND

INTERCONNECTING WIRES AND JUMPERS

3. ASTERISK (*) INDICATES THAT HEATING

OF HEATER #2 ARE DELETED WITH SINGLE

ELEMENT UNITS.

BK - BLACK

4. COLOR CODES:

BL - BLUE

BR - BROWN

GR - GREEN

PU - PURPLE

RD - RED

WH - WHITE

YL - YELLOW

FACTORY WIRING:

HIGH VOLTAGE

LOW VOLTAGE

FIELD WIRING:

5. WIRING CODE:

HIGH VOLTAGE

6. COMPONENT CODE:

C - CONTACTOR

DISC - DISCONNECT SWITCH

EM - EVAPORATER MOTOR

F - FUSE

HTR - HEATER ELEMENT

R - RELAY

SEQ - SEQUENCER

TL - THERMAL LIMIT

TR - TRANSFORMER

14 www.goodmanmfg.com SS-GAWUF

Page 15

AWUF37, AWUT37 Wiring Diagram

SPEED TAPS FROM MOTOR

SEE NOTE 2

0140A00545-A

TL1

HTR 1

TL2*

HTR 2*

SEE NOTE 3

SEE NOTE 1

123

240V

12345

24V

GR/YL

CL GN

⚡

SEE NOTE 3

FIELD CONNECTIONS

USE N.E.C CLASS 2 WIRE

DISC

High Voltage: Disconnect all power before servicing or installing this unit. Mulple power

sources may be present. Failure to do so may cause property damage, personal injury, or death.

⚠ Warning

Wiring is subject to change. Always

refer to the wiring diagram on the

unit for the most up-to-date wiring.

TERMINAL "2" FOR 208 VOLTS.

TERMINAL "3" FOR 230 VOLTS AND ON

NOTES:

1. RED WIRE TO BE ON TRANSFORMER

INSTALLATION INSTRUCTIONS FOR PROPER

LOW VOLTAGE WIRING CONNECTIONS.

2. SEE COMPOSITE WIRING DIAGRAMS IN

INTERCONNECTING WIRES AND JUMPERS

ELEMENT UNITS.

ELEMENT, THERMAL LIMIT, RELAY AND

OF HEATER #2 ARE DELETED WITH SINGLE

3. ASTERISK (*) INDICATES THAT HEATING

BK - BLACK

4. COLOR CODES:

BL - BLUE

BR - BROWN

GR - GREEN

PU - PURPLE

RD - RED

YL - YELLOW

WH - WHITE

5. WIRING CODE:

HIGH VOLTAGE

LOW VOLTAGE

FACTORY WIRING

FIELD WIRING

HIGH VOLTAGE

C - CONTACTOR

LOW VOLTAGE SEE NOTE 2

6. COMPONENT CODE:

EM - EVAPORATER MOTOR

SEQ - SEQUENCER

R - RELAY

TL - THERMAL LIMIT

F - FUSE

DISC - DISCONNECT SWITCH

HTR - HEATER ELEMENT

TR - TRANSFORMER

SS-GAWUF www.goodmanmfg.com 15

Page 16

Notes

Goodman Manufacturing Company, L.P., reserves the right to disconnue, or change at any me, specicaons or designs without

16 www.goodmanmfg.com SS-GAWUF
