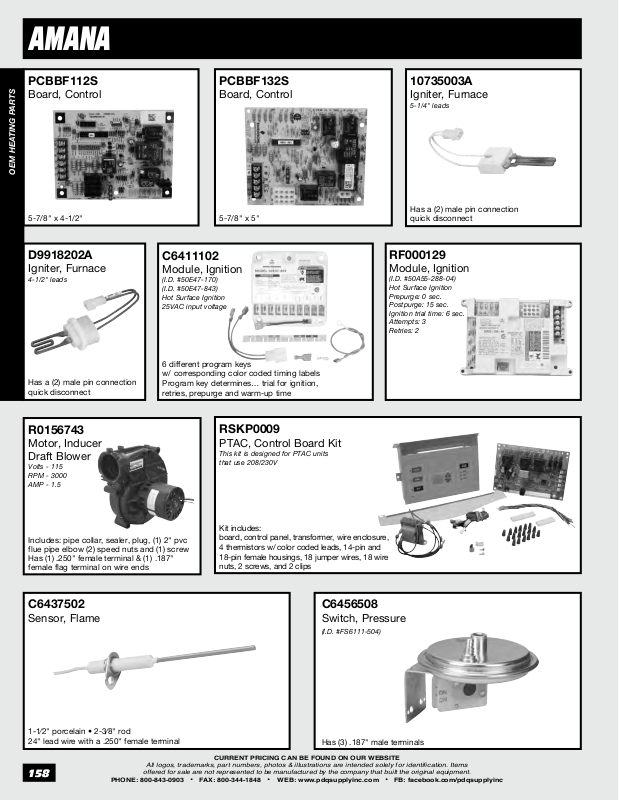

amana

PCBBF112S

Board, Control

Oem heating parts

5-7/8" x 4-1/2"

D9918202A

Igniter, Furnace

4-1/2" leads

Has a (2) male pin connection
quick disconnect

PCBBF132S

Board, Control

5-7/8" x 5"

C6411102

Module, Ignition

(I.D. #50E47-170)
(I.D. #50E47-843)
Hot Surface Ignition

25VAC input voltage

6 different program keys
w/ corresponding color coded timing labels
Program key determines… trial for ignition,
retries, prepurge and warm-up time

10735003A

Igniter, Furnace

5-1/4" leads

Has a (2) male pin connection
quick disconnect

RF000129

Module, Ignition

(I.D. #50A55-288-04)
Hot Surface Ignition
Prepurge: 0 sec.
Postpurge: 15 sec.
Ignition trial time: 6 sec.
Attempts: 3
Retries: 2

R0156743

Motor, Inducer
Draft Blower

Volts - 115
RPM - 3000
AMP - 1.5

Includes: pipe collar, sealer, plug, (1) 2" pvc
flue pipe elbow (2) speed nuts and (1) screw
Has (1) .250" female terminal & (1) .187"
female flag terminal on wire ends

C6437502

Sensor, Flame

RSKP0009

PTAC, Control Board Kit

This kit is designed for PTAC units

that use 208/230V

Kit includes:
board, control panel, transformer, wire enclosure,
4 thermistors w/ color coded leads, 14-pin and
18-pin female housings, 18 jumper wires, 18 wire
nuts, 2 screws, and 2 clips

C6456508

Switch, Pressure

(I.D. #FS6111-504)

1-1⁄2" porcelain • 2-3⁄8" rod

24" lead wire with a .250" female terminal

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

offered for sale are not represented to be manufactured by the company that built the original equipment.

158

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

Has (3) .187" male terminals

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

AIRE EASE - CONCORD - MAGIC CHEF

aRmsTRonG

40403003

Board, Fan Timer

(I.D. #ST9120A)

44431001

Motor, Blower

Volts - 115
RPM - 3000
HP - 1/30
AMP - 1.4
Rotation - CWLE
Single Phase

Has (2) .250" female terminals

42640001

Sensor, Flame

(I.D. #Q3400A1016)

5-3⁄4" x 4-1⁄2"

38691B001

Module, Ignition

Intermittent Ignition

Trial time: 90 sec.

Continuous retry, 100% shuto IP

R45037001

Motor, Blower

Volts - 115
RPM - 3400
HP - 1/30
AMP - 1.8
Rotation - CWLE
Single Phase

Has a (2) female pin connection quick disconnect

S36453B001

Sensor, Flame

Overall length is 3-1/4"

Oem heating parts

Includes a spring clip
Has a (3) female pin connection
quick disconnect

38492B001

Sensor, Flame

Has a 31" lead wire with a
.187" female terminal end

38491B001

Transformer

Primary: 120 VAC
Secondary: 24 VAC
40 VA, 50/60 Hz

Has a .250" male terminal

37520B001

Switch, Roll-Out

open @ 275°F
manual reset

Has (2) .250" male terminals

70L53

Valve, Combo Gas Valve &
Regulator - 24V

(I.D. #SV9501H2409)
(I.D. #SV9502H2704)
Intermittent Ignition, 1⁄2" x 1⁄2"
Ignition Trial Time: 90 sec.
Retry Delay: 5 min. Prepurge: 15 sec.
Pressure Reg. Setting: Nat. Gas - 3.2" Adj. W.C.

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

159

caRRieR

bDp - bRyANt - DAy & NIGHt - pAyNE

HK42FZ034

Board, Circuit

Oem heating parts

CES0110057

Board, Circuit

(I.D. #CES0110057-02)

CES0110057-02 is a direct replacement for:
CES0110057, CES0110057-01, CES0110048,
CES0110020, and HH84AA016

8-1⁄2" x 7-1⁄2"

325878751

Kit, Circuit Board

Kit includes wire harness adapter

Replaces: HK42FZ004, HK42FZ007,
HK42FZ008, HK42FZ009, HK42FZ011,
and HK42FZ016

HH84AA021

Board, Circuit

(I.D. #CES0110019)

HH84AA021 is a direct replacement for:
HH84AA001, HH84AA003, HH84AA005,
HH84AA009, HH84AA014, HH84AA015 or
CES0110019

5-5⁄16" x 5-1⁄8"

HH84AA020

Board, Circuit

(I.D. #CES0110018)
(I.D. #ICM271C)

Time delay timings
Heat “ON” 75 sec.

Heat “OFF” 150 sec.
Cool “OFF” 90 sec.

Operating Temp: -40° to 176°

5" x 5-1/4"

313680751

Kit, Inducer Board

(I.D. #CESS210102-02)
(I.D. #HH84AA019A)

Kit includes: board, (2) .250" & (2) .187"
female flag quick connect terminals
(2) .187" terminal tabs, red wire,
snap bushing, wire ties and labels

323901701

Bracket, Igniter

3" x 1-1/8"

P2910753

Capacitor, Run

Volts: 370
MFD: 7.5

310092751

Burner

24-5/8" overall length
Tapers from 2" to 1-3/8"

P2910503

Capacitor, Run

Volts: 370
MFD: 5

LH33WZ513

(I.D. #1007-200) Black (shown)

100% lockout w/20 sec. prepurge

LH33WZ512

(I.D. #1007-100) Gray

100% lockout

Control, Igniter
Lockout

24 VAC - 60 Hz
Lockout Time: 5 min.

160

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

offered for sale are not represented to be manufactured by the company that built the original equipment.

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

bDp - bRyANt - DAy & NIGHt - pAyNE

caRRieR

HY10LF286

Fuse

2-1/8" overall length

Has a .250" female terminal

LH680512

Electrode

(I.D. #AM11)

Used with pilot burners

LH33ZS004

Igniter, Hot Surface

5-1/2" lead wires

332505751

Igniter, Kit

9" lead wires

(2) male pin connection quick disconnect
5" extension wire with (2) male and (2)
female pin connection quick disconnects

LH33WZ510

Module, Spark Ignitor

(I.D. #990-516)

24 Volt

LH33ZG001

Igniter, Hot Surface

9" lead wires

(2) male pin connection quick disconnect
If replacing this ignitor for the first time, you
must buy the kit #332505751

HC41AE117

Motor, Blower

Volts - 115
RPM - 1075
H.P. - 1/3

48 Frame

Sleeve Bearing
Rotation - CCWLE

Oem heating parts

(2) male pin connection quick disconnect

HC37AE114

Motor, Blower

Amps - 2.9
Volts - 115
RPM - 1075
H.P. - 1/5

48 Frame

Sleeve Bearing
Rotation - CCW

Has (2) .250" female flag terminals, (3) .250"
female terminals, (1) .187" female terminal

320725756

Motor, Inducer

Volts - 115
RPM - 3300
H.P. - 1/16

Single phase

Has (2) .250"
& (1) .187" male terminals

HC37MA135

Motor, Blower Shaded Pole

(I.D. #OCB6427)
Volts - 115
RPM - 1050, 4 speed
H.P. - 1/5
Single Phase
Frame - 42Y
Sleeve Bearings
Rotation - CCWLE

Has a single male
pin connection
quick disconnect

Disconnect

on wire ends

326628761

Motor, Inducer

Amps - 4.9
Volts - 115
RPM - 1075
H.P. - 1/3
Speed - 4

48 Frame

Rotation - CCW

Disconnects

on wire ends

325270761

Motor, Draft Inducer

Replaces # HC27CB119
Volts - 115
RPM - 3300
H.P. - 50 MHP
Single Phase
Sleeve Bearings
Rotation - CWLE

Includes fan inducer kit
Has (2) .187" female terminals and a
(3) female pin connection quick disconnect

Disconnect &

terminals on

wire ends

318984753

Motor, Inducer Kit

115V

1.8 amps
3300 rpm
1-7⁄8" shaft

LA660002

Blade, Fan only

3-1/2" dia blade

Clip included

Has a (3) female pin connection
quick disconnect

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

Motor kit also includes:

Has (7) female flag quick disconnects

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

offered for sale are not represented to be manufactured by the company that built the original equipment.

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

(1) Molex & (1) AMP harness adapters

161

caRRieR

bDp - bRyANt - DAy & NIGHt - pAyNE

LH31AM002

Pilot, Burner

(Style #Q350A)

Oem heating parts

Orifice size: .12"
Natural gas

LH680013

Sensor, Flame

1-1/2"

Sensor has (1) .250" male terminal
4-3/4" lead w/ (1) .250" female terminal
end and a single male pin connection
quick disconnect

HR54ZA101

Switch, Door Interlock

15 amp

3-1/4"

LH680005

Pilot, Burner

(Style #740A)

Has (3) 8" leads with
quick disconnect attached

LH680014

Sensor, Flame

1-1/2"

Sensor has (1) .250" male terminal
4-3/4" lead w/ (1) .250" female terminal
end and a single male pin connection
quick disconnect

HH18HA416

Switch, Draft Safety

open @ 215°F
manual reset

HN680001

Relay, Time Delay

SPST
Operating Volts: 24
Time delay on: 75 sec.
Time delay Off: 135 sec.

HR54ZA006

Switch, Door

Has (2) .250" male terminals

HH18HA195

Switch, Fan & Limit

open @ 195°F
close @ 155°F
manual reset

Has (2) .250" male terminals

HH18HA350

open @ 350°F, manual reset

HH18HA291

open @ 290°F, manual reset

Switch, Limit

Has (2) .250" male terminals

HK06WC012

Switch, Pressure

(I.D. #FS6004-251)

Has (2) .250" male terminals and
(1).187" male terminal

162

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

Has (2) .250" male terminals

HH12ZB160

open @ 160°F - close @ 120°F

HH12ZB170

open @ 170°F - close @ 130°F

HH12ZB180

open @ 180°F - close @ 140°F

HH12ZB190

open @ 190°F - close @ 150°F

HH12ZB200

open @ 200°F - close @ 160°F

HH12ZB220

open @ 220°F - close @ 180°F

HH12ZB240

open @ 240°F - close @ 200°F

HH12ZB250

open @ 250°F - close @ 210°F

Has (2) .250" male terminals

Switch, Limit

3" insert

HK06WC090

Switch, Pressure

(I.D. #IS20130-3288)

Has (2) .250" male terminals

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

HK06WC097

Switch, Pressure

(I.D. #IS20436-6080)

.18" W.C.
Has (2) .250" & (1) .187" male terminals

Has (2) .250" male terminals

bDp - bRyANt - DAy & NIGHt - pAyNE

caRRieR

HK06NB065

Switch, Pressure

(I.D. #FS3262-1098)

Has (2) .250" male terminals

HH11AZ180

Switch, Vent Safety

open @ 180°F
manual reset

HK06NB124

Switch, Pressure

Has (1) .250" male terminal
and (1) .187" male terminal

HT01BC116

Transformer

Primary: 120 Volt
Secondary: 24 Volt
50/60 Hz, 40 VA

HH18HA166

Switch, Temperature

open @ 160°F
manual reset

Has (2) .250" male terminals

HT01CN001

Transformer

Primary: 120 Volt
Secondary: 24 Volt
50/60 Hz, 40 VA

Oem heating parts

Has (2) .250" male terminals

EF32CW233

Valve, Gas

24V, 1/2" x 3/4"

Nat. gas: 3.5 W.C.

EF32CB212

Valve, Dual Combination Gas

(I.D. #VR8200H-1251)
24V, 1⁄2" x 1⁄2"

EF660015

Valve, Dual Combination Gas

(I.D. #36J24-510)

24V, 3/4" x 3/4"

Pressure Rating:
14" W.C. (1/2 PSI) max.
Pressure Regulator Setting:
Nat. Gas - 3.5 W.C.

LA11AA005

Wheel, Blower

EF32CW190

Valve, Dual Combination Gas

(I.D. #36E36-304)
24V, 1⁄2" x 3⁄4"

Ambient Temp:

-40° to 175°F
Pressure Rating:
14" W.C. (1/2 PSI) max.
Pressure Regulator Setting:
Nat. Gas - 2.5 to 5.0" W.C.
L.P. Gas - 7.0 to 12.0" W.C.

Controls include: manual valve,
two automatic operators, servo
pressure regulator and pilot adjustment
Natural to L.P. gas conversion kit

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

Height: 1-7/16"
Diameter: 4"
CW rotation - hub end

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

163

Heil

ARCO AIRE - COMFORtMAkER - ICp COMMERCIAl - tEMpStAR

1170063

Control, Fan Timer

(I.D #ST9120C5013)
5-13/16" X 4-1/2"

Oem heating parts

1005651

Module, Ignition

(I.D #S8600M)
Ignition trial time: 90 sec.
IAP: 100% shut off
Prepurge: 0 sec.
Retries: continuous

1148245

Igniter, Hot Surface

5" leads w/ stripped wire ends

1149501

Control, Fan & Limit

8" insert

Limit Stop: 170°F
Fan On: 125°F
Fan Off: 100°F

1096048

Igniter, Hot Surface

5-1/4" lead wires

Includes mounting bracket. Has (2) male pin
connection quick disconnect

1013833

Motor, Blower

Volts - 115
AMP - 1.6
RPM - 3000

Includes porcelain wire nuts

1011350

Motor, Blower

Volts - 115
Amps - 0.8

RPM - 3450

Has (3) .250" and (1) .187" female terminals

1010239

Motor, Combustion
Air Blower

Volts - 115
Amps- 0.8
RPM - 2350

Lead ends have (2) male pin connections

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

164

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

Replaces # 1010975

1006168

Motor, Blower Kit

Volts - 115, 60Hz
Amps - .9
RPM - 3300
Rotation - CCW
HP - 1/60

Kit contains:
(1) blower assembly, (1) blower gasket,
(1) .250" and (1) .187" female flag terminals,
(2) flag terminal insulators, (1) tube of RTV sealant

1164280

Motor, Inducer Blower

Volts - 115
AMP - 2.3
RPM - 3400
HP- 1/25

Has (2) .250" male terminal connections

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

ARCO AIRE - COMFORtMAkER - ICp COMMERCIAl - tEMpStAR

Heil

1149856

Pilot, Burner

(I.D. #Q3450C1045)

Has a (3) female pin connection quick
disconnect attached to wire ends

1380687

Sensor, Flame

1-1/2" porcelain
2" rod

Has a .250 male terminal

1010712

Switch, Interlock

1149944

Pilot, Burner

“B" mounting
“L" tip style

1009524

Assembly, Flame Sensor

(I.D. #Q3400A1040)

Includes spring clip
Has a (3) female pin connection quick
disconnect attached to wire ends

607900

Switch, Interlock

Oem heating parts

Includes bracket

Has (2) .250" male terminals

34333002

Switch, Limit

open @ 300°F
close @ 280°F

Has (2) .250" male terminals

1170003

Transformer

(I.D. #4000Y01E07AE191)
Primary: 120 VAC
Secondary: 24 VAC
40 VA, 50/60 Hz

Has (4) 12" leads with .250" female terminals
on one end and are stripped on the other ends

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

Has (2) .250" male terminals

1013102

Switch, Limit

open @ 130°F
manual reset

Has (2) .250" male terminals

1170429
1170430 Has L.P. gas conversion kit

Valve, Gas & Regulator Combo

(I.D. #SV9501M2718)
(I.D. #SV9501M2056)
24V, 1⁄2" x 1⁄2"

Intermittent Ignition

Ignition trial time: 90 sec.
Retry Delay: 5 min.

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

1174276

Switch, Pressure

(I.D. #IS20213-5216)

.59" W.C.
Has (2) .250" male terminals

165

janiTRol

GMC - GOODMAN

PCBBF132S

Board, Control

5-7/8" x 4-1/2"

Oem heating parts

PCBBF122S

Board, Control

5-7/8" x 5"

1809913S

Board, Circuit

5-13⁄16" x 4-1⁄2"

Includes: a (2) wire, 9 pin connector
wire and (R, W & G) thermostat wires
This is a direct replacement for:
B18099-06, B18099-08, B18099-10

B945672

Capacitor

Volts - 370
MFD - 12.5

B1370155

Control, Limit

open @ 120˚F
close @ 90˚F

B1809904

Board, Blower Control

4-13/16" x 3-7/8"

B1497204

Cut-Off,
Thermal Energy

(I.D. #TF144C)

0230K000001

Igniter, Mini Conversion Kit

20165703S

Igniter Only

Manufacturer uses this to replace #B1401018S
5-1/4" leads with a (2) male pin connection quick disconnect

0131M00002S

Motor, Draft Inducer

Volts - 115
RPM - 3000
H.P. - 1/50

B1859005

Motor, Draft
Inducer Blower

Volts - 115, 60Hz
RPM - 3000

Has (2) .250" male terminals

B1401018S

Igniter, Hot Surface

6" leads

“FLAT" type ignitor with a (2) male pin con­nection quick disconnect

B1340021

Motor, Direct
Drive Blower

(G.E. #5KCP39FG)
Volts - 115
RPM - 1050
Rotation - CCW
H.P. - 1/3
Single Phase

Has (2) .250" male terminals

B13921KIT

Kit, Door Latch

166

Has (2) .250" male terminals

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

Has (6) .250" female terminals

GMC - GOODMAN

janiTRol

B1401003S

Pilot, Burner

Has a .250" female terminal and a 37"
lead wire with a female pin connection

1370908S

open @ 160°F close @ 130°F

B1370912

open @ 240°F close @ 210°F

Switch, Limit

0130F00010

Sensor, Flame

1" porcelain

2-1/16" rod

Has a .250" male terminal

B1370108

Switch, Limit

open @ 328°F
manual reset

B1370819

Switch, Door

Has (2) .250" male terminals

B1370145

Switch, Limit

open @ 300°F
manual reset

Oem heating parts

Both have 7" insert and
(2) .187" male terminals

B1370142

Switch, Pressure

.060" WC

Has (2) .250" male terminals

B1370110

Switch, Spillage

open @ 330°F
manual reset

Has (2) .250" male terminals

B1370133
B1370126

Switch, Pressure

1/10 HP

1/10 HP.
Has (2) .250" male terminals

B1141605

Transformer

Primary: 120 Volt
Secondary: 24 Volt
50/60 Hz, 40VA

Has (2) .250" male terminals

B1370154

Switch, Roll Out

open @ 350°F
manual reset

Has (2) .250" male terminals

B1282628

Valve, Gas - 24V

(I.D. #36G22Y)
1⁄2" x 1⁄2"
Max. Pressure: 1⁄2" PSI
Reg: 3.5" W.C.

B1370106

Switch, Spillage

open @ 275°F
manual reset

Has (2) .250" male terminals

Has (2) .250" male terminals

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

Has (4) .250" male terminals
Includes (2) 12" jumper wires

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

offered for sale are not represented to be manufactured by the company that built the original equipment.

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

167

janiTRol

GMC - GOODMAN

PARTS LIST BY MODEL

MODELS: GUI, GUN, GUP, GUPI

** 34 = LH Wheel, 46 = RH Wheel

DESCRIPTION PART #

Air Pressure Switch B13701-07

Air Pressure Switch B13701-26 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Oem heating parts

Blower Housing 14393-89 1 1 1 1

Blower Housing 14393-77 1 1 1 1 1 1 1 1 1

Blower Housing 14393-91 1 1 1 1 1 1 1 1 1 1 1 1

Blower Housing 18393-04 1

Blower Housing 18393-00 1 1 1 1 1 1 1 1 1 1

Blower Wheel B13680-47A 1 1 1 1

Blower Wheel B13680-00 1 1 1 1 1

Blower Wheel B13680-34 1 1 1 1 1 1 1 1 1

Blower Wheel B13680-42 1 1 1 1

Blower Wheel B13680-16 1 1 1 1 1 1 1 1 1 1 1 1

Blower Wheel B13680-36 1

Blower Wheel ** B13680-34/46 1

Burner Assembly B18225-00S 1 1 1 1 1 1

Burner Assembly B18225-01S 1 1 1 1 1 1 1 1 1 1

Burner Assembly B18225-07S 1 1 1 1 1 1 1 1 1

Burner Assembly B18225-08S 1 1 1 1 1 1 1 1 1

Burner Assembly B18225-09S 1 1

Capacitor B9456-52 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Capacitor B9456-72 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Capacitor B9456-50 1 1

Capacitor B9456-53 1

Door Switch B13708-19 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Door Switch B13708-20 1 1 1

Energy Cut O B14972-04 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Fan Limit Switch B13701-21 1 1 1 1 1 1 1 1 1

Fan Limit Switch B13701-18 1 1 1 1 1 1 1

Fan Limit Switch B13701-20 1 1 1 1 1 1 1 1 1 1

Fan Limit Switch B13700-03 1

Fan Limit Switch B13700-08 1 1 1

Fan Limit Switch B13709-06 1 1 1 1

Fan Limit Switch B13700-12 1

Fan Limit Switch B13709-12 1

Gas Valve B12826-06 (NLA) 1 1 1 1 1 1 1 1 1 1 1 1 1

Gas Valve B12826-06/07 1 1 1 1

Ignition Module B13707-24 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Load Center B11417-02 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Load Center B11416-05 1 1 1 1 1 1

Manifold B18264-00

GUI0753

GUI0502

GUI0752

1 1 1 1 1

GUI0754

GUI0002

GUI1003

GUI1004

GUI1253

GUI1255A

GUI1255

GUI1254

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

GUN502B

GUN0402

GUI1505

1 1 1 1 1 1 1 1 1

GUN0603

GUN0753

GUN0753B

GUN1004B

GUN1004

GUN1255B

GUN1255

GUP0502A

GUP0402

GUP0753A

GUP0603

GUP1004A

GUP0804

GUP1005

GUP1155

GUP1205A

GUPI0503

GUPI0753

GUPI0754

GUPI1004

GUPI1005

GUPI1205

168

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

GMC - GOODMAN

janiTRol

GUN0753B

GUN1004B

GUN1255B

GUP0502A

GUP0753A

PARTS LIST BY MODEL

MODELS: GUI, GUN, GUP, GUPI

DESCRIPTION PART #

Manifold B18264-01

Manifold B18264-02 1 1 1 1 1 1 1 1 1

Manifold B18264-03 1 1 1 1 1 1 1 1

Manifold B18264-04 1 1 1

Manifold B18264-16 1

Manifold B18264-17 1

Manifold B18264-18 1

Manifold B18264-19 1

Motor B13400-20 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Motor B13400-21 1 1 1 1 1 1 1 1 1 1

Motor B13400-22 1 1 1 1 1

Motor B13400-23S 1 1 1 1 1

Motor Mount Band B13768-51 1 1 1 1 1 1 1

Motor Mount Arm B13768-60(3) 1 1

Motor Mount Arm B13768-59(3) 1 1 1 1 1

PC Board B18099-04 1 1 1 1 1 1 1 1 1

Pilot Assembly B14010-03S 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Sequencer B12565-51 1 1 1 1 1

Stack Switch B13701-09 1 1 1 1 1 1 1 1

Vent Limit Switch B13701-06 1 1 1

Vent Limit Switch B13701-10 1 1 1

Vent Limit Switch B13701-08 1 1 1 1 1 1 1 1 1 1 1 1 1

Vent Motor B18590-01S 1 1 1 1 1 1 1 1 1

Vent Motor B18590-00 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Vent Motor Relay B13707-51 1 1 1 1 1 1 1 1 1

Heat Exchanger 18212-07S 1 1 1 1

Heat Exchanger 18212-08S 1 1 1 1 1

Heat Exchanger 18212-02S 1 1

Heat Exchanger 18212-10S 1 1 1 1 1 1

Heat Exchanger 18212-11S 1 1 1 1 1 1 1

Heat Exchanger 18212-13S 1 1

Heat Exchanger 18212-24S 1

Heat Exchanger 18212-28S 1

Heat Exchanger 18212-25S 1 1

Heat Exchanger 18212-29S 1

Heat Exchanger 18212-26S 1

Heat Exchanger 18212-30S 1

Heat Exchanger 18212-27S 1

Heat Exchanger 18212-31S 1

Heat Exchanger 18212-37S

GUI0753

GUI0502

GUI0752

1 1 1 1 1 1 1

GUI0754

GUI0002

GUI1003

GUI1004

GUI1253

GUI1255

GUI1254

GUI1255A

GUI1505

GUN502B

GUN0402

GUN0603

GUN0753

GUN1004

GUN1255

GUP0402

GUP0603

GUP1004A

GUP0804

GUP1005

GUP1155

GUP1205A

GUPI0503

GUPI0753

GUPI0754

GUPI1004

GUPI1005

1

GUPI1205

Oem heating parts

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

169

janiTRol

PARTS LIST BY MODEL

GMN, GPD, GMP, GUE, GMPN, GSU, GMPV

DESCRIPTION PART #

Air Pressure Switch B13701-26

Air Pressure Switch B13701-33

Air Pressure Switch B13701-42

Air Pressure Switch B13701-48

Air Pressure Switch B13701-50

Air Pressure Switch B13701-56

Air Pressure Switch B13701-57

Oem heating parts

Air Pressure Switch B13701-58

Air Pressure Switch B13701-59

Air Pressure Switch B13701-60

Auxiliary Limit Switch B13701-11

Auxiliary Limit Switch B13701-55

Blower Housing 14393-89

Blower Housing 14393-77

Blower Housing 14393-91

Blower Housing 18393-01

Blower Housing 18393-00

Blower Housing 25393-00

Blower Housing 25393-01

Blower Housing 25393-02

Blower Housing 25393-03

Blower Wheel B13680-34S

Blower Wheel B13680-16

Blower Wheel B13680-00

Blower Wheel B13680-47A

Blower Wheel B13680-46

Blower Wheel B13680-42

Blower Relay B13707-52

Burner Assembly B18225-00S

Burner Assembly B18225-01S

Burner Assembly B18225-07S

Burner Assembly B18225-08S

Burner Assembly B18225-09S

Burner (Inshot) Assembly 25227-03S

Capacitor B9456-72

Capacitor B9456-52

Capacitor B9456-53

Chimney B25235-00

Door Switch B13708-20

Door Switch B13708-19

Door Switch B13708-19

Energy Cut O B14972-04

Fan Limit Switch B13701-21

Fan Limit Switch B13701-20

Fan Limit Switch B13701-18

Flame Sensor 0130F00010

alve B12826-06 (NLA)

Gas V

Gas Valve B12826-07

Gas Valve B12826-28

Gas Valve B12826-28

HSI Ignitor Assembly B1401018S

HSI Module Board 18099-10

HSI Module Board 18099-12

HSI Module Board 18099-13S

Ignition Module B13707-24

Load Center Transformer B11417-02

Heat Exchanger 25213-00S

Heat Exchanger 25213-01S

Heat Exchanger 25213-05S

Heat Exchanger 25213-02S

Heat Exchanger 25213-06S

Heat Exchanger 25213-03S

Heat Exchanger 2513-04S

17 0

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

GMC - GOODMAN

GMPN0403

GMN0603

1 1 1

1 1 1 1

1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1

3 4 5 6 2 3 3 4 4 4 5 5 6 2 3 4 5 6 3 4 5 2 3 4 6 3 4 5

1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

offered for sale are not represented to be manufactured by the company that built the original equipment.

GMN1205

GMN0804

GMN1004

GMP0503

GMP0753

GMP1003

GMP1005

GMP0754

GMP1004

1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1

1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1

1 1 1 1

1 1 1 1 1 1 1 1 1

1 1 1 1 1

1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1

1 1

1 1

1 1 1

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

GMP1255

GMP1254

1 1 1 1

1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1

1 1 1 1

GMP1505

1

1

GMPN0603

GMPN1205

GMPN0804

GMPN1004

GMPV100

GMPV075

GMPV125

GPD0503

GPD0753

GPD1004

GPD1254

GUE0403

GUE0603

GUE1005

GUE0402

1

1

1 1 1 1 1 1

1 1

1 1 1 1 1 1

1 1 1 1 1 1

1 1 1

1 1 1 1 1 1

1 1 1 1 1 1

GUE0804

1 1 1

1

1

1

1

1

1 1

1

1 1 1

1 1

GSU0603

GUE1205

1

1 1 1

1

1

1 1 1

GSU0804

GSU1004

1 1

1

GMC - GOODMAN

PARTS LIST BY MODEL

GMN, GPD, GMP, GUE, GMPN, GSU, GMPV

DESCRIPTION PART #

Heat Exchanger 28213-00S

Heat Exchanger 28213-01S

Heat Exchanger 28213-02S

Heat Exchanger 28213-03S

Heat Exchanger 18212-07S

Heat Exchanger 18212-08S

Heat Exchanger 18212-10S

Heat Exchanger 18212-11S

Heat Exchanger 18212-13S

Limit Switch B13709-12S

Limit Switch 13709-08S

Limit Switch 13709-11S

Limit Switch 13709-03S

Limit Switch 13709-02S

Limit Switch 13709-14S

Limit Switch B13709-13S

Limit Switch B13709-10S

Limit Switch 13709-05S

Manifold B18264-00

Manifold B18264-01

Manifold B18264-02

Manifold B18264-03

Manifold B18264-04

Manifold B25260-00

Manifold B25260-01

Manifold B25260-02

Manifold B25260-03

Manifold B25260-04

Manifold B28260-00

Manifold B28260-01

Manifold B28260-02

Motor B13400-21

Motor B13400-20

Motor B13400-23S

Motor B13400-22

Motor 13400-602BS

Motor 13400-603BS

Motor Mount Band B13768-51

Motor Mount Arm B13768-60

Motor Mount Arm B13768-59

Motor Mount Arm B13768-53

Motor Mount Arm B13768-57

Orice #42 B25893-42

Orice #43 B25893-43

Orice #45 B25893-45

Pilot Assembly B14010-03S

Roll Out Switch 300˚ B13701-44

Roll Out Switch 350˚ B13701-54

Secondary Coil 28646-04

Secondary Coil 28646-05

Secondary Coil 28646-06

Secondary Coil 28646-07

Stack Over Temp Switch B13701-46

Stack Over Temp Switch B13702-53

Variable Speed LV Board B13682-60

Vent Blower Assembly B18590-05

Vent Blower Assembly B28330-01S

Vent Blower Assembly

V

ent Limit Switch B13701-06

Vent Limit Switch B13701-10

Vent Limit Switch B13701-08

Vent Limit Switch B13701-02

Transformer B11416-05

B28330-02S

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

janiTRol

GMPN0403

GMN0603

1 1 1

1 1 1 1

1 1

1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1

3 4 5 6 2 3 4 5 6 3 4 5

2 2 2 2

1 1 1 1

1 1 1 1

1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

GMN1205

GMN0804

GMN1004

GMP0503

GMP0753

GMP1003

GMP1005

GMP0754

GMP1004

1 1 1

1 1 1

1 1

1 1 1 1

1

1 1

1 1 1 1

1 1 1

1 1

1 1 1 1

1

1 1 1

1 1 1 1 1 1 1

1 1 1 1 1 1

1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1

1 1 1 1 1 1 1 1 1 1

3 3 3 3

3 3 4 4 4 5 5 6 3 4 5 3 4 6

2 2

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1

1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

GMP1255

GMP1254

1 1

1 1 1

1 1 1

3 3 3 3

GMPN0603

GMP1505

1 1

1 1 1 1 1 1 1

GMPN1205

GMPN0804

GMPN1004

1 1

GMPV100

GMPV075

1

1 1

3

1 1 1

GMPV125

GPD0503

GPD0753

GPD1004

GUE0403

GPD1254

GUE0603

GUE0402

1 1

1

1 1

1 1 1 1 1 1

1

GUE1005

GUE0804

1

1

3

1

1

GUE1205

1

1

GSU0603

GSU0804

1

1

1 1 1

GSU1004

Oem heating parts

1

171

lennox

AMERICAN AIR

83M00

Board, Control Kit

7-9/16" x 5-3/4"

Includes ignition control
adapter plate, ignition cable,
(2) wiring harnesses, switch,

Oem heating parts

(4) plastic hole plugs and
wiring schematic stickers

19W94

Board, Ignition Control

6-3/16" x 5-15⁄16"

Includes ignition control adapter plate, igni­tion cable, (2) wiring harnesses, wire nuts,
#8-18x1/2 self-drill, self-tap screws, wiring
schematic stickers, diagnostic sticker and
unused hole stickers

13H70

7" insert (FALTS57E-25T-110-200)

13H72

7" insert (FALTS57C-05T-110-120A)

Control, Fan & Limit

17W82

Board, Ignition Control

6-1/4" x 5-15/16"

Includes a 6" continuous fan jumper wire
with a .250" female terminal & a .250"
female/male piggy back terminal end

48K98

Center, Control

5-5⁄8" x 4-3⁄16"

Includes blue wire with .187"
female terminal and wire nut

15P37

Control, Fan & Limit

5" insert

Limit Stop: 200°F
Fan On: 120°F
Fan Off: 90°F

30W33

Control, Ignition Conversion Kit

Trial time: 90 sec.
Prepurge: 30 sec.

Continuous retry

Kit includes: ignition control, flame sensor, wires,
wire nuts, insulated 1/4" quick connect, control bracket,
(4) #8 16 x 1/2" screws, wiring diagram & diagnostic code label

41K56

Igniter, Hot Surface

12" leads

Has a (2) female pin connection quick disconnect

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

172

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

97H0401

Module, Replacement Ignition

(I.D. #SP745-NU-3-60-5)
Lockout Model
(3) 60 sec. tries for ignition

with 5 min. between tries
Goes into lockout after 3rd ignition try

AMERICAN AIR

lennox

26G42

Motor

(I.D. #7121-6112)
Volts - 115
RPM - 3200
Amp - 1.5
H.P. - 1/30
Shaft - 2"

Has (1) .250" female terminal and (1) stripped wire end

67M69

Motor, Blower

Volts - 115
Amps - 1.5
H.P. - 1/30
RPM - 3200

Has (1) .250" female terminal
and (1) stripped wire end

60L21

Motor, Direct Drive Blower

Volts - 115
Amp - 5.1
RPM - 1075
H.P. - 1/3
Shaft - .5 x 4

4 Speed

Rotation - CCW
Frame - 48Y

Single phase, sleeve bearing

68K21

Motor, Blower Assembly

67K04

Motor, Blower (only)

Volts - 115
Amps - 1.8
RPM - 3400

2 wires with a (2) female pin connection quick disconnect
Includes orifices, blower gasket and screws

51H74

Motor, Damper Door

110V

Has (2) 7-1/2" leads w/ female pin connectors

60L22

Motor, Direct Drive Blower

Volts - 115
RPM - 1075
H.P. - 1/2
Shaft - .5 x 3.25

5 Speed

Rotation - CCW
Frame - 48Y

Single phase, sleeve bearing

Has (8) .250" female terminals

Oem heating parts

89C37

Motor, Direct Drive Blower

(I.D. #P89662)
Volts - 115
RPM - 1050
Amps- 7.60
Rotation - CW
H.P. - 1/5
Single Phase

Includes: bracket adapter kit
Has (4) .250" female terminals

24W95

Motor, Inducer

Volts - 115
Amps - 1.75
RPM - 3000

2 wires with quick disconnect
and .250" male terminals

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

67M68

Motor, Draft Inducer

(Model LB-55074AA)
Volts - 115
Amps - 1.5
H.P. - 1/30
RPM - 3200

Has (1) .250" female terminal
and (1) stripped wire end

80C93

Motor, Purge

CCW Rotation

Volts - 120
RPM - 3000

Has (2) .250" male terminals

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

173

lennox

AMERICAN AIR

18G90

Pilot, Burner

Oem heating parts

Has a 25" lead with (1) .250" female terminal

33F37

Sensor, Flame

15/16" tip length

Tip Length

Has a .250" male terminal

62K50

Sensor, Flame Kit

66C67

Relay, Switching

Coil: 24 VAC
50/60 Hz

Has (10) .250" male terminals

18G8901

Sensor, Flame

3-1/4" overall length

Has a .250" male terminal

51M14

Sensor, Flame

.187"

terminal

Kit contains:
burner mounting brackets, ignitor w/ .250" male terminal,
dual rod flame sensor w/ .187" male terminal, ground wire
and (4) #8-18x 1/2 screws

.250"

terminal

26H66

Switch, Limit

open @ 175°F
close @ 145°F
3" insert

Has a .187” male terminal

26H61

Switch, Damper

87F16

Switch, Limit

open @ 140°F
close @ 110°F
3" insert

Has (2) .250" male terminals

174

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

Has (2) .250" male terminals

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

offered for sale are not represented to be manufactured by the company that built the original equipment.

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

AMERICAN AIR

lennox

49L03

Switch, Limit

open @ 200°F
close @ 170°F
7" insert

Has (2) .250" male terminals

33J89

Switch, Pressure

(I.D. #FS6746-1657)

.46" WC

Has (2) .250" male terminals

38631

Transformer

Primary: 120 Volt
Secondary: 24 Volt
Capacity: 30 VA

20J83

Switch, Limit

open @ 165°F

Has (2) .250" male terminals

26H78

Switch, Roll-Out

open @ 260°F

Manual reset

Has (2) .250" male terminals

78H55

Transformer

Primary: 120 Volt
Secondary: 24 Volt
Capacity: 30 VA

Oem heating parts

85A66

Valve & Regulator,
Dual Combination Gas

24V

1⁄2" x 3⁄4"

70L53

Valve & Regulator, Dual Combination Gas

(I.D. #SV9501H2409)
(I.D. #SV9502H2704)

24V

1⁄2" x 1⁄2"

Intermittent Ignition

Ignition Trial Time: 90 sec.
Pressure Reg. Setting:
Nat. Gas - 3.2” Adj. W.C.
Retry Delay: 5 min. Prepurge: 15 sec.

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

Has (2) .250" & (2) .187" male terminals

41K35

Valve & Regulator,
Dual Combination Gas

(I.D. #VR8204H1048)

24V

1⁄2" x 1/2"

175

RHeem

CORSAIR - RuuD

622408482

Board, Control

(I.D. #1012-920A)
7-5⁄8" x 5-3⁄4"

Oem heating parts

This is a direct replacement for:
62-22694-01, 02, 03, 11, 12, 82, 83, 91
62-22737-06, 07, 08, 10, 87, 88
62-24044-01, 81, 91 62-24045-01, 62-24046-01
62-24084-01, 02, 71, 91, 92

Furnace units built before the 32nd week of 1994

(3294) may require ordering flame sensor kit
#622404471.

472244501

Board, Fan Control

On 30, 60, 105 sec.
Off 90, 120, 150 sec.
24/120V
ESX 695-211

472282783

Board, Control

(I.D. #ST101A1014)
5-1/4" x 4-1/2"

622426801

Board, Ignition Control

24/120V

Prepurge: 5 sec.
UTEC 1012-925

622414004

Board, Ignition Control

(I.D. #1028-928A)
5-3/4" x 6-11/16"

Replaces #62-24140-02

622286893

Igniter,
Hot Surface

5-3/4" leads

622416401

Igniter, Direct Spark

35-1/4" lead wire with a
female pin connection

512301241

Motor, Blower

Volts - 115
Amps - 7.30
HP - 1/2
RPM - 1075
Rotation - reversible

4 speed, 5" shaft

622257801

Module, Ignition

(I.D. #HS780-34PL-308A)

Hot surface

702415703

Motor, Draft Inducer
Blower Assembly

Volts - 120, 60Hz

Amps- 1.71
1/20- HP
RPM- 3400

Has a (2) male pin connection quick discon­nect

620044

Module, Ignition

(I.D. #156-5613)

Has (2) .250" male terminals

422510406

Relay

All ends have .250" female flag terminals

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

176

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

Used on standing pilot models

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

Has (5) .250" male terminals

CORSAIR - RuuD

RHeem

622174401

Sensor, Flame

3-1/4" overall length

Has a .250" male terminal

472238337

Switch, Limit

open @ 340°F
manual reset

622354301 Flame sensor only
622404471 Flame sensor kit

Sensor, Remote Flame

Kit contains:
Inshot burner bracket, ribbon burner bracket,
threaded U-bolt, (3) sheet metal screws, (2)
wing nuts, (2) lock washers, remote sensor, wire
splice, remote sensor wire, wire strain relief, (2)
orange wires, (4) plastic ties, Sensor Connection
label, “Notice” label

472286001

Switch, Limit

open @ 105°F

close @ 95˚ F

472190001

Switch, Limit

open @ 230°F
manual reset

Has (2) .250" male terminals

472286101

Switch, Limit

open @ 350°F
manual reset

Oem heating parts

Has (2) .250" male terminals

472534902

open @ 170°F - close @ 150°F

472534903

open @ 150°F - close @ 130°F

Switch, Limit

3" Insert

Has (2) .250" male terminals

462286304

Transformer

Primary: 120 Volt
Secondary: 24 Volt
50/60 Hz, 40 VA

Has (2) .250" & (2) .187" male terminals

422419401

Switch, Pressure

(I.D. #IS20035051 L5030)

.35" WC

Has (2) .250" male terminals

471980704

Transformer

Primary: 120 Volt
Secondary: 24 Volt
50/60 Hz, 40 VA

Has (2) .250" male terminals

422419482

Switch, Pressure Kit

(I.D. #IS20030051 L5028)

.30" WC

Has (2) .250" male terminals

602286601

Valve, Gas

(I.D. #VR8205H-8016)
Hot Surface Ignition
24V, 1⁄2" x 1⁄2"

Single stage

Slow opening: 150,000
BTU @ 1" W.C.

All 4 wires have .250"
crimped female terminal ends

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

Mounting plate measures 4-1/4" x 4-1/4"

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

offered for sale are not represented to be manufactured by the company that built the original equipment.

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

177

TRane

AMERICAN StANDARD

CNT5165

Control, Integrated Fan

(I.D. #50A65-476-08)
4-3/8" x 5-7/8"

Oem heating parts

IGN0026

Igniter, Hot Surface

5-1/2" leads

Has a (2) male pin connection quick disconnect

IGN00023

Igniter, Hot Surface

5-1/2" leads

FUS0620

Fuse, Thermal

(I.D. #TF167C)

Has (2) .250" male terminals

FUS0810

Fuse, Thermal

(I.D. #TF1670)

Has (2) .250" male terminals

IGN0054

Igniter, Hot Surface

5-3/4" leads

Has a (2) male pin connection quick disconnect

IGN0117

Igniter, Hot Surface

5-1/4" leads

Has a (2) male pin connection quick disconnect

PLT3400

Igniter, Hot Surface

12" leads

Lochinvar ignitor
Has .250" male insulated terminals

CNT3797

Module, Fan Control

(I.D. #50A55-480)
(I.D. #50A55-486)
Retries: 2
Attempts: 3
Ignition trial time: 4 sec.
Prepurge: 0 sec.
Post purge: 5 sec.
Cir. blower on delay: heat 45 sec., cool 2 sec.

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

178

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

Has a (2) female pin connection quick disconnect

CNT1316

Module, Ignition

(I.D. #50E47-60)
(I.D. #50E47-843)
Hot Surface Ignition
Input voltage: 25VAC

6 different program keys w/ corresponding color coded timing labels
Program key determines… trial for ignition, retries, prepurge and
warm-up time

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

AMERICAN StANDARD

TRane

BLW0024

Motor, Draft Inducer
Blower Assembly

Volts - 115
Amps- 1.0
Hz - 60

Single Phase

Has (2) .250" female terminals

SEN1114

Sensor, Flame

BLW0473

Motor, Combustion
Blower Assembly

Amps - .95
Volts - 115
H.P. - 1/50

Single Phase

Has a (2) male
pin connection quick disconnect

SEN0233

Sensor, Flame

SWT1258

open @ 170°F
close @ 140°F

SWT1273

open @ 220°F
close @ 190°F

Switch, Limit

3" Insert

MOT9053

Motor, Blower

Volts - 115
Amps- 5.80
RPM- 1075
Rotation- CCW
HP- 1/3
Single Phase
Shaft- 3"

(2) brown wires have
.250" female flag terminals, the other
(5) wires have .250" female terminals

SWT1259

open @ 190°F
close @ 160°F

SWT1272

open @ 250°F
close @ 220°F

Switch, Limit

3" Insert

Oem heating parts

Has a .250" male terminal

SWT2357

Switch, Pressure (Dual)

(I.D. #C341750P02)

.17" WC
Open @ .45
Close @ .55

Has (4) .250" male terminals

VAL7732

Valve, Combination Gas

(I.D. #36G24-205)

24V

1⁄2" x 1⁄2"
Max pressure: 1/2 PSI
Reg: 3.3" WC

Has (1) .250"
male terminal

Has (2) .250"
male terminals

SWT1255

Switch, Pressure

(I.D. #FS6614-1165)

.50" WC
Open @ .55
Close @ .65

Has (2) .250" male terminals

VAL2905

(I.D. #36E01-221)

VAL7731

(I.D. #36G22-209)

Valve, Dual

Combo Gas

24V

1⁄2" x 1⁄2"
Max pressure: 1/2 PSI
Reg: 3.5" WC

Has (2) .250"
male terminals

TRR1729

Transformer

(I.D. #C340041P05)
(I.D. #X1355026703)
Primary: 115 Volt

Secondary: 24 Volt
Capacity: 35 VA

Has (2) .250" & (2) 187" male terminals
Replaces transformer #TRR0783

KIT9419

Valve, Gas Valve Adapter Kit

Used when replacing WR 36E and 36F

series valves with 36G Gemini

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

17 9

williams

P200600

Blade, Fan

Metal

Oem heating parts

Has 5 blades

P285500

Igniter, Manual Spark

P179900

Pilot, Burner

P322398

Generator, Pilot

35" lead with non-insulated spade terminals

P062101

(I.D. #A0510B2106)

1.4 AMP

P321601

(I.D. #A0512B2242)

1.9 AMP

Motor, Fan

120V, 60Hz

Has (3) stripped wire ends

P501617

Pilot, Burner

P179500

Pilot, Burner

Gasket included

P323418

Pilot, Burner

Has a 16" lead with a .250" female terminal

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

180

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

35" lead with non-insulated
spade terminals

P229100

Pilot, Burner

Has a 16" lead with a
.250" female terminal

P271100

Sensor, Flame

Sensor has a .250" male terminal

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

SOLD SEPARATELY

P274200

Wire, Lead

17" lead with (2) .250" female terminals

williams

P200200

Switch, Fan

open @ 120°F - close @ 105°F

Has (2) .250" male terminals

P206500

Switch, Limit

open @ 240°F
close @ 200°F

Has (2) .250" male terminals

P322391

Thermocouple

P321127

Switch, Limit

open @ 330°F
close @ 270°F

Has (2) .250" male terminals

P296201

open @ 165°F - close @ 130°F

P213400

open @ 160°F - close @ 130°F

Switch, Limit

Has (3) .250" male terminals

P024200

Transformer

Oem heating parts

Junction block type
Has (2) .250" male terminals

710205

Valve, Combination Gas

SNAP-ACTION HYDRAULIC (70,000 BTU)
Factory Model #7000 SRLC
1⁄2" x 1⁄2"

Primary: 120 Volt
Secondary: 24 Volt
Capacity: 20 VA

P323209

Valve, Dual Combination Gas

24 V

(I.D. #VR8200C2221)
1⁄2" x 1⁄2"

P323011

Valve, Wall

Furnace Gas

Millivolt
1⁄2" x 3⁄8"

The 710 low capacity gas heating valves are designed for recreational
vehicles and other low capacity heating applications.
All models include a manual valve (gas cock), automatic pilot safety valve,
pilot outlet, pilot gas filter and pilot adjusting key

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

181

yoRk

bORG-wARNER - FRAzIER-jOHNSON - luxAIRE

33103010000

Board, Control Kit

Single stage

Oem heating parts

Replaces:
33102956000, 03109167000, 03101933000,
03101267000, 03101267001, 03100662000,
0310125000, 03101266000, 03101284000,
03101973000, 03101972000, 33109167000

YORK MODEL TO YORK IGNITOR

NUMBER CROSS REFERENCE

UNIT MODEL IGNITION TYPE REPLACEMENT

G8C****OD

P1CC

P1CD

.P1CK Hot Surface

P1CX Hot Surface 025-32625-000

P1DU

P1NU

P1UC Hot Surface 473-20937-001

P1UD

P1UK

P1XU Hot Surface 025-32625-000

P2CD

P2CH

P2DP

P2DR Hot Surface 025-32625-000

P2MP

P2UC Hot Surface 473-20937-001

P2UD

P2UH

P2UR

P3CC

P3DH

P3DN

P3GE

P3HU

P3UC

P3UR

P6UC

P9CC

P9CK

P9MP Hot Surface

P9UC Hot Surface 473-20937-001

P9UD

P-WH (230V)

Hot Surface 025-32625-000

Hot Surface 473-20937-001

Hot Surface 473-20937-001

Hot Surface 025-32625-000

all unitS

on recall

Hot Surface 473-20937-001

Hot Surface

Hot Surface 473-20937-001

Hot Surface 025-32625-000

Hot Surface

Hot Surface

Hot Surface 473-20937-001

Hot Surface 025-32625-000

Hot Surface 473-20937-001

Hot Surface 473-20937-001

Hot Surface 025-32625-000

Hot Surface 025-32625-000

Hot Surface 025-32625-000

Hot Surface 025-32625-000

Hot Surface 473-20937-001

Hot Surface 025-32625-000

Hot Surface 473-20937-001

Hot Surface 473-20937-001

Hot Surface

Hot Surface 473-20937-001

Hot Surface 024-26098-000

025-32625-000 &

Burner SHield Kit

025-32625-000 &

Burner SHield Kit

025-32625-000 &

Burner SHield Kit

025-32625-000 &

Burner SHield Kit

025-32625-000 &

Burner SHield Kit

025-32625-000 &

Burner SHield Kit

02532625000

Igniter, Hot Surface

5-3/4" leads

02532626000

Igniter, Hot Surface Kit

9" leads

Has crimped-on pin terminals

Has a (2) male pin connection quick disconnect

Includes (2) quick disconnects

47320937001

Igniter, Hot Surface Kit

–

7-3/4" leads with a (2) male pin connection quick disconnect.
Kit includes: brackets, additional disconnect, screws and wire nuts (not shown)

03101266000

Module, Fan Control

(I.D. #50A50-241)
Ignition trial time: 7 sec.; IAP: 4 sec.
Prepurge: 0 sec. Postpurge: 15 sec.
Retries: 2; Attempts: 3; Recycles: 4

Ignitor warmup: 17 sec. on

retry: 27 sec.

37310337702

Motor, Draft Inducer

Volts - 115
AMP -1.2
RPM - 3000
H.P. - 1/50

02525436700

Module,
Ignition Kit

Hot Surface Ignition
(I.D. #50E47-70)
(I.D. #50E47-843)

• Input voltage: 25VAC

• 6 different program keys w/

corresponding color coded timing labels

• Program key determines… trial for ignition,

retries, prepurge and warm-up time

32425007000

Motor, Draft Inducer

Volts - 115
AMP - 0.7
RPM - 3450
H.P. - 1/25

BURNER SHIELD PART #

2 Cell - 373-12221-802 5 Cell - 373-12221-805

3 Cell - 373-12221-803 6 Cell - 373-12221-806

4 Cell - 373-12221-804 7 Cell - 373-12221-807

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

182

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

offered for sale are not represented to be manufactured by the company that built the original equipment.

Has quick disconnect on
wire ends with male pin connections

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

Has (1) male pin connection
and (1) stripped wire end and gasket kit

bORG-wARNER - FRAzIER-jOHNSON - luxAIRE

yoRk

32632067000

Motor, Vent Fan

Assembly

CW Rotation

(viewing motor side)
Volts - 115, 60Hz
RPM - 3000
Amps- 1.10

Sealed ball bearing

Has (1) male pin connection
and (1) stripped wire end

02425256700

Switch, Pressure

(I.D. #FS6436-703)
(I.D. #9370VD-HS-0013)

.50" WC

02527773700

Sensor, Flame

Porcelain: 1"
Rod: 2-1/2"

Has a .250" male terminal

02435271000

Switch, Pressure

.50" WC

02529041005

Switch, Limit

Open @ 140°F
Close @ 110°F

3" insert

Has (2) .250" male terminals

02427576000

Switch, Pressure

(I.D. #MPL-9300)
1/10 HP

Oem heating parts

Has (2) .250" male terminals
& (1) .187" male terminal

02527792009

Switch, Roll-Out

open @ 350°F
manual reset

Has (2) .250" male terminals

02521911701

Transformer

Primary: 120 Volt
Secondary: 24 Volt
Capacity: 40 VA
50/60 Hz

Has (2) .250" male terminals

02527747016

Switch, Roll-Out Flame

open @ 320°F
manual reset

Has (2) .250" male terminals

02530889000

Transformer

(I.D. #4000Y01E07AE15)
Primary: 120 Volt
Secondary: 24 Volt
Capacity: 40 VA
50/60 Hz

Has (2) .250" male terminals

02634027000

Switch, Roll-Out Flame

open @ 300°F
manual reset

Has (2) .250" male terminals

02525423700

Valve, Combination Gas

(I.D. #VR8200A-2223)
24V, 1⁄2" x 1⁄2"

3.5" WC

Has (5) .250" male terminals

PHONE: [phone] • FAX: [phone] • WEB: www.pdqsupplyinc.com • FB: facebook.com/pdqsupplyinc

Has (2) .250" & (2) .187" male terminals

All logos, trademarks, part numbers, photos & illustrations are intended solely for identication. Items

offered for sale are not represented to be manufactured by the company that built the original equipment.

CURRENT PRICING CAN BE FOUND ON OUR WEBSITE

183
