Goodman AGZ013B Parts List

Replacement Parts List No. 700009500

Revision C 10/2013

Air Cooled Global Chiller

Scroll Compressor

AGZ

Sizes: 010 - 034

Single Circuit

Vintage: A

R22, R407C

To find your Daikin Applied parts distributor, call 1-800-377-2787 or visit www.daikin applied.com

Contents

Parts List Revision History .................................................................................................................................3

Nomenclature

Serial Number ...............................................................................................................................................4

Unit Model Number- Dataplate .....................................................................................................................4

Stock Unit: Model Number ............................................................................................................................4

Unit Model Number- Complete .................................................................................................................4, 5

Electrical Legend ...............................................................................................................................................6

Unit Layout ........................................................................................................................................................7

Refrigeration Section

Compressors, Crankcase Heaters, Sound Reduction ..............................................................................8, 9

Evaporator ..................................................................................................................................................10

Tubing- Liquid Line, Suction, Discharge, Hot Gas Bypass ...................................................................11, 12

Condenser Section

Condenser Coil, Fan Deck Components ....................................................................................................13

Condenser Coils .........................................................................................................................................14

Cabinet

Coil Guards, Channels, Hardware ..............................................................................................................15

Panels .........................................................................................................................................................16

Control Panel

Main Control Box ........................................................................................................................................17

Misc. Controls- Transducers, Pressure Switches and Sensors ..................................................................17

Field Installed Accessories

Alarm Bell Kit ..............................................................................................................................................18

Phase Voltage Monitor Kit ..........................................................................................................................18

Speedtrol Kit ...............................................................................................................................................18

Remote Evaporator Kit ...............................................................................................................................18

Refrigerant Specialties ...............................................................................................................................18

Isolators ......................................................................................................................................................19

BACnet with IP/Ethernet .............................................................................................................................20

BACnet Communications Module MS/TP ...................................................................................................20

MODBUS Communications Module ...........................................................................................................20

LonMark Communications Module .............................................................................................................20

Remote Display Kit .....................................................................................................................................20

Critical Parts List ...............................................................................................................................CPL1-CPL2

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 2

Parts List Revision History

Revision Date Description

NEW 11/07 New
A 12/08 Page 1 - Add R22, R407C.
B 3/10 Page 11- Corrected Cond. Coil labels. Ref. #1 is now RH, Ref. #1A is now LH.
C 10/13 Page 1 -

Page 4: Revised Unit Model nomenclature Sizes to include “Single Circuit”.
Page 13: Updated Ref. #6 Motor 575V, was 074521101.
Page 19: Removed Spring Isolator part numbers, added note to contact
Daikin Applied.
Pages 20-21: Added CPL pages.

Revised cover title to include “Single Circuit”.

Daikin Applied, 13600 Industrial Park Blvd., P.O. Box 1551, Minneapolis, MN 55440 [phone]

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 3

Nomenclature

Serial Number

STN U 03 05 048

Plant Identification

STN = Staunton, VA

U= Unit

Year of Manufacture

Unit Model Number- Dataplate

AGZ 010 A S

Platform

S= Standard Efficiency
M= Remote Evaporator

Vintage

Nominal Tonnage

ex. 010= 10 Tons

Unit Type:
AGZ= Air- Cooled Scroll Compressor Chiller

01= 2001
02= 2002
03= 2003
04= 2004

etc.

Serial Number
(build sequence)

Month of Manufacture

01= January
02= February
03= March
04= April
05= May
06= June

07= July
08= August
09= September
10= October
11= November
12= December

Stock Unit: Model Number

AGZ 010 A S 27

Voltage

12= 208/230V
27 = 460V

Application

S= PB, Fantrol, No HGBP
T= DS, Speedtrol, HGBP

Vintage

Nominal Tonnage

ex. 010 = 10 Tons

Unit Type:
AGZ= Air- Cooled Scroll Compressor Chiller

Unit Model Number- Complete

AGZ 010A S S NN S S NN A F T G NN M2SN ENSS 27 AL PN N N N NN NN NN NN

Code 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

NN E N NN NSUDPNNONCPE1NNNNRS1D00 NNNN S 00

26 27 28 29 30- 36 37, 38 39 40

02 Size (in nominal tons)

010A= 10 Tons 'A'Vintage, Single Circuit
013A= 13 Tons 'A'Vintage, Single Circuit
017A= 17 Tons 'A'Vintage, Single Circuit
020A= 20 Tons 'A'Vintage, Single Circuit
025A= 25 Tons 'A'Vintage, Single Circuit
029A= 29 Tons 'A'Vintage, Single Circuit
034A= 34 Tons 'A'Vintage, Single Circuit

03 Platform
S= Standard Package

M= Remote Evaporator

04 Refrigerant
S= R22 7= R407C

05 Efficiency/Sound
NN= Standard Sound

WS= With Compressor Sound Reduction

06 Evaporator Insulation
S= Single Layer

D= Double Layer

07 Unit Operation
S= Standard Operation (42°F- 60°F)

A - L= Lower Operation

A= 40°F- 41°F; B= 38°F- 39°F; C= 36°F- 37°F; D= 34°F- 35°F

E= 32°F- 33°F; F= 30°F- 31°F; G= 28°F- 29°F; H= 26°F- 27°F
J= 24°F- 25°F; K= 22°F- 24°F; L= 20°F- 21°F

08 Always NN

09 Condenser Coil Fins
A= Aluminum Fins

C= Copper Fins
B= Aluminum Fin w/ Prefab Blackfin Coating
E= Aluminum Fin w/Electrofin Coating
F= Copper Fin w/Electrofin Coating

10 Head Pressure
F= Fantrol (35° F Minimum)

S= Speedtrol (0° F Minimum)

11 Fan Motor
T= Totally Enclosed

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 4

Nomenclature

Continued

Unit Model Number- Complete, Continued

12 Condenser Coil Guards
G= Grilles

L= Louvers

13 Communication
NN= None LM= LonMark

MB= ModBus BN= BACnet w/MSTP
WM= Modem

14 Controls
M2SN= MicroTech

15 Sensor Options
ENSS= English, Standard Sensors

16 Voltage
12= 208/60/3 29= 230/60/3 27= 460/60/3

37= 575/60/3

17 Starter
AL= Across- the- Line

18 Power Connection
PN= Power Block

DN= Disconnect Switch
DH= High Short Circuit Current Relay w/DS

19 Phase Voltage
N= None

V= Phase & Under/Over Voltage Protection w/LED

28 CRN- Evap
N= No CRN Required

29 Always NN

30- 36 Unit Start & Warranties

37, 38 Always NNNN

39 Unit- Misc.

S= Standard Unit
M= Stock Modification
X= Special

40 Revision

00= Latest Revision

20 Ground Fault
N= No Ground Fault Protection

21 Unit Options
N= No Unit Options

22 Always NN

23 Always NN

24 Tubing Options
NN= Standard

HG= Hot Gas Bypass

25 Unit Gauges
NN= No Gauges

26 Always NN

27 Approvals
E= ETL/CETL Approval

M= MEA & ETL/CETL Approval
A= No Approval

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 5

Electrical Legend

Sch. Sym. Description Location

ABR Alarm Bell Relay Field Mounted
C11 Speedtrol Capacitor Control Box
CHW1 Chilled Water Flow Switch Field Mounted
CHWR Chilled Water Relay Field Mounted
COMPR 1, 2 Compressors Below Control Box
C. BOX HEATER Control Box Heater Control Box
CONTROLLER Unit Controller Control Box
DS1 Disconnect Switch Control Box
DXE1 DX Evaporator. Flow Switch Field Mounted
DXER DX Evaporator. Fan Relay Field Mounted
F1 Control Circuit Fuse Control Box
FB5 Control Power Fuses Control Box
FB6 Speedtrol Transformer Fuses Control Box
GRD Ground Control Box
HP1 High Pressure Switch Discharge Line
HTR1, 2 Compressor Heaters On Compressor
HTR5 Evaporator Heater On Evaporator
IMS1 Ice Mode Switch Field Mounted
M1, M2 Compressor Contactors Control Box
M1, 2-AUX Auxiliary Contacts Control Box
M11-M13 Fan Contactors Control Box
MJ Mechanical Jumper Control Box
MP1, MP2 Motor Protection On Compressor
MS11-MS13 Fan Starters, Manual Control Box
PB1 Power Block Control Box
PVM Phase Voltage Monitor Control Box
S1 System Shut-Off Switch Control Box
S00 Leaving Water Sensor In Evaporator
S01 Suction Pressure Sensor Suction Line
S03 Condensing Pressure Sensor Discharge Line
S05 Outside Ambient Temperature Sensor Behind Control Box
S06 Leaving Water Reset Sensor Field Mounted
SC11 Speedtrol Controller Control Box
SV1 Liquid Line Solenoid Liquid Line
SV5 Hot Gas Bypass Solenoid Hot Gas Bypass Line
T1 Control Transformer Control Box
T2 24V Control Transformer Control Box
T3 575V Control Transformer Behind Control Box
TB1, TB2 Terminal Blocks Control Box
TC2 Evaporator Thermostat On Evaporator
WJ Wire Jumper Control Box

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 6

Unit Layout

(AGZ010BS shown)

9

9A

10

7

8A

8

1

Ref. No. Description Location

1 Compressor Refrigeration Section
7 Evaporator Refrigeration Section
8 Condenser Coil- LH Condenser Section
8A Condenser Coil- RH Condenser Section
9 Fan Deck- Front Condenser Section
9A Fan Deck- Middle or Back Condenser Section
10 Control Box Controls Section

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 7

Refrigeration Section

Compressors, Crankcase Heaters, Sound Reduction

1

1A

Unit Size
010 013 017

Ref Part Part

No. Description Number
Tandem Compressor Assy R22

1

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

1 Compressor #1,2 Tandem 3 074510101 1
Compressor #1,2 Tandem 3 074510102 1
Compressor #1,2 Tandem 3 074510103 1

Compressor #1,2 Tandem

3

074510201 1
Compressor #1,2 Tandem 3 074510202 1
Compressor #1,2 Tandem 3 074510203 1
Compressor #1,2 Tandem 3 074510301 1
Compressor #1,2 Tandem 3 074510302 1
Compressor #1,2 Tandem 3 074510303 1

Tandem Compressor Assy R407C

2

1 Compressor #1,2 Tandem 3 331507301 1
Compressor #1,2 Tandem 3 331507302 1
Compressor #1,2 Tandem 3 331507303 1

Compressor #1,2 Tandem

3

330662101 1
Compressor #1,2 Tandem 3 330662102 1
Compressor #1,2 Tandem 3 330662103 1
Compressor #1,2 Tandem 3 330662201 1
Compressor #1,2 Tandem 3 330662202 1
Compressor #1,2 Tandem 3 330662203 1

1A Crankcase Heater 074513201 2 2 2
Crankcase Heater 074513301 2 2 2 2 2 2

575V

N/S Sound Blanket- Compressor C05= WS 330388702 2 2 2 2 2 2

N/S= Not Shown on Diagram.

1

Code 04= S.

2

Code 04= 7.

3

Tandem compressor assembly includes two (2) compressors and the vibration mounting kit.

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 8

Refrigeration Section

Compressors, Crankcase Heaters, Sound Reduction, Continued

1

1A

Unit Size
020 025 029 034

Ref Part Part

No. Description Number
Tandem Compressor Assy R22

1

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

1 Compressor #1,2 Tandem 3 074624001 1
Compressor #1,2 Tandem 3 074624002 1
Compressor #1,2 Tandem 3 074624003 1

Compressor #1,2 Tandem

3

074549101 1
Compressor #1,2 Tandem 3 074549102 1
Compressor #1,2 Tandem 3 074549103 1
Compressor #1,2 Tandem 3 074549201 1
Compressor #1,2 Tandem 3 074549202 1
Compressor #1,2 Tandem 3 074549203 1
Compressor #1,2 Tandem 3 330388401 1
Compressor #1,2 Tandem 3 330388402 1
Compressor #1,2 Tandem 3 330388403 1

Tandem Compressor Assy R407C

2

1 Compressor #1,2 Tandem 3 330663101 1
Compressor #1,2 Tandem 3 330663102 1
Compressor #1,2 Tandem 3 330663103 1

Compressor #1,2 Tandem

3

330662401 1
Compressor #1,2 Tandem 3 330662402 1
Compressor #1,2 Tandem 3 330662403 1
Compressor #1,2 Tandem 3 330662501 1
Compressor #1,2 Tandem 3 330662502 1
Compressor #1,2 Tandem 3 330662503 1
Compressor #1,2 Tandem 3 330662601 1
Compressor #1,2 Tandem 3 330662602 1
Compressor #1,2 Tandem 3 330662603 1

575V

1A Crankcase Heater 074513301 2 2 2 2 2 2 2 2 2
Crankcase Heater 330388601 2 2 2
N/S Sound Blanket- Compressor C05= WS 330388702 2 2 2 2 2 2
Sound Blanket- Compressor C05= WS 330388801 2 2 2
Sound Blanket- Compressor C05= WS 330388901 2 2 2

N/S= Not Shown on Diagram.

1

Code 04= S.

2

Code 04= 7.

3

Tandem compressor assembly includes two (2) compressors and the vibration mounting kit.

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 9

Refrigeration Section

Evaporator

Heat Exchanger, Insulation, Thermostat, Heater, Sensor Well

5

23

2

22

3

21

1

4

11

Ref Part Part Unit Size
No. Description Number 010 013 017 020 025 029 034

1 Evaporator 330252101 1
Evaporator 330252102 1
Evaporator 330252103 1
Evaporator 330252104 1
Evaporator 330252105 1
Evaporator 330252106 1
Evaporator 330252107 1
2 Heater 80W
until 10/3 065497302 1 1 1 1 1 1 1
10/03 & later 330441501 1 1 1 1 1 1 1
3 Thermostat 1- Stage 019754700 1 1 1 1 1 1 1
4 Sensor Well Stainless Steel 047441511 1 1 1 1 1 1 1
5 Insulation 1 .75" 047662050 8 sqft. 6 sqft. 7 sqft. 8 sqft. 8 sqft. 9 sqft. 12sqft.
11 Fitting .25" 735048015 1 1 1 1 1 1 1
21 Insulation- Refrigerant Connection 330522101
22 Insulation- Water Connection 330522201

2 2 2 2 2 2 2

2 2 2 2 2 2 2

23 Insulation- Side 3.64" W 330522301 1
Insulation- Side 6.08" W 330522401 1
Insulation- Side 7.18" W 330522501 1
Insulation- Side 7.74" W 330522601 1
Insulation- Side 10.71" W 330522701 1
Insulation- Side 13.87" W 330522801 1
Insulation- Side 19.08" W 330522901 1

1

Double insulation units only. Code 06= D.

2

Quantity is: One (1) for single insulation unit (C06= S); Two (2) for double insulation units (C06= D).

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 10

Refrigeration Section

Tubing- Liquid Line, Suction, Discharge, Hot Gas Bypass

Valves, Filter Drier, Sight Glass

Diagrams

Liquid Line Detail

Standard

Package Unit

Code 03= S

Evaporator

(see previous

page)

25

27

Discharge Line Detail

68

68

55

21

23

55 56 68

551556 68

Suction Line Detail

Standard Package Unit

Code 03= S

Remote

Evaporator Unit

Code 03= M

15

55 68

56

55 68

55 56

(Size 010 only)

68

51

Remote

Evaporator Unit

Code 03= M

Hot Gas Bypass Detail

Standard Package Unit

Code 03= S

Sizes 010 to 025

81

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 11

83

Sizes 029, 034

83A

Sizes 010 to 025

83

81

Remote Evaporator Unit

Code 03= M

Sizes 029, 034

83A

Refrigeration Section

Tubing- Liquid Line, Suction, Discharge, Hot Gas Bypass

Valves, Filter Drier, Sight Glass

Components

Ref Part Part Unit Size

No. Description Number 010 013 017 020 025 029 034
Suction Line
51 Valve- Charge 1 .37 x .37 038689900 1 1 1 1 1 1 1
55 Valve Core 026541100 22 1 1 1 1 1 1
56 Valve Cap 032943500 1 11 11 11 11 11 1
68 Shrader Valve 071100801 22 1 1 1 1 1 1
Discharge Valve
55 Valve Core 026541100 3 2 2 2 2 2 2
56 Valve Cap 032943500 2 1 1 1 1 1 1
68 Shrader Valve 071100801 4 3 3 3 3 3 3
Liquid Line
15 Valve- Charge .37 x .37 038689900 1 1 1 1 1 1 1
21 Filter Drier Sealed Core 025938900 1 1 1 1 1 1 1
23 Valve- Solenoid NC 025327500 1 1 1 1 1 1 1
25 Sight Glass Until 12/03
Saddle 025329600 1 1 1 1 1 1 1
Cap 022427700 1 1 1 1 1 1 1
Sight Glass 12/03 & later 330508601 1 1 1 1 1 1 1
27 Valve- Expansion 10T 072195005 1
Valve- Expansion 15T 072195004 1
Valve- Expansion 20T 072195002 1 1 1
Valve- Expansion 30T 072195003 1 1
55 Valve Core 026541100 2 2 2 2 2 2 2
56 Valve Cap 032943500 2 2 2 2 2 2 2
68 Shrader Valve 071100801 2 2 2 2 2 2 2
Hot Gas Bypass
81 Valve- Hot Gas Solenoid .625" NC 070301706 1 1 1 1 1
83 Valve- Pressure .625" 024684104 1 1 1 1 1
83A Valve- Discharge Bypass .875" 074696801 1 1

1

Remote Evaporator units only.

2

Size 010A package units have a second shrader and core on the suction line. Remote units have only one (1) of each.

1

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 12

Condenser Section

Condenser Coil, Fan Deck Components

Fan Deck Detail

10

2

2A

1

1A

3

AGZ 010- 017 Shown

or

2

2A

8

or

6

6A

4

Unit Size
010, 013, 017 020,025,029,034

Ref Part Part

No. Description Number
1 Condenser Coil RH

1A Condenser Coil LH

1

1

208/230V

460V

575V

208/230V

460V

575V

2 Fan Panel Front 330252001 1 1 1 1 1 1
2A Fan Panel Middle/Back 330251901 1 1 1 2 2 2
3 Grille 32.0" 330260301 2 2 2 3 3 3
4 Bracket- Fan Motor 330313901 4 4 4 6 6 6
6 Fan Motor- Standard 1HP TE 330287901 2 2 2 2 3 3 3 3
Fan Motor- Standard 1HP TE 330423701 2 2 3

3

6A Fan Motor- Speedtrol 4 1HP DP 350113901 1 1 1 1 1 1
8 Fan Prop 26" 330288001 2 2 2 3 3 3
10 Ground Wire Assy 350324101 2 2 2 3 3 3

1

See Chart on the following page.

2

If unit has Fantrol (Code 10= F) quantity is 2. If unit has Speedtrol (Code 10= S) quantity is 1.

3

If unit has Fantrol (Code 10= F) quantity is 3. If unit has Speedtrol (Code 10= S) quantity is 2.

4

Code 10= S. Speedtrol motor controls front fan.

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 13

Condenser Section

Condenser Coils

Ref Part Code Part Unit Siz e

No. Description 9= Number 010 013 017 020 025 029 034
1 Condenser Coil- RH Aluminum Fin A 330255001 1 1
Condenser Coil- RH Copper Fin C 330255011 1 1
Condenser Coil- RH Alum. w/ Blackfin Coat B 330255021 1 1
Condenser Coil- RH Alum. w/Electrofin Coat E 330255001P 1 1
Condenser Coil- RH Copp. w/Electrofin Coat F 330255011P 1 1
Condenser Coil- RH Aluminum Fin A 330265001 1
Condenser Coil- RH Copper Fin C 330265011 1
Condenser Coil- RH Alum. w/ Blackfin Coat B 330265021 1
Condenser Coil- RH Alum. w/Electrofin Coat E 330265001P 1
Condenser Coil- RH Copp. w/Electrofin Coat F 330265011P 1
Condenser Coil- RH Aluminum Fin A 330254201 1
Condenser Coil- RH Copper Fin C 330254211 1
Condenser Coil- RH Alum. w/ Blackfin Coat B 330254221 1
Condenser Coil- RH Alum. w/Electrofin Coat E 330254201P 1
Condenser Coil- RH Copp. w/Electrofin Coat F 330254211P 1
Condenser Coil- RH Aluminum Fin A 331342801 1
Condenser Coil- RH Copper Fin C 331342811 1
Condenser Coil- RH Alum. w/ Blackfin Coat B 331342821 1
Condenser Coil- RH Alum. w/Electrofin Coat E 331342801P 1
Condenser Coil- RH Copp. w/Electrofin Coat F 331342811P 1
Condenser Coil- RH Aluminum Fin A 330264201 1 1
Condenser Coil- RH Copper Fin C 330264211 1 1
Condenser Coil- RH Alum. w/ Blackfin Coat B 330264221 1 1
Condenser Coil- RH Alum. w/Electrofin Coat E 330264201P 1 1
Condenser Coil- RH Copp. w/Electrofin Coat F 330264211P 1 1
1A Condenser Coil- LH Aluminum Fin A 330255101 1 1
Condenser Coil- LH Copper Fin C 330255111 1 1
Condenser Coil- LH Alum. w/ Blackfin Coat B 330255121 1 1
Condenser Coil- LH Alum. w/Electrofin Coat E 330255101P 1 1
Condenser Coil- LH Copp. w/Electrofin Coat F 330255111P 1 1
Condenser Coil- LH Aluminum Fin A 330265101 1
Condenser Coil- LH Copper Fin C 330265111 1
Condenser Coil- LH Alum. w/ Blackfin Coat B 330265121 1
Condenser Coil- LH Alum. w/Electrofin Coat E 330265101P 1
Condenser Coil- LH Copp. w/Electrofin Coat F 330265111P 1
Condenser Coil- LH Aluminum Fin A 330254301 1
Condenser Coil- LH Copper Fin C 330254311 1
Condenser Coil- LH Alum. w/ Blackfin Coat B 330254321 1
Condenser Coil- LH Alum. w/Electrofin Coat E 330254301P 1
Condenser Coil- LH Copp. w/Electrofin Coat F 330254311P 1
Condenser Coil- LH Aluminum Fin A 331342901 1
Condenser Coil- LH Copper Fin C 331342911 1
Condenser Coil- LH Alum. w/ Blackfin Coat B 331342921 1
Condenser Coil- LH Alum. w/Electrofin Coat E 331342901P 1
Condenser Coil- LH Copp. w/Electrofin Coat F 331342911P 1
Condenser Coil- LH Aluminum Fin A 330264301 1 1
Condenser Coil- LH Copper Fin C 330264311 1 1
Condenser Coil- LH Alum. w/ Blackfin Coat B 330264321 1 1
Condenser Coil- LH Alum. w/Electrofin Coat E 330264301P 1 1
Condenser Coil- LH Copp. w/Electrofin Coat F 330264311P 1 1

1

R22 units only. R407C 022A units use the same coil as 025 units.

2

R407C size 020A units also use this coil.

1

1

1

1

1

2

2

2

2

2

1

1

1

1

1

2

2

2

2

2

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 14

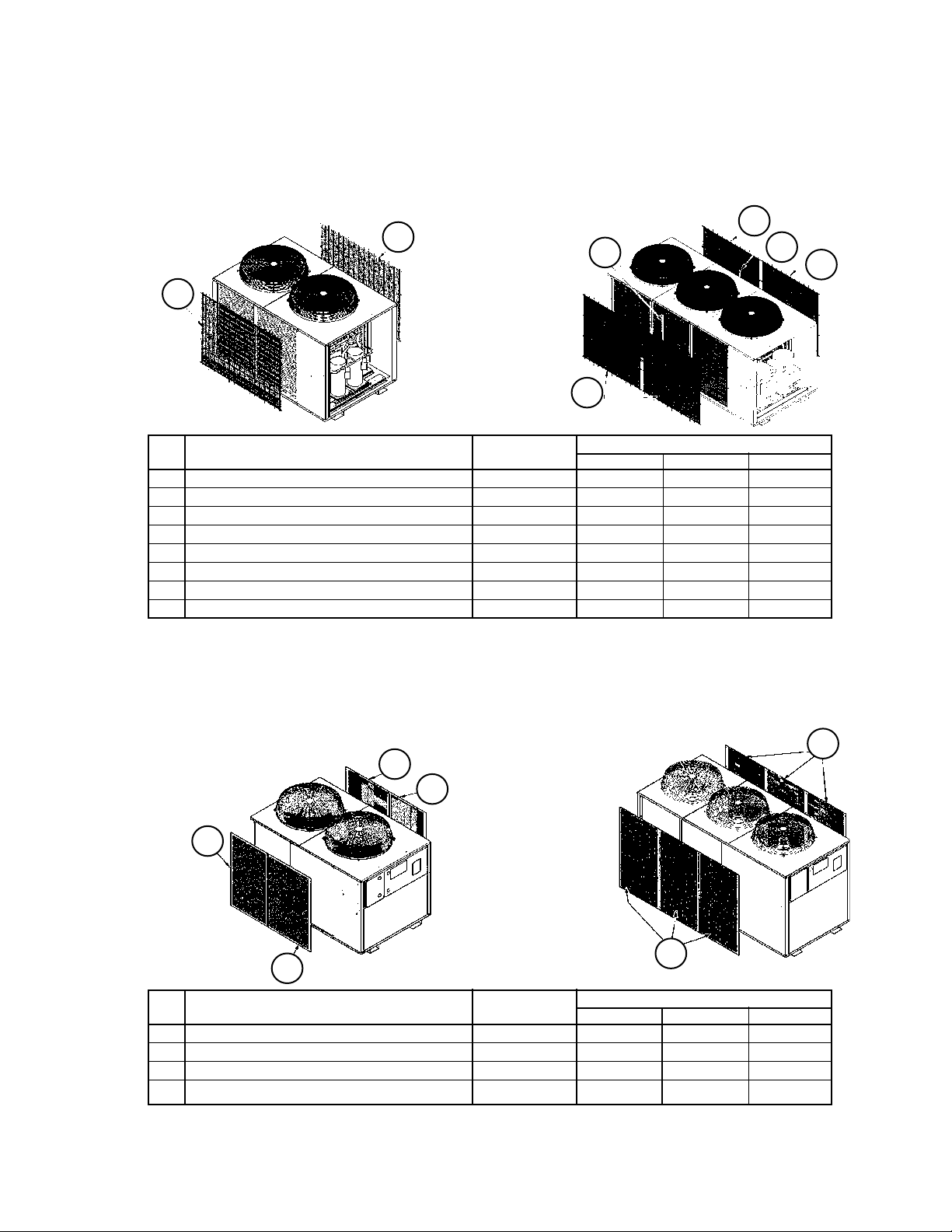

Cabinet

Coil Guards, Channels, Hardware

Condenser Coil Grilles (Code 12= G)

AGZ 010- 017 AGZ 020- 034

1

2

1

1

Ref Part Part Unit Size
No. Description Number 010, 013, 017 020,025 029,034

1 Grille 42" 330260401 2
Screw for 42" Grille 046093807 32
Grille 42" 330260501 4
Screw for 42" Grille 046093807 60
Grille 50" 330260601 4
Screw for 42" Grille 046093807 68
2 Channel- 42" Grille 330267801 2
Channel- 50" Grille 330267901 2

1

2

1

Condenser Coil Louvers (Code 12= L)

AGZ 010- 017

12

11

Ref Part Part Unit Size
No. Description Number 010, 013, 017 020,025 029,034

11 Louver 42" x 29" 330668301 2 6
Louver 50" x 29" 330668401 6
12 Louver 42" x 25" 330594001 2
Screw for Louvers 046093807 32 60 68

11

12

AGZ 020- 034

11

11

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 15

Cabinet

Panels

6

Unit Size
Ref Part Part 010, 013, 017 029,

No. Description Number 020, 025 034

5 Panel- Front 42" 330253301 1
Panel- Front 50" 330267301 1
6 Panel- Rear Door 42" 330253501 1
Panel- Rear Door 50" 330267401 1
10 Gasket 070199201 4 ft. 4 ft.

AGZ 010- 017 Shown

10

5

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 16

Control Panel

Main Control Box

Control Box Serial Number
“S” + Year + ##### + detail#

Control Box Part Number

Transducers, Pressure Switches and Sensors

Layout

Misc. Controls

Control Box

Detail

NOTE: For all control components,
not listed below, please contact Daikin
Applied with the Control Box Serial

Number and Control Box Part Num­ber. These numbers are located on the

Control Box rating label (see example
to the left). This label is found inside
the panel.

1

2

6

6A

6B

Transducer Cable Detail

Ref Sch. Part Part Qty.
No. Sym. Description Number

1 Controller must be programmed before shipping 330268111 1
2 Converter Board- Transducer 071857702 1
Terminal Block- Converter Board 3 Pole 049759001 3
6 Tranducer Cable 350316651 2
6A Boot- Transducer 071583301 2
6B Pressure Connector- Transducer 074609001 2
SC11 Pressure Control- Speedtrol 048445202 1
C11 Capacitor- Speedtrol 037516428 1
C BOX HEATER Control Box Heater 330272001 1
PVM Phase Voltage Monitor 208/230V 070269963 1
Phase Voltage Monitor 460V 070269965 1
Phase Voltage Monitor 575V 070269966 1
N/S S01 Transducer- Low Pressure 132 psi 071568501 1
N/S S03 Transducer- High Pressure 400 psi 071568601 1
N/S S00 Sensor- Leaving Water 10K, 10' 073007301 1
N/S S05 Sensor- Outside Air 10K, 10' 073007301 1
N/S HP1 Switch- High Pressure Open 400/Close 300 psi 073074002 1

N/S= Not Shown on Diagram.

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 17

Field Installed Accessories

Alarm Bell Kit

Ref. Description Part
No. Number Qty.

Complete Kit 058090102 1
N/S Alarm Bell Only 017809400 1
N/S Relay 072937402 1

N/S= Not Shown on Diagram.

Phase Voltage Monitor Kit

Ref. Description Part
No. Number Qty.

208/230V PVM Kit 350327801
N/S Phase Voltage Monitor only 070269963 1
460V PVM Kit 350327901
N/S Phase Voltage Monitor only 070269965 1
575V PVM Kit 350328001
N/S Phase Voltage Monitor only 070269966 1

N/S= Not Shown on Diagram.

Speedtrol Kit

Ref. Description Part
No. Number Qty.

Complete Kit- 208/230/460V 350327601
Complete Kit- 575V 350327701
N/S Motor 208/230V 350113901 1
N/S Fan Propeller 330288001 1
N/S Capacitor 25MFD/440V 037516428 1
N/S Heater- Control Box 330272001 1
N/S Pressure Control 048445202 1

N/S= Not Shown on Diagram.

1

Also includes a 575V Kit p/n 330315001 which includes transformer, fusing, and contactor.

1

Remote Evaporator Kit

Ref. Description Unit Single Double
No. Size Insulation Insulation Qty.

Evaporator Kit 2 010 350329101 350329111 1
Evaporator Kit 2 013 350329201 350329211 1
Evaporator Kit 2 017 350329301 350329311 1
Evaporator Kit 2 020 350329401 350329411 1
Evaporator Kit 2 025 350329501 350329511 1
Evaporator Kit 2 029 350329601 350329611 1
Evaporator Kit 2 034 350329701 350329711 1

2

Contains Evaporator, Insulation, Sensor Well.

Refrigerant Specialties

Description Sizes Kit p/n Expansion Solenoid Filter Sight
Valve Valve Drier Glass

Specialties Kit 010 350328701 072195005 025327500 025938900 330508601
Specialties Kit 013 350328801 072195004 025327500 025938900 330508601
Specialties Kit 017,020,025 350328901 072195002 025327500 025938900 330508601
Specialties Kit 029,034 350329001 072195003 025327500 025938900 330508601

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 18

Field Installed Accessories

Isolators— Rubber-In-Shear

M1

Back

M3

Control Box End

M2

Individual Isolators
Description Sizes Kit p/n M1 M2 M3 M4

R-I-S Kit 010, 013, 017 350014858 021639701 021639701 021639701 021639701
R-I-S Kit 020, 025, 029, 034 350014857 021639703 021639703 021639701 021639701

Color Codes: 021639701= Red; 021639703= Green.

Top View

Front

M4

Isolators— Springs

M1

Control Box End

M2

Back

Top View

Front

M3

M4

To identify Spring Isolators, contact Daikin Applied with the Unit Model, Serial Number

and GO/SO Number.

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 19

Field Installed Accessories

650

700

BACnet with IP/Ethernet

Ref. Description Part Qty.
No. Number

BACnet IP/Ethernet Kit 350147406
650 BACnet IP/Ethernet Interface Board 330358701 1

BACnet Communications Module MS/TP

Ref. Description Part Qty.
No. Number

BACnet MS/TP Kit 350147404
700 RS 232 Serial Interface Card Only 330343102 1
N/S BACnet Communications Module Kit
Module Only 330274203 1
N/S Connector- Wago 3 Pin 330803003 1
N/S Tool- Wago Connector 330803050 1

N/S= Not Shown on Diagram.

1

Includes module, communication cable and power wire.

1

330274201 1

827

MODBUS Communications Module

Ref. Description Part Qty.
No. Number

MODBUS Installation Kit 350147402
827 MODBUS Communications Module Only 330343101 1

920

Ref. Description Part Qty.
No. Number

LonMark Installation Kit 350147401
920 LonMark Communications Module Only 330343401 1

LonMark Communications Module

Air Cooled Scroll Chiller, AGZ 010-034 Vint. A, Single Circuit Rev C 10/13 RPL 700009500 / Page 20

Critical Daikin Applied OEM Parts Are What Your

Daikin Applied HVAC Unit Needs!

Air-Cooled Global Chiller

AGZ

Sizes 010, 013, 017, 020, 025, 029, 034 - Single Circuit

Vintage A

CRITICAL
COMPONENTS UNIT SIZE VOLTAGE PART NUMBER
CONTROLS

Control Board ALL N/A 330268111
Transducer- Low Pressure ALL N/A 071568501
Transducer- High Pressure ALL N/A 071568601
Switch- High Pressure ALL N/A 073074002

TANDEM COMPRESSORS- R22

Compressor 1 & 2, R22 010 208-230/60/3 074510101
Compressor 1 & 2, R22 013 208-230/60/3 074510201
Compressor 1 & 2, R22 017 208-230/60/3 074510301
Compressor 1 & 2, R22 020 208-230/60/3 074624001
Compressor 1 & 2, R22 025 208-230/60/3 074549101
Compressor 1 & 2, R22 029 208-230/60/3 074549201
Compressor 1 & 2, R22 034 208-230/60/3 330388401
Compressor 1 & 2, R22 010 460/60/3 074510102
Compressor 1 & 2, R22 013 460/60/3 074510202
Compressor 1 & 2, R22 017 460/60/3 074510302
Compressor 1 & 2, R22 020 460/60/3 074624002
Compressor 1 & 2, R22 025 460/60/3 074549102
Compressor 1 & 2, R22 029 460/60/3 074549202
Compressor 1 & 2, R22 034 460/60/3 330388402
Compressor 1 & 2, R22 010 575/60/3 074510103
Compressor 1 & 2, R22 013 575/60/3 074510203
Compressor 1 & 2, R22 017 575/60/3 074510303
Compressor 1 & 2, R22 020 575/60/3 074624003
Compressor 1 & 2, R22 025 575/60/3 074549103
Compressor 1 & 2, R22 029 575/60/3 074549203
Compressor 1 & 2, R22 034 575/60/3 330388403

Call Your Local Daikin Applied Parts Distributor For All Your Parts Needs.

To Locate A Distributor, Go To www.DaikinApplied.com or Call 1-800-37PARTS

7000095 Rev. C 10/13 CPL Page 1 of 2

Critical Daikin Applied OEM Parts Are What Your

Critical Daikin Applied OEM Parts Are What Your

Daikin Applied HVAC Unit Needs!

Daikin Applied HVAC Unit Needs!

Air-Cooled Global Chiller

AGZ

Sizes 010, 013, 017, 020, 025, 029, 034 - Single Circuit

Vintage A

CRITICAL
COMPONENTS UNIT SIZE VOLTAGE PART NUMBER
TANDEM COMPRESSORS - R407C

Compressor 1 & 2, R407C 010 208-230/60/3 331507301
Compressor 1 & 2, R407C 013 208-230/60/3 330662101
Compressor 1 & 2, R407C 017 208-230/60/3 330662201
Compressor 1 & 2, R407C 020 208-230/60/3 330663101
Compressor 1 & 2, R407C 025 208-230/60/3 330662401
Compressor 1 & 2, R407C 029 208-230/60/3 330662501
Compressor 1 & 2, R407C 034 208-230/60/3 330662601
Compressor 1 & 2, R407C 010 460/60/3 331507302
Compressor 1 & 2, R407C 013 460/60/3 330662102
Compressor 1 & 2, R407C 017 460/60/3 330662202
Compressor 1 & 2, R407C 020 460/60/3 330663102
Compressor 1 & 2, R407C 025 460/60/3 330662402
Compressor 1 & 2, R407C 029 460/60/3 330662502
Compressor 1 & 2, R407C 034 460/60/3 330662602
Compressor 1 & 2, R407C 010 575/60/3 331507303
Compressor 1 & 2, R407C 013 575/60/3 330662103
Compressor 1 & 2, R407C 017 575/60/3 330662203
Compressor 1 & 2, R407C 020 575/60/3 330663103
Compressor 1 & 2, R407C 025 575/60/3 330662403
Compressor 1 & 2, R407C 029 575/60/3 330662503
Compressor 1 & 2, R407C 034 575/60/3 330662603

CONDENSER FAN SECTION

Fan Motor, Standard, 1.0HP, TE All 208/230 & 460 330287901
Fan Motor, Standard, 1.0HP, TE All 575 330423701
Fan Motor, SpeedTrol, 1.0HP, DP All All 350113901
Fan Prop, 26" All All 330288001

Call Your Local Daikin Applied Parts Distributor For All Your Parts Needs.

Call Your Local Daikin Applied Parts Distributor For All Your Parts Needs.

To Locate A Distributor, Go To www.DaikinApplied.com or Call 1-800-37PARTS

To Locate A Distributor, Go To www.DaikinApplied.com or Call 1-800-37PARTS

7000095 Rev. C 10/13 CPL Page 2 of 2
