Farbe /
Colour
schwarz /
black
grau /
grey
weiß /
white
Art. L [m]
55404 0.25
55405 0.50
55406 1.00
55407 1.50
55408 2.00
55409 3.00
55410 5.00
55411 7.50
55412 10.00
55413 15.00
55414 20.00
55415 30.00
55416 50.00
55417 0.25
55418 0.50
55419 1.00
55420 1.50
55421 2.00
55422 3.00
55423 5.00
55424 7.50
55425 10.00
55426 15.00
55427 20.00
55428 30.00
55429 50.00
59822 0.25
59823 0.50
59824 1.00
59825 1.50
59826 2.00
59827 3.00
59828 5.00
59829 7.50
59830 10.00
59831 15.00
59832 20.00
59834 30.00
59835 50.00
Pin8
Pin1
2M
Product length
(26AWG*4P)
Length ± Tolerance
250 ± 10 mm
500 ± 10 mm
1000 ± 10 mm
1500 ± 15 mm
2000 ± 20 mm
3000 ± 30 mm
5000 ± 50 mm
7500 ± 75 mm
10000 ± 100 mm
15000 ± 150 mm
20000 ± 200 mm
25000 ± 250 mm
30000 ± 300 mm
50000 ± 500 mm
Cross skeleton
Outer jacket
L ± T
2M
P2P1
P2P1 WIRING DIAGRAM
1
2
4
5
3
6
7
8
1 (WHITE / ORANGE)
2 (ORANGE)
4 (BLUE)
5 (WHITE / BLUE)
3 (WHITE / GREEN)
6 (GREEN)
7 (WHITE / BROWN)
8 (BROWN)

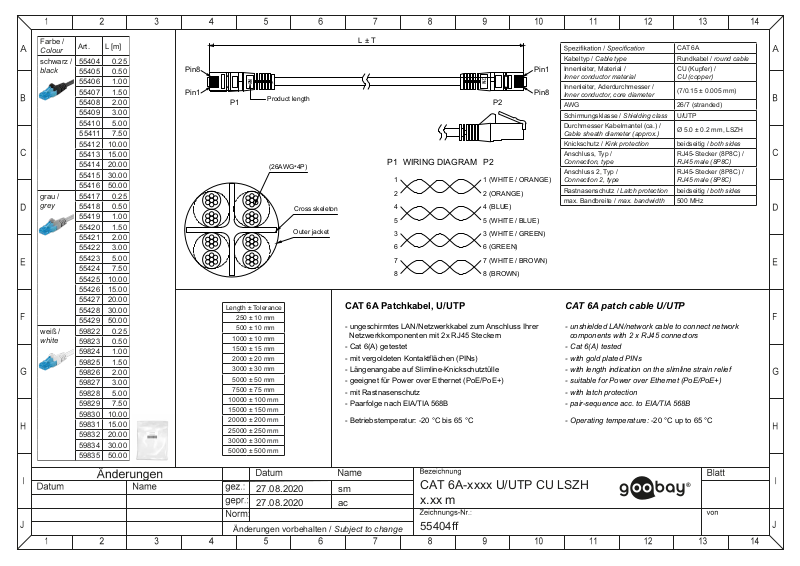

CAT 6A Patchkabel, U/UTP
- ungeschirmtes LAN/Netzwerkkabel zum Anschluss Ihrer
Netzwerkkomponenten mit 2x RJ45 Steckern
- Cat 6(A) getestet
- mit vergoldeten Kontaktflächen (PINs)
- Längenangabe auf Slimline-Knickschutztülle
- geeignet für Power over Ethernet (PoE/PoE+)
- mit Rastnasenschutz
- Paarfolge nach EIA/TIA 568B
- Betriebstemperatur: -20 °C bis 65 °C
Pin1
Pin8
CAT 6A
Kabeltyp / Cable type Rundkabel / round cable
Innenleiter, Material /
Inner conductor material
Innenleiter, Aderdurchmesser /
Inner conductor, core diameter
AWG 26/7 (stranded)
Schirmungsklasse / Shielding class U/UTP
Durchmesser Kabelmantel (ca.) /
Cable sheath diameter (approx.)
Knickschutz / Kink protection beidseitig / both sides
Anschluss, Typ /
Connection, type
Anschluss 2, Typ /
Connection 2, type
Rastnasenschutz / Latch protection beidseitig / both sides
max. Bandbreite / max. bandwidth 500 MHz
CU (Kupfer) /
CU (copper)
(7/0.15 ± 0.005 mm)
Ø 5.0 ± 0.2 mm, LSZH
RJ45-Stecker (8P8C) /
RJ45 male (8P8C)
RJ45-Stecker (8P8C) /
RJ45 male (8P8C)
CAT 6A patch cable U/UTP
- unshielded LAN/network cable to connect network
components with 2 x RJ45 connectors
- Cat 6(A) tested
- with gold plated PINs
- with length indication on the slimline strain relief
- suitable for Power over Ethernet (PoE/PoE+)
- with latch protection
- pair-sequence acc. to EIA/TIA 568B
- Operating temperature: -20 °C up to 65 °C
27.08.2020 sm
27.08.2020 ac
Änderungen vorbehalten / Subject to change
CAT 6A-xxxx U/UTP CU LSZH
x.xx m
