Swingtalk made by Golfzon
SAFETY PRECAUTION
Please read all safety information prior to using Swingtalk. Failure to do so may result in
unnecessary injury.
1. Operate the device only as intended. Do not use for any other purpose.
2. Do not place heavy objects on the device and keep the device away from humid,dusty and
environments.
3. Do not use water, Clean the surface with a soft cloth.
4. Do not push the button hard.
5. The device’s operate & storage temperature is between -10ºC ~ 40ºC. Keep away from
heat or cold.
6. Be careful not to drop the device.
Table of Contents
Introduction & specification
Device and Accessories
How to charge the device
How to H/W installation
How to connect to the smart device
How to add your swing motion
Introduction & specification
Attach Swingtalk easily to any club. Fits any club, driver through putter. Pairs to your
smartdevice via Bluetooth. Tap ‘New swing’ in the app and swing, Swingtalk will automatically
record individual swings for you to review in real time or later on.
weight(g) 10.5
Connectivity Bluetooth ver 2.1 + EDR
Operation time 2 h 30min(continuously)
Charging time 1h 20min
USB port Micro USB 5pin for charging
Size(mm) 32*13.2(without needle), 32*38(including needle)
Operating temp -10°C~40°C
Storage temp -10°C~50°C
Specification

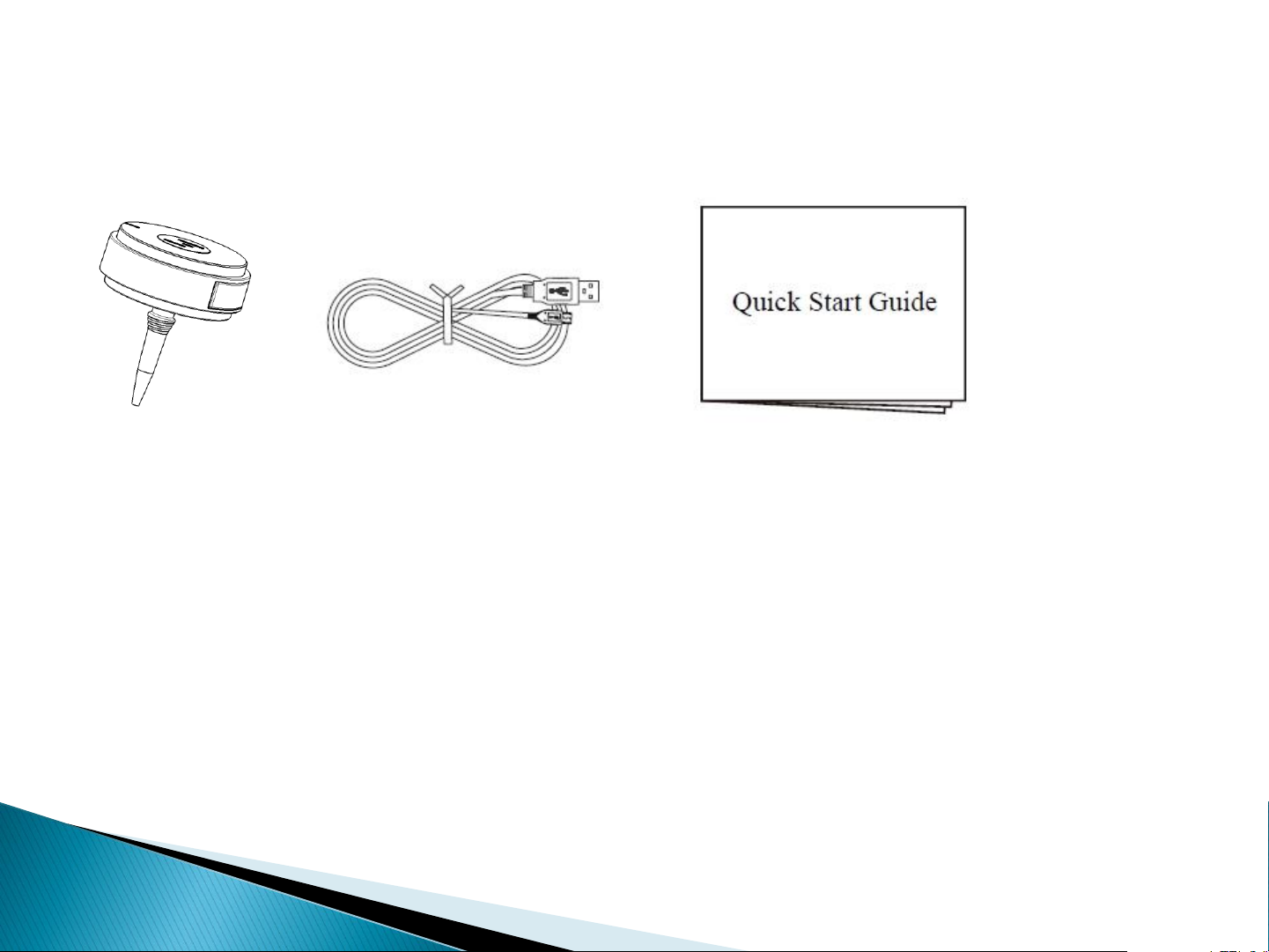

Device and Accessories
1. Swingtalk
2. USB cable
3. Quick Start Guide

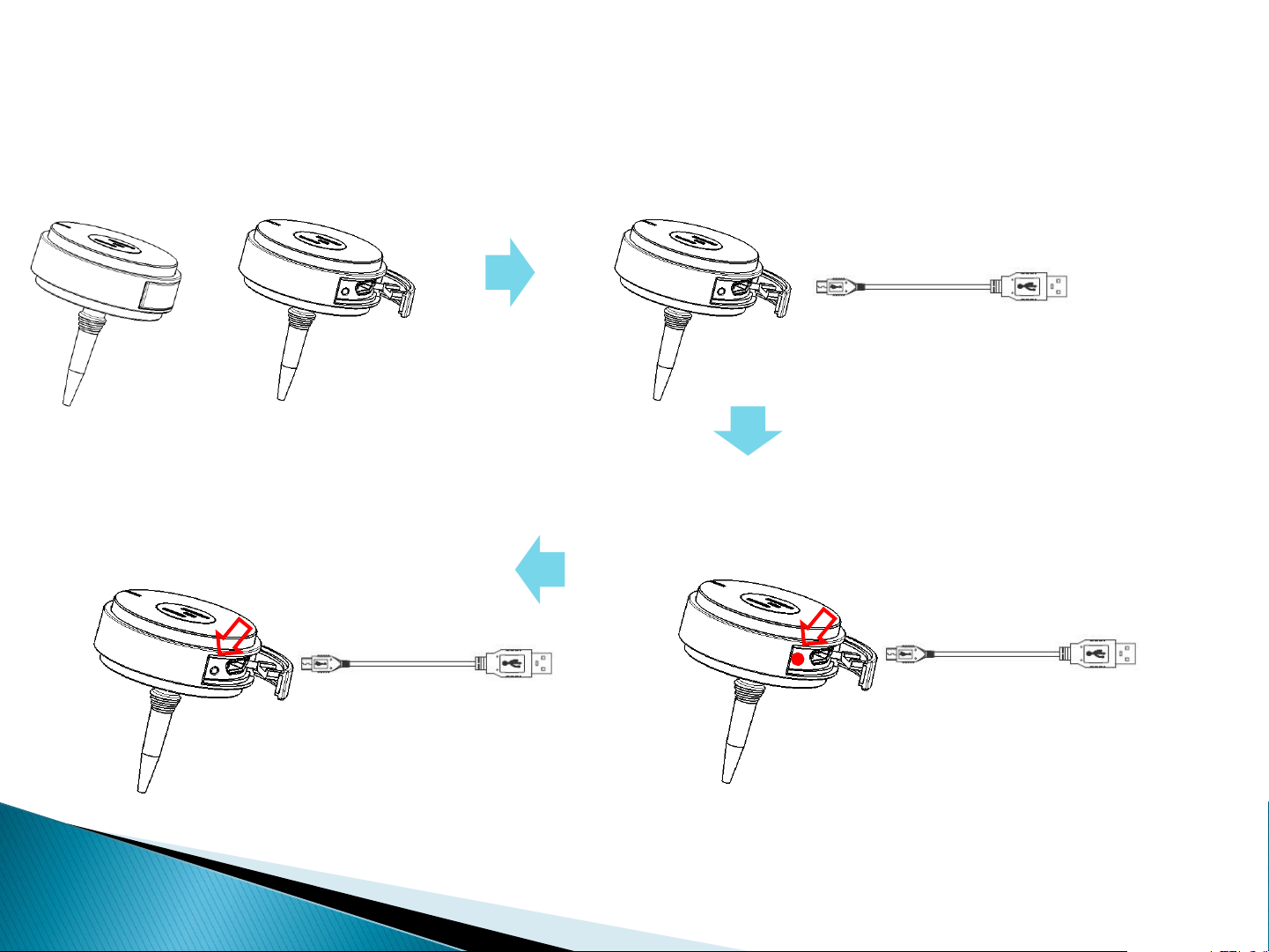

How to charge the device
1. Open the cover
2. Connect USB cable
PC or Adapter
3. Red light turn on
4. Charging finished
Red light turn off
How to H/W installation
1. Attach Swingtalk to your club 2. Align Swingtalk to your club
Center of Club
LED
Rotating the
device push until
the end
Push the device
into grip’s air
hole.
How to connect to the smart device
1. Turn on the swingtalk 2. Connect to iOS devices
Blue
LED
on
Push the center
button for 1 sec
and turn on
After on push
button for 3 sec
and turn off
If low battery the
blue led turn red.
Turn on the
Bluetooth and you
can find
‘SwingTalk’ click
it(the Swingtalk
H/W must be
turned on ahead)
If connect succeed
the blue led light
turn blink slowly.
How to add your swing motion
1. Run Swingtalk app.
Click Swing analysis
2. Swing & shot
Waiting for swing
You need to hit
the ball. It doesn’t
work properly
without impact.
You can check the details
on analysis screen.
3. Analysis
The initial screen
of app.
FCC Information
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions :
(1) This Device may not cause harmful interface, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for CLASS B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try correct the interference by one or more of the following measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
“CAUTION : Exposure to Radio Frequency Radiation.
Antenna shall be mounted in such a manner to minimize the potential for human contact during normal operation. The antenna should not be contacted during operation to avoid the
possibility of exceeding the FCC radio frequency exposure limit.
