Page 1
IDRO900F2
USER’S MANUAL
V2.5.24
MAY 2012
Page 2
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24
IDRO900F2 User’s Manual
Revision history
Ver sion Revision Date Revision Page Revision Description
V2.5.24 2012-05-24 Draft
Identification with Radio and Optical
2
Page 3
Contents
IDRO900F2 User’s Manual
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24
1. Introduction & System composition diagram .......................................................... 4
z Introduction ................................................................................................................................................. 4
z System composition diagram ............................................................................................................ 4
2. Composition parts .......................................................................................................... 5
3. Reader Description ......................................................................................................... 6
4. Reader Specification ....................................................................................................... 8
z Reader Performance ............................................................................................................................... 8
z Interface ......................................................................................................................................................... 8
z Physical Dimension .................................................................................................................................. 8
z Power control level table ..................................................................................................................... 9
z Mechanical Dimension ........................................................................................................................ 10
5. Operation method ....................................................................................................... 11
Identification with Radio and Optical
3
Page 4
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24
IDRO900F2 User’s Manual
1. Introduction & System composition diagram
z Introduction
-
IDRO900F2 is the Fixed type UHF RFID that is designed for long distance,
wide range application using the RS-232 interface. It provides features
such as Compact size, low cost, high performance to customer.
ISO 18000-6C(EPC C1G2) and ISO 18000-6B protocol is supported.
Read range of Reader reaches up to 10 meters(depends on tags)
-
Target Application
Parking management system
Factory conveyor system
Bagging management system
Other application
z System composition diagram
4
Identification with Radio and Optical
Page 5
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24

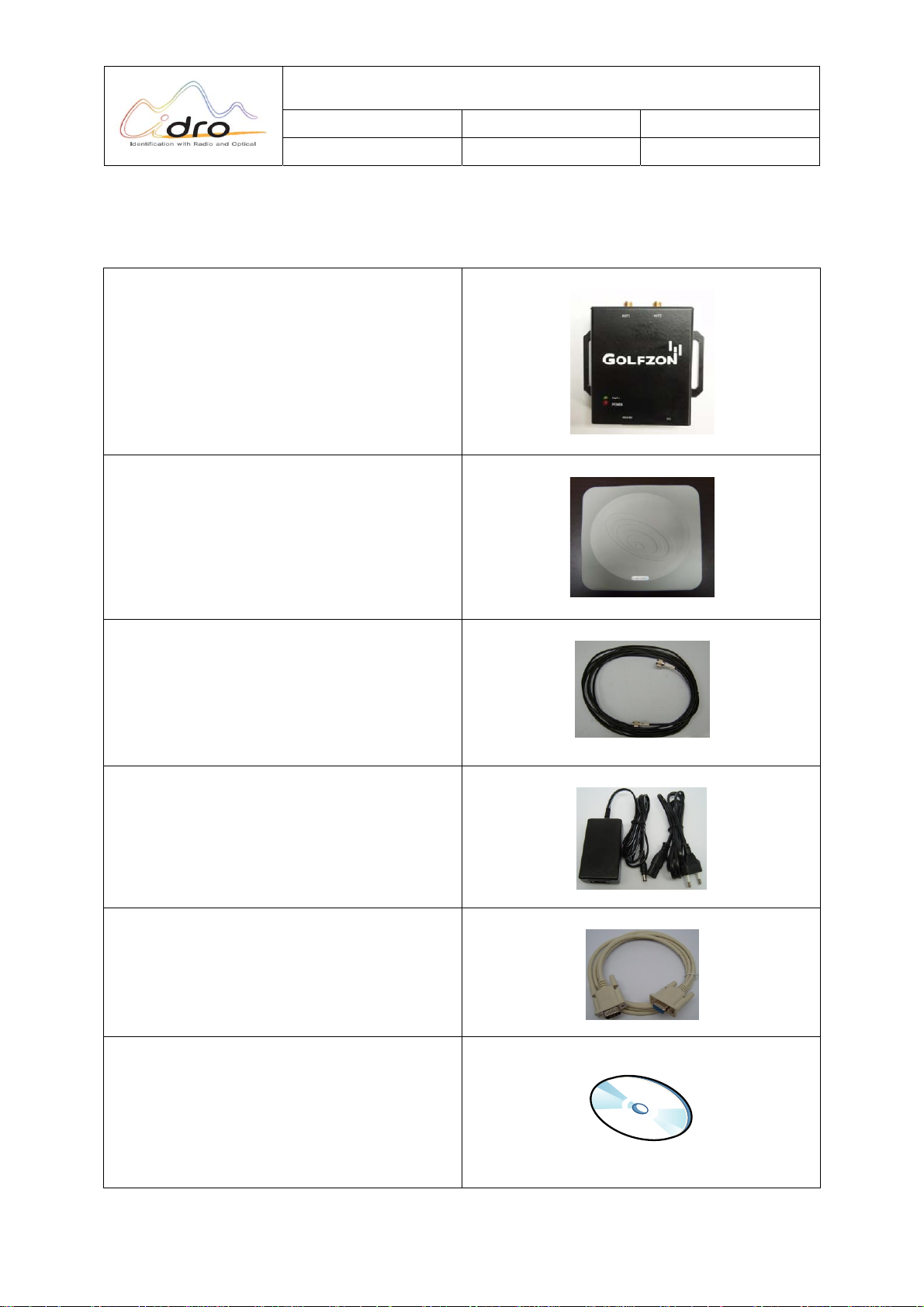

2. Composition parts
RFID Reader
Antenna(6dBi)
IDRO900F2 User’s Manual
(option)
Antenna cable
(option)
DC12V/3A Adaptor
RS-232 cable
Reader Software &
User Document CD-ROM
Identification with Radio and Optical
5
Page 6
p
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24

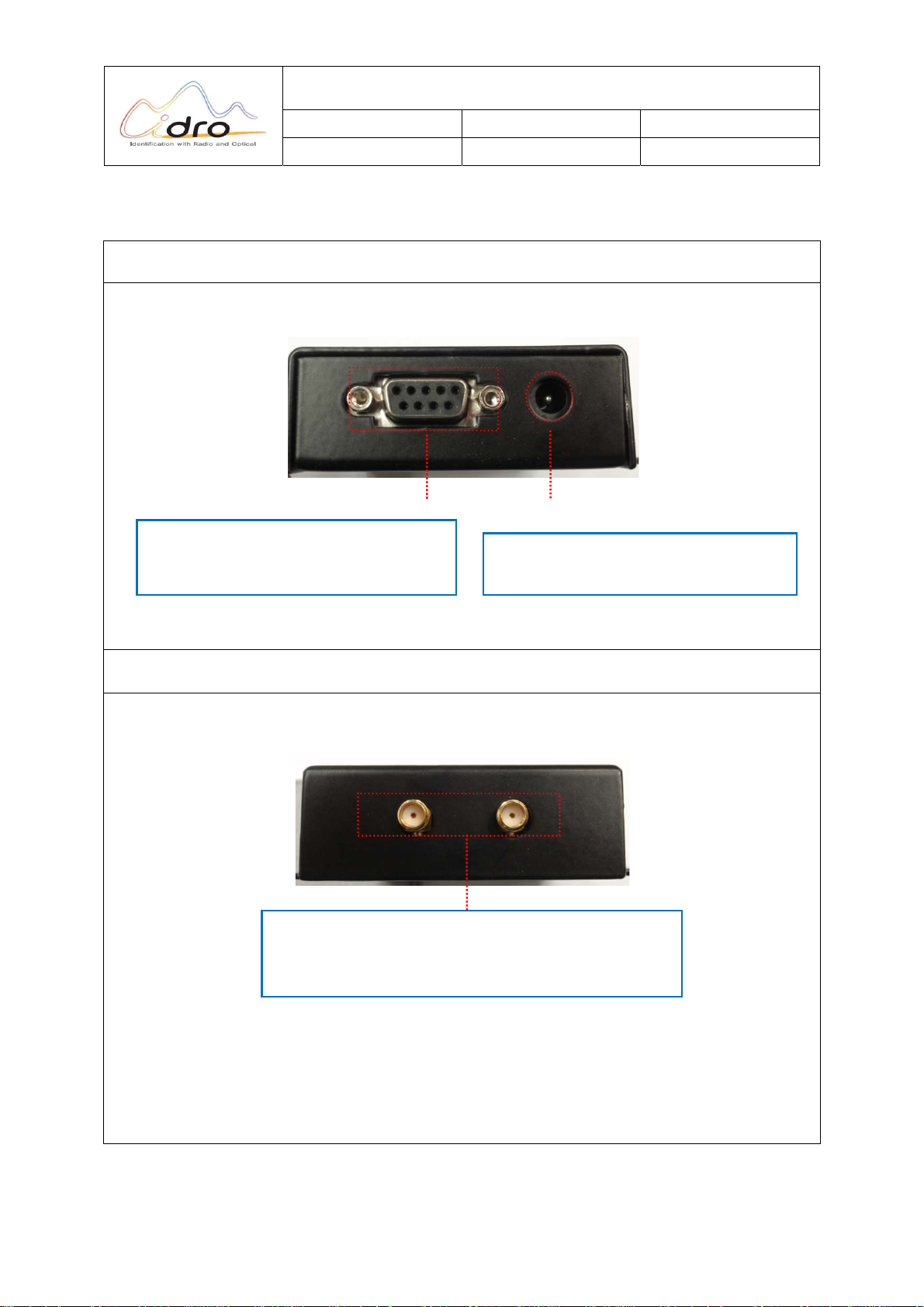

3. Reader Description
IDRO900F2 User’s Manual
Interface
SERIAL(RS232) : It can be locally connected to the
host PC and Use to information transfer or
firmware u
date.
ANT Port
ANT1/ANT2 : Use a 50ohm coaxial cable to connect the
reader with the patch antenna. It is possible to connection
up to four antennas.
DC : RFID Reader power supply port, recommend
DC 12V/3A Adaptor.
6
Identification with Radio and Optical
Page 7
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24
IDRO900F2 User’s Manual

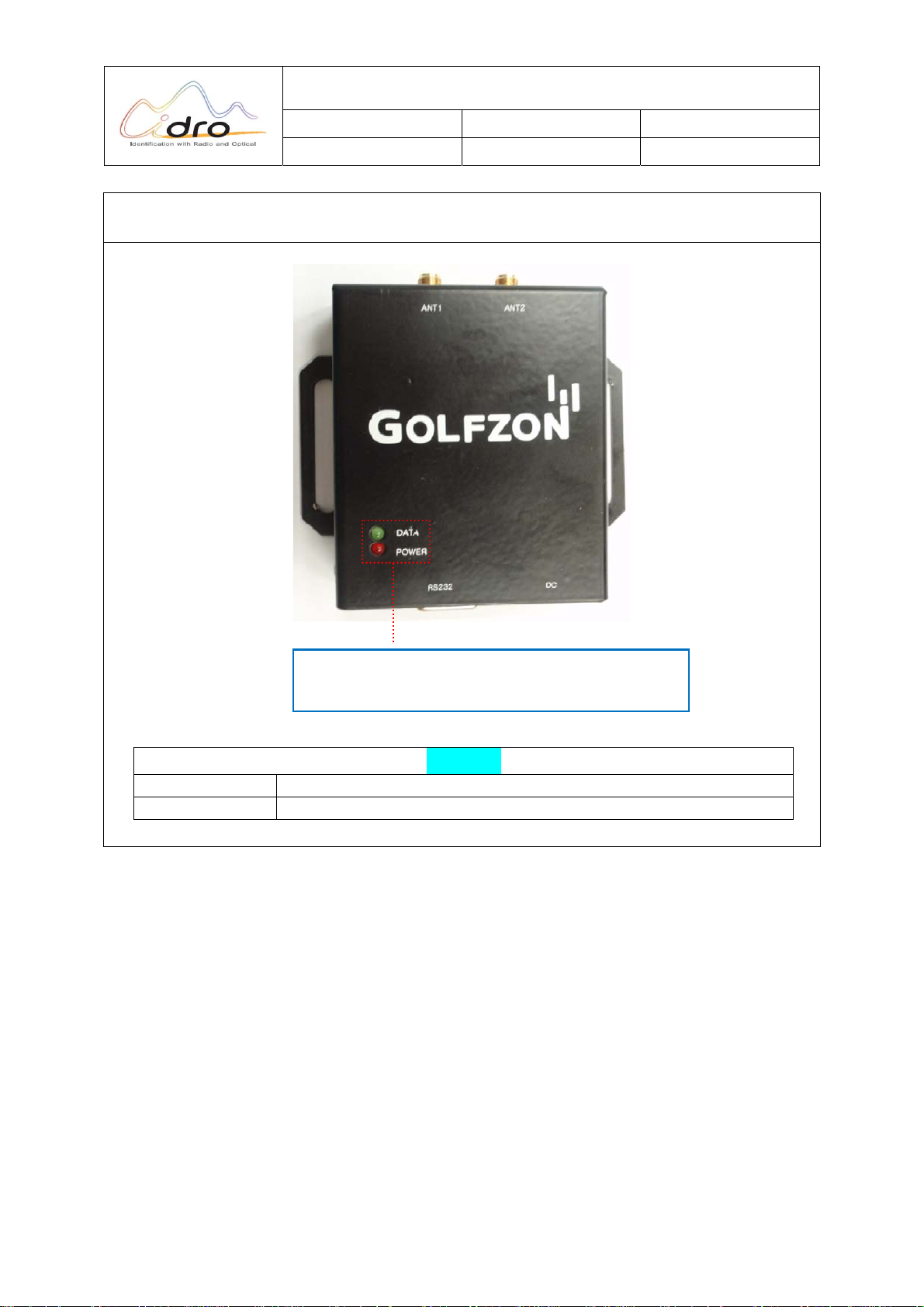

Status LED
GREEN(DATA) z It will twinkle when the reader is receiving data from a tag
RED(POWER) z It is turned on when the reader is powered
LED : It is comprised of Red Led(POWER) and Green Led(DATA)
that appear status of the reader.
Status LED
7
Identification with Radio and Optical
Page 8
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24
4. Reader Specification
z Reader Performance
Description Value
MODEL IDRO900F2
Architecture UHF RFID Reader
Protocol EPC Gen2(ISO 18000-6C),
Frequency 917.3MHz to 920.3MHz(Korea)
Max Tx Power 30dBm±1dBm (1W)
IDRO900F2 User’s Manual
ISO 18000-6B
860MHz to 960MHz (Customizable)
Power control 12dBm to 30dBm (1dB step)
Hopping Channels 6 (Korea), 50(USA), 4(EUROPE)
Channel Spacing 600KHz (Korea, EUROPE), 500KHz (USA)
Channel Dwell time < 0.4 seconds
Modulation Method DSB-ASK, PR-ASK
Supply voltage 12V±1V
Max Current (max power) < 2A
Tag Rea d D is t an c e( M a x. ) <10m
Operating Temperature -20℃ to +50℃
LED Indicators Data , Power
Signaling RS-232 : Baud rate(9600bps, 115200bps),
z Interface
Host connector
ANT Connector
RS-232 : DB-9F
SMA Female R/A
z Physical Dimension
SIZE 89mm × 86.4mm × 25.5mm
Weight ? g
Identification with Radio and Optical
8
Page 9
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24
z Power control level table
Power control level Power(dBm)
0 30
1 29
2 28
3 27
4 26
5 25
6 24
7 23
8 22
IDRO900F2 User’s Manual
9 21
10 20
12 19
13 18
14 17
15 16
16 15
17 14
18 13
19 12
9
Identification with Radio and Optical
Page 10
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24

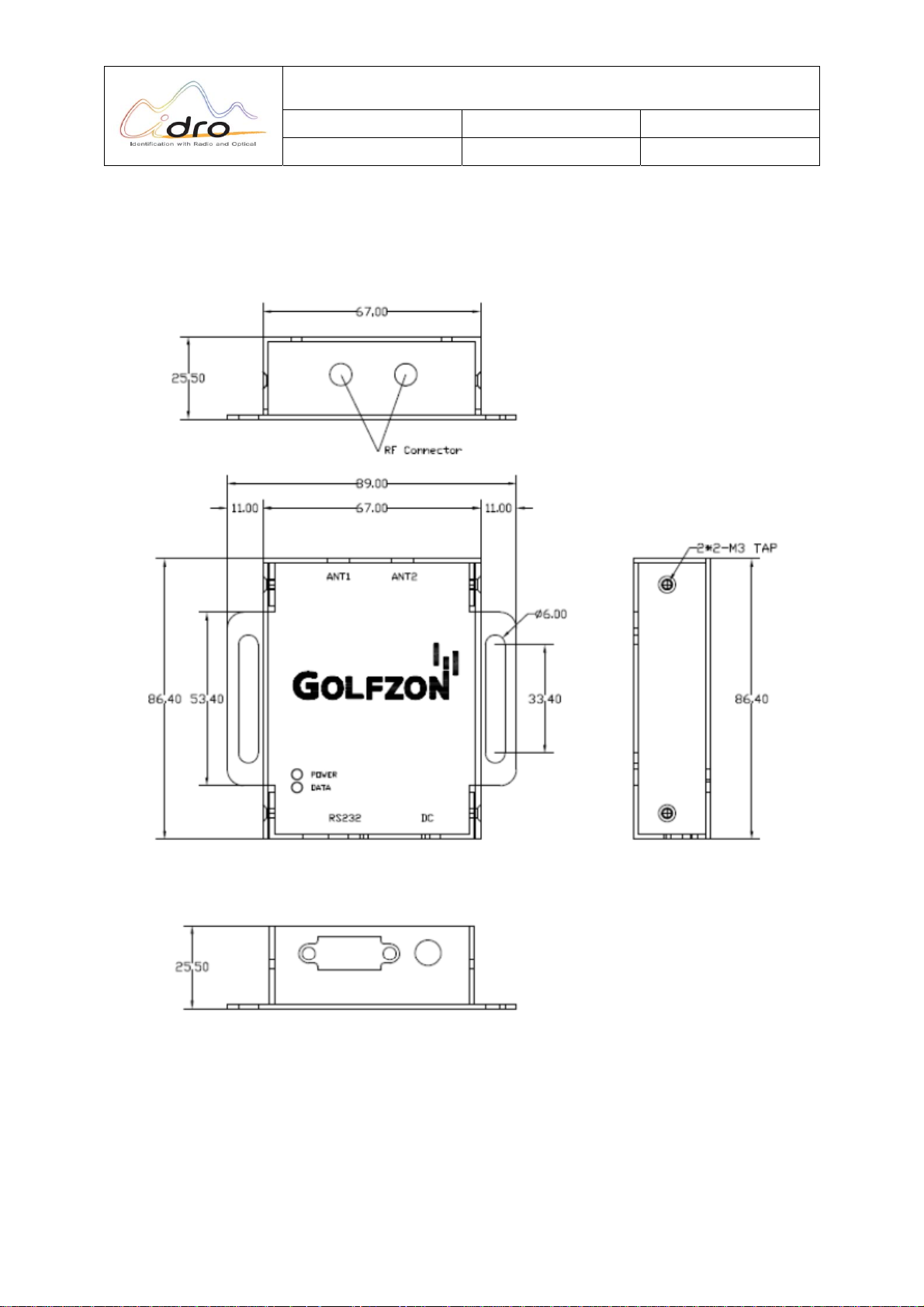

z Mechanical Dimension
IDRO900F2 User’s Manual
10
Identification with Radio and Optical
Page 11
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24
IDRO900F2 User’s Manual

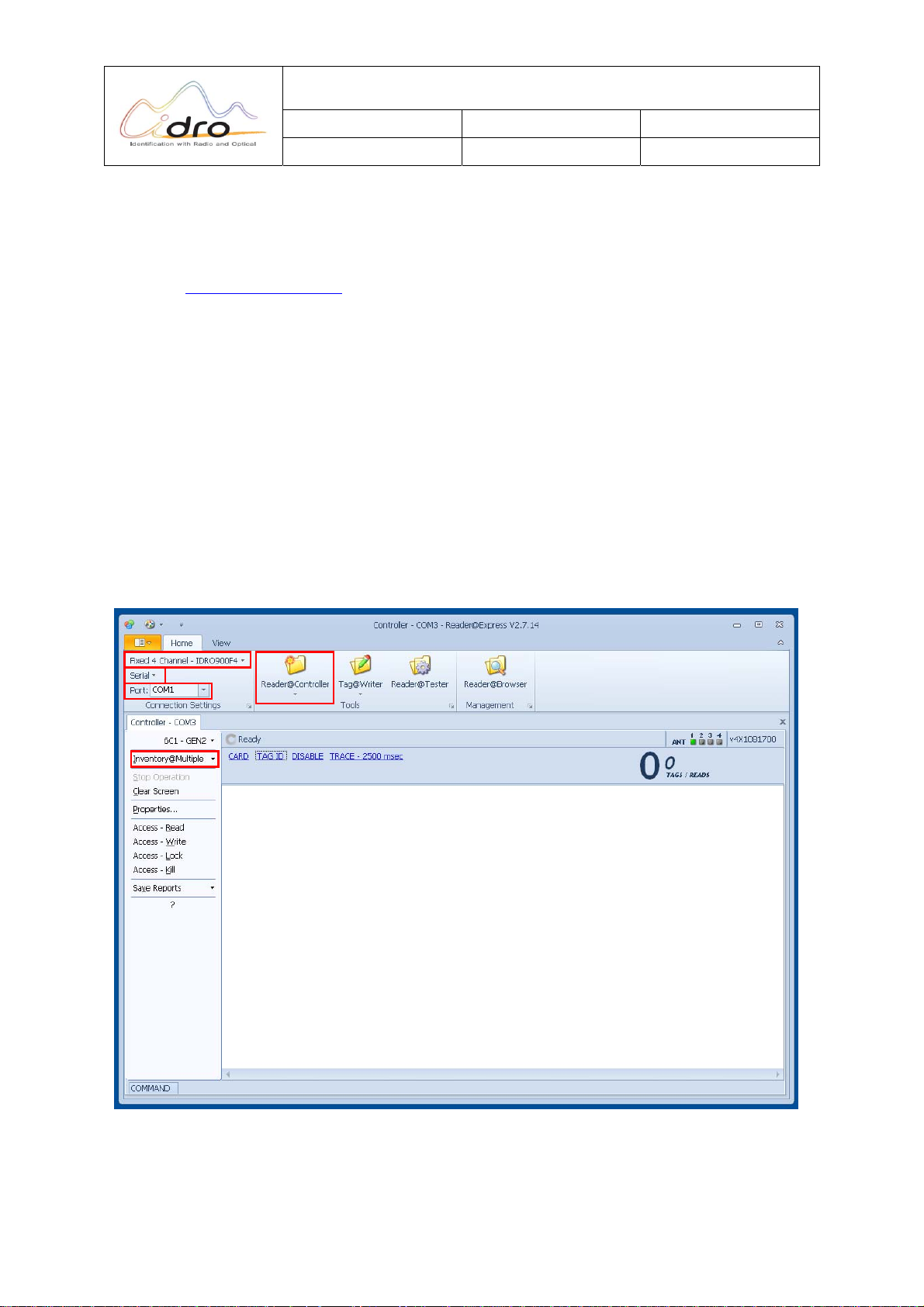

5. Operation method
①. Run [email protected] with window XP
②. Connect serial data cable between PC and Reader.
③. First, check “Fixed 4 Channel-IDRO900F4, Serial, COM1”
(The COM1 can change port number as environment of PC and reader)
④. Supply power to reader. Waiting until the buzzer is sounded “beep”.
⑤. Click “Reader@Controller”
Æ If connection is completed, then “Inventory@Multiple” appears as follows.
⑥. Click “Inventory@Multiple” Æ Reader executes to read tag
⑦. Please refer to the “Reader@Express User’s manual” for more information
<Reader@Express>
Identification with Radio and Optical
11
