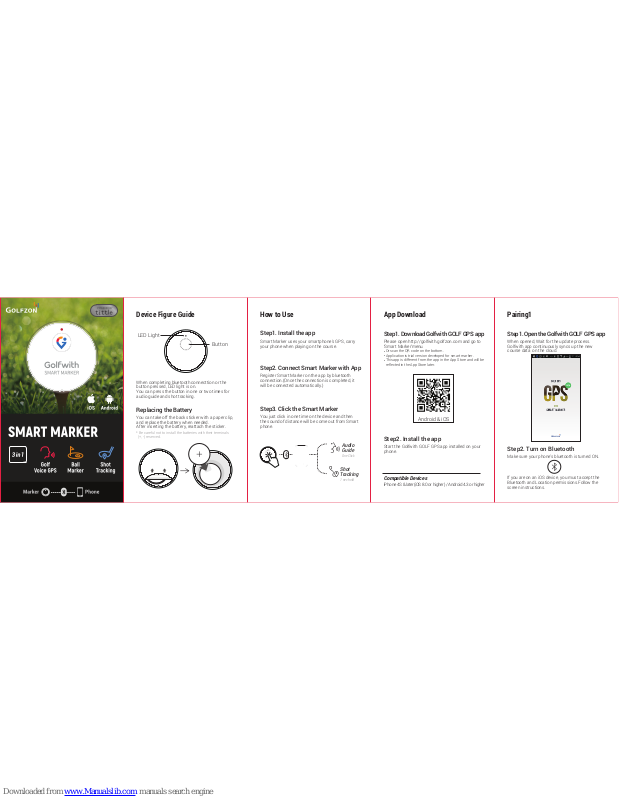

Golfzon SM200, Smart MArker User Manual

Device Figure Guide

LED Light

Button

When completing bluetooth connecttion or the
button pressed, LED light is on.
You can press the button in one or two times for
audio guide and shot tracking.

Replacing the Battery

You can take off the back sticker with a paper clip,
and replace the battery when needed.
After inserting the battery, reattach the sticker.

* Be careful not to install the batteries with their terminals
(+, -) reserved.

How to Use

Step1. Install the app

Smart Marker uses your smartphone's GPS, carry
your phone when playing on the course.

Step2. Connect Smart Marker with App

Register Smart Marker on the app by bluetooth
connection.(Once the connection is completed, it
will be connected automatically.)

Step3. Click the Smart Marker

You just click in one time on the device and then
the sound of distance will be come out from Smart
phone.

Audio
Guide

One Click

Shot
Tracking

1 sec hold

App Download

Step1. Download Golfwith GOLF GPS app

Please open http://golfwith.golfzon.com and go to
‘Smart Marker’ menu.

•

•

•

Or scan the QR code on the bottom.
Application is trial version developed for smart marker.

ThisappisdifferentfromtheappintheAppStoreandwillbe
reflectedintheAppStorelater.

Step2. Install the app

Start the Golfwith GOLF GPS app installed on your
phone.

Compatible Devices

iPhone 4S & later(iOS 8.0 or higher) / Android 4.3 or higher

Android & iOS

Pairing1

Step1. Open the Golfwith GOLF GPS app

When opened, Wait for the update process.
Golfwith app continuously syncs up the new
course data on the cloud.

Step2. Turn on Bluetooth

Make sure your phone’s bluetooth is turned ON.

If you are on an iOS device, you must accept the
Bluetooth and Location permissions.Follow the
screen instructions.

Pairing2

Step3. Activate Your Smart Marker

Press the button of ‘Smart Marker Connect’ on the
main screen.
When the Bluetooth connection is completed, the
device registration proceeds automatically.

One Click

Tip!

If there are multiple Smart Marker devices nearby
ensure that your connection was made correctly.

Pairing3

Step4.Golfwith Provides the Course
Information Automatically

After connecting Smart Marker with app, the
service is ready to start.

Current
Golf
Course

'Golfwith GOLF GPS' App pinpoints the current
location using the smartphone's GPS, then
automatically selects for you the appropriate
golf course.

App Guide

Course Setting

You can set the pin position, green position, unit,
and voice guidance personally.

Hole Setting

After setting the manual mode, hole information is
not provided automatically. When you move on,
you have to select the hole number.

Notice & Warranty

One year warranty from the date of original retail purchase.

(No warranty against damages or loss caused by accident, abuse,
or natural disasters.)

•

•

•

•

•

•

Everyday Use Warnings

Smart Marker is only water-resistant in very small
amounts of rain. Therefore please pay caution in the
following circumstances:

Don’t expose Smart Marker to large amounts of water.
After replacing battery, please attach the sticker firmly.
Prevent Smart Marker’s exposure from water sprays.
Do not take off Smart Marker’s Sticker for covering
Do not use it in a wet state or with wet hands.
Don’t store Tittle in moist areas.

Usage & Liabilities

Do not use the product for purposes other than its
intended functions.
Do not separate and disassemble the product.
Do not subject the product to severe impact, such as
one caused by a drop.
Do not use unauthorized components.
We hold no liability for info

rmation that may leak from
Bluetooth communications.
We hold no liability for damage to clubs such as
scratches, spots, etc.
Do not expose the product to severe temperature or
humidity.
Ensure there are no nearby obstacles or people when
you playing.
Do not use on a hard surface such as concrete or
asphalt.
Optimal Temperature : 5~35

℃

Frequency Band : 2400~2480MHz

•

•

•

•

•

•

•

•

•

•

•

Over 60,000 Golf Courses Worldwide

Smart Marker gets the information from ‘Golfwith
GOLF GPS’ app which continuously syncs up the
data on 25,000+ in the US and 35,000+ worldwide
courses on the cloud

Easy to Connect, Simple t o Use

Once Smart Marker is connected to the app,
you just click on the device and then the sound of
distance will be come out from Smart phone.

Product name
Bluetooth 4.0
Processor
Chipset
Supported Smartphones

Power source
Running Time
Size/Weight

Golfwith SMART MARKER
Bluetooth® low energy / About 10m
32-bit ARM® Cortex™ M0
nRF51822
iPhone 4S & later (iOS 8.0 or higher)
Android 4.3 or higher
Coin-type lithium Battery(CR2016/3.0V)
Over 365 days & 200 Rounds
34mm x 3.4mm (LxH) / 5g (0.17 oz)

Specification

For support & A/S : [e-mail]
For more details : http://golfwith.golfzon.com

•

•

Free App Download

MSIP-CRM-ulk-SM200
FCC ID : 2AHUGSM200
