The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
INSTALLATION INSTRUCTIONS
Inspection of Shipment
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual).
Manual
Read and understand the operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862.
Model Description
3030-00-001: Breeze cotton candy machine with EZ Kleen Head and aluminum floss pan.
Items Included with this Unit
Whirlgrip Floss Stabilizer |
Aluminum Floss Pan |
Cotton Candy Cone Samples |
(PN 3010) |
(PN 42040) |
(PN 3021M/case of 1000) |
Instruction |
Registration |
Manual |
Warranty Card |
Page 4 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |

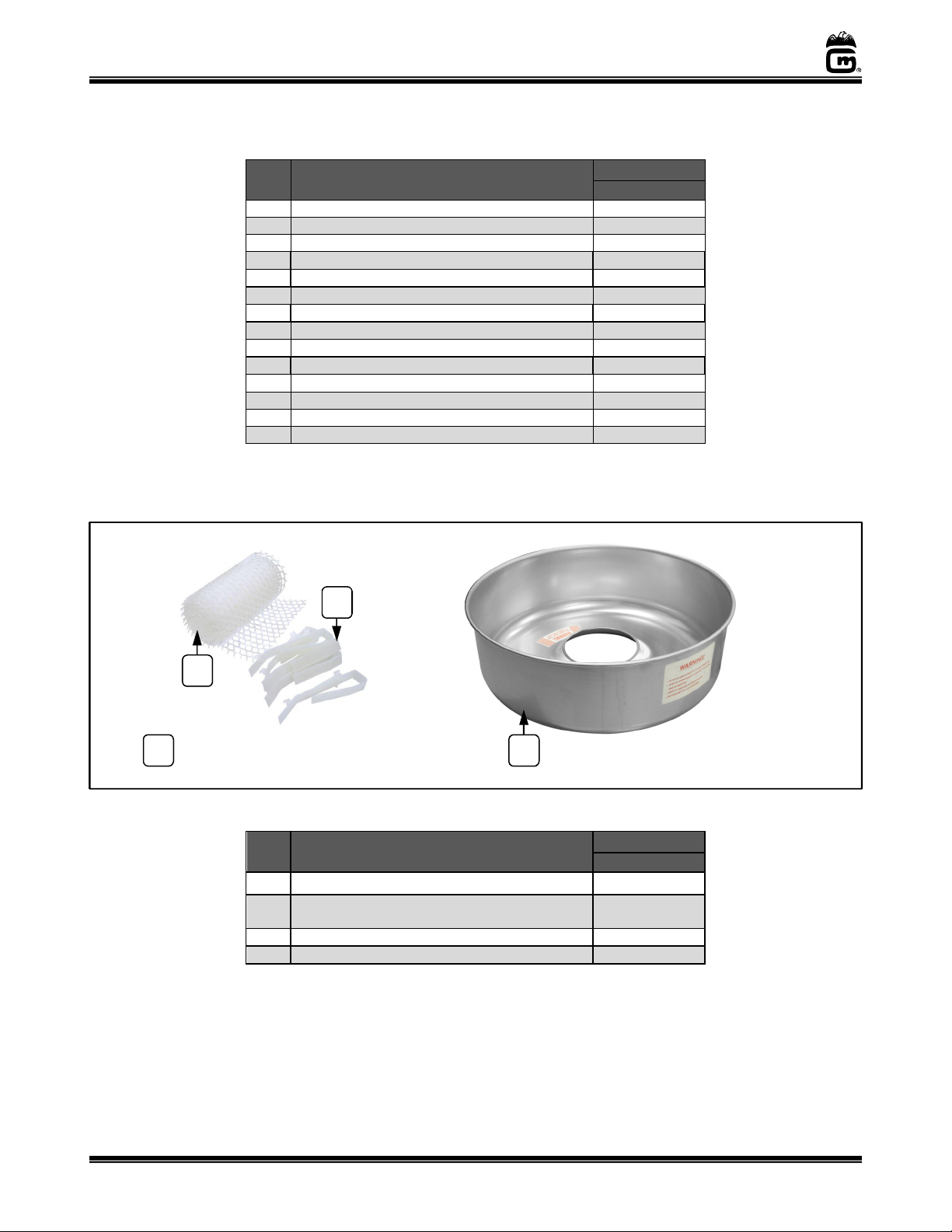

Whirlgrip Floss Stabilizer
Installation Instructions
Unit must be OFF, and cool to install Floss Stabilizer. Place Floss Pan on unit and install Whirl Grip Floss Stabilizer (Item No. 3010) as shown below. Kit includes: Floss Stabilizer/screening (P/N 43032), and (6) Whirlgrip Clips (P/N 77470). Clips are designed to provide air space between screening and floss pan.
Step 1: Place Whirl Clips over rim of pan with hooks facing inside.
Step 2: Hang Stabilizer on top, up facing hook. Screening should be about flush with top of pan.
Step 3: Gently pull screening down and attach to bottom, down facing hook.
Allow air space for proper operation.
Top View of Floss Pan
Step 4: Repeat for all clips keeping equal spacing around pan (number of clips varies by model). Allow air space between pan and screening for proper operation.
Page 6 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Whirlgrip Floss Stabilizer
Installation Instructions
Unit must be OFF, and cool to install Floss Stabilizer. Place Floss Pan on unit and install Whirl Grip Floss Stabilizer (Item No. 3010) as shown below. Kit includes: Floss Stabilizer/screening (P/N 43032), and (6) Whirlgrip Clips (P/N 77470). Clips are designed to provide air space between screening and floss pan.
Step 1: Place Whirl Clips over rim of pan with hooks facing inside.
Step 2: Hang Stabilizer on top, up facing hook. Screening should be about flush with top of pan.
Step 3: Gently pull screening down and attach to bottom, down facing hook.
Allow air space for proper operation.
Top View of Floss Pan
Step 4: Repeat for all clips keeping equal spacing around pan (number of clips varies by model). Allow air space between pan and screening for proper operation.
Page 6 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|

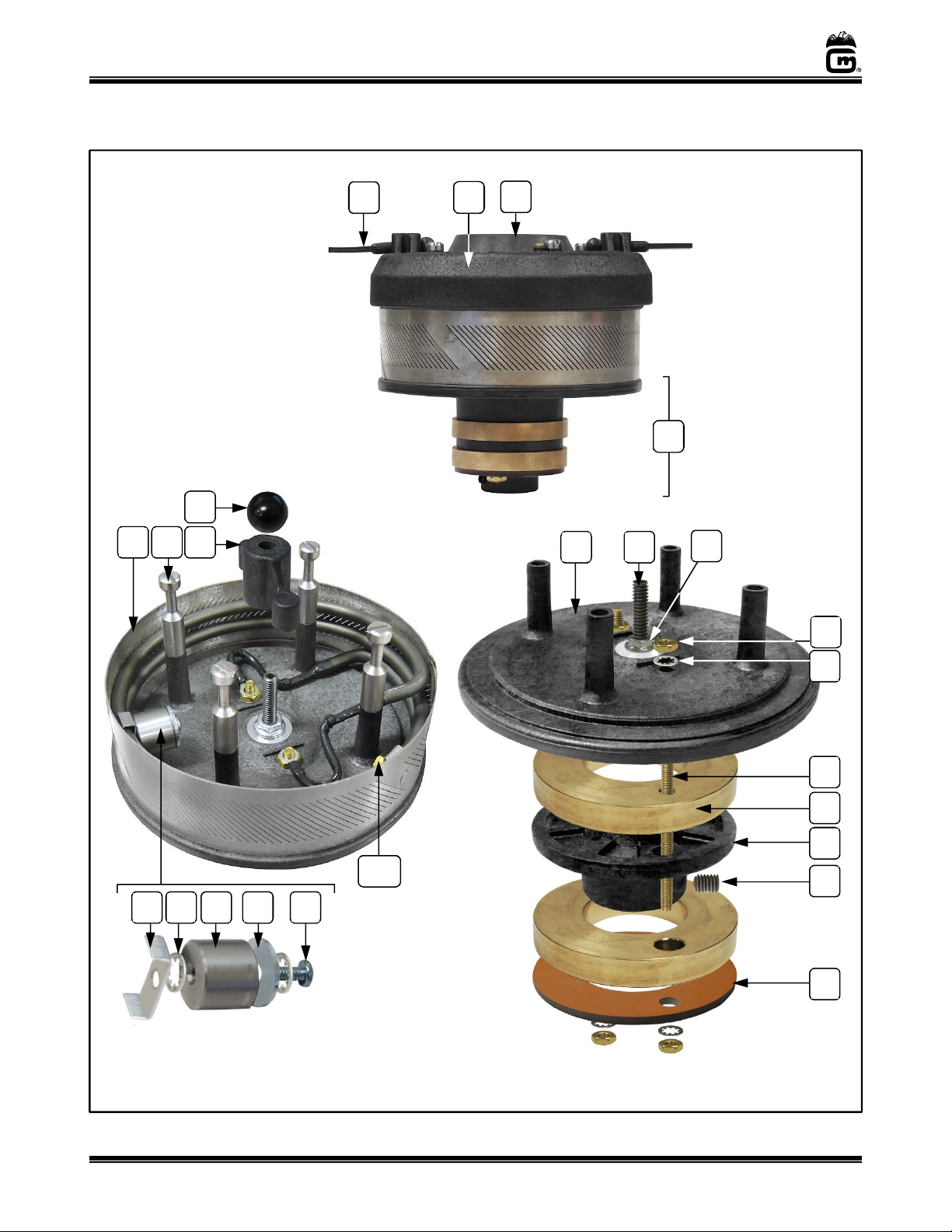

TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|

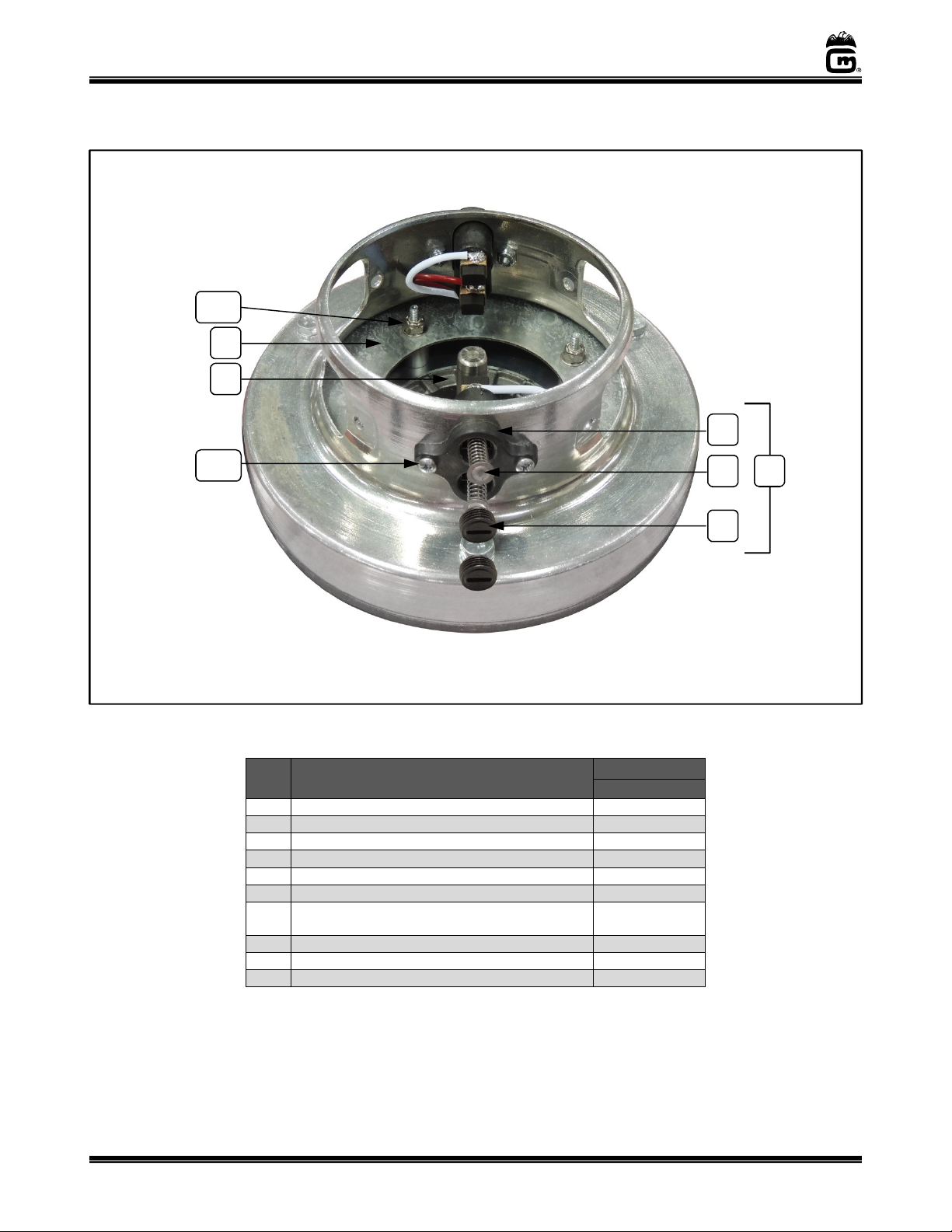

BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
The Breeze |
|
EZ Kleen Head |
Model No. 3030-00-001 |
Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List
|
Item |
|
Part Description |
Part No. |
|
|
3030-00-001 |
||
|
|
|
|
|
|
|
|
TAKE APART SPINNER HEAD (Complete Assy.) |
|
1 |
|
See Spinner Head Assembly section for individual |
42283TC |
|
|
|
|
parts breakdown. |
|
|
|
|
BRUSH HOLDER ASSY (includes Brushes, Caps |
|
|
2 |
|
and Holders) See Brush Assembly Breakdown |
42382W |
|
|
|
section for individual parts breakdown. |
|
3 |
|
BELL HOUSING, DUAL BRUSH |
42190 |
|
4 |
|
LABEL,FLOSS ADVERTISEMENT |
42159 |
|
5 |
|
BOWL, SEAL RETAINER |
56561 |
|
6 |
|
BELL HOUSING SEAL |
56571 |
|
7 |
|
THREADED BUMPER,1/4-20 |
102017 |
|
8 |
|
NAME,INSTRUCTION OVERLAY |
102022 |
|
9 |
|
SWITCH, LIGHTED ROCKER GR |
42798 |
|
10 |
|
KNOB, HEAT CONTROL |
42556 |
|
11 |
|
RUBBER FEET 3/4IN HIGH |
47155 |
|
12 |
|
LOCK N GO HANDLE, NEW CAB. |
56563 |
|
13 |
|
5/16-18 X 1/2 PH TR M/S |
12183 |
|
14 |
|
WASHER SS .5 ID X 1.10 OD |
48428 |
|
15 |
|
CLAMPING SHAFT, LOCK N GO |
56565 |
|
16 |
|
CLAMPING CAM |
42460 |
|
17 |
|
5/16 FLAT WASHER ZINC PLT |
74134 |
|
18 |
|
HEX NUT 5/16-18 ESLOK |
12001 |
|
19* |
|
POWER SUPPLY CORD |
22038 |
|
20 |
|
STRAIN RELIEF SR-6P3-4 |
76026 |
|
21 |
|
WARNING LABEL CORD |
68720 |
|
22 |
|
8-32 X 3/8 PHIL PAN HEAD |
87515 |
|
23 |
|
1/4-20 X 3/4 GRADE 5 BOLT (w/Lock Washer) |
74520 |
|
24 |
|
TINNERMAN NUT 1/4-20 |
42125 |
|
25 |
|
8-32 X 3/8 SLT. HWH M/S |
42044 |
|
26 |
|
#8-32 TINNERMAN FASTENER |
47299 |
|
27 |
|
INSPECTION BRUSH COVER |
42381 |
|
28 |
|
LABEL,CLEAN EVERY 500 LBS |
42002 |
|
Page 21 |
gmpopcorn.com |
|
Loading...
