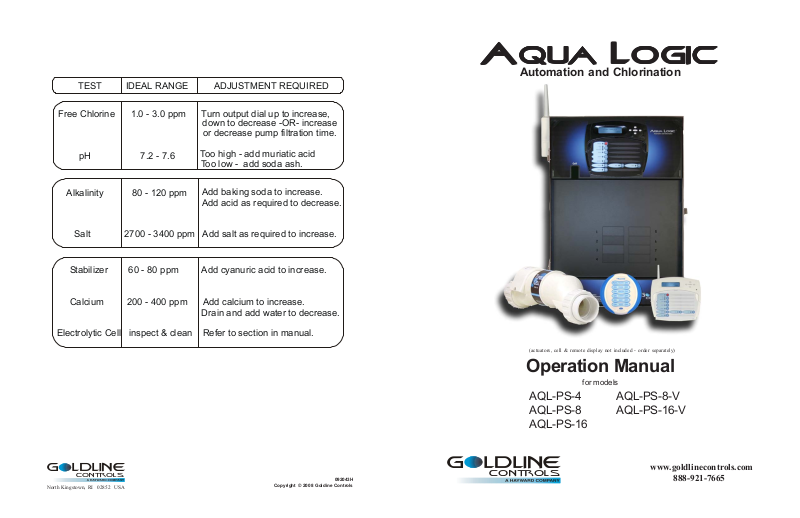

AQL-PS-4
www.goldlinecontrols.com
888-921-7665
Aqua LogicAqua Logic
Aqua LogicAqua Logic
Aqua Logic
Automation and Chlorination
Operation Manual
for models
AQL-PS-4 AQL-PS-8-V
AQL-PS-8 AQL-PS-16-V
AQL-PS-16
(actuators, cell & remote display not included - order separately)
LD
C
G
LINE
ON
T
ROLS
IMPORTANT SAFETY INSTRUCTIONS
When using this electrical equipment, basic safety precautions should always
be followed, including the following:
•
READ AND FOLLOW ALL INSTRUCTIONS
•
!
WARNING: Disconnect all AC power during installation.
•
!
WARNING: Water in excess of 100 degrees Fahrenheit may be
hazardous to your health.
•
!
WARNING: To reduce the risk of injury, do not permit children to
use this product unless they are closely supervised at all times.
• A green colored terminal marked “Earth Ground” is located inside the wiring
compartment. To reduce the risk of electric shock, this terminal must be
connected to the grounding means provided in the electric supply service
panel with a continuous copper wire equivalent in size to the circuit
conductors supplying the equipment.
• One bonding lug for US models (two for Canadian models) is provided on the
external surface. To reduce the risk of electric shock, connect the local
common bonding grid in the area of the swimming pool, spa, or hot tub to
these terminals with an insulated or bare copper conductor not smaller than 8
AWG US / 6 AWG Canada.
• All field installed metal components such as rails, ladders, drains, or other
similar hardware within 3 meters of the pool, spa or hot tub shall be bonded
to the equipment grounding bus with copper conductors not smaller than
8 AWG US / 6 AWG Canada.
• SAVE THESE INSTRUCTIONS
Table of Contents
System Overview Block Diagram....................................................................... 1
Automation............................................................................. 1
Chlorination............................................................................ 2
Default Display...................................................................... 2
Manual System Output Names........................................................................ 3
Operation Filter Pump............................................................................. 3
Lights and Aux Outputs.......................................................... 4
Pool/Spa Valves..................................................................... 4
Heaters................................................................................... 5
System Off............................................................................. 5
Service................................................................................... 5
Automatic System Using the Programming Buttons.......................................... 6
Operation Programming Menu Flow Chart........................................... 7
(Programming) Settings Menu........................................................................ 8
Timers Menu.......................................................................... 11
Group Function...................................................................... 15
Configuration Menu............................................................... 17
Quick “How To” Operate the Spa - Manually.................................................. 30
Guide Operate the Spa - Automatically.......................................... 30
Set the Heater Temperature................................................. 30
Set the Chlorinator Output ................................................... 30
Start/Stop Superchlorination................................................ 31
Program a Timeclock............................................................ 31
Program a Countdown Timer............................................... 31
Enter/Exit Service Mode....................................................... 32
Chlorinator Operation/ Saturation Index..................................................................... 33
Water Chemistry Salt Level................................................................................ 34
Type of Salt............................................................................ 34
How to Add or Remove Salt................................................. 34
System Maintenance Servicing and Cleaning the Aqua Logic Cell...................... 37
Winterizing.............................................................................. 37
Spring Startup........................................................................ 37
Troubleshooting & Service Mode ....................................................................... 38
Diagnostic Information Check System Indicator........................................................ 38
Diagnostic Menu................................................................... 39
Chlorinator Diagnostics........................................................ 39
Instant Salt.............................................................................. 40
Flow Switch............................................................................ 40
Cell, Water, Air, Solar Temperature...................................... 40
Software Revision................................................................. 40
Warranty Aqua Logic Warranty............................................................. 42
1
System Overview
The Aqua Logic is a multifunction pool controller used to fully manage your pool/spa system. The Aqua
Logic can control pumps, valves, lighting, heaters, and chlorination. Although the Aqua Logic is easy to
use, it is important to completely read through this operating manual before attempting to operate the
control.
NOTE: This manual assumes that the Aqua Logic has been wired and configured according to the Instal-
lation Manual. Aspects of the Aqua Logic that pertain to system setup are not covered in this manual.
Automation
The AQL-PS-4 (-8, -16) can control up to 4 (8, 16) high voltage (120/240V) pieces of equipment, up to
4 (8 for the PS-16) automatic valve actuators, and 2 conventional heaters plus a solar heater. Both manual
and automatic (programmed) operation are available. All of the control functions can be programmed at a
display/keypad which is part of the main unit (typically located near the pool equipment) or at one or more
remote display/keypads.
Water
Air
Solar
Chlorinator
Flow Swi tch
240 VAC
Power
240 VAC
Power
Filter Pump
Lights
Aux
Aux (8)
Pool/Spa Suction &
Return Valves
General Purpose
Valves (2)
General Purpose
Valves (4)
Heaters (2)
Chlorinator Cell
Circuit Brea ker
Subpanel
Circuit Breaker
Subpanel
Main Display
Keypad
Optional Wired
Remote Display
Keypad
(maximum of three)
Optional Wireless
Remote Display
Keypad
Optional Wireless
Spaside Remote
Temperature
Sensors
120/240V
Relays
120/240V
Relays
24V Valve
A
ctuators
24V Valve
A
ctuators
INPUT
OUTPUT
OUTPUT
Optional
Wireless Base
Receiver
LDLINE
CONTROLS INC.
G
POOL SPA
ON OFF
ON OFF
ON OFF
ON OFF
ON OFF
VALVES
FILTER
HEATER
LIGHTS
AUX1
AUX2
(2 for PS-4)
(6 for PS-8, PS-16)
EXPANSION UNIT
PS-4 (-8, -16) MAIN UNIT
(used with PS-16 only)
2
Chlorination
With the use of the optional AQL-CL chlorination kit, the Aqua Logic is also an automatic chlorine genera-
tion system for pool and/or spa sanitization. If enabled (see Configuration Menu), this operation requires
a low concentration of salt (sodium chloride) in the pool/spa water. The Aqua Logic automatically con-
verts the salt into free chlorine which kills bacteria and algae in the pool/spa. Chlorine will revert back to
sodium chloride after killing bacteria. These reactions will continuously recycle, virtually eliminating the
need to add sanitizing chemicals to your pool/spa. The only time you may need to add more salt to the
pool/spa is when water is replenished due to backwashing, draining, or splashing (not evaporation).
The Aqua Logic is designed to handle the purification needs of most residential swimming pools up to
40,000 gallons (150,000 liters), or the needs of most commercial pools up to 25,000 gallons (95,000
liters). Check local codes for other restrictions. The actual amount of chlorination required to properly
sanitize a pool varies due to bather load, rainfall, temperature, and the pool’s cleanliness.
For pools larger than 40,000 gallons, the Aqua Logic can control one or more Goldline Aqua Rite chlori-
nators to supplement chlorine production.
NOTE: Before installing this product as part of a saline water purification system in a pool or spa using
natural stone for coping or for immediately adjacent patios/decking, a qualified stone installation specialist
should be consulted regarding the appropriate type, installation, sealant (if any) and maintenance of stone
used around a saline pool with electronic chlorine generator in your particular location and circumstances.
Default Display
Turn power on at the main panel and turn the Aqua Logic control power circuit breaker on. The keypad
will show the default display. The default display alternates between the day/time, air and pool (or spa)
temperature, pool/spa sanitizer setting, and salt level. Under certain circumstances, additional displays
may be added to the default menu to inform you about system operation. Refer to the Programming Menu
Flowchart on page 7 to view all possible displays. The Aqua Logic will automatically scroll through all of
the available default menu displays or you can press “<” or “>” to manually scroll.
Optional Remote Display/keypad shown--the display keypad on the
main control unit will have a “Service” button in the upper left
corner instead of the “System Off” button.
3
Manual System Operation
While the main objective of the Aqua Logic is to automate the operation of your pool/spa system, there
may be certain times when you want to override the automatic operation and control the equipment manu-
ally. To operate the pool equipment manually while keeping the automation active, perform the following
procedures. Note that if you turn a relay on manually, it will remain on until either you turn it off manually,
or the next time the programmed automatic operation would normally turn that relay off. Example: the
filter pump is programmed to run from 9:00A to 5:00P daily. If you turn the filter pump on manually at
8:00PM, it will run continuously until the next day at 5:00PM at which time it will turn off and follow the
normal program from then on. Manually turning off a relay works in a similar fashion.
Output Names
The Aqua Logic is shipped from the factory with each output labeled with a generic name (e.g. AUX1,
VALVE3, etc.). One of the features in the software (see Configuration Menu, page 16) is that each output
can be assigned a new name that is more descriptive of the equipment being controlled. This makes it much
easier to operate all of the equipment on your pool without having to memorize what each output controls.
Insert name labels are also provided to be placed next to each display pushbutton. Since there is no way
to know how your particular system is configured, this manual will use the original generic names for each
output.
Pool Filter Pump
The pool filter pump can be manually operated whether in Standard (single pump) or Dual Equipment
(separate pumps for both pool and spa) mode. When in Standard mode, the display will refer to the pool
filter pump as “FILTER”. When in Dual Equipment mode, the display will read “FILTER PUMP”.
Single Speed Filter Pump: If the pump is currently off, press the “FILTER” button to turn on the pump.
Pressing the “FILTER” button again will turn off the pump. However, if there is a heater in the system, and
it is operating, and the “Heater Cooldown” feature is enabled (Configuration Menu) then: when you press
the “FILTER” button to turn off the filter, only the heater will turn off, the “FILTER” LED will flash and the
display will indicate “Heater Cooldown”. At this point the filter pump will automatically turn off after 5
minutes of heater cooldown operation. If you want to override the heater cooldown, simply press the
“FILTER” button again to turn off the filter pump.
Aux1 - Aux6
(On/Off)
Check System LED
Menu and Navigation Buttons
Display
Valve4 or Heater2
(See Configuration Menu)
System Off (remote displays)
or
Service (main unit display)
PS-8
Display
Instant Salt
3200 PPM (+=save)
Move to previous/next menu item
Press to load the “Instant Salt” into the averaged salt display
+
>
Flow Switch
Flow
+
>
Air Sensor
94ºF
Cell Temp Sensor
77ºF
Solar Sensor
Short circuit
Wat er Se nsor
Open circuit
No function
No function
No function
No function
+
+
>
>
+
+
>
>
Main Software
Revision 2.40
Display Software
remote-08 r3.10
Exp. Unit Software
Revision 1.10
RF Base Software
r1.20 ID:1234
6B Spa Software
Remote A r1.00
Digital Spa Software
B r1.00Remote
No function
No function
No function
No function
No function
No function
+
+
+
+
+
+
>
>
>
>
>
>
for PS-16 only
4
Two Speed Filter Pump: If the pump is currently off, simply press the “FILTER” button to turn on high
speed operation of the filter pump. The “Filter” LED will illuminate continuously. Pressing the “FILTER”
button again will switch to low speed operation and the “FILTER” LED will flash. If you attempt to switch
to low speed shortly after turning on high speed the filter pump will automatically remain in high speed for
3 minutes before switching to low speed to allow the pump to prime and establish normal water flow.
Freeze Protection: This function protects the pool, plumbing, and equipment against freeze damage. If
Freeze Protection is enabled and the AIR temperature sensor falls below the preset freeze protection
temperature (see Filter Pump Configuration), the Aqua Logic will turn on the filter pump to circulate the
water.
Spa Filter Pump (when using Dual Equipment)
Single Speed Filter Pump: If the pump is currently off, press the “AUX1” button to turn on the pump.
Pressing the “AUX1” button again will turn off the pump. However, if there is a heater in the system, and
it is operating, and the “Heater Cooldown” feature is enabled (Configuration Menu) then: when you press
the “AUX1” button to turn off the filter, only the heater will turn off, the Filter LED will flash and the display
will indicate “Heater Cooldown”. At this point the filter pump will automatically turn off after 5 minutes of
heater cooldown operation. If you want to override the heater cooldown, simply press the “AUX1”
button again to turn off the filter pump.
Two Speed Filter Pump: If the pump is currently off, simply press the “AUX1” button to turn on high
speed operation of the filter pump. The “AUX1” LED will illuminate continuously. Pressing the “AUX1”
button again will switch to low speed operation and the “AUX1” LED will flash. If you attempt to switch
to low speed shortly after turning on high speed the filter pump will automatically remain in high speed for
3 minutes before switching to low speed to allow the pump to prime and establish normal water flow.
Freeze Protection: This function protects the pool, plumbing, and equipment against freeze damage. If
Freeze Protection is enabled and the AIR temperature sensor falls below the preset freeze protection
temperature, the Aqua Logic will turn on the spa filter pump to circulate the water.
Lights and Aux Outputs
Standard Relay: Manual operation of all relays (LIGHTS, AUX1 and AUX2 for a PS-4 model, LIGHTS,
AUX1 - AUX6 for a PS-8 model, or LIGHTS, AUX1 - AUX14 for a PS-16 model) is identical. Assum-
ing that the relay is currently off, simply press the appropriate button to turn on the relay. If the relay does
not turn on, it probably is due to the “interlock” feature (which was set up in the Configuration Menu) being
activated that requires the filter pump to be running and the valves to be in the pool-only position. This
protects pumps and other equipment from possible damage. If the controlled output is on, pressing the
appropriate button again will turn off the relay. Manual turn off is disabled if the “Freeze Protection”
feature is enabled and the air temperature is less than the selected freeze temperature threshold.
Dimmer Relay: If Lights or an Aux output is configured as a dimmer, pressing the corresponding button
will generate a temporary display which shows the dimmer output level (Off - On 100%). Pushing the “+”
or “-” button changes the level in increments of 20%. When the desired output level is displayed, press the
corresponding button again to turn off the display and return to normal operation. When the Lights or Aux
output comes on again (either manually or automatically), the dimmer output level will be the same as the
last time that it was set.
Pool/Spa Valves
Pool-only or Spa-only systems: The POOL/SPA/SPILLOVER button has no function.
Standard Pool and Spa systems without spa spillover: In pool-only mode (“POOL” LED illuminated),
press the “POOL/SPA/SPILLOVER” button to switch to spa-only operation (“SPA” LED illuminated).
Pressing the “POOL/SPA/SPILLOVER” button again will switch back to pool-only. Note that the filter
pump will turn off while the pool/spa valves are turning.
5
Standard Pool and Spa systems with spa spillover: When currently in the pool-only mode (“POOL”
LED illuminated), press the “POOL/SPA/SPILLOVER” button to switch to spa-only operation (“SPA”
LED illuminated). Press the button again to switch to spa spillover operation (“SPILLOVER” LED
illuminated). Pressing the “POOL/SPA/SPILLOVER” button again will switch back to pool-only mode.
Note that the filter pump will turn off while the pool/spa valves are turning.
Dual Equipment Pool and Spa systems without spa spillover: The POOL/SPA/SPILLOVER button
has no function. The “POOL” LED will always be illuminated.
Dual Equipment Pool and Spa systems with spa spillover: When currently in the separate Pool and
Spa loops mode (“POOL” LED illuminated) and the Spa Filter is off, press the POOL/SPA/SPILLOVER
button to switch to spa spillover operation (“SPILLOVER” LED illuminated). Press the POOL/SPA/
SPILLOVER button again to return to the separate Pool and Spa loops mode of operation. Note that the
Pool Filter pump will shut off while the pool/spa return valve is turning. The system will automatically
switch out of spillover whenever the spa filter pump is turned on.
Note: For Dual Equipment Pool and Spa systems, there is no Spa Only mode.
Heaters
This description applies to Heater1 and to Heater2, if programmed (note that the function of the Valve4
button changes to Heater2 when Heater2 is enabled). Pressing the “HEATER” button causes the Aqua
Logic to switch the heater control output between a “forced off” state and a normal, automatic thermo-
static control operating state.
System Off
Each remote display/keypad has a red “SYSTEM OFF” button on the upper left corner of the keypad.
Pressing this button will turn all outputs off and they will remain off, regardless of any programmed control
logic, until either the “SYSTEM OFF” button (on any remote display/keypad) is pressed again or the
“SERVICE” button is pressed on the display/keypad at the main unit. The red “SYSTEM OFF” LED will
illuminate to indicate that all outputs and being forced off.
!
WARNING: pressing the “SYSTEM OFF” button overrides any programmed freeze pro-
tection and may cause damage to your system in freezing conditions.
Service
The main unit keypad has a “SERVICE” key. This button is used primarily during servicing of the pool
equipment. If you want to completely disable the automatic operation and operate the system manually,
you can put the system into Service or Service-Timed mode by pressing the “SERVICE” button. Pressing
the “SERVICE” button once will switch the system into service mode which means that all automatic
functions are disabled, and the remote display/keypads are disabled (except for manual turn off for emer-
gencies). The red “SERVICE” LED will be illuminated and the Aqua Logic will remain in this mode of
operation until manually taken out of service mode.
Pressing the “SERVICE” button again will cause the Aqua Logic to switch to service-timed mode which is
very similar to service mode, except that the Aqua Logic will automatically return to normal operation after
3 hours. During service timed operation, the “SERVICE” LED will flash and the time remaining will be
displayed on the remote display/keypad(s).
Pressing the “SERVICE” button again, will return the Aqua Logic to normal (automatic) operation. See
Troubleshooting/Diagnostic Information (page 36) for more information about the service modes.
6
Automatic System Operation
The Aqua Logic controls most of your pool equipment automatically in order to minimize the time spent
working on your pool. Most of the pool equipment can be programmed to operate on a timeclock basis.
In addition, the desired pool and spa temperatures and pool and spa chlorinator settings can be pro-
grammed. This section will guide you on how to program the automatic operation for each function.
The programming of automatic functions can be performed at either the main display/keypad located at the
pool equipment pad or the in-home remote display/keypad.
Using the programming buttons
There are 5 buttons on each keypad that are used for programming (refer to diagram).
There are 4 steps to programming any function:
1.
Menu
Press the “MENU” button to get to the desired menu. Multiple pushes of the
button will rotate through all 5 menus and return to the starting point.
2.
>
>
Press either key to scroll through the various items in the selected menu. Multiple
pushes of the button will rotate through all menu items and return to the starting
point. Only menu items that are applicable to your pool will appear. (Example: if
you don’t have a spa, then no spa related menu items will appear).
3.
+
Once a menu item has been selected above, the current setting/selection will ap-
pear (flashing) on the display. Use the “+” and/or “-” keys to change this selec-
tion. Sometimes “+” and “-“ will adjust a value up or down (example: heater
temperature setting or timeclock on/off time). In this case, pushing the “+” or “-”
will change the value by one increment and holding the “+” or “-” button in for
more than one second will make the values auto scroll. In other cases, the “+” and
“-“ may toggle between 2 options (example: turning superchlorination ON or
OFF).
4.
>
>
Menu
After you have adjusted the item to the desired value, simply move on to the next
menu item to “lock in” your new setting. The Aqua Logic memory will maintain
the setting, even if power is removed for an extended period.
MENU
MENU
Button
Select Desired Menu
and Buttons
and Buttons
Select Items from
a Menu
Adjust
+
+
>
>
<
<
7
Programming Menu Flowchart
denotes conditional items
PS-4 only
PS-4 onl y
POUNDS and (Kg) OF STABILIZER (CYANURIC ACID) NEEDED FOR 80 PPM
Gallons and (Liters) of Pool/Spa water
Current
Stabilizer
Level (ppm)
0 ppm
20 ppm
60 ppm
30 ppm
40 ppm
50 ppm
70 ppm
80 ppm
10 ppm
12,000
(45000)
8,000
(30000)
14,000
(52500)
10,000
(37500)
16,000
(60000)
18,000
(67500)
20,000
(75000)
22,000
(82500)
32,000
(120000)
24,000
(90000)
34,000
(127500)
26,000
(97500)
36,000
(135000)
28,000
(105000)
38,000
(142500)
30,000
(112500)
40,000
(150000)
8.0
(3.6)
5.3
(3.6)
8.0
(3.6)
8.0
(3.6)
9.4
(4.3)
6.7
(4.3)
9.4
(4.3)
10.7
(4.9)
12.0
(5.4)
12.0
(5.4)
13.4
(6.1)
14.7
(6.7)
21.3
(9.7)
16.0
(7.3)
22.7
(10.3)
18.7
(8.5)
25.3
(11.5)
20.0
(9.1)
26.7
(12.0)
7.0
)
(3.2
4.7
(3.2)
8.2
(3.7)
5.8
(3.7)
10.5
(4.8)
11. 7
(5.3)
12.9
(5.9)
18.7
(8.5)
14.0
(6.4)
19.8
(9.0)
15.2
(6.9)
21.0
(9.5)
16.4
(7.4)
22.2
(10.0)
17.2
(8.0)
23.3
(10.5)
6.0
(2.7)
4.0
(2.7)
6.0
(2.7)
6.0
(2.7)
8.5
(3.9)
7.0
(3.2)
9.0
(2.2)
10.0
(4.5)
10.0
(4.5)
14.2
(6.3)
11. 0
(5.0)
16.0
(7.2)
13.0
(5.9)
18.0
(8.1)
14.0
(6.4)
19.0
(8.6)
15.0
(6.8)
20.0
(9.0)
5.0
(2.3)
3.3
(2.3)
5.0
(2.3)
5.9
(2.7)
4.2
(2.7)
6.7
(3.0)
8.4
(3.8)
6.7
(3.0)
7.5
(3.4)
9.2
(4.2)
13.3
(6.0)
10.8
(4.9)
15.0
(6.7)
11.7
(5.2)
15.8
(7.1)
12.5
(5.6)
16.7
(7.5)
4.0
(1.8)
2.7
(1.8)
4.0
(1.8)
4.0
(1.8)
5.7
(2.6)
4.7
(2.1)
3.3
(2.1)
5.4
(2.4)
7.4
(3.3)
10.7
(4.8)
8.7
(3.9)
12.0
(5.4)
9.3
(4.2)
12.7
(5.7)
10.0
(4.5)
13.3
(6.0)
3.0
(1.4)
2.0
(1.4)
3.0
(1.4)
3.5
(1.6)
2.5
(1.6)
4.5
(2.0)
5.5
(2.5)
8.0
(3.6)
6.5
(2.9)
9.0
(4.1)
7.0
(3.2)
9.5
(4.3)
7.5
(3.4)
10.0
(4.5)
2.0
(.91)
1.3
(.91)
2.0
(.91)
2.8
(1.3)
2.3
(1.1)
1.7
(1.1)
2.7
(1.2)
3.3
(1.5)
3.7
(1.7)
5.3
(2.4)
4.3
(2.0)
4.7
(2.1)
6.3
(2.8)
5.0
(2.3)
6.7
(3.0)
1.0
(.45)
0.7
(.45)
1.2
(.54)
0.8
(.54)
1.4
(.64)
1.5
(.68)
1.7
(.77)
1.8
(.82)
2.7
(1.2)
2.2
(1.0)
3.0
(1.3)
2.3
(1.1)
3.2
(1.4)
2.5
(1.2)
3.3
(1.5)
0.00.0 0.00.0 0.0 0.0 0.0 0.0
0.00.0 0.00.0 0.00.0 0.00.0 0.0
8
The Aqua Logic’s five main menus have many items in each that allow you to customize the operation of
your pool/spa equipment. The chart on the previous page shows the Aqua Logic’s five menus as well as
each menu’s specific settings.
The Default Menu is a series of informative displays (temperatures, salt levels, chlorinator settings, etc.)
with nothing to set. The Aqua Logic will automatically switch to the default menu when no keys have been
pressed for 2 minutes and will then scroll through each display.
The Settings Menu and the Timers Menu are the menus you will be using most often to adjust the operation
of your pool. The Configuration Menu is used when the system is installed and defines what equipment is
connected to each output and the operational logic that will control the equipment. This menu is normally
“locked” and should only be used by a pool professional. Details regarding the Configuration menu can be
found on page 16.
The “Diagnostic Menu” is primarily intended for the service technician and contains information and details
about the system operation that are helpful in troubleshooting, if problems occur.
Settings Menu
The Settings Menu allows you to set all system operating parameters except the timeclock and countdown
timers which are part of the Timers Menu.
!
Important: All of the displays shown below use the default generic names for each function
or output. The Aqua Logic allows more descriptive names to be assigned to each piece of equip-
ment (refer to the section regarding the Configuration Menu for more information).
Spa Heater2
102°F
Spa Heater1
Off
Adjust the desired spa temperature (Off, 65°F, 66°F, ...103°F, 104°F, Off)
Adjust the desired spa temperature (Off, 65°F, 66°F, ...103°F, 104°F, Off)
Move to previous/next menu item
Move to previous/next menu item
+
+
>
>
>
>
not shown if Pool
and Spa-Dual is selected
The spa heater setting will only appear if the system has been setup for “spa only” or “pool
and spa” operation and the “Heater1” and/or “Heater2” control is enabled. The heater will
turn on whenever the pool/spa valves are in the “spa only” position and the filter pump is
running and the spa water temperature is less than the desired temperature setting. If you
have both solar heat and a conventional heater and the solar priority option is selected
(Configuration Menu), then the conventional heater will only operate when solar heat is
NOT available.
For Pool and Spa dual equipment with separate heaters (“Pool and Spa -Dual” and “Htr1=Spa,
Htr2=Pool” selected), Spa Heater1 is tied to the Spa Filter (AUX1).
Pool Heater2
85°F
Pool Heater1
Off
Adjust the desired pool temperature (Off, 65°F, 66°F, ...103°F, 104°F, Off)
Adjust the desired pool temperature (Off, 65°F, 66°F, ...103°F, 104°F, Off)
Move to previous/next menu item
Move to previous/next menu item
+
+
>
>
>
>
not shown if Pool
and Spa-Dual is selected
The pool heater setting will only appear if the system has been setup for “pool only” or “pool
and spa” operation and the “Heater1” and/or “Heater2” control is enabled. The heater will
9
turn on whenever the pool/spa valves are in the “pool only” or “spa spillover” position and
the filter pump is running
and the pool water temperature is less than the desired temperature
setting. If you have both solar heat and a conventional heater and the solar priority option
is selected (Configuration Menu), then the conventional heater will only operate when solar
heat is NOT available.
For Pool and Spa dual equipment with separate heaters (“Pool and Spa -Dual” and “Htr1=Spa,
Htr2=Pool” selected), Pool Heater2 is tied to the Pool Filter (FILTER).
Spa Solar
102°F
Adjust the desired spa temperature (Off, 65°F, 66°F, ...103°F, 104°F, Off)
Move to previous/next menu item
+
>
>
The spa solar setting will only appear if the system has been setup for “spa only” or “pool
and spa” operation and the solar control is enabled. The solar system will turn on whenever
the pool/spa valves are in the “spa only” position and the filter pump is running and the spa
water temperature is less than the desired temperature setting and solar heat is available.
Pool Solar
88°F
Adjust the desired pool temperature (Off, 65°F, 66°F, ...103°F, 104°F, Off)
Move to previous/next menu item
+
>
>
The pool heater setting will only appear if the system has been setup for “pool only” or “pool
and spa” operation and the solar control is enabled. The solar system will turn on whenever
the pool/spa valves are in the “pool only” or “spa spillover” position and the filter pump is
running and the pool water temperature is less than the desired temperature setting and solar
heat is available.
Super Chlorinate
Off
Turn super chlorinate on or off
Move to previous/next menu item
+
>
>
This display only appears if the chorinator function is enabled (see Configuration Menu).
When you have an unusually high bather load, a large amount of rain, a cloudy water
condition, or any other condition that requires a large amount of chlorine to be introduced to
the pool, activate the Aqua Logic Super-Chlorinate function. The Aqua Logic will turn on
the filter pump, set the pool/spa valves to the correct position, and set the chlorine generator
to maximum output. The superchlorinate function will continue for the programmed number
of hours (see Timers/Super Chlorinate Hours below) overriding the normal filter pump timeclock
settings. At the end of the super chlorinate period, the pool will return to normal operation.
If you manually turn off the filter pump (using the “FILTER” button on any display/keypad),
the super chlorinate function terminates. When you turn the filter pump back on, super
chlorinate will resume for the balance of the programmed number of hours.
Spa Chlorinator
3%
Adjust the desired chlorinator output for spa (0,1,2,3...9,10,15,20...95,100%)
Move to previous/next menu item
+
>
>
This setting will appear only if the chorinator function is enabled and system has been setup
for “spa only” or “pool and spa-std”. It will determine the chlorinator output when the
system is operating in spa-only mode. The actual amount of chlorine introduced into the spa
is determined by: this setting, the amount of time the pool operates in spa-only mode, the
water temperature, and the amount of salt in the water. If the filter pump is running due to the
freeze protection feature, then the chlorinator will not operate during this time.
10
Pool Chlorinator
60%
Adjust the desired chlorinator output for pool (0,1,2,3...9,10,15,20...95,100%)
Move to previous/next menu item
+
>
>
This setting will appear only if the chorinator function is enabled and system has been setup
for “pool only” or “pool and spa”. It will determine the chlorinator output when the system
is operating in pool-only or spa spillover modes. The actual amount of chlorine introduced
into the pool is determined by: this setting, the amount of time the filter pump is running, the
water temperature, and the amount of salt in the water. If the filter pump is running due to the
freeze protection feature, then the chlorinator will not operate during this time.
Set Day and Time
Wednesday 10:37P
Adjust the current day of the week
Move to hours setting
Set Day and Time
10:37P
Adjust the current day of the week
Move to hours setting
Set Day and Time
Wednesday 37
Set Day and Time
Wednesday 10: P
Adjust the current hour (including AM/PM if applicable)
Adjust the current minute
Move to minutes setting
Move to previous/next menu item
+
>
>
+
+
>
>
>
>
Use this function to set the current day of the week and time. These values are used for all
the automatic timeclock functions of the Aqua Logic and are also displayed as part of the
default menu.
The Aqua Logic is designed to keep the clock running during power outages lasting less
than 7 days. If power has been off for longer than 7 days, then the time may have to be reset.
Display Light
On for 60 sec
Toggle between Always On and On for 60 sec.
Move to previous/next menu item
+
>
>
This function controls the blue backlight on the display. If the “On for 60 seconds” option
is selected, then the backlight will automatically turn off 60 seconds after the last key is
pressed and will stay off until next time a key is pressed.
Note that the Display Light selection only applies to the display keypad that you are currently
using. Other display/keypads will not be affected. You need to individually set this option
for each display/keypad in the system.
Beeper
Enabled
Toggle between
Enabled (default) and Disabled Beeper
Move to next menu item
+
>
>
When “Enabled”, the keypad will beep every time a key is pressed. If this audible indication
is not desired, select “Disabled”.
This function only applies to the display/keypad that you are currently using. You need to
set this option for each display/keypad in your system.
NOTE: This function is not supported on all display/keypads. If the “Enabled” selection is
not blinking, then the current software revision of that particular keypad/display does not
support the option and it will default to Beeper Enabled.
11
Teach Wireless
+ to start
Teach
Successful
Wireless
Teach
NOT Successful
Wireless
Teach Wireless
Base NOT Found
Press and hold
wireless button
Push to start process
Move to previous/next menu item
Move to previous/next menu item
Move to previous/next menu item
Move to previous/next menu item
Move to previous/next menu item
Press any button on wireless remote
+
>
>
>
>
>
>
>
>
>
>
This menu will only appear if a wireless base station is connected to the Aqua Logic. Perform
this procedure each time a wireless remote control is added to the Aqua Logic system.
During this procedure the wireless remote “learns” and remembers the ID code for the
wireless base station connected to this particular Aqua Logic unit and will reject messages
with any other ID codes. If “Base NOT found” is displayed, then the Aqua Logic can not
communicate with the transmitter/receiver base station attached to the main unit. If “NOT
Successful” is displayed, then the base station did not receive a signal from the remote
control. This may be due to the distance between the Base Receiver and the remote device
being too great or may be due to interference caused by other RF equipment operating in the
neighborhood. Try using the “Change Channel” command and then repeat the “Teach
Wireless” command.
+
+
>
>
>
>
>
>
Wireless
Channel: 1
Reteach all
wireless units
Confirm Change:
+ to proceed
Push to confirm the channel change
Change the desired wireless channel (1 - 5)
Move to previous (Teach Wireless) menu
If channel is changed, move to confirmation menu
Move to previous/next menu item
If channel is not changed, move to previous/next menu item
This setting changes the channel to be used by the wireless base station and remote(s). If
the channel is changed and confirmed, all wireless remote will have to be re-taught. This
menu will only appear if a wireless base station is connected to the Aqua Logic.
Timers Menu
The Timers Menu allows you to set all timeclock and countdown timers which control the automatic
operation of your pool/spa system.
Each timeclock has a single on/off program per day. All of the timeclocks are setup (Configuration Menu)
either as “all days” or “weekends/weekdays”. If “weekends/weekdays” are selected, you will need to
program on times for both weekdays and weekends and off times for both weekdays and weekends, even
if you want them to be the same. All times are adjusted in 15 minute increments (9:00A, 9:15A, 9:30A,
etc.). If you program the on time equal to the off time (“10:00A to 10:00A”) the output will NEVER turn
on. If you want to disable a timeclock, you can set the on time equal to the off time and you will notice the
times disappear and the display simply shows “Off”. If, at a later time, you wish to re-activate the timeclock,
simply press either the “+” or “-“ buttons to go back to a normal timeclock programming display.
The Countdown timer is programmed in increments of 5 minutes from “Manual On/Off” (0 minutes) to a
maximum of “21:00” (21 hours). When “Manual On/Off” is displayed, the countdown timer is disabled
and the output will be manually controlled. When a countdown timer is equal or greater than “0:05”,
pressing the appropriate output button will turn the output on and start the timer. Pressing the button again
will turn the output off or, when the programmed time has elapsed, the output will automatically turn off.
Loading...
