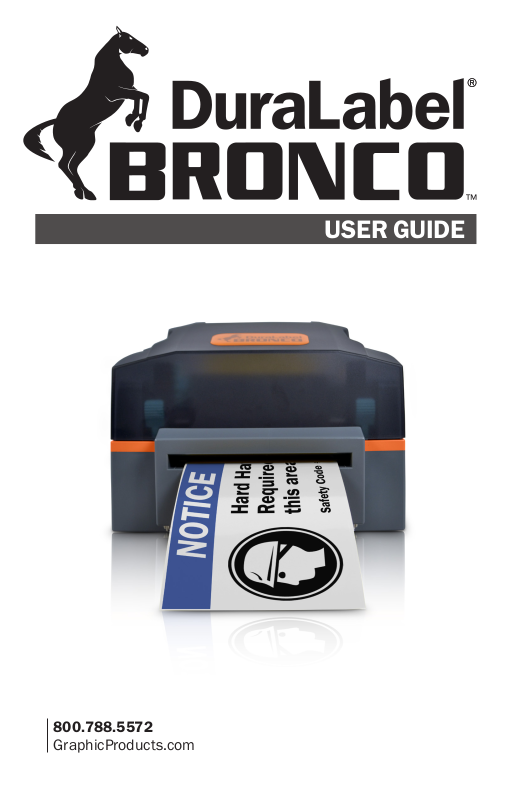

Godex DLBRONCO User Manual
USER GUIDE
800.788.5572
GraphicProducts.com
Graphic Products®, DuraLabel®, PathFinder®, Toro® and Lobo® are Registered Trademarks of Graphic Products, Inc.
© 2015 Graphic Products, Inc.
Before You Begin
Safety Warnings
Before connecting Bronco to a power outlet, check the voltage of the power source, and
ensure that the power switch on the printer is in the OFF position.
Only use the included power supply with the Bronco (rated for 24V/2.5A output,
model WDS060240). If a replacement is needed, please contact your DuraLabel
representative.
To avoid electrical shock, DO NOT pour any liquid onto the printer or printer parts.
Only qualified service personnel should attempt to repair the printer.
System Requirements
•Operating System: Windows XP Service Pack 2 (or later), Windows Vista, Windows
7, or Windows 8 or 8.1. Both 32-bit (x86) and 64-bit (x64) systems are supported.
•Memory: 128MB RAM
•Hard Drive Space: 100MB
•IT / Administrator Privileges for installation
Your label design software may have other requirements.
What’s in the Box
•Bronco Printer
•USB Cord
•AC Power Adapter
•Bronco Software CD
•Ribbon Take-Up Core
•Supply Spindle
If any of these items are missing, please contact your DuraLabel representative.
DuraLabel.com | 800.788.5572
Before You Begin | 3
Contents
1. Getting Started
1.1 Know Your Bronco
1.1.1 Exterior
1.1.2 Connection Panel
1.1.3 Interior – Print Head Carriage Locked
1.1.4 Interior – Print Head Carriage Released
1.2 Loading Supplies
1.2.1 Loading Ribbon
1.2.2 Loading Label Stock
1.3 Initial Setup
1.3.1 Physical Connections
1.3.2 Installing Driver Software
2. Using Your Bronco
2.1 Printing and Pausing
2.2 Driver Settings
2.2.1 Size and Orientation
2.2.2 Settings for Pre-Printed or Die-Cut Material
2.2.3 Cutting
2.2.4 Darkness
2.2.5 Adjusting Default Settings
3. Warranty and Compliance Statements
3.1 5-Year DuraLabel Printer Warranty
3.1.1 Repairs
3.1.2 Warranty Details
3.2 FCC Compliance Statement for Users in the United States
4. Contact Us
5
5
5
5
6
6
7
7
8
8
8
8
9
9
9
9
10
10
11
11
12
12
12
12
13
14
4 | Contents
DuraLabel.com | 800.788.5572
1. Getting Started
1.1 Know Your Bronco
1.1.1 EXTERIOR
Pause/Feed Button
and Indicator Light
Lid Release Tabs
Cutter Module
1.1.2 CONNECTION PANEL
Power Switch Power Supply Connection USB Connection
GraphicProducts.com | 800.788.5572
1.1 Know Your Bronco | 5
