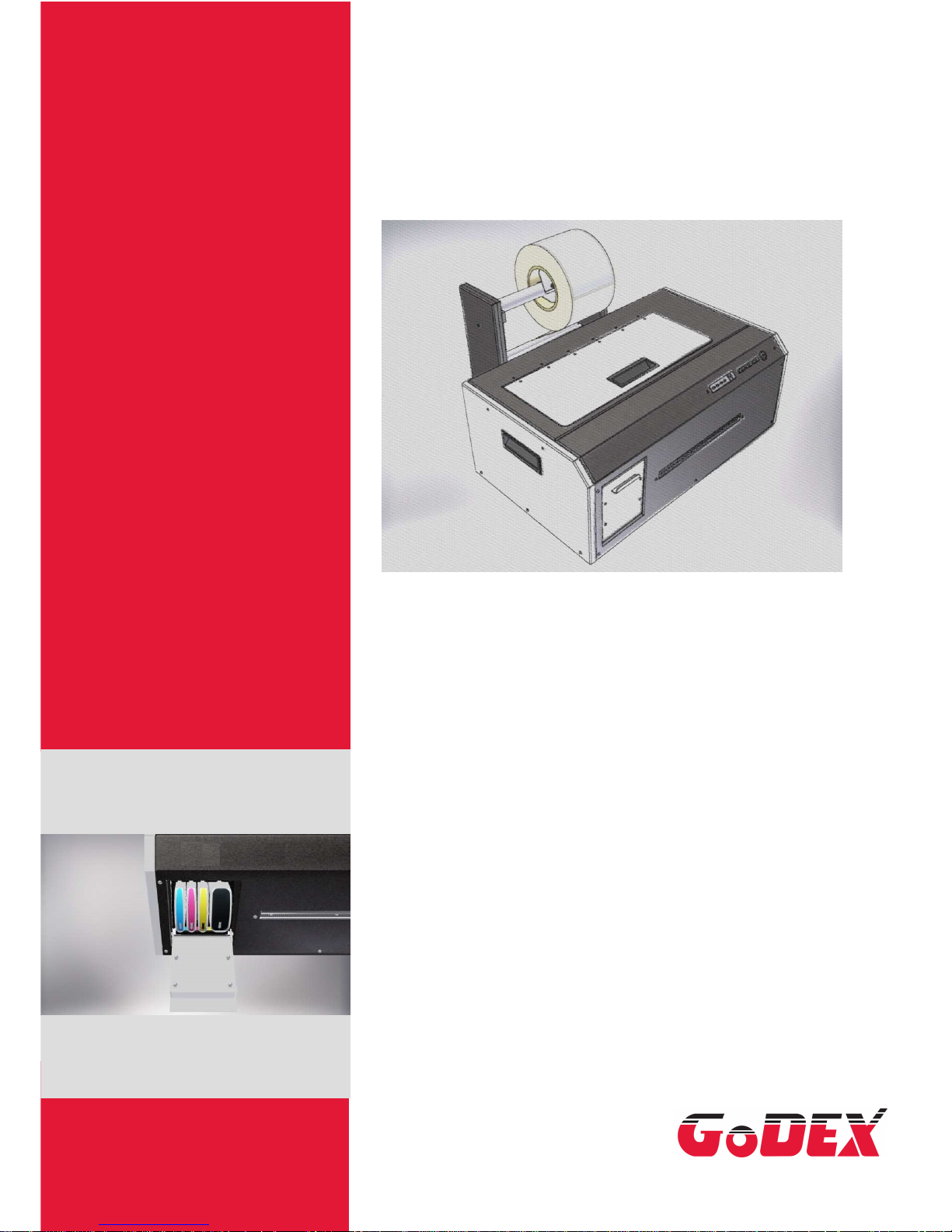

C690LJ
Label Inkjet Printer
User Manual
1
Contents
1. Installing the driver in MS Windows ..................................................................... 3
2. Getting the printer ready for operation .................................................................. 5
2.1. Connecting the power supply unit ................................................................ 5
2.2. Installing the print heads ............................................................................ 6
2.3. Installing the ink cartridges ......................................................................... 9
2.4. Initialization ............................................................................................. 10
3. Preparing for the first label print job ................................................................... 10
3.1. Installing labels with gaps .......................................................................... 10
4. Toolbox functions .............................................................................................. 12
4.1.
Connection ...........................................................................................12
4.2.
Print settings ....................................................................................... 13
4.3.
Media control ....................................................................................... 16
4.4.
Service menu ...................................................................................... 17
4.5.
Lines on printout ...................................................................................19
4.6.
Ink status............................................................................................ 19
4.7.
Print medium status ............................................................................. 20
4.8.
Printer ID ............................................................................................ 20
4.9.
Error details .........................................................................................21
4.10. About Toolbox...................................................................................... 21
2
1. Installing the driver in MS Windows
This section guides you through the driver installation. Please follow the instructions
below. Please make sure to FIRST complete the installation on your computer and
THEN connect the printer.
1. Download the driver from our website or insert the driver CD in your CD/DVD drive.
Double-click the button setup.exe file to run it.
2. Depending on the settings of your operating system, you may be prompted to
install the driver. Click "Yes" to continue with the installation.
3. The driver installation setup wizard opens. Click "Install driver" to confirm.
4. Follow the instructions on the screen and click "Next" to confirm.
5. Important: Another dialogue opens – Windows Security (Only install driver
software from trusted manufacturers).
3
6. Click “Install” to confirm and continue with the driver installation.
7. The necessary files are unpacked and copied to your computer. This may take a
few minutes.
8. Click "Finish" to continue with the installation.
9.
Now connect the printer with the host computer. Once they are connected, the
computer should detect and automatically install the printer.
10. Click "Close" to complete the installation. The printer is now ready for use.
4
2. Getting the printer ready for operation
2.1. Connecting the power supply unit
The connection panel is located at the back of the printer on the left. Connect the
blue plug of the power supply unit to the top jack. Once the power supply unit is
connected to the mains, switch on the printer.
5
2.2. Installing the print heads
Open the printer cover....
... press the Feed button and keep it press...
6
... until the print head carriage has moved to the far left (service position) and stops.
Lift the print head release lever.
7
