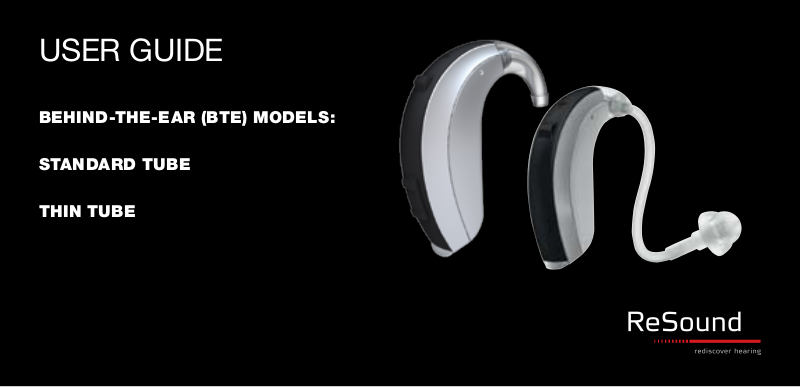

USER GUIDE
BEHIND-THE-EAR (BTE) MODELS:
STANDARD TUBE
THIN TUBE
2
3
Hearing instrument type designations for models included in this user guide are: M70-80, FCC
ID: X26M70-80 and M60, FCC ID: X26M60. Please see page 10 for list of models referring to
both types.
Statement:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from the one in which the receiver •
is connected.
Consult the dealer or an experienced radio/TV technician for help.•
Changes or modifications can void the user´s authority to operate the equipment
4
5
Intended use
Generic air-conduction hearing instruments are wearable sound-amplifying devices intended to
compensate for impaired hearing. The fundamental operating principle of hearing instruments
is to receive, amplify, and transfer sound to the ear drum of a hearing impaired person.
List of countries:
Products without wireless functionality are intended for worldwide sales.
Products with wireless functionality are intended for sale in countries within the European Economic Area as well as Switzerland.
Specification of restrictions: You are not allowed to operate the equipment within 20 km of the
centre of Ny Ålesund, Norway.
The products are in compliance with the following regulatory requirements:
In EU: the device conforms to the Essential Requirements according to Annex I of Council •
Directive 93/42/EEC for medical devices (MDD) and essential requirements and other
relevant provisions of Directive 1999/5/EC (R&TTE). The declaration of conformity may be
consulted at www.resound.com
In US: FCC CFR 47 Part 15, subpart C, section 15.249.•
Other identified applicable international regulatory requirements in countries outside the •
EU and US. Please refer to local country requirements for these areas.
Products are categorized as class 2 receivers according to EN 300 440•
6
7
Introduction
Congratulations on the purchase of your new hearing instruments. ReSound’s innovative
sound technology and design, combined with the customized programming selected by your
hearing care professional, will make hearing a more enjoyable experience. Hearing instruments
will enable you to hear sounds that you may not have heard in years because of your hearing loss.
Practice and a positive attitude are important in learning to use hearing instruments. Your ReSound
instruments have been adjusted according to your individual hearing loss and needs. Some people
adjust quickly to wearing hearing instruments in their ears and hearing new sounds; other
people may need more time.
Please read this manual carefully in order to wholly benefit from the use of your hearing instruments. With proper care, maintenance, and usage, your hearing instruments will aid you in
better communication for many years. Ask your hearing care professional if you have any questions.
ReSou nd is a reg istred trade ma rk of GN Re Sound A /S
Hearing instrument model:
Battery size: Tube type: Dome size:
Left serial number: Right serial number:
8
9
Contents
Statement .........................2
Intended use .......................4
List of countries .....................4
Introduction ........................6
Description of the hearing instruments ...10
Getting started .....................12
On/Off function ....................12
SmartStart ........................12
Inserting/Replacing the battery .........13
Low battery indicator ................14
Sports lock .......................15
Inserting/removing hearing instruments ...16
Operation of the hearing instrument .....20
Volume control (optional)..............20
Programme button (optional)...........21
Flight mode .......................23
Telephone use ....................24
Listen to radio or TV ................25
Cellular phones ....................25
PhoneNow .......................26
Telecoil (optional) ...................29
Tele-loop systems ..................29
Direct audio input (optional)............30
Connecting/Disconnecting audio boots . .30
Care and maintenance ...............32
Daily maintenance ..................33
Cleaning earmoulds .................33
Cleaning thin tubes and domes ........34
Battery warning Information ...........41
Troubleshooting guide ...............42
Technical Data .....................50
Warranty and repairs ................52
Temperature test, transport and
storage information..................53
How to apply domes ................35
ReSound Standard domes ...........35
ReSound Tulip domes ...............36
General precautions .................37
General warnings ...................38
10
11
Hearing instruments of type M70- 80
are available in the following variants:
AL 987-DVIW
AL 977-DVIW Open - AL 977-DVIW
AL 787-DVIW
AL 777-DVIW Open - AL 777-DVIW
AL 587-DVIW
AL 577-DVIW Open - AL 577-DVIW
ALT 987-DVIW
ALT 977-DVIW Open - ALT 977-DVIW
ALT 787-DVIW
ALT 777-DVIW Open - ALT 777-DVIW
ALT 587-DVIW
ALT 577-DVIW Open - ALT 577-DVIW
Hearing instruments of type M60 are
available in t he following variants:
AL 967-DIW Open - AL 967-DIW
AL 767-DIW Open - AL 767-DIW
AL 567-DIW Open - AL 567-DIW
ALT 967-DIW Open - ALT 967-DIW
ALT 767-DIW Open - ALT 767-DIW
Programme button1.
Battery compartment & 2.
On/Off switch
Sound outlet3.
Front microphone inlet4.
Back microphone inlet5.
Volume control (optional)6.
Direct audio input7.
Left/Rightindicator 8.
(Lef t=Blue/Right=Red)
Battery lock (optional)9.
Model10.
Manufacturer11.
Serial number12.
Sports lock13.
5
1
6
2
4
3
12
10
7
8/9
11
8/9
13
12
13
Getting started
On
On/Off function
When the battery door is closed, the hearing instrument 1.
Off
turns on, and the default program will be activ ated.
To turn off the hearing instrument, open the battery door. 2.
Many individuals can use their fingernail to pull it open.
Tip: Whenever the hearing instruments are not in use, remember to turn them off to avoid
unnecessary battery consumption.
SmartStart
Hearing instruments can be turned on once you have placed them on your ears. If you prefer to
turn them on just prior to placing them on your ear, your hearing care professional can activate
a function called SmartStart. This function will delay the time in which the hearing instruments
turn on by several seconds after the battery compartment is closed. With SmartStart, a beep
will be heard for each second of the delay period.
Inserting/Replacing the battery
Open the battery door completely by using your fingernail. 3.
Remove the used battery if present. Insert the new battery with the positive 4.
side in the correct position.
Always use new Zinc-Air batteries that have a minimum remaining shelf 5.
life of 1 year.
Gently close the battery door.6.
Tip: Remove the batteries to prevent battery leakage or corrosion when the hearing
instruments are not in use for an extended period of time.
14
15
Low battery indicator
Your hearing care professional can activate a low battery indicator in your hearing instruments.
The hearing instrument will reduce amplification and play a melody if battery power gets too
low. This signal will recur every five minutes until the hearing instrument automatically switches
off. The timing of the low battery indicator can vary slightly, depending on the type of battery
used. It is recommended that you keep spare batteries on hand.
two sets of descending tones. After this, your hearing instrument and ReSound Unite Remote
Control will continue to work as usual, but you will not be able to use your ReSound Unite TV
and Phone Clip. At some point the battery level will also be too low to support the remote control as well and you will once again hear the descending tones. The hearing instruments will
continue to work as usual. Once a new battery is inserted, full operation of the accessories will
resume.
Low battery indicator (instruments paired with accessories only)
Active usage of the ReSound Unite accessories (Remote Control, Phone Clip and Unite TV)
requires more battery power from the hearing instruments than when they are working without
accessories which means that battery life is highly dependent on the amount of wireless
accessory usage. When the battery in the hearing instrument has depleted to a level at which use
of the ReSound Unite TV and Phone Clip cannot be supported, the hearing instrument will play
Sports lock
The Sports lock will be applied or adjusted by your hearing care professional.
16
17
Inserting/Removing hearing instruments
Insertion (custom earmoulds)
Hold the earmould between your thumb and index finger and position its sound outlet in 1.
your ear canal.
Slide the earmould all the way into your ear with a gentle, twisting movement.2.
Turn the top part of the earmould gently backwards and forwards so that it tucks behind the 3.
fold of skin above your ear canal.
Move the earmould up and down and gently press to ensure it is positioned correctly in the 4.
ear. Opening and closing your mouth can ease insertion.
Make sure the hearing instrument is seated behind the ear.5.
By experimenting, an easier method may be discovered. With proper insertion,
hearing instruments should fit snugly but comfortably. If the hearing instruments
cause irritation of the ears, contact your hearing care professional.
Note: Never attempt to modify the shape of the hearing instrument, earmoulds, or tubing yourself.
Tip: It may be helpful to pull your ear up and outward with your opposite
hand during insertion.
