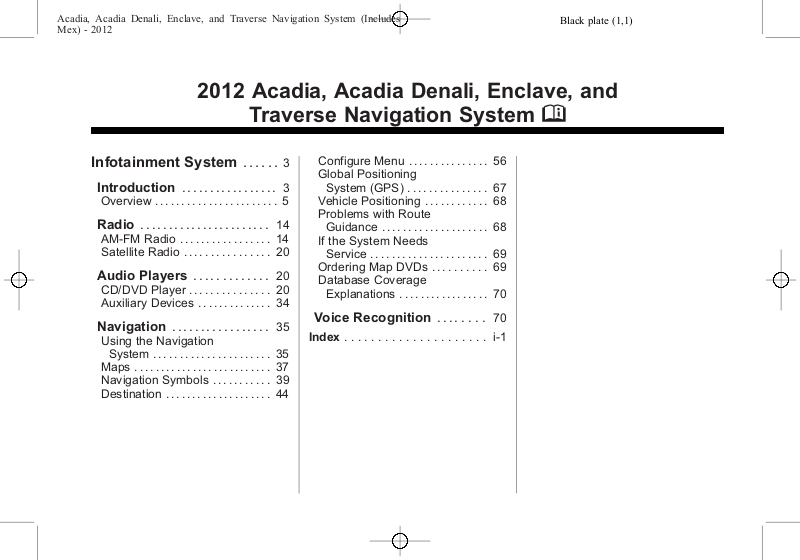

GMC Acadia (2012) Navigation Manual

Black plate (1,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

2012 Acadia, Acadia Denali, Enclave, and

Traverse Navigation System M

Infotainment System .. . . . . 3

Introduction . . . . . . . . . . . . . . . . . 3

Overview . . . . . . . . . . . . . . . . . . . . . . . 5

Radio . . . . . . . . . . . . . . . . . . . . . . . 14

AM-FM Radio . . . . . . . . . . . . . . . . . 14

Satellite Radio . . . . . . . . . . . . . . . . 20

Audio Players .. . . . . . . . . . . . 20

CD/DVD Player . . . . . . . . . . . . . . . 20

Auxiliary Devices . . . . . . . . . . . . . . 34

Navigation . . . . . . . . . . . . . . . . . 35

Using the Navigation

System . . . . . . . . . . . . . . . . . . . . . . 35

Maps . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Navigation Symbols . . . . . . . . . . . 39

Destination . . . . . . . . . . . . . . . . . . . . 44

Configure Menu . . . . . . . . . . . . . . . 56

Global Positioning

System (GPS) . . . . . . . . . . . . . . . 67

Vehicle Positioning . . . . . . . . . . . . 68

Problems with Route

Guidance . . . . . . . . . . . . . . . . . . . . 68

If the System Needs

Service . . . . . . . . . . . . . . . . . . . . . . 69

Ordering Map DVDs . . . . . . . . . . 69

Database Coverage

Explanations . . . . . . . . . . . . . . . . . 70

Voice Recognition .. . . . . . . 70

Index . . . . . . . . . . . . . . . . . . . . . i-1

Black plate (2,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

Black plate (3,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

Infotainment System 3

Introduction

Litho in U.S.A. Part No. 22821991 A First Printing

The names, logos, emblems, slogans, vehicle model names, and vehicle body designs appearing in this manual including but not limited to GM, the GM logo, CHEVROLET, the CHEVROLET Emblem, BUICK, the BUICK Emblem, GMC and the GMC Truck Emblem, and the names ACADIA, ACADIA DENALI, ENCLAVE, and TRAVERSE are trademarks and/or service marks of General Motors LLC, its subsidiaries, affiliates, or licensors.

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 and other U.S. and worldwide patents issued and pending. DTS and the Symbol are registered trademarks and DTS Digital Surround and the DTS logos are trademarks of DTS Inc. All Rights Reserved.

Black plate (4,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

4 Infotainment System

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

The information in this manual supplements the owner manual.

This manual describes features that may or may not be on your specific vehicle either because they are options that you did not purchase or due to changes subsequent to the printing of this owner manual.

Please refer to the purchase documentation relating to your specific vehicle to confirm each of the features found on your vehicle. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for Buick Motor Division, Chevrolet Motor Division, or GMC wherever it appears in this manual.

Keep this manual with the owner manual in the vehicle, so it will be there if it is needed. If the vehicle is sold, leave this manual in the vehicle.

Canadian Vehicle Owners (Propriétaires des Véhicules Canadiens)

A French language copy of this manual can be obtained from your dealer or from:

On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l'adresse suivante:

Helm, Incorporated P.O. Box 07130 Detroit, MI 48207

1-800-551-4123 Numéro de poste 6438 de langue française www.helminc.com

Black plate (5,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

Infotainment System 5

Overview

Read this manual thoroughly to become familiar with how the navigation system operates.

The navigation system includes navigation and audio functions.

Keeping your eyes on the road and your mind on the drive is important for safe driving. The navigation system has built-in features intended to help with this by disabling some features when driving. A grayed-out function is not available when the vehicle is moving.

All functions are available when the vehicle is parked. Do the following before driving:

Become familiar with the navigation system operation, buttons on the faceplate, and touch-sensitive screen buttons.

Set up the audio by presetting favorite stations, setting the tone, and adjusting the speakers.

Set up the navigation features, such as entering an address or a preset destination.

Set up phone numbers in advance so they can be called easily by pressing a single button or a single voice command for navigation systems equipped with phone capability.

WARNING

{

Taking your eyes off the road too long or too often while using the navigation system could cause a crash and you or others could be injured or killed. Focus your attention on driving and limit glances at the moving map on the navigation screen. Use voice guidance whenever possible.

Use the navigation system to:

Plan a route.

Select a destination using various methods and choices.

Follow turn-by-turn route and map guidance with voice prompts, only if permitted by traffic laws, controls, and conditions.

Receive RDS broadcast announcements (only for Navs/Radios with RDS.)

Black plate (6,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

6 Infotainment System

Always be alert and obey traffic and roadway laws and instructions, regardless of the guidance from the navigation system. Because the navigation system uses street map information that does not include all traffic restrictions or the latest road changes, it may suggest using a road that is now closed for construction or a turn that is prohibited by signs at the intersection. Always evaluate whether following the system's directions is safe and legal for the current conditions.

When the navigation system is turned on, a screen may appear with information that must be read and acknowledged before accessing some navigation features.

After acknowledging the start up information, the NAV (Navigation) and DEST (Destination) functions are accessible. Information can now be entered or deleted, and other functions accessed. See instructions later in this section.

Every fifty times the vehicle is started and the navigation system is turned on, the Caution screen appears. After reading the caution, select OK to load the map DVD information. If OK is not selected, all control buttons except for NAV (Navigation) and DEST (Destination) can be accessed. You can also press NAV to have this Caution screen appear.

When getting started, set your preferences or delete information in the navigation system using various options.

Black plate (7,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

Infotainment System 7

Navigation System Overview

Screen Shown with Map Disc Inserted

A. RPT (Repeat)

B. DEST (Destination)

C. NAV (Navigation)

D. North Up/Heading Up Symbol

O (Power/Volume)

F. No GPS Symbol

G. FULL MAP Screen Button

H. Map DVD

I. CD/DVD Slot

J. Source (AM, FM, XM

(if equipped), CD, etc.) Screen Button

Z (CD/DVD Eject)

L. Auxiliary Jack

M. Clock Screen Button

f (Tune/Sound)

O. AUDIO

P. MENU

¨ SEEK

Black plate (8,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

8 Infotainment System

S. FAV (Favorite)

T. Map Scale

0 (Zoom In) Screen Button

V. Mark Screen Button

W. POI (Point of Interest)

Screen Button

1 (Zoom Out) Screen Button

Language

For vehicles with a Driver Information Center (DIC), see “Vehicle Personalization” in the Index of the vehicle's owner manual to change the language of the navigation screens.

For vehicles without a Driver Information Center (DIC), the radio can be used to change the language of the navigation screens:

1. Press

2. Press MENU and select the

3. Select the language; English,

O to turn the system on.

Display screen button.

Francais, Espanol.

English/Metric Units

To change the navigation screens from English or metric, see “Driver Information Center (DIC)” in the Index of the vehicle's owner manual.

Limit Features While Driving

The navigation system may have this feature.

Press the Limit Features While Driving screen button to turn on and off the ability to limit functions while driving. When this button is highlighted, the following functions are limited while driving:

Music Navigator Scrolling

Radio Category Scrolling

Navigation Menu Scrolling and some functions

See “Category” under AM-FM Radio on page 14 for more information. See “From Map” under Destination on page 44 for more information.

Some functions remain limited regardless of the setting.

Deleting Personal Information

This navigation system can record and store personal information such as names and addresses. It is recommended that stored personal information is deleted when disposing the vehicle. See Configure Menu on page 56 for deleting information from the address book.

Storing Radio Station Presets

To set preset radio stations:

1. Press

2. Press AUDIO and select the

3. Use

4. Press and hold one of the five

O to turn the system on.

desired band (AM, FM1, FM2, XM1, or XM2 (if equipped)).

f or ¨ © SEEK to the

desired station.

preset screen buttons, at the bottom of the screen, until a beep is heard or see the station displayed on the selected preset button.

Black plate (9,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

Infotainment System 9

5. Repeat the steps for each preset.

See “Storing Radio Station Presets” under AM-FM Radio on page 14 for more information.

Setting the Clock

1. Press O to turn the system on.

2. Press MENU to enter the Configure Menu options, then press MENU repeatedly until the time is selected or press the time screen button.

3. Press the Set screen button.

4. Press the Hours and Minutes − and + to decrease or to increase the time.

See “Setting the Clock” under Configure Menu on page 56 for more information.

Entering a Destination by Using Address, Point of Interest, Previous Destination, or the Map Method and Storing Preset Destinations

Entering an Address

To enter a destination by entering the city name first:

1. If the radio is on with a map disc inserted, skip to Step 5.

2. Press

3. Insert the DVD map disc. See

4. A caution may appear. Press OK

5. Press DEST. If guidance is

O to turn the system on.

“Installing the DVD Map Disc” under Maps on page 37 for more information.

to proceed.

already active, or if an entry is in place, you will have to press either “Add Stopover” or “ADD” above or below the entry, depending on where you would like to place the next waypoint.

6. Press the

2 Address

Entry icon.

7. Press the state/province screen button, if needed, to change the current state or province.

Enter the name or enter the two-letter abbreviation. A list displays.

Press the List screen button and select the state or province.

8. Press the City name screen button and start entering the city name.

If five or less names are

available, a list displays.

If more than five are available, the List screen button has a number in it that represents the number of available cities. Press this button to view the list and select a city.

Black plate (10,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

10 Infotainment System

9. Once a city has been selected, the Street name category is automatically selected for entry.

Do not enter directional information or street type. Use the space symbol screen button

U between street or city

names. Use the backspace screen button if an incorrect character has been entered.

If five or less streets are available for the selected city, the system displays the list of streets.

If more than five streets are available the system displays the alpha keyboard. Start entering the street name. If five or less names are available, a list displays. If more than five are available, the List screen button has a number in it that represents the number of available

streets. Press this button to view the list and select a street.

10. Once a street has been selected, select the House # screen button to enter the house number. The system displays the house number range that is available for the street.

11. Press Go. A map screen, with the destination marked appears.

12. Select the route preference for Fastest, Shortest, or Other. The system calculates and highlights the route.

13. Press the Start Guidance screen button. The fastest route automatically begins if the car starts moving forward.

See “Address Entry ” under Destination on page 44 and “Voice Tag Commands” under Voice Recognition on page 70 for more information.

Entering a Point of Interest (POI)

To set a destination by entering a Point of Interest (POI):

1. If the radio is on with a map disc inserted, skip to Step 5.

2. Press

3. Insert the DVD map disc. See

4. A caution may appear. Press OK

5. Press DEST. If guidance is

6. Press POI (Point of Interest)

O to turn the system on.

“Installing the DVD Map Disc” under Maps on page 37 for more information.

to proceed.

already active, or if an entry is in place, you will have to select either the “Add Stopover” or the “ADD” screen buttons above or below the entry, depending on where you would like to place the next waypoint.

screen button.

Black plate (11,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

Infotainment System 11

7. Press the state/province screen button, if needed, to change the current state or province.

Enter the name or enter the two-letter abbreviation. A list displays.

Press the List screen button and select the state or province.

8. Enter the specific title of the POI in the POI name space.

If five or less names are available, a list displays.

If more than five are available, the List screen button has a number in it, it represents the number of available POIs. Press this button to view the list.

9. Press Go, located next to the POI. A map screen, with the destination marked appears.

10. Select the route preference

for Fastest, Shortest, or Other. The system calculates and highlights the route.

11. Press the Start Guidance screen button. The fastest route automatically begins if the car starts moving forward.

See “Point of Interest (POI)” under Destination on page 44 for more information.

Entering Previous Destination

Choose from a list of recent destinations with this method:

1. Press DEST. Press Previous

Destination to show a list of previous destinations. This list is empty at first when the radio is new or is erased when the battery is disconnected.

2. Press your selection. You may

not be able to scroll down the list while the vehicle is in motion, depending on the settings. See “Limit Features While Driving” in this section.

3. Select the route preference for

Fastest, Shortest, or Other. The system calculates and highlights the route.

4. Press the Start Guidance screen button. The fastest route automatically begins if the car starts moving forward.

Map Method

1. Press the screen where you want to go. The system shows the location, and possibly an address as well. You can scroll out to a larger view by first using the + or − screen buttons at the lower left and right of the map to select an appropriate viewing range.

2. Press Go, that appears when you are ready to begin routing.

3. Select the route preference for Fastest, Shortest, or Other. The system calculates and highlights the route.

4. Press the Start Guidance screen button. The fastest route automatically begins if the car starts moving forward.

Black plate (12,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

12 Infotainment System

Storing Preset Destinations

1. If the radio is on with a map disc inserted, skip to Step 5.

2. Press

3. Insert the DVD map disc. See

4. A caution may appear. Press OK

5. Press DEST.

6. Press the Map screen button

7. Press the Mark screen button

O to turn the system on.

“Installing the DVD Map Disc” under Maps on page 37 for more information.

to proceed.

Enter a destination. See Destination on page 44 for more information on how to enter a destination.

after entering the destination.

from the map display. The address book screen appears. Five preset destinations can be stored, but you must set them from the Address Book screen. There are other ways to get to the Address Book as well.

8. Press the Name screen button. An alpha-keyboard displays. Enter the name. If you have stored the location with a name automatically assigned by the system, use the “BACKSPACE” screen button (not “BACK”) to erase the letters and begin typing your preferred title for this destination. For example, choosing a destination by address and storing it to the Address Book, stores the actual address, which may not be easy to display in a short Preset button that has 8 digits, so name it something shorter.

9. Press and hold one of the screen buttons at the bottom of the screen until the name appears in the screen button on the display. A beep may be heard.

The name appears in that preset destination screen button and is now available to select from the Destination Entry screen.

See “Using the Stored Preset Destinations” in this section to select it as a destination.

A voice recognition tag can also be assigned to the preset destinations.

See Destination on page 44 for more information on how to add preset destinations.

Using the Stored Preset Destinations

These destinations are available for selection while driving.

1. If the radio is on with a map disc inserted, skip to Step 5.

2. Press

3. Insert the DVD map disc. See

4. A caution may appear. Press OK

5. Press DEST.

O to turn the system on.

“Installing the DVD Map Disc” under Maps on page 37 for more information.

to proceed.

Black plate (13,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

Infotainment System 13

6. Select one of the available preset destination screen buttons. A map screen, with the destination marked, appears and the system immediately begins to route to that destination.

The preset destination buttons overwrite and provides guidance to the selected destination even if the guidance is in place. Pressing a preset destination cancels the current route and then, routes to the single preset destination.

If more waypoints or stops are desired after the preset is used, follow the adding stopover method to load a total of four waypoints.

7. Select the route preference for Fastest, Shortest, or Other. The system calculates and highlights the route.

8. Press the Start Guidance screen button. The fastest route automatically begins if the car starts moving forward.

See “Preset Destination” under Destination on page 44 for more information.

Canceling Guidance

Guidance is canceled once you arrive at your final destination. To cancel guidance prior to arrival at the final destination:

1. Press DEST.

2. Press the Cancel Guidance screen button.

3. A pop-up confirmation appears. Press OK to cancel guidance or press Cancel to cancel the request.

Guidance Volume

To adjust the volume of voice guidance prompts:

1. Press MENU to enter the menu options, then press MENU repeatedly until Nav is selected or press the Nav screen button.

2. Press the Voice Prompt screen button.

3. Press On if voice guidance is not on.

4. Press the + or – screen buttons to increase or to decrease the volume of the voice prompts. The system responds with the adjusted voice level.

See “Voice Prompt ” under Configure Menu on page 56 for more information.

Turning the during a voice or navigation prompt also changes the volume.

O (Power/Volume) knob

Cleaning the Display

Use a soft clean cotton cloth dampened with clean water.

Black plate (14,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

14 Infotainment System

Radio

AM-FM Radio

Notice: Before adding any sound equipment to the vehicle, such as an audio system, CD player, CB radio, mobile telephone, or two-way radio, make sure that it can be added by checking with your dealer. Also, check federal rules covering mobile radio and telephone units. If sound equipment can be added, it is very important to do it properly. Added sound equipment can interfere with the operation of the vehicle's engine, radio, or other systems, and even damage them. The vehicle's systems can interfere with the operation of sound equipment that has been added.

Notice: The chime signals related to safety belts, parking brake, and other functions of the vehicle operate through the navigation

system. If that equipment is replaced or additional equipment is added to the vehicle, the chimes may not work. Make sure that replacement or additional equipment is compatible with the vehicle before installing it. See “Accessories and Modifications” in the vehicle's owner manual.

Playing the Radio

O (Power/Volume):

Press to turn the audio system on and off.

Turn to increase or to decrease the volume.

Press and hold for more than two seconds to turn off the navigation system, the Rear Seat Entertainment (RSE) video screen, and Rear Seat Audio (RSA). If the vehicle has not been turned off, the RSE and the RSA can be turned back on by pressing this knob. The last active source resumes playing.

f (Tuning/Tone):

Turn to go to the next or previous frequency.

Press to go to the Sound menu.

AUDIO:

Press to display the audio screen.

Press to switch between AM, FM, or XM (if equipped), DISC, AUX (Auxiliary), or press the screen button. Read through this section, Satellite Radio on

page 20 (if equipped), CD/DVD Player on page 20, or Auxiliary Devices on page 34 for more

information.

Finding a Station

There are three ways to find/change stations:

If viewing a full map screen, use

¨ © SEEK or f. Preset stations

cannot be directly changed from the full map screen, but can be

Black plate (15,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

selected by using the steering wheel control

w or x buttons.

The station will display at the top for the screen.

Infotainment System 15

FM Source Shown, Other Sources

If you do not want to view a split screen or you are not on a map

AM Source Shown, Other Sources

Similar

If viewing a full map screen, select the source screen (AM, FM, XM (if equipped), CD, etc.) button. The display splits

screen, press the AUDIO button to enter the audio menu screen.

AM/FM/XM: Press the source (AM, FM, or XM, if equipped) screen button or press AUDIO repeatedly until the desired source is selected.

between the audio screen and the map screen. All station-changing functions can be performed from this screen.

Similar

FM Source Shown, Other Sources

Similar

Category:

1. Press the screen button, located in the middle of the screen, to receive a list of all of the selected band stations in the area.

2. Use the up and down arrow screen buttons to scroll the frequencies.

3. Select the desired frequency.

Black plate (16,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

16 Infotainment System

XM (if equipped) lists also contain a category to select and the stations or channels that pertain to the category. For XM, select the left and right arrow screen buttons to change categories. The station information displays. See “Radio Menu” in this section to add and remove XM categories from the category list. When listening to XM stations, all of the categories can be selected when using the right and left arrow screen buttons on the main audio screen. Categories cannot be selected from the category list screen when they have been removed.

FM lists may contain a category to select if stations in the area support Radio Data Systems (RDS).

2 Refresh List: Select this screen

button to refresh the list of stations.

When viewing a map screen the name of the station or channel displays in the top center tab.

¨ SEEK / © SEEK: To seek

stations, press the right or left arrows to go to the next or previous station.

This function is also available on the steering wheel controls. See “Steering Wheel Controls” in the index of the vehicle's owner manual for more information.

To scan stations, press and hold either arrow for more than two seconds. The radio goes to a station, plays for a few seconds, then goes on to the next station. To stop scanning, press either arrow again.

Storing Radio Station Presets

This feature allows up to 30 preset stations (six FAV pages) to be stored. You can mix AM, FM, and XM (if equipped). To store presets:

1. Press

2. If viewing a map screen, press

3. Select the band.

4. Seek, scan, or tune to the

5. Press and hold one of the preset

6. Repeat the steps for each

O to turn the system on.

the source screen button, press the AUDIO or FAV (favorite) button. The number of presets is determined by your selection of how many FAV pages you have selected. See more information on “Number of Preset Pages” in this section.

desired station.

screen buttons for more than two seconds or until a beep is heard.

preset.

Black plate (17,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

Infotainment System 17

Sound Menu

Base Shown; Uplevel Similar

Sound: Press this button or press

MENU to access the Sound menu to adjust the treble, midrange, bass, fade, balance, and equalization. Settings for treble, midrange, and bass are remembered for each source, such as AM/FM, XM (if equipped), CD/DVD, and AUX.

Setting the Tone

TREBLE: Press and hold

the + or − to increase or decrease. If a station is weak or noisy, decrease the treble.

MID (Midrange): Press and hold the + or − to increase or decrease.

BASS: Press and hold the + or − to increase or decrease.

Adjusting the Speakers

L/R (Left/Right) (Balance): To

adjust the balance between the left and the right speakers, press and hold the L or R screen buttons.

Front/Rear (Fade): To adjust the fade between the front and the rear speakers, press and hold the Front or Rear screen buttons.

If a DVD movie with surround sound is playing, fading to the rear speakers will automatically cause the radio to play stereo sound.

Fading back to the center speakers will re-engage the surround sound if it was on before fading was adjusted. See CD/DVD Player on page 20 for more information.

Automatic Equalization

With automatic equalization customized equalization settings designed for Rock, Pop, Country, Classical, and Talk can be selected. Press one of the equalization screen buttons to hear the change in sound.

Custom: Press to adjust the bass, treble, and midrange settings as desired.

The system saves separate settings for each source.

Talk: Press to adjust the tone settings to an automatic preset for talk radio.

Black plate (18,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

18 Infotainment System

Rear Seat Audio (RSA)

With this feature, if the Rear Seat Audio (RSA) system has been turned on, it can be turned off by selecting the Rear Seat Audio Off screen button. See “Rear Seat Audio (RSA)” in the Index of your vehicles owner manual.

If a DVD movie with surround sound is active, turning RSA on will force a stereo downmix of the audio. Some DVDs do not contain downmix information. In this case, no sound through RSA headphones may occur.

Radio Menu

Press MENU to enter the configure menu screen, then press it repeatedly until Radio is selected, or press the Radio screen button to make changes for radio information displayed, number of preset pages, XM categories (if equipped), and automatic volume control.

Limit Features While Driving

Press the Limit Features While Driving screen button to turn on and off the ability to limit functions while driving. When this screen button is highlighted, the following functions will be limited while driving:

Music Navigator Scrolling

Radio Category Scrolling

Navigation Menu Scrolling and some functions

See “Category” earlier in this section for more information. See “From Map” under Maps on page 37 for more information.

Number of Preset Pages

Press the Number of Preset Pages screen button to change the number of preset pages, 1 through 6. Each preset page can contain five preset stations. Press on the desired numbered screen button.

Black plate (19,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

Infotainment System 19

Automatic Volume Control

With automatic volume control, the audio system adjusts automatically to make up for road and wind noise while driving.

To use Automatic Volume Control:

1. Set the volume at the desired level.

2. Press MENU to enter the menu screen, then press it repeatedly until Radio is selected, or press the Radio screen button.

3. Press the Automatic Volume Control screen button.

4. Press the LOW, MEDIUM, or HIGH screen buttons. Each higher setting allows for more compensation at faster vehicle speeds.

Then, as the vehicle is being driven, automatic volume control automatically increases the volume, as necessary, to overcome noise at any speed. The volume level should

always sound consistent while driving. To turn automatic volume control off, press the OFF screen button.

Remove/Add XM Categories (If Equipped)

1. Press the Remove/Add XM Categories screen button to remove or add XM categories when selecting from the category list screen. The list of XM categories appear on the screen.

2. Use the up and down arrow screen buttons to scroll through the list. The categories to remove highlights and the categories to add are dark in color.

3. Select the category that you would like to add or remove.

4. Press the Restore All Categories screen button to add all categories that have been removed.

Radio Data System (RDS)

The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can:

Receive announcements concerning local and national emergencies

Display messages from radio stations

This system relies on receiving specific information from these stations and only work when the information is available. In rare cases, a radio station may broadcast incorrect information that can cause the radio features to work improperly. If this happens, contact the radio station.

Black plate (20,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

20 Infotainment System

The RDS system is always on. When information is broadcast from the FM station you are listening to, the station name or call letters display on the audio screen. RDS may provide a program type (PTY) for current programming and the name of the program being broadcast.

Satellite Radio

XM™ Satellite Radio Service

XM is a satellite radio service that is based in the 48 contiguous United States and 10 Canadian provinces. XM Satellite Radio has a wide variety of programming and commercial-free music, coast-to-coast, and in digital-quality sound. During the trial or when you subscribe, you will get unlimited access to XM Radio Online for when you are not in the vehicle.

A service fee is required to receive the XM service. For more information, contact XM at www.xmradio.com or call 1-800-929-2100 in the U.S. and www.xmradio.ca or call 1-877-438-9677 in Canada.

When XM is active, the channel name and number, song title, and artist displays on the screen.

XM Radio Messages

See “XM Radio Messages” in the vehicle's owner manual for a list of possible XM messages.

Audio Players

CD/DVD Player

Playing a CD

The player can be used for CDs with conventional CD audio, MP3, or WMA compressed files and may have the capability to play DVD audio and DVD video. See “Playing a Audio DVD and/or DVD Video” later in this section for more information about DVD audio and video.

With the ignition on, insert a CD partway into the slot, label side up. The player pulls it in and the CD should begin playing. The navigation system can be used while playing a CD.

When a CD is inserted, the CD tab displays. If an equalization setting is selected for the CD, it is activated each time a CD is played.

Black plate (21,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

Infotainment System 21

If the ignition or radio is turned off with a CD in the player, it stays in the player. When the ignition or radio is turned on, the CD starts playing where it stopped, if it was the last selected audio source.

As each new track starts to play, the track number displays.

If an error displays, see “CD/DVD Messages” in this section.

If viewing a map screen, press the CD screen button or the NAV button. The display splits between the audio screen and the map screen. If you do not want to view a split screen or you are not on a map screen, press AUDIO, then press AUDIO again, repeatedly until CD is selected or press the CD screen button.

Playing an Audio CD

j / r (Pause/Play):

1. Press to pause the CD. This button then changes to the play button.

2. Press the play button to play the CD.

Random:

1. Press to hear the tracks in random, rather than sequential order.

2. Press Random again to turn off random play.

r (Rewind):

1. Press and hold to rewind quickly through a track selection. Sound is heard at a muted or a reduced volume.

2. Release this button to stop rewinding. The display shows the elapsed time of the track.

[ (Forward):

1. Press and hold to fast forward quickly through a track selection. Sound is heard at a muted or a reduced volume.

2. Release this button to stop fast forwarding. The display shows the elapsed time of the track.

Black plate (22,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

22 Infotainment System

1. To seek tracks, press the up arrow to go to the next track.

2. Press the down arrow to go to the start of the current track, if more than eight seconds have played.

3. If either arrow is pressed more than once, the player continues moving backward or forward through the CD. The sound mutes while seeking.

f (Tuning Knob):

1. Turn counterclockwise one notch to go to the start of the current track, turn it again to go to the previous track.

2. Turn clockwise to go to the next track.

While playing an audio CD the rear seat operator can power on the RSE video screen and use the remote control to navigate through the tracks on the CD.

Using a Compressed Audio CD/DVD

Compressed Audio CD/DVD Format

There are guidelines that must be met, when creating an MP3, WMA, or mixed disc. If the guidelines are not met when recording a burned disc, the disc may not play. The guidelines are:

ID3 tag information is displayed by the radio if it is available. The radio supports ID3 tag information v1.0, v1.1, and v2.0. The radio displays a filename, song name, artist name, album name, and directory name.

Maximum 32 characters, including spaces, in a file or folder name.

The recommended maximum number of folders is 100 with a maximum hierarchy of three folders.

Create a folder structure that makes it easy to find songs while driving. Organize songs by albums using one folder for each album.

All playlist files (.m3u or .pls) must be removed from disc contents. Playlists are not supported.

It is recommended that there is a maximum of 192 files on a CD-R(W) disc.

It is recommended that there is a maximum of 200 files on a DVD+R(W) disc.

The files can be recorded on a CD-R(W) or DVD+R(W).

Copy protected WMA files are not supported.

Black plate (23,1)

Acadia, Acadia Denali, Enclave, and Traverse Navigation System (Includes Mex) - 2012

Infotainment System 23

Scanning Compressed Audio Disc

Scanning a compressed audio disc categorizes and allows sorting of songs by folder artist or album.

Press center folder/artist/album screen button to initiate scanning mode. The radio plays and a progress bar displays.

Background scanning occurs with the radio on and the compressed audio disc inserted but not being played.

Only the first 200 songs appears in the compressed audio music navigator.

Scanning time varies depending on the number of files and folders on the disc.

Root Directory

The root directory is treated as a folder. If the root directory has compressed audio files, the directory is displayed as ROOT.

All files contained directly under the root directory is accessed prior to any root directory folders.

Empty Directory or Folder

If a root directory or a folder exists somewhere in the file structure that contains only folders/subfolders and no compressed files directly beneath them, the player advances to the next folder in the file structure that contains compressed audio files and the empty folder is displayed or numbered.

No Folder

When the disc contains only compressed files, the files are located under the root folder. The next and previous folder functions have no function on a disc that was recorded without folders. When displaying the name of the folder the radio displays ROOT.

Order of Play

Tracks are played in the following order:

The radio does not support playlist files.

Order of play differs depending if the compressed audio disc is fully scanned or unscanned. See “Scanning Compressed Audio Disc” previously in this section.

When playing an unscanned disc, the next and previous screen buttons may be required to switch away from the current folder when quickly seeking rather than allowing the last song of a folder to play to completion.

+ 53 hidden pages
