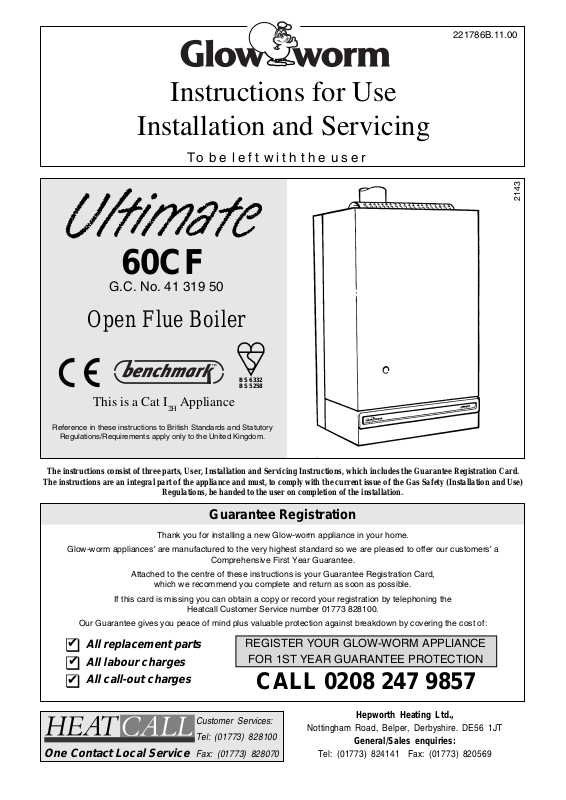

Glow-worm Ultimate 60CF User Manual

Instructions for Use

Installation and Servicing

To be left with the user

60CF

G.C. No. 41 319 50

221786B.11.00

2143

Open Flue Boiler

BS 6332
BS 5258

This is a Cat I2H Appliance

Reference in these instructions to British Standards and Statutory

Regulations/Requirements apply only to the United Kingdom.

The instructions consist of three parts, User, Installation and Servicing Instructions, which includes the Guarantee Registration Card.

The instructions are an integral part of the appliance and must, to comply with the current issue of the Gas Safety (Installation and Use)

Regulations, be handed to the user on completion of the installation.

Guarantee Registration

Thank you for installing a new Glow-worm appliance in your home.

Glow-worm appliances' are manufactured to the very highest standard so we are pleased to offer our customers' a

Comprehensive First Year Guarantee.

Attached to the centre of these instructions is your Guarantee Registration Card,

which we recommend you complete and return as soon as possible.

If this card is missing you can obtain a copy or record your registration by telephoning the

Heatcall Customer Service number 01773 828100.

Our Guarantee gives you peace of mind plus valuable protection against breakdown by covering the cost of:

✔

All replacement parts

❏

✔

All labour charges

❏

All call-out charges

✔

❏

One Contact Local Service

REGISTER YOUR GLOW-WORM APPLIANCE

FOR 1ST YEAR GUARANTEE PROTECTION

CALL 0208 247 9857

Customer Services:
Tel: [phone]
Fax: [phone]

Hepworth Heating Ltd.,

Nottingham Road, Belper, Derbyshire. DE56 1JT

General/Sales enquiries:

Tel: [phone] Fax: [phone]

Important Information

Testing and Certification

This boiler is tested and certificated for safety and performance. It is therefore important that no alteration is made to the boiler, without
permission, in writing, from Hepworth Heating Ltd.

Any alteration not approved by Hepworth Heating Ltd., could invalidate the certification, boiler warranty and may also infringe the
current issue of the Statutory Requirements, see Section 1.4.

CE Mark

This boiler is exempt from the general requirements of the Boiler (Efficiency) Regulations (1993) and Directive 92/42/EEC by reason
of its conformity to Schedule 3.I.7 of those Regulations and Article 4.3 of that Directive.

The CE mark on this appliance shows compliance with:

1. Directive 90/396/EEC on the approximation of the laws of the Member States relating to appliances burning gaseous fuels.

2. Directive 73/23/EEC on the harmonization of the Laws of the Member States relating to the electrical equipment designed
for use within certain voltage limits.

3. Directive 89/336/EEC on the approximation of the Laws of the Member States relating to electromagnetic compatibility.

INFORMATION FOR THE INSTALLER AND SERVICE ENGINEER.

Under Section 6 of The Health and Safety at Work Act 1974, we are required to provide information on substances hazardous to
health.

CERAMIC FIBRE/INSULATION PADS, GLASSYARN.

These can cause irritation to skin, eyes and the respiratory tract. If you have a history of skin complaint you may be susceptible to
irritation. High dust levels are usual only if the material is broken. Normal handling should not cause discomfort, but follow normal
good hygiene and wash your hands before eating, drinking or going to the lavatory. If you do suffer irritation of the eyes or severe
irritation to the skin seek medical attention.

THERMOSTATS

These contain very small amounts of xylene in the sealed phial and capillary. If broken, under normal circumstances the fluid does
not cause a problem, but in case of skin contact, wash with cold water. If swallowed drink plenty of water and seek medical attention.

COMBUSTION PRODUCTS SAFETY DEVICE

These contain a very small amount of ethylene glycol and methanol in the capillary. If broken, under normal circumstances the fluid
does not cause a problem, but in cases of skin or eye contact, wash with cold water. If ingested, drink plenty of water and seek medical
attention.

CONTENTS DESCRIPTION SECTION PAGE No.

INSTRUCTIONS

FOR USE

INSTALLATION

INSTRUCTIONS

Introduction 3
Lighting the Boiler 4

General Data 1 5
Flue & Ventilation 2 6
Water Systems 3 7
Installation 4 8
Electrical Connection 5 10
Commissioning 6 11
User Information 7 13

SERVICING

INSTRUCTIONS

221786B

Servicing and Replacement Parts 8 13
Fault Finding 9 17
Spare Parts 10 20

2

Instructions for Use

Introduction

Please read these instructions and follow them carefully for the
safe and economical use of your boiler.

The Ultimate series are central heating boilers designed to
provide heating and indirect domestic hot water.

Important Notice

This boiler is for use only on natural gas G20.

The Gas Safety (Installation and Use)
Regulations

In your interests and that of gas safety it is the Law that ALL gas
appliances are installed by competent person in accordance
with the current issue of the above regulations.

Gas Leak or Fault

If a gas leak or fault exists or is suspected, the BOILER MUST
BE TURNED Off, including the electrical supply and MUST
NOT BE USED UNTIL THE FAULT HAS BEEN PUT RIGHT.
Advice/help should be obtained from your installation/servicing
company or the local gas undertaking.

Maintenance

To ensure the continued efficient and safe operation of the
boiler it is recommended that it is checked and serviced as
necessary at regular intervals. The frequency of servicing will
depend upon the particular installation conditions and usage,
but in general once a year should be enough.

If this appliance is installed in a rented property there is a duty
of care imposed on the owner of the property by the current
issue of the Gas Safety (Installation and Use) Regulations,
Section 35.

It is the Law the any servicing be carried out by a competent
person.

To obtain service, please call your installer or Heatcall (Glow­worm’s own service organisation) using the telephone number
given on the control tray.

Please be advised that the ‘Benchmark’ logbook should be
completed by the installation engineer on completion of
commissioning and servicing.

All CORGI Registered Installers carry a CORGI ID card, and
have a registration number. Both should be recorded in your
boiler Logbook. You can check your installer is CORGI
registered by calling CORGI direct on :- 01256 372300.

Boiler Clearances

If fixtures are positioned close to the boiler space must be left
as shown in diagram 1. Enough space must also be left in front
of the boiler to allow for servicing.

The convection air openings on top of the boiler must never
obstructed.

Boiler Installed in a Compartment or Cupboard
If the boiler is installed in a compartment or cupboard do not

obstruct any ventilation openings.
Do not use the compartment or cupboard for storage.

Cleaning

WARNING. This appliance contains metal parts (components)
and care should be taken when handling and cleaning, with
particular regard to edges.

Clean the casing occasionally by wiping it over with a damp
soapy cloth or dry polishing duster.

Do not use an abrasive cleaner.

Boiler Electrical Supply

Warning. This boiler must be earthed.
The boiler must be connected to a 230V~50Hz supply, protected

by a 3A fuse.
All wiring must be in accordance with the current issue of

BS7671.
Cables, PVC insulated type, to the current issue of BS6500

Table 16, 0.75mm
the boiler up.

6mm

WORKTOP

2

(24/0.20mm) only may be used to connect

260mm

Additional clearances may
be required for installation

108mm

6mm

100mm

915mm

TO
FLOOR

2166

Diagram 1

3

221786B

Instructions for Use

Connecting an Electrical Plug

The colours of three core flexible cable are, Brown - live, Blue

- neutral, Green and Yellow - earth.
As the marking on your plug may not correspond with these

colours continue as follows:
The wire coloured brown must be connected to the terminal

marked “L” or Red.
The wire coloured blue must be connected to the terminal

marked “N” or Black.
The wire coloured green and yellow must be connected to the

terminal marked “E” or Green or the earth symbol

.

Safety Device

The boiler is fitted with a flue blockage safety device which will
shut it down if there is a problem with the chimney. This device
is NOT a substitute for an independently mounted Carbon
Monoxide detector.

The safety device is reset, after three minutes, by pushing in the
button shown in diagram 2.

Shut down can occur during certain climate conditioned, but if
it recurs the chimney flue and air inlet into the room must be
checked and any problems found corrected by a competent
person, before the boiler is used again.

Any problems found must be put right, by a competent person,
before the boiler is used again.

To Turn the Boiler On

Turn the electrical supply on to the boiler and check that any
remote controls are set to your requirements (refer to
manufacturer’s instructions supplied with these items).

WARNING. If the pilot flame goes out either intentionally or by
accident, no attempt should be made to relight it for at least
three minutes.

Slide to controls cover off and clear.
Identify the controls by reference to diagram 2.
Switch off the electrical supply to the boiler.
Check that the flue blockage safety device has not operated,

that is, the button is in. Refer to Safety Device instructions.

Turn thermostat knob “B” faulty anticlockwise to the “O” Off
position.

Push in control knob “D”, keep pushed in, push and release
piezo button “A” until the pilot lights.

Look through window “E”.
After the pilot burner lights keep the button pushed in for about

20 seconds. Check that the pilot is alight and stable, look
through window “E”. If the pilot burner fails to stay alight, wait
3 minutes before repeating the lighting operation.

The safety device may also need resetting, refer to the
instructions above.

The flue blockage safety device may also need resetting, refer
to instructions above.

Turn thermostat control knob “B” to a setting between “MIN” and
“MAX” and the main burner will light.

o

“MAX” is about 82
The above sequence must be carried out every time that the

burner is relit.
Check that all external controls are calling for heat.

C (180oF).

To Turn the Boiler Off

For short periods, turn the thermostat knob fully clockwise to “O”
Off. To relight, turn thermostat knob anticlockwise to any
position between “MIN” and “MAX”.

For longer periods, turn the thermostat knob fully clockwise to
“O” Off. Slide the gas control button “D” inward and release, see
diagram 2. Switch off the electrical supply to the boiler.

To relight, follow the full lighting sequence given above.

Protection Against Freezing

If the boiler is to be out of use for any long period of time during
severe weather condition we recommend that the whole system,
including the boiler, be drained off to avoid the risk of freezing
up. Make sure that, if fitted, the immersion heater in the cylinder
is switched off.

The serial number and GC number of the boiler can be found on
the data label.

221786B

A PIEZO UNIT BUTTON
B THERMOSTAT CONTROL KNOB
C GAS SERVICE COCK (SHOWN IN OFF POSITION)

E

A

DATA LABEL

D CONTROL BUTTON (GAS)
E VIEWING WINDOW
F FLUE BLOCKAGE SAFETY DEVICE

RESET BUTTON

FB

C

4

D

Diagram 2

8043

(

)

)

1 General Data

INSIDE DIAMETER
OF SOCKET FOR
100mm (4in)
NOMINAL
DIAMETER FLUE

252

168

39

803

0024M

392

115

C

L

88

WATER CONNECTION RC1 (1in. BSPT

GENERAL DIMENSIONS (all dimensions in mm)

1 General Notes and Information

This boiler is for use on natural gas G20.
Wherever possible, all materials, appliances and components

to be used shall comply with the requirements of applicable
British Standards.

Where no British Standard exists, materials and equipment
should be fit for their purpose and of suitable quality and
workmanship.

This boiler is not suitable for use out of doors.

Sheet Metal Parts

WARNING. When installing or servicing the boiler care should
be taken when handling sheet metal parts, to avoid any possibility
of personal injury.

1.1 Statutory Requirements

The installation of the boiler must be carried out by a competent
person in accordance with the relevant requirements of the
current issue of:

Manufacturer’s instructions, supplied.
The Gas Safety (Installation and Use) Regulations,
The Building Regulations, Local Water Company Byelaws, The

Building Standards (Scotland) Regulations (applicable in
Scotland), The Health and Safety at Work Act, Control of
Substances Hazardous to Health, The Electricity at Work
Regulations and any applicable local regulations.

Detailed recommendations are contained in the current issue of
the following British Standards and Codes of Practice:

BS6798, BS5440 Parts 1 and 2, BS5546 Part 1, BS5449,
BS6891, BS7478, BS7593, BS7671.

Manufacturer’s instructions must not be taken as overriding
statutory requirements.

345

C

L

FLUE

149

780

544

23

679

Diagram 1.1

1

GAS CONNECTION RC

1

/2

/2 in. BSPT

1.3 Range Rating

The boiler is range rated and may be adjusted to suit the
individual system requirements.

The respective Table 1 gives the ratings and settings.

1.4 BSI Certification

The boiler is certificated to the current issue of BS6332 Part 1,
invoking the current issue of BS5258 Part 1 for performance
and safety. It is, therefore, important that no alteration is made
to the boiler without permission, in writing, from Hepworth
Heating Ltd.

Any alteration that is not approved by Hepworth Heating Ltd.,
could invalidate the BSI Certification of the boiler, warranty and
could also infringe the current issue of the Statutory
Requirements.

1.5 Gas Supply

The gas installation shall be in accordance with the current
issue of BS6891.

The supply from the governed meter must be of adequate size
to provide a steady inlet working pressure of 20mbar (8in wg) at
the boiler.

On completion test the gas installation for soundness using the
pressure drop method and suitable leak detection fluid, purge
in accordance with the above Standard.

1.2 Data

Weight: 70.5kg
Water content: 7.5litre
Gas connection: Rc1/
Water connections: Rc1
Electrical supply: 230V~ 50Hz - fused at 3A
Data label: On right hand side of electrical

2

control box

5

221786B

1 General Data

1.6 Electrical Supply

WARNING: This boiler must be earthed.
All system components shall be of an approved type and shall

be connected in accordance with the current issue of BS7671
and any applicable local regulations.

Connection of the boiler and system controls to the mains
supply should be through a common isolator fused at 3A,
maximum. This method of connection should be by a switched
spur box with a minimum contact separation of 3mm in both
poles. It should be clearly marked, showing its purpose,
preferably positioned close to the boiler.

Alternatively an unswitched socket outlet and three pin plug,
fused 3A, to the current issue of BS1363 may be used.

Wiring to the boiler must be PVC insulated cable at least

0.75mm

2

(24/0.20mm) to the current issue of BS6500 Table 16.

1.7 Contents of Packaging

The boiler is delivered in one pack which contains:
Boiler with outer case and wall frame, side panels, burner,

combustion chamber shield, flueway baffle and loose items
pack.

1.8 Water System

The boiler shall only be used on an unrestricted open vented
system with the water supply taken from a feed and expansion
tank, having a head between 1m (3ft 3in) minimum and 27m
(90ft) maximum.

1.12 Boiler Clearances

Refer to diagram 1. Instructions for Use.
The boiler must be positioned so that at least the minimum

operational and servicing clearances are provided.
Additional clearances may be required for installation.
If fixtures are positioned next to the boiler they should be made

removable for access to pipework.
Sufficient clearance must be left in front of the boiler for

servicing.

1.13 Heating System Controls

The heating system should have installed: a programmer and
room thermostat controlling the boiler.

Thermostatic radiator valves may be installed in addition to the
room thermostat.

Note: For further information, see The Building Regulations
1991 - Conservation of fuel and power, 1995 edition - Appendix
G, table 4b.

TABLE 1

ULTIMATE 60CF RANGE RATING

1.9 Draining Tap

A draining tap must be provided at the lowest point of the system
which will allow the entire system, the boiler and hot water
cylinder to be drained.

Draining taps shall be to the current issue of BS2879.

1.10 Safety Valve

A safety valve need not be fitted to an open vented system.

1.11 Location

WARNING. Open flue boilers must not be installed in a private
garage.

The boiler must not be installed in a room used or intended to
be used as sleeping accommodation or a room containing a
bath or shower.

The boiler must be mounted on a flat wall which is sufficiently
robust to take its weight.

2 Flue and Ventilation

Important Note

The boiler is fitted with a Flue Blockage Safety Device, which
will shut down the boiler if there is an unacceptable spillage of
products at the draught diverter.

This safety device MUST NOT under any circumstances be
interfered with or put out of action.

The safety device must only be replaced with the Glow-worm
parts.

2.1 Flue Connection

The integral draught diverter makes the combustion performance
independent of conditions in the secondary flue, but an efficient
flue is necessary to ensure a trouble free installation.

RANGE RATING
NOMINAL

HEAT INPUT
(GROSS)

NOMINAL
HEAT
OUTPUT

BURNER
SETTING
PRESSURE

APPROX.

kW

Btu/h

kW

Btu/h
mbar

in.w.g

m3/h

Min.

17.7 23.13

60,400 78,900

13.19 17.59

45,000 60,000

7.5 13.0

3.0 5.2

1.71 2.25

GAS
RATE

INJECTOR
MARKING

ft3/h

60 79

BURNER :- K8277

PILOT :- 7215

COMPARTMENT AIR VENT TABLE 2.

ULTIMATE 60CF

COMPARTMENT
VENTILATION
REQUIREMENTS

FROM ROOM
OR SPACE

FROM
OUTSIDE

HIGH LEVEL LOW LEVEL
VENT AREA VENT AREA

208cm232in2416cm264in

104cm216in2208cm232in

Max.

2

2

221786B

6

2 Flue and Ventilation

The flue must be installed in accordance with the
recommendations in the current issue of BS5440 Part 1.

The flue should be kept as short as possible.
Horizontal or very shallow runs should be avoided.
Give maximum possible vertical rise from the boiler, minimum

600mm (24in) before any bend.
The use of 45
A slip-on loose collar must be provided for flue removal.
End with a certificated terminal, above ridge height, if possible,

if not, at least above the eaves of a pitched roof.
A previously used chimney must be swept and any register

plate or damper or the like must be removed or locked in the
open position and the chimney made good.

o

bends is recommended.

2.2 Boilers in a Compartment

Where the installation of the boiler will be in an unusual location,
special procedures are necessary. Refer to the current issue of
BS6798 for guidance.

A compartment used to enclose the boiler must be designed
and constructed specifically for this purpose.

An existing cupboard or compartment modified for the purpose
may be used. Refer to the current issue of BS6798 for
guidance.

The doorway opening should be of sufficient size to allow for
easy removal of the boiler.

Be provided with permanent ventilation openings as shown in
the respective Table 2. These figures are for the minimum free
area.

The high and low level openings must communicate with the
same room or space or must both be on the same wall to outside
air.

The compartment door or vent should not communicate with a
private garage, bedroom, bed sitting room or a room containing
a bath or shower.

2.2A Boilers in a Room or Space

A purpose designed ventilation opening must be provided on an
outside wall of the building, this opening may be either, directly
into the room or space containing the boiler, or into an adjacent
room or space which has an internal permanent air vent of the
same size to the room containing the boiler.

Do not ventilate through a kitchen, private garage, bathroom or
toilet.

Vents through a cavity wall must be ducted.
If there are other fuel burning appliances present, allowance

must be made for their combustion requirements. The free area
for the boiler is:

60CF - 73cm
Refer also to the current issue of BS5440 Part 2.

2

(11in2)

2.3 Products of Combustion

Test the boiler for clearance of flue products at the draught
diverter as detailed in the current issue of BS5440 Part 1.

2.4 Extract Fans

If an extract fan is fitted there is a possibility that if adequate air
is not provided spillage of the flue products could occur. If vents
are fitted in accordance with the above recommendations this
should not occur.

Where such an installation is found a spillage test must be
carried out as detailed in the current issue of BS5440 Part 1 and
any necessary action taken.

2.5 Timber Frame Buildings

If the boiler is to be installed in a timber frame building it should
be fitted in accordance with the Institute of Gas Engineers
document IGE/UP/7/1998. If in doubt seek advice from the local
gas undertaking or Hepworth Heating Ltd.

3 Water Systems

Frost Protection

If the position of the boiler is such that it may be vulnerable to
freezing it should be protected as specified in the current issue
of BS5422. It is also recommended that a frost protection
thermostat be fitted.

3.1 Cylinders

For all systems supplying domestic hot water the cylinder must
be indirect. It is recommended that the cylinder be fitted with
some form of temperature control.

3.2 Gravity Domestic Hot Water with Pumped
Heating

It is important that the flow and return connections are in the
same relative positions as shown in diagram 3.1.

The domestic flow and return must both be on one side of the
heat exchanger. The heating flow and return are taken from the
other.

27 metres
Max.

28mm

GRAVITY HOT WATER
SYSTEM (DIAGRAMMATIC)

7

22mm VENT

15mm COLD FEED

INDIRECT
CYLINDER
(Shown with
recommended
thermostat and valve).

PUMP

MIDWAY BETWEEN
BOILER TAPPINGS

REFER TO BS 5546

2125

HEATING
SYSTEM

Diagram 3.1

221786B

3 Water Systems

3.3 Pumped Heating and Hot Water

It is important the flow and return connections are made as
shown in diagram 3.2.

These connections may be fitted on the opposite side to that
shown but always in the same relative positions.

22mm VENT &
15mm COLD FEED
TO BE FITTED IN
ACCORDANCE
WITH BS 6798

INDIRECT
CYLINDER

1metre Min.

27 metres

Max.

PUMP

MIDWAY BETWEEN
BOILER TAPPINGS

FULLY PUMPED CIRCULATION
SYSTEM (DIAGRAMMATIC)

ALTERNATIVE
SYSTEM
CONTROL
VALVES

HEATING
SYSTEM

Diagram 3.2

3.4 Pump

This should be fitted on the flow pipe and have isolating valves
fitted each side, integral, if possible.

The pump should be set to give a temperature difference of

o

C (20oF) between flow and return, with the boiler thermostat

11
set at “MAX” which is about 82oC (180oF).

The resistance through the boiler can be found from diagram

3.3.

2124

0023M

120

100

80

60

40

Water pressure loss

(mm head of water)

20

0

5

0

Flow rate (litres/minute)

PRESSURE
LOSS OF BOILER

10 15

20 25 30

14.7

11.7

8.8

5.9
0

2126

HEAT SETTING (kW) To give a water

flow rate differential of 11˚C (20˚F)

Diagram 3.3

4 Installation

4.1 Unpacking

Unpack and check that the contents, listed below, are present
and undamaged:-

Boiler, combustion chamber shield, side panels x 2, burner,
flueway baffle, loose items pack (with check list).

With the boiler still in the bottom tray, slide the controls cover
upwards and remove as shown in diagram 4.1. Remove the
outer case by undoing, and retaining), the two screws and lifting
off, see diagram 4.1.

CONTROLS COVER

SECURING SCREW

OUTER CASE

Release the wall frame by removing and keeping the two
retaining screws at the back of the combustion chamber, see
diagram 4.2.

To remove the boiler, turn it over, sideways, out of the bottom
tray, see diagram 4.3, taking care not to damage the controls,
so that it is face down on the floor, exposing the four Rc1 (1in
BSP) water connections.

Remove the remaining loose items, including the wall frame
which is in the bottom of the tray.

8044

BOILER
SECURING
SCREW(S)

2129

CONTROLS COVER &
OUTER CASE REMOVAL

221786B

Diagram 4.1

SECURING BOILER
TO WALL FRAME

8

Diagram 4.2

B

A

C

G

D

E

H

FF

C

L

K

C

J

4 Installation

Note: It is NOT recommended that the boiler be placed in an
upright position. If it is unavoidable great care must be taken not
to damage the gas valve, to avoid this it is suggested that
support be placed under the boiler, positioned as shown in
diagram 4.3.

4.2 Preparation

Use the wall frame and refer to diagram 4.4, mark out the
position of the fixing holes, making sure they are square.

Remove the wall frame and drill holes to suit plugs and screws
provided. Secure the wall frame with its cross member at the
top, to the wall.

Make sure the wall frame is level.
Fit suitable Rc1 (1in BSP) fittings into the appropriate tappings.

Tighten to required position and then fit suitable fittings and
short lengths of pipe into these fittings, making sure that they will
be in an accessible position when the boiler is fixed.

Note: It is important to make sure that all these joints are
watertight at this stage as they will not be directly accessible
after the boiler is fixed.

4.3 Mounting the Boiler

Note: Access to the screw holes is through the combustion
chamber, see diagram 4.3. Take care not to damage the pilot
and thermocouple assembly.

Lift the boiler and position on to the wall frame so that the tags
on the boiler body locate on the cross member of the wallframe,
see diagram 4.5. Fasten the boiler to the wallframe, using the
screws previously removed.

Remove the flue cleaning door, see diagram 4.6.
Remove the split pin. Withdraw the retaining angle and

thermostat phial from its pocket.
Fit the flueway baffle, making sure that it is seated down

correctly onto the casing as shown in diagram 4.6.
Re-assembly note: When fitting the thermostat, make sure that

the thermostat is fully inserted into the phial pocket and then
insert the retaining angle.

Replace the flue cleaning door.

A L.H. and R.H. side of casing 6
B Top of casing to ceiling/fixture 108
C Bottom of casing to worktop 100
D Top fixing holes to ceiling/fixture 480
E Fixing holes-upper to lower 210
F C to R.H. and L.H. wall fixture 278
G Fixing holes-R.H. to L.H. 331
H Lower fixing holes to floor/fixture 305

J Bottom fixing holes to floor 1120
K Bottom of casing to floor 915

FIXING HOLE POSITIONS

Diagram 4.4

2943

DO NOT STAND UPRIGHT UNLESS A
SUPPORT IS USED TO AVOID

8045

DAMAGE TO THE MULTI­FUNCTIONAL CONTROL

TURNOVER

5308

WALL FRAME

CROSS
MEMBER

SUPPORT

SUPPORTING THE BOILER

Diagram 4.3

SECURING BOILER
TO WALL FRAME

9

Diagram 4.5

221786B

4 Installation

4.4 Water Circulation System

Complete the water connections to the boiler pipework, using
compression fittings.

Fill, vent and cold flush the system as recommended in the
current issue of BS6798.

Visually check for and put right any water leaks.

2122

4.5 Gas Connection

Make the gas connection to the flanged Rc1/2 gas service cock.

4.6 Flue

Install the flue pipework and seal to the flue socket in accordance
with normal practice.

5 Electrical Connection

FLUE
CLEANING
DOOR

GUIDE (2)

SECURING
SCREW
WASHER (2)

SELF-TAPPING
SECURING SCREW (2)

FLUE CLEANING DOOR

FLUE
SOCKET

FLUEWAY BAFFLE

Diagram 4.6

5.1 Control Box Removal

Remove the electrical control box securing screw, see diagram

5.1. Pull the control box down at the front and pull forwards to
release from hook at rear, see diagram 5.2.

ELECTRICAL
CONTROL BOX
SECURING
SCREW (1)

PIEZO
UNIT

PIEZO UNIT

Diagram 5.1

5.2 Cable Connection

Thread the power supply cord through the clamp at the rear of
the control box, as shown in diagram 5.2.

The earth conductor must be made of a greater length so that
if the cable is strained the earth conductor is the last to become
disconnected.

8047

EARTH

TERMINAL
STRIP

MAINS CABLE
CONNECTION

8038

MAINS
CABLE

Diagram 5.2

221786B

10

5 Electrical Connection

Connect to the terminal strip, as shown in diagram 5.3.
Secure the cable into the clamp, as shown in diagram 5.2.
Make sure that there is sufficient cable to allow the control box

to be temporarily hooked into the front slot, to allow for servicing.
Replace the control box by reversing the information given

above in Section 5.1. Take care not to trap the thermostat
capillary at the rear of the control box also make sure the rear
location hook is correctly engaged.

GRN/YEL

BLUE

BROWN

BLK

BLUE

GRN/YEL

BROWN

EARTH

GRN/YEL

N

E

L

BLUE

5.3 Testing

Checks to ensure electrical safety should be carried out by a
competent person.

It is essential that the polarity is correct.
In the event of an electrical fault after installation of the system,

the preliminary electrical system checks, as below should be
carried out:

1. Test insulation resistance to earth of mains cable.

2. Test earth continuity and short circuit of all cables.

3. Switch on the electrical supply to the boiler and test the
polarity of the mains supply.

230V~50Hz PERMANENT MAINS
SUPPLY FUSED AT 3 AMP

8049

NC C

THERMOSTAT

MULTI-FUNCTIONAL
CONTROL

ELECTRICAL
CONNECTIONS ­BOILER COMPONENTS

6 Commissioning

Please ensure the "Benchmark" logbook is completed and left
with the user.

6.1 Testing, Initial Lighting and Adjustment

Make sure that all naked lights, pipes and cigarettes are out.
Pressure test the complete installation for soundness and

purge in accordance with the current issue of BS6891.
Refer to diagram 6.1 to fit the burner.
Identify the controls by reference to diagram 6.2.
Check that the gas service cock “C” is off, that is, indicator

vertical.
Check that the mains electrical supply to the boiler is off.
Set the thermostat control knob “B” to “O” - the off position.
Remove the gas pressure test nipple screw “E” and fit a suitable

pressure gauge.
Open gas service cock “C”.
Note. Make sure that the flue blockage safety device reset

button “P” is fully pushed in.
Push in control button “K”, keep pressed in and at the same time

operate the piezo unit button “G” until the pilot burner lights.
After the pilot burner lights keep the button “K” pushed in for

about 15 seconds. If the pilot burner fails to light or stay alight
a safety device in the multifunctional control prevents immediate
re-lighting.

BLUE

GRN/YEL

BROWN

Do not attempt to relight until the safety device has reset, that
is, after a minimum of 3 minutes.

Note. Should the boiler fail to operate correctly refer to Fault
Finding Section.

Check the length of the pilot flame, it should envelop the
thermocouple tip as shown in diagram 6.3. The pilot rate can be
adjusted, if necessary, by turning the pilot burner adjustment
screw “N”, having first removed the multifunctional control cover
by releasing the screw as diagram 6.4.

Test pilot supply connections for gas soundness, using a
suitable leak detection fluid.

Hook the combustion chamber shield onto the front of the
combustion chamber, making sure that it is flush and horizontal
with the combustion chamber front, see diagram 6.1.

Fit the outer case, making sure that the lower part clears the pilot
supply tube. Secure with the screws previously removed.

Make sure that the pilot is alight and stable by viewing through
the window in the casing.

Switch on the electrical supply to the boiler and turn on all
external controls.

Set the thermostat knob “B” between “MIN” and “MAX” and
check that the main burner cross lights smoothly from the pilot.
Whilst the boiler is operating test gas valve and gas connections
for gas soundness using a suitable leak detection fluid.

Note. Should the boiler fail to operate correctly refer to Fault
Finding Section.

Diagram 5.3

11

221786B

6 Commissioning

To set the burner pressure, operate the boiler for 10 minutes,
remove the multifunctional control cover, if not already removed,
as above. Adjust the gas burner pressure by screw “F” until the
required pressure is obtained, see the relevant Table 1 for
setting pressures.

Stick the self adhesive arrow from the loose items pack onto the
appropriate space beneath the “Min” or “Max” column on the
data label.

Should any doubt exist about the gas rate this should be
checked at the meter using a stop watch to time at least a cubic
foot of gas consumption.

Replace the multifunctional control cover.

COMBUSTION
CHAMBER
SHIELD

BURNER

Check the operation of the flame failure device, with the burner
alight, as follows:- Slide the control button “K” inwards and
release, the main burner and pilot will go out. Check that the
flame failure device has operated, indicated by a “click”, within
60 seconds, from the valve. The multifunctional control
incorporates a safety device. Do not attempt to relight until it has
reset, in about 3 minutes.

Remove the pressure gauge and refit the screw “E”, making
sure that a gas tight seal is made.

Set the thermostat knob “B” to “O” (the off position) and relight
the pilot, as above.

10 to 14mm

2135

SPARK
ELECTRODE

HEX
PILOT BURNER
SECURING
NUT

2145

BURNER PIN
AND HOLE
LOCATION

BURNER LOCATION

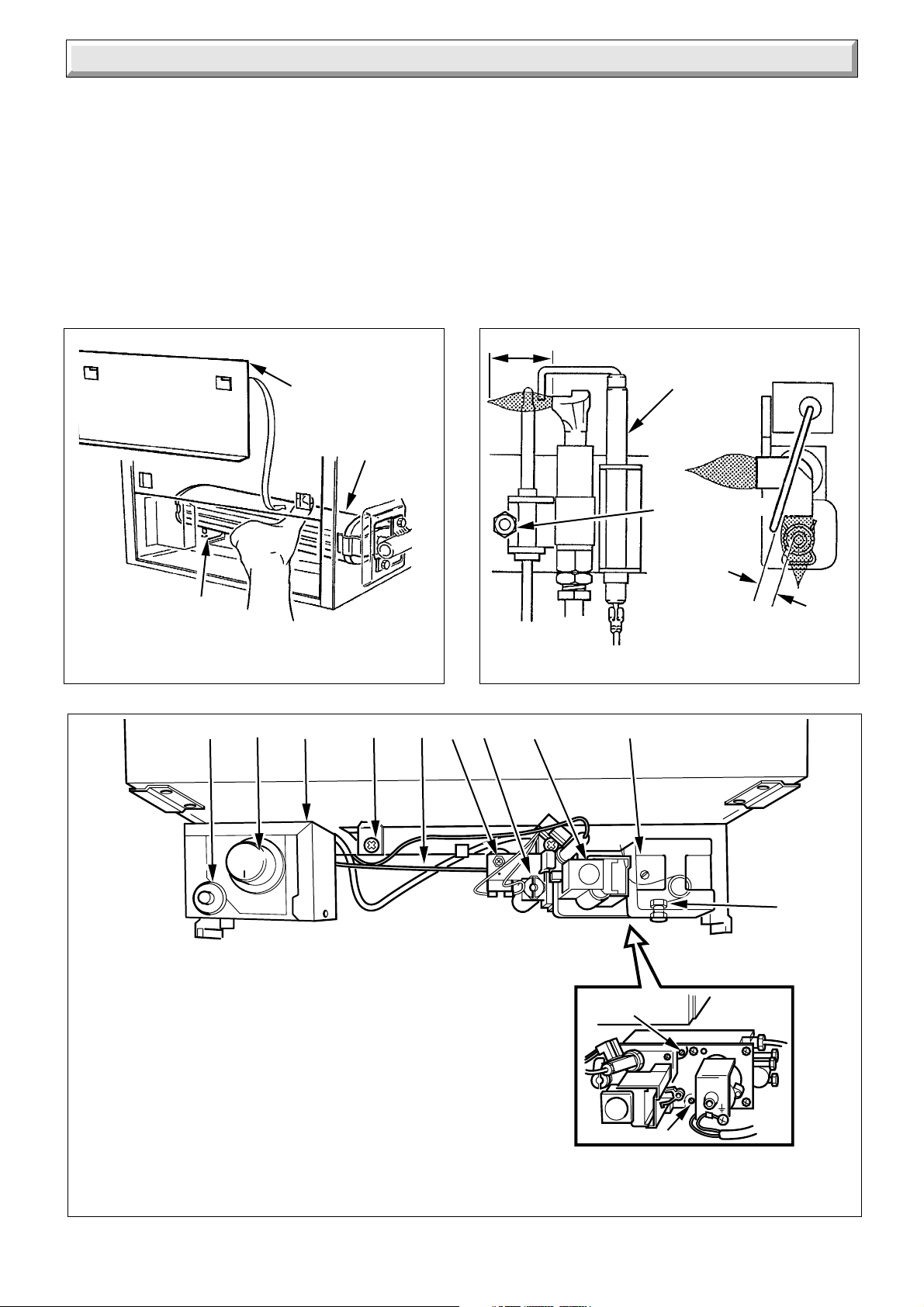

G

A ELECTRICAL CONTROL BOX
B THERMOSTAT CONTROL KNOB
C GAS SERVICE COCK(SHOWN IN OFF POSITION)
D MULTI-FUNCTIONAL CONTROL
E PRESSURE TEST NIPPLE
F GAS BURNER TEST NIPPLE
G PIEZO UNIT BUTTON
H THERMOCOUPLE PIPE
K CONTROL BUTTON (GAS)
M CASE SECURING SCREW
N PILOT BURNER PRESSURE SCREW
P FLUE BLOCKAGE SAFETY DEVICE

RESET BUTTON

BOILER COMPONENTS

2.5 TO 5.0mm
(1/8 in) (3/

16

in)

SPARK GAP

Diagram 6.1

B

AH

M

P

AND FLAME DIMENSION

C

KD

Diagram 6.3

8052

E

N

F

INSET VIEW

With multi-functional control valve
cover removed for clarity

Diagram 6.2

221786B

12

6 Commissioning

Check that the boiler thermostat and all external controls are
operating as required.

Do not attempt to adjust the thermostat calibration screw.

COVER

GAS SERVICE
COCK

THERMOCOUPLE

PILOT SUPPLY TUBE

COVER
SECURING
SCREW

NUT

Relight the main burner and allow the system to warm up.
There should be no undue noise in the system and no pumping

over of water or entry of air at the open vent.
Allow the system to reach maximum temperature and check for

water soundness.

5312

The burner should then be turned off and the system drained,
as rapidly as possible, to complete the flushing process. Refill
the system, heat up, vent and check again for water soundness.

If the side panels are to be fitted, remove the outer case. (Fit by
fastening to the outer case using the securing screws, see
diagram 6.5.)

Refit outer case and controls cover.

SECURING
SCREW (6)

2158

BURNER

BROWN

SUPPLY
TUBE

GREEN/YELLOW

MULTI-FUNCTIONAL
CONTROL

BLUE

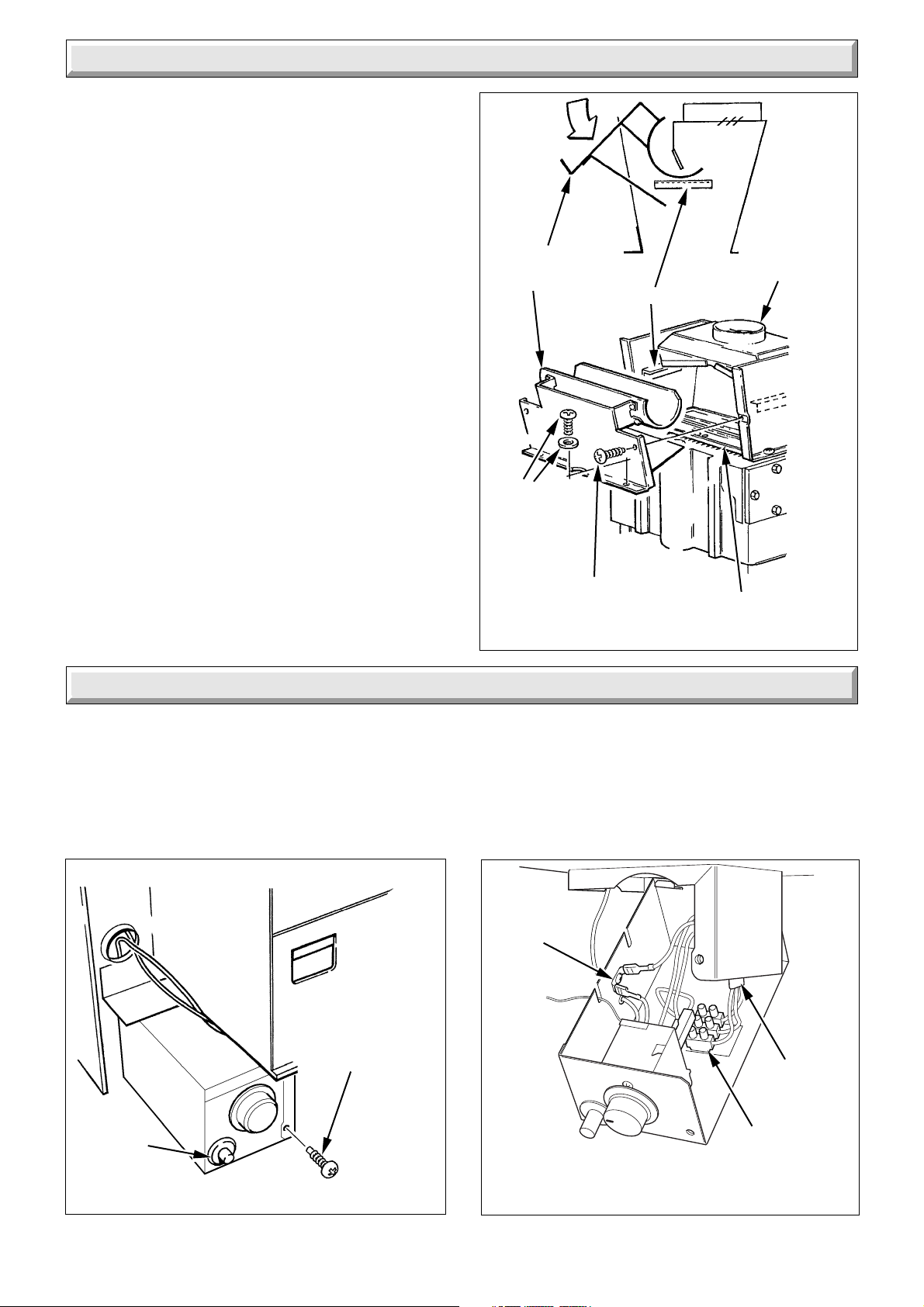

Diagram 6.4

7 User Information

Hand the Instructions for Use to the user for their retention.
Instruct and demonstrate the efficient and safe operation of the
boiler, the heating system and if installed the domestic hot water
system.

Advise that to ensure the continued efficient and safe operation
of the boiler it is recommended that it is checked and serviced
as necessary at regular intervals. The frequency of servicing
will depend upon the particular installation conditions and
usage, but in general once a year should be enough.

Draw attention, if applicable, to the current issue of the Gas
Safety (Installation and Use) Regulations, Section 35, which
imposes a duty of care on all persons who let out any property
containing a gas appliance.

SIDE
PANEL

SECURING SIDE PANELS

It is the Law that any servicing must be carried out by a
competent person.

Advise that the boiler is fitted with a safety device and refer to
the Instructions for Use.

Advise the user of the precautions necessary to prevent damage
to the system and building in the event of the heating system
being out of use during frost or freezing conditions.

Reminder, leave these instructions and the ‘Benchmark’ logbook
with the user.

Diagram 6.5

8 Servicing and Replacement of Parts

To ensure the continued efficient and safe operation of the
boiler it is recommended that it is checked and serviced as
necessary at regular intervals. The frequency of servicing will
depend upon the particular installation conditions and usage,
but in general once a year should be enough.

It is the Law that any servicing must be carried out by a
competent person.

BEFORE SERVICING OR REPLACING PARTS TURN OFF

THE GAS SUPPLY AND ISOLATE THE ELECTRICAL SUPPLY
TO THE BOILER.

AFTER COMPLETING A SERVICE OR REPLACEMENT OF
GAS CARRYING COMPONENTS ALWAYS TEST FOR GAS
SOUNDNESS AND CARRY OUT FUNCTIONAL CHECKS ON
CONTROLS.

Unless stated otherwise replacement of parts is in the reverse
order to removal.

13

221786B

8 Servicing and Replacement of Parts

8.1 Access

Refer to diagram 4.1 and 6.1.
Slide the controls cover off. Undo the screws and remove the

outer case.
Lift the combustion chamber shield clear of the lugs and

remove.

8.2 Main Burner

Refer to diagram 6.1.
Remove the main burner. Lift the left hand end of the burner to

disengage the locating pin.
Slide the burner off the injector by moving it to the left, take care

not to damage the pilot burner and electrode assembly. Bring
the right-hand end of the burner through the opening first.

Service note: Clean the burner thoroughly, making sure that all
the flame ports are clear.

8.3 Boiler Flueway Cleaning

Gain access as Section 8.1. Remove burner as Section 8.2.
Refer to diagram 4.6 and 8.6.

Release split pin. Remove retaining angle and thermostat
phial.

Undo the screws and remove the flue cleaning door.
Remove flueway baffle.
Place a sheet of paper in the combustion chamber, covering the

electrode/pilot assembly, to catch the flue debris.
Clean the boiler flueways and fins thoroughly with a suitable stiff

brush.
Re-assembly note: When replacing the flue cleaning door and

flueway baffle ensure they are fitted as shown in diagram 4.6.

8.4 Multifunctional Control - Servicing/
Replacement

Gain access as Section 8.1.
Refer to diagram 6.4 and 8.1.
Remove multifunctional control cover securing screw.
Disconnect the electrical leads, thermocouple and pilot supply

tube at the multifunctional control.
Remove the flue blockage safety device securing locknut and

release from bracket, taking care not to strain the capillary.
Remove the two securing screws from the support bracket.
Undo the four screws each side of the multifunctional control to

release the gas service cock and burner supply tube, take care
not to damage the “O” rings.

Reassembly note 1: When refitting the gas valve take care not
to damage the “O” rings.

Reassembly note 2: When fitting a replacement gas valve
remove the bracket and fit to new one.

Refer to diagram 8.2.
To inspect the inlet screen and replace the pilot filter remove the

base of the multifunctional control by releasing the five screws.
When reassembling take care not to damage the screen.
Remake the electrical connections.
NOTE. Do not tighten the thermocouple nut more than one

quarter turn beyond finger tight.

It will be necessary to purge the pipework and multifunctional
control before relighting, refer to Commissioning.

8.5 Multifunctional Control/Solenoid
Replacement

Refer to diagram 8.3.
Remove the multifunctional control cover as described in Section

8.4.
Disconnect electrical leads, remove the solenoid retaining clip

and solenoid.

SUPPORT
BRACKET

SAFETY
DEVICE
LOCKNUT

HEX SCREW (4)

MULTI-FUNCTIONAL
CONTROL

MULTI-FUNCTIONAL
CONTROL CONNECTIONS

MULTI-FUNCTIONAL
CONTROL FILTERS

SECURING
SCREW (2)

FLUE BLOCKAGE

SAFETY DEVICE

GAS
SERVICE COCK

'O' RING

'O' RING

FINE INLET
SCREEN

BURNER
SUPPLY
PIPE

HEX
SCREW (4)

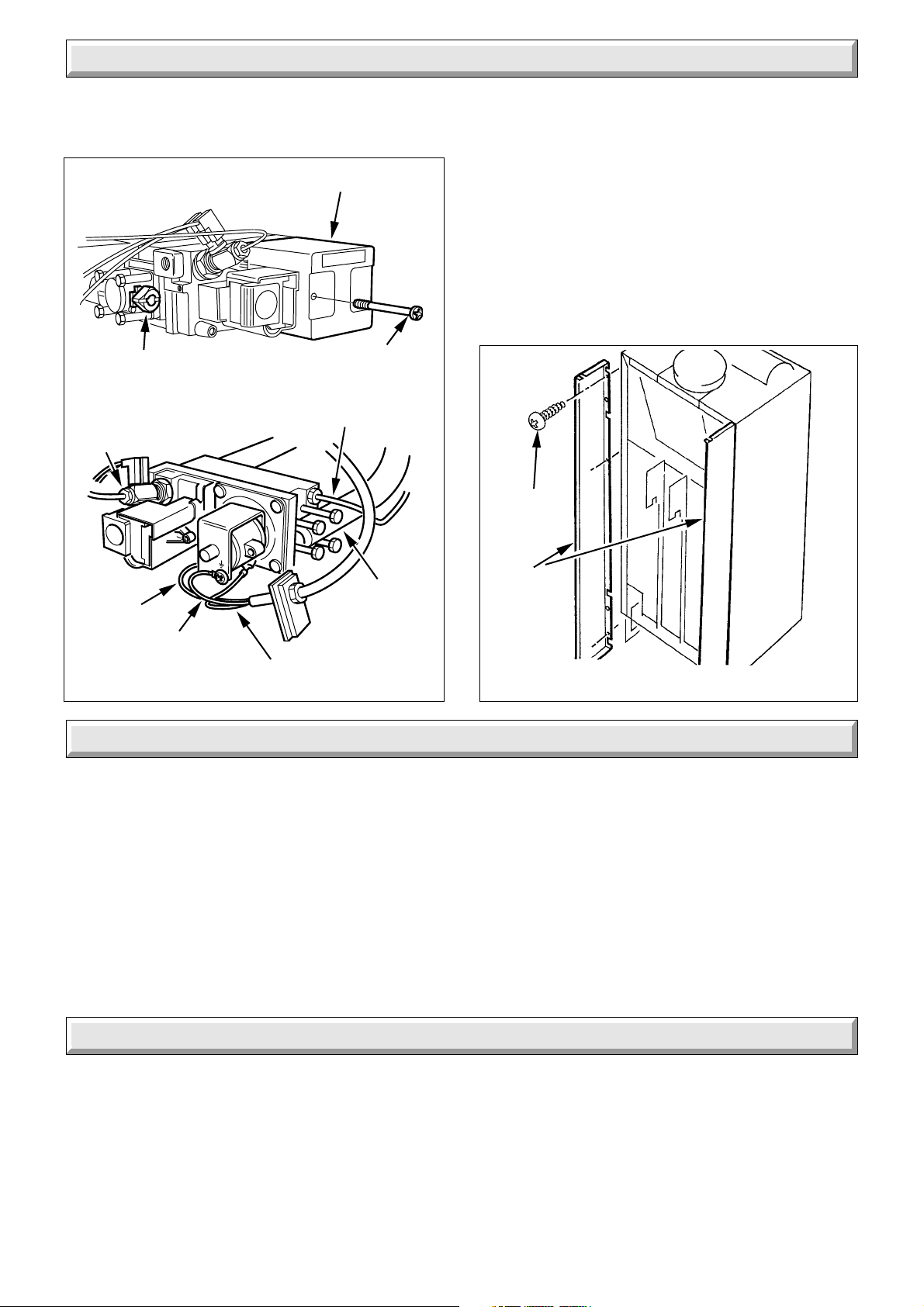

Diagram 8.1

PILOT
FILTER

Diagram 8.2

5313

2142

221786B

14

8 Servicing and Replacement of Parts

8.6 Main Injector

Gain access as Section 8.1.
Remove main burner as Section 8.2.
Remove the main burner injector from the right hand side of the

combustion chamber.
Clean or replace as necessary. Do not clean with wire or sharp

instrument.

8.7 Electrode

Gain access as Section 8.1. Refer to diagram 8.4.
Disconnect the electrode lead and remove electrode by undoing

the retaining nut.

8.8 Pilot Burner Injector

Gain access as Section 8.1. Refer to diagram 8.4.
Remove the electrode as Section 8.7.
Disconnect the pilot supply tube by unscrewing the pilot tubing

nut.

ELECTRICAL
CONNECTIIONS

Ease the supply tube from the pilot injector and unscrew the
injector.

8.9 Thermocouple

Gain access as Section 8.1. Refer to diagram 6.4.
Disconnect thermocouple from the interrupter from the gas

valve.
Disengage the thermocouple spring clip and remove the

thermocouple.
Re-assembly note: When refitting do not tighten the

thermocouple nut more than a quarter turn beyond finger tight.

8.10 Pilot Burner

Gain access as Section 8.1. Refer to diagram 6.3 and 8.4.
Remove the main burner as described in Section 8.2.
Remove electrode as described in Section 8.7.
Disengage the thermocouple spring clip and carefully ease the

thermocouple from the pilot burner.

SOLENOID

SOLENOID
RETAINING
CLIP

5314

SOLENOID
BRACKET

COVER

MULTI-FUNCTIONAL

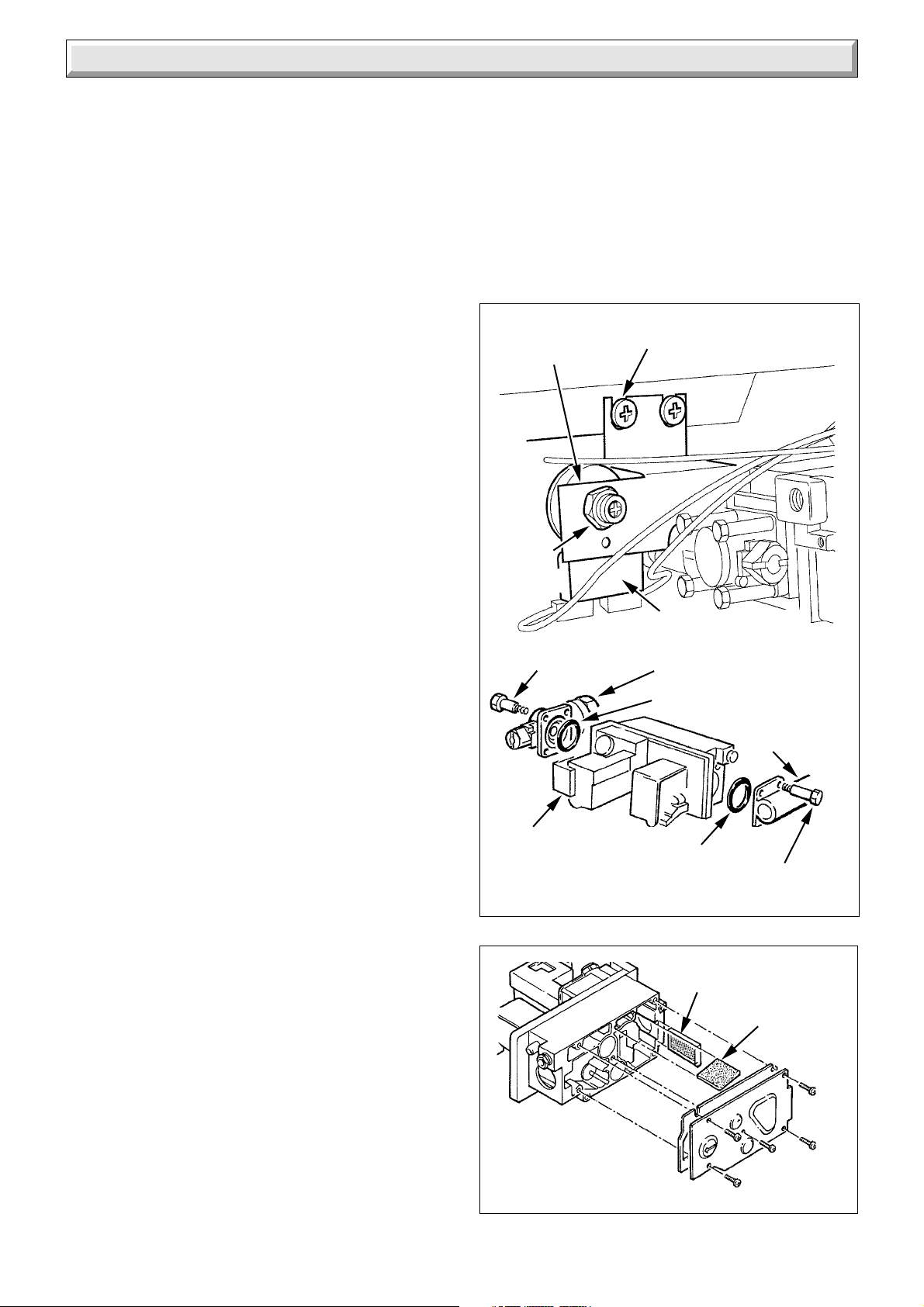

SOLENOID REMOVAL Diagram 8.3

MULTI-FUNCTIONAL
CONTROL

NOTE: It is important that the thermostat is

2159

SPRING
CLIP

SPARK
ELECTRODE
SECURING

fitted the same way as shown in the diagram

NUT

THERMOSTAT

SECURING
SCREW (2)

TUBING NUT

PILOT BURNER ASSEMBLY

IGNITION
LEAD

Diagram 8.4

THERMOSTAT

CONTROL
KNOB

Diagram 8.5

8041

15

221786B

8 Servicing and Replacement of Parts

Disconnect the pilot supply tube by unscrewing the tubing nut.
Remove the pilot burner by unscrewing the fixing at the left hand
side.

Reassembly Note: When refitting check that the spark gap is
correct and ensure that the thermocouple tip will be enveloped
as shown in diagram 6.3.

8.11 Thermostat

Gain access as Section 8.1. Refer to diagram 5.2, 8.5, 8.6 and

8.7.
Remove and temporarily support the electrical control box as

described in Section 5.1.
Remove the control knob. Remove the two electrical connections

from the thermostat body.
Release the thermostat body by unscrewing the two screws in

the front of the control box.
Remove the split pin. Withdraw the retaining angle and thermostat

phial from its pocket.
Remove the thermostat from the boiler.
Re-assembly note: When fitting the thermostat, make sure that

the thermostat is fully inserted into the phial pocket and then
insert the retaining angle. Replace the split pin.

Remake electrical connections.
Make sure that the capillary is positioned as before so that it

passes through the cut out in the control box, see diagram 8.5,
and that any excess being coiled up tidily at the rear of the
control box. There must be no kinks or sharp bends in the
capillary.

8.12 Peizo Unit

Gain access as Section 8.1. Refer to diagram 8.7.
Remove the electrical control box, refer to Section 5.1.
Disconnect the ignition lead at the piezo unit.
Note: To ease the removal of the piezo unit it is advisable to

temporarily remove the boiler thermostat from the control box,
refer to Section 8.11.

Depress the retaining tabs and remove the Piezo unit.

8.14 Flue Blockage Safety Device

Gain access as Section 8.1.
Remove the flue cleaning door, refer diagram 4.6.
Unscrew the two securing nuts and withdraw the phial assembly,

see diagram 8.8.
Remove capillary from clips.
Remove the electrical connections from the safety device.
Remove the locknut securing the safety device to the bracket

and withdraw the safety device.

CAPILLARY

PIEZO
UNIT

PIEZO UNIT

PHIAL

CONTROL
BOX

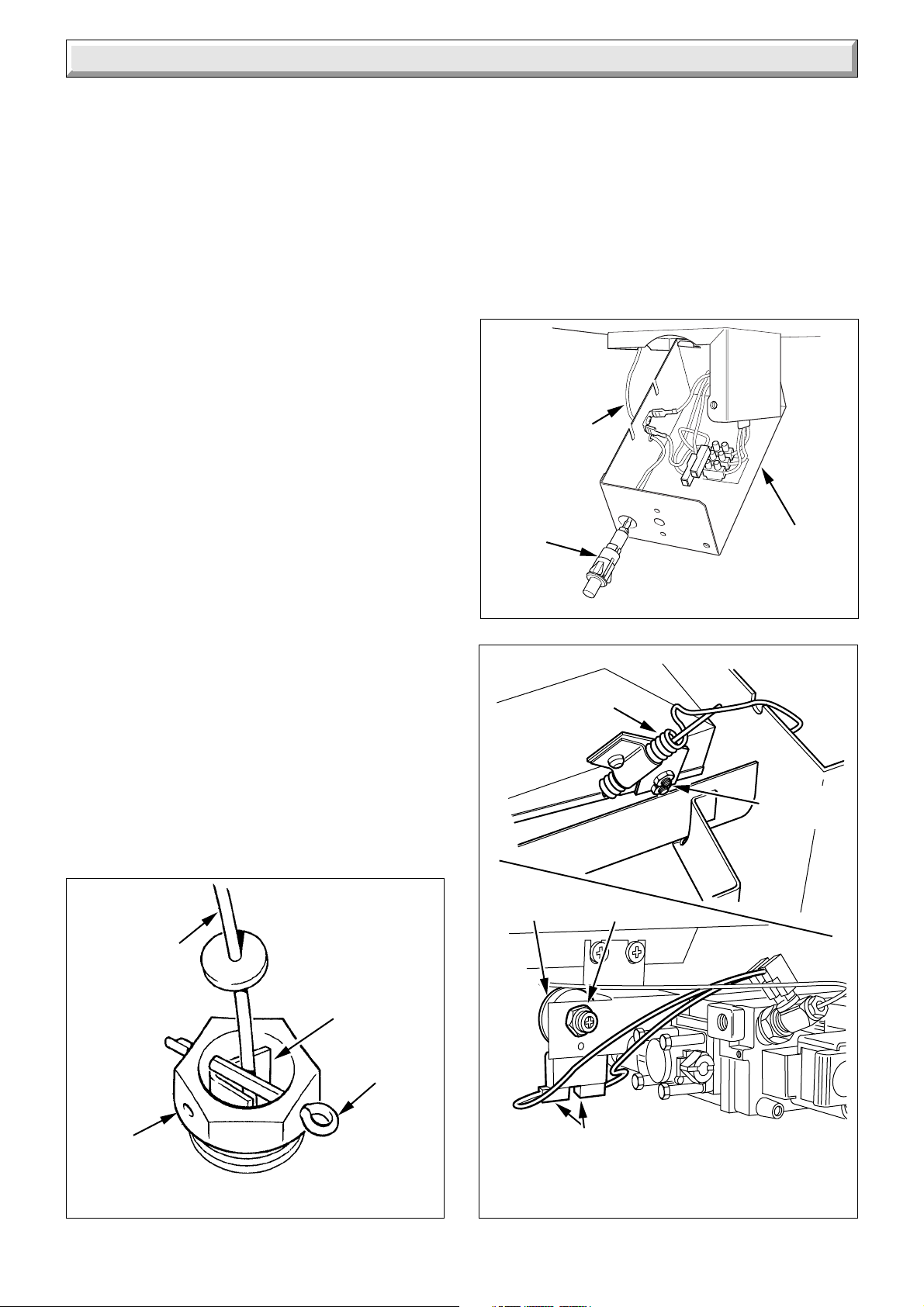

Diagram 8.7

8039

5315

8.13 Ignition Lead

Gain access as Sections 8.1 and 5.1.
Disconnect the lead at both ends and remove.
Re-assembly note: When replacing make sure the black end of

the lead is attached to the piezo unit.

THERMOSTAT
CAPILLARY

PHIAL
POCKET

SECURING THE
THERMOSTAT PHIAL

PHIAL
RETAINING
ANGLE

RETAINING
SPLIT PIN

Diagram 8.6

2171

SAFETY
DEVICE

LOCKNUT

ELECTRICAL
CONNECTIONS

FLUE BLOCKAGE
SAFETY DEVICE

SECURING
SCREW (2)

Diagram 8.8

221786B

16

9 Fault Finding

PILOT WILL NOT LIGHT
START HERE

Check flue blockage safety device
has not operated,
check gas line-open all
cocks, rectify any blockages, purge
out any air. Does pilot light?

NO

Apply match to pilot burner instead
of pressing piezo unit button.
Does pilot light?

NO

Undo tubing nut at pilot burner.
Turn gas valve knob to Pilot/Ign.
Press multi-functional control knob.
Does gas flow freely?

NO

Rectify blockage in pilot injector,
or renew pilot injector.

YES

YES

YES

Does pilot stay alight when
multi-functional control
knob is released?

NO YES

PILOT SATISFACTORY

Does pilot flame envelop
thermocouple?

NO

Check aeration. If necessary - Clean
pilot, rectify blockage in pilot
injector, or replace.

YES

5291

Undo tubing nut at pilot outlet
of the multi-functional control.
Press gas valve knob.
Does gas flow freely?

NO

Change blocked pilot tube.

Change multi-functional control.

YES

Check thermocouple circuit using
Thermocouple fault finding diagram.

On pressing piezo unit button is
there a spark across electrode
gap?

NO

Pull ignition lead off electrode.
Hold end of lead close to pilot
burner and operate piezo unit.
Is there a spark across gap?

NO

Pull ignition lead off piezo unit.
Using blade of a screwdriver, touch
unit chassis and leave approx.
4mm gap from connection tag on
piezo unit. Operate piezo.
Is there a spark across gap?

NO

YES

YES

YES

17

Change
piezo unit.

Check electrode gap. Reposition,
or replace electrode as necessary.

Change
ignition lead.

Diagram 9.1BOILER PILOT FAULT-FINDING

221786B

9 Fault Finding

9.1 Pilot

Refer to chart 9.1.

9.2 Thermocouple

Refer to chart and diagram 9.2.

9.3 Electrical

Refer to diagram 9.3 and 9.4.
The preliminary electrical system checks as contained in a

multimeter instruction book are the first checks to be carried out
during fault finding.

On completion of any fault finding task which has required the
breaking and remaking of electrical connections then the checks,
earth continuity, polarity and resistance to earth, must be
repeated.

9.4 Flue Blockage Safety Device

If the device operates it indicates there is a problem with the
chimney. Make sure that the air vents are free from obstruction.
Carryout spillage checks as Section 2.3.

With the boiler cold, check connections of the thermocouple, boiler flue blockage safety device
and gas valve. Reset flue blockage safety device.
Disconnect flue blockage safety device connectors at points A and B at the gas valve,
see diagram Interrupter Electrical Connections.
Test continuity of the flue blockage safety device. Is there continuity?

YES

FLUE

BLOCKAGE

SAFETY

DEVICE

CONNECTION "B"

CONNECTION
"A"

INTERRUPTER
ELECTRICAL CONNECTIONS

NO

5316

CONNECTION "E"

POINT "C"

CONNECTION "D"

Diagram 9.2

2327/B

Re-connect boiler flue blockage
safety device to points A and B.
Disconnect thermocouple at
connection point D of the gas valve.
Test continuity between point C and the
body of the gas valve.
Is there continuity?

NO

Test continuity of thermocouple between inner
connection point D and point E.
Is there continuity?

YES

Thermocouple and boiler flue blockage
safety device circuit satisfactory.

YES

NO

Faulty boiler flue blockage
safety device, renew.

Faulty flue blockage safety device
connectors into gas valve,
either at A or C.
Renew where faulty.

Faulty thermocouple, renew.

Diagram 9.3THERMOCOUPLE FAULT FINDING

PERMANENT
LIVE
230V
50Hz

3A FUSE

FUNCTIONAL FLOW WIRING

221786B

L RED

CNC

THERMOSTAT

18

BROWN

MULTI-FUNCTIONAL

CONTROL

34

SOLENOID

BLUE

9008

N

Diagram 9.4

9 Fault Finding

Carry out preliminary electrical checks to
make sure the electrical supply is available
at the boiler. Check that external controls
are calling for heat. Make sure that the
system is filled, the

device is reset, the gas supply is available
and the pilot is lit.

Isolate electrical supply to the
control box.
Remove the control box cover and
check all cables.

Turn boiler thermostat to Max.
Is there continuity between
'C' and 'NC'.

flue blockage safety

NO

YES

0899/A

Faulty thermostat.
Replace.

Turn boiler thermostat to 'O'.
Is there open circuit between 'C'
and 'NC'.

YES

Restore electrical supply with pilot
burner lit and boiler thermostat set
between 'MIN' and 'MAX', does the
main burner light.

YES

Turn boiler thermostat to "O'.
Does main burner extinguish.

YES

Boiler controls in order.

NO

NO

NO

Faulty gas valve.
Replace.

19

Diagram 9.5FAULT FINDING

221786B

10 Replacement Parts

If replacement parts are required, apply to your local supplier. Please quote the name of the appliance and its serial number, found
on the data label on the right hand side of the control box, after removal of the cover.

1

4

5

8057

3

2

7

13

12

9

14

10

8

6

11

Diagram 10.1

Key No Part No Description G.C. Part No.

1 429549 Gas valve assembly 312 926
2 208040 “O” ring - gas valve 334 592
3 K8277 Injector 351 978
4 K2674 Thermocouple 390 894
5 K3580 Clip - thermocouple 390 983
6 203416 Pilot burner 381 793
7 900500 Spark electrode 381 733
8 WW4617 Ignition lead 312 997
9 202519 Thermostat 381 798
10 204687 Control knob
11 202713 Piezo unit
12 801236 Mica window and foil gasket
13 203350 Solenoid
14 800756 Safety device 278 470

Because of our constant endeavour for improvement, details may vary slightly from those shown in these instructions.

221786B

20
