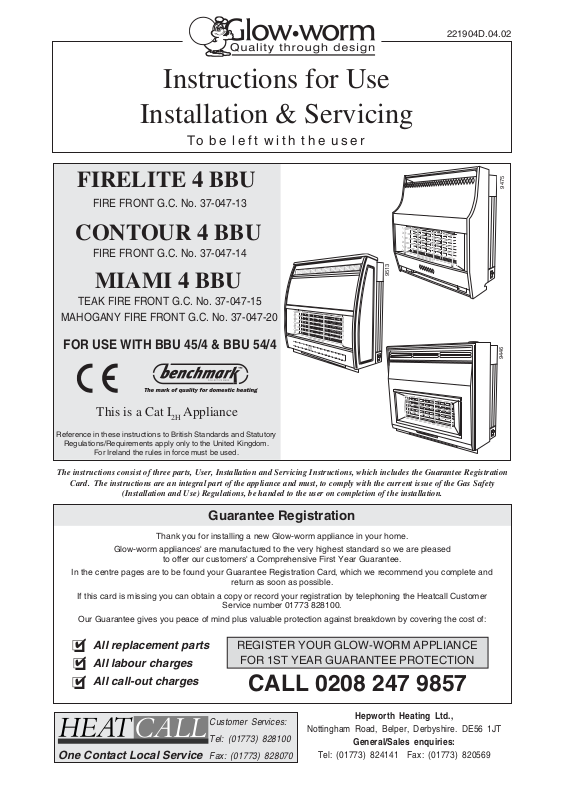

Glow-worm Miami 4 User Manual

Instructions for Use

Installation & Servicing

To be left with the user

221904D.04.02

FIRELITE 4 BBU

FIRE FRONT G.C. No. 37-047-13

CONTOUR 4 BBU

FIRE FRONT G.C. No. 37-047-14

MIAMI 4 BBU

TEAK FIRE FRONT G.C. No. 37-047-15

MAHOGANY FIRE FRONT G.C. No. 37-047-20

FOR USE WITH BBU 45/4 & BBU 54/4

This is a Cat I2H Appliance

Reference in these instructions to British Standards and Statutory

Regulations/Requirements apply only to the United Kingdom.

For Ireland the rules in force must be used.

9475

9513

9446

The instructions consist of three parts, User, Installation and Servicing Instructions, which includes the Guarantee Registration

Card. The instructions are an integral part of the appliance and must, to comply with the current issue of the Gas Safety

(Installation and Use) Regulations, be handed to the user on completion of the installation.

Guarantee Registration

Thank you for installing a new Glow-worm appliance in your home.

Glow-worm appliances' are manufactured to the very highest standard so we are pleased

to offer our customers' a Comprehensive First Year Guarantee.

In the centre pages are to be found your Guarantee Registration Card, which we recommend you complete and

return as soon as possible.

If this card is missing you can obtain a copy or record your registration by telephoning the Heatcall Customer

Our Guarantee gives you peace of mind plus valuable protection against breakdown by covering the cost of:

✔

All replacement parts

❏

✔

All labour charges

❏

All call-out charges

✔

❏

One Contact Local Service

Service number 01773 828100.

REGISTER YOUR GLOW-WORM APPLIANCE

FOR 1ST YEAR GUARANTEE PROTECTION

CALL 0208 247 9857

Customer Services:

Tel: [phone]

Fax: [phone]

Nottingham Road, Belper, Derbyshire. DE56 1JT

Tel: [phone] Fax: [phone]

Hepworth Heating Ltd.,

General/Sales enquiries:

Important Information

Certification

This fire is certificated to the current issue of BS6332 part 2, invoking the current issue of BS5258 part 5 for safety and performance.
It is, therfore, important that no alteration is made to the fire, without permission, in writing, from Hepworth Heating Ltd.

Any alteration that is not approved by Hepworth Heating Ltd., could invalidate the certification, the warranty and could infringe the
statutory requirements.

CE Mark

The CE mark on this appliance shows compliance with:

1. Directive 90/396/EEC on the approximation of the laws of the Member States relating to appliances burning gaseous fuels.

2. Directive 73/23/EEC on the harmonization of the Laws of the Member States relating to electrical equipment designed for use
within certain voltage limits.

INFORMATION FOR THE INSTALLER AND SERVICE ENGINEER.

Under Section 6 of the Health and Safety at Work Act 1974, we are required to provide information on substances hazardous to health.

The Adhesives and sealants used in this appliance are cured and give no known hazard in this state.

RADIANTS

After handling wash hands thoroughly.

INSULATION PADS/CERAMIC FIBRE, GLASSYARN, SEALANT

These can cause irritation to skin, eyes and the respiratory tract.

If you have a history of skin complaint you may be susceptible to irritation. High dust levels are usual only if the material is broken.

Normal handling should not cause discomfort, but follow normal good hygiene and wash your hands before eating, drinking or
going to the lavatory.

If you do suffer irritation to the eyes or severe irritation to the skin seek medical attention.

SERVICING

REMEMBER, When replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and
performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by Hepworth
Heating Ltd.

CONTENTS DESCRIPTION SECTION PAGE No.

Safety 3
Introduction 3

INSTRUCTIONS

FOR USE

INSTALLATION

INSTRUCTIONS

Maintenance/Servicing/Cleaning 3
Operating your Boiler & Fire 4
Lighting the Boiler & Fire 5
Replacement Parts 6

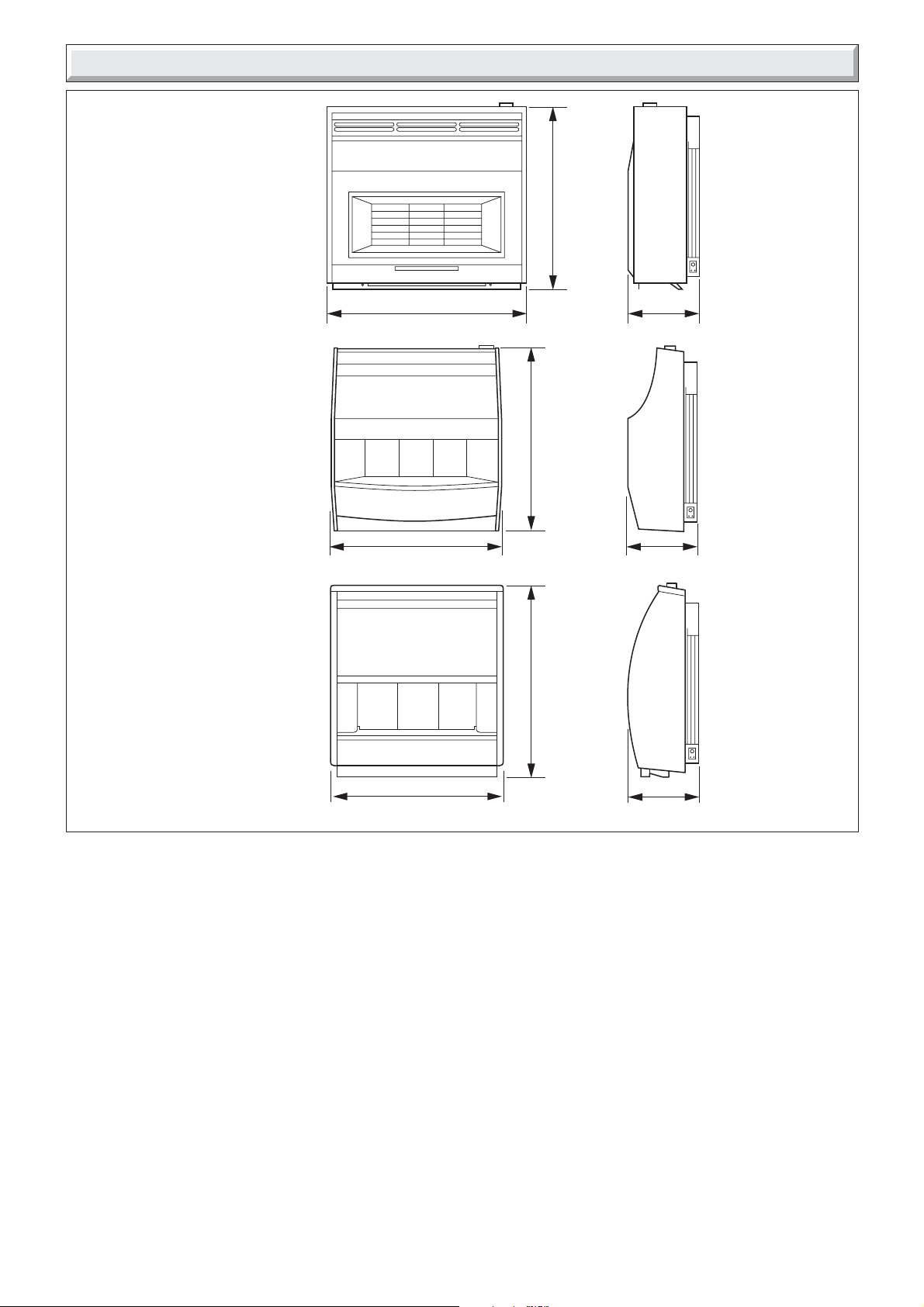

General Data 1 7/8
Types of Installation 2 8/9
Flue and Ventillation 3 9
Fire Front Preperation 4 9
Installation 5 11/12
Controls & Pressure Checks 6 13
Spillage Check 7 14
Final Review 8 14

SERVICING

INSTRUCTIONS

Servicing and Replacement of Parts 9 15
Fault Finding 10 17

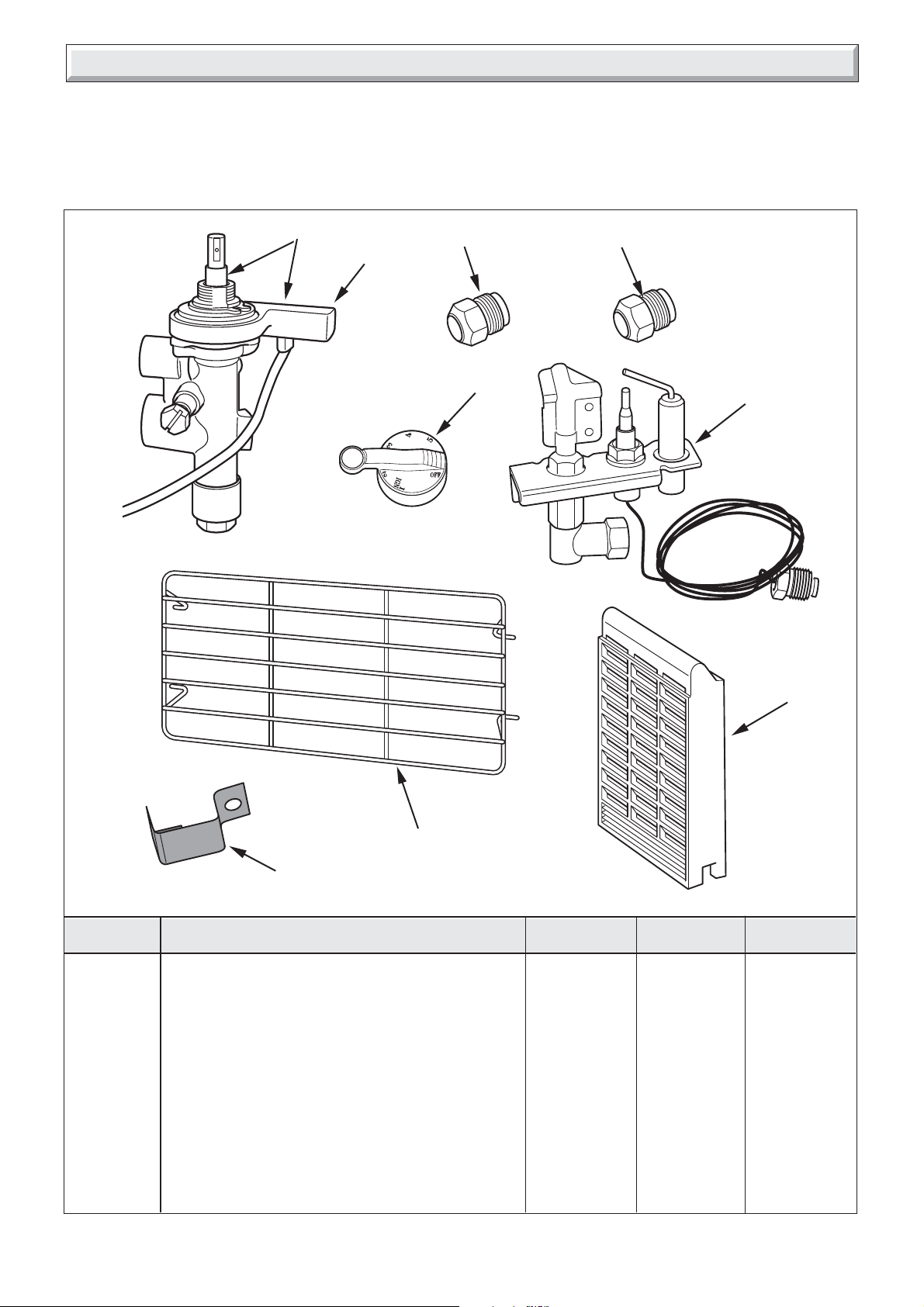

Spare Parts 11 19

2221904D

Instructions for Use

IF YOU SMELL GAS

DON'T SMOKE.

EXTINGUISH ALL NAKED FLAMES.

DON'T TURN ELECTRICAL SWITCHES

ON OR OFF.

TURN OFF THE GAS SUPPLY AT THE METER.

OPEN DOORS AND WINDOWS TO GET

RID OF THE GAS.

IMMEDIATELY CALL THE GAS EMERGENCY

SERVICE.

Advice/help should be obtained from your installation/

servicing company or the local gas undertaking.

Notes and General Information

These instructions should be read and carefully followed for the
safe and economical use of your appliance.

These gas fire fronts are to be used with specially designed
Glow-worm 45/4 & 54/4 Back Boiler Units only.

The fire front and back boiler must be installed as a complete
unit.

The boiler and fire can be operated together or independently.

Important Notice

This appliance is for use on natural gas (G20) as distributed in
the United Kingdom and Ireland and must not be used on any
other gas.

A slight smell may occur for a short time after initial lighting, this
is quite normal and with use it will quickly disappear.

Combustible furniture or materials must not be placed closer
than 1m (39in) in front of the fire front.

Soft wall coverings(e.g. embossed vinyl, etc.) which have a
raised pattern, are easily affected by heat. They may, therefore,
scorch or become discoloured when close to a heating appliance.
Please bear this in mind whenever you are considering
redecorating

The convection air openings at the top of the fire front and air
inlet grilles at the sides and base must never be restricted.

Never use the fire with damaged radiants.

The Gas Safety (Installation and Use)
Regulations

In your interests and that of safety it is the Law that ALL gas
appliances are installed by a competent person in accordance
with the current issue of the above regulations.

Dress Guard

The dress guard on this fire front satisfies the current issue of
Heating Appliances, Fireguards, Regulations and conforms to
the current issue of BS1945.

The guard is to prevent risk of injury from burns and should be
replaced immediately after removal for cleaning.

This guard does not give full protection for the young, elderly or
infirm. In such cases fit an approved guard which complies with
the current issue of BS6539 "Fireguards and the use with Solid
Fuel Appliances" or the current issue of BS6778 "Fireguards
with portable, free standing or wall mounted appliances".

Maintenance

To ensure the continued efficient and safe operation of the
appliance it is recommended that it is checked and serviced as
necessary at regular intervals. The frequency of servicing will
depend upon the particular installation and usage, but in general
once a year should be enough.

If this appliance is installed in a rented property there is a duty
of care imposed on the owner of the property by the current
issue of the Gas Safety (Installation and Use) Regulations,
Section 35.

It is the law that servicing must be carried out by a competent
person.

Please be advised that the ‘Benchmark’ logbook (supplied with
the Back Boiler Unit) should be completed by the installation
engineer on completion of commissioning and servicing.

All CORGI Registered Installers carry a CORGI ID card, and
have a registration number. Both should be recorded in your
boiler Logbook. You can check your installer is CORGI registered
by calling CORGI direct on :- 01256 372300.

Servicing

In the United Kingdom servicing can be carried out either by a
Heatcall Service engineer or a CORGI registered installer.

If you require your appliance to be serviced, please contact
Heatcall on [phone] and quote the following details;

Model name and Serial numbers.
Fire front-positioned bottom right inside of the case.

Back Boiler-positioned on the base of the boiler next to the
control box

If you wish to replace any radiants and do not know where they
can be obtained please contact Hepworth Heating on (01773)
824141 or your nearest stockist.

In the United Kingdom, for general advice about gas and your
gas fire contact Hepworth Heating Ltd.

Electrical Supply

WARNING. The appliance must be earthed.

Connection of the appliance and any system controls to the
mains (230V-50Hz) must be through a 3A fused double pole
isolating switch, having a minimum double pole contact
separation of 3mm, serving only the boiler and system controls.

The colours of three core flexible cable are, Brown - live, Blue

- neutral, Green and Yellow - earth.

Cleaning

Turn the fire off and allow it to cool before attempting any
cleaning.

Normally the fire will only need dusting. The bright metal trims
may be cleaned with a damp cloth and dried with a soft duster.

Obstinate marks can be removed from the guard and trims
using soapy water. Never use abrasive cleaners.

The radiants can be cleaned with a soft brush - see diagram 7,8
& 9 which shows how to remove the dressguard and radiants.

Frost

If the boiler is to be out of use for any long time during severe
weather conditions we recommend that the whole of the system,
including the boiler be drained off to avoid the risk of freezing up.

If fitted, switch off the immersion heater in the domestic hot
water cylinder.

If you are in any doubt your installation or servicing company or
the local gas undertaking should be contacted.

3

221904D

Instructions for Use

Clearance

A shelf or surround of a maximum depth of 150mm may be
fitted, provided that clearances above and at the sides of the fire
front are as shown in diagram 1. For a shelf made from wood or
other combustible materials deeper than 150mm add 12.5mm
for every 25mm of shelf depth over 150mm.

On no account must a carpet or other combustible material be
laid directly under the fire, unless the minimum clearances
shown in diagram 2, is achieved.

The dimension is taken from the bottom of the fire case to the
top of the carpet pile or other floor covering.

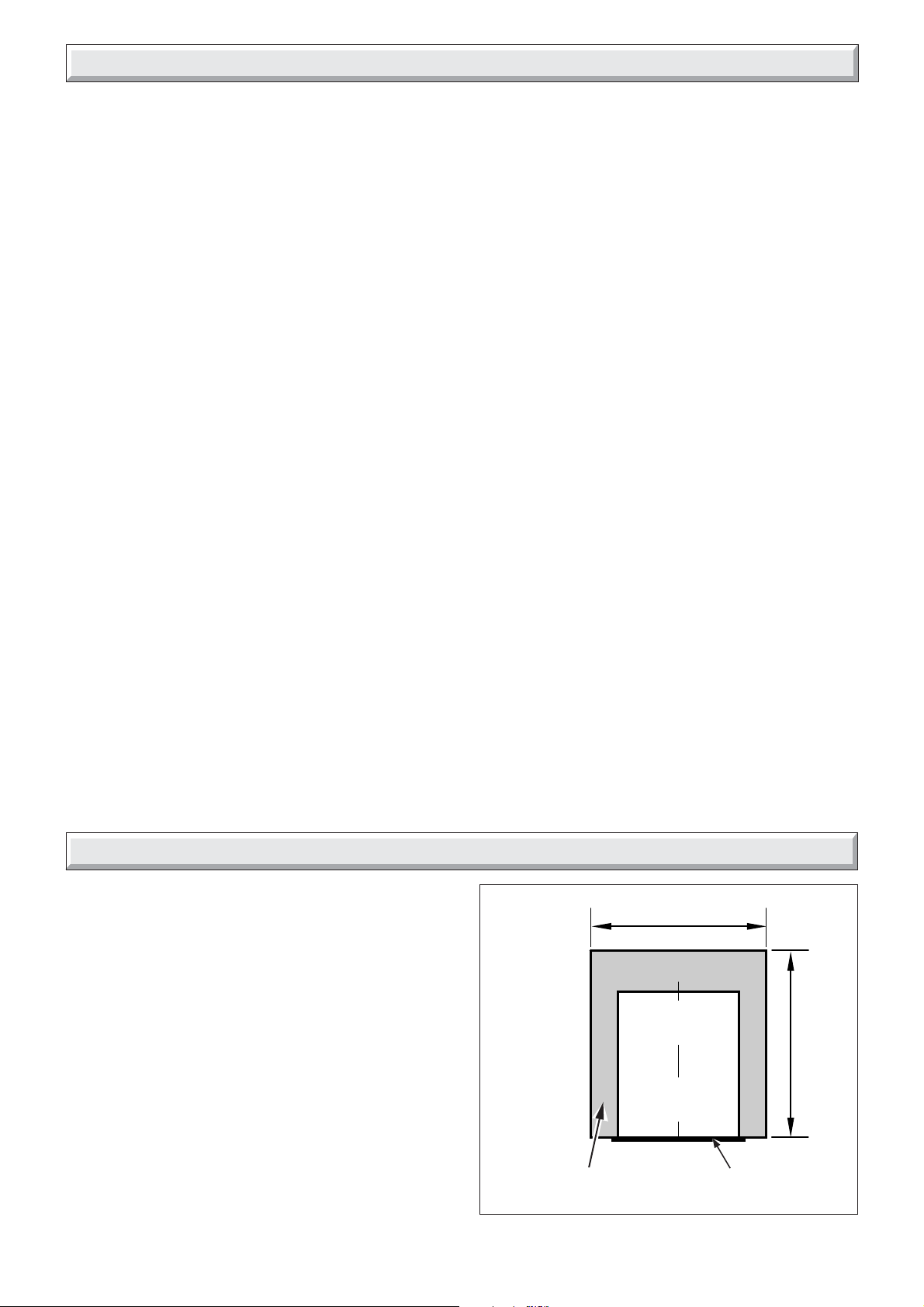

Hearth

A fire proof hearth under the fire front must have the minimum
dimensions as shown in diagram 3.

75mm

75mm

150mm

9459

OPERATING YOUR BOILER AND FIRE

Safety Device

BOILER

device which will shut down the appliance in the event of
abnormal flue conditions. This device is NOT a substitute for an
independently mounted Carbon Monoxide detector.

FIRE FRONT

shut it down if there is a lack of oxygen it also incorporates a
probe which senses that the heat from the pilot flame is correct.
If the probe is cool, the device will prevent any gas flow unless
the control knob is held down at the ignition position.

If, for any reason, the flames go out when the fire is hot or if the
fire is turned off when hot, always wait at least three minutes
before attempting to relight.

If the boiler and/or fire shuts down frequently for no apparent
reason the first things to be checked are the chimney and air
inlets into the room.

Any problems found must be put right, by a competent person,
before the appliance is used again.

- This appliance is fitted with a flue blockage safety

- The fire is fitted with a safety device which will

9460

FROM NON-COMBUSTIBLE MATERIAL

MIAMI ILLUSTRATED

50mm

Diagram 1

50mm

9458

300mm

710mm

13mm NON-COMBUSTIBLE

MATERIAL

MINIMUM HEARTH DIMENSIONS

MAXIMUM

50mm

Diagram 3

CONTROL
THERMISTOR
KNOB 'A'

RESET
POSITION

MINIMUM

BURNER ON
NEON (GREEN)

9918

CARPET OR COMBUSTIBLE
MATERIAL CLEARANCE

Diagram 2

BOILER USER CONTROL

4221904D

RESET NEON
(RED)

Diagram 4

Instructions for Use

Lighting the boiler

The boiler control is situated at the bottom of the R/H louvre of
the fire front.

Refer to diagram 4 to identify the boiler control.

See that all other controls are calling for heat.

The clock, room thermostat and programmer, if fitted, will
probably be some distance from the unit.

To see how these items work and need to be set, read the
manufacturers instructions supplied with them.

Turn the control thermistor knob “A” so that the pointer is
between maximum and minimum, "O" on the boiler user
control, see diagram 4.

Switch on electrical supply to the back boiler.

There will be a purge for approximately 30 seconds.

NOTE: If the electrical supply is switched rapidly off and on
without gas present the control will purge for 100 sec. Neither
of the indicators will be lit. The appliance will then operate
correctly.

The boiler will automatically light.

This is indicated by a green light on the boiler user control
coming on, see diagram 4.

Note: Should the red light on the boiler user control come on,
it indicates that the pilot light is not operating correctly, or the
flue blockage safety device has been activated.

When the fault has been corrected, turn the control thermistor
knob “A” fully anti-clockwise so that the pointer is against the
“Reset” position on the boiler user control panel,

NO ATTEMPT SHOULD BE MADE TO RELIGHT THE BOILER
UNTIL ANY FAULT HAS BEEN CORRECTED. EXPERT
ADVICE SHOULD BE SOUGHT.

Adjust the control thermistor knob to the required setting
between the minimum, "O" and maximum position.

Maximum is approximately 82

The temperature of the hot water cylinder should be periodically
raised to 60oC.

Check that all external controls are also set to your requirements.

If the burner goes out for no apparent reason it is IMPORTANT
that the advice given under “Safety Device” is followed.

o

C.

see diagram 4.

For longer periods, turn the control thermistor knob “A” to
“Reset” position. Switch off the electrical supply to the boiler.

To relight follow the full lighting instructions given above.

Lighting the fire

Please note

When operating your fire for the first time, some vapours may
be given off which may cause a slight odour and could possibly
set off any smoke alarms in the immediate vicinity. These
vapours are quite normal with new appliances. They are totally
harmless and will disappear after a few hours.

To light the fire

The control is shown in diagram 5.

Depress the control knob and turn anticlockwise towards the 1/
IGN position, two audible clicks will be heard. A spark should
be generated at the pilot while turning. The spark should ignite
the pilot. The pilot flame can be seen through the opening
immediately below the centre radiant, see diagram 6.

If the pilot does not light, turn the knob back to OFF and try
again.

In the unlikely event of failure of the ignition mechanism the pilot
can be lit with a long match or taper.

When the pilot has lit keep the knob depressed for about ten
seconds to allow the flame sensing probe to warm up.

The control knob can then be set to your preferred heat level.
The settings are:

Knob Radiants Condition
Position

2 Centre radiant on low. Outer radiants off.

3 Centre radiant fully on. Outer radiants off.

4 Centre radiant fully on. Outer radiants on low.

5 All radiants fully on.

To turn off partially depress the knob and turn clockwise to off.
Wait at least three minutes before attempting to relight.

To turn the boiler off

For short periods, turn the control thermistor knob “A” fully anti­clockwise so that the pointer is against the “Reset” position on
the boiler user control, see diagram 4.

To relight the main burner turn control thermistor knob “A”
clockwise to the desired setting between the minimum, "O" and
maximum position.

MIAMI ILLUSTRATED

Diagram 5

9481

MIAMI ILLUSTRATED

5

9422

Diagram 6

221904D

Instructions for Use

Lighting with a match or taper

Depress the control knob and turn anticlockwise towards the
1/IGN position.

While keeping the knob depressed, light the pilot by inserting a
long match or taper into the pilot viewing opening
(See diagram 6 ).

When the pilot is alight, keep the knob depressed for about ten
seconds to allow the flame sensing probe to warm up before
setting to your preferred heat level.

For your own convenience, have the fire serviced as soon as
possible.

To Turn Off

Push gas tap knob in and fully clockwise to "Off".

Replacing the radiants

Turn the fire off and allow it to cool before attempting to remove
the radiants.

For Miami remove the dress guard by holding the outer edge
and flexing the centre outwards to release the upper and lower
locating pins, see diagram 7.

For Firelite & Contour remove the dress guard by pressing down
the two hooks at the top. Tilt the guard forward and lift out, see
diagram 7.

Lift the centre radiant from the bottom and withdraw forwards,
move the other radiants to the centre and remove in a similar
way, see diagram 8.

To replace, insert top of radiant first, then the bottom and lower
into position, see diagram 9.

Replace the dress guard.

It is suggested that the position of the radiants be changed from
time to time.

LOCATION PINS

MIAMI

FIRELITE & CONTOUR

Diagram 7

To exchange a radiant first ensure the fire is cold and
remove dressguard.
Lift up the radiant at the bottom and withdraw forward.

1678

9401

0723

Replacement Parts

If replacement parts are required apply to your local supplier.

Please quote the name of the appliance and Part No. required.

Diagram 8

9426

RADIANTS TO
TOUCH REAR RIB

Diagram 9

6221904D
