Glow-worm Hideaway 60, Hideaway 50, Hideaway 40 Instructions For Use Installation And Servicing

Hepworth Heating Ltd.,

Nottingham Road, Belper, Derbyshire. DE56 1JT

General/Sales enquiries:

Tel: [phone] Fax: [phone]

One Contact Local Service

Customer Services:
Tel: [phone]
Fax: [phone]

221809B.12.00

All replacement parts
All labour charges
All call-out charges

Guarantee Registration

Hideaway 60

Open Flue Boiler

This is a Cat I2H Appliance

BS 6332
BS 5258

Reference in these instructions to British Standards and Statutory

Regulations/Requirements apply only to the United Kingdom.

For Ireland the rules in force must be used.

T o be left with the user

1037

❏

✔

❏

✔

❏

✔

Instructions for Use

Installation and Servicing

G.C. No. 41 313 13

REGISTER YOUR GLOW-WORM APPLIANCE

FOR 1ST YEAR GUARANTEE PROTECTION

CALL 0208 247 9857

Thank you for installing a new Glow-worm appliance in your home.

Glow-worm appliances' are manufactured to the very highest standard so we are pleased

to offer our customers' a Comprehensive First Year Guarantee.

In the center pages are to be found your Guarantee Registration Card, which we recommend you complete and

return as soon as possible.

If this card is missing you can obtain a copy or record your registration by telephoning the Heatcall Customer

Service number 01773 828100.

Our Guarantee gives you peace of mind plus valuable protection against breakdown by covering the cost of:

The instructions consist of three parts, User, Installation and Servicing Instructions, which includes the Guarantee Registration

Card. The instructions are an integral part of the appliance and must, to comply with the current issue of the Gas Safety

(Installation and Use) Regulations, be handed to the user on completion of the installation.

2

221809B

Notes and General Information

Please read these instructions and follow them carefully for the
safe and economical use of your boiler.

The boiler is automatic in operation, once the pilot is lit and the
controls have been set.

Glow-worm Hideaways’ are central heating boilers, to provide
heating and if required an indirect domestic hot water supply.

Important Notice

This boiler is for use only on G20 gas.

Gas Safety (Installation and Use) Regulations

In your own interests and that of safety, it is the Law that ALL gas
appliances are installed by a competent person in accordance
with the current issue of the above regulations.

CE Mark

This boiler meets the requirements of Statutory Instrument, No.
3083 The Boiler Efficiency Regulations, and therefore is deemed
to meet the requirements of Directive 92/42/EEC on the efficiency
requirements for new hot water boilers fired with liquid or
gaseous fuels.

Type test for purposes of Regulation 5 certified by:

Notified body 0086.

Product/production certified:

Notified body 0086.

The CE Mark on this appliance shows compliance with:

1. Directive 90/396/EEC on the approximation of the Laws of
the Member States relating to appliances burning gaseous
fuels.

2. Directive 73/23/EEC on the harmonization of the Laws of the
Member States relating to electrical equipment designed for
use within certain voltage limits.

3. Directive 89/336/EEC on the approximation of the Laws of
the Members States relating to electromagnetic
compatibility.Information for the Installer and Service Engineer.

Control of Substances Hazardous to Health

Under Section 6 of The Health and Safety at Work Act 1974, we
are required to provide information on substances hazardous to
health.

The adhesives and sealants used in this appliance are cured
and give no known hazard in this state.

Insulation Pads/Ceramic Fibre, Glassyarn

These can cause irritation to skin, eyes and the respiratory tract.
If you have a history of skin complaint you may be susceptible

to irritation. High dust levels are usual only if the material is
broken.

Normal handling should not cause discomfort, but follow normal
good hygiene and wash your hands before eating, drinking or
going to the lavatory.

If you do suffer irritation to the eyes or severe irritation to the skin
seek medical attention.

Boiler Thermostat

These contain very small amounts of xylene in the sealed phial
and capillary. If broken, under normal circumstances the fluid
does not cause a problem, but in cases of skin contact, wash
with cold water.

If swallowed drink plenty of water and seek medical attention.

Important Information

Introduction 3
Lighting the Boiler 4

General Data 1 5
Water Systems 2 7
Flue and Ventilation 3 8
Installation 4 9
Casing Location 5 11
Electrical Wiring 6 11
Commissioning 7 12

Servicing 8 15
Replacement Parts 9 17
Fault Finding 10 20
Spare Parts 11 24

CONTENTS DESCRIPTION SECTION PAGE No.

INSTRUCTIONS

FOR USE

INSTALLATION

INSTRUCTIONS

SERVICING

INSTRUCTIONS

3 221809B

Warning

Make sure that nothing obstructs the rear side grilles or
clearances. See diagram 1.2 and 1.3 for minimum clearances.

Boilers Installed in a Compartment

If the boiler is fitted in a compartment, cupboard etc., do not
obstruct the purpose built compartment vents or grille on the
boiler.

Do not use the compartment for storage purposes.

Maintenance

To ensure the continued efficient and safe operation of the
boiler it is recommended that it is checked and serviced at
regular intervals. The frequency of servicing will depend upon
the particular installation conditions and usage, but in general
once a year should be enough.

If this appliance is installed in a rented property there is a duty
of care imposed on the owner of the property by the current
issue of the Gas Safety (Installation and Use) Regulations,
Section 35.

It is the law that servicing is carried out by a competent person.
To obtain service please call your installer or Heatcall (Glow-

worm’s own service organisation) using the telephone number
given on the inside of the front panel.

Please be advised that the ‘Benchmark’ logbook should be
completed by the installation engineer on completion of
commissioning and servicing.

All CORGI Registered Installers carry a CORGI ID card, and
have a registration number. Both should be recorded in your
boiler Logbook. You can check your installer is CORGI registered
by calling CORGI direct on :- 01256 372300.

Boiler Electrical Supply

WARNING. This boiler must be earthed.
The boiler must only be connected to a 240V~50Hz supply,

protected by a 3A fuse, maximum.
All wiring must be in accordance with the current issue of

BS7671.
Heat resistant cable having a conductor size of 0.75mm

2

, (24/

0.22mm), to BS6500 Table 16 must be used.

To Connect an Electrical Plug

The colours of three core flexible cable are, Brown - live, Blue

- neutral, Green and yellow - earth.
As the markings on your plug may not correspond with these

colours continue as follows:
The wire coloured brown must be connected to the terminal

marked “L” or Red.
The wire coloured blue must be connected to the terminal

marked “N” or Black.
The wire coloured green and yellow must be connected to the

terminal marked “E”, Green or the earth symbol

.

SETTING
POINTS

FLUE
BLOCKAGE
SAFETY
DEVICE
RESET
BUTTON

60 OPEN FLUE

SETTING
POINT

GAS CONTROL
KNOB 'A'

THERMOSTAT
CONTROL
KNOB 'B'

E

0938

PIEZO
IGNITION
BUTTON
'C'

Diagram 1

Instructions for Use

GAS CONTROL KNOB

= OFF
= PILOT/IGNITION
= MAIN BURNER

4

221809B

Safety Device

This appliance is fitted with a flue blockage safety device which
will shut down the appliance in the event of abnormal flue
conditions. This device is NOT a substitute for an independently
mounted Carbon Monoxide detector.

The safety device is reset, after three minutes, by pushing in the
button shown in diagram 1.

Shut down can occur during certain climate conditions, but if it
recurs the chimney flue and air inlet into the room must be
checked and any problems found corrected by a competent
person, before the boiler is used again.

To Light the Boiler

WARNING. If the pilot light goes out for any reason, do not
attempt to relight until three minutes have gone by.

Remove the door by pulling forwards with the fascia at the top.
Lift up to free from bottom side lugs.

Refer to diagram 1 to identify the controls.
Check that the mains electrical supply to the boiler is switched

OFF.
Check that the Flue Blockage Safety Device has not operated,

that is, the button is in. Refer to Safety Device instructions.
Push in slightly and turn gas control knob “A” clockwise until

'

'is against its setting point.

Turn thermostat control knob “B” anticlockwise until “O” is
against its setting point.

Push in slightly and turn gas control knob “A” anticlockwise until
'

' is against its setting point, then push fully and hold in.

Push and release piezo ignition button “C” until the pilot burner
lights.

Air may be present in the supply pipe so the lighting of the pilot
may need to be repeated until all the air has been expelled.

When the pilot is alight, view through window “E”, keep gas
control knob “A” fully pushed in for about 15 seconds, then
release.

If the burner fails to stay alight, wait three minutes, then repeat
the lighting procedure only now keep control knob “A” depressed
for a little longer before releasing. The Flue Blockage Safety
Device may also need resetting, refer to instructions above.

If the gas control knob “A” is turned to '

', a safety lock
prevents it being turned on again for a short period. No attempt
should be made to relight the pilot for at least three minutes.

Make sure that the pilot is alight and stable, then switch on the
electrical supply.

Press in and turn gas control knob “A” anticlockwise until '

'

is against its setting point.
Set any remote controls to call for heat.
Turn the boiler thermostat knob “B” clockwise until “MAX” is

against its setting point and the main burner will light. Adjust
thermostat to required setting between “MIN” and “MAX”.
“MAX” is about 82

o

C (180oF).

Refit the door by fitting the hooked runner at the bottom into the
slot in the side panels and pushing onto the studs.

To Turn the Boiler Off

For short periods. Turn the boiler thermostat control knob “B”
anticlockwise to “O”. The pilot will remain alight. To relight the
main burner turn the thermostat control knob “B” clockwise to
the desired setting between “MIN” and “MAX”.

For longer periods. Push in slightly and turn gas control knob
“A” fully clockwise until “

” is against its setting point. Turn
thermostat control knob “B” anticlockwise to “O”. Isolate the
boiler from the electrical supply. Follow the full lighting procedure
to relight.

Refer also to “Protection Against Freezing”.

Gas Leak or Fault

If a gas leak or fault exists or is suspected the boiler must be
turned off, including the electrical supply and must not be used
until the fault has been put right. Advice/help should be obtained
from the local gas undertaking or your installation/servicing
company.

Protection Against Freezing

If the boiler is to be out of use for any long period of time during
severe weather conditions we recommend that the whole of the
system including the boiler, be drained off to avoid the risk of
freezing up. If an immersion heater is fitted in the domestic hot
water cylinder make sure it is switched off.

Sheet Metal Parts

WARNING. This appliance contains metal parts (component)
and care should be taken when handling and cleaning, with
particular regard to edges.

Cleaning

Keep the casing clean by wiping it over occasionally with a
damp soapy cloth and dry with a polishing cloth.

Do not use abrasive cleaners.

Replacement Parts/Boiler Identification

If replacement parts are required apply to your local supplier or
gas undertaking. Please quote the name of the boiler and its
serial number which can be found on the data label positioned
on the boiler top, to the rear of the inclined flueway cleaning
door.

Clearance

Minimum clearances must be left around the boiler as shown in
diagram 1.2 and 1.3.

Instructions for Use

5 221809B

Diagram 1.1

GENERAL DIMENSIONS - given in millimetres (Approx. inches)

RANGE RATING

HIDEAWAY 60

NOMINAL

kW

HEAT INPUT
(GROSS)

Btu/h

18.79 19.97 21.15

64,100 68,140 72,160

min medium max

BURNER

mbar

SETTING
PRESSURE

in.w.g

(HOT)

10.0 11.2 12.4

4.0 4.5 5.0

NOMINAL

kW

HEAT
OUTPUT

Btu/h

14.65 15.68 16.7

50,000 53,000 57,000

3.9mm - 205751

1 General

ABCDE FGHJK LMN

mm 300 118 598 294 265 533 3 300 445 121 88 900 115
in. 113/445/8231/2111/2101/2211/8113/4171/243/431/2351/241/

2

INJECTOR

Sheet Metal Parts

Warning. When installing or servicing this boiler care should be
taken when handling sheet metal parts, to avoid the possibility
of personal injury.

Important Notice

This boiler is for use only on G20 gas.
Wherever possible, all materials, appliances and components

to be used shall comply with the requirements of British
Standards.

Where no British Standards exist, materials and equipment
should be fit for their purpose and of suitable quality and
workmanship.

1.1 Data

Approx.weight of boiler: 76kg (168 lb)
Water content: 5.76litre (1.27 gal)
Gas connection: Rc1/2(1/2 BSP)
Water connection: Rc1 (1inch BSP)
Electrical supply: 240V - 50Hz fused at 3A
Burner: Aeromatic

The Seasonal Efficiency Domestic Boilers UK (SEDBUK) is

71.3%.
The value is used in the UK Government’s Standard Assessment

Procedure (SAP) for energy rating of dwellings. The test data
from which it has been calculated have been certified by B.S.I.

1.2 Range Rating

This boiler is range rated and may be adjusted to suit individual
systems. The table gives settings and outputs.

The boiler input is supplied preset to maximum and should be
adjusted to suit system requirements.

WATER CONNECTIONS
Rc1 (1in. B.S.P.T.)

✽ INSIDE DIAMETER OF

SOCKET FOR 100mm (4in.)
NOMINAL DIAMETER FLUE
TO BS567

WATER CONNECTIONS Rc1
reduced with DISTRIBUTOR
TUBE to Rc

3

/

4

(

3

/

4

in. B.S.P.T.)

(pumped return)

GAS CONNECTION
Rc

1

/

2

(

1

/

2

in. B.S.P.T.)

✝ A SPECIAL TOP CASING

TO SUIT 600mm (23

5

/

8

in.)

WORKTOPS IS AVAILABLE

0993

F (MIN)

D

FLUE

C

E

B

C

L

A

M

C

L

L (MIN)

G
(MIN)

J (MIN)

H

N

*

FLUE

K

(MIN)

1.3 Statutory Requirements

The installation of this boiler must be carried out by a competent
person in accordance with the relevant requirements of the
current issue of:

Manufacturer’s instructions, supplied.
The Gas Safety (Installation and Use) Regulations, The Building

Regulations, Local Water Company Byelaws, The Building
Standards (Scotland) Regulations, applicable in Scotland, The
Health and Safety at Work Act, The Control of Substances
Hazardous to Health, The Electricity at Work Regulations and
any applicable local regulations.

Detailed recommendations are contained in the current issue of
the following British Standards and Codes of Practice:

BS6798, BS5440 Part 1 and 2, BS5449, BS6700, BS6891,
BS5546, BS7478, BS7593, BS7671.

Manufacturer’s instructions must not be taken as overriding
statutory requirements.

6

221809B

1 General

1.4 B.S.I. Certification

This boiler is certificated by B.S.I. for safety and performance.
It is, therefore, important that no alteration is made to the boiler
unless approved, in writing, by Hepworth Heating Ltd.

Any alteration not approved by Hepworth Heating Ltd., could
invalidate the B.S.I. certification, boiler warranty and could also
infringe the statutory requirements.

1.5 Gas Supply

The gas installation shall be in accordance with the current
issue of BS6891.

The supply from the governed meter must be of adequate size
to provide a steady inlet working pressure of 20mbar (8in wg) at
the boiler.

On completion test the gas installation using the pressure drop
method and suitable leak detection fluid, purge in accordance
with the current issue of BS6891.

1.6 Electrical

Warning. This boiler must be earthed.
The electrical installation must be carried out by a competent

person. All external components must be of the approved type
and must be connected in accordance with the current issue of
BS7671 and any local regulations which may apply.

Connection of the boiler and any system controls to the mains
supply should be through a 3A fused double pole isolating
switch, having a minimum double pole contact separation of
3mm, serving only the boiler and system controls.

Heat resistant flexible cable of at least 0.75mm

2

, to the current
issue of BS6500 Table 16 must be used for all connections
within the boiler casing.

1.7 Boiler Location

The boiler must not be installed in a room used or intended to
be used as sleeping accommodation or a room containing a
bath or shower.

This boiler is not suitable for installation out of doors.
The boiler must stand on a level floor, conforming with local

authority requirements and building regulations. The base
temperature is within the requirements of the current issue of
BS5258. The boiler may be stood on a wooden floor but a metal
plate is required to protect plastic tiles and similar floor coverings.

Suitable clearance needs to be available at the sides of the
boiler to ease connection of pipework. The actual clearances
will vary according to site conditions.

When the boiler is to be installed level with work surfaces,
minimum clearances to fixtures, walls and the like should be
provided, see diagram 1.2.

To ease minimum clearances it may be necessary to modify
units or fixtures.

A front access clearance should be provided as shown in
diagram 1.3.

The minimum gap behind the top casing is dimension “G” in
diagram1.1. The boiler can be sited further away from the wall
if required to align with kitchen units.

Combustible wall material must be 25mm (1in) away from flue
components.

A special top casing, part number 424858 can be bought, to
enable boiler casings to be arranged flush with 600mm (23

5

/8in)

deep worktops.
Where the installation of the boiler will be in an unusual location,

special procedures may be necessary, the current issue of
BS6798 gives detailed guidance on this aspect.

A compartment used to enclose the boiler must be designed
and constructed specifically for this purpose. An existing
cupboard or compartment modified for the purpose may be
used. Details of essential features of cupboard and compartment
design are given in the current issue of BS6798.

Make sure that nothing will obstruct the side clearances or side
grilles. If installing the boiler in a compartment make sure that
openings and vents are not obstructed.

1.8 Heating System Controls

The heating system should have installed: a programmer and
room thermostat controlling the boiler.

Thermostatic radiator valves may be installed in addition to the
room thermostat.

Note: For further information, see The Building Regulations
1991 - Conservation of fuel and power, 1995 edition - Appendix
G, table 4b.

TOP & SIDE CLEARANCES

Diagram 1.2

Diagram 1.3

FRONT CLEARANCE

530 (21in.)

WALL OR
FIXTURE

0911

BOILER

1020

6
(

1

/

4

in.)

6
(

1

/

4

in.)

254
(10 in.)

20 (

3

/

4

in.)

CUPBOARD

CUPBOARD BOILER

20 (

3

/

4

in.)

WORKTOP

WORKTOP

7 221809B

PRESSURE LOSS OF BOILER

Diagram 2.3

Diagram 2.2

Diagram 2.1

FULLY PUMPED SYSTEM
(DIAGRAMMATIC)

0869

0870

0872

27metres
Max.

PUMP

To Heating
Circuit

INDIRECT
CYLINDER
(Shown with
recommended
thermostat and valve).

22mm VENT

15mm COLD FEED

REFER TO BS 5546

28mm

Distributor tube in
pumped return
connection

BOILER
C

L

DRAIN OFF
COCK

PUMPED HEATING AND GRAVITY
DOMESTIC (DIAGRAMMATIC)

1 metre
MIN.
27metres
MAX.

PUMP

To Heating
Circuit

TO INDIRECT
CYLINDER

22mm VENT

15mm
COLD FEED

Distributor tube in
pumped return
connection

BOILER
C

L

DRAIN OFF
COCK

600
500
400
300
200
100

0

12

8
4
0

0

4

812

16 20 24 28

FLOW RATE (LITRES/MINUTE)

WATER PRESSURE LOSS

(mm HEAD OF WATER)

WATER PRESSURE LOSS

(INCHES HEAD OF WATER)

24

16

800

32
28

20

700

0123456

FLOW RATE (GALLON/MINUTE)

2.1 Water Pressure Head

This boiler must not be connected to a sealed water system.
This boiler shall only be connected to an open vented cistern

water supply, with a minimum head of 1metre (39in) and a
maximum of 27metre (90ft).

2.2 Inhibitor

Attention is drawn to the current issue of BS5449 and BS7593
on the use of inhibitors in central heating systems.

If an inhibitor is to be used in the system contact should be made
with a manufacturer so that they can recommend their most
suitable product.

If using in an existing system take special care to drain the entire
system, including the radiators, then thoroughly cleaning out
before fitting the boiler, whether or not adding an inhibitor.

2.3 Gravity Domestic Hot Water and Pumped
Central Heating

It is recommended that a cylinder thermostat is used to prevent
the stored water temperature becoming too high when the
heating pump is off.

The domestic hot water primary flow and return must be 28mm
od. The installation must comply with the current issue of
BS5546 and BS6700, see diagram 2.1.

If the above conditions cannot be met, it is suggested that a fully
pumped system is used.

2.4 Pumped Central Heating and Domestic Hot
Water

Where a single flow and return is taken from the boiler, a
minimum static head of 1metre (39in) must be provided between
the water level in the cold water cistern and the centre of the
waterway, see diagram 2.2.

2.5 Circulation Pump

Normally the pump should be set to give a temperature difference
of 11

oC

(20oF), across the boiler. At the appropriate flow rate the
resistance through the boiler can be found by reference to the
pressure loss graph, diagram 2.3.

Use a pump with integral valves or fit valves as close to the
pump as possible.

2.6 Domestic Hot Water Cylinder

For all systems supplying domestic hot water the cylinder must
be indirect.

2.7 Safety Valve

A safety valve need not be fitted to an open vented system.

2.8 Draining Tap

A drain tap must be fitted at the lowest points of the system
which will allow the draining of the entire system, including the
boiler and domestic hot water cylinder.

2 Water Systems

8

221809B

Important Note

The boiler is fitted with a Flue Blockage Safety Device, which
will shut down the boiler if there is an unacceptable spillage of
products at the draught diverter.

This safety device MUST NOT under any circumstances be
interferred with or put out of action. The safety device must only
be replaced with the Glow-worm parts.

3.1 Flue

The integral draught diverter on the Hideaway range of boilers
makes the combustion performance independent of conditions
in the secondary flue, but in common with other fuels an efficient
flue is necessary to make sure of a trouble free installation.

The flue must be at least equivalent to 1m vertical.
The boiler flue socket is designed to take flue pipes to the

current issue of BS567. If a flue pipe to BS715 is to be used, an
adapter must be fitted to the boiler flue socket, as diagram 1.1.

The flue must be in accordance with the current issue of
BS5440 Part 1.

3.2 Flue Guidelines

The flue should be kept as short as possible. Horizontal or very
shallow runs of the flue should be avoided as they encourage
local cooling.

Always choose a flue route which will cause the least cooling of
the flue.

There should be a vertical rise of at least 600mm (2ft) before
using a bend. 90

o

elbows should not be used.

End with a certificated flue terminal, preferably above ridge
height, but at least above the eaves of a pitched roof.

An existing chimney must be thoroughly swept and all debris
cleared away before lining.

3.3 Timber Frame Buildings

If the boiler is to be installed in a timber frame building it should
be fitted in accordance with the Institute of Gas Engineers
document IGE/UP/7/1998. If in doubt seek advice from the local
gas undertaking or Hepworth Heating Ltd.

3.4 Ventilation for Boiler Installed in a Room
or Space

If the boiler is to be installed in a room or space a purpose
designed permanent ventilation opening, to supply air for
combustion, must be provided on an outside wall to external air,
refer to the current issue of BS5440 Part 2 for details.

The opening may be directly into the room or the space
containing the boiler, or an outside wall of an adjacent room or
space which has an internal permanent air vent, of the same
size, into the room or space containing the boiler.

Do not ventilate through a bedroom, bedsitting room, private
garage or a room containing a bath or shower.

When the boiler is installed in a room or internal space already
containing other fuel burning appliances then the air supply of
such appliances must be taken into account.

The ventilation opening areas are given in “Air Vent Table A”.
The figures quoted refer to the minimum acceptable effective
area.

3 Flue and Ventilation

3.5 Ventilation for Boilers Installed in a
Cupboard or Compartment

When the boiler is fitted in a cupboard or compartment, high and
low level purpose designed, permanent openings must be
provided to supply air for combustion and compartment
ventilation.

The air vents must have minimum areas in accordance with
“Compartment Air Vent B”. The figures quoted refer to the
minimum acceptable effective area.

Both the high and low level openings must communicate with
the same room, or must both be on the same wall to outside air.

If air vent grilles are fitted to a cavity wall, the opening through
the wall must be ducted.

Where ventilation air to a compartment is taken from a room or
space, then the room or space must be fitted with a ventilation
opening as specified in “Air Vent Table A”.

For information regarding compartment requirements refer to
the appropriate section of the current issue of BS6798.

3.6 Extract Fans

If an extract fan is fitted in the premises, there is a possibility that
if adequate inlet openings are not provided, spillage of the
products from the boiler could occur.

When openings are fitted in accordance with the current issue
of BS5440 Part 2 and this section, extract fans should not cause
down draught, but where such fan installations are found, a
spillage test must be carried out in accordance with the current
issue of BS5440 Part 1 and any corrective work done.

FROM
OUTSIDE

COMPARTMENT AIR VENT TABLE 'B'

COMPARTMENT
VENTILATION
REQUIREMENTS

205cm232in2409cm264in

2

103cm216in2205cm232in

2

VENTILATION
FROM ROOM
OR SPACE

HIGH LEVEL LOW LEVEL

VENT AREA VENT AREA

AIR VENT TABLE 'A' FOR

ROOM/SPACE INSTALLATIONS

EFFECTIVE
AREA OF VENT

cm

2

in

2

71
11

9 221809B

4 Installation

CASING BRACKETS FITTING

Diagram 4.1

1000

CAPTIVE
NUT

CASING
BRACKET

CAPTIVE
NUT

CASING
BRACKET

No.8 SCREW (8)

Before fitting the boiler make sure the location selected is in
accordance with the requirements of Section 1.7.

4.1 Unpacking

The boiler casing panels are packed separately within the main
case. They are designed to enable the gas and water connections
to be made before fitting the casing panels.

The main casing brackets, distributor tube and loose items, in a
plastic bag, are packed in the top fitment.

4.2 Casing Brackets

Fit the four casing brackets as shown in diagram 4.1, using eight
No.8 screws.

Push the captive nuts, supplied loose, on to the casing brackets
as shown in diagram 4.1.

4.3 Water Connections - Gravity Domestic Hot
Water and Pumped Heating

Fit suitable fittings into the boiler tappings, see diagram 4.2.
Connect pipework into prepared fittings, making sure that all

pipes are taken backwards and will clear the casings, see
diagram 1.1.

Heating flow, any one connection of the upper connections may
be used.

Gravity domestic hot water flow, any one connection of the
remaining upper connections may be used.

Heating return, the distributor tube MUST be fitted into either
one of the front lower connections on ALL installations, see
diagram 4.3. The distributor tube is packed in the top carton
fitment.

Gravity domestic hot water return, any one connection of the
three remaining lower connections may be used.

When the front connections are used it is essential that any
pipework or fittings do not stick out more than the amount shown
in diagram 4.4.

If limited space only is available, it is recommended that the front
connections are used.

Fit plugs into unused tappings.
Do not route any pipes across the front of the boiler thermostat

pocket, controls or the combustion chamber cover.
Pipework must not be routed directly below the draught diverter,

across the boiler, but may be routed under the edges of the
draught diverter.

4.4 Water Connections - Fully Pumped
Systems

It is important that all connections are made as shown in
diagram 4.5.

Fit suitable fittings into the boiler tappings as required, see
diagram 4.5.

The water distributor tube MUST be fitted into the return
connection, see diagram 4.3. The distributor tube is packed in
the top fitment.

Connect pipework into prepared fittings making sure that all
pipes are taken backwards and will clear the casings, see
diagram 1.1.

When the front connections are used it is essential that any
pipework or fittings do not stick out more than as shown in
diagram 4.4.

If only limited space is available, it is recommended that the front
connections are used.

DISTRIBUTOR TUBE

Diagram 4.3

Diagram 4.2

WATER CONNECTIONS - GRAVITY
DOMESTIC, PUMPED HEATING

ALTERNATIVE
HEATING
RETURN
With distributor
tube (not shown)

ALTERNATIVE
HEATING OR
DOMESTIC
HOT WATER
FLOW

GRAVITY
DOMESTIC
RETURN TO
ANY OF THE
3 REMAINING
LOWER CONNECTIONS

0873

0871

DISTRIBUTOR
TUBE
must be in
pumped return
connection

Notch on
DISTRIBUTOR must
lie within the shaded
area, BETWEEN
TWO MARKERS

MARKERS

10

221809B

Fit plugs into all unused tappings.
Do not route any pipes across the front of the boiler thermostat

pocket, controls or combustion chamber cover.
Pipework must not be routed directly below the draught diverter

across the boiler, but is allowed to be routed under the edges of
the draught diverter.

4.5 Pump in Boiler Casing

If the pump is to be fitted inside the boiler casing, position it as
shown in diagram 4.6 to either of the front connections.

There must be sufficient clearance “X” between the pump body
and the cleaning door to allow for removal of the door for flueway
cleaning.

4.6 Gas Connection

Do not route the gas supply across the combustion chamber or
burner feed pipe. The gas feed must be along the right hand
side of the boiler.

Make the gas connection to the gas service cock.

4.7 Flue Connection

The flue should be 100mm (4in) nominal diameter, refer to
Section 3 and diagram 1.1.

Fix and seal the flue to the hood in accordance with normal
practice.

Diagram 4.6

Diagram 4.5

WATER CONNECTIONS FULLY
PUMPED SYSTEMS

PUMP CLEARANCES

0874

ALTERNATIVE
FLOW
POSITIONS

ALTERNATIVE
RETURN
POSITIONS
With distributor
tube (not shown)

Clearance 'X' must be left to enable cleaning
door removal and boiler servicing

'X'

FLUEWAY
CLEANING
DOOR

ALTERNATIVE
R.H. FLOW
CONNECTION

ISOLATING
VALVES

L.H. FLOW
CONNECTION

175
(7)

35 (13/8)

0875

Diagram 4.4

PIPEWORK
CASING CLEARANCES

VIEW ON ARROW 'A'

1524

'A'

57 MAX.
(21/4in.)

BOILER

57 MAX.
(21/4in.)

4 Installation

11 221809B

MAINS INLET CONNECTOR

Diagram 6.1

0878

N

E

L

COVER

CABLE
CLAMP

LUGS

SLOTS

SIDE CASINGS FITTING

Diagram 5.2

1018

LOCATING
LUG AND
SLOT

No. 8
SCREW (2)

No. 8
SCREW (2)

CASING
BRACKET

CASING
BRACKET

BOILER
PLINTH

5 Casing Location / Fitting

5.1 Side Vent Grille

One vent grille is supplied with the boiler which can be fitted at
the rear of the left or right hand side casing. The grille is fitted
on the opposite side to any pipework connections.

Fit the grille, if required, to the side panel as shown in diagram

5.1 prior to fixing the side panel. The plastic pegs are a tight fit
and are best pushed home with a flat faced tool.

Do not use the grille if water connections are on both sides of the
boiler or if the boiler is screened by fixtures.

5.2 Side Casings

Fit side casing by locating their lugs into the lower slots in the
base tray, see diagram 5.2.

Secure the casing sides to the casing bracket at the front top.

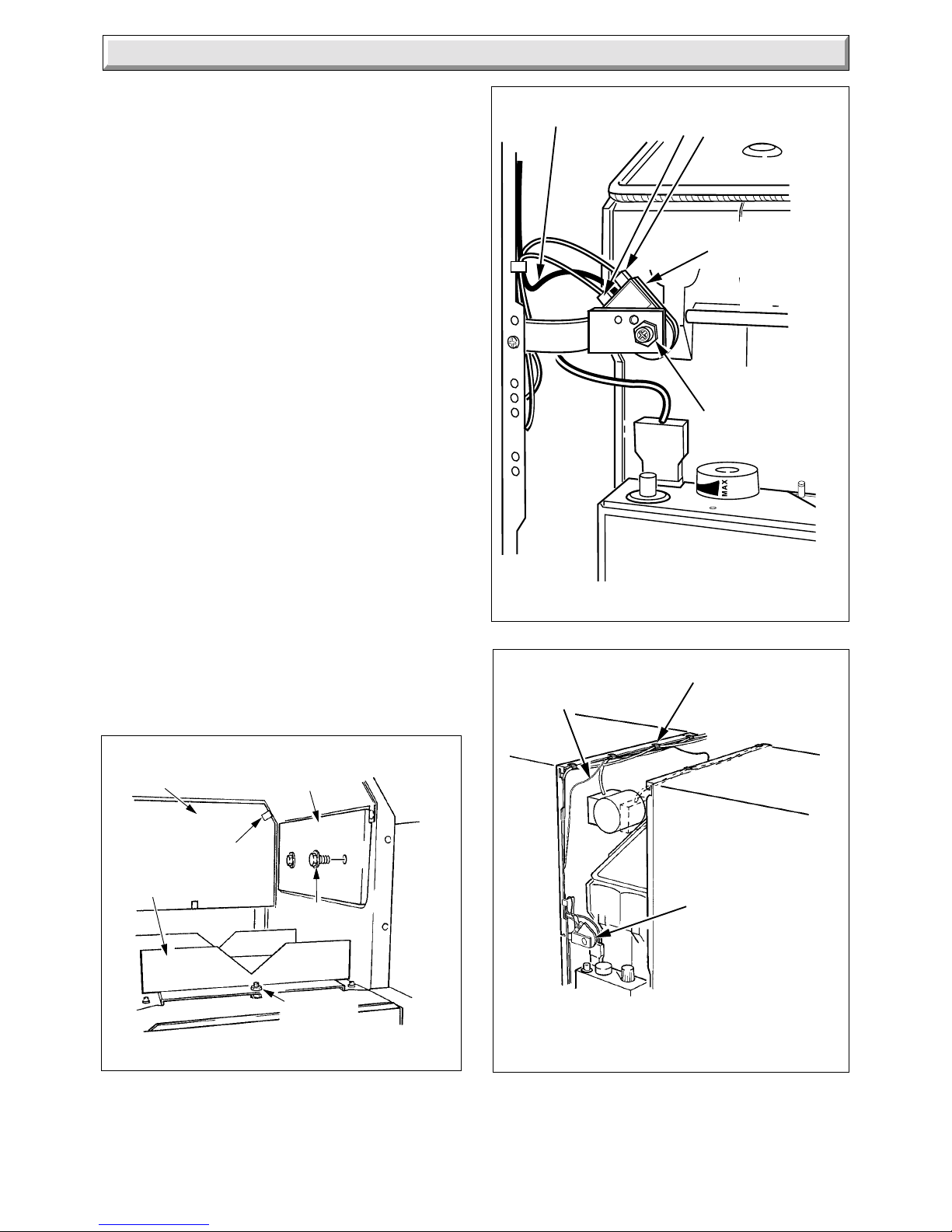

6.1 Control Box Cable Connection

Remove the screw and cover from the mains inlet connector,
see diagram 6.1.

Using heat resistant flexible cable of suitable length and rating,
as Section 1.6, connect the cable to the terminals in the
connector. Secure the outer sheathing with the clamp.

Engage slots and lugs, replace connector cover and secure
with screw.

Connect mains inlet connector to the control box and use three
of the cable clips, supplied loose, pushed on to the edge of the
left hand panel in positions “CB” as shown in diagram 6.2 to
make sure that the cable does not touch any hot surfaces.

6.2 Circulation Pump Cable Connection

Heat resistant cable with a rating as stated in Section 1.6 must
be used for all wiring near the boiler, including the pump, if within
the boiler casing.

Support the pump cable away from hot surfaces if within the
boiler casing by pushing two cable clips, supplied loose, on to
the top edge of one side casing, as shown as “P” or “AP” in
diagram 6.2.

6 Electrical Wiring

SIDE VENT GRILLE

Diagram 5.1

SIDE VENT GRILLE
(If required, will fit to
left or right side casing)

PLASTIC PEG

SIDE CASING
(R.H. SHOWN)

0885

12

221809B

6.3 Flue Blockage Safety Device - Capillary
and Interrupter Electrical Leads

For transit the capillary is taped to the side of the boiler.
Remove tape and place capillary into cable clips provided, see

diagram 6.2.
Note: Capillary must not touch the heat exchanger side.
Secure the interrupter electrical leads so as not to strain them,

see diagram 6.2.

6.4 System Controls

The electrical installation must be in accordance with the
current issue of BS7671.

The electrical isolator must isolate both the boiler and system
controls.

6.5 Testing

Checks to ensure electrical safety should be carried out by a
competent person.

In the event of an electrical fault after installation of the boiler,
preliminary system checks must be carried out, that is, earth
continuity, polarity and resistance to earth as described in a
multimeter instruction book.

6 Electrical Wiring

CABLE CLIP POSITIONS

Diagram 6.2

AP

AP

P

CB

P

CB

25

(1)

230 (9)

230 (9)

Fit 2 pump cable
clips at positions P.

Fit 3 control
box feed cable
clips at
positions CB.

Alternative pump
cable clips
(if feed is on the
left hand side) at
positions AP.

SAFETY DEVICE CAPILLARY
CLIP POSITION

0904

INTERRUPTER
ELECTRICAL
LEADS CLIP

CB

7 Commissioning

Please ensure the “Benchmark” logbook is completed and left
with the user.

7.1 Commissioning and Testing the Boiler

The whole of the system should be thoroughly flushed out with
cold water with pump removed. Make sure that all valves are
open. Refit the pump and fill the system. Examine for water
soundness and vent all air from the system, including the pump.

Caution. The following should be done by a competent person.
Identify the controls, refer to diagram 7.1.
Check that the gas cock “K” is closed, that is, slot is horizontal.
Open all windows and put out any naked lights, pipes or

cigarettes.
Purge air from the gas supply in accordance with the current

issue of BS6891.
Carefully unwind the thermostat capillary, insert the phial fully

into pocket “J” and secure the location washer behind the
retaining split pin, supplied in the loose items pack, see diagram

7.2.
Check that the mains electrical supply is switched off.
Set thermostat control knob “B” to “O”.
Remove gas test pressure point screw “G” and fit a suitable

pressure gauge.
Open gas cock “K”, slot vertical.
Note: Make sure the Flue Blockage Safety Device reset button

'N' is fully pushed in.
Turn gas control knob “A” to '

' , the pilot and ignition position
and push in. At the same time press and release the ignition
button “C” until the pilot lights. At this stage air may be present

in the gas supply pipes and this operation may need to be
repeated. When the pilot burner lights, keep control knob “A”
fully pushed in for about 15 seconds. If the pilot fails to remain
alight, repeat lighting procedure, but now keep the control
button pushed in for a little longer.

If the control knob “A” is turned to '

', a safety device prevents
relighting in an unsafe condition. No attempt should be made
to push knob “A” in until 3 minutes have gone by.

Note: Should the boiler fail to operate correctly refer to the Fault
Finding - Section 10.

Make sure that the pilot is alight and stable, see diagram 7.3 for
flame length, switch on the electrical supply. Set any remote
controls so that they are calling for heat. Turn control knob “A”
to '

' main burner position. Set boiler thermostat control knob
“B” between “MIN” and “MAX” against the setting point on the
control box, the main burner will light. “MAX” is about 82

o

C

(180

o

F).

Test for gas soundness around boiler gas components with a
suitable leak detection fluid.

Set the burner gas pressure required, ten minutes after lighting,
see Data label “L” for settings or refer to Section 1.2. Adjust
screw “F”, diagram 7.1 to obtain the required heat input. Turn
clockwise to decrease. After adjusting, seal the screw.

If any doubt exists, the gas rate should also be checked at the
meter. This should be in the range of:

Hideaway - 60 - 2.2 to 2.5m

3

/h 63 to 71.2ft3/h
The rates are for guidance only, depending on the heat setting.
Stick the self adhesive arrow on to the data label against the

output the boiler is set to. The arrow is in the loose items pack.
Check the operation of the flame failure device as follows:
With the main burner alight, turn the gas control valve knob “A”

13 221809B

7 Commissioning

Diagram 7.2

SECURING THE
THERMOSTAT PHIAL

1870

THERMOSTAT
CAPILLARY

LOCATION
WASHER

PHIAL
POCKET

RETAINING
SPLIT PIN

fully clockwise to its stop ' ', the main and pilot flames will go
out. Relighting will not now be possible. Before 60 seconds the
safety device will work, indicated by a “click” from the gas valve.

Do not attempt to relight until three minutes have gone by.
Remove the pressure gauge and refit the pressure test point

screw “G”, makes sure a gas tight seal is made.
Turn thermostat “B” to “O” and relight the pilot burner as above.
Relight the main burner as above.
Check that the boiler thermostat and all remote controls are

working correctly.
Do not attempt to adjust the thermostat calibration screw.
Test the boiler for spillage of the flue products at the draught

diverter as detailed in the current issue of BS5440 Part 1. If an
extract fan is fitted in the premises, refer to Section 3.6.

7.2 Commissioning the System

Allow the system to warm up and set the pump adjuster to a
design position which gives the correct temperature difference
of 11

o

C (20oF) between the flow and return. There should be no
undue noise in the system, pumping over or entry of air at the
open vent above the cold water feed and expansion cistern.

Allow the system to reach maximum working temperature and
examine for water soundness.

The system should then be drained down as rapidly as possible
to complete the flushing process.

The system should then be refilled, vented and examined for
water soundness.

Diagram 7.1

BOILER COMPONENTS

1005

J

H

L

C

A

G

F

H

SETTING
POINTS

E

N

K
(Shown
closed)

POSITIONS:-

A GAS CONTROL KNOB. J PHIAL POCKET.
B TERMOSTAT CONTROL. K GAS SERVICE COCK.
C PIEZO IGNITION BUTTON. L DATA BADGE.
E VIEWING WINDOW. N FLUE
F BURNER GAS RATE BLOCKAGE

GAS CONTROL KNOB 'A' SAFETY DEVICE
ADJUSTMENT. RESET BUTTON.

G BURNER PRESSURE

TEST POINT.

H CONTROL BOX.

= OFF = PILOT/IGNITION = MAIN BURNER

B

14

221809B

7 Commissioning

FLAME DIMENSION

Diagram 7.3

1001

13 (1/2 in.)
APPROX.

FLAME
DIMENSION

VIEWING
WINDOW

PILOT
BURNER
ASSEMBLY

7.3 Completion

Instruct and demonstrate the efficient and safer operation of the
boiler, heating and domestic hot water system.

Hand the Instructions for Use to the user, for them to keep,
making sure that they fully understand them.

Advise the user that to ensure the continued efficient and safe
operation of the boiler is recommended that it is checked and
serviced at regular intervals. The frequency of servicing will
depend upon the particular installation and usage, but in general
once a year should be enough.

Draw attention, if applicable, to the current issue of the Gas
Safety (Installation and Use) Regulations, Section 35, which
imposes a duty of care on all persons who let out any property
containing a gas appliance.

It is the law that servicing is carried out by a competent person.
Advise that the boiler is fitted with a Flue Blockage Safety

Device and refer to the Instructions for Use.
Reminder - Leave these instructions and the “Benchmark”

logbook with the user.
Fit the plinth front, by locating the sides over the boiler plinth

then lowering to engage the upper and lower hooks, see
diagram 7.4.

Fit four plastic pegs into the required holes in the top panel, see
diagram 7.5. The plastic pegs are a tight fit and are best pushed
home with a flat faced tool.

Push the casing top on to all four side panel locations. From
inside the casing check that all the rivets have engaged into the
holes.

Fit the door by locating the hooked runner at the bottom into the
slots in side casings and pushing on to the studs on the side
casings, see diagram 7.4.

PLINTH / DOOR FITTING

Diagram 7.4

TOP CASING FITTING

Diagram 7.5

0887

UPPER
HOOK

VIEW 1

VIEW 2

STUD

PLINTH
FRONT

LOWER
HOOK

VIEW 1

VIEW 2

1180

PEG POSITIONS IN TOP CASING
A = FRONT EDGE FLUSH
B = 10mm (3/8 in) FRONT OVERHANG

TOP CASING

PLASTIC PEG (4)

B

A

SIDE
CASING
(L.H.)

A

B

SIDE
CASING

SIDE
CASING

DOOR

DOOR

AB

AB

AB

AB

DOOR
FASCIA

15 221809B

8 Servicing

Diagram 8.1

Diagram 8.2

ACCESS FOR SERVICING

Diagram 8.3

SECURING THE
THERMOSTAT PHIAL

ISOLATION OF
GAS AND ELECTRICITY

0907

1870

LOCATION
WASHER

PHIAL
POCKET

RETAINING
SPLIT PIN

1004

Servicing must be carried out by a competent person.
Before servicing, turn off the gas supply at the boiler service

cock, see diagram 8.1 and isolate the electrical supply to the
boiler.

Always test for gas soundness after completing a service and
replacement of parts.

8.1 Boiler Flueways

Pull door forwards at the top to disengage the studs and lift to
release from slots, see diagram 7.4.

Lift plinth front up and forwards to withdraw, see diagram 7.4.
Disconnect the union on the gas service cock, see diagram 8.1.
Remove the mains inlet connector by pulling upwards, see

diagram 8.1.
Withdraw the retaining split pin from the thermostat phial pocket

then withdraw the phial and capillary, see diagram 8.2.
Remove electrical connections from the interrupter, see diagram

8.1.
Remove the four screws retaining the combustion chamber

cover and burner assembly, see diagram 8.3. Withdraw
forwards the complete assembly of cover, control box and
burner.

Remove the graphite coated nut to release baffle tray and
remove the combustion chamber, taking care not to damage
the insulation material on the sides.

Remove the self-tapping screws which retain the cleaning door
and lift clear, see diagram 8.4.

Place a sheet of paper in the combustion chamber to catch any
flue debris.

Remove flueway baffles, see diagrams 8.7 and 8.8.
Thoroughly clean boiler flueways and fins with a suitable stiff

brush.
Replace in reverse order, after completing instructions in

Section 8.2 and 8.3.
Make sure that the thermocouple phial is at the bottom of its

pocket and located by the washer being behind the retaining
split pin, leaving clearance between the capillary tube and
boiler, see diagram 8.2.

GRAPHITE
COATED
NUT

SECURING
SCREW (4)

COMBUSTION
CHAMBER COVER

BAFFLE
TRAY

GAS
SERVICE
COCK
UNION

MAINS INLET
CONNECTOR
(pull upwards)

INTERRUPTER
ELECTRICAL
CONNECTIONS

THERMOSTAT
CAPILLARY

TURN OFF

ACCESS TO FLUEWAY

Diagram 8.4

0908

FLUEWAY
CLEANING
DOOR

SELF­TAPPING
SCREW (4)

16

221809B

REMOVAL OF BURNER FROM
COMBUSTION CHAMBER

8 Servicing

Diagram 8.5

BURNER SERVICING

Diagram 8.6

1002

8.2 Burner and Injector

Follow instructions to remove the front cover, burner and controls
assembly as Section 8.1.

Remove the screw securing the lint arrester gauze to the
combustion chamber cover. Remove arrester by lifting slightly
and withdrawing forwards to clear gas pipe, thermocouple and
pilot tube, see diagram 8.5.

Remove the two burner securing nuts from the flange of the
burner supply pipe.

Remove the burner from the cover and supply pipe flange.
Remove the securing nut,washer an burner end cap from the

burner, see diagram 8.6.
Clean the burner parts and lint arrester thoroughly, using a

vacuum cleaner.
Check the main burner injector for blockage or damage and

replace as necessary, see Section 9.2.
When replacing lint arrester locate the two lugs into the slots on

the combustion chamber cover and locate around the feed pipe,
then secure with the screw.

8.3 Service Checks

Inspect the pilot burner, thermocouple and pilot burner, cleaning
as necessary. Check the condition of the parts. If necessary
remove the pilot shield by removing the securing screw and nut.

Check the condition of the side and rear insulation panels in the
combustion chamber.

Check the condition of the seals on the cleaning door and the
combustion chamber cover.

Replace all items in the reverse order, relight and test the boiler.

SECURING
SCREW

LINT
ARRESTER

SECURING
NUT(2)

PROTECTIVE
SLEEVING

MAIN
BURNER

INJECTOR

COMBUSTION
CHAMBER
COVER

1011

BURNER
SUPPLY
PIPE

BURNER
BODY

BURNER
END CAP

WASHER

SECURING
NUT

Diagram 8.8

6122

BAFFLES

HEAT
EXCHANGERS

HEAT EXCHANGERS

Diagram 8.7

6121

SIDE
BAFFLE

BAFFLE

17 221809B

9 Replacement of Parts

Diagram 9.1

CONTROL BOX

6123

MAINS INLET
CONNECTOR
(Disconnect)

THERMOSTAT
CONTROL
KNOB

PIEZO
UNIT

ELECTRICAL
CONNECTORS

SLOT

IGNITION LEAD
(BLACK END)

BURNER
SUPPLY
PIPE

THERMOCOUPLE

HOOK

CONTROL BOX
COVER

COVER
SECURING
SCREW

GAS
VALVE

GAS VALVE
SECURING SCREW

ELECTRICAL
CONNECTORS

GAS VALVE
SECURING
SCREW

Replacement of parts should be carried out by a competent
person.

Before removing or replacing any parts, turn off the gas supply
at the boiler service cock, see diagram 8.1. Isolate the electrical
supply to the boiler.

Unless stated otherwise all parts are replaced in the reverse
order to removal.

Always test for gas soundness after replacing parts.

9.1 Gas Valve

Follow the relevant instructions in Section 8.1.
Remove control box cover by removing the screw and unhooking

at the side, see diagram 9.1.
Disconnect thermocouple nut, interrupter, electrical connections

and pilot tube connection at the gas valve.
Remove the two screws which secure gas valve to the control

box.
Tilt control box to enable it to be lifted off the gas valve.
Unscrew half union pipe from gas valve.
Unscrew the gas valve from the burner supply pipe.
When screwing the pipes into the new gas valve use a little

jointing compound on the external thread only, to make a gas
tight seal.

Replace thermostat phial as relevant part of Section 8.1.
Refer to diagram 9.2 to connect electrical leads.

PILOT TUBE

HALF UNION
PIPE

THERMOSTAT
SECURING
SCREW (2)

INTERRUPTER
ELECTRICAL
CONNECTIONS

It will be necessary to purge the system of air after changing the
gas valve. Follow the instructions in Section 7.1.

9.2 Boiler Thermostat

Follow the relevant instructions in Section 8.1 and 9.1.
Pull off the thermostat control knob.
Remove the two screws which secure the boiler thermostat to

the control box, see diagram 9.1.
Tilt the thermostat so that the electrical connections can be

removed.
Withdraw boiler thermostat from control box complete with

capillary tube and phial.
Refer to diagram 9.2 to connect electrical connectors.
Replace the thermostat phial as the relevant part of Section 8.1.

9.3 Piezo Unit

Pull door forward at the top to disengage the studs and lift to
release from slots, see diagram 7.4.

Remove mains inlet connector by pulling upward, see diagram

8.1.
Remove the control box cover by removing screw and unhooking

from slot at the side, see diagram 9.1.
Disconnect the ignition lead at the piezo unit.
Remove the nut inside the control box and remove piezo unit.

18

221809B

9 Replacement of Parts

PILOT ASSEMBLY

Diagram 9.3

Diagram 9.2

CONTROL BOX WIRING

6124

240V~ 50Hz MAINS SUPPLY FUSED AT 3A

THERMOSTAT

L

N

C

N/C

GREEN / YELLOW

RED

ORANGE

BLUE

CHASSIS EARTH

GAS
VALVE

0935

PILOT
TUBE

SPARK
ELECTRODE

IGNITION LEAD
(CLEAR END)

PILOT
INJECTOR

PILOT
BURNER
ASSEMBLY

PILOT
SHIELD

SECURING SCREW (2)
AND NUT (2)

THERMOCOUPLE

9.4 Thermocouple

Remove the door and plinth from the front as relevant parts of
Section 8.1.

Remove lint arrester as in Section 8.2.
Disconnect the thermocouple by unscrewing nuts at the gas

valve and pilot burner, see diagram 9.1 and 9.3. Release cable
clips and the thermocouple can be withdrawn.

Do not tighten nut at gas valve more than a quarter turn beyond
finger tight.

Replace lint arrester as Section 8.2.

9.5 Spark Electrode

Remove the door plinth as the relevant part of
Section 8.2.

Remove the lint arrester as Section 8.2.
Disconnect the ignition lead, see diagram 9.3.
Disconnect the thermocouple nut and withdraw the thermocouple

from the pilot burner.
Disconnect the nut retaining the spark electrode.
The spark gap dimension is shown on diagram 9.4.

9.6 Ignition Lead

Remove the door and plinth as the relevant parts of Section 8.1.
Remove the lint arrester as in Section 8.2.
Disconnect the ignition lead at the piezo unit, see diagram 9.1.
Disconnect ignition lead at the spark electrode, see diagram

9.3.
When reconnecting the lead, make sure that the clear end is

fitted to the spark electrode and the protective sleeve is fitted
where the lead passes through the lint arrester, see diagram

8.5.

SPARK GAP DIMENSIONS

Diagram 9.4

1538

3-4 (1/8)
SPARK
GAP

19 221809B

CAPILLARY REMOVAL Diagram 9.7

CAPILLARY

CABLE CLIPS(2)

ELECTRICAL CONNECTIONS

Diagram 9.6

FLUE
BLOCKAGE
SAFETY
DEVICE

0904/A

5041

ELECTRICAL
CONNECTIONS

SECURING
LOCKNUT

CAPILLARY

FLUE
BLOCKAGE
SAFETY
DEVICE

9 Replacement of Parts

INSULATION PANELS

Diagram 9.5

SIDE
INSULATION
PANEL

REAR
INSULATION
PANEL

1435

GRAPHITE
COATED
NUT

SCREW

CLIP

BAFFLE
TRAY

9.7 Pilot Burner

Follow the instructions in the relevant parts of Section 8.1 to
remove cover and burner controls assembly.

Remove the lint arrester as in Section 8.2.
Disconnect the thermocouple nut at the pilot burner, see diagram

9.3.
Disconnect the nut retaining the pilot tube and injector in the

pilot burner.
Remove the two screws and nuts securing the pilot burner and

the shield front cover, see diagram 9.3.
Check that the pilot flame length is as shown in diagram 7.3.
Replace thermostat phial as Section 8.1.
Replace lint arrester as Section 8.2.

9.8 Insulation Panels

Follow the relevant instructions in Section 8.1.
Unfasten the two screws retaining each side insulation panel

within the combustion chamber and remove panel, see diagram

9.5.
Release the rear insulation panel upper clips and lift out panel.
Replace thermostat phial as Section 8.1.

9.9 Injector

When the burner has been removed from the injector manifold
as in Section 8.2 the injector can be unscrewed from the
manifold and renewed as necessary.

When replacing use a little jointing compound on the external
threads only, to make a gas tight seal.

Replace thermostat phial as Section 8.1.

20

221809B

9 Replacement of Parts

PHIAL ASSEMBLY REMOVAL

Diagram 9.8

LOCATION STUD

SECURING
NUT

6298

PHIAL

PHIAL ASSEMBLY

9.10 Flue Blockage Safety Device

Gain access as Section 8.1.
Remove the electrical connections, see diagram 9.6
Remove capillary from cable clips, see diagram 9.7.
To remove the phial assembly, first gain access through flue

cleaning door as Section 8.1.
Unscrew securing nut and withdraw the phial assembly from

the location stud, see diagram 9.8.
Remove the safety device securing locknut complete with phial

assembly, see diagram 9.6.

10.1 Electrical

Refer to functional flow diagram 10.1, electrical fault finding
chart, diagram 10.2 and wiring diagram 9.2.

IMPORTANT. The preliminary electrical system checks
contained in a multimeter instruction book are the first checks
to be carried out during and fault finding procedure. On
completion of the service fault finding task which has required
the breaking and remaking of electrical connections then checks.
earth continuity, polarity and resistance to earth must be
repeated.

10.2 Thermocouple

To test the thermocouple a meter with a range 0 to 30mV is
required together with a thermocouple interrupter test unit
similar to the British Gas Multimeter and interrupter.

Refer to thermocouple fault finding chart, diagram 10.3 and
diagnosis graph, diagram 10.4.

10.3 Pilot and Ignition

Refer to pilot and ignition fault finding chart, see diagram 10.6
and 10.3.

10.4 Flue Blockage Safety Device

If the device operates it indicates there is a problem with the
chimney. Make sure that the air vents are free from obstruction.
Carry out spillage checks as BS5440 Part 1 and put right as
necessary.

FUNCTIONAL FLOW WIRING

Diagram 10.1

0900

C

N/C

L

N

RED

BLUE

ORANGE

3

4

GAS VALVE
CONTROL
SOLENOID

THERMOSTAT

10 Fault Finding - Electrical

21 221809B

10 Fault Finding - Electrical

Diagram 10.2

ELECTRICAL FAULT FINDING

Faulty gas valve.
Replace.

Turn boiler thermostat to "O'.
Does main burner extinguish.

Boiler controls in order.

Carry out preliminary electrical checks to
make sure the electrical supply is available
at the boiler. Check that external controls
are calling for heat. Make sure that the
system is filled, the

flue blockage safety
device is reset, the gas supply is available
and the pilot is lit.

Isolate electrical supply to the
control box.
Remove the control box cover and
check all cables.

Turn boiler thermostat to Max.
Is there continuity between
'C' and 'NC'.

Turn boiler thermostat to 'O'.
Is there open circuit between 'C'
and 'NC'.

Faulty thermostat.
Replace.

Restore electrical supply with pilot
burner lit and boiler thermostat set
between 'MIN' and 'MAX', does the
main burner light.

NO

NO

YES

NO

YES

NO

YES

YES

0899/A

22

221809B

Re-connect boiler flue blockage
safety device to points A and B.
Disconnect thermocouple at
connection point D of the gas valve.
Test continuity between point C and the
body of the gas valve.
Is there continuity?

Test continuity of thermocouple between inner
connection point D and point E.
Is there continuity?

Faulty boiler flue blockage
safety device, renew.

Thermocouple and boiler flue blockage
safety device circuit satisfactory.

NO

YES

YES

Faulty flue blockage safety device
connectors into gas valve,
either at A or C.
Renew where faulty.

Faulty thermocouple, renew.

With the boiler cold, check connections of the thermocouple, boiler flue blockage safety device
and gas valve. Reset flue blockage safety device.
Disconnect flue blockage safety device connectors at points A and B at the gas valve,
see diagram Interrupter Electrical Connections.
Test continuity of the flue blockage safety device. Is there continuity?

YES

NO

NO

10 Fault Finding - Thermocouple

2327/B

Diagram 10.3

THERMOCOUPLE AND FLUE BLOCKAGE SAFETY DEVICE FAULT FINDING

FLUE BLOCKAGE SAFETY DEVICE

CONNECTION "D"

POINT "C"

GAS VALVE

5031

INTERRUPTER ELECTRICAL
CONNECTIONS

Diagram 10.5

CONNECTION "A"

CONNECTION "B"

CONNECTION "E"

Closed Circuit Voltage (millivolts)

Open Circuit Voltage (millivolts)

0246810121416182022

9

11

13

15

17

19

21

23

25

27

29

ABC

Diagram 10.4

DIAGNOSIS GRAPH FOR
THERMOCOUPLE CIRCUIT

1546

23 221809B

10 Fault Finding - Pilot

Diagram 10.6

PILOT / IGNITION FAULT FINDING

0905A

START HERE

Check gas line - open all cocks,
rectify any blockages, purge out
any air. Check

flue blockage
safety device is reset,
check all thermocouple circuit
connections are clean and in good
condition.

Does pilot light?

Does pilot stay alight when
gas valve knob is released?

Check aeration. If necessary ­Clean pilot, rectify blockage in
pilot injector, or replace.

Check thermocouple circuit using
Thermocouple Fault - Finding
diagram.

On pressing piezo unit button
is there a spark across
electrode gap?

Pull ignition lead off electrode.
Hold end of lead close to pilot
burner and operate piezo unit.
Is there a spark across gap?

Check electrode gap. Reposition,
or replace electrode as necessary.

Change
piezo unit.

Change
ignition unit.

Pull ignition lead off piezo unit.
Using blade of a screwdriver,
touch unit chassis and leave
approx. 4mm gap from connection
tag on piezo unit. Operate piezo.
Is there a spark across gap?

Does pilot flame
envelope thermocouple?

Apply match to pilot burner instead
of pressing piezo unit button.
Does pilot light?

Undo tubing nut at pilot burner.
Press gas valve knob.
Does gas flow freely?

Undo tubing nut at pilot outlet of
gas valve. Press gas valve knob.
Does gas flow freely?

Rectify blockage in pilot injector,
or renew pilot injector.

Change blocked pilot tube.

Change gas valve.

PILOT SATISFACTORY

NO YES

NO YES

NO YES NO YES

NO YES

NO YES

NO YES

NO YES

NO YES

24

221809B

11 Spare Parts

1 425568 Electrical control box assy 312 451
2 203329 Gas control valve 384 345

3 205751 Injector - 60
4 203414 Pilot burner assy 312 246
5 203508 Injector - pilot 395 674
6 900001 Thermocouple c/w nut
7 202571 Thermostat c/w screws
8 FF2228 Control knob assy 355 241
9 900501 Piezo unit 382 585
10 WW4613 Ignition lead 136 399
11 202605 Spark Electrode 395 720
12 425795 Flue Blockage Safety device E02717
13 208302 Sight Glass 312 419

Key No Part No Description GC Part No

6125a

1

2

8

5

7

11

10

9

3

12

6

4

11.1 Part Identification

The key number in the first column of the list will help identify
each part shown in diagram 11.1.

11.2 Ordering

When ordering spare parts quote the part number and
description, stating the model and serial number off the data
label “L”, see diagram 7.1.

If ordering from British Gas also quote the GC appliance
number off the data label and the required spare part GC
number.

Diagram 11.1

Because of our constant endeavour for improvement, details may vary slightly from those shown in these instructions.

13
