Installation and Servicing

18sx

G.C. No. 41-315-72

30sx

G.C. No. 41-047-76

High Efﬁciency

Condensing System

Boiler

www.glow-worm.co.uk

Guarantee Registration

Thank you for installing a new Glow-worm appliance in your home.

Glow-worm appliances are manufactured to the very highest standard so we are pleased to offer

our customers a Comprehensive Guarantee.

This product is guaranteed for 24 months from the date of installation or 30 months from the date

of manufacture, whichever is the shorter, for parts and labour.

The second year of the parts guarantee, from the beginning of the 13th month onwards after

installation or manufacture, is conditional upon the boiler having been serviced by a competent

person approved at the time by the Health and Safety Executive in accordance with the

manufacturer’s recommendations. We strongly recommend regular servicing of your gas

appliance, but where the condition is not met, any chargeable spare parts or components issued

within the applicable guarantee period still benet from a 12 month warranty from the date of issue

by the manufacturer.

We recommend you complete and return as soon as possible your guarantee registration card.

If your guarantee registration card is missing you can obtain a copy or record your registration by

telephoning the Glow-worm Customer Service number 01773 828100.

Customer Service:

01773 828100

Technical Helpline:

01773 828300

General and Sales enquiries:

Tel. 01773 824639

Fax: 01773 820569

To register your Glow-worm appliance call:

0800 0732142

Benchmark places responsibilities on both manufacturers and installers. The purpose is to ensure that customers are provided with the correct equipment for their needs, that it is installed, commissioned and serviced in accordance with the manufacturer’s instructions by competent persons and that it meets the requirements of the appropriate Building Regulations. The Benchmark Checklist can be used to demonstrate compliance with Building Regulations and should be provided to the customer for future reference. Installers are required to carry out installation, commissioning and servicing work in accordance with the Benchmark Code of Practice which is available from the Heating and Hotwater Industry Council who manage and promote the Scheme. Visit www.centralheating.co.uk for more information.

These instructions consist of, Installation, Servicing, Fault Finding, Replacement of Parts

and Spares. The instructions are an integral part of the appliance and must, to comply

with the current issue of the Gas Safety (Installation and Use) Regulations, be handed to

the user on completion of the installation.

CONTENTS DESCRIPTION SECTION PAGE

Warnings 4 Important Information 4

INTRODUCTION

Statutory Requirements 5 Boiler Design 6 Safety Devices 6 Servicing, Maintenance and Spare Parts 6

Boiler Specication 1 7 Boiler Dimensions & Hydraulic Schematic 2 8 Boiler Location, Clearances and Ventilation 3 9 Flue Options and Terminal Clearances 4 10 Water System 5 12 Installation Preparation 6 15

INSTALLATION

Gas/Water Connections 7 17 Boiler Fixing 8 18 Safety Discharge Valve and Condensate Connections 9 19 Flue Length Preparation and Installation 10 21 Electrical Connection 11 38 Commissioning 12 40

MAINTENANCE

Servicing 13 43 Fault Finding 14 48 Replacement of Parts 15 54 Spare Parts 16 61 Manual Handling 17 62

Declaration of Conformity 18 63

WARNINGS

Gas Leak or Fault

Turn off the gas emergency control valve immediately. Eliminate all sources of ignition, i.e.smoking, blowlamps,

hot air guns etc. Do not operate electrical lights or switches either on or off. Open all doors and windows,

ventilate the area.

Metal Parts

This boiler contains metal parts (components) and care should be taken when handling and cleaning,

with particular regard to edges.

Sealed Components

Under no circumstances must the user interfere with or adjust sealed parts.

Important Information

Gas Category

This boiler is for use only on G20 natural gas.

Gas Safety (Installation and Use) Regulations

In your own interests and that of safety, it is the Law that ALL gas appliances are installed by a competent person approved at the time by the Health and Safety Executive in accordance with the current issue of these regulations.

Control of Substances Hazardous to Health

Under Section 6 of The Health and Safety at Work Act 1974, we are required to provide information on substances hazardous to health. The adhesives and sealants used in this appliance are cured and give no known hazard in this state.

Manual Handling

With regards to the “Manual Handling Operations, 1992 Regulations”, the appliance exceeds the recommended weight for a one man lift, refer to section 17 for more information. The handling of the boiler may involve lifting, pushing and pulling, the use of a sack truck may be required. The following handling techniques and precautions should be considered:

- Grip the boiler at its base

- Be physically capable

- Use safety clothing where appropriate, e.g. gloves, safety footwear. Ensure safe lifting techniques are used

- Keep back straight.

- Avoid twisting at the waist.

- Avoid upper body/top heavy bending.

- Always grip using the palm of the hand.

- Use designated hand holds.

- Keep load as close to body as possible.

- Always use assistance if required.

Electrical Supply

The boiler MUST be earthed.

All system components shall be of an approved type and all wiring to current I.E.E. wiring regulations. External wiring must be correctly earthed, polarised and in accordance with the relevant standards.

In GB, this is BS 7671. In IE, this is the current edition of ETCI rules.

The boiler MUST be connected to a permanent 230V ac, 50Hz supply. Connection of the whole electrical system of the boiler, including any heating controls, to the electrical supply MUST be through one common isolator and must be fused 3 Amp maximum. Isolation should be by a double pole switched fused spur box, with a minimum gap of 3mm for both poles. The fused spur box should be readily accessible and preferably adjacent to the appliance. It should be identied as to its use. Alternatively connection can be made through an unswitched shuttered socket and 3A fused 3-pin plug both to the current issue of BS 1363, provided they are not used in a room containing a bath or shower. Wiring to the boiler must be PVC 85OC insulated cable, not less than 0.75mm2 (24/0.20mm).

Testing and Certication

This boiler is tested and certicated for safety and performance. It is, therefore, important that no alteration is made to the boiler, without permission, in writing, by Glowworm. Any alteration not approved by Glow-worm, could invalidate the certication, boiler warranty and may also infringe the current issue of the statutory requirements.

Statutory Requirements

CE Mark

This boiler meets the requirements of Statutory Instrument, No. 3083 The Boiler (Efciency) Regulations, and therefore is deemed to meet the requirements of Directive 92/42/EEC on the efciency requirements for new hot water boilers red with liquid or gaseous fuels. Type test for purposes of Regulation 5 certied by: Notied body 0087. Product/production certied by: Notied body 0086. The CE mark on this appliance shows compliance with:

1. Directive 90/396/EEC on the approximation of the laws of the Member States relating to appliances burning gaseous fuels.

2. Directive 73/23/EEC on the harmonisation of the Laws of the Member States relating to electrical equipment designed for use within certain voltage limits.

3. Directive 89/336/EEC on the approximation of the Laws of the Member States relating to electromagnetic compatibility.

IMPORTANT

Where no British Standards exists, materials and equipment should be t for their purpose and of suitable quality and workmanship. The installation of this boiler must be carried out by a competent person approved at the time by the Health and

Safety Executive in accordance the rules in force in the

countries of destination. Manufacturer’s instructions must not be taken as overriding statutory requirements.

Statutory Requirements

In GB, the installation of the boiler must comply with the

requirements of the current issue of BS6798 and be carried out by a competent person, approved at the time by the

Health and Safety Executive, as described in the following

regulations: The manufacturer’s instructions supplied. The Gas Safety (Installation and Use) Regulations. The appropriate Buildings Regulations either The Building Regulations, The Building Regulations (Scotland),The Building Regulations (Northern Ireland). The Water Supply (water ttings) Regulations 1999 and water byelaws 2000, Scotland. The Health and Safety at Work Act, Control of Substances Hazardous to Health (COSHH). The Current I.E.E. Wiring Regulations. Where no specic instructions are given, reference should be made to the relevant British Standard Code of Practice.

In IE, the installation must be carried out by a competent person approved at the time by the Health and Safety

Executive and installed in accordance with the current edition

of I.S.813 “Domestic Gas Installations”, the current Building Regulations and reference should be made to the current ETCI rules for Electrical Installation. GB: the following Codes of Practice apply: BS4814, BS6798, BS5440 Part 1 and 2, BS5546 Part 1, BS5449, BS6891, BS6700, BS7074 Part 1 and 2, BS7593, BS7671.

IE: I.S.813, BS5546, BS 5449, BS 7074, BS 7593. NOTE: For further information, see the current issue of the

Building Regulations, approved document L1 ( in the UK) and the following current issues of:

1) Central heating system specication (CheSS) and

2) Controls for domestic central heating system and hot water. BRECSU.

Gas Supply

The gas installation must be in accordance with the relevant standards.

In GB, this is BS6891. In IE, this is the current edition of I.S.813 “Domestic Gas

Installations”. The supply from the governed meter must be of adequate size to provide a steady inlet working pressure of 20mbar (8in wg) at the boiler. On completion, test the gas installation for tightness using the pressure drop method and suitable leak detection uid, purge in accordance with the above standard.

Domestic Hot Water

All domestic hot water circuits, connections, ttings must be in accordance with the relevant standards and water supply regulations. GB: Guidance G17 to G24 and recommendation R17 to R24 of the Water Regulations Guide.

IE: The current edition of I.S.813 “Domestic Gas Installations”.

Heating System

In GB, it is necessary to comply with the Water Supply (Water

Fittings) Regulations 1999 (for Scotland, the Water Byelaws 2000, Scotland). To comply with the Water regulations your attention is drawn to: The Water Regulations guide published by the Water Regulations Advisory Service (WRAS) gives full details of the requirements. In IE, the requirements given in the current edition of I.S.813 “Domestic Gas Installations” and the current Building Regulations must be followed.

Boiler Design

These boilers are designed for use as part of a sealed water central heating system with fully pumped circulation. The pump, expansion vessel and associated safety devices are all tted within the boiler. The daily pump exercise programme combined with the built-in frost protection will help to maintain and protect the boiler. Once the controls are set the boiler

operates automatically.

Range Rating

The boilers are fully modulating, it is therefore not necessary to range rate them. However, if desired, it is possible to range rate the boiler between 10 and Max. output (according to the model), in 1kW increments, refer to section 12.

Safety Devices

Electrical Supply Failure

The boiler will not work without an electrical supply. Normal operation of the boiler should resume when the electrical supply is restored. Reset any external controls, to resume normal operation of the central heating. If the boiler does not resume normal operation press the reset button. If the boiler does not resume normal operation after this call your Installation/Servicing company or Glow-worm service.

Overheating Safety

The boiler software is designed to recognise the potential for an overheat lockout and will shutdown before this happens. To restart the boiler, press the reset button on the controls fascia. If the boiler fails to resume normal operation and all external controls are calling for heat, then call your Installation/Servicing company or Glow-worm service.

Safety Discharge Valve

A safety discharge valve and discharge pipe are tted to the boiler. This valve must not be interfered with, should there be any discharge from the pipe, isolate the boiler electrical supply and call your installer or Glow-worm’s own service organisation using the telephone number on the inside front cover of this booklet.

Condensate Drain

A plastic drain pipe must be tted to allow discharge of condensate to a drain. Condensate should, if possible, be discharged into the internal household draining system. If this is not practical, discharge can be made externally into the household drainage system or a purpose designed soak away, see section 8 for more details.

Pluming from ue terminal

Like all condensing boilers this appliance will produce a plume of condensation from the ue terminal in cool weather. This is due to the high efciency and hence low ue gas temperature of the boiler. This is normal and not an indication of a fault.

Frost protection

The appliance has a built in frost protection device that protects the boiler from freezing. With the gas and electric supplies ON and irrespective of any room thermostat setting, the frost protection device will operate the pump when the temperature of the boiler water falls below 8°C. A timer is used so that the temperature can be checked periodically. After 10 minutes the pump will be stopped if the temperature is higher than 10°C or has already reached 35°C. The burner will activate if the boiler temperature does not reach 10°C after 30 minutes or at any time if the temperature drops to 5°C. The burner will switch off when the temperature reaches 35°C.

Condensate Drain Blockage

As a safety feature the boiler will stop working if the condensate drain becomes blocked. During freezing conditions an ice blockage in the condense drain, external to the house would also activate the safety feature. Use warm cloths on the pipe to release an ice blockage. Once the blockage is removed the boiler should then restart.

Servicing, Maintenance and Spare Parts

Servicing and Maintenance

To ensure the continued efcient and safe operation of the boiler it is recommended that it is checked and serviced as necessary at regular intervals. The frequency of servicing will depend upon the particular installation conditions and usage. If this applaince is installed in a rented property there is a duty of care imposed on the owner of the property by the current issue of the Gas Safety (Installation and Use) Regulations, Section 35. Servicing/maintenance should be carried out by a competent person approved at the time by the Health and Safety Executive in accordance with the rules in force in the countries of destination. To obtain service, please call your installer or Glow-worm’s own service organisation using the telephone number on the inside front cover of this literature.

Spare Parts

We only use parts that you can be assured conform to the safety and performance specication. DO NOT use reconditioned or copy parts that have not been clearly authorised by Glow-worm. If a part is required contact Glow-worm’s own service organisation using the telephone number on the inside front cover of this booklet. Please quote the name of the appliance, this information will be on the name badge on the front of the appliance. If in doubt seek advice from the local gas company or Glowworm’s own service organisation using the telephone number on the inside front cover of this booklet.

1 Boiler Specication

14733

Approximate gas rate at part load.

PLEASE REFER TO COMMISSIONING

13, C33, C43, C53C13, C33, C43, C53

2 Boiler Dimensions and Hydraulic Schematic

280

149

(Gas and

Domestic Water)

22.5

(Central

Heating)

624

FLUE

13899

2.1 Boiler Dimensions and Hydraulic Schematic

All dimensions are given in millimetres (except as noted). The general arrangement of the boiler is shown in diagram

2.1. and the hydraulic and gas schematic, diagram 2.2. The data label is positioned on the front of the inner casing panel.

14022

FLUE

Flexible Condensate Connection

FLOW

100

167.5

390

BOILER

100

700

RETURN

Diagram 2.1

Diagram 2.2

3 Boiler Location, Clearances and Ventilation

3.1 Location

This boiler is not suitable for outdoor installation. This boiler may be installed in any room, although particular attention is drawn to the installation of a boiler in a room containing a bath or shower where reference must be made to the relevant requirements. This boiler is suitable for installation in bathroom zones 2 and

3. In GB this is the current I.E.E. WIRING REGULATIONS and BUILDING REGULATIONS. In IE reference should be made to the current edition of I.S.813 “Domestic Gas Installations” and the current ETCI

rules.

3.2 Clearances

The boiler should be positioned so that at least the minimum operational and servicing clearances are provided, see diagram 3.1. Additional clearances may be benecial around the boiler for installation and servicing. For ue installations where external access is not practicable, consideration should be given for the space required to insert the ue internally, which may necessitate clearance larger than those specied in diagram 3.1.

13127

3.3 Timber Frame Buildings

If the boiler is to be installed in a timber frame building it should be tted in accordance with the Institute of Gas Engineers document IGE/UP/7/1998. If in doubt seek advice from local gas undertaking or Glow-worm.

3.4 Combustible Material

The boiler and ue are suitable for installation onto and through combustible materials provided that:-

1) Minimum 5mm clearance is maintained around the circumference of the ue (air intake).

2) The combustible surface and xings are suitable for supporting the load.

3) The minimum clearances from the boiler case are maintained.

3.5 Room Ventilation

The boiler is room sealed so a permanent air vent is not required.

3.6 Cupboard or Compartment Ventilation

Due to the high efciency and hence low casing temperature of this boiler, cupboard or compartment ventilation is not necessary. Leave existing air vents.

Diagram 3.1

4 Flue Options and Terminal Clearances

Ridge Tile Terminal

Part No. A2043800 Section 10, page 32

Plume Management Kit basic set, white,

concentric ue (Ø60/100)

- Part No. A2044100 for use with Part No. A2043400 and Part No. A2043600 - Section 10, page 37

Top horizontal telescopic ue (Ø60/100) Part No. A2043600 - Section 10, page 21

Twin Flue Twin Flue Adapter, concentric ue (Ø80) Part No. A2011000

- Section 10, page 34

Top horizontal standard ue (Ø60/100) Part No. A2043400 - Section 10, page 25

Vertical Flue Vertical Flue Adapter, concentric ue (Ø60/100) Part. No. A2024600 Section 10, page 31

Vertical ue terminal kit, concentric ue (Ø60/100) Part. No. 2000460480 - Section 10, page 30

Direct rear telescopic ue (Ø60/100) Part No. A2043500 - Section 10, page 29

Multiple Boiler Chimney Flue Vertical concentric stack ue suitable for use with:-

Top horizontal telescopic ue, Top standard horizontal ue, Twin Flue, as specied by the manufacturer.

Diagram 4.1

4 Flue Options and Terminal Clearances

HORIZONTAL FLUES

A DIRECTLY BELOW AN OPENING, AIR BRICK, OPENING WINDOWS 300 B ABOVE AN OPENING, AIR BRICK, OPENING WINDOWS 300 C HORIZONTALLY TO AN OPENING, AIR BRICK, OPENING WINDOWS 300 D BELOW GUTTER, DRAIN/SOIL PIPE 25 E BELOW EAVES 25 F BELOW A BALCONY OR CAR PORT 25 G FROM VERTICAL DRAIN PIPES AND SOIL PIPES 25 H FROM INTERNAL/EXTERNAL CORNERS 25

* TO A BOUNDARY ALONGSIDE THE

H TERMINAL 300 I ABOVE ADJACENT GROUND OR BALCONY LEVEL 300

* FROM SURFACE OR A BOUNDARY

FACING THE TERMINAL 600 K FACING TERMINALS 1200 L FROM OPENING (DOOR/WINDOW) IN CAR PORT INTO DWELLING 1200 M VERTICAL FROM A TERMINAL 1500 N HORIZONTALLY FROM A TERMINAL 300

4.1 Flue Options

There are various ue options to choose from as illustrated in diagram 4.1. The ue lengths and installation are described in section 10.

4.2 Flue Terminal Position

In GB the minimum acceptable siting dimensions for the

terminal from obstructions, other terminals and ventilation openings are shown in diagram 4.2. In IE the minimum distances for ue terminal positioning must be those detailed in I.S.813 “Domestic Gas Installations”. The terminal must be exposed to the external air, allowing free passage of air across it at all times. Being a condensing boiler some pluming may occur from the ue outlet. This should be taken into consideration when selecting the position for the terminal. Carports or similar extensions of a roof only, or a roof and one wall, require special consideration with respect to any openings, doors, vents or windows under the roof. Care is required to protect the roof if made of plastic sheeting. If the carport comprises of a roof and two or more walls, seek advice from the local gas supply company before installing the boiler. H* and J* See diagram 4.2. These dimensions comply with the building regulations, but they may need to be increased to avoid wall staining and nuisance from pluming depending on site conditions. NOTE: If the ue terminal is positioned near a light source insects may enter the ue system. Where safe and practical to do so, advise the homeowner to check the ue outlet and clear visible insects from the terminal end.

4.3 Terminal Guard

A terminal guard is required if persons could come into contact with the terminal or the terminal could be subject to damage. If a terminal guard is required, it must be positioned to provide minimum of 50mm clearance from any part of the terminal and be central over the terminal. The guard should be similar to that shown in diagram 4.3. A suitable guard is manufactured by: Tower Flue Components Morley Rd. Tonbridge Kent TN9 1RA. Size: 280mm x 165mm. Part No. CGDK3

15583

VERTICAL FLUES

P FROM ANOTHER TERMINAL 600 Q ABOVE ROOF LEVEL 300 R FROM ADJACENT OPENING WINDOW 1000 S FROM ADJACENT WALL TO FLUE 300

Diagram 4.2

Diagram 4.3

5 Water System - Heating

5.1 General

This boiler is designed for use as part of a sealed water central heating system with fully pumped circulation. The pump, expansion vessel and associated safety devices are all tted within the boiler.

5.2 Safety Valve

The safety valve is an integral part of the boiler and it cannot be adjusted. The pipe from the safety discharge valve must

not discharge above an entrance, window or any type of public access area.

5.3 Expansion Vessel

The boiler has an integral expansion vessel with a capacity of 8 litres (1.76 gallons), with a charge pressure of 0.5bar. NOTE: The expansion vessel volume depends on the total water system volume and the initial system design pressure. In GB, Guidance on vessel sizing is also given in the current issue of BS5449 and BS7074 Part 1.

In IE, current edition of I.S.813 “Domestic Gas Installations”

5.4 Flow Rate

If it is necessary to alter the ow rate, the system can be tted with a lockable balancing valve in the main ow or return pipes shown as valve “A” in diagram 5.1. The ow rate through the boiler must not be allowed to fall below that given in section 1 - Specication Table.

5.5 Bypass

The boiler is tted with an automatic bypass, see diagram 5.2. and section 12 Commissioning. The pump remaining conveying capacity is shown in diagram 5.3 Ensure that under no circumstances does the ow rate drop below the gure specied, refer to section 1 - Specication Table.

5.6 Filling the Sealed System

Provision for lling the system at low level must be made, see diagram 5.4. There must be no permanent connection to the mains water supply, even through a non-return valve. NOTE: It is important that ttings used for connection to potable water comply with the water undertakings requirements.

5.7 Draining Points

Draining taps must be provided at all low points of the system, which will allow the entire system to be drained. Draining taps shall be to the current issue of BS2879. Drain points for the appliance are provided at the positions shown in diagram 5.5.

ADDITIONAL EXPANSION VESSEL (if required)

HEATING CIRCUIT

RETURN

'A'

BOILER

14023

13073

FLOW CONTROL VALVE

DRAIN POINT

Diagram 5.1

Diagram 5.2

5 Water System - Heating

5.8 Water Treatment

Existing system- It is ESSENTIAL that prior to installing the

new boiler the system is thoroughly ushed. New system- For optimum performance after installation, the boiler and its associated central heating system should also be ushed. Flushing should be carried out in accordance with BS7593: 2006 using a cleanser such as Sentinel X300 or X400, Fernox Restorer or Salamander corrosion guard cleaner.

IMPORTANT: Ensure all cleanser is removed from the whole system before adding an inhibitor. For long-term corrosion protection, after ushing, an inhibitor should be used, refer to the current issue of BS 5449 and BS 7593 on the use of inhibitors in central heating systems. Examples are Sentinel X100 Fernox Protector or Salamander corrosion guard inhibitor.

13102

Diagram 5.3

Diagram 5.4

14024

5 Water System - Domestic Hot Water

DRAIN POINTS

5.9 Unvented DHW System

General - All domestic hot water circuits, connections, ttings

must be in accordance with the relevant standards and water supply regulations. For GB: Guidance G17 to G24 and recommendation R17 to R24 of the Water Regulations Guide. For IE: The current edition of I.S.813 “Domestic Gas Installations”. Where a storage system will not have a vent to atmosphere the installation must comply with the building regulations and

the Water Supply (water ttings) Regulations 1999 and water byelaws 2000, Scotland, see also the current issue of BS5546

and BS6700. If tting to an existing system the local authority should be informed.

5.10 Domestic Water Cylinder

SINGLE FEED INDIRECT CYLINDERS ARE NOT SUITABLE AND SHOULD NOT BE USED. The domestic hot water cylinder must be of the double feed indirect coil type. It must be suitable for working at a gauge pressure of 0.35bar above the safety valve setting.

13942

Diagram 5.5

6 Installation Preparation

E - Boiler Securing Screw

13900

Diagram 6.1

6 Installation Preparation

6.1 Appliance Pack

Please check the contents of packs as shown in diagram 6.1.

The packs are located in the top polystyrene packing.

Remove the carton sleeve and top pack then lift the boiler and its polystyrene base support out of the lower pack.

6.2 Site Requirements

The boiler mounting wall should be suitable for the weight of the appliance and be true and at.

NOTE: Due to the varied site conditions we do not supply xings and advise that the installer should supply those which are suitable.

6.3 Wall Template

Take the wall template from the document pack located within the top polystyrene packing and place in the desired position

on the wall, giving due consideration to the required boiler clearances, see section 3, and the ue you are tting. Mark the position of the ue centre, if tting a side ue, extend the ue centre line into the corner then 149mm along the adjacent wall, see diagram 6.2. For extended side ues, the ue hole centre should be determined by extending the dashed inclined line on the template to the side wall. This dashed line is drawn at 44mm/ metre (2.5°) rise from the boiler. Where this line reaches the side wall, a horizontal line should be marked. The vertical centre line of the ue should then be marked at 176mm from the back wall. To allow for the ue passing through the wall at this angle a 125mm hole should be drilled irrespective of internal or external installation. Remove the wall template whilst drilling the ue hole.

WALL TEMPLATE

2.5

44mm/metre inclined extended flue length

Standard flue length Horizontal

HANGING BRACKET FIXINGS

149

Diagram 6.2

13941

14810

6.4 Flue Hole Cutting

External access ue installation can use a 105mm diameter core drill. Internal access only ue installation will need a 125mm diameter core drill. NOTE: The ue is designed with an internal fall of 44mm/ metre (2.5°), therefore the hole can be drilled horizontally.

If ue extension pipes are to be used then a core drill size of 125mm is required. This will allow the extension pieces to slope at 44mm/metre (2.5°) towards the boiler.

6.5 Wall Hanging Bracket Assembly

The Wall Hanging Bracket is supplied in the main boiler packaging at the rear of the boiler. Reposition the wall template over the ue hole and mark the position of the xing holes for the hanging bracket, see diagram 6.3. NOTE: Due to the varied site conditions we do not supply xings and advise that the installer should supply those which are suitable. Drill xing holes and insert suitable wall plugs. Direct Rear Flue only - If external access is not available the ue to be used should be assembled as described in sections

10.11 to 10.13 and inserted through the hole in the wall before tting the wall hanging bracket. Fit the xing jig support plate to the bottom of the wall hanging bracket, push down to locate. Mark, drill and plug at xing points and secure the jig support plate, see diagram 6.3. Direct Rear Flue only - The ue can now be pulled back through the hanging bracket and secured as shown in diagram 6.3.

JIG SUPPORT PLATE FIXINGS

Diagram 6.3

JIG SUPPORT

7 Gas / Water Connections

7.1 System connection

NOTE: The Gas and Water systems can be connected

and lled prior to installation of boiler, refer to section 12 Commissioning. Make sure the drain points are accessible, refer diagram 5.5. All water and gas connections are on the xing jig with the exception of the condense drain and safety discharge, the positions of these are shown on the wall template. An Upward Piping Frame, part no. A2041500 should be used if the supplies come from above the boiler otherwise the pipes will have to be chased into the wall. Assemble the pipes to the jig as shown in diagram 7.1. Fit the Central Heating Isolation Valve handles and secure with screws provided. Fit the assembled Jig Plate to the Support Plate as shown in diagram 7.2. Assemble the Gas service isolation valve and position onto the plastic plug. Plumb system pipe work to the copper tails. Do not subject isolation valves to heat. Prior to lling the water system ensure that the blanking plugs and isolation valves are secured. Flush out the domestic hot water and the heating systems. The whole of the gas installation, including the meter, should be inspected, tested for soundness and purged in accordance with the current issue of BS6891 and in IE the current edition of I.S.813 “Domestic Gas Installations”.

14025

Diagram 7.1

13039

PLATE

JIG PLATE

JIG SUPPORT PLATE

JIG PLATE

Diagram 7.2

8 Boiler Fixing

8.1 Boiler Hanging

IMPORTANT: With regards to the Manual Handling

Operations, 1992 Regulations, the following lift operation exceeds the recommended weight for a one man lift, refer to section 17 Manual Handling. IMPORTANT: Direct Rear Flue only - The direct rear ue must be tted before hanging the boiler, refer to sections 10.11 to 10.13, and the rear outlet cover plate should be removed. The appliance and jig (pre-lled) may contain a small amount of water, place a water container beneath the boiler connections. Make sure the isolation valves are closed before disconnecting the blanking plugs and discarding the jig plate. Position the sealing washers supplied in the Loose Items pack, as shown in diagram 6.1. Lifting the boiler into position, lean the top of the boiler slightly to the wall and position just above the hanging bracket. Lower the boiler slowly, push back and engage onto the hanging bracket making sure the boiler is located over the retaining bosses, secure with screw provided, see diagram 8.1. Remove the protective caps. Engage the xing jig connections, ensuring that the previously positioned washers have not been disturbed. There are ats on the body of the valves for locating a spanner to aid tightening to copper tails using the tightening sequence shown in diagram 8.2. Make good the nal connections.

14812

SECURING SCREW

Diagram 8.1

13943

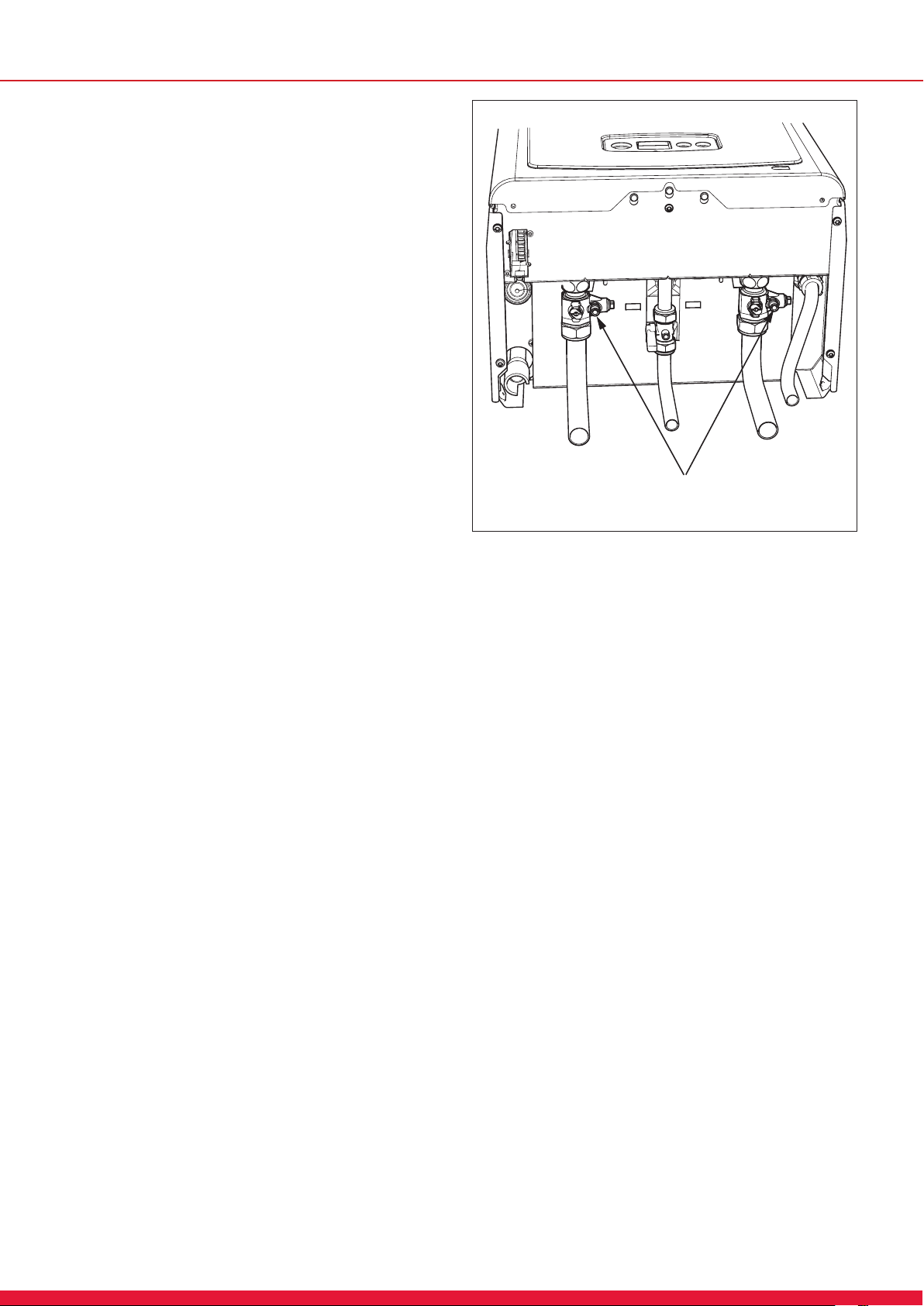

A - Central Heating Isolation Valve B - Gas Service Isolation Valve C - Washers (not shown) D - Condensate Connection E - Safety Discharge Pipe

Numbers 1 - 5 show the sequence to be used when tightening to copper tails.

Diagram 8.2

9 Safety Discharge Valve and Condensate Connections

9.1 Safety Discharge Valve

Take the safety discharge pipe, supplied in the pipe pack and the union nut and seal, supplied in the loose items pack and t as shown in diagram 9.1. This must be extended, using not less than 15mm o.d. pipe, to discharge, in a visible position, outside the building, facing downwards, preferably over a drain. To ease future servicing it is advisable to use a compression type tting to extend the safety discharge valve tube. The pipe must have a continuous fall and be routed to a position so that any discharge of water, possibly boiling, or steam cannot create any danger to persons, damage to property or external electrical components and wiring.

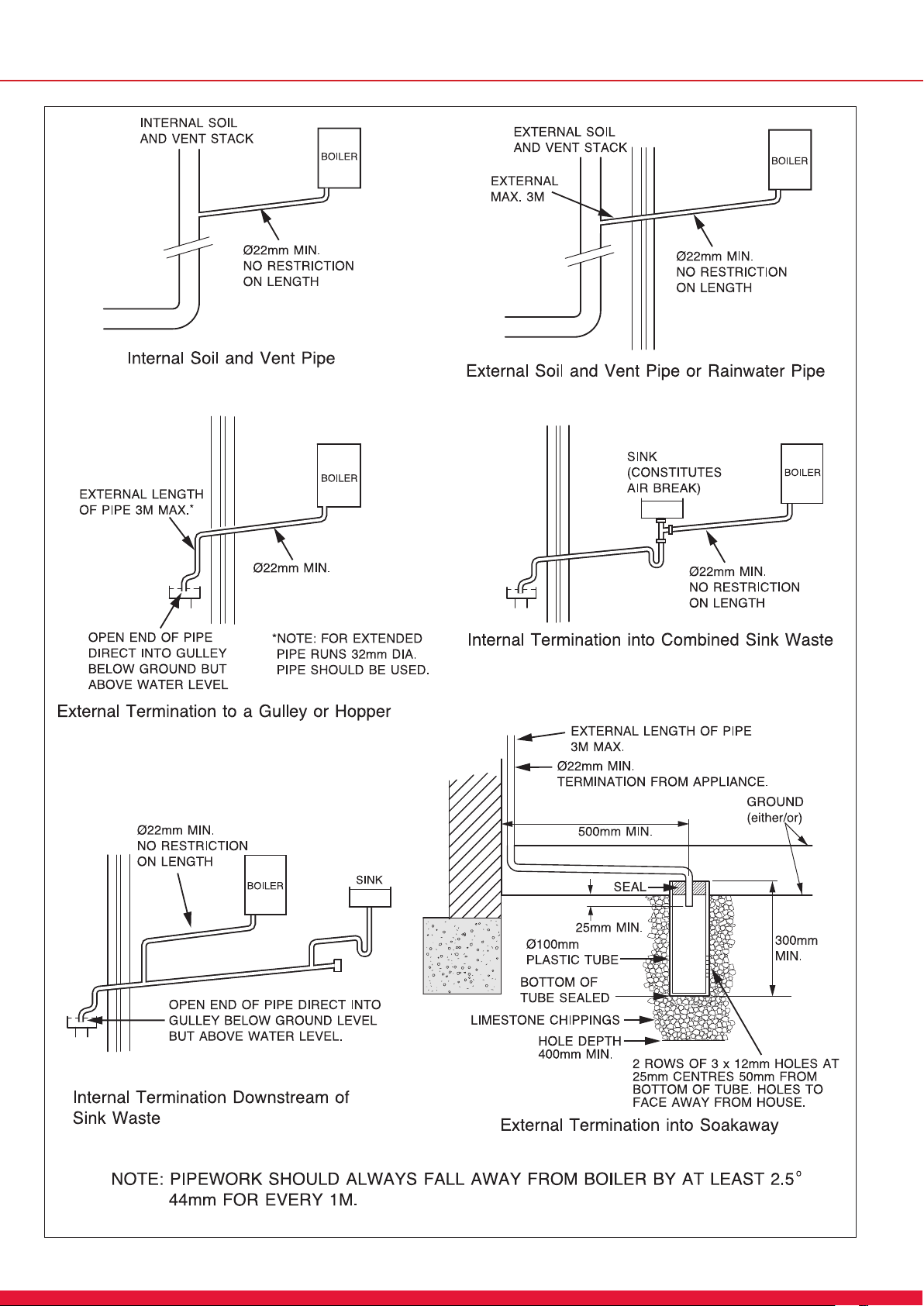

9.2 Condensate Trap and Siphonic Drain Connection

A exible condensate outlet pipe is tted and should be used to couple the condensate trap and siphonic drain to a 22mm to 25mm O.D. non corrosive plastic pipe (overow pipe), see diagram 8.2. IMPORTANT: Please remove the bung from the exible pipe before tting to a drain outlet pipe.

NOTE: the pipe should have a fall of a least 2.5 away from the boiler. Condensate should, if possible be discharged into the household internal drainage system. If this is not practicable, discharge can be allowed into the external household drains or a purpose designed soak away, refer to diagram 9.2. It is recommended that any external condensate drain pipe is protected and also preferably of 32mm diameter, to prevent freezing in adverse weather conditions. The condensate is discharged periodically in ‘slugs’ by siphonic action. It is not necessary to provide air breaks or extra traps in the discharge pipe as there is already a 75mm high trap inside the boiler. Fitting an extra trap may cause the boiler siphon to work incorrectly. Refer to BS5546 or BS6798 for advice on disposal of boiler condensate.

44mm/metre

12667

Diagram 9.1

9 Safety Discharge Valve and Condensate Connections

13000

Diagram 9.2

10 Telescopic Flue - Length, Preparation and Installation

10.1 Flue Length

Diagram 10.1 shows the achievable ue length of the horizontal telescopic ue kit - A2043600. The maximum permissible horizontal ue length is 8 metres plus the ue terminal assembly, this can be achieved by use of the accessories, see diagram 10.3. However should an additional 87.5° or 2 x 45° elbows be used then the length MUST be reduced by 1metre. When extension pipes are used the ue system must be designed to have a continuous fall to the boiler of at least 2.5° 44mm/metre to allow condensate to run back into the boiler and out via the condensate drain. The ue can be installed from inside the building, when access to the outside wall face is not practicable.

Horizontal Telescopic Flue - Rear

14004

Multiple Boiler Chimney Flue Length

The ue length must be calculated and installed according to the relevant standards EN 13384-1 and 2 (C43 ue systems only) with reference to the table below and the manufacturers instructions supplied. The appliance maximum ue length must be included when calculating the overall design of the ue system. NOTE: The horizontal ue terminal must be removed, see diagram 10.2.

Horizontal Telescopic Flue - Side

13934

Exhaust mass rate (g/s)

At Min Thermal Load (40C°/30°C)

At Max Thermal Load (80C°/60°C)

Exhaust temperature (ºC)

At Min Thermal Load (40C°/30°C)

At Max Thermal Load (80C°/60°C)

Flexicom

18sx

4.26 4.26

8.24 13.95

33.2 33.2

63.0 87.4

Diagram 10.1

30sx

10 Telescopic Flue - Length, Preparation and Installation

14826

Diagram 10.2

15418

Diagram 10.3

10 Telescopic Flue - Length, Preparation and Installation

10.2 Horizontal Telescopic Flue - A2043600

Refer to diagram 10.2 for kit contents.

10.3 REAR Flue

If a wall thickness is between 231mm min. to 441mm max. then the ue can be used without extensions. Remove the top ue outlet cover secured with four screws, see diagram 10.4. Using these screws inserted into the same holes on the boiler,

temporarily secure the ue elbow, measure the distance from the outside wall to the butt joint, see diagram 10.5. If the measurement ‘Y’ exceeds 525mm, then the appropriate length of extension pipe is required. If the dimension is less than 315mm DO NOT cut the ue, it can project to a maximum of 600mm, refer to diagram 10.6. If this is not desirable then a Standard ue MUST be used and cut to length.

10.4 SIDE Flue

Remove the top ue outlet cover secured with four screws, see diagram 10.4. Using these screws inserted into the same holes on the boiler,

temporarily secure the ue elbow, measure the distance from the outside wall to the butt joint, see diagram 10.7. If the measurement ‘Y’ exceeds 525mm, then the appropriate length of extension pipe is required. If the dimension is less than 315mm DO NOT cut the ue, it can project to a maximum of 600mm, refer to diagram 10.6. If this is not desirable then a Standard ue MUST be used and cut to length.

13223

Diagram 10.5

12979

Diagram 10.4

13016

Diagram 10.6

13224

Diagram 10.7

10 Telescopic Flue - Length, Preparation and Installation

Diagram 10.8

Diagram 10.9

12929

12977

13018

10.5 Flue Fitting

IMPORTANT:The ue seals are sensitive to mineral oil based lubricants. Do not grease the seals. If the seals do need to be lubricated use only water.

During the installation of the ue system, ensure that debris such as mortar, lings or swarf are cleared from the ue system before completion. Inspect the ue pipes before tting and do not install damaged or dented ue components. When assembling the ue system, ensure that the inner seals are not damaged, do not install a ue component with a damaged seal. When tting ue elbows ensure that they are tted at the correct angle to avoid strain, this will ensure that the seal ts correctly preventing leakage.

With the air duct seams aligned and the ue set to the required length ‘Y’, mark the securing hole position in the air duct. Drill a 3mm diameter hole at this position, take care not to pierce the inner ue duct. Secure with screw provided and tape the joint, see diagram 10.8.

Fit the sealing collar onto the locating ring on the ue terminal, see diagram 10.9.

With the ue elbow removed, push the ue assembly into the wall, externally or internally, until the end of the assembly protrudes a short way from the inside face of the wall. This will enable the internal trim ring (if required) to be positioned and allow the ue assembly to be drawn back up to the ue elbow.

Secure the ue elbow in position on top of the boiler with the four screws supplied.

Draw the ue assembly from wall and engage the ue duct into the elbow and butt t between the air duct and ue elbow. Fit the securing collar in position. Ensuring correct alignment of the ue, mark through two of the pre drilled holes in the securing collar. Remove securing collar and drill two 3mm diameter holes one in the elbow and one in the air duct, take care not to pierce the inner ue duct. Fit the securing collar and secure with screws provided, see diagram 10.10. Slide the internal trim ring back against the wall, securing in place with a small amount of sealant if required.

Insert the ue duct into the air duct terminal assembly, remembering to engage the catch within the terminal. Check that the outer rubber sealing collar makes an effective seal against the wall face.

Diagram 10.10

10 Standard Flue - Length, Preparation and Installation

10.6 Flue Length

The maximum permissible horizontal ue length is 8 metres plus the ue terminal assembly, this can be achieved by use of the accessories, see diagram 10.13. However should additional 87.5º or 2 x 45º elbows be used then the length MUST be reduced by 1metre. The diagram 10.11 shows the length achievable by using the kit A2043400. When extension pipes are used the ue system must be designed to have a continuous fall to the boiler of at least 2.5º 44mm/metre to allow condensate to run back into the boiler and out via the condensate drain. The ue can be installed from inside the building, when access to the outside wall face is not practicable.

Multiple Boiler Chimney Flue Length

Standard Horizontal Flue

14006

14007

MODEL 18sx 30sx

Exhaust mass rate (g/s)

At Min Thermal Load (40C°/30°C)

At Max Thermal Load (80C°/60°C)

Exhaust temperature (ºC)

At Min Thermal Load (40C°/30°C)

At Max Thermal Load (80C°/60°C)

4.26 4.26

8.24 13.95

33.2 33.2

63.0 87.4

Diagram 10.11

10 Standard Flue - Length, Preparation and Installation

13222

Diagram 10.12

15418

Diagram 10.13

10 Standard Flue - Length, Preparation and Installation

10.7 Standard Horizontal Flue - A2043400

Refer to diagram 10.12 for kit contents.

10.8 REAR Flue

Remove the top ue outlet cover secured with four screws, see diagram 10.4. Using these screws inserted into the same holes on the boiler,

temporarily secure the ue elbow, measure the distance from the outside wall to the butt joint, see diagram 10.14. If the measurement ‘Y’ exceeds 665mm, then the appropriate length of extension pipe is required. The minimum dimension is 187mm to suit a 75mm min wall thickness. The ue can project to a maximum of 600mm, refer to diagram 10.15.

10.9 SIDE Flue

Remove the top ue outlet cover secured with four screws, see diagram 10.4. Using these screws inserted into the same holes on the boiler,

temporarily secure the ue elbow, measure the distance from the outside wall to the butt joint, see diagram 10.16. If the measurement ‘Y’ exceeds 665mm, then the appropriate length of extension pipe is required. The minimum dimension for Lhd is 235 and Rhd 185 to suit a minimum wall thickness of 75mm. The ue can project to a maximum of 600mm, refer to diagram 10.15.

13223

Diagram 10.14

12979

Left Hand illustrated

Diagram 10.15

13224

Diagram 10.16

10 Standard Flue - Length, Preparation and Installation

Diagram 10.17

Diagram 10.18

12847

13019

10.10 Flue Fitting

IMPORTANT:-

The ue seals are sensitive to mineral oil based lubricants. Do not grease the seals. If the seals do need to be lubricated use only water. During the installation of the ue system, ensure that debris such as mortar, lings or swarf are cleared from the ue system before completion. Long lengths of ues must be secured to the walls or ceilings they run against. Use at least one xing bracket for every ue extension that is used. After cutting inner ue tubes ensure that you de-burr and chamfer the male tube end to prevent damage. Inspect the ue pipes before tting and do not install damaged or dented ue components. When assembling the ue system, ensure that the inner seals are not damaged, do not install a ue component with a damaged seal. When tting ue elbows ensure that they are tted at the correct angle to avoid strain, this will ensure that the seal ts correctly preventing leakage. Remove the ue elbow. Separate the ue duct from the terminal by twisting to release the terminal catch, then pull out of the retaining seal, refer to diagram 10.17. The ue duct cutting length (L + 11mm.) is shown in diagram 10.17. The air duct should be cut at the opposite end to the terminal The plastic ue duct MUST be cut at the opposite end to the terminal catch. The plastic ue duct extensions MUST be cut at the opposite end to seal. Insert the ue duct into the air duct terminal assembly, remembering to engage the catch within the terminal. Fit the sealing collar behind the locating lugs on the ue terminal, see diagram 10.18. Push the ue assembly into the wall, externally or internally, initially until the end of the assembly protrudes a short way from the inside face of the wall. This will enable the internal trim ring (if required) to be positioned and allow the ue assembly to be drawn back into the ue elbow. Secure the ue elbow in position on top of the boiler with four torque headed screws supplied. Draw the ue assembly from wall and engage the ue duct into the elbow and butt t between the air duct and ue elbow. Fit the securing collar into position. Ensuring the correct alignment of the terminal, mark through two of the pre drilled holes in the securing collar. Remove securing collar and drill two 3mm diameter holes one in the elbow and one in the air duct, take care not to pierce the inner ue duct. Fit the securing collar and secure with screws provided, see diagram 10.18. Slide the internal trim ring back against the wall, securing in place with a small amount of sealant if required. NOTE: If the air and ue ducts have been correctly cut to the instructions the sealing collar should t ush with the outside wall.

10 Direct Rear Flue - Length, Preparation and Installation

10.11 Direct Rear ue - Telescopic Part No. A2043500

Refer to diagram 10.19 for kit contents.

10.12 Flue Length

Measure the distance from the outside wall to the inside wall face. This measurement must not exceed 512mm (465mm if the upward piping kit is used). If the dimension is less than 291mm DO NOT cut the ue, it can project to a maximum 600mm, see diagram 10.15.

10.13 Flue Fitting

Set the ue to the required length ‘Y’ plus 24mm min to 28mm max, see diagram 10.20, ensure the air duct seams line up. Mark the securing hole position in the air duct. Drill a 3mm diameter hole at this position, take care not to pierce the inner ue duct. Secure with screw provided and tape the joint, see diagram 10.19. Fit the sealing collar onto the locating ring on the ue terminal, see diagram 10.19. Push the telescopic terminal assembly into the wall, externally or internally, initially. Draw the telescopic ue through the wall and engage the telescopic terminal assembly into the clamping band grips. The telescopic terminal assembly must be pulled forward of the clamping band grips by the dimension shown in diagram

10.21 to ensure a good seal when the boiler is located onto the xing plate.

Ensure the correct alignment of the terminal.

There are two methods of securing the ue:-

Method (1) There are six holes provided in the clamping band grips, three of these should be used to secure the ue. Mark and drill 3mm holes in the air duct then secure to the clamping grip with the screws provided.

Method (2) Secure the telescopic terminal assembly using the clamping band supplied. The position of the clamping band securing screw is important, refer to label and wall template. IMPORTANT: CHECK THE CLAMPING BAND IS SUFFICIENTLY TIGHTENED TO AVOID ANY MOVEMENT OF THE FLUE WHEN FITTING THE BOILER. Continue at the appropriate paragraph of section 8.

14815

12966

Diagram 10.20

14808

Method (1)

Secure clamping band grips at three positions with screws provided

Diagram 10.19

Method (2)

Secure clamping band in position

Diagram 10.21

10 Vertical Flue - Length, Preparation and Installation

10.14 Vertical ue

The vertical ue system is available as an option where the boiler position does not permit the use of the top horizontal ue system. The system is made up from accessories. The accessories include terminal assembly, bends 45º and 87.5º, ue extensions, xing bracket and appropriate weather collar, see diagram 10.23. The maximum permitted straight ue length is 8 metres plus the terminal. for each 87.5o or 2x45o bends tted, the maximum length must be reduced by 1 metre, see diagram

10.22. NOTE: 2x45º bends can replace 1x87.5º bend if necessary. When using 87.5º bends any horizontal extension pipe should be inclined by a minimum of 44mm/metre (2.5°) towards the boiler to facilitate condense removal, see (a) in diagram

10.22. Alternatively use 45º bends to avoid horizontal runs, see (b) in diagram 10.22.

The terminal siting should be as shown in diagram 4.2. Measure the distance of ue length required for the installation. The ue must be designed with a continuous fall towards the boiler.

14868

Diagram 10.22

10 Vertical - Flue Length, Preparation and Installation

14849

Flue Installation

IMPORTANT:The ue seals are sensitive to mineral oil based lubricants. Do not grease the seals. If the seals do need to be lubricated use only water.

During the installation of the ue system, ensure that debris such as mortar, lings or swarf are cleared from the ue system before completion. Long lengths of ues must be secured to the walls or ceilings they run against. Use at least one xing bracket for every ue extension that is used. After cutting inner ue tubes ensure that you de-burr and chamfer the male tube end to prevent damage. Inspect the ue pipes before tting and do not install damaged or dented ue components. When assembling the ue system, ensure that the inner seals are not damaged, do not install a ue component with a damaged seal. When tting ue elbows ensure that they are tted at the correct angle to avoid strain, this will ensure that the seal ts correctly preventing leakage.

Remove the top ue outlet cover secured with four screws, see diagram 10.4. Refer to diagram 10.25 and secure the ue adapter in position on top of the boiler with four screws supplied, making sure the nib ts into the locating slot in the boiler casing to ensure correct orientation. Secure the rst extension pipe to the ue adapter with the securing collar supplied by positioning the collar centrally over the joint, then tighten the two screws on the securing collar, see diagram 10.26. Fit more extension pipes as required using the collar and screws supplied with each extension pipe. To t position the collar centrally over the joint, tighten the two screws on the securing collar. Using the holes provided in the securing collar drill and insert the two self tapping screws supplied, see diagram 10.27. The rubber ‘O’ rings of each section should be lubricated prior to assembly. Project the rise of the ue pipe to roof level and cut a 150mm hole in the roof.

Diagram 10.23

Flue Terminal Installation

(a) Pitched Roof

Fit the required pitched roof weather collar over the 150mm hole in the roof. Make good the tiling or slating around the collar incorporating the ashing of the weather collar. Position the angle cap over the weather collar in the correct orientation to attain the correct angle for your roof.

(b) Flat Roof

Fit the aluminium weather collar over the 150mm hole in the roof ensuring a weather tight seal. From above carefully place the ue terminal through the weather collar.

Flue Terminal to Boiler Connection

Should the clearances above the boiler to roof not allow for extensions, it is permitted to cut the ue terminal ensuring the relationship of ue and air duct lengths are retained.

10 Vertical - Flue Length, Preparation and Installation

Ridge Tile Terminal

A ridge tile terminal is available - part no. A2043800, see diagram 10.24.

The installation of a ridge tile will be required.

A suitable ridge tile is manufactured by: -

Aspect East Anglia Limited The Old Mill East Harling NORWICH NR16 2QW Website: www.aspectroong.co.uk Contact: Chris Haythorpe General Manager - Tile Division Tel: 01953 717777 Fax: 01953 717164

14853

Diagram 10.24

10 Vertical Flue - Length, Preparation and Installation

Completion of Installation

With the ue terminal positioned in the roof the length of the nal pipe can be determined. If a telescopic length cannot be used, then a standard ue length can be cut to make the correct length. Cut the ue to the desired length measuring from the ‘O’ ring end and discard the plain end of the tube. The cuts must be square and made free of burrs to allow correct assembly. NOTE: The ue pipe is 10mm longer than the air pipe, see diagram 10.28. Carefully push the terminal assembly upwards to allow room for tting the nal ue piece. Fit a xing bracket to the terminal assembly. Pull the terminal assembly down and join to the ue system. Ensure that the terminal is making a weather tight seal on the weather collar. Secure the xing bracket tted to the terminal to the roong struts or a purpose made batton.

12981

13023

Diagram 10.26

12982

Diagram 10.27

12983

Diagram 10.25

Diagram 10.28

10 Twin Flue - Length, Preparation and Installation

Secure long flue lengths (horizontal & vertical) to walls or ceiling at every joint or on straight flue runs at every joint and every metre flue run.

15406

Diagram 10.29

10 Twin Flue - Length, Preparation and Installation

14869

10.15 Twin ue

The twin ue system is available as an option when the top horizontal or vertical ue system is not appropriate. The system can provide an independent horizontal air inlet and ue outlet, horizontal air inlet and vertical ue outlet or vertical air inlet and ue outlet via a concentric terminal. The system is made up from accessories, see diagram 10.30. NOTE: The air and ue outlets do not have to be equal lengths. 2x45° bends can replace 1x90° bend if necessary. The maximum permitted combined (air inlet + ue outlet) ue length is 20 metres plus terminal assemblies. For each 90°

x 2 bends tted, the maximum ue length must be reduced

45° by 1 metre, see diagram 10.29. NOTE: When using 90° bends any horizontal run should be inclined by a minimum of 44mm/metre (2.5°) towards the boiler to facilitate condense removal. Alternatively use 45° bends to avoid horizontal runs in the ue pipe.

Multiple Boiler Chimney Flue Length

Diagram 10.30

Terminal Position

The clearances for a ue outlet are given in the "Flue Location and Ventilation" section. In addition the horizontal air inlet must not be closer than 300 mm from a ue outlet on the same wall or 1200mm from an opposing ue outlet.

Installation Details

The parts available for a twin ue system installation are shown in diagram 10.30.

MODEL 18sx 30sx

Exhaust mass rate (g/s)

At Min Thermal Load (40C°/30°C)

At Max Thermal Load (80C°/60°C)

Exhaust temperature (ºC)

At Min Thermal Load (40C°/30°C)

At Max Thermal Load (80C°/60°C)

4.26 4.26

8.24 13.95

33.2 33.2

63.0 87.4

10 Twin Flue - Length, Preparation and Installation

Boiler Connection

IMPORTANT: The ue seals are sensitive to mineral oil based

lubricants. Do not grease the seals. If the seals do need to be lubricated use only water.

Remove the top ue outlet cover secured with four screws, see diagram 10.4. Place the twin ue adaptor onto the outlet of the boiler with the air inlet to the left hand side, see diagram 10.31. Secure the adaptor to the top panel with the screws provided. Care should be taken when inserting the screw through the hole in adaptor top.

Air and Flue Pipe Installation

The air and ue pipes can now be built up from the boiler. The ue must be designed with a continuous fall towards the boiler. If using the horizontal ue pipe or 90° bends the pipe must be inclined at 44mm/metre (2.5°) minimum, see diagram

10.29. Alternatively if space allows, use 45° bends in place of 90º bends. To avoid rain ingress to the air Inlet terminal, it is good practice to aim the inlet downwards by approx 2° as rain can damage the boiler. The Flue outlet pipe must always run at 44mm/metre (2.5°) back to the boiler.

IMPORTANT:Long lengths of ues must be secured to the wall or ceiling it runs against. Use at least one xing bracket on each ue joint used or on straight ue runs every joint and for every metre ue run. Provision must be made in concealed boxing or ductwork that the ue joints can be inspected during annual servicing. The ue seals are sensitive to mineral oil based lubricants. Do

not grease the seals. If the seals do need to be lubricated use only water.

Do not use the ue pipe to attach other pipes or equipment. If visible, advise the householder not to hang or clip items to ue pipes. Do not stress the ue connections during the installation, this can damage the ue seals.

Horizontal Terminal Installation

NOTE: The air inlet terminal and the ue outlet terminals

must never be installed on the opposite sides of a property. Termination must only be on the same wall or adjacent walls. When installed close together separated vertically, the air inlet must be tted below the ue outlet terminal (see diagram

10.29). With due consideration to terminal clearances mentioned in section 4.2 drill the one or two holes as required with a 90mm core drill. Push the horizontal terminal through the wall allowing approx 100mm to protrude outside. Push a grey rubber wall seal onto either side of the wall ensuring that both wall seals are pushed up to the wall surface, see examples (b) and (c) diagram 10.29.

Vertical Terminal Installation

With due consideration to terminal clearances mentioned in Section 4.2, project the rise of the ue pipe to roof level and cut 150mm hole in the roof.

12985

Diagram 10.31

(a) Pitched Roof

(b) Flat Roof

Fit the aluminium weather collar over the 150mm hole in the roof ensuring a weather tight seal.

Horizontal Pipes-Completion of Installation

Having built the pipe(s) from the boiler to the terminal(s), the length of the nal pipe piece can be determined. Cut pipes at the opposite end to the ‘O’ ring seal making square and free from burrs. Push the horizontal terminal through the wall to engage the nal pipe piece and pull back ensuring the grey wall seals are fully pulled up to the outside and inside wall faces.

Vertical Pipes-Completion of Installation

Refer to diagram 10.29. For installation of (a), attach the twin pipe to concentric ue adaptor, part number A2011600, to the base of vertical terminal assembly. For installation of (b), attach the single pipe to concentric adaptor, part number A2011500, to the base of vertical terminal assembly. With the vertical terminal assembly positioned in the roof, the length of the nal pipe can be determined. Cut the ue to the desired length measuring from the ‘O’ ring seal end and discard the plain end of the tube. The cut end should be square and free from burrs. Carefully push the terminal assembly upwards to allow room for tting the nal ue piece(s). Fit a 100mm xing bracket to the terminal assembly Part No2000460486. Pull the terminal assembly down and join to the ue system. Ensure that the terminal is making a weather tight seal on the weather collar. Secure the xing bracket tted to the terminal to the roong struts or a purpose made batton.

10 Plume Management Kit

10.16 Plume Management Kit

12997

The Plume Management Kit: Part No. A2044100 (white) or A2044000 (black) can be used to overcome many site issues. The Plume Management Kit will t to the Top Horizontal Telescopic, Rear Horizontal Telescopic and Standard Horizontal Flue. This enables the ue products to exhaust further away from the boiler, thereby reducing the impact of pluming. NOTE: The ue air inlet can be sited closer to doors, opening windows and air bricks, than stated in section 4.2, see diagram 10.32. The maximum length of the Plume Management Kit must NOT exceed 6m with a horizontal concentric ue length of 2m max. For each 90o bend or 2 x 45o bends the maximum length of the Plume Management Kit must be reduced by 1m. For more information contact Glow-worm, refer to page 2. The Plume Management Kit is supplied with installation instructions. Refer to BS5546 or BS6798 for advice on disposal of boiler condensate.

14465

Diagram 10.32

10 Deector Flue Terminal Kit

10.17 Deector Flue Terminal Kit

The terminal kit ts onto the telescopic and standard horizontal ue, see diagram 4.1 for kit contents. The kit is also supplied with installation instructions. NOTE: The deector ue terminal kit can be tted after the boiler and ue have been installed. The deector part of the deector ue terminal can be rotated 45º to allow pluming away from openings, people, cars, windows etc., see diagram 10.33. Should the deector terminal be positioned under a soft or horizontal surface, it is allowed to project the ue 600mm from the wall, to allow the discharge of ue gases produced into free air. IMPORTANT: Do not t the deector ue terminal with the deector positioned downwards.

Diagram 10.33

11 Electrical Connection

WARNING: This appliance must be earthed.

● This appliance must be wired in accordance with these instructions. Any fault arising from incorrect wiring cannot be put right under the terms of the Glow-worm guarantee.

● All system components must be of an approved type. Electrical components have been tested to meet the equivalent requirements of the BEAB.

● Do not interrupt the mains supply with a time switch or programmer.

● Connection of the whole electrical system and any heating system controls to the electrical supply must be through a common isolator.

● Isolation should preferably be by a double pole switched fused spur box having a minimum contact separation of 3mm on each pole. The fused spur box should be readily accessible and preferably adjacent to the boiler. It should be identied as to its use.

● A fused three pin plug and shuttered socket outlet may be used instead of a fused spur box provided that it is not used in a room containing a xed bath or shower.

● The boiler is suitable for installation in bathroom zones 2 and 3.

11.1 Electrical Wiring

Remove the electrical cartridge from the ttings pack.

Remove the securing screw to open the cartridge. NOTE: There are two screws supplied loose in the electrical cartridge, these will be required to secure the cartridge into the electrical interface housing.

13921

Slacken the screws of the cable strain relief in the electrical cartridge, see diagram 11.1.

Route the mains supply and system cables through the strain relief and connect to the relevant plug, refer to the appropriate sections 11.2 or 11.3.

Initially, if system controls are not tted, leave the “Red Link” in place, this will create a continuous demand.

11.2 System Controls 24V

WARNING: UNDER NO CIRCUMSTANCES MUST ANY MAINS VOLTAGE BE APPLIED TO ANY OF THE TERMINALS ON THE 24V CONNECTION PLUG.

Connect the mains supply and system heating controls e.g. room thermostat as diagram 11.2. External controls should be tted in accordance with the rules in force.

11.4 Mains Voltage System Controls

WARNING: UNDER NO CIRCUMSTANCES MUST

ANY MAINS VOLTAGE BE APPLIED TO ANY OF THE TERMINALS ON THE 24V CONNECTION PLUG.

Connect mains supply and system controls as diagram 11.3. External controls should be tted in accordance with the rules in force.

Diagram 11.1

13368

Diagram 11.2

11 Electrical Connection

13369

13922

Diagram 11.3

11.5 Electrical Cartridge Securing

Fit electrical cartridge into the interface housing on completion of the wiring, see diagram 11.4. Secure with the two cartridge retaining screws provided in the cartridge body.

12 Commissioning

IMPORTANT: At the time of commissioning, complete all

relevant sections of the Benchmark Checklist located in the centre pages of this document.

12.1 Pre-lling the Heating Circuit

Do Not operate the boiler without water. The commissioning should be carried out by a competent person approved at the time by the Health and Safety

Executive and in accordance with the current issue of BS6798. Make sure that the system has been thoroughly ushed out with cold water and that all cleanser if used has been removed. With the gas service isolation valve closed, with no demand from any external controls and the power supply to the boiler switched off. Test for gas tightness and purge air from the gas supply.

Diagram 11.4

11.6 Electrical Connections - Testing

Carry out preliminary electrical system checks as below:

1. Test insulation resistance to earth of mains cables.

2. Test the earth continuity and short circuit of cables.

3. Test the polarity of the mains.

NOTE: If you require to test the appliance refer to section 14.

Refer to diagram 12.1

1. Once the system pipework has been completed it is possible to pre ll the system before mounting the boiler if so desired.

2. Ensure that the isolation valves are securely tightened into the jig blanking plugs, see diagram 12.1.

3. Refer to diagram 12.2 and open the CH isolation valves ‘A’ by using a screwdriver or a 4mm allen key ensuring that the slot is in line with the axis of the cock (shown closed in diagram). NOTE: A manometer kit accessory, part no. 0020016995 is available to monitor system pressure during lling if required. This should be attached to the drain point of one of the CH isolation valves and the drain point opened to enable a reading of the system pressure to be taken. Fill the system until a ll pressure of approximately 1.0 bar is achieved. Vent all air from the system and repeat the lling procedure until the system is full and all air has been removed. Check system soundness. Close the drain point. To comply with the water regulations the remotely installed lling loop connection must be removed.

DRAIN POINTS

PRESSURE TEST POINT

12 Commissioning

JIG BLANKING PLUGS

12.2 Filling the System and Boiler

1. Open the two central heating isolating valves marked ‘A’ so that the slots are in line with the length of the valve (shown closed in diagram 12.2).

2. Turn the mains electricity supply on to the appliance. Refer to diagram 12.3. Set the Central Heating temperature to OFF by pressing the MODE button on the User Interface until it shows the symbol SELECTOR button. The display will now permanently show system pressure.

3. Pressurise the system until the pressure on the display reads at least 1.0bar.

4. Vent all air from the system - repeat step 3 as necessary until the system is full and all the air has been removed.

5. After lling is complete set the Central Heating temperature to the desired level using the MODE and + (plus) SELECTOR buttons as described above.

13074

and then pressing the - (minus)

12.3 Gas Supply

The gas valve is factory set for natural gas (G20) and should need no adjustment. Turn on the gas supply at the isolation valve, see diagram 12.2. Check the supply pressure at the pressure test point is 20mbar.

Commissioning should be carried out by a competent person approved at the time by the Health and Safety Executive

12.4 Initial Lighting

NOTE: The combustion for this appliance has been checked, adjusted and preset at the factory for operation on natural gas (G20) as dened on the appliance data label.

No measurement of the combustion is necessary. Having checked :

● the appliance has been installed in accordance with the instructions.

● the integrity of the ue system and ue seals.

● the integrity of the appliance combustion circuit and relevant seals.

● that all internal/external controls are calling for heat.

● the gas service isolation valve 12.2, is open. DO NOT operate the boiler without water. Check that all external controls are calling for heat. The lighting procedure of the boiler is fully automated. The digital display will show water temperature in central heating demand.

● Set the Central heating temperature to the desired temperature by using the MODE and + (plus) or - (minus) SELECTOR buttons.

● The appliance will then continue to re in central heating mode until the user controls are satised.

A - Central Heating Isolation Valve B - Gas Service Isolation Valve

Diagram 12.1

13944

Diagram 12.2

MODE

12 Commissioning

14601

MODE

NOTE: After ignition the boiler will ramp slowly to full rate rather than going immediately to full rate. This is an adaptive feature to cope with small system requirements. After a period of 10 minutes, check that the supply inlet pressure of the boiler is still 20mbar, disconnect the pressure gauge. NOTE: The burner pressure cannot be measured at the gas valve as it is altered by the suction of the fan and modulated according to demand.

12.5 Check the Gas Inlet Pressure and Gas Rate

The supply from the governed meter must be of adequate size to provide a steady inlet working pressure of 20mbar (8in wg) at the boiler. On completion, test the gas installation for tightness using the pressure drop method and suitable leak detection uid, purge as necessary. NOTE: Due to the modulating operation of the boiler and the need to check the gas inlet pressure and measure the gas rate at maximum rate, it will be necessary to force it to maximum. Press the “reset” button on the controls fascia, release and immediately press and hold in the “+” button. After approximately 5 seconds “Hi” will be displayed. Pressing the mode button when “Hi” is selected will force the boiler to maximum rate, the display will ash between “Hi” and the “default display” this will indicate the boiler has been forced to maximum.

Diagram 12.3

Operational Gas Inlet Pressure

With ALL other gas appliances operating, check the operational supply pressure at the gas service isolation valve test point, see diagram 12.2. The nominal supply pressure for Natural Gas (G20) is 20mbar. Turn the taps and appliances off, then disconnect the pressure gauge. Additionally the safe nominal maximum heat input of the appliance can be achieved at an inlet pressure down to 15mbar.

The BURNER PRESSURE cannot be measured and

NOTE:

is not used to measure the gas rate.

Gas Rate

Make sure that ALL other gas burning appliances and pilot lights are off. Check the gas rate using the gas meter test dial and stop watch, at least 10 minutes after the burner has lit, see table below for approximate rates. In communal installations where the gas rate cannot be measured it is acceptable to measure the combustion rate as described in the servicing section. On completion, press the “mode” and “+” buttons simultaneously, this will reset the boiler.

18sx : 2.0m3/h (71ft3/h) 30sx : 3.0m3/h (107ft3/h)

12 Commissioning

kW m3/hr ft3/hr kW m3/hr ft3/hr

20 2.1 74.2 30 3.2 113 19 2.0 70.6 29 3.1 109.5 18 1.9 67.1 28 3.0 106 17 1.8 63.6 27 2.9 102.4 16 1.7 60.0 26 2.8 98.9 15 1.6 56.5 25 2.6 91.8 14 1.5 53.0 24 2.5 88.3 13 1.4 49.5 23 2.4 84.8 12 1.3 45.9 22 2.3 81.2 11 1.2 42.4 21 2.2 77.7 10 1.1 38.9

12.6 Range Rating

These boilers are fully modulating, therefore it is not necessary to range rate them, however, if desired, you can adjust the output in 1kW increments between: 18sx : 10 - 18kW 30sx : 10 - 30kW as follows: a) Press and hold the ‘MODE’ and “+” button for 5 seconds. The display will change to ashing ‘0’. b) Use the ‘+’ or ‘-’ button to scroll to 96. c) Press ‘MODE’ and hold 5 seconds to conrm. d) The display now shows a ashing ‘d. 0’. e) The part load setting is displayed in kW. Press ‘MODE’ the max rate will be indicated, to change the value to the desired setting, use the ‘+’ or ‘-’ button. f) Press ‘MODE’ for 5 sec to conrm the new setting has been saved. g) Press and hold ‘MODE’ and “+” to exit.

Please refer to the table below to check the gas rates.

12.7 Testing - Heating System

Check that all external controls are calling for heat, the boiler will re automatically. Fully open all radiator valves and ow control valve ‘A’, if tted, see diagram 5.1. Balance the radiators as required and if tted adjust valve ‘A’ to give the required system differential. Turn off all radiators that can be shut off by the user and check to see if less than the maximum differential allowed of 20°C can be achieved across ow and return. The pump has two speeds and can be adjusted depending on the requirements of the central heating system, see diagram

5.2. The appliances have an inbuilt automatic adjustable bypass valve, see diagram 12.4. The pressure can be adjusted between approx. 1.5 and 3.5mH2O. The bypass is factory pre-set to approx. 2.5mH pressure changes by approx. 0.1mH of the bypass screw, see diagram 12.4. Turning clockwise increases the pressure and turning anti-clockwise decreases the pressure. Allow the system to reach maximum temperature then switch off the boiler by isolating from the electrical supply. Drain the entire system rapidly whilst hot, using the drain tap at the lowest part of the system. Fill and vent the system as described previously in section 12.1. Lock or remove the handle from control valve, if tted.

O for each full turn

O. The

12.8 Completion

Adjust the boiler temperature control and any system controls to their required settings. GB: It is a requirement that the “Benchmark” Installation, Commissioning and Service Record is completed and left with the user. IE: it is necessary to complete a “Declaration of Conformity” to indicate compliance to I.S.813. An example of this is given in the current edition of I.S.813.

12.9 Instruct the User

● Demonstrate, then instruct the User about the lighting procedure and heating system controls operation.

● Advise that to ensure the continued efcient and safe operation of the boiler it is recommended that it is checked and serviced at regular intervals. The frequency of servicing will depend upon the installation conditions and usage, but in general, once a year should be enough.

● Draw attention, if applicable, to the current issue of the Gas Safety (Installation and Use) Regulations, Section 35, which imposes a duty of care on all persons who let out any property containing a gas appliance in the UK.

● The user shall not interfere with or adjust sealed components.

● It is the Law that any servicing is carried out by a competent person approved at the time by the Health and Safety Executive.

● Advise the user that, like all condensing boilers this appliance will produce a plume of condensation from the ue terminal in cool weather. This is due to the high efciency and hence low ue gas temperature of the boiler.

● Advise the user of the precautions necessary to prevent damage to the system, boiler and the building, in the event of the heating system being out of use during frost or freezing conditions.

● Advise the user that the permanent mains electrical supply SHOULD NOT be switched off, as the built in frost protection and pump saver program will not operate.

● Advise the User if the mains electricity and gas are to be turned off for any long periods during severe weather, it is recommended that the whole system, including the boiler, should be drained to avoid the risk of freezing. NOTE: Sealed System: Contact your installation/servicing company as draining, relling and pressurising MUST be carried out by a competent person approved at the time by the Health and Safety Executive.

● Leave these instructions and the ‘Benchmark’ Installation, Commissioning and Service Record with the user.

13073

Diagram 12.4

13 Servicing

IMPORTANT NOTES:

1. To ensure the continued efcient and safe operation of the boiler it is recommended that it is checked and serviced at regular intervals. The frequency of servicing will depend upon the particular installation and usage, but in general once a year should be enough.

2. It is the Law that any servicing is carried out by a competent person approved at the time by the Health and Safety Executive.

3. Before commencing with a service or replacement of parts the boiler should be isolated from the electrical supply and the gas supply should be turned off at the gas service isolation valve.

4. When replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and performance specication that we require. Do not use reconditioned or copy parts that have not been clearly authorised by Glow-worm.

5. If any electrical connections have been disconnected and after their connection, checks to the earth continuity, polarity, short circuit and resistance to earth must be repeated using a suitable multimeter, as described in section 14.

6. After servicing, complete the relevant Service Interval Record section of the Benchmark Checklist located in the centre pages of this document.

General Inspection

Prior to, during servicing and after any maintenance or changed parts, the following must be checked.

● The integrity of the ue system and ue seals.

● The integrity of the appliance combustion circuit and relevant seals.

● Electrical, gas and water connections.

● System pressure.

● the combustion performance, refer to the following procedure.

● The operational gas inlet pressure and gas rates, refer to the commissioning section paragraph 12.5. Correct any fault before continuing.

COMPETENCY TO CARRY OUT THE CHECK OF COMBUSTION PERFORMANCE

NOTE: BS 6798: 2009 Specication for installation and

maintenance of gas-red boilers of rated input not exceeding 70kW net advises that:

● The person carrying out a combustion measurement must be assessed as competent in the use of a ue gas analyser and the interpretation of the results.

● The ue gas analyser used should be one meeting the requirements of BS7927 or BS-EN50379-3 and be calibrated in accordance with the analyser manufacturers’ requirements.

● Competence can be demonstrated by satisfactory completion of the CPA1 ACS assessment, which covers the use of electronic portable combustion gas analysers in accordance with BS 7967, parts 1 to 4.

● Ensure that the gas analyser is set to the correct fuel setting.

● Select the “ pressing the “Mode” button repeatedly, refer to commissioning section. The boiler should re automatically. NOTE: Safe combustion can only be veried by measuring CO/CO2 ratio. This must not exceed the value shown in the table opposite.

”, constant central heating function by

13028

Diagram 13.1

13948

COMBUSTION CHECK AND SETTING THE AIR/ GAS RATIO VALVE

● Remove the front casing panel, see diagram 13.2 and hinge down the control box. Taking care not to touch any internal components, proceed as follows:

● Connect the CO2 combustion analyser to the relevant test point, see diagram 13.1.

13 Servicing

1. Maximum Rate Check and Adjustment

NOTE: To verify the maximum gas rate CO2 setting the appliance must be checked at the maximum rate rst. Press the “reset” button on the controls fascia, release and immediately press and hold in the “+” button. After approximately 5 seconds “Hi” will be displayed. Pressing the mode button when “Hi” is selected will force the boiler to maximum rate, the display will ash between “Hi” and the “default display” this will indicate the boiler has been forced to maximum. Wait until the CO2 value is stable and check that the value is within the range specied in table in the “check” column. If the combustion reading is not within the acceptable values AND the integrity of the complete ue system and combustion circuit seals have been veried and the inlet gas pressure (and gas rate) have been veried, then, it will necessary to adjust the combustion rate of the appliance.

NOTE: Adjustment is made by turning the gas valve throttle an ⅛ of a turn, waiting 1 minute to allow the appliance to stabilise before checking or making further adjustments.

● Rotate the “throttle”(anti-clockwise to increase), to the required CO2, refer to diagram 13.3 and the “SETTING” column in the table.

● Exit the forced rate function, press the “mode” and “+” buttons simultaneously, this will reset the boiler to the default display. Now proceed to check the minimum rate adjustment.

GAS RATE CHECK

Check the gas rates as described in the commissioning section.

COMPLETION

If it is not possible to achieve the required results for either the combustion or gas rates, it will be necessary to complete a full service of the appliance and then repeat the combustion check procedure. If after servicing and adjustment of the appliance the combustion values are still unacceptable and after further remedial work has been carried out, the appliance must be disconnected until the CO/CO2 ratio is acceptable. Advice can be sought from the Glow-worm Technical Helpline.

13093

2. Minimum Rate Check and Adjustment

● Now check the minimum gas rate CO2 setting: Press and release the “reset” button on the controls fascia, then immediately press and hold in either of the “+” buttons. After approximately 5 seconds “Hi” will be displayed. Pressing the “+” or “-” buttons will toggle between “Hi” and “Lo”. Press the mode button when “Lo” is selected, this will force the boiler to minimum rate and the display will ash “Lo”, indicating the boiler is operating at minimum.

● Wait until the CO2 value is stable and check that the value is within the range specied in table in the “check” column. If adjustment is necessary, proceed as follows:

NOTE: Adjustment of the CO2 at minimum rate is very coarse and should not be adjusted more than an ⅛ of a turn at a time. Wait 1 minute to allow the appliance to stabilise before checking or making further adjustments.

● Gradually rotate the “offset adjustment” (anti-clockwise to decrease) to the required CO2, refer to diagram 13.3 and the “SETTING” column in the table.

● Exit the minimum rate function, press the “mode” and “+” buttons simultaneously, this will reset the boiler to the default display.

3. Re-Check CO2 and check the CO/CO2 combustion ratio.

● Re-check the maximum and minimum CO2 values to ensure that they are within the “setting” limits in the table then check the CO/CO2 combustion ratio does not exceed the value in the CO/CO2 column of the table. If the CO/CO2 setting exceeds the value in the table, a complete servicing of the appliance will be necessary, refer to section 13.1. If the CO2 and the CO/CO2 ratio falls within the tolerances quoted, exit the function press the “mode” and “+” buttons simultaneously, this will reset the boiler to the default display. Remove the analyser probe and replace the cap on the sampling point, replace the controls fascia, inner and front casing panels. IMPORTANT: Remember to replace the sample point cap on completion of the test.

Diagram 13.2

12776

Diagram 13.3

13 Servicing

13.1 Servicing

NOTE: If the Combustion CO2, CO/CO2 ratio & Gas rate

checks did not require adjustment then it will not be necessary to complete a full service. All routine servicing requirements can be achieved by the removal of the front panel, see diagram 13.2. Position the control box into the service position, see diagram 13.3. Before commencing with a service or replacement of parts. The boiler should be isolated from the electrical and gas supplies.

13.4 Spark Electrode

NOTE: If the functional checks did not indicate poor combustion then it is not necessary to service this component.

Ease the securing clips away from the sump to release the retaining catch then push the ue hood up to disengage from the sump, see diagram 13.4. To remove, swivel ue hood 90o and pull down and out, see diagram 13.4. Check seal for wear or damage and replace if necessary. IMPORTANT: Do not allow xings, nuts, screws, etc. to fall into the open ue hood sump, use a temporary cover whilst removing any parts. Disconnect the spark electrode plug and earth lead. Remove the two securing screws and withdraw the spark electrode carefully from the combustion chamber, see diagram 13.5. Inspect the tips for damage. Clean away any debris and check the spark gap is 4mm. Check the electrode gasket for signs of damage and replace if necessary.

15585

15586

Diagram 13.4

Diagram 13.5

12813

13 Servicing

13.5 Burner

NOTE: If the functional checks did not indicate poor combustion then it is not necessary to service this component.

Disconnect the gas supply at the gas valve and electrical connections, see diagram 13.6. The Silencer (front) is a push t, so there is no need for tools to remove or t, see diagram 13.7. Release the igniter unit support bracket, see diagram 13.8.

Remove the fan retaining bracket.

To ease removal of the securing nut from the fan retaining bracket, a at bladed screwdriver can be used in the position shown and gently levered down as indicated, see diagram

13.9. Remove the fan and gas valve assembly. The silencer (rear) is a push t so no tools are required for its removal or tting, see diagram 13.10. Check the spark electrode gap is 4mm. Clean and adjust as necessary, see diagram 13.5.

It should not be necessary to remove the spark electrode from the burner during servicing. Remove the anged nuts and studs that secure the burner, note that two studs at the rear also hold the fan clamping bracket, see diagram 13.11. Clean the burner with a soft brush taking great care not to damage the surface of the burner. DO NOT use wire or sharp instruments to clean the mesh of the burner. NOTE: The burner gasket should be inspected but will not need replacing unless there are signs of wear or damage. Follow the tightening sequence when re-tting the burner, see diagram 13.11.

13.6. Heat Exchanger

NOTE: If the functional checks did not indicate poor combustion then it is not necessary to service this component.

Remove loose debris from inside the heat exchanger using a soft brush and vacuum cleaner. Carefully ush by spraying water into the heat exchanger, any remaining debris should pass through the condensate trap (Ensure the water is kept away from electrical components).

12664

12662

Diagram 13.6

Diagram 13.7

Diagram 13.8

12814

13128

Diagram 13.9

13 Servicing

13.7 Condensate Trap

NOTE: If the functional checks did not indicate poor combustion then it is not necessary to service this component.

The condensate trap does not normally need removing during servicing unless the service ll level is at full, see diagram

13.12. To ush the condense drain carefully pour water into the heat exchanger and check that water ows freely to drain.

13.8 Casing panel seal check

NOTE: If the functional checks did not indicate poor combustion then it is not necessary to service this component.

Check the condition of the seal and replace if worn or damaged. To replace remove the old seal and thoroughly clean the casing surfaces. Fit the new seals, these are supplied to the correct lengths and are in four pieces, for use on the sides, top and bottom.

12815

13006

13007

Diagram 13.11

14737

SECURING SCREW

CONDENSATE TRAP

SERVICE FILL LEVEL

Diagram 13.10

Diagram 13.12

14 Fault Finding

14.1 Preliminary fault nding

The following checks should be performed before proceeding onto specic diagnostics:

• Check the external electrical supply to the boiler is on and a supply of 230V is present at the ‘L’ and ‘N’ terminals at the installer interface. For access remove and open the electrical cartridge, see diagrams 11.4. and 11.1. Test at the ‘L’ and ‘N’ terminals on the installer interface, refer to diagrams 11.1 and 14.1.

• Check the electrical installation and appliance, carry out tests for earth continuity, polarity, short circuit and resistance to earth, using a suitable multimeter.

An aid to test

Remove the front casing panel, see diagram 13.2 and hinge down the control box. Unclip the rear cover to gain access to the main PCB. Carry out the tests at connector plug X17, see diagram

14.1. Check chassis earth at a bare metal point on the boiler.

• Check that there is a gas supply to the boiler and the gas service isolation valve is turned on, see diagram 12.2.

• Check pressure at the gas service isolation valve, refer to section 12.2.

• Check that the heating system pressure indicates at least 1mb, if not, ll and vent the system as described in section

12.2.

• Check that all external controls are on.

• Check the functional ow diagram, 14.4.

13845

Diagram 14.1

14028

14.2 Fault Codes

Fault codes take priority over all other display functions in the event of a fault occurring, refer to diagram 14.5. If multiple faults occur the codes will be displayed for approx. 2 seconds, alternatively.

14.3 Fault Memory

The Fault memory stores details of the ten most recent faults. To access this menu, refer to diagram 14.2: a) Press and hold ‘MODE’ and ‘-’ buttons for 5 seconds. b) The display will stop ashing and alternate between the fault memory number and the fault code. c) Press ‘+’ button to scroll through the fault memory (Position 1 is most recent), see fault codes. To exit this menu, press the ‘MODE’ button.

14.4 Diagnostic Menu

The Diagnostic Menu provides the ability to view and change certain parameters. See diagram 14.6 for available parameters.

14.5 Status Codes

The status codes provide information about the current operating condition of the boiler and can be accessed through the diagnostic display, refer to diagram 14.7.

Diagram 14.2

14 Fault Finding

14518

Diagram 14.3

14 Fault Finding

CENTRAL HEATING

13012

Diagram 14.4

14 Fault Finding

Fault Codes

14030

Diagram 14.5

14 Fault Finding

To enter the diagnostics menu follow the procedure below:-

Press and hold the ‘MODE’ and ‘+’ buttons for approx.... 5 seconds until the screen changes. Use the ‘+’ or ‘-’ button to select

the number 96, this is the password. Hold the ‘MODE’ for approx.... 5 seconds when 96 is selected, when the screen changes

release the button. The screen will ash between ‘L1’ and a number. ‘L1’ indicates you have level 1 access, the number indicates the diagnostic number below. Use the ‘+’ and ‘-’ to cycle through the selections below. To select a diagnostic number press the ‘MODE’ button when the correct number is selected. The display will show the parameter value of the diagnostic number selected. To return to the diagnostic number selector simply press the ‘MODE’ button. To change the parameter use the + or - buttons. Once the value has been changed it must be saved by holding the ‘MODE’ button for approximately 5 seconds. This will return to the diagnostic number selector.

DIAGNOSTIC CODES - LEVEL 1 Installer Access

14602

d.24 Water pressure in bar

d.27 Option relay 1 reserved for future use

d.28 Option relay 2 reserved for future use

d.97 Activation of second diagnostic level Password needed

d.99 State list (see State Lists table)

>8 no flame, <4 good flame

Indicates read and write function - all other diagnostics are read only

Diagram 14.6

14 Fault Finding

State list - To access the state lists the ‘-’ button must be pressed for longer than 5 seconds until it begins to ash ‘S’ and then a number to indicate the state. The state numbers are given below.

STATE LISTS

13135

Diagram 14.7

DRAIN POINTS

15 Replacement of Parts

15.1 General

Replacement of parts must be carried out by a competent person approved at the time by the Health and Safety

Executive. Before replacing any parts the boiler should be isolated from the mains electric supply and the gas should be turned off at the gas service isolation valve on the boiler, see diagram

15.1. Ensure that components with electrical connections are disconnected before removal. Unless stated otherwise parts are replaced in the reverse order to removal. After replacing any parts always test for gas soundness and if necessary carry out functional test of the controls. For replacement of parts the front casing of the boiler will need to be removed. To remove undo the two screws on the underside of the front casing and lift off.

15.2 Draining of Boiler Heating Circuit

Drain down the Heating Circuit of the boiler only, by closing the heating ow and return isolating valves on the wall mounting jig. Attach a length of hose to the drain point and open the drain valve, see diagram 15.1. Check for leaks.

13046

GAS SERVICE ISOLATION VALVE

Diagram 15.1

15.3 Igniter Unit

For access, refer to section 15.1. Remove ignition lead and electrical connections then remove igniter unit by removing two securing screws, see diagram

13.8.

15.4 Ignition Lead

For access, refer to section 15.1. Pull the spark plug style connector off the spark electrode and the spade connector connected to the igniter unit, see diagrams 13.5 and 13.8.

15.5 Silencer Assembly (front)

For access, refer to section 15.1. Pull forwards to remove. The silencer is a push t so no tools or xings are required for its removal or tting, see diagram 13.7.

15 Replacement of Parts

15.6 Gas valve

For access, refer to section 15.1. Remove the electrical plug from the gas valve. Undo the tubing nut holding the gas pipe to the gas valve. Remove the three securing screws, holding the gas valve to the fan and remove the gas valve, see diagram 13.6. After re-tting check the combustion CO2 and adjust if necessary, refer to section 13 Combustion Check. After assembly test for gas soundness and purge in accordance with the current issue of BS6891or in IE, the current edition of I.S.813 “Domestic Gas Installations”.

15.7 Flue Hood

For access, refer to section 15.1. Pull the ue hood securing clips away from the ue hood sump and push ue hood up slightly towards ue hood top, see diagram 13.4. To remove swivel ue hood 90° and pull down and out towards front of boiler, see diagram 13.4.

15.8 Fan

For access, refer to section 15.1. Remove the gas valve as described in the relevant parts of section 15.6. Remove the securing nut holding the fan retaining bracket, lift front of bracket away from stud and pull forward to release the fan, see diagram 13.9, check and replace any seals or gaskets if necessary.

15584

Diagram 15.2

15.9 Expansion Vessel

For access, refer to section 15.1. Drain the boiler heating circuit, refer to section 15.2. Undo the coupling at the base of the vessel, see diagram

15.2. Remove the locking screw and spacer from the retaining bracket at the top of the expansion vessel. Whilst holding and also pushing down slightly on the vessel, remove the expansion vessel retaining bracket by unhooking and sliding forward. The expansion vessel can now be removed by sliding it forward clear of its support guides. When re-tting a new gasket will be required between the expansion vessel and coupling. Rell, vent and pressurise the boiler. Check for leaks.

15 Replacement of Parts

15.10 Fan/Gas valve assembly

For access, refer to section 15.1. Undo the tubing nut to remove the gas valve from the gas pipe and any electrical connections, see diagram 13.6. Remove the securing nut holding the fan retaining bracket, press down on burner to ease removal of securing nut. Slide out the fan retaining bracket. Lift front of bracket away from stud and pull forward to release the fan, see diagram 13.9. Lift fan/gas valve assembly up and forward away from locating studs. Remove fan gasket and replace if necessary. To replace the fan and retaining bracket correctly, insert into slots on fan clamping bracket, see diagram 13.9, and locate onto lugs on the burner.

15.11 Silencer assembly (rear)

For access, refer to section 15.1. Remove the fan/gas valve assembly, see relevant sections. Pull Silencer rear away from fan/gas valve assembly. The rear silencer is a push t so no tools or xings are required for its removal or tting, see diagram 15.3.

15.12 Spark Electrode

For access, refer to section 15.1. Remove the spark plug lead and earth lead. Remove the two securing nuts, see diagram 13.5. Withdraw the spark electrode by slowly pulling up and leaning it forward towards the centre of the heat exchanger to ensure that the electrode does not foul on the hole in the burner casing. Check spark gap.

13007

Diagram 15.3

15.13 Burner

For access, refer to section 15.1. Remove igniter unit, ue hood, fan and gas valve assembly and spark electrode lead, refer to relevant sections. Remove the anged nuts and studs that secure the burner, note that two studs at the rear also hold the fan clamping bracket, see diagram 13.9. NOTE: The burner gasket should be inspected but will not need replacing unless there are signs of wear or damage. IMPORTANT: Do not allow xings, nuts, screws, etc. to fall into the open ue hood sump, use a temporary cover whilst removing any parts.

15 Replacement of Parts

15.14 Condensate Trap

For access, refer to section 15.1. Remove the drain outlet pipe from the base of the trap. Remove the condensate drain securing screw and carefully pull the trap forward, see diagram 13.12. On the condensate trap there is a key symbol that should be in line with the locked padlock symbol on the condense drain. To remove the trap turn in the direction of the unlock symbol and carefully pull down clear of the condense drain, see diagram 13.12. Remove any solids found in the condensate trap. Flush water through the trap to remove any remaining solids. Check for any debris in the outlet pipe of the condensate drain and clean as necessary. Reassemble and ret the condensate trap.

15.15 Heating Flow Thermistor

For access refer to section 15.1. Remove the silencer front, fan/gas valve assembly and ue hood for access. See relevant sections. Refer to diagram 15.4. Remove the electrical connections from the thermistor. Remove the retaining clip from the ow pipe. Remove the thermistor from the retaining clip. Note that the polarity of the wiring to thermistors is unimportant.

15.16 Heating Return Thermistor

For access, refer to section 15.1. Refer to diagram 15.5. Remove the electrical connections from the thermistor. Remove the retaining clip from the return pipe. Remove the thermistor from the retaining clip. Note that the polarity of the wiring to thermistor is unimportant.

13027

Diagram 15.4

13060

Diagram 15.5

15 Replacement of Parts

CABLE COVER

15.17 Pump (head only)

For access, refer to section 15.1. Refer to section 15.2 and drain the boiler heating circuit. Refer to diagram 15.6. Remove the four cap head screws. Carefully remove the pump head together with cable. Do not strain cable. Support the pump head, unscrew cable cover at the side of pump head and remove. Disconnect wiring from pump head. Reconnect wiring to new pump head and t cover. Fit the new pump head with ‘O’ ring. Rell, vent and pressurise the boiler and check for leaks.

15.18 Safety Discharge Valve

For access, refer to section 15.1. Refer to section 15.2 and drain the boiler heating circuit. Refer to diagram 15.7. Undo the safety discharge valve union and remove from the pipework. Remove the retaining clip and withdraw the safety discharge valve. Fit new ‘O’ ring. Rell, vent and pressurise the boiler and check for leaks.

13067

12667

Diagram 15.7

14736

CAP HEAD SCREWS (4)

PUMP HEAD

Diagram 15.6

AUTOMATIC AIR VENT

RETAINING CLIP

Diagram 15.8

15 Replacement of Parts

15.19 Automatic Air Vent

For access, refer to section 15.1. Refer to section 15.2 and drain the boiler heating circuit. Refer to diagram 15.8. Remove the retaining clip to release the automatic air vent. Fit the new automatic air vent and ‘O’ ring ensuring the vent cap is left loose. Rell, vent and pressurise the boiler and check for leaks.

15.20 Heat Exchanger

For access, refer to section 15.1. Remove silencer front, ue hood, gas valve / burner assembly, igniter unit and support bracket, spark electrode lead, burner and condense trap. Refer to section 15.2 and drain the boiler heating circuit. Remove the retaining clip, see diagram 15.10, which secures the ow pipe brass elbow into the hydroblock. Remove the retaining clip, which secures the ow pipe into the anged elbow in the top right hand corner of the heat exchanger, see diagram 15.11. Remove the left hand side panel to aid removal of the copper ow pipe. Note that the minimum clearance from the side panel is 5mm. Remove screws securing the heat exchanger, one on top and one underneath the heat exchanger, see diagram 15.9. Undo the knurled nut at the right hand side of the hydroblock. Remove the retaining clip from the anged elbow at the right hand bottom of the heat exchanger. Remove the return pipe. Lift up heat exchanger slightly to disengage it from its hanging bracket. Remove the heat exchanger, complete with sump, return pipe and anged elbows, by pulling forward and tilting backwards to ease removal.

15589

FLOW PIPE

RETAINING CLIP

Diagram 15.10

15591

12812

Diagram 15.11

Diagram 15.9

15 Replacement of Parts

13003

13001

Diagram 15.13

13004

Diagram 15.12

15.21 Access to User interface and Main PCB

For access, refer to section 15.1. Hinge down the control box and unclip the rear cover to gain access. Remove electrical connections from main PCB noting their positions for replacement. Unclip main PCB and remove, see diagram 15.12. Unclip user interface and remove. For replacement, see diagram 15.13 and ensure that the user interface connection cable is retted. NOTE: When re-tting any of the control boards make sure you support the control box to avoid straining hinges as you push down and clip back into place.

15.22 Control Box

For access, refer to section 15.1. Hinge down the control box and unclip the rear cover to gain access. Remove relevant electrical connections from main PCB and grommets from the control box. IMPORTANT: Support the control box whilst undoing the hinges. Remove the hinge securing screws accessed from beneath the boiler and remove the control box, see diagram 15.14.

15.23 Fuse - Main PCB - Control Box

for access, refer to section 15.21. The fuse is located at the top left hand corner of the main PCB, see diagram 15.12.

Diagram 15.14

15.24 Installer Interface Electrical Cartridge

Remove the Installer Interface securing screw accessed from beneath the boiler. Carefully pull down the electrical cartridge, disconnect the cables.

16 Spare Parts

Key No. Part No. Description GC No

1 0020020734 Fan H42723

2 0020020763 Igniter unit H42773

3 0020020781 Heating ow & return thermistor (2) H42792

4 0020014160 DHW thermistor H36325

5 0020020735 Gas valve H42724

6 0020020731 Spark electrode H42720

7 0020020728 Burner H42718

8 0020023826 User interface H42784

9 0020014171 Pump H42760

10 0020014190 Water pressure sensor H42772

11 0020023825 Main PCB H42783

14519

Diagram 16.1

17 Manual Handling

IMPORTANT. With regards to the Manual Handling Operations, 1992

Regulations, the following lift operation exceeds the recommended weight for a one man lift.

General recommendations when handling

Clear the route before attempting the lift. Ensure safe lifting techniques are used – keep back straight – bend using legs. Keep load as close to body as possible. Do not twist – reposition feet instead. If 2 persons performing lift, ensure co-ordinated movements during lift. Avoid upper body/top heavy bending - do not lean forward/sideways. Recommend wear suitable cut resistant gloves with good grip to protect against sharp edges and ensure good grip. Always use assistance if required.

Removal of carton from delivery van

Carriage of carton from point of delivery to point of installation – ground oor.

Recommend 2 person lift or 1 person with use of sack truck. If 1 person is performing lift, straddle the load, tilt and place carton into position on truck. Recommend secure appliance onto truck with suitable straps. Ensure safe lifting techniques are used – keep back straight – bend using legs. Keep load as close to body as possible. If 2 persons performing lift, ensure co-ordinated movements during lift. Clear the route before attempting the lift. If removing boiler from truck straddle the load and tilt forwards to facilitate secure grip. Ensure safe lifting techniques are used – keep back straight – bend using legs. Do not twist – reposition feet instead. Take care to avoid trip hazards, slippery or wet surfaces and when climbing steps and stairs. Always use assistance if required.

Carriage of carton from point of delivery to point of installation – rst or higher oor, cellar.

Recommend 2-person lift or 1 person with use of sack truck. If 1 person is performing lift, straddle the load, tilt and place carton into position on truck. Recommend secure appliance onto truck with suitable straps. Ensure safe lifting techniques are used – keep back straight – bend using legs. Keep load as close to body as possible. If 2 persons performing lift, ensure co-ordinated movements during lift. Avoid upper body/top heavy bending - do not lean forward/sideways. Clear the route before attempting the lift. If removing boiler from truck straddle the load and tilt forwards to facilitate secure grip. Ensure safe lifting techniques are used – keep back straight – bend using legs. Do not twist – reposition feet instead. Take care to avoid trip hazards, slippery or wet surfaces and when climbing steps and stairs. Always use assistance if required.

Carriage of carton from point of delivery to point of installation – roofspace.

Recommend 2-person lift. Ensure co-ordinated movements during lift. Avoid upper body/top heavy bending - do not lean forward/sideways. Clear the route before attempting the lift. Take care to avoid trip hazards, slippery or wet surfaces and when climbing steps and stairs. When transferring appliance into roofspace, recommend 1 person to be in roofspace to receive the appliance and other person to be below to pass up and support appliance. Ensure safe lifting techniques are used – keep back straight – bend using legs. Keep load as close to body as possible. Always use assistance if required. It is assumed safe access, ooring and adequate lighting are provided in the roof space. It is recommended a risk assessment of the roof space area be carried out before moving the appliance into the area to take into account access, stability of ooring, lighting and other factors, and appropriate measures taken.

Unpacking of appliance from carton.

Recommend 2 persons unpack appliance from carton. Always keep working area clear. Cut the carton straps, lift carton up and slide over polystyrene end packs. Remove top polystyrene pack with ttings.

Positioning of Appliance for Final Installation – no obstructions.

Recommend 2 persons lift appliance to position into place. Fit bracket securely onto wall before lifting appliance into position. Obtain rm grip on front and sides of appliance, lift upwards, ensure stable balance achieved and lift upwards to position in place on bracket. Ensure safe lifting techniques are used – keep back straight – bend using legs - when lifting load from oor level. Do not twist – reposition feet instead. Keep boiler as close as possible to body throughout lift to minimise strain on back. Ensure co-ordinated movements to ensure equal spread of weight of load. Always use assistance if required. Recommend wear suitable cut resistant gloves with good grip to protect against sharp edges and ensure good grip when handling appliance.

Positioning of Appliance for Final Installation – above worktop, foreseeable obstructions etc.

Recommend 2 persons lift appliance to position into place. Fit bracket securely onto wall before lifting appliance into position. Obtain rm grip on front and sides of appliance, lift upwards, onto worktop if practicable. Ensure stable balance achieved and lift upwards to position in place on bracket. If 2 persons positioning onto bracket obtain rm grip at front and sides/base of boiler. Ensure co-ordinated movements during 2 person lifts to ensure equal spread of weight of load. Ensure safe lifting techniques are used – keep back straight – bend using legs - when lifting load from oor level. Do not twist – reposition feet instead. Keep boiler as close as possible to body throughout lift to minimise strain on back. Avoid upper body/top heavy bending - do not lean forward/sideways. Always use assistance if required. Recommend wear suitable cut resistant gloves with good grip to protect against sharp edges and ensure good grip when handling appliance.

Positioning of Appliance for Final Installation – within compartment etc. restricting installation.

Recommend 2 persons lift appliance to position into place, space permitting. Fit bracket securely onto wall before lifting appliance into position. Obtain rm grip on front and sides of appliance, lift upwards, onto worktop if practicable. Ensure stable balance achieved and lift upwards to drop into place onto bracket. If 2 persons positioning onto bracket obtain rm grip at front and sides/base of boiler. Ensure coordinated movements during 2 person lifts to ensure equal spread of weight of load. If 1 person positioning onto bracket recommend obtain rm grip supporting base of boiler. Ensure safe lifting techniques are used – keep back straight – bend using legs - when lifting load from oor level. Do not twist – reposition feet instead. Keep boiler as close as possible to body throughout lift to minimise strain on back. Always use assistance if required. Recommend wear suitable cut resistant gloves with good grip to protect against sharp edges and ensure good grip when handling appliance.

Positioning of Appliance for Final Installation – in roof space restricting installation.

Recommend 2 persons lift appliance to position into place, space permitting. Fit bracket securely onto wall before lifting appliance into position. Obtain rm grip on front and sides of appliance, lift upwards, ensure stable balance achieved and lift upwards to drop into place onto bracket. If 2 persons positioning onto bracket obtain rm grip at front and sides/base of boiler. Ensure co-ordinated movements during 2 person lifts to ensure equal spread of weight of load. If 1 person positioning onto bracket recommend obtain rm grip supporting base of boiler. Ensure safe lifting techniques are used - keep back straight – bend using legs - when lifting load from oor level. Do not twist – reposition feet instead. Keep boiler as close as possible to body throughout lift to minimise strain on back. Always use assistance if required. Recommend wear suitable cut resistant gloves with good grip to protect against sharp edges and ensure good grip when handling appliance. It is recommended a risk assessment of the roof space area be carried out before moving the appliance into the area to take into account access, stability of ooring, lighting and other factors, and appropriate measures taken.

18 Declaration of Conformity

14735

Because of our constant endeavour for improvement, details may vary slightly from those shown in these instructions.

0020051443-07 01.10

Glow-worm, Nottingham Road, Belper, Derbyshire. DE56 1JT

www.high-efciency.info

glowworm Glow Worm 18sx User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
