Page 1
DARK1616M
DANTE NETWORK AUDIO
16 INPUT 16 OUTPUT AES3 & MIC/LINE
LEVEL ANALOGUE INTERFACE
PRODUCT DETAILS
6 BROOKS PLACE, MAIDSTONE, KENT, ME14 1HE. ENGLAND. TEL: +44 (0) 1622 753662
Visit our Website at www.glensound.co.uk FAX: +44 (0) 1622 762330
Page 2
Glensound Electronics Ltd
Thank you for choosing a new Glensound product.
All rights reserved.
Information contained in this manual is subject to change without notice, if
in doubt please contact us for the latest product information.
If you need any help with the product then we can be contacted at:
Glensound Electronics Ltd
1 – 6 Brooks Place
Maidstone
Kent
ME14 1HE
United Kingdom
Telephone: +44 (0) 1622 753662
Fax: +44 (0) 1622 762330
EMAIL ADDRESSES
General enquires: [email protected]
Technical enquires: [email protected]
Sales enquires: [email protected]
Page 2 of 32
Page 3
PRODUCT WARRANTY:
All equipment is fully tested before dispatch and carefully designed to
provide you with trouble free use for many years.
We have a policy of supporting products for as long as possible and
guarantee to be able to support your product for a minimum of 10 years.
For a period of one year after the goods have been despatched the
Company will guarantee the goods against any defect developing after
proper use providing such defects arise solely from faulty materials or
workmanship and that the Customer shall return the goods to the
Company’s works or their local dealer.
All non-wear parts are guaranteed for 2 years after despatch and any
defect developing after proper use from faulty materials or workmanship
will be repaired under this warranty providing the Customer returns the
goods to the Company's works or their local dealer.
SAFETY WARNING
The DARK1616M contains no user serviceable parts and must not be
dissasembled in any way.
Page 3 of 32
Page 4
CE
EU DECLARATION OF CONFORMITY FOR:
DARK1616M
Sixteen channel AoIP, AES3/Analogue I/O interface
This declaration of conformity is issued under the sole responsibility of
the manufacturer.
This equipment is manufactured by Glensound Electronics Ltd of Brooks
Place Maidstone Kent ME14 1HE is CE marked and conforms to the
following Union harmonisation legislation:
Low Voltage Directive: EN60065 and EN62368-1:2014
Emissions: BS EN55032:2015
Immunity: BS EN55035:2017
Signed for and on behalf of Glensound Electronics Ltd.
Gavin Davis, Managing Director
Maidstone, Kent, England
Date: 22/08/2018
Page 4 of 32
Page 5
RoHS DIRECTIVE
Lead
0.1%
Mercury
0.1%
Hexavalent Chromium
0.1%
Polybrominated Biphenyls
0.1%
Polybrominated Diphenyl Ethers
0.1%
Cadmium
0.01%
EC directive 2002/95/EC restricts the use of the hazardous substances
listed below in electrical and electronic equipment.
This product conforms to the above directive and for this purposes, the
maximum concentration values of the restricted substances by weight in
homogenous materials are:
Page 5 of 32
Page 6
WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT REGULATIONS 2006 (WEEE)
Glensound Electronics Ltd is registered for business to business sales of
WEEE in the UK our registration number is:
WEE/JJ0074UR
Page 6 of 32
Page 7
GLENSOUND DARK1616M
Handbook Contents
Issue 5
Description Page No.
Contents
PRODUCT WARRANTY: ............................................................................................................................... 3
OVERVIEW .................................................................................................................................................... 8
DARK1616M FRONT PANEL LAYOUT........................................................................................................ 9
DARK1616M REAR PANEL LAYOUT ........................................................................................................ 11

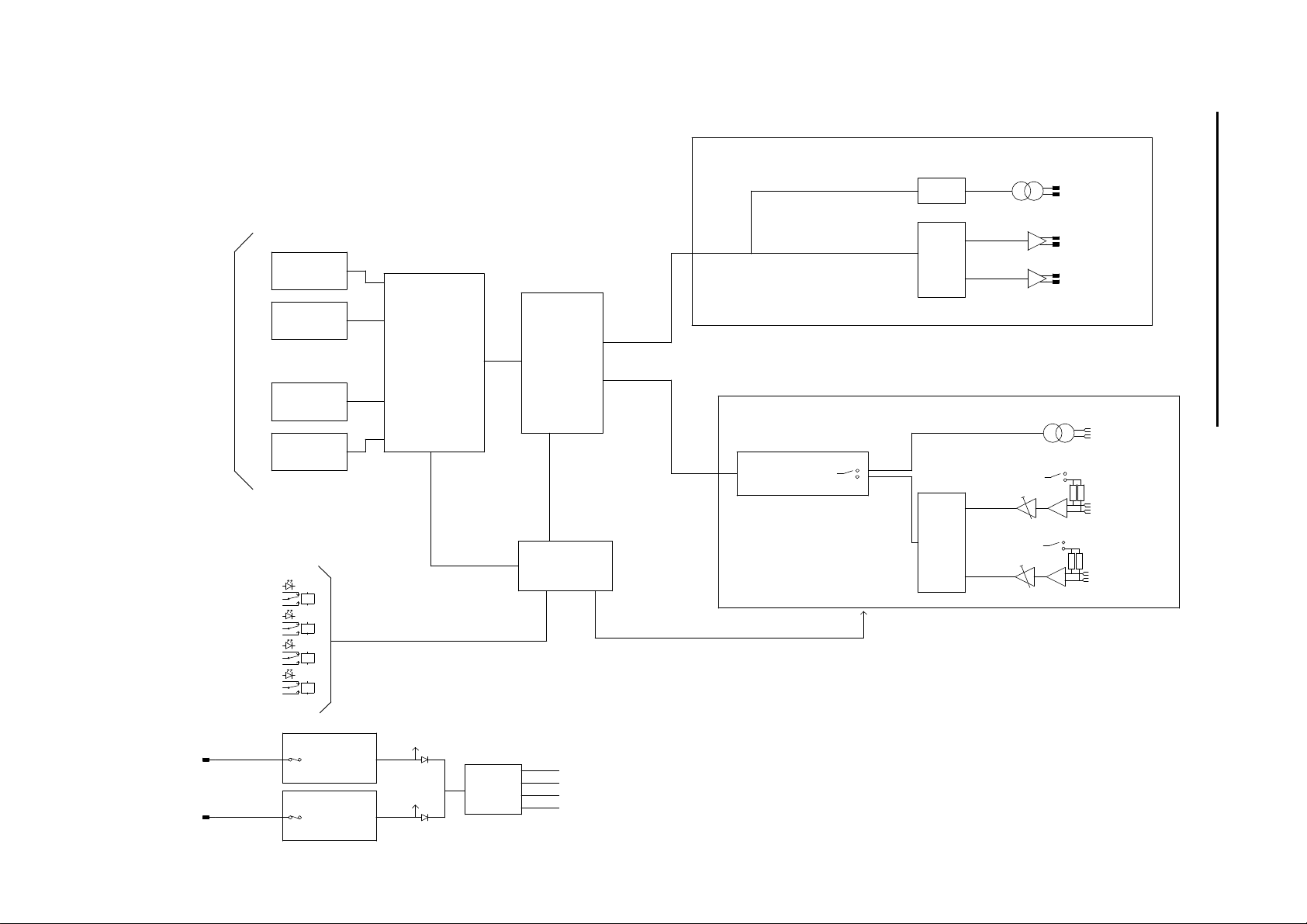

SIMPLIFIED BLOCK DIAGRAM ................................................................................................................. 13
CONNECTING THE DARK1616M TO A DANTE NETWORK ................................................................... 14
Getting Dante Controller .......................................................................................................................... 14
Connecting Dark1616Ms To The Network ............................................................................................. 14
Audio Over IP Network ............................................................................................................................ 14
Running Dante Controller ........................................................................................................................ 15
Dante Controller TIP ................................................................................................................................ 15
WINDOWS 10 REMOTE CONTROL APPLICATION .................................................................................. 16
GLENCONTROLLER App ............................................................................................................................ 17
Running The App ..................................................................................................................................... 17
Starting The App ...................................................................................................................................... 17
App Controls............................................................................................................................................. 18
Channel Controls ..................................................................................................................................... 20
UPDATING FIRMWARE.............................................................................................................................. 21
UPDATING THE BROOKLYN MODULE ................................................................................................... 27
AES67 MODE ............................................................................................................................................... 28
WIRING INFORMATION ............................................................................................................................. 31
Page 7 of 32
Page 8
OVERVIEW
The Glensound DARK1616M is an analogue to digital and digital to analogue
converter designed to connect AES3 and mic/ line level analogue audio circuits to a
Dante audio network.
Dante network audio is a common protocol for distributing high quality linear audio
over standard IP networks and it is widely used by many audio equipment
manufacturers. The Glensound Dark1616M Dante audio interface will be compatible
with any other manufacturers Dante audio interface. Further details of Dante network
audio can be found at www.audinate.com
Being designed for live on-air broadcast applications the Glensound Dark1616M has
been designed with multiple redundancy capabilities. It has 2 mains power sources
and it also has fully redundant network connections for both Copper & Fibre circuits.
The Dark1616M provides 8 balanced AES3 inputs and 8 balanced AES3 outputs to
the Dante network and 16 analogue mic/ line level inputs to the Dante network and
16 analogue line level (0dB) outputs from the Dante network on rear panel D25
connectors wired to AES59 (also known as the Tascam standard).
The analogue and AES3 outputs are both always used and the same audio signal
from the Dante newtork that is presented on one channels AES3 output will appear
as an analogue audio signal on the equivalent analogue output.
For each channel only 1 audio input signal can be sent to the Dante network, the
AES3 input has priority over the analogue. Therefore if there is both an analogue
and AES3 input signal for one channel only the AES3 will be sent to the Dante
network.

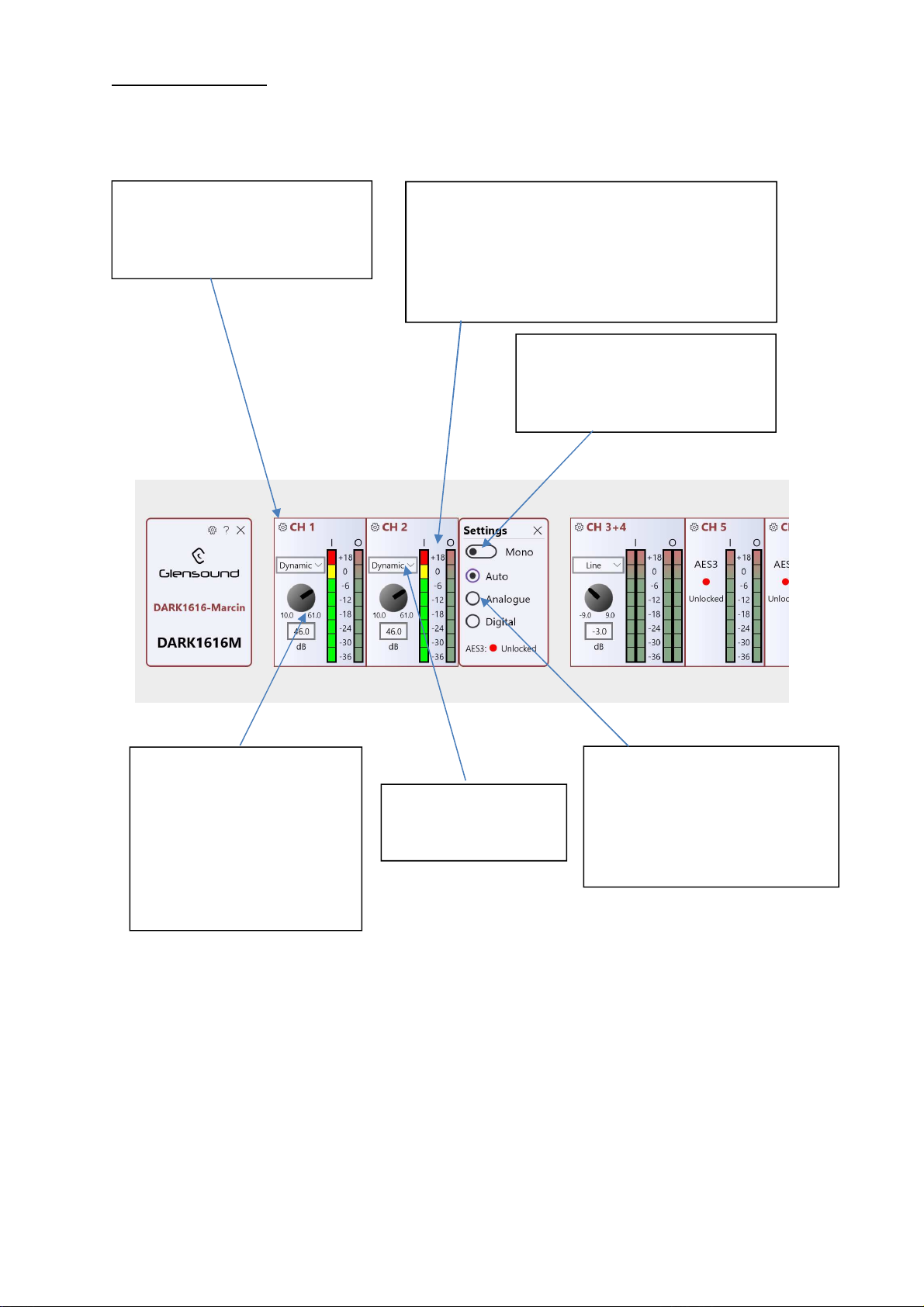

A Windows10 application (that can be downloaded from the download tab of the
DARK1616M product information page on our web site) allows remote control of the
gain settings of the microphone amplifiers and also provides level indication of each
channel.
Page 8 of 32
Page 9

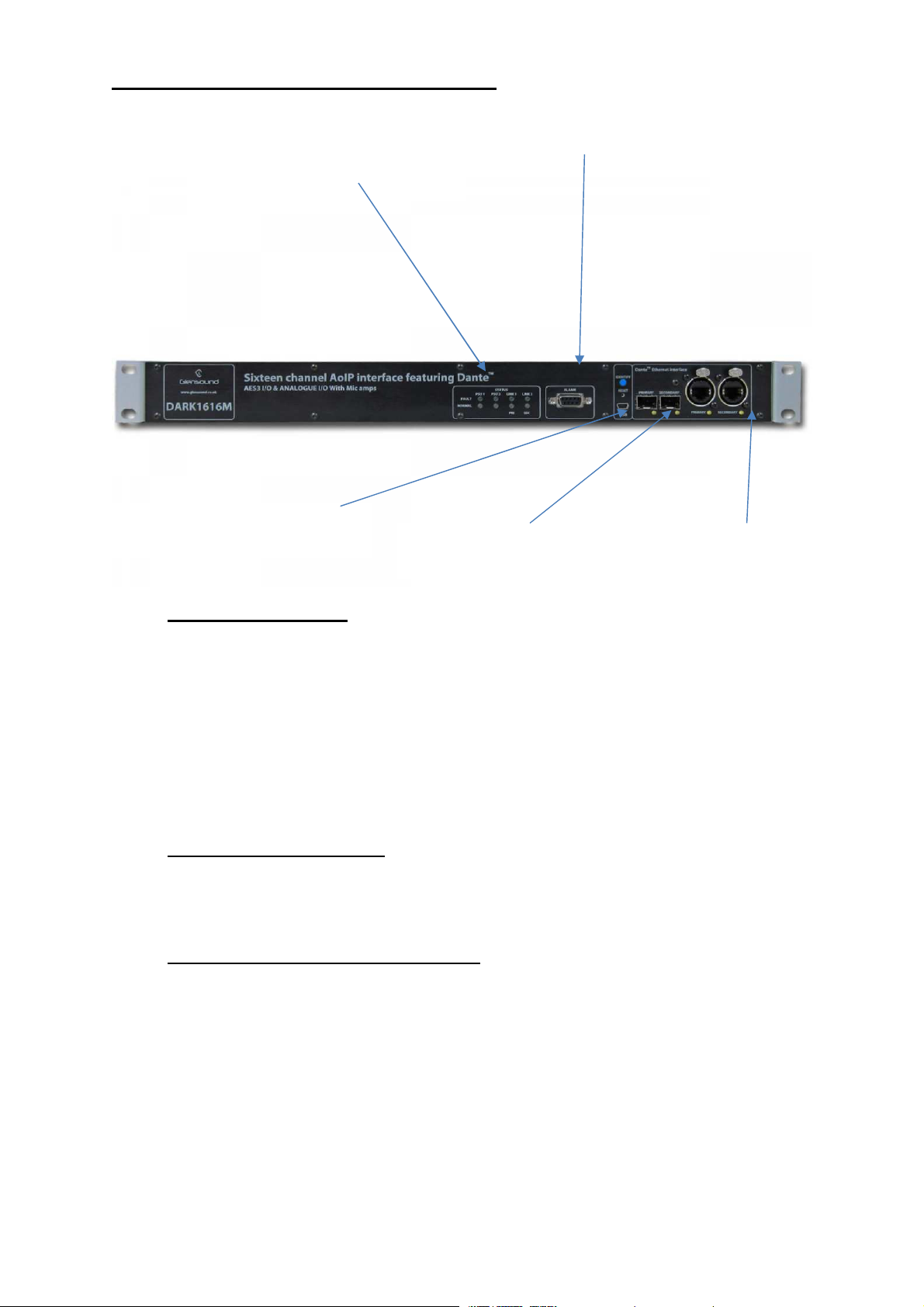

DARK1616M FRONT PANEL LAYOUT
1.
PSU and Link status
2.
Alarm status connection
3. USB connector and
update buttons 4. Network SFP
connections
5. Network RJ45
connections
1. PSU and Link status
There are 4 red LEDs and 4 green LEDs that illuminate depending on the
status of the link. Red indicates no connection, green indicates a successful
connection.
For example, if you have connected the DARK1616S to two separate PSUs,
only one of which works then you will have a red ‘Fault’ LED illuminate to
warn you that there is no power detected on the connection that is not
receiving mains power.

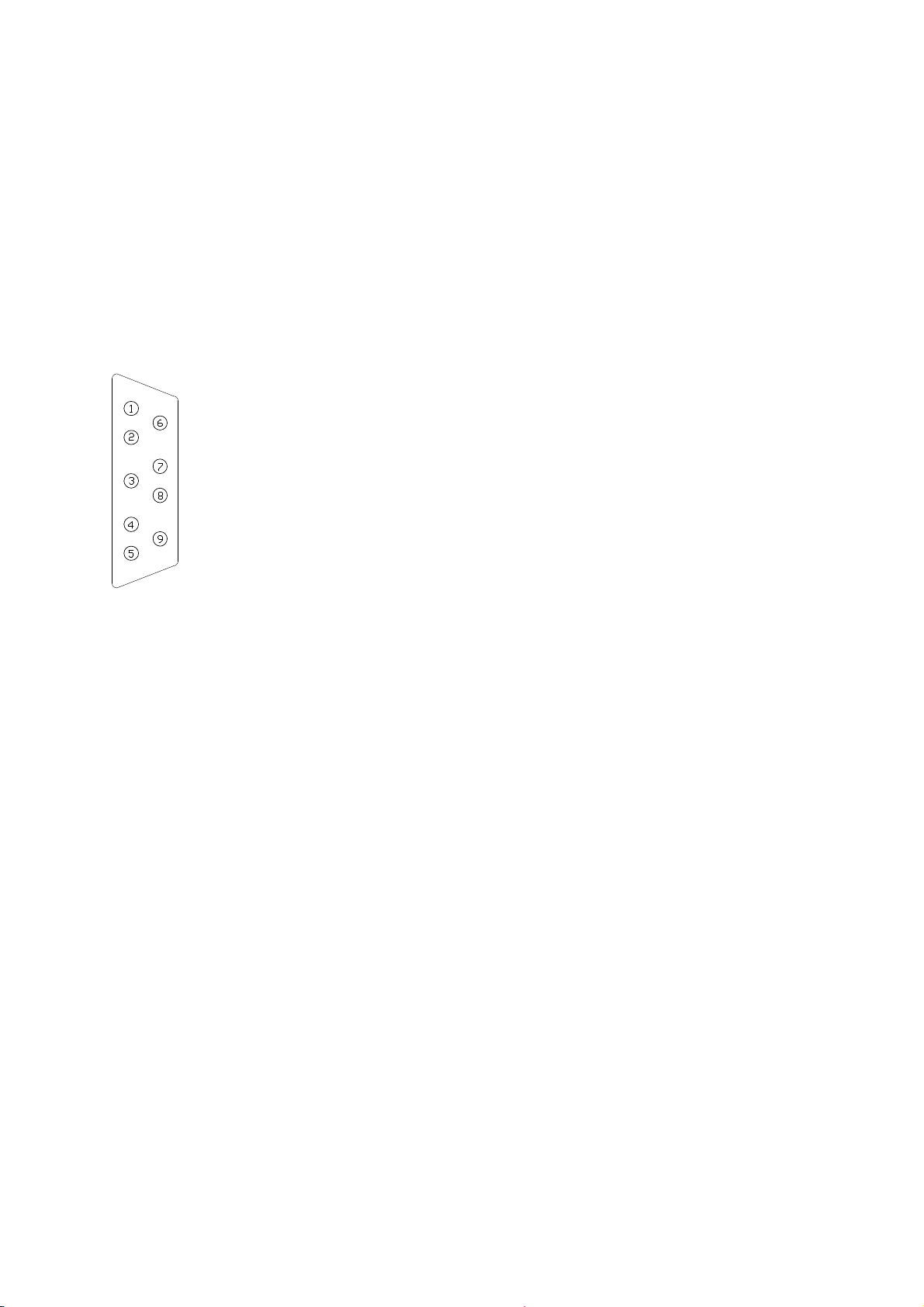

2. Alarm status connection
This 8-way female D-type connector will report the failure of a link status if
one is detected whilst in operation.

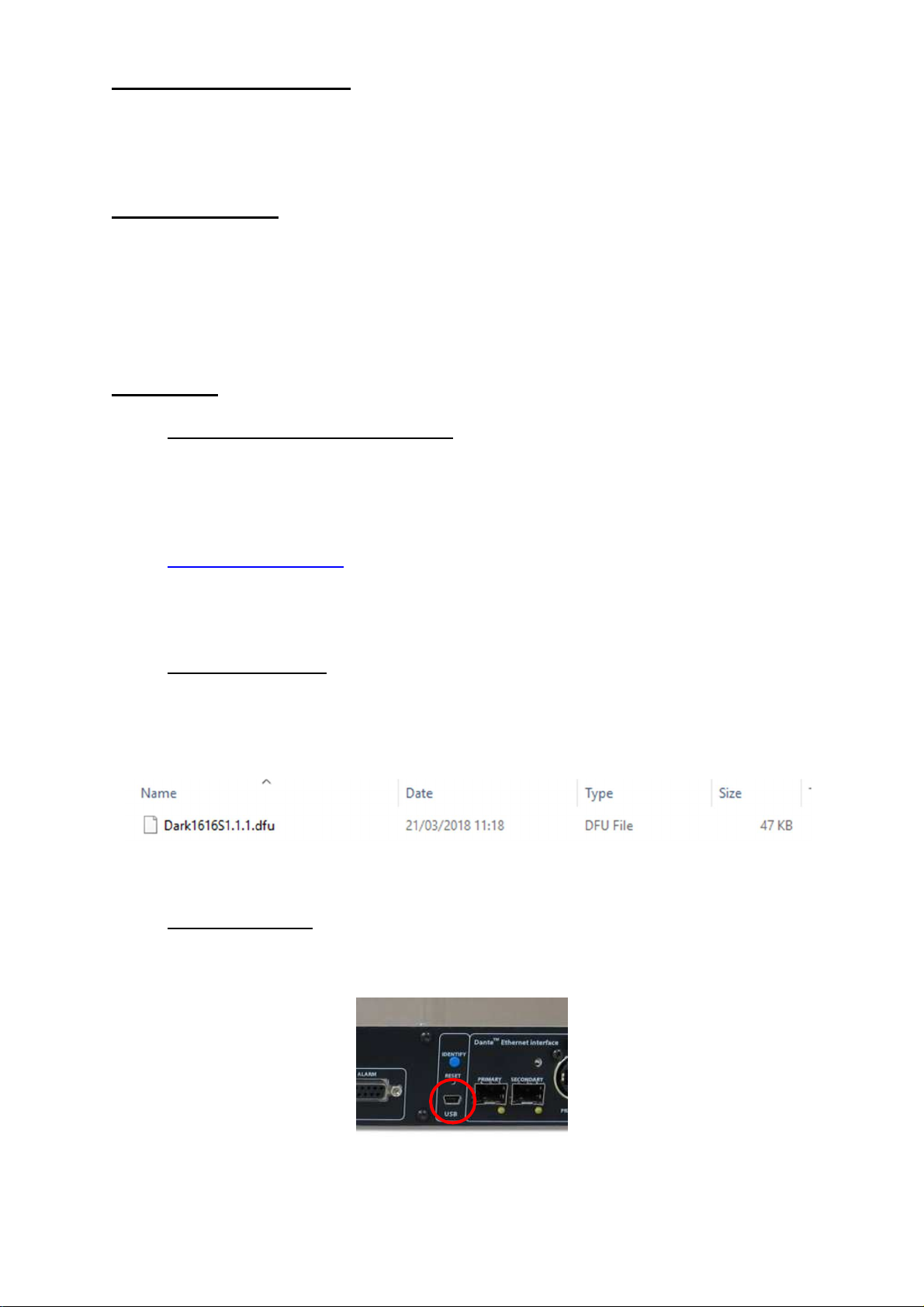

3. USB connector and update buttons
The MINI USB connection allows the firmware of the DARK1616S to be
updated. To prepare the DARK1616S for a firmware update; power on the
unit, press and hold down the reset button, press and hold down the identify
button, release the reset button and then release the identify button a second
after.
Page 9 of 32
Page 10
4. Network SFP Connections
There are 2 standard network data SFP sockets provided to allow redundant
network connectivity if using Dante network audio protocol. They are both
gigabit network connections. They accept standard SFP modules. The status
LEDs flash to show when data is being correctly communicated with the
attached switch.
If you require SFP modules then please email [email protected] for a
quotation.
Network Note
Factory default is to have the SFP & RJ45 sockets set to work in redundant
mode.
It is possible using Dante controller to set these network interfaces to work as
a network switch instead of the redundant mode, meaning other network
equipment can be connected to them.
5. Network RJ45 connections
There are 2 standard network data RJ45 sockets provided to allow redundant
network connectivity if using Dante network audio protocol. They are both
gigabit network connections. The status LEDs flash to show when data is
being correctly communicated with the attached switch.
Page 10 of 32
Page 11

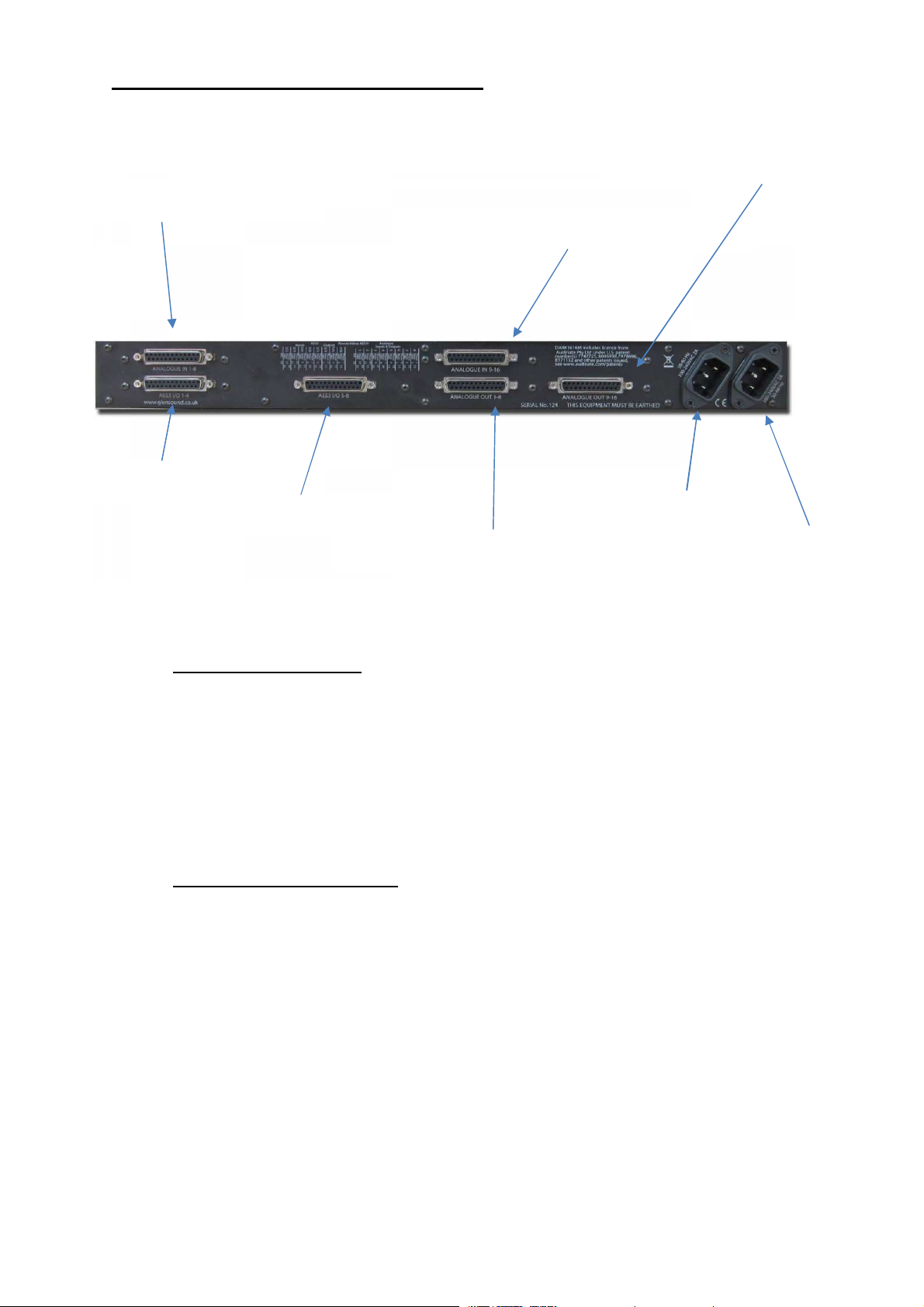

DARK1616M REAR PANEL LAYOUT
2.
AES3 inputs/outputs 1
- 4
4.
Analogue outputs 1
- 8
7.
Primary IEC Mains
A detailed wiring table for the pins of all rear panel connections can be found at the end of the
1. Analogue inputs 1 - 8
3. AES3 inputs/outputs 5 - 8
6. Analogue outputs 9 - 16
5. Analogue inputs 9 - 16
manual.
1. Analogue inputs 1 - 8
A 25-way female D-type connector allows a breakout cable to be attached to
send analogue line level (0dB) signals in to the DARK1616S on channels 1 -
8. This connector is wired to AES59 standard (also known as the Tascam
standard).
The signals can then be routed via Dante to anywhere on a network or back
out of the DARK1616S via it’s analogue or AES3 digital outputs.
2. AES3 inputs/outputs 1 - 4
A 25-way female D-type connector allows a breakout cable to be attached to
send and receive 1 – 4 balanced digital AES3 signals. This audio can be
routed to anywhere on a network via Dante.
AES3 digital inputs signals always take priority over analogue inputs.
Therefore, sending an input to channel 1 in both digital and analogue domains
will result in the digital signal being accepted and the analogue signal being
disregarded.
Despite this, the DARK1616S will always ouput audio simultaneously to both
digital and analogue connections.
8. Secondary IEC Mains
Page 11 of 32
Page 12
3. AES3 inputs/outputs 5 – 8
A 25-way female D-type connector allows a breakout cable to be attached to
send and receive balanced digital AES3 signals on channels 5 - 8. This audio
can be routed to anywhere on a network via Dante.
4. Analogue outputs 1 – 8
A 25-way female D-type connector allows a breakout cable to be attached to
send analogue audio signals out of the DARK1616S on channels 1 - 8. This
connector is wired to AES59 standard (also known as the Tascam standard).
The signals output from this connection can be audio received via the Dante
network.
5. Analogue inputs 9 – 16
A 25-way female D-type connector allows a breakout cable to be attached to
send analogue line level (0dB) signals from channels 9 - 16 in to the
DARK1616S. This connector is wired to AES59 standard (also known as the
Tascam standard).
The signals can then be routed via Dante to anywhere on a network or back
out of the DARK1616S via it’s analogue or AES3 digital outputs
6. Analogue outputs 9 – 16
A 25-way female D-type connector allows a breakout cable to be attached to
send analogue signals out of the DARK1616S on channels 9 - 16. This
connector is wired to AES59 standard (also known as the Tascam standard).
The signals output from this connection can be audio received via the Dante
network
7. Primary IEC Mains
The standard IEC mains plug accepts external AC voltages of 100 - 240 VAC
+/- 10%. There is a non-accessable internal fuse for this input.
The DARK1616S is designed to operate with either primary or secondary
mains sources or both for power redundancy.
8. Secondary IEC Mains
The standard IEC mains plug accepts external AC voltages of 100 - 240 VAC
+/- 10%. There is a non-accessable internal fuse for this input.
The DARK1616S is designed to operate with either primary or secondary
mains sources or both for power redundancy.
Page 12 of 32
Page 13
REMOTE CONTROL
SIMPLIFIED BLOCK DIAGRAM
1 OF 8 OF OUTPUTS
REDUNDANT
BI-DIRECTIONAL
DANTE AUDIO
UP TO 192kHz
PLUS
REDUNDANT
DATA
PRIMARY DANTE LINK STATE
PSU 1 STATE
PSU 2 STATE
ETHERNET PHY
COPPER
ETHERNET PHY
FIBRE (SFP)
ETHERNET PHY
COPPER
ETHERNET PHY
FIBRE (SFP)
ETHERNET SWITCH
RELAY LOOP OUTPUTS & FRONT PANEL LED STATUS
DANTE FPGA
MICROCONTROLLER
AES OUTPUT FREQUENCY = DANTE AUDIO FREQUENCY
1 OF 8 OF INPUTS
AES3 RECEIVER & SRC
SOURCE SELECTION & GAIN/ PHANTOM SETTINGS
DAC
ADC
AES3 OUTAES TX
LINE OUT
LINE OUT
AES3 IN
+48V
MIC/ LINE IN
+48V
MIC/ LINE IN
REDUNDANT DANTE LINK STATE
Page 13 of 32
TO MICRO
AC/DC PSU100 - 240 VAC
AC/DC PSU100 - 240 VAC
+12VDC
+12VDC
TO MICRO
DC/DC
+12V
+3.3V
-12V
+48V
Page 14
CONNECTING THE DARK1616M TO A DANTE NETWORK
The Dark1616M is a network audio device utilising the reliable and versatile Dante
audio over IP protocol. Dante is a proprietary system (although very widely used) the
originators of which are Audinate.
The information below is only meant as a very basic guide. Full details of the power
of Dante network audio and instructions for using it can be found at
www.audinate.com
Getting Dante Controller
If you are connecting the inferno to a new Dante network the first thing you will need
to do is to get the free Dante controller software from Audinate.
This can be downloaded by visiting Audinate’s web site at www.audinate.com
Connecting Dark1616Ms To The Network
Dark1616Ms can be connected to the network that you are going to use for your
audio distribution simply by plugging in either, and, or any of the network
connections on the front. Once connected to the network it will be possible to see the
Dark1616M from within the Dante controller and route its’ audio circuits.
Audio Over IP Network
We strongly recommend that you consider your network topology carefully and
would not recommend sharing broadcast audio and general data on the same
network.
For more details of audio over IP network structure please visit www.audinate.com
Page 14 of 32
Page 15
Running Dante Controller

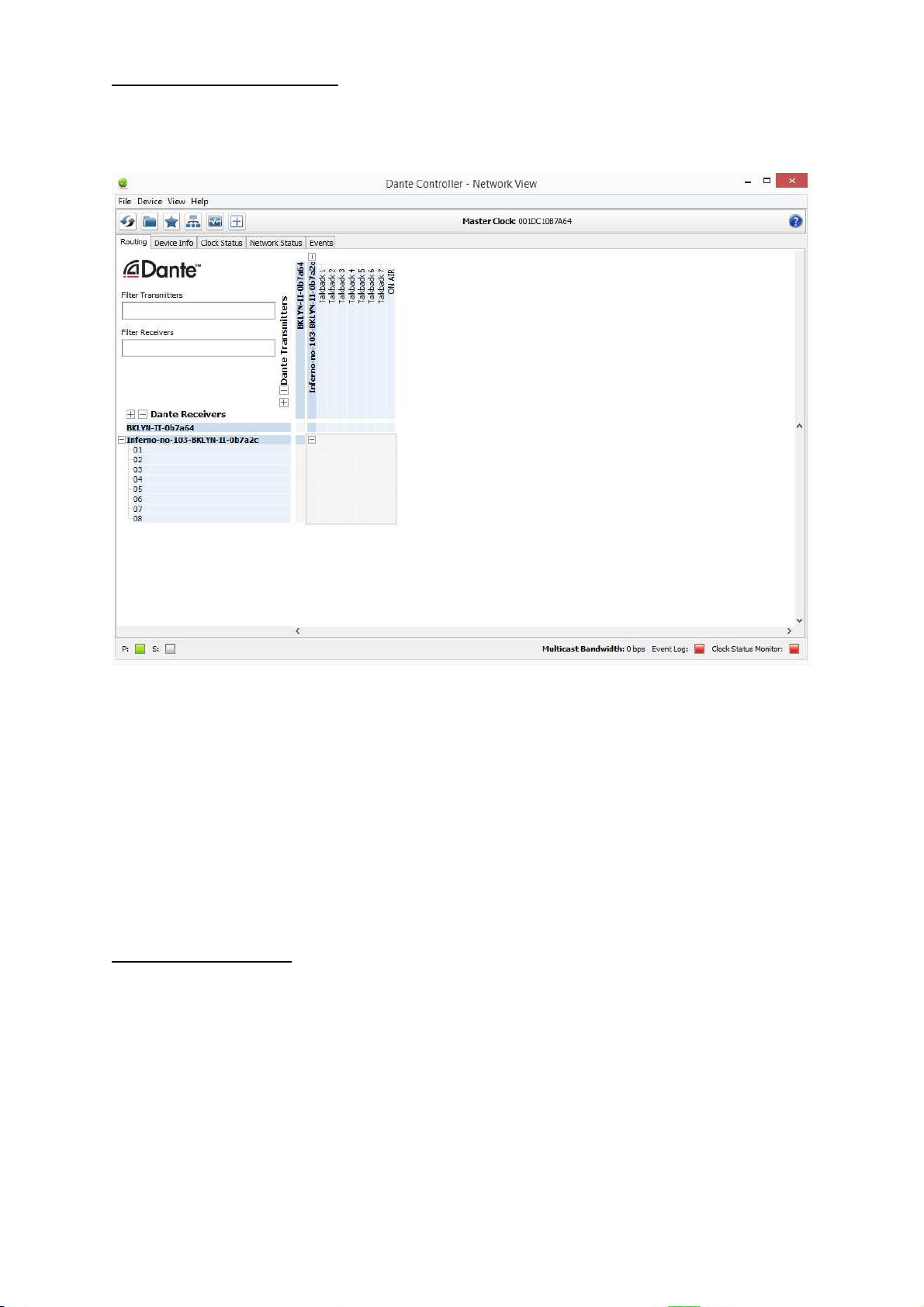

At the time of writing this manual the Dante Controller looks as per the screenshot
below:
The DARK1616M will have been named at the factory during test to allow them to be
identified by the Dante controller.
The format used for the factory name is:
‘Dark1616M-no-103-BKLYN-II-ob7a2c’
Where ‘Dark1616M-no-103’ refers to the Glensound product i.e. Dark1616M and its
serial no (in this case 103) and ‘BKLYN-II-ob7a2c’ refers to the units Dante Brooklyn
II module and its MAC address.
Dante Controller TIP
If you have never run Dante controller before then make sure that on the bottom left
of the Dante controllers’ screen ‘P’ or ‘S’ is next to a green square as this indicates
that it is connected to a network. By clicking ‘P’ or ‘S’ a pop up box opens to allow
you to set what network interface the controller is using.
Page 15 of 32
Page 16
WINDOWS 10 REMOTE CONTROL APPLICATION
1. General
A Windows 10 Application called GlenController is provided to allow configuration
and setup of the Dark1616S. It allows configuration items such as AES3 output clock
source and digital Fs levels to be set and also allows day to day operations such as
monitoring levels and selecting input sources.
GlenController is our own application that controls a number of different products.
2. Installing GlenController
Full details of the installation process and location of filers required to install
GlenController can be found on its web page:
http://www.glensound.co.uk/product-details/glencontroller/
3. Uninstalling GlenController
Find the app in the ‘All apps’ list then right-click and select ‘Uninstall’.
Page 16 of 32
Page 17
GLENCONTROLLER App
The Dark1616M has a remote control utility called GlenController. This app allows
the Dark1616M to be set up and controlled remotely, things such as mic gain,
phantom power, filtering and metering can all be controlled/ seen via the app.
The below guide is meant as an indication of the facilities available on the app, but
being software developments are likely to be constantly evolving.
Running The App
To run GlensoundController, click the Windows icon in the bottom left corner of the
screen, and find it in the ‘All apps’ list and double click.

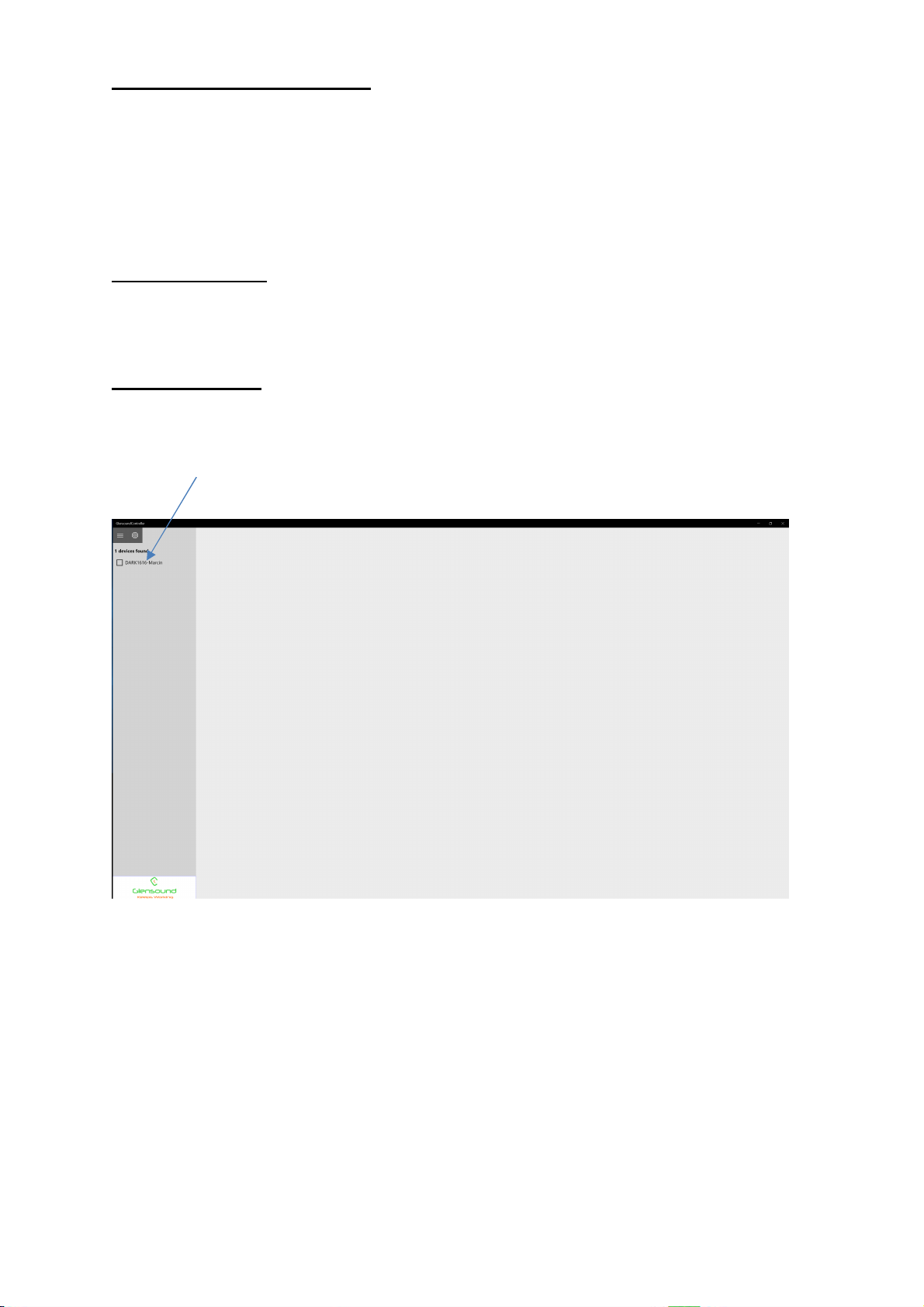

Starting The App
When the app first starts it looks for compatible devices across your network, and it
will show a list of any available units that it can connect to on the left hand side of the
screen.
Page 17 of 32
Page 18

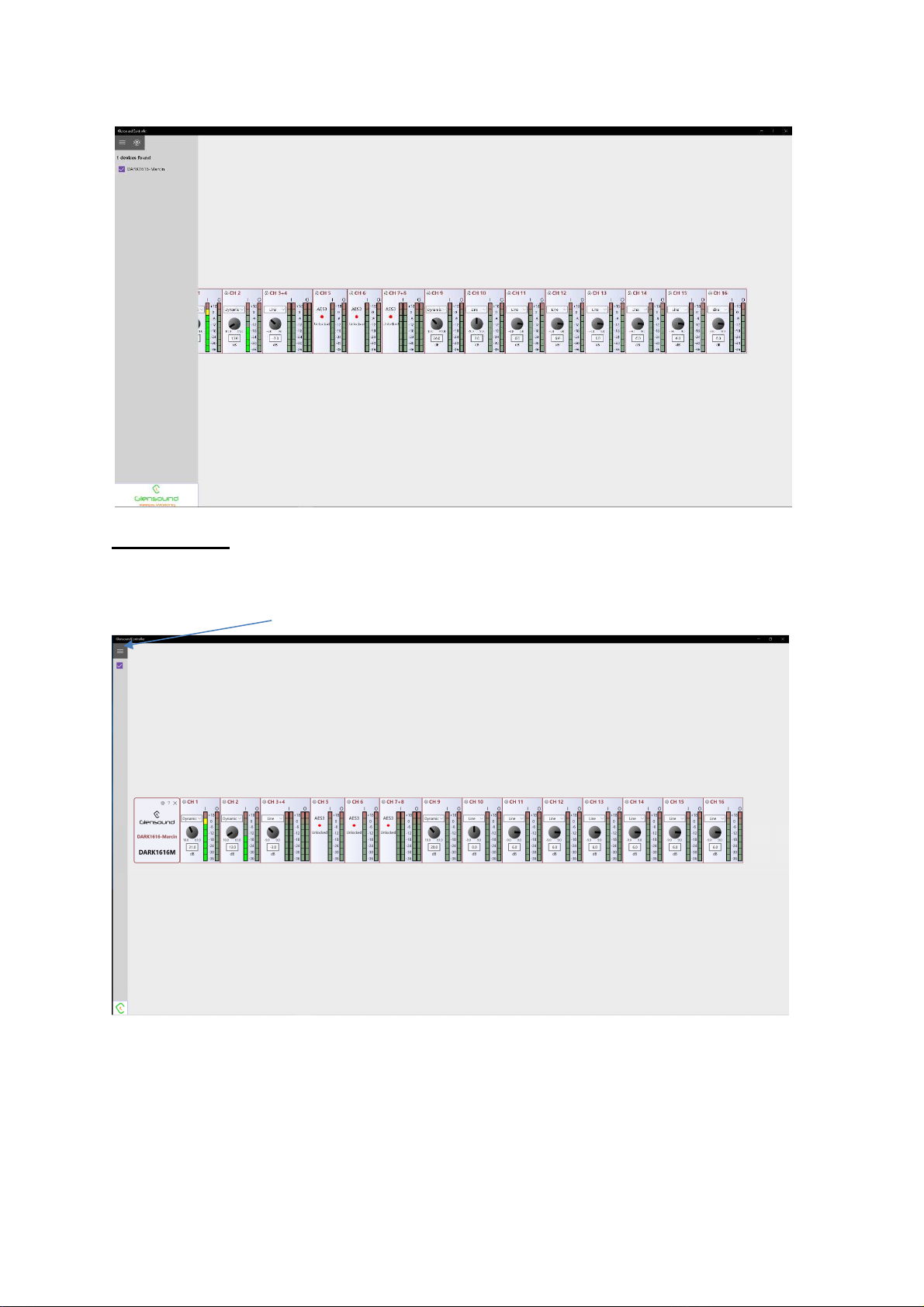

Tick the box against the name of the device that you want to control and it will
appear in the main screen area:
App Controls
Pressing this button toggles the side bar in and out:
Page 18 of 32
Page 19

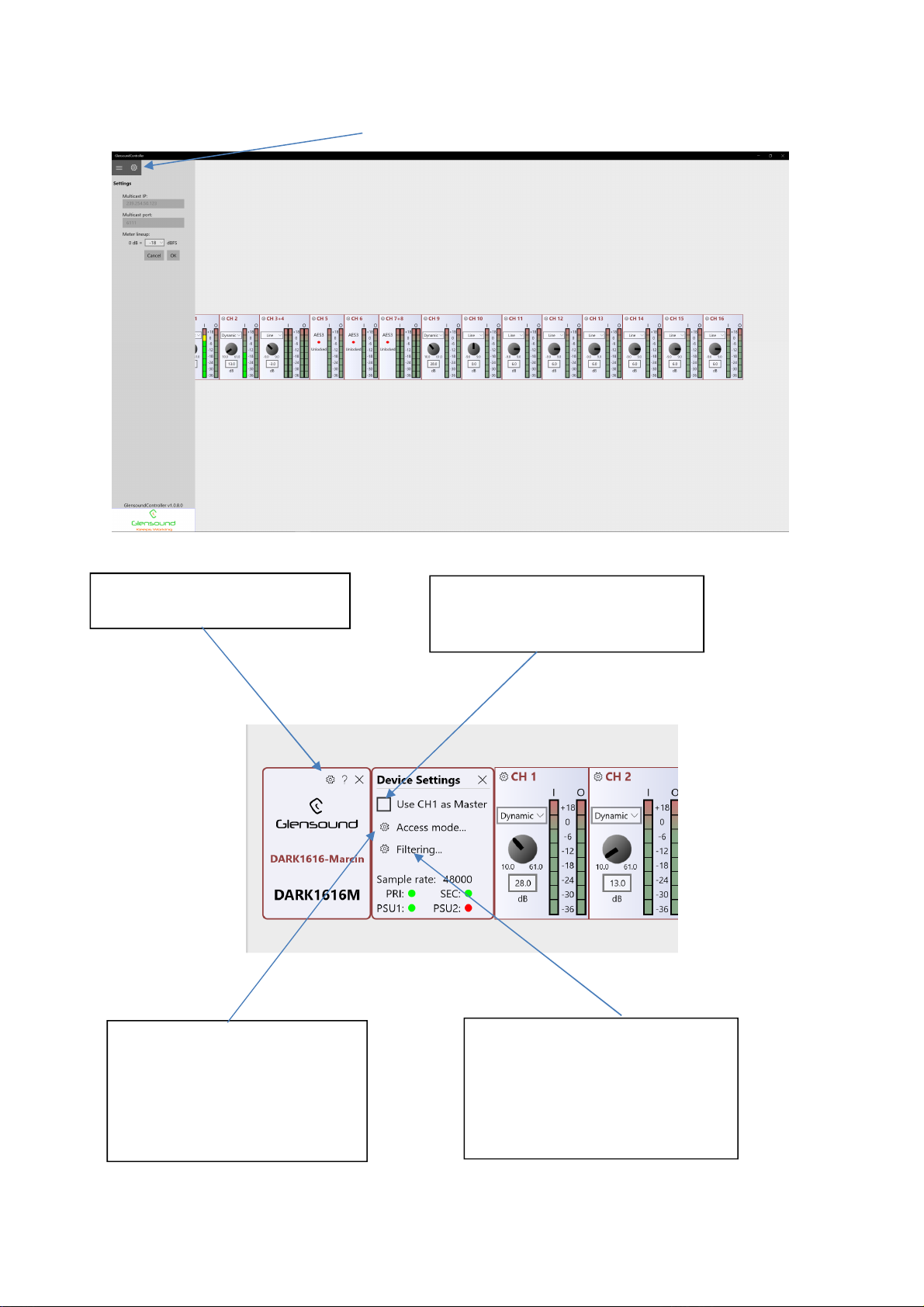

Pressing the settings button, shows app version details, multicast ip address & port
and meter setup information.
Pressing the settings button
opens up device settings
‘Use CH1 as Master’ if this
tick box is selected the all
channels settings follow CH 1
Access mode setup allows
sole or shared control of the
Dark1616M by different PCs
running the App and the
control can also be
password protected
Filtering setup allows access
to the filtering controls for the
ADCs (analogue to digital
convertors), changing these
settings only alters the
analogue inputs
Page 19 of 32
Page 20
Channel Controls
Pressing this button toggles the side bar in and out:
Pressing the settings button
opens on 1 channel opens
up a stereo pair of channels
settings
The ‘I’ meter shows the level of the
channels input. Which can be adjusted
using the gain contol.
The ‘O’ meter shows the output level of
the source received from the Dante
network.
The mono/ stereo switch
selects if a pair of inputs
should be treated as a
stereo pair.
Gain Control:
Adjusting the gain ‘knob’
controls the gain applied
to the channels input in
3dB steps.
The box below shows
the actual gain currently
being applied.
Use this drop down
box to select the
input type
The ‘Auto’, ‘Analogue’,
‘Digital’ selection assigns
which input is selected, In
‘Auto’ mode Digital takes
priority if a valid AES3
locked signal is received.
Page 20 of 32
Page 21
UPDATING FIRMWARE
Figure
Figure
The DARK1616M is a complex digital audio system comprising of a DSP and several
Micro Controllers. All these items run software and may need to be occasionally
updated.
Equipment needed
A windows based PC
USB Type A to Mini B cable
A copy of ‘DfuSe Demo’ software
The latest firmware from Glensound
A DARK1616M and mains power
Instructions
1. Download and install DfuSE Demo
‘DfuSE Demo’ is a firmware updating tool that is required for loading new
firmware on to the DARK1616M.
It can be downloaded from the STMicroelectronics website found here:
https://goo.gl/AbzhsA. It is the file named “STSW-STM32080”.
Once you have downloaded this file you will need to extract the .exe
“DfuSe_Demo_V3.0.5_Setup.exe”, then run and install it.
2. Download firmware
The latest firmware for the DARK1616M can be found on the Glensound
website, under the product page for DARK1616M. Once you have
downloaded the file, place it in a folder or location of your choice.
1 Example filename
3. Connect To A PC
Connect the DARK1616M to the PC via the USB cable. The Mini USB
connector is located on the front panel of the DARK1616M.
2 Front panel USB
connector
Page 21 of 32
Page 22
Figure

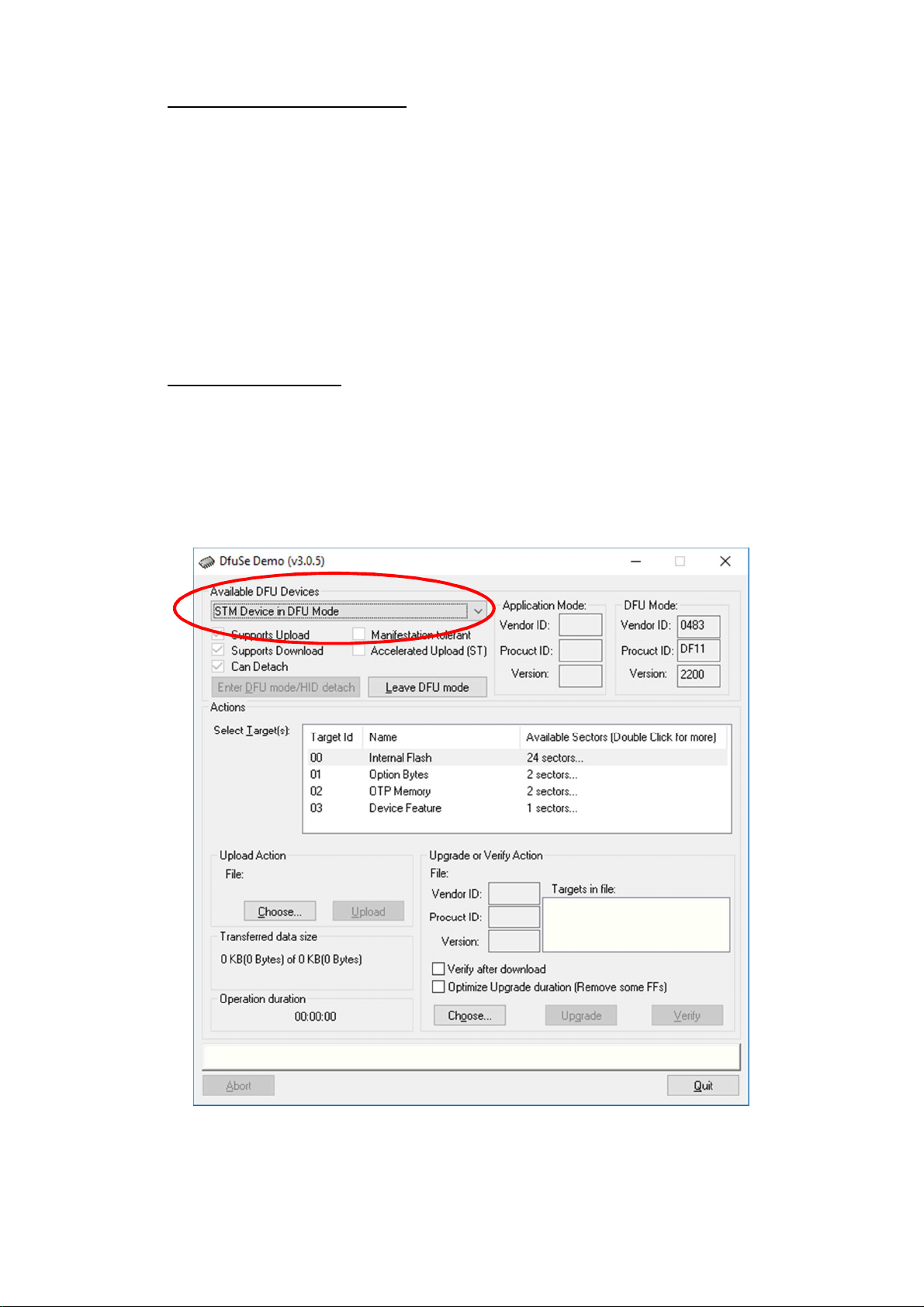

4. Firmware update preperation
To prepare the DARK1616M for a firmware update;
1. Power on the unit
2. Press and hold down the reset button
3. Press and hold down the identify button
4. Release the reset button and then release the identify button a second
after
Your PC should make an audible sound when this process is successful as
windows is detecting a new USB device.
5. Loading the firmware
Now open DfuSe Demo.
If the DARK1616M successfully entered DFU mode then it will appear as
‘STM Device in DFU Mode’ under the ‘Available DFU Devices tab’.
3 Device successfully recognised
Page 22 of 32
Page 23

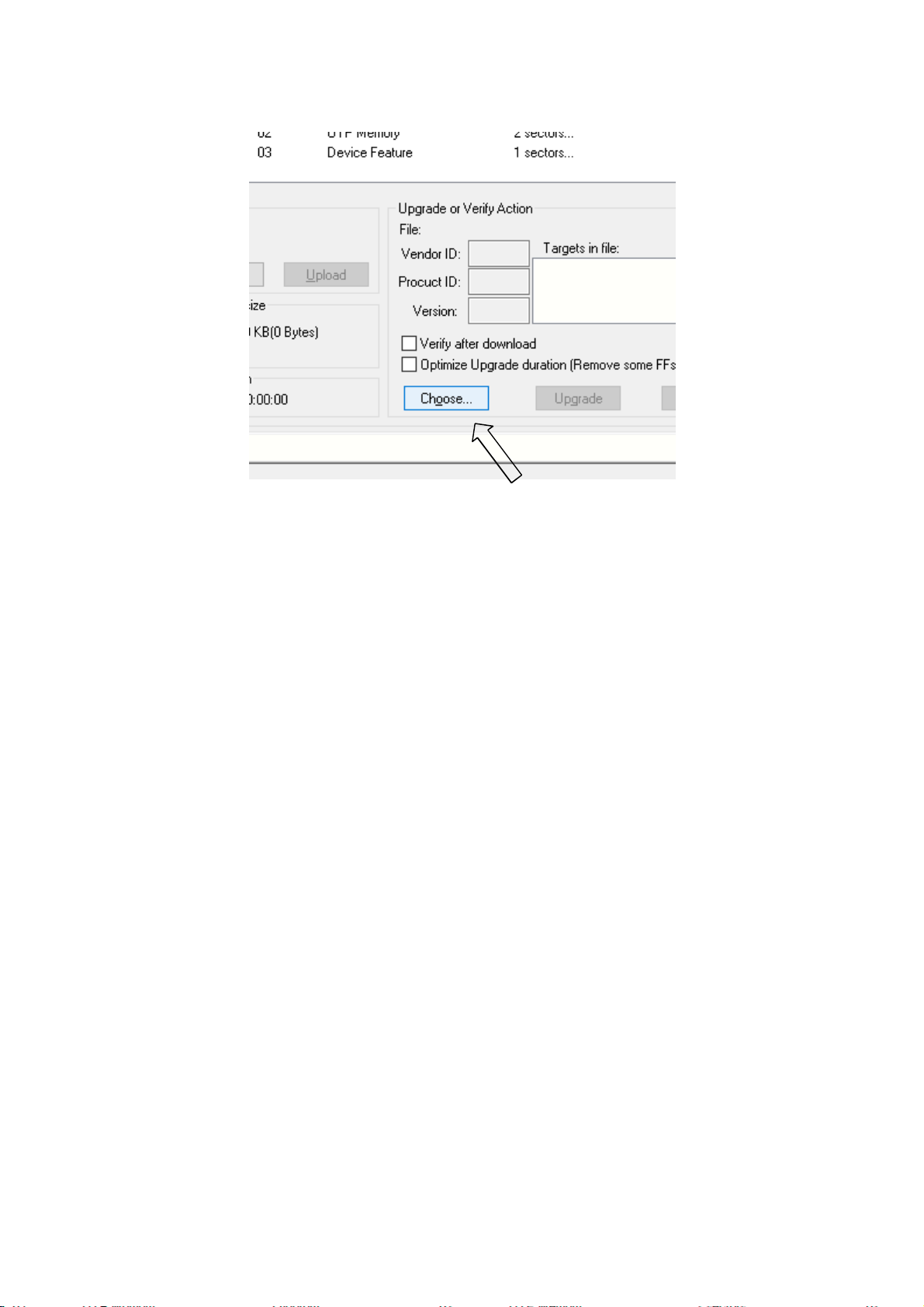

Now the .dfu file needs to be selected so that DfuSe Demo knows the correct
Figure
firmware to put on to the DARK1616M.
4 Choose .dfu file
Click choose and then select the .dfu file that you downloaded from the
Glensound website. This will be located in your downloads folder by default.
If the file loads successfully then it will read along the bottom ‘File correctly
loaded’.
Page 23 of 32
Page 24
Figure
Figure
Figure

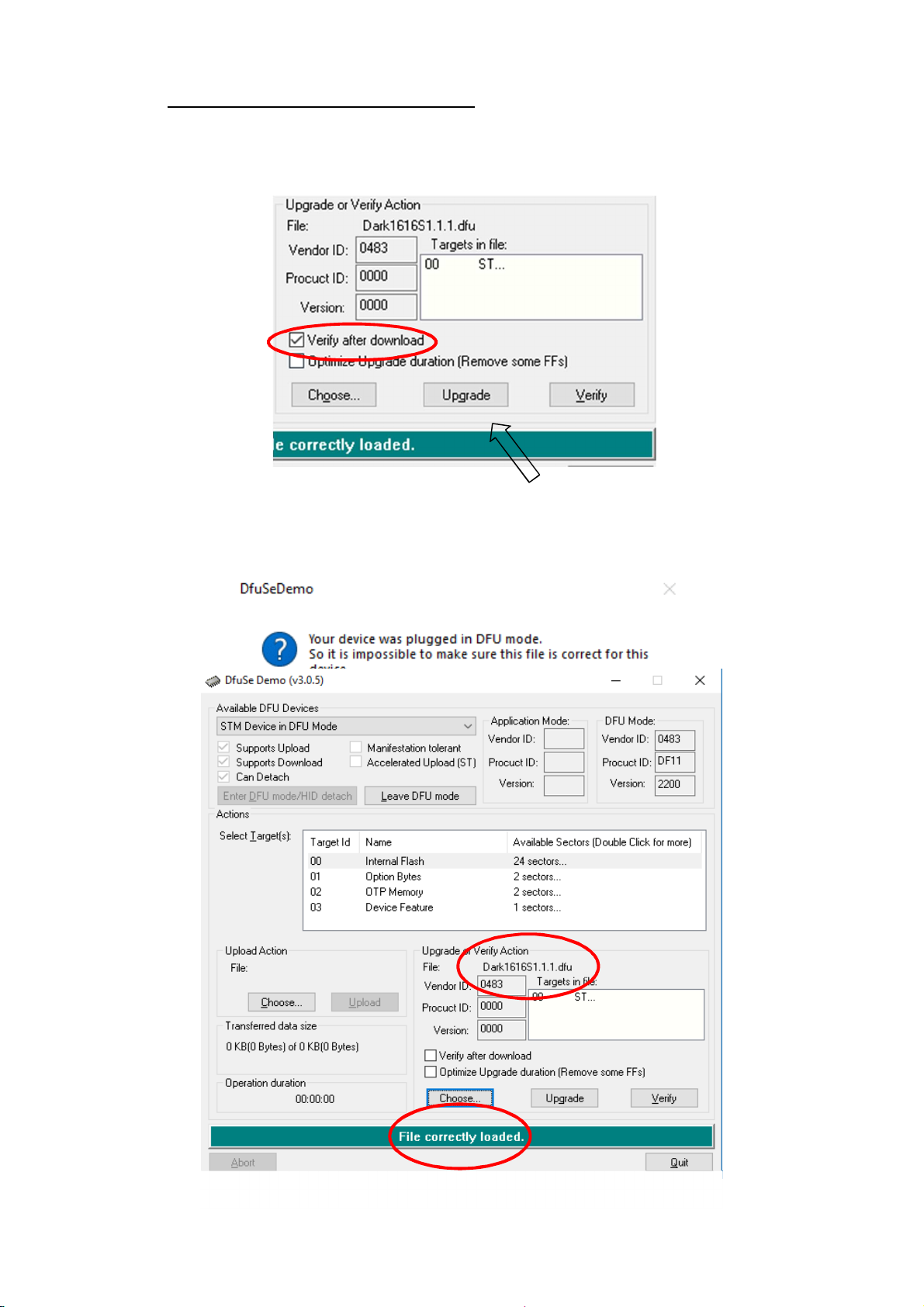

6. Upgrading the DARK1616M firmware
The firmware is now ready to be put on to the DARK1616M. Tick the ‘Verify
after download’ box first and then click ‘Upgrade’.
6 Upgrade
Click yes to proceed.
7 Start upgrade
5 .dfu successfully loaded
Page 24 of 32
Page 25
Figure

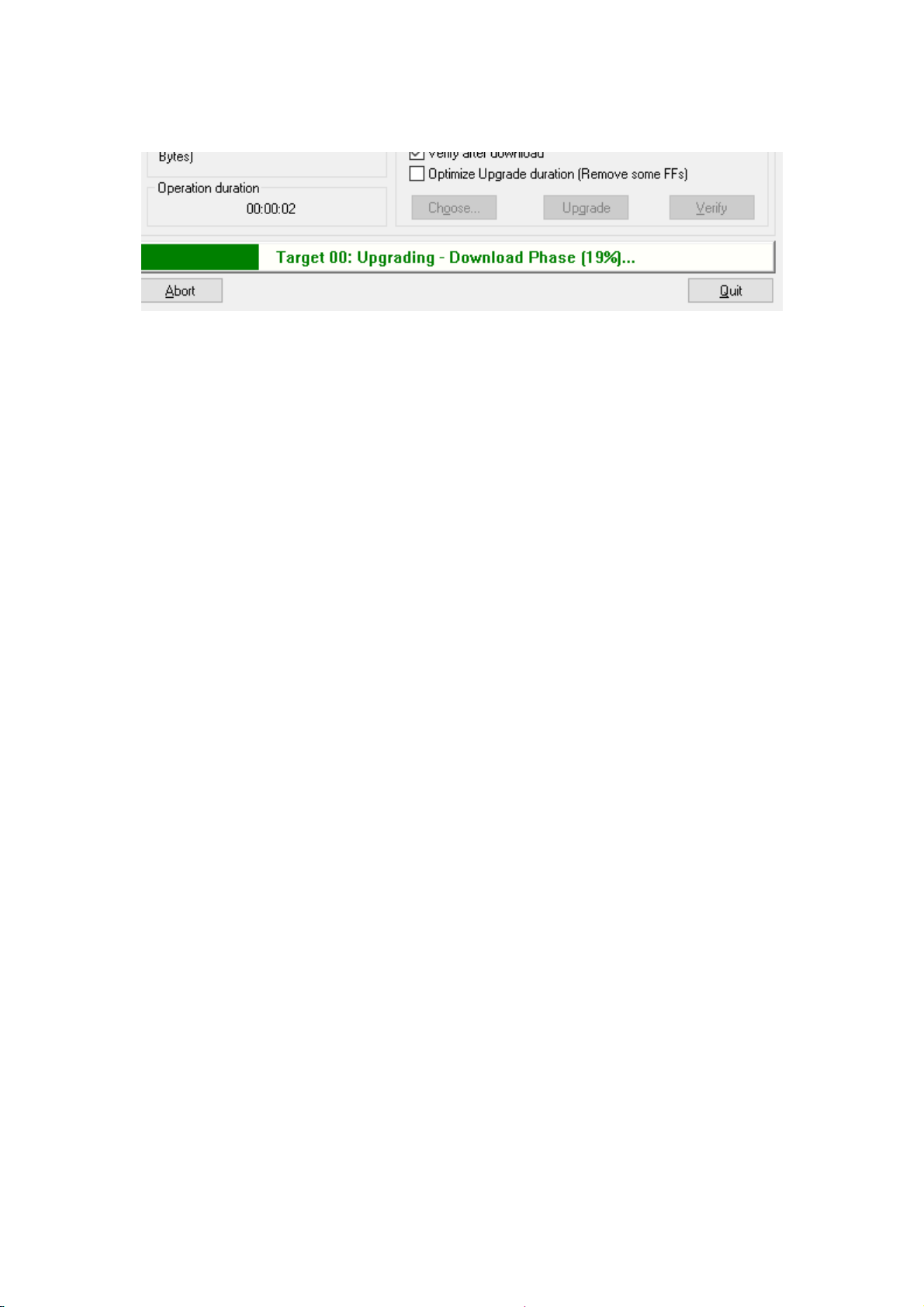

The progress bar along the bottom will show the status of the operation.
8 Upgrade status
Page 25 of 32
Page 26

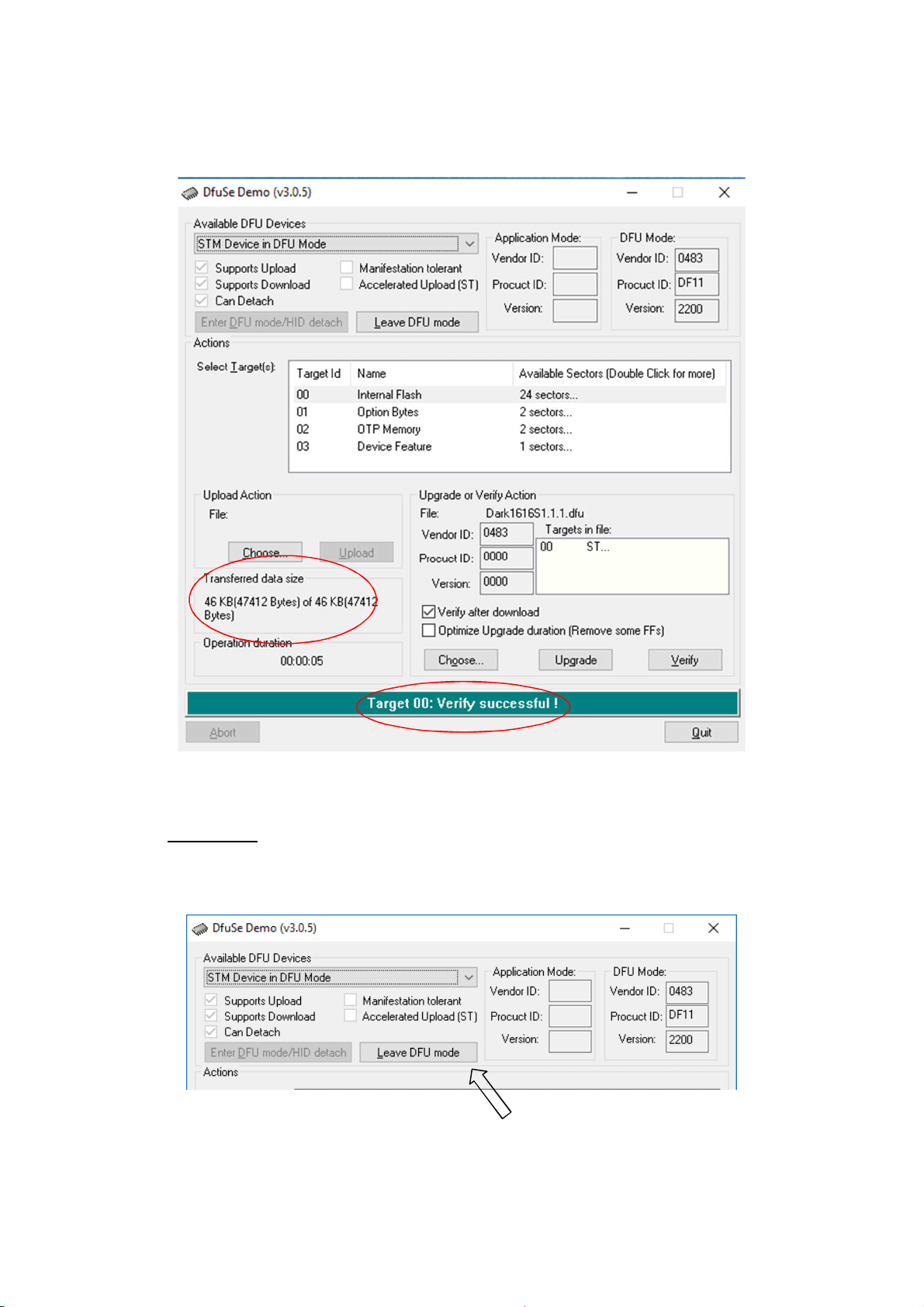

If the operation was successful, DfuSe Demo will report that “Targery 00: Verify
Figure
Figure
Successful!”.
You may also see that it will report how much data was successfully transferred.
7. Final steps
Now click “Leave DFU mode” to finish the procedure.
You may now disconnect the USB cable and continue to use the DARK1616M
with the freshly updated firmware!
9 Successful upgrade!
10 Final step
Page 26 of 32
Page 27
UPDATING THE BROOKLYN MODULE
The Brooklyn module is a device supplied by Audinate that does most of the
processing for the actual Dante/ AES67 network audio streams. There is one
Brooklyn module in each Dark1616M. We supply special code (a .dnt file) that sets
up/ initiates the Brooklyn module and makes it work in particular way and we also
run extra code on its internal microprocessor to make it work correctly with the
Dark1616M.
1. Finding Out Current Installed Version
Open Dante Controller.
Open Device Info tab.
Double Click in the device that you are working with….a new window will open called
‘Device View (name of device’
Open the status tab.
The Firmware Version (of the Brooklyn module) will be found under the ‘Device
Information’ heading.
2. Finding Out What The Latest Available Version Is
Go the Dark1616M’s web page at http://www.glensound.co.uk/product-details/dark1616m/ and open the ‘Firmware Latest Version’ Tab.
This will give both the latest version numbers/ file names and also the location to
download the file from.
3. Updating the Brooklyn Module
The firmware that runs on the Brooklyn module is updated using Audinate’s
Firmware updating tool. The updating tool and a user guide can be downloaded from
Audinate’s website:
https://www.audinate.com/products/firmware-update-manager
Please note we strongly advise that when you do the update that only your PC and
the Dark1616M that you want to update are on the network to save accidently
updating the wrong Dante device.
Page 27 of 32
Page 28

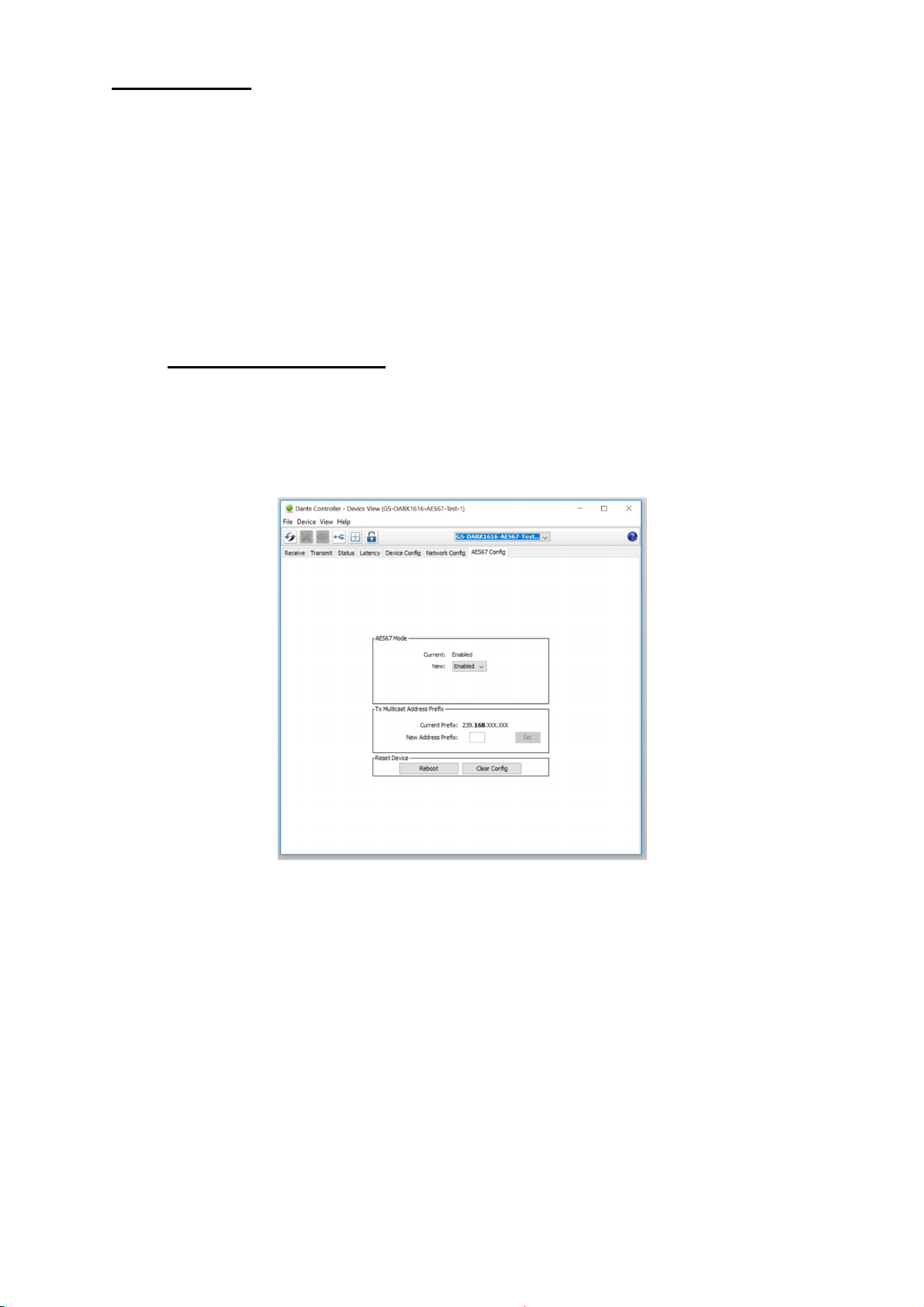

AES67 MODE
The Dark1616M uses a module from Audinate called a Brooklyn Module for its
network audio interface. Audinate are the company behind Dante
module’s primary network audio protocol is Dante, however Audinate have enabled
their module to comply with AES67 and therefore the Dark1616S can be set to
AES67 mode for interaction with other AES67 devices.
Please note however that Glensound are relying on Audinate’s AES67 interface and
are unfortunately not able to provide full AES67 support for the unit. AES67 support
should be sought directly from Audinate.
1. Turning On AES67 Mode
If you want to use your Dark1616M on an AES67 network and it has not been set to
AES67 mode then this can be set in Dante controller by double clicking the
Dark1616M to open the Device View window where you will find an AES67 tab to
enable AES67 support.
®
and as such the
Once the AES67 drop down box has been enabled you’ll have to reboot the
Paradiso for the change to take effect. After the reboot go back to the AES67 tab
and set the multicast prefix address to one that is suitable for your newtork.
Page 28 of 32
Page 29

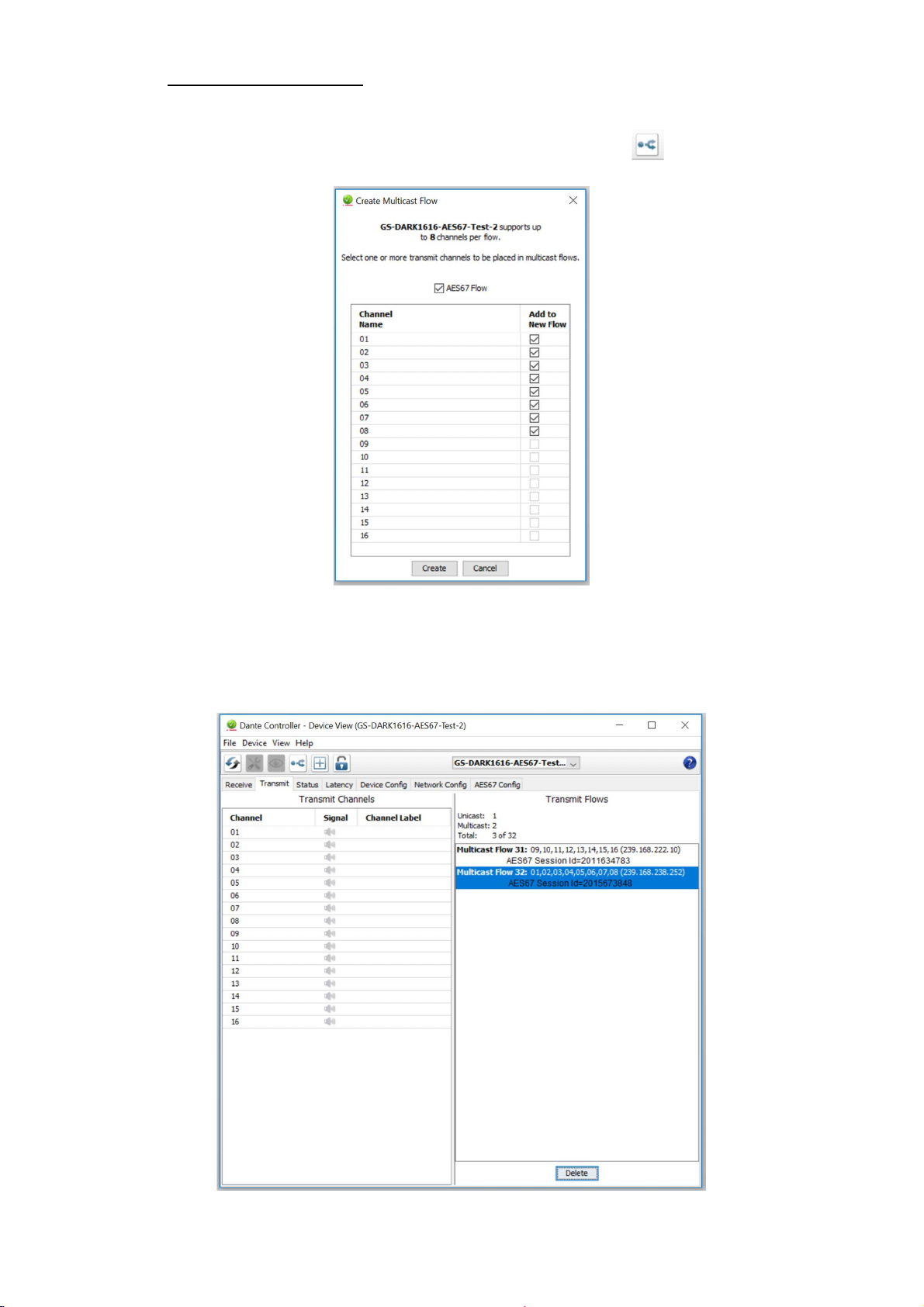

2. Sending AES67 Audio
To transmit AES67 audio to the network a multicast flow must first be setup.
This is done by selecting the ‘Create New Multicast Flow’ Icon in the Device
View.
Tick the AES67 Flow check box, then select up to 8 channels to be included in the
flow then click ‘Create’
Once set the flows can be seen in the transmit tab of the device view.
Page 29 of 32
Page 30
3. Receiving AES67 Audio
Once a compatible AES67 stream is detected on the network by Dante Controller the
AES67 flows will appear in the Dante Transmitters section in the Routing tab.
4. AES67 Restrictions
AES67 flows can only be generated with the following constraints:
Multicast Only
Non-redundant
Destination address in range 239.nnn.0.0 to 239.nnn.255.255 (239.nnn/16),
port 5004
48kHz sampling rate
24 bit linear (L24) encoding
1 msec packet time
Up to 8 channels per stream
Received AES67 flows have the following constraints:
Multicast Only
Non-redundant
Destination address in range 239.nnn.0.0 to 239.nnn.255.255 (239.nnn/16),
port 5004. Must match destinatio address range.
48kHz sampling rate
L16 or L24 encoding
125usec, 250usec, 333usec, 1 msec packet time
Up to 8 channels per stream
Page 30 of 32
Page 31
WIRING INFORMATION
ANALOGUE AUDIO INPUTS 1
- 8
Input 1
Pins 24, 12, 25
In Phase, Mate, Ground
Input 2
Pins 10, 23, 11
In Phase, Mate, Ground
Input
3
Pins 21, 9, 22
In Phase, Mate, Ground
Input 4
Pins 7, 20, 8
In Phase, Mate, Ground
Input 5
Pins 18, 6, 19
In Phase, Mate, Ground
Input 6
Pins 4, 17, 5
In Phase, Mate, Ground
Input 7
Pins 15, 3, 16
In Phase, Mate, Ground
Input 8
Pins 1, 14, 2
In
Phase, Mate, Ground
ANALOGUE AUDIO INPUTS 9
- 16
Input 9
Pins 24, 12, 25
In Phase, Mate, Ground
Input 10
Pins 10, 23, 11
In Phase, Mate, Ground
Input 11
Pins 21, 9, 22
In Phase, Mate, Ground
Input 12
Pins 7, 20, 8
In Phase, Mate, Ground
Input 13
Pins 18, 6, 19
In Phase, Mate, Ground
Input 14
Pins 4, 17, 5
In Phase, Mate, Ground
Input 15
Pins 15, 3, 16
In Phase, Mate, Ground
Input 16
Pins 1, 14, 2
In Phase, Mate, Ground
ANALOGUE AUDIO OUTPUTS 1
- 8
Output 1
Pins 24, 12, 25
In Phase, Mate,
Ground
Output 2
Pins 10, 23, 11
In Phase, Mate, Ground
Output 3
Pins 21, 9, 22
In Phase, Mate, Ground
Output 4
Pins 7, 20, 8
In Phase, Mate, Ground
Output 5
Pins 18, 6, 19
In Phase, Mate, Ground
Output 6
Pins 4, 17, 5
In Phase, Mate, Ground
Output 7
Pins 15, 3, 16
In Phase, Mate, Ground
Output 8
Pins 1, 14, 2
In Phase, Mate, Ground
ANALOGUE AUDIO OUTPUTS 9
- 16
Output 9
Pins 24, 12, 25
In Phase, Mate, Ground
Output 10
Pins 10, 23, 11
In Phase, Mate, Ground
Output 11
Pins 21, 9, 22
In Phase,
Mate, Ground
Output 12
Pins 7, 20, 8
In Phase, Mate, Ground
Output 13
Pins 18, 6, 19
In Phase, Mate, Ground
Output 14
Pins 4, 17, 5
In Phase, Mate, Ground
Output 15
Pins 15, 3, 16
In Phase, Mate, Ground
Output 16
Pins 1, 14, 2
In Phase, Mate, Ground
AES3 AUDIO INPUTS/ OUTPUTS 1
- 4
Input 1/2
Pins 24, 12, 25
In Phase, Mate, Ground
Input 3/4
Pins 10, 23, 11
In Phase, Mate, Ground
Input 5/6
Pins 21, 9, 22
In Phase, Mate, Ground
Input 7/8
Pins 7, 20, 8
In Phase, Mate, Ground
Output 1/2
Pins
18, 6, 19
In Phase, Mate, Ground
Output 3/4
Pins 4, 17, 5
In Phase, Mate, Ground
Output 5/6
Pins 15, 3, 16
In Phase, Mate, Ground
Output 7/8
Pins 1, 14, 2
In Phase, Mate, Ground

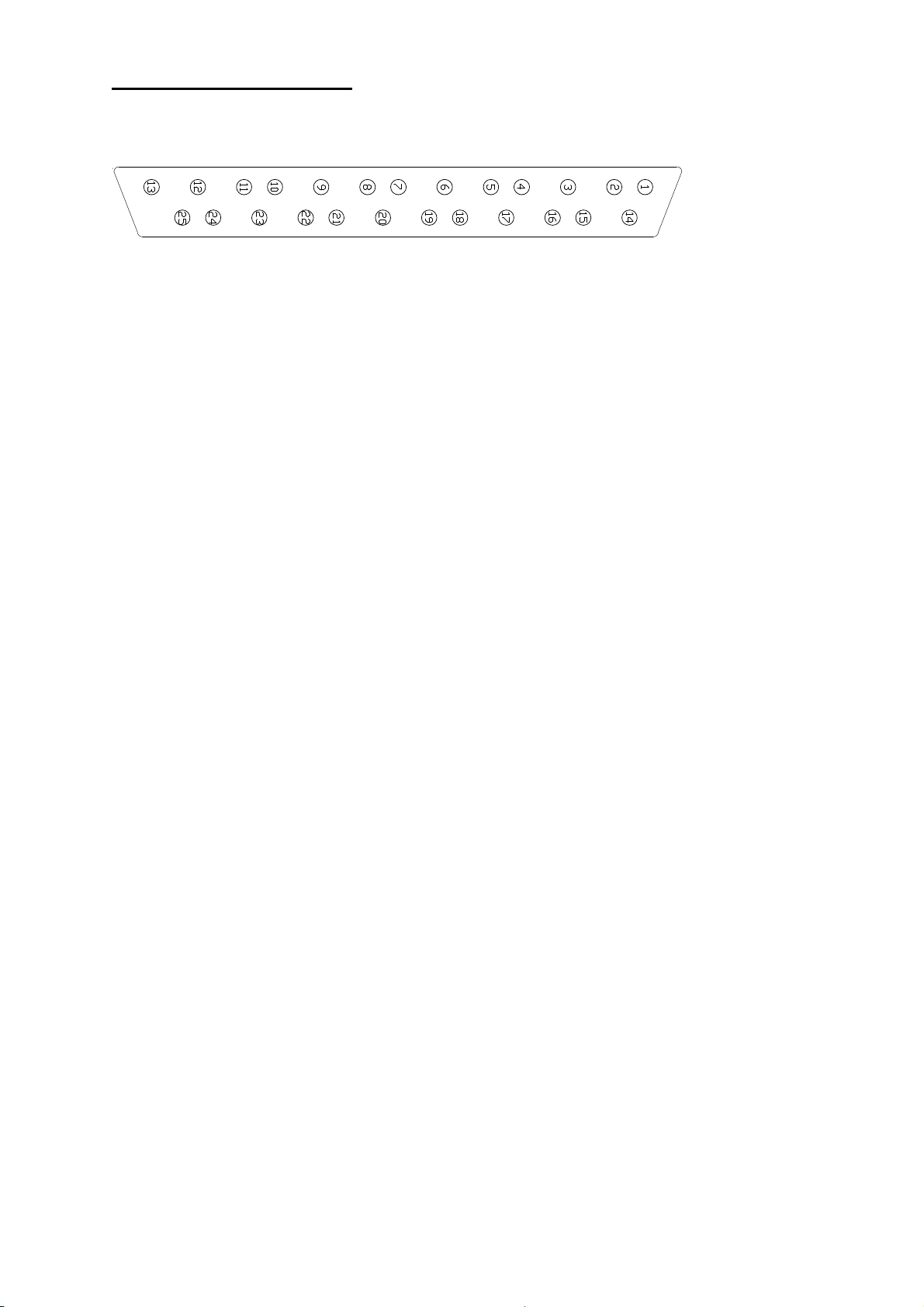

AUDIO I/O D25 SOCKET PIN OUT
The wiring used for the DARK1616M conforms to AES59 (Also known as the
Tascam standard). Pre-made break out cables are available from a number of
suppliers.
Page 31 of 32
Page 32
AES3 AUDIO INPUTS/ OUTPUTS 5
– 8
Input 9/10
Pins 24, 12, 25
In
Phase, Mate, Ground
Input 11/12
Pins 10, 23, 11
In Phase, Mate, Ground
Input 13/14
Pins 21, 9, 22
In Phase, Mate, Ground
Input 15/16
Pins 7, 20, 8
In Phase, Mate, Ground
Output 9/10
Pins 18, 6, 19
In Phase, Mate, Ground
Output 11/12
Pins 4, 17, 5
In Phase, Mate, Ground
Output 13/14
Pins 15, 3, 16
In Phase, Mate, Ground
Output 15/16
Pins 1, 14, 2
In Phase, Mate, Ground
ALARMS
PSU1 Failure NC
Pin 1 Closed Contact when PSU1 fails
PSU1 Failure NO
Pin 6 Open Contact when PSU1 fails
PSU2 Failure NC
Pin 2 Closed Contact when PSU2 fails
PSU2 Failure NO
Pin 7 Open Contact when PSU2 fails
LINK Primary Failure NC
Pin 3 Closed Contact when Primary link fails
LINK Primary Failure NO
Pin 8 Open Contact whe
n Primary link fails
LINK Secondary Failure NC
Pin 4 Closed Contact when Secondary link fails
LINK Secondary Failure NO
Pin 9 Open Contact when Secondary link fails
COMMON
Pin 5 Common for above (Internally linked to Ground)
ALARMS D9 SOCKET PIN OUT
Page 32 of 32
Loading...
