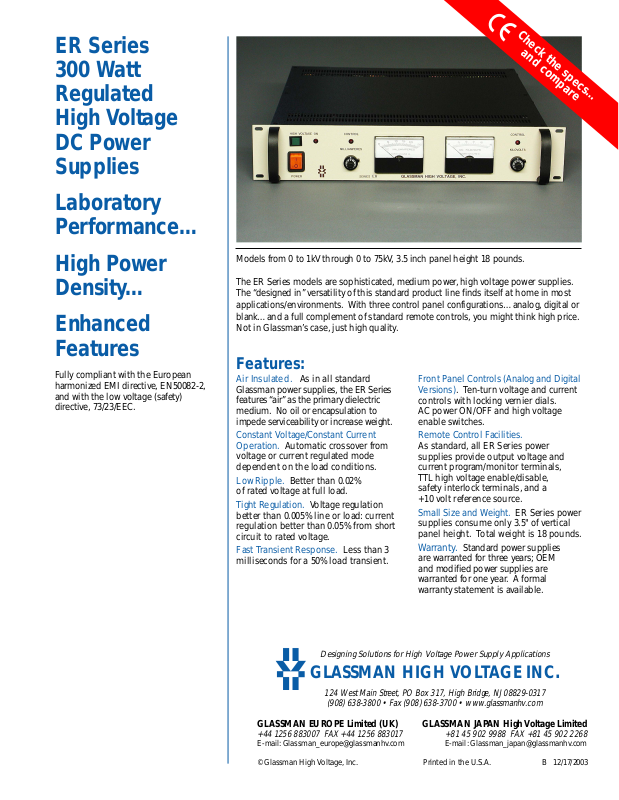

Glassman ER60R05 Data Sheet

ER Series
300 Watt
Regulated
High Voltage
DC Power
Supplies

Laboratory
Performance…

High Power
Density…

Enhanced
Features

Fully compliant with the European
harmonized EMI directive, EN50082-2,
and with the low voltage (safety)
directive, 73/23/EEC.

Features:

Air Insulated. As in all standard

Glassman power supplies, the ER Series
features “air” as the primary dielectric
medium. No oil or encapsulation to
impede serviceability or increase weight.

Constant Voltage/Constant Current
Operation. Automatic crossover from

voltage or current regulated mode
dependent on the load conditions.

Low Ripple. Better than 0.02%

of rated voltage at full load.

Tight Regulation. Voltage regulation

better than 0.005% line or load: current
regulation better than 0.05% from short
circuit to rated voltage.

Fast Transient Response. Less than 3

milliseconds for a 50% load transient.

Front Panel Controls (Analog and Digital
Versions). Ten-turn voltage and current

controls with locking vernier dials.
AC power ON/OFF and high voltage
enable switches.

Remote Control Facilities.

As standard, all ER Series power
supplies provide output voltage and
current program/monitor terminals,
TTL high voltage enable/disable,
safety interlock terminals, and a
+10 volt reference source.

Small Size and Weight. ER Series power

supplies consume only 3.5" of vertical
panel height. Total weight is 18 pounds.

Warranty. Standard power supplies

are warranted for three years; OEM
and modified power supplies are
warranted for one year. A formal
warranty statement is available.

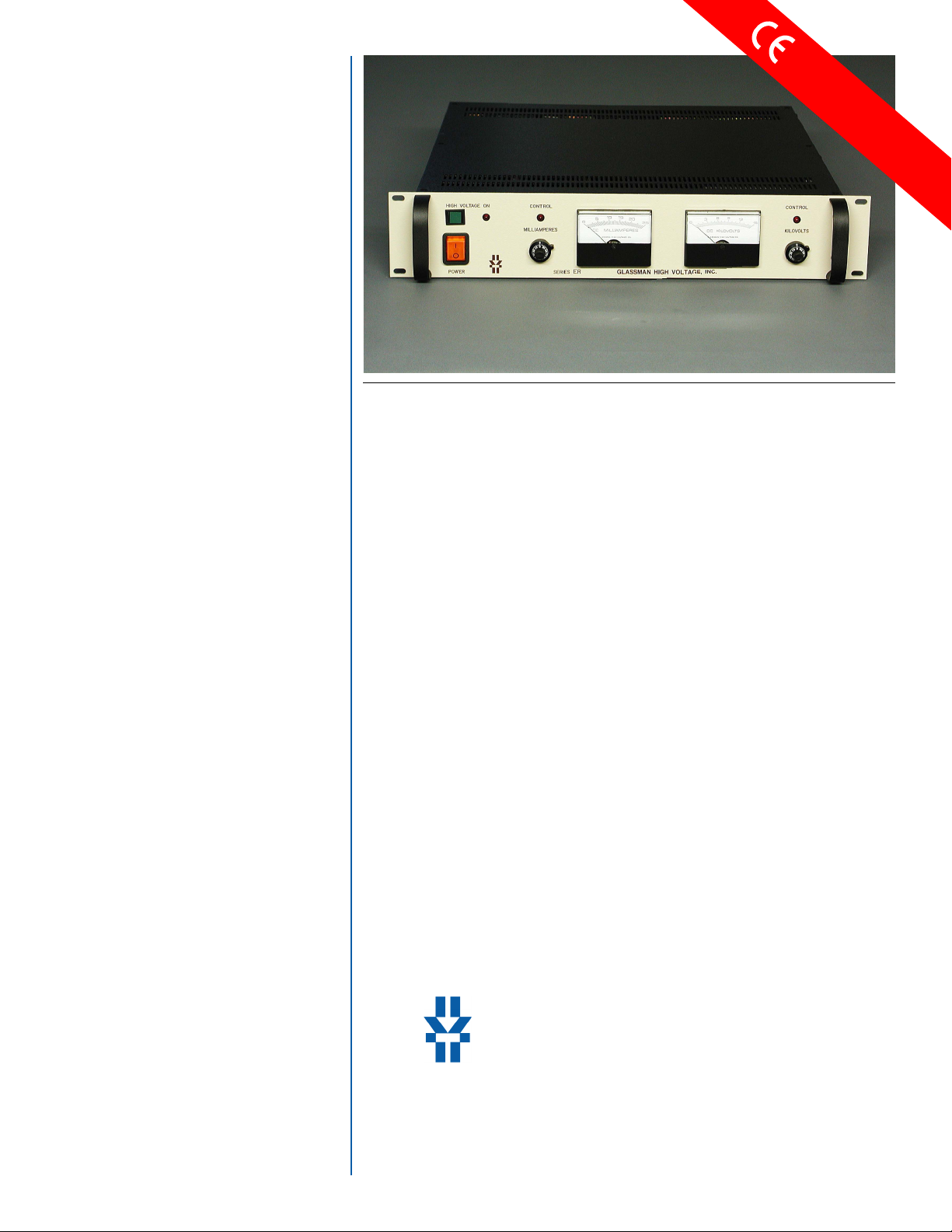

Models from 0 to 1kV through 0 to 75kV, 3.5 inch panel height 18 pounds.
The ER Series models are sophisticated, medium power, high voltage power supplies.

The “designed in” versatility of this standard product line finds itself at home in most
applications/environments. With three control panel configurations…analog, digital or
blank…and a full complement of standard remote controls, you might think high price.
Not in Glassman’s case, just high quality.

Designing Solutions for High Voltage Power Supply Applications

GLASSMAN HIGH VOLTAGE INC.

124 West Main Street, PO Box 317, High Bridge, NJ 08829-0317

[phone] • Fax [phone] • www.glassmanhv.com

GLASSMAN EUROPE Limited (UK) GLASSMAN JAPAN High Voltage Limited

+

44 1256 883007 FAX [phone] [phone] FAX[phone]

E-mail: [email protected] E-mail: [email protected]
©Glassman High Voltage, Inc. Printed in the U.S.A. B 12/17/2003

Check the specs…

and compare

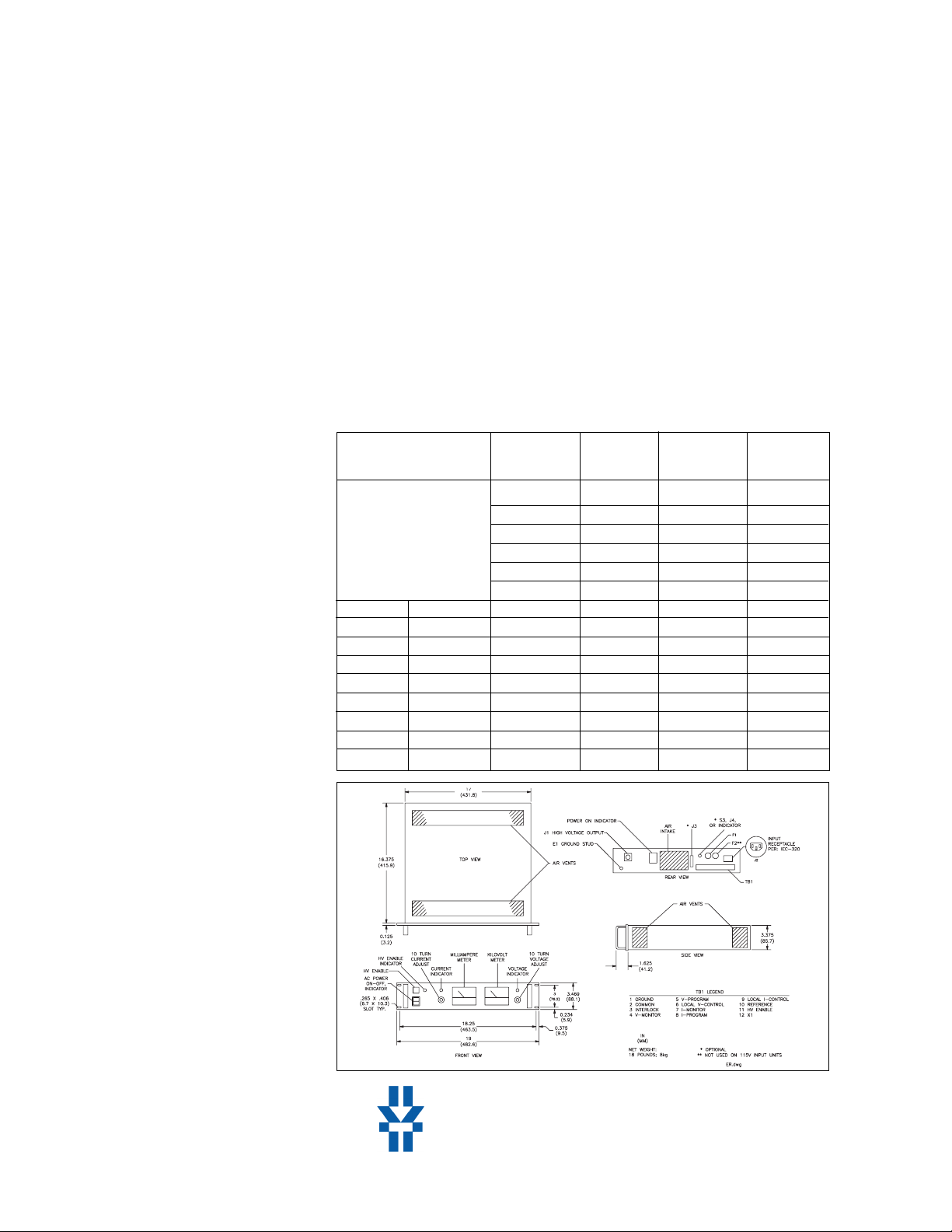

Models

Positive Negative Reversible Output Output Output
Polarity Polarity Polarity Voltage Current Cable

ER1R300 0-1kV 0-300mA RG-59
ER1.5R200 0-1.5kV 0-200mA RG-59
ER2R150 0-2kV 0-150mA RG-59
ER3R100 0-3kV 0-100mA RG-59
ER5R60 0-5kV 0-60mA RG-59

ER6R50 0-6kV 0-50mA RG-58
ER10P30 ER10N30 ER10R30 0-10kV 0-30mA RG-8U
ER15P20 ER15N20 ER15R20 0-15kV 0-20mA RG-8U
ER20P15 ER20N15 ER20R15 0-20kV 0-15mA RG-8U
ER25P12 ER25N12 ER25R12 0-25kV 0-12mA RG-8U
ER30P10 ER30N10 ER30R10 0-30kV 0-10mA RG-8U
ER40P7.5 ER40N7.5 ER40R7.5 0-40kV 0-7.5mA RG-8U
ER50P6 ER50N6 ER50R6 0-50kV 0-6mA RG-8U
ER60P5 ER60N5 ER60R5 0-60kV 0-5mA RG-8U
ER75P4 ER75N4 ER75R4 0-75kV 0-4mA DS2124

terminal block.

External Interlock: Open off, closed on.

Specifications

(From 5% to 100% rated voltage.
All units operate down to zero
output with very slight degradation
of performance.)

Input: 105-125 V RMS, 48-63 Hz single

phase, <6 A. Connector per IEC 320
with mating line cord.

Efficiency: Typically 85% at full load.
Output: Continuous, stable adjust-

ment, from 0 to rated voltage or current
by panel mounted 10-turn potentiome­ters with 0.05% resolution, or by exter­nal 0 + 10V signals is provided. Voltage
accuracy is 0.5% of setting, 0.2% of
rated. Repeatability is <0.1% of rated.

Stored Energy: 20 kV model, 1.5 joules;

60 kV model, <4 joules.

Voltage Regulation: <0.005% +1mV/mA,

line and load.

Ripple: <0.02% RMS of rated voltage

+0.5V at full load; models 1.5kV and
lower, 400mV (500mV Japan).

Current Regulation: <0.1% from

short circuit to rated voltage at any
set current.

Voltage Monitor: 0 to +10 V DC for

zero to rated current. Accuracy, 0.5%
of reading + .2% of rated voltage.

Current Monitor: 0 to + 10 V DC for

zero to rated current. Accuracy, 1%
of reading + .05% of rated current.
Reversible models, 1% of reading and

0.1% of rated.

Stability: 0.01% per hour after 1/2 hour

warm-up, 0.05% per 8 hours.

Voltage Rise/Decay Time Constant:

Typically 50 ms rise or decay time
constant (300 ms for 75 kV model)
using HV (on/off) or remote voltage
control with 75% resistive load.

Temperature Coefficient: 0.01%/°C.
Ambient Temperature: -20 to +40°C

operating, -40 to +85°C storage.

Polarity: Positive, negative, or

reversible with respect to
chassis ground.

Protection: Automatic current

regulation protects against all
overloads, including arcs and short
circuits. Fuses, surge-limiting resistors,
and low-energy components provide
ultimate protection.

Accessories: Detachable 8-foot shield-

ed HV cable (see Model Chart for cable
type) and 6 foot detachable line

cord provided.

Remote Controls: Common, +10 V

reference, interlock, current monitor,
current program, voltage monitor,
voltage program, TTL, and ground,
provided on a rear panel mounted

Designing Solutions for High Voltage Power Supply Applications

GLASSMAN HIGH VOLTAGE INC.

124 West Main Street, PO Box 317, High Bridge, NJ 08829-0317

[phone] • Fax [phone] • www.glassmanhv.com

Options

Symbol Description

100 100 V input, rated 90-110 V RMS, 48-63 Hz.
220 220 V input, rated 200-264 V R MS, 48-63 Hz.
400 48-420 Hz, available on standard model and options 100 and 220.
DM 3-1/2 digit LCD panel meters.
NC Blank front panel (power switch only).
CT Current trip. Power supply trips off when the load current reaches the

programmed level. This option has a rear panel switch that selects either
“trip” operation or current limiting.

ZR Zero start interlock. Voltage control must be at zero before accepting

an enable signal.

SS Slow start ramp of up to 30 seconds available. Specify time.

5VC 0-5 V voltage and current program/monitor.

Normally latching except for blank front
panel version where it is non-latching.

HV Enable/Disable: 0-1.5 V off, 2.5-15 V on.

Reversible
Polarity Only
