Glas Craft GCP3RA, GCP3R0, GCP3R4, GCP3R1, GCP3R5 User Manual

...

Probler

Dispense Gun

For use with non-ammable foam and polyurea.

Not for use in explosive atmospheres.

90-110 psi (0.62-0.76 MPa, 6.2-7.6 bar) Air Inlet Pressure Range 3200 psi (22 MPa, 220 bar) Maximum Static Fluid Pressure

Important Safety Instructions

Read all warnings and instructions in this manual. Save these instructions.

Models: GCP3RA GCP3R0 GCP3R1 GCP3R2 GCP3R3 GCP3R4 GCP3R5

P2 Elite

USER MANUAL

r_gcp3ra_313266_1_1e

Table Of Contents

Section 1 Installation

Warnings ............................................................................................................................................................ 3

Introduction ........................................................................................................................................................ 7

Standard Equipment .......................................................................................................................................... 8

Translations ....................................................................................................................................................... 8

Equipment Assembly ......................................................................................................................................... 9

Section 2 Operation

Start-up Instructions ........................................................................................................................................... 11

Section 3 General Information

Assembly Drawings ............................................................................................................................................. 13

Maintenance ........................................................................................................................................................ 16

Options ................................................................................................................................................................ 21

Section 4 Warranty and Reference Information

Limited Time Warranty ........................................................................................................................................ 25

T echnical Assistance ........................................................................................................................................... 26

For Your Reference ............................................................................................................................................. 27

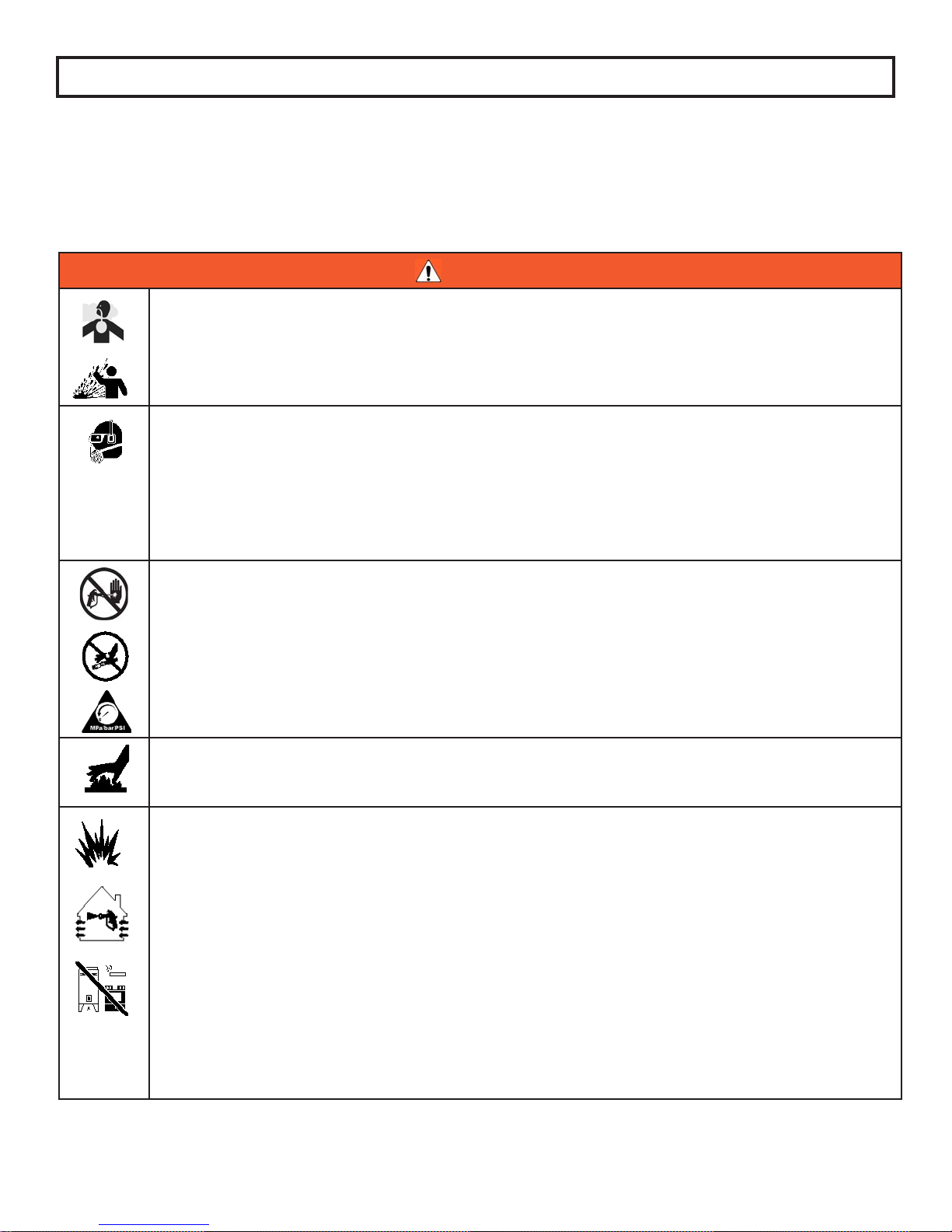

Warnings

The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation

point symbol alerts you to a general warning and the hazard symbol refers to procedure-specic risk. Refer back to these warnings. Additional, product-specic warnings may be found throughout the body of this manual where applicable.

WARNING

TOXIC FLUID OR FUMES HAZARD

Toxic uids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swal-

lowed.

• Read MSDS’s to know the specic hazards of the uids you are using.

• Store hazardous uid in approved containers, and dispose of it according to applicable guidelines.

• Always wear impervious gloves when spraying or cleaning equipment.

PERSONAL PROTECTIVE EQUIPMENT

You must wear appropriate protective equipment when operating, servicing, or when in the operating area of

the equipment to help protect you from serious injury, including eye injury, inhalation of toxic fumes, burns,

and hearing loss. This equipment includes but is not limited to:

• Protective eyewear

• Clothing and respirator as recommended by the uid and solvent manufacturer

• Gloves

• Hearing protection

SKIN INJECTION HAZARD

High-pressure uid from gun, hose leaks, or ruptured components will pierce skin. This may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.

• Do not point gun at anyone or at any part of the body.

• Do not put your hand over the spray tip.

• Do not stop or deect leaks with your hand, body, glove, or rag.

• Close material shutoff valves and then shut off or disconnect air supply when not spraying.

• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning, checking,

or servicing equipment.

BURN HAZARD

Equipment surfaces and uid that’s heated can become very hot during operation. To avoid severe burns, do not touch hot uid or equipment. Wait until equipment/uid has cooled completely.

FIRE AND EXPLOSION HAZARD

Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent re

and explosion:

• Use equipment only in well ventilated area.

• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop

cloths (potential static arc).

• Keep work area free of debris, including solvent, rags and gasoline.

• Do not plug or unplug power cords, or turn power or light switches on or off when ammable fumes are

present.

• Ground all equipment in the work area.

• Use only grounded hoses.

• Hold gun rmly to side of grounded pail when triggering into pail.

• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment until

you identify and correct the problem.

• Keep a working re extinguisher in the work area.

Warnings

WARNING

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Do not operate the unit when fatigued or under the inuence of drugs or alcohol.

• Do not exceed the maximum working pressure or temperature rating of the lowest rated system compo-

nent. See Technical Data in all equipment manuals.

• Use uids and solvents that are compatible with equipment wetted parts. See Technical Data in all equipment manuals. Read uid and solvent manufacturer’s warnings. For complete information about

your material, request MSDS forms from distributor or retailer.

• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manufacturer’s replacement parts only.

• Do not alter or modify equipment.

• Use equipment only for its intended purpose. Call your distributor for information.

• Route hoses and cables away from trafc areas, sharp edges, moving parts, and hot surfaces.

• Do not kink or over bend hoses or use hoses to pull equipment.

• Keep children and animals away from work area.

• Comply with all applicable safety regulations.

PRESSURIZED ALUMINUM PARTS HAZARD

Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon

solvents or uids containing such solvents in pressurized aluminum equipment. Such

use can cause serious chemical reaction and equipment rupture, and result in death,

serious injury, and property damage.

Warnings

Isocyanate Hazard

Spraying materials containing isocyanates creates potentially harmful mists, vapors, and atomized particulates.

Read material manufacturer’s warnings and

material MSDS to know specic hazards and

precautions related to isocyanates. Prevent inhalation of isocyanate mists, vapors, and

atomized particulates by providing sufcient ventila-

tion in the work area. If sufcient ventilation is not

available, a supplied-air respirator is required for

everyone in the work area.

To prevent contact with isocyanates, appropriate

personal protective equipment, including chemically impermeable gloves, boots, aprons, and goggles, is

also required for everyone in the work area.

To prevent exposing ISO to moisture:

• Always use a sealed container with a desiccant dryer in the vent, or a nitrogen atmosphere. Never store ISO in an open container.

• Keep the ISO lube pump reservoir lled with Graco

Throat Seal Liquid (TSL), Part 206995. The lubricant

creates a barrier between the ISO and the atmosphere.

• Use moisture-proof hoses specically designed for

ISO, such as those supplied with your system.

• Never use reclaimed solvents, which may contain

moisture. Always keep solvent containers closed when

not in use.

• Never use solvent on one side if it has been contaminated from the other side.

• Always park pumps when you shutdown.

• Always lubricate threaded parts with Part 217374 ISO

pump oil or grease when reassembling.

Moisture Sensitivity of Isocyanates

Isocyanates (ISO) are catalysts used in two component foam and polyurea coatings. ISO will react with moisture (such as humidity) to form small, hard, abrasive crystals,

which become suspended in the uid. Eventually a lm will

form on the surface and the ISO will begin to gel, increasing in viscosity. If used, this partially cured ISO will reduce performance and the life of all wetted parts.

The amount of lm formation and rate of crystal-

lization varies depending on the blend of ISO, the humidity, and the temperature.

Warnings

Material Self-ignition

Some materials may become self-igniting if applied to

thickly. Read material manufacturer’s warnings and

material MSDS.

Keep Components A and B Separate

CAUTION

To prevent cross-contamination of the equipment’s wet-

ted parts, never interchange component A (isocyanate) and component B (resin) parts. The gun is shipped with

the A side on the left. The uid manifold, uid hous-

ing, side seal assembly, check valve cartridge, and mix chamber are marked on the A side.

Changing Materials

• When changing materials, ush the equipment multiple times to ensure it is thoroughly clean.

• Always clean the uid inlet strainers after ushing.

• Check with your material manufacturer for chemical

compatibility.

• Most materials use ISO on the A side, but some use ISO on the B side.

• Epoxies often have amines on the B (hardener) side. Polyureas often have amines on the B (resin) side.

Foam Resins with 245 fa Blowing Agents

New foam blowing agents will froth at temperatures above 90°F (33 °C) when not under pressure, especially if agitated. To reduce frothing, minimize preheating in a circulation system.

Introduction

Section 1 - Installation: Introduction

Before operating, maintaining or servicing any GlasCraft system, read and understand all of the technical

and safety literature provided with GlasCraft products. If you do not have the proper or related manuals and safety literature for your GlasCraft system, contact your GlasCraft distributor.

In this GlasCraft technical and safety publication, the following advisories will be provided where appropriate:

Information about the procedure in progress.

WARNING

Indicates a hazardous situation that can result in death

or serious injury.

The information in this document is intended only to indi-

cate the components and their normal working relationship

typical use. Each assembly should be directed by a GlasCraft distributor or made from the GlasCraft Assembly

instructions provided.

This manual provides information for the assembly, opera-

tion, maintenance and service of this GlasCraft product as

used in a typical conguration. While it lists standard speci-

cations and procedures, some deviations may be found. In order to provide our users with the most up-to-date

technology possible, we are constantly seeking to improve

products. If a technological change occurs after a prod-

uct is on the market, we will implement that technology in

future production and, if practical, make it available to cur-

rent users as a retrot, update or supplement. If you nd

a discrepancy between your unit and the available documentation, contact your GlasCraft distributor to resolve the difference.

Careful study and continued use of this manual will provide a better understanding of the equipment and process,

resulting in more efcient operation, longer trouble-free

service and faster, easier troubleshooting.

Section 1 - Installation: Standard Equipment

Standard Equipment

Part

Number

GCP3RX Probler P2 Dispense Gun

313266 User Manual

Description

Translations

Manual No. Langauge

3A0474 Spanish 3A0475 French

Section 1 - Installation: Equipment Assembly

How The Gun Works

The trigger actuates a small valve in the gun handle

that controls the ow of air into the piston assembly.

When the trigger is pulled, air ows through the valve to

the front of the piston. Air pressure forces the piston

towards the rear of the gun, simultaneously closing off the

purge air and moving the mixing chamber to a position

where the mixing chamber orices are aligned with the

orices in both, the side block seal and check valve assem-

blies.

The proper alignment of the orices is determined by

the setting of the adjustment nut, located on the pis-

ton lock assembly.. This adjustment nut determines

the length of travel of the air piston and has been preset at the factory and should not require adjustment. (SEE MAINTENANCE SECTION)

The two uids (isocyanate and polyol) then ow through

the material shut-off valves, seal, and check valve assem-

blies and into the mixing chamber. The two uids impinge

against one another and exit the mixing chamber in a swirling, conical spray pattern.

Piston Lock

Engage piston lock whenever you stop spraying, to avoid

accidental triggering.

Always use piston lock in conjunction with uid ball valves

to avoid accidental triggering.

WARNING

Read warnings, page 3.

To engage Piston lock: push knob in and turn clockwise.

If engaged, gun will not actuate.

r_257826_313266_1_2b

To disengage piston lock: push knob in and turn coun-

terclockwise until it pops out. There will be a gap between knob and gun body.

When the trigger is released, the mixing chamber returns

to its original position and purge air ows into the mixing chamber housing. The front tip o-ring keeps air purge

inside the gun head, which forces all of the air through the

orices in the mixing chamber creating a complete, total

and constant purge.

This purge air continues to ow through the mixing cham-

ber until the air valve has shut-off all air to the gun; or until the trigger is pulled again.

r_257826_313266_1_1b

See page 19 for piston lock adjustment or installation.

Loss of Air Pressure

In event of loss of air pressure, gun will continue to spray.

To shut off gun, do one of the following:

• Push in piston lock, see Engage piston lock.

• Close ball valves A and B.

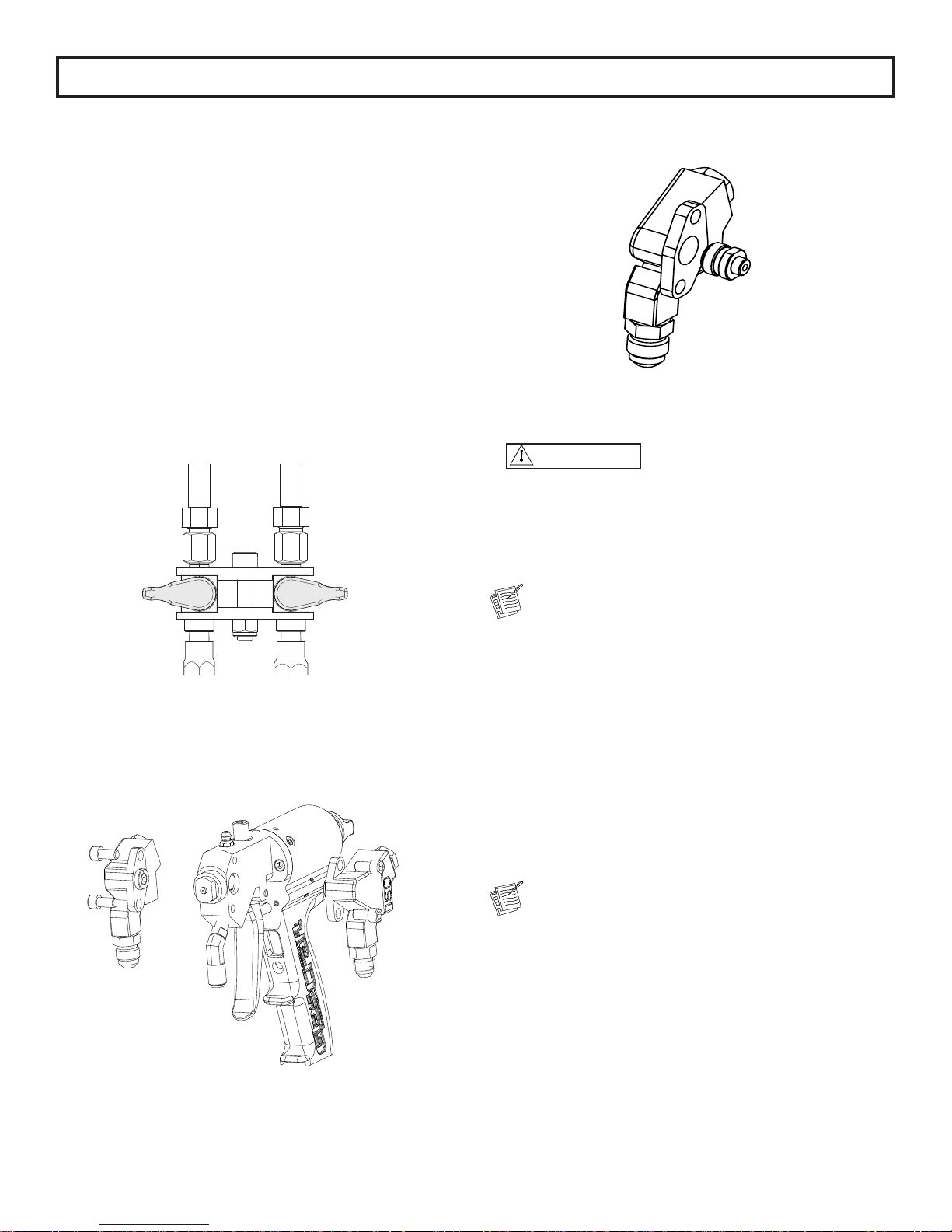

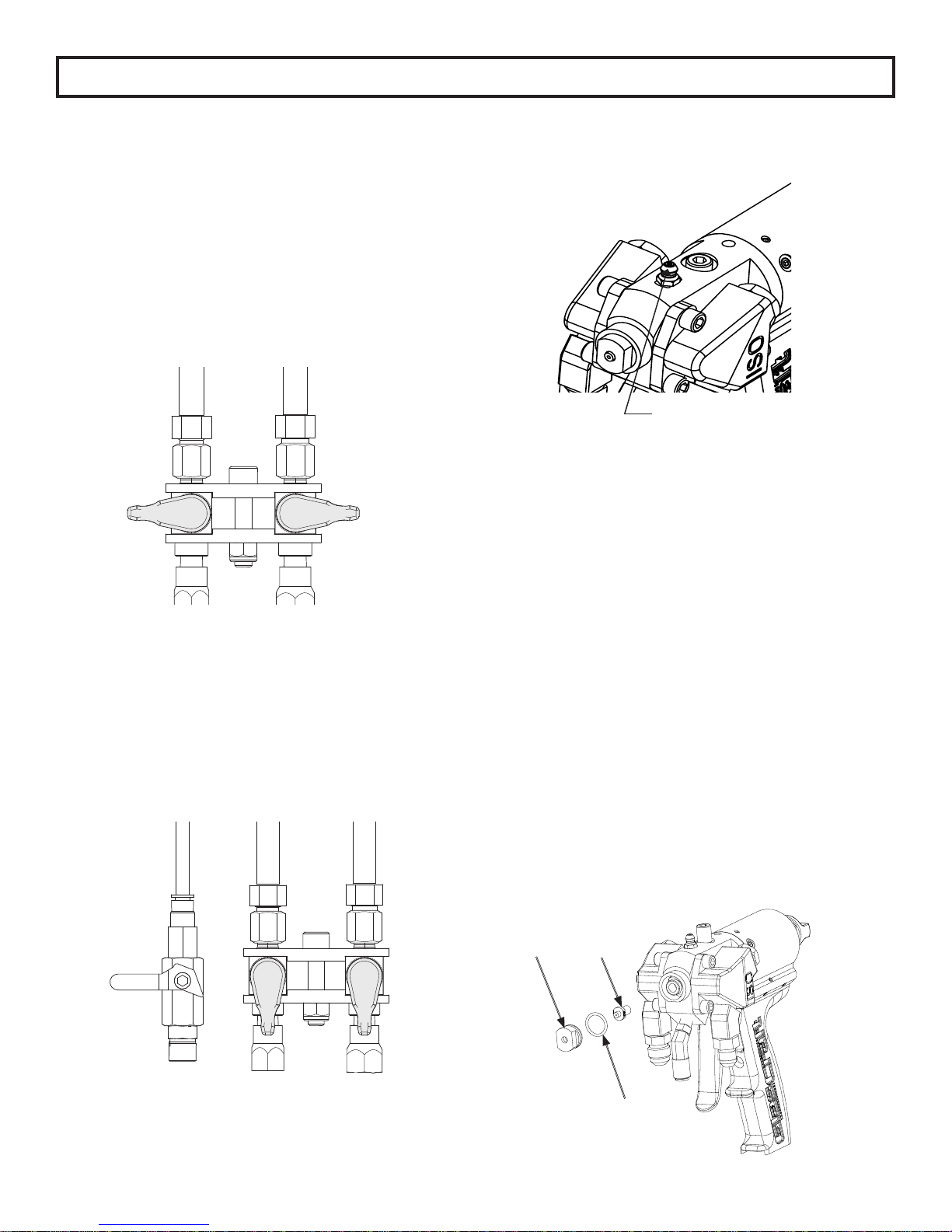

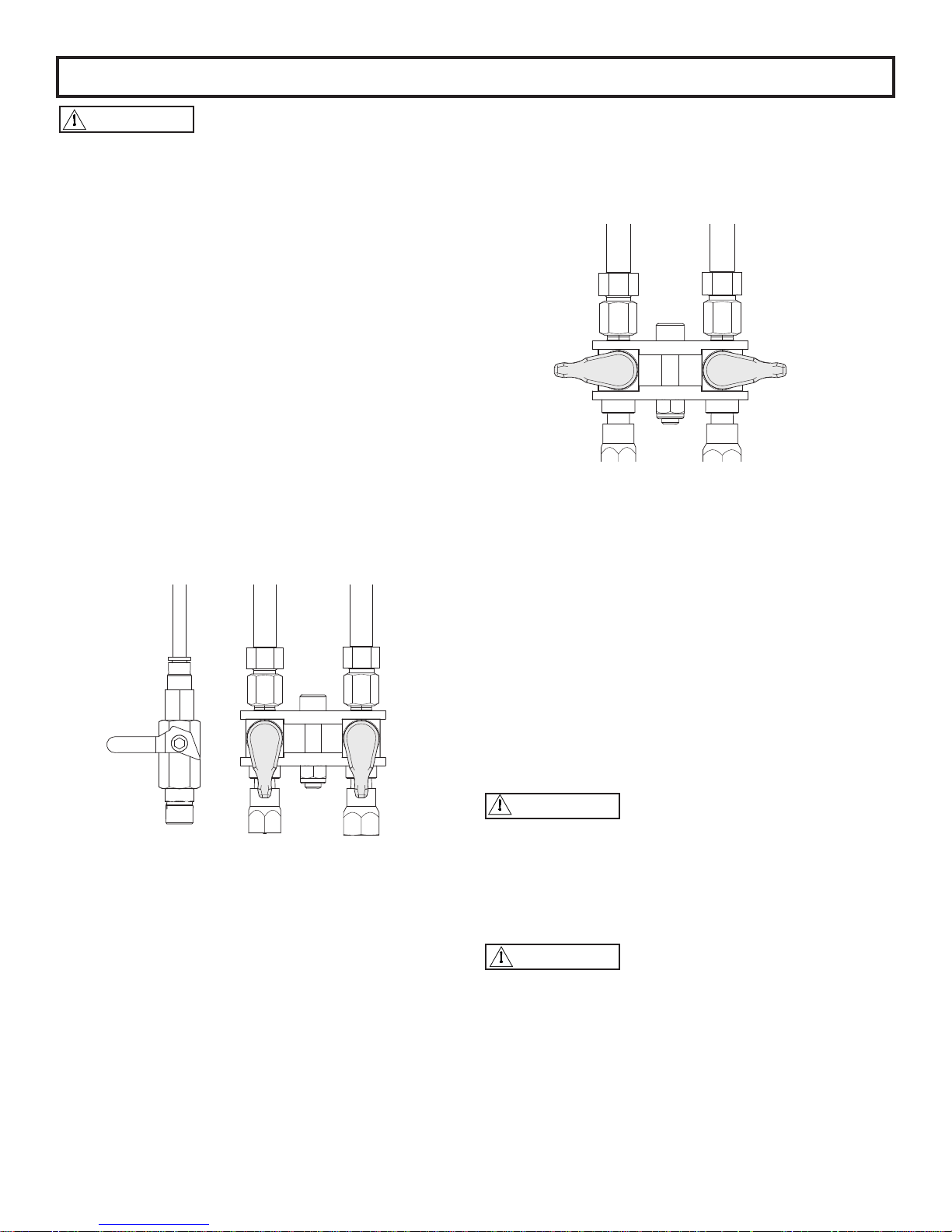

Section 1 - Installation: Equipment Assembly

GlasCraft Equipment

Air Hose is 1/4” in. NPS

JIC Fittings DO NOT require the use of PTFE tape.

Once the ttings are attached and tight, refer to system

manuals for start-up instructions.

WARNING

Do not place any part of the body in the path of the material spray.

Do not point the gun at or near other personnel.

Do not look into the mixing chamber orice at any time.

Because of the hazardous materials used in this equip-

ment, it is recommended that the operator use an air mask, goggles, protective clothing, and other safety equipment as prescribed by current regulations, recommendations of the chemical suppliers, and the laws in the area where the equipment is being used.

If original equipment does not require the use of an unheated whip hose or isolation hose, the P2 can be directly installed on to the material hose.

1. Remove the ttings from the original gun.

2. Remove swivel ttings from ball valves. Ball valves

are 1/8 in. NPT female. Remove swivel tting from

air slide valve. The air slide valve is a ¼ in. NPSM.

*AIR

The P2 Elite gun attaches the same way if equipped

with the optional horizontal set-up.

* Fitting GC2394 is an unattached part that may need to be

connected to the air hose rst, and then connected to the gun depending on the air hose tting.

POLY

ISO

3. Install the original ttings into ball valves.

It is recommended to use a non-permanent thread

lock on the 1/8 in. NPT threads to assist as a sealant

and keep the ttings from twisting with gun move-

ment.

4. Install the gun on the original Hoses.

WARNING

Installing P2 Elite on Other Equipment

Relieve ALL system uid and air pressures according to

manufacturer’s instructions.

Section 2 - Operation: Start-Up Instructions

Refer to specic system user manuals for complete system installation.

Pre operation Checklist

Check that all ttings are tight and air regulators are

turned to “zero pressure”.

WARNING

Do not place any part of the body in the path of the material spray.

Do not point the gun at or near other personnel.

Do not look into the mixing chamber orice at any time.

Because of the hazardous materials used in this equip-

Operating Requirements

• 8 - 10 CFM at 90 -110 psi (0.62-0.76 MPa,

6.2-7.6 bar)

• MAXIMUM Static Fluid Pressure - 3200 psi

(22 MPa, 220 bar)

WARNING

If purge air is to be turned OFF, BOTH MATERIAL SHUTOFF VALVES MUST BE TURNED TO THEIR “OFF” POSITION BEFORE TURNING “OFF” THE PURGE AIR !

Failure to follow this procedure will possibly result in the gun

head becoming encased with mixed product.

For proper purging following use, the air switch must be left

OPEN for at least 15 SECONDS after the trigger has been

released.

The ow of material into the mixing chamber is controlled

by the ON or OFF position of the two material shut-off

valves.

Both material shut-off valves must be FULLY OPEN

and piston lock DISENGAGED during dispens-

ing and must be FULLY CLOSED and piston lock ENGAGED during service or extended shut-down

periods.

WARNING

BOTH MATERIAL SHUT-OFF VALVES MUST BE TURNED TO THEIR “OFF” POSITION AND ALL FLUID

PRESSURE RELIEVED BEFORE REMOVING SIDE-

BLOCK SCREWS!

WARNING

The GlasCraft Probler P2 Elite Gun is designed and manu-

factured to operate at a maximum static uid pressure not to exceed 3200 psi (22 MPa, 220 bar). When attached to a GlasCraft proportioning system, this pressure will not be exceeded. However, if the GlasCraft Probler P2 Elite gun is

installed on any other manufacturer’s self-designed equipment, great care must be taken to ensure that the maxi-

mum static uid pressure not be exceeded.

If the gun is being used for short periods of spraying,

GlasCraft recommends that the purge air be left ON.

Failure to follow this procedure will possibly result in the

gun head becoming encased with mixed product.

ON OFF

Refer to system manuals for start-up and

shut-down procedures.

Section 2 - Operation: Start-Up Instructions

Spray Technique

Always operate safely and follow all safety procedures

outlined.

To achieve the optimum spray pattern for each application,

the appropriate mixing chambers are available in seven sizes.

The standard mixing chamber supplied with your gun will

be adequate for all but the smallest and largest applications.

Foam rise and cure times will vary according to the material and substrate temperature. Higher material or substrate temperature will increase rise and cure times; lower material or substrate temperatures will decrease rise and cure times. Consult your chemical manufacturer’s data specication sheets for their recommended spray temperatures. Under most circumstances, both components will be used at identical temperatures.

Higher pressures and temperatures may be used to

increase material break-up, improve mixing and speed

rise times. With hose lengths over 50 ft.(15.25 m), or

when material viscosities are high, higher material

pump pressures may be necessary.

The gun air valve MUST BE OPENED prior to spraying

to provide air for trigger operation and purge air when

the trigger is released.

When spraying, the gun trigger may be depressed con-

tinuously, or triggered at the end of each stroke. A

smooth, even layer is best achieved by moving the

gun back and forth in a slow, even motion, overlapping

the previous pass about 50 to 75 percent. DO NOT

SPRAY OVER RISING FOAM! The ideal gun-to-surface

distance is about 18 to 24 inches. Be sure to point the

gun directly at the surface to be sprayed. Spraying at

an angle to the surface will cause the foam to be rough

and will generate overspray.

Section 3 - General Information: P2 Elite Dispense Gun

r_gcp3ra_313266_1_2e

surfaces specied.

Apply permanent thread locker and torque to 35-40 in-lbs (4-4.5 N•m).

Apply liberal coating of lubricant (Part No. 118665) to seals and

Adjust counter-clockwise until it bottoms out.

10 33

r_gcp3ra_313266_1_4e

r_gcp3ra_313266_1_3e

56c

r_257826_313213_1_1b

56a

56f

56e

56b

Part A B Kit

GCP3RA GC250A GC251A GC1948

GCP3R0 GC2500 GC2510 GC1947

GCP3R1 GC2501 GC2511 GC1947

GCP3R2 GC2502 GC2512 GC1947

GCP3R3 GC2503 GC2513 GC1947

GCP3R4 GC2504 GC2514 GC1949

GCP3R5 GC2505 GC2515 GC1949

56d

Section 3 - General Information: P2 Elite Dispense Gun

Section 3 - General Information: P2 Elite Parts List

Ref. Part Description Qty.

1a _ 1b

256459 BALL VALVE, ISO 1 256460 BALL VALVE, POLY 1

2 GC2340 TRIGGER 1 3 GC2341 SPRING 1 4 117634 SWIVEL HOSE FITTING 1 5 117635 SWIVEL HOSE FITTING 1 6 113137 O-RING 2 7 248130 O-RING (QTY. 6) 1



10 GC0259 1/4 IN. DIA. BALL 2 12 100846 LUBE FITTING 1

GC2394 SWIVEL FITTING 1

14 GC1898 AIR PISTON 1 15 GC1899 AIR PISTON 1 16 GC1900 CYLINDER SPACER 1 18 GC1881 P2 ELITE POLY SIDE BLOCK 1 19 GC1882 P2 ELITE ISO SIDE BLOCK 1 20 GC1904 CHECK VALVE FILTER 2

21 GC2494 SEAL, ACETAL 2 22 GC2495 SEAL HOUSING 2 23 GC1914 AIR CAP 1 24 GC2499 MACHINED HANDLE 1 25 GC1880 P2-ELITE HEAD 1

27 GC1918 TRIGGER PISTON 1 29 GC1920 TRIGGER PLUG 1 30 GC1921 RETAINING RING 1

31 + GC1922 SPRING 2

32 GC1923 SPRING 2

33 + GC2496

34 GC2498 SIDE SEAL 2 35 111450 O-RING 2 36 117517 O-RING 1

37 C20988 O-RING 1

118665 HIGH ADHESION, WA TER

117773 LOW VISCOSITY GREASE

117792 GREASE GUN

38 GC2056 O-RING 1 41 GC2058 O-RING 3 42 108833 O-RING 1 43 107563 O-RING 1

WHIP HOSE A 1 WHIP HOSE B 1

FILTER SCREEN; 40 MESH 100 MESH FILTER (GC2497) ALSO AVAILABLE

RESITANT, LITHIUM GREASE

(4 OZ.)

(3 OZ.)

(3 OZ. CARTRIDGE)

Ref. Part Description Qty.

44 GC2059 O-RING 1 45 C20207 O-RING 1 46 GC2060 O-RING 1 49 GC2187 SCREW 2 52 GC2237 SHOULDER SCREW 1 53 GC2244 SET SCREW 1 54 GC2248 SCREW 4 55 GC2081 SET SCREW 11 56 258761 PISTON LOCK ASSEMBLY 1 57 GC0024 PIPE PLUG 3 58 GC2241 SET SCREW 2 59 GC0490 ELBOW FITTING 1 60 GC0502 FITTING 1

62 113467 SCREW 1 63 GC0712 ELBOW FITTING 2 64 GC1842 BALL VALVE 1 65 GC1883 PISTON SPACER 1

125572 FITTING 1



67 16U880 HOSE MOUNTING PLATE 2 68 GC1885 69 16U878 FITTING, ADAPTER 1

70 16U879 FITTING, ADAPTER 1 71 111040 NUT, LOCK, 5/16 1

73 GC0275 FITTING 1



Ref.

No.

56a AIR CAP 1 56b 56c 56d 56e

56f ADJUSTMENT NUT 1

Part

No.

♦

♦ Included with kit 258762.

I Purchase locally. v Not Shown.

 Included in kit 24K287

+ Available in bulk kits, see page 21.

_ Replacement handles are available in kit 24W375.

TUBING, 1000 PSI; NYLON 3

PUSHLOCK SWIVEL

ADAPTER

HEATED HOSE COVER 2

FITTING 1

Description Qty.

STOP SHAFT 2 PISTON STOP 1 COMPRESSION SPRING 1 O-RING 1

Section 3 - General Information: Maintenance

WARNING

Before attempting to perform any maintenance on this

gun,relieve All Fluid and Air Pressures!

2. Check the material valves (Part No. 256459, 256460)

for any leaks:

• To relieve uid and air pressures:

• Turn OFF all air supplies at system except gun trigger

air.

• Trigger the gun until all uid pressures have been

relieved.

• Turn OFF the gun trigger air at the system.

• Turn proportioner off.

• Trigger the gun until all trigger air pressure has

been relieved.

Perform Gun maintenance as follows:

Check for leaking seals (41).

• Engage piston lock.

• Turn OFF the gun incoming air by closing gun air

valve.

• Turn ON the material ball valves.

• Turn OFF both material valves.

• Disengage piston lock.

• Trigger the gun several times.

• Wait approximately 10-20 seconds.

• Trigger the gun several times.

• If additional material is purged, the material valves

are leaking.

• Correct the leaks by taking off red and blue knobs and turning packing 1/8 in. to 1/4 in. turns at a time until the leak has stopped. Re-check.

• Wait approximately 10 - 20 seconds, then turn ON

the incoming air by opening gun air valve.

• Repeat two or three times.

• If any material has been purged from the gun, the

seals (41) or o-ring (42) are leaking.

• Correct leaks by replacing the seals or o-rings and re-checking.

3. Check side blocks

• Turn OFF the air valve.

WARNING

Before removing the side blocks make certain that both material valves are in the OFF position. Then trigger the gun several times to relieve pressure.

If the material valves are on when the side blocks are removed the gun will quickly become encased in urethane!

WARNING

Point gun side blocks down, away from all personnel. Existing uid pressures could cause material to exit the side blocks with considerable force.

Section 3 - General Information: Maintenance

• Take the side blocks off by removing screws.

r_gcp3ra_313266_1_6e

• Examine the sides of the mixing chamber for scratch

es and/or material build-up. Carefully, without

scratching the seal surfaces (sides), remove any accumulated material. Solvent can be used to wash

accumulated material off of chamber, side blocks, etc.

Keep the gun chamber tilted toward the ground so

that solvent does not run back into gun. Certain solvents will attack o-rings on chamber shaft causing

swelling and deterioration of o-rings.

• Use correct size drill bit to clean out the mixing chamber exit passage. Use correct size drill bit to

clean the inlet side holes of the mixing chamber tak-

ing care not to scratch the mixing chamber’s polished surfaces. (Refer to the drill chart in this manual.)

• Re-assemble the side blocks and tighten the screws.

Grease should appear at the tip of the mixing cham ber.

• Place generous amounts of high quality, white lithium grease (Part No. 117773) in each side of the gun

front housing and on the side block seals.

r_gcp3ra_313266_1_6e

DO NOT open the air valve because this will purge grease from the Gun. The grease should be allowed

to remain in the gun overnight.

Section 3 - General Information: Maintenance

Daily Shutdown

For experienced users

Once you have used the gun with a product and system,

and you have become comfortable with techniques on how all the variables are affecting your operations and maintenance requirements, Daily, Weekly, and Monthly Maintenance requirements can be addressed specic to your operation.

1. Turn the ball valves off (Part No. 256459, 256460) and

trigger the gun 5 - 6 times to purge residual pressure.

5. Use grease gun (Part No. 117792) to inject white lithium

grease (Part No. 117773) into zerk tting until a light mist of grease is purged through the snout. Shut off the air purge.

Zerk Fitting

6. Remove the air cap and set to side. If solvent soaking

is required, remove the o-ring, before soaking.

7. Remove the snout insert and soak in solvent until next

usage.

2. Engage piston lock.

3. Drill out the chamber insert snout with correct size drill

bit for insert. (Refer to the drill chart in this manual.)

4. Turn valve halfway back to limit the air purge.

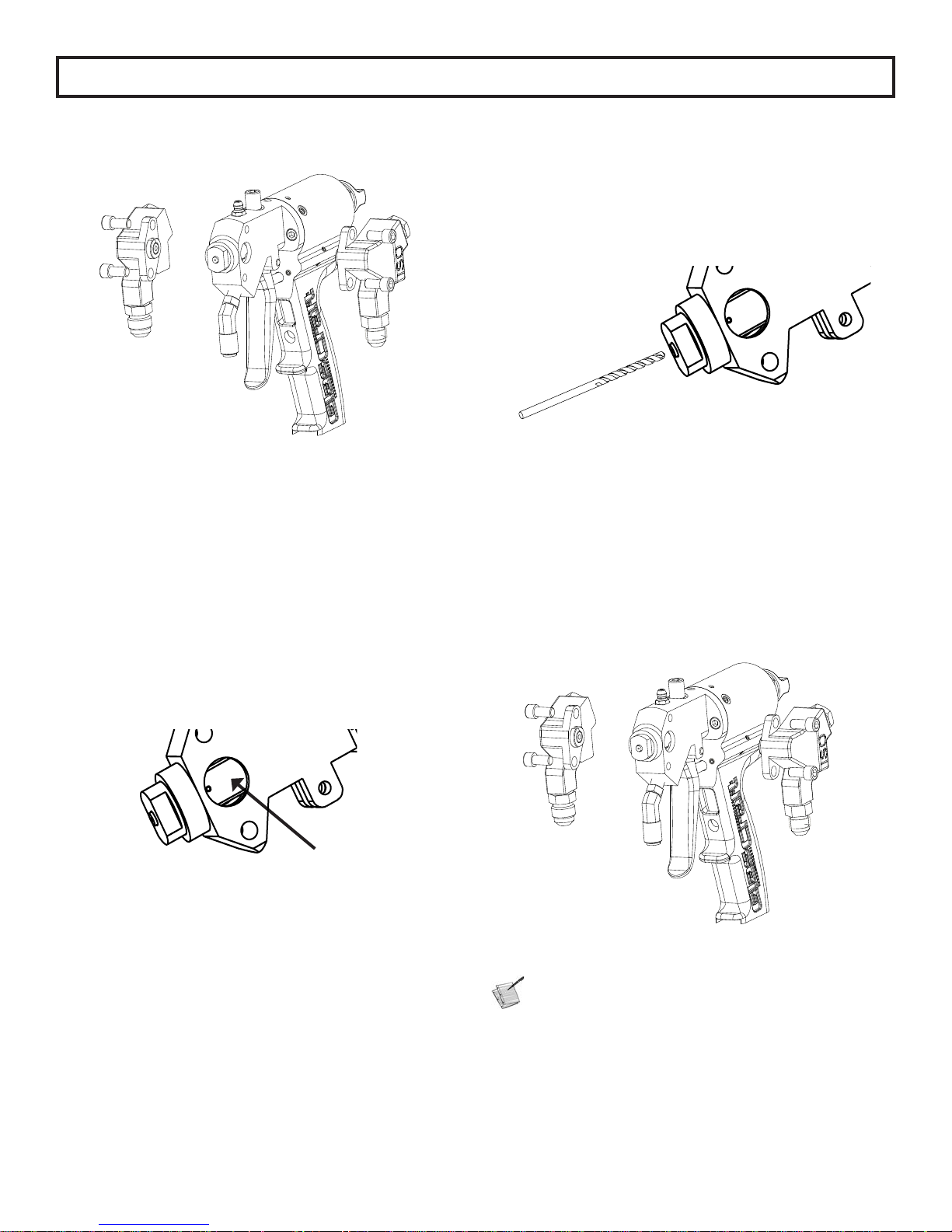

Daily Start-up

1. Clean the snout insert. Be sure both the face and bot-

tom at are clean. Drill the snout bore out with the

correct size bit for snout. (Refer to the drill chart in this manual.)

2. Clean the inner bore of the chamber. Drill out the cham-

ber snout inlet bore as required.

3. Install the snout insert.

4. Install the air cap on to the chamber. Tighten nger

tight until the cap bottoms out. Snug down with a ½ in. wrench. This does not require high torque. Over tightening can result in chamber damage.

Air Cap

Insert

O-ring

r_gcp3ra_313266_1_8e

Section 3 - General Information: Maintenance

Refer to specic system user manuals for complete system installation.

Parts Replacement Procedure

WARNING

Before attempting to perform any maintenance on this gun OR before removing the side blocks, make certain

that both gun material valves are in the OFF positions

and trigger several times to depressurize uid in gun!

If the material valves are on when side blocks are

removed, the gun will quickly become encased in ure-

thane!

1. Read each procedure entirely before beginning and

refer to the illustrations as needed.

2. Flush and clean all chambers and passages as they

become accessible.

3. Clean all parts before assembly.

4. Replace all o-rings and seals with new parts from the

appropriate kit.

5. Inspect all parts for wear or damage and replace as re

quired with new genuine GlasCraft replacement parts from your authorized GlasCraft distributor.

Routine Care

WARNING

Before attempting to perform any maintenance on this gun

OR before removing side blocks, make certain that both

gun material valves are in the fully OFF positions and trig-

ger several times to depressurize uid in gun!

If the material valves are on when side blocks are removed, the gun will quickly become encased in urethane!

It is recommended that the following service be performed on a daily basis.

1. Clean the gun using a brush and an appropriate clean

solvent.

2. Inspect the side block seals making certain they are

clean and free of scratches, nicks or foreign material.

Clean and replace as required.

3. Remove, clean or replace the lter screen.

4. Maintain a reasonable stock level of “wear” items such

as seals and o-rings. (see Service & Repair Parts Kits listed in Parts & Illustrations section.)

5. Grease gun daily to prevent 2 component curing and

keep uid passages clean. Purge air carries grease mist through air chamber and impingement ports then out the mix chamber nozzle, coating all surfaces. Use Part No. 117773 grease.

6. Inspect all threads for wear or damage and replace as

required.

7. Tighten all threaded parts securely, but not excessively,

upon assembly.

8. Lightly lubricate all o-rings and threads with

grease (Part No. 118665).

9. Check all springs for resilience. They should return

quickly to their original (new) length.

Section 3 - General Information: Maintenance

Piston Lock Adjustment and Installation Procedure

The P2 gun piston throw is factory set and as a rule, should

not require adjustment. The piston throw refers to how far back the air piston will travel when the gun is triggered. Proper throw adjustment will align the mixing chamber side ports with the side block seal thru port. There is a set screw

that determines how far the piston will travel before it stops.

To determine if the throw is correct:

1. Follow the pressure relief procedure on page 16 and

disconnect material hoses from the gun.

2. Turn the material ball valves to the OFF position.

5. Remove one of the side block seal housings, from side

block. Leave the seal (34) in housing and rinse with

suitable solvent.

6. Place the side seal housing in the gun head so the face

of the seal sets against the mix chamber.

WARNING

If the material valves are on when side blocks are

removed, the gun will quickly become encased in ure-

thane!

7. Turn the gun trigger air supply on, then trigger the gun.

3. Verify that the piston lock cap has been tightened and

fully threaded into the gun.

4. Remove the side blocks.

r_gcp3ra_313266_1_6e

The purge air will not shut off with the side block

removed.

8. If the impingement port is not fully visible through the

side seal housing turn the trigger-air off and trigger the

gun to relieve pressure. Use a 9/16 in. open-end wrench to adjust the adjustment nut in the appropriate

direction. Repeat steps 7 and 8 until it is

adjusted properly.

9. If the impingement port on the mix chamber is fully

visible through the side seal housing (either on

center or slightly forward), the piston lock adjustment

nut is properly aligned.

Non-permanent thread locker can be applied to the adjustment nut if necessary.

10. Reassemble the gun.

Before each use: Verify that the piston lock assembly is

installed and working properly.

• Engage piston lock.

• Pressurize the system to working pressure.

• Open material ball valves.

• Point the gun in a safe direction and trigger gun. No

material should ow from gun tip.

• DO NOT USE IF IT IS NOT WORKING PROPERLY.

Service & Repair Kits

GC1937 Standard Repair Kit

Part Description Qty.

C20988 O-Ring 1

GC2056 O-Ring 1

110242 O-Ring 2

106555 O-Ring 2 GC2057 O-Ring 1 GC2058 O-Ring 3

108833 O-Ring 1

107563 O-Ring 1 GC2059 O-Ring 1

C20207 O-Ring 1 GC2060 O-Ring 1

113137 O-Ring 2 248130 O-Ring (Qty. 6) 1 111450 O-Ring 2 117517 O-Ring 1

O-ring p/n’s GC2057 and

110242 (QTY. 1) are not used

on the P2 Elite gun.

GC1949 Hardware Kit 04-05

Part Description Qty.

GC0086 3/16” Ball Driver 1 GC0087 5/32” Ball Driver 1 GC0175 Pin Vise 1 GC2496 Screen Filter 2

246624 Drill Bit 1

246623 Drill Bit 1

117517 O-Ring 1

111450 O-Ring 2 GC2212 Fitting, -6 JIC 1 GC2334 Fitting, 45° Flare 1 GC2394 Adapter Fitting 1

125572 Fitting, -5 JIC 1

Section 3 - General Information: Options

GC1948 Hardware Kit -AA

Part Description Qty.

248891 Drill Bit 1

276984 Drill Bit 1 GC0086 3/16” Ball Driver 1 GC0087 5/32” Ball Driver 1 GC0175 Vise Pin 1 GC2496 Filter Screen 2

111450 O-Ring 2

117517 O-Ring 1

GC1947 Hardware Kit 00-03

Part Description Qty.

GC0086 3/16” Ball Driver 1 GC0087 5/32” Ball Driver 1 GC0175 Pin Vise 1 GC2496 Screen Filter 2

249112 Drill Bit 1

GC0069 Drill Bit 1

246627 Drill Bit 1

246625 Drill Bit 1

246629 Drill Bit 1

246628 Drill Bit 2

246630 Drill Bit 1

GC0083 Drill Bit 1 GC2212 Fitting, -6 JIC 1 GC2334 Fitting, 45° Flare 1

117517 O-Ring 1

111450 O-Ring 2

GC2394 Adapter Fitting 1

125572 Fitting, -5 JIC 1

Gun Cover 244914 Covers

Keeps gun clean while spraying. Pack of 10.

Lubricant for Gun Rebuild 248279, 4 oz (113 gram) [10]

High adhesion, water resistant, lithium-based lubricant. MSDS sheet available at www.graco.com.

Grease Cartridge for Gun Shutdown 248280 Cartridge, 3 oz [10]

Specially formulated low viscosity grease ows easily

through gun passages, to prevent 2 component curing

and keep uid passages clean.

Part Description Qty.

GC2498 SST Side Seal 2

111450 O-Ring 2

GC1950 Premium Repair Kit

Part Description Qty.

GC1931 O-Ring 1

111516 O-Ring 1 111450 O-Ring 4 113137 O-Ring 2 111316 O-Ring 2 118594 O-Ring 1 248130 O-Ring (Qty. 6) 1

117517 O-Ring 1 GC1932 O-Ring 3 GC1933 O-Ring 1 GC1934 O-Ring 1 GC1935 O-Ring 1 GC1936 O-Ring 1

117610 O-Ring 1

258762, Piston Lock Repair Kit

Part Description Qty.

Bulk Kits

24R894, 40 Mesh Filter Screens Kit

Ref Part Description Qty.

40 GC2496 Filter Screen, 40

24R895, 100 Mesh Filter Screens Kit Ref Part Description Qty.

(40) GC2497 Filter Screen, 100

Ref Part Description Qty.

38 GC1922 Spring 12

GC1946 Side Seal Kit

Stop Shaft 1

Piston Stop 1

Compression Spring 1

O-Ring 1

mesh

24R896, Springs Kit

Cleaning Drill Chart

Round Mixing

Chamber

GC250A 248891 0.033 276984 0.022 GC2500 GC0083 0.049 GC0080 0.035 GC2501 249112 0.057 246629 0.042 GC2502 GC0069 0.071 246628 0.0472 GC2503 246625 0.086 246627 0.059 GC2504 246624 0.094 296297 0.067 GC2505 246623 0.116 246625 0.086

Section 3 - General Information: Options

Mixing Chamber Nozzle

Cleaning Drill

DRILL PIN VISE 117661

Mixing Chamber

Hole Cleaning Drill

Short Version

Part No. FAN Code

GC2573 215 GC2575 217 0.017 in. GC2578 221 0.021 in. GC2582 223 0.023 in. GC2589 231 0.031 in. GC2592 235 0.035 in. GC2623 411 GC2624 413 0.013 in. GC2574 415 0.015 in. GC2576 417 0.017 in. GC2625 419 0.019 in. GC2579 421 0.021 in. GC2583 423 0.023 in. GC2626 425 0.025 in. GC2586 427 0.027 in. GC2590 431 0.031 in. GC2593 435 0.035 in. GC2595 439 0.039 in.

GC2627 511 GC2628 513 0.013 in. GC2629 515 0.015 in. GC2577 517 0.017 in. GC2630 519 0.019 in. GC2580 521 0.021 in. GC2584 523 0.023 in. GC2631 525 0.025 in. GC2587 527 0.027 in. GC2591 531 0.031 in. GC2594 535 0.035 in. GC2596 539 0.039 in. GC2632 611 GC2633 613 0.013 in. GC2634 615 0.015 in. GC2635 617 0.017 in. GC2636 619 0.019 in. GC2637 621 0.021 in. GC2638 623 0.023 in. GC2639 625 0.025 in. GC2640 627 0.027 in. GC2641 711 GC2642 713 0.013 in. GC2643 715 0.015 in. GC2644 717 0.017 in. GC2645 719 0.019 in. GC2646 721 0.021 in. GC2585 723 0.023 in.

GC2647 725 0.025 in. GC2648 727 0.027 in.

Spray Width

in. (mm)

2-4 (50.8 - 101.6)

8-10 (203.2 - 254)

10 - 12 (254 - 304.8)

12-14 (304.8-355.6)

14-16 (355.6-406.4)

Orice

Diameter

0.015 in.

0.011 in.

Long Version

Spray Width

Part No. FAN Code

GC2599 351 6-8 (152.4-203.2) 0.051 in. GC2600 451 GC2604 461 0.061 in. GC2607 471 0.071 in. GC2597 543 GC2601 551 0.051 in. GC2605 561 0.061 in. GC2608 571 0.071 in. GC2606 661 12-14 (304.8-355.6) 0.061 in. GC2602 751 14-16 (355.6-406.4) 0.051 in.

in. (mm)

8-10 (203.2 - 254)

10 - 12 (254 - 304.8)

Orice

Diameter

0.051 in.

0.043 in.

Spacer Seals

Use only Brown series C spacer seals with series B spray-tips, failure to do so may result in material clogging.

Series C Spacer Seals (Brown)

Short Version Long Version

Use with tips LPA2-147-1525

through LPA2-147-3850

GC2335 16V976

23564-00 16V972 23572-00 16V973

LPA2-121G 16V974

LPA2-124S 16V975

1 : Tip Spacer Seal (Series C)

2: Spray-tip (Series B)

Use with tips LPA2-147-4325

through LPA2-147-7250

P2 Elite Spray Options

Section 3 - General Information: Options

Standard Round Spray Air Cap

GC1938 Standard Flat Spray Kit Conguration

Tungsten airless tip

(See page 22)

Pour Conguration

Jet Stream Conguration

I Purchase locally.

P2 Elite Spray Options

Ref. Part Description

A GC1880 Gun Head

B GC250X Mix Chamber Body C GC251X Mix Chamber Insert D 117517 Oring

E GC1914 Front Tip

J GC1954 Pour Cap

GC1952

GC1953 GC2335

R GC1926 Flat Spray Adapter

16V976

P GC0257 Retaining Nut

Tubing, 1/4 in. ID

Jet Nozzle

Seal

ti26813a

Static Mixer Kit

GC1956

Section 3 - General Information: Options

GC0257

Tungsten airless tip

(See page 22)

P2 Elite with Chopper Kit

24W127

Part

Number

GC93RA GUN, Probler P2 Elite 1 GC1938+ KIT, spray, at, P2 1 GC2601+ KIT, spray tip, 551 fan 1

24E512 CHOPPER, cutter assembly 1

GC0721

117510

GC0500

---

GC2248

15B295+ HOSE, air, 50 ft (15.2 m) 1

169970+ FITTING, line air 1

24E448+ KIT, cartridge, 4 blade 1

24F602+ KIT, cartridge, 6 blade 1

24E449+ KIT, cartridge, 8 blade 1

24H271+ KIT, cutter head 1

24E433+ KIT, o-ring, 6 pack 1 16M106+ LUBRICANT, tube, 1 oz 1

GC1956, Static Mixer Kit

Description Qty.

MODULE, P2 chopper mount 1

FITTING, line air 1

FITTING, connector 1

TUBE, 5/32 in. OD; 6 in. (152.4 mm) 1

SCREW, shdc, 1/4-20 x 1/2 1

GC2335

16V976

GC0480

TUBE 5/32 OD

117510

GC0331

117517

GC1955

GC1956, Static Mixer Kit

Part

Number

GC2335 16V976

GC0257 Nozzle Nut 1 GC0331 Plug Fitting 1 GC0480 Spiral Mixing Element 1

117517 O-Ring 1

GC1955 Static Mixer Adapter 1

GC0721

GC0500

Description Qty.

Fluid Nozzle Seal 1

24E512

GC2248

GCP3RA

I Included in kit GC0721.

+ Not shown.

Accessories

17G542 10 Pack 17G543 50 Pack 17G544 100 Pack

17G545 10 Pack 17G546 50 Pack 17G547 100 Pack

Section 3 - General Information: Options

Gun Grip Kit

Palm Grip Kit

Section 4 - Limited Warranty Policy

Graco Standard Warranty

Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free

from defects in material and workmanship on the date of sale to the original purchaser for use. With the exception of any

special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.

This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear

caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco dis-

tributor for verication of the claimed defect. If the claimed defect is veried, Graco will repair or replace free of charge any

defective parts. The equipment will be returned to the original purchaser transportation prepaid. If inspection of the equip-

ment does not disclose any defect in material or workmanship, repairs will be made at a reasonable charge, which charges

may include the costs of parts, labor, and transportation.

THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUD-

ING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees

that no other remedy (including, but not limited to, incidental or consequential damages for lost prots, lost sales, injury to

person or property , or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.

GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as

electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or otherwise.

FOR GRACO CANADA CUSTOMERS

The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal

proceedings entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents,

avis et procédures judiciaires exécutés, donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec

les procédures concernées.

Graco Information

For the latest information about Graco products, visit www.graco.com.

For patent information, see www.graco.com/patents.

TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.

Phone: 612-623-6921 or Toll Free: 1-800-328-0211 Fax: 612-378-3505

Section 4 - Technical Assistance

Thank You for selecting GlasCraft spray equipment

Should you have any questions or need technical assistance, contact your factory authorized

GlasCraft distributor.

Distributor: _________________________ Phone: ____________________________ Contact: ___________________________

For any issues your distributor cannot address, the GlasCraft technical service department is

always available to assist you with the operation of your spray equipment. To help our technical representatives expedite your call and better address your questions, please have the following information ready and available when you phone GlasCraft.

* If your questions are not urgent, please call 1-800-328-0211.

For Air Powered Systems: Model: _____________________________ Air compressor size: __________________

Serial number: _______________________ CFM generated: _____________________ Type of spray gun: ____________________ Pressure at the system:

Serial number: _______________________ Hydraulic ________ Pneumatic _________

Is your equipment: Dynamic uid pressure:

Single phase: _______ Three phase ______ ISO __________ POLY ___________ What is the inbound voltage Spray gun chamber size: ______________

to your equipment: ____________________ Material being sprayed: _______________ Temperature setting ISO: _______________ Viscosity: ISO _________ POLY ________

Temperature setting POLY: ______________ Approximate material temperature: ______ Temperature setting HOSE: _____________

For Your Reference

Date Purchased __________________________________________________ Distributor ______________________________________________________ ______________________________________________________ Contact ______________________________________________________ Phone ______________________________________________________ E-mail ______________________________________________________

GlasCraft manufactures a complete line of polyurethane foam and polyurea coating spray systems.

If your application is in-plant or a eld contractor - GlasCraft has a system package to meet your

requirements.

GUARDIAN - AIR POWERED / A5 & A6 SERIES EQUIPMENT

. 6000 OR 12000 WATTS OF HEAT

. 1600, 2200, OR 3000 PRESSURE SET-UPS AVAILABLE

MH, MH II, & MH III HYDRAULIC POWERED SYSTEMS

. UP TO 45 LBS / MINUTE OUTPUT

. EXCELLENT PERFORMANCE AND RELIABILITY

GUARDIAN MMH - MOBILE MODULAR HYDRAULIC SYSTEMS

. SPECIFICALLY DESIGNED FOR ANY TYPE OF SPRAY RIG

. GIVE COMPLETE UTILIZATION OF FLOOR SPACE IN MOBILE RIG

PROBLER P2 SPRAY GUN

. IMPINGEMENT MIX / AIR PURGE

. OPTIONAL NOZZLE FOR SPRAYING STUD WALLS, POURING & STREAM JET

For more information concerning any of these GlasCraft products,

contact your local authorized GlasCraft distributor or visit www.glascraft.com

Notes

Quality and Performance…

GENUINE GLASCRAFT

www.glascraft.com

313266ZAA EN

Original instructions. This manual contains English. Revision ZAA, June 2016

GRACO INC. AND SUBSIDIARIES P.O. BOX 1441 MINNEAPOLIS MN 55440-1441 USA

Phone 612-623-6921 Toll Free 1-800-328-0211 Fax 612-378-3505

Glas Craft GCP3RA, GCP3R0, GCP3R4, GCP3R1, GCP3R5 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
