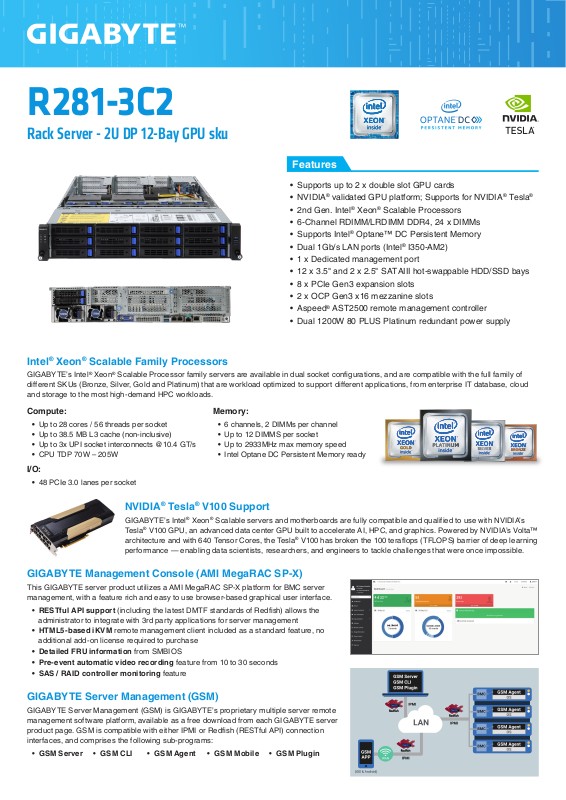

GIGABYTE R281-3C2 Datasheet

R281-3C2

Rack Server - 2U DP 12-Bay GPU sku

Features

• Supports up to 2 x double slot GPU cards

• NVIDIA

• 2nd Gen. Intel® Xeon® Scalable Processors

• 6-Channel RDIMM/LRDIMM DDR4, 24 x DIMMs

• Supports Intel

• Dual 1Gb/s LAN ports (Intel

• 1 x Dedicated management port

• 12 x 3.5" and 2 x 2.5" SATAIII hot-swappable HDD/SSD bays

• 8 x PCIe Gen3 expansion slots

• 2 x OCP Gen3 x16 mezzanine slots

• Aspeed

• Dual 1200W 80 PLUS Platinum redundant power supply

Xeon® Scalable Family Processors

Intel

GIGABYTE’s Intel® Xeon® Scalable Processor family servers are available in dual socket configurations, and are compatible with the full family of different SKUs (Bronze, Silver, Gold and Platinum) that are workload optimized to support different applications, from enterprise IT database, cloud and storage to the most high-demand HPC workloads.

validated GPU platform; Supports for NVIDIA® Tesla

Optane™ DC Persistent Memory

I350-AM2)

AST2500 remote management controller

Compute:

• Up to 28 cores / 56 threads per socket

• Up to 38.5 MB L3 cache (non-inclusive)

• Up to 3x UPI socket interconnects @10.4 GT/s

• CPU TDP 70W – 205W

Memory:

• 6 channels, 2 DIMMs per channel

• Up to 12 DIMMS per socket

• Up to 2933MHz max memory speed

• Intel Optane DC Persistent Memory ready

I/O:

• 48 PCIe 3.0 lanes per socket

NVIDIA® Tesla® V100 Support

GIGABYTE’s Intel® Xeon® Scalable servers and motherboards are fully compatible and qualified to use with NVIDIA’s

Tesla

V100 GPU, an advanced data center GPU built to accelerate AI, HPC, and graphics. Powered by NVIDIA’s Volta™ architecture and with 640 Tensor Cores, the Tesla performance — enabling data scientists, researchers, and engineers to tackle challenges that were once impossible.

V100 has broken the 100 teraflops (TFLOPS) barrier of deep learning

GIGABYTE Management Console (AMI MegaRAC SP-X)

This GIGABYTE server product utilizes a AMI MegaRAC SP-X platform for BMC server management, with a feature rich and easy to use browser-based graphical user interface.

• RESTful API support (including the latest DMTF standards of Redfish) allows the

administrator to integrate with 3rd party applications for ser ver management

• HTML5-based iKVM remote management client included as a standard feature, no

additional add-on license required to purchase

• Detailed FRU information from SMBIOS

• Pre- event automatic video recording feature from 10 to 30 seconds

• SAS / RAID controller monitoring feature

GIGABYTE Server Management (GSM)

GIGABYTE Server Management (GSM) is GIGABYTE’s proprietary multiple server remote management software platform, available as a free download from each GIGABYTE server product page. GSM is compatible with either IPMI or Redfish (RESTful API) connection interfaces, and comprises the following sub-programs:

• GSM Server • GSM CLI • GSM Agent • GSM Mobile • GSM Plugin

Specification

Dimensions (WxHxD)

Motherboard

CPU

Socket

Chipset

Memory

Power Supply

438 x 87.5 x 730

MR91-FS0

2nd Generation Intel

Xeon® Platinum Processor, Intel® Xeon® Gold Processor,

Intel

Xeon® Silver Processor and Intel® Xeon® Bronze Processor

Intel

Xeon® Scalable Processors

CPU TDP up to 205W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

2 x LGA 3647, Socket P

C621 Express Chipset

Intel

24 x DIMM slots DDR4 memory supported only 6-channel memory per processor architecture

System Management

RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported Supports Intel

Optane™ DC Persistent Memory (DCPMM)

1.2V modules: 2933(1DPC)/2666/2400/2133 MHz

NOTE:

1. 2933MHz for 2nd Generation Intel

Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon

2. Intel Scalable Processors only

3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C

4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative

Xeon® Scalable Processors only

2 x 80 PLUS Platinum 1200W redundant PSUs

AC Input:

- 100-240V~/ 12-7A, 50-60Hz DC Input:

- 240Vdc/ 6A DC Output:

- Max 1000W/ 100-240V~ +12V/ 80.5A +12Vsb/ 3A

- Max 1200W/ 200-240V~ or 240Vdc input +12V/ 97A +12Vsb/ 3A

* Redundant function would be disabled if 2* GPU card are installed in system * To support redundant function, change power supply to 2000W when CPU TDP >165W

Aspeed® AST2500 management controller GIGABYTE Management Console (AMI MegaRAC SP-X)

Dashboard JAVA Based Serial Over LAN HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption

LAN

Video

Storage

SATA

SAS

RAID

Expansion Slots

Internal I/O

Front I/O

Rear I/O

Backplane I/O

TPM

2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2) 1 x 10/100/1000 management LAN

Integrated in Aspeed

AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM

Front side: 12 x 3.5" or 2.5"SATA/SAS hot-swap HDD/SSD bays Rear side: 2 x 2.5" SATA/SAS hot-swap HDD/SSD bays 12 x SATA ports by default setting SAS card is required for SAS devices support

2 x 7-pin SATA III 6Gb/s with SATA DOM supported By using pin_8 or external cable for power function

OS Compatibility

Supported via add-on SAS Card

SATA RAID 0/1/10/5

Intel

Riser Card CRS2131: 1 x PCIe x16 slot (Gen3 x16 or x8), FHFL

1 x PCIe x8 slots (Gen3 x0 or x8), FHFL 1 x PCIe x8 slots (Gen3 x8), FHHL

Riser Card CRS2132: 1 x PCIe x16 slot (Gen3 x16 or x8), FHFL

1 x PCIe x8 slots (Gen3 x0 or x8), FHFL 1 x PCIe x8 slots (Gen3 x8), FHHL

Riser Card CRS2124: 1 x PCIe x8 slots (Gen3 x0 or x8), LPHL

1 x PCIe x16 slot (Gen3 x16 or x8), LPHL

2 x OCP mezzanine slots

- PCIe Gen3 x16, Type1, P1, P2, P3, P4, K2, K3

2 x Power supply connectors, 4 x SlimSAS connectors, 2 x SATA 7-pin connectors, 2 x CPU fan headers, 1 x USB 3.0 header, 1 x TPM header, 1 x

Weight

System Fans

Operating Properties

VROC connector, 1 x Front panel header, 1 x HDD back plane board header, 1 x IPMB connector, 1 x Clear CMOS jumper, 1 x BIOS recovery jumper

2 x USB 3.0, 1 x Power button with LED, 1 x ID button with LED, 1 x Reset button, 1 x NMI button, 1 x System status LED, 1 x HDD activity LED, 2 x LAN activity LEDs

2 x USB 3.0, 1 x VGA, 1 x COM (RJ45 type), 2 x RJ45, 1 x MLAN, 1 x ID button with LED

Packaging Content

Part Numbers

Front side_CBP20C3: 12 x SATA/SAS ports Rear side_CBP2020: 2 x SATA/SAS ports Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port

1 x TPM header with LPC interface Optional TPM2.0 kit: CTM000

Power Control LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings

For Cascade Lake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 7.6 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.0 Update3 or later VMware ESXi 6.5 Update2 or later VMware ESXi 6.7 Update1 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.5.0 or later Citrix Hypervisor 8.0.0 or later

20 kg

4 x 80x80x38mm (16'300rpm), 2-ball

Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing)

NOTE: Please contact Technical Support for more information about optimized GPU operating temperature

1 x R281-3C2, 2 x CPU heatsinks, 1 x Rail kit, 2 x Non-Fabric CPU carrier

Barebone package: 6NR2813C2MR-00

- Motherboard: 9MR91FS0NR-00

- Rail kit: 25HB2-3A0202-K0R

- CPU heatsink: 25ST1-253100-F2R

- Back plane board_12-port: 9CBP20C3NR-00

- Back plane board_2-port: 9CBP2020NR-00

- Front panel board: 9CFP2001NR-00

- 1200W power supply: 25EP0-212002-F3S

- 1600W power supply: 25EP0-216007-L0S (as an option)

- RJ45 type COM cable: 25CR0-200400-Y4R (as an option)

* All specifications are subject to change without notice. Please visit our website for the latest information. * Intel, the Intel logo, the Intel Inside logo, Xeon, and Optane are trademarks of Intel Corporation or its subsidiaries. * NVIDIA, the NVIDIA logo and Tesla are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries.
