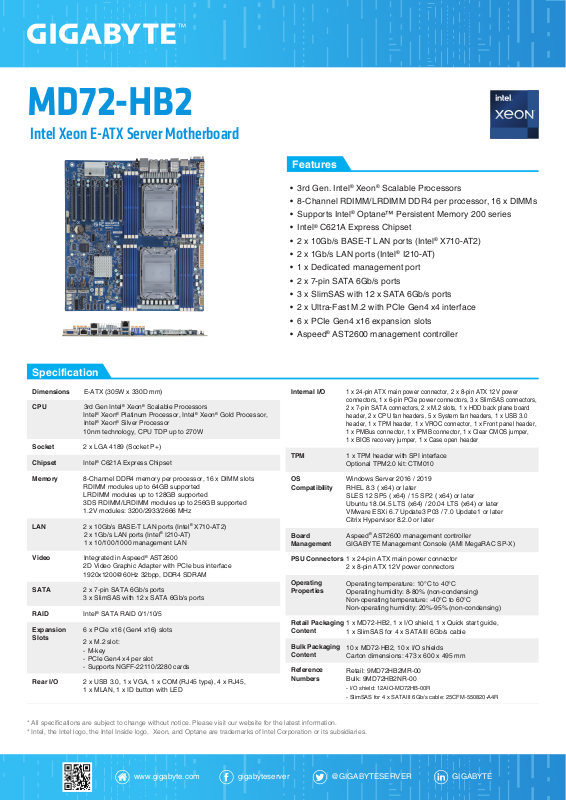

MD72-HB2
Intel Xeon E-ATX Server Motherboard
Features
• 3rd Gen. Intel® Xeon® Scalable Processors
• 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
• Supports Intel® Optane™ Persistent Memory 200 series
• Intel® C621A Express Chipset
• 2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
• 2 x 1Gb/s LAN ports (Intel® I210-AT)
• 1 x Dedicated management port
• 2 x 7-pin SATA 6Gb/s ports
• 3 x SlimSAS with 12 x SATA 6Gb/s ports
• 2 x Ultra-Fast M.2 with PCIe Gen4 x4 interface
• 6 x PCIe Gen4 x16 expansion slots
• Aspeed® AST2600 management controller
Specification
Dimensions |
E-ATX (305W x 330D mm) |
|
|
CPU |
3rd Gen Intel® Xeon® Scalable Processors |
|
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, |
|
Intel® Xeon® Silver Processor |
|
10nm technology, CPU TDP up to 270W |
|
|
Socket |
2 x LGA 4189 (Socket P+) |
|
|
Chipset |
Intel® C621A Express Chipset |
Memory |
8-Channel DDR4 memory per processor, 16 x DIMM slots |
|
RDIMM modules up to 64GB supported |
|
LRDIMM modules up to 128GB supported |
|
3DS RDIMM/LRDIMM modules up to 256GB supported |
|
1.2V modules: 3200/2933/2666 MHz |
|
|
LAN |
2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2) |
|
2 x 1Gb/s LAN ports (Intel® I210-AT) |
|
1 x 10/100/1000 management LAN |
|
|
Video |
Integrated in Aspeed® AST2600 |
|
2D Video Graphic Adapter with PCIe bus interface |
|
1920x1200@60Hz 32bpp, DDR4 SDRAM |
|
|
SATA |
2 x 7-pin SATA 6Gb/s ports |
|
3 x SlimSAS with 12 x SATA 6Gb/s ports |
|
|
RAID |
Intel® SATA RAID 0/1/10/5 |
|
|
Expansion |
6 x PCIe x16 (Gen4 x16) slots |
Slots |
2 x M.2 slot: |
|
|
|
- M-key |
|
- PCIe Gen4 x4 per slot |
|
- Supports NGFF-22110/2280 cards |
Rear I/O |
2 x USB 3.0, 1 x VGA, 1 x COM (RJ45 type), 4 x RJ45, |
|
1 x MLAN, 1 x ID button with LED |
Internal I/O |
1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power |
|
connectors, 1 x 6-pin PCIe power connectors, 3 x SlimSAS connectors, |
|
2 x 7-pin SATA connectors, 2 x M.2 slots, 1 x HDD back plane board |
|
header, 2 x CPU fan headers, 5 x System fan headers, 1 x USB 3.0 |
|
header, 1 x TPM header, 1 x VROC connector, 1 x Front panel header, |
|
1 x PMBus connector, 1 x IPMB connector, 1 x Clear CMOS jumper, |
|
1 x BIOS recovery jumper, 1 x Case open header |
|
|
TPM |
1 x TPM header with SPI interface |
|
Optional TPM2.0 kit: CTM010 |
|
|
OS |
Windows Server 2016 / 2019 |
Compatibility |
RHEL 8.3 ( x64) or later |
|
SLES 12 SP5 ( x64) / 15 SP2 ( x64) or later |
|
Ubuntu 18.04.5 LTS (x64) / 20.04 LTS (x64) or later |
|
VMware ESXi 6.7 Update3 P03 / 7.0 Update1 or later |
|
Citrix Hypervisor 8.2.0 or later |
|
|
Board |
Aspeed® AST2600 management controller |
Management |
GIGABYTE Management Console (AMI MegaRAC SP-X) |
|
|
PSU Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
Operating Operating temperature: 10°C to 40°C Properties Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging 1 x MD72-HB2, 1 x I/O shield, 1 x Quick start guide,
Content |
1 x SlimSAS for 4 x SATAIII 6Gb/s cable |
|
|
Bulk Packaging |
10 x MD72-HB2, 10 x I/O shields |
Content |
Carton dimensions: 473 x 600 x 495 mm |
|
|
Reference |
Retail: 9MD72HB2MR-00 |
Numbers |
Bulk: 9MD72HB2NR-00 |
|
- I/O shield: 12AIO-MD72HB-00R |
|
- SlimSAS for 4 x SATAIII 6Gb/s cable: 25CFM-550820-A4R |
*All specifications are subject to change without notice. Please visit our website for the latest information.
*Intel, the Intel logo, the Intel Inside logo, Xeon, and Optane are trademarks of Intel Corporation or its subsidiaries.
