GA-Z97N-Gaming
Schematic rev.1.0
30 pgs
1.02 Mb
0
Table of contents
Loading...

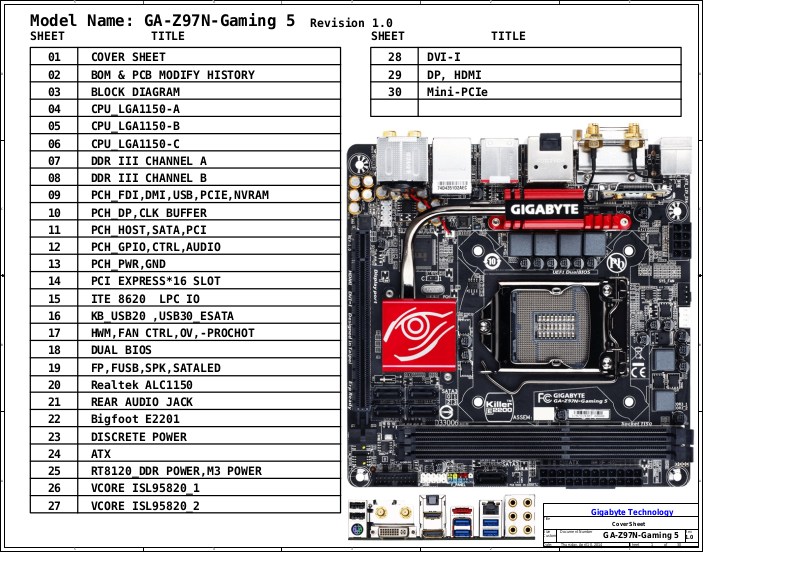

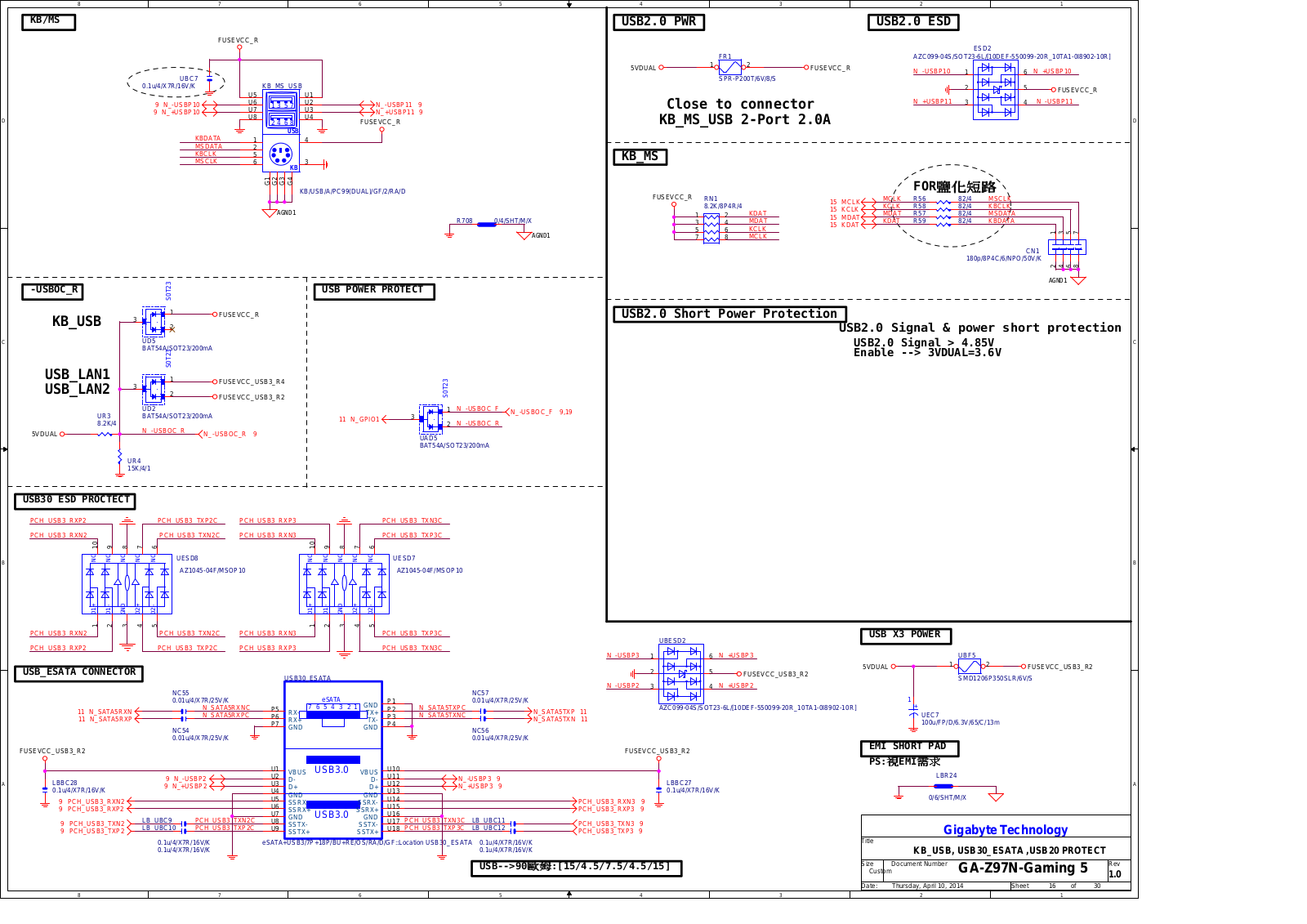

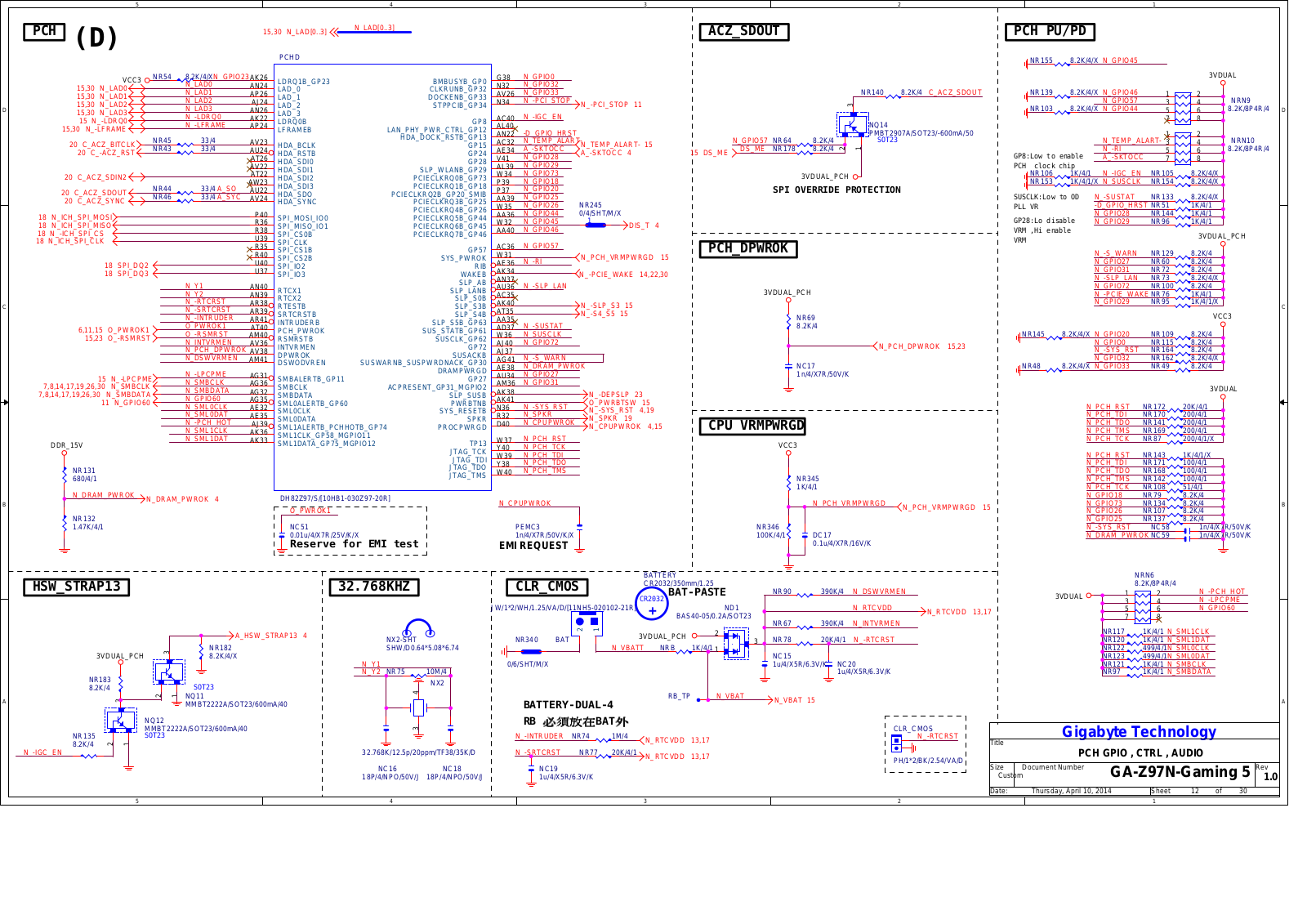

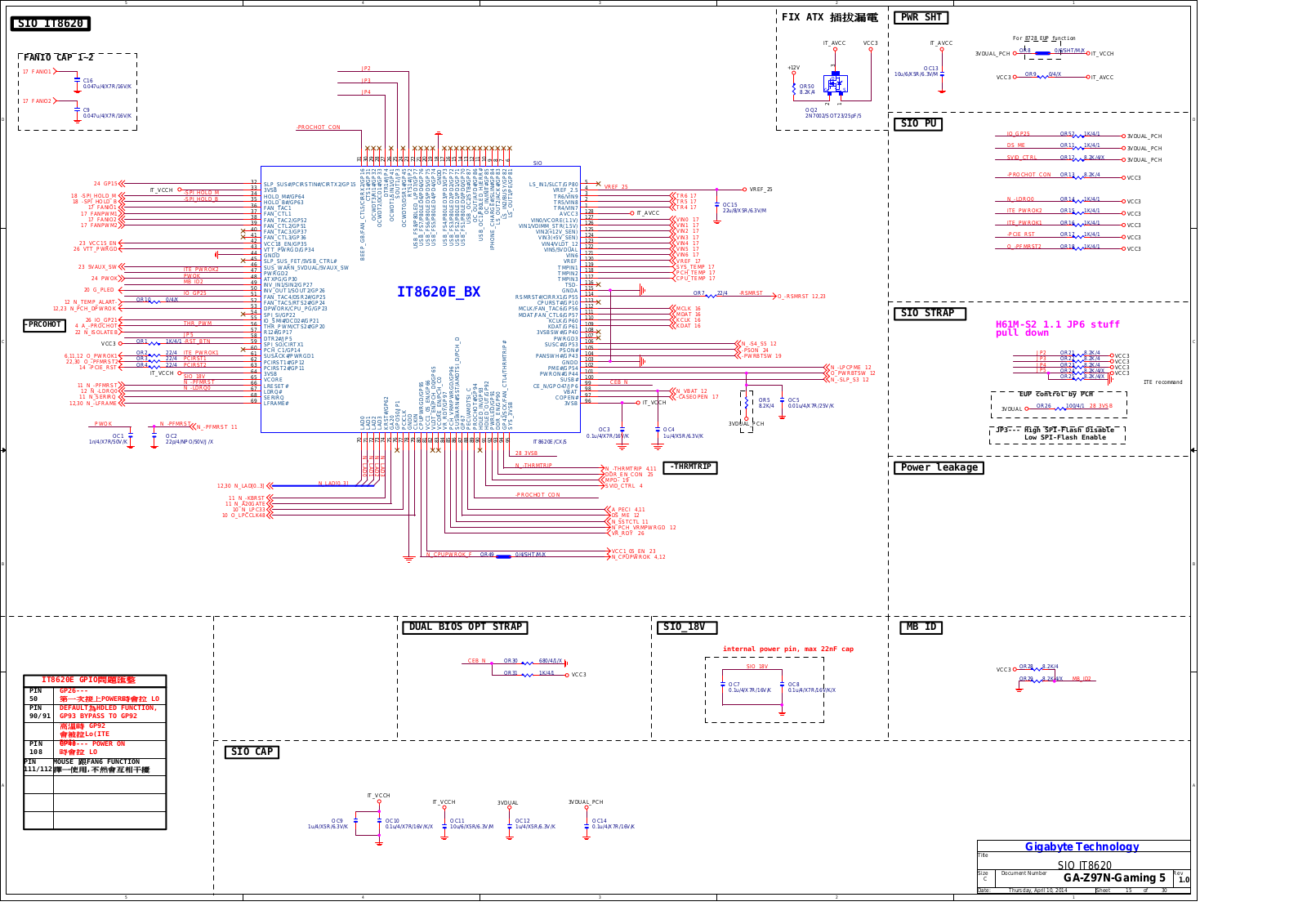

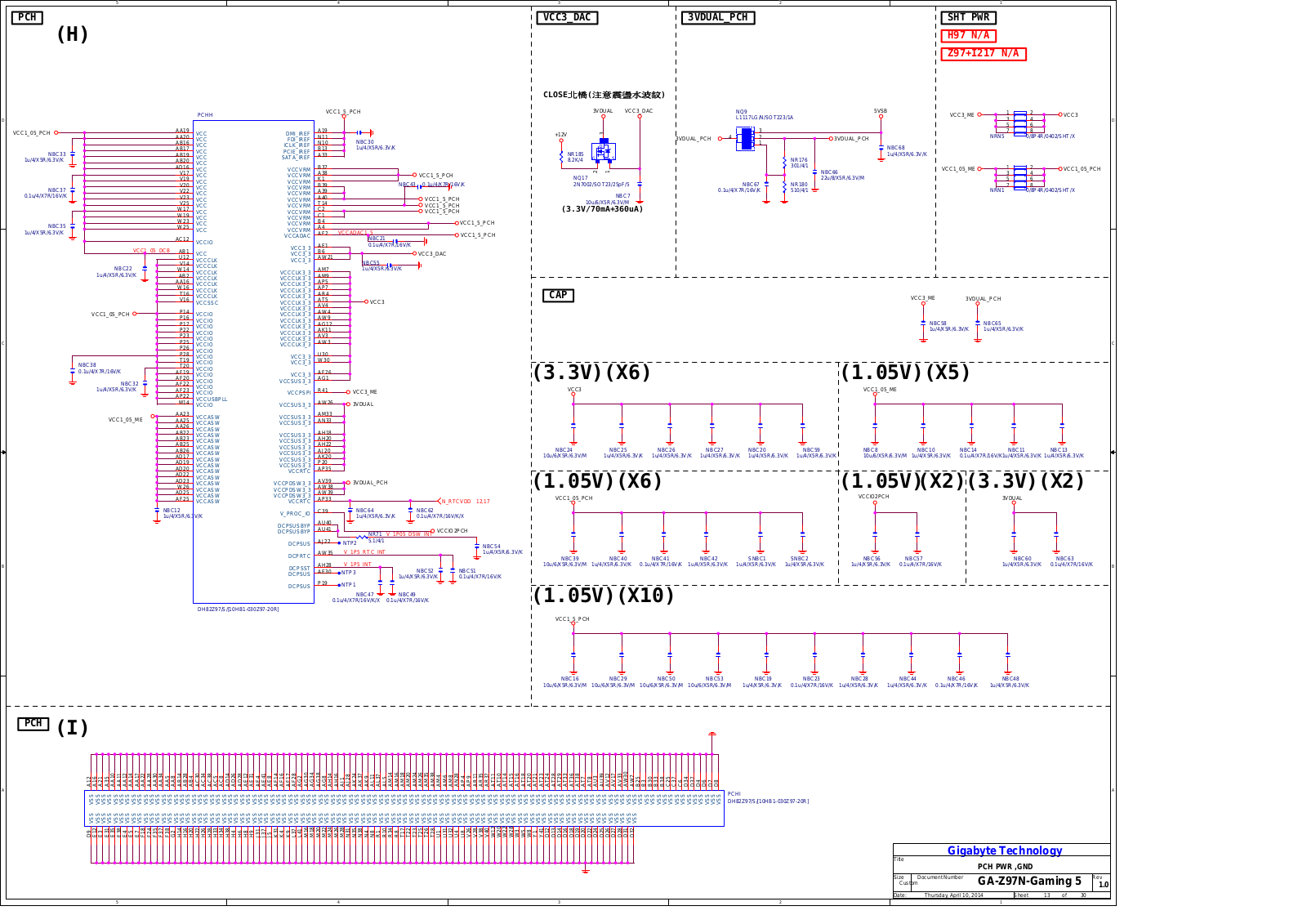

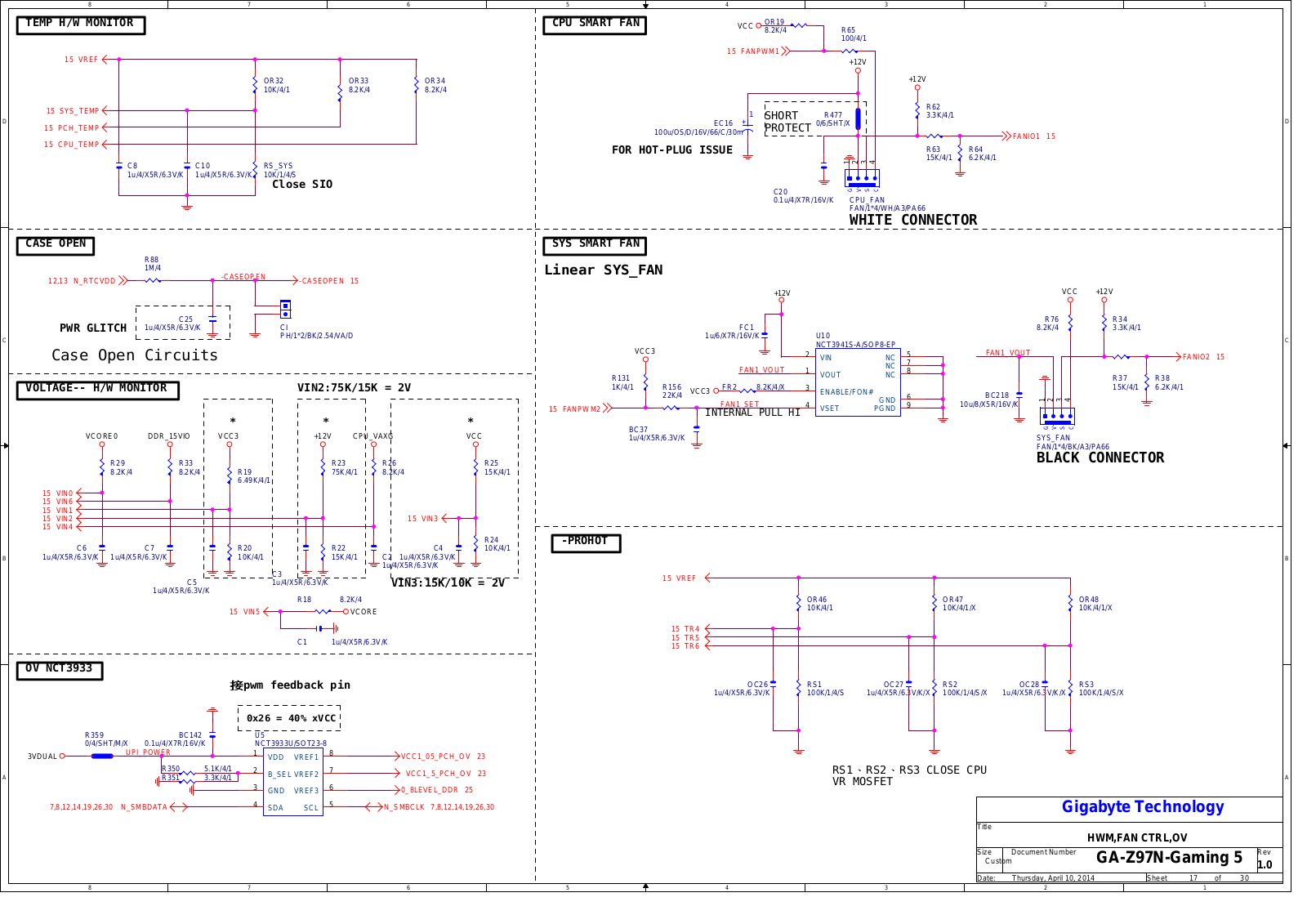

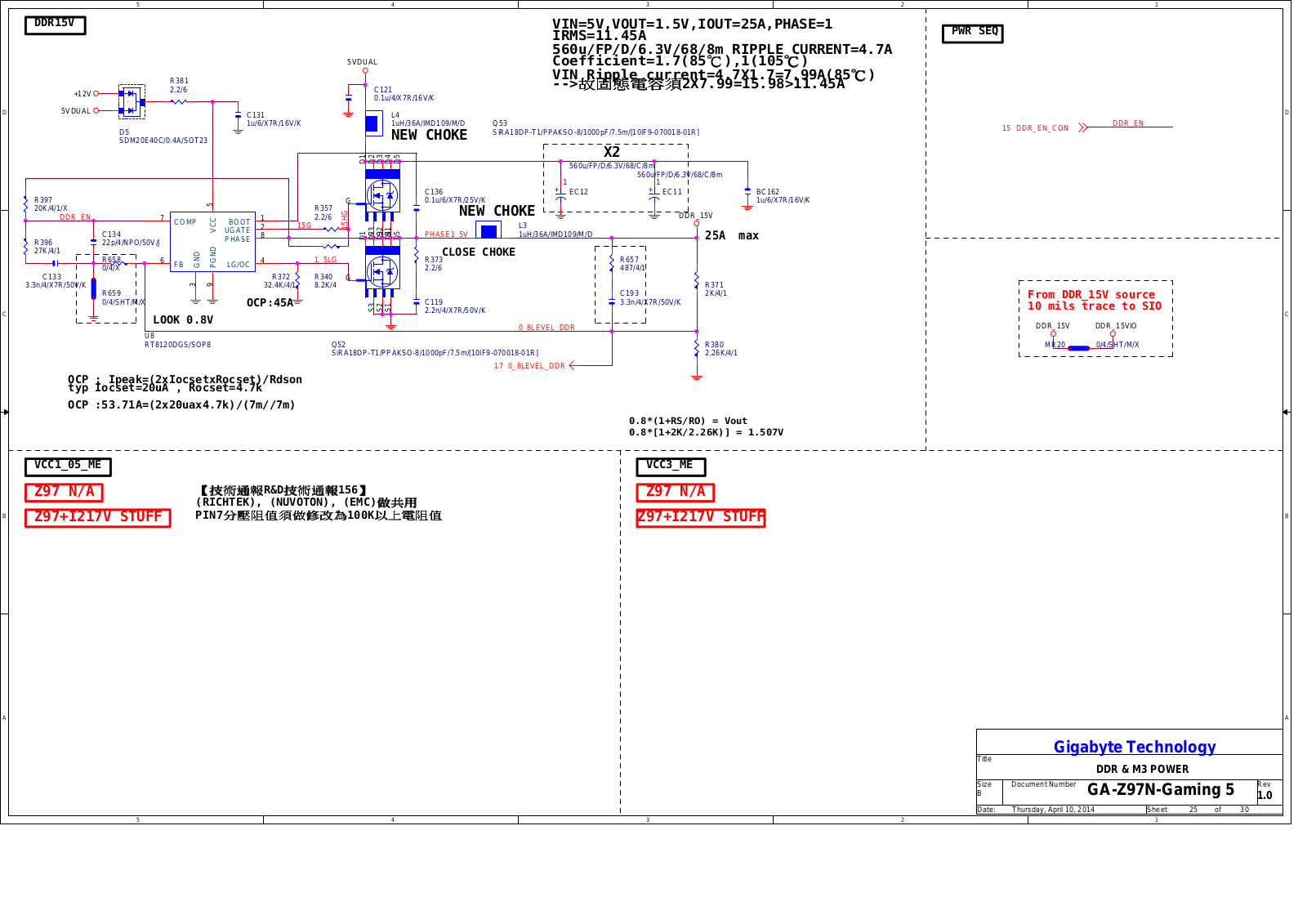

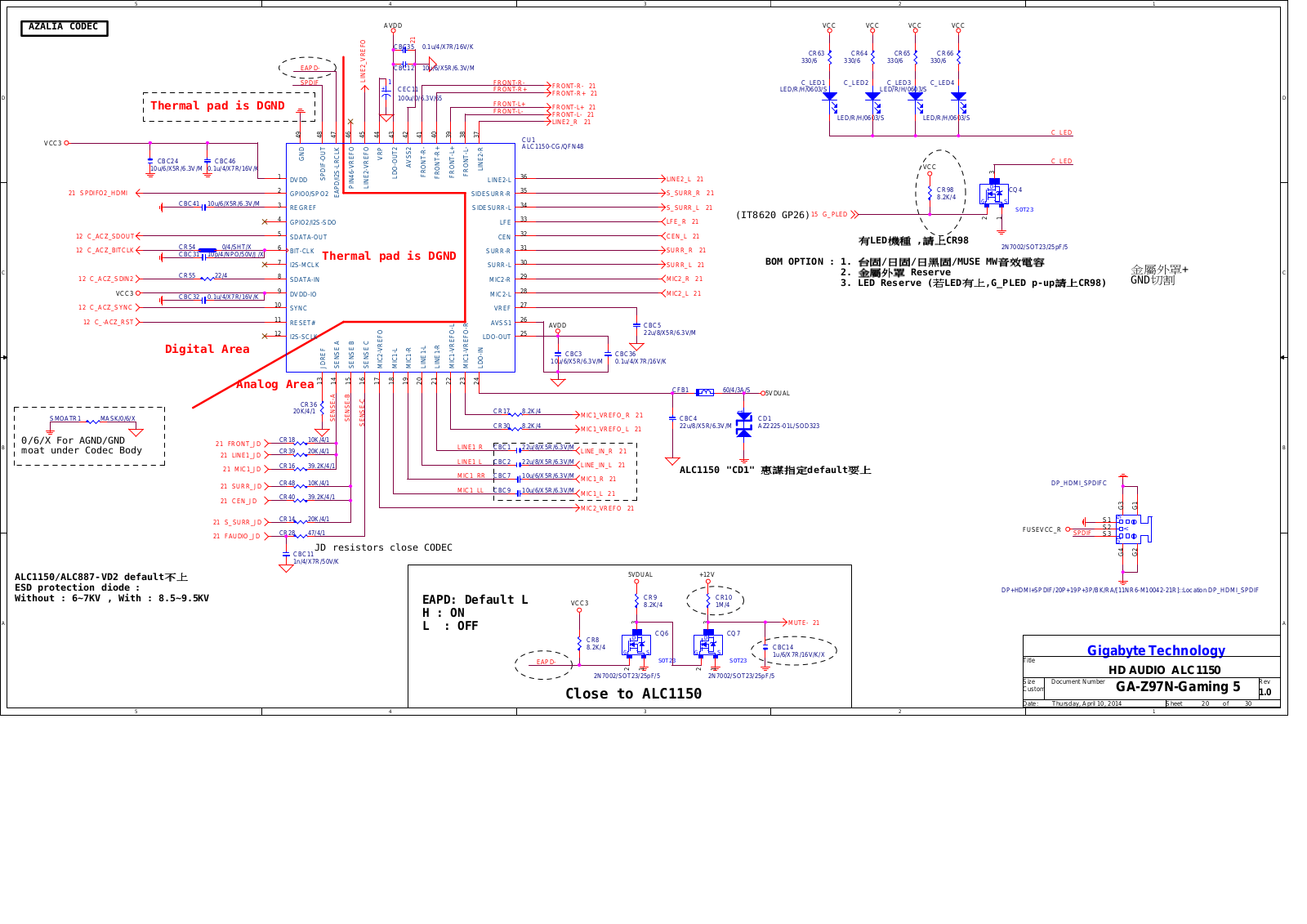

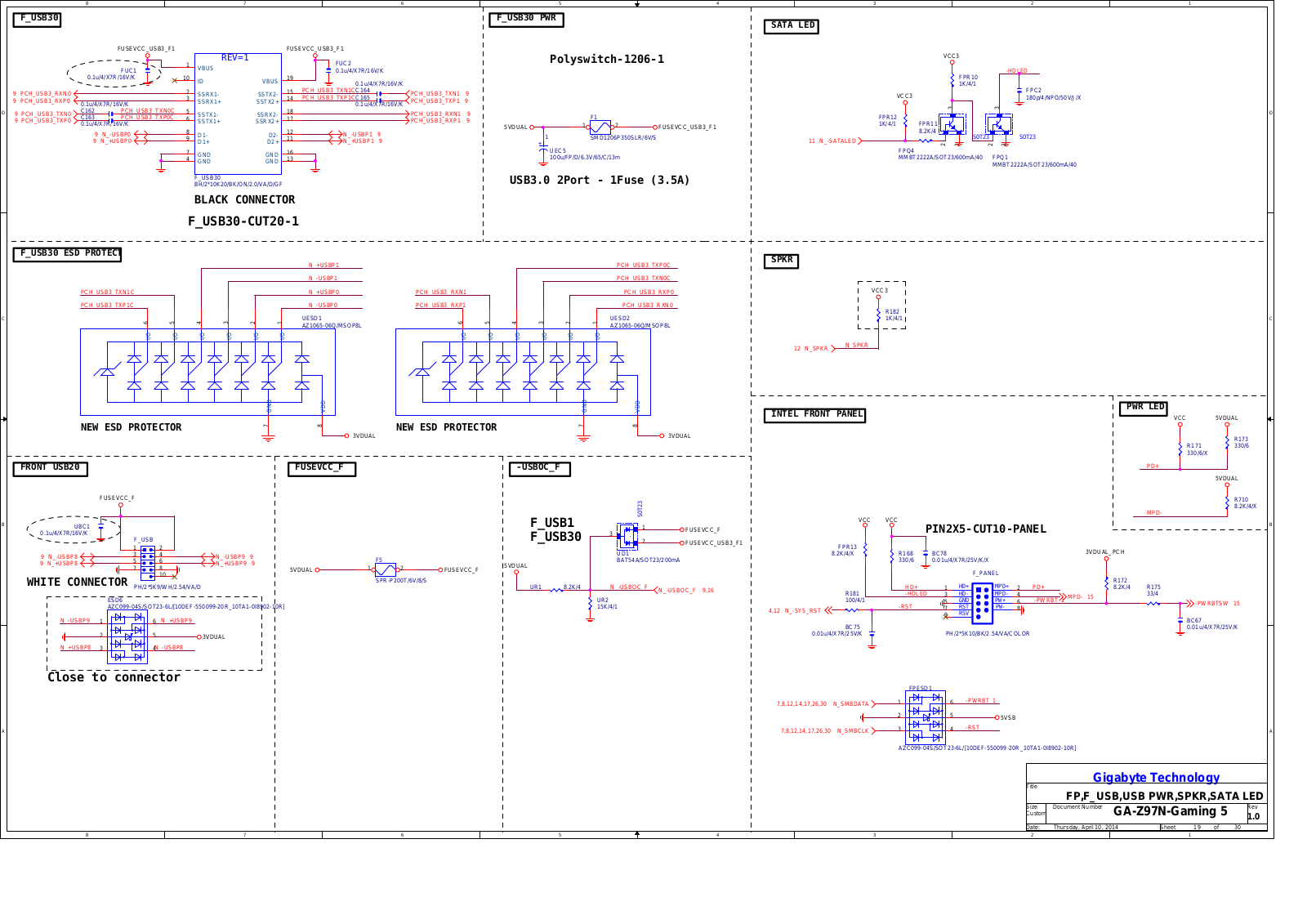

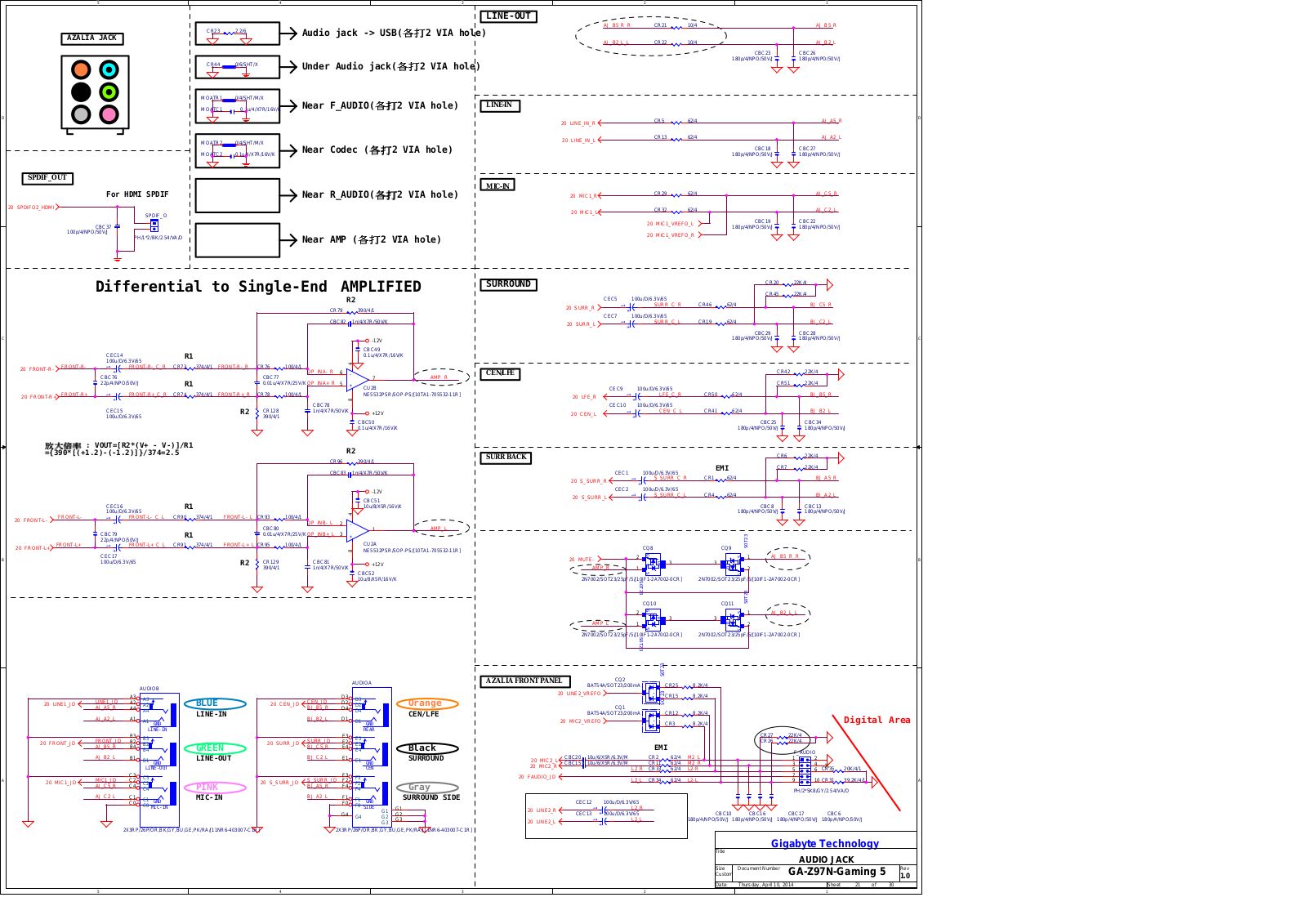

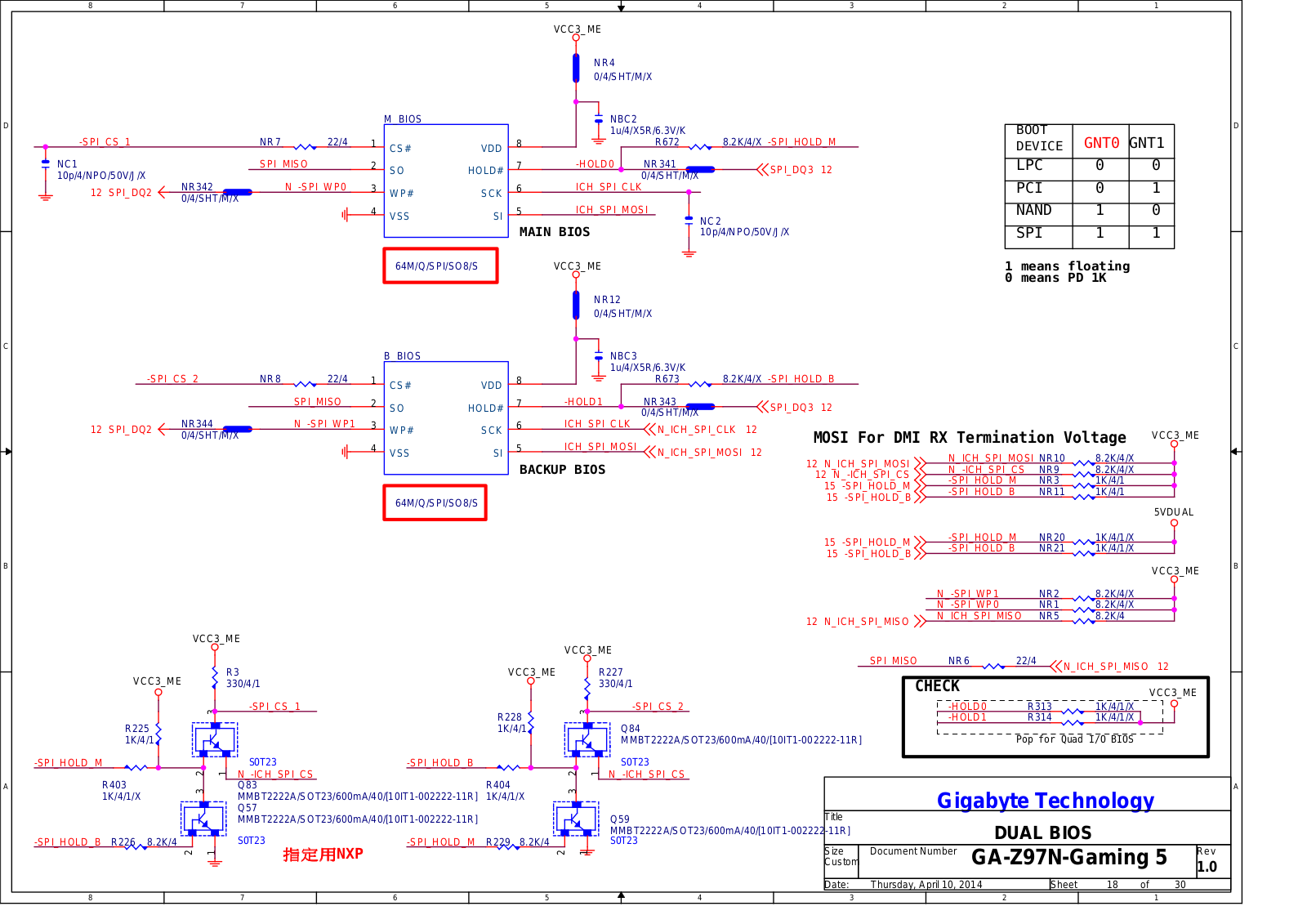

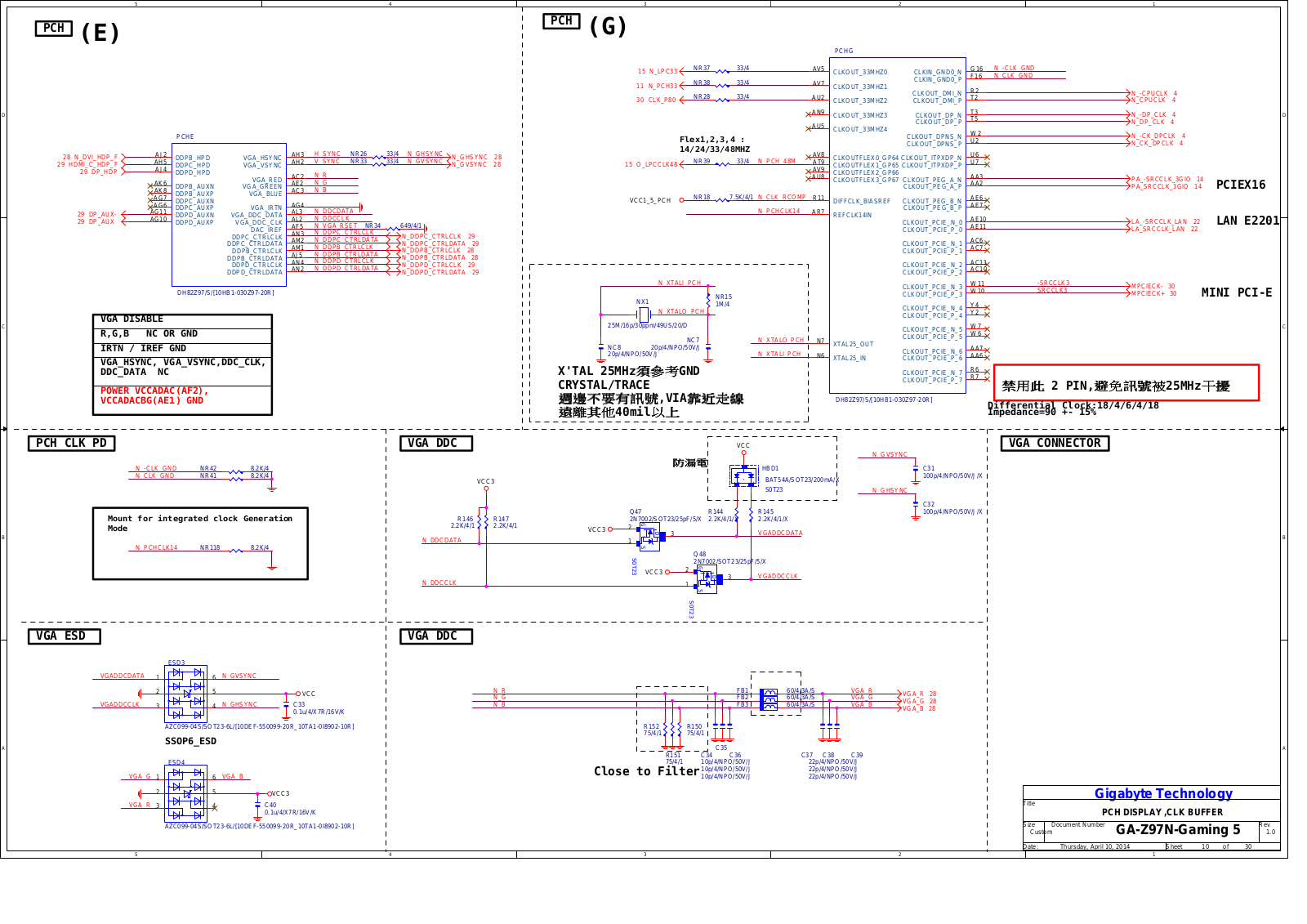

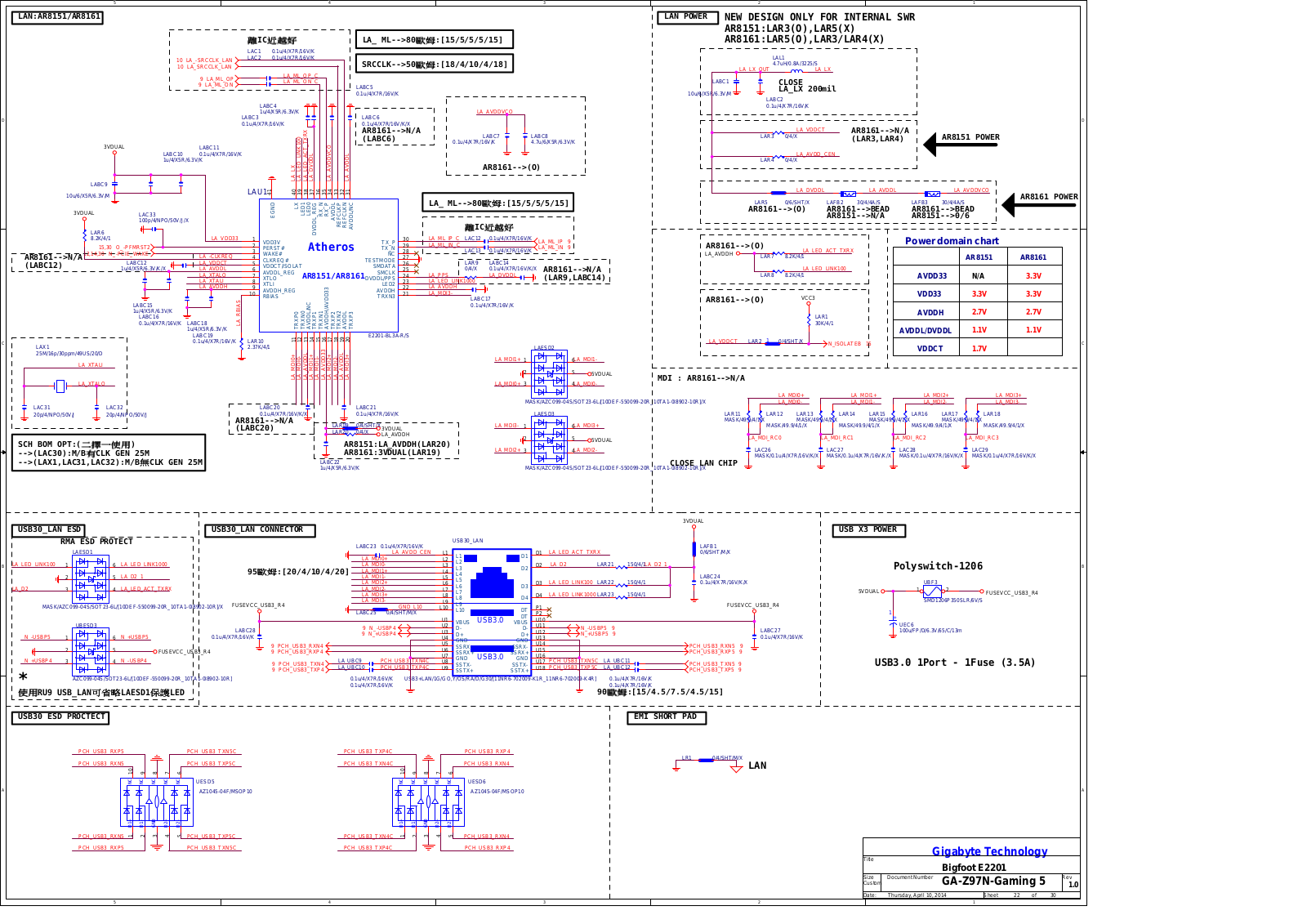

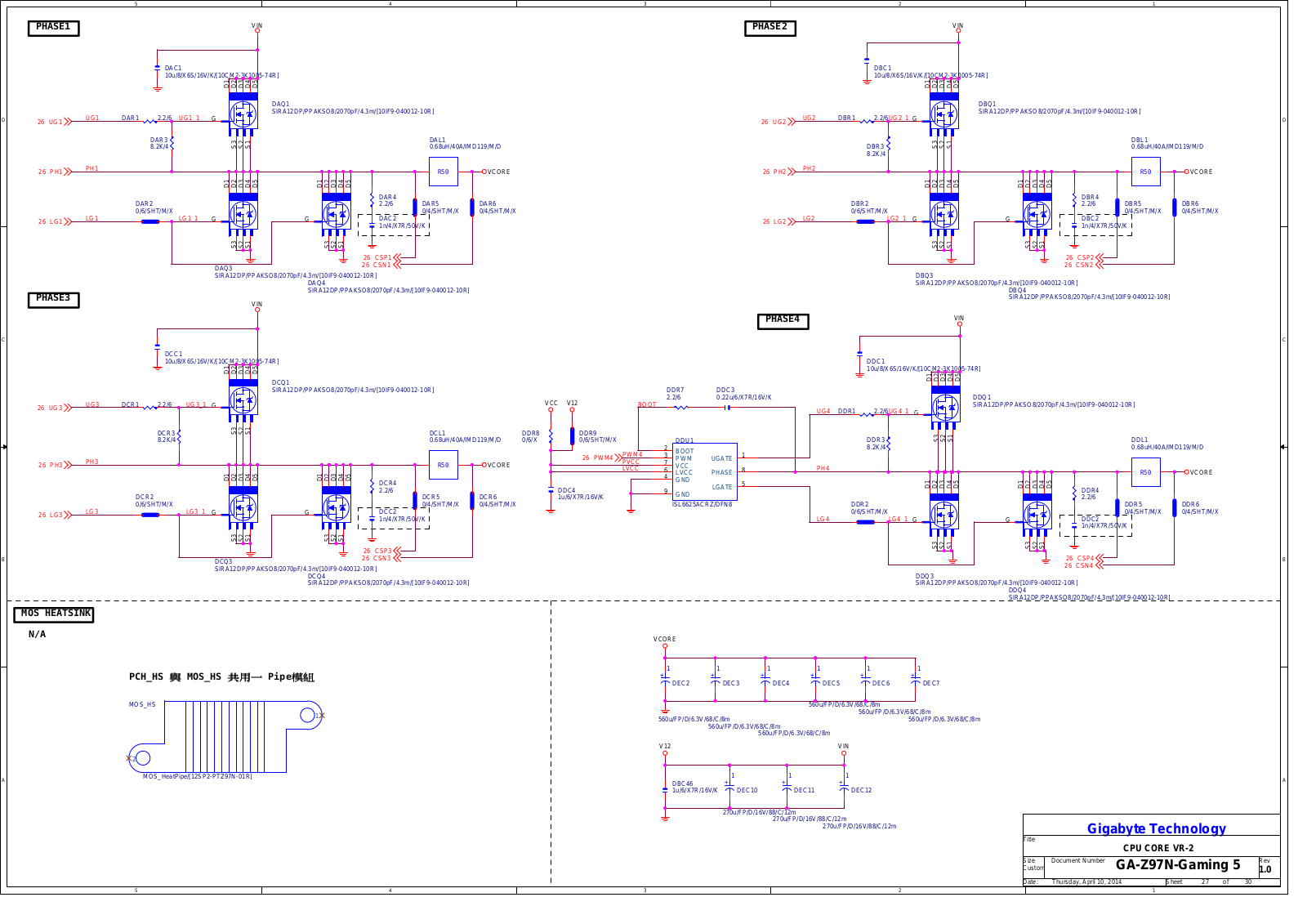

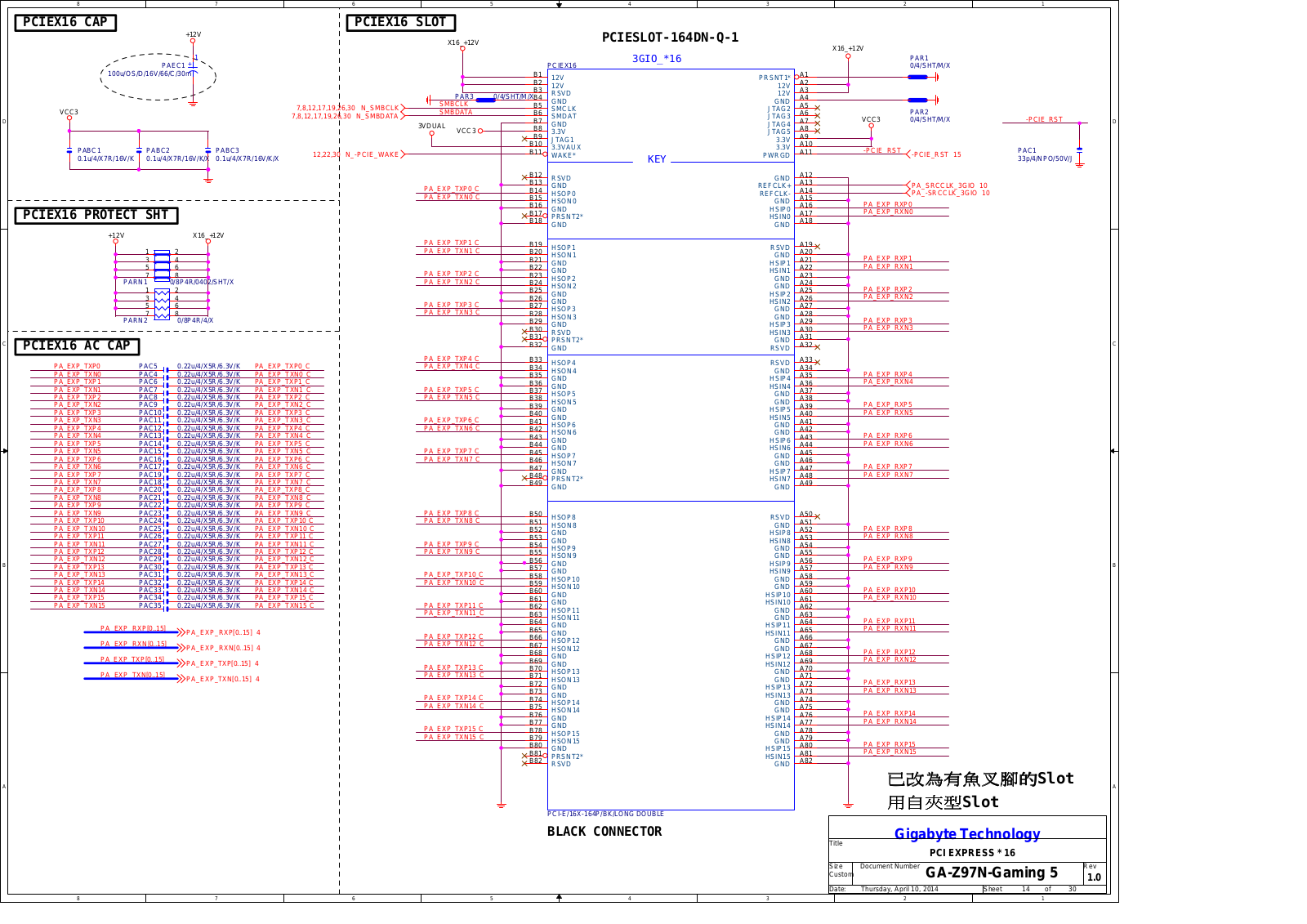

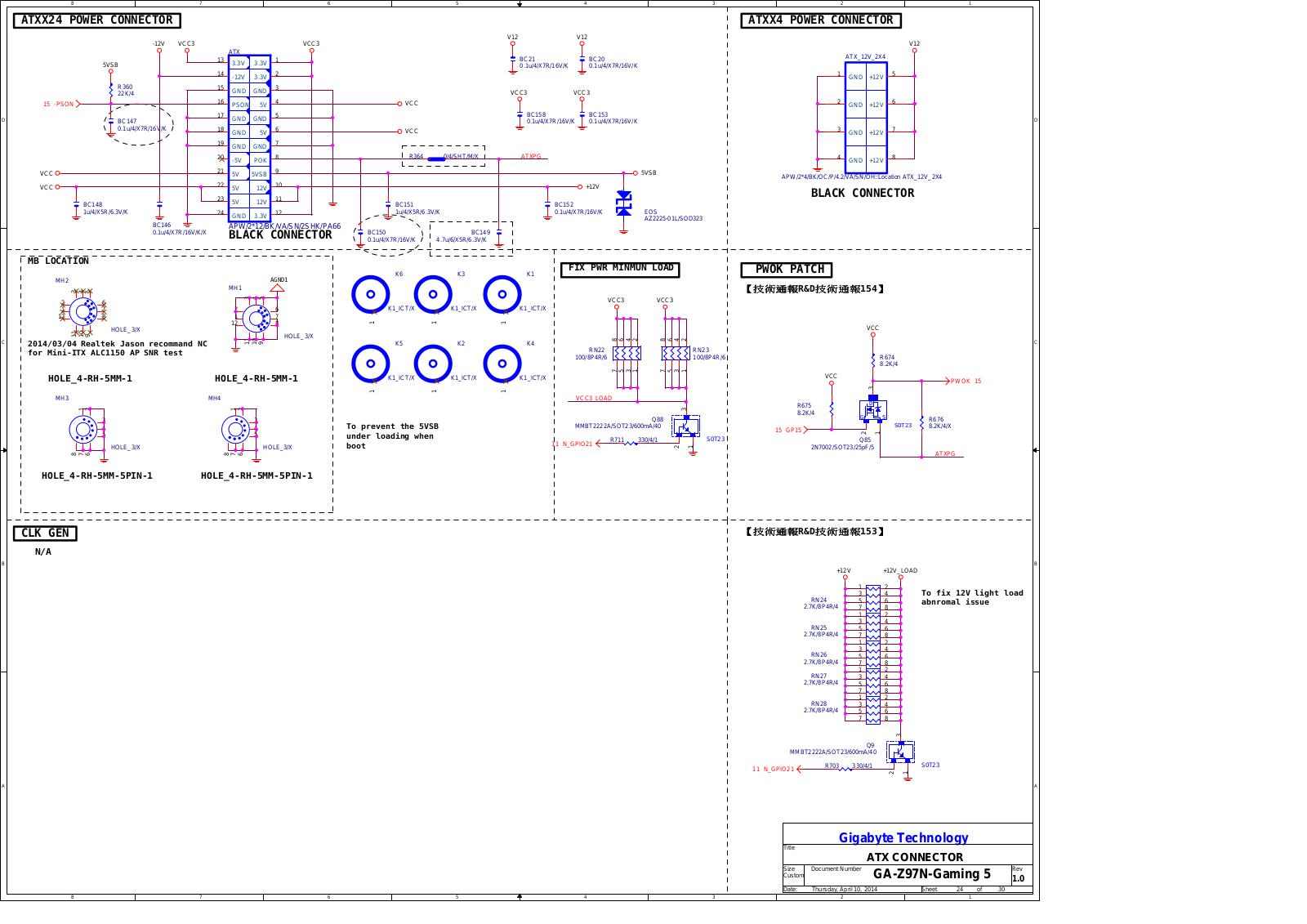

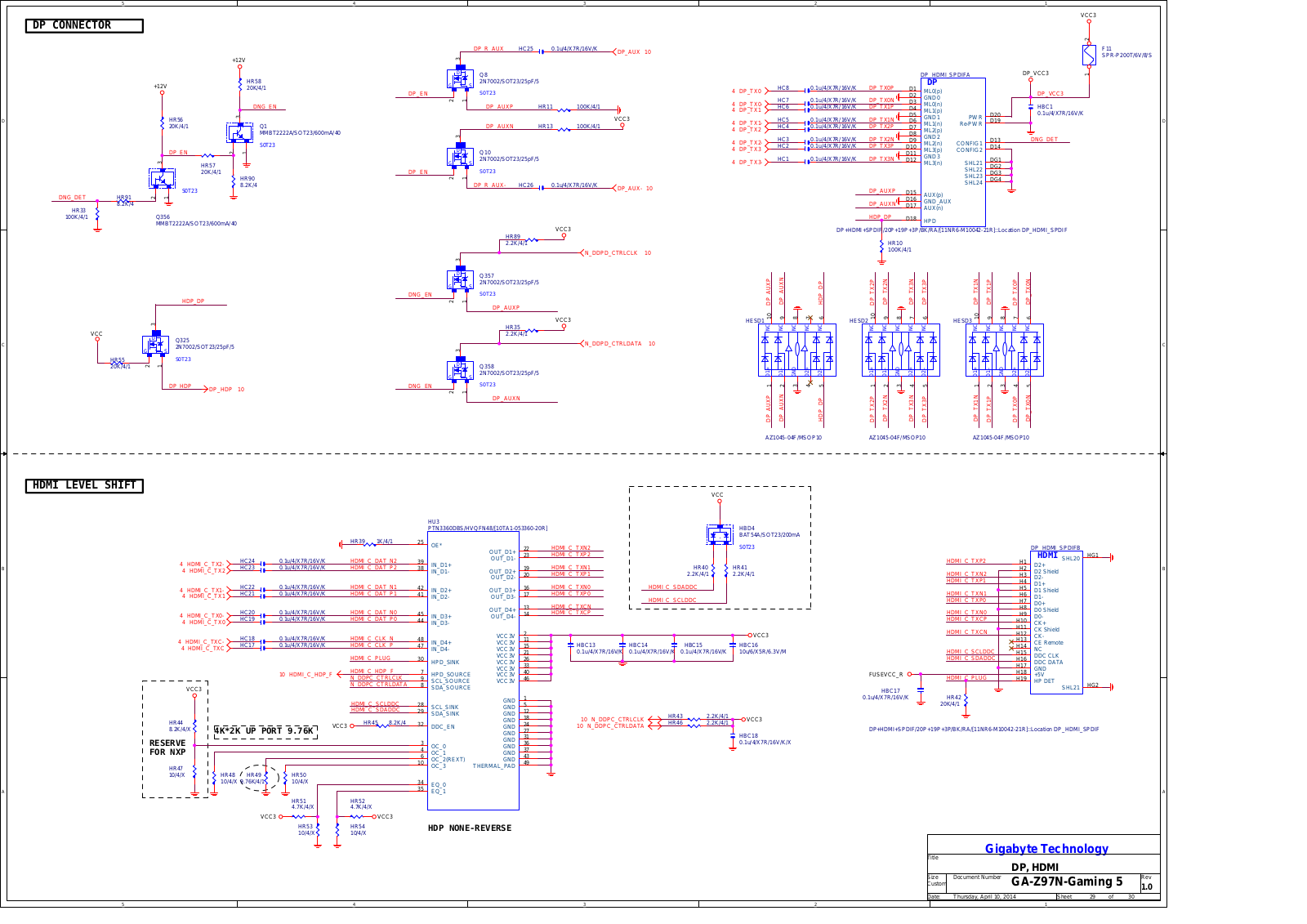

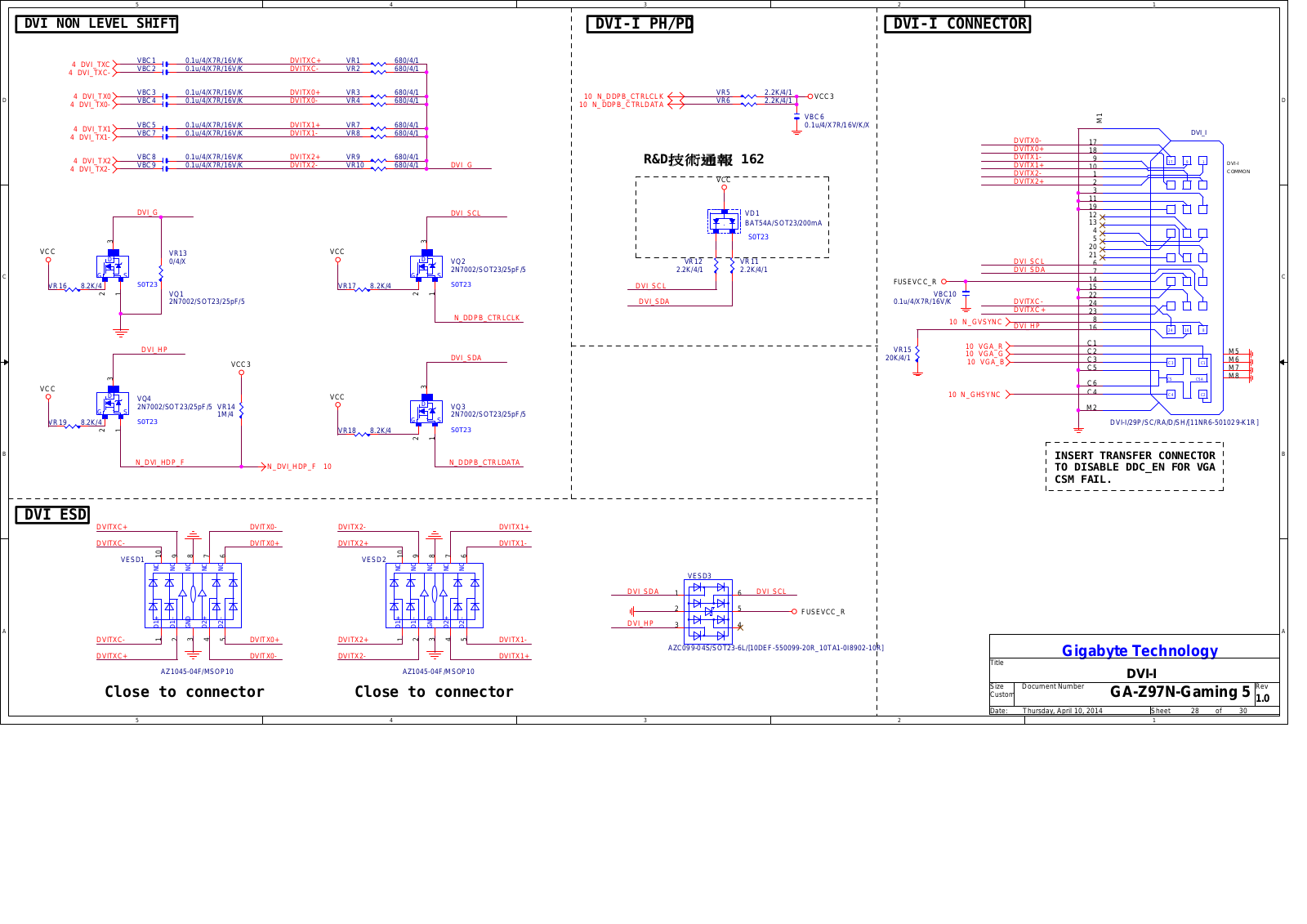

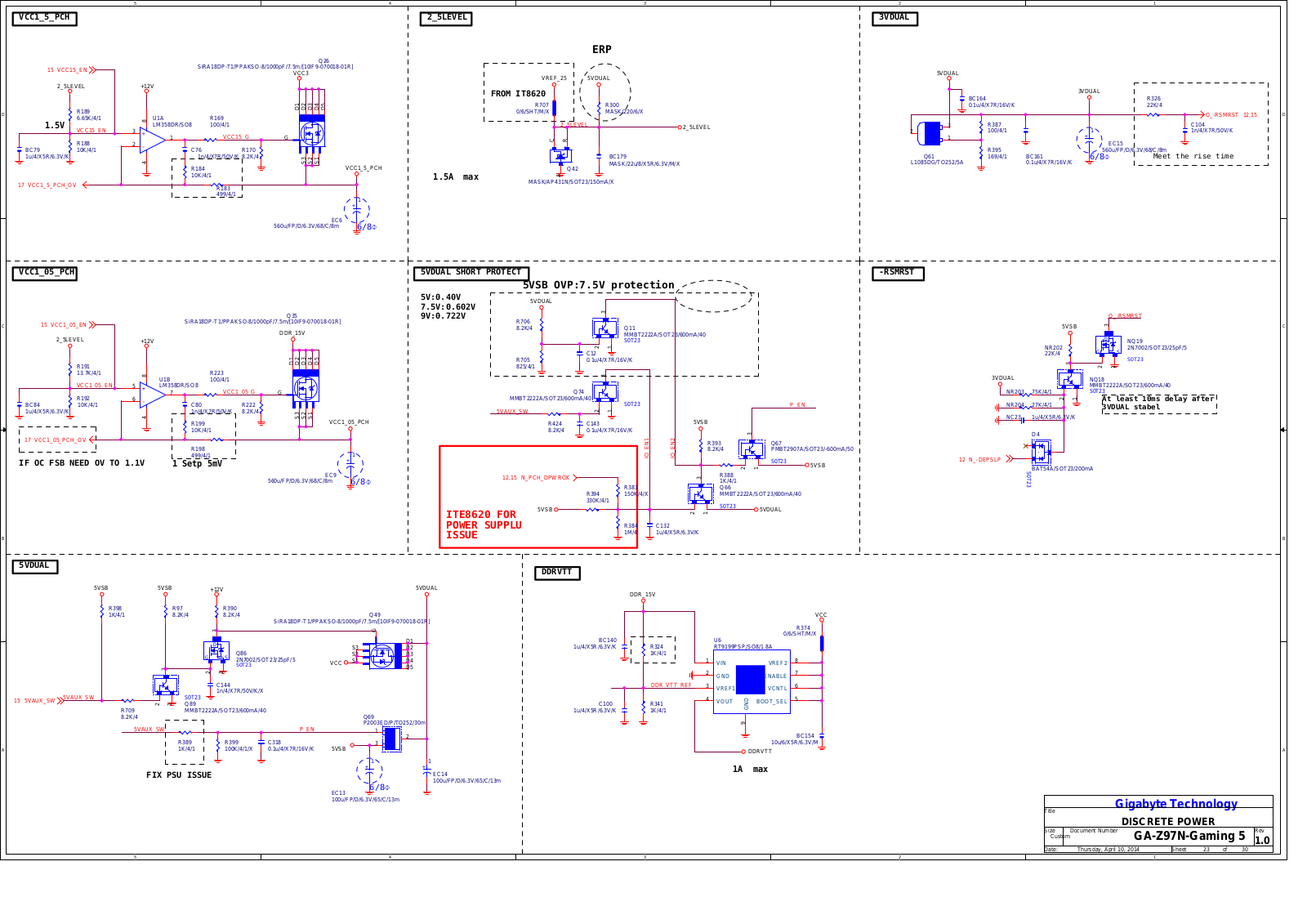

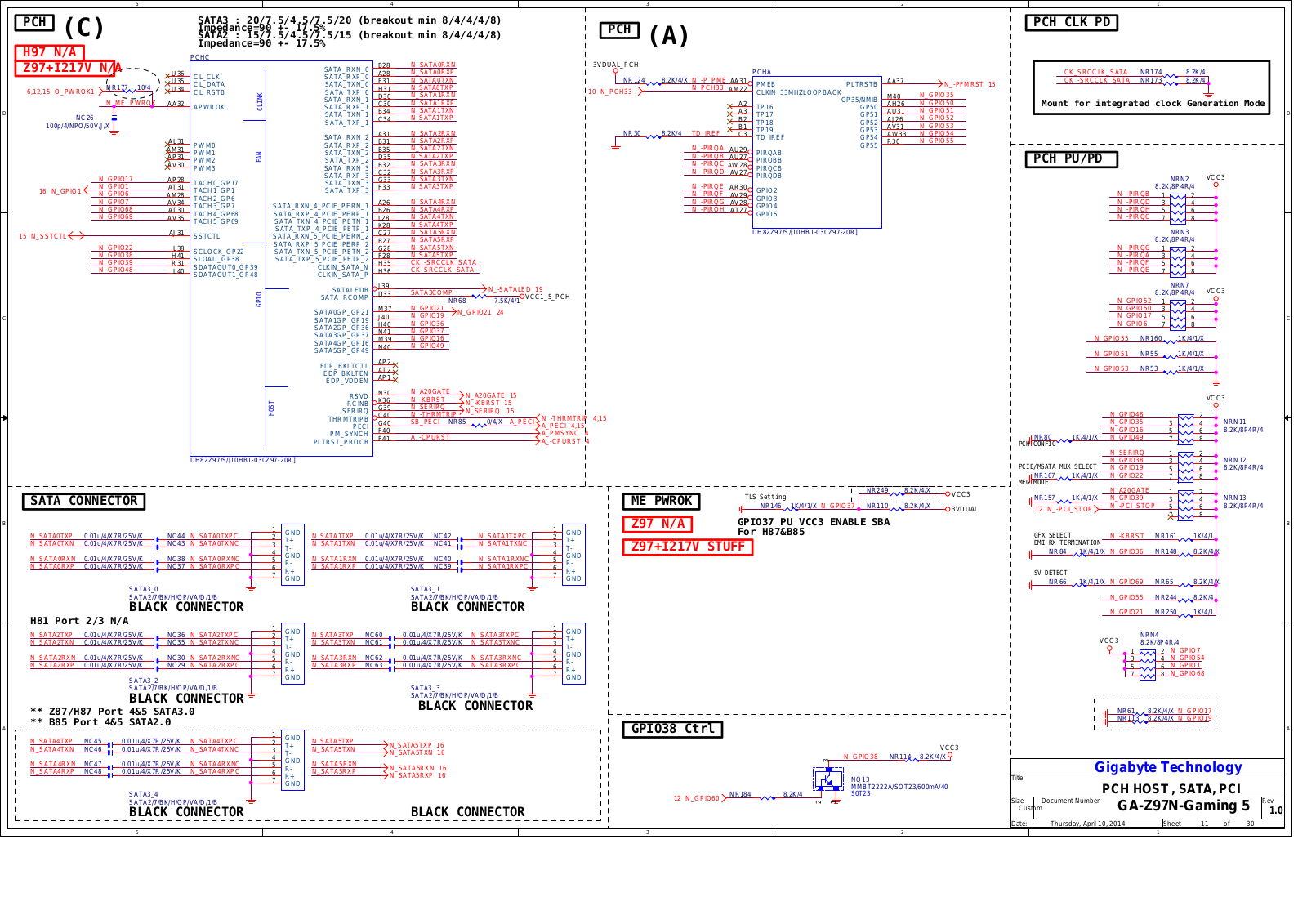

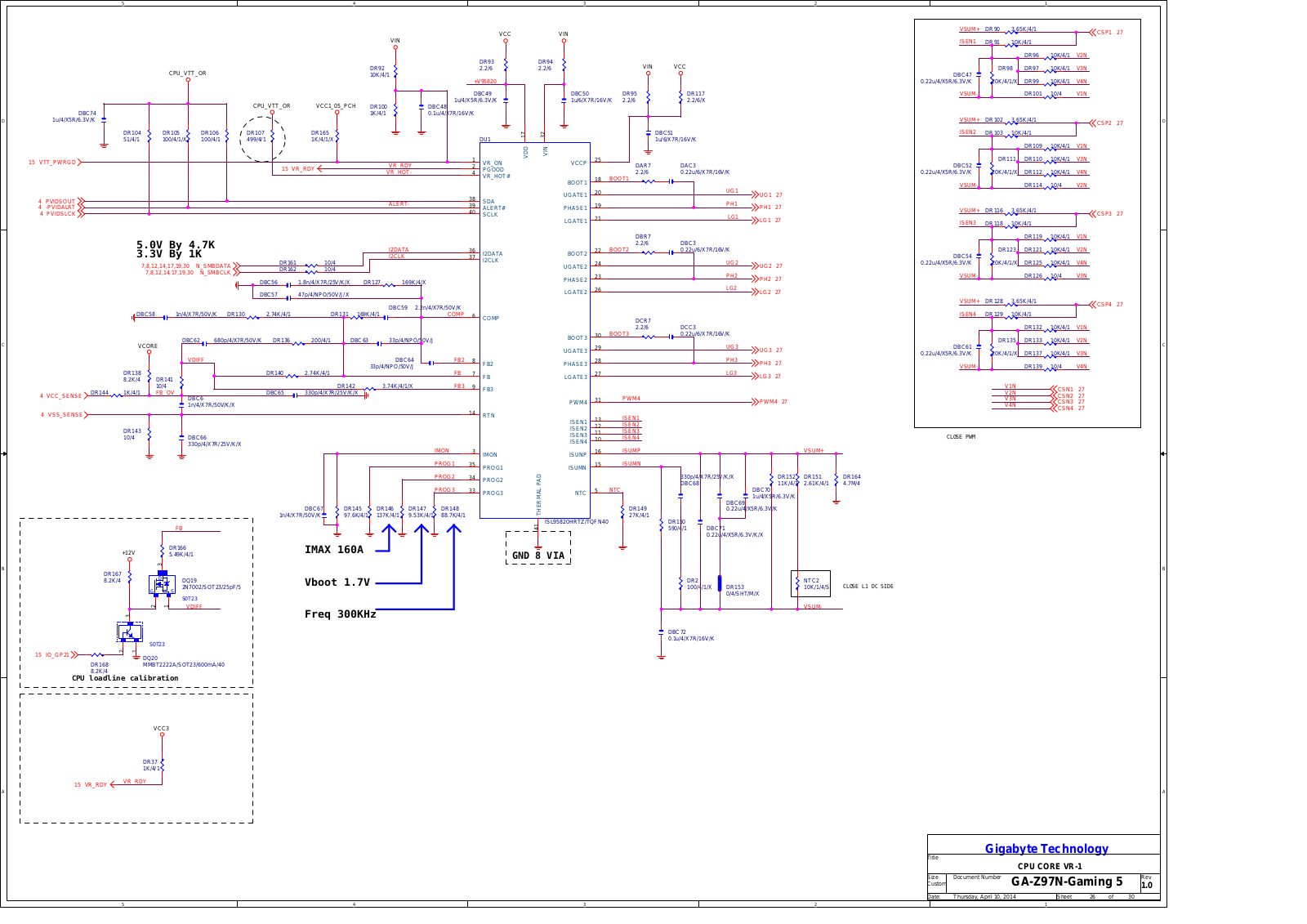

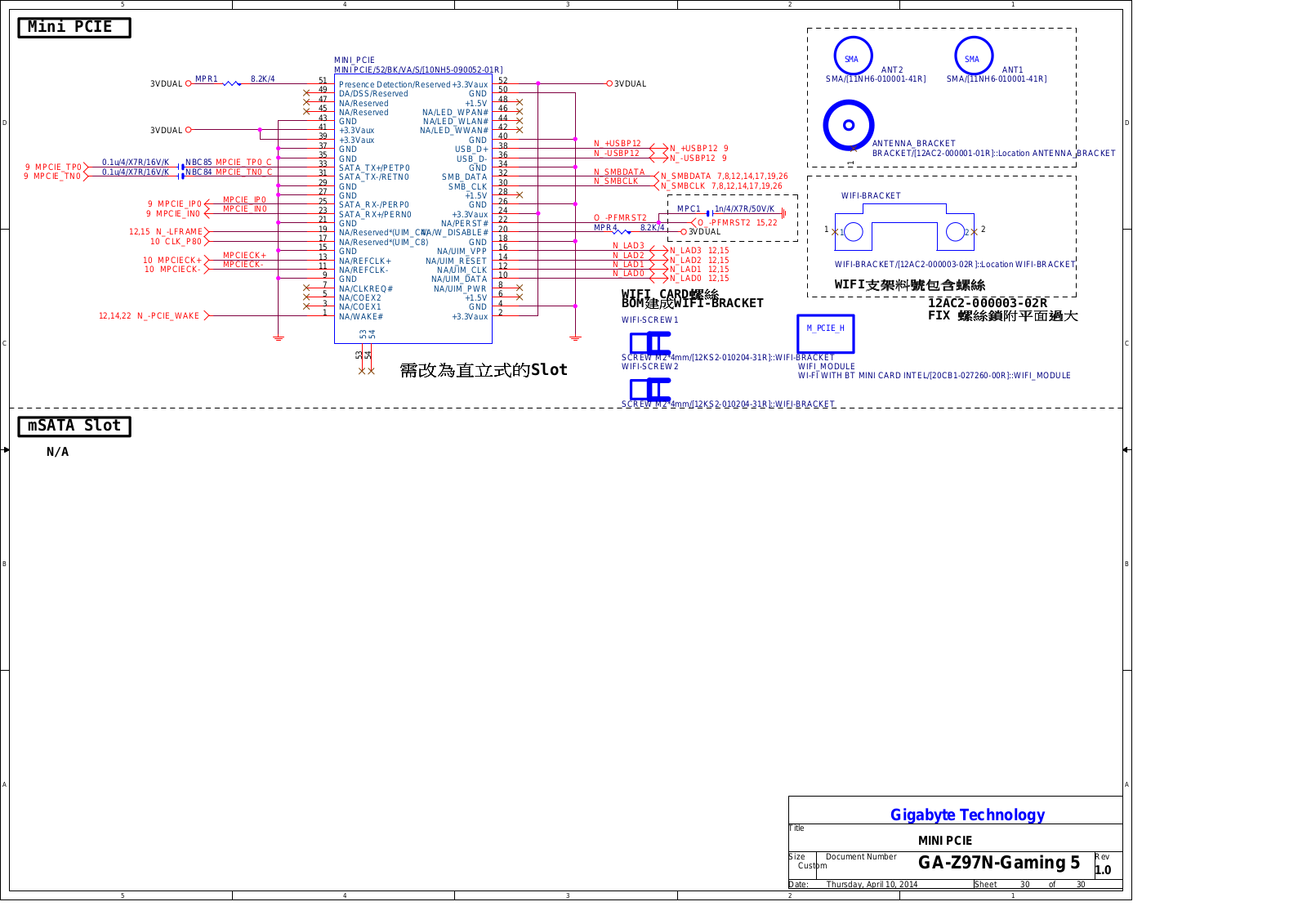

Gigabyte GA-Z97N-Gaming Schematic rev.1.0
...
