Gigabyte GA-EG41MF-US2H User Manual

GA-EG41MF-US2H

LGA775 socket motherboard for Intel® Core Intel® Pentium® processor family/Intel® Celeron® processor family

User's Manual

Rev. 1101

12ME-EG41MFU2H-1101R

processor family/

Mar. 20, 2009

GA-EG41MF-US2H

Motherboard

Mar. 20, 2009

GA-EG41MF-US2H

Motherboard

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specifications and features in this manual may be made by GIGABYTE without prior

notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any

form or by any means without GIGABYTE's prior written permission.

Documentation Classifications

In order to assist in the use of this product, GIGABYTE provides the following types of documentations:

 For detailed product information, carefully read the User's Manual.

 For instructions on how to use GIGABYTE's unique features, read or download the information

on/from the Support&Downloads\Motherboard\Technology Guide page on our website.

For product-related information, check on our website at:

http://www.gigabyte.com.tw

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

Table of Contents

Box Contents ................................................................................................................. 6

Optional Items................................................................................................................. 6

GA-EG41MF-US2H Motherboard Layout ...................................................................... 7

Block Diagram ................................................................................................................ 8

Chapter 1 Hardware Installation .................................................................................... 9

1-1 Installation Precautions ..................................................................................... 9

1-2 Product Specifications .................................................................................... 10

1-3 Installing the CPU and CPU Cooler .............................................................. 13

1-3-1 Installing the CPU ................................................................................................ 13

1-3-2 Installing the CPU Cooler ................................................................................... 15

1-4 Installing the Memory ..................................................................................... 16

1-4-1 Dual Channel Memory Configuration ................................................................ 16

1-4-2 Installing a Memory ............................................................................................. 17

1-5 Installing an Expansion Card ......................................................................... 18

1-6 Back Panel Connectors ................................................................................. 19

1-7 Internal Connectors ........................................................................................ 22

Chapter 2 BIOS Setup ................................................................................................. 33

2-1 Startup Screen ................................................................................................ 34

2-2 The Main Menu .............................................................................................. 35

2-3 MB Intelligent Tweaker(M.I.T.) ....................................................................... 37

2-4 Standard CMOS Features ............................................................................. 44

2-5 Advanced BIOS Features .............................................................................. 46

2-6 Advanced Chipset Features ........................................................................... 48

2-7 Integrated Peripherals ..................................................................................... 50

2-8 Power Management Setup............................................................................. 53

2-9 PnP/PCI Configurations................................................................................. 55

2-10 PC Health Status ........................................................................................... 56

2-11 Load Fail-Safe Defaults................................................................................... 57

2-12 Load Optimized Defaults................................................................................. 57

2-13 Set Supervisor/User Password ..................................................................... 58

2-14 Save & Exit Setup......................................................................................... 59

2-15 Exit Without Saving ....................................................................................... 59

- 4 -

Chapter 3 Drivers Installation ...................................................................................... 61

3-1 Installing Chipset Drivers ............................................................................... 61

3-2 Application Software ....................................................................................... 62

3-3 Technical Manuals .......................................................................................... 62

3-4 Contact........................................................................................................... 63

3-5 System........................................................................................................... 63

3-6 Download Center............................................................................................ 64

Chapter 4 Unique Features ......................................................................................... 65

4-1 Xpress Recovery2 ......................................................................................... 65

4-2 BIOS Update Utilities ..................................................................................... 68

4-2-1 Updating the BIOS with the Q-Flash Utility ...................................................... 68

4-2-2 Updating the BIOS with the @BIOS Utility ....................................................... 71

4-3 EasyTune 6.................................................................................................... 72

4-4 Dynamic Energy Saver Advanced ................................................................ 73

4-5 Q-Share ......................................................................................................... 75

4-6 Time Repair .................................................................................................... 76

Chapter 5 Appendix .................................................................................................... 77

5-1 Configuring Audio Input and Output ................................................................. 77

5-1-1 Configuring 2/4/5.1/7.1-Channel Audio ............................................................ 77

5-1-2 Configuring S/PDIF In/Out .................................................................................. 79

5-1-3 Configuring Microphone Recording ................................................................... 81

5-1-4 Using the Sound Recorder ................................................................................. 83

5-2 Troubleshooting ............................................................................................... 84

5-2-1 Frequently Asked Questions ............................................................................. 84

5-2-2 Troubleshooting Procedure ................................................................................ 85

5-3 Regulatory Statements ................................................................................... 87

- 5 -

Box Contents

GA-EG41MF-US2H motherboard

Motherboard driver disk

User's Manual

One IDE cable

Two SATA 3Gb/s cables

I/O Shield

• The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

• The motherboard image is for reference only.

Optional Items

Floppy Disk Drive cable (Part No. 12CF1-1FD001-7*R)

2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)

2-port IEEE 1394a bracket (Part No. 12CF1-1IE008-0*R)

2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)

S/PDIF In cable (Part No. 12CR1-1SPDIN-0*R)

COM port cable (Part No. 12CF1-1CM001-3*R)

- 6 -

GA-EG41MF-US2H Motherboard Layout

OPTICAL

KB_MS

DVI

HDMI

USB_1394

USB

AUDIO

RTL8111C/D

CODEC

ATX_12V

VGA

LAN

F_AUDIO

SPDIF_O

CD_IN

Level Shifter

PCI1

PCI2

BATTERY

CPU_FAN

PCIE_1

PCIE_16

COMA

LGA775

Intel® G41

B_BIOS

M_BIOS

TSB43AB23

PHASE LED

GA-EG41MF-US2H

DDR2_1

DDR2_2

DDR2_3

Intel® ICH7

CLR_CMOS

SATA2_1 SATA2_3

SATA2_0

DDR2_4

IDE

SYS_FAN

SATA2_2

IT8718

FDD

ATX

SPDIF_I

F1_1394

- 7 -

F_USB1 F_USB2

PWR_LED

F_PANEL

Block Diagram

PCIe CLK

(100 MHz)

1 PCI Express x16

HDMI DVI-D

x4 x4

PCI Express x16

D-Sub

1 PCI Express x1

PCIe CLK

(100 MHz)

x1 x1

PCI Express Bus

PCI Bus

TSB43AB23

(Note)

SwitchSwitch

LAN

RJ45

RTL8111C/D

LGA775

Processor

Interface

Intel® G41

Intel® ICH7

CODEC

Host

CPU CLK+/-

(333/266/200 MHz)

DDR2 800/667 MHz

Dual Channel Memory

GMCH CLK

(333/266/200 MHz)

Dual BIOS

ATA-100/66/33 IDE Channel

4 SATA 3Gb/s

8 USB Ports

LPC BUS

IT8718

Floppy

COM Port

PS/2 KB/Mouse

2 PCI

2 IEEE 1394a

MIC

Line In

Line Out

S/PDIF In

S/PDIF Out

Side Speaker Out

Surround Speaker Out

Center/Subwoofer Speaker Out

(Note) The PCI Express x16 slot share the PCI Express x16 bus with the HDMI and the DVI-D ports.

When the PCI Express x16 slot is in use, the HDMI and the DVI-D ports become unavailable.

- 8 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

• Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

• When connecting hardware components to the internal connectors on the motherboard,

make sure they are connected tightly and securely.

• When handling the motherboard, avoid touching any metal leads or connectors.

• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and first touch a metal object to eliminate static electricity.

• Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

• Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

• Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

• Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

• To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

• Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

• Do not place the computer system on an uneven surface

• Do not place the computer system in a high-temperature environment.

• Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

• If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certified computer technician.

Hardware Installation- 9 -

1-2 Product Specifications

CPU  Support for an Intel® Core

Intel® Core

2 Quad processor/Intel® Core Intel® Pentium® processor/Intel® Celeron® processor in the LGA 775 package (Go to GIGABYTE's website for the latest CPU support list.)

 L2 cache varies with CPU Front Side Bus  1333/1066/800 MHz FSB Chipset  North Bridge: Intel® G41 Chipset

 South Bridge: Intel® ICH7 Memory  4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory

 Dual channel memory architecture

 Support for DDR2 800/667 MHz memory modules

(Go to GIGABYTE's website for the latest memory support list.)

Onboard Graphics  North Bridge:

- 1 x D-Sub port

- 1 x DVI-D port

- 1 x HDMI port

Audio  Realtek ALC888 codec

 High Definition Audio

 2/4/5.1/7.1-channel

 Support for S/PDIF In/Out

 Support for CD In

LAN  RTL8111C/D chip (10/100/1000 Mbit) Expansion Slots  1 x PCI Express x16 slot, running at x16

 1 x PCI Express x1 slot

 2 x PCI slots

Storage Interface  South Bridge:

- 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices

- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

 iTE IT8718 chip:

- 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB  Integrated in the South Bridge

 Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets

connected to the internal USB headers)

IEEE 1394a  T.I. TSB43AB23 chip

 Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket

connected to the internal IEEE 1394a header)

2 Extreme processor/

(Note 3) (Note 4)

(Note 4)

(Note 2)

2 Duo processor/

(Note 4)

(Note 1)

GA-EG41MF-US2H Motherboard - 10 -

Internal Connectors  1 x 24-pin ATX main power connector

 1 x 4-pin ATX 12V power connector

 1 x floppy disk drive connector

 1 x IDE connector

 4 x SATA 3Gb/s connectors

 1 x CPU fan header

 1 x system fan header

 1 x front panel header

 1 x front panel audio header

 1 x CD In connector

 1 x S/PDIF In header

 1 x S/PDIF Out header

 2 x USB 2.0/1.1 headers

 1 x IEEE 1394a header

 1 x serial port header

 1 x power LED header

 1 x chassis intrusion header

 1 x clearing CMOS jumper

Back Panel  1 x PS/2 keyboard port Connectors  1 x PS/2 mouse port

 1 x D-Sub port

 1 x DVI-D port

 1 x HDMI port

(Note 3) (Note 4)

(Note 4)

 1 x optical S/PDIF Out connector

 4 x USB 2.0/1.1 ports

 1 x IEEE 1394a port

 1 x RJ-45 port

 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side

Speaker Out/Line In/Line Out/Microphone) I/O Controller  iTE IT8718 chip Hardware Monitor  System voltage detection

 CPU/System temperature detection  CPU/System fan speed detection  CPU overheating warning  CPU/System fan fail warning  CPU/System fan speed control

(Note 5)

Hardware Installation- 11 -

BIOS  2 x 8 Mbit flash

 Use of licensed AWARD BIOS  Support for DualBIOS

 PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features  Support for @BIOS

 Support for Q-Flash  Support for Virtual Dual BIOS  Support for Download Center  Support for Xpress Install  Support for Xpress Recovery2  Support for EasyTune

(Note 6)

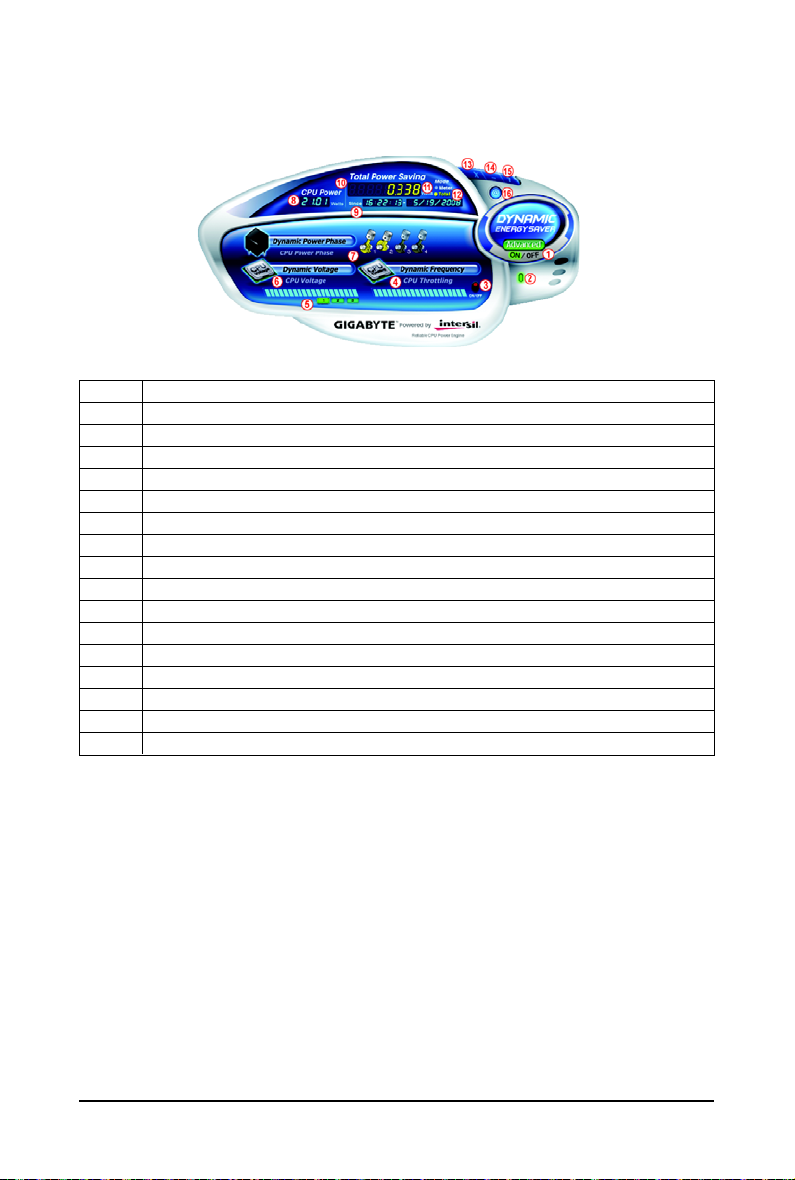

 Support for Dynamic Energy Saver Advanced  Support for Time Repair  Support for Q-Share

Bundled Software  Norton Internet Security (OEM version) Operating System  Support for Microsoft® Windows® 7/Vista/XP Form Factor  Micro ATX Form Factor; 24.4cm x 24.4cm

(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory

is installed, the actual memory size displayed will be less than 4 GB.

(Note 2) Because of chipset limitations, to avoid the system being unable to start or the memory being

incorrectly detected, if only one memory module is to be installed, we suggest that you install it on the DDR2_1 or DDR2_3 socket; to install two memory modules, we suggest that you install them on the DDR2_1 and DDR2_3 sockets. (Go to GIGABYTE's website for the latest

memory support list.) (Note 3) The DVI-D port does not support D-Sub connection by adapter. (Note 4) The PCI Express x16 slot share the PCI Express x16 bus with the HDMI and the DVI-D ports.

When the PCI Express x16 slot is in use, the HDMI and the DVI-D ports become unavailable. (Note 5) Whether the CPU/System fan speed control function is supported will depend on the CPU/

System cooler you install. (Note 6) Available functions in EasyTune may differ by motherboard model.

GA-EG41MF-US2H Motherboard - 12 -

1-3 Installing the CPU and CPU Cooler

Read the following guidelines before you begin to install the CPU:

• Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.)

• Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.

• Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

• Apply an even and thin layer of thermal grease on the surface of the CPU.

• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and

damage of the CPU may occur.

• Set the CPU host frequency in accordance with the CPU specifications. It is not recommended that the system bus frequency be set beyond hardware specifications since it does not meet the standard requirements for the peripherals. If you wish to set the frequency beyond the standard specifications, please do so according to your hardware specifications including the CPU, graphics card, memory, hard drive, etc.

1-3-1 Installing the CPU

A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

LGA775 CPU Socket

Alignment Key

Pin One Corner of the CPU Socket

LGA 775 CPU

NotchNotch

Triangle Pin One Marking on the CPU

Hardware Installation- 13 -

B. Follow the steps below to correctly install the CPU into the motherboard CPU socket.

Before installing the CPU, make sure to turn off the computer and unplug the power

cord from the power outlet to prevent damage to the CPU.

CPU Socket Lever

Step 1: Completely raise the CPU socket lever.

Step 3: Remove the protective socket cover from the load plate. (To protect the CPU socket, always replace the protective socket cover when the CPU is not installed.)

Step 5: Once the CPU is properly inserted, replace the load plate and push the CPU socket lever back into its locked position.

Step 2: Lift the metal load plate from the CPU socket. (DO NOT touch socket contacts.)

Step 4: Hold the CPU with your thumb and index fingers. Align the CPU pin one marking (triangle) with the pin one corner of the CPU socket (or you may align the CPU notches with the socket alignment keys) and gently insert the CPU into position.

GA-EG41MF-US2H Motherboard - 14 -

1-3-2 Installing the CPU Cooler

Follow the steps below to correctly install the CPU cooler on the motherboard. (The following procedure uses Intel® boxed cooler as the example cooler.)

Male

Direction of the Arrow Sign on the Male Push Pin

Push Pin

The Top of Female Push Pin

Female Push Pin

Step 1: Apply an even and thin layer of thermal grease on the surface of the installed CPU.

Step 3: Place the cooler atop the CPU, aligning the four push pins through the pin holes on the motherboard. Push down on the push pins diagonally.

Step 2: Before installing the cooler, note the direction of the arrow sign on the male push pin. (Turning the push pin along the direction of arrow is to remove the cooler, on the contrary, is to install.)

Step 4: You should hear a "click" when pushing down each push pin. Check that the Male and Female push pins are joined closely. (Refer to your CPU cooler installation manual for instructions on installing the cooler.)

Step 5: After the installation, check the back of the motherboard. If the push pin is inserted as the picture above, the installation is complete.

Step 6: Finally, attach the power connector of the CPU cooler to the CPU fan header (CPU_FAN) on the motherboard.

Use extreme care when removing the CPU cooler because the thermal grease/tape between the CPU cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler may damage the CPU.

Hardware Installation- 15 -

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

• Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest memory support list.)

• Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

• Memory modules have a foolproof design. A memory module can be installed in only one direction. If you are unable to insert the memory, switch the direction.

1-4-1 Dual Channel Memory Configuration

This motherboard provides four DDR2 memory sockets and supports Dual Channel Technology. After the memory is installed, the BIOS will automatically detect the specifications and capacity of the memory. Enabling Dual Channel memory mode will double the original memory bandwidth.

The four DDR2 memory sockets are divided into two channels and each channel has two memory sockets as following:

Channel 0: DDR2_1, DDR2_2 Channel 1: DDR2_3, DDR2_4

Dual Channel Memory Configurations Table

Two Modules

Four Modules

(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)

DDR2_1 DDR2_2 DDR2_3 DDR2_4

DS/SS - - DS/SS - -

- - DS/SS - - DS/SS

SS SS SS SS

DDR2_1

DDR2_2

DDR2_3

DDR2_4

Due to chipset limitation, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one DDR2 memory module is installed.

2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory of the same capacity, brand, speed, and chips be used and installed in the same colored DDR2 sockets for optimum performance.

3. Because of chipset limitations, to avoid the system being unable to start or the memory being incorrectly detected, if only one memory module is to be installed, we suggest that you install it on the DDR2_1 or DDR2_3 socket; to install two memory modules, we suggest that you install them on the DDR2_1 and DDR2_3 sockets. (Go to GIGABYTE's website for the latest memory support list.)

When memory modules of different capacity and chips are installed, a message which says memory is operating in Flex Memory Mode will appear during the POST. Intel® Flex Memory Technology offers greater flexibility to upgrade by allowing different memory sizes to be populated and remain in Dual Channel mode/performance.

GA-EG41MF-US2H Motherboard - 16 -

1-4-2 Installing a Memory

Before installing a memory module , make sure to turn off the computer and unplug

the power cord from the power outlet to prevent damage to the memory module.

DDR2 DIMMs are not compatible to DDR DIMMs. Be sure to install DDR2 DIMMs on

this motherboard.

Notch

DDR2 DIMM

A DDR2 memory module has a notch, so it can only fit in one direction. Follow the steps below to correctly install your memory modules in the memory sockets.

Step 1: Note the orientation of the memory module. Spread the retaining clips at both ends of the memory socket. Place the memory module on the socket. As indicated in the picture on the left, place your fingers on the top edge of the memory, push down on the memory and insert it vertically into the memory socket.

Step 2: The clips at both ends of the socket will snap into place when the memory module is securely inserted.

Hardware Installation- 17 -

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

• Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card.

• Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage.

PCI Express x1 slot

PCI Express x16 slot

PCI slot

Follow the steps below to correctly install your expansion card in the expansion slot.

1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.

2. Align the card with the slot, and press down on the card until it is fully seated in the slot.

3. Make sure the metal contacts on the card are completely inserted into the slot.

4. Secure the card's metal bracket to the chassis back panel with a screw.

5. After installing all expansion cards, replace the chassis cover(s).

6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for your expansion card(s).

7. Install the driver provided with the expansion card in your operating system.

Example: Installing and Removing a PCI Express Graphics Card:

• Installing a Graphics Card: Gently push down on the top edge of the card until it is fully inserted into the PCI Express x16 slot. Make sure the card is securely seated in the slot and does not rock.

• Removing the Card: Gently push back on the lever on the slot and then lift the card straight out from the slot.

GA-EG41MF-US2H Motherboard - 18 -

1-6 Back Panel Connectors

(Note 1) (Note 2)

(Note 2)

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection to this port.

DVI-D Port

The DVI-D port supports DVI-D specifictation. Connect a monitor that supports DVI-D connection to this port.

HDMI Port

The HDMI (High-Definition Multimedia Interface) provides an all-digital audio/video interface to transmit the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI audio/ video device to this port. The HDMI Technology can support a maximum resolution of 1920x1080 but the actual resolutions supported depend on the monitor being used.

Please note the HDMI audio output only supports AC3, DTS and 2-channel-LPCM formats. (AC3 and DTS require the use of an external decoder for decoding.)

In Windows Vista, select Start>Control Panel>Sound, select Digital Output Device (HDMI) and then click Set Default.

(Note 1) The DVI-D port does not support D-Sub connection by adapter. (Note 2) The PCI Express x16 slot share the PCI Express x16 bus with the HDMI and the DVI-D ports.

When the PCI Express x16 slot is in use, the HDMI and the DVI-D ports become unavailable.

• When removing the cable connected to a back panel connector, first remove the cable from your device and then remove it from the motherboard.

• When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent an electrical short inside the cable connector.

Hardware Installation- 19 -

A. Dual Display Configurations:

This motherboard provides three display ports, DVI-D, HDMI, and D-Sub ports and supports dualdisplay configurations. Note that the DVI-D+HDMI configuration only works in operating system environments. In addition, under this configuration, the BIOS Setup and POST screens can only be output from the HDMI port.

B. Playback of HD DVD and Blu-ray Discs:

In order to get better playback quality, when playing the HD DVD or Blu-ray discs, refer to the recommended system requirements (or better) below.

• CPU: Intel Dual-Core processor

• Memory: Two 1 GB DDR2 800 memory modules with dual channel mode enabled

• Playback software: CyberLink PowerDVD 8.0 or later (Note: Please ensure Hardware Acceleration

is enabled.)

• HDCP compliant monitor(s)

Optical S/PDIF Out Connector

This connector provides digital audio out to an external audio system that supports digital optical audio. Before using this feature, ensure that your audio system provides an optical digital audio in connector.

IEEE 1394a Port

The IEEE 1394 port supports the IEEE 1394a specification, featuring high speed, high bandwidth and hotplug capabilities. Use this port for an IEEE 1394a device.

USB Port

The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive and etc.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following describes the states of the LAN port LEDs.

Connection/ Speed LED

LAN Port

Activity LED

Connection/Speed LED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

Activity LED:

State Description

Blinking Data transmission or receiving is occurring

Off No data transmission or receiving is occurring

GA-EG41MF-US2H Motherboard - 20 -

Center/Subwoofer Speaker Out Jack (Orange)

Use this audio jack to connect center/subwoofer speakers in a 5.1/7.1-channel audio configuration.

Rear Speaker Out Jack (Black)

Use this audio jack to connect rear speakers in a 4/5.1/7.1-channel audio configuration.

Side Speaker Out Jack (Gray)

Use this audio jack to connect side speakers in a 7.1-channel audio configuration.

Line In Jack (Blue)

The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out Jack (Green)

The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used to connect front speakers in a 4/5.1/7.1-channel audio configuration.

Mic In Jack (Pink)

The default Mic in jack. Microphones must be connected to this jack.

In addition to the default speakers settings, the ~ audio jacks can be reconfigured to perform different functions via the audio software. Only microphones still MUST be connected to the default Mic in jack ( ). Refer to the instructions on setting up a 2/4/5.1/

7.1-channel audio configuration in Chapter 5, "Configuring 2/4/5.1/7.1-Channel Audio."

Hardware Installation- 21 -

1-7 Internal Connectors

1) ATX_12V

2) ATX

3) CPU_FAN

4) SYS_FAN

5) FDD

6) IDE

7) SATA2_0/1/2/3

8) PWR_LED

9) BATTERY

10) F_PANEL

151613 8

1817 10

11) F_AUDIO

12) CD_IN

13) SPDIF_I

14) SPDIF_O

15) F_USB1/F_USB2

16) F1_1394

17) COMA

18) C I

19) CLR_CMOS

20) PHASE LED

Read the following guidelines before connecting external devices:

• First make sure your devices are compliant with the connectors you wish to connect.

• Before installing the devices, be sure to turn off the devices and your computer. Unplug the

power cord from the power outlet to prevent damage to the devices.

• After installing the device and before turning on the computer, make sure the device cable has been securely attached to the connector on the motherboard.

GA-EG41MF-US2H Motherboard - 22 -

1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector)

With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation. The 12V power connector mainly supplies power to the CPU. If the 12V power connector is not connected, the computer will not start.

• To meet expansion requirements, it is recommended that a power supply that can withstand high power consumption be used (500W or greater). If a power supply is used that does not provide the required power, the result can lead to an unstable or unbootable system.

• The main power connector is compatible with power supplies with 2x10 power connectors. When using a 2x12 power supply, remove the protective cover from the main power connector on the motherboard. Do not insert the power supply cable into pins under the protective cover when using a 2x10 power supply.

ATX_12V:

ATX_12V

Pin No. Definition

1 GND

2 GND

3 +12V

4 +12V

ATX

2412

131

ATX:

Pin No. Definition

1 3.3V

2 3.3V

3 GND

4 +5V

5 GND

6 +5V

7 GND

8 Power Good

9 5VSB (stand by +5V)

10 +12V

11 +12V (Only for 2x12-pin ATX)

12 3.3V (Only for 2x12-pin ATX)

Pin No. Definition

13 3.3V

14 -12V

15 GND

16 PS_ON (soft On/Off)

17 GND

18 GND

19 GND

20 -5V

21 +5V

22 +5V

23 +5V (Only for 2x12-pin ATX)

24 GND (Only for 2x12-pin ATX)

Hardware Installation- 23 -

3/4) CPU_FAN/SYS_FAN (Fan Headers)

The motherboard has a 4-pin CPU fan header and a 4-pin system fan header (CPU_FAN/ SYS_FAN). Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The motherboard supports CPU fan speed control, which requires the use of a CPU fan with fan speed control design. For optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.

CPU_FAN

SYS_FAN

CPU_FAN:

Pin No. Definition

1 GND

2 +12V/Speed Control

3 Sense

4 Speed Control

SYS_FAN:

Pin No. Definition

1 GND

2 Speed Control

3 Sense

4 Reserve

• Be sure to connect fan cables to the fan headers to prevent your CPU and system from overheating. Overheating may result in damage to the CPU or the system may hang.

• These fan headers are not configuration jumper blocks. Do not place a jumper cap on the headers.

5) FDD (Floppy Disk Drive Connector)

This connector is used to connect a floppy disk drive. The types of floppy disk drives supported are: 360 KB, 720 KB, 1.2 MB, 1.44 MB, and 2.88 MB. Before connecting a floppy disk drive, be sure to locate pin 1 of the connector and the floppy disk drive cable. The pin 1 of the cable is typically designated by a stripe of different color. For purchasing the optional floppy disk drive cable, please contact the local dealer.

GA-EG41MF-US2H Motherboard - 24 -

6) IDE (IDE Connector)

The IDE connector supports up to two IDE devices such as hard drives and optical drives. Before attaching the IDE cable, locate the foolproof groove on the connector. If you wish to connect two IDE devices, remember to set the jumpers and the cabling according to the role of the IDE devices (for example, master or slave). (For information about configuring master/slave settings for the IDE devices, read the instructions from the device manufacturers.)

7) SATA2_0/1/2/3 (SATA 3Gb/s Connectors)

The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device.

Pin No. Definition

1 GND

2TXP

3 TXN

4 GND

5 RXN

6 RXP

7 GND

SATA2_1

SATA2_0

SATA2_3

SATA2_2

Please connect the L-shaped end of the SATA 3Gb/s cable to your SATA hard drive.

Hardware Installation- 25 -

8) PWR_LED (System Power LED Header)

This header can be used to connect a system power LED on the chassis to indicate system power status. The LED is on when the system is operating. The LED keeps blinking when the system is in S1 sleep state. The LED is off when the system is in S3/S4 sleep state or powered off (S5).

Pin No. Definition

1 MPD+

2 MPD-

3 MPD-

System Status LED

S0 On

S1 Blinking

S3/S4/S5 Off

9) BATTERY

The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost.

You may clear the CMOS values by removing the battery:

1. Turn off your computer and unplug the power cord.

2. Gently remove the battery from the battery holder and wait for one minute.

(Or use a metal object like a screwdriver to touch the positive and

negative terminals of the battery holder, making them short for 5 seconds.)

3. Replace the battery.

4. Plug in the power cord and restart your computer.

• Always turn off your computer and unplug the power cord before replacing the battery.

• Replace the battery with an equivalent one. Danger of explosion if the battery is replaced

with an incorrect model.

• Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or uncertain about the battery model.

• When installing the battery, note the orientation of the positive side (+) and the negative side (-) of the battery (the positive side should face up).

• Used batteries must be handled in accordance with local environmental regulations.

GA-EG41MF-US2H Motherboard - 26 -

10) F_PANEL (Front Panel Header)

Connect the power switch, reset switch, speaker and system status indicator on the chassis front panel to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

Speaker

• MSG (Message/Power/Sleep LED, Yellow):

System Status LED

S0 On

S1 Blinking

S3/S4/S5 Off

Connects to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1 sleep state. The LED is off when the system is in S3/S4 sleep state or powered off (S5).

• PW (Power Switch, Red): Connects to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch (refer to Chapter 2, "BIOS Setup," "Power Management Setup," for more information).

• SPEAK (Speaker, Orange): Connects to the speaker on the chassis front panel. The system reports system startup status by issuing a beep code. One single short beep will be heard if no problem is detected at system startup. If a problem is detected, the BIOS may issue beeps in different patterns to indicate the problem. Refer to Chapter 5, "Troubleshooting," for information about beep codes.

• HD (Hard Drive Activity LED, Blue) Connects to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

• RES (Reset Switch, Green): Connects to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

• NC (Purple): No connection

SPEAK-

SPEAK+

Reset Switch

Power Switch

RES-

RES+

PW-

PW+

Hard Drive

Activity LED

HD+

HD-

MSG-

MSG+

Message/Power/

Sleep LED

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Hardware Installation- 27 -

11) F_AUDIO (Front Panel Audio Header)

The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header. Incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it.

For HD Front Panel Audio:

Pin No. Definition

1 MIC2_L

2 GND

3 MIC2_R

4 -ACZ_DET

5 LINE2_R

6 GND

7 FAUDIO_JD

8 No Pin

9 LINE2_L

10 GND

• The front panel audio header supports HD audio by default. If your chassis provides an AC'97 front panel audio module, refer to the instructions on how to activate AC'97 functionality via the audio software in Chapter 5, "Configuring 2/4/5.1/7.1-Channel Audio."

• Audio signals will be present on both of the front and back panel audio connections simultaneously. If you want to mute the back panel audio (only supported when using an HD front panel audio module), refer to Chapter 5, "Configuring 2/4/5.1/7.1-Channel Audio."

• Some chassis provide a front panel audio module that has separated connectors on each wire instead of a single plug. For information about connecting the front panel audio module that has different wire assignments, please contact the chassis manufacturer.

For AC'97 Front Panel Audio:

Pin No. Definition

1 MIC

2 GND

3 MIC Power

4NC

5 Line Out (R)

6NC

7NC

8 No Pin

9 Line Out (L)

10 NC

12) CD_IN (CD In Connector)

You may connect the audio cable that came with your optical drive to the header.

Pin No. Definition

GA-EG41MF-US2H Motherboard - 28 -

1 CD-L

2 GND

3 GND

4 CD-R

13) SPDIF_I (S/PDIF In Header)

This header supports digital S/PDIF In and can connect to an audio device that supports digital audio out via an optional S/PDIF In cable. For purchasing the optional S/PDIF In cable, please contact the local dealer.

Pin No. Definition

1 Power

2 SPDIFI

3 GND

14) SPDIF_O (S/PDIF Out Header)

This header supports digital S/PDIF Out and connects a S/PDIF digital audio cable (provided by expansion cards) for digital audio output from your motherboard to certain expansion cards like graphics cards and sound cards. For example, some graphics cards may require you to use a S/PDIF digital audio cable for digital audio output from your motherboard to your graphics card if you wish to connect an HDMI display to the graphics card and have digital audio output from the HDMI display at the same time. For information about connecting the S/PDIF digital audio cable, carefully read the manual for your expansion card.

Pin No. Definition

1 SPDIFO

2 GND

Hardware Installation- 29 -

+ 67 hidden pages

Gigabyte GA-EG41MF-US2H User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
