Gigabyte GA-8VTGA-800 Schematic REV.1.0

5

4

3

2

1

Model Name: GA-8VT800

Revision :1.0

D D

C C

SHEET

1

2

3

4,5,6

7,8,9,10

11

12,13,14

15,16

17

18,19

20

21

TITLE

BOM & PCB MODIFY HISTORY

COVER SHEET

BLOCK DIAGRAM

INTEL P4_478 CPU

PT800 (NORTH BRIDGE)

CLOCK GENERATOR (ICS950909, ICS93718)

VT8235 (SOUTH BIRDGE)

DDR SDRAM DIMMS 1,2,3,DDR TERMINATION

AGP SLOT

PCI SLOT 1,2,3,4,5

IDE,USB

BIOS

22

B B

23

24

25

26

27

28

29

A A

30

31

5

LPCIO_IT8705

COM,PRT,FDD,KB/MS,IR

AC 97 CODEC

AUDIO JACK,GAME PORT

PANEL,STR LED,FANS

RTL8101L & USB CONNECTOR

DDR POWER

ATX CONN,3VDUAL,VDDQ DC POWER

VCORE PHASE PWM FAIRCHILD FAN5091M

GPIO CONFIGUATION

4

COMPONENT SIDE
(1 oz. Copper)
GND SIDE
(1 oz. Copper)
VCC SIDE
(1 oz. Copper)
SOLDER SIDE
(1 oz. Copper)

Title

Size Document Number Rev
Custom

3

2

Date: Sheet of

GIGABYTE

COVER SHEET

GA-8VT800

1

1 31Friday, September 19, 2003

1.0

5

4

3

2

1

Model Name: GA-8VT800

Circuit or PCB layout change
for next version

D D

Version:1.0

Component value change
history

2003/09/17

Date Change Item Reason

Date Change Item Reason

2003/05/02 0.1 New BOM Release

2003/05/23 0.2

2003/07/24 0.3

C C

2003/07/24 1.0A Vcore CHOKE 由6017材 --> 6048 .

2003/09/17 1.0B Change R1270 由1.07K ---> 931.

南橋由

VT8237CD --> VT8235CE.

BC133 --> BC140 由 0402 Size Change to 0603 Size.

增加

DIMM

的電容

.

材

增加

NC7SZ125/SOT23.

DEL CN2,3,4,5

刪除

EC62 1000U/6.3V 電容.

Change R128 由8.2K ---> 1K.

的排容

.

2003/09/19 1.0C

B B

A A

刪除

EC44,67 1000U/6.3V 電容.

刪除

DIMMLED

5

Title

Size Document Number Rev
Custom

4

3

2

Date: Sheet of

GIGABYTE

BOM & PCB MODIFY HISTORY

GA-8VT800

1

2 31Friday, September 19, 2003

1.0

5

GA-8VT800 BLOCK DIAGRAM

4

3

2

1

INTEL 478 SOCKET

D D

C C

AC97 CODEC ALC650/F

+12V = 12V
VCC3 = 3.3V
VCC = 5V

B B

AVDD = 5V

AUDIO PORTS :

CLOCK/G & CLOCK/B

VCC25 = 2.5V(I/O,MEMORY/I,VLINK/I)
VCC3 = 3.3V

AGP SLOT 4X/8X

VDDQ = 1.5V (AGP POWER 4X)
VCC3 = 3.3V
+12V = 12V
3VDUAL = 3.3V

VCC = 5V

USB PORTS 0~5(7)

VCC = 5V
5VSB = 5V
5VUSB = 5V

LIN_ OUT
TELE

CD_IN

LINE_IN

AUX_IN

PAGE 11

PAGE 17

PAGE 20

PAGE 24

FRONT AUDIO

MIC

GAME PORT

PAGE 25

GAD0~31
AD_STB0,-AD_STB0
AD_STB1,-AD_STB1
SBA0~7
SB_STB,-SB_STB

-GBE0~3
ST0~2

AGP BUS

VCORE = 1.75V (650-1100MHZ) / SLEEP : 1.3V
VCCA = 2.5V ; 2_5V = 2.5V

PAGE 4,5,6

VIA PT800 NORTH BRIDGE

VCORE = 1.75V (650-1100MHZ) / SLEEP : 1.3V
DDR25V = 2.5V(SUSPEND POWER)
VDDQ = 1.5V (AGP POWER 4X)
VCC25 = 2.5V(I/O,MEMORY/I,VLINK/I)

VLAD0~7
CONTROL BUS

PAGE 6,7,8,9,10

V LINK

VIA VT8237/CD SOUTH BRIDGE

VCC25 = 2.5V(I/O,MEMORY/I,VLINK/I)
3VDUAL = 3.3V(SUSPEND POWER)
VCC3 = 3.3V
RTCVDD = 3.3V

PAGE 12,13,14

PCI BUS

PCI SLOT 1,2,3,4,5

+12 = 12V

-12 = -12V
VCC = 5V
VCC3 = 3V
3VDUAL = 3V

PAGE 18,19

VID0~4

MAA0~15
MDD0~63

-DQSD0~7

PCI LAN

PWM/OTHER POWER

VCORE = 1.75V (650-1100MHZ) / SLEEP : 1.3V
5VSB,-12V,+12V,VCC,VCC3,3VDUAL
DDRVTT,DDR25V,3VSTR,VCC25

PAGE 28,29,30

DDR SDRAM DIMM X 3

DDR25V = 2.5V(SUSPEND POWER)
DDRVTT = 1.25V

PAGE 15,16

DQM0~7

RTL8101L & USB CONN

PAGE 27

IDE Primary and Secondary

VCC = 5V

PAGE 20

BIOS

VCC = 5V
VCC3 = 3V

PAGE 21

LPC BUS

LPC I/O IT8705

VCC = 5V
5VSB = 5V
VBAT = 3V

A A

5

4

FRONT PANEL /FANS

VCC = 5V
5VSB = 5V
+12 = 12V
PVCC = 5V

3

PAGE 26

I/O PORTS :

COMB

COMA IR

LPT

PS2

2

FDD

PAGE 22

PAGE 23

Title

Size Document Number Rev
Custom

Date: Sheet of

GIGABYTE

BLOCK DIAGRAM

GA-8VT800

1

3 31Friday, September 19, 2003

1.0

5

4

3

2

1

COUPON2
COUPON1

D D

C C

B B

COUPON1 COUPON
COUPON2 COUPON

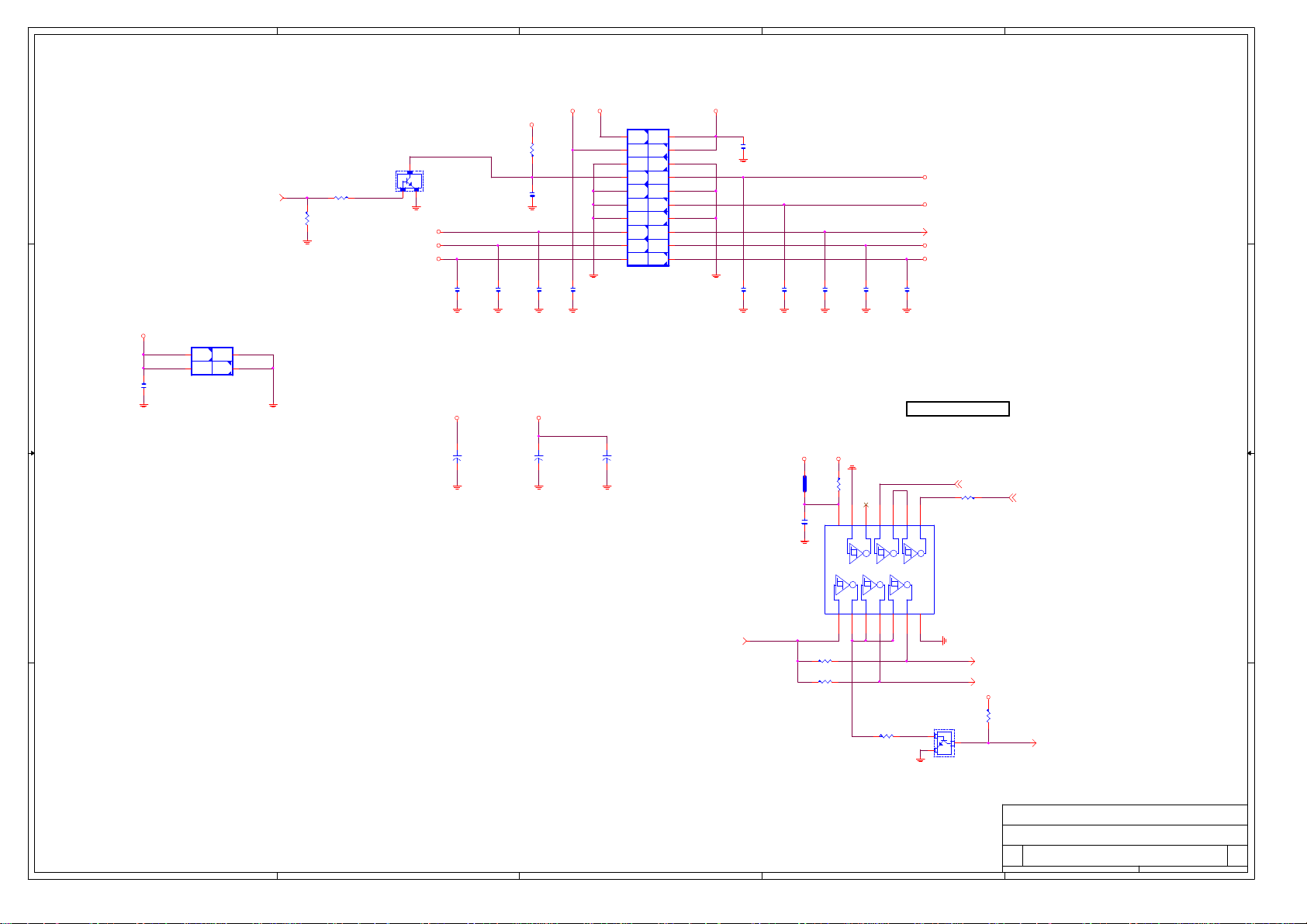

HA[3..16]7

HA[17..35]7

21
21

HA[3..16]

HADSTB0-7

HA[17..35]

HADSTB1-7

HREQ4-7
HREQ3-7
HREQ2-7
HREQ1-7
HREQ0-7

HA16
HA15
HA14
HA13
HA12
HA11
HA10
HA9
HA8
HA7
HA6
HA5
HA4

HA3
HADSTB0­HREQ4­HREQ3­HREQ2­HREQ1­HREQ0-

HA35

HA34

HA33

HA32

HA31

HA30

HA29

HA28

HA27

HA26

HA25

HA24

HA23

HA22

HA21

HA20

HA19

HA18

HA17
HADSTB1-

DDR25V

VCORE

AD11

AD9

AD7

AD19

AE18

AE16

AE14

AE12

AE10

AE8

AE6

AE20

AB15

AB13

AB11

AB9

AB7

AB19

AC18

AC16

AC14

AC12

AC10

AC8

AD17

AD15

AD13

E14

E12

VCORE23

VCORE24

VCORE25

GND36

GND37

GND38

AB18

AB16

VCORE26

VCORE27

GND39

GND40

AB14

AB12

VCORE28

VCORE29

GND41

GND42

AB10

AB8

E10E8E20

VCORE30

VCORE31

GND43

GND44

AB6

AB3

VCORE32

GND45

GND46

AB24

AB21V4V1

GND47

GND48

GND49

GND50

V23W6W3

GND51

GND52

W24

GND53

W21Y5Y2

GND54

GND55

GND56

Y25

TESTHI8
TESTHI9

TESTHI10

DEFER

MCERR

RESET#

GND57

GND58

Y22

AA17

ADS

BINIT

BNR
DP3

DP2
DP1
DP0

BPRI

DBSY

DRDY

HITM
IERR

LOCK

RSP

TRDY

GND59

AA15

AP0
AP1

BR0

INIT

RS2
RS1
RS0

AA13

HIT

GND60

G1
AC1
V5
AA3
G2

L25
K26
K25
J26

U6
W4
Y3
H6

D2
H5

E2
H2
F3
E3

AC3
W5
G4
V6
AB25

F4
G5
F1
AB2
J6

SK478/GD

HADS-

BNR-

TESTHI8
TESTHI9
TESTHI10

BR0­BPRI­DBSY-

DEFER­DRDY­HIT­HITM-

HINIT­HLOCK-

CPURST-

RS2­RS1­RS0-

HTRDY-

HADS- 7
AP0 7
AP1 7

BNR- 7
DP3 7

DP2 7
DP1 7
DP0 7

BR0- 7
BPRI- 7
DBSY- 7

DEFER- 7
DRDY- 7
HIT- 7
HITM- 7

HINIT- 5,14
HLOCK- 7

RS2- 7
RS1- 7
RS0- 7

-RSP 7
HTRDY- 7

R1127 39/6/X

R1128 47/6

C310

0.01U/6/X/50V/X

VCORE

VCORE

CPURST- 7

P1A

N5

A16

N4

A15

N2

A14

M1

A13

N1

A12

M4

A11

M3

A10

L2

A9

M6

A8

L3

A7

K1

A6

L6

A5

K4

A4

K2

A3

L5

ADSTB0

H3

REQ4

J3

REQ3

J4

REQ2

K5

REQ1

J1

REQ0

AB1

A35

Y1

A34

W2

A33

V3

A32

U4

A31

T5

A30

W1

A29

R6

A28

V2

A27

T4

A26

U3

A25

P6

A24

U1

A23

T2

A22

R3

A21

P4

A20

P3

A19

R2

A18

T1

A17

R5

ADSTB1

GND1

GND2

GND3

GND4

GND5

GND6

GND7

AE7

AE24

AE22

AE19

AD14

AD12

AD10

VCORE1

VCORE2

VCORE3

VCORE4

VCORE5

VCORE6

VCORE7

VCORE8

VCORE9

VCORE10

VCORE11

VCORE12

VCORE13

VCORE14

VCORE15

VCORE16

VCORE17

VCORE18

VCORE19

VCORE20

VCORE21

VCORE22

GND8

GND9

GND10

GND11

GND12

GND13

GND14

GND15

GND16

GND17

GND18

GND19

GND20

GND21

GND22

GND23

GND24

GND25

GND26

GND27

GND28

GND29

GND30

GND31

GND32

GND33

GND34

AD8

AD4

AD1

AD23

AD21

AE17

AE15

AE13

AE11

AE9

AE26

AB20

AC17

AC15

AC13

AC11

AC9

AC7

AC5

AC2

AC25

AC22

AC19

AD18

AD16

GND35

AA4

AA1

AA23

AA19

VCORE

BC497
10U/12/X5/6.3V

VCORE

A A

BC503
100U/S/6.3V/UD

BC498

10U/12/X5/6.3V/X

BC504
100U/S/6.3V/UD

5

BC499
100U/S/6.3V/UD

BC505
10U/12/X5/6.3V/X

BC500
100U/S/6.3V/UD

BC506
10U/12/X5/6.3V

BC501
10U/12/X5/6.3V

BC507
10U/12/X5/6.3V

BC502
10U/12/X5/6.3V/X

BC508
10U/12/X5/6.3V

4

BC509
10U/12/X5R/6.3V/X

BOOTSEL

OPT2

BOOTSEL 30

VCORE

VCORE

3

RN230

62/8P4R

R1130 220/6
R1131 47/6
R1337 62/6/X

12

TESTHI8

34

TESTHI9

56

TESTHI10

78

BR0-

CPURST-

OPT2

Title

Size Document Number Rev
Custom

2

Date: Sheet of

GIGABYTE

P4 478A

GA-8VT800

1

4 31Friday, September 19, 2003

1.0

5

4

3

2

1

VCORE

VCORE36

VCORE37

VCORE38

GND76

GND77

GND78

AA18

AA16

VCORE39

VCORE40

GND79

GND80

T24

T21U5U2

AA14

AA12

VCORE41

VCORE42

GND81

GND82

COMP0

COMP1

AA10

AA8

VCORE43

VCORE44

GND83

GND84

U25

U22

AB17

V26

R1133 61.9/6/1

R1135 61.9/6/1

VCORE

B13

B11B9B7

B19

VCORE45

VCORE46

VCORE47

VCORE48

VCORE49

GND85

GND86

GND87

GND88

GND89

G21

H26H4H1

H23J5J2

C18

C16

VCORE50

VCORE51

VCORE52

GND90

GND91

GND92

C14

C12

VCORE53

VCORE54

GND93

GND94

J25

J22K6K3

C10C8C20

VCORE55

VCORE56

GND95

GND96

D17

VCORE57

VCORE58

GND97

GND98

K24

K21

D15

D13

VCORE59

VCORE60

GND99

GND100

L26L4L1

D11D9D7

VCORE61

VCORE62

GND101

GND102

L23M5M2

D19

VCORE63

VCORE64

GND103

GND104

GND105

M25

GND106

GND107

GND108

GND109

GND110

M22

E11E9E26E7E4E1E23

GND111

GND112

GND113

GND114

E19

F18

PWRGOOD

GND115

GND116

F16

F14

BSEL0
BSEL1

TESTHI11

COMP0
COMP1

BPM5
BPM4
BPM3
BPM2
BPM1
BPM0

TESTHI0

DBR#

TESTHI12

GTLREF3
GTLREF2
GTLREF1
GTLREF0

TESTHI5
TESTHI4
TESTHI3
TESTHI2
TESTHI7
TESTHI6

TESTHI1

PROCHOT

TRST

GND117

GND118

GND119

F12

F10

SLP
TCK

TDI
TDO
TMS

GND120

SK478/GD

F8

AD6
AD5
A6
L24
P1

AB4
AA5
Y6
AC4
AB5
AC6

AD24
AE25
AD25

AA6
F6
AA21
F20

AC23
AC24
AC20
AC21
AB22
AA20

AA2
AB23
C3
AB26

D4
C1
D5
F7
E6

R1136
1K/6

BSEL0

TESTHI11
COMP0
COMP1

BPM5­BPM4­BPM3­BPM2­BPM1­BPM0-

TESTHI0_1
DBRTEST
TESTHI12

GTLREF

TESTHI2_7
TESTHI1

CPUPWROK
PROCHOT­CPUSLP-

TCK
TDI
TDO
TMS
TRST-

NMI

BSEL0 11,13

R1139 150/6
R1129 62/6

VCORE

R1299
150/6/X

R1302
22/6/X

VCC3VCC3

R1103
150/6

CPUSLP- 14

C313
33P/6/N/50V

NMI_NB

R1137
1K/6

BSEL1

VCORE
VCORE

R1305 10/6

NMI_NB 7

BSEL1 11,13

VCORE

R1140
330/6

C311
1N/6/X/50V

VCORE

R1132 75/6/1

BC510

0.1U/6/Y/25V

D D

R1134
150/6/1

BC511

0.1U/6/Y/25V

BC512
1U/6/Y/10V

GTLREF

C465
10000P/4/X/25V

C466
10000P/4/X/25V

Closed to Pin-F20

F17

F15

F13

GND69

GND70

GND71

P25

GND72

P22

VCORE33

VCORE34

GND73

GND74

R26R4R1

F11F9F19

VCORE35

GND75

R23T6T3

P1B

A20M-14

INTR14

SMI-14

VID[0..4]

VCORE

CPUCLK
CPUCLK-

A20M­FERR­IGNNE-

INTR
NMI
SMI-

STPCLK-

R1141 75/6

VID530

THERMDC

C315
10000P/6/X/50V/X

VCC_SENSE

VSS_SENSE

VID5

C314
1U/6/Y/16V

CPUCLK11

CPUCLK-11

FERR-14

IGNNE-14

C C

VCCVID

VCCVID

BC532
1U/6/Y/10V

THERMDA22

B B

THERMDA

C312
1N/6/X/50V/X

THERMGND22

R1143 0/S6/X

STPCLK-14

VID[0..4]30

VCC_SENSE30

VSS_SENSE30

VCCVID

R1142 1K/6

VID4
VID3
VID2
VID1
VID0

VCCA
VCOREPLL

VSSA

THERMDC
HTHERM-

AF22

AF23
AC26
AD26

AD20
AE23

AD22

AE21

AF25

AF24

C6
B6
B2

D1
E5
B5

Y4

AE1
AE2
AE3
AE4
AE5

AF4
AF3

A5

A4

A22

A7
B3
C4

A2
AD3
AD2

BCLK0
BCLK1
ITP_CLK0
ITP_CLK1

A20M
FERR
IGNNE

LINT0
LINT1
SMI
STPCLK

VID4
VID3
VID2
VID1
VID0

VCCVID
VCCVIDPRG
VCCA
VCC_SENSE
VCCIOPLL
VSSA
VSS_SENSE

RSVD1
RSVD2
RSVD3
THERMDA
THERMDC
THERMTRIP

RSVD4
RSVD5
RSVD6
RSVD7

GND61

AA11

GND62

AA9

GND63

AA26

GND64

AA7N6N3

GND65

GND66

GND67

N24

GND68

N21P5P2

VCOREVCORE

R1301
150/6

NMI_SB

NMI_SB 14

Q136
MMBT2222A/SOT23

SOT23

R1298

1K/6

VCCA VCOREPLL

132

Z110

R1144 0/6/X

5mA

PWROK 14,15,26,29,30

VCORE

VCORE

A A

VCORE

RN226

150/8P4R

RN205

62/8P4R

R1147 62/6
R1149 62/6
R1151 130/6

12
34
56
78

12
34
56
78

A20M­FERR­IGNNE­INTR

BPM0­BPM1­BPM5­BPM4-

TESTHI1
TESTHI11
PROCHOT-

5

VCORE

VCORE

RN228

62/8P4R

RN227

150/8P4R

BPM2-

12

BPM3-

34
56

TESTHI0_1

78

SMI-

12

STPCLK-

34

HINIT-

56
78

4

HINIT- 4,14

VCORE

R1145 62/6
R1146 62/6
R1148 62/6
R1150 62/6
R1152 62/6

3

TMS
TDO
TDI
TCK
TRST-

2

VCORE

L35 4.7uH/8/S

BC514

0.1U/6/Y/25V

BC516

L36 4.7uH/8/S

Title

Size Document Number Rev
Custom

Date: Sheet of

0.1U/6/Y/25V

BC515

4.7U/8/Y/10V

BC517

4.7U/8/Y/10V

GIGABYTE

P4 478B

GA-8VT800

1

VCOREPLLTESTHI2_7

VCCA

VSSA

5 31Friday, September 19, 2003

1.0

5

D D

HD[0..15]

HD[0..15]7

C C

DBI0-7

STBN07

STBP07

HD[16..31]7

B B

HD[16..31]

DBI1-7

STBN17

STBP17

HD15
HD14
HD13
HD12
HD11
HD10
HD9
HD8
HD7
HD6
HD5
HD4
HD3
HD2
HD1
HD0
DBI0­STBN0
STBP0

HD31
HD30
HD29
HD28
HD27
HD26
HD25
HD24
HD23
HD22
HD21
HD20
HD19
HD18
HD17
HD16
DBI1­STBN1
STBP1

4

E18

E16

AF17

AF15

AF13

GND139

GND140

VCORE65

VCORE66

VCORE67

GND141

GND142

GND143

D21

D20

VCORE68

VCORE69

GND144

GND145

E17

E15

AF11

E13A3A24

P1C

D25

D15

J21

D14

D23

D13

C26

D12

H21

D11

G22

D10

B25

D9

C24

D8

C23

D7

B24

D6

D22

D5

C21

D4

A25

D3

A23

D2

B22

D1

B21

D0

E21

DBI#0

E22

STBN0

F21

STBP0

H25

D31

K23

D30

J24

D29

L22

D28

M21

D27

H24

D26

G26

D25

L21

D24

D26

D23

F26

D22

E25

D21

F24

D20

F23

D19

G23

D18

E24

D17

H22

D16

G25

DBI#1

K22

STBN1

J23

STBP1

GND121

GND122

GND123

GND124

GND125

GND126

GND127

GND128

GND129

GND130

GND131

GND132

GND133

GND135

GND136

GND137

GND138

F5F2F25

F22G6G3

G24C5C2

GND134

C25

C22

C19

D18

D14

D12

D10D8D6D3D24

D16

AF9

AF7

VCORE70

VCORE71

VCORE72

GND146

GND147

GND148

VCORE

AF5

AF21

AF19

VCORE73

VCORE74

GND149

GND150

A21

A19

B18

3

A18

A16

VCORE75

VCORE76

VCORE77

GND151

GND152

GND153

B16

B14

A14

A12

VCORE78

VCORE79

GND154

GND155

B12

B10

A10A8A20

VCORE80

VCORE81

GND156

GND157

B26B8B4

B17

B15

VCORE82

VCORE83

VCORE84

GND158

GND159

GND160

B23

B20

AF2

VCORE85

GND161

GND162

C17

C15

GND163

C13

C11C9C7

GND164

GND165

GND166

GND167

AF18

AF16

GND168

GND169

AF14

AF12

GND170

GND171

AF10

AF26

GND172

GND173

AF8

AF6

GND174

GND175

AF1

AF20

GND176

GND177

A17

A15

GND178

GND179

A13

DBI#2
STBN2
STBP2

DBI#3
STBN3
STBP3

GND180

GND181

A11A9A26

D47
D46
D45
D44
D43
D42
D41
D40
D39
D38
D37
D36
D35
D34
D33
D32

D63
D62
D61
D60
D59
D58
D57
D56
D55
D54
D53
D52
D51
D50
D49
D48

GND182

T23
T22
T25
T26
R24
R25
P24
R21
N25
N26
M26
N23
M24
P21
N22
M23
P26
R22
P23

AA24
AA22
AA25
Y21
Y24
Y23
W25
Y26
W26
V24
V22
U21
V25
U23
U24
U26
V21
W22
W23

SK478/GD

2

HD47
HD46
HD45
HD44
HD43
HD42
HD41
HD40
HD39
HD38
HD37
HD36
HD35
HD34
HD33
HD32
DBI2­STBN2
STBP2

HD63
HD62
HD61
HD60
HD59
HD58
HD57
HD56
HD55
HD54
HD53
HD52
HD51
HD50
HD49
HD48
DBI3­STBN3
STBP3

DBI2- 7
STBN2 7
STBP2 7

DBI3- 7
STBN3 7
STBP3 7

HD[32..47] 7

HD[48..63] 7

CR1
CPU RETAINTION

1

SKTOC- 13,30

MH1

123

9

876

HOLE_3

9

MH4

123

876

HOLE_3

4

A A

5

MH2

123

54

9

876

HOLE_3

MH5

123

54

9

876

HOLE_3

MH3

123

54

54

9

9

HOLE_3

MH8

123

876

HOLE_3

876

54

54

K1

K_ICT/X

K2

K_ICT/X

3

I1

1

1

4MMH/X

I2

1

1

4MMH/X

K3

K_ICT/X

K4

K_ICT/X

1

1

4MMH/X

1

1

4MMH/X

K5

I3

I4

K_ICT/X

K6

K_ICT/X

1

1

1

1

Title

Size Document Number Rev
Custom

2

Date: Sheet of

GIGABYTE

P4 478C

GA-8VT800

1

6 31Friday, September 19, 2003

1.0

A

B

C

D

E

VCORE

4 4

HA[3:35]4

3 3

HADSTB0-4
HADSTB1-4

DBSY-4

DEFER-4

DRDY-4

HLOCK-4
HTRDY-4

HREQ0-4
HREQ1-4
HREQ2-4
HREQ3-4

2 2

HREQ4-4

HA3
HA4
HA5
HA6
HA7
HA8
HA9
HA10
HA11
HA12
HA13
HA14
HA15
HA16
HA17
HA18
HA19
HA20
HA21
HA22
HA23
HA24
HA25
HA26
HA27
HA28
HA29
HA30
HA31

HA32
HA33
HA34
HA35

HADS-4

BNR-4

BPRI-4

BR0-4

HIT-4

HITM-4

DBI0-

DBI0-6

DBI1-

DBI1-6

DBI2-

DBI2-6

DBI3-

DBI3-6
RS0-4

RS1-4
RS2-4

CPURST-4

HCLK11

-HCLK11

-RSP4

C317

0.1U/6/Y/25V

C320

0.1U/6/Y/25V

A

NMI_NB5

C316

0.1U/6/Y/25V

HCOMPVREF

SC98
1U/6/Y/10V

C319

0.1U/6/Y/25V

HRCOMP

C322

0.1U/6/Y/25V

GTLVREF_NB

SC96
1U/6/Y/10V

GTLVREF_NB

SC104

0.22U/4/Y/10V

1 1

SC97
1U/6/Y/10V

AB31
AA34

AA33
AC31
AA32
AC34
AB34
AD34
AC33
AC32
AD33
AC30
AE34
AD32
AE31
AD31
AE32
AF34
AF33
AD30
AF32
AG30
AG33
AF30
AH34
AG31

AJ33
AG34
AG32

AJ34

AJ32
AA30

AF31

W32

W34

W31

AB32
AA31

AH31

AA29
AD29

Y32
Y30

V34
V31
R34

V32
T32

U34
T34
V33

Y33
Y31
Y34
G30

C30
A25
E22

U33
V30
U32

A18
U29

T29

P34

F28
F24
F19

V29
H31
H30

J29

U1A

HA3
HA4
HA5
HA6
HA7
HA8
HA9
HA10
HA11
HA12
HA13
HA14
HA15
HA16
HA17
HA18
HA19
HA20
HA21
HA22
HA23
HA24
HA25
HA26
HA27
HA28
HA29
HA30
HA31
HA32
HA33
HA34
HA35

ADSTB0
ADSTB1

ADS
BNR
BPRI
BREQ0
DBSY
DEFER
DRDY
HIT
HITM
HLOCK
HTRDY

HREQ0
HREQ1
HREQ2
HREQ3
HREQ4

DBI0
DBI1
DBI2
DBI3

RS0
RS1
RS2

CPURST
HCLK

HCLK
RSP

NMI
HAVREF0

HAVREF1
HDVREF0

HDVREF1
HDVREF2
HDVREF3

GTLVREF
HRCOMP
HCOMPVREF

PT800

K29

K30

K31

K32

K33

K34

L29

L30

L31

L32

L33

L34

M29

M30

M31

M32

M33

M34

N29

N30

N31

N32

N33

N34

P29

P30

P31

P32

P33

J34

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

E19

E20

E21

E24

E27

E30

F18

F20

F21

F22

F23

F26

F27

F29

F31

F33

G29

H29

J30

J31

J32

J33

R29

R30

R31

R32

R33

T33

W29

W30

W33

Y29

AB30

AB33

AC29

AE29

AE30

B

VSS

VSS

AE33

VSS

AF29

C

VSS

AG29

AH29

VSS

DSTB0
DSTB0
DSTB1
DSTB1
DSTB2
DSTB2
DSTB3
DSTB3

VSSTT
VSSTT

VSS

AH30

HD10
HD11
HD12
HD13
HD14
HD15
HD16
HD17
HD18
HD19
HD20
HD21
HD22
HD23
HD24
HD25
HD26
HD27
HD28
HD29
HD30
HD31
HD32
HD33
HD34
HD35
HD36
HD37
HD38
HD39
HD40
HD41
HD42
HD43
HD44
HD45
HD46
HD47
HD48
HD49
HD50
HD51
HD52
HD53
HD54
HD55
HD56
HD57
HD58
HD59
HD60
HD61
HD62
HD63

VSS

AH33

HD0
HD1
HD2
HD3
HD4
HD5
HD6
HD7
HD8
HD9

DP0
DP1
DP2
DP3

AP0
AP1

H34
G33
G31
H33
H32
G34
D31
G32
F34
E31
F30
E34
E33
D32
D34
B32
C33
C34
A33
A34
B34
A32
C32
D30
D29
A29
E29
A30
C29
A31
B29
D27
D26
D25
C28
E26
A27
C26
C27
E25
C25
B25
A24
C24
D24
E23
D23
A23
B23
C23
A22
D22
C22
B22
A21
B20
C20
D19
D20
B19
C19
A19
A20

F32
E32
C31
B31
B26
A26
C21
D21

A28
E28
B28
D28

AJ31
AH32
F25
AB29

HD0
HD1
HD2
HD3
HD4
HD5
HD6
HD7
HD8
HD9
HD10
HD11
HD12
HD13
HD14
HD15
HD16
HD17
HD18
HD19
HD20
HD21
HD22
HD23
HD24
HD25
HD26
HD27
HD28
HD29
HD30
HD31
HD32
HD33
HD34
HD35
HD36
HD37
HD38
HD39
HD40
HD41
HD42
HD43
HD44
HD45
HD46
HD47
HD48
HD49
HD50
HD51
HD52
HD53
HD54
HD55
HD56
HD57
HD58
HD59
HD60
HD61
HD62
HD63

STBP0 6
STBN0 6
STBP1 6
STBN1 6
STBP2 6
STBN2 6
STBP3 6
STBN3 6

DP0 4
DP1 4
DP2 4
DP3 4

AP0 4
AP1 4

HD[0:63] 6

D

VCORE

VCORE

R1156 49.9/6/1

R1158 100/6/1

R1160 20.5/6/1

GTLVREF_NB

R1157
100/6/1

HCOMPVREF

R1159

49.9/6/1

HRCOMP

Please Close to VT8754

VCORE

SC85
1U/6/Y/10V

2

SC86
1U/6/Y/10V

SC87
1U/6/Y/10V

HS1

HEAT SINK/GIGABYTE

1

NB Heatsink

Title

Size Document Number Rev
C

Date: Sheet of

GIGABYTE

NORTH PT800

GA-8VT800

E

7 31Friday, September 19, 2003

1.0

A

B

C

D

E

C409

0.1U/6/Y/25V

C413

0.1U/6/Y/25V

C417

0.1U/6/Y/25V

DDR25V

10P/4/N/50V/XC456
10P/4/N/50V/XC457

DDR25V

C410

0.1U/6/Y/25V

VCC25

C414

0.1U/6/Y/25V

C469
1U/6/Y/10V

SC89

0.1U/6/Y/25V

C470

0.1U/6/Y/25V

SC90
1U/6/Y/10V

DDR25V

SC107

0.22U/4/Y/10V

MAA[0:15] 15,16

MAB[0:15] 15,16

DCLKO as short as passable

DCLKO 11
DCLKI 11

DCLKI = DCLKx + 2 "

SC108

0.22U/4/Y/10V

C468
1U/6/Y/10V/X

CS4
CS5
CS6
CS7

QDRRD
QDRWR
GCKE

MVREF_NB

SC111

0.22U/4/Y/10V

-SRASA 15,16

-SCASA 15,16

-SWEA 15,16

-SRASB 15,16

-SCASB 15,16

-SWEB 15,16

-CS0 15,16

-CS1 15,16

-CS2 15,16

-CS3 15,16

-CS4 16

-CS5 16

CS1
CS2

-DQS_0 10

-DQS_1 10

-DQS_2 10

-DQS_3 10

-DQS_4 10

-DQS_5 10

-DQS_6 10

-DQS_7 10

DQS1

R1163 22/6

QDRWR/X

GCKE/X

SC105

0.22U/4/Y/10V/B

SC110

AM8
AL9
AL10
AK12
AL14
AK16
AL16
AK19
AL17
AM20
AJ6
AK5
AK6
AL20
AK21
AK22

AL8
AK9
AL11
AM11
AM14
AM16
AK15
AL19
AK18
AM21
AJ7
AK3
AL6
AL21
AL22
AK24

AJ5
AF5
AG4

AK4
AF4
AG5

AN6
AP5
AM6
AP3
AN3
AM4
AP2
AP1

AN28
AL24
AP21
AM17
AN9
AN4
AK1
AF3
AN13

AK34
AL34

AK7
AJ16
AK25

AJ23
AJ17
AJ11
AF6

0.22U/4/Y/10V

MAA0
MAA1
MAA2
MAA3
MAA4
MAA5
MAA6
MAA7
MAA8
MAA9
MAA10
MAA11
MAA12
MAA13
MAA14
MAA15

MAB0
MAB1
MAB2
MAB3
MAB4
MAB5
MAB6
MAB7
MAB8
MAB9
MAB10
MAB11
MAB12
MAB13
MAB14
MAB15

-DQS_0

-DQS_1

-DQS_2

-DQS_3

-DQS_4

-DQS_5

-DQS_6

-DQS_7

-DQS_8

DCLKO_
DCLKI

U1B

AB1

AB2

AB3

AB4

AB5

AB6

AC1

AC2

AC3

AC4

AC5

AC6

AD1

AD2

AD3

AD4

AD5

AD6

AJ26

AJ27

AJ28

AJ29

AJ30

AK26

AK27

AK28

AK29

AK30

AK31

AL26

AL27

AL28

AL29

AL30

AL31

AL32

AL33

AM29

AM30

AM31

AM32

AM33

AN31

AN32

AN33

AN34

AP31

AP32

AP33

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VSS

VSS

AN26

AN29

AP34

MAA0

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

MAA1
MAA2
MAA3
MAA4
MAA5
MAA6
MAA7
MAA8

MAA9
MAA10
MAA11
MAA12
MAA13
MAA14
MAA15

MAB0

MAB1

MAB2

MAB3

MAB4

MAB5

MAB6

MAB7

MAB8

MAB9

MAB10
MAB11
MAB12
MAB13
MAB14
MAB15

SRASA
SCASA

SWEA

SRASB
SCASB

SWEB

DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8

DCLKO

DCLKI

QDRRD

QDRWR

GCKE

MVREF0
MVREF1
MVREF2
MVREF3

CS0
CS1
CS2
CS3
CS4
CS5
CS6
CS7

4 4

MD[0:63]10

3 3

2 2

CKE[0:5]15,16

CKE1
CKE2

-DQM_010

-DQM_110

-DQM_210

-DQM_310

-DQM_410

-DQM_510

-DQM_610

-DQM_710

1 1

DQM1

CKE6
CKE7

MD0
MD1
MD2
MD3
MD4
MD5
MD6
MD7
MD8
MD9
MD10
MD11
MD12
MD13
MD14
MD15
MD16
MD17
MD18
MD19
MD20
MD21
MD22
MD23
MD24
MD25
MD26
MD27
MD28
MD29
MD30
MD31
MD32
MD33
MD34
MD35
MD36
MD37
MD38
MD39
MD40
MD41
MD42
MD43
MD44
MD45
MD46
MD47
MD48
MD49
MD50
MD51
MD52
MD53
MD54
MD55
MD56
MD57
MD58
MD59
MD60
MD61
MD62
MD63

CKE0
CKE1
CKE2
CKE3
CKE4
CKE5

-DQM8

AP30
AM28
AM27
AM26
AN30
AP29
AN27
AP27
AM25
AP26
AP23
AM23
AN25
AP25
AP24
AN24
AP22
AN22
AP20
AN19

AL23
AM22
AM19
AP19

AL18
AP18
AN16

AL15
AM18
AN18
AP16
AM15
AM12
AP10
AM10

AN7
AP11
AN10

AM9

AP8

AM7

AP6

AM5
AN1

AP7

AL7

AM3
AM2
AM1

AL4

AH4

AL3

AL1

AH1
AG1

AF2

AE3

AH3
AG2

AF1

AE1
AP14

AM13

AL13
AP12
AP15
AN15

AL12
AN12

AP28
AM24
AN21
AP17

AP9
AP4
AK2

AG3

AP13

MD0
MD1
MD2
MD3
MD4

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VCC3(VCCM)

VSS

AN8

VSS

VSS

AN11

VSS

AN14

VSS

AN17

VSS

AN20

VCC3(VCCM)

VSS

AN23

MD5
MD6
MD7
MD8
MD9
MD10
MD11
MD12
MD13
MD14
MD15
MD16
MD17
MD18
MD19
MD20
MD21
MD22
MD23
MD24
MD25
MD26
MD27
MD28
MD29
MD30
MD31
MD32
MD33
MD34
MD35
MD36
MD37
MD38
MD39
MD40
MD41
MD42
MD43
MD44
MD45
MD46
MD47
MD48
MD49

AJ2

MD50
MD51
MD52
MD53

AJ3

MD54

AJ1

MD55
MD56
MD57
MD58
MD59
MD60
MD61
MD62
MD63

MPD0
MPD1
MPD2
MPD3
MPD4
MPD5
MPD6
MPD7

DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7
DQM8

PT800

AE2

VSS

AE4

VSS

AE5

VSS

AE6

VSS

AG6

VSS

AH2

VSS

AH5

VSS

AH6

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

AJ4

AJ8

AJ9

AJ10

AJ14

AJ15

AJ18

AJ19

AJ20

AJ21

AJ22

AJ24

AJ25

AK8

AK10

AK11

AK13

AK14

AK17

AK20

AK23

AL2

AL5

AL25

AN2

AN5

SC63
1U/6/Y/16V

多打一些

DDR25V

C407
10U/8/X5/6.3V

C411
10U/8/X5/6.3V

Via.

R1161
1K/6/1

MVREF_NB

R1162
1K/6/1

C408

0.1U/6/Y/25V

C412

0.1U/6/Y/25V

線寬要加粗且多打一些

C415

QDRRD

C416

0.1U/6/Y/25V

R1164 8.2K/6

0.1U/6/Y/25V

DDR25V

SC109
1U/6/Y/10V

DCLKO_
DCLKI

close to vt8754

Via.

SC88
1U/6/Y/10V

Title

Size Document Number Rev
C

A

B

C

D

Date: Sheet of

GIGABYTE

NORTH PT800

GA-8VT800

E

8 31Friday, September 19, 2003

1.0

A

VCC25

C16

C17

D15

D16

D17

E14

E15

E16

E17

F14

F15

F16

F17

4 4

3 3

2 2

1 1

-PWROK_NB13

VLAD014
VLAD114
VLAD214
VLAD314
VLAD414
VLAD514
VLAD614
VLAD714

VBE014
VPAR14

UPCMD14
DNCMD14

DNSTB14

-DNSTB14

UPSTB14

-UPSTB14

25VSUSNB

-PCIRST12,22,27,29

-SUSST13

VCC25
AVDD2
DDR25V
VCC25

VCC25

A

LVREF_NB
LCOMPP

TESTIN_NB

AVDD2

AA1
AA2
AA3
AA4
AA5
AA6

AM34

T30

AK32

AJ12

U30

T31

AK33

AJ13

U31

R3
R2
U5
U4
N2
P1
U1
U3

R1
P3

V3

U6

V2

T5

T4
T3

T2
T1

W6

Y1
Y2
Y3
Y4
Y5
Y6

V5

W1
W3

V1

VD0

VDD25

VDD25

VD1
VD2
VD3
VD4
VD5
VD6
VD7

VBE
VPAR
LVREF
LCOMPP

UPCMD
DNCMD

DNSTB
DNSTB

UPSTB
UPSTB

VCC2(VCCVL)
VCC2(VCCVL)
VCC2(VCCVL)
VCC2(VCCVL)
VCC2(VCCVL)
VCC2(VCCVL)
VCC2(VCCVL)
VCC2(VCCVL)
VCC2(VCCVL)
VCC2(VCCVL)
VCC2(VCCVL)
VCC2(VCCVL)
VCC2(VCCVL)

VSUS25

RESET
PWROK
SUS_ST
TESTIN_NB

AVDD1
AVDD2
AVDD3
AVDD4

AGND1
AGND2
AGND3
AGND4

VDD25

VDD25

VDD25

VDD25

VSS

VSS

VDD25

VDD25

VSS

VSS

VDD25

VDD25

VSS

VSS

U2

VDD25

VDD25

VSS

VSS

VDD25

VSS

C15

VDD25

VSS

B17

VDD25

VSS

B16

VDD25

VSS

B15

VDD25

VSS

A17

VDD25

VSS

A16

VDD25

VSS

B

A15

VDD25

VSS

B

K6

VCC1(VCCAGP)

VCC1(VCCAGP)

VCC1(VCCAGP)

VCC1(VCCAGP)

VSS

VSS

VSS

VSS

VSS

F12

F13H2H3J4K5L2L6M4P2P6R4R5R6T6V4V6W2W4W5

VCC1(VCCAGP)

VCC1(VCCAGP)

VCC1(VCCAGP)

VCC1(VCCAGP)

VCC1(VCCAGP)

VSS

VSS

VSS

VSS

VSS

F11

VDDQ

VCC1(VCCAGP)

VCC1(VCCAGP)

VCC1(VCCAGP)

VCC1(VCCAGP)

VCC1(VCCAGP)

VSS

VSS

VSS

VSS

VSS

E12F6F7F8F9

VCC1(VCCAGP)

VCC1(VCCAGP)

VCC1(VCCAGP)

VCC1(VCCAGP)

VCC1(VCCAGP)

VCC1(VCCAGP)

VSS

VSS

VSS

VSS

VSS

VSS

B14C3D4D5E5E6E9

B1C1C2D1D2D3E1E2E3E4F2F3F4F5G3G4G5G6H4H5H6J5J6

N6

VCCQQ

VCC1(VCCAGP)

VCC1(VCCAGP)

VCC1(VCCAGP)

VCC1(VCCAGP)

GD10
GD11
GD12
GD13
GD14
GD15
GD16
GD17
GD18
GD19
GD20
GD21
GD22
GD23
GD24
GD25
GD26
GD27
GD28
GD29
GD30
GD31

SBA0
SBA1
SBA2
SBA3
SBA4
SBA5
SBA6
SBA7

GBE0
GBE1
GBE2
GBE3

AD_STBF0

AD_STBS0

AD_STBF1

AD_STBS1

SB_STBF
SB_STBS

GFRAME

GIRDY

GTRDY

GDEVSEL

GSTOP

GPAR

GREQ
GGNT

GSERR

DBIH/PIPE

AGP8XDET

GCLK

AGPCOMP
AGPVREF0

AGPVREF1

VSSQQ

VSS

VSS

PT800

B2B3B6B9B12

GD0
GD1
GD2
GD3
GD4
GD5
GD6
GD7
GD8
GD9

PIPE
RBF
WBF

DBIL

ST0
ST1
ST2

U1C

C

GD0

M3

GD1

N1

GD2

M1

GD3

N3

GD4

M2

GD5

L3

GD6

L1

GD7

K2

GD8

J1

GD9

N4

GD10

J2

GD11

L4

GD12

H1

GD13

M5

GD14

G1

GD15

L5

GD16

B5

GD17

A5

GD18

A4

GD19

A6

GD20

D6

GD21

B7

GD22

C7

GD23

A8

GD24

E7

GD25

C6

GD26

B8

GD27

D7

GD28

A9

GD29

C9

GD30

D9

GD31

E8

SBA0

D12

SBA1

B11

SBA2

C12

SBA3

A11

SBA4

E11

SBA5

A10

SBA6

C10

SBA7

B10
K1

G2
B4
A7

K3
K4

C8
D8

D11
C11

C5
C4
A3
A2
A1
J3
C13
A12
D13
C14
A13
F1
E10
D10
A14

D14
B13
E13

N5

P5

AGPCOMP0

AGPVREF

F10

AGPVREF

M6

P4

C

GD[0:31] 17

PT800 25VSUSNB=2.5V

3VDUAL

SBA[0:7] 17

-GBE0 17

-GBE1 17

-GBE2 17

-GBE3 17
AD_STB0 17

-AD_STB0 17
AD_STB1 17

-AD_STB1 17
SB_STB 17

-SB_STB 17

-GFRAME 17

-GIRDY 17

-GTRDY 17

-GDEVSEL 17

-GSTOP 17
GPAR 17

-PIPE

-RBF 17

-WBF 17

-GREQ 17

-GGNT 17

-GSERR 17
DBIH_PIPE 17
DBIL 17

-AGP8XDET 17
ST0 17

ST1 17
ST2 17

GCLKNB 11

AGPVREF 17

Please Close to PIN AJ12

R1331 100/6
R1332 100/6

BC537

4.7U/8/Y/10V

VDDQ

VCC25

DDR25V

Q144

SC431/SOT23

SC91

0.1U/6/Y/25V

SC94

0.1U/6/Y/25V

D

SC103
1U/6/Y/10V

CAR

SOT23

D

25VSUSNB

RAC

VCC25

1

+

SC92

0.1U/6/Y/25V

SC95

0.1U/6/Y/25V

E

VCC25

R1266
0/6

SC106

0.1U/4/Y/16V/B

R1327

BC538

100/6/1

0.1U/6/Y/25V

R1303
100/6/1

EC63
1000U/D/6.3V/8C

AVDD2

C436

0.1U/6/Y/25V

C437

0.1U/6/Y/25V

BC582

4.7U/8/Y/10V

VCC25

R1168
3K/6/1

R1169
1K/6/1

SC99
1U/6/Y/10V

Please Close to PIN T30

SC101
1U/6/Y/10V

Please Close to PIN U30

LVREF_NB

C377

0.1U/6/Y/25V

LVREF_NB => VDD/4=0.625

TESTIN_NB

R1165 8.2K/6

SC93

0.1U/6/Y/25V

C455

0.1U/6/Y/25V

AGPCOMP0

LCOMPP

R1166 60.4/6/1

R1167 360/6/1

AGP8xdet 0=enable

AGPVREF

C443

0.1U/6/Y/25V

Title

Size Document Number Rev
C

Date: Sheet of

GIGABYTE

NORTH PT800

GA-8VT800

E

VCC25

VCC25

SC102

0.1U/6/Y/25V

VCC25

VDDQ

C444

0.1U/6/Y/25V

9 31Friday, September 19, 2003

SC100

0.1U/6/Y/25V

C378

0.1U/6/Y/25V

1.0

A

B

C

D

E

MD[0:63]

R1250 22/6
R1251 22/6
R1252 22/6
R1253 22/6

R1254 22/6
R1255 22/6
R1256 22/6
R1257 22/6

C419

0.1U/6/Y/25V

C423

0.1U/6/Y/25V

C428

0.1U/6/Y/25V

DQM0
DQM1
DQM2
DQM3

DQM4
DQM5
DQM6
DQM7

-DQSD0

-DQSD1

-DQSD2

-DQSD3

-DQSD4

-DQSD5

-DQSD6

-DQSD7

VCC25

C420

0.1U/6/Y/25V

VCC25

C424

0.1U/6/Y/25V

C429

0.1U/6/Y/25V

DQM[0:7] 15,16

-DQSD[0:7] 15,16

C425

0.1U/6/Y/25V

VCORE

C430

0.1U/6/Y/25V

VDDQ

DDR MD DAMPPING

Near DIMM 1

MD0
MD4
MD5
MD1

RN210 22/8P4R

MD2
MD6
MD7
MD3

RN211 22/8P4R

MD14
MD15
MD10
MD11

RN212 22/8P4R

MD8
MD9
MD12
MD13

RN213 22/8P4R

MD20
MD16
MD17
MD21

RN214 22/8P4R

MD18
MD19
MD23
MD22

RN215 22/8P4R

MD24
MD29
MD25
MD28

RN216 22/8P4R

MD26
MD30
MD31
MD27

RN217 22/8P4R

MD34
MD38
MD39
MD35

RN218 22/8P4R

MD36
MD33
MD32
MD37

RN219 22/8P4R

MD40
MD44
MD45
MD41

RN220 22/8P4R

MD42
MD43
MD46
MD47

RN221 22/8P4R

MD60
MD56
MD61
MD57

RN222 22/8P4R

MD49
MD48
MD53
MD52

RN223 22/8P4R

MD62
MD58
MD63
MD59

RN224 22/8P4R

MD54
MD50
MD55
MD51

RN225 22/8P4R

MDD0

1

1

2

MDD4

3

4

MDD5

5

6

MDD1

7

8

MDD2

1

1

2

MDD6

3

4

MDD7

5

6

MDD3

7

8

MDD14

1

1

2

MDD15

3

4

MDD10

5

6

MDD11

7

8

MDD8

1

1

2

MDD9

3

4

MDD12

5

6

MDD13

7

8

MDD20

1

1

2

MDD16

3

4

MDD17

5

6

MDD21

7

8

MDD18

1

1

2

MDD19

3

4

MDD23

5

6

MDD22

7

8

MDD24

1

1

2

MDD29

3

4

MDD25

5

6

MDD28

7

8

MDD26

1

1

2

MDD30

3

4

MDD31

5

6

MDD27

7

8

MDD34

1

1

2

MDD38

3

4

MDD39

5

6

MDD35

7

8

MDD36

1

1

2

MDD33

3

4

MDD32

5

6

MDD37

7

8

MDD40

1

1

2

MDD44

3

4

MDD45

5

6

MDD41

7

8

MDD42

1

1

2

MDD43

3

4

MDD46

5

6

MDD47

7

8

MDD60

1

1

2

MDD56

3

4

MDD61

5

6

MDD57

7

8

MDD49

1

1

2

MDD48

3

4

MDD53

5

6

MDD52

7

8

MDD62

1

1

2

MDD58

3

4

MDD63

5

6

MDD59

7

8

MDD54

1

1

2

MDD50

3

4

MDD55

5

6

MDD51

7

8

MDD[0:63] 15,16

0 ~ 7

8 ~ 15

16 ~ 23

24 ~ 31

32 ~ 39

40 ~ 47

48 ~ 55

56 ~ 63

-DQS_0

-DQS_1

-DQS_2

-DQS_3

-DQS_4

-DQS_5

-DQS_6

-DQS_7

MD[0:63]8

R1258 10/6
R1259 10/6
R1260 10/6
R1261 10/6

R1262 10/6
R1263 10/6
R1264 10/6
R1265 10/6

C418

0.1U/6/Y/25V

C422

0.1U/6/Y/25V

C427

0.1U/6/Y/25V

VCORE

4 4

U1D

L18

L19

L20

L21

L22

L23

M18

M19

M20

M21

M22

M23

M24

N23

N24

P23

P24

R23

R24

T23

T24

U23

U24

V23

V24

W23

W24

Y23

Y24

AA23

VTT

VTT

VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)
VCC3(VCCM)

VSS

VSS

V20

V21

AA24

V12
W11
W12
Y11
Y12
AA11
AA12
AB11
AB12
AB24
AC11
AC12
AC13
AC14
AC15
AC16
AC17
AC18
AC19
AC20
AC21
AC22
AC23
AC24
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23

W14
W15
W16
W17
W18
W19
W20
W21
Y14
Y15
Y16
Y17
Y18
Y19
Y20
Y21
AA14
AA15
AA16
AA17P14
AA18
AA19
AA20
AA21
AB23
B18
B21
B24
B27
B30
B33

DDR25V

VTT

VTT

VTT

VTT

VTT

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSSVSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS

VSS

VSS

VSS

C18

D18

D33

E18

PT800

-DQM_08

-DQM_18

-DQM_28

-DQM_38

-DQM_48

-DQM_58

-DQM_68

-DQM_78

-DQS_08

-DQS_18

-DQS_28

-DQS_38

-DQS_48

-DQS_58

-DQS_68

-DQS_78

C421
10U/8/X5/6.3V

C426
10U/8/X5/6.3V

VDDQ

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VSS

VTT

VSS

VSS

VSS

VSS

VSS

VSS

V14

V15

V16

V17

V18

V19

L12

VCC1(VCCAGP)

L13

VCC1(VCCAGP)

L14

VCC1(VCCAGP)

L15

VCC1(VCCAGP)

L16

VCC1(VCCAGP)

L17

VCC1(VCCAGP)

M11

VCC1(VCCAGP)

M12

VCC1(VCCAGP)

M13

VCC1(VCCAGP)

M14

VCC1(VCCAGP)

M15

VCC1(VCCAGP)

M16

VCC1(VCCAGP)

M17

VCC1(VCCAGP)

N11

VCC1(VCCAGP)

N12

VCC1(VCCAGP)

P11

VCC1(VCCAGP)

P12

VCC1(VCCAGP)

R11

VCC1(VCCAGP)

R12

AE21
AE20
AE19
AE18
AE17
AE16
AE15
AE14
AE13
AE12
AB25
AB10

AA25

U11
U12

W25
W10

U25

R10

R14
R15
R16
R17
R18

T11
T12

V11

Y25

V25
T25

T10
P10

K22
K21
K20
K19
K18
K14
K13
K12

P15
P16
P17
P18
P19
P20
P21

VCC1(VCCAGP)
VCC2(VCCVL)

VCC2(VCCVL)
VCC2(VCCVL)
VCC2(VCCVL)
VCC2(VCCVL)

VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25
VDD25

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS

VSS

VSS

R19

R20

R21

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

T14

T15

T16

T17

T18

T19

T20

T21

U14

U15

U16

U17

U18

U19

U20

U21

VCC25

3 3

2 2

1 1

C431
10U/8/X5/6.3V

A

B

C432

0.1U/6/Y/25V

C

C433

0.1U/6/Y/25V

C434

0.1U/6/Y/25V

C435

0.1U/6/Y/25V

Title

Size Document Number Rev
C

D

Date: Sheet of

GIGABYTE

NORTH PT800

GA-8VT800

E

10 31Friday, September 19, 2003

1.0

5

CLOCK
GENERATOR

BC91
10P/4/N/50V

SMBDATA
SMBCLK

C460
10P/4/N/25V

VCC3_CLKVCC3

BC81

BC82

1U/6/Y/10V

L7 1/8 R78 22/6

VCC25

VCC25

0.1U/4/Y/16V

VCC3

0.1U/4/Y/16V

R1318

1K/6

R1319

8.2K/6

BC83

BC77
1U/6/Y/10V

SMBDATA13,15,16,30

RESETOK26

Z1138

BC84

1U/6/Y/10V

BC88
1U/6/Y/10V

SMBCLK13,15,16,30

CBSEL013

CBSEL113

VCC3

Q141
MMBT2222A/SOT23

L8 1/8

D D

U4_X1

X1

U4_X2

12

14.318M/32P/49US/D
BC90
10P/4/N/50V

C459
10P/4/N/25V

C C

CLOSE TO U4

Z1137

SOT23

132

4

VCC3_CLK

BC85

0.1U/4/Y/16V

VCC18_CLK

U4_X1
U4_X2

SMDATA
SMBCLK

R96 8.2K/6

R94

8.2K/6/X

R95
475/6/1

U4

2

VCCREF

6

VCC48

16

VCCPCI

24

VCCAGP

38

VCCCPU

43

VCCCPU_CS

48

VCCAPIC

3

GNDREF

9

GND48

13

GNDPCI

20

GNDPCI

25

GNDAGP

36

GNDCPU

44

GNDCPU

47

GNDAPIC

4

X1

5

X2

29

SDATA

28

SCLK

30

RST

31

Ratio_0

32

Ratio_1

22

PD

33

VTT_PWRGD#

37

IREF

ICS950909AF/S

SEL24_48/REF

48MHZ/FS3

24_48MHZ/FS2

APIC0

AGP0
AGP1
AGP2

PCI8/FS0
PCI0/FS1

PCI1/MULT_SEL

WDTB/PCI2
WDEN/PCI3

CPU1
CPU1
CPU2
CPU2
HCLK
HCLK

3

VCC3

R1317

8.2K/6

FS4

1

FS3

7

FS2 LPC24

8
46

N/C

PCI4
PCI5
PCI6
PCI7

APIC0 APICCLK

45
23

26

R_GCLKNB GCLKNB

27

FS0

10
11

MULT_SEL

12

R_PCICLK1

14

R_PCICLK2

15

R_PCICLK3

17

R_PCICLKU2

18

R_PCICLKA PCICLKL

19

R_PCICLKL

21

R_CPUCLK

40

-R_CPUCLK

39
35
34

R_HCLK HCLK

42

-R_HCLK -HCLK

41

RN23
22/8P4R

R89 22/6
R88 22/6

R91 22/6
R93 22/6

R101 22/6

R79 22/6
R77 22/6
R81 8.2K/6
R82 8.2K/6
R83 22/6

7

8

5

6

3

4

1

2

1

R84 22/6
R85 22/6/X
R86 22/6

R73 33/6
R74 33/6

R75 33/6
R76 33/6

CPUCLK
CPUCLK­HCLK

-HCLK

AUDIO14
SIO_OSC

USBCLK

AGPCLKR_GCLKSLOT
VCLKR_VCLK

VCC3

PCICLK_FFS1
PCICLK0
PCICLK1
PCICLK2
PCICLK3

PCICLK4

LPC33

CPUCLK
CPUCLK-

R1313 51.1/6/1
R1314 51.1/6/1
R1315 51.1/6/1
R1316 51.1/6/1

2

AUDIO14 24
SIO_OSC 13

USBCLK 12
LPC24 22

APICCLK 14
AGPCLK 17

VCLK 14
GCLKNB 9

PCICLK_F 14
PCICLK0 18
PCICLK1 18
PCICLK2 18
PCICLK3 19
PCICLK4 19
PCICLKL 27
LPC33 22

CPUCLK 5
CPUCLK- 5

HCLK 7

-HCLK 7

CPUCLK
CPUCLK­HCLK

-HCLK
GCLKNB
AGPCLK
VCLK

PCICLK_F

PCICLK0
PCICLK1
PCICLK2
PCICLK3

PCICLK4

LPC33
SIO_OSC
USBCLK
LPC24

PCICLKL

1

C13 10P/4/N/50V/X
C14 10P/4/N/50V/X
C15 47P/4/N/50V
C16 47P/4/N/50V
C17 10P/4/N/50V/X
C18 10P/4/N/50V
C19 10P/4/N/50V/X

C20 10P/4/N/50V/X

7

8

5

6

3

4

1

2

C22 10P/4/N/50V/X

C23 10P/4/N/50V/X
C24 10P/4/N/50V/X
C25 10P/4/N/50V/X
C26 10P/4/N/50V/X

C27 10P/4/N/50V/X

CN1
10P/8P4C/X

CLOCK BUFFER

U5

2

VDD3.3/2.5

8

VDD3.3/2.5

12

VDD3.3/2.5

17

VDD3.3/2.5

23

VDD3.3/2.5

32

VDD2.5

37

VDD2.5

41

VDD2.5

47

VDD2.5

3

GND

9

GND

14

GND

18

GND

26

GND

31

GND

35

GND

40

GND

46

GND

48

SEL_DDR/-SDR

36

PWR_DWN

13

BUF_IN

1

FBOUT

25

SCLK

24

SDATA

ICS93738AF/S

DDR0T

DDR0C

DDR1T/SDRAM0

DDR1C/SDRAM1

DDR2T/SDRAM2

DDR2C/SDRAM3

DDR3T/SDRAM4

DDR3C/SDRAM5

DDR4T/SDRAM6

DDR4C/SDRAM7

DDR5T

DDR5C

DDR6T

DDR6C

DDR7T

DDR7C

DDR8T

DDR8C

DDR9T

DDR9C

DDR10T

DDR10C

DDR11T

DDR11C

4
5

6
7

10
11

15
16

19
20

21
22

28
27

30
29

34
33

39
38

43
42

45
44

R_CKOUT0

-R_CKOUT0
R_CKOUT1

-R_CKOUT1
R_CKOUT2

-R_CKOUT2
R_CKOUT3

-R_CKOUT3
R_CKOUT4

-R_CKOUT4

-R_CKOUT5

R_CKOUT6

-R_CKOUT6
R_CKOUT7

-R_CKOUT7

R_CKOUT8

-R_CKOUT8

3

RN24 0/8P4R/SHT/X

7 8
5 6
3 4
1

RN25 0/8P4R/SHT/X

7 8
5 6
3 4
1

RN26 0/8P4R/SHT/X

7 8
5 6
3 4
1

RN27 0/8P4R/SHT/X

7 8
5 6
3 4
1

R105 0/6/SHT/X CN5
R106 0/6/SHT/X

FS2
FS0

FS1

RN29

1

1
3
5
7

1K/8P4R

CPU AGP PCI FS_0

100

166.6
200

CKOUT0

-CKOUT0
CKOUT1

2

-CKOUT1
CKOUT2

-CKOUT2
CKOUT3

2

-CKOUT3

CKOUT4

-CKOUT4

CKOUT5R_CKOUT5

2

-CKOUT5

-CKOUT6

CKOUT6

-CKOUT7
CKOUT7

2

CKOUT8

-CKOUT8

2
4
6
8

66.6

33.3

66.6

33.3

66.6

33.3

66.6

33.3

O :LOW 1:HIGHCLK_SW

FS_1

O133.3
O
1 1
1

FS_2
FS_3FS3
FS_0
FS_1

1
3
5
7

1K/8P4R

CKOUT0 15

-CKOUT0 15
CKOUT1 15

-CKOUT1 15
CKOUT2 15

-CKOUT2 15
CKOUT3 15

-CKOUT3 15
CKOUT4 15

-CKOUT4 15
CKOUT5 15

-CKOUT5 15

-CKOUT6 16
CKOUT6 16

-CKOUT7 16
CKOUT7 16

CKOUT8 16

-CKOUT8 16

RN28

1

R963 0/6
R961 0/6

1
O

O

VCC3

2
4
6
8

BSEL0 5,13
BSEL1 5,13

Title

Size Document Number Rev
Custom

2

Date: Sheet of

FS1

-R_CKOUT1
R_CKOUT1

-R_CKOUT0
R_CKOUT0

-R_CKOUT3
R_CKOUT3

-R_CKOUT2
R_CKOUT2

R_CKOUT4

-R_CKOUT4
R_CKOUT5

-R_CKOUT5
R_CKOUT7

-R_CKOUT7
R_CKOUT6

-R_CKOUT6
R_CKOUT8

-R_CKOUT8

CLOCK GENERATOR

GIGABYTE

C28 10P/4/N/50V/X

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

7

8

5

6

3

4

1

2

1

2

3

4

5

6

7

8

GA-8VT800

1

CN2
10P/8P4C/X

CN3
10P/8P4C/X

CN4
10P/8P4C/X

10P/8P4C/X

10P/4/N/50V/XC29
10P/4/N/50V/XC30

11 31Friday, September 19, 2003

1.0

BC93
1U/6/Y/10V

BC585
1000P/4/Y/25V

VCC25_CLK

BC94

0.1U/4/Y/16V

BC97

0.1U/4/Y/16V

DCLKO8

DCLKI8

BC586
1000P/4/Y/25V

BC1

0.1U/4/Y/16V

BC98

0.1U/4/Y/16V

VCC25_CLK

VCC25_CLK

SMBCLK13,15,16,30

SMBDATA13,15,16,30

BC96

0.1U/4/Y/16V

BC99

0.1U/4/Y/16V

10P/4/N/50VC32

C461
10P/4/N/25V

CLOSE TO U5

BC95

0.1U/4/Y/16V

R103 1K/6
R104 1K/6

R107 510/6

R108 10/6

SMBCLK
SMBDATA

SMBDATA
SMBCLK

C462
10P/4/N/25V

4

U5_48
U5_36

5P/4/N/50V/XC31

DCLKIN

L9 1/8

VCC25

B B

A A

BC583
1000P/4/Y/25V

VCC3

VCC

BC584
1000P/4/Y/25V

5

5

4

3

2

1

CLOSE TO SB

SB VT8237 (PCI, USB BUS, KB/MS)

R1328

D29 1N4001/S

VCC3

D D

C C

-PCIRST9,22,27,29

C40

22P/6/N/50V

OVDDR26V
OVDDR27V
CLR_PWD
PWRLED

B B

-IRDY

A A

BIOS WRITE PROTECT

AD[0:31]

AD[0:31]18,19,27

-C_BE018,19,27

-C_BE118,19,27

-C_BE218,19,27

-C_BE318,19,27

-FRAME18,19,27

-DEVSEL18,19,27

-IRDY18,19,27

-TRDY18,19,27

-STOP18,19,27

OVDDR26V13,28
OVDDR27V13,28

C192
15P/6/N/50V/X

5

AD0

G2

AD0

AD1

J4

AD1

AD2

J3

AD2

AD3

H3

AD3

AD4

F1

AD4

AD5

G1

AD5

AD6

H4

AD6

AD7

F2

AD7

AD8

E1

AD8

AD9

G3

AD9

AD10

E3

AD10

AD11

D1

AD11

AD12

G4

AD12

AD13

D2

AD13

AD14

D3

AD14

AD15

F3

AD15

AD16

K3

AD16

AD17

L3

AD17

AD18

K2

AD18

AD19

K1

AD19

AD20

M4

AD20

AD21

L2

AD21

AD22

N4

AD22

AD23

L1

AD23

AD24

M2

AD24

AD25

M1

AD25

AD26

P4

AD26

AD27

N3

AD27

AD28

N2

AD28

AD29

N1

AD29

AD30

P1

AD30

AD31

P2

PAR

-PERR

AD31

E2

CBE0

C1

CBE1

L4

CBE2

M3

CBE3

J1

FRAME

H2

DEVSEL

J2

IRDY

H1

TRDY

K4

STOP

C2

SERR

F4

PAR

C3

PERR

R1

PCIRST

A4

INTA

B4

INTB

B5

INTC

C4

INTD

D4

INTE

E4

INTF

A3

INTG

B3

INTH

A5

REQ0

B6

REQ1

C5

REQ2

D5

REQ3

P3

REQ4

R3

REQ5

A6

GNT0

D6

GNT1

C6

GNT2

E5

GNT3

R4

GNT4

R2

GNT5

-C_BE0

-C_BE1

-C_BE2

-C_BE3

-FRAME

-DEVSEL

-IRDY

-TRDY

-STOP

-SERR

-SERR18,19,27
PAR18,19,27

-PERR18,19,27

-PCIRST

-INTA

-INTA17,18,19

-INTB

-INTB17,18,19

-INTC

-INTC18,19,27

-INTD

-INTD18,19,27
OVDDR26V

OVDDR27V
GPI12

GPI1213

GPO13

GPO1313,26

-REQ0

-REQ018,19

-REQ1

-REQ118,19

-REQ2

-REQ218,19

-REQ3

-REQ319

-REQ4

-REQ419

-REQ5 KBDT

-REQ519,27

-GNT0

-GNT018,19

-GNT1

-GNT118,19

-GNT2

-GNT218,19

-GNT3

-GNT319

-GNT4

-GNT419

-GNT5

-GNT519,27

GPIO12
GPIO13
GPIO14
GPIO15

GND

GND

A1A2B1

H9

H10

VCC33

VCC33

8235/CE CHANGED

GND

GND

GND

GND

GND

GND

E8

F25

H23

J21

H12J8K8L8M8N8P8R8R19

H11

VCC33

VCC33

VCC33

VCC33

VCC33

VCC33

VCC33

GND

USBGND

USBGND

USBGND

USBGND

USBGND

J25B2A17

A19

A21

A15

A13

4

VCC33

USBGND

B13

B15

T8

VCC33

VCC33

USBGND

USBGND

B17

B19

T19

U8

VCC33

VCC33

USBGND

USBGND

B21

C13

U19V8V19

VCC33

VCC33

USBGND

USBGND

C14

C15

VCC33

USBGND

V21W9W10

W11

W17

VCC33

VCC33

VCC33

VCC33

VCC33

8235/CE(NC)

USBGND

USBGND

USBGND

USBGND

USBGND

C16

C17

C18

C19

C20

C21

W18

W19

VCC33

VCC33

USBGND

USBGND

D13

D15

W21

Y21

VCC33

VCC33

USBGND

USBGND

D17

D19

W8

VCC33

VCC33

USBGND

USBGND

D21

E13

USBGND

USBGND

E15

E17

USBGND

USBGND

E19

E21

USBSUS25

UDPWREN

KBCK/KA20G

KBDT/KBRC

MSCK/IRQ1

MSDT/IRQ12

USBGND

USBGND

H13

H14

USBVDD
USBVDD
USBVDD
USBVDD
USBVDD
USBVDD
USBVDD
USBVDD
USBVDD
USBVDD
USBVDD
USBVDD

PLLVDDA
PLLVDDA

PLLGNDA
PLLGNDA

USBP0+

USBP0-

USBP1+

USBP1-

USBP2+

USBP2-

USBP3+

USBP3-

USBP4+

USBP4-

USBP5+

USBP5-

USBP6+

USBP6-

USBP7+

USBP7-

USBOC0
USBOC1
USBOC2
USBOC3
USBOC4
USBOC5
USBOC6
USBOC7

USBCLK

USB REXT

UDPWR

USBGND

USBGND

USBGND

H15

H16

U6A

USBGND

USBGND

H18

H17

SC82

1U/6/Y/16V

A22
B22
C22
D22
E22
F22
J13
J14
J15
J16
J17
J18

C24

A23
B23

D23
C23

E20
D20
A20
B20
E18
D18
A18
B18
D16
E16
A16
B16
D14
E14
A14
B14

C26
D24
B26
C25
B24
A24
A26
A25

E23
B25
D26

D25

W3
V1
W1
W2

VT8235/CE

3

CLEAR PASSWORD

2.2/6

SC62
220/6

3VDUAL

SUS_25V

R1107
0/8/SHT/X

Z20

BC462
1U/6/Y/10V

USBDT0+
USBDT0­USBDT1+
USBDT1­USBDT2+
USBDT2­USBDT3+
USBDT3­USBDT4+
USBDT4­USBDT5+
USBDT5­USBDT6+
USBDT6­USBDT7+
USBDT7-

-USBOC

USBCLK

R730 6.04K/6/1

GPI9

GPI9 13

GPO9

GPO9 13

KBCK

MSCK

MSDT

CLEAR PASSWORD
OPEN
CLOSE

CLR_PWD
Normal

VCC25

-USBOC 20,27
USBCLK 11

KBCK 23
KBDT 23
MSCK 23
MSDT 23

BC463

0.1U/6/Y/25V

3VDUALSUS_25V

不使用

USB

UDPWR/UDPWREN時,UDPWR必須PULL-DOWN

CLEAR_PASSWD1

PH1X2/H

CLR_PWD

GPI12

JP1x2/H

USBDT0­USBDT0+
USBDT1­USBDT1+

1 2

3 4

5 6

7 8

USBDT2+
USBDT2­USBDT3­USBDT3+

1 2

3 4

5 6

7 8

USBDT4+
USBDT4­USBDT5­USBDT5+

1 2

3 4

5 6

7 8

AGPUSB,CNRUSB DEFAULT NO POP
USB CONTROLLER MUST NOT BEEN FLOATING.

USBDT6+
USBDT6­USBDT7­USBDT7+

1 2

3 4

5 6

7 8

VCC3 VCC3

BC466 1U/6/Y/10V
BC468 0.1U/6/Y/25V BC469 0.1U/6/Y/25V

RN38
15K/8P4R

RN40
15K/8P4R

RN173
15K/8P4R

RN193
15K/8P4R

USBDT0- 27
USBDT0+ 27
USBDT1- 27
USBDT1+ 27

USBDT2+ 20
USBDT2- 20
USBDT3- 20
USBDT3+ 20

USBDT4+ 20
USBDT4- 20
USBDT5- 20
USBDT5+ 20

USBDT6+ 20
USBDT6- 20
USBDT7- 20
USBDT7+ 20

BC465 0.1U/6/Y/25VBC464 0.1U/6/Y/25V
BC467 0.1U/6/Y/25V

BC470 0.1U/6/Y/25V

Decoupling capacitors

Title

SB VT8235CE (PCI, USB BUS, KB/MS)

Size Document Number Rev
Custom

2

Date: Sheet of

GIGABYTE

GA-8VT800

1

12 31Friday, September 19, 2003

1.0

5

SB VT8237 (SATA,IDE, AC97, POWER MANAGEMENT, PGIO)

J9

J10

J11

K9L9J12

L18

PDD[0..15]20

D D

C C

B B

A A

VCC25

SC83

0.1U/6/Y/25V

VT8237 INTERNAL IDSEL LIST:

1.AD26:SATA

2.AD27:USB2.0

3.AD28:S.B(USB1.1)

4.AD29:LAN

VCC3

R125

8.2K/6/X

R128
1K/6

PDD[0..15]

SC84

0.1U/6/Y/25V

SDA1

SDD[0..15]

VCC25

SC78

0.1U/6/Y/25V

SC79

0.1U/6/Y/25V

SDD[0..15]20

SDA1 => GTL Driving Strength

PDD0

AA22

PDD1
PDD2
PDD3
PDD4
PDD5
PDD6
PDD7
PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15

PDDREQ

PDDREQ20

-PDDACK

-PDDACK20

-PDIOR

-PDIOR20

-PDIOW

-PDIOW20

PIORDY

PIORDY20

-PDCS1

-PDCS120

-PDCS3

-PDCS320
PDA0

PDA020

PDA1

PDA120

PDA2

PDA220

IRQ14

IRQ1420

SDD0
SDD1
SDD2
SDD3
SDD4
SDD5
SDD6
SDD7
SDD8
SDD9
SDD10
SDD11
SDD12
SDD13
SDD14
SDD15

SDDREQ

SDDREQ20

-SDDACK

-SDDACK20

-SDIOR

-SDIOR20

-SDIOW

-SDIOW20

SIORDY

SIORDY20

-SDCS1

-SDCS120

-SDCS3

-SDCS320
SDA0

SDA020

SDA1

SDA120

SDA2

SDA220

IRQ15

IRQ1520

C307 0.1U/6/Y/25V/X

R1112 360/6/1/X

VS_TX1+
VS_TX1-

VS_RX1­VS_RX1+

VS_TX2+
VS_TX2-

VS_RX2­VS_RX2+

SC80

0.1U/6/Y/25V

VCC3 VCC3

R789

8.2K/6/X

R790

8.2K/6

PDD0

Y24

PDD1

AA26

PDD2

AA25

PDD3

AB26

PDD4

AC26

PDD5

AC23

PDD6

AD25

PDD7

AD26

PDD8

AC24

PDD9

AC25

PDD10

AB24

PDD11

AB23

PDD12

AA24

PDD13

Y26

PDD14

AA23

PDD15

Y23

PDDREQ

V24

PDDACK

W26

PDIOR

Y25

PDIOW

Y22

PDRDY

V22

PDCS1

V23

PDCS3

W23

PDA0

V25

PDA1

W24

PDA2

AD24

IRQ14

AC20

SDD0/TBC1

AB20

SDD1/VALID

AC21

SDD2

AE18

SDD3/RXD2

AF18

SDD4/RXD3

AD18

SDD5/RXD4

AD19

SDD6/RBC0

AF19

SDD7/RBC1

AE20

SDD8/RXD5

AF20

SDD9/RXD6

AD20

SDD10/RXD7

AE21

SDD11/RXD8

AF21

SDD12/RXD9

AD21

SDD13/TXD0

AD22

SDD14/TXD1

AF22

SDD15/TXD2

AD17

SDDRQ/RXD1

AD23

SDDACK/TBC0

AF23

SDIOR/TXD4

AE23

SDIOW/TXD3

AF17

SDRDY/RXD0

AF25

SDCS1/TXD8

AF26

SDCS3/TXD9

AF24

SDA0/TXD6

AC22

SDA1/TXD5

AE24

SDA2/TXD7

AE26

IRQ15

AC19

SVREF

AB21

SCOMPP

AB13

STXP1

AC13

STXN1

AF13

SRXN1

AE13

SRXP1

AB15

STXP2

AC15

STXN2

AF15

SRXN2

AE15

SRXP2

W12

VDDATS

W13

VDDATS

W14

VDDATS

W15

VDDATS

W16

VDDATS

AC17

VDDAS

AC11

VDDAS

AB17

VDDAS

AB11

VDDAS

SDA0 SDA2

for 8235CEfor 8235CE

SDA0 => GTL Driving Strength SDA2 => ROMSIP 0=Disable

5

VDD

VDD

GNDATS

GNDATS

AB14

AC14

VDD

VDD

GNDATS

GNDATS

AD12

AD13

VDD

GNDATS

AD14

AD15

R127

8.2K/6

R791
1K/6/X

M9

VDD

VDD

GNDATS

GNDATS

AD16

AE12

4

VCC25

M18N9N18P9P18R9R18T9T18U9U18V9V10

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

8235/CE CHANGED

8235/CE(NC)

GNDATS

GNDATS

GNDATS

GNDATS

GNDATS

GNDATS

GNDAS

GNDAS

GNDAS

GNDAS

AF14

AE14

AE16

AF12

AF16

AC16

AC12

AB16

AB12

for 8235CE

4

V11

V12

VDD

VDD

VDD

SA17
SA18
SA16
SA19

GND

GND

F6F7J5K5P5

V13

VDD

VDD

GND

GND

V14

V15

V16

VDD

VDD

VDD

GND

GND

GND

L11

R5

3VDUAL SUS_25V

AA4

AB4

AB5

V17

V18

VDD

VDD

VSUS33

VSUS33

VSUS33

ACSDIN3/SLP_BTN

GND

GND

GND

GND

GND

GND

L13

L14

L15

L16

M11

L12

AB6

T4

U4

VSUS33

VSUS25

ACBITCLK

ACSDIN0
ACSDIN1
ACSDIN2

ACSYNC

ACSDO

ACRST

BATLOW

CPUMISS

SUSST1

AOLGP/THRM

EXTSMI

SMBALRT
PWRBTN

PWROK
CLKRUN
CPUSTP

PCISTP

INTRUDER

SUSCLK
SMBCK1

SMBDT1
SMBCK2

SMBDT2

SUSA
SUSB
SUSC

GPO0

GPO1
GPIOA/Strap1
GPIOB/Strap2

GPIOC/Strap0
GPIOD/Strap3

SERIRQ

SPKR

TEST

VDDA0
GNDA0
SREXT

SXO/Strap4

SXI/Strap5

VDDA33

GNDA33

GND

GND

GND

M12

M13

M14

M15

VSUS25

PME

RING

LID

GPI0
GPI1

OSC
TPO

GND
GND
GND
GND
GND
GND
GND
GND
GND

GND

GND

K18

U6B

T1
U3
V2
U1
V3
T2
U2
T3

W4
V4
Y1
Y2
Y3
Y4
AA1
AB1
AC1
AD2
AF1
AB7
AC7
AD6

AE1
AB3
AC4

AB2
AC3

AD1
AA2

AD3
AF2

AE2
AC2
AA3
AE3
AE5
AD5
AF5
AC6

AD9
AF8
AB8

AF9
AE9

AC10
AB10
AD11
AE10
AF10
AE11
AF11
W5

V5
M16
N11
N12
N13
N14
N15
N16

VT8235/CE

VCC3

123456

3

P/SDA0P/SDA1

0 0 WEAK
001
1
1 1

VBITCLK

VBITCLK 24

VSDIN0

VSDIN0 24

VSDIN1
OVAGP16V

OVAGP16V 28

OVAGP17V
ACSYNC
ACSDO
ACRST

SERIRQ
SPKR
SIO_OSC

TPO
TEST

78

OVAGP17V 28

R116 22/6
R117 22/6
R118 22/6

-PCIPME

-BATLOW
SKTOC-

-RI

-SUSST

-THERM

-SLP_BTN

-SMBALT
S66DET

-PWRBTNR

-PWROK_NB

-CLKRUN

-CPUSTP

-PCISTP
INTRUDER
SUS_CLK
SMBCLK

SMBDATA
GPO27

GPO26

-SUSA

-SUSB

-SUSC
GPI0

P66DET
GPO0
GPO1
GPIOA
GPIOB
GPIOC
GPIOD

R1110 1K/6
R1111 1K/6

BC435

0.1U/6/Y/25V

SREXT
SXO
SXI

BC436

0.1U/6/Y/25V

ACSDO: 0/1 ENABLE/DISABLE AUTO
REBOOT(FOR 8235CE)

RN204
1K/8P4R

SMBCLK
OVDDR26V

SMBDATA
OVDDR27V

-PCIPME 17,18,19,27
SKTOC- 6,30

-RI 23

-SUSST 9

-THERM 14

S66DET 20

-PWROK_NB 9

INTRUDER 14

GPO27 14

-SUSA 17

-SUSB 26,29

-SUSC 26,28

P66DET 20
GPO0 26
GPO1

SERIRQ 20,22
SPKR 26
SIO_OSC 11

VCC25

R1113 4.7K/6/1/X

VCC3

SXO

3

VSYNC 24
VSDOUT 24

-VACRST 24

-SLP_BTN 26

SMBCLK 11,15,16,30
SMBDATA 11,15,16,30

25M/18P/49US/D/X

R1306 8.2K/6

OVDDR26V 12,28

OVDDR27V 12,28

GTL Driving Strength

MIDDLE WEAK
STRONG
STRONGEST

SKTOC-

3VDUAL

R114

8.2K/6
R115 68/6

BC471

0.1U/6/Y/25V

GPIOD = GTL Pull
0 --> Enable
1 --> Disable

PWRLED

AMD TEMP

VCC3

R1114

10M/6/X

TX2

15P/6/N/50V/X

12

C309
15P/6/N/50V/X

VCC3

VS_TX1+

VS_TX1-

VS_RX1-

VS_RX1+

CLOSE VT8237 CHIPSET

VS_TX2+

VS_TX2-

VS_RX2-

VS_RX2+

R1323 22/6

BSEL05,11

R1324 22/6

BSEL15,11

R1325 0/6/X

CBSEL011

R1326 0/6/X

CBSEL111

3VDUAL

R1108

8.2K/6/X

PW+ 26

SPKR: 0/1 ENABLE/DISABLE CPU FREQ STRAPPING

-SUSB

-SUSC

-PDCS3

-SDCS3

ELIMINATE LAN EEPROM

-SDCS1

-SDCS1:0/1:ENABLE/DISABLE

PDA0

PDA0 => GTL Driving Strength

PDA1

for 8237 CD

PDA0 => GTL Driving Strength

PDA2

PDA2 => ROMSIP 0=Disable

Width & Space --> 20:5:10:5:20

TC9 0.01U/6/X/50V/X

TC10 0.01U/6/X/50V/X

TC11 1200P/6/X/50V/XC308

TC12 1200P/6/X/50V/X

TC13 0.01U/6/X/50V/X

TC14 0.01U/6/X/50V/X

TC15 1200P/6/X/50V/X

TC16 1200P/6/X/50V/X

VSDIN1
VSDIN0

GPO9

GPO912

GPI9

GPI912

OVAGP16V
OVAGP17V

2

GPIOB
0--->IOQ=12
1--->IOQ=1

VCC3

R1109
1K/6

R92

8.2K/6/X

R653 1K/6/X
R654 1K/6/X
R1289 8.2K/6/X
R1290 1K/6

R1291 8.2K/6

R1292 8.2K/6/X

R1293 8.2K/6/X

R1294 8.2K/6/X

R1295 8.2K/6/X

R1296 8.2K/6/X

R1297 8.2K/6/X

VTX1+
VTX1-

VRX1­VRX1+

VTX2+
VTX2-

VRX2­VRX2+

R814 8.2K/6
R815 8.2K/6/X

RN198

8.2K/8P4R

5 6
7 8
1 2
3 4

2

RN202

1 2
3 4
5 6
7 8

8.2K/8P4R

8235/CE

VCC3

1

GPI12

GPI1212

-CPUSTP
SERIRQ

SERIRQ20,22

-CLKRUN

GPIO ID
SETTING

GPIOC
GPIOA
GPIOB
GPIOD

SPKR

for 8237CD
for 8235CE

VCC3

GPIO ID
SETTING

VCC3

VCC3

SEEDI14

VCC3

SATA0

1
2
3
4
5
6
7

SATA/1X7/A/X

SATA1

1
2
3
4
5
6
7

SATA/1X7/A/X

Title

SB VT8235CE (SATA,IDE, AC97, POWER , GPIO)

Size Document Number Rev
Custom

Date: Sheet of

GPIO8

GPIO814,21

GPO1312,26

-PDDACK: 0/1 ENABLE/DISABLE EXTERNAL
SATA PHY(FOR 8237CD)

-PWROK_NB
S66DET
SUS_CLK

-BATLOW

-SUSST

-RI

-PCIPME
GPO0

P66DET

-SMBALT

-SLP_BTN

-SUSA
GPO1

GPO26

R80

0/6/X

GPI0

ACSYNC

ASYNC: 0/1 ENABLE/DISABLE LPC FWH
COMMAND(FOR 8237CD)

SEEDI

R113 8.2K/6

GPIO13

R1023 8.2K/6

-PDDACK

R956 8.2K/6/X

1 2
5 6
3 4
7 8

3 4
7 8
5 6
1 2

1 2
3 4
5 6

7 8

R1115 8.2K/6/X
R1095 8.2K/6

R483 1M/6

R957 8.2K/6/X

R1028 8.2K/6/X
R1029 8.2K/6

ELIMINATE LAN EEPROM

SEEDI:1/0:ENABLE/DISABLE

R120 8.2K/6/X

ACSDO

R121 8.2K/6/X

ACSDO: 0/1 ENABLE/DISABLE AUTO
REBOOT(FOR 8237CD)

SXI

R122 8.2K/6

-PCISTP

-PDCS1

R123 8.2K/6/X

R1024 8.2K/6

R1025 8.2K/6/X

R1026 8.2K/6/X

R1027 8.2K/6/X

SXI: 0/1 DISABLE/ENABLE LPC ROM(FOR

8235)

-PCISTP: 0/1 ENABLE/DISABLE 100MHZ
VLINK CLK

-PDCS1: 0/1 ENABLE/DISABLE SATA
MASTER/SLAVE MODE

GIGABYTE

GA-8VT800

1

RN45

8.2K/8P4R

1 2
3 4
5 6
7 8

3VDUAL

RTCVDD

VCC3

VCC3

13 31Friday, September 19, 2003

RN199

8.2K/8P4R

RN201

8.2K/8P4R

RN203

8.2K/8P4R

8237/CD

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

1.0

5

SB VT8237(Vlink, CPU, LPC,
LAN, LAN EEPROM, I2C
BUS)

D D

C C

3VDUAL

B B

R119

8.2K/6

BC459
1U/6/Y/10V

VLAD[7..0]9

VLAD[7..0]

UPCMD9

DNCMD9

-UPSTB9

-DNSTB9

R1102 360/6/1

-LFRAME22

PWROK5,15,26,29,30

C34

10P/6/N/50V

UPSTB9

DNSTB9

TP23
TP24

-LDRQ22

TP21

VLAD0
VLAD1
VLAD2
VLAD3
VLAD4
VLAD5
VLAD6
VLAD7

VBE0

VBE09

UPCMD
DNCMD

UPSTB

-UPSTB
DNSTB

-DNSTB

VPAR9

VLREF_SB
VLCOMP_SB
VCLK

VCLK11

VIOUT
VIIN

LAD0

LAD022

LAD1

LAD122

LAD2

LAD222

LAD3

LAD322

-LFRAME

-LDRQ
LREQ1

-RSMRST

RTCVDD

34

12

Z18

4

H25

G26

K26
J23
F26

G25

K22
K24
E24

G23

L26
L25
E26
E25
L24

M26
G24

K23
K25

J26
J24

H26
H24

VPAR

F24
H22
J22
L22

F23

G22

AD8
AF7
AE7
AD7

AF6
AE6
AE8

PWROK

AC5
AD4

AF4
AE4
AF3

X2

32.768K/12.5P/20PPM/TF38

Z19

C35
10P/6/N/50V

VD0
VD1
VD2
VD3
VD4
VD5
VD6
VD7
VD8
VD9
VD10
VD11
VD12
VD13
VD14
VD15

VBE
UPCMD

DNCMD
UPSTB

UPSTB
DNSTB

DNSTB

VPAR
VLREF
VCOMPP
VCLK

VIOUT
VIIN

LAD0
LAD1
LAD2
LAD3

LFRM
LREQ0
LREQ1

PWRGD
RSMRST

VBAT
RTCX1
RTCX2

L23

VCCVK

K21

VCCVK

L21

VCCVK

N21

N22

VCCVK

N23

VCCVK

VCCVK

N24

VCCVK

N25

VCCVK

N26

VCCVK

P22

P23

VCCVK

P24

VCCVK

VCCVK

P25

VCCVK

P26

VCCVK

M21

VCCVK

M22

M23

VCCVK

M24

VCCVK

VCCVK

8235/CE(NC)

8235/CE(NC) 8235/CE(NC)

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

P11

P12

P13

P14

P15

P16

R11

R15

R14

R13

R12

R16

R21

T11

T12

T14

T13

M25

VCCVK

GND

T15

L19

VCCVK

GND

T16

M19

VCCVK

GND

W22

N19

VCCVK

GND

W25

P19AA21

VCCVKGND

AB19

GND

AB22

GND

GND

AB25

GND

AC18

GND

AE17

3

D12

E12

MIISUS25

MIISUS25

GND

GND

AE19

AE22

AE25

GND

GND

AA9

3VDUALVCC25 SUS_25V

E11E9E10

D9

MIIVCC

MIIVCC

MIIVCC

APICD0/APICCS

APICD1/APICACK

GND

GND

GND

T21

AA10

AB18

K19

MIIVCC

AGPBZ/GPI6

GND

VT8235/CE

MCRS
MCOL

MTXENA

MTXD0
MTXD1
MTXD2
MTXD3

MTXCLK

MRXER

MRXCLK

MRXDV
MRXD0
MRXD1
MRXD2
MRXD3

MDCK

MDIO

PHYRST

EECS
EEDO

EEDI

EECK

RAMVCC

RAMGND

FERR
A20M

IGNNE

STPCLK

DPSLP
VGATE

VIDSEL

VRDSLP

PCICLK

APICCLK

PLLVCC
PLLGND

INTR

2

1

Decoupling capacitors

U6C

INIT
NMI

SMI
SLP

GHI

A11
B11

C11
A10
B10
B9
A9
C10

D10
C9
D8
C8
B8
A8
C7

A7
B7

D7
D11

B12
A12
C12

E7

E6
U24

U26
T24
R26
T25
T26
U25
R24
V26
R22
P21

AC9
AC8
AB9
AD10

R23
U23
R25

T23
T22
U22

-PICD0

-PICD1

FERR­A20M­IGNNE­HINIT­INTR
NMI_SB
SMI
STPCLK­CPUSLP­GPIO22
GPIO23

GPIO8
GPIO28
GPIO29
AGPBZ

PCICLK_F
APICCLK

VDDPLL

MCRS
MCOL

TXEN

R1101 8.2K/6/X

MTXD0
MTXD1
MTXD2
MTXD3
MTXCLK

MRXER
MRXCLK
MRXDV
MRXD0
MRXD1
MRXD2
MRXD3

MDC
MDIO

-PHYRST
SEECS

SEEDO
SEEDI
SEECLK

BC388

0.1U/6/Y/25V

GPIO22 22

GPIO8 13,21
GPIO29

D39
1N4148/S/X

R98 1K/6
R100 1K/6

TP6
TP7
TP8
TP9

TP10
TP11

TP22
TP12

TP13

SEEDI 13

TP14

VCC25

FERR- 5
A20M- 5
IGNNE- 5
HINIT- 4,5
INTR 5

NMI_SB 5
SMI- 5
STPCLK- 5
CPUSLP- 5

SATA LED

PCICLK_F 11
APICCLK 11

VCC3

R937 0/8/SHT/X

BC460

0.1U/6/Y/25V

8237/CD

ID SETTING
ID SETTING/BIOS WP

HDLED- 20,26

VCORE GPIO

VCC25

VCC3

SC81 1U/6/Y/16V
BC455 0.1U/6/Y/25V
BC456 0.1U/6/Y/25V

Internal MAC P.U

MRXCLK
MTXCLK
MCRS

GPO2713

GPO27

MRXDV
MDIO
MRXER
MCOL

MRXD2
MRXD0
MRXD1
MRXD3

Case Open Circuits

R803

RTCVDD

C33

1U/6/Y/10V/X

12

1M/6/X

2 1

VCC25

BC117 0.1U/6/Y/25V
BC118 0.1U/6/Y/25V
BC119 0.1U/6/Y/25V
BC457 0.1U/6/Y/25V
BC458 0.1U/6/Y/25V
SC19 0.1U/6/Y/25V

CLOSE VT8235 SOLDER

3VDUAL

3

4

1

5

6

7

8

1

2

1

3

4

1

2

7

8

5

6

5

6

1

1

2

7

8

3

4

RTCVDD

12

R99

12

CI
PH1X2/H/X

1M/6

INTRUDER

SDG

132

Q86
2N7002/SOT23/X

R802

0/6/X

RN33
1K/8P4R

RN34
1K/8P4R

RN35
1K/8P4R

INTRUDER 13

VCC3

D37

2
1

BAT54C/S

RTCVDD

3

123

C177

4.7U/8/Y/10V

VCC25

CR2032

+

CR2032/D

4

3VDUAL

R805 1K/6 CLR_CMOS

R1105

VBAT_2

1K/6

BAT
BAT

R1104

A A

3K/6/1 0.1U/6/Y/25V/X

R1106
1K/6/1

C36

VLREF_SB

C37
1U/6/Y/10V

5

C467
10000P/4/X/25V

BATTERY

JP1x3/H/X

CLR_CMOS_S1

JU1x2/R/[2-3]/X

BC461

0.1U/6/Y/25V

3

RTCVDD

CLR_CMOS
1-2
2-3

CLEAR COMS JUMPER

CLEAR CMOS
NORMAL (Default)

2

AGPBZ
GPIO22

-THERM

-THERM13
GPIO23

Title

SB VT8235CE (Vlink, CPU, LPC, LAN, I2C)

Size Document Number Rev
Custom

Date: Sheet of

R1122
0/6/X

RN172

7

8

5

6

1

2

3

4

1

1K/8P4R

GIGABYTE

GA-8VT800

GPIO28
GPIO29

1

請遠離

2MM

R812 8.2K/6
R813 8.2K/6

14 31Friday, September 19, 2003

S/B

VCC3

1.0

5

4

DDR25V DDR25V

3

2

1

DDR SDRAM
1,2

MAA[0:15]8,16

D D

DDR25V

0.1U/6/Y/25VBC550

0.1U/6/Y/25V/XBC552

0.1U/6/Y/25VBC554

0.1U/6/Y/25VBC556

0.1U/6/Y/25VBC558

0.1U/6/Y/25VBC560

0.1U/6/Y/25VBC562

0.1U/6/Y/25VBC564

C C

DDR25V

0.1U/6/Y/25VBC566

0.1U/6/Y/25VBC568

0.1U/6/Y/25VBC570

0.1U/6/Y/25V/XBC572

0.1U/6/Y/25VBC574

0.1U/6/Y/25VBC576

0.1U/6/Y/25VBC578

0.1U/6/Y/25V/XBC580

B B

DDRVREF

DDRVREF16

BC121

0.1U/6/Y/25V

-SWEA8,16

-SCASA8,16

-SRASA8,16

CKOUT011

-CKOUT011
CKOUT111

-CKOUT111
CKOUT211

-CKOUT211

-DQSD010,16

-DQSD110,16

-DQSD210,16

-DQSD310,16

-DQSD410,16

-DQSD510,16

-DQSD610,16

-DQSD710,16

SMBDATA11,13,16,30

SMBCLK11,13,16,30

R178 8.2K/6/X

-RESET_DDR16

MAA0
MAA1
MAA2
MAA3
MAA4
MAA5
MAA6
MAA7
MAA8
MAA9
MAA10
MAA13
MAA14
MAA15

MAA11
MAA12

-CS08,16

-CS18,16

DQM0

DQM010,16

DQM1

DQM110,16

DQM2

DQM210,16

DQM3

DQM310,16

DQM4

DQM410,16

DQM5

DQM510,16

DQM6

DQM610,16

DQM7

DQM710,16

-SWEA

-SCASA

-SRASA
CKE0

CKE08,16

CKE1

CKE18,16

-DQSD0

-DQSD1

-DQSD2

-DQSD3

-DQSD4

-DQSD5

-DQSD6

-DQSD7

SMBDATA
SMBCLK

VDDID1

DDR25V

48
43
41

130

37
32

125

29

122

27
141
118
115
167

59

52
113

157
158

71
163

97
107
119
129
149
159
169
177
140

63

65
154

21
111

16

17
137
138

76

75

5
14
25
36
56
67
78
86
47

91
92

181
182
183

1
82

184

9
10

101
102
173
103

DDR/GF/PU

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13

BA0
BA1
BA2

CS0
CS1
NC/CS2
NC/CS3

DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7
DQM8

WE
CAS
RAS

CKE0
CKE1

CK0/DNU
CK0/DNU
CK1
CK1
CK2/DNU
CK2/DNU

DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8

SDA
SCL

SA0
SA1
SA2

VREF
VDDID
VDDSPD

NC
NC/RESET
NC
NC
NC
NC/FETEN

DDR1

15223054627796

VDDQ

VDDQ

104

112

128

136

143

156

164

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

GND

GND

GND

GND

GND

GND

GND

GND

GND

3111826344250586674818993

GND

172

180738467085108

VDD

VDD

VDDQ

VDDQ

VDDQ

GND

GND

GND

GND

GND

GND

100

116

124

120

148

168

VDD

VDD

VDD

VDD

VDD

VDD

VDD

D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
D32
D33
D34
D35
D36
D37
D38
D39
D40
D41
D42
D43
D44
D45
D46
D47
D48
D49
D50
D51
D52
D53
D54
D55
D56
D57
D58
D59
D60
D61
D62
D63

CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7

WP

GND

GND

GND

GND

GND

GND

132

139

145

152

160

176

MDD0

2

D0

MDD1

4

D1

MDD2

6

D2

MDD3

8

D3

MDD4

94

D4

MDD5

95

D5

MDD6

98

D6

MDD7

99

D7

MDD8

12

D8

MDD9

13

D9

MDD10

19

MDD11

20

MDD12

105

MDD13

106

MDD15

109

MDD14

110

MDD17

23

MDD16

24

MDD18

28

MDD23

31

MDD20

114

MDD21

117

MDD19

121

MDD22

123

MDD24

33

MDD28

35

MDD30

39

MDD31

40

MDD25

126

MDD29

127

MDD26

131

MDD27

133

MDD36

53

MDD37

55

MDD34

57

MDD39

60

MDD33

146

MDD32

147

MDD38

150

MDD35

151

MDD40

61

MDD41

64

MDD42

68

MDD43

69

MDD44

153

MDD45

155

MDD46

161

MDD47

162

MDD49

72

MDD48

73

MDD50

79

MDD55

80

MDD53

165

MDD52

166

MDD54

170

MDD51

171

MDD57

83

MDD56

84

MDD58

87

MDD59

88

MDD61

174

MDD60

175

MDD62

178

MDD63

179
44

45
49
51
134
135
142
144

Z53

R180 8.2K/6

90

MDD[0:63] 10,16

DDR25V

DDR25V

DDR25V

MAB[0:15]8,16

0.1U/6/Y/25VBC549

0.1U/6/Y/25VBC551

0.1U/6/Y/25VBC553

0.1U/6/Y/25VBC555

0.1U/6/Y/25VBC557

0.1U/6/Y/25VBC559

0.1U/6/Y/25VBC561

0.1U/6/Y/25VBC563

-SWEB8,16

-SCASB8,16

0.1U/6/Y/25VBC565

0.1U/6/Y/25VBC567

0.1U/6/Y/25VBC569

0.1U/6/Y/25VBC571

0.1U/6/Y/25VBC573

0.1U/6/Y/25VBC577

0.1U/6/Y/25VBC579

DDRVREF

BC122
1U/6/Y/10V

-SRASB8,16

CKOUT311

-CKOUT311
CKOUT411

-CKOUT411
CKOUT511

-CKOUT511

R179 8.2K/6/X

-RESET_DDR16

-CS28,16

-CS38,16

CKE28,16
CKE38,16

DDR25V

DDR25V

MAB0
MAB1
MAB2
MAB3
MAB4
MAB5
MAB6
MAB7
MAB8
MAB9
MAB10
MAB13
MAB14
MAB15

MAB11
MAB12

DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7

-SWEB

-SCASB

-SRASB
CKE2

CKE3

-DQSD0

-DQSD1

-DQSD2

-DQSD3

-DQSD4

-DQSD5

-DQSD6

-DQSD7

SMBDATA
SMBCLK

VDDID2

48
43
41

130

37
32

125

29

122

27
141
118
115
167

59

52
113

157
158

71
163

97
107
119
129
149
159
169
177
140

63

65
154

21
111

16

17
137
138

76

75

5
14
25
36
56
67
78
86
47

91
92

181
182
183

1
82

184

9
10

101
102
173
103

DDR2

DDR/GF/PU

15223054627796

VDDQ

VDDQ

VDDQ

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13

BA0
BA1
BA2

CS0
CS1
NC/CS2
NC/CS3

DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7
DQM8

WE
CAS
RAS

CKE0
CKE1

CK0/DNU
CK0/DNU
CK1
CK1
CK2/DNU
CK2/DNU

DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8

SDA
SCL

SA0
SA1
SA2

VREF
VDDID
VDDSPD

NC
NC/RESET
NC
NC
NC
NC/FETEN

3111826344250586674818993

VDDQ

GND

VDDQ

GND

VDDQ

GND

104

VDDQ

GND

112

VDDQ

GND

128

VDDQ

GND

136

VDDQ

GND

VDDQ

GND

143

156

VDDQ

GND

164

VDDQ

GND

VDDQ

GND

172

180738467085108

VDD

VDD

VDD

VDDQ

VDDQ

GND

GND

GND

GND

GND

GND

100

116

124

132

120

148

168

VDD

VDD

VDD

VDD

VDD

VDD

D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
D32
D33
D34
D35
D36
D37
D38
D39
D40
D41
D42
D43
D44
D45
D46
D47
D48
D49
D50
D51
D52
D53
D54
D55
D56
D57
D58
D59
D60
D61
D62
D63

CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7

GND

GND

GND

GND

GND

139

145

152

160

176

MDD0

2

D0

MDD1

4

D1

MDD2

6

D2

MDD3

8

D3

MDD4

94

D4

MDD5

95

D5

MDD6

98

D6

MDD7

99

D7

MDD8

12

D8

MDD9

13

D9

MDD10

19

MDD11

20

MDD12

105

MDD13

106

MDD15

109

MDD14

110

MDD17

23

MDD16

24

MDD18

28

MDD23

31

MDD20

114

MDD21

117

MDD19

121

MDD22

123

MDD24

33

MDD28

35

MDD30

39

MDD31

40

MDD25

126

MDD29

127

MDD26

131

MDD27

133

MDD36

53

MDD37

55

MDD34

57

MDD39

60

MDD33

146

MDD32

147

MDD38

150

MDD35

151

MDD40

61

MDD41

64

MDD42

68

MDD43

69

MDD44

153

MDD45

155

MDD46

161

MDD47

162

MDD49

72

MDD48

73

MDD50

79

MDD55

80

MDD53

165

MDD52

166

MDD54

170

MDD51

171

MDD57

83

MDD56

84

MDD58

87

MDD59

88

MDD61

174

MDD60

175

MDD62

178

MDD63

179
44

45
49
51
134
135
142
144

Z54

R181 8.2K/6

90

WP

DDR25V

補銅柏打

VIA.

DDR25V

A A

R183
1K/6/1

R184
1K/6/1

DDRVREF

線走

20Mil 以上.

5

4

For Register DDR
Support

VCC25

3

R185

1K/6/X

VCC25

R182
1K/6

-RESET_DDR 16

Q11
MMBT2222A/SOT23/X

Z55

SOT23

132

PWROK 5,14,26,29,30

2

Title

Size Document Number Rev
Custom

Date: Sheet of

GIGABYTE

DDR UNBUFFERED 1,2

GA-8VT800

1

15 31Friday, September 19, 2003

1.0

5

4

3

2

1

DDRVTT Decouple

DDRVTT

DDR SDRAM 3

DDR25V

D D

-CS48

-CS58

DQM010,15
DQM110,15
DQM210,15
DQM310,15
DQM410,15
DQM510,15
DQM610,15
DQM710,15

CKE48
CKE58

DDR25V

DDR25V

8
6
4
2

8
6
4
2

MAB0
MAB1
MAB2
MAB3
MAB4
MAB5
MAB6
MAB7
MAB8
MAB9
MAB10
MAB13
MAB14
MAB15

MAB11
MAB12

-CS4

-CS5

DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7

-SWEB

-SCASB

-SRASB
CKE4

CKE5

-DQSD0

-DQSD1

-DQSD2

-DQSD3

-DQSD4

-DQSD5

-DQSD6

-DQSD7

SMBDATA
SMBCLK

VDDID3

DDR/GF/PU

CN37

CN41

MAB[0:15]8,15

C C

-SWEB8,15

-SCASB8,15

-SRASB8,15

CKOUT611

-CKOUT611
CKOUT711

-CKOUT711
CKOUT811

-CKOUT811

-DQSD010,15

-DQSD110,15

-DQSD210,15

-DQSD310,15

-DQSD410,15

-DQSD510,15

-DQSD610,15

BC123

0.1U/6/Y/25V

CN36

CN40

5

-DQSD710,15

SMBDATA11,13,15,30

SMBCLK11,13,15,30

R191 8.2K/6/X

-RESET_DDR15

7
5
3
1

0.1U/8P4C

7
5
3
1

0.1U/8P4C

B B

DDRVREF15

DDRVTT DDRVTT DDRVTT DDRVTT

7

A A

CN35

CN39

5
3
1

0.1U/8P4C

7
5
3
1

0.1U/8P4C

8
6
4
2

8
6
4
2

130

125
122
141

118
115
167

113
157

158
163

107
119
129
149
159
169
177
140

154

111

137
138

181
182
183

184

101
102
173
103

48
43
41

37
32

29
27

59
52

71

97

63
65

21

16
17

76
75

5
14
25
36
56
67
78
86
47

91
92

1
82

9
10

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13

BA0
BA1
BA2

CS0
CS1
NC/CS2
NC/CS3

DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7
DQM8

WE
CAS
RAS

CKE0
CKE1

CK0/DNU
CK0/DNU
CK1
CK1
CK2/DNU
CK2/DNU

DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8

SDA
SCL

SA0
SA1
SA2

VREF
VDDID
VDDSPD

NC
NC/RESET
NC
NC
NC
NC/FETEN

DDR3

7
5
3
1

0.1U/8P4C

7
5
3
1

0.1U/8P4C

15223054627796

VDDQ

VDDQ

8
6
4
2

8
6
4
2

104

112

128

136

143

156

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

GND

GND

GND

GND

GND

GND

GND

GND

GND

CN38

CN42

GND

7
5
3
1

0.1U/8P4C

7
5
3
1

0.1U/8P4C

3111826344250586674818993

164

172

180738467085108

VDD

VDDQ

VDDQ

VDDQ

GND

GND

GND

GND

GND

100

116

8
6
4
2

8
6
4
2

4

120

148

168

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
D32
D33
D34
D35
D36
D37
D38
D39
D40
D41
D42
D43
D44
D45
D46
D47
D48
D49
D50
D51
D52
D53
D54
D55
D56
D57
D58
D59
D60
D61
D62
D63

CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7

GND

WP

GND

GND

GND

GND

GND

139

145

152

160

176

GND

124

132

MDD0

2

D0

MDD1

4

D1

MDD2

6

D2

MDD3

8

D3

MDD4

94

D4

MDD5

95

D5

MDD6

98

D6

MDD7

99

D7

MDD8

12

D8

MDD9

13

D9

MDD10

19

MDD11

20

MDD12

105

MDD13

106

MDD15

109

MDD14

110

MDD17

23

MDD16

24

MDD18

28

MDD23

31

MDD20

114

MDD21

117

MDD19

121

MDD22

123

MDD24

33

MDD28

35

MDD30

39

MDD31

40

MDD25

126

MDD29

127

MDD26

131

MDD27

133

MDD36

53

MDD37

55

MDD34

57

MDD39

60

MDD33

146

MDD32

147

MDD38

150

MDD35

151

MDD40

61

MDD41

64

MDD42

68

MDD43

69

MDD44

153

MDD45

155

MDD46

161

MDD47

162

MDD49

72

MDD48

73

MDD50

79

MDD55

80

MDD53

165

MDD52

166

MDD54

170

MDD51

171

MDD57

83

MDD56

84

MDD58

87

MDD59

88

MDD61

174

MDD60

175

MDD62

178

MDD63

179
44

45
49
51
134
135
142
144

Z56

R192 8.2K/6

90

MDD[0:63] 10,15

DDR25V

3

EC39

1

+

1000U/D/6.3V/8C

EC1

+

7
5

CN6

3
1

0.1U/8P4C

7
5

CN8

3
1

0.1U/8P4C

7
5

CN10

3
1

0.1U/8P4C

7
5

CN12

3
1

0.1U/8P4C

DDRVTT DDRVTT

7
5

CN14

3
1

0.1U/8P4C

7
5

CN16

3
1

0.1U/8P4C

NOTE: Place these decoupling
capacitors close to VTT_MEM
termination resistors. (one
decoupling coapcitor for each
two R-packs)

DDR25V
Decouple

DDR25V

EC2 1000U/D/6.3V/8C
EC3 1000U/D/6.3V/8C

EC61 1000U/D/6.3V/8C
EC62 1000U/D/6.3V/8C/X

EC65 1000U/D/6.3V/8C

100U/D/10V/57

8
6
4
2

8
6
4
2

8
6
4
2

8
6
4
2

8
6
4
2

8
6
4
2

+

+

+

+

+

0.22U/4/Y/10VBC124

0.22U/4/Y/10VBC125

0.22U/4/Y/10VBC126

0.22U/4/Y/10VBC127

0.22U/4/Y/10VBC128

0.22U/4/Y/10VBC129

0.22U/4/Y/10VBC130

0.22U/4/Y/10VBC131

0.22U/4/Y/10VBC132

CN7

CN9

CN11

CN13

CN15

CN17

CN19

DDRVTT

7
5
3
1

0.1U/8P4C

7
5
3
1

0.1U/8P4C

7
5
3
1

0.1U/8P4C

7
5
3
1

0.1U/8P4C

7
5
3
1

0.1U/8P4C

7
5
3
1

0.1U/8P4C

7
5
3
1

0.1U/8P4C

0.1U/4/Y/16VBC251

0.1U/4/Y/16VBC252

0.1U/4/Y/16VBC253

8
6
4
2

8
6
4
2

8
6
4
2

8
6
4
2

8
6
4
2

8
6
4
2

8
6
4
2

MAA148,15

MAA68,15

MAA48,15

-SRASA8,15

MAA58,15

MAA88,15

-CS08,15

-SCASA8,15

-CS28,15 -CS18,15

MAA108,15

MAA128,15

CKE28,15
CKE08,15
CKE38,15
CKE18,15

CKE48
CKE58

DDRVTT

2

DDR TERMINATION

-DQSD3
MDD12

MDD13

-DQSD1
DQM1
MAA14
MDD20
MDD17
MDD16
MDD7
MDD3
MDD8
MDD9
MDD21
MAB13
MAB9
DQM2
MDD25
MAA6
MDD29
MDD28
DQM3
MAB4
MAB3
MAA4
MAB11
MDD35
MDD39

-SRASA
MAB5

MAA5
MAB6
MDD24

MAA8
MDD23
MDD22

-SWEB
MDD45

-CS0
MDD41

-SCASA

-CS4

-SCASB

-CS2

-DQSD5
MDD46

MDD42
MDD47
MAA10
MAB12

MAA12
MDD43

R186 33/6

R1333 33/6
R1334 33/6

DDRVTT DDRVTT

1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8

1 2
3 4
5 6
7 8

1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8

1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8

1 2
3 4
5 6
7 8

1U/6/Y/10VBC539

1U/6/Y/10VBC540

1U/6/Y/10VBC541

1U/6/Y/10VBC542

1U/6/Y/10VBC543

1U/6/Y/10VBC544

RN49
33/8P4R

RN51
33/8P4R

RN52
33/8P4R

MAA138,15

RN54
33/8P4R

RN56
33/8P4R

RN58
33/8P4R

RN60
33/8P4R

RN62
33/8P4R

RN64
33/8P4R

MAA118,15

RN66
33/8P4R

-SWEA8,15

RN68
33/8P4R

RN71
33/8P4R

RN73
33/8P4R

R189
33/6

RN229
33/8P4R

MAA158,15

Title

Size Document Number Rev
Custom

Date: Sheet of

DDR UNBUFFERED 3

-DQSD0
DQM0
MDD2
MDD6
MDD0
MDD4
MDD5
MDD1

MDD54
MDD59

MAB14

-DQSD2
MAA13
MAA9

MAA98,15

MDD18
MAA7

MAA78,15

MAB7
MDD19
MDD26
MAA3

MAA38,15

MDD30
MDD27
MDD31
MAB2
MAA2

MAA28,15

MAB1
MAA1

MAA18,15

MAB0
MAA0

MAA08,15

MAB10
MDD36
MDD33
MDD37

-DQSD4
MDD32MAB8
MDD34
MAA11
DQM4
MDD40
MDD44

-SWEA

-SRASB

-CS5
DQM5

-CS3

-CS38,15

-CS1
MDD53
MDD49
MDD48
MDD52
MDD50
MDD51
MDD55
MDD61

-DQSD7
MDD63
MDD62
MDD58
MDD60
MDD57
MDD56
DQM7

MDD38

MDD15
MDD14
MDD10
MDD11
MAB15
MAA15
DQM6

-DQSD6

GIGABYTE

GA-8VT800

1

1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8

R187 33/6
R188 33/6

1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8

R190 33/6

1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8

16 31Friday, September 19, 2003

DDRVTT

RN48
33/8P4R

RN50
33/8P4R

RN53
33/8P4R

RN55
33/8P4R

RN57
33/8P4R

RN59
33/8P4R

RN61
33/8P4R

RN63
33/8P4R

RN65
33/8P4R

RN67
33/8P4R

RN69
33/8P4R

RN70
33/8P4R

RN72
33/8P4R

RN74
33/8P4R

RN75
33/8P4R

RN76
33/8P4R

RN77
33/8P4R

1.0

A

B

C

D

E

SBA[0:7]9

VDDQ

VCC3

VCCVCC3

4 4

AGPCLK11

DBIL9

SB_STB9

3VDUAL

3 3

AD_STB19

-GBE29

-GIRDY9

-GDEVSEL9

-GSERR9

-GBE19

2 2

AD_STB09

CLOSE TO AGP SLOT

+12V

1 1

BC142

0.1U/6/Y/25V

R194

8.2K/6

-INTB

-INTB12,18,19
AGPCLK

-GREQ

-GREQ9
ST0

ST09

ST2

ST29

-RBF

-RBF9
DBIL

SBA0
SBA2

SB_STB
SBA4

SBA6

GD31
GD29

GD27
GD25

AD_STB1
GD23

GD21
GD19

GD17

-GBE2

-GIRDY

-GDEVSEL

-GPERR

-GSERR

-GBE1
GD14

GD12
GD10

GD8
AD_STB0

GD7
GD5

GD3
GD1

VREF_CG

C42

4.7U/8/Y/10V

REV2.0

VCC

BC143

0.1U/6/Y/25V

A

GD[0:31]9

B1
B2
B3
B4
B5
B6
B7
B8

B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B50
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66

AGP

OVRCNT

5.0V

5.0V
USB+
GND
INTB
CLK
REQ
VCC3.3
ST0
ST2
RBF
GND
DBI_LO
SBA0
VCC3.3
SBA2
SB_STBF
GND
SBA4
SBA6
RESERVED
GND

3.3V AUX
VCC3.3
AD31
AD29
VCC3.3
AD27
AD25
GND
AD_STBF1
AD23
VDDQ1.5
AD21
AD19
GND
AD17
C/BE2
VDDQ1.5
IRDY
KEY
KEY/GND
KEY
KEY/VCC3.3
DEVSEL
VDDQ1.5
PERR
GND
SERR
C/BE1
VDDQ1.5
AD14
AD12
GND
AD10
AD8
VDDQ
AD_STBF0
AD7
GND
AD5
AD3
VDDQ1.5
AD1
AGPVREFCG

Z57

SBA[0:7]
GD[0:31]

TYPEDET

AGP V3.0

Rev. 0.95

DBIH/PIPE

RESERVED
RESERVED

AD_STBS1

KEY/VCC3.3

AD_STBS0

AGPVREFGC

AGPRM/CO/GF/124/G

GC_DET

USB-

GND
INTA

RST

GNT

VCC3.3

MB_DET

GND
WBF

SBA1

VCC3.3

SBA3

SB_STBS

GND
SBA5
SBA7

GND

VCC3.3

AD30
AD28

VCC3.3

AD26
AD24

GND

C/BE3

VDDQ1.5

AD22
AD20

GND

AD18
AD16

VDDQ1.5

FRAME

KEY

KEY/GND

KEY

TRDY
STOP

PME

GND

PAR

AD15

VDDQ1.5

AD13
AD11

GND

C/BE0

VDDQ1.5

GND

VDDQ1.5

12V

ST1

AD9

AD6
AD4

AD2
AD0

B

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66

REV2.0

+12V

VDDQ

VCC3

-GPME

R962 0/6/X

VREF_CG

C43

0.1U/6/Y/25V

4X:0.75V
8X:0.35V

-TYPEDET

-GC_DET

-INTA

-AGPRST

-GGNT
ST1

-MB_DET
DBIH_PIPE

-WBF
SBA1

SBA3

-SB_STB
SBA5

SBA7

GD30
GD28

GD26
GD24

-AD_STB1

-GBE3
GD22

GD20
GD18

GD16

-GFRAME

REV2.0

GPAR
GD15

GD13
GD11

GD9

-GBE0

-AD_STB0
GD6

GD4
GD2

GD0
AGPVREF

R211
324/6/1

VDDQ

VCC

R193

8.2K/6

-INTA 12,18,19

-GGNT 9
ST1 9

-WBF 9

-SB_STB 9

R213

140/6/1

R214
100/6/1

DBIH_PIPE 9

-AD_STB1 9

-GBE3 9

-GFRAME 9

-GTRDY

-GSTOP

-PCIPME

GPAR 9

-GBE0 9

-AD_STB0 9

AGPVREF 9

G S

SOT23

2

-AGPRST 29

C41

100P/6/N/50V/X

-GTRDY 9

-GSTOP 9

-PCIPME 13,18,19,27

Q16

3

2N7002/SOT23

D

1

-AGP8XDET_GC

PLACE THESE
BYPASSING
CAPACITORS NEAR
AGP SLOT

C

+12V

REV2.0

VCC3

VDDQ

BC133

0.1U/6/Y/25V

BC137

0.1U/6/Y/25V

BC134

0.1U/6/Y/25V

Place 1 at each pair of 3.3V pins

Decopuling capacitors
(Place near AGP slot)

BC138

0.1U/6/Y/25V

VDDQ

BC141

0.1U/6/Y/25V

Place 1 at each pair of VDDQ pins
Place an additional for spread from A14 - A33

+12V

R209

8.2K/6

3

D

G S

SOT23

2

Q17
2N7002/SOT23

1

R215

2.2K/6

R212
1K/6

VCC3

+

EC60
1000U/D/6.3V/8C

BC135

0.1U/6/Y/25V

BC139

0.1U/6/Y/25V

+

EC4
1000U/D/6.3V/8C

-AGP8XDET 9

+

EC5
1000U/D/6.3V/8C

1:4X
0:8X

BC136

0.1U/6/Y/25V

BC140

0.1U/6/Y/25V

D

+

EC64
1000U/D/6.3V/8C

-SUSA13

(VIA VT8235 GPO0)

1.GPO pin must power on default High

Note:

2.GPO pin must Reset keep High

3.Dip switch default not mount

-AGP8XDET_GC

Title

Size Document Number Rev
Custom

Date: Sheet of

MMBT2222A/SOT23

R849 8.2K/6

R851 8.2K/6

+12V

Q14

R208

8.2K/6

MMBT2222A/SOT23

Q106

132

132

-GPERR

R501 8.2K/6

R206
1K/6

8XDET_GC

132

2
1

GIGABYTE

AGP SLOT

GA-8VT800

-AGP8XDET_GC

-GC_DET

-MB_DET

Q107
MMBT2222A/SOT23

Q15
2N7002/SOT23

SOT23

G S

D

3

R210
150/6

17 31Friday, September 19, 2003

E

R883
0/6/X

VDDQ

-GPERR

1.0

5

PCI SLOT 1,2,3

VCC3

VCC +12V-12V

D D

-INTC12,19,27

-INTA12,17,19

PCICLK011 PCICLK211

-REQ012,19
AD31

AD29
AD27

AD25

-C_BE312,19,27
AD23

AD21
AD19

AD17

C C

B B

-C_BE212,19,27

-IRDY12,19,27 -IRDY12,19,27 -IRDY12,19,27

-DEVSEL12,19,27

-PLOCK19

-C_BE112,19,27
AD14

AD12
AD10

AD8
AD7

AD5
AD3

AD1

-ACK6419 -ACK6419 -ACK6419

PCI
SLOT1

PCI1

B1

-12V

B2

TCK

B3

GND

B4

TDO

B5

+5V

B6

+5V

B7

INTB

B8

INTD

B9

PRSNT1

B10

RESERVED

B11

PRSNT2

B12

GND

B13

GND

B14

RESERVED

B15

GND

B16

CLK

B17

GND

B18

REQ

B19

+5V

B20

AD31

B21

AD29

B22

GND

B23

AD27

B24

AD25

B25

+3.3V

B26

C/BE3

B27

AD23

B28

GND

B29

AD21

B30

AD19

B31

+3.3V

B32

AD17

B33

C/BE2

B34

GND

B35

IRDY

B36

+3.3V

B37

DEVSEL

B38

GND

B39

LOCK

B40

PERR

B41

+3.3V

B42

SERR

B43

+3.3V

B44

C/BE1

B45

AD14

B46

GND

B47

AD12

B48

AD10

B49

GND

B52

AD8

B53

AD7

B54

+3.3V

B55

AD5

B56

AD3

B57

GND

B58

AD1

B59

+5V

B60

ACK64

B61

+5V

B62

+5V

PCI/CO/GF/120

TRST
+12V

TMS

INTA

INTC
RESERVED
RESERVED

GND

GND

3.3V_AUX

GND

PME

AD30
+3.3V
AD28
AD26

GND

AD24

IDSEL

+3.3V
AD22
AD20

GND

AD18
AD16
+3.3V

FRAME

GND

TRDY

GND

STOP
+3.3V

SDONE

SBO

GND

PAR

AD15
+3.3V
AD13
AD11

GND

C/BE0

+3.3V

GND

REQ64

TDI

+5V

+5V
+5V

RST
+5V
GNT

AD9

AD6
AD4

AD2
AD0
+5V

+5V
+5V

VCC3

VCC

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25

Z60

R216 0/6/SHT/X R217 0/6/SHT/X R218 0/6/SHT/X

A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62

IDSEL(A20)

(B)

A A

5

4

AD[0..31]12,19,27

-INTB 12,17,19

3VDUAL

-PPCIRST 19,29

-GNT0 12,19 -GNT1 12,19

-PCIPME 13,17,19,27

AD30
AD28

AD26
AD24

AD22
AD20

AD18
AD16

-TRDY 12,19,27 -TRDY 12,19,27 -TRDY 12,19,27

MODIFY 0709

PAR 12,19,27 PAR 12,19,27

AD15
AD13

AD11
AD9

-C_BE0 12,19,27

AD6
AD4

AD2
AD0

R219

8.2K/6

-PPCIRST

Close PCI
Slot1

4

AD[0..31]

VCC3

VCC +12V-12V

-INTB12,17,19

PCICLK111

-REQ112,19
AD31

AD29
AD27

AD20

VCC VCC VCC

-C_BE312,19,27

C44
100P/4/N/50V/X

AD25

AD23
AD21

AD19
AD17

-C_BE212,19,27

-PLOCK19

-SERR12,19,27-SERR12,19,27 -SERR12,19,27

-C_BE112,19,27
AD14

AD12
AD10

AD8
AD7

AD5
AD3

-INTD

2

-INTC

4

-INTA

6

-INTB

8

-ACK64

RN82 8.2K/8P4R

-SERR

1

1

-PERR

3

-PLOCK

5

-STOP

7

-DEVSEL

1

1

-TRDY

3

-IRDY

5

-FRAME

7

RN83 8.2K/8P4R

B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49

B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62

VCC

VCC3

RN81

8.2K/8P4R

1

1
3
5
7

R222

8.2K/6 BC147 0.1U/6/Y/25V/X

VCC

2
4
6
8
2
4
6
8

3

PCI
SLOT2

PCI2

B1

-12V

B2

TCK

B3

GND

B4

TDO

B5

+5V

B6

+5V

B7

INTB

B8

INTD

B9

PRSNT1
RESERVED
PRSNT2
GND
GND
RESERVED
GND
CLK
GND
REQ
+5V
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE2
GND
IRDY
+3.3V
DEVSEL
GND
LOCK
PERR
+3.3V
SERR
+3.3V
C/BE1
AD14
GND
AD12
AD10
GND

AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V
ACK64
+5V
+5V

PCI/CO/GF/120

IDSEL(A21) IDSEL(A22)

TRST

+12V

TMS

TDI

+5V
INTA
INTC

+5V

RESERVED

+5V

RESERVED

GND
GND

3.3V_AUX
RST

+5V
GNT
GND
PME

AD30
+3.3V
AD28
AD26

GND

AD24

IDSEL

+3.3V
AD22
AD20

GND

AD18
AD16
+3.3V

FRAME

GND

TRDY

GND

STOP
+3.3V

SDONE

SBO
GND
PAR

AD15
+3.3V
AD13
AD11

GND
AD9

C/BE0

+3.3V

AD6
AD4
GND
AD2
AD0

+5V

REQ64

+5V

+5V

(C) (D)

3

VCC3

VCC

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25

Z61

A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62

R220

8.2K/6

-INTC 12,19,27

3VDUAL

-PPCIRST 19,29 -PPCIRST 19,29

-PCIPME 13,17,19,27 -PCIPME 13,17,19,27

AD30
AD28

AD26
AD24

AD22
AD20

AD18
AD16

AD15
AD13

AD11
AD9

AD6
AD4

AD2
AD0AD1

AD21

-FRAME 12,19,27 -FRAME 12,19,27-FRAME 12,19,27

-C_BE0 12,19,27

+12V

BC144 0.1U/6/Y/25V/X

-12V

BC150 0.1U/6/Y/25V/X

3VDUAL

2

-INTA12,17,19-INTA 12,17,19

-INTC12,19,27

-REQ212,19

-C_BE312,19,27

-C_BE212,19,27

-DEVSEL12,19,27-DEVSEL12,19,27

-PLOCK19

-PERR12,19,27-PERR12,19,27 -PERR12,19,27

-C_BE112,19,27

C45 0.1U/6/Y/25V
C46 0.1U/6/Y/25V

2

AD31
AD29

AD27
AD25

AD23
AD21

AD19
AD17

AD14
AD12

AD10

AD8
AD7

AD5
AD3

VCC3

VCC +12V-12V

VCC

BC145 0.1U/6/Y/25V/X
BC146 0.1U/6/Y/25V

BC148 0.1U/6/Y/25V
BC151 0.1U/6/Y/25V/X

PCI
SLOT3

PCI3

B1

-12V

B2

TCK

B3

GND

B4

TDO

B5

+5V

B6

+5V

B7

INTB

B8

INTD

B9

PRSNT1

B10

RESERVED

B11

PRSNT2

B12

GND

B13

GND

B14

RESERVED

B15

GND

B16

CLK

B17

GND

B18

REQ

B19

+5V

B20

AD31

B21

AD29

B22

GND

B23

AD27

B24

AD25

B25

+3.3V

B26

C/BE3

B27

AD23

B28

GND

B29

AD21

B30

AD19

B31

+3.3V

B32

AD17

B33

C/BE2

B34

GND

B35

IRDY

B36

+3.3V

B37

DEVSEL

B38

GND

B39

LOCK

B40

PERR

B41

+3.3V

B42

SERR

B43

+3.3V

B44

C/BE1

B45

AD14

B46

GND

B47

AD12

B48

AD10

B49

GND

B52

AD8

B53

AD7

B54

+3.3V

B55

AD5

B56

AD3

B57

GND

B58

AD1

B59

+5V

B60

ACK64

B61

+5V

B62

+5V

PCI/CO/GF/120

Title

Size Document Number Rev
Custom

Date: Sheet of

TRST
+12V

TMS

INTA

INTC
RESERVED
RESERVED

GND

GND

3.3V_AUX

GNT

GND

PME

AD30
+3.3V
AD28
AD26

GND

AD24

IDSEL

+3.3V
AD22
AD20

GND

AD18
AD16
+3.3V

FRAME

GND

TRDY

GND

STOP
+3.3V

SDONE

SBO

GND

PAR

AD15
+3.3V
AD13
AD11

GND

AD9

C/BE0

+3.3V

AD6

AD4

GND

AD2

AD0

REQ64

TDI

+5V

+5V
+5V

RST
+5V

+5V
+5V

+5V

1

VCC3

VCC

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25

Z62 AD22

A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62

VCC3

EC6 1000U/D/6.3V/8C
EC7 1000U/D/6.3V/8C/X

BC149 0.1U/6/Y/25V
BC152 0.1U/6/Y/25V
BC153 0.1U/6/Y/25V

AD30
AD28

AD26
AD24

AD22
AD20

AD18
AD16

AD15
AD13

AD11
AD9

AD6
AD4

AD2
AD0AD1

R221

8.2K/6

+

+

GIGABYTE

PCI SLOT 1,2,3

GA-8VT800

1

-INTD 12,19,27

-INTB 12,17,19-INTD12,19,27-INTD 12,19,27

3VDUAL

-GNT2 12,19

-STOP 12,19,27-STOP 12,19,27-STOP 12,19,27

PAR 12,19,27

-C_BE0 12,19,27

18 31Friday, September 19, 2003

1.0

5

PCI SLOT 4,5

D D

C C

B B

-INTB12,17,18

-INTD12,18,27

PCICLK311 PCICLK411

-C_BE312,18,27

-C_BE212,18,27

-IRDY12,18,27 -IRDY12,18,27

-PLOCK18

-PERR12,18,27 -PERR12,18,27

-C_BE112,18,27

-ACK6418 -ACK6418

VCC3 VCC3

VCC +12V-12V VCC VCC

-REQ3
AD31

AD29
AD27 AD26

AD25

AD23
AD21

AD19
AD17

-IRDY

-PLOCK

AD14
AD12

AD10

AD8
AD7

AD5
AD3

AD1

AD[0..31]12,18,27

PCI

PCI4

SLOT4

B1

-12V

B2

TCK

B3

GND

B4

TDO

B5

+5V

B6

+5V

B7

INTB

B8

INTD

B9

PRSNT1

B10

RESERVED

B11

PRSNT2

B12

GND

B13

GND

B14

RESERVED

B15

GND

B16

CLK

B17

GND

B18

REQ

B19

+5V

B20

AD31

B21

AD29

B22

GND

B23

AD27

B24

AD25

B25

+3.3V

B26

C/BE3

B27

AD23

B28

GND

B29

AD21

B30

AD19

B31

+3.3V

B32

AD17

B33

C/BE2

B34

GND

B35

IRDY

B36

+3.3V

B37

DEVSEL

B38

GND

B39

LOCK

B40

PERR

B41

+3.3V

B42

SERR

B43

+3.3V

B44

C/BE1

B45

AD14

B46

GND

B47

AD12

B48

AD10

B49

GND

B52

AD8

B53

AD7

B54

+3.3V

B55

AD5

B56

AD3

B57

GND

B58

AD1

B59

+5V

B60

ACK64

B61

+5V

B62

+5V

PCI/CO/GF/120

IDSEL(A23) IDSEL(A24)

AD[0..31]

A1

TRST

A2

+12V

A3

TMS

A4

TDI

A5

+5V

A6

INTA

A7

INTC

A8

+5V

A9

RESERVED

A10

+5V

A11

RESERVED

A12

GND

A13

GND

A14

3.3V_AUX

+3.3V

IDSEL

+3.3V

+3.3V

FRAME

TRDY
STOP

+3.3V

SDONE

+3.3V

C/BE0

+3.3V

REQ64

GND
AD30
AD28

AD26
GND
AD24

AD22
AD20
GND
AD18
AD16

GND
GND

SBO
GND

AD15
AD13

AD11
GND

GND

A15

RST

A16

+5V

A17

GNT

A18
A19

PME

A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43

PAR

A44
A45
A46
A47
A48
A49

AD9

A52
A53
A54

AD6

A55

AD4

A56
A57

AD2

A58

AD0

A59

+5V

A60
A61

+5V

A62

+5V

Z65

-PPCIRST

-GNT3

AD30
AD28

AD24

R225 0/6/SHT/X

AD22
AD20

AD18
AD16

-FRAME

AD15
AD13

AD11
AD9

AD6
AD4

AD2
AD0

R231

8.2K/6

(A) (B)

4

VCC3

-INTA 12,17,18

-INTC 12,18,27 -INTC12,18,27

3VDUAL

-PCIPME 13,17,18,27 -PCIPME 13,17,18,27

AD23

-FRAME 12,18,27 -FRAME 12,18,27

-STOP 12,18,27 -STOP 12,18,27

-C_BE0 12,18,27

VCC VCC

-INTA12,17,18

-REQ4
AD31

AD29
AD27

-C_BE312,18,27

-C_BE212,18,27

-DEVSEL12,18,27-DEVSEL12,18,27

-PLOCK18

-C_BE112,18,27

AD25

AD23
AD21

AD19
AD17

-SERR12,18,27-SERR12,18,27

AD14
AD12

AD10

AD8
AD7

AD5 AD4
AD3

AD1

PCI

PCI5

SLOT5

B1

-12V

B2

TCK

B3

GND

B4

TDO

B5

+5V

B6

+5V

B7

INTB

B8

INTD

B9

PRSNT1

B10

RESERVED

B11

PRSNT2

B12

GND

B13

GND

B14

RESERVED

B15

GND

B16

CLK

B17

GND

B18

REQ

B19

+5V

B20

AD31

B21

AD29

B22

GND

B23

AD27

B24

AD25

B25

+3.3V

B26

C/BE3

B27

AD23

B28

GND

B29

AD21

B30

AD19

B31

+3.3V

B32

AD17

B33

C/BE2

B34

GND

B35

IRDY

B36

+3.3V

B37

DEVSEL

B38

GND

B39

LOCK

B40

PERR

B41

+3.3V

B42

SERR

B43

+3.3V

B44

C/BE1

B45

AD14

B46

GND

B47

AD12

B48

AD10

B49

GND

B52

AD8

B53

AD7

B54

+3.3V

B55

AD5

B56

AD3

B57

GND

B58

AD1

B59

+5V

B60

ACK64

B61

+5V

B62

+5V

PCI/CO/GF/120

3

TRST

RESERVED
RESERVED

3.3V_AUX

AD30
+3.3V
AD28
AD26

AD24

IDSEL

+3.3V
AD22
AD20

AD18
AD16
+3.3V

FRAME

TRDY

STOP

+3.3V

SDONE

AD15
+3.3V
AD13
AD11

C/BE0

+3.3V

REQ64

VCC3

+12V VCC-12V

A1
A2

+12V

A3

TMS

A4

TDI

A5

+5V

A6

INTA

A7

INTC

A8

+5V

A9
A10

+5V

A11
A12

GND

A13

GND

A14
A15

RST

A16

+5V

A17

GNT

A18

GND

A19

PME

A20
A21
A22
A23
A24

GND

A25

Z66

R226 0/6/SHT/X

A26
A27
A28
A29
A30

GND

A31
A32
A33
A34
A35

GND

A36
A37

GND

A38
A39
A40
A41

SBO

A42

GND

A43

PAR

A44
A45
A46
A47
A48

GND

A49

AD9

A52
A53
A54

AD6

A55

AD4

A56

GND

A57

AD2

A58

AD0

A59

+5V

A60
A61

+5V

A62

+5V

R232

8.2K/6

-GNT4

AD30
AD28

AD26
AD24

AD22
AD20

AD18
AD16

AD15
AD13

AD11
AD9

AD6

AD2
AD0

-INTB 12,17,18

-INTD 12,18,27

3VDUAL

-PPCIRST 18,29-PPCIRST 18,29

AD24

-TRDY 12,18,27-TRDY 12,18,27

PAR 12,18,27PAR 12,18,27

-C_BE0 12,18,27

2

-PPCIRST

Close PCI Slot 5

-GNT212,18

-GNT112,18

-GNT312

-GNT412

-GNT512,27

C48

10P/4/N/50V

VCC3 VCC

RN84

-GNT0 -REQ0

1 2

-GNT2

3 4

-GNT1

7 8

-GNT3 -REQ3

5 6

8.2K/8P4R

R227 8.2K/6

-GNT5 -REQ5

R229 8.2K/6 R230 8.2K/6

-REQ012,18-GNT012,18

-REQ1

-REQ112,18

-REQ2

-REQ212,18

-REQ312

-REQ4-GNT4

-REQ412

-REQ512,27

1

RN85

1 2
3 4
5 6
7 8

8.2K/8P4R

R228 8.2K/6

A A

Title

Size Document Number Rev
Custom

5

4

3

2

Date: Sheet of

GIGABYTE

PCI SLOT 4, 5

GA-8VT800

1

19 31Friday, September 19, 2003

1.0

5

4

3

2

1

PRIMARY IDE CD,DVD ROM STRAPPING ISSUE

-IDERST29

-IDERST
PDD_7
PDD_6
PDD_5
PDD_4
PDD_3 PDD_12
PDD_2 PDD_13
PDD_1 PDD_14
PDD_0 PDD_15

PDD_REQ

-PD_IOW

-PD_IOR
P_IORDY CSEL_1

-PDD_ACK
IRQ_14
PD_A1
PD_A0

-PD_CS1
Z0

HDLED-

D8 1N4148/S

RN86
33/8P4R

RN88
33/8P4R

RN90
33/8P4R

RN91
33/8P4R

-PD_IOW
P_IORDY

PDD_13
PDD_2
PDD_12
PDD_3
PDD_9
PDD_6
PDD_8
PDD_7
PDD_11
PDD_4
PDD_5
PDD_10

PDD[0..15]13

PDA1

-PDDACK
PDDREQ
IRQ14

3 4
5 6
1 2
7 8

5 6
7 8
3 4
1 2

1 2
3 4
5 6
7 8

PDA113

-PDDACK13
PDDREQ13

IRQ1413

PDD15 PDD_15
PDD0 PDD_0
PDD14 PDD_14
PDD1 PDD_1

-PDCS113

-PDCS3 -PD_CS3

-PDCS313
PDA2

PDA213

PDA0

PDA013

RN87
33/8P4R

RN89
33/8P4R

RN92
33/8P4R

PD_A1

-PDD_ACK
PDD_REQ
IRQ_14

-PD_CS1-PDCS1
PD_A2

PD_A0

PDD[0..15]13

-PDIOR -PD_IOR

-PDIOW
PIORDY

3 4
1 2
7 8
5 6
1 2
3 4
7 8
5 6
5 6
3 4
1 2
7 8
3 4
1 2
5 6
7 8

-PDIOR13

-PDIOW13

PIORDY13

PDD13

D D

PDD2
PDD12
PDD3
PDD9
PDD6
PDD8
PDD7
PDD11
PDD4
PDD5
PDD10

VCC
VCC

VCC

R233 8.2K/6

R234 8.2K/6

R236 8.2K/6
R238 8.2K/6

R239 1K/6/X

HDLED-14,26

These resistor should placed near South Bridge

SECONDARY IDE

SDD[0..15]13

SDD5
SDD4
SDD3
SDD2
SDD0

C C

SDD1

SDD12
SDD11
SDD10
SDD9
SDD8
SDD7
SDD6

-SDIOR13

-SDIOW13

-SDIOR

-SDIOW

3 4
5 6
7 8
1 2
5 6
7 8
1 2
3 4
3 4
5 6
7 8
1 2
5 6
1 2
3 4
7 8

RN93
33/8P4R

RN95
33/8P4R

RN97
33/8P4R

RN98
33/8P4R

SDD[0..15]13

SDD_5
SDD_4
SDD_3
SDD_2
SDD_0
SDD_1

-SD_IOR

-SD_IOW
SDD_13
SDD_12
SDD_11
SDD_10
SDD_9
SDD_8
SDD_7
SDD_6

SDA1

-SDCS1

IRQ15

-SDDACK
SDD15SDD13
SDD14

R1335 33/6
R1336 33/6/X
R1339 33/6

3 4
1 2
7 8
5 6

7 8
5 6
3 4
1 2

SIORDY13

SDDREQ13

SDA113

-SDCS113

IRQ1513

-SDDACK13

SDA2

SDA213

SDA0

SDA013

-SDCS313

RN94
33/8P4R

RN96
33/8P4R

S_IORDYSIORDY
SDD_REQSDDREQ
SD_A1

-SD_CS1

IRQ_15

-SDD_ACK
SDD_15
SDD_14

SDA0,SDA2 WITHOUT
OTHER NETS

SD_A2
SD_A0

-SD_CS3-SDCS3

VCC
VCC

VCC

R241 8.2K/6

R242 8.2K/6

R243 8.2K/6
R245 8.2K/6

R246 1K/6/X

These resistor should placed near South Bridge

FRONT SIDE USB2

F_USB2

1 2

FUSB4- FUSB5-

3 4

FUSB4+

5 6
7 8

B B

USBDT4-12
USBDT4+12

USBDT5+12

USBDT5-12

USBDT4­USBDT4+
USBDT5+
USBDT5-

RN101

3 4
1
5 6
7 8

0/8P4R/SHT/X

2

PH/2X5/9/H/Y

FUSB5+

10

FUSEVCC1

R250

0/6/X

EC8

+

1000U/D/6.3V/8C

-USBOC 12,27

-IDERST
SDD_7 SDD_8
SDD_6 SDD_9
SDD_5 SDD_10
SDD_4 SDD_11
SDD_3 SDD_12
SDD_2 SDD_13
SDD_1 SDD_14
SDD_0 SDD_15

SDD_REQ

-SD_IOW

-SD_IOR
S_IORDY

-SDD_ACK
IRQ_15
SD_A1
SD_A0 SD_A2

-SD_CS1
Z1

HDLED-

D9 1N4148/S

USBDT6+12
USBDT6-12
USBDT7+12
USBDT7-12

FRONT SIDE USB1

FUSEVCC,GAMEVCC

80MILS

A A

F1

1 2

PSR24251/D/O

80MILS

160MILS

5VDUAL

FB22

100/12.5/D

80MILS 80MILS

5

1 2

PSR24251/D/O

F2

FUSEVCC

方便

LAYOUT走線GAMEVCC

FUSEVCC1

BC496

0.1U/6/Y/25V

4

Q117

3

D

2N7002/SOT23

+12V

GAMEVCC

SOT23

1
2

G S

R1088
1K/6

3

USBDT2-12

USBDT2+12
USBDT3+12
USBDT3-12

USBDT6+
USBDT6­USBDT7+
USBDT7-

IDE1

1

2
3 4
5 6
7 8
91110

12

13 14

1615

17 18
19 20

22

21

24

23

26

25

28

27

30

29

32

31

34

33

36

35

38

37

4039

NBX/2x20/20/LG

IDE2

1

2
3 4
5 6
7 8
91110

12

13 14

1615

17 18
19 20

22

21

24

23

26

25

28

27

30

29

32

31

34

33

36

35

38

37

4039

NBX/2x20/20/W

RN194

1

2
3 4
5 6
7 8

4 5
3

2
1

L34
OD6560T/X

RN & COIL CO-LAYOUT

RN117 0/8P4R/SHT/X

U62

1

VOUT

2

GND

VCC

3 4

VIN CE

BC547

0.1U/6/Y/25V/X

PDD_8
PDD_9
PDD_10
PDD_11

PD_A2

-PD_CS3

CSEL_2

-SD_CS3

0/8P4R/SHT/X

6

7
8

3 4
1
5 6
7 8

VOUT

9701/X

Close to F_USB1

2

R237 470/6

R244 470/6

FUSEVCC1

5

2

PWOK

P66DET 13

C49

0.047U/4/Y/16V

S66DET 13

C50

0.047U/4/Y/16V

VCC

BC545

0.1U/6/Y/25V/X

FUSB2­FUSB2+
FUSB3+
FUSB3-

VCC3

U7

SD_A2

SD_A0

-SD_CS3

R235 33/6/X

R240 33/6

R1338 33/6/X

5
4 3

NC7SZ125/SOT23/X

VCC3

U8

5
4 3

NC7SZ125/SOT23

VCC3

U63

5
4 3

NC7SZ125/SOT23/X

SIRQ

PWOK 26,28,29

F_USB1

SERIRQ

FUSEVCC

+

EC44

RUSB7­RUSB7+

FUSEVCC1

FUSB3+FUSB2+

10

GIGABYTE

IDE, USB

GA-8VT800

1 2
3 4
5 6
7 8

USB/2/S/H/X

1

SERIRQ13,22

RUSB6+
RUSB6­RUSB7+
RUSB7-

U60

1

VOUT

VOUT

2

GND

3 4

VIN CE

9701/X

Close to USB

1000U/D/6.3V/8C/X

FUSEVCC

5

PWOK

1 2

FUSB2- FUSB3-

3 4
5 6
7 8

PH/2X5/9/H/Y

Title

Size Document Number Rev
Custom

Date: Sheet of

1
2

1
2

1
2

S_IRQ

SIRQ1x2/O/X

USB

357 1

2468

121011

REV2.0

R450

0/6/X

SDA2

SDA0

-SDCS3

9

20 31Friday, September 19, 2003

RUSB6­RUSB6+

-USBOC 12,27

1.0

8

7

PLCC

6

5

4

3

2

1

BIOS

VCC

-WE

Q19

MMBT2222A/SOT23/X

BIOS_WP_S

JU1x2/G/[2-3]/X

R276
1K/6

R277 0/6

1

3

Z82

2

SOT23

R278
1K/6/X

BIOS_WP

JP1x3/H/X

BIOS_WP: BIOS WRITE PROTECT

BIOS_WP

PIN
1-2 WRITE PROTECT
2-3 WRITE ENABLE

-FWE

-FWE 22

GPIO8 13,14

(default)

1 2

3 4

5 6

7 8

-WE

R279

R280 0/6/X

VCC

RN104

8.2K/8P4R

1 2

3 4

5 6

7 8

-FRD 22

0/SHT/X

XD[0:7] 22

VCC
VCC3

D D

SBDD[0:15]22

SBDD16

SBDD1622

SBDD17

SBDD1722

4M22

C C

VCC

SBDD0
SBDD1
SBDD2
SBDD3
SBDD4
SBDD5
SBDD6
SBDD7
SBDD8
SBDD9
SBDD10
SBDD11
SBDD12
SBDD13
SBDD14
SBDD15

R281 0/6/X

R282 1K/6

Z80

PLCC32P

U11

12

A0

11

A1

10

A2

9

A3

8

A4

7

A5

6

A6

5

A7

27

A8

26

A9

23

A10

25

A11

4

A12

28

A13

29

A14

3

A15

2

A16

30

A17

1

A18

39SF020A/S

MAIN BIOS

VCC

GND

RN103

8.2K/8P4R

XD0

13

D0
D1
D2
D3
D4
D5
D6
D7

OE
WE
CE

XD1

14

XD2

15

XD3

17

XD4

18

XD5

19

XD6

20

XD7

21
24

31
22

Z81

32

BC155

16

2 1

0.1U/4/Y/16V

B B

A A

Title

Size Document Number Rev
Custom

8

7

6

5

4

3

Date: Sheet of

2

GIGABYTE

Flash ROM

GA-8VT800

21 31Friday, September 19, 2003

1

1.0

8

RN102

VCC

8.2K/8P4R

-DTR1

1 2

-RTS1

3 4

TXD1

5 6

-DTR2

7 8

TXD2

R264

8.2K/6/X

D D

C C

B B

Flash Rom Straping

VCC

XD[0..7]21

SBDD[0..17]21

-FRD21

-LDRQ14

SERIRQ13,20

VCC3

LAD[0..3]14

-DTR223

-RTS223

-DSR223
TXD223

-RXD223

XD0
XD1
XD2
XD3
XD4
XD5
XD6
XD7

SBDD0
SBDD1
SBDD2
SBDD3
SBDD4
SBDD5
SBDD6
SBDD7
SBDD8
SBDD9
SBDD10
SBDD11
SBDD12
SBDD13
SBDD14
SBDD15
SBDD16
SBDD17

VCC

R274 8.2K/6

LPC3311
LPC2411

1

DTR2#/JP4

2

RTS2#

3

DSR2#

4

VCC

5

SOUT2

6

SIN2

7

FD0/GP10

8

FD1/GP11

9

FD2/GP12

10

FD3/GP13

11

FD4/GP14

12

FD5/GP15

13

FD6/GP16

14

FD7/GP17

15

GNDD

16

FA0/GP20

17

FA1/GP21

18

FA2/GP22

19

FA3/GP23

20

FA4/GP24

21

FA5/GP25

22

FA6/GP26

23

FA7/GP27

24

FA8/GP30

25

FA9/GP31

26

FA10/GP32

27

FA11/GP33

28

FA12/GP34

29

FA13/GP35

30

FA14/GP36

31

FA15/GP37

32

FA16/GP50

33

FA17/GP51

34

FRD#/GP52

35

VCC

36

LDRQ#

37

SERIRQ

38

LAD0

LAD0

-PCIRST9,12,27,29

-LFRAME14

-FWE21

7

6

5

4

3

2

1

Voltage Sensing

-DCD123

-RI123

-CTS123

-DTR123

-RTS123

-DSR123
TXD123

-RXD123

-DCD223

-RI223

-CTS223

121

122

123

124

125

126

127

128

RI2#

SIN1

CTS2#

DSR1#

DCD2#

RTS1#/JP2

DTR1#/JP1

SOUT1/JP3

LAD2

LAD3

LAD1

40

3946424443

LAD1

LAD2

41

LAD3

PCICLK

CLKIN

GND

454748

C61

22P/4/N/50V

LFRAME#

LRESET#

PD6

PD7

GND

115

116

117

118

119

120

PD6

PD7

RI1#

GNDD

CTS1#

DCD1#

FCS#/GP53/SCRIO

FWE#/GP54

JSACX/GP40

JSACY/GP41

JSAB1/GP42

JSAB2/GP43

49505152535455

PD5

PD3

PD2

PD4

111

112

113

114

PD3

PD4

PD5

JSBCX/GP44

JSBCY/GP45

JSBB1/GP46

56

PD0

PD1

103

104

105

106

107

108

109

110

PD0

PD1

PD2

INIT#

STB#

AFD#

ACK#

ERR#

SLIN#

CIRTX/MIDI_OUT/GP66

PME#/GP63/SCRPRES#
FAN_CTL3/GP62/SCRPFET#
FAN_CTL2/GP61/SCRPRES#

FAN_TAC3/FA18/GP57/SCRPRES#

FAN_TAC2/GP56/SCRPRES#

DENSEL#

MTRA#

MTRB#/SCRRST

DRVA#

DRVB#/SCRCLK

WDATA#

DIR#

JSBB2/GP47

57585960616263

STEP#

64

BUSY

SLCT

VIN0
VIN1
VIN2
VIN3
VIN4
VIN5
VIN6
VIN7

VREF
TMPIN1
TMPIN2
TMPIN3

GNDA

CIRRX/MIDI_IN/GP67

IRRX/GP65

IRTX/GP64

FAN_CTL1/GP60

VCCH

VBAT

FAN_TAC1/GP55

DSKCHG#

WPT#

INDEX#

TRK0#

RDATA#

GNDD

WGATE#

HDSEL#

IT8705F-FXS/B/A/S

U10

PE

VCC

102
101
100
99

VIN0

98

VIN1

97

VIN2

96

VIN3

95

VIN4

94

VIN5

93

VIN6

92

VIN7

91

VREF

90

TMPIN1

89

TMPIN2

88

THERMDA

87

THERMGND

86

VMSI

85

VMSO

84

IRRX

83

IRTX

82
81
80
79
78
77

VBAT

76
75
74
73

-DSKCHG

72

-WPT

71

-INDEX

70

-TK00

69

-RDATA

68
67

-WGATE

66

-SIDE1

65

-STEP 23

-DIR 23

-WDATA 23

-DRVB 23

-DRVA 23

-MOTEB 23

-MOTEA 23

-DENSEL 23
VGPSB2 25

VGPSB1 25

VGPY2 25

VGPX2 25
VGPSA2 25
VGPSA1 25

VGPY1 25

VGPX1 25

VCC

5VSB

PD[0..7] 23

-STB 23

-AFD 23

-ERR 23

-INIT 23

-SLIN 23

-ACK 23

BUSY 23
PE 23
SLCT 23

THERMDA 5
THERMGND 5
VMSI 25
VMSO 25

PWRLED 26
GPIO22 14

GP60 26

4M 21
FANIO2 26
FANIO1 26

-DSKCHG 23

-WPT 23

-INDEX 23

-TK00 23

-RDATA 23

-WGATE 23

-SIDE1 23

R273
0/SHT/X

THERMDA5

TMPIN2

IR CONNECTOR

VCC

1

IRRX
IRTX

2

3

4

5

IR/1X5(-PIN2)/X

VIN0
VIN1
VIN2
VIN3
VIN4
VIN5
VIN6
VIN7

VREF

IR

VREF

TMPIN1
THERMDA
TMPIN2

DDR25V 5VSB+12VVCC3 VCC -12VVCORE -5V

R265
12K/6/X

R260

24.3K/6

12

C55

0.1U/6/Y/25V

R255

8.2K/6

12

C51

0.1U/4/Y/16V

R256

8.2K/6

12

C52

0.1U/4/Y/16V

R258

8.2K/6

12

C53

0.1U/4/Y/16V

R259

8.2K/6/X

12

C54

0.1U/4/Y/16V/X

Temperature Sening

R270
10K/6

RS

12

C57

1U/6/Y/10V

12

C58

0.1U/4/Y/16V

R275
10K/6/X

10K/1/0603/S/X

SYSTEM
THEMISTOR

12

t

R266

8.2K/6

R271
10K/6

CPU
THERMAL
DIODE

C59

0.1U/4/Y/16V

R261

232K/6/X

R268
56K/6/X

R272
10K/6

12

C60

0.1U/4/Y/16V

R262
120K/6/X

R269
56K/6/X

R263

8.2K/6/X

R267
12K/6/X

12

C56

0.1U/4/Y/16V/X

A A

5VSB

C62 0.1U/4/Y/16V/X

1 2

8

VCC

C63 0.1U/4/Y/16V/X

1 2

C64 0.1U/4/Y/16V/X

1 2

7

Title

Size Document Number Rev

Custom

6

5

4

3

Date: Sheet of

2

GIGABYTE

LPC I/O IT8705

GA-8VT800

22 31Friday, September 19, 2003

1

1.0

5

COM A,B

0.1U/4/Y/16V

-DCD122

-DSR122

-RXD122

-RTS122

D D

C C

TXD122

-CTS122

-DTR122

-RI122

0.1U/4/Y/16V

-DCD222

-DSR222

-RXD222

-RTS222
TXD222

-CTS222

-DTR222

-RI222

BC156

BC159

VCC

VCC

U12

20

VCC

19

ROUT1

18

ROUT2

17

ROUT3

16

DIN1

15

DIN2

14

ROUT4

13

DIN3

12

ROUT5

11

GND

GD75232PWR/S

U13

20

VCC

19

ROUT1

18

ROUT2

17

ROUT3

16

DIN1

15

DIN2

14

ROUT4

13

DIN3

12

ROUT5

11

GND

GD75232PWR/S

DOUT1
DOUT2

DOUT3

+12V

RIN1
RIN2
RIN3

RIN4
RIN5

-12V

DOUT1
DOUT2

DOUT3

+12V

RIN1
RIN2
RIN3

RIN4
RIN5

-12V

+12V

BC157

0.1U/6/Y/25V

1
2
3
4
5
6
7
8
9
10

1
2
3
4
5
6
7
8
9
10

-12V

+12V

BC158

0.1U/6/Y/25V

BC160

0.1U/6/Y/25V

-12V

BC161

0.1U/6/Y/25V

-NDCD1

-NDSR1
NRXD1

-NRTS1

-NTXD1

-NCTS1

-NDTR1

-NRI1

-NDCD2

-NDSR2
NRXD2

-NRTS2

-NTXD2

-NCTS2

-NDTR2

-NRI2

CN21
180P/8P4C

CN23

180P/8P4C

4

3

2

1

WAKE UP

1
6
2
7
3

COMA

8

CON/P

4
9

7

246

8

135

7

246

8

CN22
180P/8P4C

246

8

135

7

CN24
180P/8P4C

246

8

135

7

135

5

10 11

1
6
2
7

COMB

3

CON/P

8
4
9
5

10 11

-NRI2

-NRI1

D38
BAT54C/S

2

Z83

3

1

5VSB

WOL

1
2

Z85 Z86

3

WOL1x3/X

R283
82K/6

R455

8.2K/6/X

Z84

R284

8.2K/6

R456

8.2K/6/X

1

+

EC9
100U/D/10V/57/X

2

3

1

Q20

MMBT2222A/SOT23

2

3

1

Q64
MMBT2222A/SOT23/X

-RI

C65

0.1U/4/Y/16V/X

-RI 13

LPT

PD[0..7]22

B B

KBC/PS2

MSCK12
MSDT12
KBCK12

A A

KBDT12

5

VCC

BC162

0.1U/4/Y/16V

SLCT22

PE22

BUSY22

-ACK22

PD[0..7] PD4

PD3
PD2
PD1
PD0

FUSEVCC

1 2

MSCK
MSDT
KBCK
KBDT

D12

1N4148/S

PD5
PD6
PD7

180P/8P4C

RN113

8.2K/8P4R

3 4

5 6

7 8

BC163

0.1U/4/Y/16V

CN25

RN114

1
3
5
7

82/8P4R

VCC_D19

RN105

2.2K/8P4R

7 8
5 6
3 4
1 2
7 8
5 6
3 4
1 2

135

7

246

8

2

1

4
6
8

RN110
68/8P4R
RN111
68/8P4R

246

8

7

P_D5
P_D6
P_D7

R285

2.2K/6

1

RN106

135

2.2K/8P4R

P_D7P_D4
P_D6
P_D5
P_D4

P_D3
P_D2
P_D1

P_D0

-P_STB

246

8

135

7

4

CN29
180P/8P4C

0706 modify

8

1

7

MS_DT
MS_CK

KB_DT
KB_CK

246

135

180P/8P4C

246

1

135

CN26

11
12

7
8

1
2
5
6

8

RN107

2.2K/8P4R

7

KB_MS

1314151617

PS2/P/S/2

246

8

RN108

2.2K/8P4R

1

135

7

26

LPT

13

27

12

25

11

24

10

23

9

22

8

21

7

20

6

19

5

18

28

FUSEVCC

3

17
16
15
14

LPT/P

C68

0.1U/4/Y/16V

-P_SLIN

-P_INIT

-ERR

-P_AFD

4
3
2
1

135

7

8

135

7

CN27
180P/8P4C

246

246

8

10

FUSEVCC

9

MS

4

3

KB

C67

0.1U/4/Y/16V

-P_INIT

-P_SLIN

-P_AFD

-P_STB

135

7

CN28

180P/8P4C

246

8

-ERR 22

RN112 33/8P4R

3

4

1

1

2

5

6

7

8

-STB

2

C66
180P/4/N/50V

-INIT 22

-SLIN 22

-AFD 22

-STB 22

FDD

1 2
3
546
7 8

9 10
11 12
13 14
15 16
17 18
19
21 22
23 24
25 26
27 28
29 30
31 32
33 34

BX/2X17/5

Title

Size Document Number Rev
Custom

Date: Sheet of

VCC

R286

246

1

135

8

7

RN109
470/8P4R

470/6

20

GIGABYTE

COM,PRT,FDD,KB,IR

GA-8VT800

1

-DENSEL 22

-INDEX 22

-MOTEA 22

-DRVB 22

-DRVA 22

-MOTEB 22

-DIR 22

-STEP 22

-WDATA 22

-WGATE 22

-TK00 22

-WPT 22

-RDATA 22

-SIDE1 22

-DSKCHG 22

23 31Friday, September 19, 2003

1.0

5

D D

4

JD025 LFE_OUT 25

SPDIFI25

SPDIF25

R288

AUDIO1411

R289 0/6

8.2K/6/X

VCC3

3

R291 0/6

R1329
100K/6/X

CENTER_OUT 25

JD3 25

AVDD

2

1

C450

C69 22P/4/N/50V/X

C C

C72
10P/4/N/50V/X

B B

A A

VSDOUT13
VBITCLK13

C70 22P/4/N/50V/X

R298 22/6

VSDIN013
VSYNC13

-VACRST13

24.576M/20P/49US/D/X

X3

1 2

R294

1M/6/X

-VACRST

UAJ2_L25

AUX_L25

AUX_R25

UAJ2_R25

JD225
JD125

0.1U/6/Y/25V

100U/D/10V/57

0.1U/6/Y/25V

Z100
Z101

C73

0.1U/6/Y/25V

C446

0.01U/4/X/50V/X

R293

2.2/8

1

+

EC45

C71

C447 0.1U/6/Y/25V/X
C162 1U/6/Y/25V/X
C75 0.1U/6/Y/25V
C77 0.1U/6/Y/25V
C163 1U/6/Y/25V/X

1
2
3
4
5
6
7
8

9
10
11
12

DVDD1
XTL_IN
XTL_OUT
DVS1
SDATA_OUT
BIT_CLK
DVSS2
SDATA-IN
DVDD2
SYNC
RESET#
PC_BEEP

4847464544434241403938

NC

NC

TEST6

TEST5

TEST4

AC'97 CODEC

PHONE

AUX_L

AUX_R

VIDEO_L

VIDEO_R

1314151617181920212223

Z111
Z112

TEST1

TEST3

AVSS2

CD_LNCCD_R

TEST2

MIC1

NC

AVDD2

MIC2

LINE_IN_L

37

24

MONO_OUT

LINE_JOUT_L

LINE_IN_R

ALC655/S

Z116

C74 2.2U/8/Y/16V

Z117

C76 2.2U/8/Y/16V

Z118

C78 0.1U/6/Y/25V

Z119

C79 0.1U/6/Y/25V

Z120

C80 0.1U/6/Y/25V

Z115

C83 1U/6/Y/10V

Z121

C84 1U/6/Y/10V

LINE_OUT_R

U14

36
35

Z122

34

NC

33

NC
VRDA
VRAD

AFILT2
AFILT1

NC

VREF

AVSS1

AVDD1

R1125 0/6/X

32
31
30
29
28
27
26
25

BC168

0.1U/4/Y/16V

Z124
Z125
Z126
Z127

Z128

BC169

2.2U/8/Y/16V

FOR EMI REQUEST

LINE_IN_R 25
LINE_IN_L 25
CD_R 25
CDGND 25
CD_L 25

MIC2 25
MIC1 25

QUAD_O_R 25
QUAD_O_L 25

BC165

0.1U/4/Y/16V/X

C161 1U/6/Y/10V
C458 1U/6/Y/10V/X

LINE_O_R 25
LINE_O_L 25

VREFOUT2 25

BC171

1N/4/X/50V

1N/4/X/50V

VREFOUT3 25

FRONT_MIC 25
FRONT_MIC2 25

R299 1K/6

CLOSE TO CODEC

BC173
1U/6/Y/10VBC170

BC172

1U/6/Y/10V

BC174
1U/6/Y/10V

pin 31,32 pin VRDA,VRAD FOR
1u 使 Recording A-D-PC FOR
LINE IN frequency response

EC10

10U/D/10V/57

AUD_REF 25

Q21
78L05/TO92

1

+

TOP

OUT GND IN

2

+12VAVDD

3

BC175

0.1U/6/Y/25V

Title

Size Document Number Rev
Custom

5

4

3

2

Date: Sheet of

GIGABYTE

AUDIO (ALC655)

GA-8VT800

1

24 31Friday, September 19, 2003

1.0

5

SPDIF

VCC

SPDIF_IO

1

D D

354

PH/2*3/3/H

SPDIFI 24SPDIF24

6

VCC

SPDIF24

SPDIF/BLACK/X

CENTER & SURROUND

SUR_CEN

1

CENTER_OUT24 LFE_OUT 24

C C

FLOR
FLOL

C95
1U/6/Y/10V

C90 180P/6/X/50V/X
C91 180P/6/X/50V/X

3
526

FOR EMI

PH/2*3/2/H

SUR_OUTRSUR_OUTL

PIN 4 NOT DRILL

C96

1U/6/Y/10V

F_AUDIO_S1

JU1x2/G/[5-6]

F_AUDIO_S2

JU1x2/G/[9-10]

AUX IN

AUX_IN

B B

AUX_L24

AUX_R24

C98
1000P/4/X/50V/X

C99
1000P/4/X/50V/X

1
2
3
4

SHR/1X4/W

4

SPDIF

1
2
3

QUAD_O_R24

LINE_O_R24

LINE_O_L24

QUAD_O_L24

INTEL FRONT AUDIO

AVDD

FRONT_MIC24

R313

8.2K/6

0.1U/6/Y/25V/X

BC183

R966 0/SHT/X

MIC1

R967 0/6/X

JD324

R1282 0/6/X

FLOR

JD3

FLOL

VREFOUT224 VREFOUT3 24

UAJ2_L24 UAJ2_R 24

JD224

R1283
0/6/X

C454
1000P/4/N/50V/X

F_AUDIO

1
3
5
7

9
11 12
13
15 16

PH/2X8/16/H

2
4
6

10
14

CD IN

CD_L24

CD_R24

CDGND24

C100

1000P/4/X/50V/X

C101

1000P/4/X/50V/X

3

LINE OUT

EC11 100U/D/10V/57

1

+

EC12 100U/D/10V/57

1

+

EC13 100U/D/10V/57

1

+

EC14 100U/D/10V/57

1

+

LNR
LNL

CR48 0/6/X

C164
180P/4/N/50V/X

C102
1000P/4/X/50V/X

AVDD

BC182

0.1U/6/Y/25V/X

FRONT_MIC2 24

CD_IN

1
2
3
4

SHR/1X4

SUR_OUTR

R305 22/6

R307 22/6

SUR_OUTL

AUD_REF24

LINE-IN

MIC

MIC124

UAJ2_R24

LINE_IN_R24

LINE_IN_L24

VREFOUT224

FLOR

FLOL

D42
1N4148/S/X

UAJ2_L24

AUD_REF

R306 0/6/X

R308 0/6/X

VREFOUT3 24

R311 0/6

R312 0/6

D43 1N4148/S/X

C94

0.1U/6/Y/25V

C97
180P/4/N/50V/X

2

C92
1U/6/Y/10V/X

R1280
22K/6

AVDD

R316 1K/6/X

R318

8.2K/6/X

R1288

8.2K/6/X

R314
22K/6

R1281
22K/6

MIC1

LNR

LNL

180P/4/N/50V

JD224

R315
22K/6

R1285
22K/6

R319

2.2K/6

C86

180P/4/N/50V

C149
180P/4/N/50V

C87
180P/4/N/50V

R1304 8.2K/6
C453

4.7U/8/Y/10V

C88

C93
180P/4/N/50V

MIC2

R1279 8.2K/6

C451

4.7U/8/Y/10V

ALOR

AD/3P/B,L,P

C89
180P/4/N/50V

MIC2 24

R1286 8.2K/6

AUDIOA

A5
A4
A3
A2
A1

AD/3P/B,L,P

1

B5
B4
B3
B2

AUDIOB

C5
C4
C3
C2

C452

4.7U/8/Y/10V

JD1 24

AUDIOC

AD/3P/B,L,P

JD0 24

MH1

GP_Y2
VGPSA1
GP_Y1
VGPSB1
VGPSB2

GC3

0.1U/6/Y/25V

GAMEVCC

GC4

0.1U/6/Y/25V

GAME

1

VCC

GPX1

3

GND

GPSA2

5

VCC

GPX2

7

GPY2
GPSA1

GND
GPY1 VCC
GPSB1

MSO

GPSB2

PH/2X8/16/H

MSI

KEY

9
11 12
13
15

2
4
6
8
10

14
16

GP_X1
VGPSA2
GP_X2
MS_I

GAMEVCC

MS_0

GC2

0.1U/6/Y/25V

Title

Size Document Number Rev
Custom

2

Date: Sheet of

GIGABYTE

AUDIO OUTPUT,GAME PORT

GA-8VT800

1

25 31Friday, September 19, 2003

1.0

246

8

RN127

4.7K/8P4R

1

135

7

246

135

8

7

CN33

100P/8P4C/X

4

C152

C153

0.01U/4/Y/50V

R451 8.2K/6/X
R452 8.2K/6

C154

0.01U/4/Y/50V

FOR ITE GAME PORT

VGPSA122

VGPSB122
VGPX122
VGPX222

VMSO22

VGPY222
VGPY122

VGPSB222

A A

R1126 0/6/X

FOR EMI REQUEST

VGPSA222

VMSI22

0705 modify

0.01U/4/Y/50V

5

100P/4/N/50V/X

C150

C151

0.01U/4/Y/50V

GAMEVCC
GAMEVCC

RN128D 2.2K/8P4R
RN128C 2.2K/8P4R

R453 470/6
RN128B 2.2K/8P4R

RN128A 2.2K/8P4R

R454 470/6

C156

1N/4/X/50V

C155

100P/4/N/50V/X

C157

1N/4/X/50V

BC243

0.1U/4/Y/16V

246

135

CN34

1N/8P4C

GAMEVCC

VGPSA1
VGPSB1
GP_X1
GP_X2

MS_0
GP_Y2

GP_Y1
VGPSB2
VGPSA2
MS_I

8

7

3

5

R468
1K/6/X

R467

1K/6/X

Q70
MMBT2222A/SOT23/X

132

5VSB

R470
1K/6/X

P5VSB

Q69
2N2907A/SOT23/X

132

5VSB

R460
1K/6/X

R471

8.2K/6/X

GP60

0

1

P5VSB

Q66
MMBT2222A/SOT23/X

132

PVCC

HDLED-14,20

-SLP_BTN13

C158
180P/4/N/50V/X

RESET

States for a single-color power LED

LED States ACPI States

OFF
Steady Green
Blinking Green S0(message waiting)

S1,S3,S5
S0

5VSB

D D

(GPO60 DEFAULT HIGH, RESUME WELL)

C C

R469

-SUSC13,28

8.2K/6/X

GP6022

States for green LED

LED States ACPI States

ON
OFF

S1,S3
S0,S5

States for a dual-color power LED

LED States ACPI States

Steady Green
Blinking Green
Steady Yellow
Blinking Yellow S1,S3(message

RESET

PVCC

B B

RESET

VCC3

R1321

HD+
MPD­MPD­MPD+

11 12
15 16

17 18

8.2K/6

HD+

1 2

PD-Y

3 4

PD-G

5 6

PD+

7 8

PW-

9 10

PW+

GD+
GN+

RESETOK11

A A

5VSB

PW+13

-SLP_BTN13

R1116 330/6/X

R464
1K/6

C160

0.1U/4/Y/16V

R1322

1K/6/X

F_PANEL2

H2X9[-13]/X

VCC3

R476

8.2K/6

2
1

Q73
MMBT2222A/SOT23

VCC3

R1320
1K/6/X

132

Q143
2N3904/SOT23/X

132

HD-

HD-

SPK-

SPK-

NC
NC

SPK+

RESET

RST+
RST-

14

-STRLED

GD­GN-

3

Q142
2N3904/SOT23/X

PVCC

S5OFF
S0
S0(message waiting)
S1,S3

waiting)

VCC3

Q74

MMBT2222A/SOT23
R465
1K/6

3

PWROK

Connect to 8233 GPO pin

-SUSB13,29

FOR LE

5

R477
330/6

HD+
HD-

1

Z164

2

R1311

8.2K/6/X

R1312

8.2K/6/X

R466

8.2K/6

PWROK 5,14,15,29,30

-SUSC13,28

4

BC244

0.1U/4/Y/16V
F_PANEL1

HD+

MPD+

1 2

MPD-

HD-

3 4

PW+

RST-

5 6

PW-

RST+

7 8

RSV

KEY

9

KEY KEY
GD+

13
15 16
17 18
19 20

SP+

GD-

RSV

GN+

RSV
SP-

GN-

PH/2X10/10,11,12,13,15,17,19/H

GPO1312,13

PWOK

PWOK 20,28,29

C159

VCC3

0.01U/4/Y/50V

R1309

8.2K/6/X

DDR LED CONN

Q140
MMBT2222A/SOT23/X

SOT23

132

4

P5VSB P5VSB

R457
330/6/X

MPD+

14

SPK-

Q68
MMBT2222A/SOT23/X

R472

1K/6/X

R458
330/6/X

PVCC

Q118
BAV99/S

132

5VSB

SPK-

Q139
MMBT2222A/SOT23/X

SOT23

132

PW+ 13

MD+_DISABLE

132

-STRLED

PVCC

R459
330/6

MD-_DISABLE

R473
75/6

R474
75/6

PVCC 在VCC PLANE

3

3 PIN POWER LED
LAYOUT PLACE CLOSE
TO F_PANEL

PWR_LED

MPD+

1

MPD-

2

MPD-

3

PH/1X3/H

R462

1K/6/X

R463

1K/6

Q72
2N7002/SOT23

5VSB

R461
1K/6/X

Q65
MMBT2222A/SOT23/X

132

Q67
MMBT2222A/SOT23

132

Q71
MMBT2222A/SOT23/X

132

PVCC

D18
1N4148/S

132

Z163

R475 1K/6

切割互連

NOTE:ALLEGRO use NET connect.

R373

0/6/SHT/X

Note 115

CPU FAN

+12V

213

CVS

C120

CPU_FAN

1N/6/X/50V/X

FAN/1X3/R

[防呆]

3

PWRLED 22

GPO0 13

Z156

VCC

BUZZER

1

VCC

2
3

BZ
BUZZER/D/X

SPKR 13

VCCPVCC

R380

8.2K/6

R1310 1K/6

C119

4.7N/4/X/25V

2

1

DIMM LED CONN.

DDR25V

R351

BC198

150/6/X

0.01U/4/Y/50V/X

Z165MPD-

RAM_LED

LED/Y/S/X

NB HEAT SINK FAN

NB_FAN

POH/1X2/W/X

BZ

+12V

C116
1N/6/X/50V/X

213

CVS

PWR_FAN
FAN1x3/W/X

+12V

C114

0.1U/6/Y/25V/X

[防呆]

FANIO1

SYSTEM FAN

FANIO1 22

W=0.167W

C118
1N/6/X/50V/X

+12V

213

CVS

SYS_FAN
FAN/1X3/R

VCC

R379

8.2K/6
R1308 1K/6

C117

4.7N/4/X/25V

FANIO2

FANIO2 22

[防呆]

Title

Size Document Number Rev
Custom

2

Date: Sheet of

GIGABYTE

PANEL, STR LED & FANS

GA-8VT800

1

26 31Friday, September 19, 2003

1.0

A

(N/A)

Z144

LC4

0.1U/6/Y/25V/X

LR5 51.1/6/1/X
LR6 51.1/6/1/X

4 4

LRX­LRX+

LTX­LTX+

LTX+
LTX-

LR2

5.6K/6/1/X

CLOSE RTL8101L

LR3
15K/6/X

ISOLATE

76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

100

AVDD33

TXD-

TXD+

AVDD

AC_DOUT

AC_DIN

VDD

3VDUAL

LAC_DIN

-C_BE212,18,19

-FRAME12,18,19

-IRDY12,18,19

-TRDY12,18,19

NC

AC_BCK

AD23

LAC_BCK

RXIN+

AD23

AD22

RXIN-

AD22

AD21

LRESET

GND

RTSET

AD21

AD20

AD20

-C_BE2

-FRAME

-IRDY

-TRDY

-DEVSEL

AD19

AVDD33

75747372717069686766656463626160595857565554535251

GND

AVDD

ISOLATEB

LED2
LED1
LED0
INTBB
INTAB
RSTB
GNTB
REQB
CBE3B
AD31
AD30
AD29
GND
AD28
VDD
AD27
AD26
AD25
VDD25
VDD
AD24
PCICLK
IDSEL
GPIO1
GPIO0

AC_RSTB

GND

AC_SYNC

12345678910111213141516171819202122232425

LAC_RSTB

LAC_DOUT

LAC_SYNC

-DEVSEL12,18,19

LR1 1K/6/X

VCC

LC3

22P/6/N/50V/X

-INTD12,18,19

-PCIRST9,12,22,29

3 3

2 2

-C_BE312,18,19

3VDUAL

VDD25

3VDUAL

PCICLKL11

-GNT512,19

-REQ512,19

10M_LED­100M_LED-

ACT_LED-

-INTD

-INTC

-INTC12,18,19

-PCIRST

-GNT5

-REQ5

-C_BE3
AD31
AD30
AD29

AD28
AD27

AD26
AD25

AD24
PCICLKL
AD30

10/100M BASE TRANSFORMER(1:1)+FOXCON(RJ45+USBX2)

1 1

A

RTT3

LWAKE

AD19

AD18

AD18

AD17

GND

AD17

X1

AD16

AD16

B

XIN1

XIN2

AVDD33

X2

AVDD

PMEB

AVDD25

GND

CBE2B

FRAMEB

IRDYB

3VDUAL

Only for
8100L

0.1U/4/Y/16V/X

B

LBC7

0.1U/6/Y/25V/X

EESK

EECS

VCTRL

TRDYB

DEVSELB

VDD

3VDUAL

LX1
25MHZ/XTAL_HALF/X

EEDI

EEDO

ROMCSB

CLKRUNB

VDD25

CBE0B

AD10
AD11
AD12

AD13
AD14

AD15
CBE1B
SERRB

STOPB

PAR

PERRB

R444
0/6/X

C142

LC1
22P/6/N/50V/X

LC2
22P/6/N/50V/X
LFB1
FB30/8/X

1

+

LEC2
100U/D/10V/57/X

VDD
AD0

AD1
AD2
GND
AD3
AD4
AD5
AD6
AD7

VDD
AD8
AD9

GND

-PCIPME
L_EECS

L_EESK
L_EEDI
L_EEDO

LU1

50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26

-PCIPME 13,17,18,19

AD0
AD1
AD2

AD3
AD4
AD5
AD6
AD7

-C_BE0
AD8

AD9
AD10
AD11
AD12

AD13
AD14
AD15

-C_BE1

-SERR

-REQ/-GNT(5)
IDSEL 30

-STOP 12,18,19

Z145

0.1U/4/Y/16V/X

-INTC

-PERR 12,18,19
PAR 12,18,19

R447 51.1/6/1/X
R448 51.1/6/1/X

C144

0.1U/6/Y/25V/X

C145

FOR EMI

RTL8101L/X

-PERR
PAR

-STOP

VDD25

LBC8

0.1U/6/Y/25V/X

LR4 5.6K/6/X

For wake on
LAN used

realtek recommand(0913)

3VDUAL
VDD25

-C_BE0 12,18,19

3VDUAL

-C_BE1 12,18,19

-SERR 12,18,19

USB/2/S/H

MODEM CONN

AD[0..31]

TDC

L1

LTX+

L2

LTX-

L3

LRX+

L4

LRX-

L5
L6
L7
L8
L9

RDC

L10

C

(N/A)

GND VDD33

1 2

AC_OUT VCC

13

P35-152-11Z9

D1L6D2

YELLOW

(ACT_LED-)

AD[0..31] 12,18,19

UP

G8

3 4

AC_BCK

5 6

AC_DIN

7 8

AC_DOUT

9 10

AC_RSTB

For wake on
LAN used

SPEED TECH

U4

U3

U8

L3

L1

L5

L4

L2

(VDD)

(100M_LED-)

ORANGE:10MGREEN:100M

ACT_LED-

D1

Z151

D2

R449 100/6/X

D3

R1096 330/6/X
R341 100/6/X

D4
U5

RUSB1-

U6

RUSB1+

U7
U8
U1

RUSB0-

U2

RUSB0+

U3
U4

LAC_BCK
LAC_DIN
LAC_DOUT
LAC_SYNC
LAC_RSTB

3VDUAL

10/100M DUAL LED(NECCI)

USB_LAN

DOWN

G1G2G3G4G5G6G7

C

MODEM

+12V

VAUX33

NC
NCAC_SYNC

JP2x7/14/H/X

U1

U2

U5

U6U7

L9

L7

L8

L10

D4

D3

GREEN

ORANGE
(+,-)

(-,+)
(10M_LED-)

R339 330/6/X

1211

100M_LED­10M_LED-

FUSEVCC

D

POWER DECOUPLING CAP.

3VDUAL

3VDUAL

VCC
+12V
3VDUAL

LBC1

0.1U/6/Y/25V/X

AVDD33 3VDUAL

LBC9

0.1U/6/Y/25V/X

VDD25

LBC13

0.1U/6/Y/25V/X

REAR USBX2

USBDT0+12

USBDT0-12
USBDT1+12
USBDT1-12

3VDUAL

FB8
FB30/8/X

BC197

0.1U/4/Y/16V/X

D

LBC2

0.1U/6/Y/25V/X

LBC10

0.1U/6/Y/25V/X

LBC14

0.1U/6/Y/25V/X

EC

要靠近

FUSEVCC

LAN EEPROM

L_EECS
L_EESK
L_EEDI
L_EEDO

E

(N/A)

LBC3

0.1U/6/Y/25V/X

LBC11

0.1U/6/Y/25V/X

USB_PORT的FUSEVCC

1

+

EC17
100U/D/10V/57

Title

Size Document Number Rev
Custom

Date: Sheet of

LBC4

0.1U/6/Y/25V/X

LFB2

FB30/8/X

R333
150K/6

RN119 0/8P4R/SHT/X

1

2
3 4
5 6
7 8

4 5
3

2
1

L12
OD6560T/X

6

7
8

RN & COIL CO-LAYOUT

U16

1

CS

2

SK

3

DI

4

DO

93C46/X

8

VCC

7

NC

6

NC

5

GND

GIGABYTE

LAN RTL8100BL

LBC5

0.1U/6/Y/25V/X

LBC12

0.1U/6/Y/25V/X

R334
270K/6

3VDUAL

BC196

0.1U/4/Y/16V/X

GA-8VT800

E

LBC6

0.1U/6/Y/25V/X

-USBOC 12,20

27 31Friday, September 19, 2003

RUSB0+
RUSB0­RUSB1+
RUSB1-

1.0

5

BC513

0.01U/6/X/50V

0.01U/6/X/50V

VCC3

8
7
6
5

VCCVID

BC535

U22_5

U22_11

12
11

14
15

+

EC20
100U/D/10V/57

SUS25V

R1270
931/6/1

D D

1.25V DDRVTT SWITCHING SOLUTION

C C

DDR25V

C125

R385

0.1U/4/Y/16V

150/6/1

Z203

R386
150/6/1

B B

U18

1

VIN

2

GND

3

REFEN

4

VOUT

RT9173/SO8

R1272
1K/6/1

SUS25V

R1275

1.5K/6/1

R1277
1K/6/1

VCNTL
VCNTL
VCNTL
VCNTL

DDRVTT

4

VCC3

3

D

BC534

R1276
10K/6

G S

2

R1278

4.7K/6

U17C

413

+

10

-

U17D

413

+

16

-

U22_7

TSM104-I/S

TSM104-I/S

R1271

100/6

0.01U/6/X/50V/X

U22_10

2N7002/SOT23

1

R1273
100/6/X

Q134

1

+

C445

0.1U/6/Y/25V

VCCVID=1.2V

VCCVID

EC59
100U/D/10V/57

5VSB

R1274
1K/6

3

D

G S

2

1

BC533

4.7U/8/Y/10V

Q135
2N7002/SOT23

5VDUAL TRANS TO 3VDUAL(3.3V)

5VDUAL

2

Q37

APL1084UC-TR/TO252

VTT_PWROK 30

3
1

Z204

3

C126
1U/6/Y/10V

R389
100/6/1

R393
174/6/1

EC21

+

100U/D/10V/57

3VDUAL

C127
1U/6/Y/10V

8

U17E
TSM104-I/S

PWOK20,26,29

R

C

5VSB

9

A

13

2

5VSB

VDDQ 3.3V/1.5V FOR AGP 2X/4X

R381
220/6

R382

CAR

SOT23

Q35
431/SOT23/X

RAC

665/6/1

R383
1K/6/1

Z216

C121

0.1U/6/Y/25V

3

+12V VCC3SUS25V

3

+

2

-

R506 1.5K/6

Q119

BAW56/S

VCC25 FOR
NB,SB,CK408,CKBF

U17B

413

5

+

R391 1K/6

1

EC18
100U/D/10V/57

5VSB

BC201

0.1U/6/Y/25V

3

+

2

-

C128

0.1U/4/Y/16V

+

6

-

U19A

84

LM393/S

1

Z219

7

TSM104-I/S

R1123 100/6

R1124

1.3K/6

5VSB

U17A
TSM104-I/S

413

17Z

1
2

16Z

R513

100/6

1

+

EC40

1000U/D/6.3V/8C

R387
1K/6

1

R507 7.5K/6

R508 16K/6

VCC3

1

5
6

2

1

3

Q34
2SK3296-ZK/TO263

R384
1K/6

CLOSE TO MOSFET

C123
1U/6/Y/10V

2

Q36
2SK3296-ZK/TO263

3

BC250

0.1U/4/Y/16V/X

1

+

EC19
1000U/D/6.3V/8C

5VSB

84

+

-

U19B
LM393/S

7

1

VDDQ

OVAGP17V

OVAGP16V

VCC25

+12V

C122
1U/6/Y/10V

C124
1U/6/Y/10V

R388
1K/6

OVAGP17V 13

OVAGP16V 13

R394
1K/6

DDR25V FOR DDR DIMM & NB

EN

SOT23

C
R

5VSB

RN122
470/8P4R

1 2

3 4

5 6

7 8

1

+

EC26
22U/D/25V/57

5VSB

R395
1K/6

A A

Q42

MMBT2222A/SOT23

-SUSC13,26

R398

8.2K/6

Z210

132

Z211

5

Q40
2N7002/SOT23

R396
1K/6/X

SDG

132

A

A

Q43
APL431BAI-TR/SOT23

C

R

D44
1N5820/S

Z213

4

VCC3

1

2

D15
1N5820/S

3

R397
100/6

R399
10K/6

RN121

4.7/8P4R

1 2
3 4
5 6
7 8

Z212

Q41
FDD6530A/TO252

Q120

1

3

2

BAW56/S

Z214

27Z

R504 1K/6

26Z

R505 2.2K/6

3VDUAL

D16
1N5817/S

1

+

EC25
1000U/D/6.3V/8C

DDR25V

GPO23

OVDDR27V

OVDDR26V

3VDUAL

BC581

0.1U/6/Y/25V

OVDDR27V 12,13

OVDDR26V 12,13

BC202

0.1U/6/Y/25V

3

BC203

0.1U/6/Y/25V

BC204

0.1U/6/Y/25V

BC205

0.1U/6/Y/25V

BC206

0.1U/6/Y/25V

BC207

0.1U/6/Y/25V

2

BC208

0.1U/6/Y/25V

U20

SI3443DV/TSOP6

5VSB

GS

1

+

5VDUAL CIRCUIT

Title

Size Document Number Rev
Custom

Date: Sheet of

1234

D

D

D

D

6

5

EC23
100U/D/10V/57

5VDUAL

2

HUF76107D3S/TO252

1

+

EC24
1000U/D/6.3V/8C

GIGABYTE

DDR POWER

GA-8VT800

Q39

3

S

D

1

G

1

28 31Friday, September 19, 2003

1

+

EC22
100U/D/10V/57

VCC

1.0

5

4

3

2

1

ATX CONN, DC POWER

ATX POWER CONNECTOR

VCC3

-12V

5VSB

D D

Q44

MMBT2222A/SOT23

-SUSB13,26

R401 1K/6

R1330

8.2K/6

Z226

SOT23

132

-5V
VCC
VCC

BC211

Z225

BC212

R400
1K/6

BC210

0.1U/4/Y/16V

BC213

BC214

ATX

11

3.3V

12

-12V

13

GND

14

PSON

15

GND

16

GND

17

GND

18

-5V

19

5V

20

5V

PWR/2X10/CL1/L

3.3V

3.3V
GND

5V

GND

5V
GND
POK

5VSB

12V

VCC3

1
2
3
4
5
6
7
8
9
10

BC209

0.1U/4/Y/16V

BC215

BC216

BC217

BC218

PWOK

VCC

VCC

PWOK 20,26,28

5VSB
+12V

BC219

1 2

R254
1K/6

TO PCI 1, 2, 3,
4,5 SLOT

0.1U/6/Y/25V

PCI+IDE RESET

PWOK 20,26,28

R439 330/6

U9

O3

74HC14/S

-AGPRST

-AGPRST 17

-PPCIRST

-PPCIRST 18,19

VCC

Q18

2

3

1

MMBT2222A/SOT23

PWROK 5,14,15,26,30

R253
470/6

-IDERST

-IDERST 20

VCC

1

+

EC66
1000U/D/6.3V/8C

0.1U/4/Y/16V

V12

C C

0.1U/6/Y/25V

B B

A A

BC536

4

ATX_12V

GND

+12V

GND+12V

PWR/2X2/P

1
23

0.1U/4/Y/16V

0.1U/4/Y/16V

VCC3

1

+

EC67
1000U/D/6.3V/8C/X

0.1U/6/Y/25V

1

+

EC68
1000U/D/6.3V/8C/X

0.1U/4/Y/16V

-PCIRST9,12,22,27

0.1U/4/Y/16V

BC154

0.1U/4/Y/16V

-PCIRST

R247
0/SHT/X

0.1U/4/Y/16V

VCC

VCC3

R248
0/6/X

R251 0/6/X

R252 0/6/X

0.1U/4/Y/16V

141312111098

I5O5I4O4I3

VCC

I0O0I1O1I2O2GND

1234567

Z64 Z239

Title

Size Document Number Rev
Custom

5

4

3

2

Date: Sheet of

GIGABYTE

ATX, DC POWER

GA-8VT800

1

29 31Friday, September 19, 2003

1.0

8

7

6

5

4

3

2

1

VCC3

RN206 8.2K/8P4R

1 2
3 4
5 6

7 8

R1170 8.2K/6
R1172 8.2K/6

D D

PWROK5,14,15,26,29

VCORE

R1178
100/6

R1180 1K/6/1

VCC_SENSE5
VSS_SENSE5

VCORE

R1190
1K/6

C C

XVID3
XVID2
XVID1
XVID0

XVID5

R1173 2.2/6/X

R1179

C388

5.6N/6/X/50V

4.7K/6

C390 4700P/6/50V/X

R1182 2K/6/X
R1183 0/6/X

R1186 0/6

C392

0.01U/6/X/50V

PWM_EN

PG
XVID4
XVID3
XVID2
XVID1
XVID0
XVID5

COMP

VCC_SENSE1
VSS_SENSE1

FS

R1187
150K/6

27

13

FB

12

B

14
15

16
11

28

VCC_SENSE1

VSS_SENSE1

+12V

R1196
100/6

R1199

4.7K/6

3

D

G S

2

R1195
2K/6

Q124
2N7002/SOT23

1

OVP

R1203

8.2K/6

PWM_EN

Q126

B B

VTT_PWROK28

MMBT2222A/SOT23

R1210 8.2K/6

SOT23

132

VCC3

RN207 1K/8P4R

1 2
3 4
5 6

7 8

R1216 1K/6
R1217 1K/6

VID0
VID1
VID2
VID3 VID4
VID4
VID5

VID0 5
VID1 5
VID2 5
VID3 5
VID4 5
VID5 5

3VDUAL

VID05

A A

SMBDATA
SMBCLK

C463
10P/4/N/25V

8

C464
10P/4/N/25V

VID15
VID25
VID35
VID45
VID55

SMBDATA11,13,15,16

SMBCLK11,13,15,16

7

VCC

BC518

1U/6/Y/10V

2
3
4
5
6
7
8

EN
PGOOD
VID4
VID3
VID2
VID1
VID0
VID12.5

COMP

FB
VDIFF

VSEN
RGND
REF

FS

U56

ISL6556BCB/S

26

PWM1

VCC

ISEN1

PWM2

ISEN2

PWM3

ISEN3

PWM4

ISEN4

TCOMP

OVP

GND

1

17

OFS

21
20

22
23

18
19

25
24

9

10

R1188
2K/6

R1192
649/6/1

WI_CPU

R1206
2K/6

CPU Voltage ID output

VID5

R1212 0/6/X

VID0

R1213 0/6/X

VID1

RN208 0/8P4R/X

VID2
VID3

BC530

ATXGPI0
ATXGPI1

SMBDATA
SMBCLK

0.1U/6/Y/25V

10
11
12
13
14

1
2
3
4
5
6
7
8
9

U59

3VSB
GPIO3
GPIO4
VIDIN0
VIDIN1
VIDIN2
VIDIN3
VIDIN4
VIDIN5
GPIO0
GPIO1
GPIO2
SDA
SCL

ATXP6/TSSOP

PWM1
ISEN1

PWM2
ISEN2

PWM3
ISEN3

VCC

ATXGPI0
ATXGPI1

R1201
1/6

78
56
34
12

TEST/ASEL

GPIO5
GPIO6

GPIO7
VIDOUT0
VIDOUT1
VIDOUT2
VIDOUT3
VIDOUT4
VIDOUT5

VBAT

SLOTOCC#

GND

RSTOUT#

6

3VDUAL

VCC

R1193

6.2K/6/1

V12

28
27
26
25
24
23
22
21
20
19
18
17
16
15

R1171 8.2K/6

R1185
470K/6/X

R1189
10K/6/1

R1194

4.22K/6/1

R1202
1/6

R1204

4.7/6

PWM3

BC528

1U/8/Y/25V

XVID5
XVID0
XVID1

XVID2
XVID3
XVID4

XVID0
XVID1
XVID2
XVID3
XVID4
XVID5

SKTOC-

SKTOC-XVID4

R1174 5.6K/6

R1175
1/6

V12

C389 0.1U/6/Y/25V

BC524

R1181

0.1U/6/Y/25V

4.7/6

R1191

4.7/6

11

10

14

U57

BOOT1

1

PWM1
BOOT2

2

PWM2

3

C393 0.1U/6/Y/25V

R1198 5.6K/6

C395 0.1U/6/Y/25V

U58

2

BOOT

7

PVCC

6

VCC

3

PWM

HIP6601BCB-T/S

UGATE

PHASE

LGATEGND

1
8

54

R1209 5.6K/6

3VDUAL

BC529

R1220

0.1U/6/Y/25V

8.2K/6

3VDUAL

SKTOC- 6,13

BC531

0.1U/6/Y/25V

5

R1176
1/6

5

UGATE1

VCC

PVCC

PHASE1
LGATE1

UGATE2

PHASE2

GND

PGND

LGATE2

6

HIP6602BCB-T/S

BC525

1U/8/Y/25V

12
13
4
9
8
7

UG3

V12

UG1

LG1
UG2

LG2

2SK3296-ZK/TO263

R1208 4.7/6

PH3ISEN3

2SK3467/TO263

LG3

L37

2.8uH/D/V/20A/3P

Q121

2SK3296-ZK/TO263

R1177

UG1

4.7/6

2SK3467/TO263

2SK3296-ZK/TO263

UG2

PH2

Q125

2SK3467/TO263

Q128

Q130

VID3
VID4

4

Q123

R1197

4.7/6

LG2

VIN

2

1

PH1

Q122

1

LG1

VIN

2

1

1

VIN

2

1

3

2

1

3

BOOTSEL4

D40

2
1

BAV70/S

BC519

1U/8/Y/25V/X

3

2

3

3

2

3

BC527
1U/8/Y/25V

3

BC520

0.1U/6/Y/25V

1U/8/Y/25V/X

BC523
1U/8/Y/25V

R1184

2.2/6
C391

0.01U/6/X/50V

BC526
1U/8/Y/25V

R1200

2.2/6

C394

0.01U/6/X/50V

R1211

2.2/6

C396

0.01U/6/X/50V

R1221 22K/6

R1222 8.2K/6

3

BC521

L38

1.1UH/D/V/30A/6048

L39

1.1UH/D/V/30A/6048

L40

1.1UH/D/V/30A/6048

5VSB

R1223
100K/6

EC46

EC47

BC522

0.1U/6/Y/25V/X

1500U/D/16V/AK

+

+

1

+

1

EC49
1800U/8K/6.3V/D

1

EC52
1800U/8K/6.3V/D

1

+

1500U/D/16V/AK

1

+

1500U/D/16V/AK

EC48

1

+

EC50
1000U/D/6.3V/8C/X

1

+

EC53
1000U/D/6.3V/8C/X

EC56

1800U/8K/6.3V/D

1

1

+

EC55
1800U/8K/6.3V/D

-BOOTSEL

R1214
22K/6

R1215 8.2K/6/X
R1218 47K/6

Q132
MMBT2222A/SOT23

SOT23

132

Title

Size Document Number Rev

Custom

Date: Sheet of

2

1

+

+

EC57

1800U/8K/6.3V/D

+12V

R1207

8.2K/6/X

3

D

G S

2

Q129
MMBT2222A/SOT23/X

SOT23

132

5VSB

R1219
22K/6/X

OVP

Q133
MMBT2222A/SOT23

SOT23

132

GIGABYTE

Vcore PWM HIP6301/6302CB

GA-8VT800 1.0

VCORE

1

+

EC51
3300U/D/6.3V/AN

VCORE

1

+

EC54

1800U/8K/6.3V/D

1800U/8K/6.3V/D

1

EC58

+

FB

R1205
20K/6/X

Q127
2N7002/SOT23/X

1

B

WI_CPU

3

D

Q131
2N7002/SOT23

G S

2

1

30 31Friday, September 19, 2003

1

5

VIA 8233 GPIO
Implementation

4

3

2

1

D D

Pin
Number

Y2
S/B ---

U1
S/B ---

T1
S/B ---

N4
S/B ---

R4
S/B ---

R1
S/B ---

P2
S/B ---

U2
S/B ---

B7

C C

S/B --­A9

S/B --­C9

S/B --­B9

S/B --­A8

S/B --­B8

S/B --­W3

S/B --­P3

S/B --­R2

S/B --­R8

S/B --­M1

B B

S/B --­L3

S/B --­R9

S/B --­T7

S/B --­V4

S/B --­T6

S/B --­W5

S/B --­U6

Pin
Name

GPI0 RTC Input N/A ReservedS/B --­GPI1 RESUME Input N/A
GPI2 RESUME Input EXTSMI#
GPI3 RESUME Input RING# WOR /
GPI4 RESUME Input LID#
GPI5 RESUME Input BATLOW# Reserved
GPI6 RESUME Input PCIPME# PME

GPI7 RESUME Input SMBALT# Reserved
GPIO10 MAIN BI-Dir IPBRDFR
GPIO11 MAIN BI-Dir GPI11
GPIO12 MAIN BI-Dir IPBOUT0 Reserved
GPIO13 BI-Dir IPBOUT1 Reserved
GPIO14
GPIO15 MAIN BI-Dir IPBTDCK
GPI16 RTC Input
GPI17 MAIN Input CPUMISS Reserved
GPI18 MAIN Input
GPI19 MAIN Input IORDY#
GPIO20 MAIN GPO20 OVAGP16V (P.U)
GPIO21 MAIN GPO21 OVAGP17V (P.U)
GPIO22 MAIN GPO22 OVDDR26V (P.U)
GPIO23 MAIN GPO23 OVDDR27V (P.U)
GPIO24 MAIN GPIOA Reserved (P.U)
GPIO25 MAIN GPIOC Reserved (P.U)
GPIO30 MAIN GPIOD Reserved (P.U)
GPIO31 MAIN GPIOE Reserved(P.U)

Power
Well

MAIN
MAIN BI-Dir IBPTDFR

Power
On

Default

Hi-Z
Hi-Z
Hi-Z
Hi-Z
Hi-Z
Hi-Z
Hi-Z
Hi-Z

Pin
Type

OD
OD
OD
OD

OD/TTL
OD/TTL
OD/TTL
OD/TTL

Mux
Pin

INTRUDER#

THERMAL#

GPIO

Application

1st ATA66
Detect

Green
Button

WOL

2nd ATA66
Detect

Wakeup

System Config
ID1

System Config
ID2

System Config
ID3

System Config
ID4

Case
Intrution

Reserved

Pri/Sec CNR
Detect

(P.U)

(P.U)

(P.U)

(P.U)
(P.U)

(P.U)
(P.U)

Pin
Number

S/B --­P4

S/B --­U3

S/B --­W2

S/B --­P1

S/B --­R3

S/B --­Y5

S/B --­V6

S/B --­K19

S/B --­A7

S/B --­C8

S/B --­W9

S/B --­Y9

S/B --­U8

S/B --­R10

S/B --­V1

S/B --­V2

S/B --­M17

S/B --­N17

Pin
Name

GPO0 N/A

Power
Well

RESUME OD
GPO1 RESUME Output SUSA#
GPO2 RESUME Output SUSB#
GPO3 RESUME Output SUSSAT#
GPO4 RESUME Output SUSCLK
GPO5 MAIN Output CPUSTP# Reserved
GPO6 MAIN Output PCISTP# Reserved
GPO7 MAIN Output CPUSLP#
GPIO8 MAIN BI-Dir IPBIN0 SCR & FDD2
GPIO9 MAIN BI-Dir IPBIN1 FM3570 VID
GPO16 MAIN BI-Dir
GPO17 MAIN BI-Dir
GPO18 MAIN Output
GPO19 MAIN Output
GPIO26 RESUME SMBDAT2 Slave
GPIO27 RESUME SMBCLK2 Slave
GPIO28 MAIN APICD0 APICIO
GPIO29 MAIN APICD1 APICIO

Power
On

Default

Hi

Hi-Z
Hi-Z
Hi-Z
Hi-Z

Pin
Type

OD
OD
OD
OD

Mux
Pin

ROM
SA16

ROM
SA17

ROM
SA18

ROM
SA19

GPIO

Application

BIOS Write
Protect

Reserved

Sleep
S3#

Suspend State
N/B

Reserved

CPU Sleep

P4
Sel
Sel

Strap P4
BSEL0

Strap P4
BSEL1

ROM Address
18

ROM Address
19

SMBDATA
SMBCLK
Data0
Data1

(P.U)

(P.U)

A A

Title

Size Document Number Rev
Custom

5

4

3

2

Date: Sheet of

GIGABYTE

GPIO TABLE
GA-8VT800

1

31 31Friday, September 19, 2003

1.0
