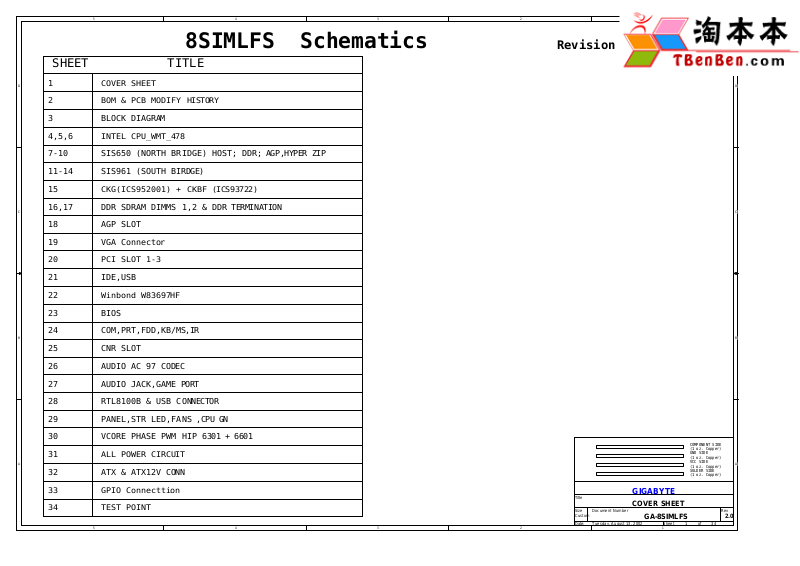

8SIMLFS Schematics
SHEET
D D
1
2
3
4,5,6
7-10
11-14
15
C C
16,17
18
19
COVER SHEET
BOM & PCB MODIFY HISTORY
BLOCK DIAGRAM
INTEL CPU_WMT_478
SIS650 (NORTH BRIDGE) HOST; DDR; AGP,HYPER ZIP
SIS961 (SOUTH BIRDGE)
CKG(ICS952001) + CKBF (ICS93722)
DDR SDRAM DIMMS 1,2 & DDR TERMINATION
AGP SLOT
VGA Connector
TITLE
Revision 2.0
20 PCI SLOT 1-3
21
22
23
IDE,USB
Winbond W83697HF
BIOS
B B
24
25
26
27
28
29
30
31
A A
32
33 GPIO Connecttion
34 TEST POINT
COM,PRT,FDD,KB/MS,IR
CNR SLOT
AUDIO AC 97 CODEC
AUDIO JACK,GAME PORT
RTL8100B & USB CONNECTOR
PANEL,STR LED,FANS ,CPU GN
VCORE PHASE PWM HIP 6301 + 6601
ALL POWER CIRCUIT
ATX & ATX12V CONN
5
COMPONENT SIDE
(1 oz. Copper)
GND SIDE
(1 oz. Copper)
VCC SIDE
(1 oz. Copper)
SOLDER SIDE
(1 oz. Copper)
Title
Size Document Number Rev
Custom
4
3
2
Date: Sheet of
GIGABYTE
COVER SHEET
GA-8SIMLFS
1
1 34Tuesday, August 13, 2002
2.0
5
4
3
2
1
Model Name: 8SIMLFS
Circuit or PCB layout change
for next version
Version:2.0
D D
Component value change
history
AUTOBOM
91/08/05
Date Change Item Reason
04/30 ADD U20 AND RELATIVE ADD REALTEK 8100BL LAN
05/09
ADD R914,R917 0 OHM ,REMOVE
SHUTTER*2 IN F_AUDI_I
CUSTOMER REQUEST,P-BOM
Date Change Item Reason
03/28 LAYOUT MODIFY F_USB_I,F_AUDIO_I FOR INTEL CONN
05/15 LAYOUT MODIFY ADD SUPPORT SIS962/962L
DEL FM3570 (CPU OV)
ADD USB2.0 CHOKE
05/16 PM REQUEST ADD F_USB
05/22 LAYOUT MODIFY AC97 ADD R1011
C C
07/01
07/03
08/05
FDD DISK I/O ERROR DEL RN116,R270 (330 ohm)
SMBUS ISSUE R689,R690 4.7K/6-->1K/6
DEL PVT BIOS ROM SOCKET DEL U14 PLCC32P
SIS CHIPSET SIS962L DATE CODE DATE CODE: INCLUDEING 0225
BOM MODIFY(8SIMLFS-FS-20A1) USBREF R921=412/6/1 FOR USB2.0 400mV+/-10%
B B
A A
Title
Size Document Number Rev
Custom
5
4
3
2
Date: Sheet of
BOM & PCB MODIFY HISTORY
GIGABYTE
GA-8SIMLFS
1
2 34Tuesday, August 13, 2002
2.0
5
8SIML BLOCK DIAGRAM
4
3
2
1
INTEL Pentium4 (478)
D D
CLOCK GENERATOR
(ICS952001+ICS93722)
VCC25 = 2.5V(I/O,MEMORY/I,VLINK/I)
VCC3 = 3.3V
PAGE 15
VCORE = 1.75V (650-1100MHZ) / SLEEP : 1.3V
VCCA = 2.5V ; 2_5V = 2.5V
PAGE 4, 5, 6
VID0~4
PWM/OTHER POWER
VCORE = 1.75V (650-1100MHZ) / SLEEP : 1.3V
5VSB,-12V,+12V,VCC,VCC3,3VDUAL
DDRVTT,DDR25V,3VSTR,VCC25
PAGE 30,31,32
VGA CONNECTOR
(R,G,B)
PAGE 19
AGP SLOT 2X/4X
VDDQ = 1.5V (AGP POWER 4X)
VCC3 = 3.3V
+12V = 12V
3VDUAL = 3.3V
C C
AGPUSB+ / -
VCC = 5V
PAGE 18
GAD0~31
AD_STB0,-AD_STB0
AD_STB1,-AD_STB1
SBA0~7
SB_STB,-SB_STB
-GBE0~3
ST0~2
AGP BUS
USB PORTS 0~5
VCC = 5V
5VSB = 5V
AMRUSB+ / -
B B
5VUSB = 5V
PAGE 14
AC97 LINK
CNR SLOT
+12 = 12V
-12 = -12V
VCC = 5V
VCC3 = 3V
5VSB = 5V
PAGE 25
SIS650 NORTH BRIDGE
-A1
VCORE = 1.75V (650-1100MHZ) / SLEEP : 1.3V
DDR25V = 2.5V(SUSPEND POWER)
VDDQ = 1.5V (AGP POWER 4X)
VCC25 = 2.5V(I/O,MEMORY/I,VLINK/I)
ZAD0~15
CONTROL BUS
Z LINK
SIS961 SOUTH BRIDGE
-A2
VCC25 = 2.5V(I/O,MEMORY/I,VLINK/I)
3VDUAL = 3.3V(SUSPEND POWER)
VCC3 = 3.3V
RTCVDD = 3.3V
PCI BUS
PCI SLOT 1,2,3
+12 = 12V
-12 = -12V
VCC = 5V
VCC3 = 3V
PAGE 7 ,8 ,9,10
PAGE 11,12,13
PAGE 20
MAA0~14
MDD0~63
-DQSD0~8
MPD0~7 DQM0~7
DDR SDRAM DIMM X 2
DDR25V = 2.5V(SUSPEND POWER)
DDRVTT = 1.25V
PAGE 16,17
RTL8100 & USB CONN
PCI LAN
PAGE 28
IDE Primary and Secondary
FUSB(USB POWER)
VCC = 5V
BIOS SST39SF020
VCC = 5V3VDUAL = 3V
VCC3 = 3V3VDUAL = 3V
PAGE 21
PAGE 23
AC97 CODEC SIGMATEL 9756
-AA4
+12V = 12V
VCC = 5V 5VSB = 5V
AVDD = 5V
A A
AUDIO PORTS :
LIN_ OUT
TELE
CD_IN
5
LINE_IN
AUX_IN GAME PORT
MIC
PAGE 26
PAGE 27
FRONT PANEL /FANS
VCC = 5V
5VSB = 5V
+12 = 12V
PVCC = 5V
4
PAGE 29
3
LPC W83697HF
-F
VCC = 5VVCC3 = 3.3V
VBAT = 3V
I/O PORTS :
COMB
COMA IR
2
LPT
FDD
PAGE 22
PAGE 24
Title
Size Document Number Rev
Custom
Date: Sheet of
GIAGBYTE
BLOCK DIAGRAM
GA-8SIMLFS
1
3 34Tuesday, August 13, 2002
2.0
LPC BUS
5
(X5R) X11 1206(10U) NOTE:GIGA
VCORE
10U/12/Y/10V/X
BC2
10U/12/Y/10V/X
D D
VCORE
BC6
10U/12/Y/10V/X
BC3
10U/12/Y/10V/X
BC8
10U/12/Y/10V/X
BC4
BC5
10U/12/X5/10V
4
3
VCORE
2
1
VCORE
10U/12/Y/10V/X
BC12
BC11
10U/12/Y/10V/X
C C
VCORE
10U/12/X5/10V
BC22
BC21
10U/12/Y/10V/X
VCORE
10U/12/Y/10V/X
VCORE
10U/12/Y/10V/X
BC26
BC31
10U/12/Y/10V/X
BC27
10U/12/X5/10V
BC32
B B
BC13
10U/12/Y/10V/X
BC23
10U/12/X5/10V
BC28
10U/12/X5/10V
BC33
10U/12/Y/10V/X
10U/12/Y/10V/X
BC15
10U/12/X5/10V
BC24
10U/12/Y/10V/X
BC29
10U/12/Y/10V/X
BC34
BC20
10U/12/X5/10V
BC25
10U/12/X5/10V
BC30
10U/12/X5/10V
HA[3..16][7]
HA[17..31][7]
HA[3..16]
-HA_STB0[7,34]
-HREQ4[7]
-HREQ3[7]
-HREQ2[7]
-HREQ1[7]
-HREQ0[7]
HA[17..31]
-HA_STB1[7,34]
HA16
HA15
HA14
HA13
HA12
HA11
HA9
HA8
HA7
HA6
HA5
HA4
HA3
-HA_STB0
-HREQ4
-HREQ3
-HREQ2
-HREQ1
-HREQ0
HA31
HA30
HA29
HA28
HA27
HA26
HA25
HA24
HA23
HA22
HA21
HA20
HA19
HA18
HA17
-HA_STB1
P4A
N5
A16
N4
A15
N2
A14
M1
A13
N1
A12
M4
A11
M3
A10
L2
A9
M6
A8
L3
A7
K1
A6
L6
A5
K4
A4
K2
A3
L5
ADSTB0
H3
REQ4
J3
REQ3
J4
REQ2
K5
REQ1
J1
REQ0
AB1
A35
Y1
A34
W2
A33
V3
A32
U4
A31
T5
A30
W1
A29
R6
A28
V2
A27
T4
A26
U3
A25
P6
A24
U1
A23
T2
A22
R3
A21
P4
A20
P3
A19
R2
A18
T1
A17
R5
ADSTB1
GND1
GND2
GND3
GND4
GND5
GND6
AE7
AE24
AE22
AE19
AD14
AD12
AD10
GND7
AD8
GND8
AD4
GND9
AD1
GND10
GND11
AD23
AD21
GND12
GND13
AE17
AD11
AD9
VCORE1
GND14
AE15
AE13
AD7
AD19
VCORE2
VCORE3
GND15
GND16
AE11
AE9
AE18
AE16
VCORE4
VCORE5
GND17
GND18
AE26
AB20
AE14
AE12
VCORE6
VCORE7
GND19
GND20
AC17
AC15
AE10
AE8
VCORE8
VCORE9
GND21
GND22
AC13
AC11
AE6
AE20
VCORE10
VCORE11
VCORE12
GND23
GND24
GND25
AC9
AC7
AB15
AB13
VCORE13
VCORE14
GND26
GND27
AC5
AC2
AB11
AB9
VCORE15
VCORE16
GND28
GND29
AC25
AC22
AB7
AB19
VCORE17
VCORE18
GND30
GND31
AC19
AD18
AC18
AC16
VCORE19
VCORE20
GND32
GND33
AD16
AA4
AC14
AC12
VCORE21
VCORE22
GND34
GND35
AA1
AA23
AC10
AC8
VCORE23
VCORE24
GND36
GND37
AA19
AB18
AD17
AD15
VCORE25
VCORE26
GND38
GND39
AB16
AB14
AD13
E14
VCORE27
VCORE28
GND40
GND41
AB12
AB10
E12
E10E8E20
VCORE29
VCORE30
GND42
GND43
AB8
AB6
VCORE31
VCORE32
GND44
GND45
AB3
AB24
GND46
AB21V4V1
GND47
GND48
GND49
GND50
V23W6W3
GND51
GND52
W24
GND53
W21Y5Y2
GND54
GND55
GND56
Y25
TESTHI8
TESTHI9
TESTHI10
GND57
Y22
AA17
BINIT
BPRI
DBSY
DEFER
DRDY
HITM
IERR
LOCK
MCERR
RESET#
TRDY
GND58
GND59
AA15
BNR
RSP
ADS
AP0
AP1
DP3
DP2
DP1
DP0
BR0
INIT
RS2
RS1
RS0
AA13
HIT
GND60
G1
AC1
V5
AA3
G2
L25
K26
K25
J26
U6
W4
Y3
H6
D2
H5
E2
H2
F3
E3
AC3
W5
G4
V6
AB25
F4
G5
F1
AB2
J6
SK478/GD/W
-ADS
Z7
-BNRHA10
-BREQ0
-BPRI
-DBSY
-DEFER
-DRDY
-HIT
-HITM
-CPUINIT
-HLOCK
-CPURST
-RS2
-RS1
-RS0
-HTRDY
-ADS [7]
R1 39/6/X
-BNR [7]
TESTHI8_10 [5]
-BREQ0 [5,7]
-BPRI [7]
-DBSY [7]
-DEFER [7]
-DRDY [7]
-HIT [7]
-HITM [7]
-IERR [5]
-HLOCK [7]
-RS2 [7]
-RS1 [7]
-RS0 [7]
-HTRDY [7]
VCORE
VCORE
R511
56/6
C1
100P/6/N/50V
C2
0.01U/6/X/16V/X
-CPUINIT [12,34]
-CPURST [5,7,34]
VCORE
10U/12/Y/10V/X
BC36
A A
BC35
10U/12/X5/10V
BC37
10U/12/X5/10V/X
5
10U/12/X5/10V
BC38
REV 0.2
Title
Size Document Number Rev
Custom
4
3
2
Date: Sheet of
GIGABYTE
WILLIAMATE 478A
GA-8SIMLFS
1
4 34Tuesday, August 13, 2002
2.0
5
VCORE
D D
VCORE
R2
75/6/1/X
R7
75/6/1
GTLREF1
R3
150/6/1/X
GTLREF2
R8
150/6/1
BC40
1U/6/Y/10V
BC43
1U/6/Y/10V
BC41
0.01U/6/X/16V
BC44
0.01U/6/X/16V
4
VCORE
3
2
-BREQ0--->220 OHM
VCC3VCC3
VCORE
RN1
56/8P4R
RN2
56/8P4R
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
R4 51/6
R5 220/6
R6 51/6
1
INTR
-IGNNE
NMI
-SMI
-STPCLK
-IERR
-CPUSLP
-A20M
-FERR
-IERR [4]
-BREQ0 [4,7]
-CPURST [4,7,34]
F17
F15
F13
F11F9F19
AA18
AA16
AA14
AA12
AA10
AA8
AB17
B13
B11B9B7
B19
C18
C16
C14
C12
C10C8C20
D17
D15
D13
D11D9D7
VCORE57
VCORE58
VCORE59
GND97
GND98
GND99
K21
L26L4L1
U2A
1
KA393/SO8/X
VCORE60
VCORE61
VCORE62
GND100
GND101
GND102
L23M5M2
D19
VCORE63
VCORE64
GND103
GND104
GND105
GND106
M25
M22
0817 modify
GND107
GND108
GND109
GND110
GND111
GND112
E11E9E26E7E4E1E23
VCC
R18
10K/6
GND113
GND114
E19
F18
G S
G S
G S
PWRGOOD
PROCHOT
GND115
GND116
F16
F14
3
D
2
3
D
2
3
D
2
P4B
CPU_CLK
CPU_CLK[15,34]
VTIN2
-CPU_CLK[15,34]
-STPCLK[12]
VID[0..4]
VCORESEN[30]
VSSSEN[30]
TESTHI8_10 [4]
-A20M[12]
-FERR[12]
-IGNNE[12]
INTR[12]
NMI[12]
-SMI[12]
FOR LAYOUT
COMP0
R11 51.1/6/1
COMP1
R12 51.1/6/1
C C
VID[0..4][30]
VCCVID
C3
0.1U/6/Y/25V
VTIN2[22,29] -CPUSLP [12]
B B
VCORE
VCORE
VCORE
A A
VCORE
L1
4.7UH/8
L2
4.7UH/8
R536 51/6
R537 51/6
R538 51/6
RN3 51/8P4R
1 2
3 4
5 6
7 8
R20 62/6/X
1 2
3 4
5 6
RN4 51/8P4R
7 8
R24 39/6
R25 75/6
R27 150/6
R28 27/6
R30 680/6
0.1U/6/Y/25V
0.1U/6/Y/25V
5
C6
C8
C7
10U/12/Y/10V
C9
10U/12/Y/10V
TESTHI8_10
TESTHI11
TESTHI12
-BPM5
-BPM4
-BPM1
-BPM0
-PROCHOT
TESTHI0_1
TESTHI2_7
TMS
TDO
TDI
TCK
-TRST
C5
0.01U/6/X/16V
VCCA
VSSA
VCOREPLL
AF22
AF23
AC26
AD26
AD20
AE23
AD22
AE21
AF25
AF24
BCLK0
BCLK1
ITP_CLK0
ITP_CLK1
C6
A20M
B6
FERR
B2
IGNNE
D1
LINT0
E5
LINT1
B5
SMI
Y4
STPCLK
AE1
VID4
AE2
VID3
AE3
VID2
AE4
VID1
AE5
VID0
AF4
VCCVID
AF3
VCCVIDPRG
VCCA
A5
VCC_SENSE
VCCIOPLL
VSSA
A4
VSS_SENSE
RSVD1
A22
RSVD2
A7
RSVD3
B3
THERMDA
C4
THERMDC
A2
THERMTRIP
AD3
RSVD4
RSVD5
AD2
RSVD6
RSVD7
-CPU_CLK
-A20M
-FERR
-IGNNE
INTR
NMI
-SMI
-STPCLK
VID4
VID3
VID2
VID1
VID0
VCCA
VCORESEN
VCOREPLL
VSSA
VSSSEN
-THERMTRIP
PCB THERM NF REQUEST POP
4
VCORE33
GND61
GND62
GND63
GND64
GND65
GND66
GND67
GND68
GND69
GND70
GND71
GND72
GND73
AA11
AA9
AA26
AA7N6N3
N24
N21P5P2
P25
P22
R26R4R1
DISTI DEFAULT NO POP
VCC
R19 10K/6/X
R21 2.2K/6/X
-CPURST
[4,7,34]
-THERMTRIP
VCORE34
VCORE35
VCORE36
GND74
GND75
GND76
R23T6T3
VCORE37
VCORE38
VCORE39
VCORE40
GND77
GND78
GND79
GND80
T24
T21U5U2
R22
10K/6/X
R26 4.7K/6/X
VCORE
R29
220/6/X
VCORE41
VCORE42
VCORE43
GND81
GND82
GND83
U25
VCORE44
VCORE45
GND84
GND85
U22
V26
C11
1U/6/Y/10V/X
VCORE46
VCORE47
GND86
GND87
G21
H26H4H1
Z11
Z12
Z13-CPURST
VCORE48
VCORE49
VCORE50
VCORE51
VCORE52
VCORE53
VCORE54
VCORE55
VCORE56
GND88
GND89
GND90
GND91
GND92
GND93
GND94
GND95
GND96
H23J5J2
J25
J22K6K3
K24
R15 4.7K/6/X
5VSB 5VSB
84
3
+
2
-
Q4
MMBT2222A/SOT23/X
SOT23
132
3
R9
1K/6
AD6
BSEL0
AD5
BSEL1
A6
TESTHI11
L24
COMP0
P1
COMP1
AB4
BPM5
AA5
BPM4
Y6
BPM3
AC4
BPM2
AB5
BPM1
AC6
BPM0
AD24
TESTHI0
AE25
DBR#
AD25
TESTHI12
AA6
GTLREF3
F6
GTLREF2
AA21
GTLREF1
F20
GTLREF0
AC23
TESTHI5
AC24
TESTHI4
AC20
TESTHI3
AC21
TESTHI2
AB22
TESTHI7
AA20
TESTHI6
AA2
TESTHI1
AB23
C3
AB26
SLP
D4
TCK
C1
TDI
D5
TDO
F7
TMS
E6
TRST
GND117
GND118
GND119
GND120
F12
F10
F8
SK478/GD/W
Q2
2N7002/SOT23/X
CLOSE U23 PIN8
1
Q3
2N7002/SOT23/X
1
Q92
2N7002/SOT23/X
1
TESTHI11
COMP0
COMP1
-BPM5
-BPM4
-BPM1
-BPM0
TESTHI0_1
TESTHI12
TESTHI0_1
CPUPWOK
-PROCHOT
-CPUSLP
TCK
TDI
TDO
TMS
-TRST
FS [30]
-PWRBTNR [12]
VTTPGD [15]
2
GTLREF1
GTLREF2
TESTHI2_7
R10
1K/6/X
BSEL0 --->100/133
BSEL0
BSEL0 [15]
BSEL1
SIS REQUEST
VCORE
R13
300/6
CPUPWOK [7,34]
C4
100P/6/N/50V/X
5VSB
C10
R16
R17
1.8K/6/X
1K/6/X
Z8
Z9
R23
RS1
2.7K/6/X
HR47K/0603/X
Title
Size Document Number Rev
Custom
Date: Sheet of
0.1U/6/Y/25V/X
84
U2B
5
+
6
-
7
KA393/SO8/X
-THERMTRIP
GIGABYTE
WILLIAMATE 478B
GA-8SIMLFS
1
5 34Tuesday, August 13, 2002
2.0
5
D D
HD[0..15][7]
C C
HD[16..31][7]
B B
HD[16..31]
HD[0..15]
-HD_STBN0[7,34]
-HD_STBP0[7,34]
-HD_STBN1[7,34]
-HD_STBP1[7,34]
-DBI0[7]
-HD_STBN0
-HD_STBP0
-DBI1[7]
-HD_STBN1
-HD_STBP1
HD15
HD14
HD13
HD12
HD11
HD10
HD9
HD8
HD7
HD6
HD5
HD4
HD3
HD2
HD1
HD0
-DBI0
HD31
HD30
HD29
HD28
HD27
HD26
HD25
HD24
HD23
HD22
HD21
HD20
HD19
HD18
HD17
HD16
-DBI1
4
E18
E16
AF17
AF15
AF13
GND139
GND140
VCORE65
VCORE66
VCORE67
GND141
GND142
GND143
D21
D20
VCORE68
VCORE69
GND144
GND145
E17
E15
AF11
E13A3A24
P4C
D25
D15
J21
D14
D23
D13
C26
D12
H21
D11
G22
D10
B25
D9
C24
D8
C23
D7
B24
D6
D22
D5
C21
D4
A25
D3
A23
D2
B22
D1
B21
D0
E21
DBI#0
E22
STBN0
F21
STBP0
H25
D31
K23
D30
J24
D29
L22
D28
M21
D27
H24
D26
G26
D25
L21
D24
D26
D23
F26
D22
E25
D21
F24
D20
F23
D19
G23
D18
E24
D17
H22
D16
G25
DBI#1
K22
STBN1
J23
STBP1
GND121
GND122
GND123
GND124
GND125
GND126
GND127
GND128
GND129
GND130
GND131
GND132
GND133
GND135
GND136
GND137
GND138
GND134
F5F2F25
F22G6G3
G24C5C2
C25
C22
C19
D18
D14
D12
D10D8D6D3D24
D16
AF9
AF7
VCORE70
VCORE71
VCORE72
GND146
GND147
GND148
VCORE
AF5
AF21
VCORE73
VCORE74
GND149
GND150
A21
A19
AF19
A18
VCORE75
VCORE76
GND151
GND152
B18
B16
3
A16
A14
A12
VCORE77
VCORE78
GND153
GND154
B14
B12
B10
A10A8A20
VCORE79
VCORE80
VCORE81
GND155
GND156
GND157
B26B8B4
B17
B15
VCORE82
VCORE83
VCORE84
GND158
GND159
GND160
B23
B20
AF2
VCORE85
GND161
GND162
C17
C15
GND163
C13
C11C9C7
GND164
GND165
GND166
GND167
AF18
AF16
GND168
GND169
AF14
AF12
GND170
GND171
AF10
AF26
SKTOCC#
GND173
GND174
AF8
AF6
AF1
GND175
GND176
AF20
A17
GND177
GND178
A15
A13
DBI#2
STBN2
STBP2
DBI#3
STBN3
STBP3
GND179
GND180
A11A9A26
D47
D46
D45
D44
D43
D42
D41
D40
D39
D38
D37
D36
D35
D34
D33
D32
D63
D62
D61
D60
D59
D58
D57
D56
D55
D54
D53
D52
D51
D50
D49
D48
GND181
GND182
T23
T22
T25
T26
R24
R25
P24
R21
N25
N26
M26
N23
M24
P21
N22
M23
P26
R22
P23
AA24
AA22
AA25
Y21
Y24
Y23
W25
Y26
W26
V24
V22
U21
V25
U23
U24
U26
V21
W22
W23
SK478/GD/W
2
HD47
HD46
HD45
HD44
HD43
HD42
HD41
HD40
HD39
HD38
HD37
HD36
HD35
HD34
HD33
HD32
-DBI2
-HD_STBN2
-HD_STBP2
HD63
HD62
HD61
HD60
HD59
HD58
HD57
HD56
HD55
HD54
HD53
HD52
HD51
HD50
HD49
HD48
-DBI3
-HD_STBN3
-HD_STBP3
HD[32..47]
-DBI2 [7]
-HD_STBN2 [7,34]
-HD_STBP2 [7,34]
-DBI3 [7]
-HD_STBN3 [7,34]
-HD_STBP3 [7,34]
HD[32..47] [7]
HD[48..63]
1
HD[48..63] [7]
-SKTOCC
R31
0/6/X
A A
5
4
3
-SKTOCC [15]
Title
Size Document Number Rev
Custom
2
Date: Sheet of
GIGABYTE
WILLIAMATE 478C
GA-8SIMLFS
1
6 34Tuesday, August 13, 2002
2.0
A
B
C
D
E
-DBI[0..3]
HD[0..63]
HA[3..31]
GD[0..31]
SBA[0..7]
4 4
ST[0..2]
3 3
2 2
-DBI[0..3] [6]
HD[0..63] [6]
HA[3..31] [4]
GD[0..31] [18]
SBA[0..7] [18]
ST[0..2] [18]
HVREF
C4XAVDD
C1XAVSS
C1XAVDDHD59
C4XAVSS
AJ25
AH25
AJ27
AH27
HCLK
-HCLK
-HLOCK
-DEFER
-HTRDY
-CPURST
CPUPWOK
-BPRI
-BREQ0
-RS2
-RS1
-RS0
-ADS
-HITM
-HIT
-DRDY
-DBSY
-BNR
-HREQ4
-HREQ3
-HREQ2
-HREQ1
-HREQ0
-HA_STB1
-HA_STB0
HA31
HA30
HA29
HA28
HA27
HA26
HA25
HA24
HA23
HA22
HA21
HA20
HA19
HA18
HA17
HA16
HA15
HA14
HA13
HA12
HA11
HA10
HA9
HA8
HA7
HA6
HA5
HA4
HA3
AJ26
AH26
U24
U26
V26
C20
D19
U25
U29
V28
U28
W26
V24
V27
W28
W29
W24
W25
Y27
AD24
AA24
AF26
AE25
AH28
AD26
AG29
AE26
AF28
AC24
AG28
AE29
AD28
AC25
AD27
AE28
AF27
AB24
AB26
AC28
AC26
AC29
AA26
AB28
AB27
AA25
AA29
AA28
Y26
Y24
Y28
T27
T24
T26
T28
CPUCLK
CPUCLK#
HLOCK#
DEFER#
HTRDY#
CPURST#
CPUPWRGD
BPRI#
BREQ0#
RS#2
RS#1
RS#0
ADS#
HITM#
HIT#
DRDY#
DBSY#
BNR#
HREQ#4
HREQ#3
HREQ#2
HREQ#1
HREQ#0
HASTB#1
HASTB#0
HA#31
HA#30
HA#29
HA#28
HA#27
HA#26
HA#25
HA#24
HA#23
HA#22
HA#21
HA#20
HA#19
HA#18
HA#17
HA#16
HA#15
HA#14
HA#13
HA#12
HA#11
HA#10
HA#9
HA#8
HA#7
HA#6
HA#5
HA#4
HA#3
C1XAVSS
C4XAVSS
C1XAVDD
C4XAVDD
HOST
HD#63
HD#62
HD#61
HD#60
HD#59
HD#58
HD#57
HD#56
B21
F19
A21
E19
D22
D20
B22
C22
B23
HD#55
HCLK[15,34]
-HCLK[15,34]
-HLOCK[4]
-DEFER[4]
-HTRDY[4]
-CPURST[4,5,34]
CPUPWOK[5,34]
-BPRI[4]
-BREQ0[4,5]
-RS2[4]
-RS1[4]
-RS0[4]
-ADS[4]
-HITM[4]
-HIT[4]
-DRDY[4]
-DBSY[4]
-BNR[4]
-HREQ4[4]
-HREQ3[4]
-HREQ2[4]
-HREQ1[4]
-HREQ0[4]
-HA_STB1[4,34]
-HA_STB0[4,34]
U21
T21
HVREF0
HD#54
A23
D21
P21
N21
HVREF1
HVREF2
HVREF3
HD#53
HD#52
HD#51
F22
D24
J17
HVREF4
HD#50
D23
C24
HPCOMP
B20
HPCOMP
HD#49
HD#48
B24
GD0
ST1
ST0
GD1
ST2
GD2
GD3
HNCOMP
HNCVREF
B19
A19
HNCOMP
HNCOMPVREF
ST0
GD4
M6M5M4L3L6L4K6L2K3J3K4J2J6J4J1H6F4F1G6E3F5E2E4E1D3D4C2F7C3E6B2D5D6A3D7C5A5C6D8
B7F9A7
ST2
ST1
AAD0
AAD1
AAD2
AAD3
AAD4
650-1
HD#47
HD#46
HD#45
HD#44
HD#43
HD#42
HD#41
HD#40
HD#39
HD#38
HD#37
E25
E23
D25
A25
C26
B26
B27
D26
B28
E26
F28
GD5
GD6
AAD5
HD#36
G25
F27
GD7
AAD6
AAD7
HD#35
HD#34
F26
GD8
G24
GD9
AAD8
AAD9
HD#33
HD#32
H24
GD10
AAD10
HD#31
G29
GD11
AAD11
HD#30
J26
GD12
G26
GD13
AAD12
HD#29
J25
GD14
AAD13
AAD14
HD#28
HD#27
H26
GD15
AAD15
HD#26
G28
GD16
GD17
AAD16
HD#25
H28
J24
GD18
AAD17
AAD18
HD#24
HD#23
K28
GD19
AAD19
HD#22
J29
GD20
AAD20
HD#21
K27
GD21
AAD21
HD#20
J28
GD22
AAD22
HD#19
M24
GD23
AAD23
HD#18
L26
GD24
K26
GD25
AAD24
AAD25
HD#17
HD#16
L25
GD26
L28
GD30
GD31
GD29
GD27
GD28
AAD26
AAD27
AAD28
AAD29
AAD30
AAD31
AGP
HD#15
HD#14
HD#13
HD#12
HD#11
HD#10
M26
P26
L29
N24
N26
M27
SBA7
HD#9
N28
SBA6
SBA7
SBA6
HD#8
HD#7
P27
SBA5
SBA5
HD#6
N29
SBA4
R24
SBA3
SBA4
HD#5
R28
SBA2
SBA3
HD#4
M28
SBA1
SBA2
HD#3
P28
SBA0
C7
SBA1
HD#2
R26
SBA0
HD#1
AC/BE#3
AC/BE#2
AC/BE#1
AC/BE#0
AFRAME#
ADEVSEL#
AGP8XDET
SB_STB#
AD_STB0
AD_STB#0
AD_STB1
AD_STB#1
AGPRCOMP
A1XAVDD
A1XAVSS
A4XAVDD
A4XAVSS
AGPVREF
AGPVSSREF
HDSTBN#3
HDSTBN#2
HDSTBN#1
HDSTBN#0
HDSTBP#3
HDSTBP#2
HDSTBP#1
HDSTBP#0
HD#0
DBI#3
R29
E21
AREQ#
AGNT#
AIRDY#
ATRDY#
ASERR#
ASTOP#
APAR
RBF#
WBF#
PIPE#
ADBIH
ADBIL
SB_STB
AGPCLK
DBI#1
DBI#2
R25
H27
A27
DBI#0
U38A
F6
F3
H4
K5
C9
A6
G2
G1
G3
G4
H5
H1
H3
E8
F8
D9
D10
B3
C4
B5
A4
K1
L1
C1
D1
B10
AGPRCOMP
M1
B9
A9
B8
A8
M3
M2
-HD_STBN3
F20
-HD_STBN2
F23
-HD_STBN1
K24
-HD_STBN0
P24
-HD_STBP3
F21
-HD_STBP2
F24
L24
-HD_STBP1
-HD_STBP0
N25
SIS650GX/A1
-GBE3
-GBE2
-GBE1
-GBE0
-GREQ
-GGNT
-GFRAME
-GIRDY
-GTRDY
-GDEVSEL
-GSERR
-GSTOP
GPAR
-RBF
-WBF
-PIPE
SB_STB
-SB_STB
AD_STB0
-AD_STB0
AD_STB1
-AD_STB1
GCLK_NB
A1XAVDD
A1XAVSS
A4XAVDD
A4XAVSS
AGPVREF
-GBE3 [18]
-GBE2 [18]
-GBE1 [18]
-GBE0 [18]
-GREQ [18]
-GGNT [18]
-GFRAME [18,34]
-GIRDY [18,34]
-GTRDY [18,34]
-GDEVSEL [18]
-GSERR [18]
-GSTOP [18]
GPAR [18]
-RBF [18]
-WBF [18]
-PIPE [18]
TP81
TP91
TP101
SB_STB [18,34]
-SB_STB [18]
AD_STB0 [18,34]
-AD_STB0 [18,34]
AD_STB1 [18,34]
-AD_STB1 [18,34]
GCLK_NB [15,34]
AGPVREF [18,34]
-HD_STBN3 [6,34]
-HD_STBN2 [6,34]
-HD_STBN1 [6,34]
-HD_STBN0 [6,34]
-HD_STBP3 [6,34]
-HD_STBP2 [6,34]
-HD_STBP1 [6,34]
-HD_STBP0 [6,34]
10mil
AGPRCOMP
20mil
A1XAVDD
C784
0.01U/6/X/16V
A1XAVSS
20mil
A4XAVDD
C787
0.01U/6/X/16V
A4XAVSS
20mil
C1XAVDD
C790
0.01U/6/X/16V
C1XAVSS
20mil
C4XAVDD
C793
0.01U/6/X/16V
C4XAVSS
N.B HEATSINK
VDDQ
R631
60.4/6/1
VCC3
R632
FB30/8
C785
1U/6/Y/10V
VCC3
R633
FB30/8
C788
1U/6/Y/10V
VCC3
R634
FB30/8
C791
1U/6/Y/10V
VCC3
R635
FB30/8
C794
1U/6/Y/10V
NB_HEATSINK1
C786
0.1U/6/Y/25V
C789
0.1U/6/Y/25V
C792
0.1U/6/Y/25V
C795
0.1U/6/Y/25V
HD58
HD60
HD54
HD53
HD57
HD55
HD56
Rds-on(n) = 10 ohm
HNCVERF = 1/3 VCORE
Rds-on(p) = 56 ohm
HPCVERF = 2/3 VCORE
B
HD50
HD51
HD52
HNCOMP
HPCOMP
HD49
HD62
HD63
HD61
VCORE
1 1
10mil
10mil
A
R636 20/6/1
R639 112/6/1
HD42
HD47
HD46
HD45
HD44
HD43
HD41
HD40
HD39
HD38
VCORE
HD37
R638
75/6/1
R640
150/6/1
HD32
HD34
HD33
C797
0.01U/6/X/16V
C798
0.01U/6/X/16V
HD31
HD29
HD30
NOISE
ISSUE
HD28
HD36
HD35
place this capacitor
under 650 solder side
HD48
HD21
HD15
HD26
HD22
HD23
HD25
HD24
HD27
SC38
1U/6/Y/10V
HD20
10mil 10mil
HVREF
HD19
HD18
HD17
HD16
VCORE
HD14
R637
150/6/1
R641
75/6/1
HD13
HD12
HD11
HD10
HD8
HD9
NOISE
ISSUE
C796
1U/6/Y/10V
HNCVREF
C799
0.01U/6/X/16V
HD7
HD6
HD5
HD4
HD3
HD2
HD1
HD0
-DBI3
-DBI2
-DBI1
-DBI0
VREF C-CAP PULL-UP MEASURE NOISE WORST.
C
NB_HEATSINK
Title
Size Document Number Rev
Custom
D
Date: Sheet of
GIGABYTE
SIS650(HOST/AGP)
GA-8SIMLFS
E
7 34Tuesday, August 13, 2002
2.0
A
MDD[0:63]
DQM[0..7]
MAA[0..14]
-CS[0..3]
CKE[0..5]
4 4
MD0
MD1
MD2
MD3
MD4
MD5
MD6
MD7
DQMD0
DQS0
MD8
MD9
MD10
MD11
MD12
MD13
MD14
MD15
DQMD1
DQS1
MD16
MD17
3 3
2 2
1 1
MD18
MD19
MD20
MD21
MD22
MD23
DQMD2
DQS2
MD24
MD25
MD26
MD27
MD28
MD29
MD30
MD31
DQMD3
DQS3
MD32
MD33
MD34
MD35
MD36
MD37
MD38
MD39
DQMD4
DQS4
MD40
MD41
MD42
MD43
MD44
MD45
MD46
MD47
DQMD5
DQS5
MD48
MD49
MD50
MD51
MD52
MD53
MD54
MD55
DQMD6
DQS6
MD56
MD57
MD58
MD59
MD60
MD61
MD62
MD63
DQMD7
DQS7
U38B
AJ23
MD0
AG22
MD1
AH21
MD2
AJ21
MD3
AD23
MD4
AE23
MD5
AF22
MD6
AF21
MD7
AD22
DQM0
AH22
DQS0/CSB#0
AD21
MD8
AG20
MD9
AE19
MD10
AF19
MD11
AE21
MD12
AD20
MD13
AD19
MD14
AH19
MD15
AF20
DQM1
AH20
DQS1/CSB#1
AF18
MD16
AG18
MD17
AH17
MD18
AD16
MD19
AD18
MD20
AD17
MD21
AF17
MD22
AJ17
MD23
AE17
DQM2
AH18
DQS2/CSB#2
AD14
MD24
AG14
MD25
AJ13
MD26
AE13
MD27
AJ15
MD28
AF14
MD29
AD13
MD30
AF13
MD31
AH13
DQM3
AH14
DQS3/CSB#3
AD10
MD32
AH10
MD33
AE9
MD34
AD8
MD35
AG10
MD36
AF10
MD37
AH9
MD38
AF9
MD39
AD9
DQM4
AJ9
DQS4/CSB#4
AH5
MD40
AG4
MD41
AE5
MD42
AH3
MD43
AG6
MD44
AF6
MD45
AF5
MD46
AF4
MD47
AH4
DQM5
AJ3
DQS5/CSB#5
AE4
MD48
AD6
MD49
AE2
MD50
AC5
MD51
AG2
MD52
AG1
MD53
AF3
MD54
AC6
MD55
AD4
DQM6
AF2
DQS6/CSB#6
AB6
MD56
AD3
MD57
AA6
MD58
AB3
MD59
AC4
MD60
AE1
MD61
AD2
MD62
AC1
MD63
AB4
DQM7
AC2
DQS7/CSB#7
SIS650GX/A1
A
-DQSD[0..7]
650-2
MDD[0:63] [16,17]
DQM[0..7] [16,17]
MAA[0..14] [16,17]
-CS[0..3] [16,17]
CKE[0..5] [16]
-DQSD[0..7] [16,17,34]
FWDSDCLKO
DDRVREFA
DDRVREFB
MA0
MA1
MA2
MA3
MA4
MA5
MA6
MA7
MA8
MA9
MA10
MA11
MA12
MA13
MA14
SRAS#
SCAS#
SWE#
CS#0
CS#1
CS#2
CS#3
CS#4
CS#5
CKE0
CKE1
CKE2
CKE3
CKE4
CKE5
S3AUXSW#
SDCLK
SDRCLKI
SDAVDD
SDAVSS
DDRAVDD
DDRAVSS
DRAM_SEL
B
AH11
AF12
AH12
AG12
AD12
AH15
AF15
AH16
AE15
AD15
AF11
AG8
AJ11
AG16
AF16
AH8
AJ7
AH7
AE7
AF7
AH6
AJ5
AF8
AD7
AB2
AA4
AB1
Y6
AA5
Y5
Y4
AA3
AD11
AE11
Y1
Y2
AA1
AA2
AJ19
AH2
W3
B
MA0
MA3
MA1
MA2
MA3
MA0
MA4
MA7
MA5
MA6
MA4 MAA4
MA7
MA8
MA9
MA10
MA11
MA12
MA14
MA13
MA13
MA14
MA9
MA8
-SRAS
-SCAS
-SWE
-C0
-C1
-C2
-C3
-C4
-C5
CKE0
CKE1
RN152 470/8P4R
CKE2
CKE3
CKE4
R654 470/6/X
CKE5
R655 470/6/X
NO USE NO POP
R657 22/6
R660 4.7K/6
REV 0.2
1 2
5 6
3 4
7 8
1 2
3 4
5 6
7 8
1 2
5 6
3 4
7 8
3 4
5 6
7 8
3 4
7 8
5 6
1 2
3 4
7 8
1 2
5 6
1
1
1 2
5 6
3 4
7 8
C807
10P/6/N/50V/X
MAA3
MAA1
MAA2
MAA0
MAA7
MAA5
MAA6
MAA12MA12
MAA10
MAA11
MAA14
MAA13
MAA9
MAA8
-SRASA
-SCASA
-SWEA
RN150 10/8P4R
-CS0
-CS1
-CS2
-CS3
TP6
TP7
RN151 10/8P4R
SDCLK
FWDSDCLKO
SDAVDD
SDAVSS
DDRAVDD
DDRAVSS
DDRVREFA
DDRVREFB
RN146
10/8P4R
RN147
10/8P4R
RN148
10/8P4R
10/8P4R1 2
RN149
DDR25V
-SUSB
C
-SRASA [16,17,34]
-SCASA [16,17,34]
-SWEA [16,17,34]
3VDUAL
SDCLK [15,34]
FWDSDCLKO [15]
3VDUAL
R34
1K/6
-SUSB [31]
DQM0
R642 10/6
DQM1
R643 10/6
R644 10/6
DQM3
R645 10/6
DQM4
R646 10/6
DQM5
R647 10/6
DQM6
R648 10/6
DQM7
R649 10/6
DQS0
R40 10/6
DQS1
R41 10/6
DQS2
R42 10/6
DQS3
R43 10/6
DQS4
R44 10/6
DQS5
R45 10/6
DQS6 -DQSD6
R46 10/6
DQS7
R47 10/6
20mil
SDAVDD
C800
0.01U/6/X/16V
SDAVSS
20mil
DDRAVDD
C803
0.01U/6/X/16V
DDRAVSS
NOISE
ISSUE
10mil
DDRVREFB
NOISE
ISSUE
10mil
DDRVREFA
R650
FB30/8
C801
1U/6/Y/10V
R651
FB30/8
C804
1U/6/Y/10V
DDR25V
C806
1U/6/Y/10V
C808
0.01U/6/X/16V
DDR25V
C809
1U/6/Y/10V
C810
0.01U/6/X/16V
DQMD0
DQMD1
DQMD2DQM2
DQMD3
DQMD4
DQMD5
DQMD6
DQMD7
-DQSD0
-DQSD1
-DQSD2
-DQSD3
-DQSD4
-DQSD5
-DQSD7
VCC3
VCC3
C802
0.1U/6/Y/25V
C805
0.1U/6/Y/25V
R656
150/6/1
R658
150/6/1
R659
150/6/1
R661
150/6/1
VREF C-CAP PULL-UP MEASURE NOISE WORST.
C
D
E
DDR MD
DAMPPING
Near DIMM 1
MD0
MD5
MD4
MD1
RN5 10/8P4R
MD2
MD6
MD7
MD3
RN6 10/8P4R
MD15
MD14
MD10
MD11
RN7 10/8P4R
MD8
MD9
MD12
MD13
RN8 10/8P4R
MD20
MD17
MD21
MD16
RN9 10/8P4R
MD18
MD19
MD23
MD22
RN10 10/8P4R
MD24
MD25
MD28
MD29
RN11 10/8P4R
MD30
MD26
MD31
MD27
RN12 10/8P4R
MD34
MD38
MD35
MD39
RN13 10/8P4R
MD32
MD36
MD33
MD37
RN14 10/8P4R
MD40
MD44
MD45
MD41
RN15 10/8P4R
MD42
MD46
MD43
MD47
RN16 10/8P4R
MD60
MD56
MD57
MD61
RN17 10/8P4R
MD49
MD53
MD48
MD52
RN18 10/8P4R
MD62
MD58
MD63
MD59
RN19 10/8P4R
MD54
MD55
MD50
MD51
RN20 10/8P4R
Title
Size Document Number Rev
Custom
D
Date: Sheet of
MDD0
3
4
1
MDD5
5
6
MDD4
1
2
MDD1
7
8
MDD2
3
4
1
MDD6
1
2
5
6
MDD7
MDD3
7
8
MDD15
1
2
1
MDD14
3
4
MDD10
5
6
MDD11
7
8
MDD8
1
2
1
MDD9
5
6
3
4
MDD12
MDD13
7
8
MDD20
1
2
1
MDD17
3
4
MDD21
5
6
MDD16
7
8
MDD18
1
2
1
MDD19
3
4
5
6
MDD23
MDD22
7
8
MDD24
1
2
1
MDD25
5
6
MDD28
3
4
MDD29
7
8
MDD30
1
2
1
MDD26
3
4
5
6
MDD31
MDD27
7
8
MDD34
1
2
1
MDD38
3
4
MDD35
5
6
MDD39
7
8
MDD32
5
6
1
MDD36
1
2
3
4
MDD33
MDD37
7
8
MDD40
3
4
1
MDD44
1
2
MDD45
5
6
MDD41
7
8
MDD42
1
2
1
MDD46
3
4
5
6
MDD43
MDD47
7
8
MDD60
1
2
1
MDD56
3
4
MDD57
7
8
MDD61
5
6
MDD49
1
2
1
MDD53
7
8
5
6
MDD48
MDD52
3
4
MDD62
1
2
1
MDD58
3
4
MDD63
7
8
MDD59
5
6
MDD54
1
2
1
MDD55
5
6
7
8
MDD50
MDD51
3
4
MDD[0:63]
GIGABYTE
SIS650(DDR)
GA-8SIMLFS
E
MDD[0:63] [16,17]
8 34Tuesday, August 13, 2002
2.0
A
B
C
D
E
NOTE: This page is for universal PCB design( suitable for both 645 or 650)
NB Hardware Trap Table
DLLEN#
DRAM_SEL
TRAP0
4 4
TRAP1
CSYNC
RSYNC
LSYNC
enable PLL disable PLL
SDR DDR
normal NB debug mode
TV selection, NTSC/PAL(0/1) 0
enable VB
enable VGA interrupt
enable panel link
1
Default0
1(DDR)
0
0
0
1
0
embedded pull-low
(30~50K Ohm)
yes
yes
yes
ZCLK_NB
ZREQ_UP
ZREQ_DN
ZSTB0
ZSTB0[11,34]
-ZSTB0
-ZSTB0[11,34]
ZSTB1
ZSTB1[11,34]
-ZSTB1
-ZSTB1[11,34]
ZAD0
ZAD1
ZAD2
ZAD3
ZAD4
ZAD5
ZAD6
ZAD7
ZAD8
ZAD9
ZAD10
ZAD11
ZAD12
ZAD13
ZAD14
ZAD15
ZVREF
VDDZCMP
ZCMP_N
ZCMP_P
VSSZCMP
Z1XAVDD
Z1XAVSS
Z4XAVDD
Z4XAVSS
-PCIRST[11,18,21,22,28,34]
PWROK[12,15,16,29,30,34]
AUXOK[12,31,34]
20mil
10mil
10mil
20mil
ZAD[0..15]
VDDZCMP
ZCMP_N
ZCMP_P
VSSZCMP
ZCLK_NB[15,34]
ZREQ_UP[11]
ZREQ_DN[11]
VCC18
3 3
VCC3
VCC3
2 2
VCC18
1 1
R662
150/6/1
R663
150/6/1
R664
FB30/8
C813
0.1U/6/Y/25V
R665
FB30/8
C816
0.1U/6/Y/25V
R666
FB30/8
C822
0.1U/6/Y/25V
NOISE
ISSUE
C811
1U/6/Y/10V
10mil
ZVREF
C812
0.1U/6/Y/25V
C814
1U/6/Y/10V
C817
1U/6/Y/10V
C823
1U/6/Y/10V
20mil
Z1XAVDD
C815
0.01U/6/X/16V
Z1XAVSS
20mil
Z4XAVDD
C818
0.01U/6/X/16V
Z4XAVSS
C824
0.01U/6/X/16V
ZAD[0..15][11]
R668 56/6/1
R669 56/6/1
U6
U1
T3
T1
P1
P3
T4
R3
T5
T6
R2
R6
R1
R4
P4
N3
P5
P6
N1
N6
N2
N4
U3
V5
U4
U2
V6
W1
W2
V2
V1
-PCIRST
PWROK
AUXOK
U38C
ZCLK
ZUREQ
ZDREQ
ZSTB0
ZSTB#0
ZSTB1
ZSTB#1
ZAD0
ZAD1
ZAD2
ZAD3
ZAD4
ZAD5
ZAD6
ZAD7
ZAD8
ZAD9
ZAD10
ZAD11
ZAD12
ZAD13
ZAD14
ZAD15
ZVREF
VDDZCMP
ZCMP_N
ZCMP_P
VSSZCMP
Z1XAVDD
Z1XAVSS
Z4XAVDD
Z4XAVSS
C819
1000P/6/X/50V/X
650-3
HyperZip
TESTMODE0
TRAP0
A10
1
DLLEN#
TESTMODE1
TESTMODE2
C11
E11
F11
TP51TP41TP31TP2
PCIRST#
PWROK
W6
Y3V3W4
C820
1000P/6/X/50V/X
TP1
AUXOK
TRAP1
E10
D11
TRAP1
C821
1
1U/6/Y/10V
ENTEST
F10
ENTEST
R667
4.7K/6
VOSCI
ROUT
GOUT
BOUT
HSYNC
VSYNC
VGPIO0
VGPIO1
INT#A
CSYNC
RSYNC
LSYNC
VCOMP
VRSET
VVBWN
DACAVDD1
DACAVSS1
DACAVDD2
DACAVSS2
DCLKAVDD
DCLKAVSS
ECLKAVDD
ECLKAVSS
SIS650GX/A1
C15
A12
B13
A13
F13
E13
D13
D12
B11
E12
A11
F12
E14
D14
F14
B12
C12
C13
C14
B15
A15
B14
A14
F_R
F_G
F_B
VOSCI
HSYNC
VSYNC
DDC1CLK
DDC1DATA
-INTA
CSYNC
RSYNC
LSYNC
VCOMP
VRSET
VVBWN
DACAVDD2
DACAVSS2
DACAVDD2
DACAVSS2
DCLKAVDD
DCLKAVSS
ECLKAVDD
ECLKAVSS
VOSCI [15,34]
FB25
FB26
FB27
-INTA [11,18,20]
FB80/8
FB80/8
FB80/8
HSYNC [19]
VSYNC [19]
DDC1CLK [19]
DDC1DATA [19]
REV 0.2 EMI
ROUT
GOUT
BOUT
ROUT [19]
GOUT [19]
BOUT [19]
0.1U/6/Y/25V
EC54
22U/D/16V/47
REV 0.2 SIS CHECK
RSYNC
R814 4.7K/6
TRAP1
R815 4.7K/6/X
CSYNC
R816 4.7K/6/X
LSYNC
R817 4.7K/6/X
SIS REQUEST NO POP
VCC3
R818
FB30/8
C877
0.1U/6/Y/25V
VCC3
R819
FB30/8
C880
DACAVDD1(VSS)---->DACAVDD2(VSS)
(SIS AP-02)
VCC18
+
1
R821
FB30/8
C888
0.1U/6/Y/25V
C878
1U/6/Y/10V
C881
1U/6/Y/10V
C889
1U/6/Y/10V
R850 130/6/1
20mil
DCLKAVDD
C879
0.01U/6/X/16V
DCLKAVSS
20mil
ECLKAVDD
C882
ECLKAVSS
C886 0.1U/6/Y/25V
C887 0.1U/6/Y/25V
20mil
DACAVDD2
C890
DACAVSS2
VCC3
0.01U/6/X/16V
VVBWN
VCOMP
0.01U/6/X/16V
VRSET
Title
Size Document Number Rev
Custom
A
B
C
D
Date: Sheet of
GIGABYTE
SIS650(HYPER ZIP)
GA-8SIMLFS
E
9 34Tuesday, August 13, 2002
2.0
A
VCORE VCC18 VCC3 3VDUAL
VCORE
4 4
DDR25V
3 3
VDDQ
2 2
VCC18
1 1
AE10
AE12
AE14
AE16
AE18
AE20
AE22
AA10
AA13
AA14
AA15
AA16
AA17
AB13
AB17
VCC18
AD5
W18
A16
A17
A18
B16
B17
B18
C16
C17
C18
D15
D16
D17
D18
E15
E16
E17
E18
F15
F16
F17
F18
AB5
AE6
AE8
V10
V11
Y10
Y12
Y14
Y16
Y18
Y19
AA8
AA9
AB8
AB9
K11
K13
N10
P10
R10
H21
H22
J16
J20
J21
J22
K16
K17
K18
K19
K20
K21
L20
M20
N20
P20
R20
R21
T20
U20
V20
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VSS
N15
VSS
N16
VSS
N17
VSS
N18
VSS
VTT
VSS
VSS
P12
P13
P14
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
Y9
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
E5
VDDQ
E7
VDDQ
E9
VDDQ
G5
VDDQ
J5
VDDQ
L5
VDDQ
H8
VDDQ
H9
VDDQ
J8
VDDQ
J9
VDDQ
J10
VDDQ
J13
VDDQ
K9
VDDQ
VDDQ
VDDQ
L10
VDDQ
N9
VDDQ
VDDQ
N5
VDDZ
R5
VDDZ
U5
VDDZ
W5
VDDZ
P9
VDDZ
VDDZ
R9
VDDZ
VDDZ
T9
VDDZ
T10
VDDZ
T11
VDDZ
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
M15
M16
M17
M18
N12
N13
VSS
N14
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
M12
M13
R19
U19
W19
M14
L17
L19
N19
A
B
W20
Y20
Y21
AA20
AA21
AA22
AB21
AB22
L12
L14
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
IVDD
650-4
Power
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
P15
P16
P17
P18
R12
R13
R14
R15
R16
R17
R18
B
L15
IVDD
VSS
T12
L16
IVDD
VSS
T13
L18
IVDD
VSS
T14
M11
IVDD
VSS
T15
M19
IVDD
VSS
T16
N11
IVDD
VSS
T17
P19
IVDD
VSS
T18
R11
IVDD
VSS
U12
T19
IVDD
VSS
U13
U11
IVDD
VSS
U14
V19
IVDD
VSS
U15
W11
IVDD
VSS
U16
W13
IVDD
VSS
U17
W15
IVDD
VSS
U18
W17
IVDD
VSS
V12
IVDD
VSS
V13
P11
VSS
V14
J14
PVDDZ
VSS
VSS
V15
V16
J15
K15
VDD3.3
VDD3.3
VSS
VSS
V17
V18
K10
K12
VDD3.3
VDD3.3
VSS
B25
K14
M10
VDD3.3
VDD3.3
VSS
VSS
C28
C29
W10
VDD3.3
VSS
VSS
D27
D28
C
Y11
Y13
PVDDM
PVDDM
VSS
VSS
E28
E29
C
Y15
Y17
PVDDM
PVDDM
VSS
VSS
AF23
AF24
AUX1.8
AUX3.3
PVDDM
VSS
VSS
AF25
AG24
VSS
VSS
AG26
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AH23
VSS
VSS
AH24
U38D
U10
U9
A20
A22
A24
A26
C19
C21
C23
C25
C27
E20
E22
E24
F25
H25
K25
M25
P25
T25
V25
Y25
AB25
AD25
E27
G27
J27
L27
N27
R27
U27
W27
AA27
AC27
AE27
D29
F29
H29
K29
M29
P29
T29
V29
Y29
AB29
AD29
AF29
AE24
AG25
B4
B6
C8
C10
D2
F2
H2
K2
P2
T2
V4
AD1
AF1
AC3
AE3
AG3
AG5
AG7
AG9
AG11
AG13
AG15
AG17
AG19
AG21
AG23
AJ4
AJ6
AJ8
AJ10
AJ12
AJ14
AJ16
AJ18
AJ20
AJ22
AJ24
AG27
SIS650GX/A1
SB18
3VDUAL
VCORE
VCC18
VCC3
VDDQ
DDR25V
0.1U/6/Y/25V
D
SC58
0.1U/6/Y/25V
BC271
0.1U/6/Y/25V
SC54
0.1U/6/Y/25V
BC281
0.1U/6/Y/25V
SC59
D
SC56
0.1U/6/Y/25V
SC55
0.1U/6/Y/25V
BC288
0.1U/6/Y/25V
E
Solder Side CAP.
VCORE
SC39
0.1U/6/Y/25V
VCC18
SC57
0.1U/6/Y/25V
BC289
0.1U/6/Y/25V
BC158
0.1U/6/Y/25V
Title
Size Document Number Rev
Custom
Date: Sheet of
SC42
0.1U/6/Y/25V
VDDQ
SC45
0.1U/6/Y/25V
SC47
0.1U/6/Y/25V
0.1U/6/Y/25V
0.1U/6/Y/25V
DDR25V
GIGABYTE
SIS650(PWR)
GA-8SIMLFS
E
SC41
0.1U/6/Y/25V
SC44
0.1U/6/Y/25V
SC46
SC48
10 34Tuesday, August 13, 2002
BC286
0.1U/6/Y/25V
SC49
0.1U/6/Y/25V
2.0
5
4
3
2
1
PDD[0..15]
SDD[0..15]
-REQ[0..4]
-GNT[0..3]
-C_BE[0..3]
D D
C C
B B
A A
AD[0..31]
VCC18
C828
22P/6/N/50V/X
R676
150/6/1
R677
150/6/1
PDD[0..15] [21]
SDD[0..15] [21]
-REQ[0..4] [20,28]
-GNT[0..3] [20,28]
-C_BE[0..3] [20,28]
AD[0..31] [20,28]
-PCIRST
NOISE
ISSUE
C829
1U/6/Y/10V
10mil
SZVREF
C830
0.1U/6/Y/25V
SZ1XAVDD
SZ1XAVSS
5
C831
0.01U/6/X/16V
-REQ4
-REQ3
-REQ2 PIORDY
-REQ1 PDDREQ
-REQ0 IRQ14
-GNT3 -PDIOR
-GNT2 -PDIOW
-GNT1 -PDDACK
-GNT0
-C_BE3 PDA1
-C_BE2 PDA0
-C_BE1
-C_BE0 -PDCS3
-INTA
-INTA[9,18,20]
-INTB
-INTB[18,20,28]
-INTC
-INTC[20]
-INTD
-INTD[20]
-FRAME[20,28,34]
-DEVSEL[20,28]
-PLOCK[20]
PCLK_SB[15,34]
ZCLK_SB[15,34]
-ZSTB0[9,34]
-ZSTB1[9,34]
ZREQ_UP[9]
ZREQ_DN[9]
VCC3 VCC3
R682
FB30/8
C832
1U/6/Y/10V
-FRAME
-IRDY
-IRDY[20,28,34]
-TRDY
-TRDY[20,28,34]
-STOP
-STOP[20,28]
-SERR
-SERR[20,28]
PAR
PAR[20,28]
-DEVSEL
-PLOCK
PCLK_SB
-PCIRST
R671 22/6
ZCLK_SB PDD4
ZSTB0 PDD6
ZSTB0[9,34]
-ZSTB0 PDD7
ZSTB1 PDD9
ZSTB1[9,34]
-ZSTB1 PDD10
ZREQ_UP PDD13
ZREQ_DN PDD14
SVDDZCMP SDD0
SZCMP_N SDD1
SZCMP_P SDD3
SVSSZCMP SDD4
SZ1XAVDD SDD7
SZ1XAVSS SDD8
SZ4XAVDD SDD10
SZ4XAVSS SDD11
SZVREF SDD13
ZAD[0..15][9]
C833
0.1U/6/Y/25V
H5
H3
G1
G2
G3
H4
M4
R4
G4
M3
M1
M2
N4
M5
N3
N1
N2
Y2
C3
V20
N19
N20
K20
K19
N16
N17
R19
N18
R18
P18
U20
U19
T20
T19
R20
P20
20mil20mil
SZ4XAVDD
C834
SZ4XAVSS SVSSZCMP
0.01U/6/X/16V
F1
F2
E1
F3
K3
P1
E3
F4
E2
ZAD[0..15]
1U/6/Y/10V
PREQ#4
PREQ#3
PREQ#2
PREQ#1
PREQ#0
PGNT#4
PGNT#3
PGNT#2
PGNT#1
PGNT#0
C/BE#3
C/BE#2
C/BE#1
C/BE#0
INT#A
INT#B
INT#C
INT#D
FRAME#
IRDY#
TRDY#
STOP#
SERR#
PAR
DEVSEL#
PLOCK#
PCICLK
PCIRST#
ZCLK
ZSTB0
ZSTB0#
ZSTB1
ZSTB1#
ZUREQ
ZDREQ
VDDZCMP
ZCMP_N
ZCMP_P
VSSZCMP
Z1XAVDD
Z1XAVSS
Z4XAVDD
Z4XAVSS
VZREF
ZVSSREF
C835
4
AD31ZAD0
AD26
AD28
AD30
AD25
AD27
AD29
J5M18
AD26
AD27
AD28
AD29
AD30
AD31ZAD0
PCI
HyperZip
ZAD1
ZAD2
ZAD3
ZAD4
ZAD5
M19
M17
M16
M20
L16
L20
ZAD5
ZAD3
ZAD1
ZAD6
ZAD4
ZAD2
R683
FB30/8
C836
0.1U/6/Y/25V
AD24
AD25
AD23
AD24
AD22
AD23
AD21
AD22
AD20
AD21
AD19
AD20
AD18
AD19
AD17
AD18
AD16
AD17
AD15
AD16
AD14
AD15
AD13
AD14
AD12
AD13
AD11
AD12
AD10
AD11
AD9
AD10
AD9
AD8
AD8
AD7
AD7
AD6
AD6
AD5
AD5
AD1
AD0
AD3
AD2
AD4
V1U3R5T3U2U1T2P5T1R1R3R2P4P3P2N5L2L5L4L1K1L3K2K5J1J2K4J3H1H2J4
AD0
AD1
AD2
AD3
AD4
IDE
962/961B
ZAD6
ZAD7
ZAD8
ZAD9
ZAD10
ZAD11
ZAD12
ZAD13
ZAD14
ZAD15
L18
K18
J20
K17
K16
H20
J18
H19
H18
ZAD8
ZAD9
ZAD7
ZAD11
ZAD10
VCC18
ZAD15
ZAD13
ZAD14
ZAD12
Analog Power supplies of Transzip function for 96X Chip.
R684
FB30/8
C837
0.1U/6/Y/25V
C838
1U/6/Y/10V
C839
0.01U/6/X/16V
3
R685 56/6
R686 56/6
IDEAVDD
ICHRDYA
IDECSA#1
IDECSA#0
ICHRDYB
IDECSB#1
IDECSB#0
SVDDZCMP
SZCMP_N
SZCMP_P
IDEAVSS
IDREQA
IIRQA
CBLIDA
IIOR#A
IIOW#A
IDACK#A
IDSAA2
IDSAA1
IDSAA0
IDREQB
IIRQB
CBLIDB
IIOR#B
IIOW#B
IDACK#B
IDSAB2
IDSAB1
IDSAB0
IDA0
IDA1
IDA2
IDA3
IDA4
IDA5
IDA6
IDA7
IDA8
IDA9
IDA10
IDA11
IDA12
IDA13
IDA14
IDA15
IDB0
IDB1
IDB2
IDB3
IDB4
IDB5
IDB6
IDB7
IDB8
IDB9
IDB10
IDB11
IDB12
IDB13
IDB14
IDB15
U39A
Y3
Y4
W10
V10
Y11
U12
V11
Y9
Y10
T11
U11
W11
T12
V12
W17
Y17
T16
U17
T14
W16
V16
Y18
T15
V17
U16
W18
U10
V9
W8
T9
Y7
V7
Y6
Y5
W6
U8
W7
V8
U9
Y8
T10
W9
Y16
V15
U14
W14
V13
T13
Y13
Y12
W12
W13
U13
Y14
V14
W15
Y15
U15
SIS962L
20mil
10mil
10mil
20mil
C825
0.01U/6/X/16V
P66DET
PDA2
-PDCS1
SIORDY
SDDREQ
IRQ15
S66DET
-SDIOR
-SDIOW
-SDDACK
SDA2
SDA1
SDA0
-SDCS3
-SDCS1
PDD0
PDD1
PDD2
PDD3
PDD5
PDD8
PDD11
PDD12
PDD15
SDD2
SDD5
SDD6
SDD9
SDD12
SDD14
SDD15
20mil
VCC18
C826
PIORDY [21]
PDDREQ [21]
IRQ14 [21]
P66DET [21]
-PDIOR [21]
-PDIOW [21]
-PDDACK [21]
PDA2 [21]
PDA1 [21]
PDA0 [21]
-PDCS3 [21]
-PDCS1 [21]
SIORDY [21]
SDDREQ [21]
IRQ15 [21]
S66DET [21]
-SDIOR [21]
-SDIOW [21]
-SDDACK [21]
SDA2 [21]
SDA1 [21]
SDA0 [21]
-SDCS3 [21]
-SDCS1 [21]-PCIRST[9,18,21,22,28,34]
3VDUAL
2
C827
1U/6/Y/10V
WVBAT[22]
RB751V/S
VBAT_2
RB751V/S
BAT1
CR2032-C
0.1U/6/Y/25V
CLEAR COMS JUMPER
Enable
Normal (Default)
CLR_CMOS_S1
JU1x2/R/[2-3]
20mil
RTCVDD
R678
0/6/SHT/X
123
D29
1N4148/S
R679
100K/6
BC291
0.01U/6/X/16V
CLR_CMOS
JP1x3/H
D28
D30
10mil
CLR_CMOS
1-2
2-3
R918
1K/6
R680
1K/6
R&D AP108
NF REQUEST CLR_CMOS
Title
Size Document Number Rev
Custom
Date: Sheet of
GIGABYTE
SIS962/961B(HP ZIP,PCI,IDE)
GA-8SIMLFS
11 34Tuesday, August 13, 2002
1
BATOK [12,34]
BC292
1U/6/Y/10V
2.0
5
4
3
2
1
U39B
-A20M[5]
-IGNNE[5]
-FERR[5]
-STPCLK[5]
-CPUSLP[5]
LAD0[22]
LAD1[22]
LAD2[22]
LAD3[22]
-LFRAME[22]
-LDRQ[22]
SERIRQ[21,22]
C846
SMBCLK[15,16,20,25]
VSDIN0[25,26]
VSDIN1[25]
VSDOUT[25,26]
-VACRST[25,34]
VBITCLK[25,26,34]
SPKR[29]
-PCIPME[18,20,22,28]
-PSON[32]
AUXOK[9,31,34]
PWRLED[29]
-PRI_DN[25]
KBDT[24]
KBCK[24]
MSDT[24]
MSCK[24]
5
-SMI[5]
INTR[5]
NMI[5]
C847
0.1U/6/Y/25V
PW+ [29]
-CPUINIT
-IGNNE
-STPCLK
-CPUSLP
LAD0
LAD1
LAD2
LAD3
OSC32KHI
OSC32KHO
BATOK
PWROK
-VACRST
VBITCLK
KBDT
KBCK
MSDT
MSCK
-CPUINIT[4,34]
D D
BATOK[11,34]
3VDUAL
PWROK[9,15,16,29,30,34]
0.1U/6/Y/25V/X
R716
4.7K/6
R717 68/6
BC293
0.01U/6/X/16V
SMBDATA[15,16,20,25]
AC_SYNC[25,26]
REFCLK_SB[15,34]
-PWRBTNR[5]
C C
B B
A A
-A20M
-SMI
INTR
NMI
-FERR
-LFRAME
-LDRQ
SERIRQ
RTCVDD
C848
1U/6/Y/10V
SMBDATA
SMBCLK
VSDIN0
VSDIN1
VSDOUT
AC_SYNC
REFCLK_SB
SPKR
-PWRBTNR
-PCIPME
-PSON
AUXOK
PWRLED
C849
0.1U/6/Y/25V
GPIO13
-PRI_DN
T18
INIT#
P16
A20M#
R17
SMI#
R16
INTR
Y20
NMI
U18
IGNNE#
T17
FERR#
W20
STPCLK#
V19
CPUSLP#
Y19
APICCK
V18
APICD0
W19
APTCD1
V5
LAD0
T7
LAD1
U6
LAD2
W5
LAD3
W4
LFRAME#
U7
LDRQ#
V6
SIRQ
C2
OSC32KHI
D2
OSC32KHO
D3
BATOK
D1
PWROK
C1
RTCVDD
E4
RTCVSS
B2
GPIO20
A1
GPIO19
A2
AC_SDIN0
D5
AC_SDIN1
W2
AC_SDOUT
T5
AC_SYNC
D6
AC_RESET#
Y1
AC_BIT_CLK
W3
OSCI
G5
ENTEST
V3
SPK
A14
PWRBTN#
B14
PME#
D14
PSON#
A3
AUXOK
A15
ACPILED
B1
GPIO13/DPRSLPVR
E5
GPIO14
E13
GPIO15
A16
GPIO16
D13
GPIO17
B15
GPIO18/PMCLK
CPU_S
APIC
LPC
MII
RTC
962/961B-2
GPIO
AC97
ACPI
/others
KBC
/geyserville
GPIO
4
OSC25MHO
GPIO1/LDRQ1#
GPIO2/THERM#
GPIO3/EXTSMI#
GPIO4/CLKRUN#
GPIO5/PREQ5#
GPIO6/PGNT5#
GPIO8/RING
GPIO9/AC_SDIN2
GPIO10/AC_SDIN3
GPIO12/CPUSTP#
OSC25MHI
MIITXCLK
MIITXEN
MIITXD0
MIITXD1
MIITXD2
MIITXD3
MIIRXCLK
MIIRXDV
MIIRXER
MIIRXD0
MIIRXD1
MIIRXD2
MIIRXD3
MIICOL
MIICRS
MIIMDC
MIIMDIO
MIIAVDD
MIIAVSS
GPIO0
GPIO7
GPIO11
SIS962L
A8
A9
A6
B6
E8
D7
C6
B4
A7
C7
C8
D8
A5
B5
A4
B7
E9
C5
E7
B9
B8
V2
T8
T4
T6
W1
U5
U4
C4
C14
E6
B3
F5
D4
R924 4.7K/6
MIIAVDD
GPO0
GPIO1
-THERM
-SLP_BTN
GPIO4
-REQ5
SUSLED
-RI
GLED-
AC_SDIN3
GPIO11
GPO12
3
3VDUAL
C842
0.1U/6/Y/25V
GPO0 [23]
-THERM [22]
-SLP_BTN [29]
-REQ5 [20]
SUSLED [29]
-RI [24]
GLED- [29]
If MII
interface
don't use,
Input pin
tie to GND.
Output pin
is NC.
VCC3
R700 4.7K/6
R702 4.7K/6/X
R705 4.7K/6
R710 4.7K/6/X
R712 4.7K/6/X
NEED NOT to place
close to 96X
LAD3
LAD2
LAD1
LAD0
SMBDATA
SMBCLK
RN153
1 2
3 4
5 6
7 8
4.7K/8P4R
R689 1K/6
R690 1K/6
SMBUS 4.7K/6-->1K/6
-PCIPME
R691 4.7K/6
-RI
R708 4.7K/6
VBITCLK
C845 10P/6/N/50V/X
VSDIN0
R806 10K/6
VSDIN1
R807 10K/6
-SLP_BTN
GPIO4
GPIO1
GLED-
AC_SDIN3
GPIO13
M/B ID
2
OSC32KHO
VCC3
3VDUAL
R703 4.7K/6
R706 4.7K/6/X
R715 10K/6
R711 10K/6
R713 4.7K/6
Title
SIS962/961B(CPU,LPC,RTC,AC97,GPIO,ACPI,KBC)
Size Document Number Rev
Custom
Date: Sheet of
OSC32KHI
GPO0
-THERM
GPIO11
-LDRQ
GPO12
SERIRQ
R688
10M/6
3
4
C843
15P/6/N/50V
RN154 4.7K/8P4R
1 2
3 4
5 6
7 8
R697 4.7K/6
R698 4.7K/6
R699 4.7K/6
GIGABYTE
GA-8SIMLFS
1
X6
32.768KHZ1 2
C844
20P/6/N/50V
VCC3
VCC3
12 34Tuesday, August 13, 2002
2.0
5
4
3
2
1
U39C
USBCLK
USBP0+
USBP0ÂUSBP1+
USBP1ÂUSBP2+
USBP2ÂUSBP3+
USBP3ÂUSBP4+
USBP4ÂUSBP5+
USBP5-
-USBOC
0.01U/6/X/16V
C851
1394_IN
1394_IN
1394_IN
1394_IN
1394_IN
1394_IN
1394_IN
1394_IN
1394_IN
1394_IN
20mil
FB41
FB30/8
R921
412/1/6
USBCLK[15,34]
-USBOC[21,28]
C850
1U/6/Y/10V
D D
3VDUAL
SIS REQUEST
C C
B B
USBREF
B18
C18
E14
D15
E16
E15
D18
D19
E18
F18
G18
G19
G20
H17
G17
H16
G16
D16
D17
E17
F17
F19
E19
B19
B17
A12
B12
C12
D12
E12
A13
B13
C13
D11
C11
V4
J16
USBCLK48M
UV0+/RSDP0
UV0-/RSDM0
UV1+/RSDP1
UV1-/RSDM1
UV2+/RSDP2
UV2-/RSDM2
UV3+/RSDP3
UV3-/RSDM3
UV4+/RSDP4
UV4-/RSDM4
UV5+/RSDP5
UV5-/RSDM5
OC0#
OC1#
OC2#
OC3#
OC4#
OC5#
USBVDD
USBVDD
USBVDD
USBVDD
USBVSS
USBVSS
USBVSS
USBVSS
D0
D1
D2
D3
D4
D5
D6
D7
CTL0
CTL1
USB
IEEE
1394
962
961B-3
LINKON
GPIO21
GPIO22
GPIO23
GPIO24
OSC12MHI
OSC12MHO
USBREF
USBPVDD
USBPVSS
IVDD_AUX
IVDD_AUX
IPBRST#
TDFRAME
RDFRAME
IPB_RDCLK
IPB_TDCLK
IPB_OUT0
IPB_OUT1
IPB_IN0
IPB_IN1
USBREFAVDD
SCLK
LREQ
LPS
1394_IN
R1008 4.7K/6
E11
1394_IN
C19
A19
LPS
R1009 4.7K/6/X
A20
R1010 4.7K/6
F20
D20
E20
R919 4.7K/6/X
C20
OSC12MHI
B16
OSC12MHO
A17
USBREF
F16
A18
C15
BC343
0.1U/6/Y/25V
C16
C17
SC60
0.1U/6/Y/25V
B11
SOLDE SIDE(LAYOUT ISSUE)
D10
A11
E10
D9
H/W TRAP
R922 4.7K/6/X
B10
R923 4.7K/6/X
A10
FOR AP NOTE 003 SiS
MuTIOL 1GB Link
C10
C9
B20
3VDUAL
C917
0.1U/6/Y/25V
C918
20P/6/N/50V
3VDUAL
12
R920
10M/6
X8
12MHz
FB40
FB30/8
SC61
1U/6/Y/10V
SB18
BC346
1U/6/Y/10V
3VDUAL
SOLDE SIDE(LAYOUT ISSUE)
3VDUAL
USBP0ÂUSBP0+
USBP3ÂUSBP3+
962 (EEDO)
SUPPORT SIS962 ONLY POP 0/8P4R(USB2.0)
C919
15P/6/N/50V
USBP1ÂUSBP1+
USBP4ÂUSBP4+
SUPPORT SIS962 ONLY POP 0/8P4R(USB2.0)
USBP2ÂUSBP2+
USBP5ÂUSBP5+
SUPPORT SIS962 ONLY POP 0/8P4R(USB2.0)
RN156
0/8P4R
3 4
1 2
5 6
7 8
CN23
22P/8P4C/X
3 4
1 2
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
AGPUSB,CNRUSB DEFAULT NO POP
NOTE: POP CN3 15K/8P4R---->USB PULL DOWN
USB CONTROLLER MUST NOT BEEN FLOATING.
RN159
0/8P4R
1 2
3 4
5 6
7 8
CN24
22P/8P4C/X
RN161
0/8P4R
1 2
3 4
5 6
7 8
CN25
22P/8P4C/X
1 2
1 2
1 2
3 4
3 4
3 4
5 6
7 8
5 6
7 8
5 6
7 8
USBDT0- [28]
USBDT0+ [28]
USBDT3- [28]
USBDT3+ [28]
RN157
15K/8P4R/X
USBDT1- [21]
USBDT1+ [21]
USBDT4- [21]
USBDT4+ [21]
RN160
15K/8P4R/X
USBDT2- [21]
USBDT2+ [21]
USBDT5- [21]
USBDT5+ [21]
RN162
15K/8P4R/X
SIS962L
A A
Title
Size Document Number Rev
Custom
5
4
3
2
Date: Sheet of
GIGABYTE
SIS962/961B(USB20,1394)
GA-8SIMLFS
13 34Tuesday, August 13, 2002
1
2.0
5
4
3
2
1
D D
VCORE
VCC18
20mil
BC294
BC295
1U/6/Y/10V
0.01U/6/X/16V
VCC3
SB18
20mil
C C
3VDUAL
BC296
1U/6/Y/10V
BC297
0.01U/6/X/16V
20mil
BC298
BC299
1U/6/Y/10V
0.01U/6/X/16V
VCC18
B B
VCC3
G15
J15
J17
L15
L17
N15
P17
K15
G6
H15
L6
M15
R6
R10
R14
P15
R15
H6
K6
M6
P6
R7
R9
R11
R13
J6
N6
R8
R12
F9
F12
F7
F10
F11
F14
F15
F8
F13
BC300
0.1U/6/Y/25V
U39D
VDDZ
VDDZ
VDDZ
VDDZ
VDDZ
VDDZ
VDDZ
PVDDZ
IVDD
IVDD
IVDD
IVDD
962
IVDD
IVDD
IVDD
VTT
961B
VTT
OVDD
-4
OVDD
OVDD
OVDD
OVDD
OVDD
OVDD
OVDD
Power
PVDD
PVDD
PVDD
PVDD
IVDD_AUX
IVDD_AUX
OVDD_AUX
OVDD_AUX
OVDD_AUX
OVDD_AUX
OVDD_AUX
PVDD_AUX
PVDD_AUX
SIS962L
BC301
BC302
0.1U/6/Y/25V
0.1U/6/Y/25V
VSSZ
VSSZ
VSSZ
VSSZ
VSSZ
VSSZ
VSSZ
VSSZ
VSSZ
VSSZ
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
H8
H9
H10
H11
H12
H13
J8
J9
J10
J11
J12
K8
K9
K10
K11
L8
L9
L10
L11
M8
M9
M10
M11
N8
N9
N10
N11
N12
N13
J13
J19
K12
K13
L12
L13
L19
M12
M13
P19
VCC18
VCC3
SC50
0.1U/6/Y/25V
SC52
0.1U/6/Y/25V
SC51
0.1U/6/Y/25V
SC53
0.1U/6/Y/25V
BC309
BC310
BC306
BC307
0.1U/6/Y/25V
BC308
0.1U/6/Y/25V
0.1U/6/Y/25V
4
0.1U/6/Y/25V
A A
5
0.1U/6/Y/25V
BC311
0.1U/6/Y/25V
Title
Size Document Number Rev
Custom
3
2
Date: Sheet of
GIGABYTE
SIS962/961B(PWR)
GA-8SIMLFS
14 34Tuesday, August 13, 2002
1
2.0

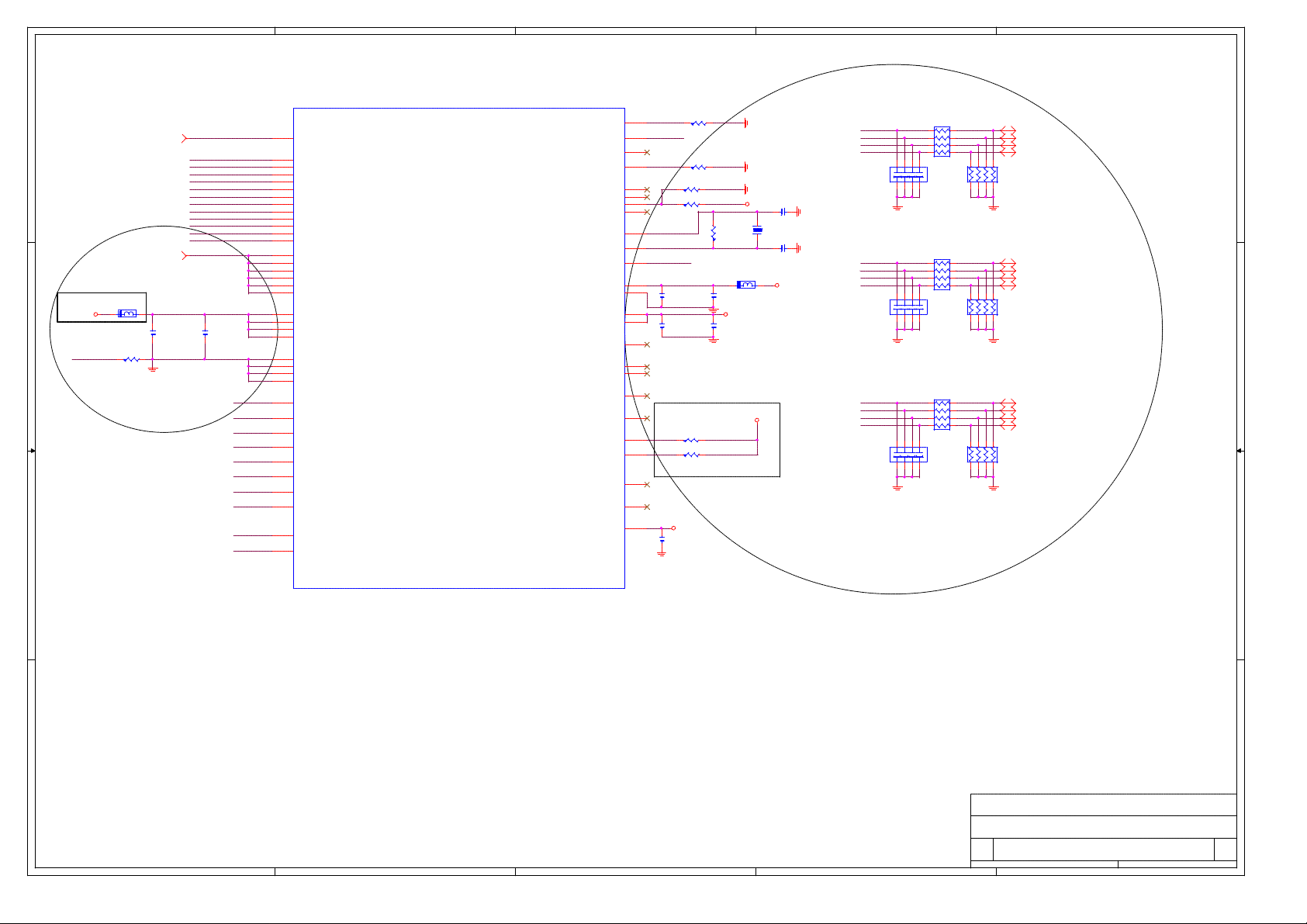

A
VCC3
4 4
3 3
VCC3
2 2
80mil
FB22 FB30/8
BC312
1U/6/Y/10V
VCORE
D50
1N4001/S/X
80mil
DDR25V
C873
1U/6/Y/10V
+
VCORE
VCC3
FB23
+12V
1
PWROK[9,12,16,29,30,34]
FB30/8/X
FB24
FB30/8
VCC3_CLK
BC313
1U/6/Y/10V
EC50
22U/D/16V/47/X
VCC3
R809 10K/6/X
R745
4.7K/6
R750
10K/6
80mil
Q77_3
Q77
2
APM3055/TO252/X
R752 1K/6/X
VCC3_CLK
0.1U/6/Y/25V
R737
0/6/X
R739
1K/6
VCC25_CLK
3
1
VCC3
BC314
VCC3
R735
4.7K/6/X
132
Q76
MMBT2222A/SOT23
SOT23
132
0.1U/6/Y/25V
BC321
Q77_1
BC315
0.1U/6/Y/25V
0.1U/6/Y/25V
C860
10P/6/N/50V
C861
10P/6/N/50V
Q75
MMBT2222A/SOT23
SOT23
1
+
EC51
22U/D/16V/47/X
VCC25_CLK
BC316
12
X7
14.318MHz
SMBDATA[12,16,20,25]
SMBCLK[12,16,20,25]
VCC3
Q93
MMBT2222A/SOT23
0.1U/6/Y/25V
BC323
VCC25_CLK
75/6/1/X
R886
75/6/1/X
BC317
0.1U/6/Y/25V
0.1U/6/Y/25V
R740 4.7K/6
SOT23
132
-SKTOCC
BC324
0.1U/6/Y/25V
R883
75/6/1/X
R884
75/6/1/XR885
REV 0.2 NC
BC318
XIN
XOUT
-CKGRST
VCC3
0.1U/6/Y/25V
BC325
FWDSDCLKO[8]
DDRVTT
DDRVTT
B
1
11
13
19
28
29
36
42
48
5
8
18
24
25
32
37
41
46
6
7
34
35
12
33
38
R746
475/6/1
VTTPGD
R904
4.7K/6
BC326
0.1U/6/Y/25V
R753 1K/6/X
R753
R758 1K/6/X
R758
U40
VCCREF
VCCZ
VCCPCI
VCCPCI
VCC48
VCCAGP
VCCA
VCCCPU
VCCDDR
GNDREF
GNDZ
GNDPCI
GNDPCI
GND48
GNDAGP
GNDA
GNDCPU
GNDDDR
XIN
XOUT
SDATA
SCLK
RST/PCI_STP
VTT_PWRGD
IREF
ICS952004/AG
VTTPGD [5]
-SKTOCC [6]
FS0/REF0
FS1/REF1
FS2/REF2
24_48MHZ
FS3/PCI_F0
FS4_PCI_F1
SDCLK
U41
3
VDD
12
VDD
23
VDD
10
VDDA
11
GND
8
CLK_INT
9
CLK_INC
21
FB_INC
20
FB_INT
48M
PCI0
PCI1
PCI2
PCI3
PCI4
PCI5
ZCLK0
ZCLK1
AGP0
AGP1
CPU1
CPU1
HCLKCPU_STP
HCLK
C
FS0 VOSCI
2
3
4
26
27
14
15
16
17
20
21
22
23
9
10
30
31
47
40
39
4445
43
GND
61528
GND
R719 22/6
R720 22/6
FS2
24M
R722 22/6
R723 22/6
FS3
R724 22/6
FS4
R726 22/6
PCLK0
PCLK1
PCLK2
PCLK3
ZCLK0
ZCLK1 ZCLK_SB
AGP0 GCLK_NB
AGP1 AGPCLK
SDCK SDCLK
CPU
-CPU
HCK
-HCK
GND
ICS93722CF
R730 22/6
R731 22/6
R732 22/6
R733 22/6
R734 33/6
R736 33/6
R738 33/6
R741 33/6
R742 33/6
CLKT0
CLKC0
CLKT1
CLKC1
CLKT2
CLKC2
CLKT3
CLKC3
CLKT4
CLKC4
CLKT5
CLKC5
FB_OUTT
FB_OUTC
SDATA
SCLK
7 8
5 6
3 4
1 2
2
1
4
5
13
14
17
16
24
25
26
27
19
18
22
7
RN163
22/8P4R
DCLK0
-DCLK0
DCLK1
-DCLK1
DCLK2
-DCLK2
DCLK3
-DCLK3
DCLK4
-DCLK4
DCLK5
-DCLK5
SMBDATA
SMBCLK
REFCLK_SBFS1
LPC24
USBCLK48M
PCICLKL
LPC33
PCLK_SB
PCICLK0
PCICLK1
PCICLK2
ZCLK_NB
R743 51.1/6/1
R744 51.1/6/1
R747 51.1/6/1
R748 51.1/6/1
RN164 0/8P4R/SHT/X
RN165 0/8P4R/SHT/X
RN166 0/8P4R/SHT/X
R754
22/6
VOSCI [9,34]
REFCLK_SB [12,34]
LPC24 [22]
USBCLK [13,34]
PCICLKL [28,34]
LPC33 [22]
PCLK_SB [11,34]
PCICLK0 [20,34]
PCICLK1 [20,34]
PCICLK2 [20,34]
ZCLK_NB [9,34]
ZCLK_SB [11,34]
GCLK_NB [7,34]
AGPCLK [18,34]
SDCLK [8,34]
CPU_CLK [5,34]
-CPU_CLK [5,34]
HCLK [7,34]
-HCLK [7,34]
5 6
7 8
3 4
1
2
5 6
7 8
3 4
1
2
7 8
5 6
3 4
1
2
FBOUTFFBOUT
SMBDATA [12,16,20,25]
SMBCLK [12,16,20,25]
CKOUT2
-CKOUT2
CKOUT3
-CKOUT3
CKOUT4
-CKOUT4
CKOUT5
-CKOUT5
REV 0.2
CKOUT0
-CKOUT0
CKOUT1
-CKOUT1
CKOUT0 [16,34]
-CKOUT0 [16,34]
CKOUT1 [16,34]
-CKOUT1 [16,34]
CKOUT2 [16,34]
-CKOUT2 [16,34]
CKOUT3 [16,34]
-CKOUT3 [16,34]
CKOUT4 [16,34]
-CKOUT4 [16,34]
CKOUT5 [16,34]
-CKOUT5 [16,34]
D
VOSCI
REFCLK_SB
LPC24
USBCLK
PCLK_SB
PCICLKL
LPC33
PCICLK0
PCICLK1
PCICLK2
ZCLK_NB
ZCLK_SB
GCLK_NB
AGPCLK
SDCLK
SDCK
CKOUT0
-CKOUT0
CKOUT1
-CKOUT1
CKOUT2
-CKOUT2
CKOUT3
-CKOUT3
CKOUT4
-CKOUT4
CKOUT5
-CKOUT5
FBOUT
DCLK +/---->0 ohm ADD CAP
10PF (clear glitch)
E
C852 10P/6/N/50V/X
C853 10P/6/N/50V/X
C855 10P/6/N/50V/X
C856 10P/6/N/50V/X
C857 10P/6/N/50V/X
C858 10P/6/N/50V/X
C859 10P/6/N/50V/X
34
56
78
C864 10P/6/N/50V
C865 10P/6/N/50V
C866 10P/6/N/50V
C867 10P/6/N/50V
C868 10P/6/N/50V/X
C912 10P/6/N/50V/X
REV 0.2 10PF
34
12
56
78
34
12
56
78
12
34
56
78
CN26
10P/8P4C/X12
CN27
10P/8P4C
CN28
10P/8P4C
CN29
10P/8P4C
C913
10P/6/N/50V
RN175
1K/8P4R
1 2
3 4
5 6
7 8
RN176
4.7K/8P4R
FS0
7 8
FS1
5 6
FS2
3 4
FS4
1 2
1 1
A
FS0A
FS1A
FS2A
FS4A
FS3
R891 4.7K/6
Q80,D49 POP FOR TEST
BSEL0
BSEL0[5]
R35 4.7K/6
B
R892 0/SHT/X
Q80
MMBT2222A/SOT23
SOT23
132
D49
R895 0/SHT/X
1N5817/S
R896 0/SHT/X
FS0A
FS2A
FS4A
ICS952001
CPU DDR
100 133
133 133
C
FS0 FS1 FS2 FS3 FS4
1 1 0 0 0
0 01 1 1
Title
Size Document Number Rev
Custom
D
Date: Sheet of
GIGABYTE
CLOCK GEN + DDR BUFFER
GA-8SIMLFS
15 34Tuesday, August 13, 2002
E
2.0
5
4
DDR25V DDR25V
3
2
1
DDR SDRAM 1,2
15223054627796
104
112
128
136
143
156
164
172
VDDQ
VDDQ
GND
GND
VDDQ
GND
VDDQ
VDDQ
GND
GND
180738467085108
VDDQ
VDDQ
VDDQ
GND
GND
GND
SIS ONLY MAA SIS ONLY MAA
48
MAA[0:14][8,17]
D D
C C
B B
BC103
0.1U/6/Y/25V
-SWEA[8,17,34]
-SCASA[8,17,34]
-SRASA[8,17,34]
CKOUT0[15,34]
-CKOUT0[15,34]
CKOUT1[15,34]
-CKOUT1[15,34]
CKOUT2[15,34]
-CKOUT2[15,34]
-DQSD0[8,17,34]
-DQSD1[8,17,34]
-DQSD2[8,17,34]
-DQSD3[8,17,34]
-DQSD4[8,17,34]
-DQSD5[8,17,34]
-DQSD6[8,17,34]
-DQSD7[8,17,34]
SMBDATA[12,15,20,25]
SMBCLK[12,15,20,25]
MAA0
A0
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
MAA1
43
A1
MAA2
41
A2
MAA3
130
A3
MAA4
37
A4
32
MAA5
A5
MAA6
125
A6
MAA7
29
A7
MAA8
122
A8
MAA9
27
A9
141
MAA10
A10
MAA13
118
A11
MAA14
115
A12
103
A13
59
MAA11
BA0
MAA12
52
BA1
113
BA2
-CS0[8,17]
-CS1[8,17]
DQM0[8,17]
DQM1[8,17]
DQM2[8,17]
DQM3[8,17]
DQM4[8,17]
DQM5[8,17]
DQM6[8,17]
DQM7[8,17]
CKE0[8]
CKE1[8]
DDR25V
-RESET_DDR
157
CS0
158
CS1
71
NC/CS2
163
DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7
-SWEA -SWEA
-SCASA
-SRASA
CKE0
CKE1
-DQSD0
-DQSD1
-DQSD2
-DQSD3
-DQSD4
-DQSD5
-DQSD6
-DQSD7
SMBDATA
SMBCLK SMBCLK
VDDID1
NC/CS3
97
DQM0
107
DQM1
119
DQM2
129
DQM3
149
DQM4
159
DQM5
169
DQM6
177
DQM7
140
DQM8
63
WE
65
CAS
154
RAS
21
CKE0
111
CKE1
16
CK0/DNU
17
CK0/DNU
137
CK1
138
CK1
76
CK2/DNU
75
CK2/DNU
5
DQS0
14
DQS1
25
DQS2
36
DQS3
56
DQS4
67
DQS5
78
DQS6
86
DQS7
47
DQS8
91
SDA
92
SCL
181
SA0
182
SA1
183
SA2
1
VREF
82
VDDID
184
VDDSPD
9
NC
10
NC/RESET
101
NC
102
NC
173
NC
167
NC/FETEN
DDR1
DDR/GF
VDDQ
GND
GND
GND
GND
GND
3111826344250586674818993
120
148
168
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
2
MDD0
D0
MDD1
4
D1
MDD2
6
D2
MDD3
8
D3
MDD4
94
D4
95
MDD5
D5
MDD6
98
D6
MDD7
99
D7
MDD8
12
D8
MDD9
13
D9
19
MDD10
D10
MDD11
20
D11
MDD12
105
D12
MDD13
106
D13
MDD15
109
D14
110
MDD14
D15
MDD17
23
D16
MDD16
24
D17
MDD18
28
D18
MDD23
31
D19
114
MDD20
D20
MDD21
117
D21
MDD19
121
D22
MDD22
123
D23
MDD24
33
D24
35
MDD28
D25
MDD30
39
D26
MDD31
40
D27
MDD25
126
D28
MDD29
127
D29
131
MDD26
D30
MDD27
133
D31
MDD36
53
D32
MDD37
55
D33
MDD34
57
D34
60
MDD39
D35
MDD33
146
D36
MDD32
147
D37
MDD38
150
D38
MDD35
151
D39
61
MDD40
D40
MDD41
64
D41
MDD42
68
D42
MDD43
69
D43
MDD44
153
D44
155
MDD45
D45
MDD46
161
D46
MDD47
162
D47
MDD49
72
D48
MDD48
73
D49
79
MDD55
D50
MDD50
80
D51
MDD53
165
D52
MDD52
166
D53
MDD54
170
D54
171
MDD51
D55
MDD56
83
D56
84
D57
MDD58
87
D58
MDD59
88
D59
174
MDD60
D60
MDD61 MDD61
175
D61
MDD62
178
D62
MDD63
179
D63
44
CB0
45
CB1
49
CB2
51
CB3
134
CB4
135
CB5
142
CB6
144
CB7
Z53
R145 4.7K/6
90
GND
WP
GND
GND
GND
GND
GND
139
145
152
160
176
GND
GND
GND
100
116
124
132
MDD[0:63] [8,17]
MD 0---7
MD 8---15
MD 16---23
MD 24---31
MD 32---39
MD 40---47
MD 48---55
MD 56---63
DDRVREFDDRVREF
DDR25V
BC104
0.1U/6/Y/25V
MAA[0:14][8,17]
-SCASA[8,17,34]
-SRASA[8,17,34]
CKOUT3[15,34]
-CKOUT3[15,34]
CKOUT4[15,34]
-CKOUT4[15,34]
CKOUT5[15,34]
-CKOUT5[15,34]
R144 10K/6R143 10K/6
-SWEA[8,17,34]
-CS2[8,17]
-CS3[8,17]
CKE2[8]
CKE3[8]
DDR25V
DDR25V
-RESET_DDR
MAA0
MAA1
MAA2
MAA3
MAA4
MAA5
MAA6
MAA7
MAA8
MAA9
MAA10
MAA13
MAA14
MAA11
MAA12
DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7
-SCASA
-SRASA
CKE2
CKE3
-DQSD0
-DQSD1
-DQSD2
-DQSD3
-DQSD4
-DQSD5
-DQSD6
-DQSD7
SMBDATA
VDDID2
130
125
122
141
118
115
103
113
157
158
163
107
119
129
149
159
169
177
140
154
111
137
138
181
182
183
184
101
102
173
167
48
43
41
37
32
29
27
59
52
71
97
63
65
21
16
17
76
75
5
14
25
36
56
67
78
86
47
91
92
1
82
9
10
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
BA0
BA1
BA2
CS0
CS1
NC/CS2
NC/CS3
DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7
DQM8
WE
CAS
RAS
CKE0
CKE1
CK0/DNU
CK0/DNU
CK1
CK1
CK2/DNU
CK2/DNU
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8
SDA
SCL
SA0
SA1
SA2
VREF
VDDID
VDDSPD
NC
NC/RESET
NC
NC
NC
NC/FETEN
DDR2
DDR/GF
15223054627796
VDDQ
VDDQ
104
112
128
136
143
156
164
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
GND
GND
GND
GND
GND
GND
GND
GND
GND
3111826344250586674818993
GND
172
180738467085108
VDD
VDD
VDDQ
VDDQ
VDDQ
GND
GND
GND
GND
GND
GND
100
116
124
120
148
168
VDD
VDD
VDD
VDD
VDD
VDD
VDD
2
D0
4
D1
6
D2
8
D3
94
D4
95
D5
98
D6
99
D7
12
D8
13
D9
19
D10
20
D11
105
D12
106
D13
109
D14
110
D15
23
D16
24
D17
28
D18
31
D19
114
D20
117
D21
121
D22
123
D23
33
D24
35
D25
39
D26
40
D27
126
D28
127
D29
131
D30
133
D31
53
D32
55
D33
57
D34
60
D35
146
D36
147
D37
150
D38
151
D39
61
D40
64
D41
68
D42
69
D43
153
D44
155
D45
161
D46
162
D47
72
D48
73
D49
79
D50
80
D51
165
D52
166
D53
170
D54
171
D55
83
D56
84
D57
87
D58
88
D59
174
D60
175
D61
178
D62
179
D63
44
CB0
45
CB1
49
CB2
51
CB3
134
CB4
135
CB5
142
CB6
144
CB7
90
WP
GND
GND
GND
GND
GND
GND
132
139
145
152
160
176
MDD0
MDD1
MDD2
MDD3
MDD4
MDD5
MDD6
MDD7
MDD8
MDD9
MDD10
MDD11
MDD12
MDD13
MDD15
MDD14
MDD17
MDD16
MDD18
MDD23
MDD20
MDD21
MDD19
MDD22
MDD24
MDD28
MDD30
MDD31
MDD25
MDD29
MDD26
MDD27
MDD36
MDD37
MDD34
MDD39
MDD33
MDD32
MDD38
MDD35
MDD40
MDD41
MDD42
MDD43
MDD44
MDD45
MDD46
MDD47
MDD49
MDD48
MDD55
MDD50
MDD53
MDD52
MDD54
MDD51
MDD56
MDD57MDD57
MDD58
MDD59
MDD60
MDD62
MDD63
Z54
R146 4.7K/6
DDR MD GROUP SWAPDDR MD GROUP SWAP
MD 0---7
MD 8---15
MD 16---23
MD 24---31
MD 32---39
MD 40---47
MD 48---55
MD 56---63
DDR25V
For Register DDR Support
DDR25V
A A
R148
1K/6/1
DDRVREF
DDRVREF [34]
BC340
R149
1U/6/Y/10V
1K/6/1
REV 0.2 FILTER BYPASS CAP
5
R150
DDR25V
4
3
Z55
4.7K/6/X
DDR25V
Q11
MMBT2222A/SOT23/X
SOT23
132
R147
4.7K/6
-RESET_DDR
PWROK [9,12,15,29,30,34]
2
-RESET_DDR [34]
Title
Size Document Number Rev
Custom
Date: Sheet of
GIGABYTE
DDR UNBUFFERED 1,2
GA-8SIMLFS
1
16 34Tuesday, August 13, 2002
2.0
5
4
3
2
1
DDR TERMINATION
DDRVTT Decouple
NF REQUEST 10X12
CN31
0.1U/8P4C
CN33
0.1U/8P4C
CN35
0.1U/8P4C
CN37
0.1U/8P4C/X
CN39
0.1U/8P4C
CN41
0.1U/8P4C/X
CN43
0.1U/8P4C/X
DDRVTTDDRVTT
330U/D/25V/AF
EC40
+
1
2
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
CN32
4
0.1U/8P4C
6
8
2
CN34
4
0.1U/8P4C
6
8
2
CN36
4
0.1U/8P4C/X
6
8
2
CN38
4
0.1U/8P4C
6
8
2
CN40
4
0.1U/8P4C
6
8
2
CN42
4
0.1U/8P4C
6
8
2
CN44
4
0.1U/8P4C/X
6
8
MAA14[8,16]
MAA7[8,16]
MAA4[8,16]
-SRASA[8,16,34]
MAA6[8,16]
-SWEA[8,16,34]
-CS2[8,16]
MAA2[8,16]
MAA1[8,16]
MAA0[8,16]
D D
C C
EC56 100U/D/10V/57
1
+
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
R&D NOTE 109 (0.1U/8P4C X9PCS)
NOTE: Place these decoupling
capacitors close to VTT_MEM
termination resistors. (one
decoupling coapcitor for each
two R-packs)
REV 0.2 DDR DIMM ISSUE
33-->47 OHM
DDRVTT
1 2
MDD13
3 4
-DQSD1
5 6
DQM1
7 8
MDD20 MDD4
1 2
MDD17 MDD0
3 4
MDD16
5 6
MAA14
7 8
MDD7
1 2
MDD3
3 4
MDD8
5 6
MDD12
7 8
DQM2
1 2
MDD18
3 4
MAA7
5 6
MDD19
7 8
MDD29
1 2
-DQSD3
3 4
MAA4
5 6
DQM3
7 8
MDD39
1 2
MDD44
3 4
MDD40
5 6
-SRASA
7 8
MAA6
1 2
MDD24
3 4
MDD28
5 6
MDD25
7 8
MDD45
1 2
-SWEA
3 4
MDD41
5 6
-CS2
7 8
MDD43
1 2
MDD47
3 4
MDD49
5 6
MDD48
7 8
DQM5
1 2
-DQSD5
3 4
MDD42
5 6
MDD46
7 8
MAA2
1 2
MDD27
3 4
MAA1
5 6
MAA0
7 8
MDD15
1 2
MDD14
3 4
MDD10
5 6
MDD11
7 8
-DQSD6
1 2
MDD54
3 4
MDD51
5 6
MDD55
7 8
RN48
47/8P4R
RN50
47/8P4R
RN51
47/8P4R
RN53
47/8P4R
RN55
47/8P4R
RN57
47/8P4R
RN59
47/8P4R
RN61
47/8P4R
RN63
47/8P4R
RN65
47/8P4R
RN67
47/8P4R
RN75
47/8P4R
RN76
47/8P4R
DQM0MDD9
-DQSD0
MDD6
MDD2
MDD5
MDD1
MDD21
-DQSD2
MAA13
MAA13[8,16]
MAA9
MAA9[8,16]
MAA8
MAA8[8,16]
MDD23
MDD22
MAA5
MAA5[8,16]
MAA3
MAA3[8,16]
MDD30
MDD26
MDD31
MAA10
MAA10[8,16]
MAA12
MAA12[8,16]
MDD36
MDD33
MDD32
MDD37
-DQSD4
DQM4
MDD34
MDD38
MAA11
MAA11[8,16]
MDD35
-CS0
-CS0[8,16]
-SCASA
-SCASA[8,16,34]
-CS3
-CS3[8,16]
-CS1
-CS1[8,16]
MDD52
MDD53
DQM6
MDD50
MDD60
MDD56
MDD61
MDD57
DQM7
-DQSD7
MDD62
MDD58
MDD63
MDD59
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
DDRVTT
RN47
47/8P4R
RN49
47/8P4R
RN52
47/8P4R
RN54
47/8P4R
RN56
47/8P4R
RN58
47/8P4R
RN60
47/8P4R
RN62
47/8P4R
RN64
47/8P4R
RN66
47/8P4R
RN68
47/8P4R
RN69
47/8P4R
RN71
47/8P4R
DDR25V Decouple
B B
DDR25V
EC1 330U/D/25V/AF
+
EC2 330U/D/25V/AF
+
0.1U/6/Y/25VSC33
0.1U/6/Y/25VSC34
0.1U/6/Y/25VBC150
0.1U/6/Y/25VBC151
0.1U/6/Y/25VBC152
0.1U/6/Y/25VBC154
0.1U/6/Y/25VBC155
0.1U/6/Y/25VBC156
0.1U/6/Y/25VBC157
A A
5
IMPEDENCE TESTING COUPON
COUPON1
TEST1 COUPON/X
COUPON2
TEST2 COUPON/X21
4
21
VCORE
3
0.1U/6/Y/25VBC159
NOTE: Place Detribute 4 pcs
per DDR module.
2
MDD[0:63][8,16]
Title
Size Document Number Rev
Custom
Date: Sheet of
MDD[0:63]
DQM0
DQM0[8,16]
DQM1
DQM1[8,16]
DQM2
DQM2[8,16]
DQM3
DQM3[8,16]
DQM4
DQM4[8,16]
DQM5
DQM5[8,16]
DQM6
DQM6[8,16]
DQM7
DQM7[8,16]
-DQSD0
-DQSD0[8,16,34]
-DQSD1
-DQSD1[8,16,34]
-DQSD2
-DQSD2[8,16,34]
-DQSD3
-DQSD3[8,16,34]
-DQSD4
-DQSD4[8,16,34]
-DQSD5
-DQSD5[8,16,34]
-DQSD6
-DQSD6[8,16,34]
-DQSD7
-DQSD7[8,16,34]
GIGABYTE
DDR UNBUFFERED 3
GA-8SIMLFS
17 34Tuesday, August 13, 2002
1
1.0
A
B
C
D
E
SBA[0:7][7]
VDDQ
VCC3
VCC
4 4
-INTB
-INTB[11,20,28]
AGPCLK
AGPCLK[15,34]
-GREQ
-GREQ[7]
ST0
ST0[7]
ST2
ST2[7]
-RBF
-RBF[7]
SBA0
SBA2
SB_STB
SB_STB[7,34]
SBA4
SBA6
3VDUAL
GD31
GD29
-GBE2[7]
3VDUAL
-GSERR[7]
-GBE1[7]
GD27
GD25
AD_STB1
GD23
GD21
GD19
GD17
-GBE2
-GIRDY
-GDEVSEL
-GPERR
-GSERR
-GBE1
GD14
GD12
GD10
GD8
AD_STB0
GD7
GD5
GD3
GD1
VREF_CG
3 3
AD_STB1[7,34]
-GIRDY[7,34]
-GDEVSEL[7]
2 2
VCC3
1 1
BC166
0.1U/6/Y/25V
0.1U/6/Y/25V
BC168
AD_STB0[7,34]
VREF_CG[34]
BC169
0.1U/6/Y/25V
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B50
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66
Place 1 at each pair of 3.3V pins
Decopuling capacitors
(Place near AGP slot)
A
GD[0:31][7]
AGP
OVRCNT#
5V
5V
USB+
GND
INTB#
CLK
REQ#
VCC3.3
ST0
ST2
RBF#
GND
RESERVED
SBA0
VCC3.3
SBA2
SB_STB
GND
SBA4
SBA6
RESERVED
GND
3.3VAUX
VCC3.3
AD31
AD29
VCC3.3
AD27
AD25
GND
AD_STB1
AD23
VDDQ
AD21
AD19
GND
AD17
C/BE#2
VDDQ
IRDY#
3.3VAUX
GND
RESERVED
VCC3.3
DEVSEL#
VDDQ
PERR#
GND
SERR#
C/BE1#
VDDQ
AD14
AD12
GND
AD10
AD8
VDDQ
AD_STB0
AD7
GND
AD5
AD3
VDDQ
AD1
VREFCG
UAGP132/CO/GF
REV 0.2 AGP BOM MODIFY
11AC1-05R124-11
VDDQ
BC160
BC161
0.1U/6/Y/25V
0.1U/6/Y/25V
Place 1 at each pair of VDDQ pin s
Place an additional for spread from A14 - A33
B
SBA[0:7]
GD[0:31]
BC162
0.1U/6/Y/25V
BC163
0.1U/6/Y/25V
TYPEDET#
RESERVED
USB-
GND
INTA#
RST#
GNT#
VCC3.3
RESERVED
PIPE#
GND
WBF#
SBA1
VCC3.3
SBA3
SB_STB#
GND
SBA5
SBA7
RESERVED
GND
RESERVED
VCC3.3
AD30
AD28
VCC3.3
AD26
AD24
GND
AD_STB1#
C/BE3#
VDDQ
AD22
AD20
GND
AD18
AD16
VDDQ
FRAME#
RESERVED
GND
RESERVED
VCC3.3
TRDY#
STOP#
PME#
GND
AD15
VDDQ
AD13
AD11
GND
C/BE0#
VDDQ
AD_STB0#
GND
VDDQ
VREFGC
BC164
0.1U/6/Y/25V
12V
ST1
PAR
AD9
AD6
AD4
AD2
AD0
0.1U/6/Y/25V/X
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
SC35
+12V
VCC3
330U/D/25V/AF
VDDQ
LAYOUT ISSUE
EC3
+
-TYPEDET
-INTA
-PCIRST
-GGNT
ST1
-PIPE
-WBF
SBA1
SBA3
-SB_STB
SBA5
SBA7
GD30
GD28
GD26
GD24
-AD_STB1
-GBE3
GD22
GD20
GD18
GD16
-GFRAME
-GTRDY
-GSTOP
-PCIPME
GPAR
GD15
GD13
GD11
GD9
-GBE0
-AD_STB0
GD6
GD4
GD2
GD0
AGPVREF
EC4
+
100U/D/10V/57
-TYPEDET [31]
-INTA [9,11,20]
-PCIRST [9,11,21,22,28,34]
-GGNT [7]
ST1 [7]
-PIPE [7]
-WBF [7]
-SB_STB [7]
C189
22P/6/N/50V/X
-AD_STB1 [7,34]
-GBE3 [7]
-GFRAME [7,34]
-GTRDY [7,34]
-GSTOP [7]
-PCIPME [12,20,22,28]
GPAR [7]
-GBE0 [7]
-AD_STB0 [7,34]
AGPVREF [7,34]
C
+12V
BC170
0.1U/6/Y/25V
SWITCH CIRCUIT FOR VDDQ
(1.5V-->4X)
(3.3V-->1X/2X)
3
Q82
2N7002/SOT23
D
-TYPEDET
AGPVREF
D
G S
2
1
-GFRAME
-GIRDY
-GDEVSEL
-GTRDY
-GSTOP
-GPERR
-GSERR
GPAR
-GREQ
-GGNT
-RBF
-PIPE
-WBF
R162 8.2K/6
AD_STB0
R163 8.2K/6
AD_STB1
R164 8.2K/6
SB_STB
R165 8.2K/6
SBA0
SBA1
SBA3
SBA2
8.2K/8P4R
SBA5
SBA4
SBA7
SBA6
8.2K/8P4R
-AD_STB0
R166 8.2K/6
-AD_STB1
R167 8.2K/6
-SB_STB
R168 8.2K/6
VDDQ
R810
301/6/1
R811
200/6/1
10mil
C875
0.1U/6/Y/25V
Title
Size Document Number Rev
Custom
Date: Sheet of
3 4
1 2
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
RN80
1 2
3 4
5 6
7 8
RN81
1 2
3 4
5 6
7 8
VDDQ
RN77
8.2K/8P4R
RN78
8.2K/8P4R
RN79
8.2K/8P4R
SIS DESIGN
VREF_CG
GIGABYTE
AGP SLOT
GA-8SIMLFS
R170
432/6/1
R172
432/6/1
E
VDDQ
C37
470P/6/X/50V
R169
56/6
R171
56/6
C38
470P/6/X/50V
18 34Tuesday, August 13, 2002
2.0
5
4
3
2
1
VGA CONNECTOR 1
D D
VCC18
132
SOT23
D41
BAT54S
VCC18
132
SOT23
D40
BAT54S
C C
ROUT
ROUT[9]
GOUT
GOUT[9]
BOUT[9]
B B
R828
75/6
VCC18
SOT23
R829
75/6
132
D42
BAT54S
REV 0.2 EMI
C894
MR
MG
MBBOUT
C895
10P/6/N/50V/X
R907 4.7/8
R908 4.7/8
R909 4.7/8
C892
C891
R830
75/6
% PLEASE PLACE THESE COMPONENTS AS NEAR VGA CONNECT AS POSSIBLE
22P/6/N/50V
22P/6/N/50V
C893
22P/6/N/50V
10P/6/N/50V/X
C896
10P/6/N/50V/X
FUSEVCC VCC
BC331
0.1U/6/Y/25V
CONNECTOR
TOP VIEW
6
1
7
2
8
3
9
4
10
5
1617
VGA
11
12
13
14
15
VGA/P/S
100P/6/N/50V
C897
C898
100P/6/N/50V
R824 100/6
R825 33/6
R826 33/6
R827 100/6
C899
100P/6/N/50V
R822
2.2K/6
REV 0.2 R824,R827
C900
SIS APNOTE
100P/6/N/50V
R823
2.2K/6
D43
BAT54S
VCC
SOT23
132
VCC
SOT23
132
D44
BAT54S
DDC1DATA
HSYNC
VSYNC
DDC1CLK
DDC1DATA [9]
HSYNC [9]
VSYNC [9]
DDC1CLK [9]
R G B
R910
0/SHT/X
R911
0/SHT/X
A A
REV 0.2 VGA GND GUARD
Title
Size Document Number Rev
B
5
4
3
2
Date: Sheet of
GIGABYTE
VGA CONNECTOR
GA-8SIMLFS
1
19 34Tuesday, August 13, 2002
2.0
5
PCI SLOT 1,2,3
PCI
(-REQ0,-GNT0) (-REQ1,-GNT1) (-REQ2,-GNT2)
VCC3
VCC +12V-12V
D D
-INTC[11]
-INTA[9,11,18]
PCICLK0[15,34] PCICLK2[15,34]
-REQ0[11] -REQ1[11] -REQ2[11]
AD31
AD29
AD27
AD25
-C_BE3[11,28]
AD23
AD21
AD19
AD17
C C
B B
-C_BE2[11,28]
-IRDY[11,28,34] -IRDY[11,28,34] -IRDY[11,28,34]
-DEVSEL[11,28]
-PLOCK[11]
-SERR[11,28] -SERR[11,28]
-C_BE1[11,28]
AD14
AD12
AD10
AD8
AD7
AD5
AD3
AD1
SLOT1
PCI1
B1
-12V
B2
TCK
B3
GND
B4
TDO
B5
+5V
B6
+5V
B7
INTB
B8
INTD
B9
PRSNT1
B10
RESERVED
B11
PRSNT2
B12
GND
B13
GND
B14
RESERVED
B15
GND
B16
CLK
B17
GND
B18
REQ
B19
+5V
B20
AD31
B21
AD29
B22
GND
B23
AD27
B24
AD25
B25
+3.3V
B26
C/BE3
B27
AD23
B28
GND
B29
AD21
B30
AD19
B31
+3.3V
B32
AD17
B33
C/BE2
B34
GND
B35
IRDY
B36
+3.3V
B37
DEVSEL
B38
GND
B39
LOCK
B40
PERR
B41
+3.3V
B42
SERR
B43
+3.3V
B44
C/BE1
B45
AD14
B46
GND
B47
AD12
B48
AD10
B49
GND
B52
AD8
B53
AD7
B54
+3.3V
B55
AD5
B56
AD3
B57
GND
B58
AD1
B59
+5V
B60
ACK64
B61
+5V
B62
+5V
PCI120/CO/GF
RESERVED
RESERVED
3.3V_AUX
FRAME
SDONE
REQ64
TRST
INTC
AD30
+3.3V
AD28
AD26
AD24
IDSEL
+3.3V
AD22
AD20
AD18
AD16
+3.3V
TRDY
STOP
+3.3V
AD15
+3.3V
AD13
AD11
C/BE0
+3.3V
+12V
TMS
INTA
GND
GND
RST
GNT
GND
PME
GND
GND
GND
GND
SBO
GND
PAR
GND
GND
TDI
+5V
+5V
+5V
+5V
AD9
AD6
AD4
AD2
AD0
+5V
+5V
+5V
SIS--IDSEL(A20)
(B)
VCC3
VCC
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
Z60
R173 0/SHT/X R174 0/SHT/X R175 0/SHT/X
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
4
AD20
AD[0..31]
C39
22P/6/N/50V/X
VCC3
VCC +12V-12V
-INTB[11,18,28]
PCICLK1[15,34]
AD31
AD29
AD27
AD25
-C_BE3[11,28]
AD23
AD21
AD19
AD17
-C_BE2[11,28]
-PLOCK[11]
-PERR[28]
-SERR[11,28]
-C_BE1[11,28]
AD14
AD12
AD10
AD8
AD7
AD5
AD3
-ACK64
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
AD[0..31][11,28]
-INTB [11,18,28]
3VDUAL
-PPCIRST [21,34]
-GNT0 [11] -GNT1 [11]
-PCIPME [12,18,22,28]
AD30
AD28
AD26
AD24
AD22
AD20
AD18
AD16
-TRDY [11,28,34] -TRDY [11,28,34] -TRDY [11,28,34]
PCIA40
PCIA41
PAR [11,28] PAR [11,28]
AD15
AD13
AD11
AD9
-C_BE0 [11,28]
AD6
AD4
AD2
AD0
-P1REQ64-ACK64
-PPCIRST
Close PCI Slot1
3
PCI
SLOT2
PCI2
B1
-12V
B2
TCK
B3
GND
B4
TDO
B5
+5V
B6
+5V
B7
INTB
B8
INTD
B9
PRSNT1
RESERVED
PRSNT2
GND
GND
RESERVED
GND
CLK
GND
REQ
+5V
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE2
GND
IRDY
+3.3V
DEVSEL
GND
LOCK
PERR
+3.3V
SERR
+3.3V
C/BE1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V
ACK64
+5V
+5V
PCI120/CO/GF
TRST
RESERVED
RESERVED
3.3V_AUX
+3.3V
IDSEL
+3.3V
+3.3V
FRAME
TRDY
STOP
+3.3V
SDONE
+3.3V
C/BE0
+3.3V
REQ64
+12V
INTA
INTC
GND
GND
GND
AD30
AD28
AD26
GND
AD24
AD22
AD20
GND
AD18
AD16
GND
GND
GND
AD15
AD13
AD11
GND
GND
VCC3
VCC
A1
A2
A3
TMS
A4
TDI
A5
+5V
A6
A7
A8
+5V
A9
A10
+5V
A11
A12
A13
A14
A15
RST
A16
+5V
A17
GNT
A18
A19
PME
A20
A21
A22
A23
A24
A25
Z61
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
SBO
A42
A43
PAR
A44
A45
A46
A47
A48
A49
AD9
A52
A53
A54
AD6
A55
AD4
A56
A57
AD2
A58
AD0
A59
+5V
A60
A61
+5V
A62
+5V
-P2REQ64
-INTC [11]
3VDUAL
-PPCIRST [21,34] -PPCIRST [21,34]
-PCIPME [12,18,22,28] -PCIPME [12,18,22,28]
AD30
AD28
AD26
AD24
AD22
AD20
AD18
AD16
PCIA40
PCIA41
AD15
AD13
AD11
AD9
AD6
AD4
AD2
AD0AD1
AD22
-FRAME [11,28,34] -FRAME [11,28,34]-FRAME [11,28,34]
-C_BE0 [11,28]
2
PCI
VCC3
VCC +12V-12V
-INTA[9,11,18]-INTA [9,11,18]
-INTC[11]
AD31
AD29
AD27
AD25
-C_BE3[11,28]
-C_BE2[11,28]
-DEVSEL[11,28]-DEVSEL[11,28]
-PLOCK[11]
-PERR[28]-PERR[28]
-C_BE1[11,28]
AD23
AD21
AD19
AD17
AD14
AD12
AD10
AD8
AD7
AD5
AD3
SLOT3
PCI3
B1
-12V
B2
TCK
B3
GND
B4
TDO
B5
+5V
B6
+5V
B7
INTB
B8
INTD
B9
PRSNT1
B10
RESERVED
B11
PRSNT2
B12
GND
B13
GND
B14
RESERVED
B15
GND
B16
CLK
B17
GND
B18
REQ
B19
+5V
B20
AD31
B21
AD29
B22
GND
B23
AD27
B24
AD25
B25
+3.3V
B26
C/BE3
B27
AD23
B28
GND
B29
AD21
B30
AD19
B31
+3.3V
B32
AD17
B33
C/BE2
B34
GND
B35
IRDY
B36
+3.3V
B37
DEVSEL
B38
GND
B39
LOCK
B40
PERR
B41
+3.3V
B42
SERR
B43
+3.3V
B44
C/BE1
B45
AD14
B46
GND
B47
AD12
B48
AD10
B49
GND
B52
AD8
B53
AD7
B54
+3.3V
B55
AD5
B56
AD3
B57
GND
B58
AD1
B59
+5V
B60
ACK64
B61
+5V
B62
+5V
PCI120/CO/GF
TRST
RESERVED
RESERVED
3.3V_AUX
+3.3V
IDSEL
+3.3V
+3.3V
FRAME
TRDY
STOP
+3.3V
SDONE
+3.3V
C/BE0
+3.3V
REQ64
SIS--IDSEL(A22) SIS--IDSEL(A24)
(C) (D)
1
VCC3
VCC
A1
A2
+12V
A3
TMS
A4
TDI
A5
+5V
A6
INTA
A7
INTC
A8
+5V
A9
A10
+5V
A11
A12
GND
A13
GND
A14
A15
RST
A16
+5V
A17
GNT
A18
GND
A19
PME
A20
AD30
A21
A22
AD28
A23
AD26
A24
GND
A25
AD24
Z62 AD24
A26
A27
A28
AD22
A29
AD20
A30
GND
A31
AD18
A32
AD16
A33
A34
A35
GND
A36
A37
GND
A38
A39
A40
A41
SBO
A42
GND
A43
PAR
A44
AD15
A45
A46
AD13
A47
AD11
A48
GND
A49
AD9
A52
A53
A54
AD6
A55
AD4
A56
GND
A57
AD2
A58
AD0
A59
+5V
A60
A61
+5V
A62
+5V
PCIA40
PCIA41
-P3REQ64-ACK64
AD30
AD28
AD26
AD24
AD22
AD20
AD18
AD16
AD15
AD13
AD11
AD9
AD6
AD4
AD2
AD0AD1
-INTD [11]
-INTB [11,18,28]-INTD[11]-INTD [11]
3VDUAL
-GNT2 [11]
-STOP [11,28]-STOP [11,28]-STOP [11,28]
PAR [11,28]
-C_BE0 [11,28]
VCC3
VCC
RN168
-REQ3
-REQ1
-REQ2
-REQ0
-REQ4
-REQ5
5
1 2
3 4
7 8
5 6
4.7K/8P4R
R772 4.7K/6
R773 4.7K/6
4
-REQ3[11,28]
-REQ1[11]
-REQ2[11]
-REQ0[11]
-REQ4[11]
-REQ5[12]
A A
-INTD
-INTC
-INTB -ACK64
-INTA
-SERR
-PERR
-PLOCK
-STOP
-DEVSEL
-TRDY
-IRDY
-FRAME
RN82
4.7K/8P4R
4
6
2
8
RN85 4.7K/8P4R
1
1
3
5
7
1
1
3
5
7
RN86 4.7K/8P4R
PCIA40
PCIA41
-P2REQ64
-P3REQ64
-P1REQ64
R487
0/6/X
SMBCLK
SMBDATA
R488
0/6/X
3
1
3
5
1
7
VCC
2
4
6
8
2
4
6
8
VCC
RN83
2.2K/8P4R
1
1
2
5
6
7
8
3
4
SMBCLK [12,15,16,25]
SMBDATA [12,15,16,25]
+12V
BC172 0.1U/6/Y/25V
C40 0.1U/6/Y/25V/X
-12V
BC178 0.1U/6/Y/25V
C41 0.1U/6/Y/25V/X
3VDUAL
C42 0.1U/6/Y/25V
C43 0.1U/6/Y/25V/X
2
VCC
BC173 0.1U/6/Y/25V
BC176 0.1U/6/Y/25V/X
BC179 0.1U/6/Y/25V/X
Title
Size Document Number Rev
Custom
Date: Sheet of
VCC3
+
EC5 330U/D/25V/AF
BC177 0.1U/6/Y/25V/X
BC180 0.1U/6/Y/25V/X
BC184 0.1U/6/Y/25V/X
BC186 0.1U/6/Y/25V
GIGABYTE
PCI SLOT 1,2,3
GA-8SIMLFS
1
20 34Tuesday, August 13, 2002
2.0
5
4
3
2
1

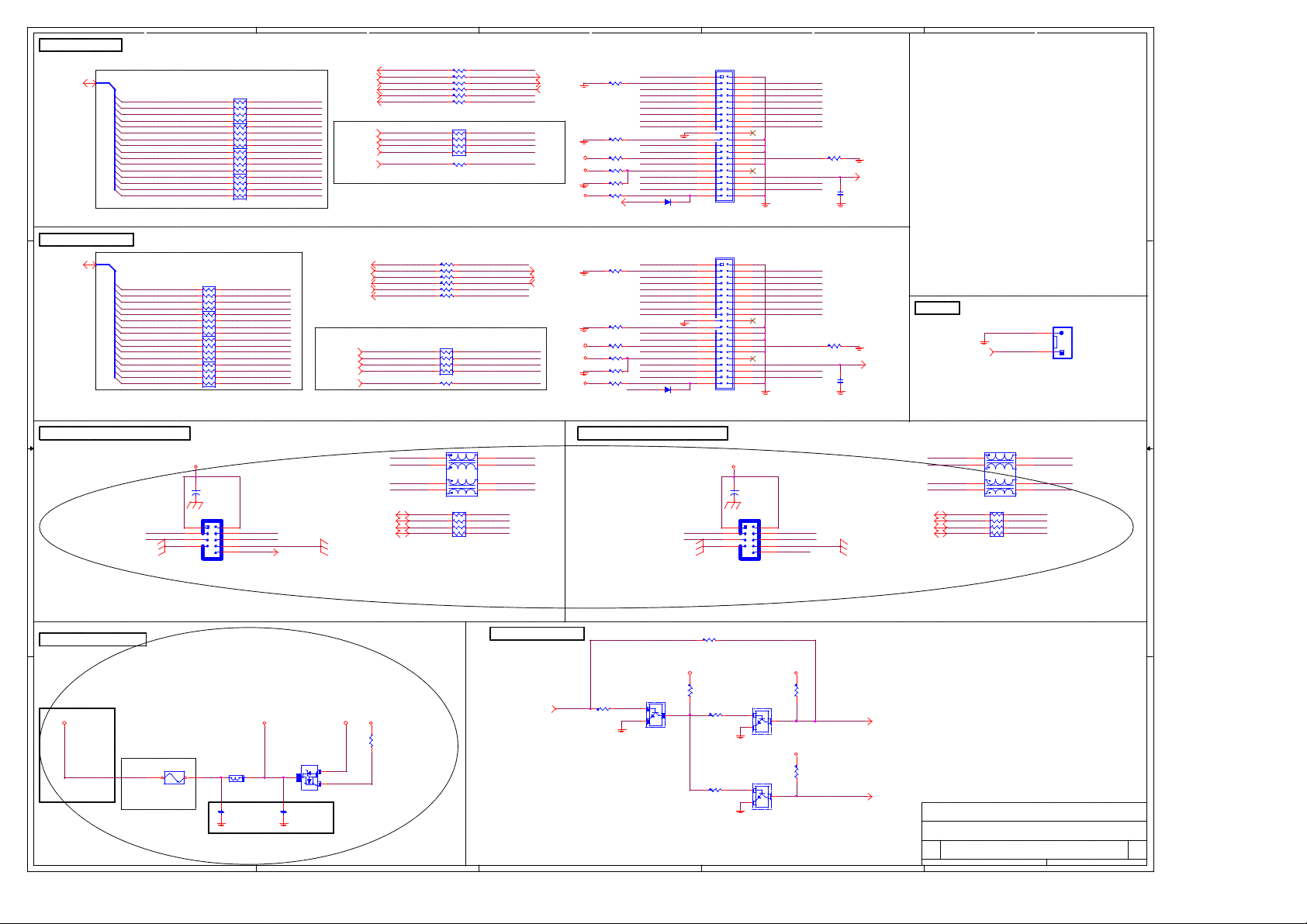

PRIMARY IDE
RN101
33/8P4R
PDD_REQ
-PD_IOW-PDIOW
-PD_IOR-PDIOR
IRQ_14
PD_A0
PD_A1
PD_A2
-PD_CS3
-PD_IOW [34]
-PD_IOR [34]
P_IORDY [34]
VCC
VCC
VCC
R191 10K/6
R192 5.6K/6
R193 4.7K/6
R195 10K/6/X
R784
10K/6
R196 1K/6
HDLED-[29]
-IDERST
PDD_7
PDD_6
PDD_5
PDD_4
PDD_3 PDD_12
PDD_2 PDD_13
PDD_1 PDD_14
PDD_0 PDD_15
PDD_REQ
-PD_IOW
-PD_IOR
P_IORDY CSEL_1
-PDD_ACK
IRQ_14
PD_A1
PD_A0
-PD_CS1
HDLED-
D5 1N4148/S
IDE1
1
2
3 4
5 6
7 8
91110
12
13 14
1615
17 18
19 20
22
21
24
23
26
25
28
27
30
29
32
31
34
33
36
35
38
37
Z0
ATA133--GREEN LIGHT
4039
BX2x20/20/LG
PDD_8
PDD_9
PDD_10
PDD_11
PD_A2
-PD_CS3
R194 470/6
P66DET [11]
C46
0.047U/6/Y/25V
PDDREQ
PDDREQ[11]
PDD[0..15][11]
PDD0 PDD_0
PDD1 PDD_1
PDD2 PDD_2
PDD3 PDD_3
PDD4
PDD5
D D
PDD6
PDD7
PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15
RN(RESISTOR) DATA
SIGNAL CAN BE SWAP
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
7 8
1 2
3 4
5 6
7 8
3 4
5 6
1 2
RN97
10/8P4R
RN96
10/8P4R
RN98
10/8P4R
RN100
10/8P4R
PDD_4
PDD_5
PDD_6
PDD_7
PDD_8
PDD_9
PDD_10
PDD_11
PDD_12
PDD_13
PDD_14
PDD_15
-PDIOW[11]
-PDIOR[11]
PIORDY[11]
-PDDACK[11]
IRQ14[11]
PDA0[11]
PDA1[11]
PDA2[11]
-PDCS1[11]
-PDCS3[11]
RN(RESISTOR) SIGNAL CAN BE SWAP
R869 82/6
R870 22/6
R871 10/6
PIORDY P_IORDY
R872 10/6
-PDDACK -PDD_ACK
R873 22/6
IRQ14
R874 82/6
PDA0
PDA1
PDA2
-PDCS1 -PD_CS1
-PDCS3
3 4
7 8
5 6
1 2
R875 33/6
These resistor should placed near South Bridge
SECONDARY IDE
FUSB2ÂFUSB2+
13 14
17 18
19 20
21
23
25
27
29
31
33
35
37
IDE2
1
2
3 4
5 6
7 8
91110
12
1615
22
24
26
28
30
32
34
36
38
4039
BX2x20/20/W
EGND FOR EMI
FUSEVCC
+
F_USB2
1
3
5
7
EGND
BX2x5/9/YELLOW
EC58
100U/D/10V/57
EGND
2
4
6
8
10
SDD_8
SDD_9
SDD_10
SDD_11
SDD_13
SDD_14
SDD_15
CSEL_2
-SD_CS3
FUSB5ÂFUSB5+
-USBOC
R203 470/6
EGND
S66DET [11]
C47
0.047U/6/Y/25V
SIRQ
SERIRQ[12,22]
(FS DEFAULT-->X)
4 5
USBDT2ÂUSBDT2+
3
USBDT5-
2
1
USBDT5+
USBDT2-[13]
USBDT2+[13]
USBDT5-[13]
USBDT5+[13]
USBDT2ÂUSBDT2+
USBDT5ÂUSBDT5+
OD6560T/X
1 2
3 4
5 6
7 8
L12
RN184
0/8P4R
SERIRQ
6
7
8
FUSB2ÂFUSB2+
FUSB5ÂFUSB5+
S_IRQ
SIRQ1x2/O/X
FUSB2ÂFUSB2+
FUSB5ÂFUSB5+
-IDERST
SDD_7
SDD_6
SDD_5
SDD_4
SDD_3 SDD_12
SDD_2
SDD_1
SDD_0
SDD_REQ
-SD_IOW
-SD_IOR
S_IORDY
-SDD_ACK
IRQ_15
SD_A1
SD_A0 SD_A2
-SD_CS1
10K/6
Z1
HDLED-
D6 1N4148/S
USB2.0
INTEL CONN F_USB
RN109
33/8P4R
SDD_REQ
-SD_IOW
-SD_IOR
S_IORDY
-SDD_ACK
IRQ_15IRQ15
SD_A0
SD_A1
SD_A2
-SD_CS1
-SD_IOW [34]
-SD_IOR [34]
S_IORDY [34]
VCC
VCC
VCC
R199 10K/6
R201 5.6K/6
R202 4.7K/6
R204 10K/6/X
R785
R205 1K/6
SDDREQ
SDD[0..15][11]
C C
RN(RESISTOR) DATA
SIGNAL CAN BE
SWAP
SDD0
SDD1
SDD2
SDD3
SDD4
SDD5
SDD6
SDD7 SDD_7
SDD8
SDD9
SDD10
SDD11
SDD12
SDD13
SDD14
SDD15
1 2
3 4
5 6
7 8
5 6
3 4
7 8
7 8
5 6
3 4
1 2
5 6
3 4
1 2
7 8
RN103
10/8P4R
RN105
10/8P4R1 2
RN107
10/8P4R
RN108
10/8P4R
SDD_0
SDD_1
SDD_2
SDD_3
SDD_4
SDD_5
SDD_6
SDD_8
SDD_9
SDD_10
SDD_11
SDD_12
SDD_13
SDD_14
SDD_15
SDDREQ[11]
-SDIOW[11]
-SDIOR[11]
SIORDY[11]
-SDDACK[11]
IRQ15[11]
RN(RESISTOR) SIGNAL CAN BE SWAP
SDA0
SDA0[11]
SDA1
SDA1[11]
SDA2
SDA2[11]
-SDCS1
-SDCS1[11]
-SDCS3 -SD_CS3
-SDCS3[11]
-SDIOW
-SDIOR
SIORDY
-SDDACK
R876 82/6
R877 22/6
R878 10/6
R879 10/6
R880 22/6
R881 82/6
7 8
3 4
5 6
1 2
R882 33/6
These resistor should placed near South Bridge
FRONT SIDE USB1
USB2.0
INTEL CONN F_USB
B B
EGND FOR EMI
FUSEVCC
EC57
+
100U/D/10V/57
EGND
F_USB1
1
2
3
FUSB1- FUSB4ÂFUSB1+
EGND
4
5
6
7
8
10
BX2x5/9/YELLOW
FUSB4+
-USBOC
EGND
-USBOC [13,28]
USBDT1ÂUSBDT1+
3
USBDT4-
2
1
USBDT4+
USBDT1-[13]
USBDT1+[13]
USBDT4-[13]
USBDT4+[13]
USBDT1ÂUSBDT1+
USBDT4ÂUSBDT4+
OD6560T/X
1 2
3 4
5 6
7 8
RN183
0/8P4R
6
7
8
FUSB1ÂFUSB1+
FUSB4ÂFUSB4+
FUSB1ÂFUSB1+
FUSB4ÂFUSB4+
L11
4 5
FRONT SIDE USB2
0/8P4R UNDER OD6560T(DUAL LAYOUT)
FUSEVCC,GAMEVCC
GAMEVCCFUSEVCC +12V5VDUAL
EMI
R963
1K/6
4
20mil
A A
5
F1
24251/D
2.5A/16V
80mil
FB42
100/12.5/D
F1_0
12
80mil
BC351
0.1U/6/Y/25V
Q100
3
D
BC350
0.1U/6/Y/25V
SOT23
1
2
G S
2N7002/SOT23
PCI+IDE RESET
R178
-PCIRST[9,11,18,22,28,34]
R178, R179 close source side
10K/6
3
SOT23
2
Z63-PCIRST
1
Q12
MMBT2222A/SOT23
R179
0/6/X
VCC VCC
R176
1K/6
Z64
3
1 2
R506
220/6
1 2
R208
1K/6
Z238
Z239
2
1
2
1
Q13
MMBT2222A/SOT23
Q14
MMBT2222A/SOT23
R177
470/6
3
R206
470/6
3
VCC
2
0/8P4R UNDER OD6560T(DUAL LAYOUT)
TO PCI 1, 2, 3, 4,
5, 6 SLOT
-PPCIRST
-PPCIRST [20,34]
-IDERST
-IDERST [34]
Title
Size Document Number Rev
Custom
Date: Sheet of
GIGABYTE
IDE, USB
GA-8SIMLFS
1
21 34Tuesday, August 13, 2002
2.0
8
7
6
5
4
3
2
1
WVBAT[11]
VCC
FB33
D D
C C
B B
A A
WINBOND LPC I/O
SBDD[0..18][23]
XD[0..7][23]
(To monitor battery voltage,
this input should be
connected directly to
FANIO2[29]
FANIO1[29]
FANPWM1[29]
-THERM[12]
VGPSA2[27]
VGPSB2[27]
VGPY1[27]
VGPY2[27]
VGPX2[27]
VGPX1[27]
VGPSB1[27]
VGPSA1[27]
battery)
WVBAT
WVBAT[11]
-CASEOPEN
VTIN2
VTIN2[5,29]
VTIN1 -RXD2
VREF
VCOREM
3VIN
+12VIN
-12VIN
-5VIN
FANIO2
FANIO1
FANPWM1
-THERM
BEEP
BEEP[29]
VMSI
VMSI[27]
VMSO
VMSO[27]
VGPSA2
VGPSB2
VGPY1
VGPY2
VGPX2
VGPX1
VGPSB1
VGPSA1
IRRX
IRRX[24]
IRTX
IRTX[24]
8
SBDD[0..18]
XD[0..7]
-FCS
-FCS[23]
-FRD
-FRD[23]
-FWE
-FWE[23]
102
VBAT
101
CASEOPEN-
103
VTIN2
104
VTIN1
106
VREF
107
VCORE
108
+3.3VIN
109
+12VIN
110
-12VIN
111
-5VIN
113
FANIO2
114
FANIO1
115
FANPWM2
116
FANPWM1
117
OVT#/SMI#
118
BEEP
119
MSI/GP51
120
MSO/GP50
121
GSAS2/GP17
122
GPBS2/GP16
123
GPAY/GP15
124
GPBY/GP14
125
GPBX/GP13
126
GPAX/GP12
127
GPBS1/GP11
128
GPAS1/GP10
64
IRRX
65
100
-DSKCHG[24]
SERIRQ[12,21]
LAD[0..3][12]
IR
IRTX
CIRRX
-DENSEL
-DENSEL[24]
-INDEX
-INDEX[24]
-MOTEA
-MOTEA[24]
-DRVB
-DRVB[24]
-DRVA
-DRVA[24]
-MOTEB
-MOTEB[24]
-DIR
-DIR[24]
-STEP
-STEP[24]
-WDATA
-WDATA[24]
-WGATE
-WGATE[24]
-TK00
-TK00[24]
-WPT
-WPT[24]
-RDATA
-RDATA[24]
-SIDE1
-SIDE1[24]
-DSKCHG
LPC24
LPC24[15]
-PCIPME
-PCIPME[12,18,20,28]
LPC33
LPC33[15]
-LDRQ
-LDRQ[12]
SERIRQ
-LFRAME
-LFRAME[12]
-PCIRST
-PCIRST[9,11,18,21,28,34]
LAD[0..3]
7
XD0
XD1
94
959697
XD0/GP20
MEMR#/GP53
MEMW#/GP52
ROMCS#/GP54
MONITOR
GAME/MIDI
DRVDEN0
INDEX#
MOA#
DSB#
123
45678910111213141516
XD2
XD2/GP22
XD1/GP21
DSA#
MOB#
LAD3
LAD2
LAD1
LAD0
XD4
XD5
XD3
8990919293
XD5/GP25
XD4/GP24
XD3/GP23
DIR#
STEP#
WD#
XD6
XD6/GP26
WE#
SBDD0
XD7
XD7/GP27
FLASH ROM
WINBOND
W83697HF
TRAK0#
WP#
FB30/8
FB34 0/SHT/X
SBDD3
SBDD6
SBDD2
SBDD1
SBDD7
SBDD4
SBDD5
XA7/GP37
XA6/GP36
XA5/GP35
XA4/GP34
XA3/GP33
XA2/GP32
XA1/GP31
XA0/GP30
RDATA#
HEAD#
DSKCHG#
CLKIN
PME#
171819202122232425
98
6
SBDD9
SBDD10
SBDD8
XA9/GP41
XA8/GP40
LPCFDC
PCICLK
LDRQ#
SBDD11
SBDD13
SBDD12
XA13/GP45
XA12/GP44
XA11/GP43
XA10/GP42
SERIRQ
LAD3
LFRAME#
LRESET#
27
28
C905
0.1U/6/Y/25V
SBDD16
SBDD14
SBDD15
SBDD17
XA16/GP55
XA15/GP47
XA14/GP46
LAD2
LAD1
LAD0
26
SBDD18
6667686970717273747576777879808182838485868788
112
AGND
XA18/GP57
XA17/GP56
VCC
VCC
45
C908
0.1U/6/Y/25V
105
AVCC
POWER
POWER
VCC
5VSB
C906
0.1U/6/Y/25V
VCC3
99
VSB
VCC3
PARALLEL COMA COMB
GND
GND
GND
60
C909
0.1U/6/Y/25V
5
RIB#
DCDB#
SOUTB
SINB
DTRB#
RTSB#
DSRB#
CTSB#
RIA#
DCDA#
SOUTA
SINA
DTRA#
RTSA#
DSRA#
CTSA#
STB#
AFD#
INIT#
SLIN#
ERR#
ACK#
BUSY
SLCT
PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7
PE
VCC
C910
0.1U/6/Y/25V
U12
63
62
61
59
58
57
56
55
54
53
52
51
50
49
48
47
46
44
43
34
33
32
31
30
29
42
41
40
39
38
37
36
35
W83697HF/F
PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7
-RI2
-DCD2
TXD2
-DTR2
-RTS2
-DSR2
-CTS2
-RI1
-DCD1
TXD1
-RXD1
-DTR1
-RTS1
-DSR1
-CTS1
-STB
-AFD
-INIT
-SLIN
-ERR
-ACK
BUSY
PE
SLCT
-RI2 [24]
-DCD2 [24]
-RXD2 [24]
-DSR2 [24]
-CTS2 [24]
-RI1 [24]
-DCD1 [24]
-RXD1 [24]
-DSR1 [24]
-CTS1 [24]
-STB [24]
-AFD [24]
-INIT [24]
-SLIN [24]
-ERR [24]
-ACK [24]
BUSY [24]
PE [24]
SLCT [24]
4
TXD2 [24]
-DTR2 [24]
-RTS2 [24]
TXD1 [24]
-DTR1 [24]
-RTS1 [24]
PD[0..7] [24]
+12V
3
R852
1M/6
Case Open Circuits
VTIN1
VREF
VTIN2[5,29]
Thermal Monitoring
VCORE
VCC3
R856
28K/6/1
R858 56K/6/1
R860 56K/6/1
Voltage Monitoring
Title
Size Document Number Rev
Custom
Date: Sheet of
-CASEOPEN
CI
1
2
RPO1x2/W
REV 0.2 CI BOM MODIFY
HR1 HR10K/0603R853 10K/6/1
R854 30K/6/1
R855 10K/6/1
R868 10K/6
R857 10K/6
-12VIN
VREF
-5VIN
VCOREM
3VIN
+12VIN
R859
232K/6/1
R861
120K/6
C907
3300P/6/X/50V/X
-12V
-5V
GIGABYTE
LPC W83697
GA-8SIMLFS
2
(FOR SYSTEM TEMP)
22 34Tuesday, August 13, 2002
1
2.0
8
7
PLCC
6
5
4
3
2
1
BIOS
-WE
MMBT2222A/SOT23
BIOS_WP_S1
JU1x2/G/[2-3]/X
VCC
Q18
R255
1K/6
R256 0/6/X
1
3
Z82
2
SOT23
Remove R258
R257
1K/6
BIOS_WP
JP1x3/H/X
BIOS_WP: BIOS WRITE PROTECT
BIOS_WP
PIN
1-2 WRITE PROTECT
2-3 WRITE ENABLE
-FWE [22]
GPO0 [12]
(default)
D D
SBDD[0:15][22]
SBDD16
SBDD16[22]
SBDD17
SBDD17[22]
SBDD18 Z80
C C
SBDD18[22]
VCC
SBDD0
SBDD1
SBDD2
SBDD3
SBDD4
SBDD5
SBDD6
SBDD7
SBDD8
SBDD9
SBDD10
SBDD11
SBDD12
SBDD13
SBDD14
SBDD15
R261 0/6/X
R262 4.7K/6
PLCC32P/X
U14
12
A0
11
A1
10
A2
9
A3
8
A4
7
A5
6
A6
5
A7
27
A8
26
A9
23
A10
25
A11
4
A12
28
A13
29
A14
3
A15
2
A16
30
A17
1
A18
SST39SF020/S
RN92
4.7K/8P4R
XD0
13
D0
D1
D2
D3
D4
D5
D6
D7
OE
WE
CE
VCC
GND
XD1 -FWE
14
XD2
15
XD3
17
XD4
18
XD5
19
XD6
20
XD7
21
24
31
22
Z81
32
BC191
16
2 1
0.1U/6/Y/25V
3 4
5 6
7 8
-WE
R259 0/6
R260 0/6/X
VCC
RN95
4.7K/8P4R
1 2
1 2
3 4
5 6
7 8
-FRD [22]
-FCS [22]
XD[0:7] [22]
VCC
VCC3
B B
A A
Title
Size Document Number Rev
Custom
8
7
6
5
4
3
Date: Sheet of
2
GIGABYTE
Flash ROM
GA-8SIMLFS
23 34Tuesday, August 13, 2002
1
2.0
5
COM A,B
-DCD1[22]
-DSR1[22]
-RXD1[22]
-RTS1[22]
D D
C C
TXD1[22]
-CTS1[22]
-DTR1[22]
0.1U/6/Y/25V
-RI1[22]
0.1U/6/Y/25V
-DCD2[22]
-DSR2[22]
-RXD2[22]
-RTS2[22]
TXD2[22]
-CTS2[22]
-DTR2[22]
-RI2[22]
BC192
BC195
VCC
U15
20
VCC
19
ROUT1
18
ROUT2
17
ROUT3
16
DIN1
DIN2
ROUT4
DIN3
ROUT5
GND
GD75232/TSSOP
U16
20
VCC
19
ROUT1
18
ROUT2
17
ROUT3
16
DIN1
15
DIN2
14
ROUT4
13
DIN3
12
ROUT5
11
GND
GD75232/TSSOP
DOUT1
DOUT2
DOUT3
15
14
13
12
11
VCC
+12V
RIN1
RIN2
RIN3
RIN4
RIN5
-12V
DOUT1
DOUT2
DOUT3
+12V
BC193
0.1U/6/Y/25V
1
2
3
4
5
6
7
8
9
10
1
+12V
2
RIN1
3
RIN2
4
RIN3
5
6
7
RIN4
8
9
RIN5
10
-12V
-12V
+12V
BC194
0.1U/6/Y/25V
BC196
0.1U/6/Y/25V
-12V
-NDCD1
-NDSR1
NRXD1
-NRTS1
-NTXD1
-NCTS1
-NDTR1
-NRI1
-NDCD2
-NDSR2
NRXD2
-NRTS2
-NTXD2
-NCTS2
-NDTR2
-NRI2
BC197
0.1U/6/Y/25V
CN10
180P/8P4C
180P/8P4C
CN12
4
3
2
1
WAKE UP
(FS DEFAULT)
1
EC41
22U/D/16V/47/X
R786
10K/6/X
Q19
MMBT2222A/SOT23
132
R267
10K/6/X
Q20
MMBT2222A/SOT23/X
132
-RI [12]
C64
0.1U/6/Y/25V/X
LWAKE
LWAKE[28]
1
6
2
7
3
COMA
8
COM/P
4
9
-NDCD2
-NTXD2
-NRTS2
-NRI2
5
10 11
COMB
1
3
5
7
9
BX2x5/10/W
NRXD2
2
-NDTR2
4
-NDSR2
6
-NCTS2
8
7
246
8
CN11
180P/8P4C
246
8
135
7
135
REV 0.2 COMB
135
7
8
135
7
CN13
246
180P/8P4C
246
8
RING
IN
WAKE ON LAN
LAN
WAKEUP
RING POWER ON
MODEM
WAKEUP
D9 1N4148/S/X
-NRI2
D10 1N4148/S
-NRI1
D11 1N4148/S
WOL
1
2
3
WOL1x3/X
WOR
1
2
WOR1x2/X
Z83 Z84
5VSB
Z87
R264
82K/6
Z85
R265
10K/6
D34
1N4148/S/X
R268 1K/6/X
PSMA NO POP WOL,WOR
+
10
9
4
3
0.1U/6/Y/25V
FUSEVCC
FDDLPT
C67
FUSEVCC
0.1U/6/Y/25V
FDD DISK I/O ERROR
VCC
246
8
R270
FDD
330/6/X
1 2
3
546
7 8
9 10
11 12
13 14
15 16
17 18
19
20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
B2x17/5/B
C68
Title
Size Document Number Rev
Custom
Date: Sheet of
COM,PRT,FDD,KB,IR
RN116
330/8P4R/X
1
135
7
GIGABYTE
GA-8SIMLFS
1
-DENSEL [22]
-INDEX [22]
-MOTEA [22]
-DRVB [22]
-DRVA [22]
-MOTEB [22]
-DIR [22]
-STEP [22]
-WDATA [22]
-WGATE [22]
-TK00 [22]
-WPT [22]
-RDATA [22]
-SIDE1 [22]
-DSKCHG [22]
24 34Tuesday, August 13, 2002
2.0
RN113D
VCC
0.1U/6/Y/25V
SLCT[22]
PE[22]
BUSY[22]
-ACK[22]
PD[0..7][22]
B B
-STB[22]
BC198
PD[0..7]
-STB
D12
1N4148/S
180P/8P4C
0.1U/6/Y/25V
PD7
PD6
PD5
PD4
PD3
PD2
PD0
CN14
BC199
7
8
VCC_D19
RN112
2.2K/8P4R
RN118A 33/8P4R
RN118B 33/8P4R
RN119A 33/8P4R
RN119B 33/8P4R
RN119D 33/8P4R
135
C65
246
180P/6/N/50V
8
7
7 8
5 6
3 4
1 2
RN117
33/8P4R
IR CONNECTOR
RN113A
2.2K/8P4R
2.2K/8P4R
246
R269
2.2K/6
1
135
P_D7
P_D6
P_D5
P_D4
P_D3
P_D2
P_D1PD1
P_D0 -ERR
-P_STB
CN15D
180P/8P4C
2.2K/8P4R
246
1
135
CN15C
180P/8P4C
8
7
2.2K/8P4R
RN114
2.2K/8P4R
CN17D
180P/8P4C
7
8 7
6 5
6 5
8 7
8
CN17C
180P/8P4C
KBC/PS2
135
246
CN16
180P/8P4C
NF KBVCC,MSVCC
VCC
BC200
0.1U/6/Y/25V
A A
IRRX[22]
IRTX[22]
5
12
1
3
4
5
IR
JP1x5/2/H
4
MSDT[12]
MSCK[12]
KBDT[12]
KBCK[12]
MSDT
MSCK
KBDT
KBCK
RN115D
RN115C
2.2K/8P4R
2.2K/8P4R
26
LPT
13
27
12
25
11
24
10
23
9
22
8
21
7
20
6
19
5
18
4
3
2
1
-P_SLIN
17
-P_INIT
16
15
-P_AFD
14
LPT/P
28
CN17A
180P/8P4C
FUSEVCC
1 2
3 4
5 6
7 8
RN121B 82/8P4R
RN121A 82/8P4R
RN121D 82/8P4R
RN121C 82/8P4R
3
RN120
4.7K/8P4R
CN17B
180P/8P4C
RN115B
RN115A
RN113B
2.2K/8P4R
2 1
4 3
2 1
4 3
246
135
RN113C
2.2K/8P4R
RN118C 33/8P4R
RN118D 33/8P4R
RN119C 33/8P4R
CN15A
CN15B
180P/8P4C
180P/8P4C
8
CN18
180P/8P4C
7
0706 modify
MS_DT
MS_CK
KB_DT
KB_CK
7
8
11
12
1
2
5
6
-SLIN [22]
-INIT [22]
-ERR [22]
-AFD [22]
KB_MS
1314151617
PS2/P/S/2
MS
KB
2
5
4
3
2
1
+12V
3VDUAL
VCC
R273
10K/6
R281 22/6
R282 22/6
C69
470P/6/X/50V
VCC3
R274
10K/6R275
R276 0/6/X
R278 0/6/X
R287
10K/6/X
R288
10K/6/X
VSDIN1 [12]AC_SYNC[12,26]
VSDIN0 [12,26]
SMBDATA [12,15,16,20]
3VDUAL 3VDUAL
R279
4.7K/6/X
1N5817/S/X
R280
D13
4.7K/6/X
-97RST [26]
R284
0/6
-VACRST [12,34]
VCC3
VCC3
R285
4.7K/6/X
R277 0/6/X
1
2
3
10K/6
-12V
5VSB
R283
22/6
R286
10K/6
D D
SMBCLK[12,15,16,20]
-PRI_DN[12]
VSDOUT[12,26]
C C
CNR_EN_S1
W0.6/2.54/[1-2]/X
VBITCLK[12,26,34]
3VDUAL
CNR_EN
JP1x3/H/X
Z88
-PRI_DN
Z89
CNR
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
-97RST [26]
MII_MDIO
MII_COL
MII_TXC
GND
MII_RXERR
MII_TXD3
GND
MII_TXD1
MII_TXEN
GND
MII_RXD2
MII_RXD0
GND
RESERVED
+5VDUAL
USB_OC#
GND
-12V
+3.3VD
GND
EE_DOUT
EE_SHCLK
GND
SMB_A0
SMB_SCL
CDC_DN_ENAB#
GND
AC97_SYNC
AC97_SDATA_OUT
AC97_BITCLK
CNR/CO/GF
MII_MDC
MII_CRS
MII_RXDV
MII_RXC
MII_TXD2
MII_TXD0
RESERVED
MII_RXD1
MII_RXD3
+3.3VDUAL
EE_DIN
EE_CS
SMB_A1
SMB_A2
SMB_SDA
AC97_RESET#
RESERVED
AC97_DATA_IN1
AC97_DATA_IN0
USB+
USB-
+5VD
A1
A2
A3
GND
A4
A5
A6
GND
A7
A8
A9
GND
A10
A11
A12
A13
A14
GND
A15
A16
+12V
A17
GND
A18
A19
A20
GND
A21
A22
Z92
A23
Z93
A24
A25
A26
A27
Z94
A28
Z95
A29
A30
GND
CNR_EN
1-2
Secondary CNR(Default)
2-3
Primary CNR(DIS AC97)
B B
+12V
BC201 0.1U/6/Y/25V
-12V
BC202 0.1U/6/Y/25V
5VSB
BC203 0.1U/6/Y/25V
VCC
BC204 0.1U/6/Y/25V
VCC3
A A
5
4
BC205 0.1U/6/Y/25V
BC206 0.1U/6/Y/25V/X
3VDUAL
BC207 0.1U/6/Y/25V
Title
Size Document Number Rev
Custom
3
2
Date: Sheet of
GIGABYTE
AMR SLOT
GA-8SIMLFS
1
25 34Tuesday, August 13, 2002
2.0
5
D D
4
3
2
1
REV 0.2 SPDIF SHORT WIRE
For ALC201
AL201A
R835
SPDIF[27]
C73
22P/6/N/50V
C74
C C
VSDOUT[12,25]
VBITCLK[12,25,34]
VSDIN0[12,25]
B B
22P/6/N/50V
VSDOUT
VBITCLK
VSDIN
AC_SYNC[12,25]
-97RST[25]
C187
10P/6/N/50V/X
X4
1 2
24.576MHZ
R306
1M/6
R495 22/6
AC_SYNC
-97RST
C75
0.01U/6/X/16V
Z100
Z101 Z122
BITCLK0
C76
0.01U/6/X/16V
VER 1.0
AUX_L[27]
AUX_R[27]
9766
VCC3
R494
FB30/8
Z102
10
11
12
C81 0.1U/6/Y/25V
C83 0.1U/6/Y/25V
C85 0.1U/6/Y/25V
C87 0.1U/6/Y/25V/X
C89 0.1U/6/Y/25V/X
C91 0.1U/6/Y/25V
1
2
3
4
5
6
7
8
9
0/SHT/X
DVDD1
XTL_IN
XTL_OUT
DVS1
SDATA_OUT
BIT_CLK
DVSS2
SDATA-IN
DVDD2
SYNC
RESET#
PC_BEEP
Z110
Z111
Z112
Z113
Z114
Z115
Z105
Z107
Z104
Z103
Z106
4847464544434241403938
NC
NC
TEST6
TEST5
TEST4
TEST1
AVSS2
TEST3
NC
TEST2
AC'97 CODEC
PHONE
AUX_L
AUX_R
VIDEO_L
VIDEO_R
CD_LNCCD_R
MIC1
1314151617181920212223
MIC2
R300 4.7K/6/X
RN124 0/8P4R/X
1 2
3 4
5 6
7 8
R304 0/SHT/X
37
AVDD2
LINE_OUT_R
LINE_JOUT_L
MONO_OUT
LINE_IN_L
LINE_IN_R
REALTEK ALC201A
24
Z116
C82 2.2U/8/Y/16V
Z117
C84 2.2U/8/Y/16V
Z118
C86 0.1U/6/Y/25V
Z119
C88 0.1U/6/Y/25V
Z120
C90 0.1U/6/Y/25V
Z121
C93 1U/6/Y/10V
For Ad1885
U18
NC
NC
VRDA
VRDA
AFILT2
AFILT1
NC
VREF
AVSS1
AVDD1
AVDD
36
35
34
33
32
31
30
29
28
27
26
25
BC212
0.01U/6/X/16V
Z123
Z124
Z125
Z126
Z127
Z128
BC213
2.2U/8/Y/16V
BC209
0.1U/6/Y/25V
BC210
0.1U/6/Y/25V/X
BC214
1000P/6/X/50V
LINE_IN_R [27]MONO_PHONE[27]
LINE_IN_L [27]
CD_R [27]
CDGND [27]
CD_L [27]
MIC1 [27]
BC215
1000P/6/X/50V
QUAD_O_R [27]
QUAD_O_L [27]
MONO_OUT [27]
LINE_O_R [27]
LINE_O_L [27]
BC217
1U/6/Y/10V
BC216
1U/6/Y/10V
BC211
0.047U/6/Y/25V/X
R1011 4.7K/6/X
BC218
1U/6/Y/10V/X
AUD_REF [27]
Q21
78L05/D
1
EC42
22U/D/16V/47
A A
FS SIGMATEL9721
Disti
5
4
3
ALC201A
2
Title
Size Document Number Rev
Custom
Date: Sheet of
OUT GND IN
+
AUDIO (CREATIVE CT5880)
TOP
3
2
GIGABYTE
+12VAVDD
BC224
0.1U/6/Y/25V
GA-8SIMLFS
1
26 34Tuesday, August 13, 2002
2.0
5
SPDIF
FUSEVCC
SPDIF[26]
D D
SPDIF
1
2
3
SPDIF/B
(3)GND
(2)SPDIF
(1)VCC
FOR PBNEC SPDIF
4
DISTI DEFAULT NO POP
PWOK[29,31,32]
D14
1N4148/S/X
Z131
R321
100K/6/X
3VDUAL
Q23
2N2907A/SOT23/X
SOT23
132
3
LINE OUTPOP NOISE
FLOR
Q22
R313
1K/6/X
R322
1K/6/X
Z133
Z134
Z132
MMBT2222A/SOT23/X
SOT23
132
Q24
MMBT2222A/SOT23/X
SOT23
132
FLOL
QUAD_O_R[26]
LINE_O_R[26]
LINE_O_L[26]
QUAD_O_L[26]
2
REV1.1
FLOR
EC8 100U/D/10V/57/X
1
+
EC9 100U/D/10V/57
1
+
EC10 100U/D/10V/57
1
+
EC11 100U/D/10V/57/X
1
+
Co-layout
FLOL
R914 0/6
R917 0/6
180P/6/N/50V
1
LNR
LNL
AUDIO_1A
1
2
3
4
5
C98
C97
180P/6/N/50V
3RJ+15FEMALE
LINE OUT
LINE-IN
LINE_IN_R[26]
LINE_IN_L[26]
R529
R530
8.2K/6/X
8.2K/6/X
C C
INTEL FRONT AUDIO
MIC
AVDD
R925 10K/6
AUD_REF
FLOR
BC348
Reseved KEY
FLOL
0.1U/6/Y/50V/X
JU1x2/G/[5-6]/X
F_AUDIO_S1
Not Drill
on pin8
AUX IN CD IN
B B
AUX_L[26]
AUX_R[26]
C108
1000P/6/X/50V/X
GAME PORT
A A
5
F_AUDIO_I
1
3
5
7
9
JP2x5/8/H
C109
1000P/6/X/50V/X
2
4
6
10
AVDD
F_AUDIO_S2
JU1x2/G/[9-10]/X
MIC
LNR
BC347
LNL
1
2
3
4
AUX_IN
WF1x4/W/X
0.1U/6/Y/50V/X
CD_IN
CD_L[26]
CD_R[26]
CDGND[26]
1000P/6/X/50V/X
FOR I/O
W83697HF
VGPSA1
VGPSB1
VGPX1
VGPX2
VMSO
VGPY2
VGPY1
VGPSB2
VGPSA2
VMSI
RN129C 0/8P4R
RN129D 0/8P4R
RN129B 0/8P4R
RN129A 0/8P4R
RN174
1M/8P4R
VGPSA1[22]
VGPSB1[22]
VGPX1[22]
VGPX2[22]
VMSO[22]
VGPY2[22]
VGPY1[22]
VGPSB2[22]
VGPSA2[22]
VMSI[22]
4
1
8
7
0.01U/6/X/16V
246
135
C182
C114
C115
0.01U/6/X/16V
1000P/6/X/50V/X
C116
100P/6/N/50V/X
C110
C117
0.01U/6/X/16V
0705 modify
3
C111
1000P/6/X/50V/X
R344 4.7K/6/X
R345 4.7K/6/X
RN130A 2.2K/8P4R
RN130C 2.2K/8P4R
R346 2.2K/6
RN130D 2.2K/8P4R
RN130B 2.2K/8P4R
R347 2.2K/6
C118
0.01U/6/X/16V
C121
1000P/6/X/50V
1
2
3
4
GAMEVCC
GAMEVCC
WF1x4/B
C122
180P/6/N/50V
GP_SA1
GP_SB1
GP_X1
GP_X2
MS_0
GP_Y2
GP_Y1
GP_SB2
GP_SA2
MS_I
C123
180P/6/N/50V
1
8
7
TELE
246
2.2K/8P4R
135
AUD_REF[26]
0703 MODIFY
RN126
180P/8P4C
MIC1[26]
DISTI DEFAULT NO POPDISTI DEFAULT NO POP
246
8
135
7
CN19
MONO_PHONE[26]
8
7
CN20
0.01U/8P4C
2
C104
0.1U/6/Y/25V/X
C181
1000P/6/X/50V
MONO_OUT[26]
246
135
C105
1U/6/Y/10V
R339 3.3K/6
MONO_PHONE
GAMEVCC
BC230
0.1U/6/Y/25V
1
9
2
10
3
11
4
12
5
13
6
14
7
15
8
AD/GM
R327 10K/6
R330 10K/6
C102
1000P/6/X/50V
AVDD
R336
10K/6
MIC
BC227
0.1U/6/Y/25V/X
GAME-1
17
BC228
16
0.1U/6/Y/25V
Title
Size Document Number Rev
Custom
Date: Sheet of
C103
1000P/6/X/50V
R335
2.2K/6/X
R337
4.7K/6/X
R338 0/6/X
Z140MONO_OUT
C183
1000P/6/X/50V/X
GAMEVCC
BC229
0.1U/6/Y/25V
GIGABYTE
AUDIO OUTPUT,GAME PORT
GA-8SIMLFS
1
6
7
8
9
10
3RJ+15FEMALE
LINE-IN
Z137
Z138
1
2
3
4
27 34Tuesday, August 13, 2002
AUDIO_1B
11
12
13
14
15
TELE
WF1x4/G/X
AUDIO_1C
3RJ+15FEMALE
MIC
2.0
A

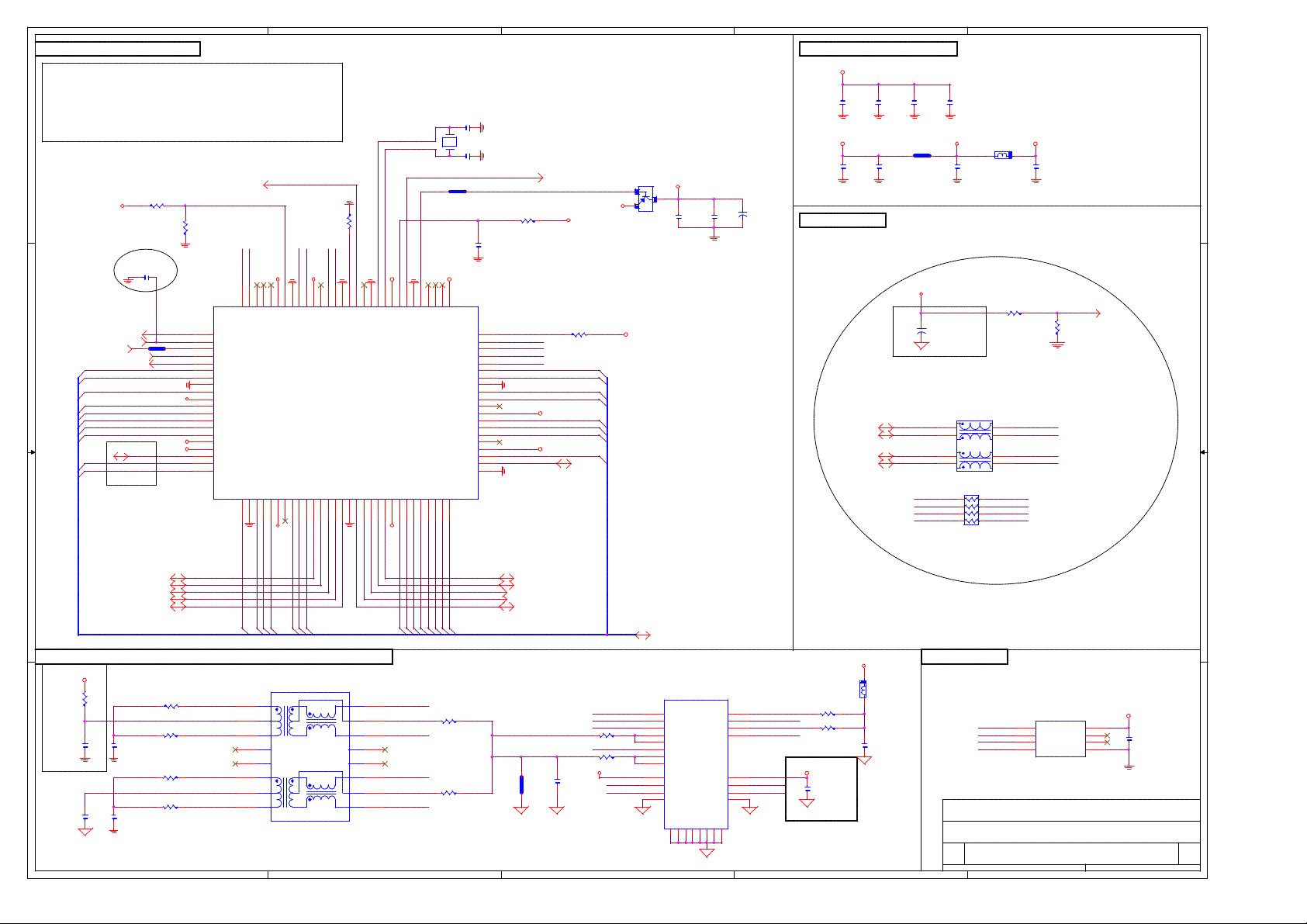

LAN RTL8100 (REALTEK) POWER DECOUPLING CAP.
(FS DEFAULT NO POP)
8100/8100B NOTE:
Pin 65 pull-down (5.6K for 8100B)
Pin 65 pull-down (1.8K for 8100)
R502 remove pull-down (1.8K for 8100B)
R502:0/6 pull-down (1.8K for 8100)
4 4
LWAKE
LWAKE[24]
R363
0/SHT/X
-INTB
-PCIRST
Z143
VDD33
VDD25
VDD33
-C_BE2[11,20]
-IRDY[11,20,34]
-TRDY[11,20,34]
R365 51.1/6/ 1
R369 51.1/6/ 1
R372 51.1/6/ 1
R375 51.1/6/ 1
A
ISOLATE
R359
15K/6
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
R357
5.6K/6/1
LTX+
LTX-
LRX-
LRX+
AVDD33
NC
AVDD
AD19
VDDNCAD18
VDD33
GND
TXD+
ISOLATE#
AD17
AD17
AD16
AD18
H1102
TXD-
AD16
AVDD33
NC
AVDD
CBE2#
FRAME#
RXIN+
IRDY#
ACT_LED-
100M_LED-
8079787776757473727170696867666564636261605958575655545352
LED0
LED1NCLED2
INTA#
RST#
CLK
GNT#
REQ#
AD31
AD30
GND
AD29
VDD
AD28
AD27
AD26
AD25
AD24
VDD25
VDD
CBE3#
IDSEL
AD23
AD22
GND
AD21
AD20
1234567891011121314151617181920212223242526272829
AD21
AD22
AD19
AD20
T1
1
LTX+
TD+
TDC
TDC
2
LTX-
TD-
3
NC
4
5
NC
6
LRX+Z145
RD+
RDC
RDC
7
LRX-
RD-
8 9
TS6121C/FC-618SM/H1102
R356 1K/6
VCC3
C191
22P/6/N/50V/X
-INTB[11,18,20]
3VDUAL
-PCIRST[9,11,18,21,22,34]
PCICLKL[15,34]
-GNT3[11]
-REQ3[11,20]
AD31
AD30
AD29
AD28
AD27
AD26
AD25
AD24
-C_BE3
-C_BE3[11,20]
AD27
AD23
-FRAME[11,20,34]
-DEVSEL[11,20]
R364
Z144 LAN_TX+
0/6/X
C127
C126
0.1U/6/Y/25V
C130
C129
0.1U/6/Y/25V
3 3
2 2
Only for
8100L
1 1
0.1U/6/Y/25V/X
0.1U/6/Y/25V
FOR EMI
LRESET
GND
RXIN-
TRDY#
DEVSEL#
RTSET
GND
TX+
TXC
TX-
NC
NC
RX+
RXC
RX-
RTT3
LWAKE
STOP#
PERR#
16
15
14
13
12
11
10
B
X1
GND
SERR#
PAR
B
XIN1
XIN2
AVDD33
X2
AVDD
CBE1#
VDD
VDD33
AD15
Z149
LAN_TX-
LAN_RX+
Z150
LAN_RX-
AVDD25
AD15
X5
25MHZ/XTAL_HALF
R355 0/SHT/X
VCTRL
NCNCNC
GND
PME#
VCTRL
AD14
AD13
AD12
AD11
AD10
AD12
AD9
AD10
AD14
AD13
AD11
R367 75/6
R374 75/6
C124
22P/6/N/50V
C125
22P/6/N/50V
AVDD25
BC242
0.1U/6/Y/25V
VDD25
51
U20
VDD25
50
AUX
49
EECS
48
EESK
47
EEDI
46
EEDO
45
AD0
44
AD1
43
GND
42
AD2
41
AD3
40
NC
39
VDD
38
AD4
37
AD5
36
AD6
35
NC
34
VDD
33
AD7
32
CBE0#
31
GND
AD9
AD8
RTL8100BL
30
(-REQ3,-GNT3)
AD8
-PCIPME
-PCIPME [12,18,20,22]
VCTRL_1
40 MILS
R358 0/6
V_AUX
L_EECS
L_EESK
L_EEDI
L_EEDO
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
-C_BE0
VDD25
R362 5.6K/6
VDD33
VDD33
-C_BE0 [11,20]
SIS--IDSEL(A27)
(B)
-C_BE1 [11,20]
PAR [11,20]
-SERR [11,20]
-PERR [20]
-STOP [11,20]
AD[0..31]
Z146
R373
0/SHT/X
R370 75/6
R371 75/6
C128
1500P/D/X
C
0.1U/6/Y/25V
VDD25
2
1
VDD33
Q25
2N2907A/SOT23
3VDUAL
LAN_TX+
LAN_TXÂLAN_RX+
Z147
LAN_RX-
Z148
FUSEVCC FUSEVCC
RUSB0ÂRUSB0+
C
40 MILS
3
BC240
0.1U/6/Y/25V
0.1U/6/Y/25V
For wake on
LAN used
AD[0..31] [11,20]
USB_LAN
USB/LAN/FOXC ONN
9
C1/TX+
10
C2/TX-
11
C3/RX+
12
C4
13
C5
14
C6/RX-
15
C7
16
C8
2
USBVCC
4
D0-
6
D0+
8
GND
GND
GND
GND
21222324252627
VDD1
LILED#
VDD2
ACLED#
USBVCC
D1+
GND
GND
GND
GND
D1-
BC341
GND
28
GND
1
+
EC53
22U/D/16V/47
Z151
17
100M_LED-
18
19
Z152
ACT_LED-
20
1
RUSB3-
3
RUSB3+
5
7
REAR USBX2
R366 330/6
R368 330/6
BC265
0.1U/6/Y/25V
D
VDD33
BC231
BC232
0.1U/6/Y/25V
AVDD33
BC237
BC236
0.1U/6/Y/25V
EMI
0.1U/6/Y/25V
FUSEVCC
EC CLOSE
USB_PORT(FUSEVCC)
USBDT3+[13]
USBDT3-[13]
USBDT0-[13]
USBDT0+[13]
3VDUAL
D
USBDT3+ RUSB3+
USBDT3-
USBDT0ÂUSBDT0+
FB21
FB30/8
0.1U/6/Y/25V
E
BC234
BC233
EC14
+
100U/D/10V/57
USBDT3ÂUSBDT0-
USBDT0+
0.1U/6/Y/25V
VDD33
BC238
0.1U/6/Y/25V
L10
4 5
3
2
1
OD6560T/X
3 4
1 2
5 6
7 8
RN182
0/8P4R
FB16
FB30/8
6
7
8
RUSB3ÂRUSB3+USBDT3+
RUSB0ÂRUSB0+
R360
150K/6
3VDUAL
RUSB3-
RUSB0ÂRUSB0+
BC239
0.1U/6/Y/25V
R361
270K/6
-USBOC [13,21]
0.1U/6/Y/25V
R510
0/SHT/X
LAN EEPROM10/100M BASE TRANSFORMER(1:1)+FOXCON(RJ45+USBX2)
L_EECS
L_EESK
L_EEDI
L_EEDO
Title
Size Document Number Rev
Custom
Date: Sheet of
CS
VCC
2
SK
3
DI
4
DO
GND
93C46
GIGABYTE
LAN RTL8100B
GA-8SIMLFS
U21
1
3VDUAL
8
7
NC
6
NC
5
E
BC243
0.1U/6/Y/25VBC244
2.0
28 34Tuesday, August 13, 2002
5
FRONT PANEL
GIGABYTE STANDARD
2X7 PIN (1-14 PIN)
STATUS POWER LED DIMM LED
S0 ON ON
S1 BLINKING ON
S3 OFF ON
S5 OFF OFF
LEGEND CONSUMER USE: ---->2X7(PIN 1-14)
D D
LEGEND COMMERCIAL USE: -->2X9 (PIN 1-18)
PWR LED
PWRLED[12]
R390
0/SHT/X
P_5VSB
R388
330/6
STRLED- SPK-
-PWRLED
5VSB
P_5VSB
0709 MODIFY
R383 0/6/X
R385 0/SHT/X
R386 330/6
PW+[12]
R389 330/6/X
-SLP_BTN[12]
VCC
-NECCI POP - -GIGA NO POP-
P_5VSB
SUSLED Power on
default = low
SUSLED[12]
R867
10K/6/X
C C
DELAY 4 SECOND
DDR25V
R1007
4.7K/6
R865
330/6/X
R866
4.7K/6/X
R1005
4.7K/6
5VSB
PD_Y-
SUSLED-
R1006
4.7K/6
Q105
MMBT2222A/SOT23
132
132
P_5VSB
132
Q91
MMBT2222A/SOT23/X
Q104
2N2907A/SOT23
5VSB
-PWRLED PD_Y-
-NECCI NO POP - -GIGA POP-
R380
BC246
330/6
0.1U/6/Y/25V
HD+
HD+
1 2
PD_Y-
PD-Y
3 4
PD_G-
PD-G
5 6
PD+
PD+
7 8
PW-
9 10
PW+
11 12
Z154 STRLED-
GD+
15 16
GN+
17 18
C132
180P/6/N/50V/X
GLED (S3)-->HI
GLED Power on
default = low
GLED-[12]
States for green LED
LED States ACPI States
ON
OFF
F_PANEL
JP2x9/13/H
P_5VSB
R988
10K/6/X
4
R376 0/6/X
R377 0/6
HD-
SPK-
NC
NC
SPK+
RST+
RST-
14
GDÂGN-
R986
330/6/X
R987
4.7K/6/X Q101
MMBT2222A/SOT23/X
S1,S3
S0,S5
RESET
132
PD_G-STRLED-
RESET
STRLED-
HDLED- [21]
VCC
GLED-
3
2
1
DIMM LED CONN.
1
R496
75/6
R497
75/6
MODIFY BEEP
VCC
D15
1N4148/S
132
Q89
MMBT2222A/SOT23
132
Q26
MMBT2222A/SOT23
Z163
R384 2.2K/6
Z156
R863
0/SHT/X
BC247
0.1U/6/Y/25V
VCC
VCC
VCC3
R862
10K/6
R391
1K/6
BZ
2
3
BZ
BUZZER/D
SPKR [12]
BEEP [22]
Q28
MMBT2222A/SOT23
1
3
2
Connect to 8233 GPO pin
PWOK
Z164
VCC3
R393
10K/6
PWROK
BUZZER
PWOK [27,31,32]
C133
0.01U/6/X/16V
POWER SUPPLY ISSUE
PWROK [9,12,15,16,30,34]
DDR25V
R378
150/6
Z165
DIMM_LED
LED/Y/S
BC245
0.01U/6/X/16V
STR_LED
JP1x2/H/X
NB HEAT SINK FAN
+12V
NB_FAN
1
+
2
C135
JP1x2/H/X
VCC VCC
1
0
NOTE:ALLEGRO use NET connect.
0.1U/6/Y/25V/X
POWER FANSYSTEM FAN
W=0.167WW=0.167W
FS DEFAULT
Dual-Color Power
LED Status
PD_Y-
PD_G-
OFF
ON
S1
BlinkingS0OFF
ON
OFF
S3
B B
Do not mirror physical package.
LEGEND DUAL COLOR LED
C139
1U/6/Y/10V/X
213
CVS
SYS_FAN
FAN1x3/W
DEFAULT
R410
10K/6
C138
4700P/6/X/50V/X
R542
0/SHT/X
FANIO2
FANIO2 [22]
+12V -->40 mils+12V -->40 mils
C137
1U/6/Y/10V/X
213
CVS
PWR_FAN
FAN1x3/W
DEFAULT
VCCVCC +12V+12V
R403
10K/6
FANIO3 FANIO2
R484 0/6/X
C136
4700P/6/X/50V/X
REV 0.2 SYS FAN REMOVE REV 0.2 PWR FAN REMOVE
CPU FAN
A A
VTIN2[5,22]
5
NF CONTROL FAN
DISTI DEFAULT NO POP
R838 7.5K/6/1/X
U42
1
OUTA
2
INA-
3 6
INA+ INB-
4
GND
MC33202D/SO8/X
C903
0.01U/6/X/16V/X
8
VCC
7
OUTB
5
INB+
C904
0.1U/6/Y/25V/X
4
+12V
R840 470K/6/1/X
R842 237K/6/1/X
R843 200K/6/1/X
R844 237K/6/1/X
R845 8.25K/6/1/X
+12V
R839 2.2/6/X
R846 330/6/X
Q705_2
+12V
Q703_2
+12V
3
>20 mil
Q84
MMBT2222A/X
SOT23
132
DUAL LAYOUT
Q88
MMBT2222A/X
SOT23
132
Q85
2SC5706/TO252/X
>20 mil
321
T1
RN173
VCC
R841
FANPWM1[22]
4.7K/6/X
2
132
1.5K/8P4R/X
Q87
MMBT2222A/X
SOT23
>20 mil
Q83
2
3
1
+12V
2N2907A/X
78 R836
56
34
Q86
12
2
1
+12V
2N2907A/X
1000P/6/X/50V/X
+12V
3
213
C902
CVS
CPU_FAN
FAN1x3/W
Title
Size Document Number Rev
Custom
Date: Sheet of
VCC
R837
0/6
10K/6
C901
3300P/6/X/50V/X
GIGABYTE
PANEL, STR LED & FANS
GA-8SIMLFS
1
FANIO1
FANIO1 [22]
29 34Tuesday, August 13, 2002
2.0
8
L5
2.8uH/D/V/20A/1P
EC15
V12 VIN
1
+
D D
CLOSE U23 PIN8
C C
100U/D/16V/57/X
FS[5]
3
D
G S
2
1
VTT_PWROK [31]
0.01U/6/X/16V
Q43
2N7002/SOT23
VCC
R426,R432,R436 USE 5% IS OK
VCORE
B B
C146
C147
0.01U/6/X/16V
0.01U/6/X/16V
R429
470K/6
VID4[5]
VID3[5]
VID2[5]
VID1[5]
VID0[5]
7
C148
VCORESEN[5]
R543
1K/6
EC16
+
1500U/D/15V/AK
1500U/D/15V/AK
VCC3
1 2
R432
16K/6
VSSSEN[5]
EC17
EC18
1
1
1
+
+
RN145
1K/8P4R
3 4
5 6
7 8
R426
150K/6
Z173
C156
4700P/6/X/50V/X
6
EC19
1
+
1500U/D/15V/AK
330U/D/25V/AF/X
C149
1U/6/Y/10V
U23
HIP6301
1
VID4
VID3
VID2
VID1
VID0
FS
COMP ISEN1
R443
0/SHT/X
VID4
2
VID3
3
VID2
4
VID1
5
VID0
8
FS/DIS
6
COMP
FB ISEN3
7
FB
10
VSEN
Z174
VER 1.0
C154
5600P/6/X/50V
R438
65K/6/X
R437
1K/6/X
R440
0/6/X
R436
2.2K/6
Z175
Z176
GND
9
VCC
PGOOD
PWM1
PWM2
PWM3
PWM4
ISEN1
ISEN2
ISEN3
ISEN4
C157
4700P/6/X/50V/X
5
VCC
20
19
15
14
11
18
16
13
12
17
R431
0/SHT/X
PG
PWM1
PWM2
PWM3
Z184
ISEN2 Z193
R427
1/6
VSEN
R434
0/6/X
R441
1/6
R416
1/6
Z181
PWM1
C144
0.22U/8/Y/25V
ISEN1
R421
0/SHT/X
R424 0/6/X
C150
0.01U/6/X/16V/X
R428
22/6/X
Z192
PWM3
C153
0.22U/8/Y/25V
ISEN3
R442
22/6/X
Z196
PWM2
C160
0.22U/8/Y/25V
ISEN2
V12
R417
22/6/X
V12
V12
C143
0.1U/6/Y/25V
Z179 Z180
U22
2
BOOT
UGATE
7
PVCC
PHASE
6
VCC
3
PWM
LGATEGND
HIP6601/BCB
R419 3.3K/6
R422
0/6/X
C152
0.1U/6/Y/25V
Z194
U24
2
BOOT
UGATE
7
PVCC
PHASE
6
VCC
3
PWM
LGATEGND
HIP6601/BCB
R433 3.3K/6
C159
0.1U/6/Y/25V
Z198Z197
U25
2
BOOT
UGATE
7
PVCC
PHASE
6
VCC
3
PWM
LGATEGND
HIP6601/BCB
R446 3.3K/6
4
R415
0/SHT/X
Z182
1
8
54
Z186Z190
1
R420
0/SHT/X
0/SHT/X
0/SHT/X
Z183
PWROK [9,12,15,16,29,34]
R425
0/SHT/X
Z188Z199 Z185
Z189
1
8
54
1
R435
Z191Z201
R439
0/SHT/X
Z200
1
8
54
1
U25_5
R445
1
2
1
2
1
2
VIN
2
3
VIN
2
3
VIN
2
3
Q40
6035AL/TO263
R900
3
10K/6/X
Q42
6035AL/TO263
R901
3
10K/6/X
Q45
6035AL/TO263
R902
3
10K/6/X
C142
0.1U/6/Y/25V
Q41
2SK3467/TO263
R418
2.2/6
Z187
C145
0.01U/6/X/16V
C151
0.1U/6/Y/25V
Q44
2SK3467/TO263
R430
2.2/6
Z195Z202
C155
0.01U/6/X/16V
C158
0.1U/6/Y/25V
Q46
2SK3467/TO263
R444
2.2/6
C161
0.01U/6/X/16V
3
L4
1.1uH/D/V/30A/3P
L6
1.1uH/D/V/30A/3P
VSEN
L7
1.1uH/D/V/30A/3P
2
ADD R900,R901,R902
10K/6--->HI SIDE GATE
FLOATING ISSUE
3300U/D/6.3V/AZ
3300U6.3V/10X25 X4PCS
MECHANIC LIMITTED
EC23
EC20
1
+
1000U/D/6.3V/8C
1500U/D/6.3V/8K
EC24
1
1
+
+
1500U/D/6.3V/8K
1000U/D/6.3V/8C
Default SANYO 1500U/D/6.3V/8*20
Second source: Panasonic FJ 1500U/D/10V/8*20
EC29
EC28
1
1
+
+
3300U/D/6.3V/AZ
EC25
EC26
1
1
+
+
1500U/D/6.3V/8K
1500U/D/6.3V/8K
EC21
1
+
3300U/D/6.3V/AZ
3300U/D/6.3V/AZ
(CONSUMPTION: 60A)
EC27
1
+
1500U/D/6.3V/8K
EC22
1
+
EC30
1
+
1500U/D/6.3V/8K
+
1
VCORE
EC31
1
VCORE
A A
Title
Size Document Number Rev
Custom
8
7
6
5
4
3
Date: Sheet of
VCORE (PWM HIP 6301+6601)
2
GIGABYTE
GA-8SIMLFS
30 34Tuesday, August 13, 2002
1
2.0
5
1.25V DDRVTT LINEAR SOLUTION
VDD
OUTA
OUTB
VSS
R551
1K/6/X
U30_1
U30_6
+12V
8
1
7
4
R550
0/6/X
DDRVTT
5VSB
R545
1K/6
EC45
1
+
22U/D/16V/47
LMV358A_G
1234
DDGS
D
D
6
5
BC248
0.1U/6/Y/25V/X
D35
1N5820/S/X
G S
TO-252AA
R549
Q74_1LMV358B_G
1K/6/X
DDRVTT
Q74
3
S
2
D
1
G
2SC5706/TO252/X
U30B
84
5
+
7
6
-
KA393/TO8
5VDUAL
Q73
2
D
HUF76107D3S/TO252
1
+
EC46
330U/D/25V/AF
NF REQUEST 10X12
DDR25V
R453
150/6/1/X
R456
R459 150/6/X
R462
10K/6/X
C169
0.1U/6/Y/25V/X
PWOK[27,29,32]
R547 1K/6
5VSB
150/6/1/X
C195
0.1U/6/Y/25V
R548
1K/6
U28_3
Z209
D D
DDRVTT
C C
B B
2
3
5
6
U28_2
BC249
0.1U/6/Y/25V/X
5VSB
84
3
+
2
-
C197
0.1U/6/Y/25V
U31
SI3443DV/PMOS/TSOP-6
U28
LM358/X
INAÂINA+
INB+
INB-
U30A
1
KA393/TO8
5VSB
DDR25V FOR DDR DIMM &
NB
EN
R544
1K/6
1 2
5VSB
3 4
5 6
RN138
470/8P4R/X
7 8
1
+
EC37
22U/D/16V/47
5VSB
R475
15K/6/X
R802
A A
-SUSB[8]
Q60
MMBT2222A/SOT23
PWOK[27,29,32]
R479
47K/6
10K/6
Z210
132
Z211
C194
1U/6/Y/10V/X
5
Q59
MMBT2222A/SOT23
132
A
A
Q62
SC431/SOT23
C876
1U/6/Y/10V/X
SOT23
C
C
R
R
VCC3
Q50_2
2
D
Q50
HUF76107D3S/TO252/X
1
3
+12V5VSB
Q73_1
3
S
1
G
Z213
4
C166
0.1U/6/Y/25V/X
160
mil
R546
2.2K/6
VCC
AP9916 layout
TO-263 package
for thermal issue
VCC3
D20
1N5820/S
2
Q61
AP9916H/TO252
GDS
1
3
R556
100/6
R481
10K/6
4
1.25V DDRVTT SWITCHING SOLUTION
SiS645, RT9173 application circuit have to modified.
Because SiS645 had problem in power on state.
If we used the typical circuit, and then there will had surge current during
power on.
And then the 2.5Vdual will be failed, system can't boot normally
1. Vin of 9173 had change connect to Vcc3(3.3V from ATX)
2. Vctrl of 9173 had change connect to Vcc(5V from ATX)
3. REF/EN of 9173 remain connect to the resistor divider from 2.5Vdual.
( 2.5/2=1.25V )
DDRVTT
C167
0.1U/6/Y/25V/X
VCC3
C173
1U/6/Y/25V
C914
1U/6/Y/25V
DDR25V
R466
10K/6/1
Z203
R468
10K/6/1
5VDUAL TRANS TO
3VDUAL(3.3V)
5VDUAL 80 mils ABOVE
5VDUAL
C172
0.1U/6/Y/25V
3
Q56
APL1084/TO252
RN137
2.2/8P4R
1 2
3 4
5 6
7 8
Z212
2
Z214
1
+
EC52
100U/D/10V/57
1
Z204
3VDUAL
DDR25V
R469
100/6/1
R472
169/6/1
D21
1N4001/S
1
+
EC36
100U/D/10V/57
+
EC43
100U/D/10V/57
D18
1N5817/S/X
Z205
D19
1N4001/S/X
R470
470/6/X
3
U29
1
VIN
2
GND
3
REFEN
4
VOUT
RT9173-CS
3VDUAL
C176
0.1U/6/Y/25V
3
VCNTL
VCNTL
VCNTL
VCNTL
DDRVTT
R790
1K/6
BC328
1U/6/Y/10V
SB18 FOR
SB
SB18
BC330
1U/6/Y/10V
VCC
8
7
6
5
POLY PLANE
D36
1N4148/S/X
20mil
1
+
EC49
22U/D/16V/47
2
5VSB
R451
220/6
9
SOT23
CAR
C
R
8
A
13
U27E
TSM104/A
1
+
EC35
100U/D/10V/57
PAD
500 X 500
mil^2
AUXOK [9,12,34]
1
+
EC48
22U/D/16V/47/X
3VDUAL
R792
R791
120/6
1234
Q81
C
R793
47/6/1
Q81_4 Z221
R794
100/6/1
RC431A/SOT23-5
AR
5
120/6
BC329
1U/6/Y/10V
2
R476
1.5K/6
R478
1K/6/1
VDDQ 3.3V/1.5V FOR AGP 2X/4X
EC47
22U/D/16V/47
U27_89
RAC
Q49
SC431/SOT23/X
R452
1
665/6/1
+
R457
1K/6/1
+12V
R460
4.7K/6
-TYPEDET[18]
Q52
2N7002/SOT23
VCC18 FOR NB,SB
R788
U27_5
5
+
R789
6
U27_6
-
374/6/1
1K/6/1
Z216
Z217
413
SDG
132
C164
0.1U/6/Y/25V
3
2
7
U27B
TSM104/A
R898
1K/6
+12V
+
-
Z219
U27A
413
1
TSM104/A
R458
1K/6
VCC3
2
1
3
1
+
NOISE DROP
VCCVID FOR NORTHWOOD CPU
R467
1.05K/6/1
12
Z220
+
11
R471
1K/6/1
C177
0.01U/6/X/16V
C179
0.01U/6/X/16V
-
413
14
+
15
-
VCC3
3
Q57
D
2N7002/SOT23
G S
Z222
10
2
1
U27C
TSM104/A
R912
10/6
-SUSB
16
Z223
U27D
TSM104/A
R473
100/6/X
D22
1N4148/S/X
R477
10K/6
C178
1U/6/Y/10V
BC250
1U/6/Y/10V
-SUSB[8]
Title
Size Document Number Rev
Custom
Date: Sheet of
1
VCC3
Q65 DEFAULT NO POP
2
2
Z218
1
3
Q64
HUF76107D3S/TO252
C168
1U/6/Y/10V
Q55
HUF76107D3S/TO252
VCC18
EC34
330U/D/25V/AF
BC342
4.7U/8/Y/10V
REV 0.2 NOISE
1
C171
1U/6/Y/10V
C174
1U/6/Y/10V
C165
1U/6/Y/10V
3
Q65
HUF76107D3S/TO252/X
VCCVID
1.2V/50mA
0817 MODIFY CLOSE U23
5VSB
R474
1K/6
VTT_PWROK [30]
Q58
MMBT2222A/SOT23
R486
4.7K/6
SOT23
132
Z224
GIGABYTE
DDR POWER
GA-8SIMLFS
1
31 34Tuesday, August 13, 2002
VDDQ
2.0
5
4
3
2
1
ATX CONN, DC P OWER
D D
ATX POWER CONNECTOR
VCC3
-12V
5VSB
R482
470K/6
BC254
Z225
BC252
0.1U/6/Y/25V
BC255
BC256
-PSON[12]
C C
-5V
VCC
VCC
BC253
ATX
11
3.3V
12
-12V
13
GND
14
PSON
15
GND
16
GND
17
GND
18
-5V
19
5V
20
5V
PWR2x10/CL1
3.3V
3.3V
GND
5V
GND
5V
GND
POK
5VSB
12V
VCC3
1
2
3
4
5
6
7
8
9
10
BC251
0.1U/6/Y/25V
BC257
BC258
BC259
BC260
PWOK
VCC
VCC
PWOK [27,29,31]
5VSB
+12V
BC261
0.1U/6/Y/25V
B B
MH7
123
54
9
876
EGND
HOLE_3
MH1
A A
123
9
876
HOLE_3
5
MH5
123
54
54
9
876
HOLE_3
MH3
123
9
876
HOLE_3
MH6
123
54
9
876
HOLE_3
0.1U/6/Y/25V
MH4
54
9
HOLE_3
4
0.1U/6/Y/25V
PB REQUEST V12
123
54
876
0.1U/6/Y/25V
V12
4
+12V
BC262
0.1U/6/Y/25V
+12V TRACE
250MIL
MH2
123
54
9
876
HOLE_3
ATX_12V
GND
GND+12V
PWR2x2/CL1
0.1U/6/Y/25V
1
23
3
0.1U/6/Y/25V
0.1U/6/Y/25V
0.1U/6/Y/25V
0.1U/6/Y/25V
2
Title
Size Document Number Rev
Custom
Date: Sheet of
GIGABYTE
ATX, DC POWER
GA-8SIMLFS
1
32 34Tuesday, August 13, 2002
2.0
5
RTL8100L ON-BOARD 8SRXL South Bridge GPIO LIST
-REQ0
PCI1
-REQ1
PCI2
-REQ2
PCI3
D D
-REQ3
RTL8100L
C C
IDSEL(A20)--B
IDSEL(A22)--C
IDSEL(A24)--D
IDSEL(A27)--B
4
ITEM DESCRIPTION STATUS
GPIO0 Bios Write Protect
GPIO1 Hi
N/A PULL-UP
GPIO2
THERM#
Green Button Hi:Normal, Lo:Into Green modeGPIO3 Hi
I/O
Hi:Write Enable, Lo:Write Protect
O
O
3
CLKRUN# PULL-DOWN
GPIO5
N/A PULL-UP
GPIO6
CPU OVER VOLTAGE
GPIO8 Wake On Ring Hi:Normal, Lo:Ring Power On
SAFE MODE
GPIO10
Mother Board ID
GPIO11
N/A PULL-UP
GPIO12
N/A PULL-UP
GPIO13
Mother Board ID
Primary Down Lo:CODEC Only LoGPIO14
KB DataGPIO15
GPIO16 KB Clk
GPIO17 MS Data
GPIO18 MS Clk
O
S0('0'),S1/S3('1'),S5('0')SUSLED LoGPIO7
O
I
1-2:LO-->NORMAL,2-3:HI-->SAFE MODE
I
SIS DEMO B/D PULL-DOWN
I
SIS DEMO B/D PULL-DOWN
I
I
I/OD
I/OD
I/OD
I/OD
Default
Hi
Hi
LoGPIO4
Hi
HiHi:Normal
Hi
LoGPIO9
Lo
Hi
Hi
Lo
2
1
B B
A A
Title
Size Document Number Rev
Custom
5
4
3
2
Date: Sheet of
GIGABYTE
GPIO, REQ/GNT Table
GA-8SIMLFS
33 34Tuesday, August 13, 2002
1
2.0
5
4
3
2
1
CPU 478 (CPOINT) SIS650(NPOINT) SIS961(SPOINT)
-HA_STB0_N
-HA_STB0 -HA_STB1
-CPURST
-CPURST
1
-CPUINIT
1
CPUPWOK
D D
C C
1
CPU_CLK
1
-HA_STB0
1
-HD_STBN0
1
-HD_STBN1
1
-HD_STBN2
1
-HD_STBN3
1
-CPURST [4,5,7]
-CPUINIT
-CPUINIT [4,12]
CPUPWOK
CPUPWOK [5,7]
CPU_CLK
CPU_CLK [5,15]
-HA_STB0
-HA_STB0 [4,7]
-HD_STBN0
-HD_STBN0 [6,7]
-HD_STBN1 -HD_STBP1
-HD_STBN1 [6,7] -HD_STBP1 [6,7]
-HD_STBN2 -HD_STBP2
-HD_STBN2 [6,7] -HD_STBP2 [6,7]
-HD_STBN3 -HD_STBP3
-HD_STBN3 [6,7] -HD_STBP3 [6,7]
-CPU_CLK
1
-HA_STB1
1
-HD_STBP0
1
-HD_STBP1
1
-HD_STBP2
1
-HD_STBP3
1
-CPU_CLK
-HA_STB1
-HD_STBP0
-CPU_CLK [5,15]
-HA_STB1 [4,7]
-HD_STBP0 [6,7]
1
-HD_STBN0_N
1
-HD_STBN1_N
1
-HD_STBN2_N
1
-HD_STBN3_N
1
GCLK_NB
1
HCLK
1
SDCLK
1
ZCLK_NB
1
VOSCI
1
-PCIRST
1
PWROK
1
AUXOK
1
-HA_STB0 [4,7]
-HD_STBN0
-HD_STBN0 [6,7]
-HD_STBN2 -HD_STBP2
-HD_STBN2 [6,7] -HD_STBP2 [6,7]
GCLK_NB
GCLK_NB [7,15]
HCLK -HCLK
HCLK [7,15] -HCLK [7,15]
SDCLK
SDCLK [8,15]
ZCLK_NB
ZCLK_NB [9,15]
VOSCI
VOSCI [9,15]
-PCIRST
-PCIRST [9,11,18,21,22,28]
PWROK
PWROK [9,12,15,16,29,30]
AUXOK
AUXOK [9,12,31]
-HA_STB1_N
1
-HD_STBP0_N
-HD_STBP0
1
-HD_STBP1_N
-HD_STBP1-HD_STBN1
1
-HD_STBP2_N
1
-HD_STBP3_N
-HD_STBP3-HD_STBN3
1
-HCLK
1
-HA_STB1 [4,7]
-HD_STBP0 [6,7]
-HD_STBP1 [6,7]-HD_STBN1 [6,7]
-HD_STBP3 [6,7]-HD_STBN3 [6,7]
DDR 1,2 (POINT) AGP (POINT)
AGPCLK
AGPCLK
1
DDRVREF
DDRVREF
1
CKOUT0
CKOUT0 -CKOUT0
1
CKOUT1
CKOUT1 -CKOUT1
1
CKOUT2
CKOUT2 -CKOUT2
1
CKOUT3
CKOUT3 -CKOUT3
B B
A A
1
CKOUT4
CKOUT4 -CKOUT4
1
CKOUT5
1
CKOUT5 -CKOUT5
-DQSD0
1
-DQSD0 -DQSD1
-DQSD3
1
-DQSD3
-DQSD4
-DQSD4
1
-DQSD6
1
-SWEA
-SWEA
1
-SCASA
-SCASA
1
-SRASA
-SRASA
1
-RESET_DDR
-RESET_DDR
1
DDRVREF [16]
CKOUT0 [15,16] -CKOUT0 [15,16]
CKOUT1 [15,16] -CKOUT1 [15,16]
CKOUT2 [15,16] -CKOUT2 [15,16]
CKOUT4 [15,16] -CKOUT4 [15,16]
-DQSD3 [8,16,17]
-DQSD4 [8,16,17]
-DQSD6 [8,16,17]
-SWEA [8,16,17]
-SCASA [8,16,17]
-SRASA [8,16,17]
-RESET_DDR [16]
5
-CKOUT0
1
-CKOUT1
1
-CKOUT2
1
-CKOUT3
1
-CKOUT4
1
-CKOUT5
1
-DQSD1
1
-DQSD2
1
-DQSD5
1
-DQSD7
1
-DQSD2
-DQSD5
-DQSD7-DQSD6
-CKOUT3 [15,16]CKOUT3 [15,16]
-CKOUT5 [15,16]CKOUT5 [15,16]
-DQSD1 [8,16,17]-DQSD0 [8,16,17]
-DQSD2 [8,16,17]
-DQSD5 [8,16,17]
-DQSD7 [8,16,17]
-PCIRST_A
-PCIRST
1
SB_STB
SB_STB
1
AD_STB0
AD_STB0
1
AD_STB1
1
AD_STB1
-GFRAME
1
-GFRAME
-GTRDY
1
-GTRDY
-GIRDY
-GIRDY
1
AGPVREF
AGPVREF
1
VREF_CG
VREF_CG
1
IDE 1,2 (POINT)
-IDERST
-IDERST
1
P_IORDY
P_IORDY
1
-PD_IOW
-PD_IOW
1
-PD_IOR
-PD_IOR
1
4
AGPCLK [15,18]
-PCIRST [9,11,18,21,22,28]
SB_STB [7,18]
AD_STB0 [7,18]
AD_STB1 [7,18]
-GFRAME [7,18]
-GTRDY [7,18]
-GIRDY [7,18]
AGPVREF [7,18]
VREF_CG [18]
-IDERST [21]
P_IORDY [21]
-PD_IOW [21]
-PD_IOR [21]
-AD_STB0
-AD_STB1
S_IORDY
-SD_IOW
-SD_IOR
1
1
1
1
1
-AD_STB0
-AD_STB1
S_IORDY
-SD_IOW
-SD_IOR
PCLK_SB
1
ZCLK_SB
1
VBITCLK_S
1
REFCLK_SB
1
USBCLK
1
-FRAME_S
1
-IRDY_S
1
-TRDY_S
1
ZSTB0
1
ZSTB1
1
BATOK
1
PWROK_S
1
AUXOK_S
1
-VACRST_S
1
-AD_STB0 [7,18]
-AD_STB1 [7,18]
S_IORDY [21]
-SD_IOW [21]
-SD_IOR [21]
3
PCLK_SB
PCLK_SB [11,15]
ZCLK_SB
ZCLK_SB [11,15]
VBITCLK
VBITCLK [12,25,26]
REFCLK_SB
REFCLK_SB [12,15]
USBCLK
USBCLK [13,15]
-FRAME
-FRAME [11,20,28]
-IRDY
-IRDY [11,20,28]
-TRDY
-TRDY [11,20,28]
ZSTB0
ZSTB0 [9,11]
ZSTB1
ZSTB1 [9,11]
BATOK
BATOK [11,12]
PWROK
PWROK [9,12,15,16,29,30]
AUXOK
AUXOK [9,12,31]
-VACRST
-VACRST [12,25]
PCI 1,2,3 (POINT)
PCICLK0
1
PCICLK1
1
PCICLK2
1
-PPCIRST
1
-FRAME
1
-TRDY
1
-IRDY
1
LAN RTL8100 (POINT)
-PCIRST_L
1
PCICLKL
1
-FRAME_L
1
-TRDY_L
1
-IRDY_L
1
CNR (POINT)
VBITCLK
VBITCLK
1
-VACRST
1
-VACRST
PCICLK0
PCICLK1
PCICLK2
-PPCIRST
-FRAME
-TRDY
-IRDY
-PCIRST
PCICLKL
-FRAME
-TRDY
-IRDY
-ZSTB0
-ZSTB1
1
1
VBITCLK [12,25,26]
-VACRST [12,25]
-ZSTB0
-ZSTB1
PCICLK0 [15,20]
PCICLK1 [15,20]
PCICLK2 [15,20]
-PPCIRST [20,21]
-FRAME [11,20,28]
-TRDY [11,20,28]
-IRDY [11,20,28]
-PCIRST [9,11,18,21,22,28]
PCICLKL [15,28]
-FRAME [11,20,28]
-TRDY [11,20,28]
-IRDY [11,20,28]
-ZSTB0 [9,11]
-ZSTB1 [9,11]
2
K1
1
K_ICT/X
K2
1
K_ICT/X
K3
1
K_ICT/X
K4
1
K_ICT/X
K5
1
K_ICT/X
K6
1
K_ICT/X
Title
Size Document Number Rev
Custom
Date: Sheet of
1
4MMH/X
1
4MMH/X
1
4MMH/X
1
4MMH/X
1
1
GIGABYTE
8SIML
GA-8SIMLFS
I1
I2
I3
I4
1
34 34Tuesday, August 13, 2002
2.0
Loading...
