DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name:
Address:
Phone/Fax No:
hereby declares that the product
Product Name:
Model Number:
Conforms to the following specifications:
FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109
(a),Class B Digital Device
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful and (2) this device must accept any inference received,
including that may cause undesired operation.
Representative Person’s Name:
Signature:
G.B.T. INC. (U.S.A.)
17358 Railroad Street
City of Industry, CA 91748
(818) 854-9338/ (818) 854-9339
Motherboard
GA-8ILMT4
ERIC LU
Eric Lu
Date:
May. 26,2002
GA-8ILMT4
P4 Titan-DDR Motherboard
USER’S MANUAL
Pentium®4 Processor Motherboard
Rev. 1001
12ME-8ILMT4-1001
English
Item Checklist ......................................................................................... 4
WARNING! ...............................................................................................4
Chapter 1 Introduction .............................................................................5
Chapter 2 Hardware Installation Process ................................................ 8
Table of Content
Features Summary ...................................................................................... 5
GA-8ILMT4 Motherboard Layout ................................................................ 7
Step 1: Install the Central Processing Unit (CPU)....................................... 9
Step1-1 CPU Installation ................................................................................................... 9
Step1-2 CPU Heat Sink Installation ................................................................................ 10
Step 2: Install memory modules ................................................................ 11
Step 3: Connect ribbon cables, cabinet wires, and power supply ........... 13
Step3-1 I/O Back Panel Introduction .............................................................................. 13
Step3-2 Connectors Introduction .................................................................................... 15
Chapter 3 BIOS Setup .......................................................................... 22
The Main Menu (For example: BIOS Ver. :F1) ......................................... 23
Standard CMOS Features......................................................................... 25
Advanced BIOS Features .......................................................................... 28
Integrated Peripherals .............................................................................. 31
- 2 -GA-8ILMT4 Motherboard
Power Management Setup ....................................................................... 35
PnP/PCI Configurations ............................................................................. 38
PC Health Status........................................................................................ 39
Frequency/Voltage Control ........................................................................ 41
Top Performance ...................................................................................... 43
Load Fail-Safe Defaults ............................................................................. 44
Load Optimized Defaults ........................................................................... 45
Set Supervisor/User Password .................................................................. 46
Save & Exit Setup ....................................................................................... 47
Exit Without Saving ................................................................................... 48
Chapter 4 Technical Reference ............................................................ 49
Block Diagram ........................................................................................... 49
Q-Flash Introduction.................................................................................. 50
@ BIOS Introduction .................................................................................. 52
Easy Tune 4
TM
Introduction ....................................................................... 53
English
Chapter 5 Appendix.............................................................................. 54
- 3 -
Table of Content
Item Checklist
! The GA-8ILMT4 motherboard ! I/O Shield
English
! IDE cable x 1/ Floppy cable x 1
! CD for motherboard driver & utility (IUCD)
! GA-8ILMT4 user’s manual
Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow some precautions whenever you
work on your computer.
WARNING!
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do not have
one, touch both of your hands to a safely grounded object or to a metal object, such as
the power supply case.
3. Hold components by the edges and try not touch the IC chips, leads or connectors, or
other components.
4. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX
power connector on the motherboard.
Installing the motherboard to the chassis…
If the motherboard has mounting holes, but they don’t line up with the holes on the base and there are
no slots to attach the spacers, do not become alarmed you can still attach the spacers to the mounting
holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so be careful
of your hands). In this way you can still attach the motherboard to the base without worrying about short
circuits. Sometimes you may need to use the plastic springs to isolate the screw from the motherboard
PCB surface, because the circuit wire may be near by the hole. Be careful, don’t let the screw contact
any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may damage the
board or cause board malfunctioning.
- 4 -GA-8ILMT4 Motherboard
Chapter 1 Introduction
Features Summary
Form Factor ! 21.0cm x 24.3cm Micro ATX size form factor, 4 layers PCB.
CPU ! Socket 478 for Intel® Micro FC-PGA2 Pentium® 4 processor
! Support Intel
! Intel Pentium
! 2nd cache depends on CPU
Chipset ! Chipset 82845GL HOST/AGP/Controller
! ICH4 I/O Controller Hub
Memory ! 2 184-pin DDR DIMM sockets
! Supports PC1600 DDR or PC2100 DDR SDRAM
! Supports up to 2GB DRAM (Max)
! Supports only 2.5V DDR SDRAM
I/O Control ! ITE8712
Slots ! 3 PCI slot supports 33MHz & PCI 2.2 compliant
On-Board IDE ! 2 IDE controller on the Intel ICH4 PCI chipset
provides IDE HDD/CD-ROM with PIO, Bus Master (Ultra
DMA33/ATA66/ATA100) operation modes.
! Can connect up to four IDE devices
On-Board Peripherals ! 1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M
and 2.88M bytes.
! 1 Parallel port supports Normal/EPP/ECP mode
! 1 Serial ports (COMA), 1 VGA port
! 6 x USB 2.0/1.1 (2x Rear, 4 Front by cable)
! 1 Front Audio connector
On-Board VGA ! Built in Intel 845GL Chipset
On-Board Sound ! Sigmatel 9721 CODEC
! 1 Buzzer
! Line In/Line Out/Mic In/CD In/AUX In/Game Port
On-Board LAN ! Builit in RTL8100BL Chipset
! 1 RJ 45 port
®
Pentium® 4 (Northwood, 0.13 m) processor
®
4 400MHz FSB
English
- 5 -
to be continued......
Introduction
Hardware Monitor ! CPU/System Fan Revolution detect
English
PS/2 Connector ! PS/2 Keyboard interface and PS/2 Mouse interace
BIOS ! Licensed AWARD BIOS, 2M bit FWH
Additional Features ! External Modem wake up
! CPU/System Fan Control
! CPU Overheat Warning
! System Voltage Detect
! PS/2 Keyboard password power on
! PS/2 Mouse power on
! AC Recovery
! USB KB/Mouse wake up from S3
! Poly fuse for keyboard,USB,game port over-current protection
! Supports @BIOS
! Supports EasyTune4
Please set the CPU host frequency in accordance with your processor’s specifications.
We don’t recommend you to set the system bus frequency over the CPU’s specification
because these specific bus frequencies are not the standard specifications for CPU,
chipset and most of the peripherals. Whether your system can run under these specific
bus frequencies properly will depend on your hardware configurations, including CPU,
Chipsets,SDRAM,Cards….etc.
- 6 -GA-8ILMT4 Motherboard
GA-8ILMT4 Motherboard Layout
KB_MS
COMA
ATX_12V
LPT
VGA
SOCKET478
CPU_FAN
DDR1
English
DDR2
DIMM_LED
FDD
ATX_POWER
LINE_OUTMIC_IN
LINE_IN
USB/
GAME
LAN
RTL8100BL
AC97
F_AUDIO
CD_IN
ITE8712
AUX_IN
IR
GA-8ILMT4
COM B
Intel 845GL
PCI1
PCI2
PCI3
F_USB2
F_USB1
ICH4
BIOS
PWR_LED
IDE2
BAT1
F_PANEL
Buzzer
CI
IDE1
SYS _FAN
CLR_COMS
BIOS_WP
- 7 -
Introduction
Chapter 2 Hardware Installation Process
To set up your computer, you must complete the following steps:
English
Step 1- Install the Central Processing Unit (CPU)
Step 2- Install memory modules
Step 3- Connect ribbon cables, cabinet wires, and power supply
Step 4- Setup BIOS software
Step 5- Install supporting software tools
Step1
Step4
Step 2
Step 4
Step3
Step 4
- 8 -GA-8ILMT4 Motherboard

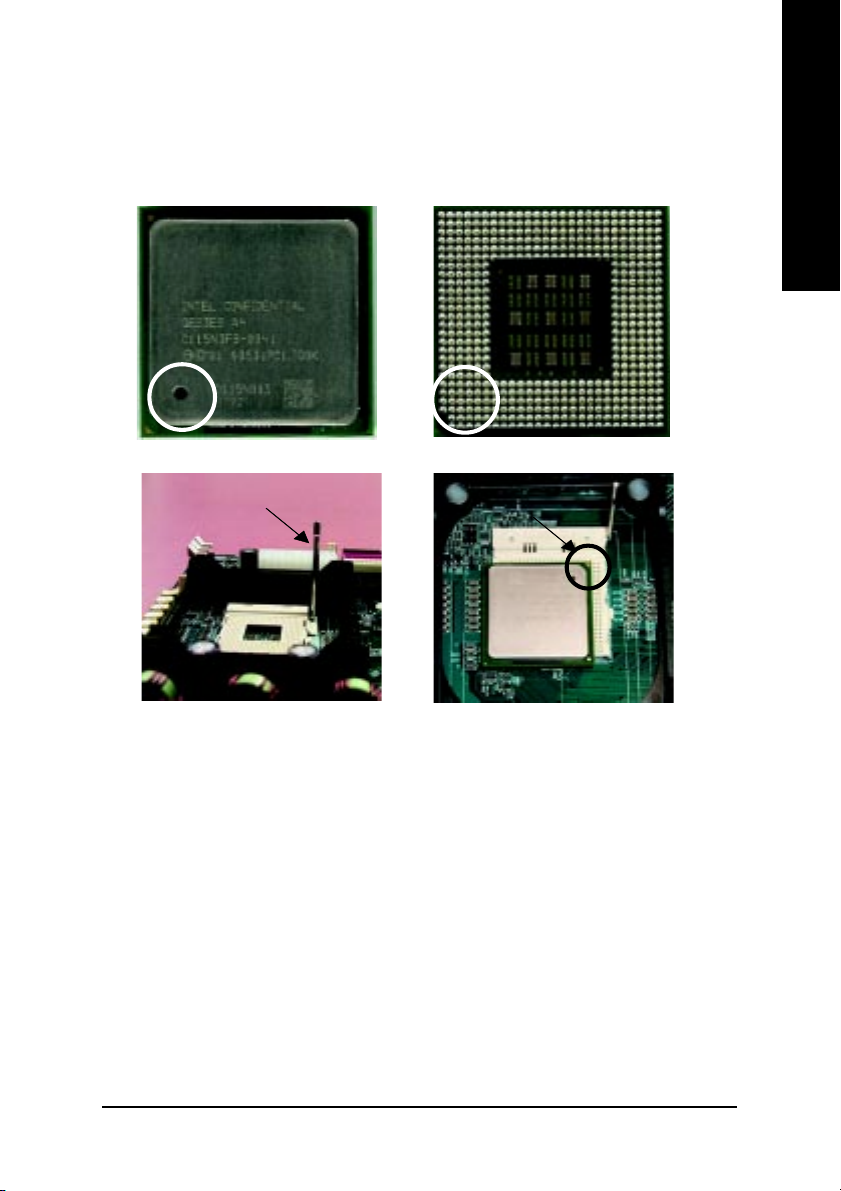

Step 1: Install the Central Processing Unit (CPU)
Step 1-1 : CPU Installation
English
Pin1 indicator
CPU Top View CPU Bottom View
Socket Actuation Lever
1. Pull up the CPU socket lever
and up to 90-degree angle.
3. Press down the CPU socket
lever and finish CPU installation.
##
# Please make sure the CPU type is supported by the motherboard.
##
##
# If you do not match the CPU socket Pin 1 and CPU cut edge well, it will cause
##
improper installation. Please change the insert orientation.
Pin1 indicator
Pin1 indicator
2. Locate Pin 1 in the socket and look
for a (golden) cut edge on the CPU
upper corner. Then insert the CPU
into the socket.
- 9 - Hardware Installation Process
Step 1-2 : CPU Heat Sink Installation
English
1. Hook one end of the cooler
bracket to the CPU socket first.
##
# Please use Intel approved cooling fan.
##
##
# We recommend you to apply the thermal tape to provide better heat
##
2. Hook the other end of the
cooler bracket to the CPU
socket.
conduction between your CPU and heatsink.
(The CPU cooling fan might stick to the CPU due to the hardening of the
thermal paste. During this condition if you try to remove the cooling fan, you
might pull the processor out of the CPU socket alone with the cooling fan, and
might damage the processor. To avoid this from happening, we suggest you to
either use thermal tape instead of thermal paste, or remove the cooling fan with
extreme caution.)
##
# Make sure the CPU fan power cable is plugged in to the CPU fan connector,
##
this completes the installation.
##
# Please refer to CPU heat sink user’s manual for more detail installation
##
procedure.
- 10 -GA-8ILMT4 Motherboard

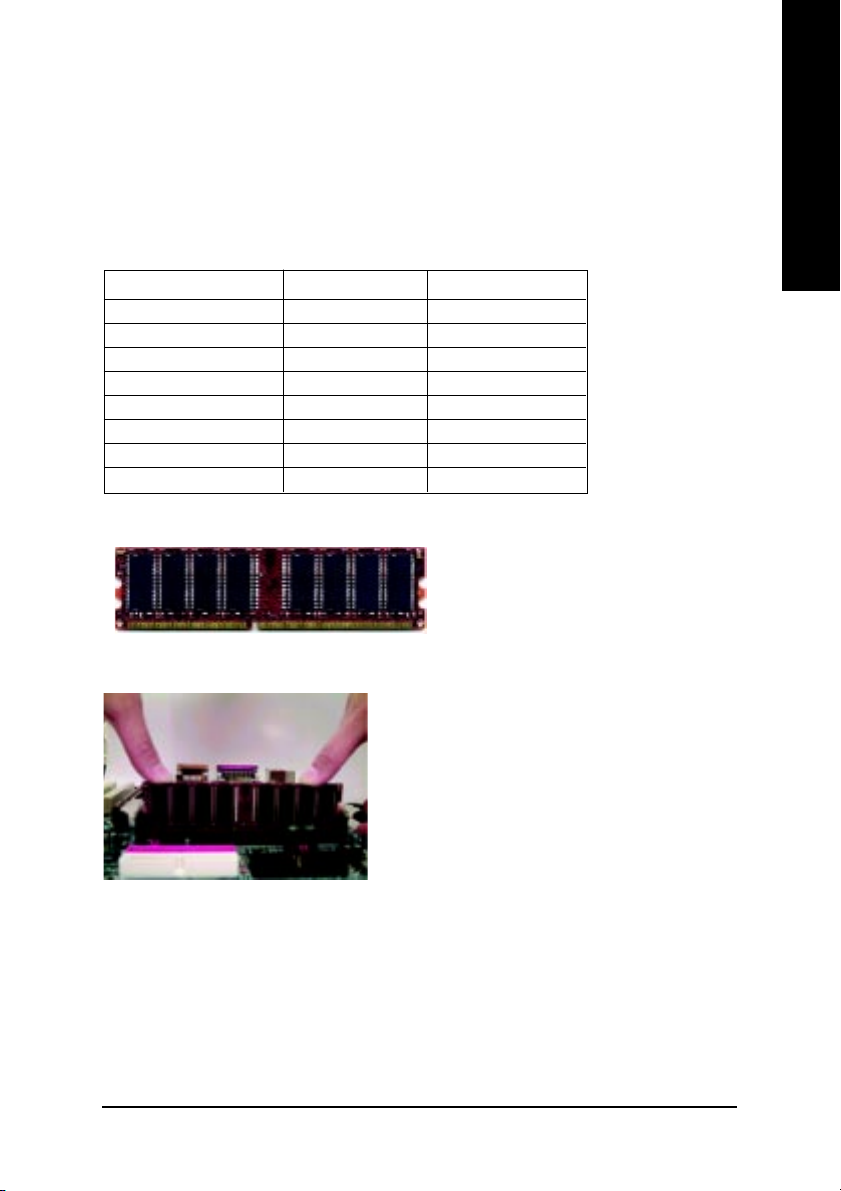

Step 2: Install memory modules
The motherboard has 2 dual inline memory module (DIMM) sockets. The BIOS will automatically
detects memory type and size. To install the memory module, just push it vertically into the DIMM Slot
.The DIMM module can only fit in one direction due to the notch. Memory size can vary between
sockets.
Total Memory Sizes With Unbuffered DDR DIMM
Devices used on DIMM 1 DIMM x 64 / x 72 2 DIMMs x 64 / x 72
64 Mbit (2Mx8x4 banks) 128 MBytes 256 MBytes
64 Mbit (1Mx16x4 banks) 32 MBytes 64 MBytes
128 Mbit(4Mx8x4 banks) 256 MBytes 512 MBytes
128 Mbit(2Mx16x4 banks) 64 MBytes 128 MBytes
256 Mbit(8Mx8x4 banks) 512 MBytes 1 GBytes
256 Mbit(4Mx16x4 banks) 128 MBytes 256 MBytes
512 Mbit(16Mx8x4 banks) 1 GBytes 2 GBytes
512 Mbit(8Mx16x4 banks) 256 MBytes 512 MBytes
Notes: Double-sided x16 DDR memory devices are not support by Intel 845E/G chipset.
DDR
English
1. The DIMM slot has a notch, so the
DIMMmemory module can only fit in one direction.
2. Insert the DIMM memory module verticallyinto the
DIMM slot. Then push it down.
3. Close the plastic clip at both edges of theDIMM slots
to lock the DIMM module.
Reverse the installation steps when you wish to
remove the DIMM module.
# When STR/DIMM LED is ON, you do not install / remove DDR from socket.
- 11 - Hardware Installation Process
DDR Introduction
high performance and cost-effective solution that allows easy adoption for memory vendors, OEMs and
system integrators.
English
SDRAM infrastructure, yet makes awesome advances in solving the system performance bottleneck by
doubling the memory bandwidth. DDR SDRAM will offer a superior solution and migration path from
existing SDRAM designs due to its availability, pricing and overall market support. PC2100 DDR
memory (DDR266) doubles the data rate through reading and writing at both the rising and falling edge of
the clock, achieving data bandwidth 2X greater than PC133 when running with the same DRAM clock
frequency. With peak bandwidth of 2.1GB per second, DDR memory enables system OEMs to build
high performance and low latency DRAM subsystems that are suitable for servers, workstations, highend PC's and value desktop SMA systems. With a core voltage of only 2.5 Volts compared to
conventional SDRAM's 3.3 volts, DDR memory is a compelling solution for small form factor desktops
and notebook applications.
Established on the existing SDRAM industry infrastructure, DDR (Double Data Rate) memory is a
DDR memory is a sensible evolutionary solution for the PC industry that builds on the existing
- 12 -GA-8ILMT4 Motherboard
Step 3: Connect ribbon cables, cabinet wires, and power
supply
Step3-1 : I/O Back Panel Introduction
English
"
""
" PS/2 Keyboard and PS/2 Mouse Connector
""
##
# Parallel Port and Serial Ports (COM1/COM2)
##
#$
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
Parallel Port
(25 pin Female)
$This connector supports standard PS/2
keyboard and PS/2 mouse.
$ This mainboard supports 1 standard COM port,
1 VGA port and 1 LPT port. Device like printer
can be connected to LPT port ; mouse and
modem etc can be connected to COM port.
&
%
COMA VGA
Serial Port
(9 pin Male)
VGA Port
(15 pin Female)
- 13 - Hardware Installation Process
$$
$ Game /MIDI Ports
$$
English
Joystick/ MIDI (15 pin Female)
%%
% Audio Connectors
%%
$This connector supports joystick, MIDI keyboard and other
relate audio devices.
$ After install onboard audio driver, you may connect
speaker to Line Out jack, micro phone to MIC In jack.
Device like CD-ROM , walkman etc can be connected
to Line-In jack.
Line Out
&&
& USB/LAN Connector
&&
MIC In
Line In
LAN
Connector
USB 0
USB 1
$Before you connect your device(s) into USB connector(s),
please make sure your device(s) such as USB keyboard,
mouse, scanner, zip,speaker..etc. Have a standard USB
interface. Also make sure your OS (Win 95 with USB
supplement, Win98, Windows 2000, Windows ME, Win
NT with SP 6) supports USB controller. If your OS does not
support USB controller, please contact OS vendor for pos-
sible patch or driver upgrade. For more information please
contact your OS or device(s) vendors.
- 14 -GA-8ILMT4 Motherboard
Step 3-2 : Connectors Introduction
English
R
Q
P
A) ATX_12V
B) CPU_FAN
C) ATX
D) FDD
E) IDE1/IDE2
F) SYS_FAN
G) CLR_CMOS
H) BIOS_WP
I) CI
A
B
MN L
C
D
E
F
G
H
I
J
KO
J) F_PANEL
K) PWR_LED
L) F_USB1/F_USB2
M) BATTERY
N) COMB
O) CD_IN
P) IR
Q) AUX_IN
R) F_AUDIO
- 15 - Hardware Installation Process
A) ATX_12V ( +12V Power Connector)
English
+12V
GND
$ This connector (ATX +12V) suppliesthe CPU
operation voltage (Vcore). If this " ATX+ 12V
connector" is not connected, system cannot
4
3
+12V
GND
1
2
boot.
B) CPU_FAN (CPU FAN Connector)
GND
Sense
+12V/Control
1
C) ATX_POWER (ATX Power)
3.3V
-12V
PS-ON(Soft On/Off)
GND
GND
GND
GND
-5V
VCC
VCC
1
3.3V
3.3V
GND
VCC
GND
Power Good
5V SB (Stand by +5V)
20
+12V
D) FDD (Floppy Connector)
VCC
GND
$ Please note, a proper installation of the CPU
cooler is essential to prevent the CPU from
running under abnormal condition or damaged
by overheating.The CPU fan connector
supports Max. current up to 600 mA.
$AC power cord should only be connected to
your power supply unit after ATX power cable
and other related devices are firmly
connected to the mainboard.
1
- 16 -GA-8ILMT4 Motherboard
E) IDE1/ IDE2 (IDE1/IDE2 Connector)
$ Important Notice:
Please connect first harddisk to IDE1
and connect CDROM to IDE2.
English
1
IDE1
1
IDE2
F) SYS_FAN (System FAN Connector)
Sense
1
+12V/Control
GND
G) CLR_CMOS (Clear CMOS)
2-3 close: Normal
1
1-2 close: Clear CMOS
1
$ You may clear the CMOS data to its default
values by this jumper.
Default doesn’t include the “Shunter” to prevent
from improper use this jumper. To clear CMOS,
temporarily short 1-2 pin.
- 17 - Hardware Installation Process
H) BIOS_WP (BIOS Write Protection)
English
2-3 close: Normal
1
1-2 close: Write Protection
1
$ Please note, To flash/upgrade BIOS on this MB
BIOS_WP must be set to 2-3 close. We
recommend BIOS_WP to be set to "1-2 close",
whenever user does not need to flash/upgrade
the BIOS.
I) CI (CASE OPEN)
GND
1
Signal
K) PWR_LED
1
MPD-
MPD-
MPD+
L) F_USB1/F_USB2 (Front USB Connector)
$ Be careful with the polarity of the front
USB Dy+
USB Over
GND
Current
Power
USB Dy-
$ This 2 pin connector allows your system to
enable or disable the system alarm if the sys
tem case begin remove.
panel USB connector. Check the pin
assignment while you connect the front
panel USB cable. Please contact your
nearest dealer for optional front panel
USB 2.0 cable.
1
GND
Power
USB Dx-
USB Dx+
- 18 -GA-8ILMT4 Motherboard
M) BATTERY (Battery)
+
N) COM B
NSINB
NDTRB-
1
NDCDB-
NSOUTB
NCTSB-
NDSRB-
NC
GND
NRIB-
NRTSB-
CAUTION
% Danger of explosion if battery is incorrectly
replaced.
% Replace only with the same or equivalent
type recommended by the manufacturer.
% Dispose of used batteries according to the
manufacturer’s instructions.
English
O) CD_IN (CD IN)
1
GND
CD_-L
CD-R
- 19 - Hardware Installation Process
P)IR
English
Q) AUX_IN ( AUX In Connector)
1
1
IR Data Input
VCC(+5V)
GND
AUX-L
AUX-R
IR Data Output
GND
$ Be careful with the polarity of the IR
connectorwhile you connect the IR. Please
contact you nearest dealer for optional IR
device.
R)F_AUDIO (F_AUDIO Connector)
1
MIC
Front Audio (R)
Front Audio (L)
REF
Reserved
GND
POWER
Rear Audio (R)
Rear Audio (L)
$ If you want to use Front Audio connector, you
must remove 5-6, 9-10 Jumper.
In order to utilize the front audio header, your
chassis must have front audio connector. Also
please make sure the pin assigment on the cable
is the same as the pin assigment on the MB
header. To find out if the chassis you are buying
support front audio connector, please contact
your dealer.
- 20 -GA-8ILMT4 Motherboard
J) F_PANEL (2x10 pins connector)
English
PW-
PW+
MPD+
MPD-
1
1
2
1
HD+
GN (Green Switch) Open: Normal Operation
GD (Green LED) Pin 1: LED anode(+)
HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)
SPK (Speaker Connector) Pin 1: VCC(+)
RE (Reset Switch) Open: Normal Operation
PW (Soft Power Connector) Open: Normal Operation
MPD(Message LED/Power/ Pin 1: LED anode(+)
Sleep LED) Pin 2: LED cathode(-)
NC NC
1
1
HD-
RST-
RST+
Close: Entering Green Mode
Pin 2: LED cathode(-)
Pin 2: LED cathode(-)
Pin 2- Pin 3: NC
Pin 4: Data(-)
Close: Reset Hardware System
Close: Power On/Off
NC
SPK+
1
1
GD+
GD-
1
GN+
SPK-
20
19
GN-
$ Please connect the power LED, PC speaker, reset switch and power switch etc of your chassis
front panel to the F_PANEL connector according to the pin assignment above.
- 21 - Hardware Installation Process
Chapter 3 BIOS Setup
BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the
English
basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it
retains the Setup information when the power is turned off.
ENTERING
Powering ON the computer and pressing <Del> immediately will allow you to enter Setup. If you require
more advanced BIOS settings, please go to “Advanced BIOS” setting menu.To enter Advanced BIOS
setting menu, press “Ctrl+F1” key on the BIOS screen.
CONTROL
<!> Move to previous item
<"> Move to next item
<#> Move to the item in the left hand
<$> Move to the item in the right hand
<Esc> Main Menu - Quit and not save changes into CMOS Status Page Setup Menu and
<+/PgUp> Increase the numeric value or make changes
<-/PgDn> Decrease the numeric value or make changes
<F1> General help, only for Status Page Setup Menu and Option Page Setup Menu
<F2> Reserved
<F3> Reserved
<F4> Reserved
<F5> Restore the previous CMOS value from CMOS, only for Option Page Setup Menu
<F6> Load the file-safe default CMOS value from BIOS default table
<F7> Load the Optimized Defaults
<F8> Q-Flash function
<F9> Reserved
<F10> Save all the CMOS changes, only for Main Menu
SETUP
KEYS
Option Page Setup Menu - Exit current page and return to Main Menu
- 22 -GA-8ILMT4 Motherboard
Loading...
