00
0 The author assumes no responsibility for any
00
errors or omissions that may appear in this
document nor does the author make a
commitment to update the information
contained herein.
00
0 Third-party brands and names are the
00
property of their respective owners.
00
0 Please do not remove any labels on
00
motherboard, this may void the warranty of
this motherboard.
00
0 Due to rapid change in technology, some of
00
the specifications might be out of date
before publication of this booklet.
Before you install PCI cards, please remove the Dual BIOS
label from PCI slots if there is one.
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name:
Address:
Phone/Fax No:
hereby declares that the product
Product Name:
Model Number:
Conforms to the following specifications:
FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a),
Class B Digital Device
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful and (2) this device must accept any inference received,
including that may cause undesired operation.
Representative Person’s Name:
Signature:
G.B.T. INC. (U.S.A.)
17358 Railroad Street
City of Industry, CA 91748
(818) 854-9338/ (818) 854-9339
Motherboard
GA-8IGX
ERIC LU
Eric Lu
Date:
March 29,2002
Ausschlager Weg 41, 1F, 20537 Hamburg, Germany
( description of the apparatus, system, installation to which it refers)
(reference to the specification under which conformity is declared)
in accordance with 89/336 EEC-EMC Directive
EN 55011 Limits and methods of measurement
EN 55013
EN 55014 Limits and methods of measurement
EN 55015 Limits and methods of measurement
EN 55020
77
7 EN 55022 Limits and methods of measurement
77
DIN VDE 0855
part 10
part 12
77
7 CE marking
77
EN 60065
EN 60335
of radio disturbance characteristics of
industrial,scientific and medical (ISM
high frequency equipment
Limits and methods of measurement
of radio disturbance characteristics of
broadcast receivers and associated
equipment
of radio disturbance characteristics of
household electrical appliances,
portable tools and similar electrical
apparatus
of radio disturbance characteristics of
fluorescent lamps and luminaries
Immunity from radio interference of
broadcast receivers and associated
equipment
of radio disturbance characteristics of
information technology equipment
Cabled distribution systems; Equipment
for receiving and/or distribution from
sound and television signals
The manufacturer also declares the conformity of above mentioned product
with the actual required safety standards in accordance with LVD 73/23 EEC
Safety requirements for mains operated
electronic and related apparatus for
household and similar general use
Safety of household and similar
electrical appliances
(Stamp)
Declaration of Conformity
We, Manufacturer/Importer
(full address)
G.B.T. Technology Träding GMbH
declare that the product
Mother Board
GA-8IGX
is in conformity with
EN 61000-3-2*
77
7 EN 60555-2
77
EN 61000-3-3* Disturbances in supply systems cause
77
7 EN 60555-3
77
77
7 EN 50081-1
77
77
7 EN 50082-1
77
EN 55081-2
EN 55082-2
ENV 55104
EN50091-2
(EC conformity marking)
EN 60950
EN 50091-1
Manufacturer/Importer
Date : March 29, 2002
Disturbances in supply systems cause
by household appliances and similar
electrical equipment “Harmonics”
by household appliances and similar
electrical equipment “Voltage fluctuations”
Generic emission standard Part 1:
Residual commercial and light industry
Generic immunity standard Part 1:
Residual commercial and light industry
Generic emission standard Part 2:
Industrial environment
Generic emission standard Part 2:
Industrial environment
lmmunity requirements for household
appliances tools and similar apparatus
EMC requirements for uninterruptible
power systems (UPS)
Signature:
Name:
Timmy Huang
Timmy Huang
GA-8IGX
P4 Titan 533 Motherboard
USER’S MANUAL
Pentium®4 Processor Motherboard
Rev. 1101
12ME-8IGX-1101
GA-8IGX Motherboard
Table of Content
Item Checklist .........................................................................................4
WARNING! ...............................................................................................4
Chapter 1 Introduction .............................................................................5
Features Summary ...................................................................................... 5
GA-8IGX Motherboard Layout ..................................................................... 7
Chapter 2 Hardware Installation Process ................................................ 8
Step 1: Install the Central Processing Unit (CPU)....................................... 9
CPU Installation ................................................................................................................. 9
CPU Heat Sink Installation .............................................................................................. 10

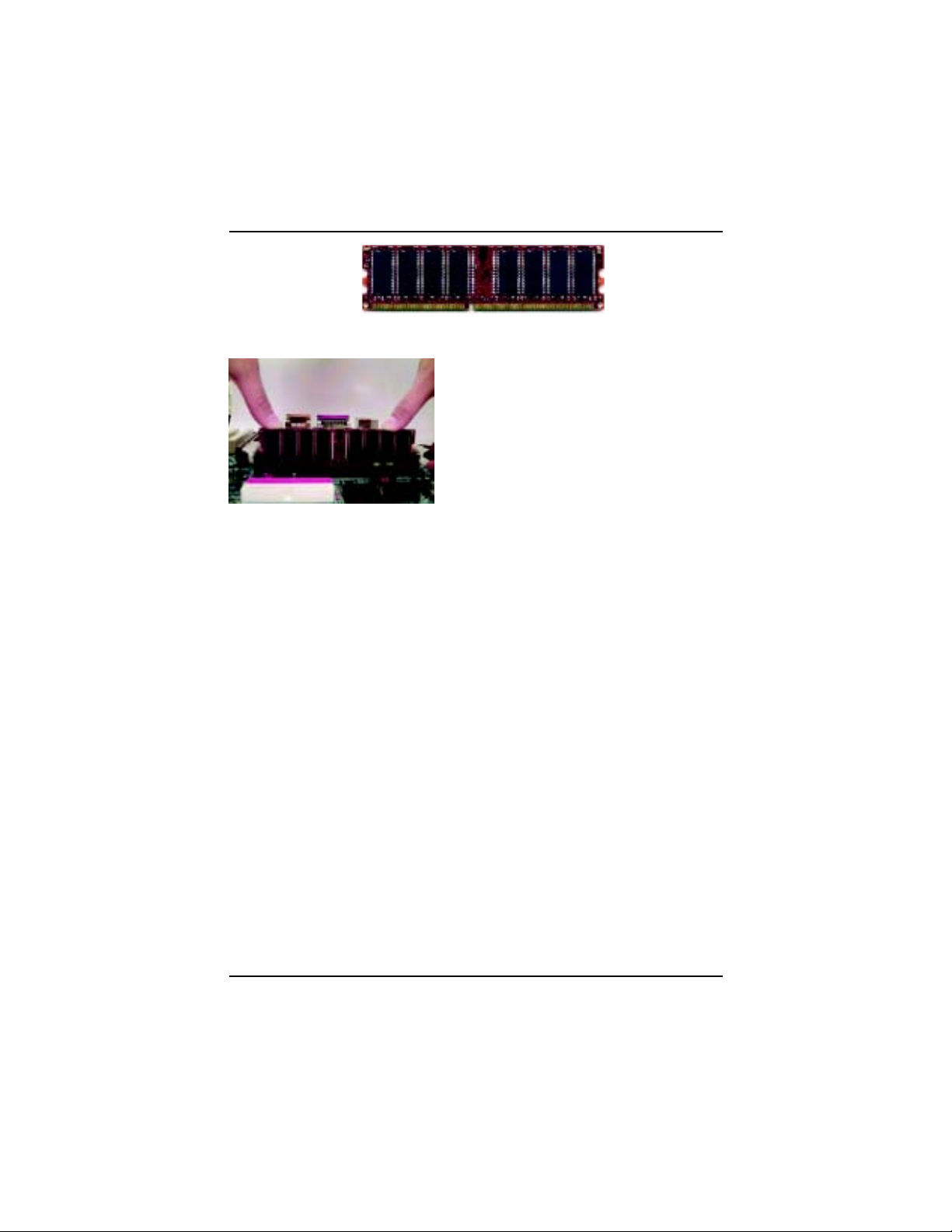

Step 2: Install memory modules ................................................................ 11
Step 3: Install expansion cards ................................................................. 13
Step 4: Connect ribbon cables, cabinet wires, and power supply ........... 14

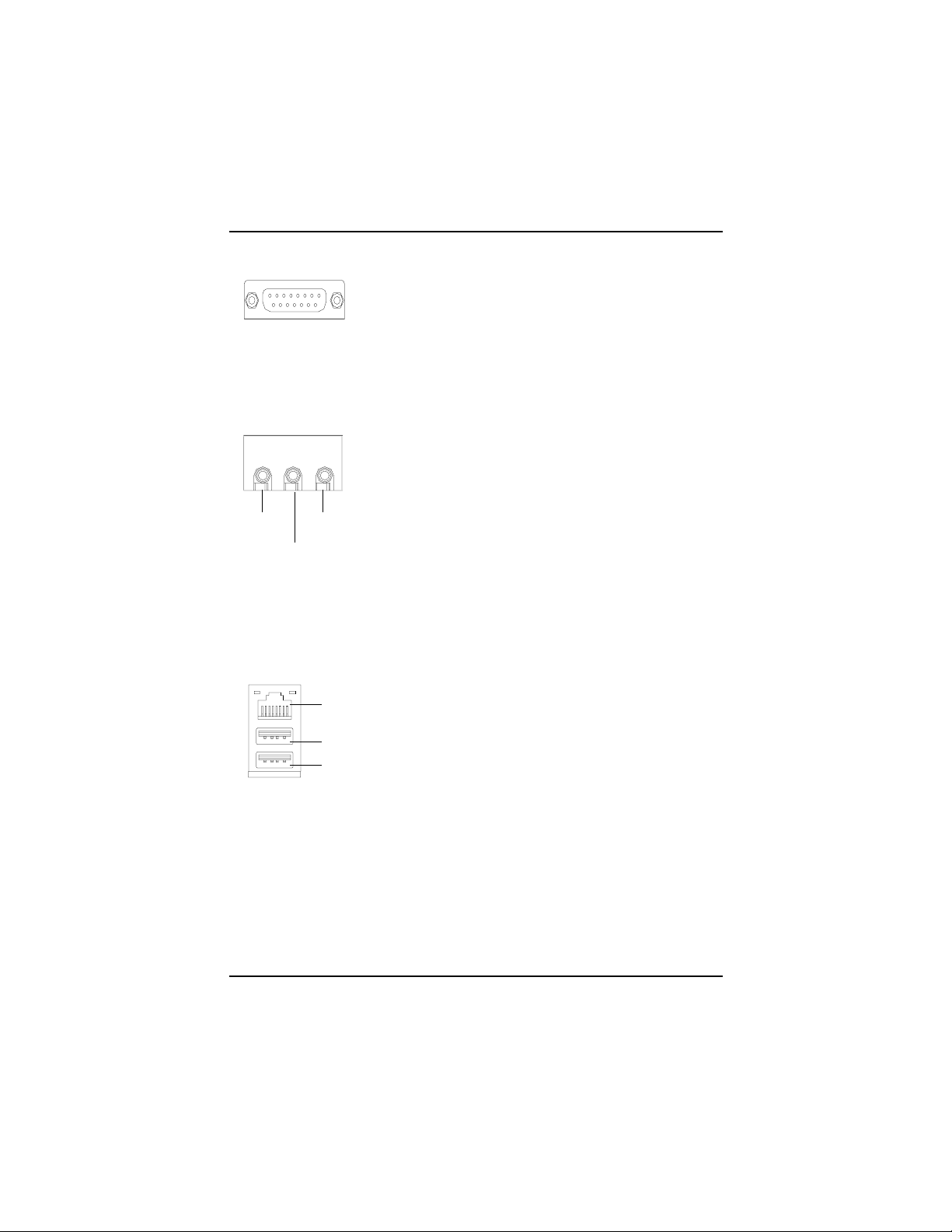

Step4-1: I/O Back Panel Introduction ............................................................................. 14

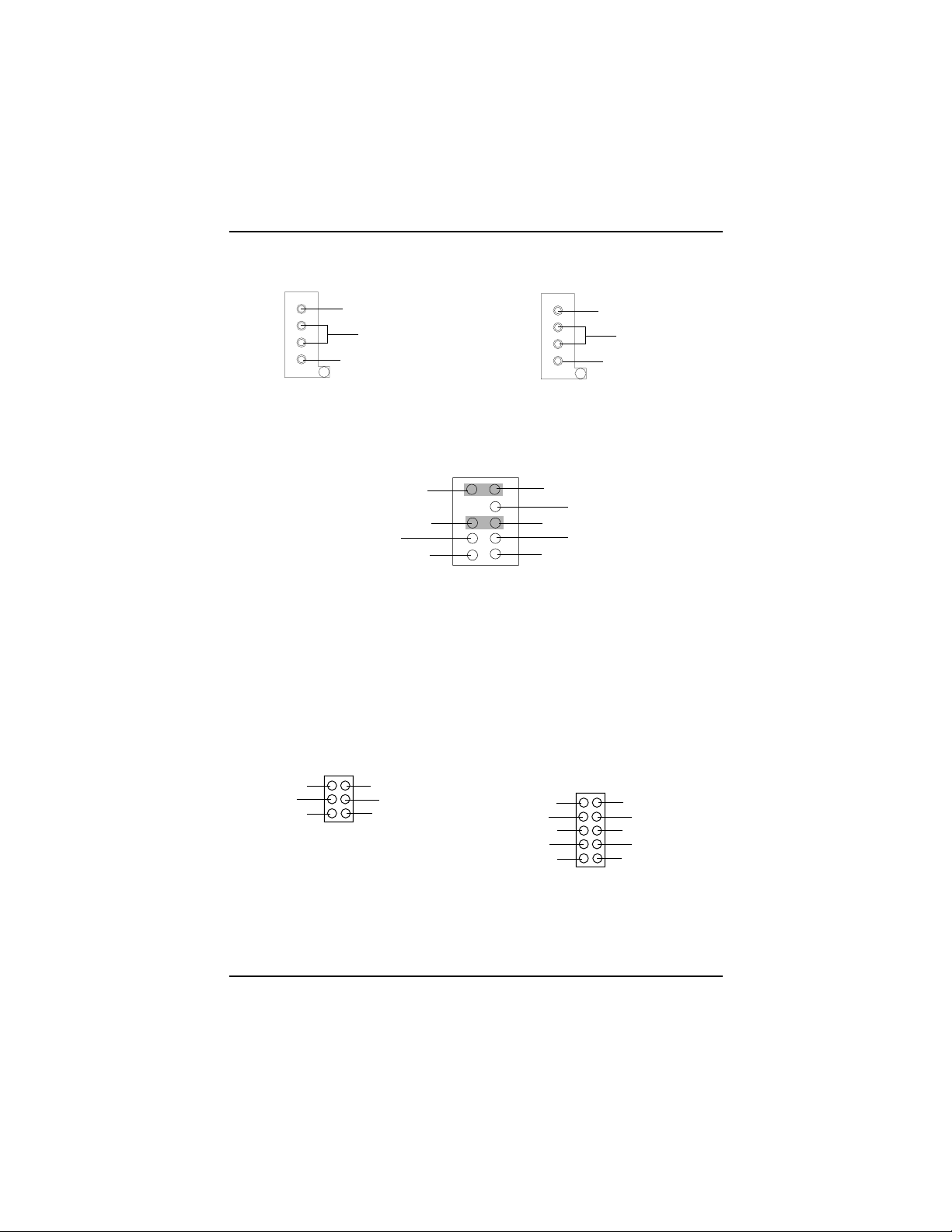

Step4-2: Connectors Introduction ................................................................................... 16
Step4-3: Jumper Introduction .......................................................................................... 23
Chapter 3 BIOS Setup .......................................................................... 24
The Main Menu (For example: BIOS Ver. : F1) ........................................ 25
Standard CMOS Features......................................................................... 27
Advanced BIOS Features .......................................................................... 30
Integrated Peripherals .............................................................................. 32
2
Table of Content
Power Management Setup ....................................................................... 37
PnP/PCI Configurations ............................................................................. 39
PC Health Status........................................................................................ 40
Frequency/Voltage Control ........................................................................ 42
Top Performance ...................................................................................... 45
Select Language ....................................................................................... 46
Load Fail-Safe Defaults ............................................................................. 47
Load Optimized Defaults ........................................................................... 48
Set Supervisor/User Password .................................................................. 49
Save & Exit Setup ....................................................................................... 50
Exit Without Saving ................................................................................... 51
Chapter 4 Technical Reference ............................................................ 52
Block Diagram ........................................................................................... 52
Dual BIOS/Q-Flash Introduction ............................................................... 53
@ BIOS Introduction .................................................................................. 61
Easy Tune
TM
4 Introduction ....................................................................... 62
Chapter 5 Appendix.............................................................................. 63
3
GA-8IGX Motherboard
Item Checklist
The GA-8IGX motherboard Quick PC Installation Guide
IDE cable x 1/ Floppy cable x 1 USB Cable x 1
CD for motherboard driver & utility
I/O Shield
GA-8IGX user’s manual
WARNING!
Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow some precautions whenever you
work on your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do not have
one, touch both of your hands to a safely grounded object or to a metal object, such as
the power supply case.
3. Hold components by the edges and try not touch the IC chips, leads or connectors, or
other components.
4. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX
power connector on the motherboard.
Installing the motherboard to the chassis…
If the motherboard has mounting holes, but they don’t line up with the holes on the base and there are
no slots to attach the spacers, do not become alarmed you can still attach the spacers to the mounting
holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so be careful
of your hands). In this way you can still attach the motherboard to the base without worrying about short
circuits. Sometimes you may need to use the plastic springs to isolate the screw from the motherboard
PCB surface, because the circuit wire may be near by the hole. Be careful, don’t let the screw contact
any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may damage the
board or cause board malfunctioning.
4
Introduction
Chapter 1 Introduction
Features Summary
Form Factor y 30.5cm x 24.4cm ATX size form factor, 4 layers PCB.
CPU y Socket 478 for Intel
y Support Intel
y Intel Pentium
y 2nd cache depends on CPU
Chipset y Chipset Intel 82845G HOST/AGP/Controller
y ICH4 I/O Controller Hub
Memory y 3 184-pin DDR DIMM sockets
y Supports PC2100 DDR or PC1600 DDR DIMM
y Supports up to 2GB DRAM (Max)
y Supports only 2.5V DDR DIMM
I/O Control y ITE8712F
Slots y 1 AGP slot 4X (1.5V) device support
y 6 PCI slot supports 33MHz & PCI 2.2 compliant
On-Board IDE y 2 IDE bus master (DMA33/ATA66/ATA100) IDE ports for up to 4
ATAPI devices
y Supports PIO mode3,4 (UDMA 33/ATA66/ATA100) IDE & ATAPI
CD-ROM
On-Board Peripherals y 1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M
and 2.88M bytes.
y 1 Parallel port supports Normal/EPP/ECP mode
y 1 Serial ports (COMA), 1 VGA port , COMB on Board
y 6 x USB 2.0/1.1 (2 x Rear,4 xFront by cable )
y 1 IrDA connector for IR/CIR
y 1 Front Audio connector
Hardware Monitor y CPU/Power/System Fan Revolution detect
y CPU Overheat Warning
y System Voltage Detect
®
Micro FC-PGA2 Pentium® 4 processor
®
Pentium® 4 (Northwood, 0.13 m) processor
®
4 400/533MHz FSB
to be continued......
5
GA-8IGX Motherboard
On-Board VGA y Build in Intel 82845G Chipset
On-Board USB 2.0 y Build in ICH4 Chipset
On-Board SC y ITE8712F SMART @I/O Chipset (SC header)
On-Board Sound y Realtek ALC650 CODEC
y Line Out : 2 front speaker
y Line In : 2 rear speaker(by s/w switch)
y Mic In : center& woofer(by s/w switch)
y SPDIF out : by s/w switch
On-Board LAN y Build in Kinnereth Chipset
PS/2 Connector y PS/2 Keyboard interface and PS/2 Mouse interface
BIOS y Licensed AWARD BIOS, 4M bit FWH
y Supports Dual BIOS
y Supports Multi Language
y Supports Q-Flash
y Supports Face-Wizard
Additional Features y External Modem wake up
y PS/2 Keyboard password power on
y PS/2 Mouse power on
y STR(Suspend-To-RAM)
y AC Recovery
y USB KB/Mouse wake up from S3
y Poly fuse for keyboard,USB,game port over-current protection
y Supports @BIOS
y Supports EasyTune 4
Jumper less y Over Voltage (DDR/AGP/CPU) by BIOS
Overclocking y Over Clock (CPU/DDR/AGP) by BIOS
Please set the CPU host frequency in accordance with your processor’s specifications.
We don’t recommend you to set the system bus frequency over the CPU’s specification
because these specific bus frequencies are not the standard specifications for CPU,
chipset and most of the peripherals. Whether your system can run under these specific
bus frequencies properly will depend on your hardware configurations, including CPU,
Chipsets,SDRAM,Cards….etc.
6

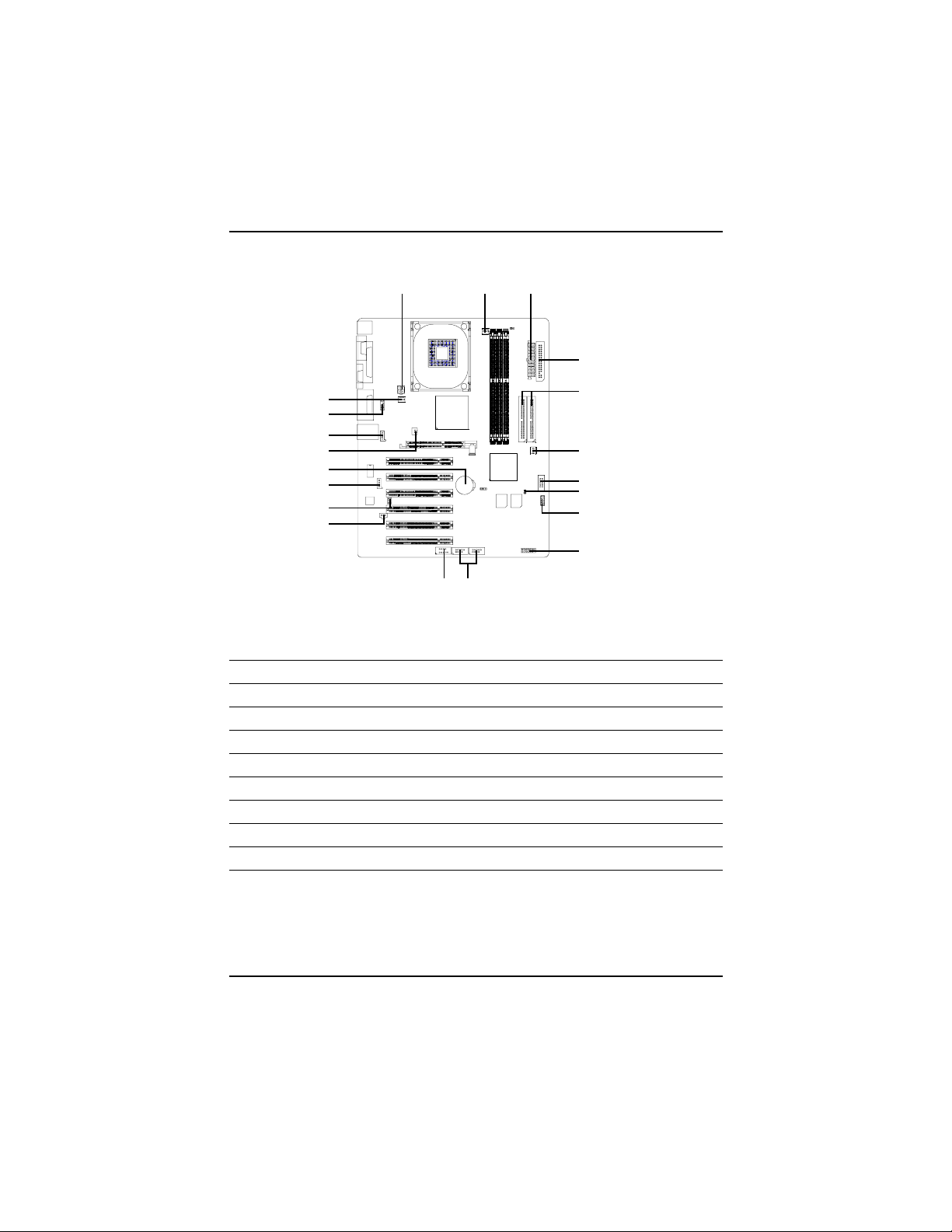

GA-8IGX Motherboard Layout
Introduction
KB_MS
COMA
VGA
LINE_OUT
LINE_IN
MIC_IN
USB_LAN
Kinnereth
AUX_IN
CODEC
LPT
GAME
AUX_12V
F_AUDIO_I
NB_FAN
CD_IN
P4 Titan 533
SUR_CEN
PWR_FAN
SOCKET478
82845G
PCI1
PCI2
PCI3
PCI4
BAT1
AGP
DDR1
CPU_FAN
GA-8IGX
C_CMOS
Main
BIOS
DDR2
ICH4
DDR3
DIMM_LED
Backup
BIOS
IDE2
SYS _FAN
ATX
FDD
IDE1
SC
CI
IR_CIR
SPDIF
COMB
PCI5
PCI6
7
F_USB1
F_USB2
F_PANEL
GA-8IGX Motherboard
Chapter 2 Hardware Installation Process
To set up your computer, you must complete the following steps:
Step 1- Install the Central Processing Unit (CPU)
Step 2- Install memory modules
Step 3- Install expansion cards
Step 4- Connect ribbon cables, cabinet wires, and power supply
Step 5- Setup BIOS software
Step 6- Install supporting software tools
Step 4
Step 3
Step 4
Step 1
8
Step 2
Step 4
Hardware Installation Process
Step 1: Install the Central Processing Unit (CPU)
CPU Installation
Pin1 indicator
CPU Top View CPU Bottom View
Socket Actuation Lever
1. Pull up the CPU socket lever
and up to 90-degree angle.
3. Press down the CPU socket
lever and finish CPU installation.
Please make sure the CPU type is supported by the motherboard.
If you do not match the CPU socket Pin 1 and CPU cut edge well, it will cause
improper installation. Please change the insert orientation.
Pin1 indicator
Pin1 indicator
2. Locate Pin 1 in the socket and look
for a (golden) cut edge on the CPU
upper corner. Then insert the CPU
into the socket.
9
GA-8IGX Motherboard
CPU Heat Sink Installation
1. Hook one end of the cooler
bracket to the CPU socket first.
Please use Intel approved cooling fan.
We recommend you to apply the thermal tape to provide better heat
2. Hook the other end of the
cooler bracket to the CPU
socket.
conduction between your CPU and heatsink.
(The CPU cooling fan might stick to the CPU due to the hardening of the
thermal paste. During this condition if you try to remove the cooling fan, you
might pull the processor out of the CPU socket alone with the cooling fan, and
might damage the processor. To avoid this from happening, we suggest you to
either use thermal tape instead of thermal paste, or remove the cooling fan with
extreme caution.)
Make sure the CPU fan power cable is plugged in to the CPU fan connector,
this completes the installation.
Please refer to CPU heat sink user’s manual for more detail installation
procedure.
10
Hardware Installation Process
Step 2: Install memory modules
The motherboard has 3 dual inline memory module (DIMM) sockets, but it can only support a maximum
of 4 banks of DDR memory. DDR slot 1 uses 2 banks, DDR slot 2&3 share the remaining 2 banks.
Please refer to the following tables for possible memory configurations supported. The BIOS will
automatically detects memory type and size. To install the memory module, just push it vertically into the
DIMM Slot .The DIMM module can only fit in one direction due to the notch. Memory size can vary
between sockets.
Total Memory Sizes With Unbuffered DDR DIMM
Devices used on DIMM 1 DIMM x 64 / x 72 2 DIMMs x 64 / x 72 3 DIMMs x 64 / x 72
64 Mbit (2Mx8x4 banks) 128 MBytes 256 MBytes 256 MBytes
64 Mbit (1Mx16x4 banks) 32 MBytes 64 MBytes 96 MBytes
128 Mbit(4Mx8x4 banks) 256 MBytes 512 MBytes 512 MBytes
128 Mbit(2Mx16x4 banks) 64 MBytes 128 MBytes 196 MBytes
256 Mbit(8Mx8x4 banks) 512 MBytes 1 GBytes 1 GBytes
256 Mbit(4Mx16x4 banks) 128 MBytes 256 MBytes 384 MBytes
512 Mbit(16Mx8x4 banks) 1 GBytes 2 GBytes 2 GBytes
512 Mbit(8Mx16x4 banks) 256 MBytes 512 MBytes 768 MBytes
Notes: Double-sided x16 DDR memory devices are not support by Intel 845E/G chipset.
DDR1 DDR2 DDR3
SS S
DS S
DD X
DX D
SD X
SX D
D:Double Sided DIMM S:Single Sided DIMM
X:Not Use
11
GA-8IGX Motherboard
DDR
1. The DIMM slot has a notch, so the
DIMMmemory module can only fit in one direction.
2. Insert the DIMM memory module verticallyinto the
DIMM slot. Then push it down.
3. Close the plastic clip at both edges of theDIMM slots
to lock the DIMM module.
Reverse the installation steps when you wish to
remove the DIMM module.
DDR Introduction
Established on the existing SDRAM industry infrastructure, DDR (Double Data Rate) memory is a
high performance and cost-effective solution that allows easy adoption for memory vendors, OEMs and
system integrators.
DDR memory is a sensible evolutionary solution for the PC industry that builds on the existing
SDRAM infrastructure, yet makes awesome advances in solving the system performance bottleneck by
doubling the memory bandwidth. DDR SDRAM will offer a superior solution and migration path from
existing SDRAM designs due to its availability, pricing and overall market support. PC2100 DDR
memory (DDR266) doubles the data rate through reading and writing at both the rising and falling edge of
the clock, achieving data bandwidth 2X greater than PC133 when running with the same DRAM clock
frequency. With peak bandwidth of 2.1GB per second, DDR memory enables system OEMs to build
high performance and low latency DRAM subsystems that are suitable for servers, workstations, highend PC's and value desktop SMA systems. With a core voltage of only 2.5 Volts compared to
conventional SDRAM's 3.3 volts, DDR memory is a compelling solution for small form factor desktops
and notebook applications.
When STR/DIMM LED is ON, you do not install / remove DDR from socket.
Please note that the DIMM module can only fit in one direction due to
the two notches. Wrong orientation will cause improper installation.
Please change the insert orientation.
12
Hardware Installation Process
Step 3: Install expansion cards
1. Read the related expansion card’s instruction document before install the expansion card into
the computer.
2. Remove your computer’s chassis cover, screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer’s chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system.
Please carefully pull out the small whitedrawable bar at the end of the AGP slot when
you try to install/ Uninstall the AGP card.
Please align the AGP card to the onboard
AGP Card
AGP slot and press firmly down on the slot .
Make sure your AGP card is locked by the
small white- drawable bar.
13
GA-8IGX Motherboard
Step 4: Connect ribbon cables, cabinet wires, and power
supply
Step4-1: I/O Back Panel Introduction
X
XX
X PS/2 Keyboard and PS/2 Mouse Connector
XX
YY
Y Parallel Port and VGA Port/COMA Port
YY
Y
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
Parallel Port
(25 pin Female)
This connector supports standard PS/2
keyboard and PS/2 mouse.
This mainboard sutports 1 standard COM port,
1 VGA port and 1 LPT port. Device like printer
can be connected to LPT port ; mouse and
modem etc can be connected to COM port.
Z
[
\
COMA
Serial Ports
(9 pin Male)
VGA
VGA Port
(15 pin Female)
14
ZZ
Z Game /MIDI Ports
ZZ
Joystick/ MIDI (15 pin Female)
[[
[ Audio Connectors
[[
Hardware Installation Process
This connector supports joystick, MIDI keyboard and other
relate audio devices.
After install onboard audio driver, you may connect
speaker to Line Out jack, micro phone to MIC In jack.
Device like CD-ROM , walkman etc can be connected
to Line-In jack.
Line Out
\\
\ USB/LAN Connector
\\
MIC In
Line In
LAN
USB 0
USB 1
Before you connect your device(s) into USB connector(s),
please make sure your device(s) such as USB keyboard,
mouse, scanner, zip,speaker..etc. Have a standard USB
interface. Also make sure your OS (Win 95 with USB
supplement, Win98, Windows 2000, Windows ME, Win
NT with SP 6) supports USB controller. If your OS does not
support USB controller, please contact OS vendor for pos-
sible patch or driver upgrade. For more information please
contact your OS or device(s) vendors.
15
GA-8IGX Motherboard
Step4-2: Connectors Introduction
A B
T
S
R
Q
P
O
N
M
L
K
C
D
E
F
G
H
I
J
A) AUX_12V K) F_USB1/F_USB2
B) CPU_FAN L) COMB
C) ATX M) SPDIF
D) FDD N) SUR_CEN
E) IDE1/IDE2 O) AUX_IN
F) SYS_FAN P) BAT1
G) SC Q) NB_FAN
H) CI R) CD_IN
I) IR_CIR S) F_AUDIO_I
J) F_PANEL T) PWR_FAN
16

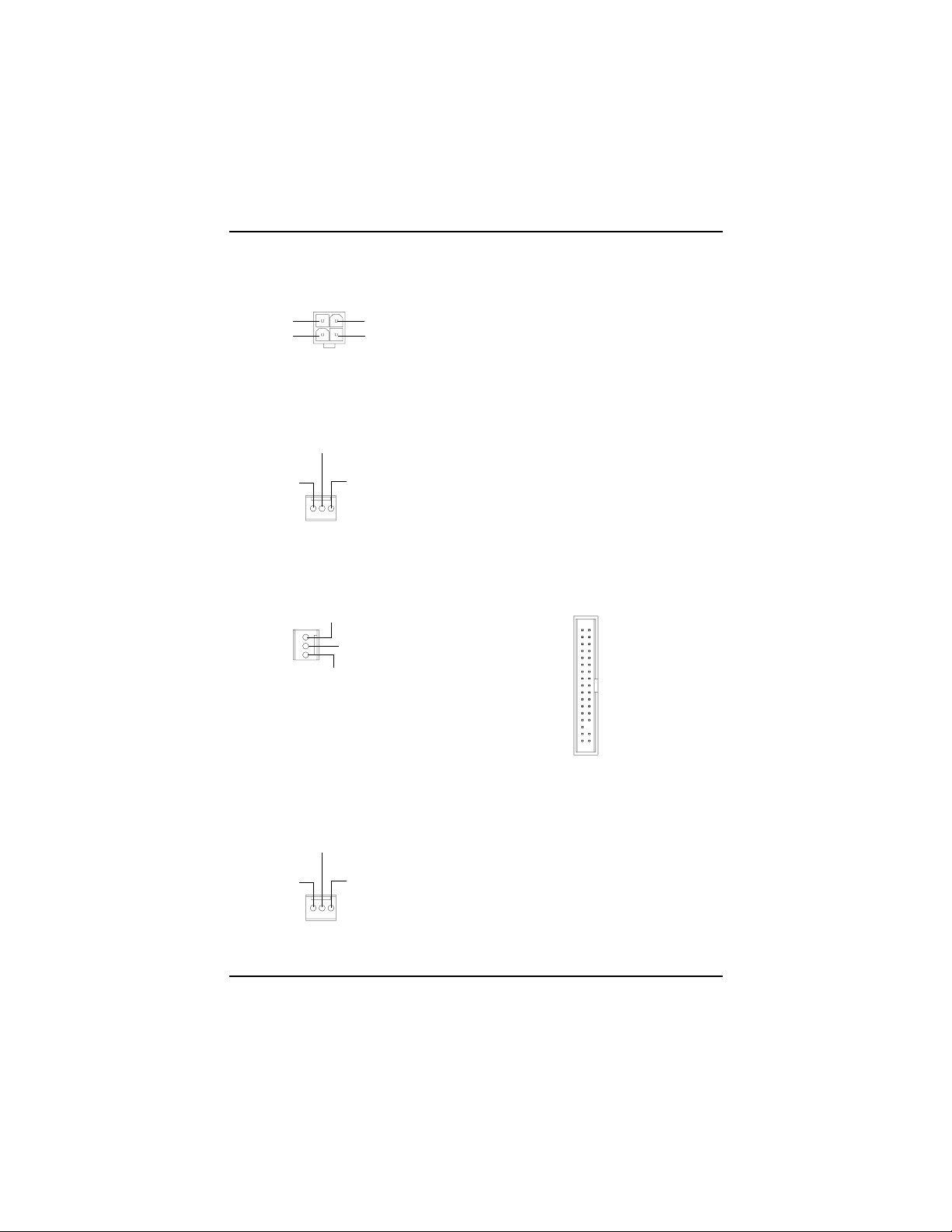

A) AUX_12V ( +12V Power Connector)
GND
+12V
12
GND
+12V
4
3
B) CPU_FAN (CPU FAN Connector)
Hardware Installation Process
This connector (ATX +12V) suppliesthe CPU
operation voltage (Vcore).
If this " ATX+ 12V connector" is not connected,
system cannot boot.
+12V/Control
Sense
GND
1
F) SYS_FAN (System FAN Connector)
Sense
1
+12V/Control
GND
T) PWR_FAN (POWER FAN Connector)
+12V/Control
Sense
GND
Please note, a proper installation of the CPU
cooler is essential to prevent the CPU from
running under abnormal condition or damaged
by overheating.The CPU fan connector
supports Max. current up to 600 mA.
D ) FDD (Floppy Connector)
1
1
17
GA-8IGX Motherboard

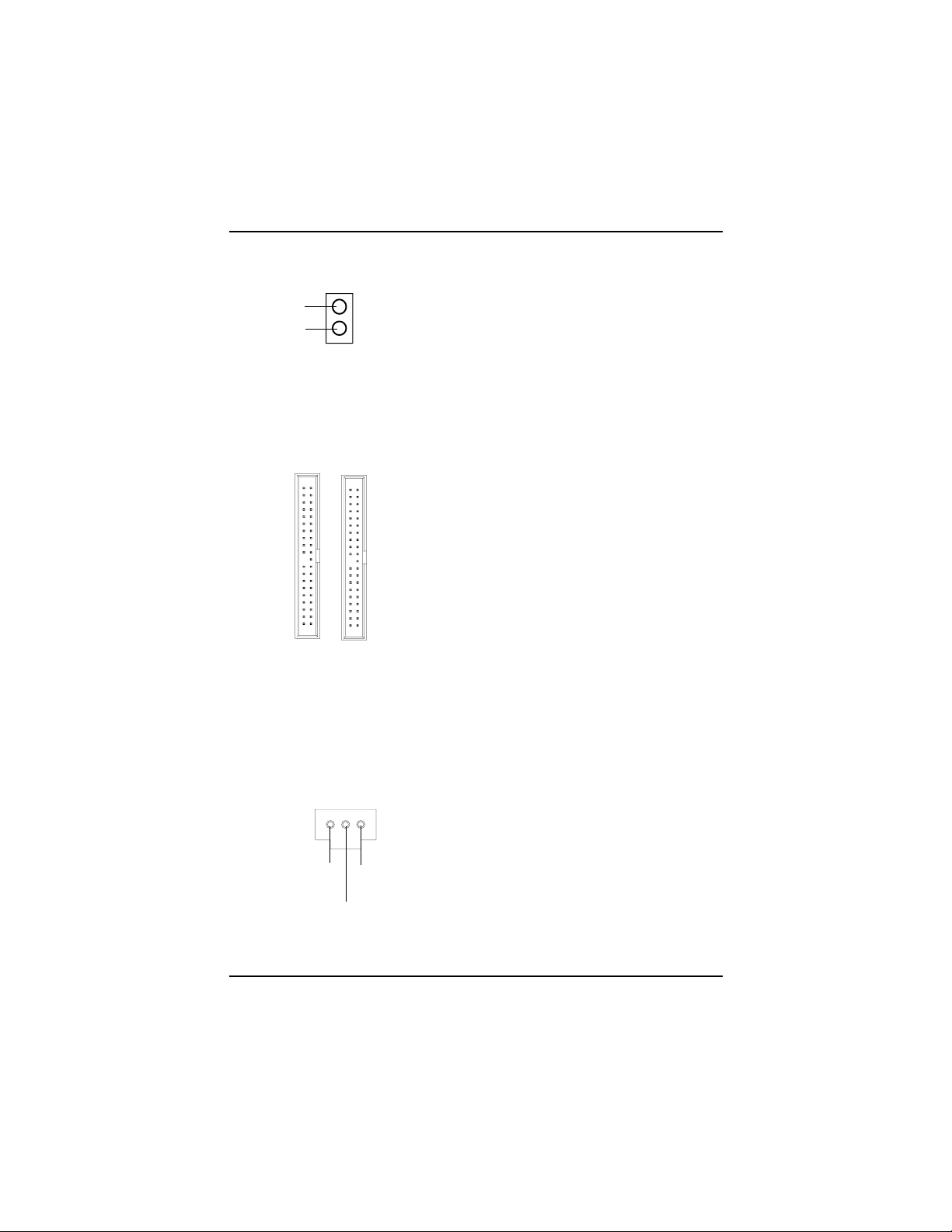

H) CI (CASE OPEN)
This 2 pin connector allows your system to
GND
Signal
1
enable or disable the system alarm if the sys
tem case begin remove.
E) IDE1/IDE2 [IDE1 / IDE2 Connector(Primary/Secondary)]
Important Notice:
Please connect first harddisk to IDE1
and connect CDROM to IDE2.
1
IDE2
M) SPDIF (SPDIF)
1
VCC
SPDIF OUT
IDE1
GND
1
The SPDIF output is capable of providing digital
audio to external speakers or compressed AC3
data to an external Dolby Digital Decoder. Use
this feature only when your stereo system has
digital output function.
18
Hardware Installation Process

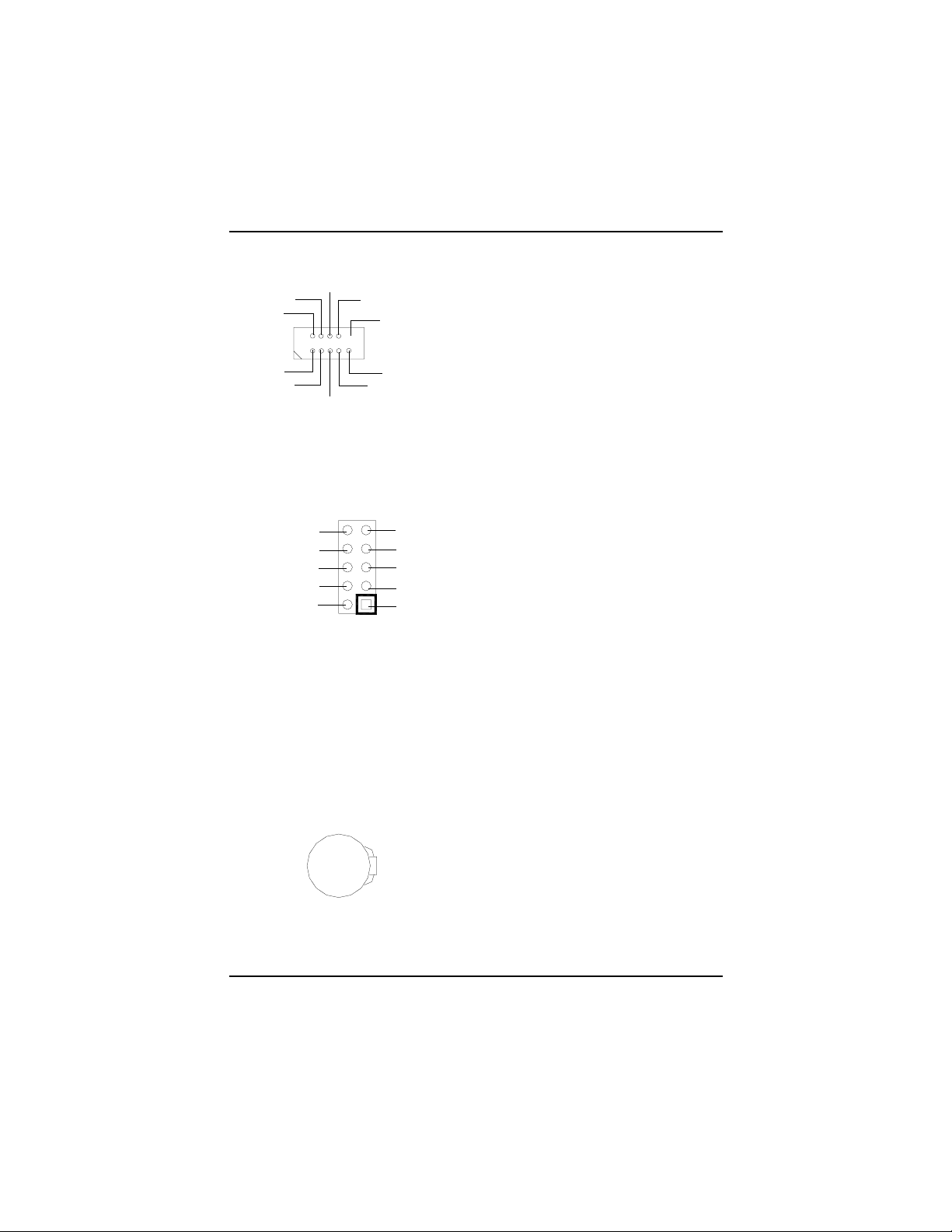

R) CD_IN (CD Audio Line In)
CD-R
GND
1
CD-L
O) AUX_IN (AUX In Connector)
AUX-R
GND
1
AUX-L
S) F_AUDIO_I (Front Audio)
10
9
Rear Audio (L)
Rear Audio (R)
POWER
GND
2
1
If you want to use "Front Audio" connector, you must move 5-6, 9-10 Jumper. In order to utilize the
front audio header, your chassis must have front audio connector. Also please make sure the pin
assigment on the cable is the same as the pin assigment on the MB header. To find out if the chassis
you are buying support front audio connector, please contact your dealer.
Front Audio (L)
Reserved
Front Audio (R)
REF
MIC
N) SUR_CEN
LEF_OUT
GND
SUR OUTR
CENTER_OUT
GND
SUR OUTL
1
G) SC(Smart Card Interface)
10
SCACLK
SCAC4
1
19
SCAPSNT
SCAC8
SCALED
SCARST-
GND
SCAIO
SCAPWCTL-
VCC
GA-8IGX Motherboard
C) ATX (ATX Power)
1
3.3V
GND
PS-ON(Soft On/Off)
AC power cord should only be connected to your power supply unit after ATX power cable and other
related devices are firmly connected to the mainboard.
-12V
GND
GND
GND
-5V
VCC
VCC
20
3.3V
VCC
VCC
Power Good
+12V
3.3V
GND
GND
GND
5V SB (Stand by +5V)
K) F_USB1/F_USB2 (Front USB Connector)
(F_USB1 & F_USB2 connectors in yellow are for USB 2.0)
USB Dy+
USB Dy-
Power
GND
USB Over Current
1
Power
USB Dx-
USB Dx+
GND
Be careful with the polarity of the front
panel USB connector. Check the pin
assignment while you connect the front panel
USB cable. Please contact your nearest dealer
for optional front panel USB cable.
20

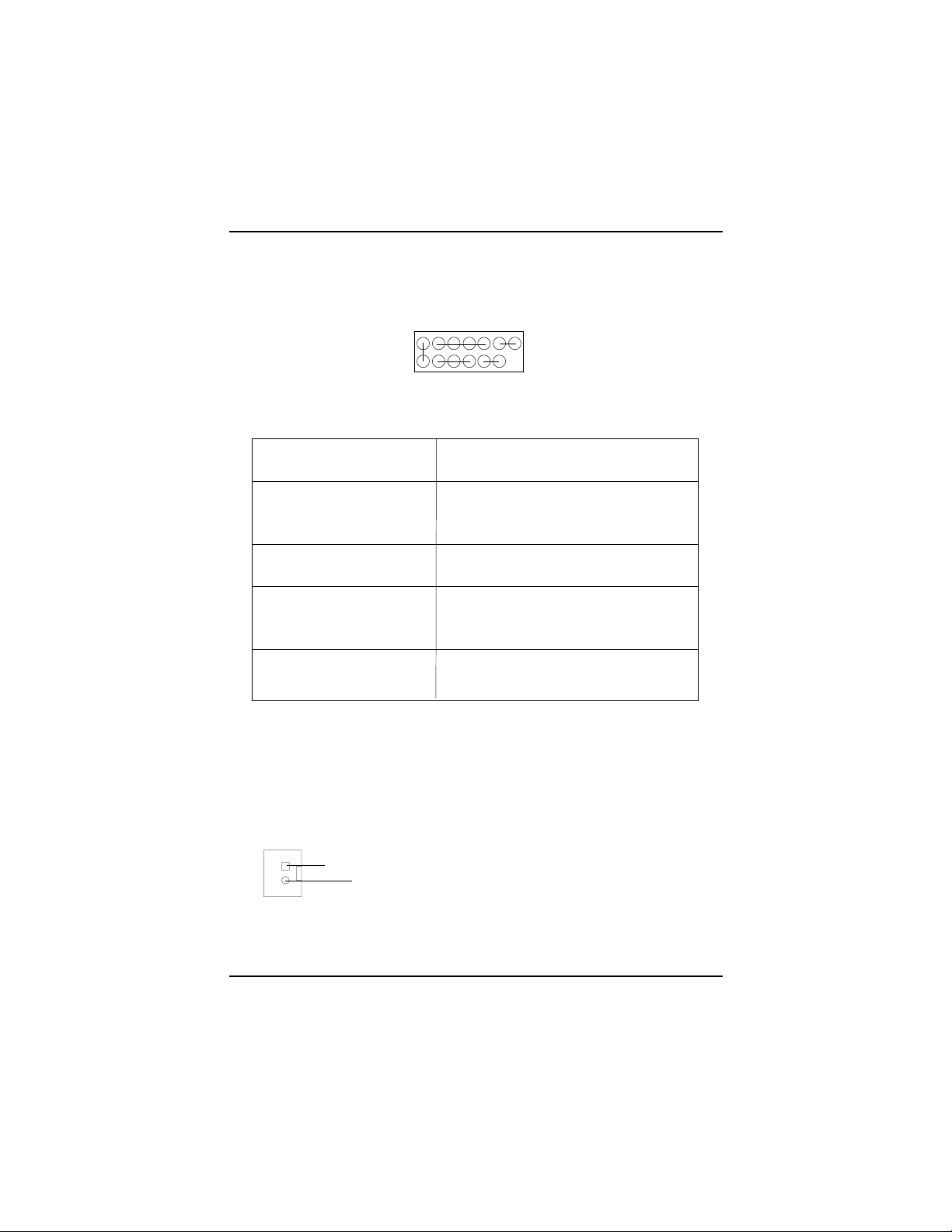

L) COMB (COM B Connector)(White)
Hardware Installation Process
NDTRB-
NSINB
NDCDB-
NSOUTB
NDSRB-
1
GND
I) IR_CIR (IR/CIR)
NC
GND
VCC
CIRRX
NC
NCTSB-
NC
NRIB-
NRTSB-
1
IRTX
GND
IRRX
NC
VCC
Make sure the pin 1 on the IR device is
aling with pin one the connector. To
enable the IR/CIR function on the board,
you are required to purchase an option IR/
CIR module. For detail information please
contact your autherized Giga-Byte
distributor.
To use IR function only, please connect IR
module to Pin1 to Pin5.
P) BAT1 (Battery)
CAUTION
Danger of explosion if battery is incorrectly
replaced.
+
Replace only with the same or equivalent
type recommended by the manufacturer.
Dispose of used batteries according to the
manufacturer’s instructions.
21
GA-8IGX Motherboard
J) F_PANEL (2x7 pins jumper)
SPK-
HD-
2
1
1
HD+
HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)
SPK (Speaker Connector) Pin 1: VCC(+)
RST (Reset Switch) Open: Normal Operation
PD+/PD_G-/PD_Y-(Power LED) Pin 1: LED anode(+)
PW (Soft Power Connector) Open: Normal Operation
SPK+
1
PW-
PD+
PD_Y-
PD_G-
Pin 2: LED cathode(-)
Pin 2- Pin 3: NC
Pin 4: Data(-)
Close: Reset Hardware System
Pin 2: LED cathode(-)
Pin 3: LED cathode(-)
Close: Power On/Off
RST-
RST+
PW+
14
13
Please connect the power LED, PC speaker, reset switch and power switch etc of your chassis front
panel to the F_PANEL connector according to the pin assignment above.
Q) NB_FAN (Chip Fan)
1
+12V
GND
Please note:
If installed wrong direction, the Chip Fan will not
work. Sometimes will damage the Chip Fan.
(Usually black cable is GND)
22
Step4-3: Jumper Introduction
1) C_CMOS
Hardware Installation Process
1
1) C_CMOS (Clear CMOS Function)#
1
1
Please note: You may clear the CMOS data to its default values by this jumper.
1-2 close: Clear CMOS
2-3 close: Normal
"#" Default doesn’t include the “Shunter” to prevent from improper use this
jumper. To clear CMOS, temporarily short 1-2 pin.
23
GA-8IGX Motherboard
Chapter 3 BIOS Setup
BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the
basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it
retains the Setup information when the power is turned off.
ENTERING
Powering ON the computer and pressing <Del> immediately will allow you to enter Setup. If you require
more advanced BIOS settings, please go to “Advanced BIOS” setting menu.To enter Advanced BIOS
setting menu, press “Ctrl+F1” key on the BIOS screen.
CONTROL
<Ç> Move to previous item
<È> Move to next item
<Å> Move to the item in the left hand
<Æ> Move to the item in the right hand
<Esc> Main Menu - Quit and not save changes into CMOS Status Page Setup Menu and
<+/PgUp> Increase the numeric value or make changes
<-/PgDn> Decrease the numeric value or make changes
<F1> General help, only for Status Page Setup Menu and Option Page Setup Menu
<F2> Reserved
<F3> Reserved
<F4> Reserved
<F5> Restore the previous CMOS value from CMOS, only for Option Page Setup Menu
<F6> Load the file-safe default CMOS value from BIOS default table
<F7> Load the Optimized Defaults
<F8> Dual BIOS/Q-Flash function
<F9> Reserved
<F10> Save all the CMOS changes, only for Main Menu
SETUP
KEYS
Option Page Setup Menu - Exit current page and return to Main Menu
24
BIOS Setup
GETTING HELP
Main Menu
The on-line description of the highlighted setup function is displayed at the bottom of the screen.
Status Page Setup Menu / Option Page Setup Menu
Press F1 to pop up a small help window that describes the appropriate keys to use and the possible
selections for the highlighted item. To exit the Help Window press <Esc>.
The Main Menu (For example: BIOS Ver. : F1)
Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figure 1) will appear on the screen.
The Main Menu allows you to select from eight setup functions and two exit choices. Use arrow keys to
select among the items and press <Enter> to accept or enter the sub-menu.
CMOS Setup Utility-Copyright (C) 1984-2002 Award Software
Standard CMOS Features Select Language
Advanced BIOS Features Load Fail-Safe Defaults
Integrated Peripherals Load Optimized Defaults
Power Management Setup Set Supervisor Password
PnP/PCI Configurations Set User Password
PC Health Status Save & Exit Setup
Frequency/Voltage Control Exit Without Saving
Top Performance
ESC:Quit F3: Select Language
F8: Dual BIOS/Q-Flash F10:Save & Exit Setup
Time, Date, Hard Disk Type...
Figure 1: Main Menu
zz
z Standard CMOS Features
zz
This setup page includes all the items in standard compatible BIOS.
zz
z Advanced BIOS Features
zz
This setup page includes all the items of Award special enhanced features.
25
Loading...
